面向电池防伪的混合型PUF标签生成技术

贺章擎; 罗思雨; 张军明; 张寅; 万美琳

doi:10.11999/JEIT250967

面向电池防伪的混合型PUF标签生成技术

doi: 10.11999/JEIT250967 cstr: 32379.14.JEIT250967

1.
湖北工业大学电气与电子工程学院武汉 430068
2.
湖北大学物理与电子科学学院武汉 430062

基金项目: 国家自然科学基金(62271194, 62304073)，湖北省自然科学基金联合基金项目(2025AFD029)

详细信息

作者简介:
贺章擎：男，教授，研究方向为集成电路设计与安全

罗思雨：男，硕士生，研究方向为集成电路设计与安全

张军明：男，硕士生，研究方向为集成电路设计与安全

张寅：男，讲师，研究方向为集成电路设计与安全

万美琳：男，教授，研究方向为数模混合集成电路设计

通讯作者:
万美琳　wanml@hubu.edu.cn

中图分类号: TP309.7; TN4
计量
- 文章访问数: 36
- HTML全文浏览量: 17
- PDF下载量: 3
- 被引次数: 0
出版历程
- 修回日期: 2026-01-04
- 录用日期: 2026-01-04
- 网络出版日期: 2026-01-15

Hybrid PUF Tag Generation Technology for Battery Anti-counterfeiting

1.
College of Electrical and Electronic Engineering, Hubei University of Technology, Wuhan 430068, China
2.
College of Physics and Electronics, Hubei University, Wuhan 430062, China

Funds: National Natural Science Foundation of China (Grant No.: 62271194, 62304073), Joint Fund Project of Hubei Provincial Natural Science Foundation (Grant No.: 2025AFD029)

摘要

摘要: 为应对动力电池供应链中的假冒风险并满足对电池全生命周期追溯的需求，本文提出一种面向电池防伪的混合型PUF标签生成技术。该技术利用PCB覆铜区与电池负极极耳构成的独特电容结构，结合分立电阻形成RC延时电路，并将其接入芯片内基于延时的传统仲裁器PUF(A PUF)，从而构建一个集“电池-PCB-芯片”三重物理耦合于一体的混合型PUF电路。该电路将电池、PCB和芯片制造过程中固有的工艺偏差转化为独一无二的电池ID，并集成延时补偿模块与可靠性自筛选模块，显著提升了ID标签的随机性与可靠性。实验结果表明，所生成的标签在随机性(48.85%)、唯一性(49.15%)和可靠性(99.98%)方面均表现优秀。在更换不同电池、PCB或芯片的情况下，数字标签的变化率分别达到14.86%、24.58%和41.66%，有效验证了该方案实现了“电池-PCB-芯片”之间的深度绑定，为电池真伪验证提供了物理层面上的有效保障。
- 电池护照 /
- 防伪标签 /
- 物理不可克隆函数 /
- 延时补偿
Abstract: Objective With the global transition towards a low-carbon economy, power batteries have become crucial energy storage carriers. The traceability and security of their entire life cycle are foundational to industrial governance. In 2023, the Global Battery Alliance (GBA) introduced the "Battery Passport" system, requiring each battery to have a unique, tamper-proof, and verifiable digital identity. However, traditional digital tag solutions—such as QR codes and RFID—rely on pre-written static storage, making them vulnerable to physical cloning, data extraction, and environmental degradation. To address these issues, this paper proposes a battery anti-counterfeiting tag generation technology based on hybrid Physical Unclonable Function (PUF). The technology leverages a triple physical coupling mechanism among the battery, PCB, and IC to generate a unique battery ID, ensuring strong physical binding and anti-counterfeiting capabilities at the system level. Methods The proposed battery anti-counterfeiting tag consists of four core modules: an off-chip RC battery fingerprint extraction circuit, an on-chip Arbiter PUF module, an on-chip delay compensation module, and a reliability enhancement module. The off-chip RC circuit utilizes the physical coupling between the battery negative tab and the PCB's copper-clad area to form a capacitor structure, which introduces inherent manufacturing variations as a entropy source. The on-chip Arbiter PUF converts manufacturing deviations into a unique digital signature. To mitigate systemic biases caused by asymmetrical routing and off-circuit delays, a programmable delay compensation module with coarse and fine-tuning units is integrated. A reliability enhancement module is also embedded to automatically filter out unreliable response bits by monitoring delay deviations, thereby improving the reliability of the generated responses without complex error-correcting codes. Results and Discussions The proposed structure was implemented and tested using an FPGA Spartan-6 chip, a custom PCB, and 100Ah blade batteries. Experimental results demonstrate excellent performance: the randomness of the tag reached 48.85%, and the uniqueness averaged 49.15% under normal conditions (Fig. 11). The stability (RA) was as high as 99.98% at room temperature and normal voltage, and remained above 98% even under extreme conditions (100°C, 1.05V) (Fig. 12). To evaluate anti-desoldering capability, three physical tampering scenarios were tested: battery replacement, PCB replacement, and IC replacement. The average response change rates were 14.86%, 24.58%, and 41.66%, respectively (Fig. 13), confirming the strong physical binding among the battery, PCB, and chip. These results validate that the proposed triple physical coupling mechanism effectively resists counterfeiting and tampering. Conclusions This paper presents a battery anti-counterfeiting tag generation technology based on a triple physical coupling mechanism. By binding the battery tab, PCB, and chip into a unified physical structure and extracting unique fingerprints from manufacturing variations, the proposed method achieves high randomness, uniqueness, and stability. The tag is highly sensitive to physical tampering, providing a reliable foundation for battery authentication throughout its life cycle. Future work will focus on validating the structure with more advanced chip fabrication processes and different PCB manufacturers, as well as further optimizing the design for broader application.
- Battery passport /
- anti-counterfeiting ta /
- Physical Unclonable Function /
- delay compensation

HTML全文

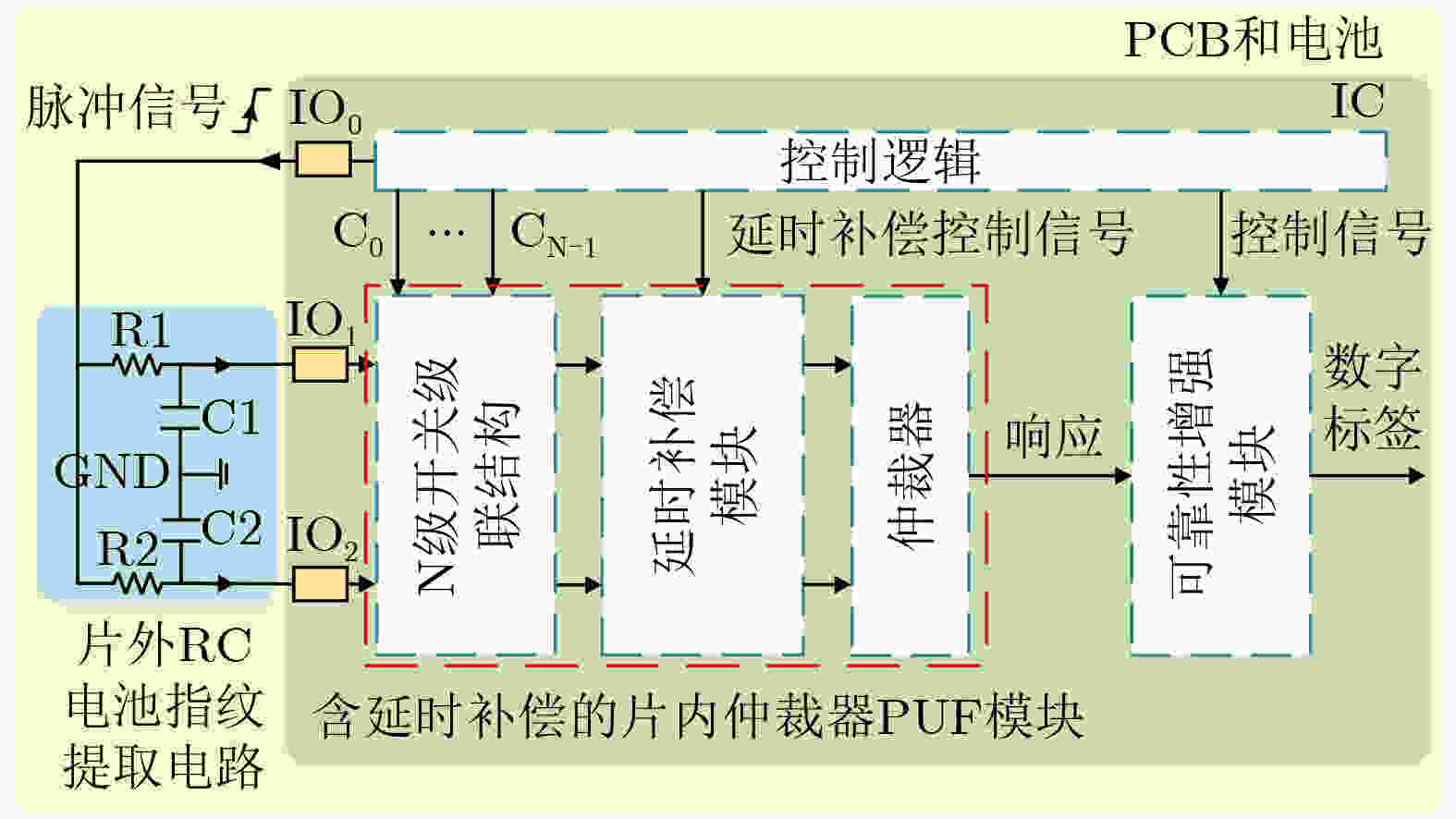

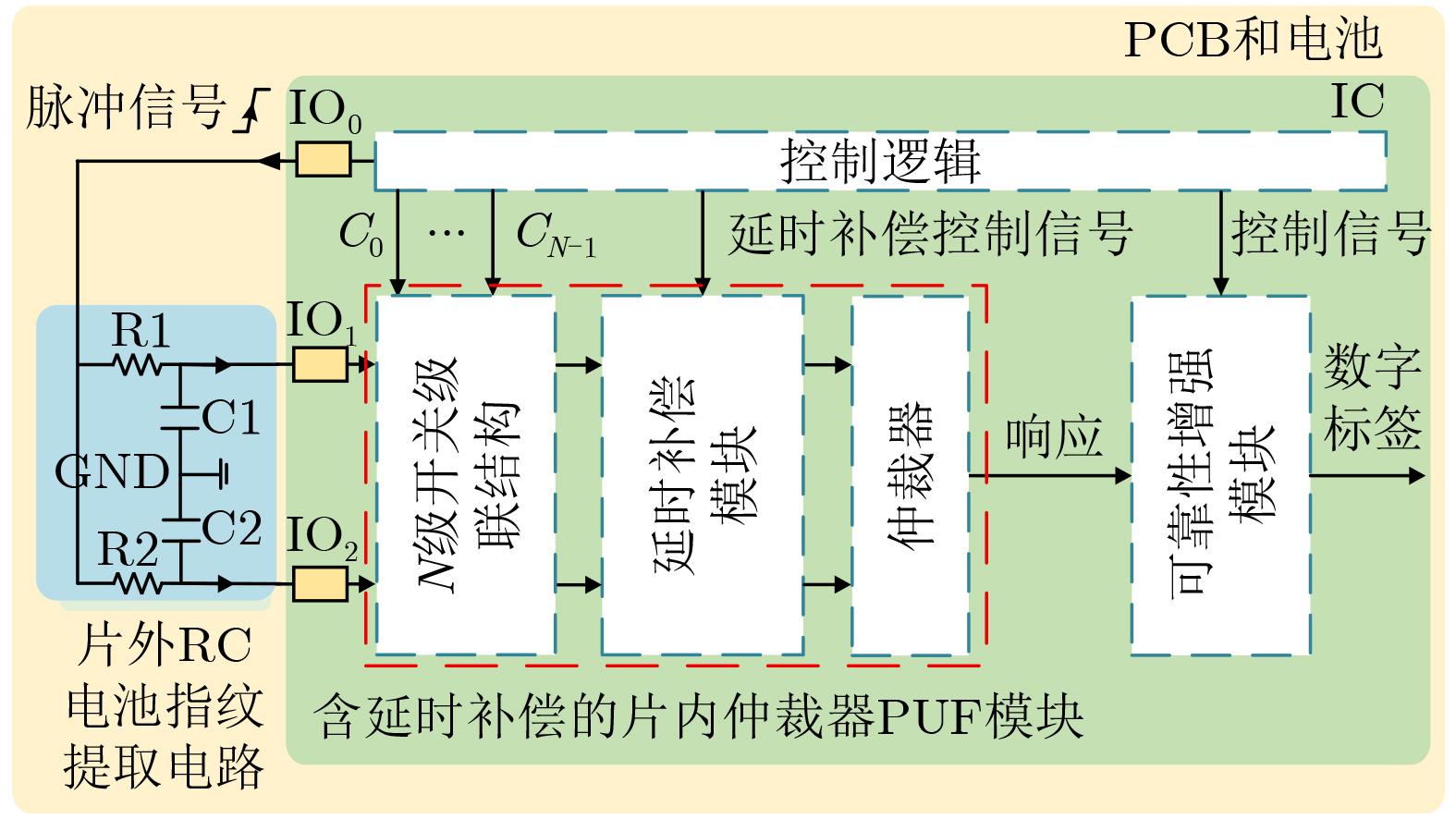

图 1 电池防伪标签总体架构图

下载: 全尺寸图片幻灯片

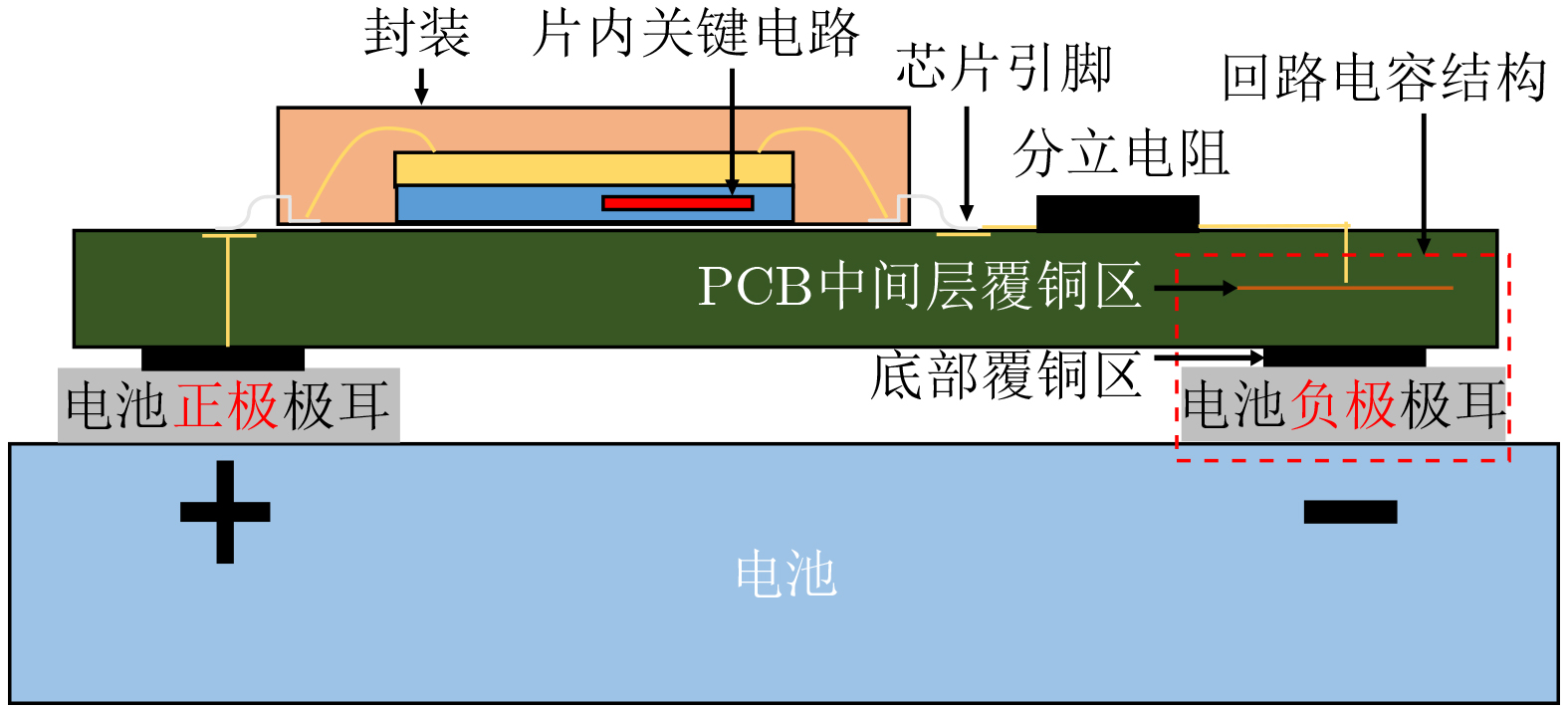

图 2 片外RC电芯指纹提取电路结构图

下载: 全尺寸图片幻灯片

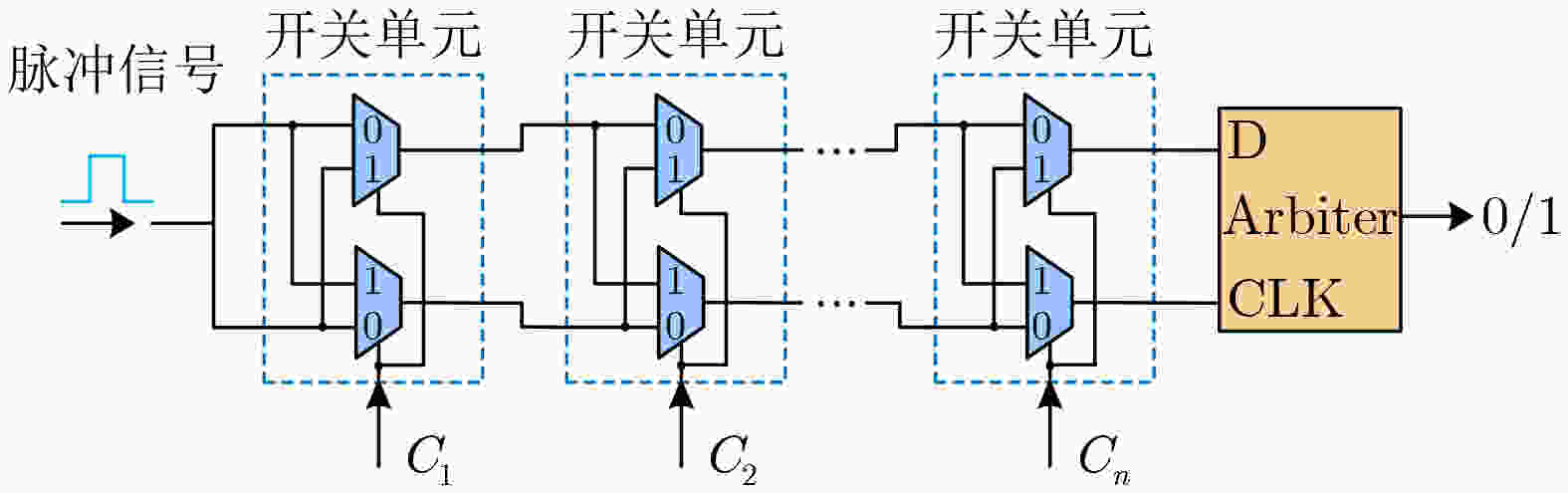

图 3 仲裁器型PUF电路结构

下载: 全尺寸图片幻灯片

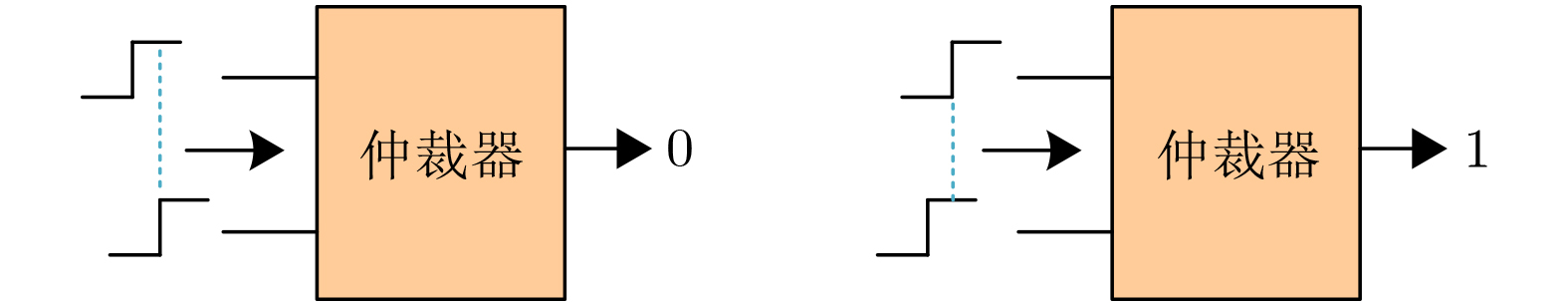

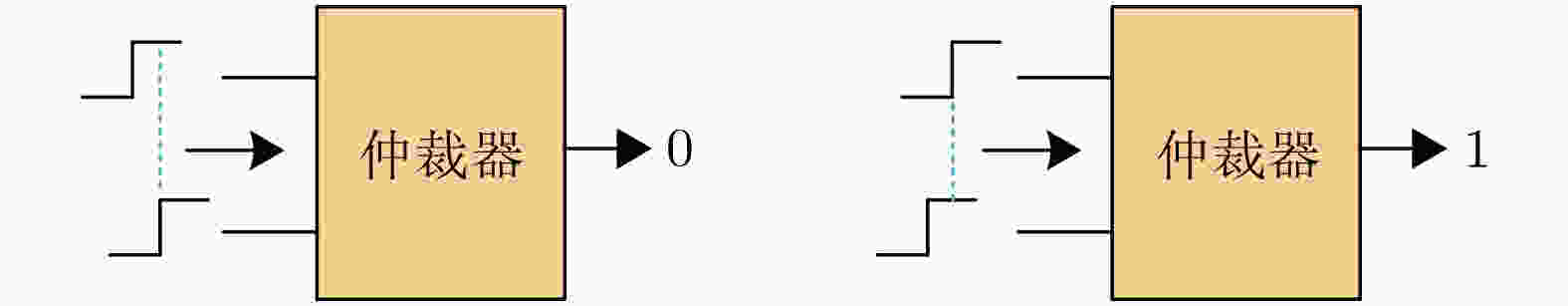

图 4 Arbiter PUF两种输出响应

下载: 全尺寸图片幻灯片

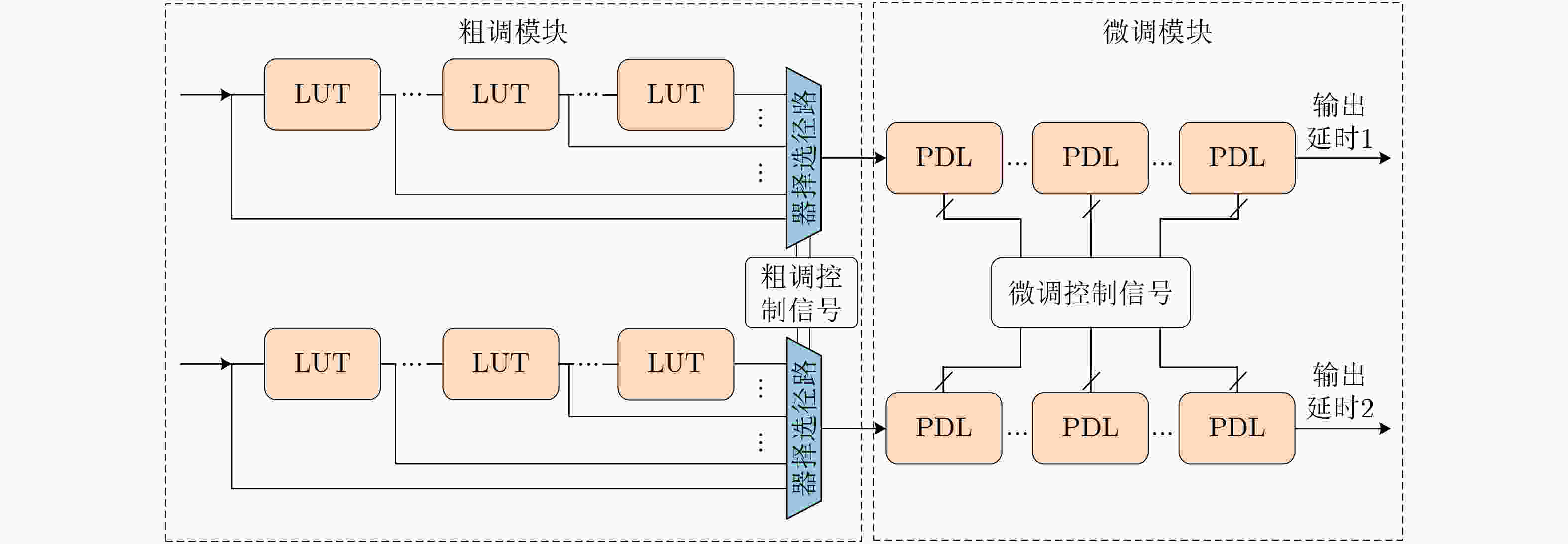

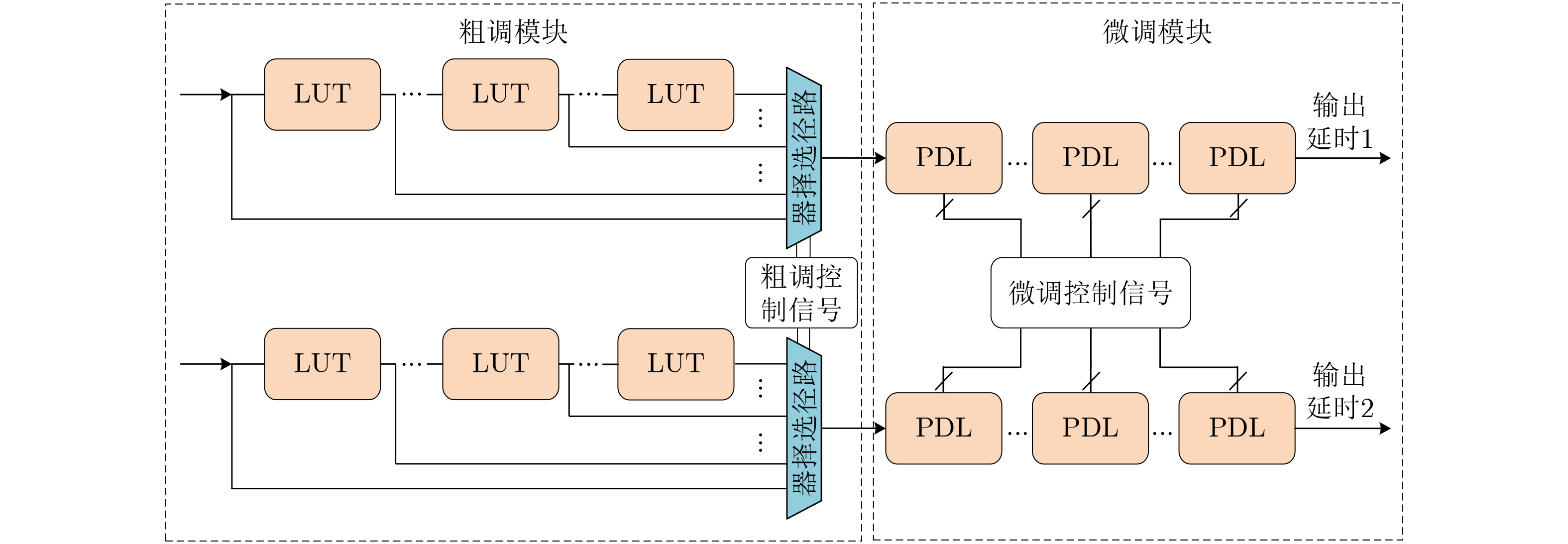

图 5 片上延时补偿模块结构图

下载: 全尺寸图片幻灯片

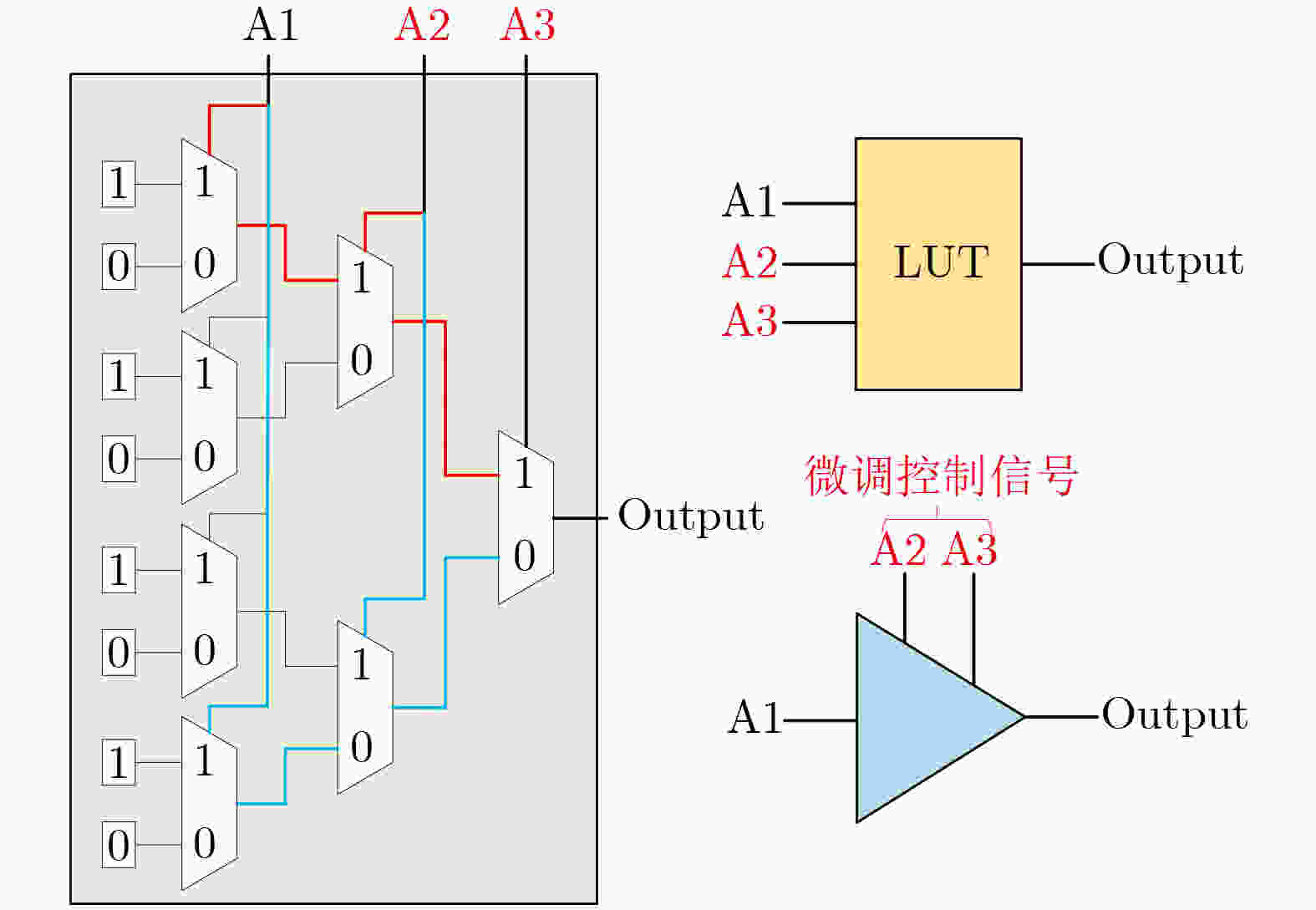

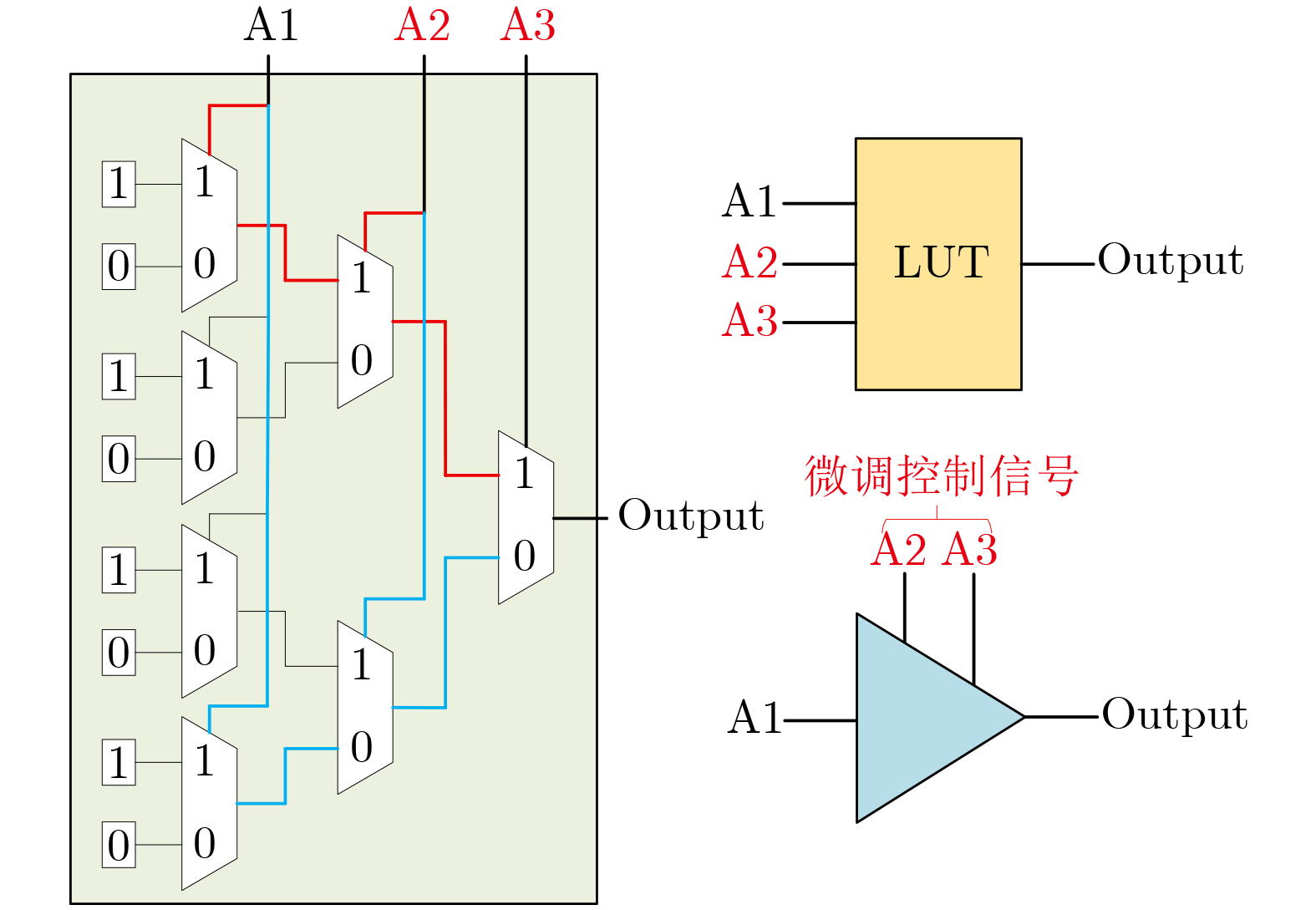

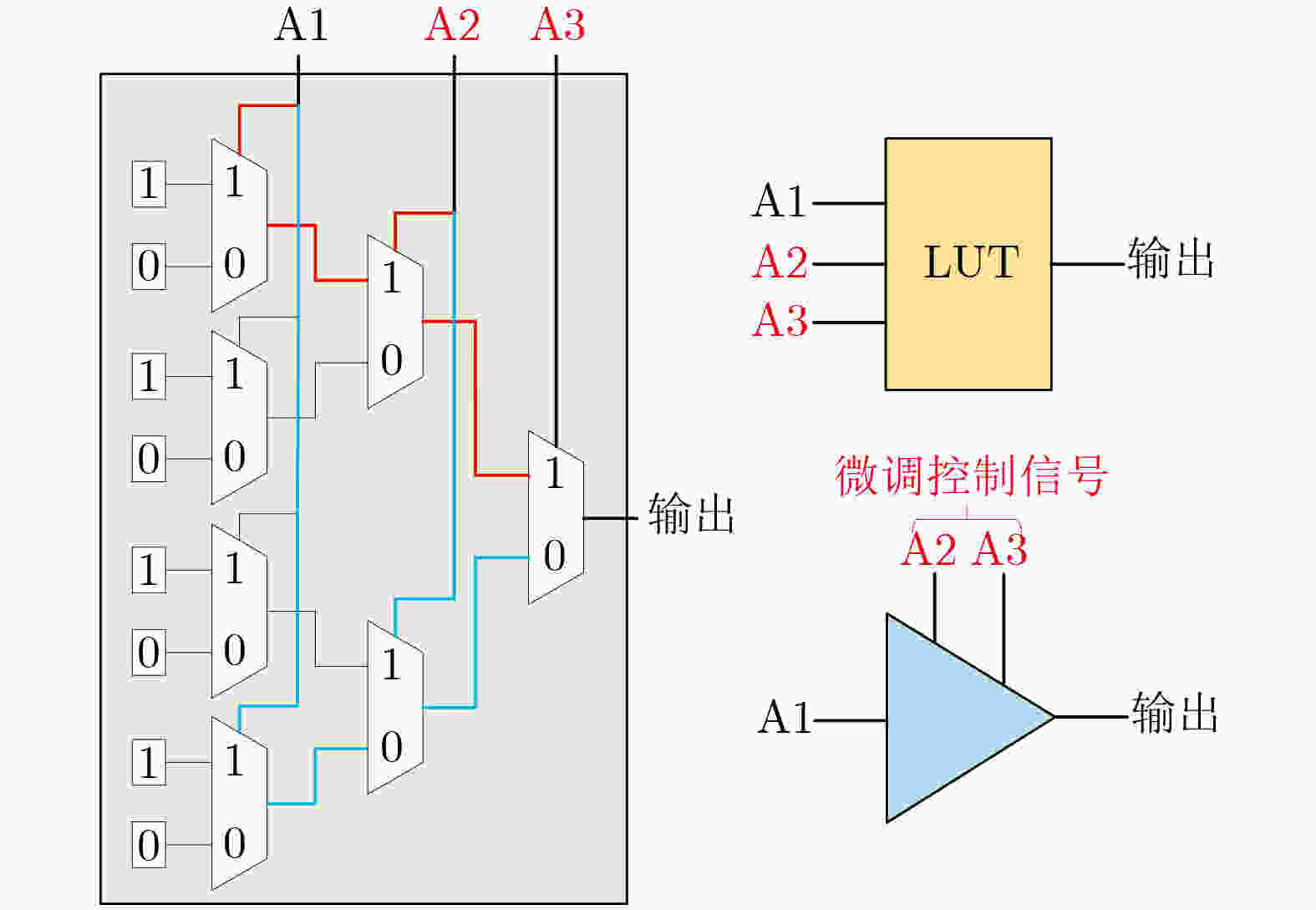

图 6 三输入查找表的可编程逻辑线结构图

下载: 全尺寸图片幻灯片

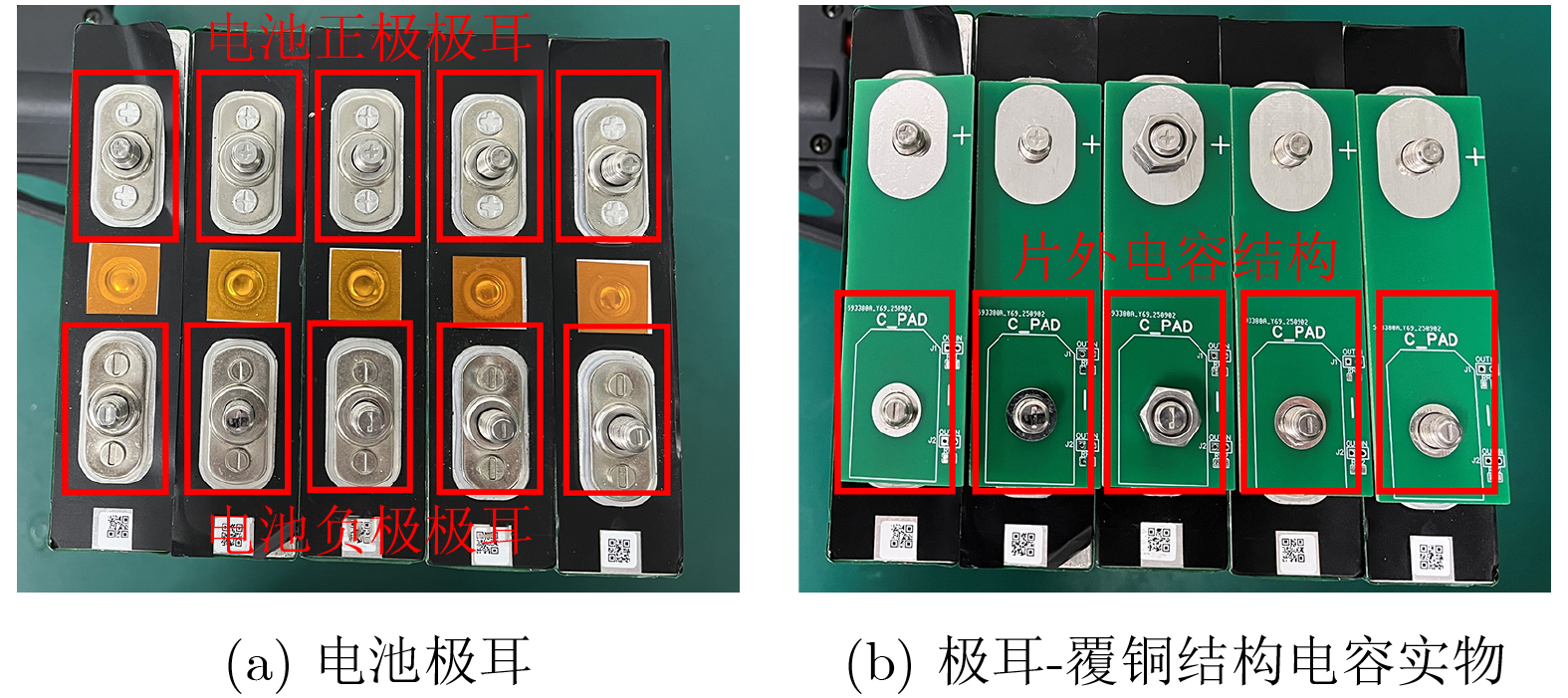

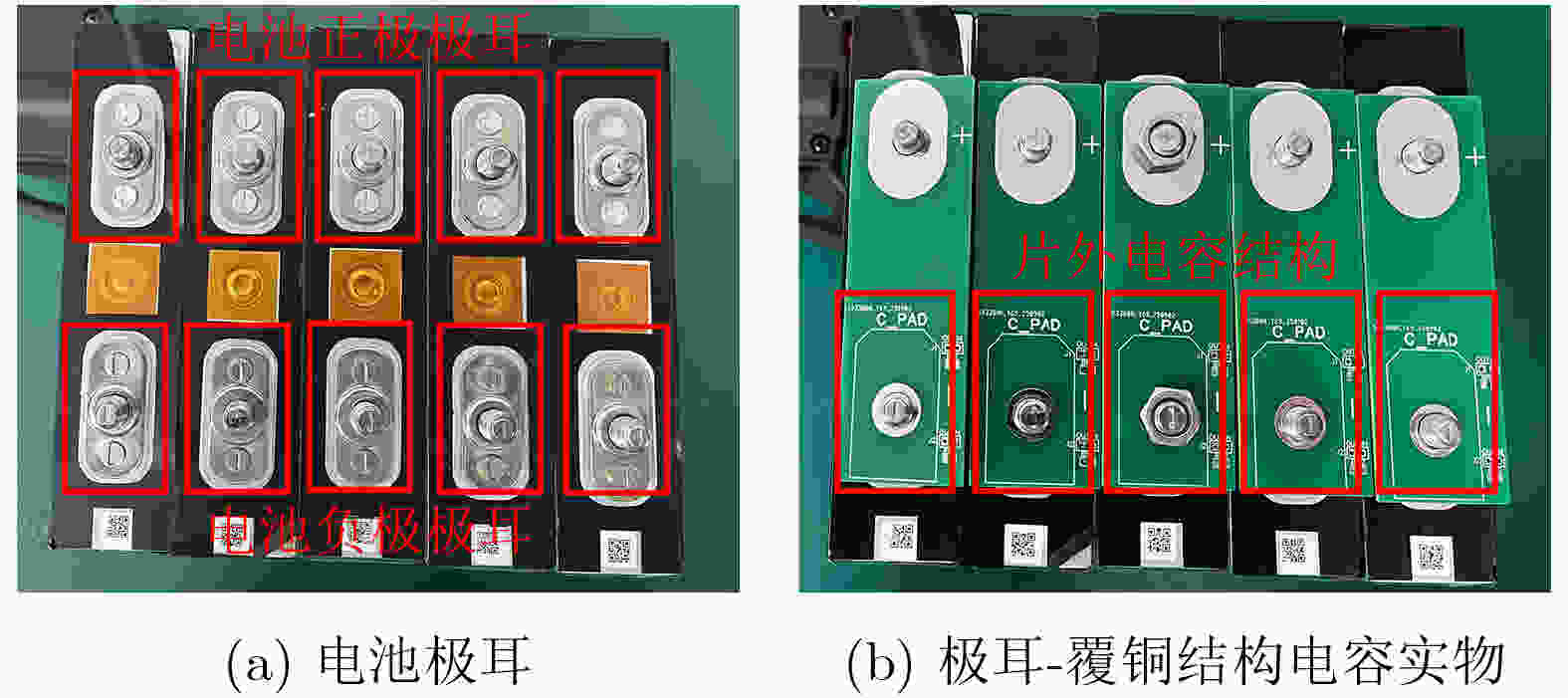

图 7 极耳-覆铜结构等效电容测试图

下载: 全尺寸图片幻灯片

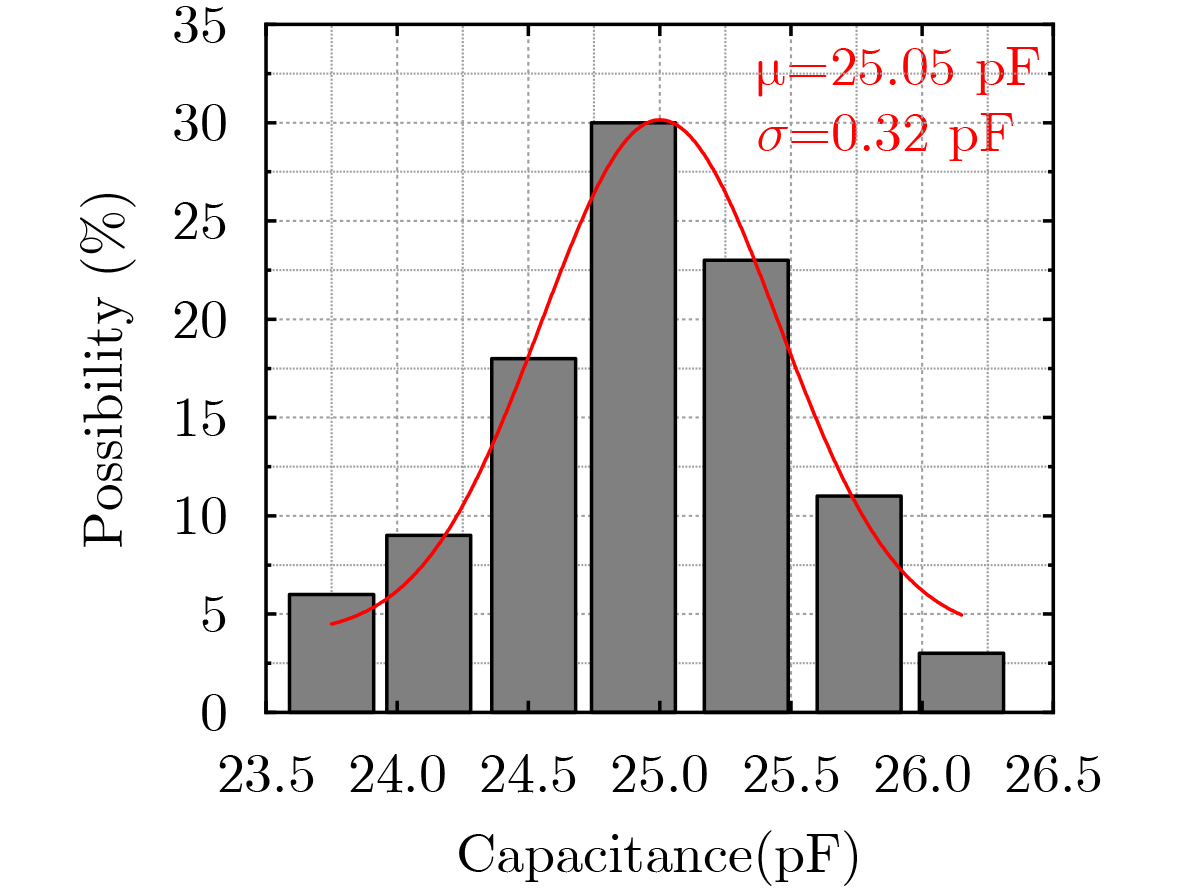

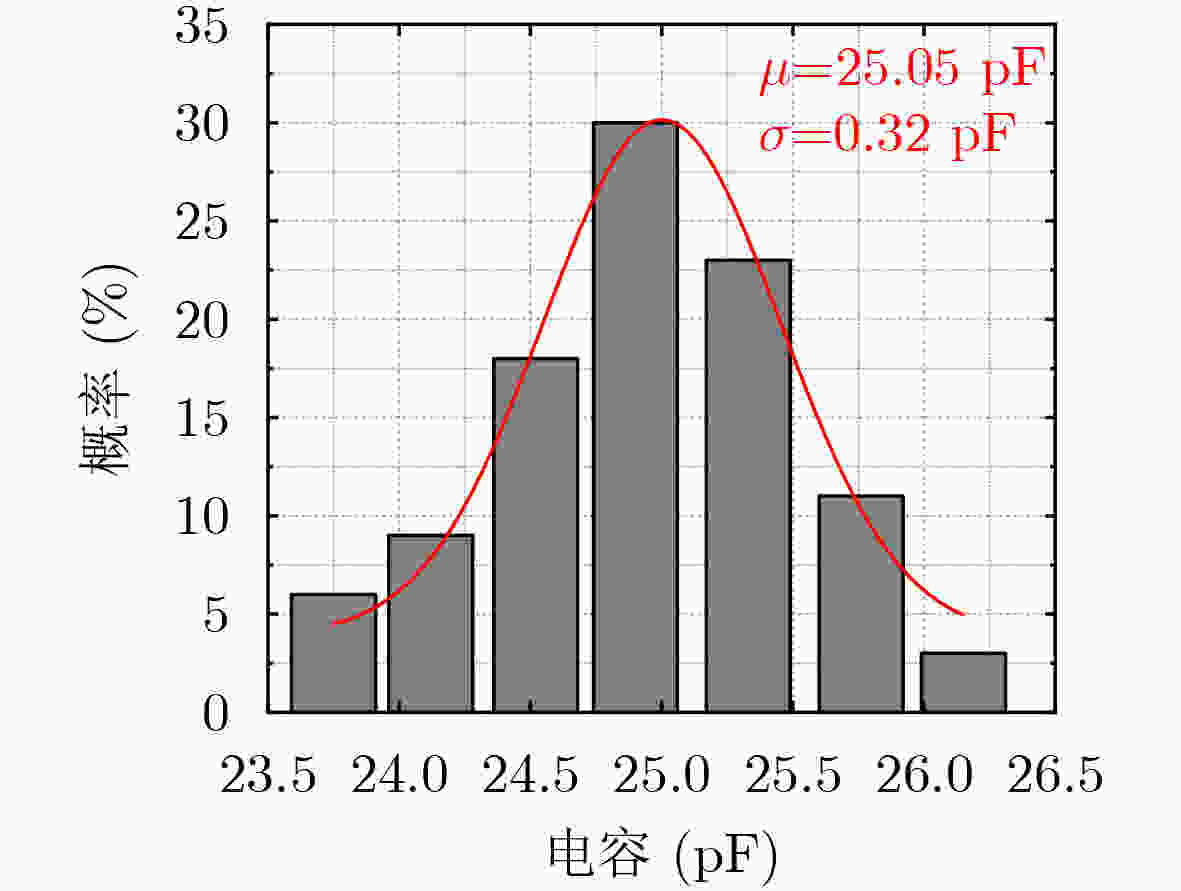

图 8 回路的总有效电容的实测分布

下载: 全尺寸图片幻灯片

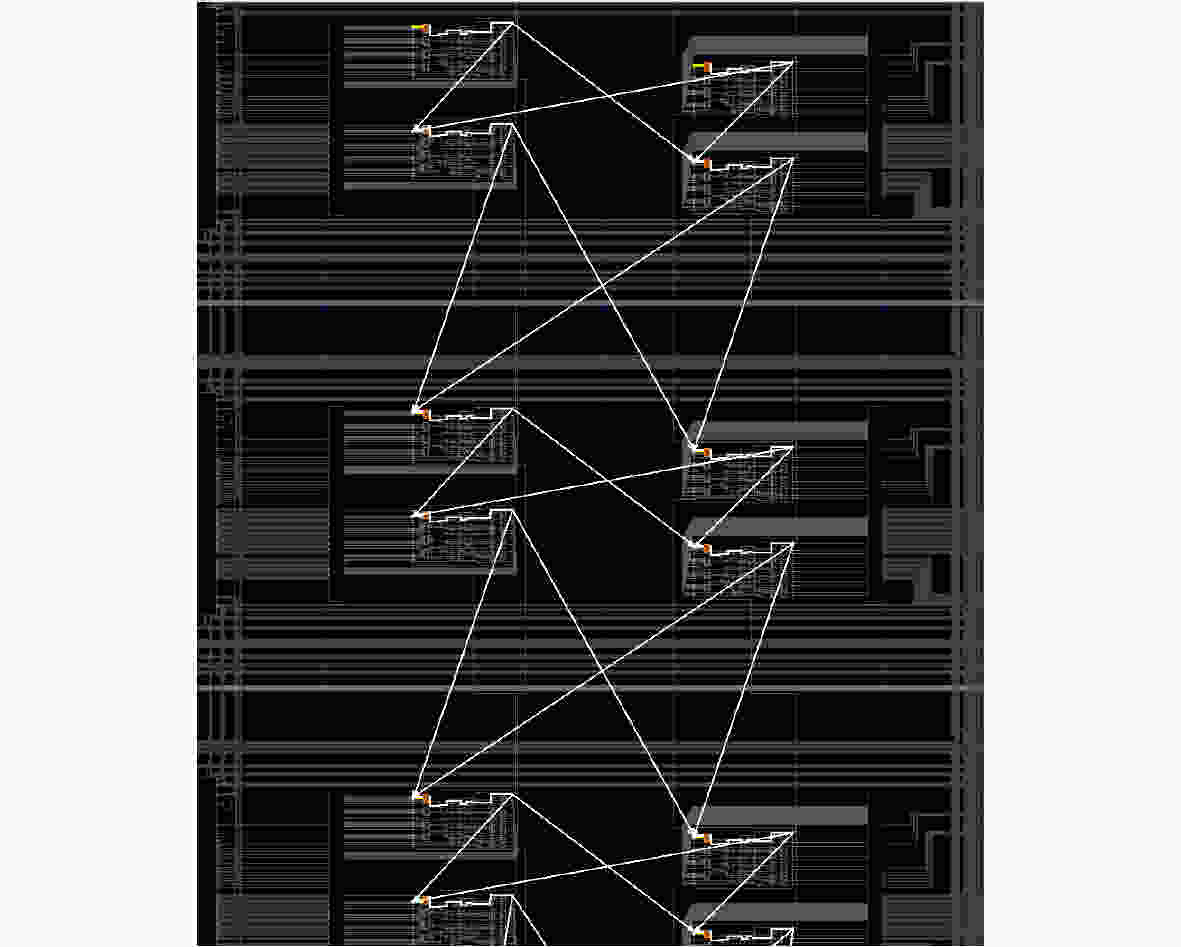

图 9 Device试图A PUF布局布线图

下载: 全尺寸图片幻灯片

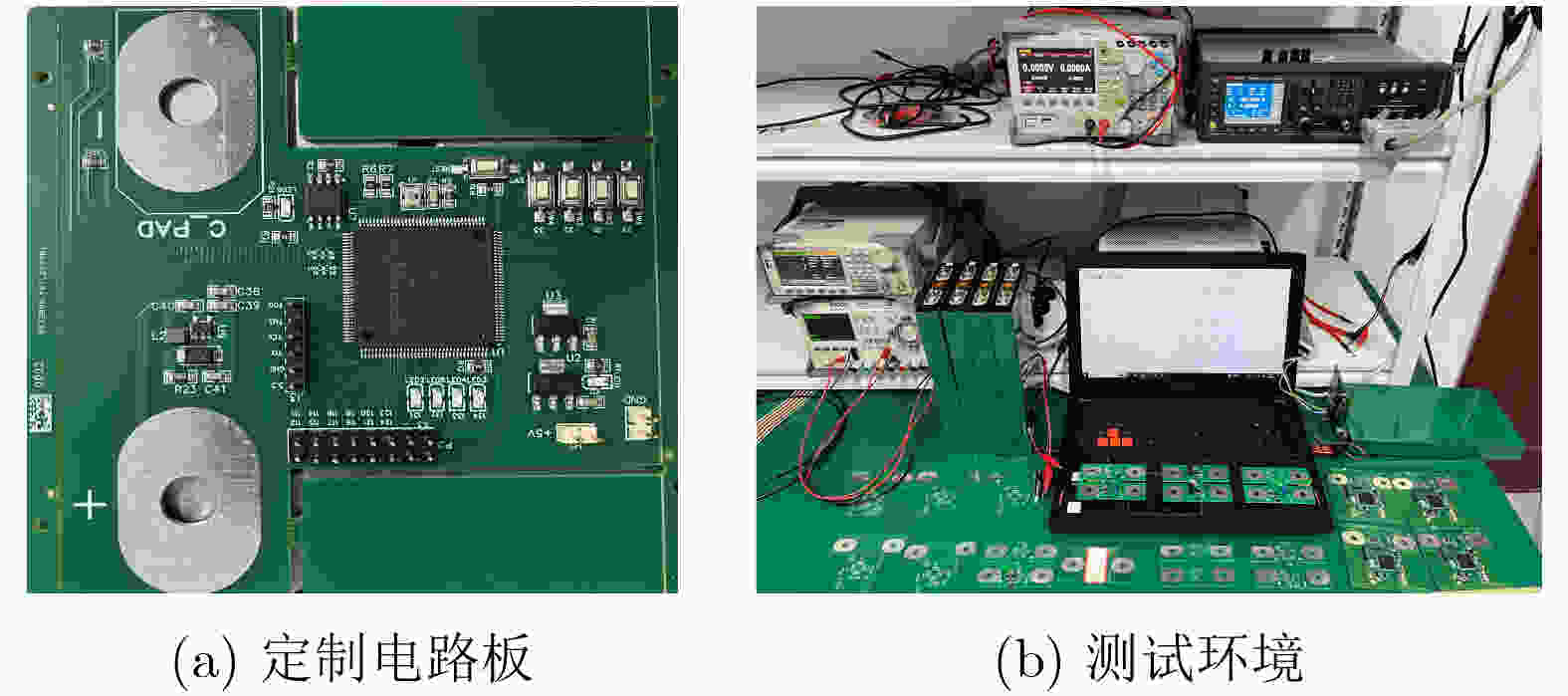

图 10 电池标签结构测试环境图

下载: 全尺寸图片幻灯片

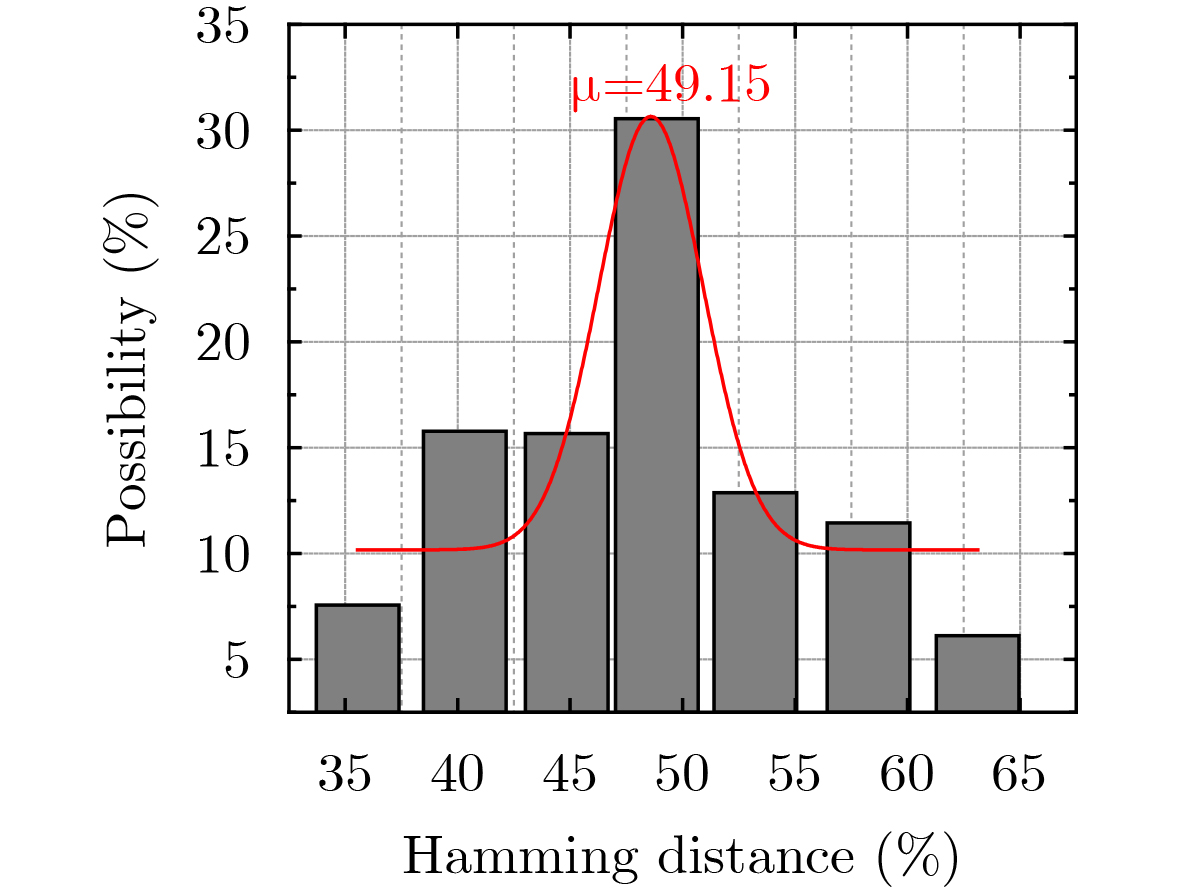

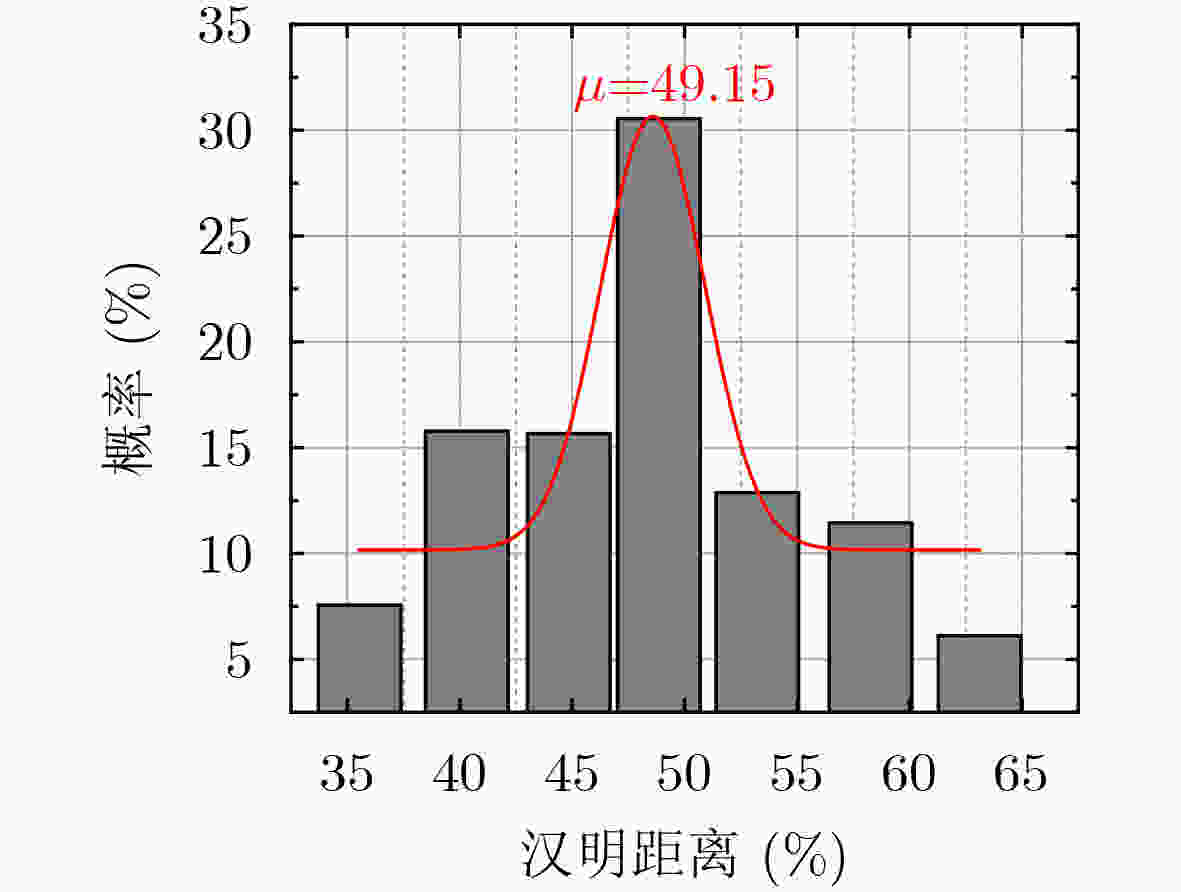

图 11 常温常压下标签信息的唯一性测试图

下载: 全尺寸图片幻灯片

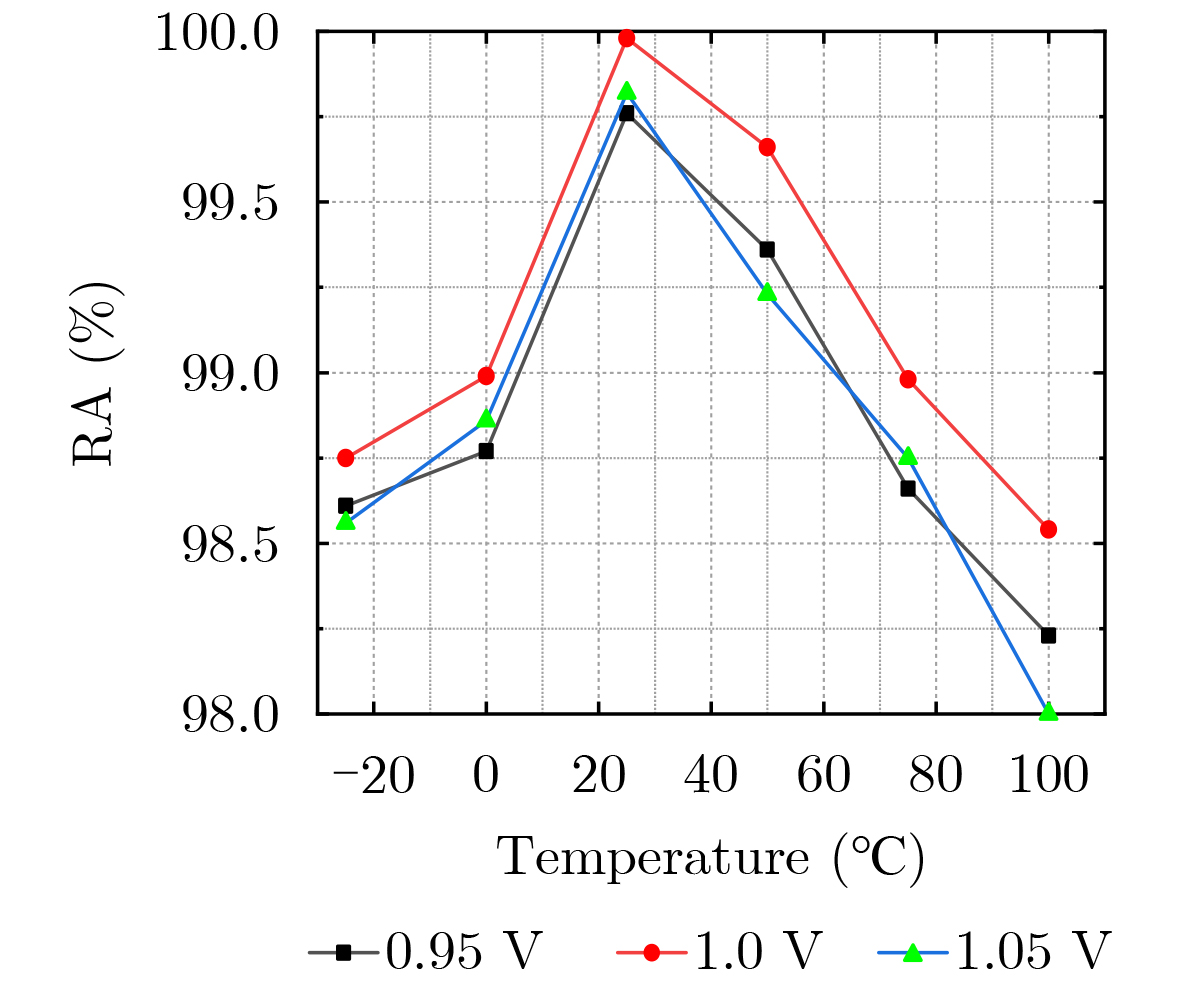

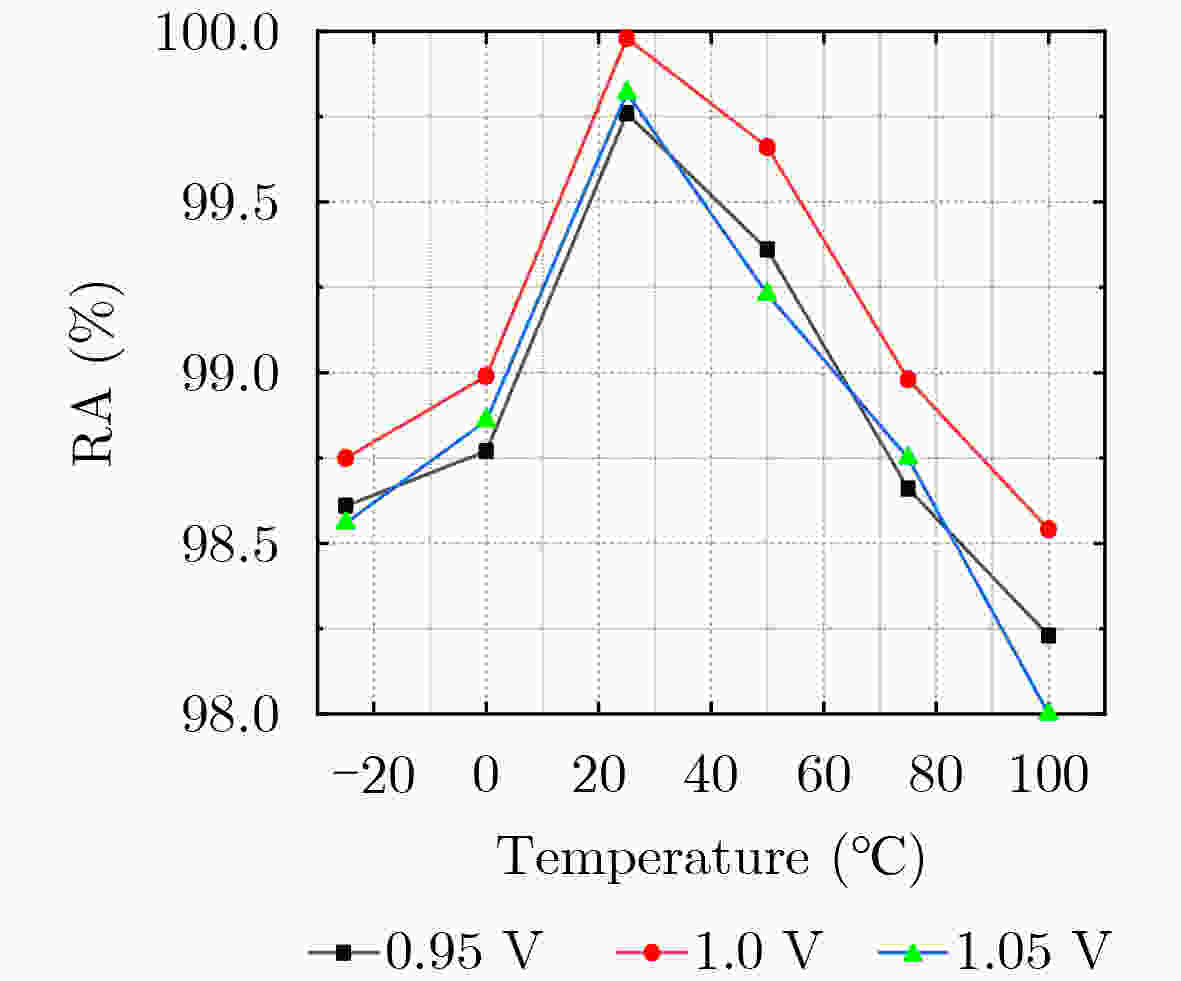

图 12 不同温度和电压下标签信息的可靠性测试图

下载: 全尺寸图片幻灯片

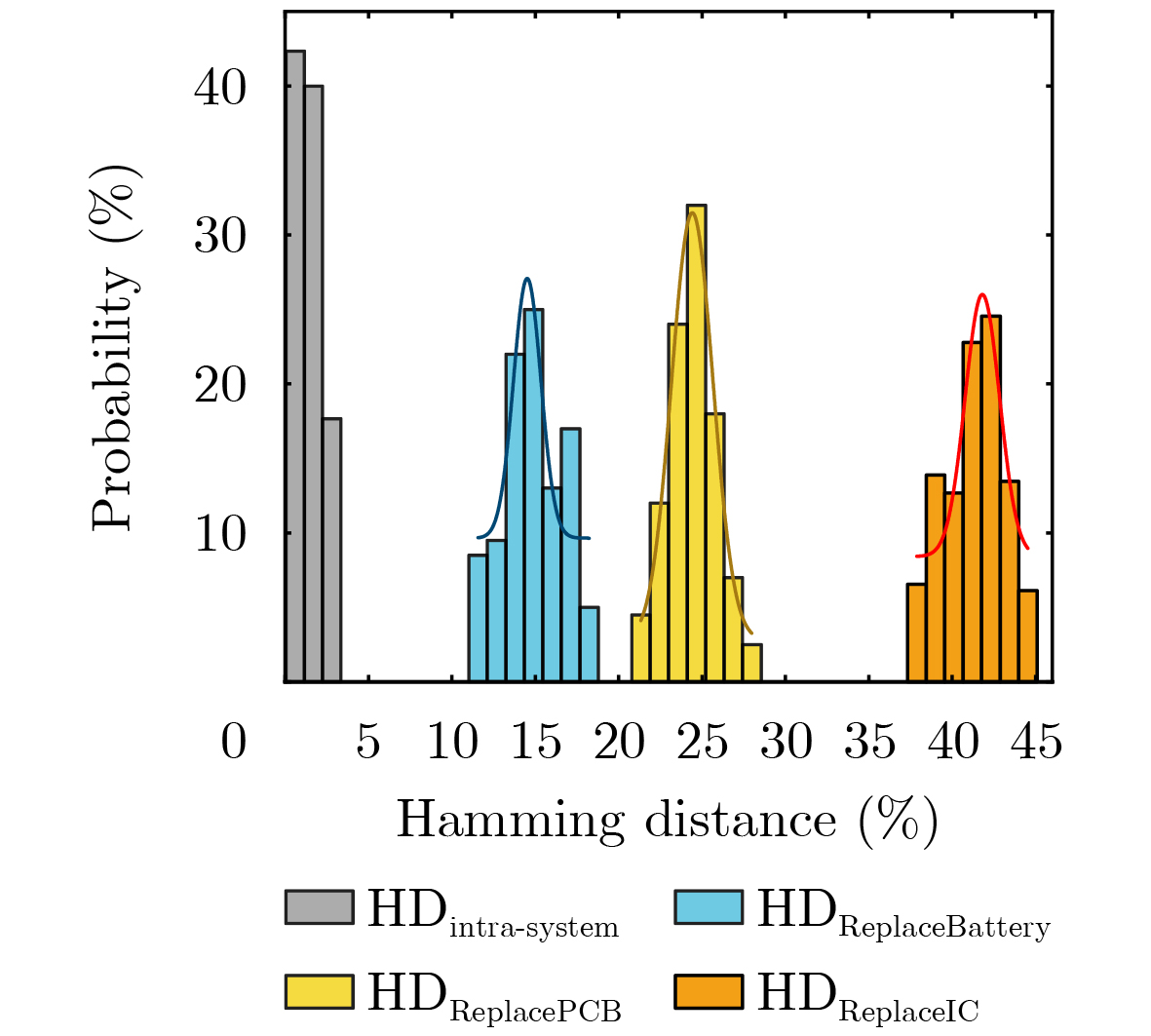

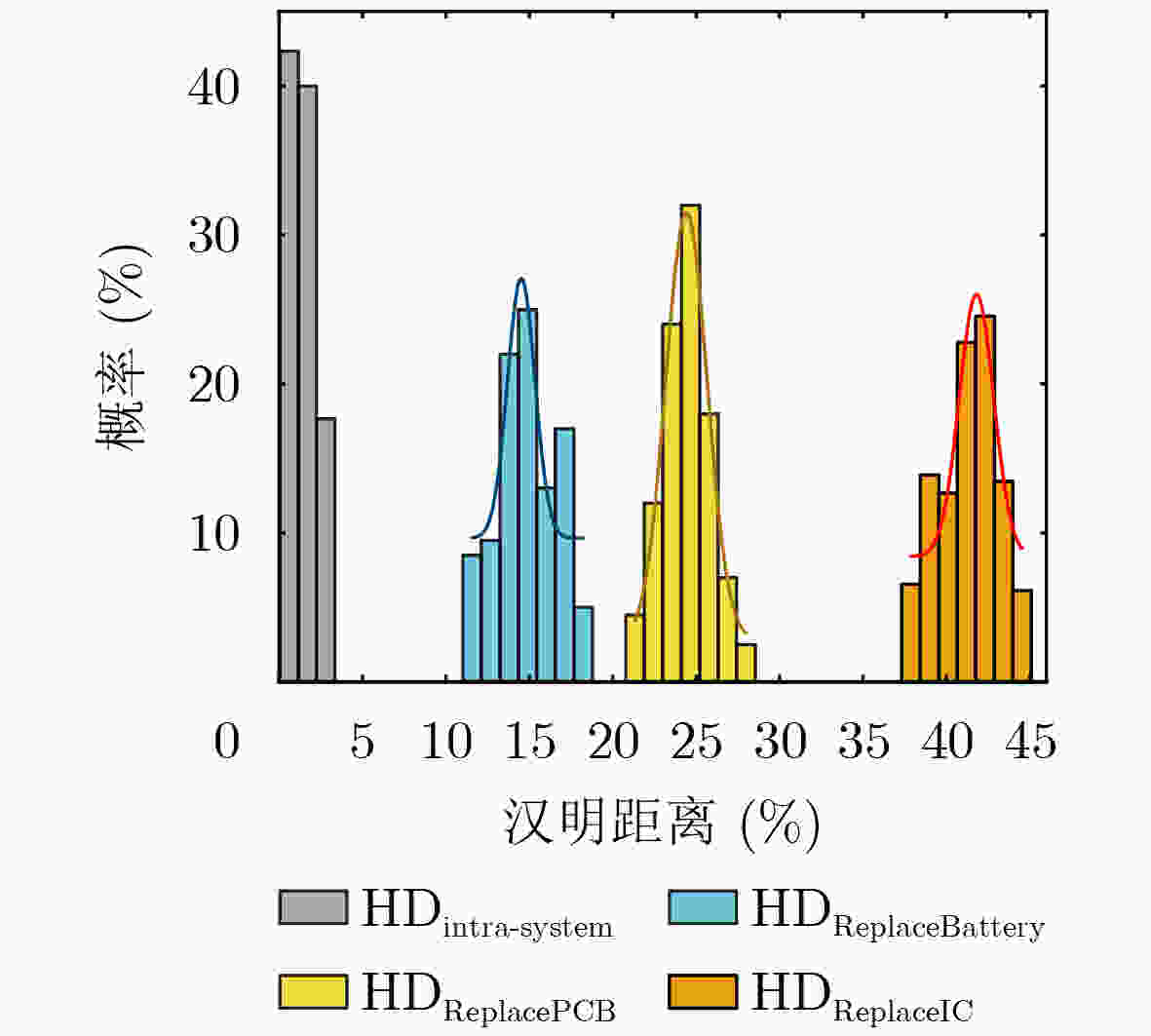

图 13 电池标签结构三种物理测试场景测试结果图

下载: 全尺寸图片幻灯片

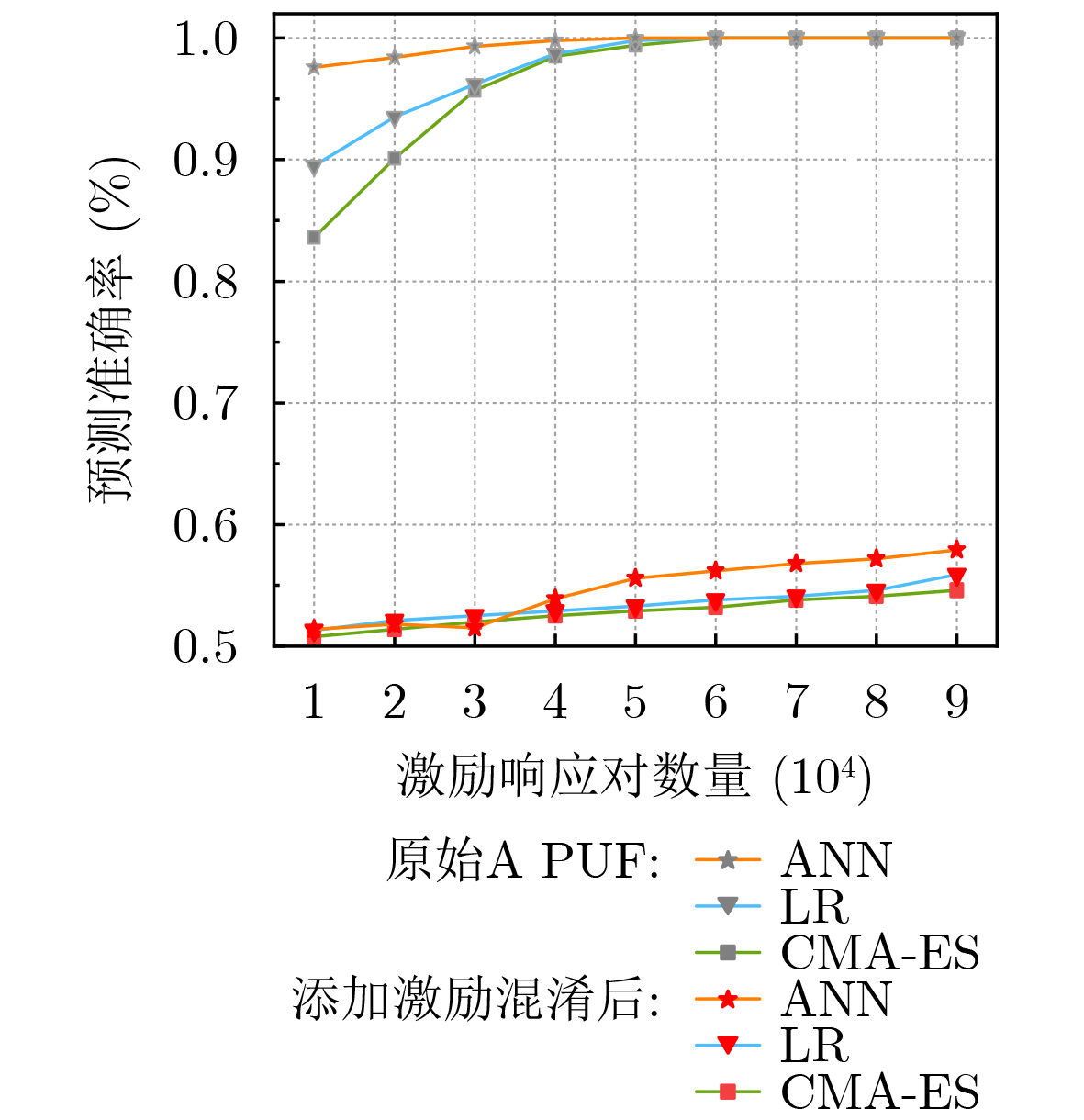

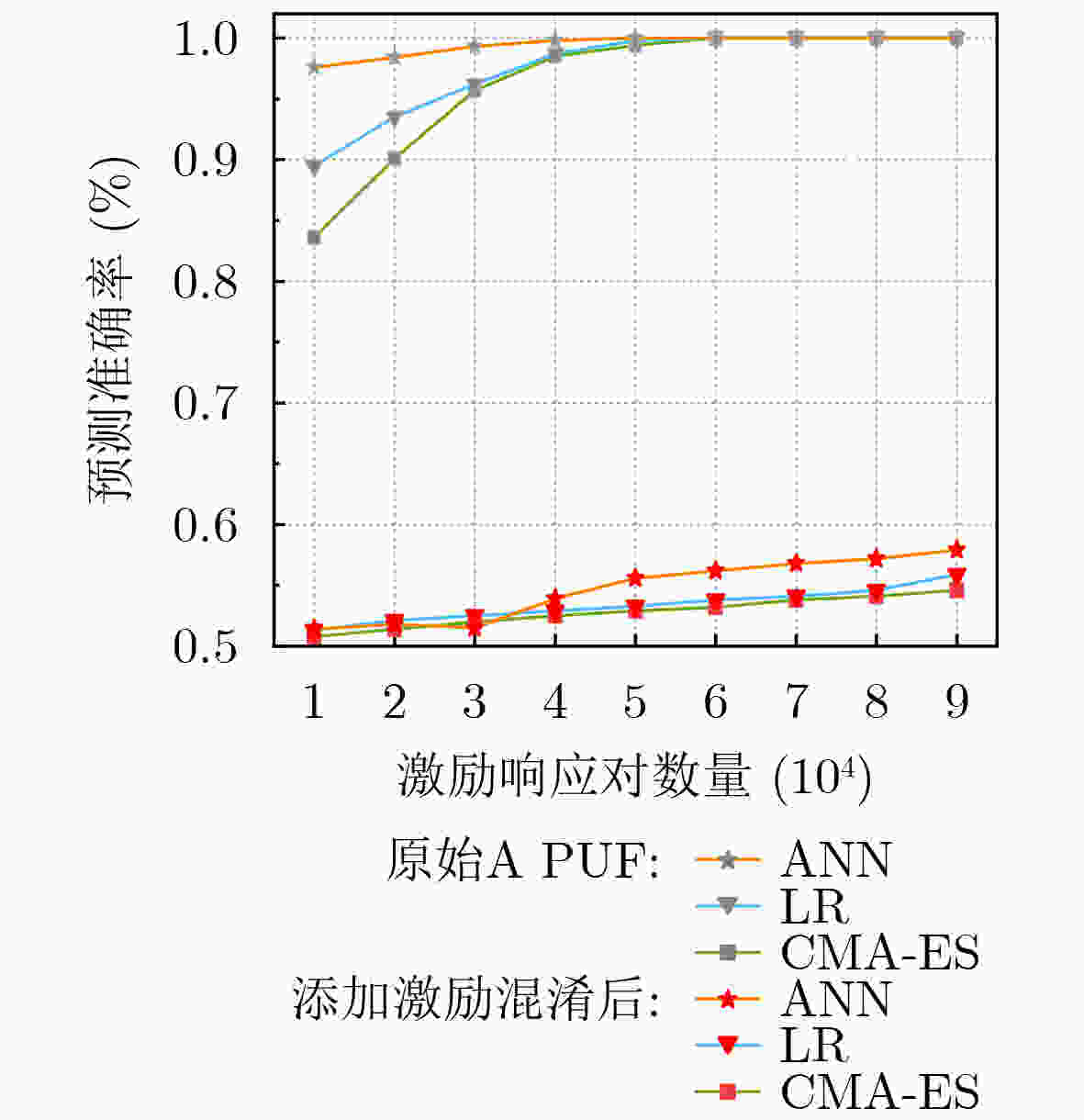

图 14 建模攻击的预测准确性测试图

下载: 全尺寸图片幻灯片
