利用伯努利滤波的多目标机动雷达误差配准方法

邓洪高 余润华 纪元法 吴孙勇 孙希延

邓洪高, 余润华, 纪元法, 吴孙勇, 孙希延. 利用伯努利滤波的多目标机动雷达误差配准方法[J]. 电子与信息学报, 2024, 46(10): 4035-4043. doi: 10.11999/JEIT240013
引用本文: 邓洪高, 余润华, 纪元法, 吴孙勇, 孙希延. 利用伯努利滤波的多目标机动雷达误差配准方法[J]. 电子与信息学报, 2024, 46(10): 4035-4043. doi: 10.11999/JEIT240013
DENG Honggao, YU Runhua, JI Yuanfa, WU Sunyong, SUN Xiyan. Mobile Radar Registration with Multiple Targets Based on Bernoulli Filter[J]. Journal of Electronics & Information Technology, 2024, 46(10): 4035-4043. doi: 10.11999/JEIT240013
Citation: DENG Honggao, YU Runhua, JI Yuanfa, WU Sunyong, SUN Xiyan. Mobile Radar Registration with Multiple Targets Based on Bernoulli Filter[J]. Journal of Electronics & Information Technology, 2024, 46(10): 4035-4043. doi: 10.11999/JEIT240013

利用伯努利滤波的多目标机动雷达误差配准方法

doi: 10.11999/JEIT240013
基金项目: 国家自然科学基金(U23A20280, 62061010, 62161007),广西科技厅项目(AB23026120)
详细信息
    作者简介:

    邓洪高:男,研究员,研究方向为雷达信号处理和卫星导航

    余润华:男,硕士生,研究方向为雷达多目标跟踪、空间误差配准和多源信息融合

    纪元法:男,教授,研究方向为卫星导航和信号处理

    吴孙勇:男,教授,研究方向为雷达信号处理、多目标检测与跟踪和多源信息融合

    孙希延:女,研究员,研究方向为卫星导航和遥感

    通讯作者:

    吴孙勇 wusunyong121991@163.com

  • 中图分类号: TN959.1; V243.2

Mobile Radar Registration with Multiple Targets Based on Bernoulli Filter

Funds: The National Natural Science Foundation of China (U23A20280, 62061010, 62161007), Guangxi Science and Technology Department Project (AB23026120)
  • 摘要: 传统的组网雷达多目标误差配准方法通常假设数据关联关系已知,但在平台机动的情况下,系统同时存在雷达测量偏差和平台姿态角偏差,且雷达观测过程中会受到杂波干扰,导致数据关联尤为困难。针对这一问题,该文提出一种基于伯努利滤波的多目标机动雷达误差配准方法。首先建立系统偏差的量测与状态方程,然后将系统偏差建模成伯努利随机有限集,利用公共坐标系下的原始量测可实现系统偏差在伯努利滤波框架下的递推估计,有效避免了数据关联问题。同时,为了充分利用多目标量测信息,提出一种修正的贪婪量测划分方法,在每个滤波时刻挑选出系统偏差对应的最优量测子集,利用量测子集中的多量测信息实现系统偏差的集中式融合估计,提高了系统偏差的估计精度和收敛速度。仿真实验表明,所提方法能够在数据关联未知的多目标多杂波场景下对雷达测量偏差和平台姿态角偏差进行有效估计,在平台姿态角变化率较低时,所提方法具有较强的适应性。

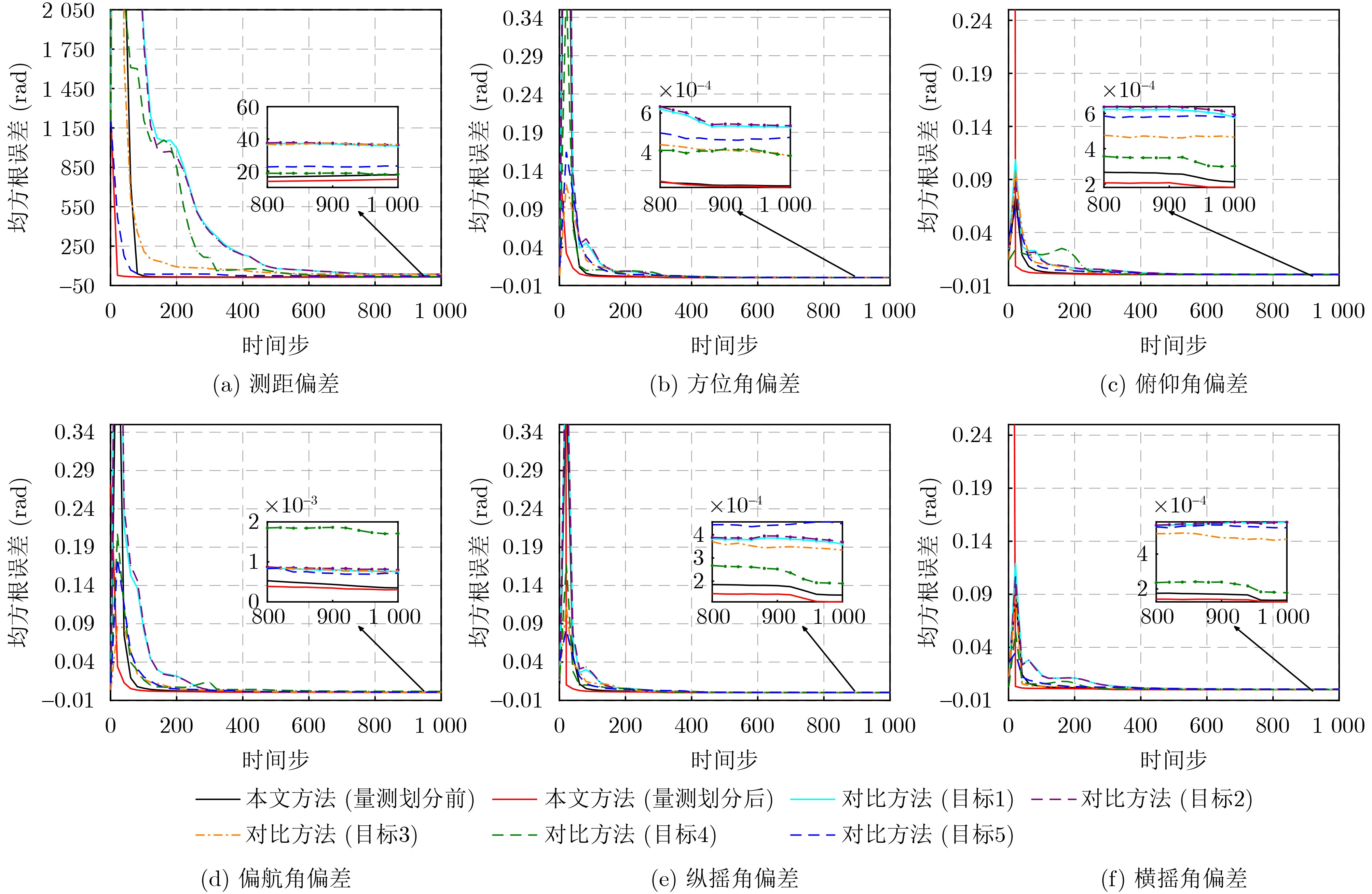

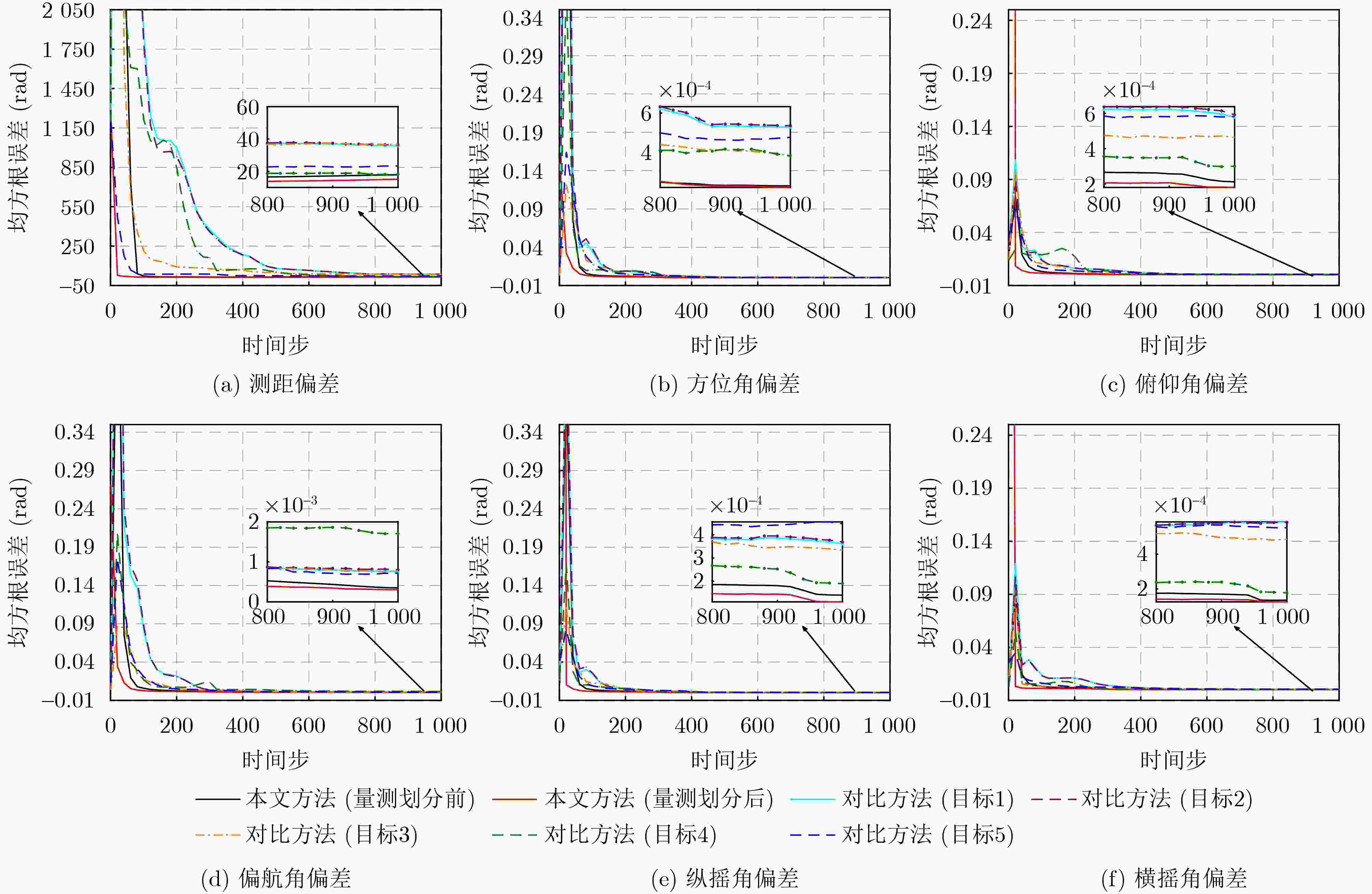

  • 图  1  场景1中偏差估计均方根误差图

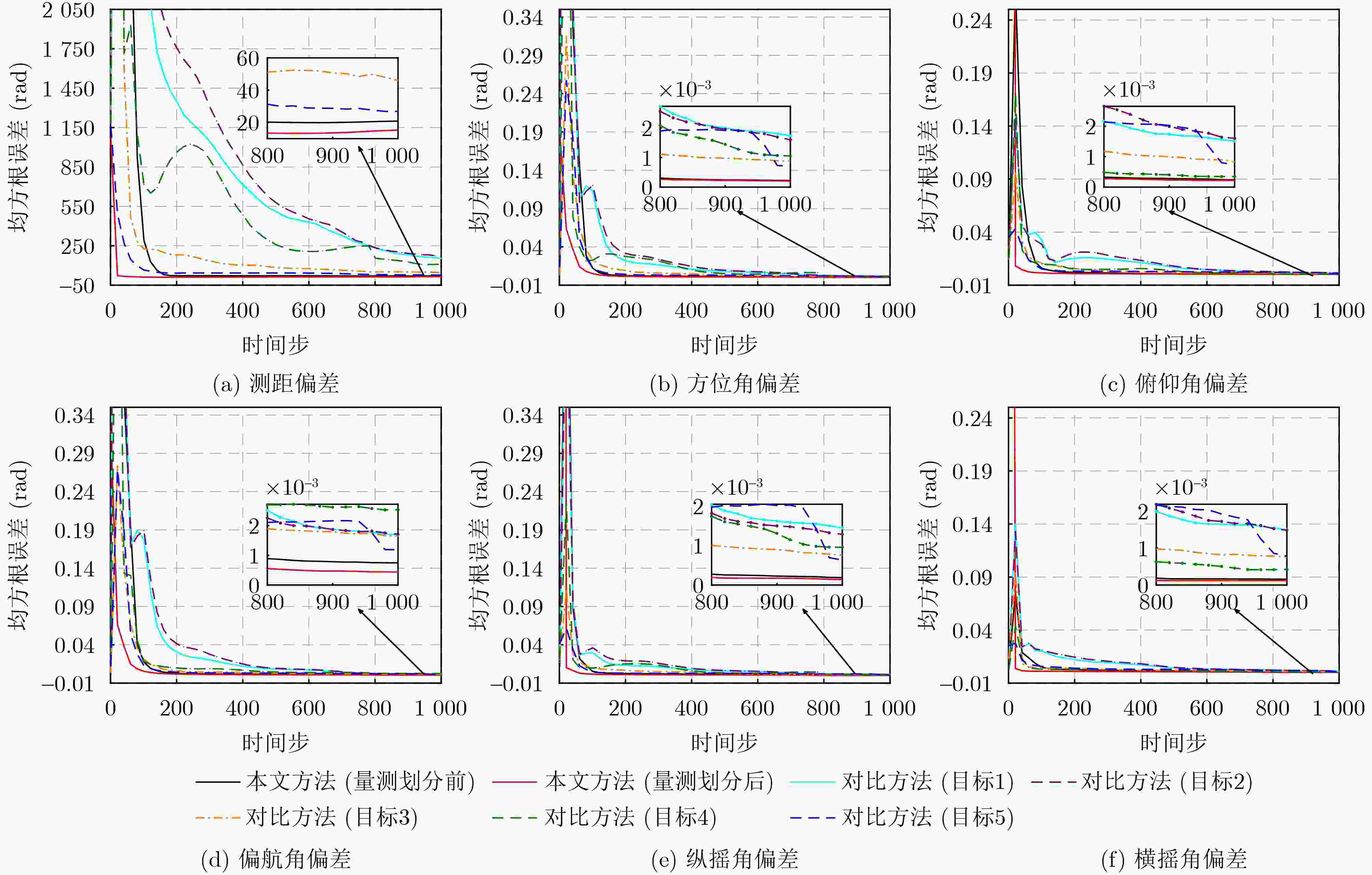

    图  2  场景2中偏差估计均方根误差图

    表  1  场景3中偏差收敛步数比较

    量测划分
    前/后
    偏差估计收敛步数
    雷达测量偏差 平台姿态角偏差
    径向距离 方位角 俯仰角 偏航角 纵摇角 横摇角
    161 330 288 362 317 305
    18 281 194 310 260 242
    下载: 导出CSV

    表  2  场景3中偏差估计精度比较(%)

    量测划分
    前/后
    偏差估计精度
    雷达测量偏差 平台姿态角偏差
    径向距离 方位角 俯仰角 偏航角 纵摇角 横摇角
    98.43 96.52 90.33 93.25 93.34 92.14
    98.66 98.18 95.04 97.31 96.71 96.53
    下载: 导出CSV
