模块化片上系统中高级可扩展接口的死锁避免

郭振江; 王焕东; 张福新; 肖俊华

doi:10.11999/JEIT221142

模块化片上系统中高级可扩展接口的死锁避免

doi: 10.11999/JEIT221142

郭振江^{1, 2, 3},
王焕东⁴,
张福新^{1, 2, 3},
肖俊华^{1, 2, 3, ,}

1.
计算机体系结构国家重点实验室北京 100190
2.
中国科学院计算技术研究所北京 100190
3.
中国科学院大学计算机科学与技术学院北京 100049
4.
龙芯中科技术有限公司北京 100190

基金项目: 中科院战略先导项目(XDC05020000)

详细信息

作者简介:
郭振江：男，博士生，研究方向为计算机体系结构、片上网络

王焕东：男，博士，高级工程师，研究方向为计算机体系结构

张福新：男，博士，正高级工程师，研究方向为计算机体系结构、二进制翻译

肖俊华：男，博士，高级工程师，研究方向为计算机体系结构、高性能处理器设计、性能分析和评估

通讯作者:
肖俊华　xiaojunhua@ict.ac.cn

中图分类号: TN47; TP302; TP303
计量
- 文章访问数: 999
- HTML全文浏览量: 461
- PDF下载量: 115
- 被引次数: 0
出版历程
- 收稿日期: 2022-09-01
- 修回日期: 2023-01-16
- 网络出版日期: 2023-02-03
- 刊出日期: 2023-09-27

Deadlock Avoidance of Advanced eXtensible Interface Interconnection Networks in Modular System-on-Chips

GUO Zhenjiang^{1, 2, 3},
WANG Huandong⁴,
ZHANG Fuxin^{1, 2, 3},
XIAO Junhua^{1, 2, 3
, ,}

1.
State Key Laboratory of Computer Architecture, Beijing 100190, China
2.
Institute of Computing Technology, Chinese Academy of Sciences, Beijing 100190, China
3.
School of Computer Science and Technology, University of Chinese Academy of Sciences, Beijing 100049, China
4.
Loongson Technology Corporation Limited, Beijing 100190, China

Funds: The Strategic Priority Research Program of the Chinese Academy of Sciences (XDC05020000)

摘要

摘要: 模块化片上系统(MSoC)包含多个独立的IP组件及多个可能的子网络，这种异构集成的方式往往为片上网络(NoC)引入潜在的死锁。该文基于模块化异构系统MSoC研究了使用高级可扩展接口(AXI)协议的片上网络中3种类型的死锁。MSoC包含多种常见的异构组件，以及由多个独立子网络集成的片上网络，能够充分反映真实芯片的复杂性和不规则性。该文发现除环形通道导致的死锁外，基于AXI的片上网络还涉及双重路径死锁和桥接死锁。该文还提出一种两阶段算法检测片上网络中可能存在的这3种死锁。相比于通用验证方法学(UVM)随机验证，使用该算法可以将检测时长从几个月缩短到几个小时，提高片上网络的可靠性和鲁棒性。
- 片上网络 /
- 模块化片上系统 /
- 死锁避免 /
- 高级可扩展接口协议
Abstract: Modular System-on-Chips (MSoC) contain several distinct IP components with possibly multiple sub-networks, resulting in potential deadlock situations for the Network on Chip (NoC). A MSoC is developed, and three deadlock cases in Advanced eXtensible Interface (AXI)-based network-on-chip are studied. MSoC consists of various common heterogeneous components, and NoC integrated by multiple independent subnetworks. MSoC can fully reflect the complexity and irregularity of real chips. NoC based on AXI is found toface double-path deadlock and bridge deadlock in addition to loop-path deadlock. A two-stage algorithm is proposed to detect those three cases. Compared to Universal Verification Methodology(UVM) random verification, this method can reduce detection time from months to hours, improving the reliability and robustness of the on-chip network.
- Network on-Chip(NoC) /
- Modular System on Chip (MSoC) /
- Deadlock avoidance /
- Advanced eXtensible Interface(AXI) protocol

HTML全文

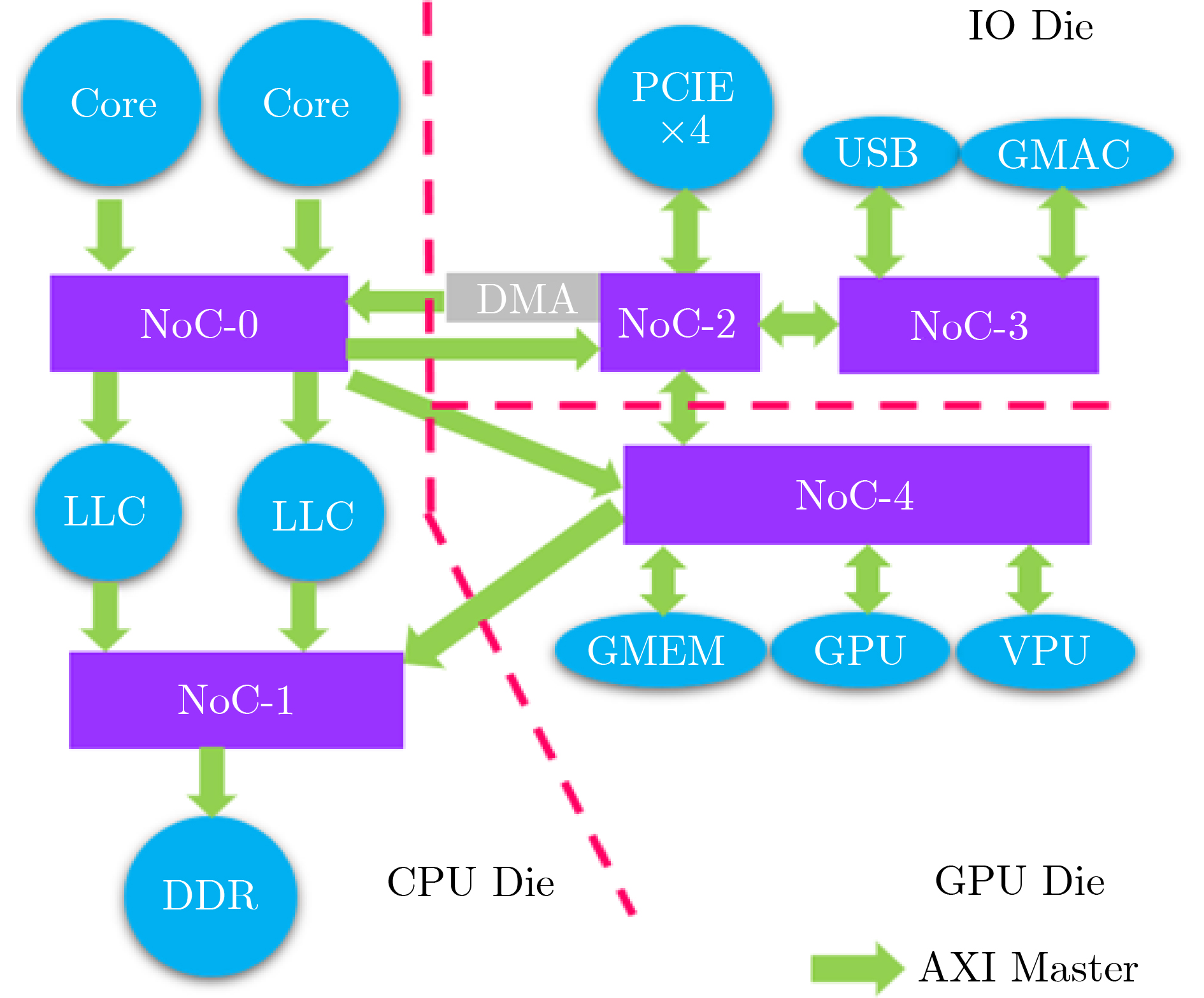

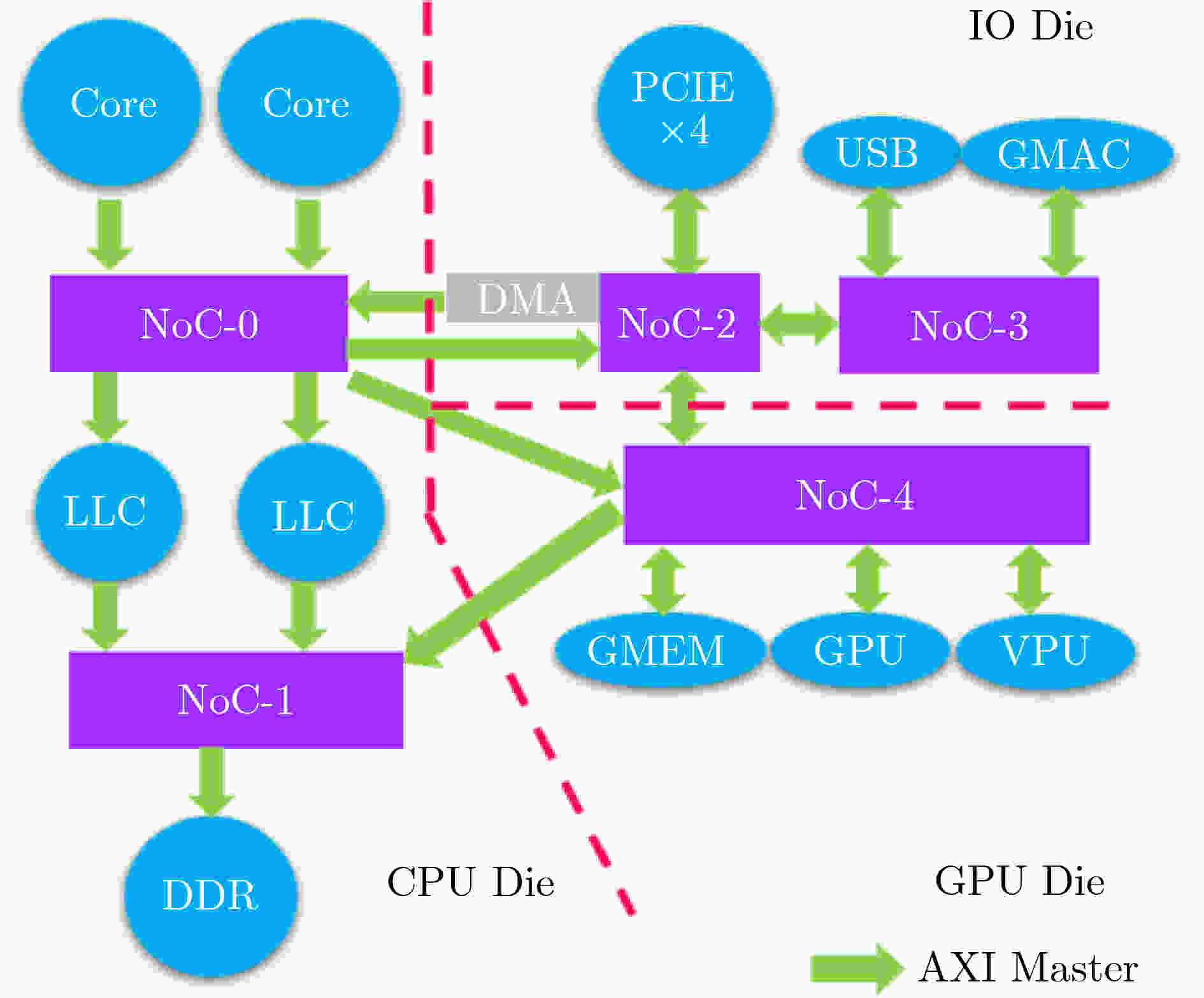

图 1 MSoC芯片架构图

下载: 全尺寸图片幻灯片

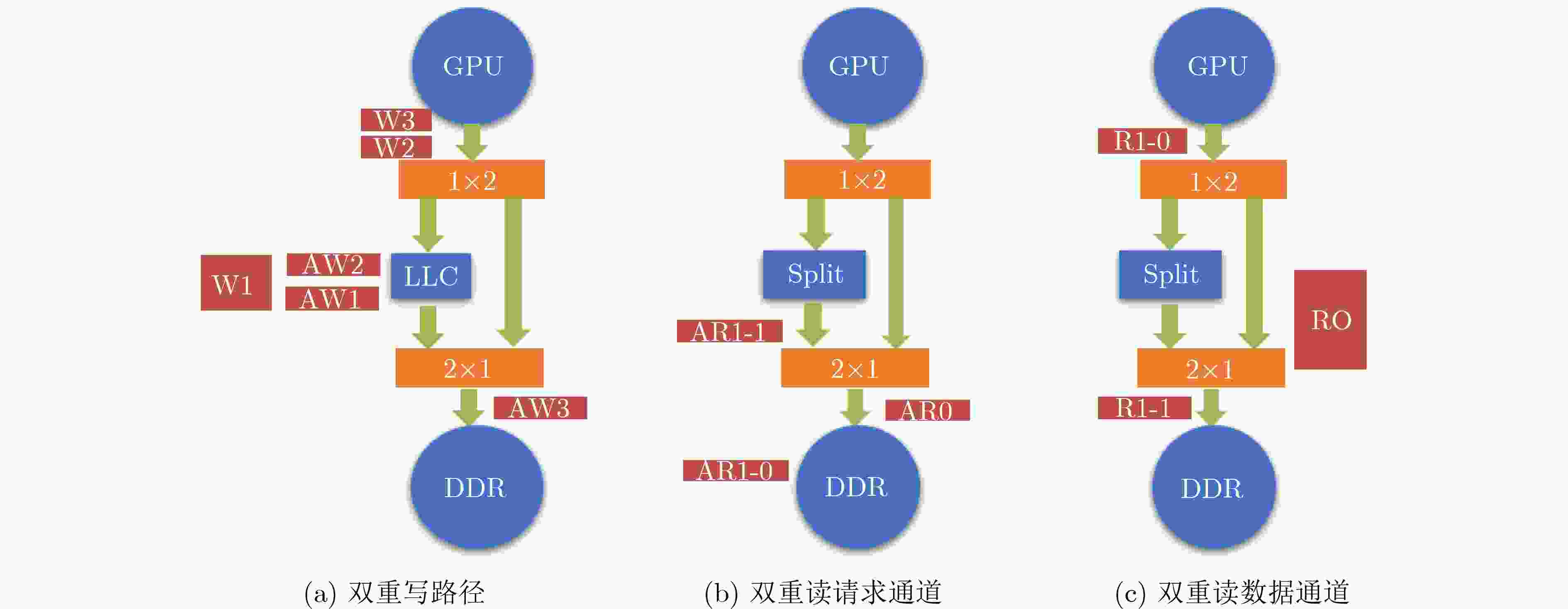

图 2 双重路径死锁图示

下载: 全尺寸图片幻灯片

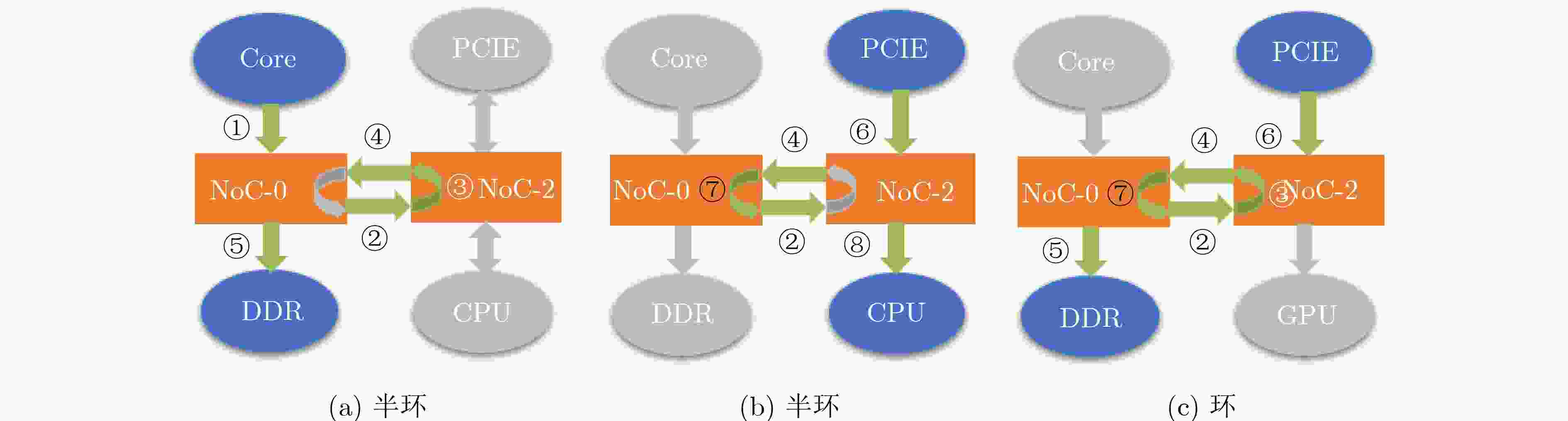

图 3 环形通路死锁图示

下载: 全尺寸图片幻灯片

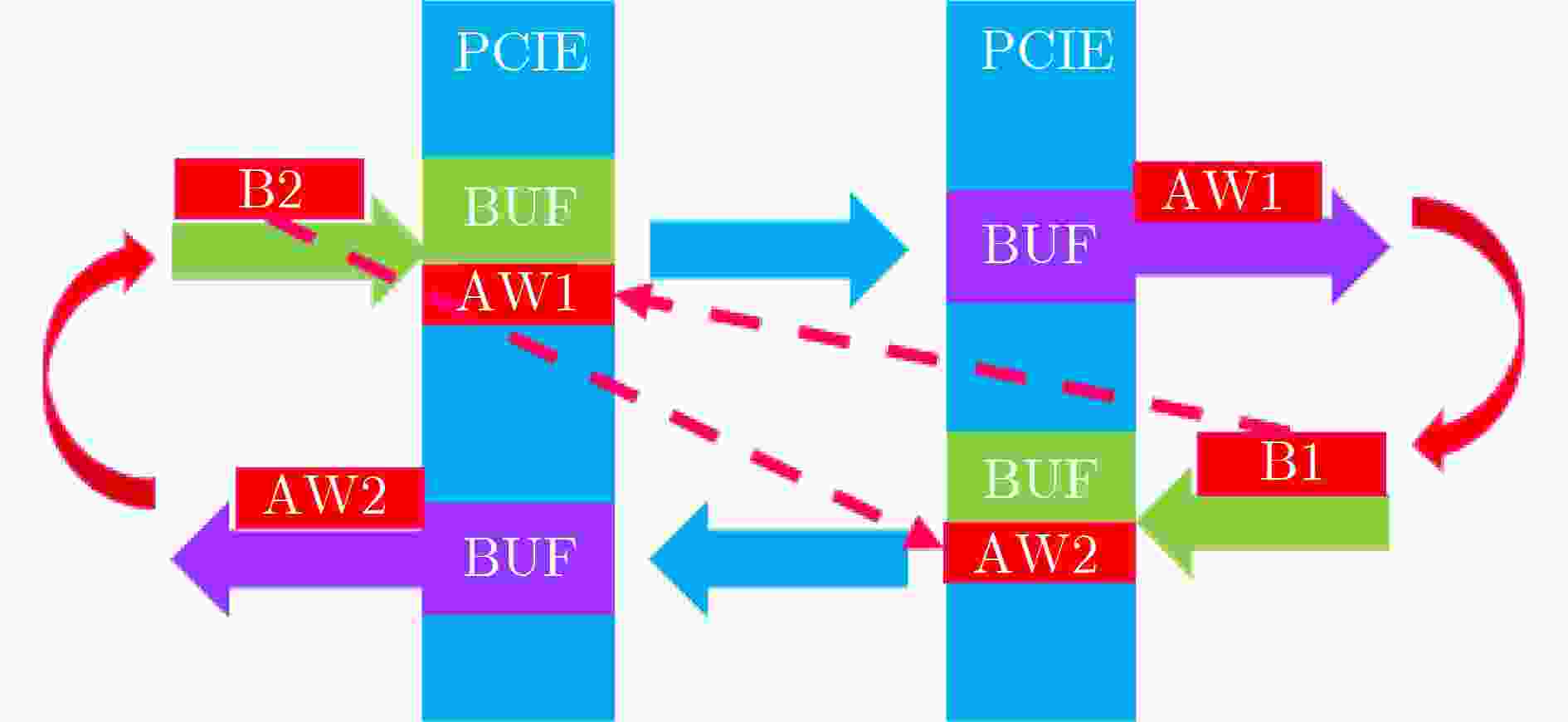

图 4 桥接死锁图示

下载: 全尺寸图片幻灯片

表 1 近年发布的多款处理器芯片的IP组件情况

芯片	CPU	GPU	NPU	其他IP	接口
Tesla FSD^[8]	A72×3	G71	NNA×2	ISP
Apple M1^[9]	P Core, E Core	GPU	NPU	ISP
Microsoft MT3620^[10]	Cortex-A	Cortex-M	–	Crypto	DDR
Intel Sapphire Rapids^[11,12]	Cores Mesh ×4	–	–	DSA, QAT	DDR, PCIE
IBM Telum^[13]	Core ×8	–	–	Crypto, Compression	DDR, DCM

下载: 导出CSV

表 2 死锁避免机制比较

方法	适用拓扑	是否需要CDG	模块化扩展	实现开销
Dateline	环形	是	EF^[24]	额外的虚通道
TR	Mesh	否	MTR^[15]	限制路由方向
FC	Ring, Mesh	是	RC^[16]	额外的流控机制
DR	Ring, Mesh	否	文献[25]	额外的跨Die交换模块
本文	Crossbar	否	支持	几乎无

下载: 导出CSV

算法1 FTLR算法
输入：拓扑结构图G，路由规则集F。
输出：潜在死锁依赖P。
变量：中间结果集合M。
步骤1　读入G，检测G中是否存在环。如果存在，则将其加入到M中。
步骤2　遍历G中所有Master到Slave的数据通路，加入到M中，并标识拆包模块和桥接模块。
步骤3　遍历F中所有Master到Slave的路由通路，如果与M中某一数据通路组合满足死锁发生条件，则输出该路径。

下载: 导出CSV

表 3 互连网络死锁检测方法对比

方法	双重通道死锁	环形通道死锁	桥接死锁	检测效率	建模难度	检测时间
CDG	×	√	×	并行	困难	几天
UVM	√	√	√	串行	一般	几周
FTLR	√	√	√	并行	简单	几小时

下载: 导出CSV
