基于忆阻器的混沌、存储器及神经网络电路研究进展

王春华; 蔺海荣; 孙晶如; 周玲; 周超; 邓全利

doi:10.11999/JEIT190821

基于忆阻器的混沌、存储器及神经网络电路研究进展

doi: 10.11999/JEIT190821

1.
湖南大学信息科学与工程学院长沙 410082
2.
湖南科技学院电子与信息工程学院永州 425199

基金项目: 国家自然科学基金重大研究计划项目(91964108)，国家自然科学基金(61971185)，湖南省高校重点实验室开放基金(18K010)

详细信息

作者简介:
王春华：男，1963年生，教授，研究方向为模拟/混合集成电路设计、混沌电路与系统、神经网络与类脑智能、混沌图像加密

蔺海荣：男，1988年生，博士生，研究方向为基于忆阻的神经网络模型设计、动力学分析以及电路实现

孙晶如：女，1977年生，助理教授，研究方向为基于忆阻的存储器技术、混沌图像加密技术、基于神经网络的交通流预测

周玲：女，1980年生，讲师，研究方向为混沌电路与系统、图像处理与加密

周超：男，1991年生，博士生，研究方向为复杂网络、基于忆阻神经网络同步与控制

邓全利：男，1993年生，硕士生，研究方向为基于忆阻器的混沌系统及基于忆阻器的神经网络

通讯作者:
王春华　wch1227164@hnu.edu.cn

中图分类号: TN601; TN710.2
计量
- 文章访问数: 6585
- HTML全文浏览量: 1570
- PDF下载量: 806
- 被引次数: 0
出版历程
- 收稿日期: 2019-10-25
- 修回日期: 2020-01-10
- 网络出版日期: 2020-01-21
- 刊出日期: 2020-06-04

Research Progress on Chaos, Memory and Neural Network Circuits Based on Memristor

1.
College of Computer Science and Electronic Engineering, Hunan University, Changsha 410082, China
2.
School of Electronics and Information Engineering, Hunan University of Science and Engeneering, Yongzhou 425199, China

Funds: The Major Research Project of the National Natural Science Foundation of China (91964108), The National Natural Science Foundation of China (61971185), The Open Fund Project of Key Laboratory in Hunan Universities (18K010)

摘要

摘要: 忆阻器是除电阻、电容、电感之外发现的第4种基本电子元件，它是一种具有记忆特性的非线性器件，可用于混沌、存储器、神经网络等电路与系统的实现。该文对基于忆阻器的混沌电路、存储器、神经网络电路的设计与神经动力学的国内外研究进行了综述，并给出了对它们的研究展望。
- 忆阻器 /
- 混沌电路 /
- 存储器 /
- 神经网络
Abstract: Memristor is the fourth basic electronic component in addition to resistor, capacitor and inductor. It is a nonlinear device with memory characteristics, which can be used to design chaotic circuits, memory devices and neural networks. The design of memristor-based chaos circuits, memory and neural systems, and some research of neural dynamics in this field are reviewed, and their research prospects are also given.
- Memristor /
- Chaos circuit /
- Memory /
- Neural network

HTML全文

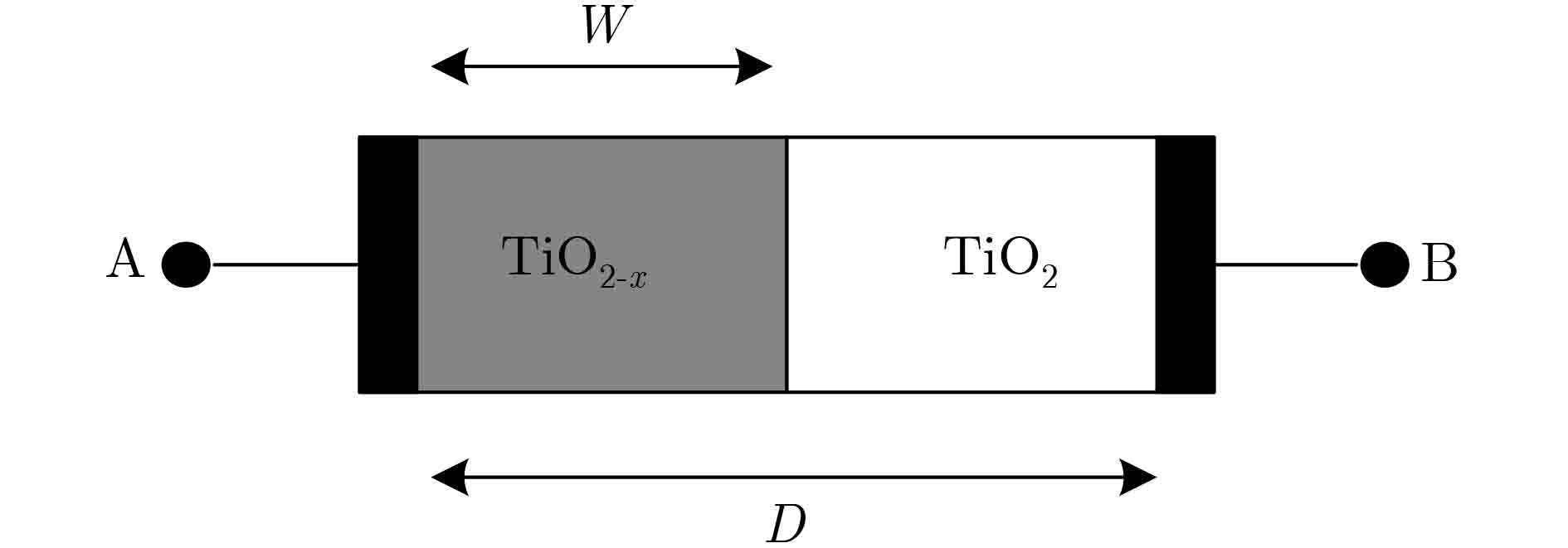

图 1 HP忆阻器的结构图

下载: 全尺寸图片幻灯片

图 2 基于1T2M存储单元的多值存储器原理图

下载: 全尺寸图片幻灯片

图 3 基于忆阻器突触的电路结构图

下载: 全尺寸图片幻灯片

图 4 电磁辐射忆阻神经模型

下载: 全尺寸图片幻灯片

图 5 忆阻突触神经模型

下载: 全尺寸图片幻灯片
