Performance Analysis of Massive MIMO-OFDM System with Mixed-precision Analog-to-digital Converter

Kai LIU¹,
Guichao CHEN¹,
Cheng TAO¹,
Tao ZHOU^{1, 2
, ,}

1.
Institute of Broadband Wireless Mobile Communications, Beijing Jiaotong University, Beijing 100044, China
2.
National Mobile Communications Research Laboratory, Southeast University, Nanjing 211189, China

Funds: The National Natural Science Foundation of China (61701017), The Fundamental Research Funds for the Central Universities (2018JBM003), The Beijing Natural Science Foundation (4174102), The Research Fund of National Mobile Communications Research Laboratory, Southeast University (2018D11)

摘要

摘要: 该文对在接收端使用混合精度的模数转换器且采用迫零接收算法的大规模MIMO-OFDM系统的上行链路的频谱效率和能量效率进行了研究。采用加性量化噪声模型来对系统的性能进行分析，推导出整个系统的频谱效率和能量效率的近似闭式表达式，并通过仿真证明了表达式的正确性。研究结果表明，系统的频谱效率和每个用户的发送功率，接收端天线数目和接收端量化精度有关。数值和仿真结果还表明可以通过增加基站端的天线数量来补偿由低精度模数转换器带来的性能损失。
- MIMO-OFDM /
- 混合精度量化 /
- 频谱效率 /
- 能量效率
Abstract: The spectral efficiency and energy efficiency of the uplink of massive MIMO-OFDM system is studied using mixed-precision Analog-Digital Converter (ADC) and Zero-Forcing (ZF) reception algorithm at the receiver. By using the additive quantization noise model to analyze the performance of the system, the approximate closed expression of the spectral efficiency and energy efficiency of the whole system is derived, and the correctness of the expression is proved by simulation. The research results show that the spectral efficiency of the system is related to the transmission power of each user, the number of antennas at the receiver and the quantization accuracy of the receiver. Numerical and simulation results also show that the performance loss caused by the low-precision ADC can be compensated by increasing the number of antennas at the base station.
- MIMO-OFDM /
- Mixed-precision quantification /
- Spectral efficiency /
- Energy efficiency

HTML全文

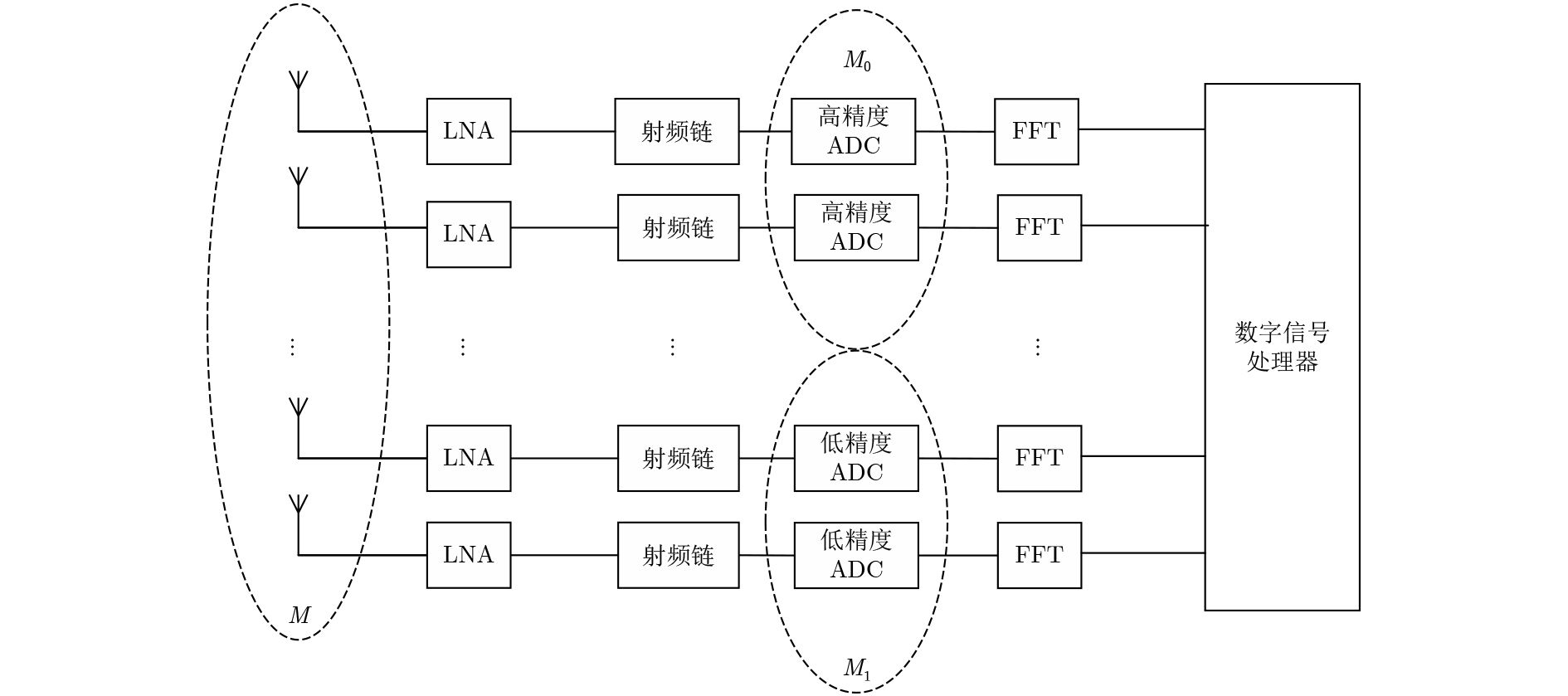

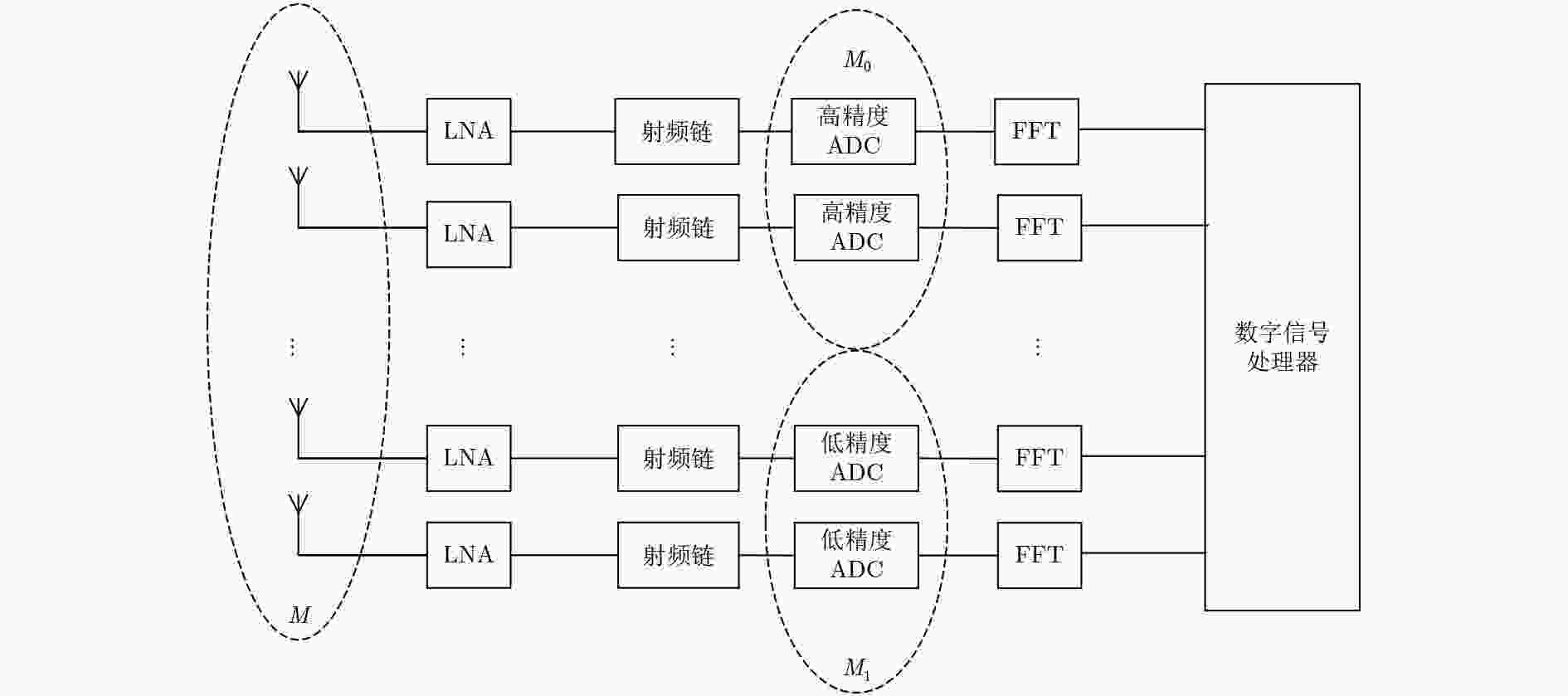

图 1 混合ADC大规模MIMO-OFDM系统接收端模型

下载: 全尺寸图片幻灯片

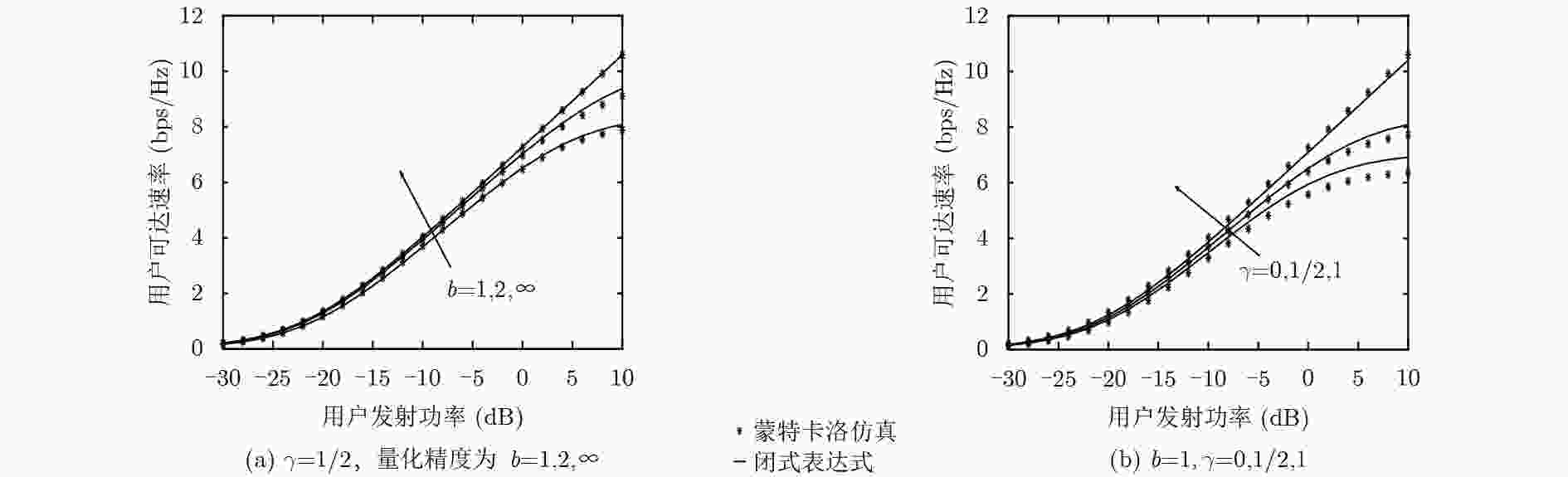

图 2 上行链路用户平均速率随用户发射功率的曲线变化

下载: 全尺寸图片幻灯片

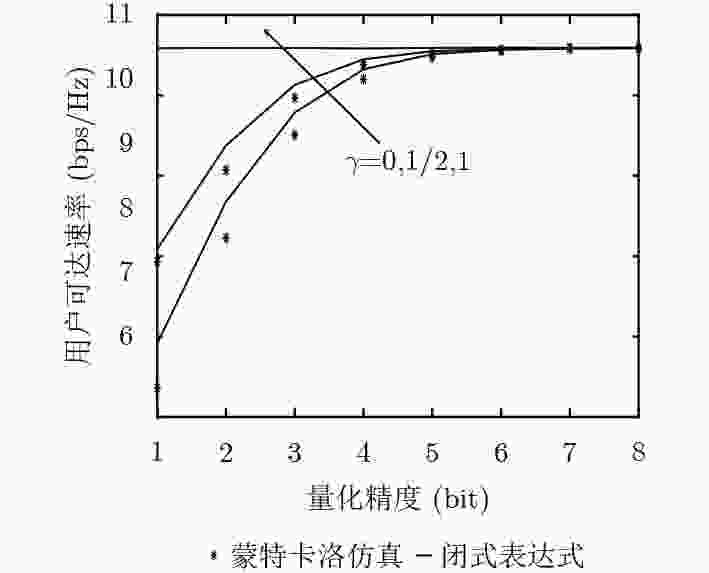

图 3 上行链路用户平均可达速率随量化精度b的曲线变化

下载: 全尺寸图片幻灯片

图 4 上行链路用户平均可达速率随$\gamma $的曲线变化

下载: 全尺寸图片幻灯片

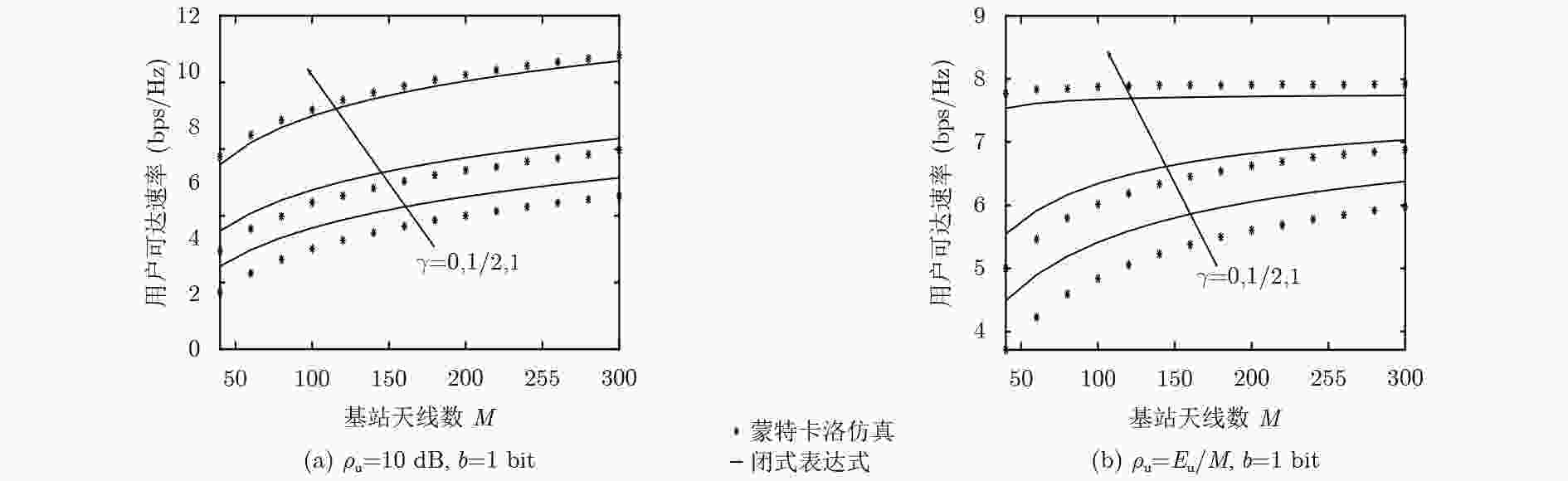

图 5 上行链路用户平均速率随基站天线数目的曲线变化

下载: 全尺寸图片幻灯片

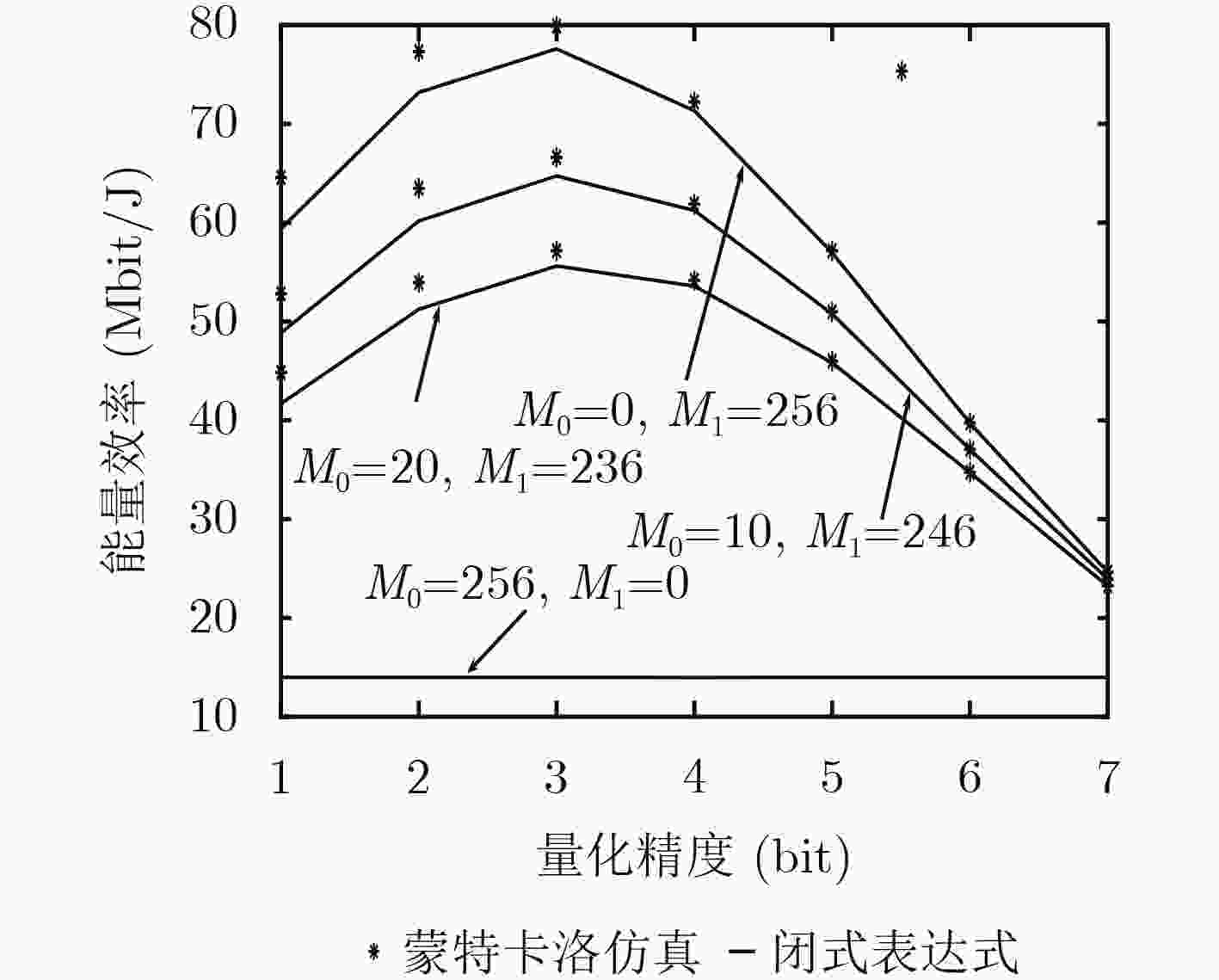

图 6 大规模MIMO-OFDM系统能量效率和量化精度的关系

下载: 全尺寸图片幻灯片

图 7 大规模MIMO-OFDM系统能量效率和基站天线数目的关系

下载: 全尺寸图片幻灯片

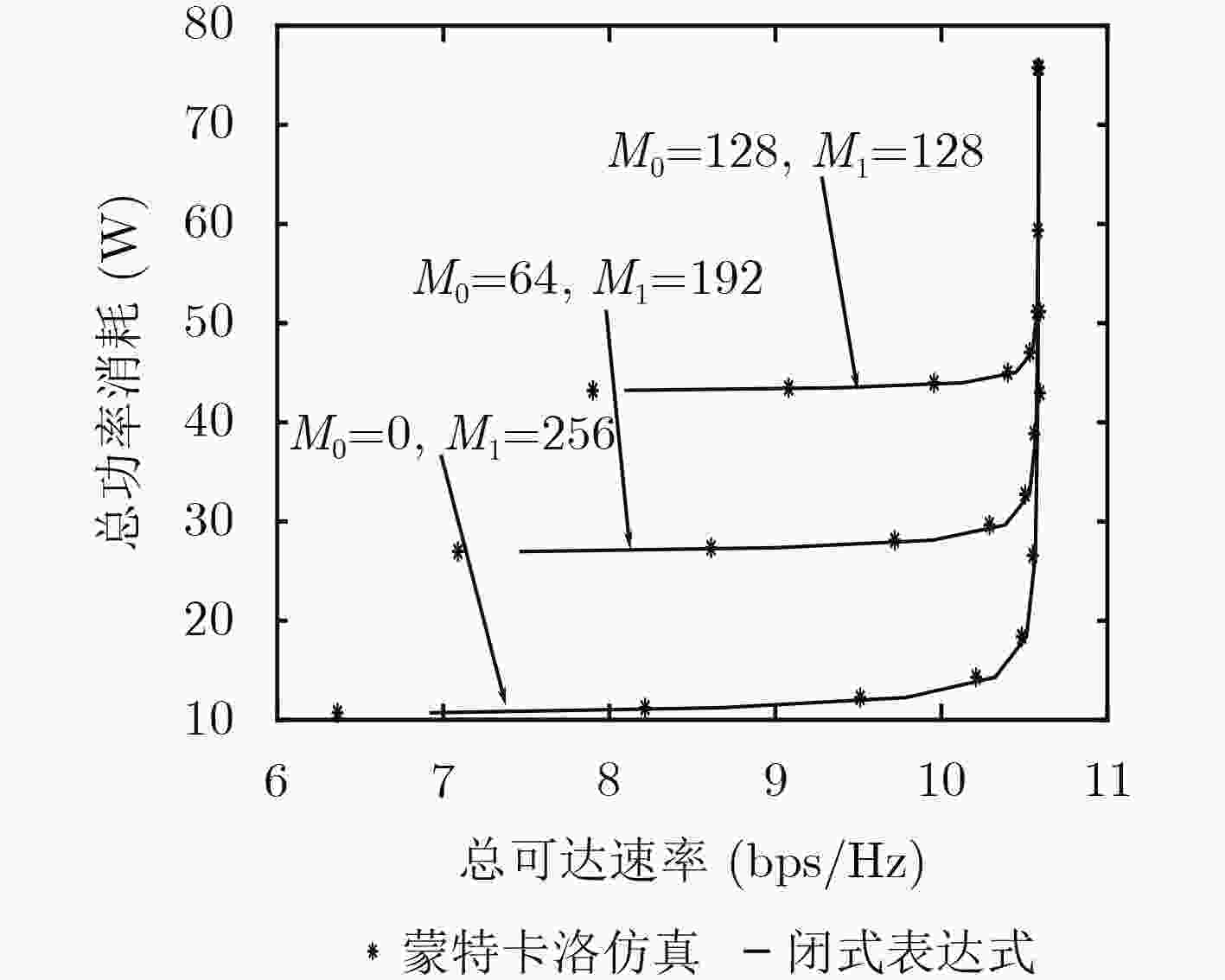

图 8 ${\rho _{\rm{u}}} $=10 dB时系统总功耗和总频谱效率之间的关系

下载: 全尺寸图片幻灯片

表 1 不同量化精度的失真因子

b(bit) 1 2 3 4 5

$\rho $ 0.3634 0.1175 0.0345 0.0095 0.0025

下载: 导出CSV
