基于动态聚焦与语义提示的细粒度害虫分类网络

柳长源; 赵海健; 吴海滨

doi:10.11999/JEIT260044

基于动态聚焦与语义提示的细粒度害虫分类网络

doi: 10.11999/JEIT260044 cstr: 32379.14.JEIT260044

哈尔滨理工大学测控技术与通信工程学院哈尔滨 150080

基金项目: 黑龙江省交通运输厅科技项目(HJK2024B002)

详细信息

作者简介:
柳长源：男，副教授，研究方向为图像处理与模式识别

赵海健：男，硕士生，研究方向为图像分类与图像识别

吴海滨：男，教授，研究方向为机器视觉与图像分类

通讯作者:
柳长源　liuchangyuan@hrbust.edu.cn

中图分类号: TP391.41
计量
- 文章访问数: 6
- HTML全文浏览量: 3
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2026-01-13
- 修回日期: 2026-04-13
- 录用日期: 2026-04-13
- 网络出版日期: 2026-04-30

Dynamic Focus and Semantic Prompt Network for Fine-Grained Pest Classification

College of Measurement and Control Technology and Communication Engineering, Harbin University of Science and Technology, Harbin 150080, China

Funds: Scientific and Technological Project of the Department of Transportation of Heilongjiang Province (HJK2024B002)

摘要

摘要: 农业害虫图像普遍存在复杂背景干扰、不同虫态时期外观差异显著、拍摄角度多样和尺度变化大等问题，导致现有细粒度图像分类模型在特征提取和虫态变化适应性方面仍存在不足。针对上述问题，本文构建了一个涵盖多虫态时期、多角度和多尺度的农业害虫多维数据集(APMD)，并提出一种基于动态聚焦与语义提示的细粒度害虫分类网络(DFS-PestNet)。本文构建主特征流与提示增强流相结合的解耦并行架构，通过空间形变建模模块(SDP)动态聚焦害虫斑点、翅脉等关键判别区域，以增强复杂背景下的局部细微特征提取能力；引入提示引导机制模块(AHVP)，在浅中层特征中融合类别语义与空间位置信息，提升对不同虫态形态变化的适应性；同时采用显著性双分支采样(DSS)，通过可学习原型部件和双分支显著性融合自适应聚合害虫关键部位特征，增强对微小害虫和早期幼虫等小目标的识别能力。实验结果表明，在IP102和APMD两个数据集上本文模型均取得了优于基线模型和现有主流方法的分类性能，验证了其在复杂场景下细粒度害虫分类任务中的有效性与应用潜力，为智慧农业中的虫害监测与精准防治提供技术参考。
- 农业害虫 /
- 细粒度分类 /
- 空间形变建模 /
- 提示引导机制 /
- 小目标
Abstract: Objective Agricultural pest images are commonly affected by severe challenges, including complex background interference, significant appearance differences across morphological stages, diverse shooting angles, and massive scale variations. These issues result in distinct insufficiencies in feature extraction and morphological adaptability within existing fine-grained classification models. To address these challenges, an Agricultural Pest Multi-dimensional Dataset (APMD) comprehensively covering multiple morphological stages, viewing angles, and object scales is constructed. Furthermore, a fine-grained pest classification network based on dynamic focus and semantic prompts (DFS-PestNet) is proposed. A decoupled parallel architecture combining a main feature stream and a prompt enhancement stream is designed. Through a Spatial Dependency Perception (SDP) module, crucial discriminative regions (e.g., pest spots and wing veins) are dynamically focused upon to enhance local subtle feature extraction under complex backgrounds. An Advanced Haptic-Visual Prompting (AHVP) module is introduced to explicitly integrate category semantics and spatial position information into shallow and middle-level features, substantially improving adaptability to morphological variations across developmental stages. Simultaneously, Dual-Branch Saliency Sampling (DSS) is adopted to adaptively aggregate critical features of essential pest body parts through learnable prototype components and dual-branch saliency fusion. This strategy enhances the precise recognition capability for small targets, including tiny pests and early-stage larvae. Experimental results demonstrate that the proposed model achieves superior classification performance compared to baseline and mainstream methods on both public and self-constructed datasets. The effectiveness and application potential of the model in complex agricultural scenarios are fully validated, providing a reliable technical reference for intelligent pest monitoring and precise control in smart agriculture. Methods To tackle the problem of insufficient classification accuracy in existing models under complex background interference and multi-morphological conditions, the Agricultural Pest Multi-dimensional Dataset (APMD) is initially constructed. This comprehensive dataset encompasses extensive image data across various morphological stages of pests, multiple viewing angles, and different scales. Specifically, it contains a total of 15,680 images covering 58 distinct species, which are rigorously divided into training, validation, and testing sets with a standard ratio of 7:2:1 (Fig. 1) (Table 1). This dataset provides crucial and high-quality resource support for further research on fine-grained pest classification. Subsequently, the Dynamic Focus and Semantic Prompt Network for Fine-Grained Pest Classification (DFS-PestNet) is formally proposed. Within this network architecture, the Spatial Dependency Perception (SDP) module is carefully designed to adaptively locate and structurally enhance the key discriminative regions of pests. By successfully overcoming pose variations and complex background interference, more accurate fine-grained pest feature extraction is achieved. In addition, the Advanced Haptic-Visual Prompting (AHVP) module is introduced into the network pipeline to embed deep category semantics and spatial position information. This module guides the network to consistently focus on crucial discriminative features across different morphological periods, thereby effectively improving the overall recognition robustness regarding dramatic morphological changes throughout the pest life cycle. Furthermore, Dual-Branch Saliency Sampling (DSS) is proposed to adaptively aggregate the features of essential pest body parts. This strategy structurally strengthens the precise recognition capability for challenging small targets, effectively resolving the inherent difficulties of small target detection in fine-grained pest classification tasks. Results and Discussions The superior performance of the DFS-PestNet model in fine-grained pest classification tasks is comprehensively evaluated and verified through multi-dimensional experiments. Firstly, in terms of qualitative visualization analysis, Grad-CAM heatmaps intuitively indicate that compared to the baseline model, which is highly susceptible to severe interference from complex farmland backgrounds and plant stems, DFS-PestNet is capable of effectively suppressing background noise. It precisely focuses on fine-grained discriminative parts, such as pest heads and antennae (Fig. 6). Significant advantages are explicitly demonstrated in capturing features of tiny targets (e.g., leafhopper nymphs) and pests in different life stages (e.g., Chilo suppressalis hidden within stems). The t-SNE feature dimensionality reduction results further confirm that the proposed model effectively alleviates the feature confusion problem in multi-morphological scenarios, enabling high-dimensional features to exhibit clearer inter-class separation and tighter intra-class clustering within a two-dimensional visual space (Fig. 7). Secondly, regarding quantitative ablation and parameter optimization experiments, the ablation studies fully validate the powerful synergistic enhancement effect of the three major improved modules: SDP, AHVP, and DSS (Table 2). The organic combination of these three modules significantly increases the classification accuracy of the baseline model by 2.21%, successfully reaching 77.24%, with all core evaluation metrics achieving optimal values. Concurrently, hyperparameter optimization experiments explicitly determine the optimal number of prompt position tokens to be 6 and the optimal feature dropout rate to be 0.2 (Fig. 8). This specific configuration guarantees complete semantic expression while simultaneously achieving the best balance between simulating natural occlusion and enhancing overall model robustness. Finally, in comparative experiments with mainstream state-of-the-art models, DFS-PestNet achieves the highest accuracies of 77.24% and 98.01% on the large-scale public dataset IP102 and the highly challenging self-constructed multi-dimensional dataset APMD, respectively, when directly compared with existing frontier Convolutional Neural Network (CNN) and Transformer architectures, such as Gate-ViT and EST (Table 3) (Table 4). These quantitative results comprehensively lead to various fine-grained classification metrics. More importantly, while guaranteeing extremely high classification accuracy, the inference speeds of the proposed model reach remarkably high levels of 158 frames/s and 164 frames/s, respectively. In summary, DFS-PestNet achieves a perfect unification of top-tier classification accuracy and excellent inference efficiency in complex pest feature extraction across massive scales and multiple morphological stages, which lays a solid operational foundation for efficient deployment and implementation in practical smart agriculture scenarios. Conclusions To address the challenges of multi-morphological variations and small target recognition in fine-grained pest classification, the multi-dimensional dataset APMD is initially constructed, and the DFS-PestNet model is proposed based on the MPSA baseline. Specifically, the SDP module is introduced to adaptively focus on pose- and morphology-invariant discriminative features; the AHVP module embeds robust category semantics and spatial position information into shallow and middle-level networks; and the DSS module adaptively aggregates crucial body part features to significantly enhance small target detection. Experimental results consistently verify the superiority of DFS-PestNet over mainstream models on both the IP102 and APMD datasets across varying developmental stages, angles, and scales. Future work will focus on exploring lightweight model modifications for efficient edge deployment and investigating open-set recognition tasks to accurately issue early warnings for unknown pest categories in complex real-world environments.
- Agricultural pest /
- Fine-grained classification /
- Spatial Dependency Perception(SDP) /
- Advanced Haptic-Visual Prompting(AHVP) /
- Small target

HTML全文

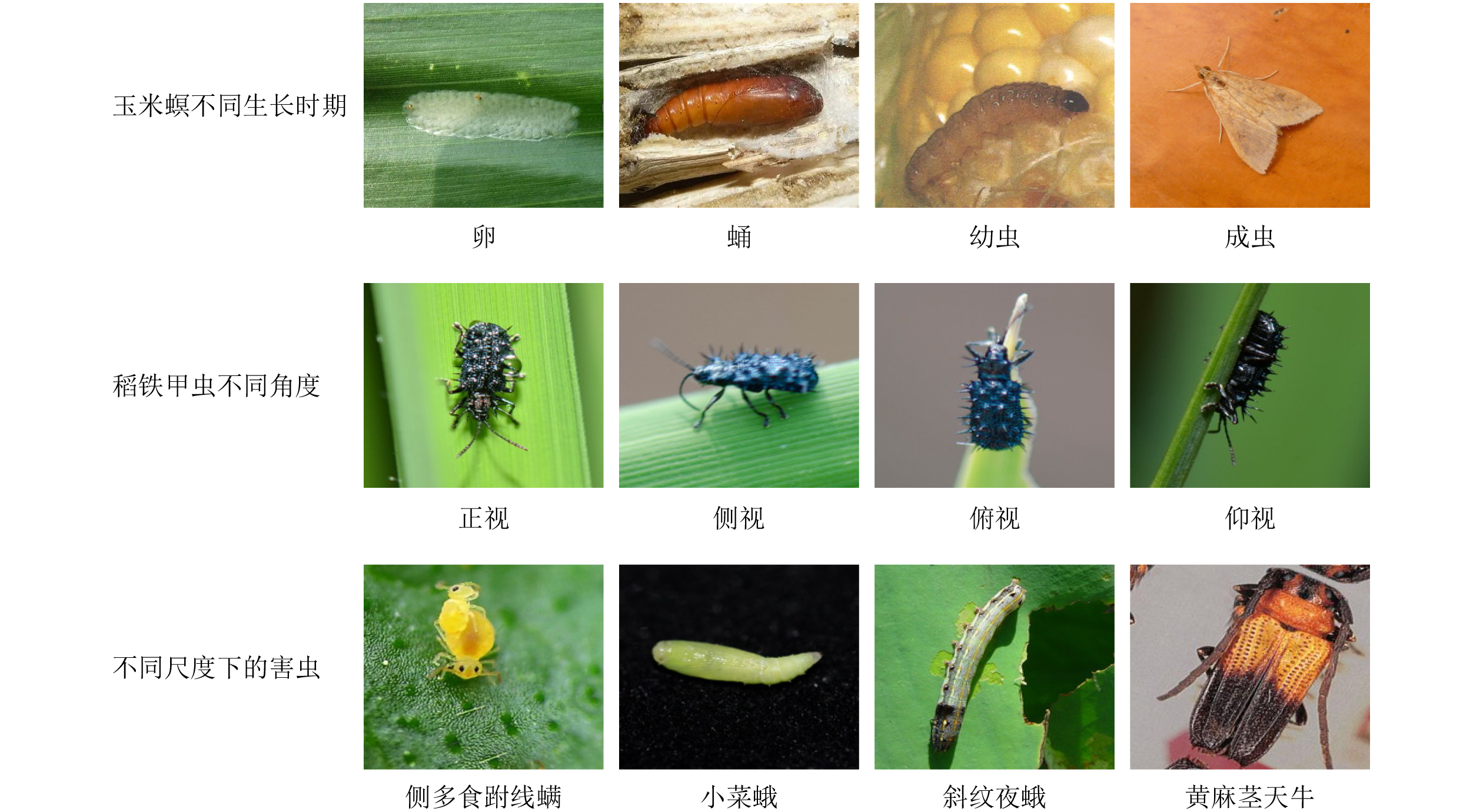

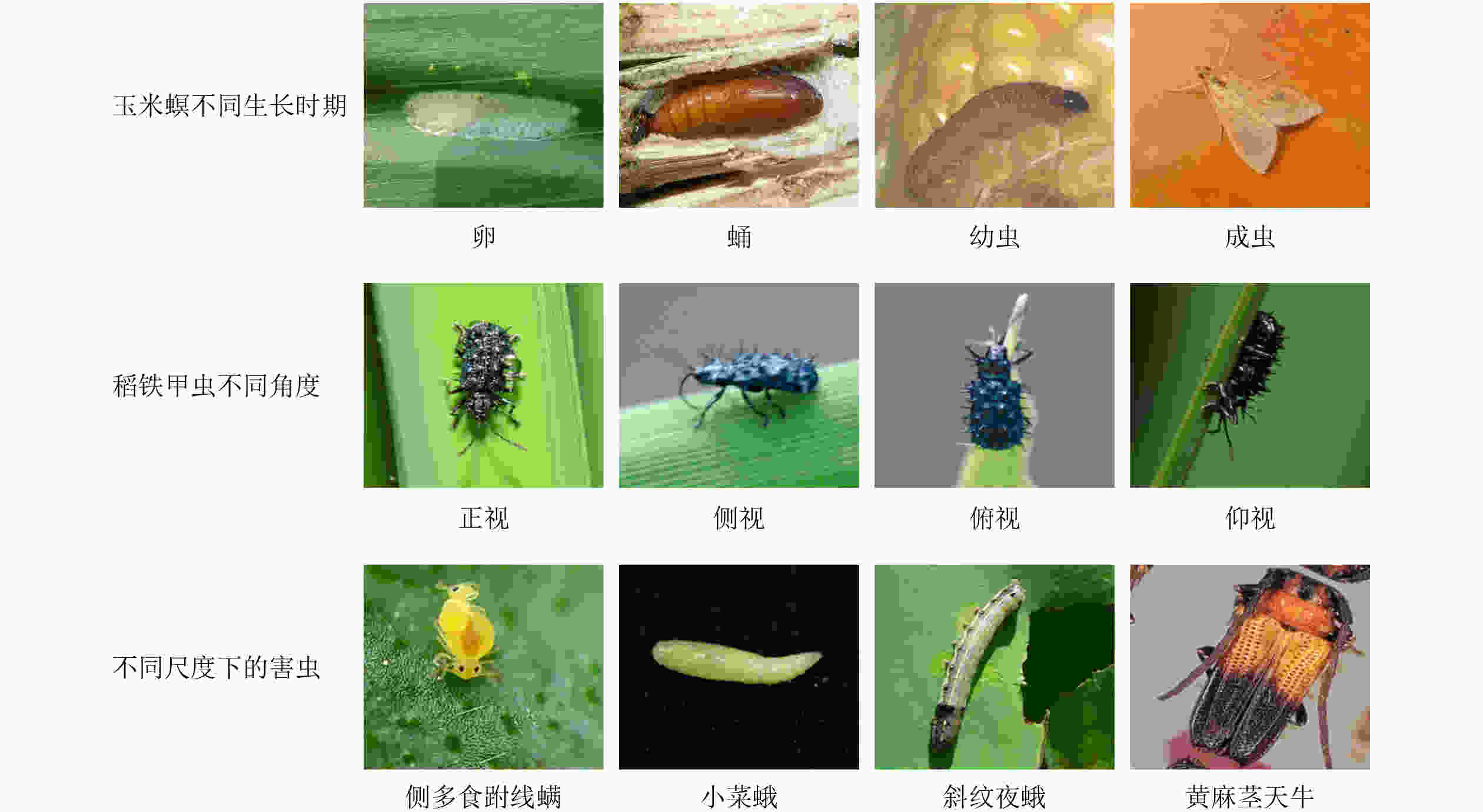

图 1 APMD数据集图像

下载: 全尺寸图片幻灯片

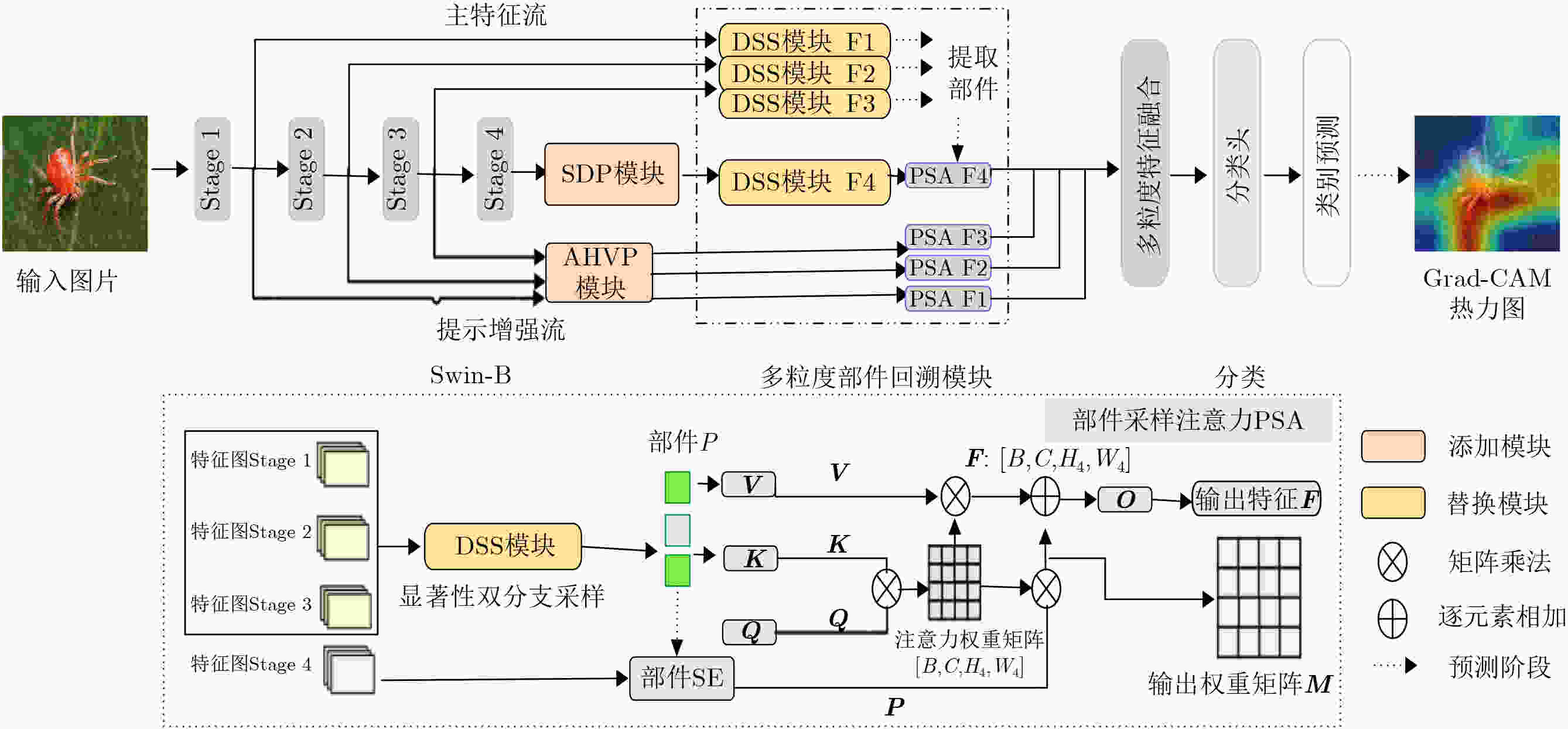

图 2 DFS-PestNet模型结构

下载: 全尺寸图片幻灯片

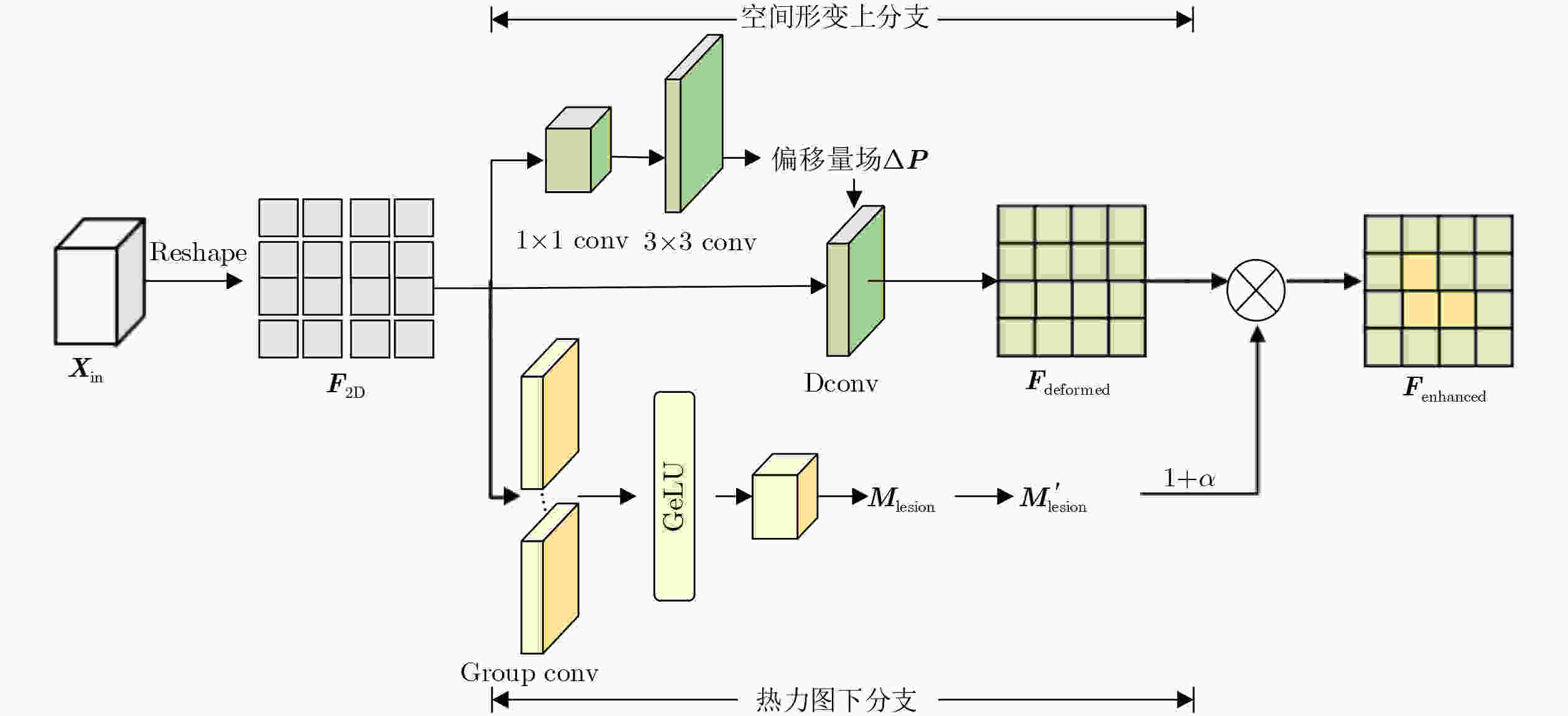

图 3 SDP模块结构

下载: 全尺寸图片幻灯片

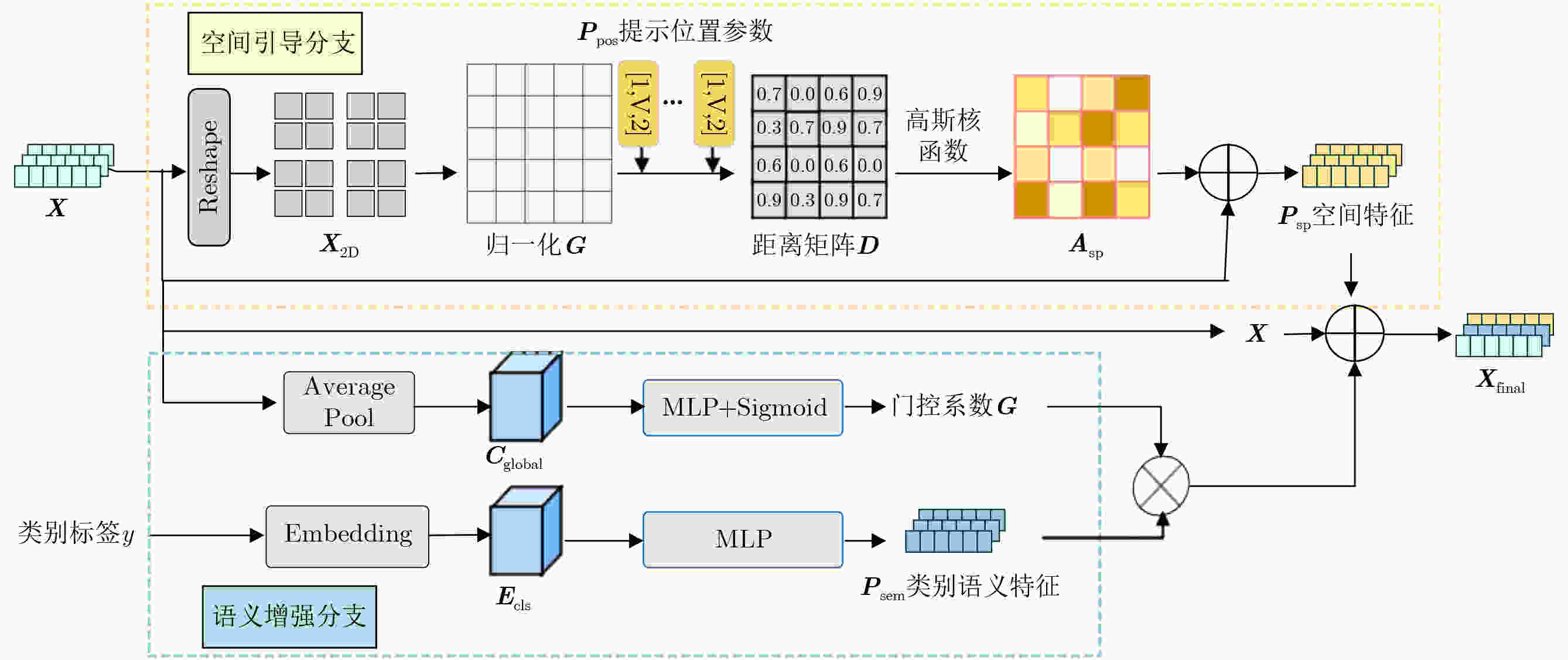

图 4 AHVP模块结构

下载: 全尺寸图片幻灯片

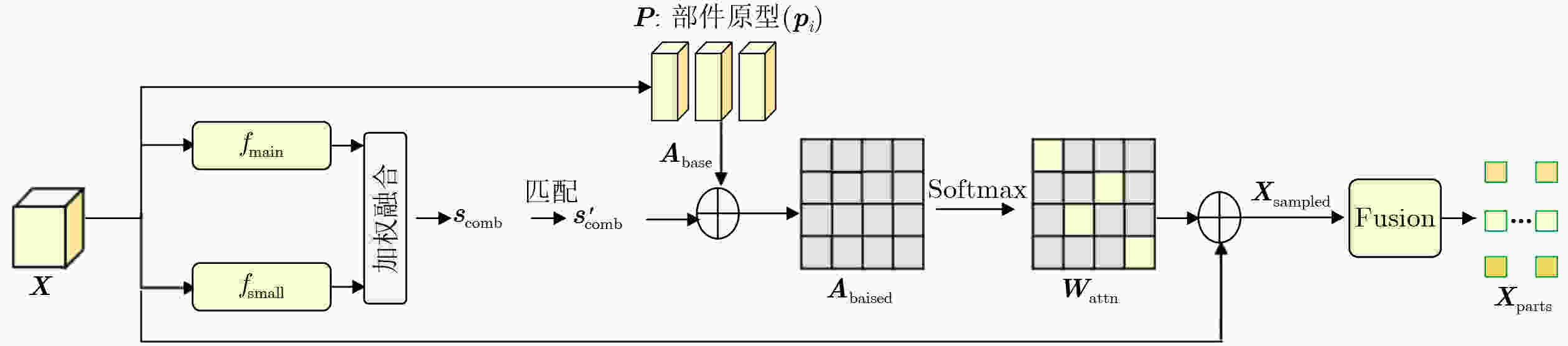

图 5 DSS模块结构

下载: 全尺寸图片幻灯片

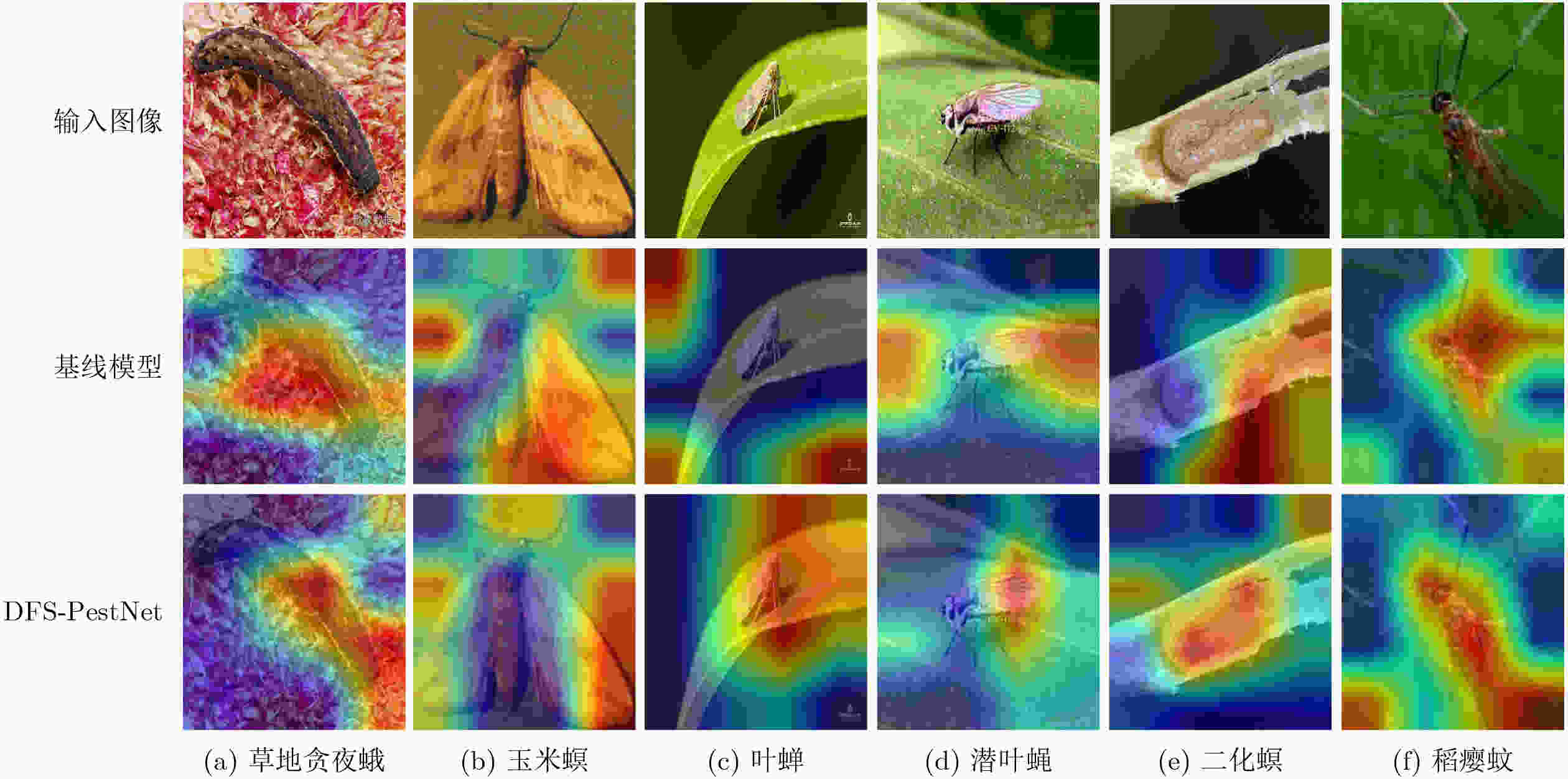

图 6 Grad-CAM可视化对比

下载: 全尺寸图片幻灯片

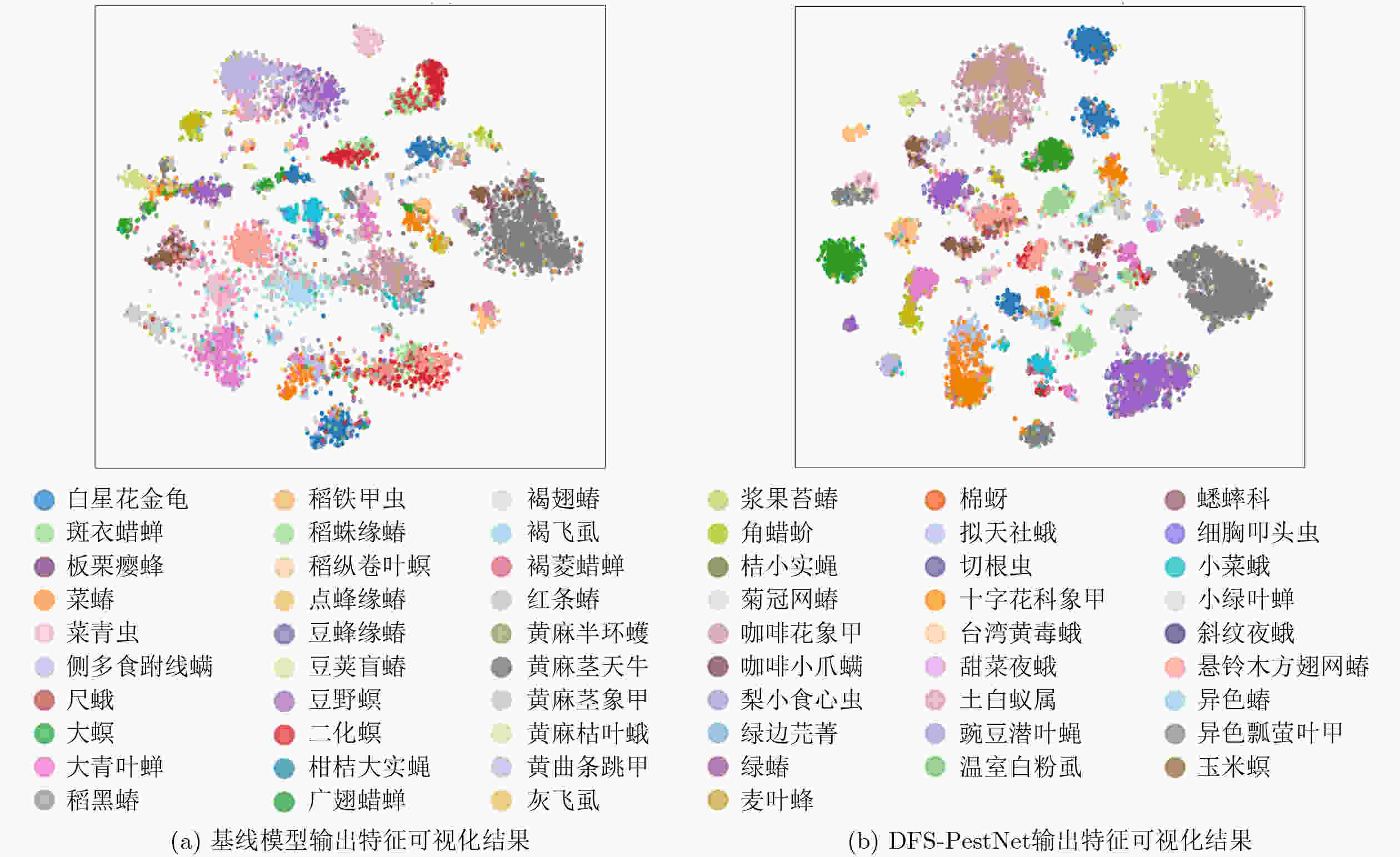

图 7 t-SNE可视化APMD数据集特征分布图

下载: 全尺寸图片幻灯片

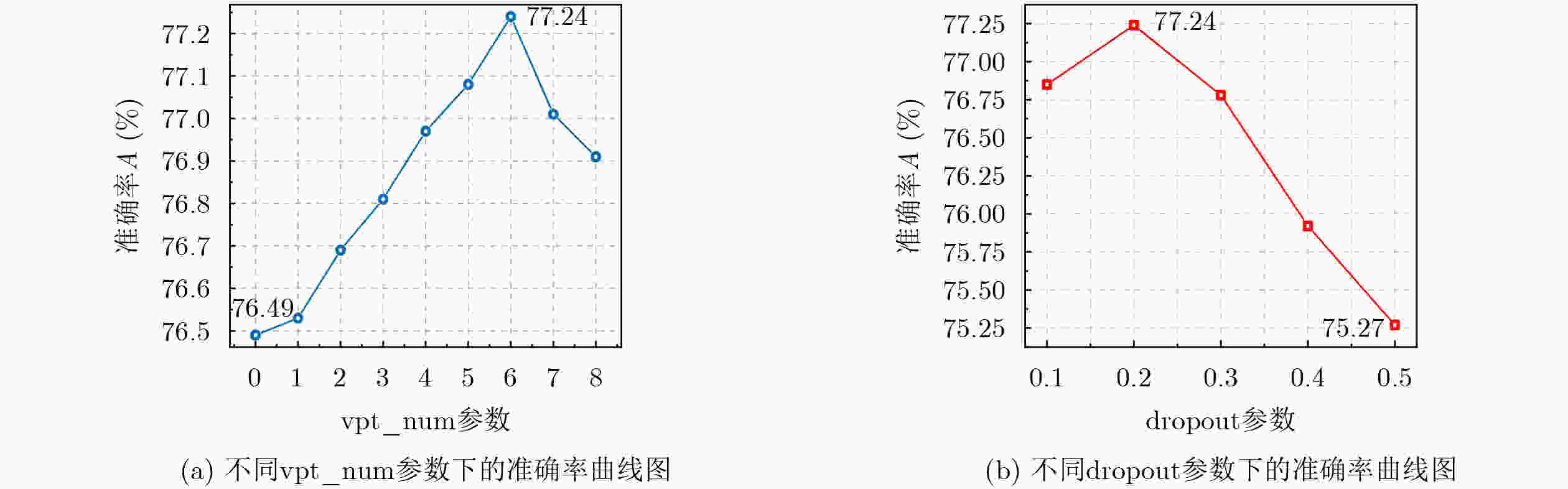

图 8 模型超参数变化下的准确率大小

下载: 全尺寸图片幻灯片

表 1 APMD数据集层级化分类体系

目	种类数	虫态数	图像数量
目	种类数	虫态数	训练集	验证集	测试集
半翅目	23	3(卵/幼/成虫)	4347	1242	621
鳞翅目	16	4(卵/幼/蛹/成虫)	3024	864	432
鞘翅目	10	4(卵/幼/蛹/成虫)	1890	540	270
双翅目	3	4(卵/幼/蛹/成虫)	567	162	81
膜翅目	2	4(卵/幼/蛹/成虫)	378	108	54
蜱螨类	2	4(卵/幼/蛹/成虫)	378	108	54
直翅目	1	3(卵/幼/成虫)	189	54	27
等翅目	1	3(卵/幼/成虫)	189	54	27
合计	58		10962	3132	1566

下载: 导出CSV

表 2 消融实验结果

实验编号	SDP 模块	AHVP 模块	DSS 模块	A/%	P/%	R/%	F1-score/%
1				75.03	67.85	64.60	66.18
2	√			75.73	69.10	65.90	67.46
3		√		75.67	68.95	65.85	67.36
4			√	75.38	68.40	65.30	66.81
5	√	√		76.52	70.40	67.45	68.89
6	√		√	76.49	70.35	67.30	68.79
7		√	√	76.50	70.38	67.40	68.86
8	√	√	√	77.24	71.64	68.78	70.18

下载: 导出CSV

表 3 IP102数据集上对比试验结果

网络模型	Backbone	A/%	P/%	R/%	F1-score/%	FPS
VRFNet^[18]	EfficientNet	68.34	68.37	68.33	68.34	-
EfficientNet B7^[19]	EfficientNet	70.01	-	-	-	-
ViT^[20]	ViT-B/16	73.40	68.17	66.89	66.52	70
IELT^[21]	ViT-B/16	75.40	69.50	67.82	68.65	62
FFEL-Net^[22]	ViT-B/16	76.21	68.44	66.86	67.64	-
FRCF^[23]	ViT-B/16	74.69	-	-	-	91
Gate-ViT^[24]	ViT-B/16	76.10	70.11	69.14	69.62	109
EST^[25]	Swin-B	71.84	65.85	63.22	64.06	84
本文模型	Swin-B	77.24	71.64	68.78	70.18	158

下载: 导出CSV

表 4 APMD数据集上对比试验结果

网络模型	Backbone	A/%	P/%	R/%	F1-score/%	FPS
ViT^[20]	ViT-B/16	88.92	89.80	87.45	88.61	125
IELT^[21]	ViT-B/16	90.24	90.90	89.21	90.05	117
Gate-ViT^[24]	ViT-B/16	91.60	92.10	90.87	91.48	112
CLCA^[26]	ViT-B/16	93.52	94.00	92.79	93.39	110
GLSim^[27]	ViT-B/16	95.78	96.10	95.32	95.71	105
EST^[25]	Swin-B	93.45	93.82	93.10	93.46	138
本文模型	Swin-B	98.01	98.20	98.00	97.90	164

下载: 导出CSV
