面向动态特性的自动测试向量生成系统优化方法

严大鹏; 何其润; 郭京; 王泊宁; 蔡志匡

doi:10.11999/JEIT260025

面向动态特性的自动测试向量生成系统优化方法

doi: 10.11999/JEIT260025 cstr: 32379.14.JEIT260025

严大鹏¹,
何其润¹,
郭京¹,
王泊宁¹,
蔡志匡^{1, 2, ,}

1.
南京邮电大学集成电路科学与工程学院南京 210023
2.
射频集成与微组装技术国家地方联合工程实验室南京 210023

基金项目: 国家自然科学基金企业创新发展联合基金重点支持项目(U23B2042)，国家自然基金面上项目(62371256)，南京邮电大学引进人才自然科学研究启动基金(NY22502)，南京邮电大学南通研究院有限公司自研项目(ZY-001)

详细信息

作者简介:
严大鹏：男，讲师，研究方向为智能化测试与芯粒测试

何其润：男，硕士生，研究方向为智能化ATPG

郭京：女，硕士生，研究方向为智能化ATPG

王泊宁：男，博士生，研究方向为测试向量优化大模型

蔡志匡：男，教授，研究方向为芯粒测试与智能化测试

通讯作者:
蔡志匡　whczk@njupt.edu.cn

中图分类号: TN47
计量
- 文章访问数: 117
- HTML全文浏览量: 46
- PDF下载量: 15
- 被引次数: 0
出版历程
- 收稿日期: 2026-01-08
- 修回日期: 2026-03-18
- 录用日期: 2026-03-24
- 网络出版日期: 2026-04-19

Optimizing SATisfiability-Based Automatic Test Pattern Generation Systems: Unified Fault Set Construction,Modeling, and Solving

1.
School of Integrated Circuit Science and Engineering, Nanjing University of Posts and Telecommunications, Nanjing 210023, China
2.
National and Local Joint Engineering Laboratory for RF Integration and Micro-Assembly Technology, Nanjing 210023, China

摘要

摘要: 基于布尔可满足性的自动测试向量生成系统作为芯片故障检测的关键环节，系统效率受故障压缩策略、布尔可满足性建模策略及求解器传播能力共同制约，随着集成电路复杂度持续提升，其性能面临严峻挑战。该文提出一种面向自动测试向量生成系统的统一优化框架。构建检测点驱动的动态故障集，在保持可测故障覆盖完备性的前提下压缩待测故障规模。提出基于新型故障敏化约束的布尔可满足建模方法，通过显式敏化条件替代故障电路复制并约束于故障扇出锥内，减少合取范式变量与子句规模。引入面向扇出-重汇聚结构的动态蕴含学习，将结构相关性转化为增量蕴含以加强传播并提升冲突剪枝效率。实验结果表明，该方法能平均压缩故障集规模57.99%，子句和变量数开销平均降低11.44%和3.50%，平均将求解时间缩短22.43%，性能优于已有的测试向量生成系统。
- 自动测试向量生成 /
- 布尔可满足性 /
- 故障压缩 /
- 故障敏化约束 /
- 动态蕴含学习
Abstract: Objective Boolean SATisfiability-Based Automatic Test Pattern Generation (SAT-Based ATPG) is widely used to generate tests for hard-to-detect single stuck-at faults and to prove fault untestability in combinational logic. When SAT-Based ATPG is applied to large netlists with dense fanout and reconvergence, its runtime and memory consumption are often dominated by three interacting issues. Representative fault lists produced by conventional dominance- or equivalence-based fault collapsing can remain large, increasing the number of SAT calls and enlarging the incremental context that must be maintained across faults. Meanwhile, SAT modeling may introduce redundant Conjunctive Normal Form (CNF) overhead, especially when an explicit faulty-circuit copy is constructed or when propagation constraints are encoded globally without locality control. In addition, fanout-reconvergence structures amplify assignment correlations along sensitized paths, and such correlations are often exposed only after repeated decisions and backtracking when only standard unit propagation is used. The unified optimization objective is therefore to reduce overall CNF size and solving cost while preserving completeness, so that a practical SAT-Based ATPG system remains efficient and stable across circuits of different scales. Methods A three-part framework is developed and implemented in an incremental SAT-Based ATPG flow, and the overall workflow is illustrated (Fig. 1). First, a checkpoint-driven dynamic fault-set construction method is proposed. Checkpoints are collected during netlist-to-directed-acyclic-graph conversion, including all primary inputs and all fanout branches, and XOR/XNOR outputs are additionally recorded as supplementary checkpoints to avoid over-collapsing XOR-related fault behavior. Representative faults are initialized on checkpoints by compact rules that combine dominance-oriented fault collapsing with equivalence-aware refinement, and solver-guided repair is performed when an untestable representative fault indicates potential masking under structural constraints. The procedure is summarized in Algorithm 1. Second, a SAT modeling method based on fault sensitization constraints is adopted to avoid explicit faulty-circuit duplication. Fault activation, propagation, and observability are represented by additional fault sensitization constraints over the original circuit variables, and auxiliary variables are introduced only when local bookkeeping is required. Constraint localization is restricted to the fault fanout cone, and cone-boundary and internal vertices are identified through a graph-traversal procedure (Fig. 2). Third, a dynamic implication learning mechanism oriented to fanout-reconvergence pairs is integrated into the incremental solving loop. Reconvergence pairs within the fault fanout cone are monitored under partial assignments, and structure-induced implications are injected either as implied assignments when a reconvergent output becomes functionally determined or as short conflict clauses when a branch-value combination becomes inconsistent with the fault sensitization constraints. The dynamic implication learning procedure is summarized in Algorithm 2. Results and Discussions The unified system is evaluated on ISCAS’85 and ISCAS’89 benchmark circuits, with TG-PRO used as the baseline implementation under the same SAT solver and termination settings. The checkpoint-driven dynamic fault-set construction method substantially reduces the representative fault space entering ATPG. Relative to the uncollapsed fault space, the average representative-fault ratio decreases from 51.38% to 42.01%, corresponding to an average fault-space reduction of 57.99%. The best-case ratio reaches 33.19% on large circuits with heavy reconvergence, which indicates that checkpoint-centered representative-fault allocation effectively suppresses redundancy without enlarging the untestable fault set (Table 1). The reduced fault-set size is reflected in preprocessing efficiency, and the total runtime for fault-set construction is consistently reduced, with an average reduction of 8.37% across the evaluated circuits (Fig. 3). For SAT model construction, the fault-sensitization-constraint encoding reduces CNF overhead relative to the baseline model construction. Across the benchmark set, the numbers of CNF clauses and CNF variables are reduced by 11.44% and 3.50%, respectively, which shows that avoiding explicit faulty-circuit duplication and localizing auxiliary constraints to the fault fanout cone effectively lowers memory demand (Table 2). The reduced CNF size and strengthened locality of constraints are further reflected in end-to-end runtime, and the total runtime of SAT modeling and solving is reduced across the evaluated benchmarks (Fig. 4). Dynamic implication learning further improves solving efficiency in reconvergence-heavy structures. Compared with static implication learning, CNF construction time increases by 3.0% on average because of the additional monitoring and injection operations, yet the overall runtime decreases by 4.42% on average, which indicates a favorable cost-benefit trade-off. The overhead attributed to dynamic implication learning accounts for 2.51% of the total runtime aggregated across circuits, which confirms that the injected implications and pruning clauses provide measurable solving benefits at limited extra cost (Table 3). Conclusions A unified optimization framework for SAT-Based ATPG is developed by combining checkpoint-driven dynamic fault-set construction, localized fault sensitization constraints for CNF modeling, and fanout-reconvergence-oriented dynamic implication learning. Representative faults are compressed through solver-guided repair of dominance and equivalence relations to avoid masking, CNF growth is controlled through duplication-free modeling localized to the fault fanout cone, and reconvergence correlations are exploited through incremental implication injection to strengthen propagation and enable early conflict pruning. Experimental results on standard benchmark circuits show consistent reductions in representative fault scale, CNF size, and total runtime, providing a practical approach for scaling SAT-Based ATPG to larger designs with complex fanout and reconvergence.
- Automatic test pattern generation /
- Boolean satisfiability /
- Fault collapsing /
- Fault sensitization constraints /
- Dynamic implication learning

HTML全文

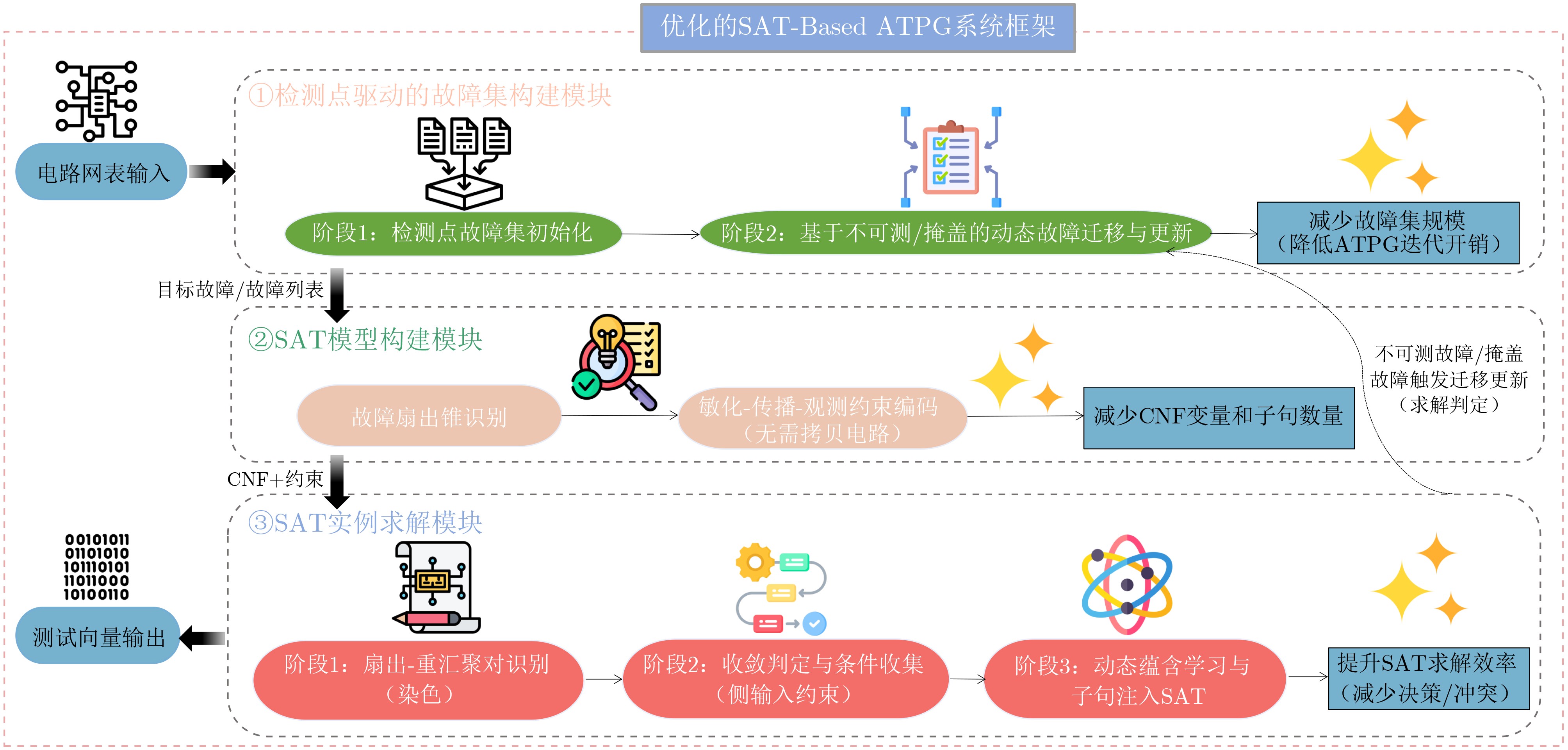

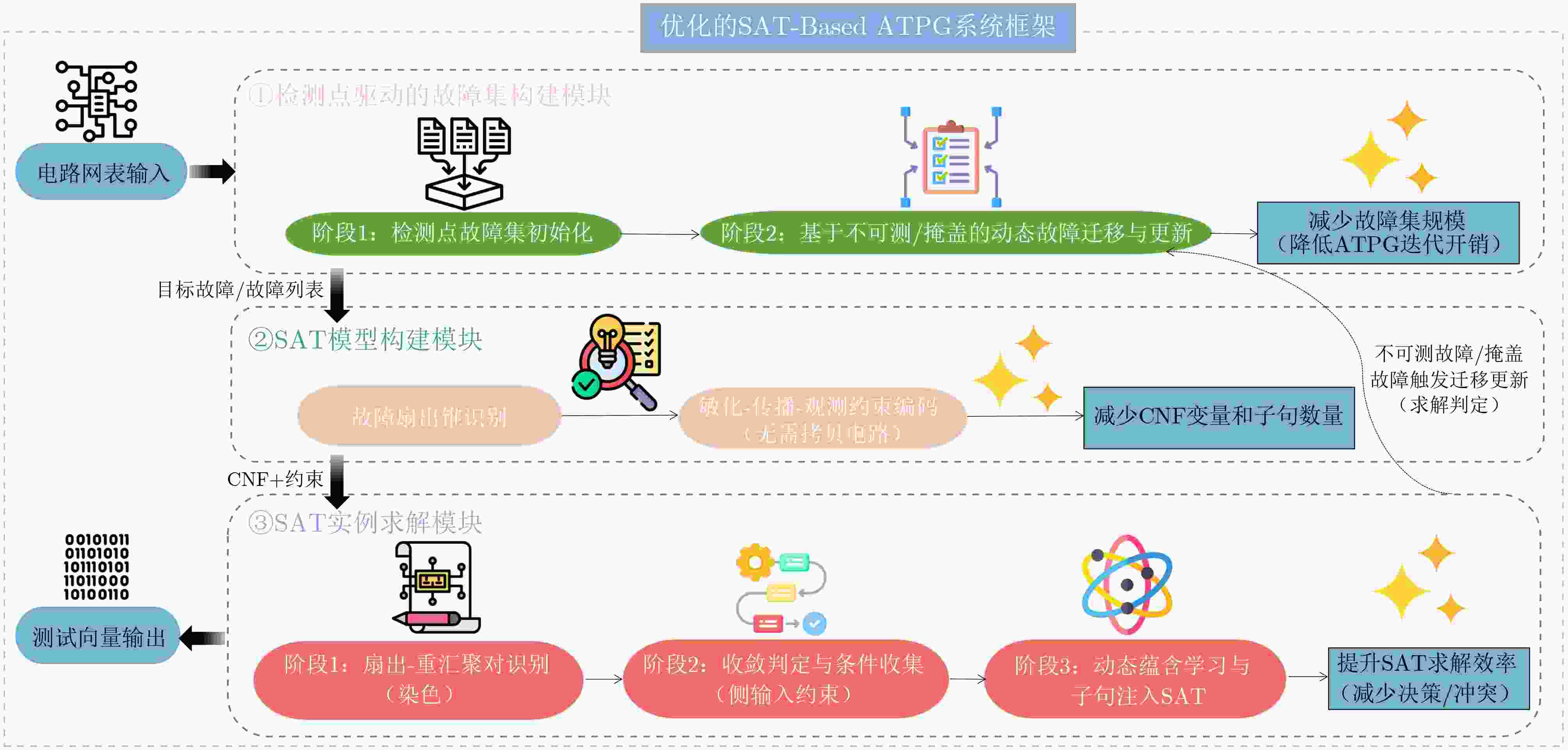

图 1 优化的SAT-Based ATPG系统框架

下载: 全尺寸图片幻灯片

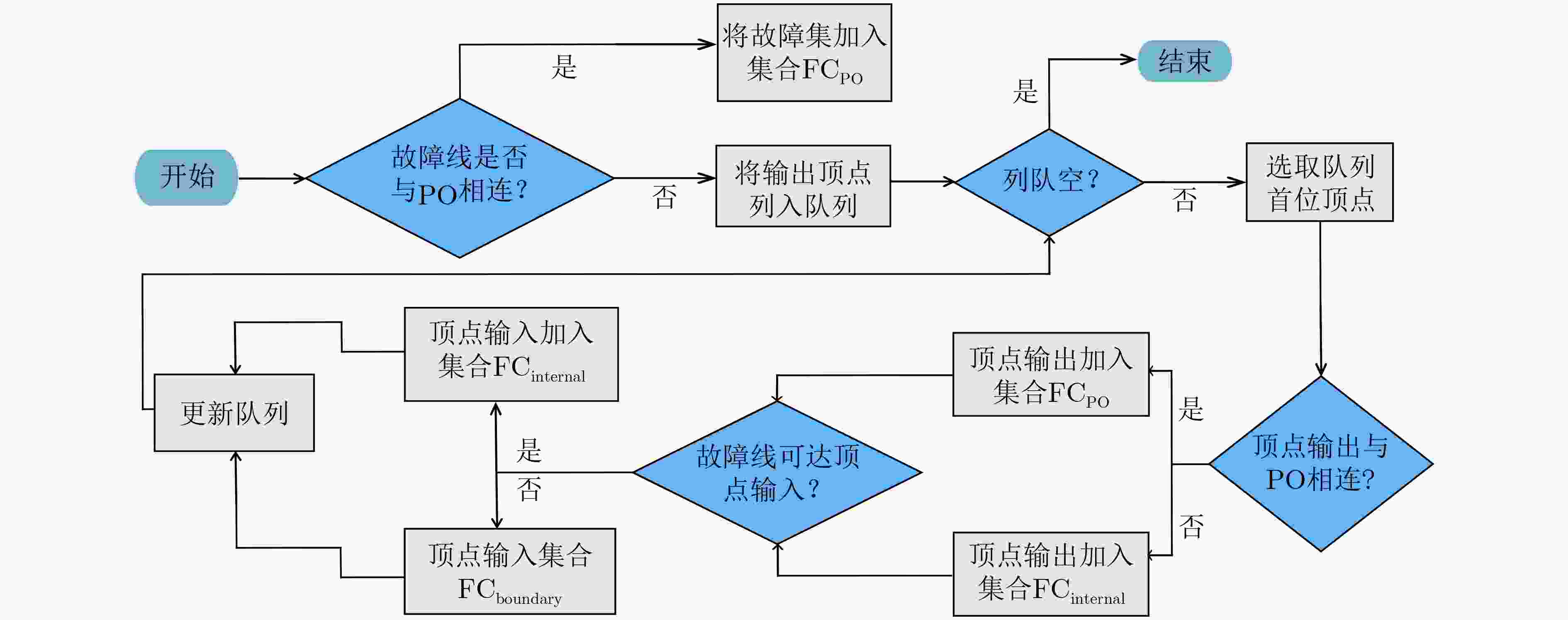

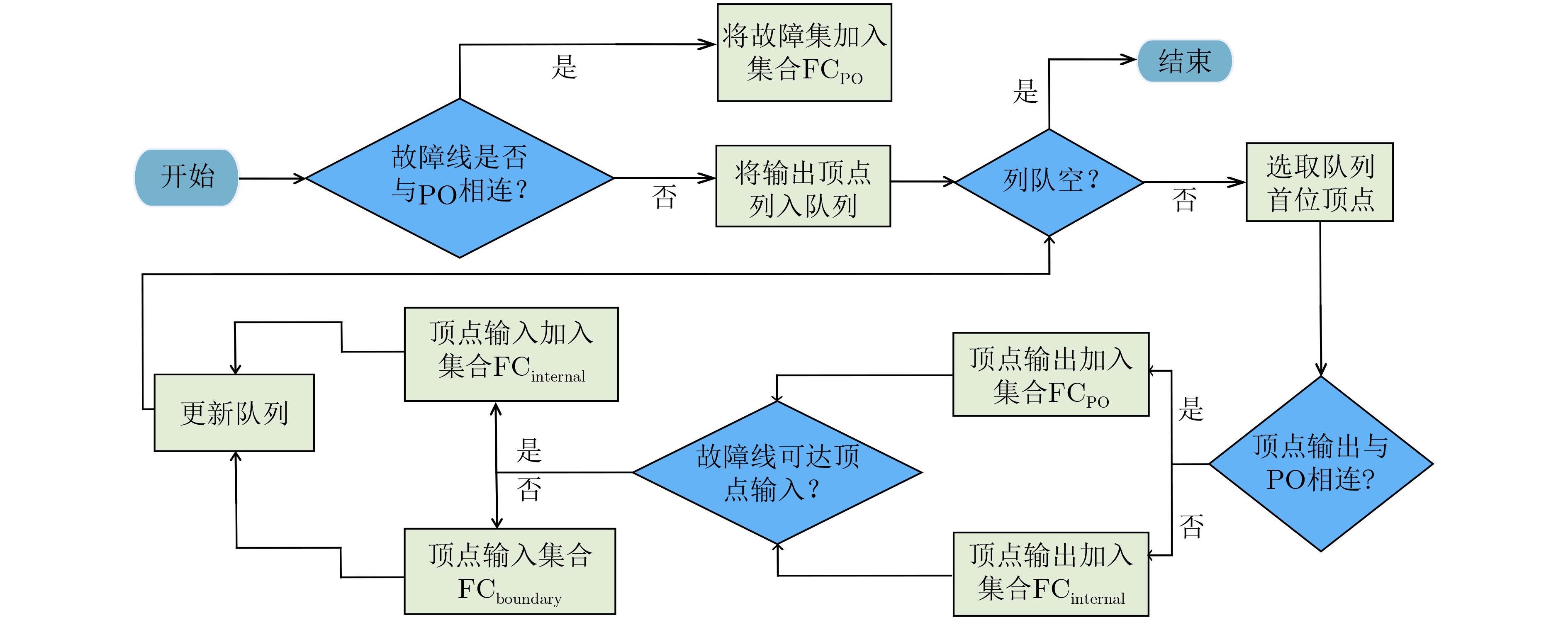

图 2 故障扇出锥信息识别

下载: 全尺寸图片幻灯片

图 3 不同故障集构建方法运行时间对比

下载: 全尺寸图片幻灯片

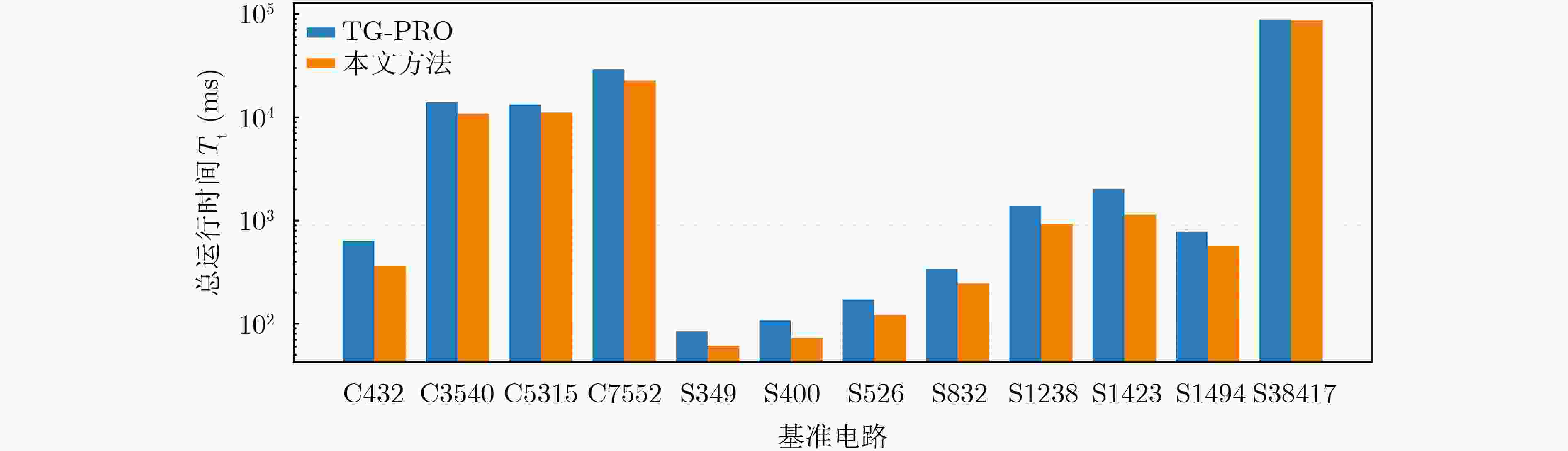

图 4 不同SAT模型构建方法运行时间

下载: 全尺寸图片幻灯片

1 动态故障集构建流程

输入：L_check, L_xor
1. F ← $ \mathit{\varnothing} $;
2. for each l in L_check do
3. 　if is PI(l) and \|D(l) \| > 1 then
4. 　　F ← F $ \cup $ {stem(l, s-a-0), stem(l, s-a-1)}; continue;
5. 　for each v_d in D(l ) do
6. 　　if Type(v_d) in {XOR, XNOR, INV, BUF} then
7. 　　　F ← F $ \cup $ { fault(l →v_d, s-a-0), fault(l →v_d, s-a-1)}; 　　　　　continue;
8. 　　F ← F $ \cup $ { fault(l → v_d, dom) };
9. 　　if AllFaninInCheckpoints(v_d) and IsMinPin(l, v_d) then
10. 　　 F ← F $ \cup $ {fault(l → v_d, eq)};
11. for each l in L_xor do
12. if \|D(l) \| > 1 then
13. 　F ← F $ \cup $ {stem(l, s-a-0), stem(l, s-a-1)}; continue;
14. d ← UniqueDest(l );
15. F ← F $ \cup $ { fault(l →d, s-a-0), fault(l →d, s-a-1) };
16. for each f reported as U during ATPG do
17. if Type(f) == stem then continue;
18. 　f ← EqShift(f);
19. 　if NeedCompensate(VertexOf(f)) then
20. 　g ← DomFaultAtOutput(VertexOf(f));
21. 　g ← EqShift(g);
22. 　F ← F $ \cup $ {g};
输出： F

下载: 导出CSV

2 基于扇出-重汇聚对动态蕴含方法

输入：G={V, L}, CNF
1. CNF' ← CNF; F-Rpairs ← $ \varnothing $; maxcolor[ ] ← 1;
2. for each PI $ \in $ PIs do assign PI.color[0] ← maxcolor[0]++;
3. 　if \|V_d(PI)\| > 1 then CandidateFanouts[PI.color[0]] ← PI;
4. push all outputs of PIs into Ldyeing;
5. while Ldyeing not empty do l ← pop(Ldyeing); v_d ← V_d(l);
6. 　if v_d == $ \varnothing $ then continue; LD ← LogicDepth(l);
7. 　if maxcolor[LD] == 0 then maxcolor[LD] ← 1;
8. 　PropagateColor(l, v_d, maxcolor); push(v_d.output) into 　　　Ldyeing;
9. 　if \|v_d.inputs\| > 1 and AllInputsColored(v_d) then
10. 　　c ← MergeColor(v_d.inputs); f ← CandidateFanouts[c];
11. 　　if f ≠ $ \varnothing $ then add (f, v_d) to F-Rpairs;
12. 　　CandidateFanouts[c] ← UpdateFanout(c, v_d.output);
13. for each (f, r) ∈ F-Rpairs do InitPairType(f, r);
14. during CDCL solving, when a literal in cone(f, r) is assigned do
15. $ \varDelta $ ← ImplyByPair(f, r);
16. 　if $ \varDelta $ == CONFLICT then LearnClause(); return UNSAT;
17. 　if $ \varDelta $ ≠ $ \varnothing $ then CNF' ← CNF' ∧ Encode($ \varDelta $); Enqueue($ \varDelta $);
输出：CNF′

下载: 导出CSV

表 1 不同故障集构建方法故障数目对比

基准电路	#F_uc	TG-PRO系统				本文方法
基准电路	#F_uc	#F_t	#F_d	#F_ud	#F_t/#F_uc(%)	#F_t	#F_d	#F_ud	#F_t/#F_uc(%)
C432	864	524	520	4	60.65	458	454	4	53.01
C3540	7080	3428	3291	137	48.42	2905	2768	137	41.03
C5315	10630	5350	5291	59	50.33	4528	4469	59	42.60
C7552	15104	7550	7419	131	49.99	6148	6017	131	40.70
S349	698	350	348	2	50.14	275	273	2	39.40
S400	800	424	418	6	53.00	388	374	14	43.69
S526	1052	555	554	1	52.76	474	473	1	45.06
S832	1664	870	856	14	52.28	719	705	14	43.21
S1238	2476	1355	1286	69	54.73	1040	971	69	42.00
S1423	2846	1515	1501	14	53.23	1213	1199	14	42.62
S1494	2988	1506	1496	12	50.40	1123	1111	12	37.58
S38417	76834	31180	31015	165	40.58	25502	25337	165	33.19

下载: 导出CSV

表 2 不同SAT模型构建方法所需的CNF子句、变量数目开销

基准电路	TG-PRO系统		本文方法
基准电路	#Ave (Clauses)	#Ave (Variables)	#Ave (Clauses)	#Ave (Variables)
C432	2013.830	523.181	1370.430	382.111
C1908	4592.400	1618.990	3802.680	1343.480
C3540	6681.410	2537.880	6099.210	2269.700
C5315	3159.040	3386.380	2973.550	3262.150
C7552	4446.020	4507.700	4270.750	4376.600
S349	377.590	259.269	343.145	228.284
S400	395.008	289.958	346.834	261.849
S526	474.880	386.776	439.203	356.188
S832	541.756	599.791	517.921	565.063
S1238	1604.910	809.356	1447.820	721.873
S1423	1772.140	993.290	1428.690	861.201
S1494	844.5180	941.913	832.800	897.744
S38417	1873.810	25358.300	1612.890	25207.300

下载: 导出CSV

表 3 不同蕴含学习方法对运行时间的影响(ms)

基准电路	静态蕴含			动态蕴含
基准电路	T_CNF	T_solve	T_t	T_CNF	T_solve	T_t	T_impl
C432	258	106	367	272	77	351	14
C3540	8036	2723	10766	8065	1738	9810	29
C5315	8975	2077	11062	9215	1542	10766	240
C7552	17894	4608	22516	18372	2563	20935	478
S349	49	11	61	50	7	57	1
S400	59	13	73	60	11	72	0
S526	97	22	121	97	18	116	0
S832	204	39	246	207	36	246	3
S1238	733	183	919	741	123	865	7
S1423	932	207	1142	1066	135	1126	134
S1494	445	121	569	447	85	539	2
S38417	56256	30365	86679	58570	25060	83690	2314

下载: 导出CSV
