Spherical Geometry-Guided and Frequency-Enhanced Segment Anything Model for 360° Salient Object Detection
-

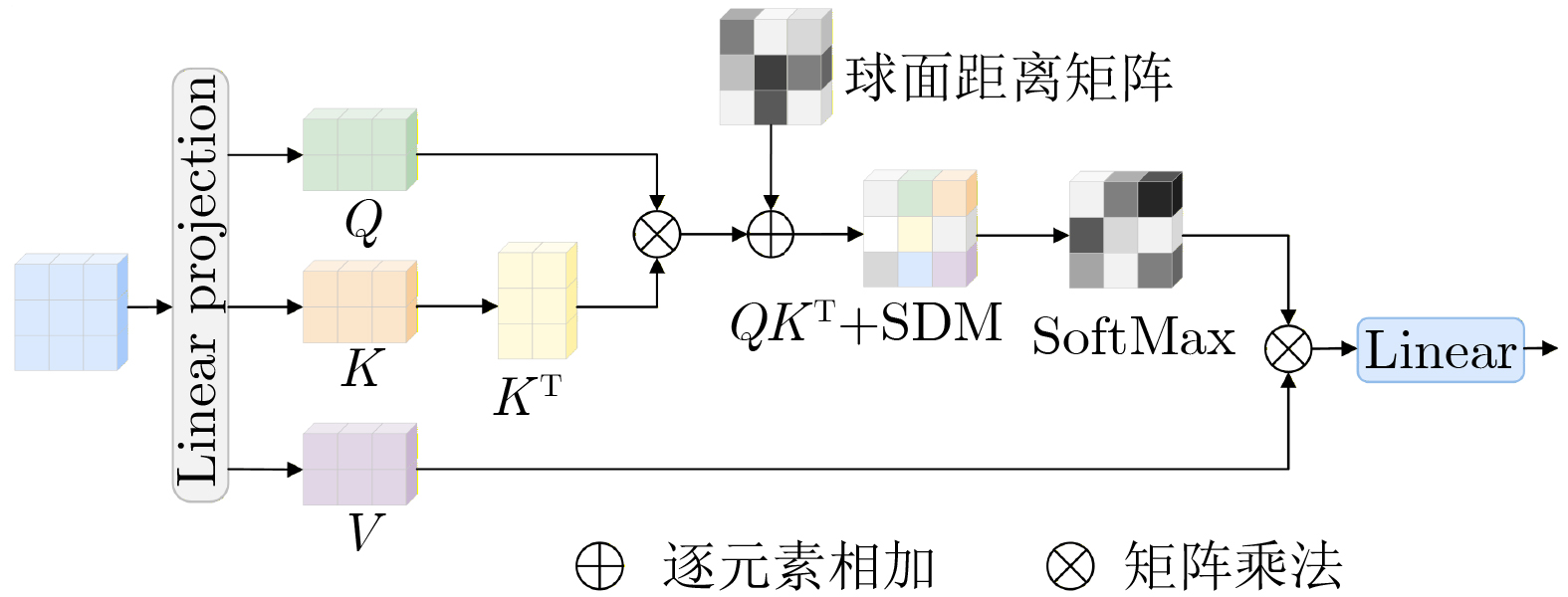

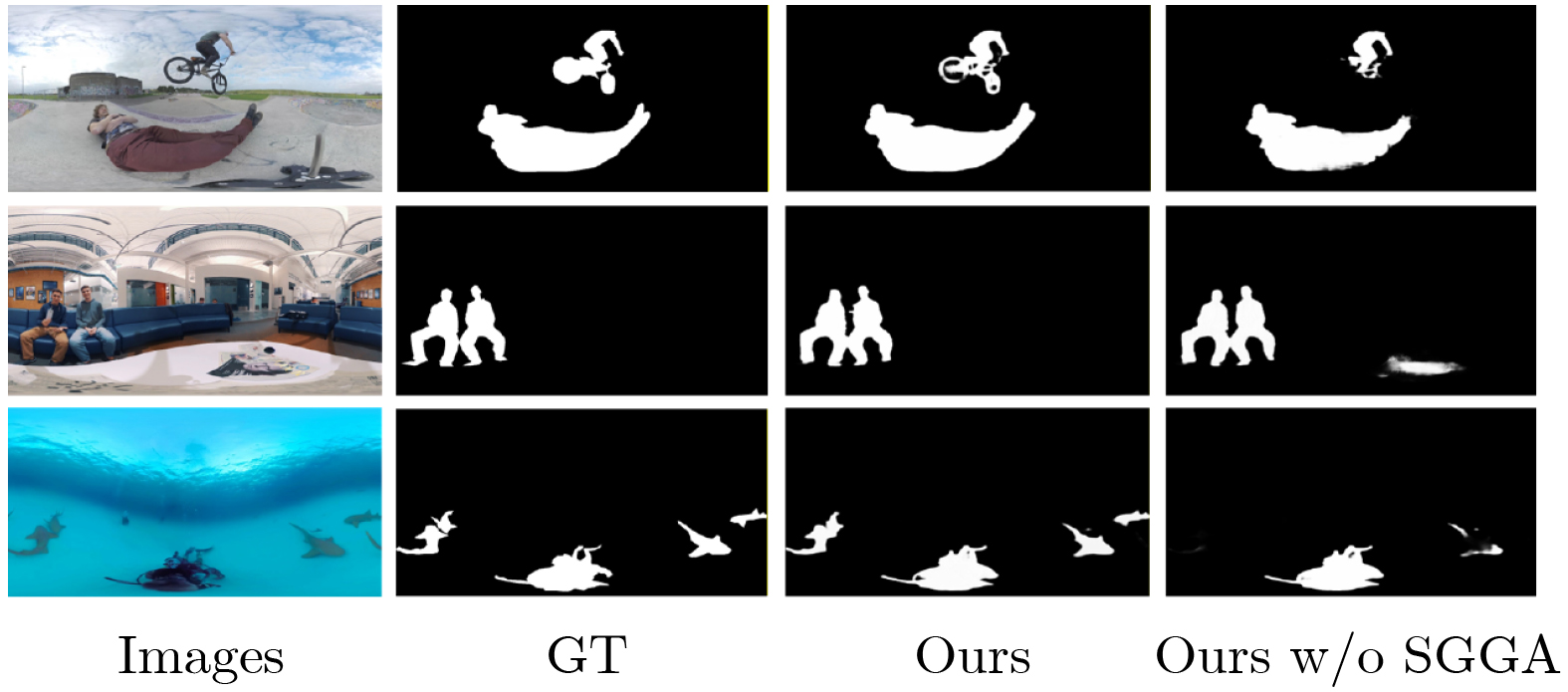

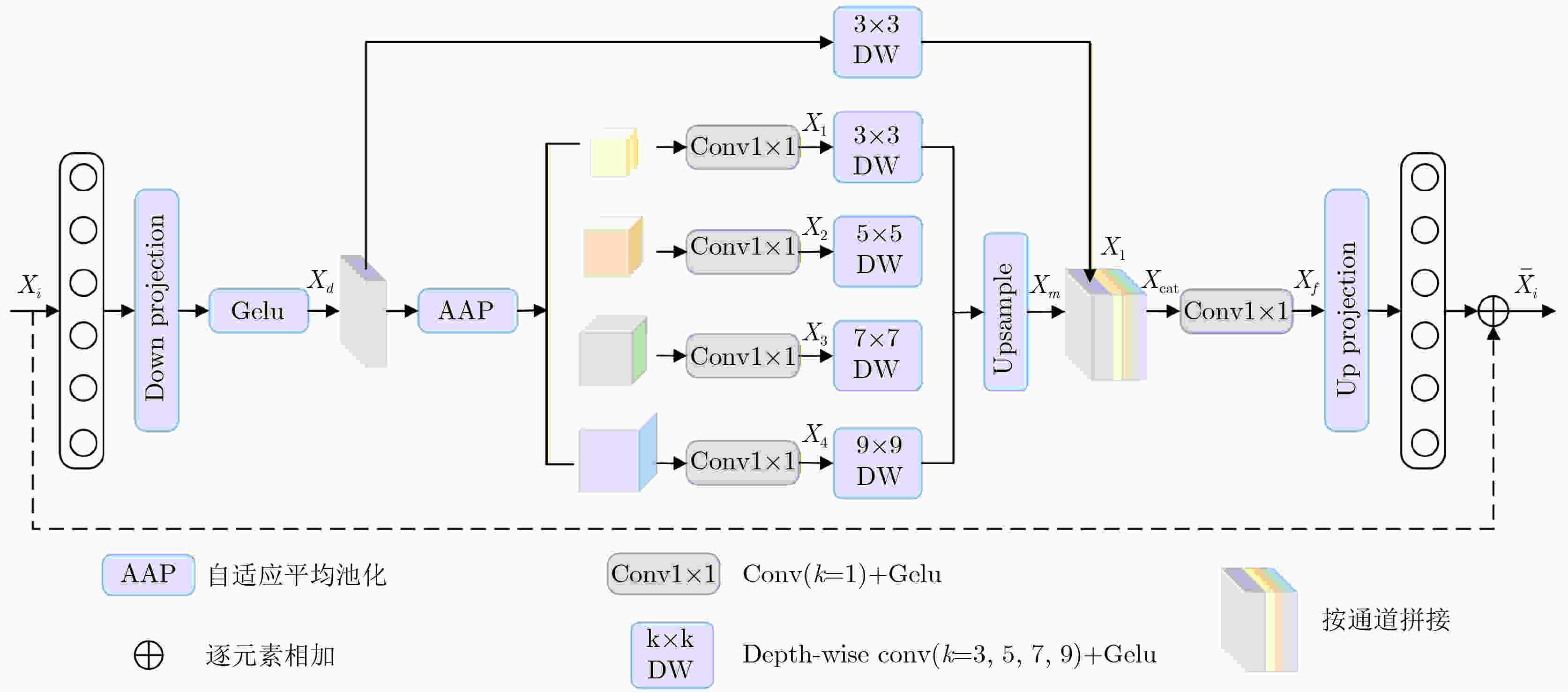

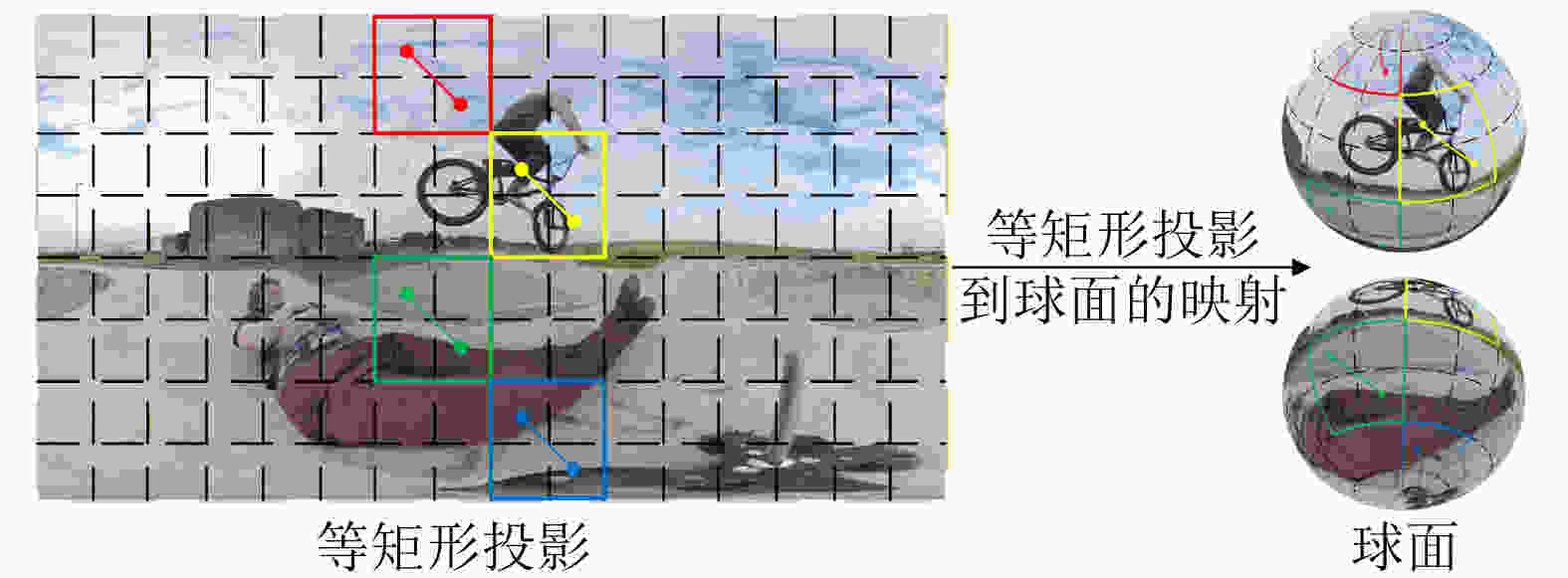

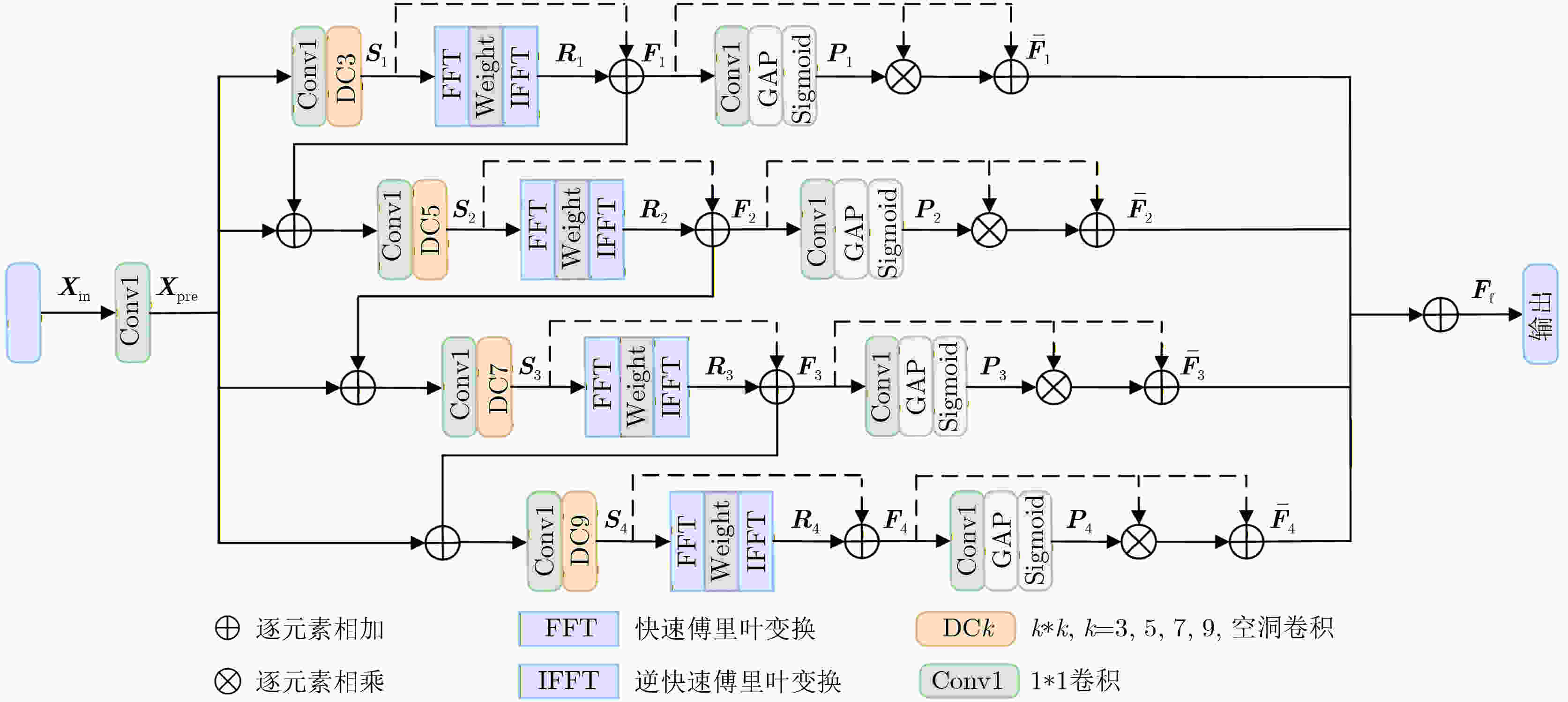

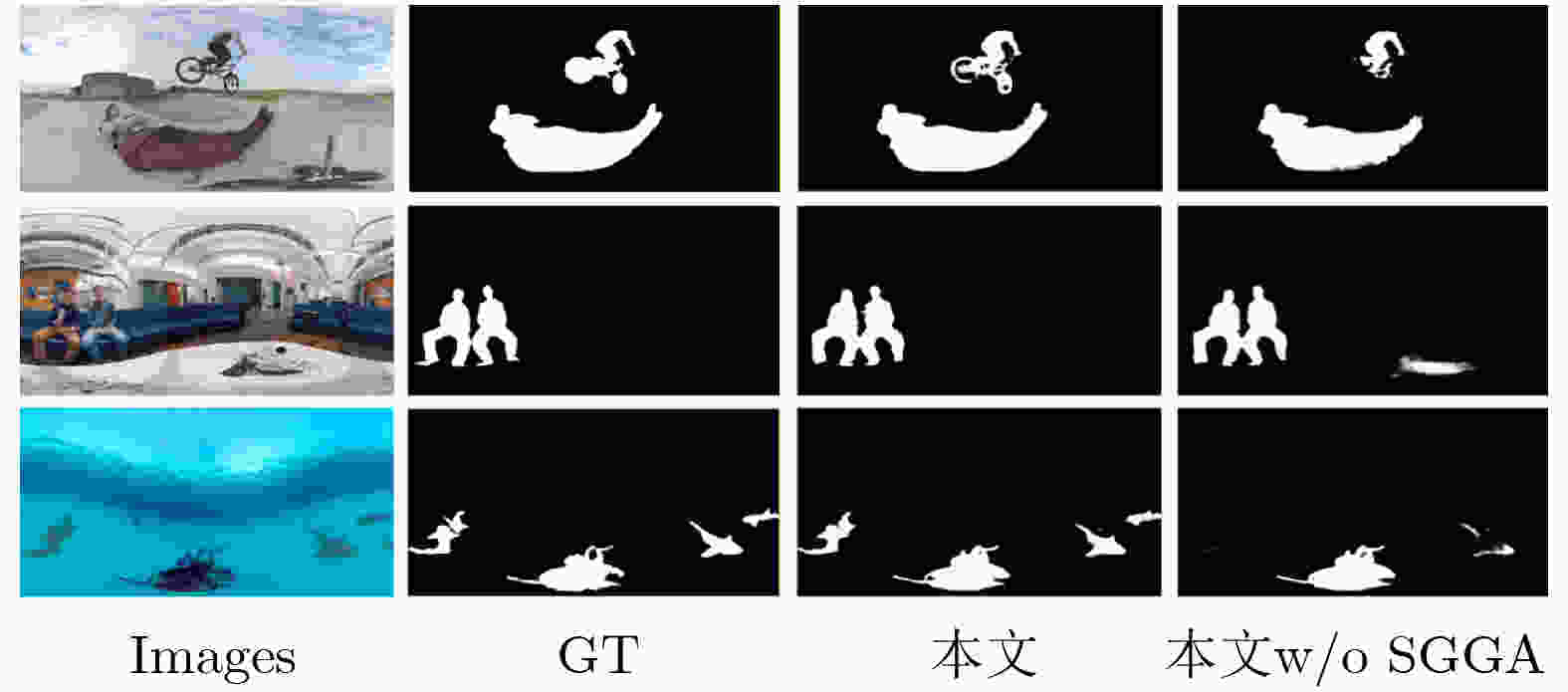

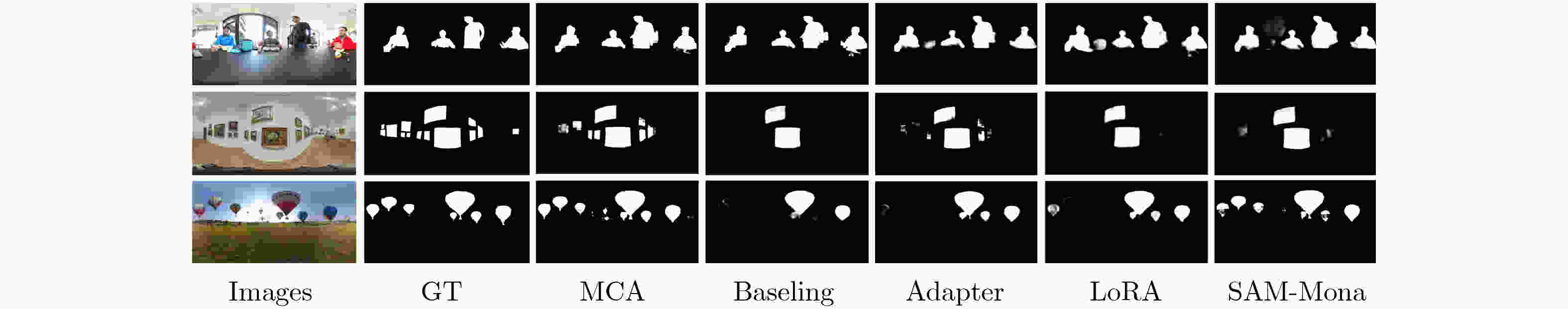

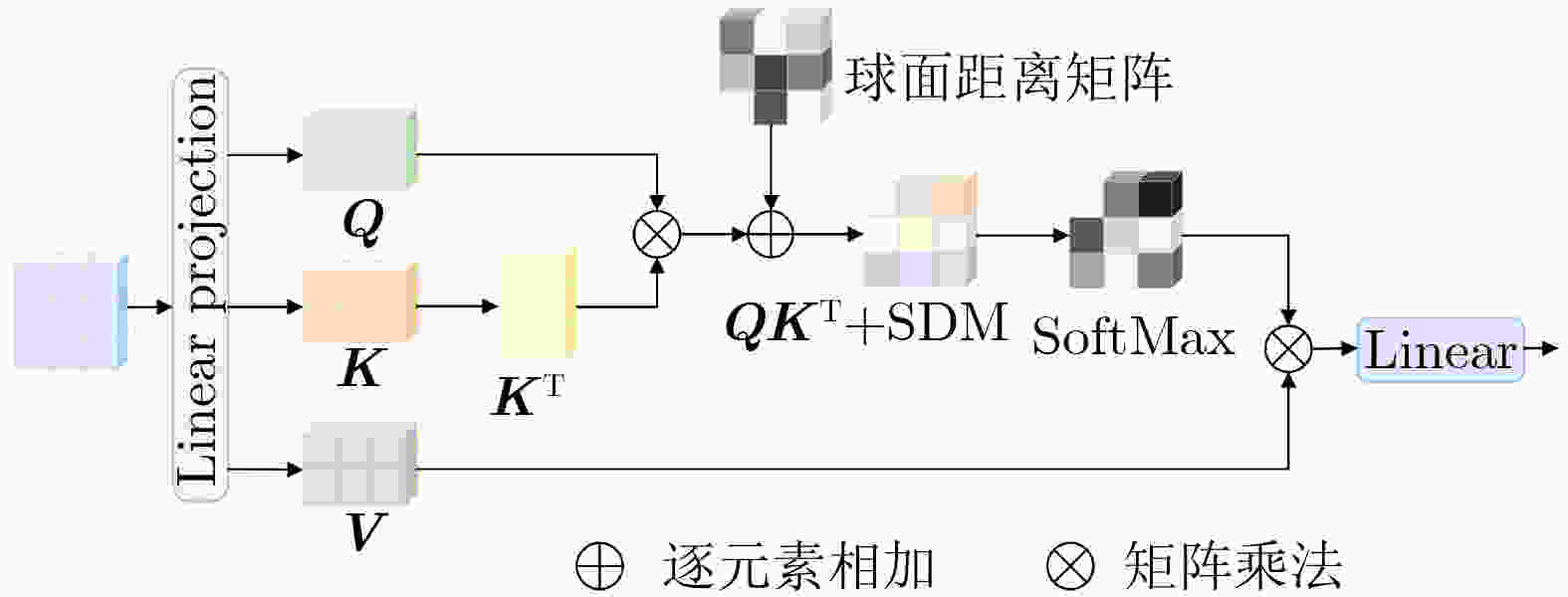

摘要: 分割一切模型(Segment Anything Model, SAM)作为通用分割大模型，在多类二维视觉任务中展现出强大迁移能力，但原生SAM主要针对2D平面图像设计，缺乏对360°全景图像球面几何特性的建模能力，难以直接应用于360°全景图像显著目标检测(360° SOD)。为了将SAM应用于360° SOD并解决其不足，本文提出一种采用球面几何引导和频率增强SAM的360° SOD网络，具体包括多认知适配器(Multi-Cognitive Adapter, MCA)，受人类视觉感知机制的启发，通过引入多尺度、多路径特征建模提升全景图像的上下文感知能力;球面几何引导注意力(Spherical Geometry-Guided Attention, SGGA)，利用球面几何先验缓解等矩形投影中的畸变与边界不连续性;以及空频域联合感知模块(Spatial-Frequency Joint Perception Module, SFJPM)，结合多尺度空洞卷积与频域注意力，增强全局与局部信息的协同建模，提升360° SOD性能。本文在现有的两个公开360° SOD数据集(360-SOD，360-SSOD)上进行了大量实验，结果表明，本文方法在客观指标和主观结果上的表现均优于现有的7种代表性2D SOD方法和7种360° SOD方法。Abstract:

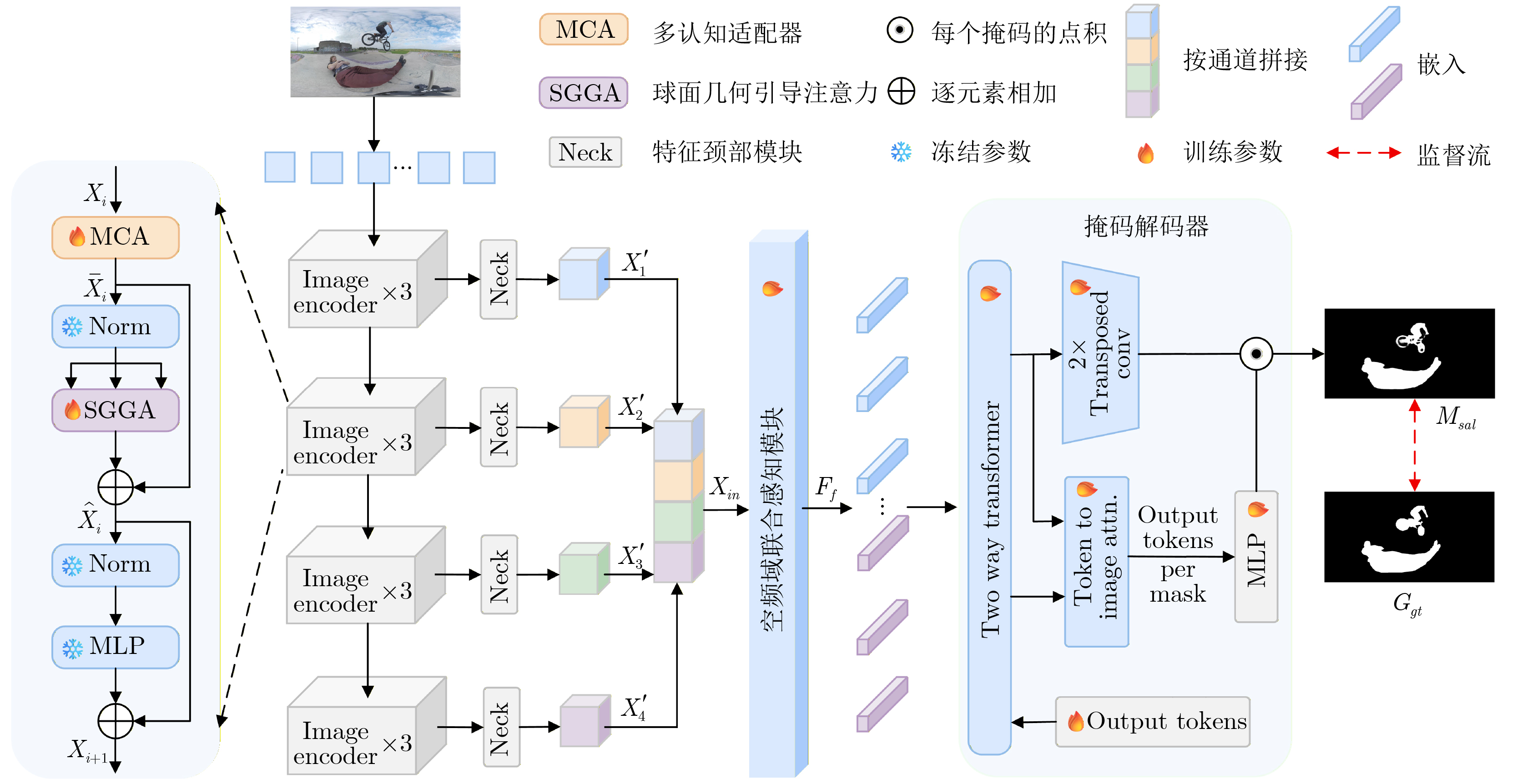

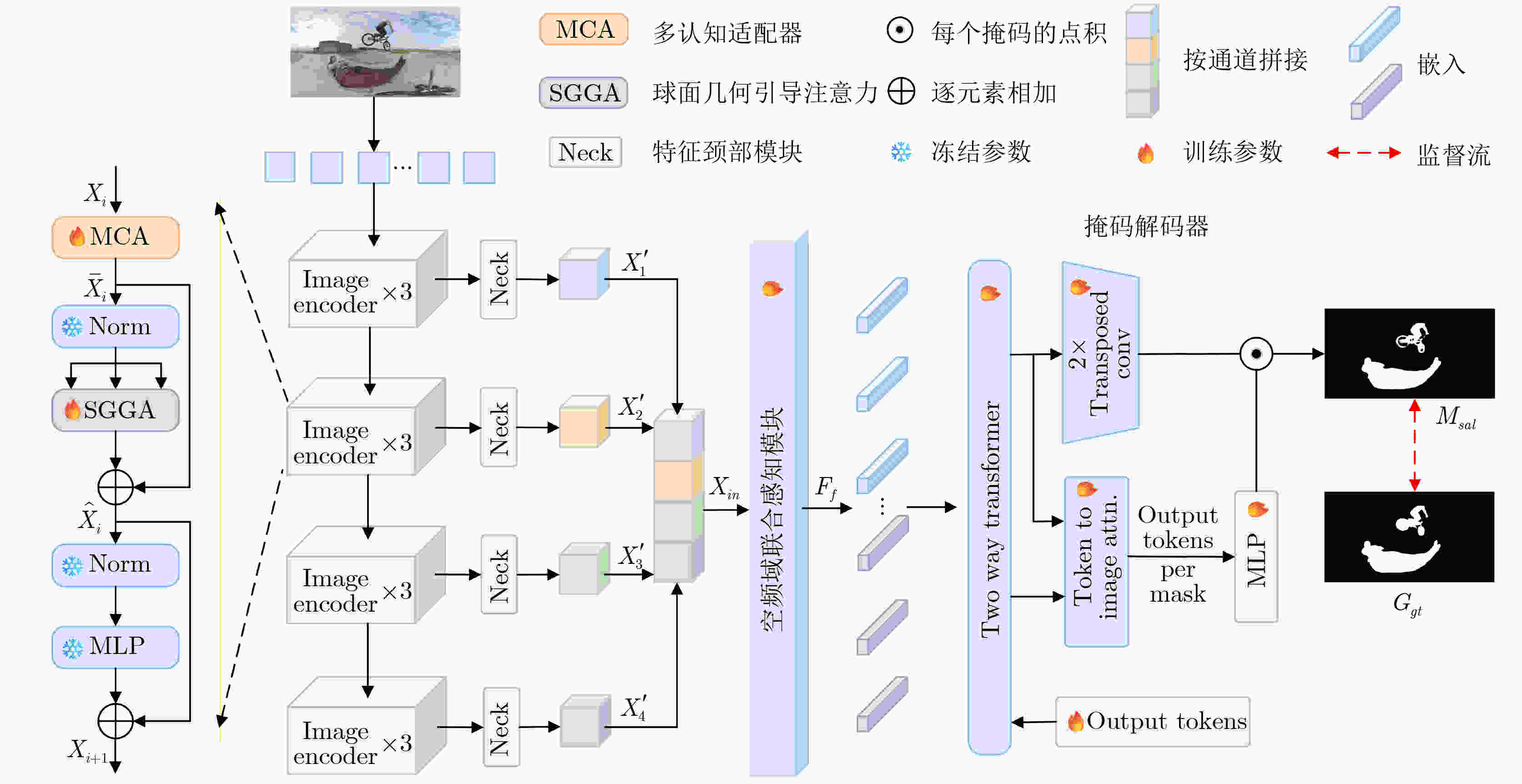

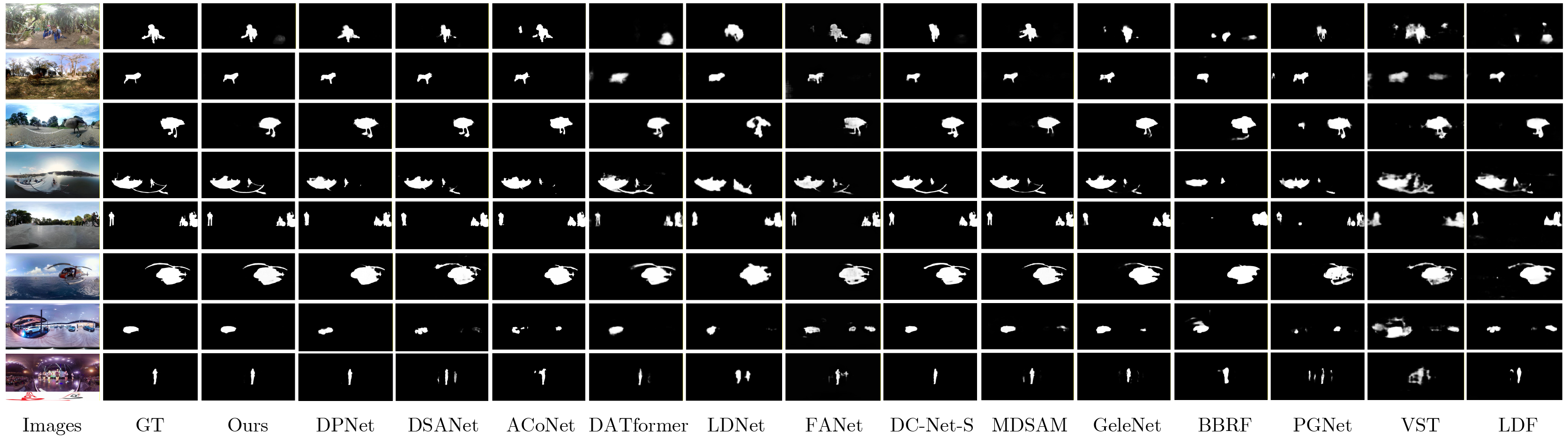

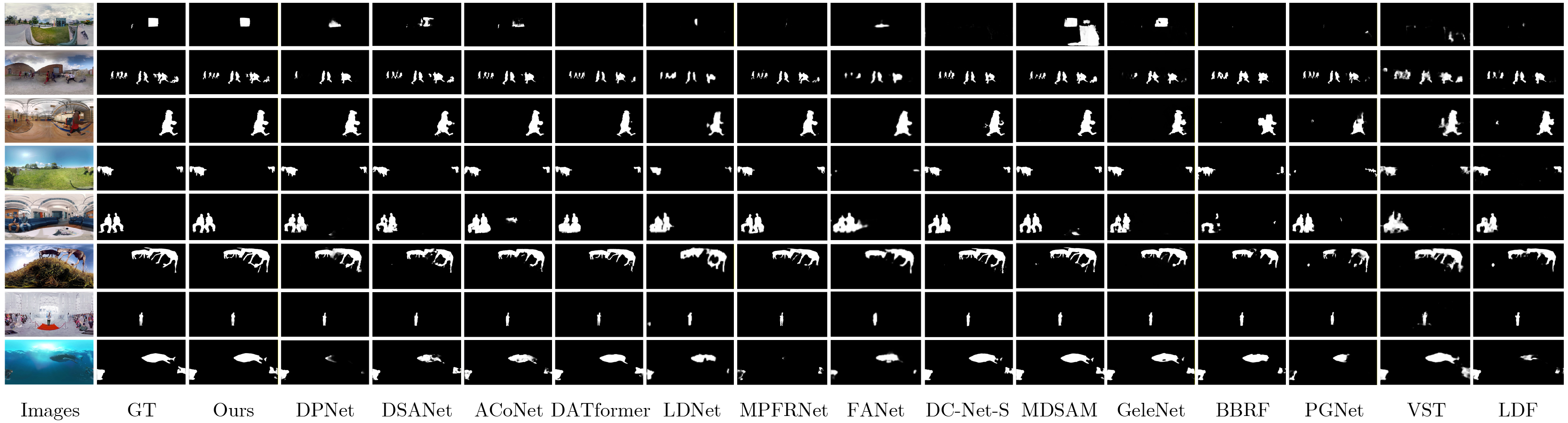

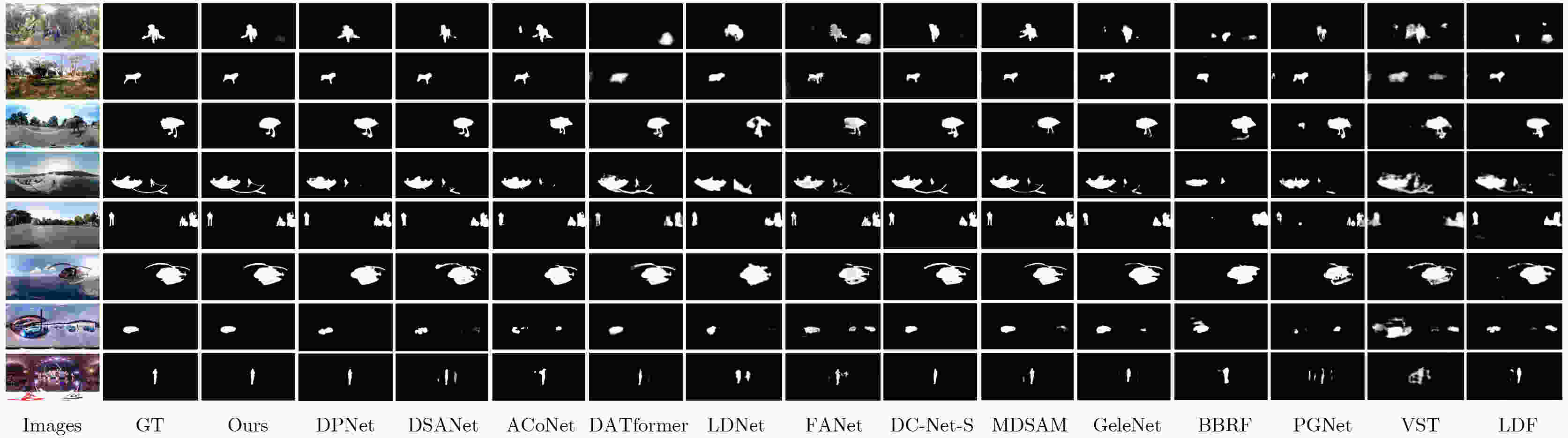

Objective With the rapid development of VR and AR technologies and the increasing demand for omnidirectional visual applications, accurate salient object detection in complex 360° scenes has become critical for system stability and intelligent decision-making. The Segment Anything Model (SAM) demonstrates strong transferability across 2D vision tasks; however, it is primarily designed for planar images and lacks explicit modeling of spherical geometry, which limits its direct applicability to 360° salient object detection (360° SOD). To address this challenge, this work explores integrating SAM’s generalization capability with spherical-aware multi-scale geometric modeling to advance 360° SOD. Specifically, a Multi-Cognitive Adapter (MCA), Spherical Geometry-Guided Attention (SGGA), and Spatial-Frequency Joint Perception Module (SFJPM) are introduced to enhance multi-scale structural representation, alleviate projection-induced geometric distortions and boundary discontinuities, and strengthen joint global–local feature modeling. Methods The proposed 360° SOD framework is built upon SAM and consists of an image encoder and a mask decoder. During encoding, spherical geometry modeling is incorporated into patch embedding by mapping image patches onto a unit sphere and explicitly modeling spatial relationships between patch centers, injecting geometric priors into the attention mechanism. This design enhances sensitivity to non-uniform geometric characteristics and mitigates information loss caused by omnidirectional projection distortions. The encoder adopts a partial freezing strategy and is organized into four stages, each containing three encoder blocks. Each block integrates MCA for multi-scale contextual fusion and SGGA to model long-range dependencies in spherical space. Multi-level features are concatenated along the channel dimension to form a unified representation, which is further enhanced by the SFJPM to jointly capture spatial structures and frequency-domain global information. The fused features are then fed into the SAM mask decoder, where saliency maps are optimized under ground-truth supervision to achieve accurate localization and boundary refinement. Results and Discussions Experiments are conducted using the PyTorch framework on an RTX 3090 GPU with an input resolution of 512×512. Evaluations on two public datasets (360-SOD and 360-SSOD) against 14 state-of-the-art methods demonstrate that the proposed approach consistently achieves superior performance across six evaluation metrics. On the 360-SOD dataset, the model attains an MAE of0.0152 and a maximum F-measure of0.8492 , outperforming representative methods such as MDSAM and DPNet. Qualitative results show that the proposed method produces saliency maps highly consistent with ground-truth annotations, effectively handling challenging scenarios including projection distortion, boundary discontinuity, multi-object scenes, and complex backgrounds. Ablation studies further confirm that MCA, SGGA, and SFJPM contribute independently while complementing each other to improve detection performance.Conclusions This paper proposes a novel SAM-based framework for 360° salient object detection that jointly addresses multi-scale representation, spherical distortion awareness, and spatial-frequency feature modeling. The MCA enables efficient multi-scale feature fusion, SGGA explicitly compensates for ERP-induced geometric distortions, and SFJPM enhances long-range dependency modeling. Extensive experiments validate the effectiveness and feasibility of introducing SAM into 360° SOD. Future work will extend this framework to omnidirectional video and multi-modal scenarios to further improve spatiotemporal modeling and scene understanding. -
表 1 360-SOD和360-SOD数据集上各模型客观指标对比
类型 方法 360-SOD 数据集 360-SSOD 数据集 MAE↓ maxF↑ meanF↑ maxE↑ meanE↑ Sm↑ MAE↓ maxF↑ meanF↑ maxE↑ meanE↑ Sm↑ 2D
SODLDF[4] 0.0234 0.7052 0.6892 0.8659 0.8557 0.8557 0.0315 0.6105 0.5942 0.8464 0.8222 0.7376 VST[5] 0.0260 0.6941 0.6332 0.8897 0.8361 0.7808 0.0343 0.5975 0.5282 0.8497 0.7681 0.7453 PGNet[8] 0.0254 0.7221 0.7144 0.8700 0.8440 0.8048 0.0316 0.5969 0.5519 0.8318 0.7404 0.6993 BBRF[9] 0.0258 0.6571 0.6532 0.8545 0.8510 0.7563 0.0430 0.5155 0.5014 0.8043 0.7991 0.6679 CeleNet[6] 0.0230 0.7399 0.7280 0.8914 0.8859 0.8095 0.0291 0.6587 0.6513 0.8632 0.8487 0.7592 MDSAM[2] 0.0163 0.8440 0.8009 0.9329 0.9214 0.8721 0.0266 0.6912 0.6650 0.8648 0.8444 0.7853 DC-Net-S[7] 0.0202 0.7539 0.7417 0.8964 0.8697 0.8332 0.0265 0.6342 0.6169 0.8456 0.8037 0.7509 360°
SODFANet[18] 0.0258 0.6874 0.6631 0.8807 0.8599 0.7778 0.0406 0.6371 0.5753 0.8579 0.7752 0.7330 MPFRNet[19] 0.0191 0.7653 0.7556 0.8854 0.8750 0.8416 - - - - - - LDNet[23] 0.0289 0.6562 0.6391 0.8655 0.8414 0.7679 0.0342 0.5862 0.5672 0.8390 0.8187 0.7245 DATFormer[24] 0.0179 0.7750 0.7614 0.8989 0.8857 0.8387 0.0287 0.6410 0.6056 0.8631 0.8168 0.7599 ACoNet[30] 0.0181 0.7893 0.7815 0.9141 0.9043 0.8493 0.0288 0.6641 0.6564 0.8695 0.8632 0.7796 DSANet[25] 0.0196 0.7843 0.7719 0.9080 0.9002 0.8463 0.0292 0.6743 0.6594 0.8664 0.8354 0.7804 DPNet[26] 0.0189 0.8035 0.7864 0.9206 0.9096 0.8487 0.0283 0.6690 0.6561 0.8715 0.8512 0.7677 Ours 0.0152 0.8492 0.8334 0.9460 0.9393 0.8768 0.0252 0.6998 0.6800 0.8723 0.8555 0.7912
下载: 导出CSV

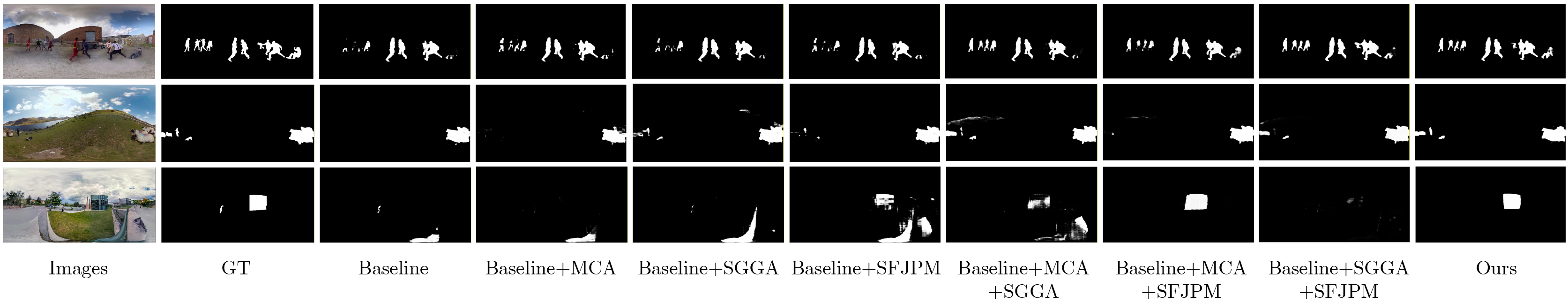

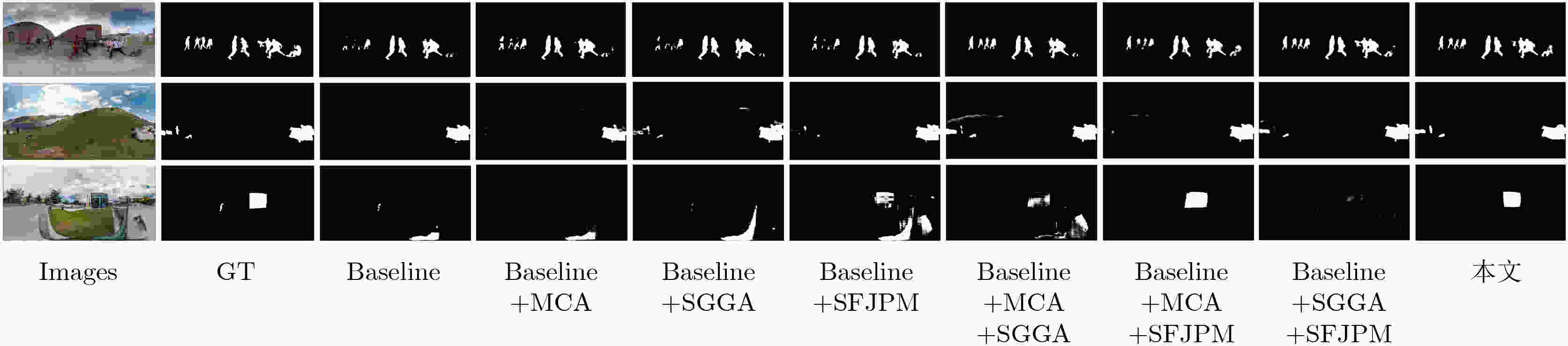

表 2 360-SOD数据集上不同模型组合的客观指标对比
Baseline MCA SGGA SFJPM MAE↓ max-F↑ mean-F↑ max-E↑ mean-E↑ Sm↑ √ 0.0189 0.8166 0.7840 0.9223 0.9121 0.8574 √ √ 0.0169 0.8293 0.7980 0.9213 0.9120 0.8614 √ √ 0.0175 0.8164 0.7905 0.9246 0.9154 0.8517 √ √ 0.0172 0.8207 0.7894 0.9252 0.9156 0.8583 √ √ √ 0.0161 0.8339 0.7988 0.9268 0.9082 0.8715 √ √ √ 0.0157 0.8359 0.8119 0.9372 0.9261 0.8730 √ √ √ 0.0162 0.8219 0.8008 0.9145 0.9052 0.8695 √ √ √ √ 0.0152 0.8493 0.8306 0.9460 0.9393 0.8768
下载: 导出CSV

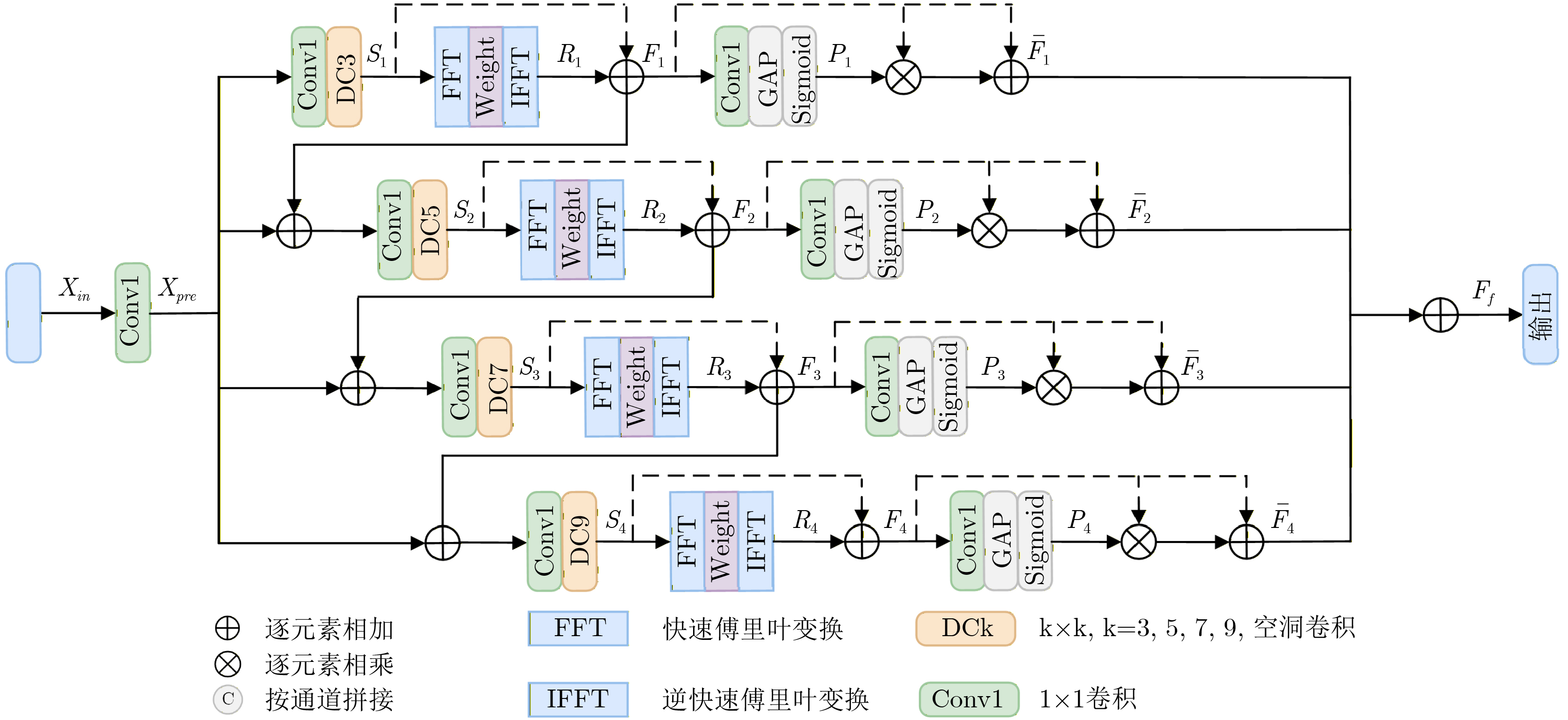

表 4 360-SOD数据集上SFJPM模块的消融实验
模型组成 MAE↓ max-F↑ mean-F↑ max-E↑ mean-E↑ Sm↑ Ours w/o FFT 0.0158 0.8265 0.8148 0.9297 0.9086 0.8683 Ours w/o DC 0.0157 0.8212 0.8051 0.9277 0.9112 0.8744 Ours 0.0152 0.8492 0.8334 0.9460 0.9393 0.8768
下载: 导出CSV
表 5 各模型复杂度对比
方法 LDF[4] VST[5] PGNet[8] BBRF[9] CeleNet[6] MDSAM[2] DC-Net-S[7] Ours FLOPs/G 15.5724 31.0892 42.9705 67.1505 11.6932 124.6865 211.2706 248.3677 Params/M 25.1501 83.0549 72.6664 74.4025 25.4528 100.2057 509.6138 105.6467 InferTime/ms 218.1235 19.9368 98.0829 138.7012 14.2027 36.2441 42.5081 43.8720 方法 FANet[18] MPFRNet[19] LDNet*[23] DATFormer[24] ACoNet[30] DSANet[25] DPNet[26] Ours FLOPs/G 340.9447 — 3.4 38.1789 81.2432 66.4029 22.4106 248.3677 Params/M 25.3993 — 2.9 29.5681 24.1538 24.5739 78.4854 105.6467 InferTime/ms 180.5596 — — 24.4292 50.6232 45.4815 68.5605 43.8720 注：“-”表示因没有源代码而无法测试的值，“*”表示从原论文中获取的数值。
下载: 导出CSV
-
[1] CUI Ruikai, HE Siyuan, and QIU Shi. Adaptive low rank adaptation of segment anything to salient object detection[J]. arXiv preprint arXiv: 2308.05426, 2023. doi: 10.48550/arXiv.2308.05426. (查阅网上资料,不确定本文献类型是否正确,请确认). [2] GAO Shixuan, ZHANG Pingping, YAN Tianyu, et al. Multi-scale and detail-enhanced segment anything model for salient object detection[C]. Proceedings of the 32nd ACM International Conference on Multimedia, Melbourne, Australia, 2024: 9894–9903. doi: 10.1145/3664647.3680650. [3] LIU Zhengyi, DENG Sheng, WANG Xinrui, et al. SSFam: Scribble supervised salient object detection family[J]. IEEE Transactions on Multimedia, 2025, 27: 1988–2000. doi: 10.1109/TMM.2025.3543092. [4] WEI Jun, WANG Shuhui, WU Zhe, et al. Label decoupling framework for salient object detection[C]. Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Seattle, USA, 2020: 13022–13031. doi: 10.1109/CVPR42600.2020.01304. [5] LIU Nian, ZHANG Ni, WAN Kaiyuan, et al. Visual saliency transformer[C]. Proceedings of the IEEE/CVF International Conference on Computer Vision (ICCV), Montreal, Canada, 2021: 4702–4712. doi: 10.1109/ICCV48922.2021.00468. [6] LI Gongyang, BAI Zhen, LIU Zhi, et al. Salient object detection in optical remote sensing images driven by transformer[J]. IEEE Transactions on Image Processing, 2023, 32: 5257–5269. doi: 10.1109/TIP.2023.3314285. [7] ZHU Jiayi, QIN Xuebin, and ELSADDIK A. DC-Net: Divide-and-conquer for salient object detection[J]. Pattern Recognition, 2025, 157: 110903. doi: 10.1016/j.patcog.2024.110903. [8] XIE Chenxi, XIA Changqun, MA Mingcan, et al. Pyramid grafting network for one-stage high resolution saliency detection[C]. Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), New Orleans, USA, 2022: 11707–11716. doi: 10.1109/CVPR52688.2022.01142. [9] MA Mingcan, XIA Changqun, XIE Chenxi, et al. Boosting broader receptive fields for salient object detection[J]. IEEE Transactions on Image Processing, 2023, 32: 1026–1038. doi: 10.1109/TIP.2022.3232209. [10] KIRILLOV A, MINTUN E, RAVI N, et al. Segment anything[C]. Proceedings of the IEEE/CVF International Conference on Computer Vision (ICCV), Paris, France, 2023: 3992–4003. doi: 10.1109/ICCV51070.2023.00371. [11] HOULSBY N, GIURGIU A, JASTRZEBSKI S, et al. Parameter-efficient transfer learning for NLP[C]. Proceedings of the 36th International Conference on Machine Learning, Long Beach, USA, 2019: 2790–2799. [12] HU E, Shen Yelong, WALLIS P, et al. LoRA: Low-rank adaptation of large language models[C]. 10th International Conference on Learning Representations, OpenReview. net, 2022. (查阅网上资料, 未找到本条文献出版地信息, 请确认). [13] ZHENG Linghao, PU Xinyang, ZHANG Su, et al. Tuning a SAM-based model with multicognitive visual adapter to remote sensing instance segmentation[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2025, 18: 2737–2748. doi: 10.1109/JSTARS.2024.3504409. [14] LI Jia, SU Jinming, XIA Changqun, et al. Distortion-adaptive salient object detection in 360° omnidirectional images[J]. IEEE Journal of Selected Topics in Signal Processing, 2020, 14(1): 38–48. doi: 10.1109/JSTSP.2019.2957982. [15] MA Guangxiao, LI Shuai, CHEN Chenglizhao, et al. Stage-wise salient object detection in 360° omnidirectional image via object-level semantical saliency ranking[J]. IEEE Transactions on Visualization and Computer Graphics, 2020, 26(12): 3535–3545. doi: 10.1109/TVCG.2020.3023636. [16] WEN Hongfa, ZHU Zunjie, ZHOU Xiaofei, et al. Consistency perception network for 360° omnidirectional salient object detection[J]. Neurocomputing, 2025, 620: 129243. doi: 10.1016/j.neucom.2024.129243. [17] ZHANG Yi, HAMIDOUCHE W, and DEFORGES O. Channel-spatial mutual attention network for 360° salient object detection[C]. 2022 26th International Conference on Pattern Recognition, Montreal, Canada, 2022: 3436–3442. doi: 10.1109/ICPR56361.2022.9956354. [18] HUANG Mengke, LIU Zhi, LI Gongyang, et al. FANet: Features adaptation network for 360° omnidirectional salient object detection[J]. IEEE Signal Processing Letters, 2020, 27: 1819–1823. doi: 10.1109/LSP.2020.3028192. [19] CONG Runmin, HUANG Ke, LEI Jianjun, et al. Multi-projection fusion and refinement network for salient object detection in 360° omnidirectional image[J]. IEEE Transactions on Neural Networks and Learning Systems, 2024, 35(7): 9495–9507. doi: 10.1109/TNNLS.2022.3233883. [20] ZHANG Jie, ZHANG Qiudan, SHEN Xuelin, et al. Salient object detection on 360° omnidirectional image with bi-branch hybrid projection network[C]. 2023 IEEE 25th International Workshop on Multimedia Signal Processing (MMSP), Poitiers, France, 2023: 1–5. doi: 10.1109/MMSP59012.2023.10337695. [21] HE Zhentao, SHAO Feng, CHEN Gang, et al. SCFANet: Semantics and context feature aggregation network for 360° salient object detection[J]. IEEE Transactions on Multimedia, 2024, 26: 2276–2288. doi: 10.1109/TMM.2023.3293994. [22] HE Zhentao, SHAO Feng, XIE Zhengxuan, et al. SIHENet: Semantic interaction and hierarchical embedding network for 360° salient object detection[J]. IEEE Transactions on Instrumentation and Measurement, 2025, 74: 5003815. doi: 10.1109/TIM.2024.3507047. [23] HUANG Mengke, LI Gongyang, LIU Zhi, et al. Lightweight distortion-aware network for salient object detection in omnidirectional images[J]. IEEE Transactions on Circuits and Systems for Video Technology, 2023, 33(10): 6191–6197. doi: 10.1109/TCSVT.2023.3253685. [24] ZHAO Yinjie, ZHAO Lichen, YU Qian, et al. Distortion-aware transformer in 360° salient object detection[C]. Proceedings of the 31st ACM International Conference on Multimedia, Ottawa, Canada, 2023: 499–508. doi: 10.1145/3581783.3612025. [25] 陈晓雷, 张学功, 杜泽龙, 等. 面向360°全景图像显著目标检测的畸变语义聚合网络[J]. 中国图象图形学报, 2025, 30(7): 2451–2467. doi: 10.11834/jig.240371.CHEN Xiaolei, ZHANG Xuegong, DU Zelong, et al. Distortion semantic aggregation network for salient object detection in 360° omnidirectional images[J]. Journal of Image and Graphics, 2025, 30(7): 2451–2467. doi: 10.11834/jig.240371. [26] 陈晓雷, 杜泽龙, 张学功, 等. 畸变自适应与位置感知的360°全景图像显著目标检测网络[J]. 中国图象图形学报, 2025, 30(8): 2758–2774. doi: 10.11834/jig.240592.CHEN Xiaolei, DU Zelong, ZHANG Xuegong, et al. Distortion-adaptive and position-aware network for salient object detection in 360° omnidirectional image[J]. Journal of Image and Graphics, 2025, 30(8): 2758–2774. doi: 10.11834/jig.240592. [27] WU Junjie, XIA Changqun, YU Tianshu, et al. View-aware salient object detection for 360° omnidirectional image[J]. IEEE Transactions on Multimedia, 2023, 25: 6471–6484. doi: 10.1109/TMM.2022.3209015. [28] DAI Haowei, BAO Liuxin, SHEN Kunye, et al. 360° omnidirectional salient object detection with multi-scale interaction and densely-connected prediction[C]. Proceedings of 12th International Conference on Image and Graphics, Nanjing, China, 2023: 427–438. doi: 10.1007/978-3-031-46305-1_35. [29] CHEN Gang, SHAO Feng, CHAI Xiongli, et al. Multi-stage salient object detection in 360° omnidirectional image using complementary object-level semantic information[J]. IEEE Transactions on Emerging Topics in Computational Intelligence, 2024, 8(1): 776–789. doi: 10.1109/TETCI.2023.3259433. [30] 陈晓雷, 王兴, 张学功, 等. 面向360度全景图像显著目标检测的相邻协调网络[J]. 电子与信息学报, 2024, 46(12): 4529–4541. doi: 10.11999/JEIT240502.CHEN Xiaolei, WANG Xing, ZHANG Xuegong, et al. Adjacent coordination network for salient object detection in 360 degree omnidirectional images[J]. Journal of Electronics & Information Technology, 2024, 46(12): 4529–4541. doi: 10.11999/JEIT240502. [31] YUN I, SHIN C, LEE H, et al. EGformer: Equirectangular geometry-biased transformer for 360 depth estimation[C]. Proceedings of the IEEE/CVF International Conference on Computer Vision, Paris, France, 2023: 6078–6089. doi: 10.1109/ICCV51070.2023.00561. -
