舰船与漂浮目标混合场景下的识别方法研究

丁昊; 栗奥; 曹政; 刘宁波; 王国庆; 孙殿星

doi:10.11999/JEIT251119

舰船与漂浮目标混合场景下的识别方法研究

doi: 10.11999/JEIT251119 cstr: 32379.14.JEIT251119

丁昊¹,
栗奥^2, ,,
曹政¹,
刘宁波¹,
王国庆¹,
孙殿星²

1.
海军航空大学烟台 264001
2.
哈尔滨工程大学信息与通信工程学院哈尔滨 150001

基金项目: 国家自然科学基金(62388102, 62101583)

详细信息

作者简介:
丁昊：男，博士，副教授，研究方向为海杂波特性认知与抑制、海杂波中目标检测识别

栗奥：男，硕士，研究方向为海上目标识别

曹政：男，博士，讲师，研究方向为海上目标识别和多特征融合检测

刘宁波：男，博士，教授，研究方向为雷达信号处理、海杂波抑制与目标智能检测

王国庆：男，博士，副教授，研究方向为雷达信号目标检测、电路系统设计等

孙殿星：男，博士，副教授，研究方向为信号与数据处理、信息融合

通讯作者:
栗奥　aoli0418@163.com

中图分类号: TN974
计量
- 文章访问数: 17
- HTML全文浏览量: 6
- PDF下载量: 0
- 被引次数: 0
出版历程
- 修回日期: 2026-02-09
- 录用日期: 2026-02-09
- 网络出版日期: 2026-03-01

Research on Recognition Method in Mixture Scenarios of Ships and Floating Targets

1.
Naval Aviation University, Yantai 264001, China
2.
College of Information and Communication Engineering, Harbin Engineering University, Harbin 150001, China

Funds: The National Natural Science Foundation of China (62388102, 62101583)

摘要

摘要: 在雷达海上探测场景中，当舰船与漂浮目标处于同一距离单元中，形成信号混叠的混合体目标时，如何实现混合体中单个目标的准确识别，当前仍未得到有效解决。针对该问题，本文提出一种基于模态重构与时频域差异特征的海上目标识别方法。不同于将混合体目标整体处理的传统思路，该方法采用变分模态分解(VMD)有效分离混合体中的多普勒通道，针对虚假模态和目标信息碎片化表达问题，提出基于能量约束的模态滤波方法和基于频谱一致性的模态聚类方法，实现多目标场景下回波模态重构处理。在此基础上，分别从图像层面和数据层面出发，提取微多普勒频率全变差(VF)和主多普勒通道等级熵(REDDC ) 两个识别特征，对目标的微多普勒和混乱度差异进行量化表征与联合识别。结果表明，本文算法在2～4级海况条件下对混合体中各目标的平均识别准确率达97.32%，整体性能优于已有方法。
- 海上目标识别 /
- 混合体场景 /
- 变分模态分解 /
- 时频域分析
Abstract: Objective In radar maritime target detection scenarios, when two or more targets are located within the same range cell, they form mixture echoes, such as echoes from both ship and floating targets. Existing target recognition methods exhibit notable limitations in such scenarios, mainly because they focus on Doppler channel with strongest energy in time–frequency domain. To address this issue, this paper proposes a target recognition method that jointly integrates mode reconstruction and time–frequency features. The objective is to distinguish individual target without prior knowledge of whether the received echoes contain mixture targets or not, avoiding reliance on high range resolution or multi-polarization information. Methods The core idea is to introduce Variational Mode Decomposition (VMD) to decompose radar echoes into multiple modal components, thereby achieving Doppler-channel separation. To address the spurious modes and the fragmented representation of a single target across multiple modes after decomposition, energy-constrained mode filtering method and spectral consistency based mode clustering method are proposed for effective mode selection and reconstruction. Based on the reconstructed signals, we then exploit the time–frequency differences between ships and floating targets in terms of micro-motion and complexity by extracting features from two perspectives, namely motion stability and disorder degree of energy distribution, which are short for VF and REDDC features, so as to enable accurate identification of individual target. Results and Discussions The experiments are conducted using X-band radar measured data under sea states 2～4 (Table 1 and Table 2). The results show that, the proposed method achieves an average recognition accuracy of 97.32% in mixture scenarios, significantly outperforming existing four-feature recognition method (Table 3) as well as state-of-the-art methods (Fig. 9). After investigating the impact of the frequency separation between different targets, it is found that when the time–frequency ridge space exceeds 70 Hz, the recognition accuracy reaches 97.93% (Fig. 11). This result also provides empirical support for selecting reasonable clustering threshold in mode reconstruction stage. When mixture scenarios turns to single target scenarios because of relative motion, the proposed method achieves an average recognition accuracy of 93.34%, which is 4.62% higher than that of existing four-feature method (88.72%) (Table 4). The analysis also indicates that, to ensure the expected recognition accuracy, the observation duration for feature extraction should be no less than 0.25 s (Fig. 12). Conclusions This paper investigates the recognition problems in maritime multi-target mixture scenarios. By introducing VMD, the constituent components of mixture echoes are separated. To address spurious modes and fragmented representation of target information across multiple modes, energy-constrained mode filtering method and spectrum consistency based mode clustering method are proposed. The VF and REDDC features are extracted from structure perspective and complexity perspective respectively. SVM classifier is then employed to complete target recognition. Performance analyses confirm that the proposed method can effectively identify each constituent target in mixture echoes while maintaining superior recognition performance in single target scenarios. Future work will focus on improving computational efficiency and real-time capability by optimizing the stopping criteria of VMD iterations, and on exploring the application boundaries of the method using measured data under higher sea states.
- maritime target recognition /
- mixture scenarios /
- VMD /
- time-frequency analysis

HTML全文

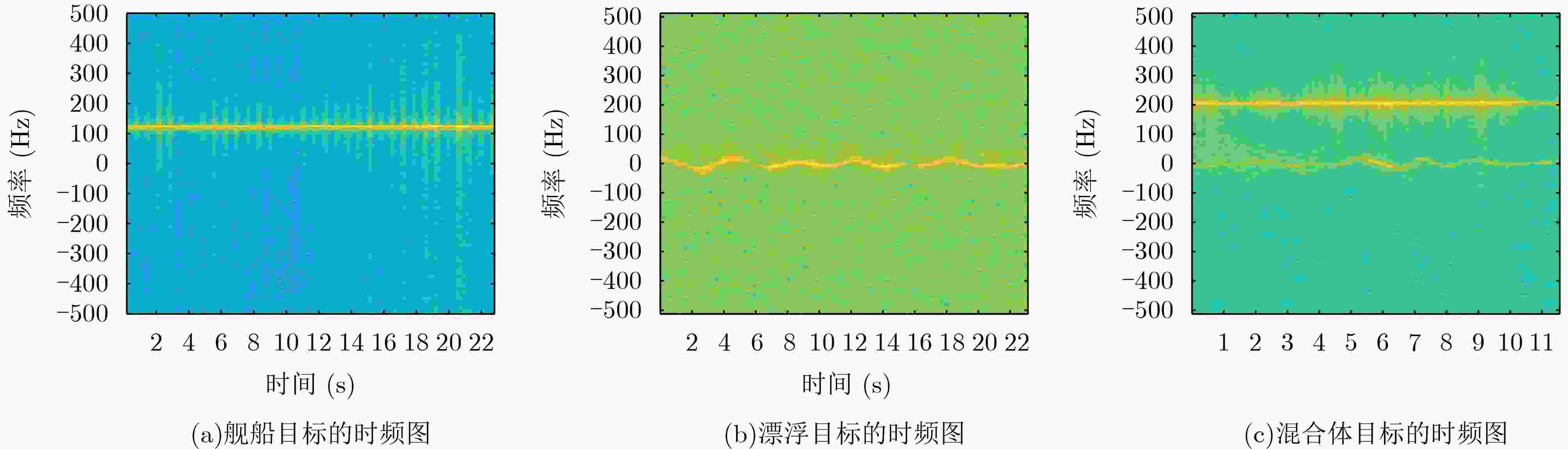

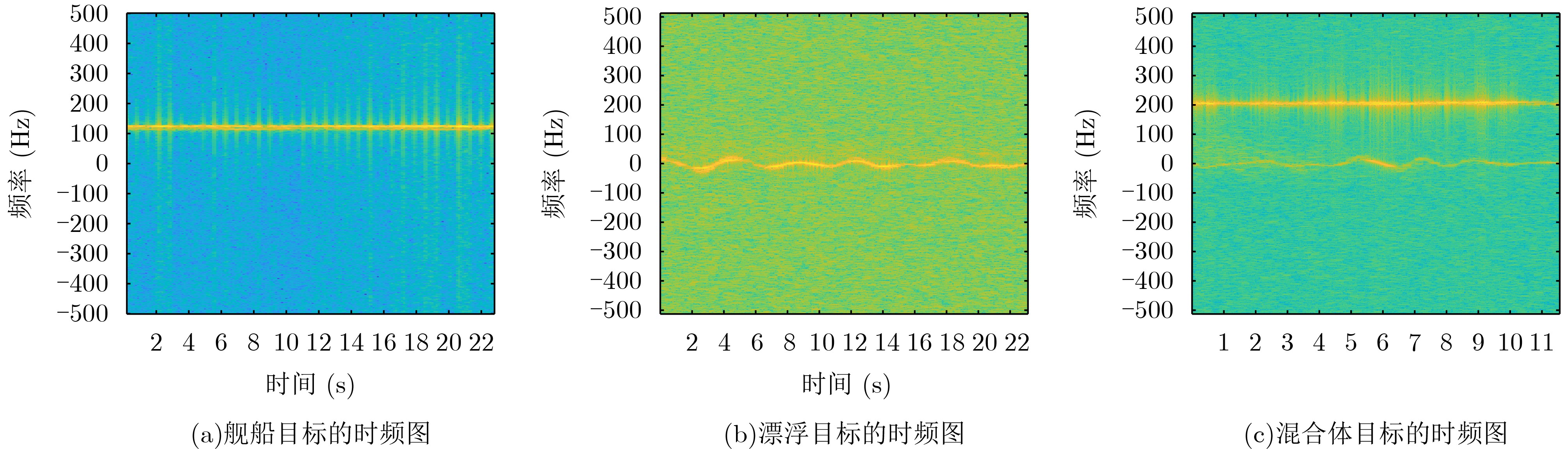

图 1 舰船和漂浮目标的时频图

下载: 全尺寸图片幻灯片

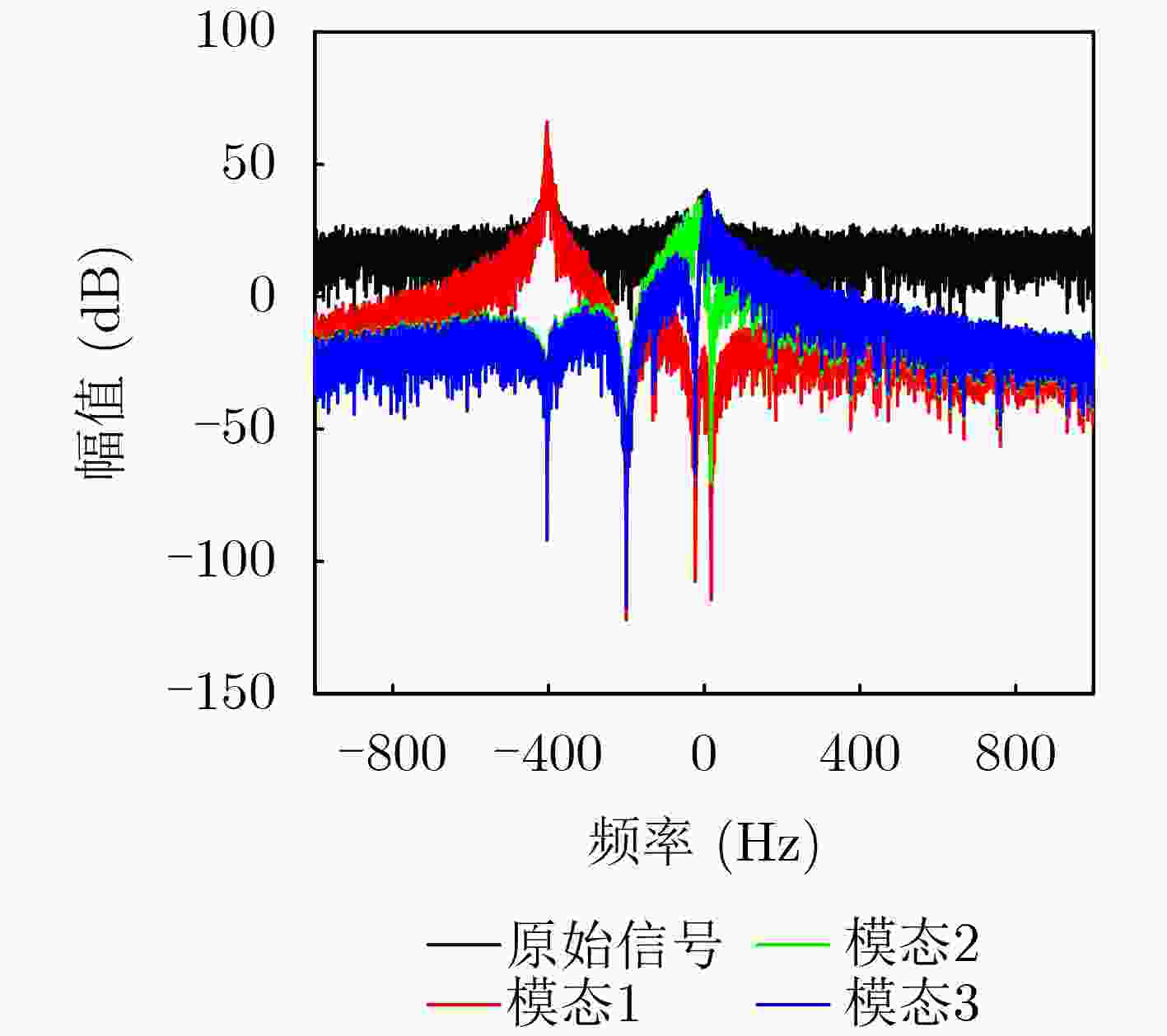

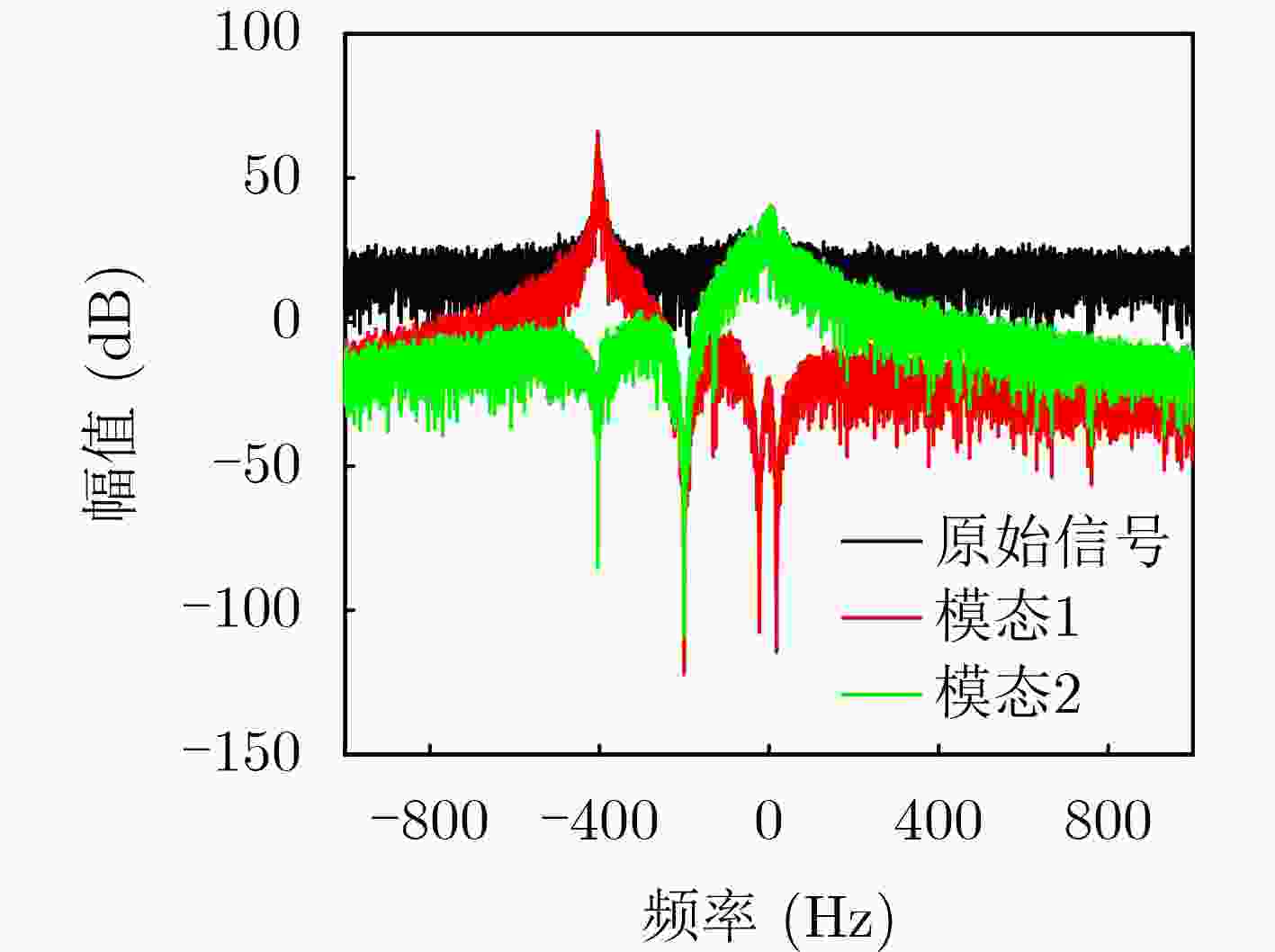

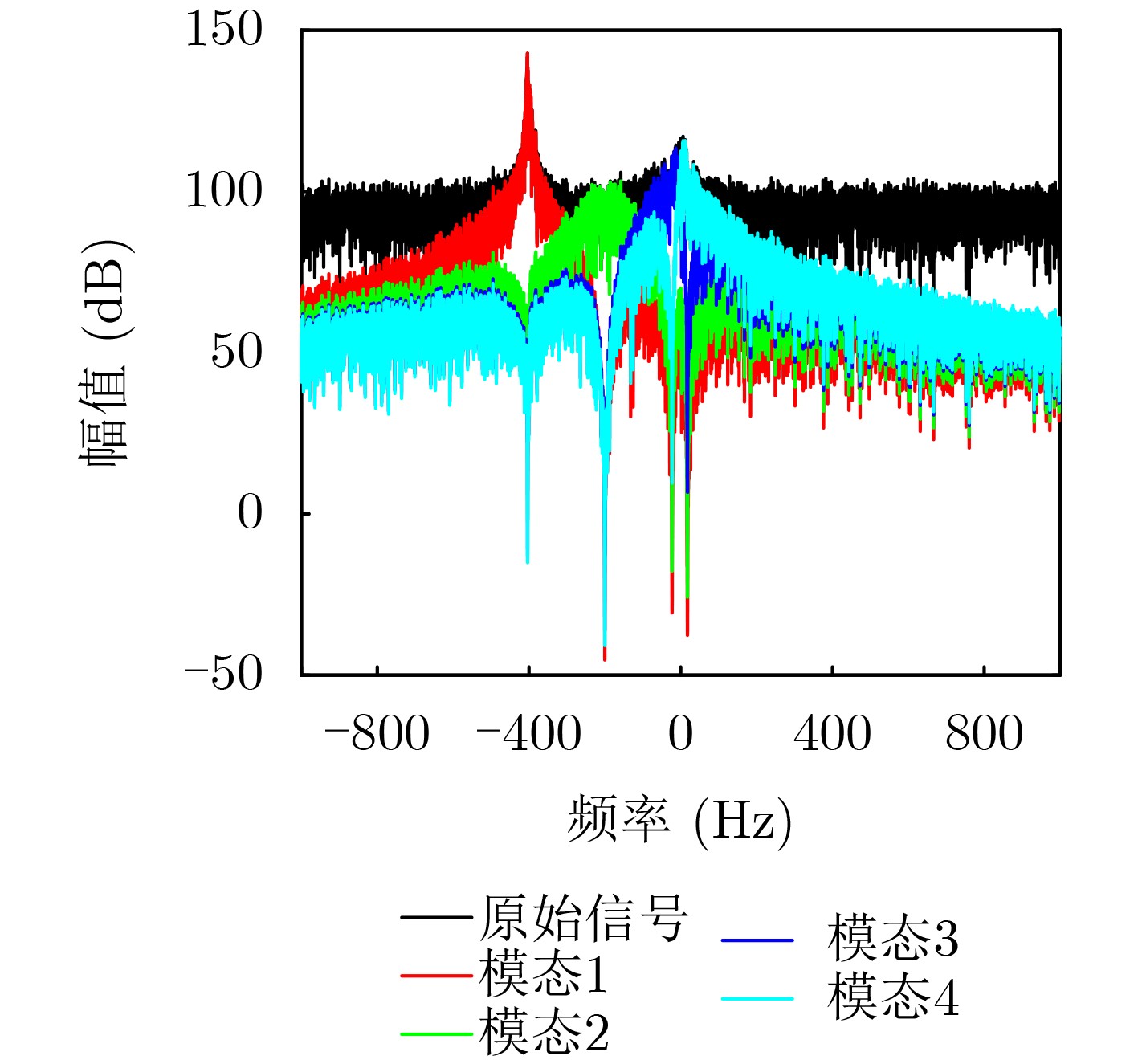

图 2 混合体目标模态分解后的频谱图

下载: 全尺寸图片幻灯片

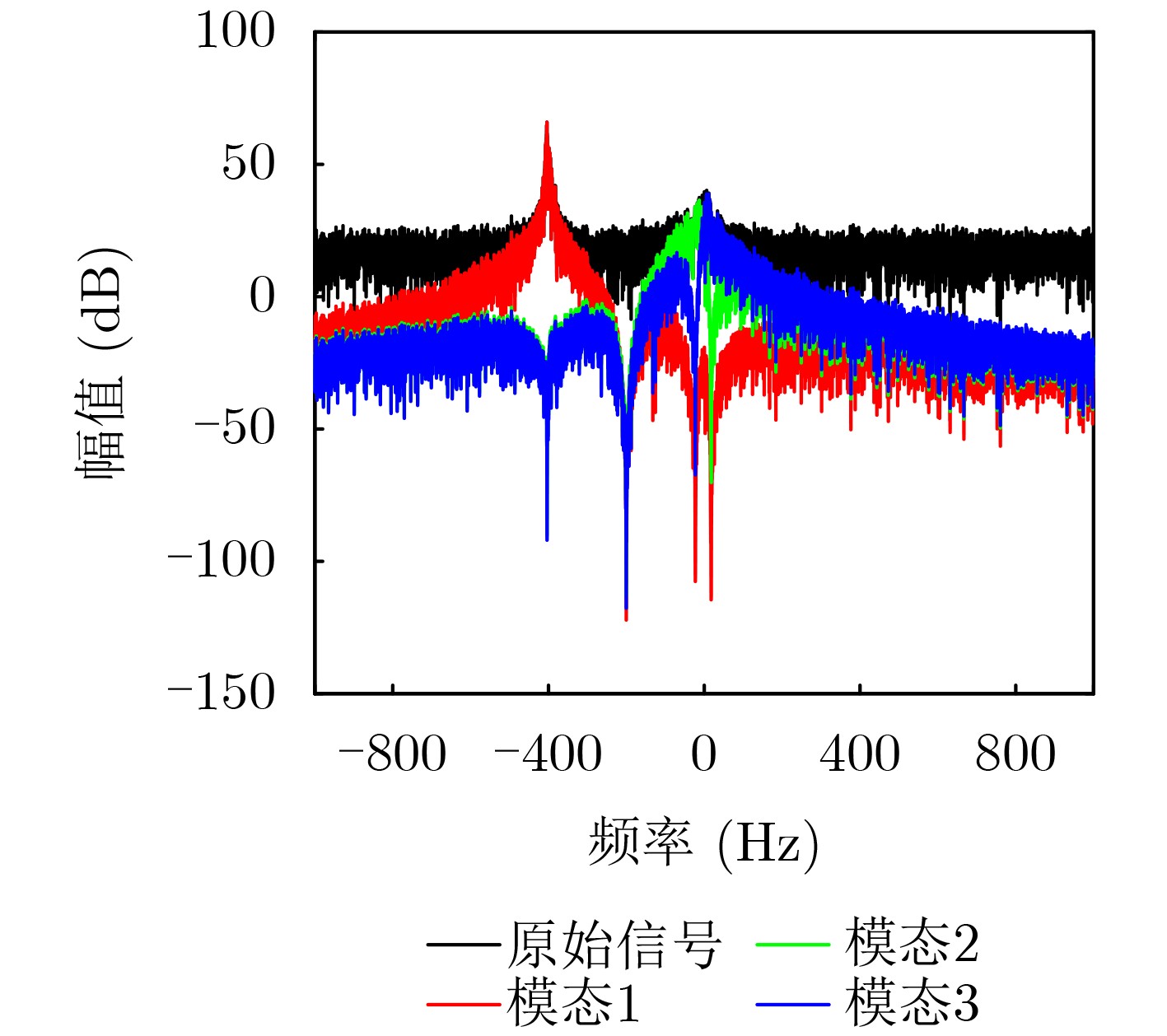

图 3 模态滤波后的频谱图

下载: 全尺寸图片幻灯片

图 4 模态聚类后的频谱图

下载: 全尺寸图片幻灯片

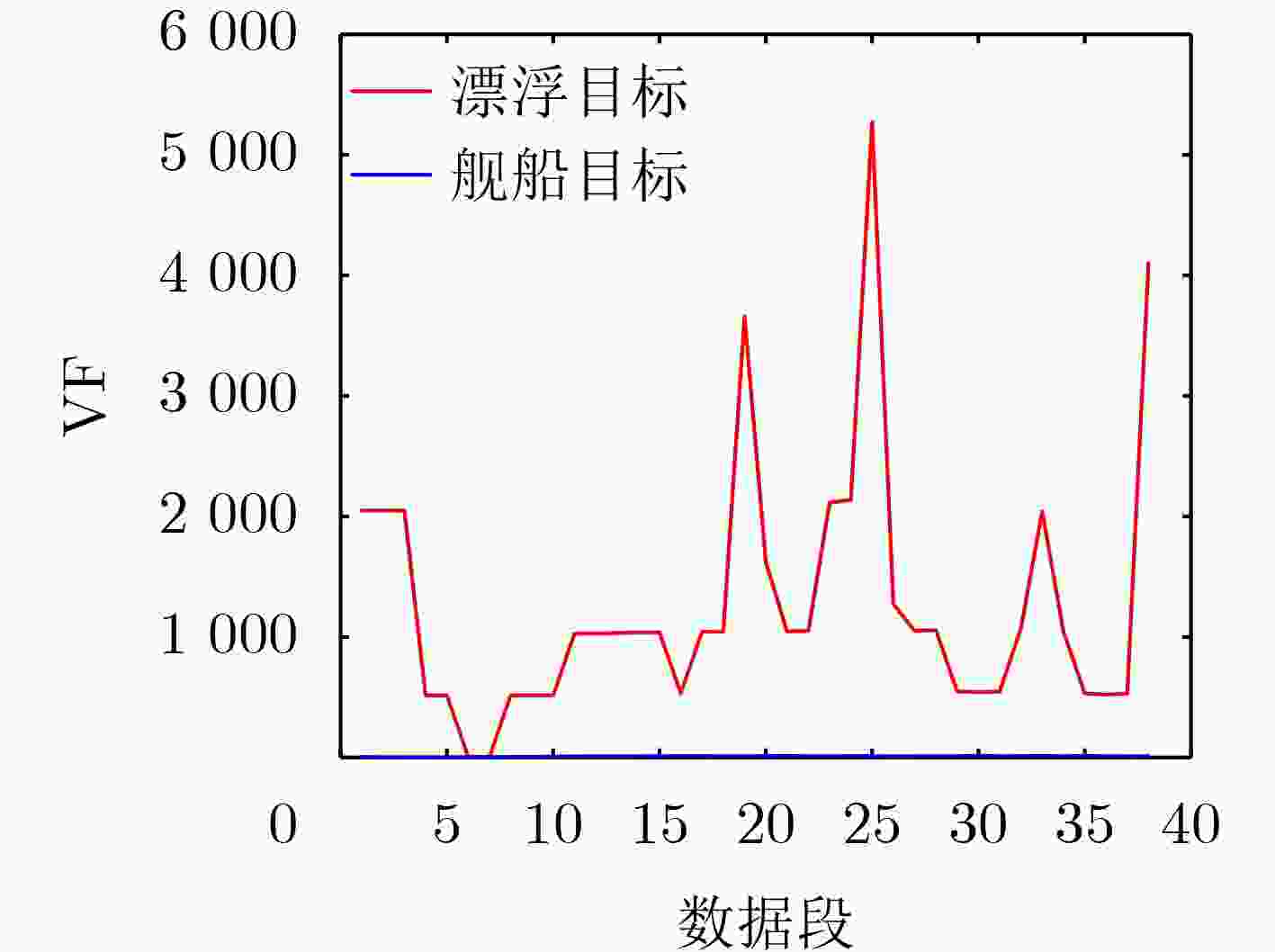

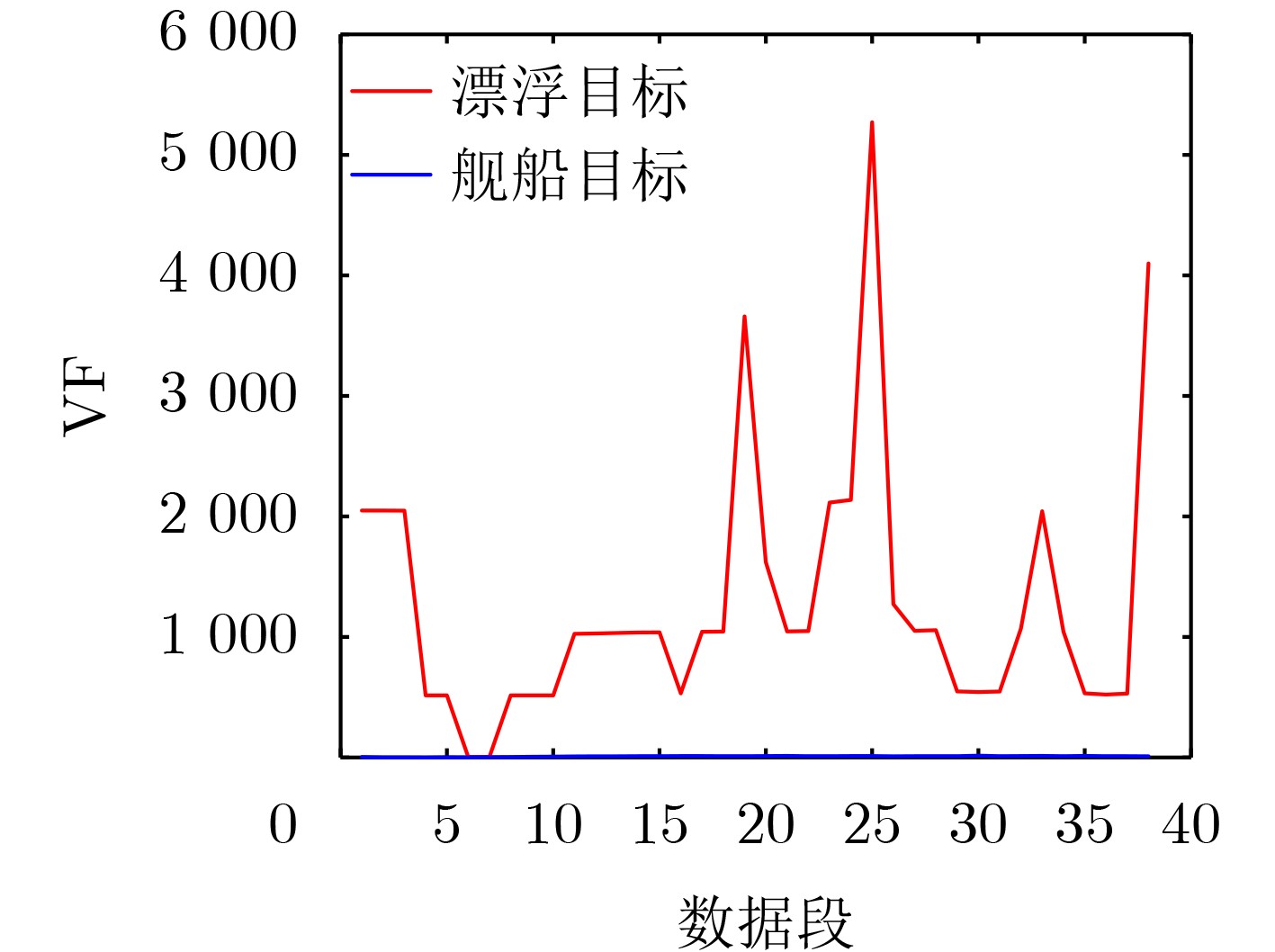

图 5 VF特征曲线

下载: 全尺寸图片幻灯片

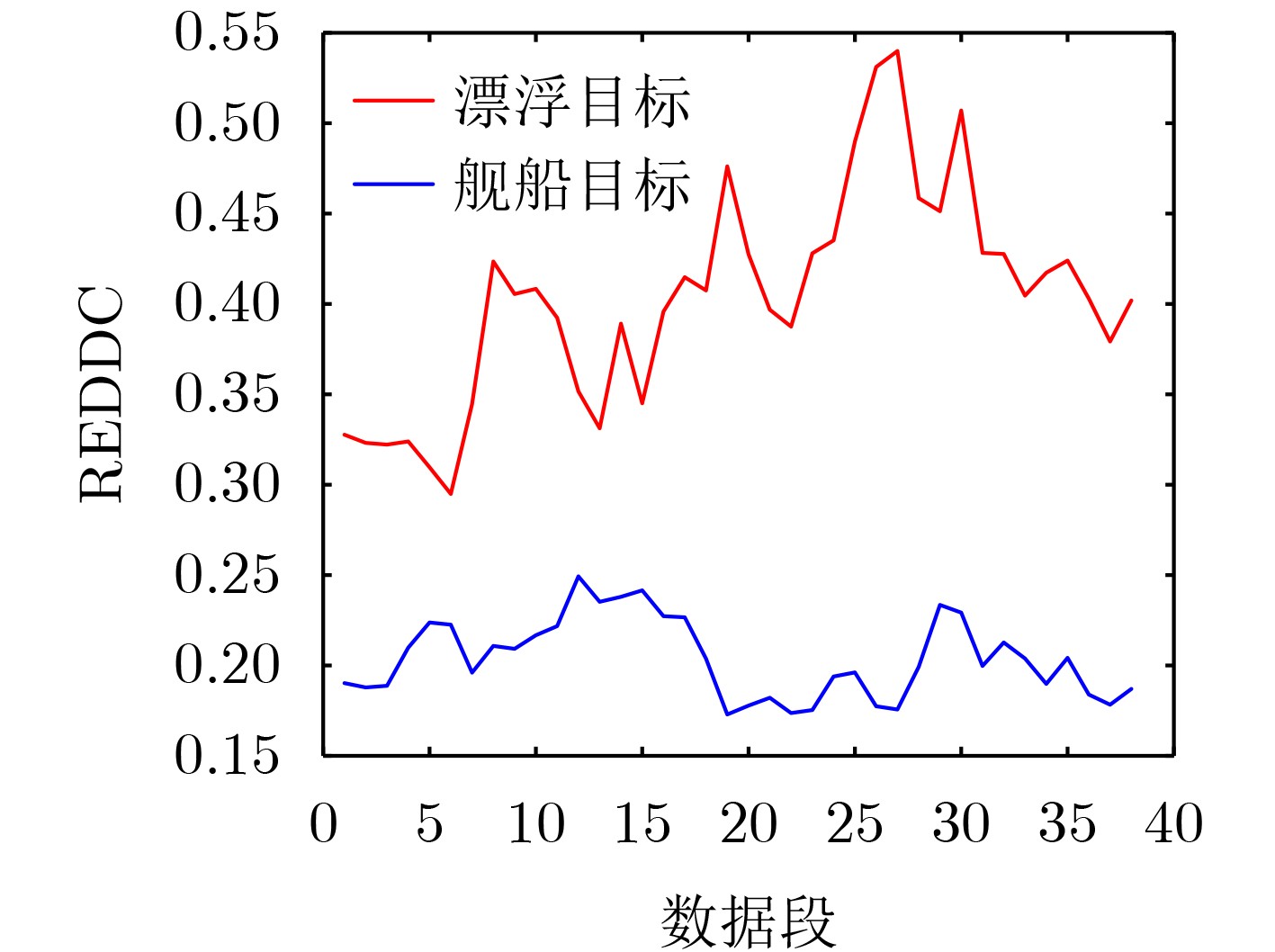

图 6 REDDC特征曲线

下载: 全尺寸图片幻灯片

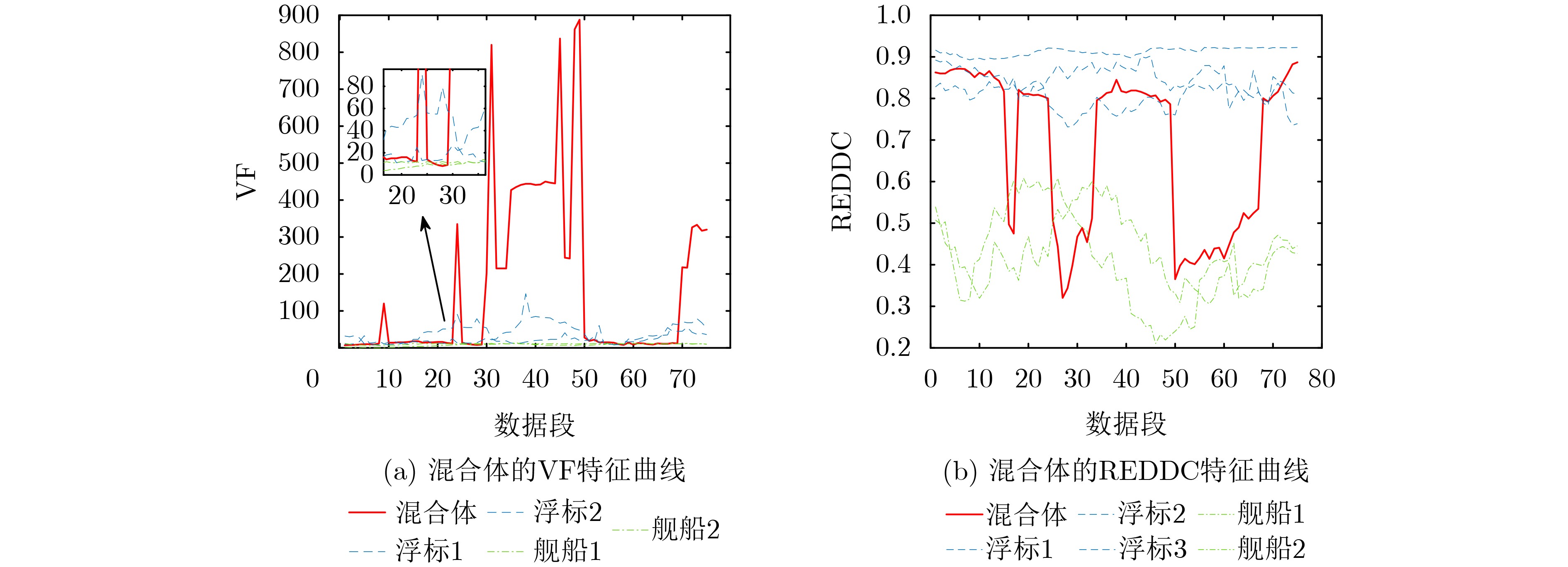

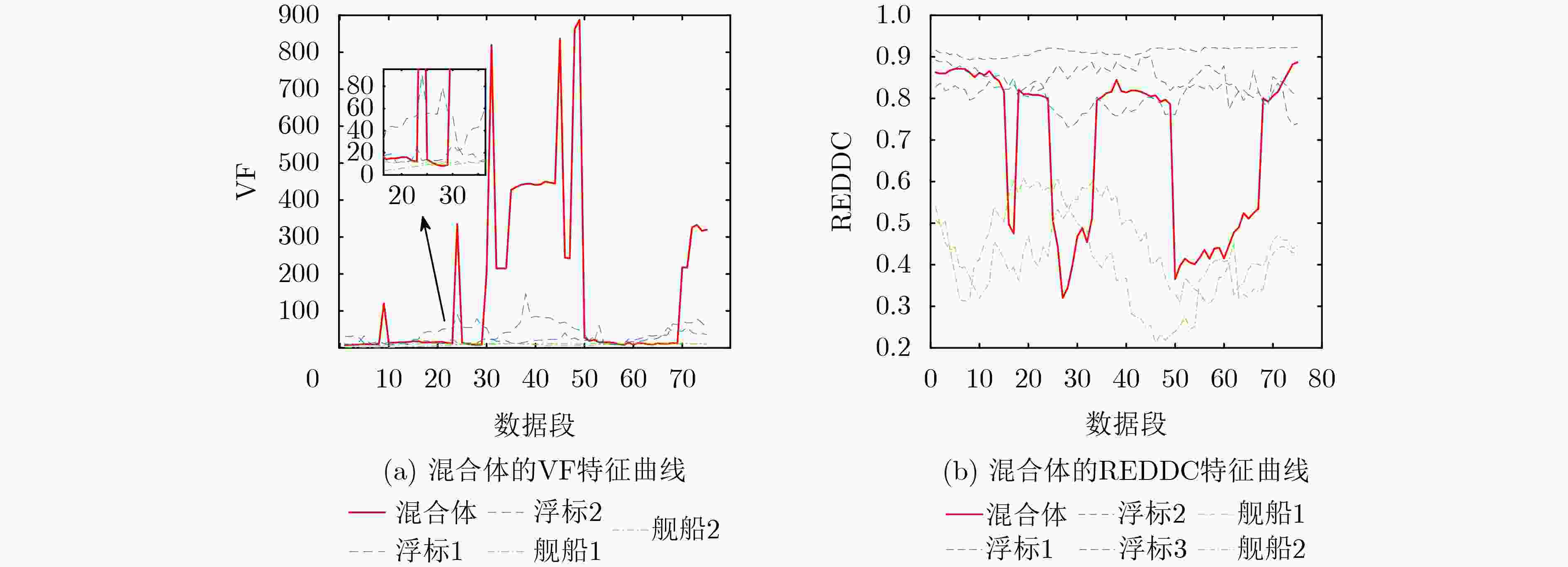

图 7 混合体与重构信号的特征曲线对比

下载: 全尺寸图片幻灯片

图 8 海上目标光学图像

下载: 全尺寸图片幻灯片

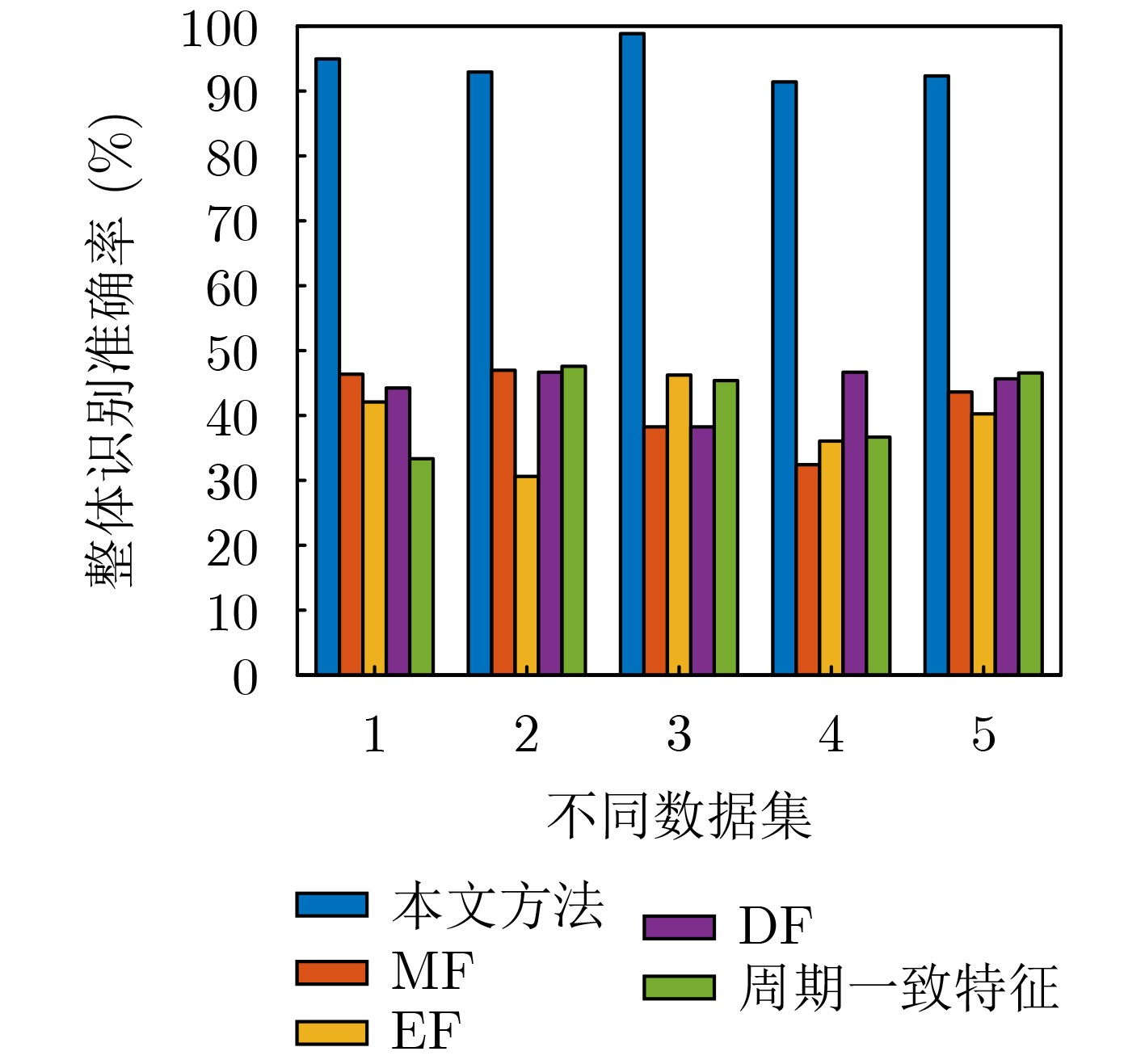

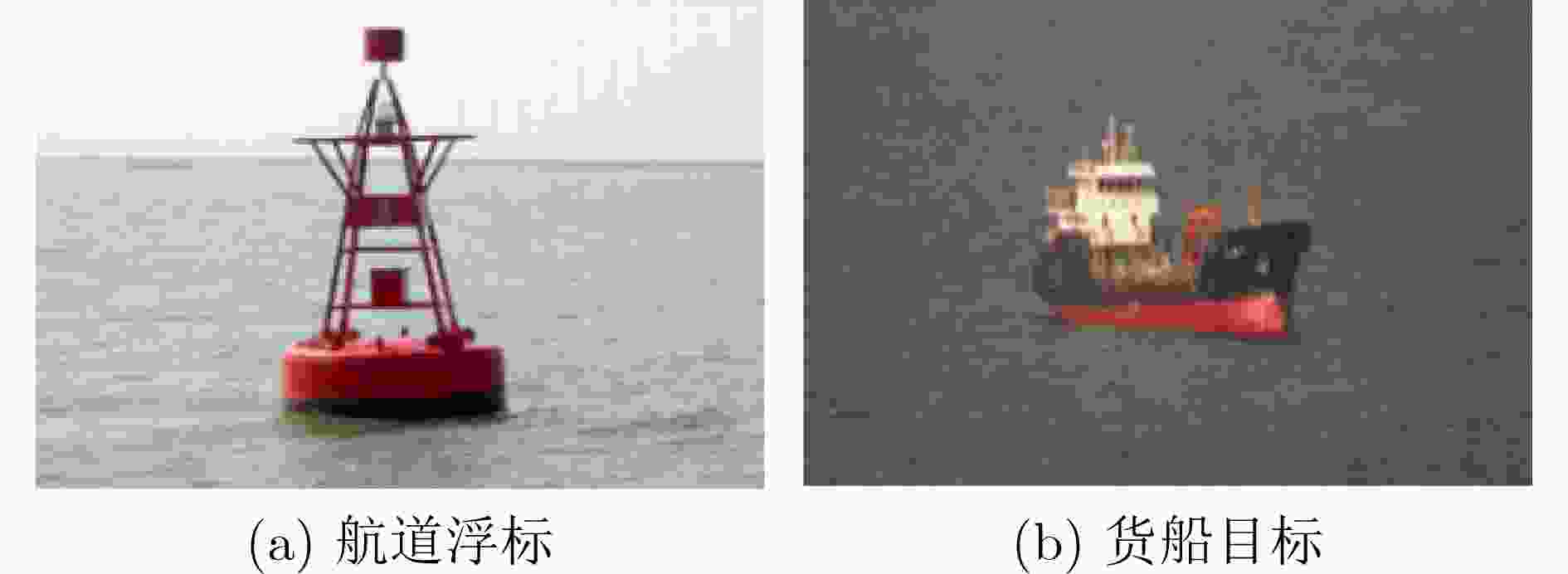

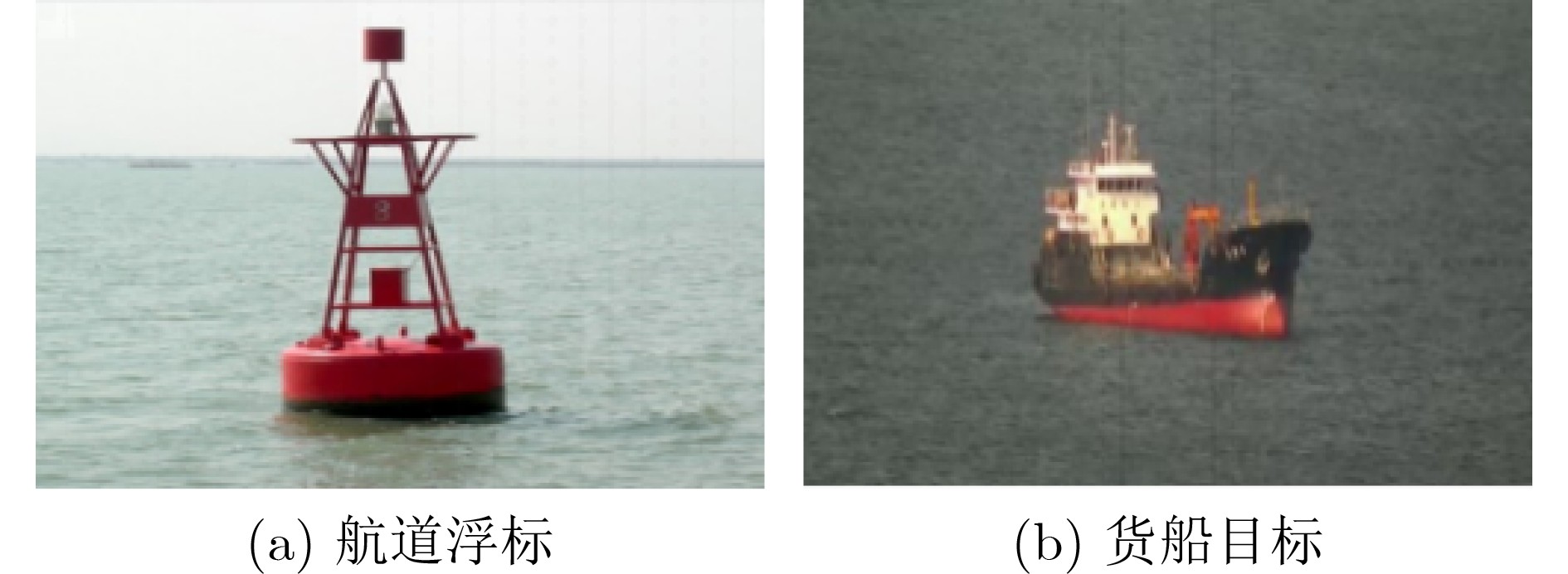

图 9 与同类最新识别方法的性能对比

下载: 全尺寸图片幻灯片

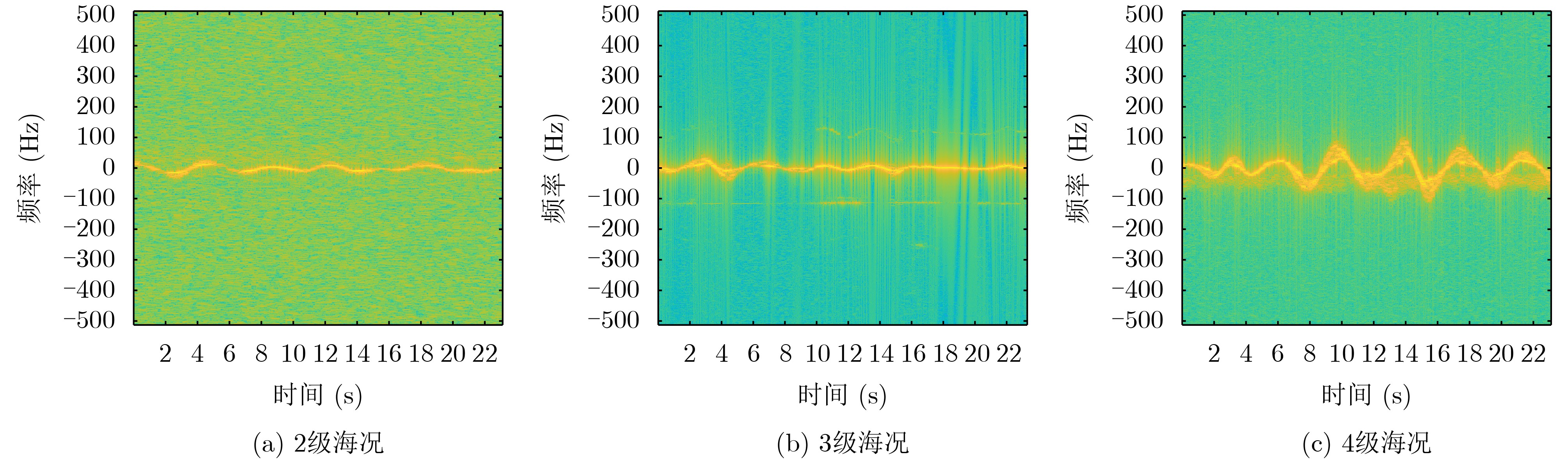

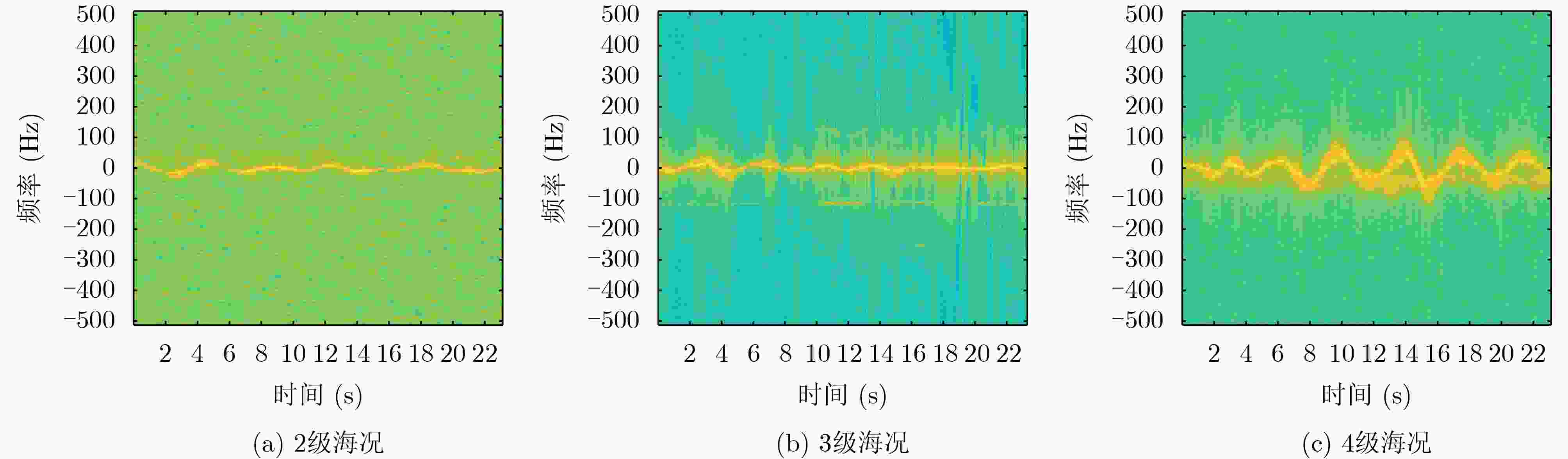

图 10 不同海况下漂浮目标的时频图

下载: 全尺寸图片幻灯片

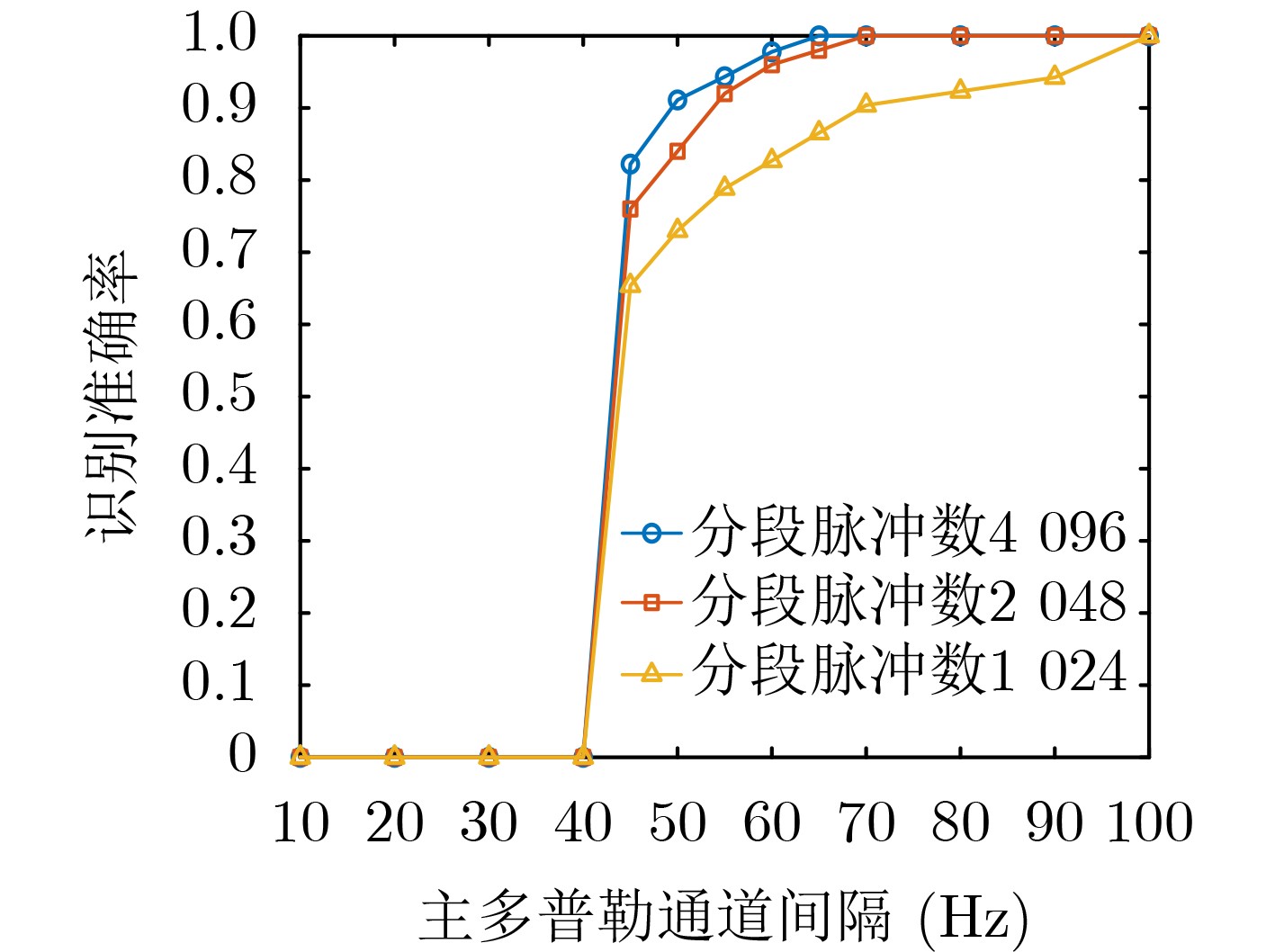

图 11 主多普勒通道间隔对算法性能的影响

下载: 全尺寸图片幻灯片

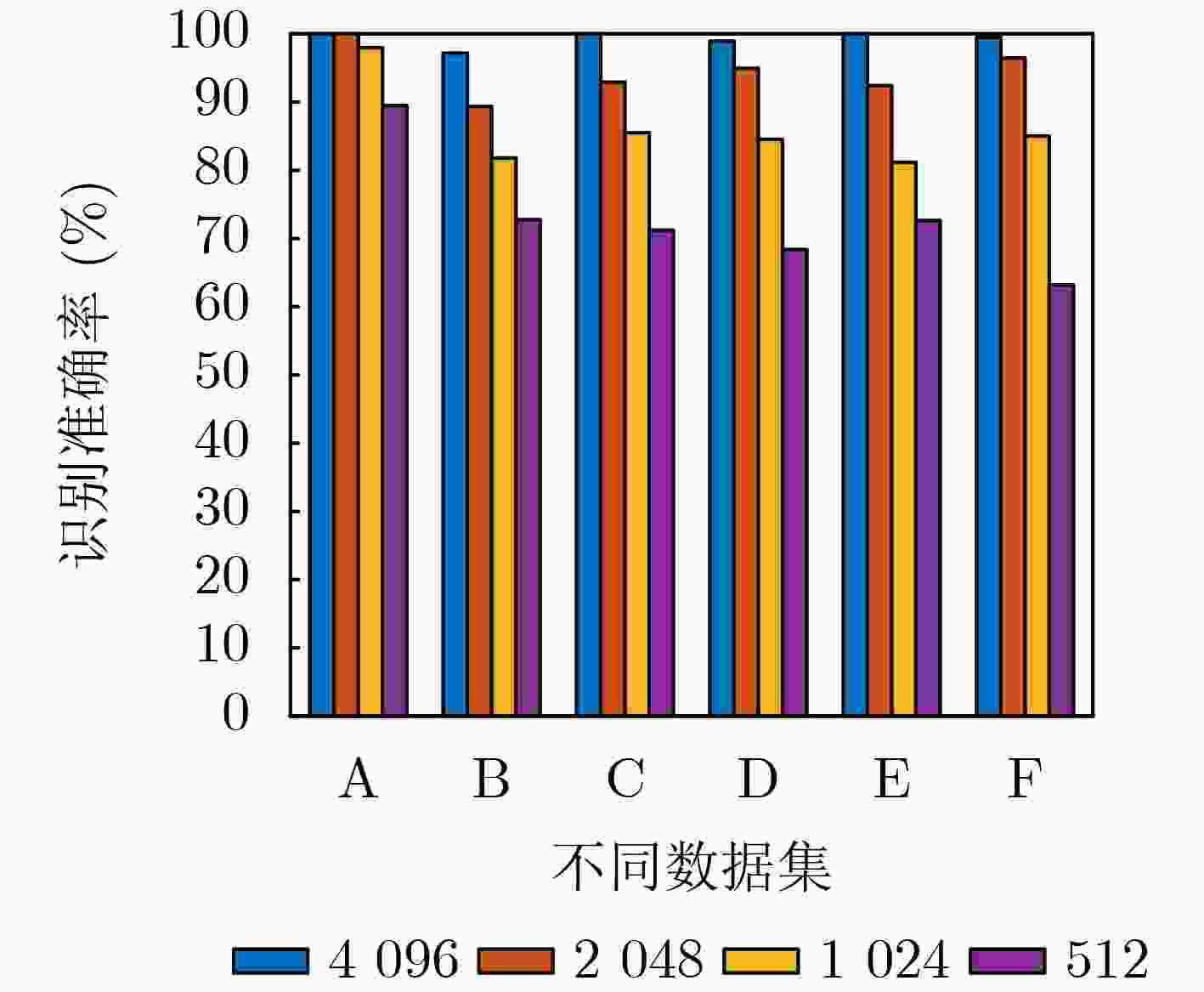

图 12 分段脉冲数对本文算法的性能影响

下载: 全尺寸图片幻灯片

表 1 雷达相关参数

雷达参数	参数值
频率范围	9.3～9.5 GHz
带宽	25 MHz
距离分辨率	6 m
发射峰值功率	50 W
脉冲重复频率	2 kHz
天线长度	2 m
水平波束宽度	1.2°

下载: 导出CSV

表 2 实测数据基本信息

编号	文件名	海况	是否含混合体	目标距离单元	脉冲数	浪高(m)	浪向(°)
1	2024052715210617	2	是	2216	23,120	0.32	63
2	2024051711025339	2	是	3107	23,120	0.43	63
3	2022111518000013	3	是	621	20,790	1.1	126
4	2022111411080008	4	是	235	27,100	1.8	345
5	2022111306172401	4	是	419	131,072	1.9	283
A	2024060209175350	2	否	1245/763	23,120	0.25	63
B	2024060209500720	2	否	3129/2510	23,120	0.25	63
C	2024061209165746	2	否	954/3105	23,120	0.2	63
D	2024051710545925	2	否	2546/2990	23,120	0.43	63
E	2024051710591023	3	否	604/675	23,120	0.79	129
F	2024052715273745	3	否	579/506	23,120	1.03	129

下载: 导出CSV

表 3 混合体目标识别性能

数据编号	测试样本数	本文方法					四特征识别方法
数据编号	测试样本数	TP	FN	FP	TN	准确率	TP	FN	FP	TN	准确率
1	50	48	2	0	50	98%	22	1	1	26	48%
2	50	47	3	0	50	97%	34	4	0	12	46%
3	44	44	0	1	43	98.86%	25	0	1	18	48.86%
4	59	59	0	3	56	97.45%	30	3	1	25	46.61%
5	75	72	3	4	71	95.3%	41	2	2	30	47.3%

下载: 导出CSV

表 4 单目标识别性能

数据编号	测试样本数	本文方法					四特征识别方法
数据编号	测试样本数	TP	FN	FP	TN	准确率	TP	FN	FP	TN	准确率
A	198	96	0	6	96	96.97%	81	18	0	99	90.91%
B	198	88	6	12	92	90.91%	77	22	6	93	85.86%
C	198	96	2	7	93	95.45%	89	1	0	99	94.95%
D	198	93	6	6	93	93.94%	77	22	3	96	87.37%
E	198	92	8	7	91	92.42%	77	22	9	90	84.34%
F	198	88	10	9	91	90.40%	90	9	13	86	88.89%

下载: 导出CSV
