分体式架构的心脏MRI非接触光学心振触发系统设计

高钱楠; 张佳宇; 朱银根; 王文锦; 纪建松; 纪晓悦

doi:10.11999/JEIT251098

分体式架构的心脏MRI非接触光学心振触发系统设计

doi: 10.11999/JEIT251098 cstr: 32379.14.JEIT251098

1.
杭州电子科技大学电子信息学院杭州 310018
2.
清华大学精密仪器系北京 100084
3.
浙江大学医学院附属邵逸夫医院护理部杭州 310009
4.
南方科技大学生物医学工程系深圳 518055
5.
温州医科大学附属五院(丽水市中心医院) 丽水 323020

详细信息

作者简介:
高钱楠：男，1997年生，硕士生，研究方向为医学影像工程与多模态生理信号处理

张佳宇：女，1997年生，硕士生，研究方向为重症护理、临床决策

朱银根：男，1999年生，博士生，研究发现为基于视频的非接触健康感知与医疗监护

王文锦：男，1989年生，副教授，研究发现为基于视频的非接触健康感知与医疗监护

纪建松：男，1975年生，教授，研究方向为医学影像与介入放射学

纪晓悦：女，1993年生，助理研究员，研究方向为类脑记忆的忆阻神经形态计算电路

中图分类号: R816.5; TP391.4
计量
- 文章访问数: 14
- HTML全文浏览量: 7
- PDF下载量: 0
- 被引次数: 0
出版历程
- 修回日期: 2026-01-12
- 录用日期: 2026-01-12
- 网络出版日期: 2026-01-27

Split-Architecture Non-contact Optical Seismocardiography Triggering System for Cardiac MRI

1.
School of Electronic Information, Hangzhou Dianzi University, Hangzhou 310018, China
2.
Department of Precision Instrument, Tsinghua University, Beijing 100084, China
3.
Nursing Department, Sir Run Run Shaw Hospital, Zhejiang University School of Medicine, Hangzhou 100084, China
4.
South University of Science and Technology of China, biomedical engineering, Shenzhen 518055, China
5.
Lishui Hospital of Zhejiang University , Lishui 323020, China

摘要

摘要: 心脏磁共振(CMR)对心动与呼吸极为敏感，稳定可靠的门控是保证成像质量与量化准确性的关键。针对高磁场环境下心电门控易受磁流体力学与梯度噪声干扰的问题，本文提出一种面向复杂电磁环境的CMR非接触光学心振触发方案。具体地，提出一种“近机光学采集—远机计算与触发”的分体式架构：近机端以离焦散斑成像捕获胸壁微振，远机端进行方向自适应位移合成、漂移屏蔽基线回正及因果多项式局部回归平滑，实现主动脉瓣开放等机械事件的实时触发。在20名健康志愿者、三类线圈遮挡条件下进行评估：在无线圈与超柔性体线圈条件下，心振信号相对同搏R波的后向生理延迟分别为44.7±24.8 ms 与45.1±26.7 ms，拍间抖动通常为20–30 ms；可用率分别为95.7%与97.6%，F1分数分别为0.921与0.912。结果表明，良好的线圈—胸壁耦合与视野通畅对非接触机械门控至关重要；相较外周光体积信号与雷达门控，心振信号作为“近源”机械标记可显著缩短触发相位滞后，相较外周光体积信号与门控，更适用于高心率或时序约束更严格的CMR序列。总体而言，所提方案为高场环境下实现非接触、低延迟CMR门控提供了工程化实现路径。
- 心脏磁共振 /
- 光学心振信号 /
- 非接触门控 /
- 分体式架构 /
- 高磁场环境
Abstract: Objective Cardiac-cycle synchronization is required in cardiovascular magnetic resonance (CMR) to reduce motion artifacts and maintain quantitative accuracy. At high field strengths, electrocardiogram (ECG) triggering is often affected by magnetohydrodynamic effects and scanner-related electromagnetic interference (EMI). Electrode placement and lead routing also add setup burden. Contact-based mechanical sensors still require skin contact, and optical photoplethysmography can introduce long physiological delay. A fully contactless, EMI-robust mechanical surrogate is therefore needed. This work develops a split-architecture, noncontact optical seismocardiography (SCG) triggering system for CMR and evaluates its availability, beat-wise detection performance, and timing characteristics under practical body-coil coverage. Methods A split-architecture system consists of a near-magnet optical acquisition unit and a far-magnet computation-and-triggering unit, connected via fibre-optic links to minimize conductive pathways near the scanner (Fig. 2). The acquisition unit uses a defocused industrial camera and laser illumination to record speckle-pattern dynamics over the anterior chest without physical contact (Fig. 3). Dense optical flow is computed in a chest region of interest, and the displacement field is projected onto a principal motion direction to form a one-dimensional SCG sequence (Fig. 4). The sequence is processed with drift suppression, smoothing, and short-window normalization. Trigger timing is refined using a valley-constrained gradient search within a physiologically bounded window to reduce spurious detections and improve temporal consistency (Fig. 4). A benchmark dataset is collected from 20 healthy volunteers under three coil configurations: no body coil, an ultra-flexible body coil, and a conventional rigid body coil (Fig. 5, Fig. 6, Table 3). ECG serves as the reference, with CamPPG and radar recorded for comparison. Beat-wise precision, recall, and F1 score are computed against ECG R peaks, and availability is reported as the fraction of usable segments under unified quality criteria (Table 4). Backward and forward physiological delays and delay variability are summarized across subjects and coil conditions (Table 5, Table 6). Key windowing and refractory parameters are examined for sensitivity (Table 2). Runtime is measured to assess real-time feasibility, including the cost of dense optical flow and the overhead of one-dimensional processing and triggering (Table 7). Results and Discussions Under no-coil and ultra-flexible-coil conditions, the proposed optical SCG trigger achieves high availability (about 97.6%) and strong beat-wise performance. F1 reaches about 0.91 under the ultra-flexible coil. (Table 4, Table 5) The backward physiological delay remains on the order of several tens of milliseconds, and delay jitter is typically within a few tens of milliseconds. (Table 5, Table 6) Under the rigid body coil, performance drops sharply. Mechanical decoupling between the coil surface and chest wall weakens and distorts the vibration signature, which blurs AO-related features and increases false triggers. (Fig. 1) This degradation appears as lower precision and F1 and as a shift toward longer and more variable delays than in the other coil conditions. (Table 4, Table 6) Relative to CamPPG, which tracks peripheral blood-volume dynamics and typically lags further behind the ECG R peak, the optical SCG surrogate provides a more proximal mechanical marker and reduces trigger phase lag. (Fig. 9, Table 5) EMI robustness is supported by representative segments: ECG waveforms show visible distortion under interference, while the optical SCG surrogate remains interpretable because acquisition and transmission near the scanner are fully optical and electrically isolated. (Fig. 8) Parameter analysis supports a moderate processing window and a 0.5 s minimum inter-beat interval as a stable choice across subjects. (Table 2) Runtime analysis shows that dense optical flow dominates the cost, while one-dimensional processing and triggering add little overhead. Throughput exceeds the acquisition frame rate, supporting real-time triggering. (Table 7) Conclusions A split-architecture, noncontact optical SCG triggering system is developed and validated under three representative body-coil configurations. Fibre-optic separation between near-magnet acquisition and far-magnet processing improves EMI robustness while preserving real-time trigger output. High availability, strong beat-wise performance, and short physiological delay are demonstrated under no-coil and ultra-flexible-coil conditions. (Table 4, Table 5) Rigid-coil coverage exposes a clear limitation caused by reduced mechanical coupling, motivating further optimization for mechanically decoupled or heavily occluded scenarios. (Fig. 1, Table 6)
- Cardiac Magnetic Resonance /
- Optical Seismocardiography /
- Contactless Gating /
- Split-Architecture System /
- High-Field Environment

HTML全文

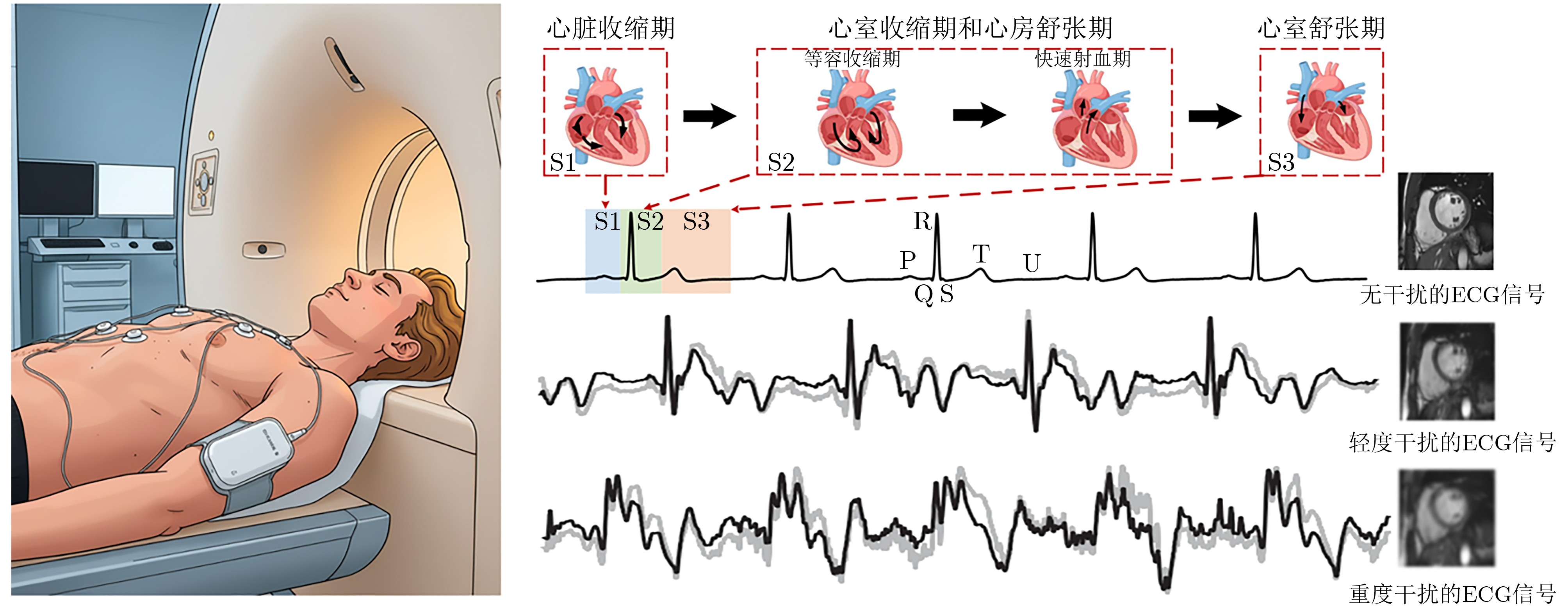

图 1 不同磁场干扰下的 ECG 信号

下载: 全尺寸图片幻灯片

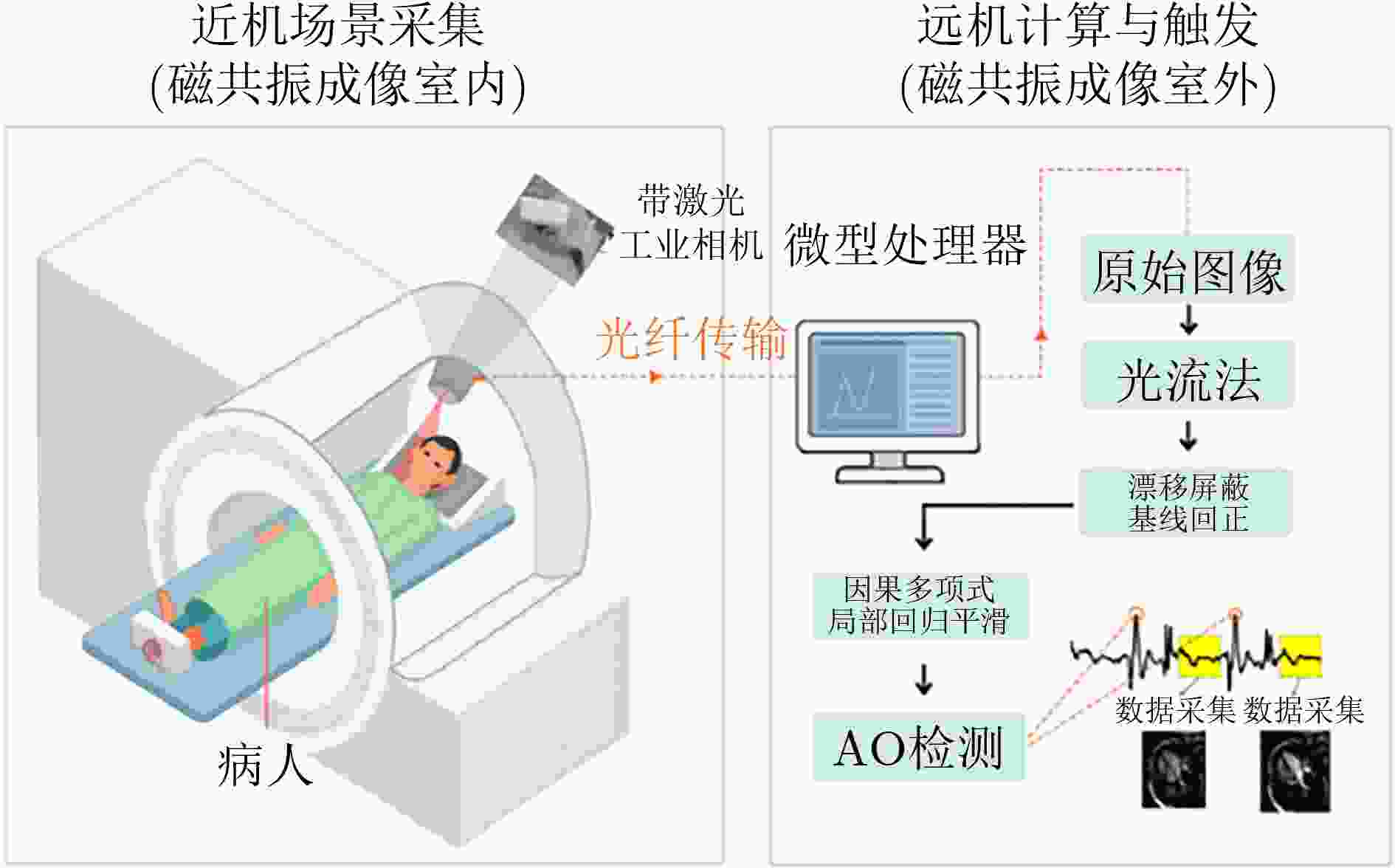

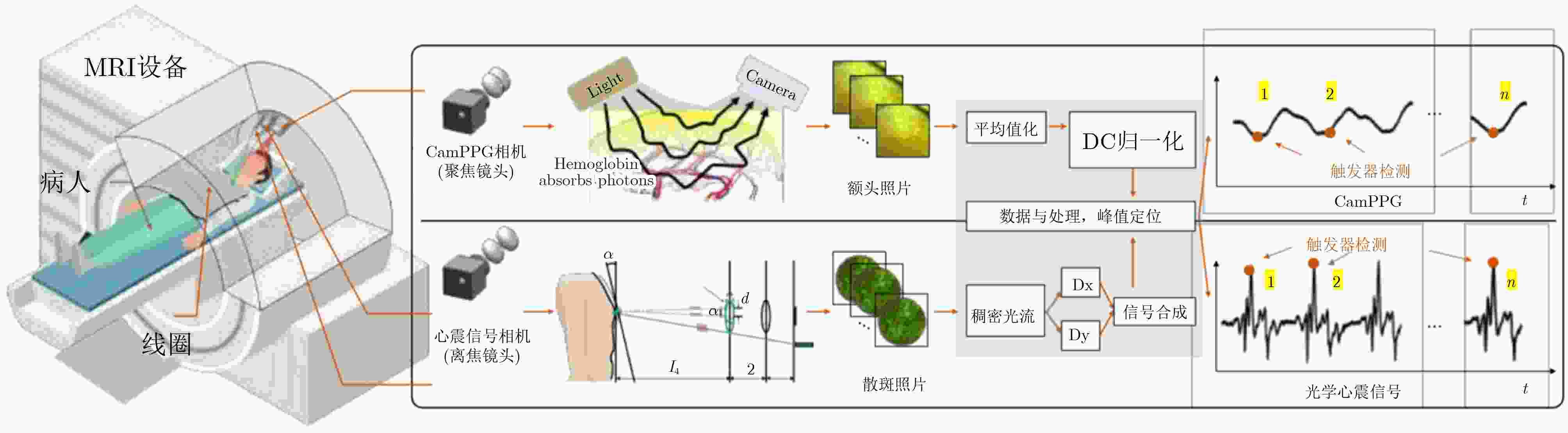

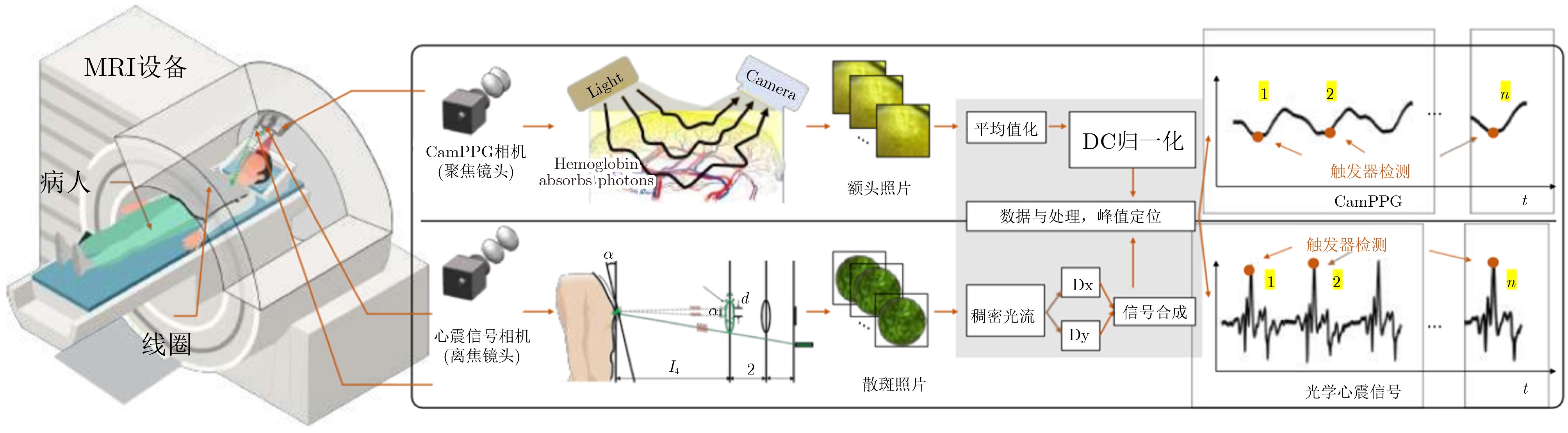

图 2 分体式架构

下载: 全尺寸图片幻灯片

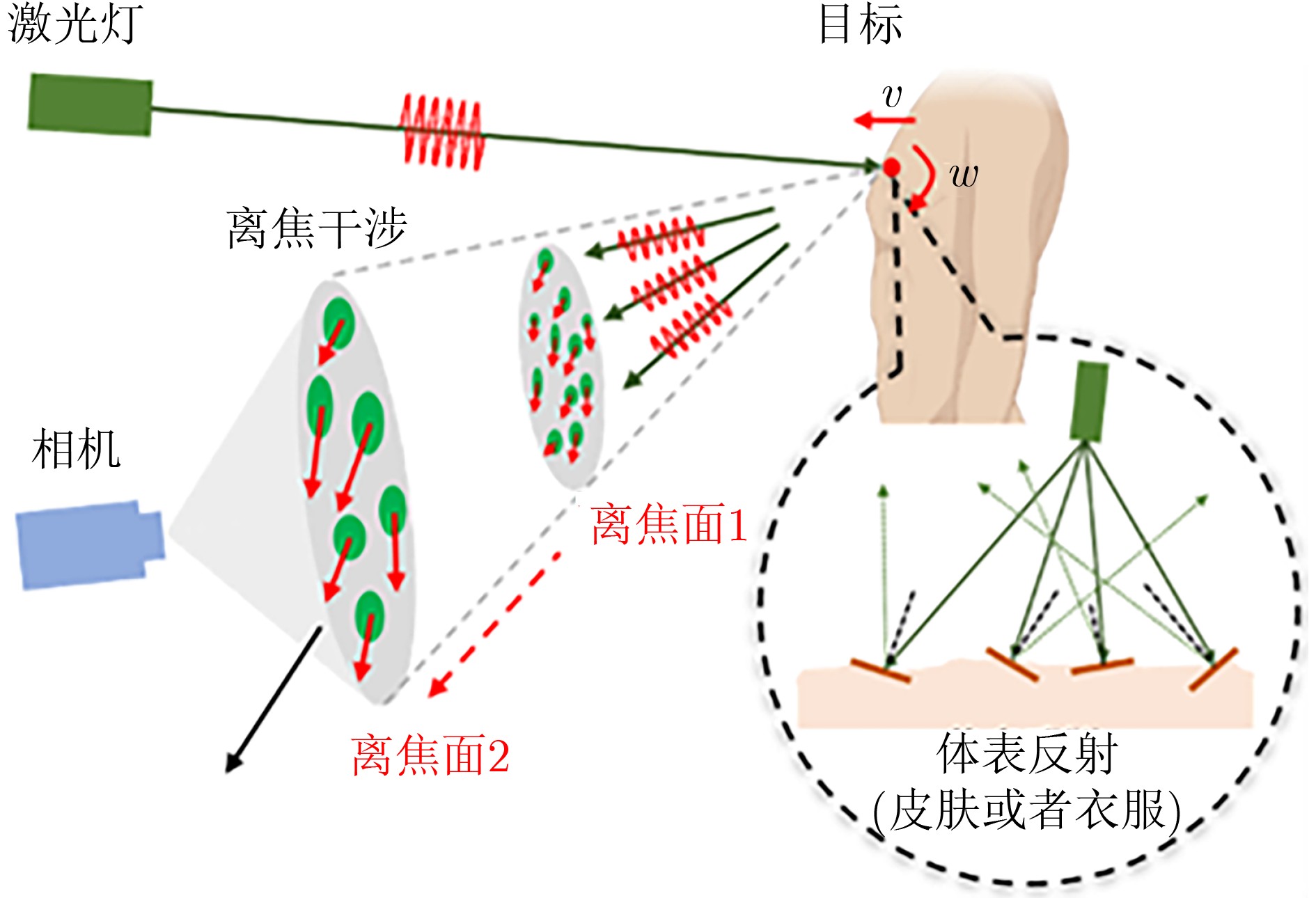

图 3 失焦散斑相机测量胸壁微振

下载: 全尺寸图片幻灯片

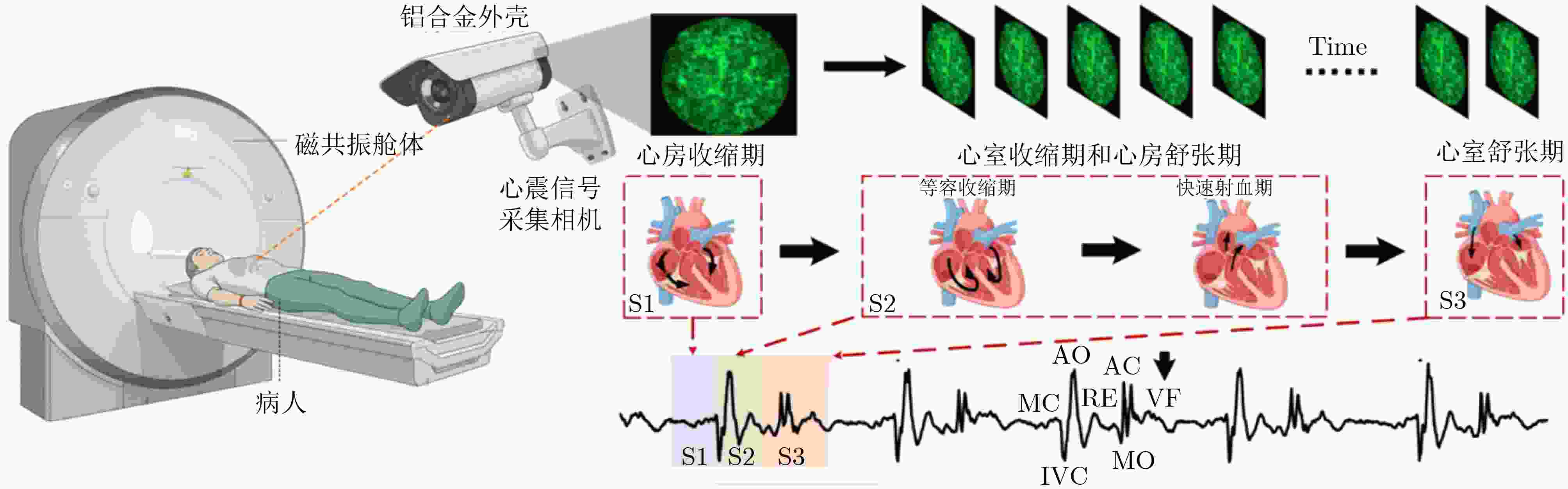

图 4 处理后的心震信号

下载: 全尺寸图片幻灯片

图 5 基准测试设备

下载: 全尺寸图片幻灯片

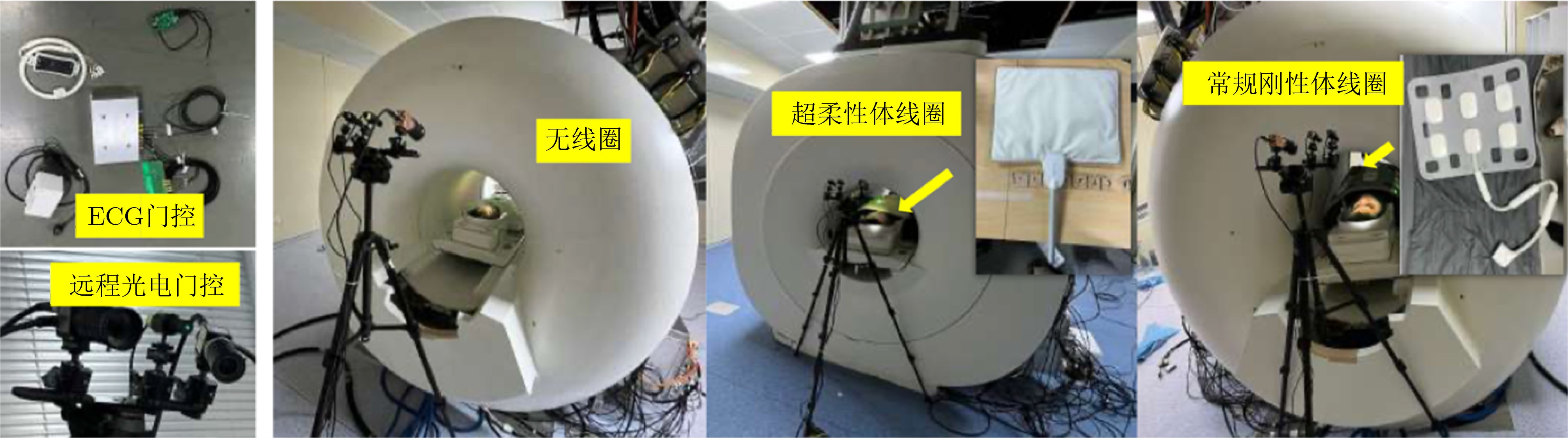

图 6 实验设置

下载: 全尺寸图片幻灯片

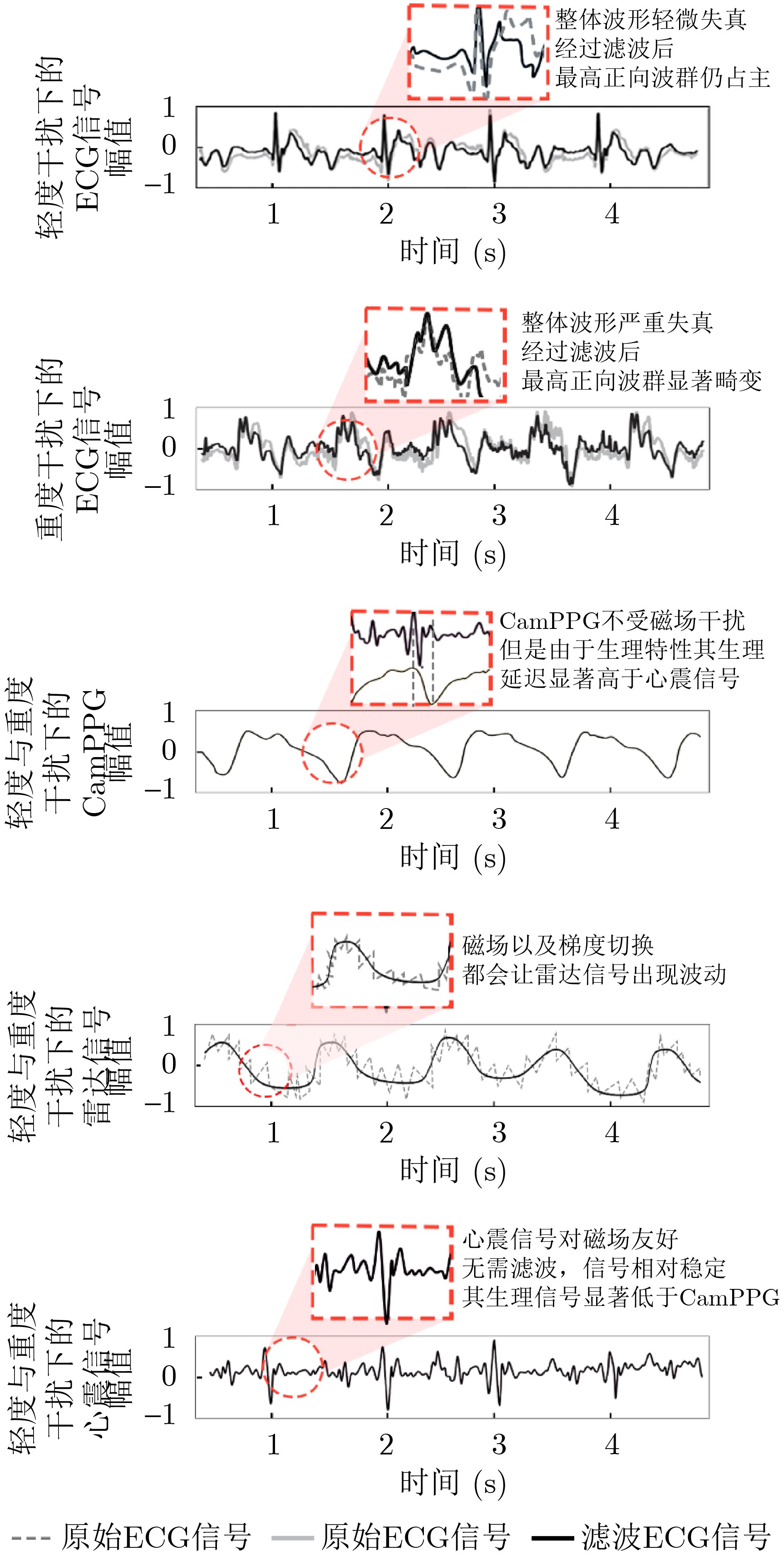

图 7 四种模态受干扰情况

下载: 全尺寸图片幻灯片

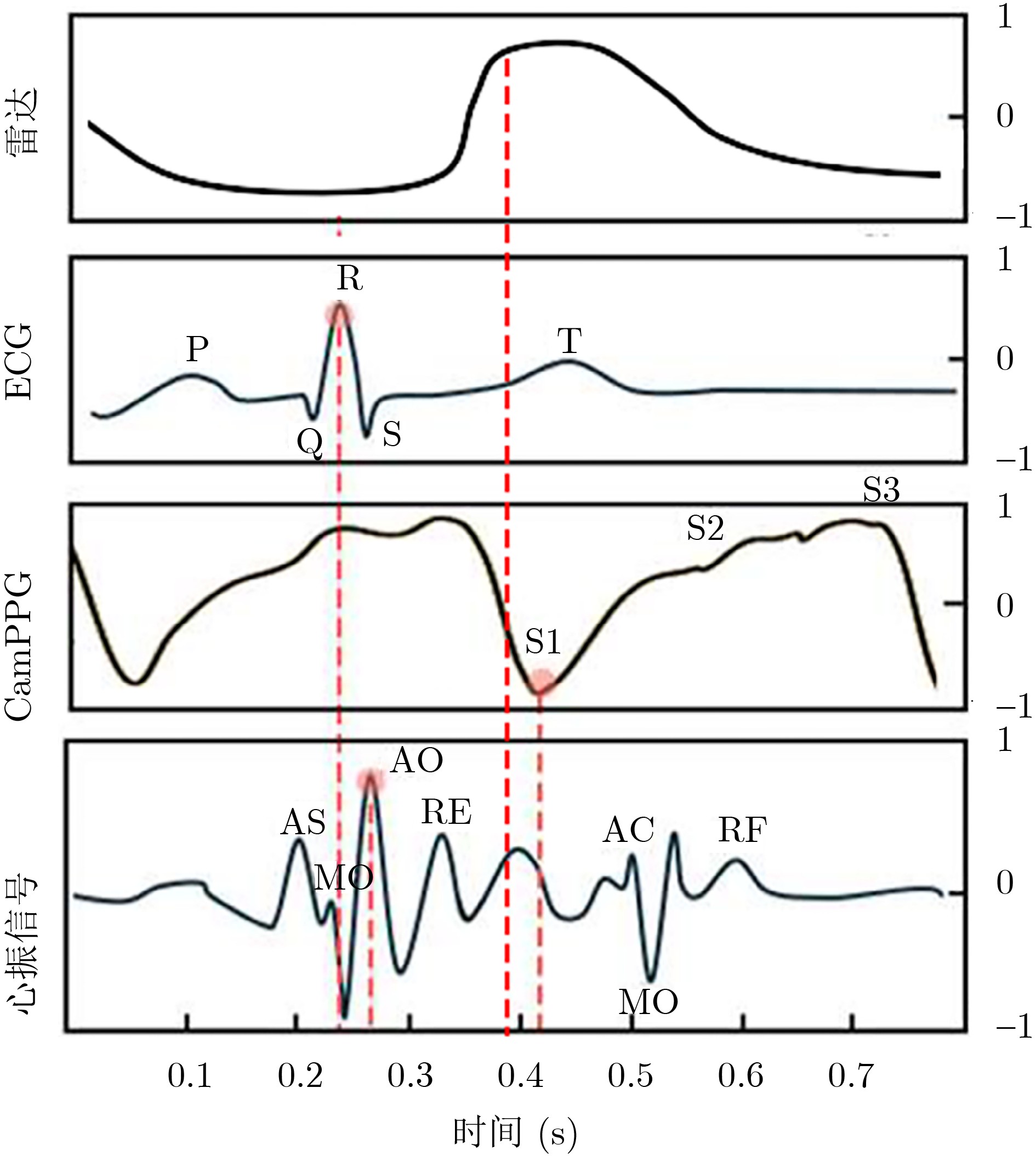

图 8 四种模态下触发延迟对比

下载: 全尺寸图片幻灯片

表 2 参数鲁棒性验证

固定变量	自变量	精准率	召回率	可用率
最小峰间距 0.5s	平滑窗口 1 000 ms	0.724	0.754	0.826
	平滑窗口 200 ms	0.872	0.852	90.8
	平滑窗口 600 ms	0.901	0.908	92.4
平滑窗口 500 ms	最小峰间距 0.7 s	0.846	0.849	82.5
	最小峰间距 0.2 s	0.482	0.435	96.8
	最小峰间距 0.5 s	0.912	0.927	95.7

下载: 导出CSV

表 3 志愿者相关统计信息

性别	人数	年龄	身高(cm)	体重(kg)
男	10	25±6.7	175±8.5	64.9±20.3
女	10	24±3.6	159±8.7	58.9±11.1

下载: 导出CSV

表 4 三种线圈条件下检测模式的精度、召回率和F1分数

模态	指标	条件
模态	指标	无线圈	软线圈	硬线圈
远程光电脉搏波	精确率	0.900	0.854	0.878
	召回率	0.938	0.967	0.959
	F1	0.919	0.907	0.917
雷达	精确率	0.894	0.834	0.078
	召回率	0.923	0.922	0.659
	F1	0.901	0.907	0.167
心振信号	精确率	0.912	0.861	0.097
	召回率	0.927	0.969	0.702
	F1	0.921	0.912	0.170

下载: 导出CSV

表 5 三种线圈条件下的延迟与可用率

模型	前向延迟(ms)MAE±STD			后向延迟(ms)MAE±STD			可用率(%)
模型	无线圈	软线圈	硬线圈	无线圈	软线圈	硬线圈	无线圈	软线圈	硬线圈
远程光电脉搏波	107.3±39.3	114.4±46	121.7±58.5	797±78	795.9±78	762±78	94.9	97.5	96.5
雷达	56.3±48.3	61.1±51.3	132±72.5	767±78	775.9±78	762±78	92.9	95.3	86.2
心振信号	44.7±24.8	45.1±26.7	126.1±59.2	751.3±78	750±66	758.9±88	95.7	97.6	90.2

下载: 导出CSV

表 6 男女评价指标对比

性别	前向延迟	精确率	召回率	可用率
男	41.6±22.9	0.908	0.933	96.8
女	47.8±26.7	0.916	0.922	94.6

下载: 导出CSV

表 7 模块开销

模块	时间复杂度	相对计算开销
稠密光流估计	(O(N))	主要开销
方向自适应位移合成	(O(N))	较小
一维预处理(基线、平滑、归一化)	(O(L))	很小
峰值检测与门控调度	(O(L))	可忽略

下载: 导出CSV
