加载人工磁导体的三频可穿戴天线

靳彬; 张佳琳; 杜成珠; 褚君

doi:10.11999/JEIT251050

加载人工磁导体的三频可穿戴天线

doi: 10.11999/JEIT251050 cstr: 32379.14.JEIT251050

上海电力大学电子与信息工程学院上海 201306

基金项目: 国家自然基金(62205195)

详细信息

作者简介:
靳彬：女，硕士生，研究方向为人工磁导体微带天线

张佳琳：女，硕士生，研究方向为圆极化超宽带微带天线

杜成珠：女，副教授，研究方向为射频电路与微波天线系统

褚君：女，硕士生，研究方向为可穿戴天线

通讯作者:
杜成珠　duchengzhu@163.com

中图分类号: TN822
计量
- 文章访问数: 65
- HTML全文浏览量: 30
- PDF下载量: 5
- 被引次数: 0
出版历程
- 收稿日期: 2025-10-09
- 修回日期: 2025-12-15
- 录用日期: 2025-12-17
- 网络出版日期: 2025-12-25

Tri-Frequency Wearable Antenna Loaded with Artificial Magnetic Conductors

School of Electronic and Information Engineering, Shanghai University of Electric Power, Shanghai 201306, China

Funds: The National Natural Science Foundation of China (62205195)

摘要

摘要: 该文设计了一款加载人工磁导体(AMC)的三频可穿戴天线，分别设计了三叉戟结构的三频单极子天线和3层方形环状的三频AMC单元，天线和AMC均采用半柔性基板Rogers 4003，通过在天线背面加载4×5的AMC阵列，获得的集成天线实测工作带宽为2.38～2.52 GHz, 3.3～3.86 GHz和5.54～7.86 GHz 3个频段，覆盖ISM科学频段(2.4～2.4835 GHz)、5G-n78频段(3.3～3.8 GHz)和5G-WiFi 5.8 GHz频段(5.725～5.875 GHz)。在2.4 GHz, 3.5 GHz和5.8 GHz处实测增益分别提升了5.3 dB, 4.6 dB和2.2 dB；前后比(FBR)较不加载AMC时分别提升了19.8 dB, 16.7 dB和12.4 dB。此外，AMC反射板能够有效降低比吸收率(SAR值)，使得集成天线SAR值均在0.025 W/kg/g以下，远低于美国联邦通信委员会(FCC)标准和欧洲联邦通信委员会(ETSI)标准，并对天线附着在人体胸腔、背部和大腿上时的性能进行实测，测试结果表明，所设计的天线能够安全、灵活地应用于人体。
- 人工磁导体 /
- 三频段天线 /
- 可穿戴天线
Abstract: A tri-band wearable antenna based on an Artificial Magnetic Conductor (AMC) is designed for on-body wireless applications. The design objective is to achieve multi-band operation with enhanced radiation characteristics and reduced electromagnetic exposure under wearable conditions. The antenna adopts a tri-frequency monopole with a trident structure, while the AMC unit employs a three-layer square-ring configuration. Both the antenna and the AMC are fabricated on a semiflexible Rogers 4003 substrate. A 4 × 5 AMC array is positioned on the back of the antenna, forming an integrated structure that improves radiation directionality and suppresses backward radiation. The integrated antenna exhibits measured operating bandwidths of 2.38～2.52 GHz, 3.30～3.86 GHz, and 5.54～7.86 GHz. These frequency ranges cover the ISM band (2.400～2.4835 GHz), the 5G n78 band (3.30～3.80 GHz), and the 5G/WiFi 5.8 GHz band (5.725～5.875 GHz). The measured gains at 2.4 GHz, 3.5 GHz, and 5.8 GHz are corresponding to improvements of 5.3 dB, 4.6 dB, and 2.2 dB compared with the unloaded antenna. The front-to-back ratio improves by 19.8 dB, 16.7 dB, and 12.4 dB relative to the antenna without the AMC. The AMC reflector effectively reduces the Specific Absorption Rate (SAR), with the maximum value maintained below 0.025 W/kg/g, which is lower than the limits specified by the U.S. Federal Communications Commission and the European Telecommunications Standards Institute. Antenna performance is further evaluated when attached to the human chest, back, and thigh, and the measured results indicate stable operation, supporting safe and flexible wearable applications.
- Artificial Magnetic Conductor (AMC) /
- Tri-band antenna /
- Wearable antenna

HTML全文

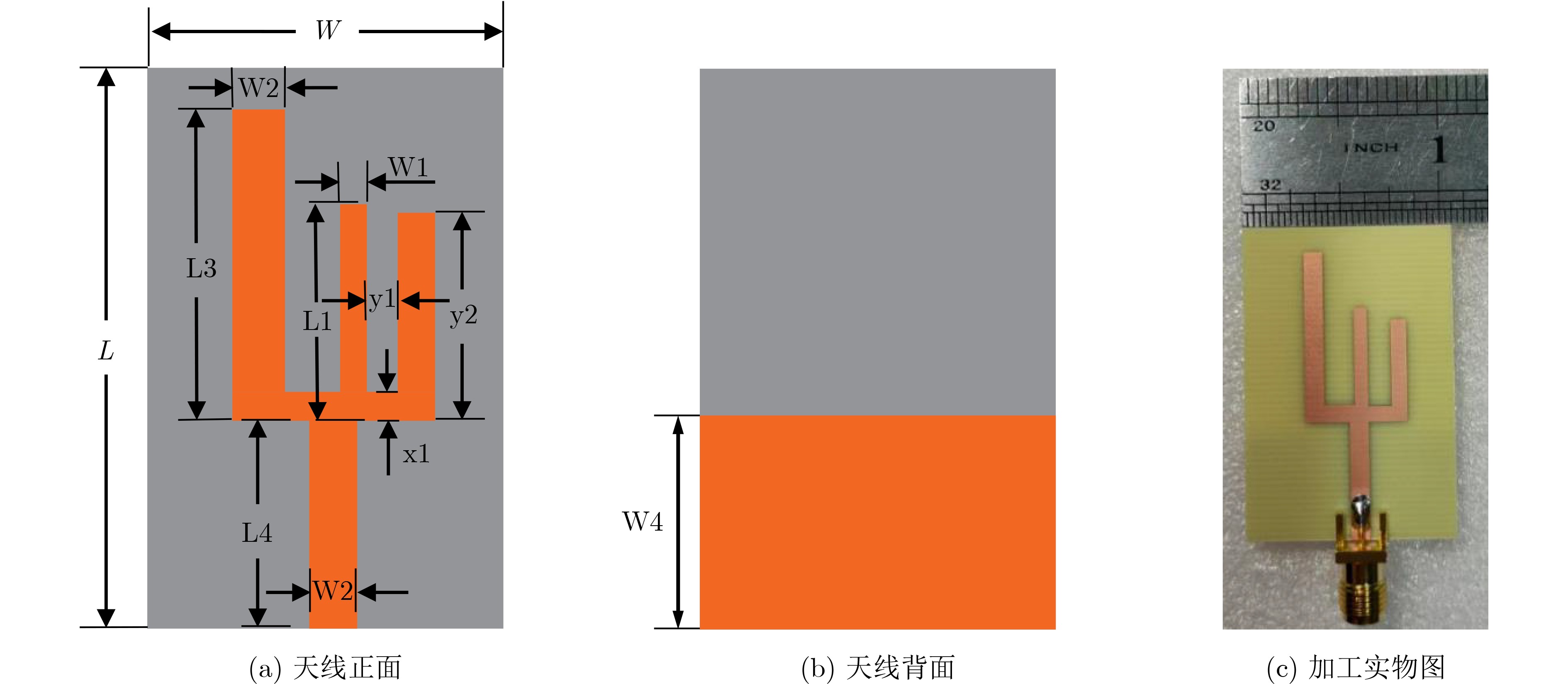

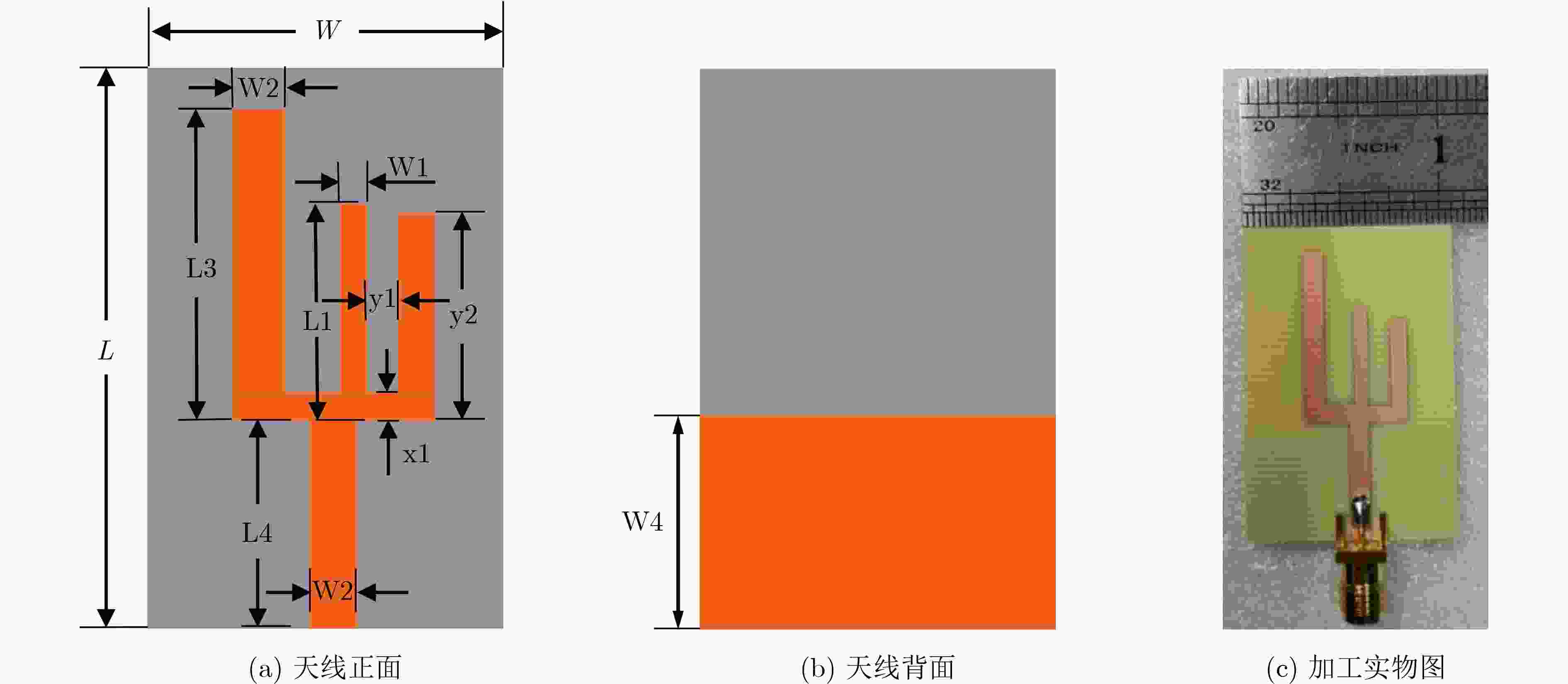

图 1 三频单极子天线结构图

下载: 全尺寸图片幻灯片

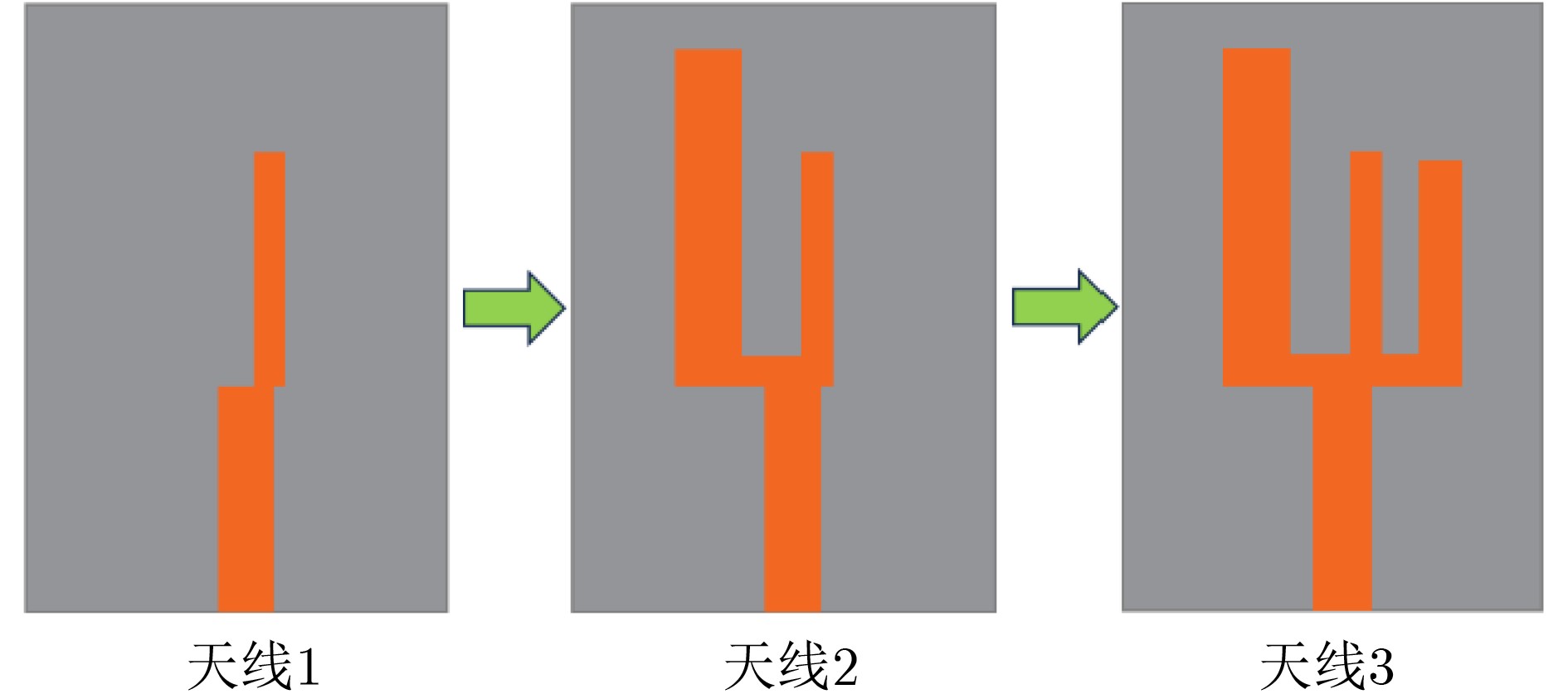

图 2 三频天线演化过程

下载: 全尺寸图片幻灯片

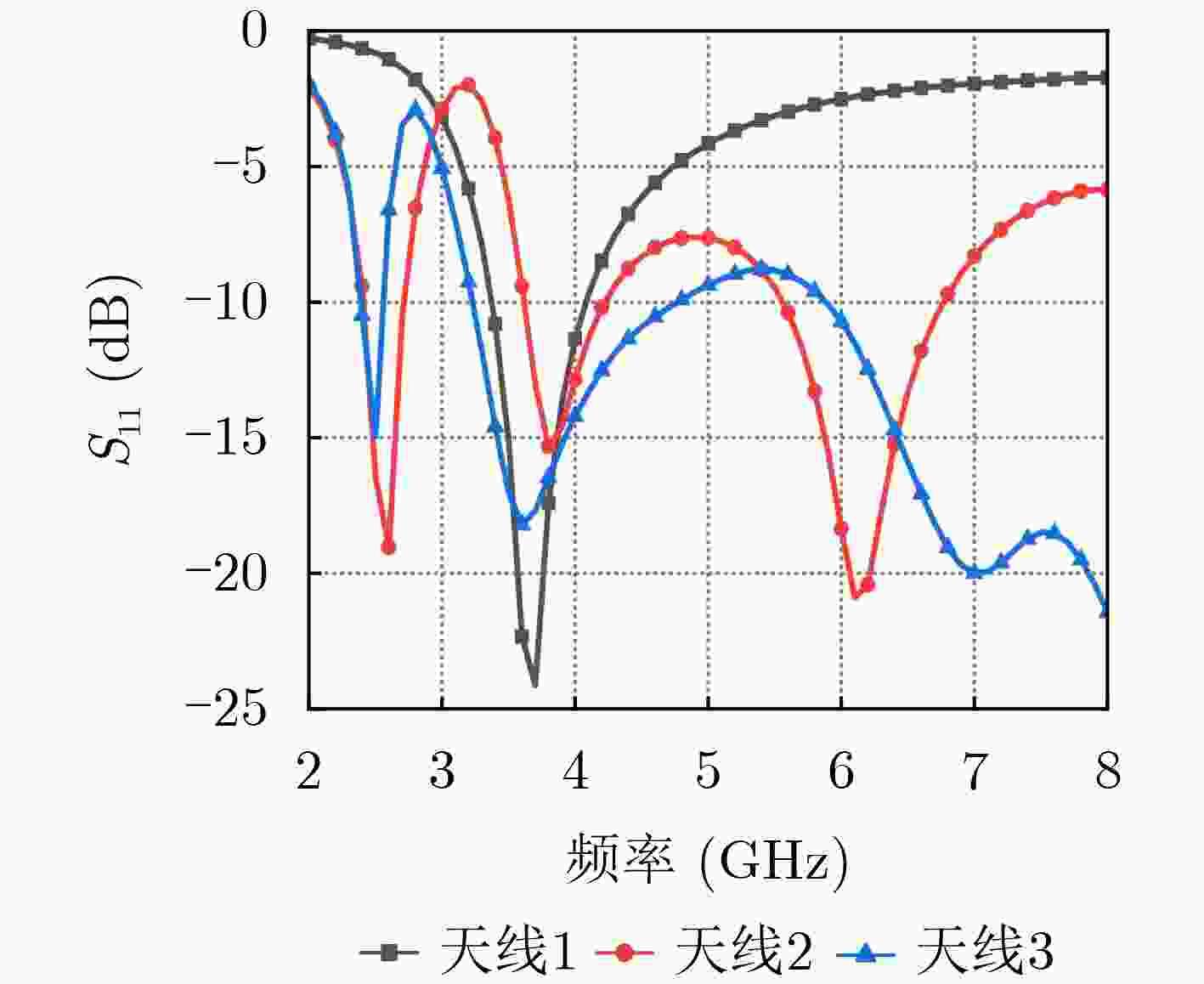

图 3 三频天线演化S11变化过程

下载: 全尺寸图片幻灯片

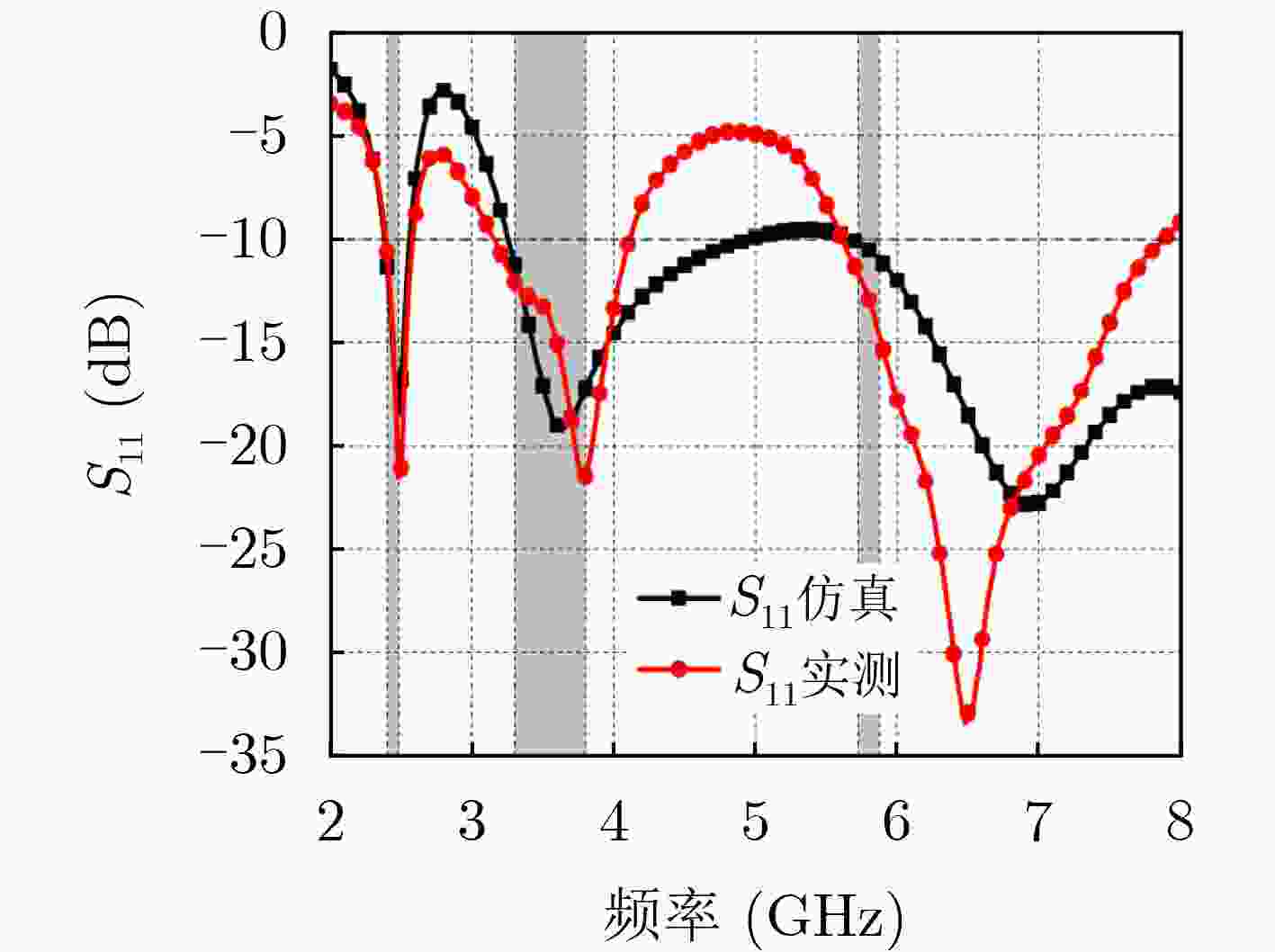

图 4 天线仿真和实测S₁₁

下载: 全尺寸图片幻灯片

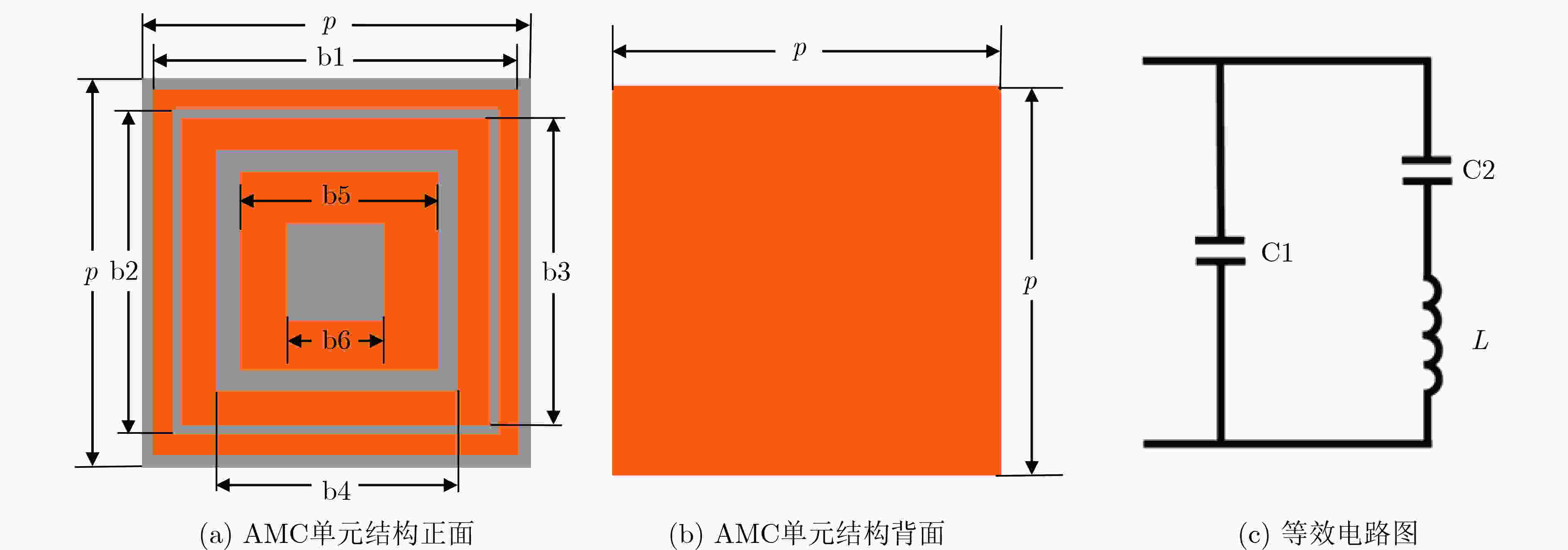

图 5 AMC结构图

下载: 全尺寸图片幻灯片

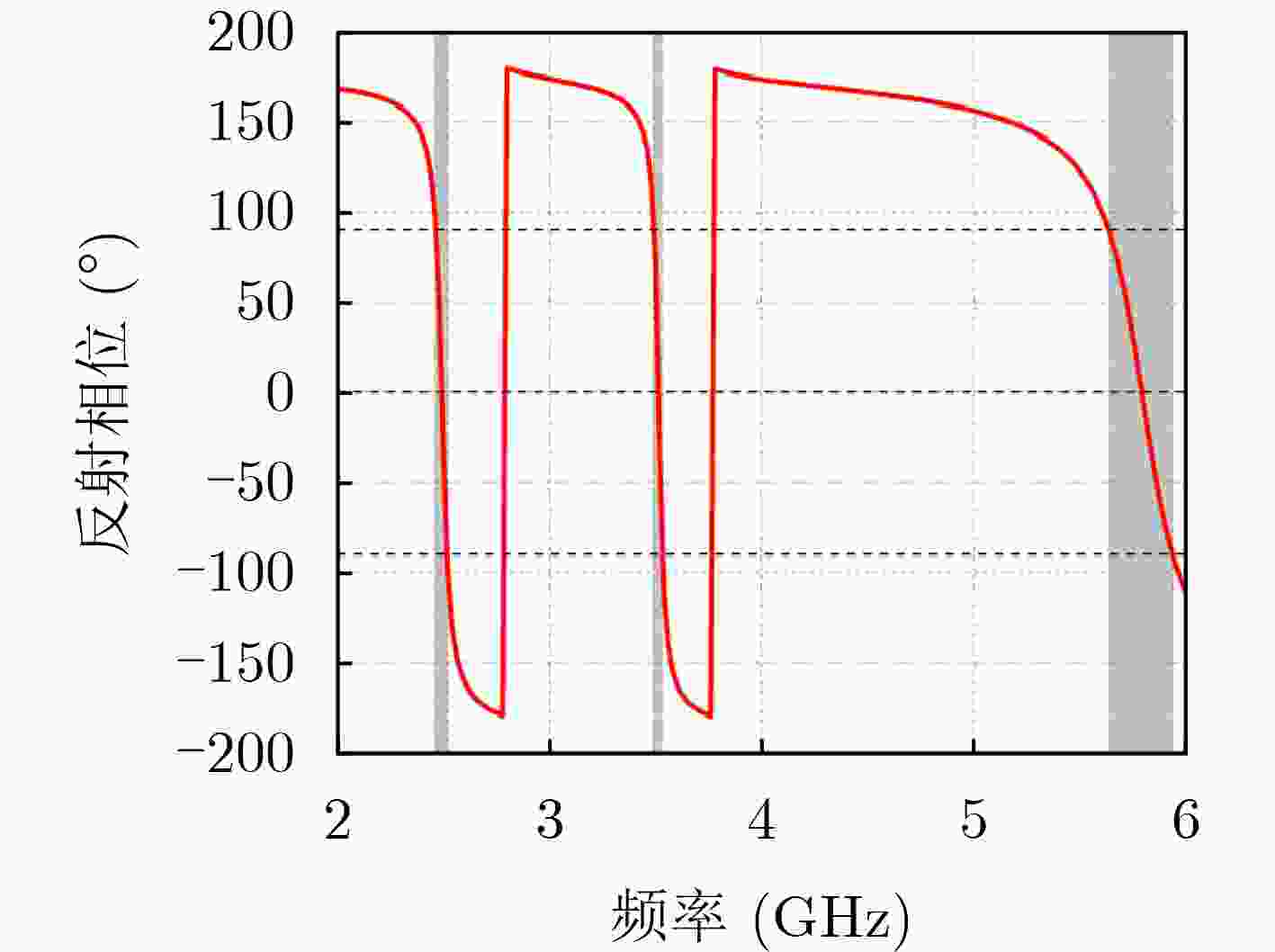

图 6 AMC单元反射相位图

下载: 全尺寸图片幻灯片

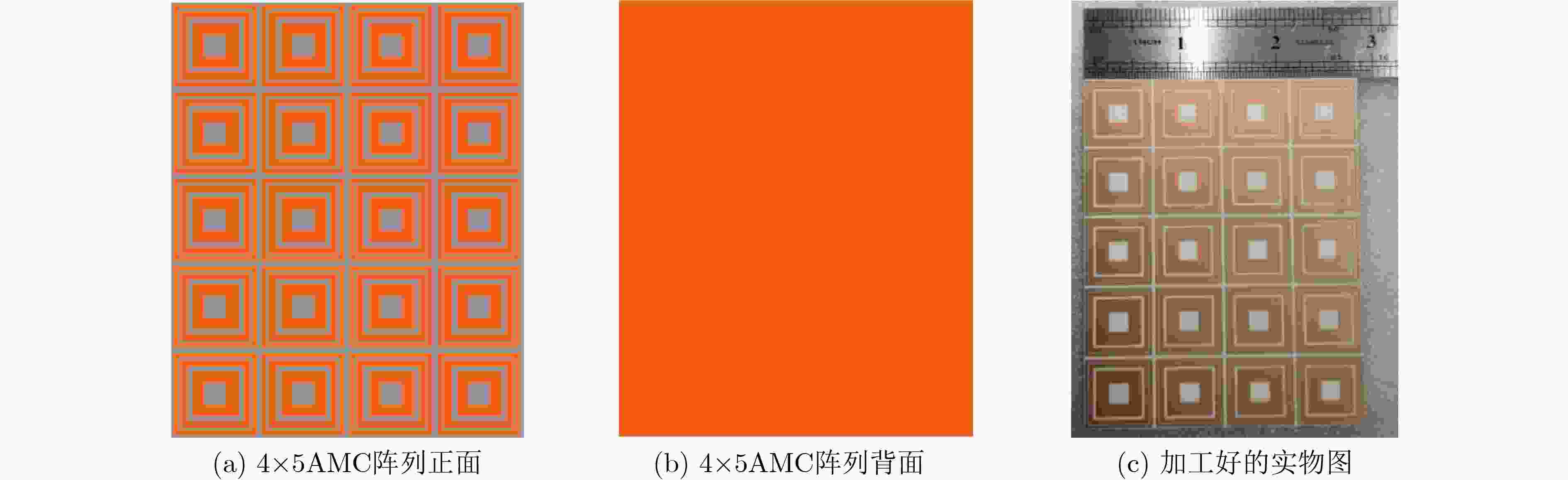

图 7 AMC阵列模型图

下载: 全尺寸图片幻灯片

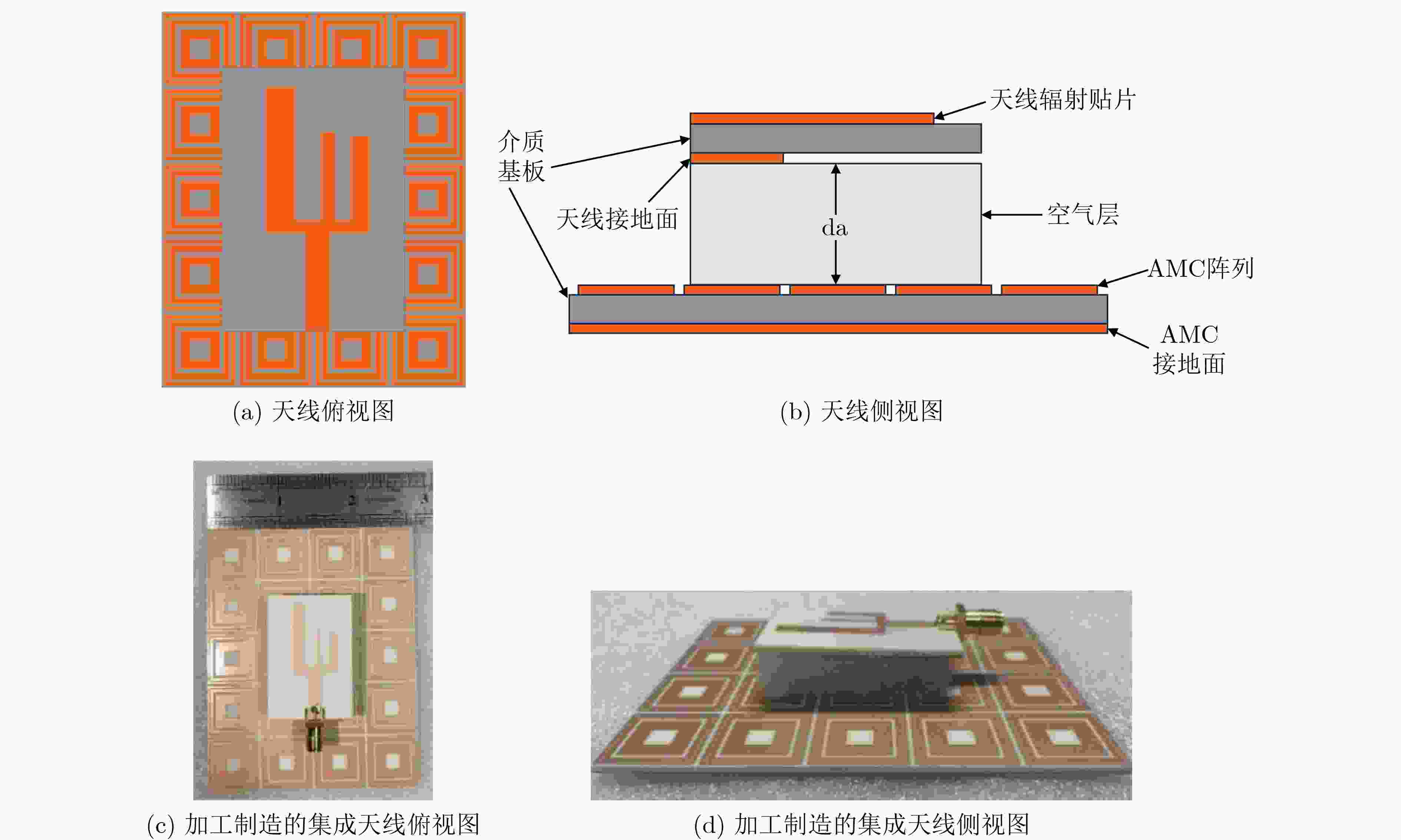

图 8 加载AMC的三频天线结构图

下载: 全尺寸图片幻灯片

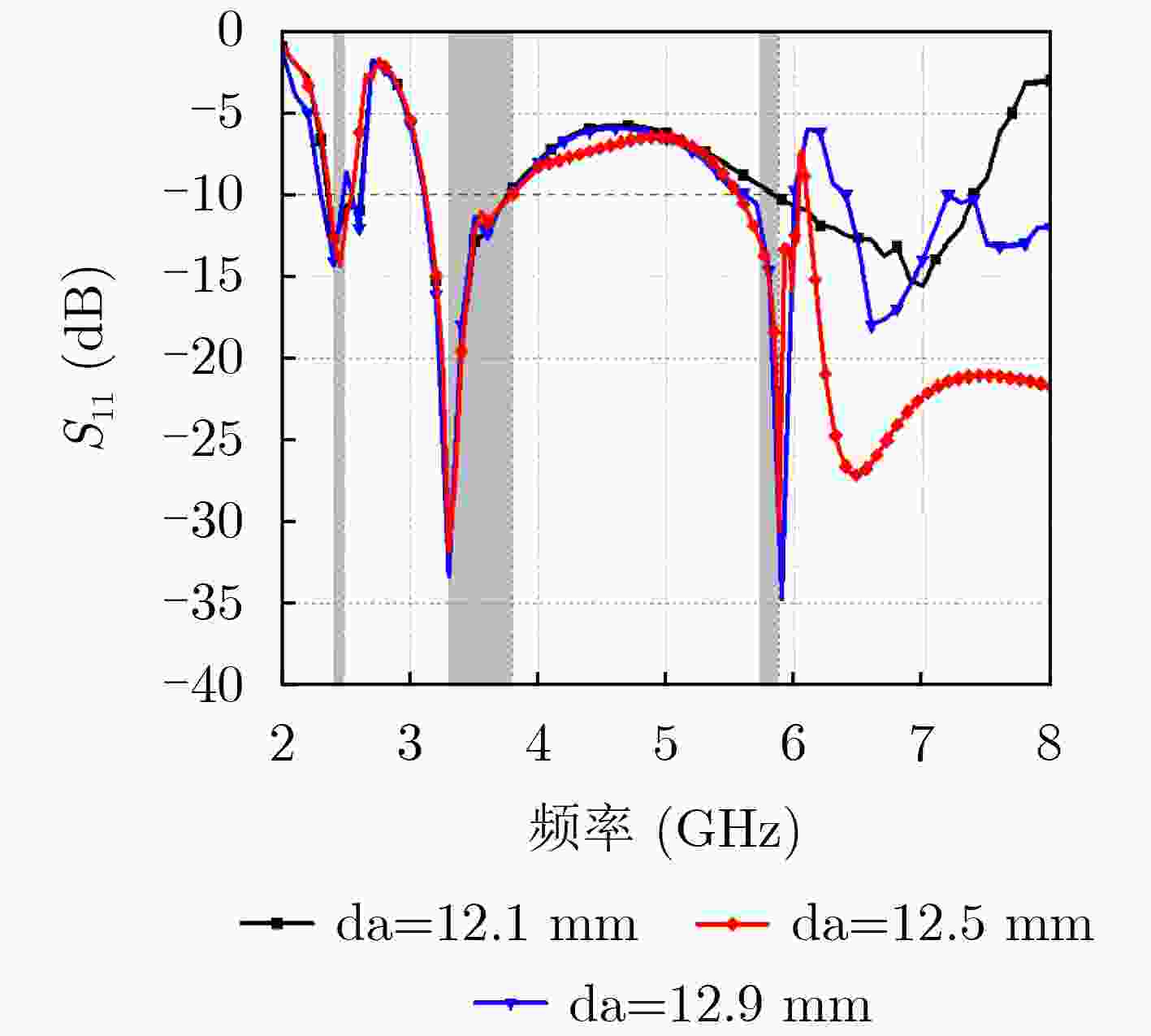

图 9 天线与AMC阵列间距da对天线S₁₁的影响

下载: 全尺寸图片幻灯片

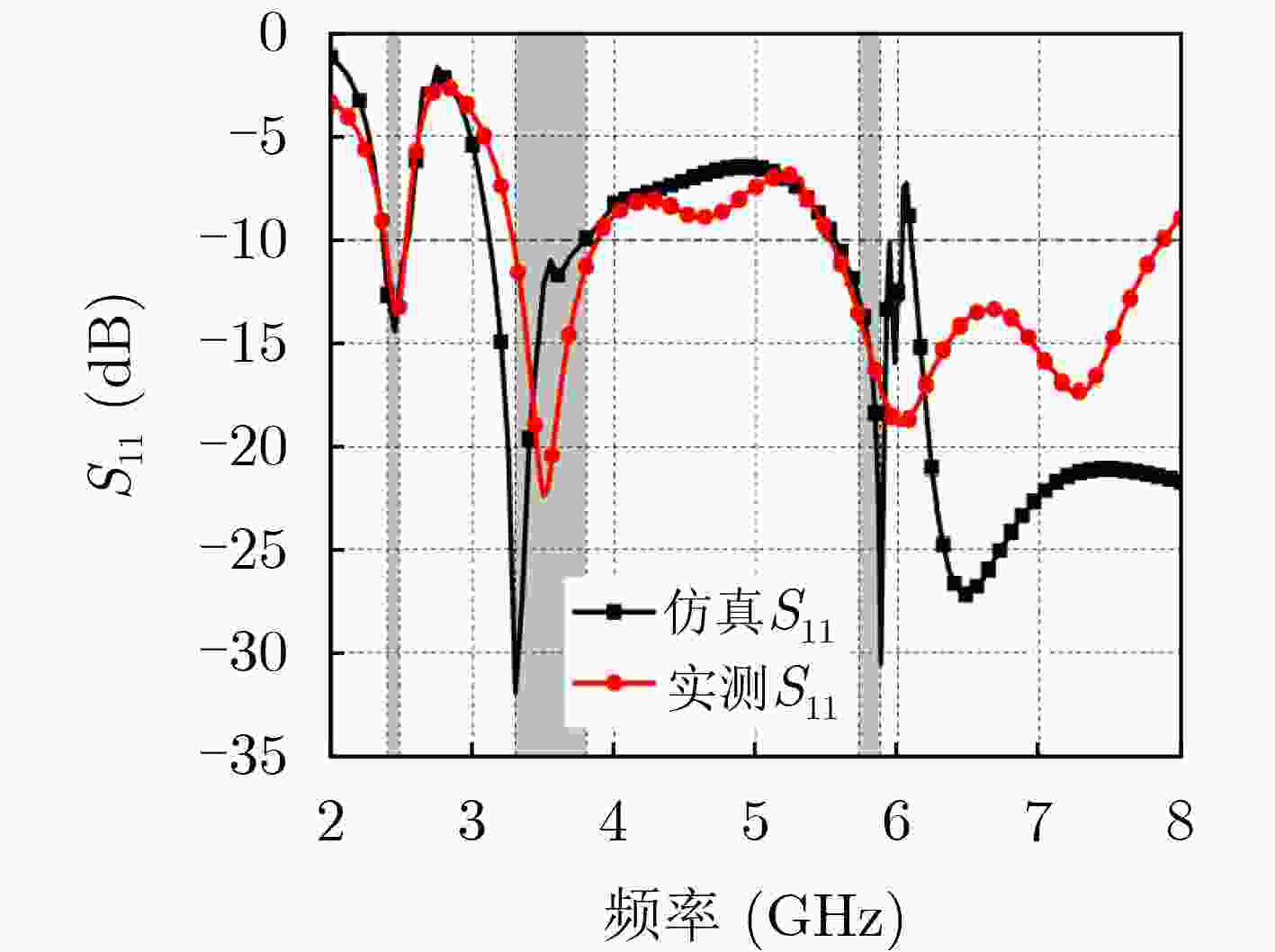

图 10 加载AMC后天线的仿真与实测S₁₁

下载: 全尺寸图片幻灯片

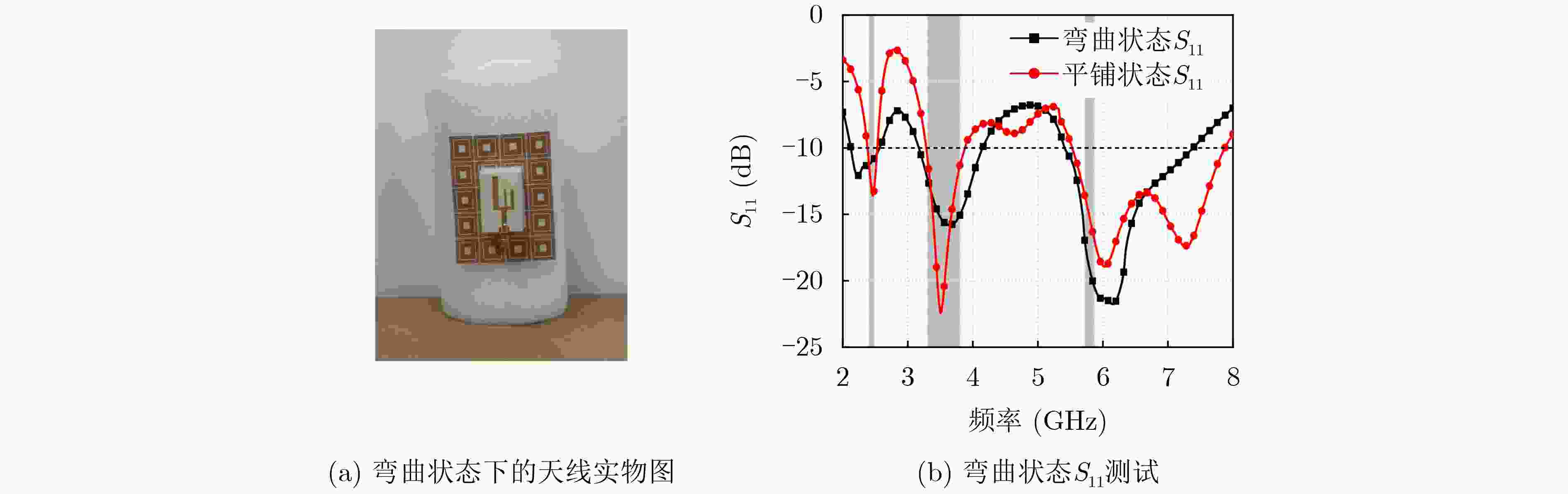

图 11 天线弯曲状态性能测试

下载: 全尺寸图片幻灯片

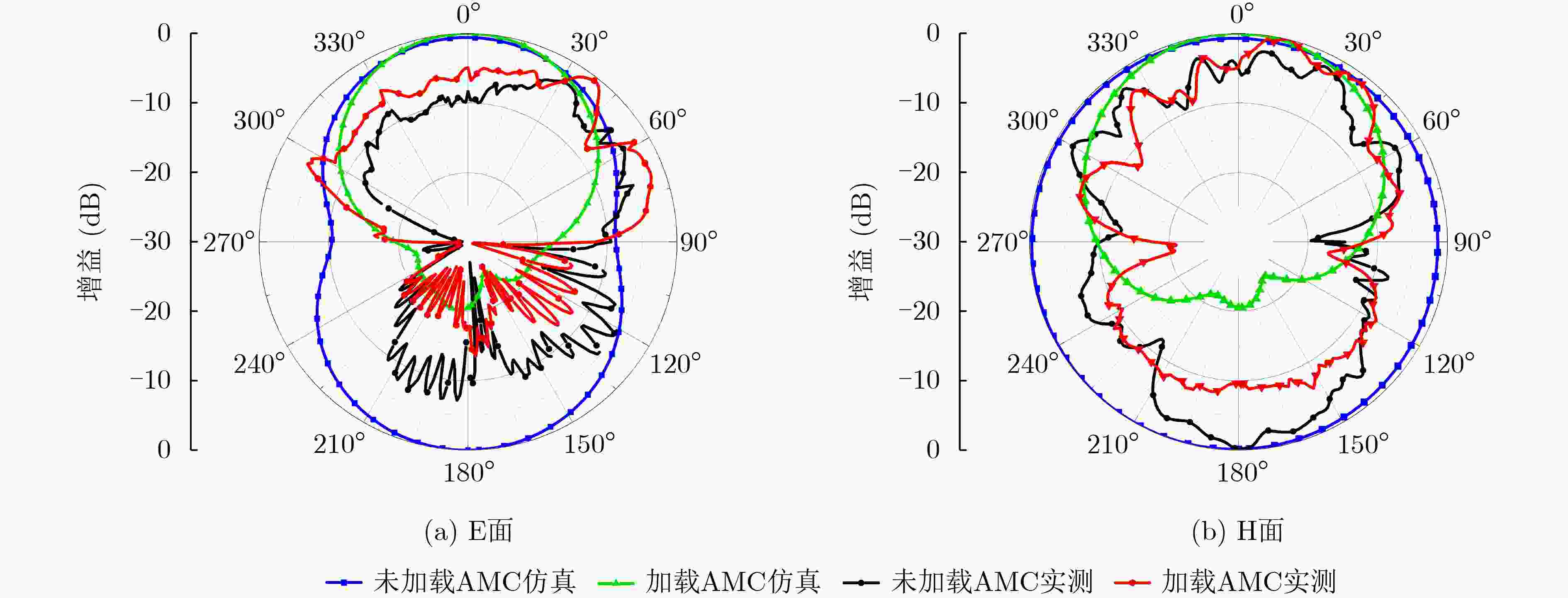

图 12 集成天线在2.5 GHz的辐射方向图

下载: 全尺寸图片幻灯片

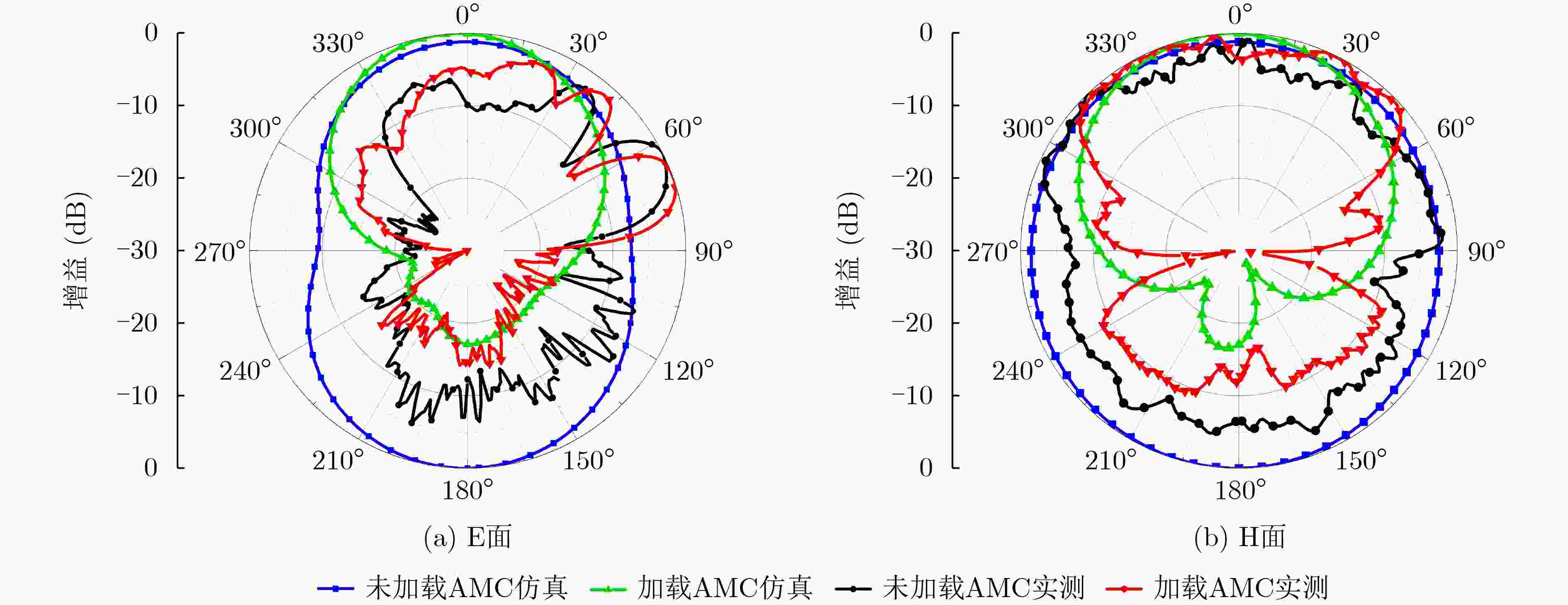

图 13 集成天线在3.5 GHz的辐射方向图

下载: 全尺寸图片幻灯片

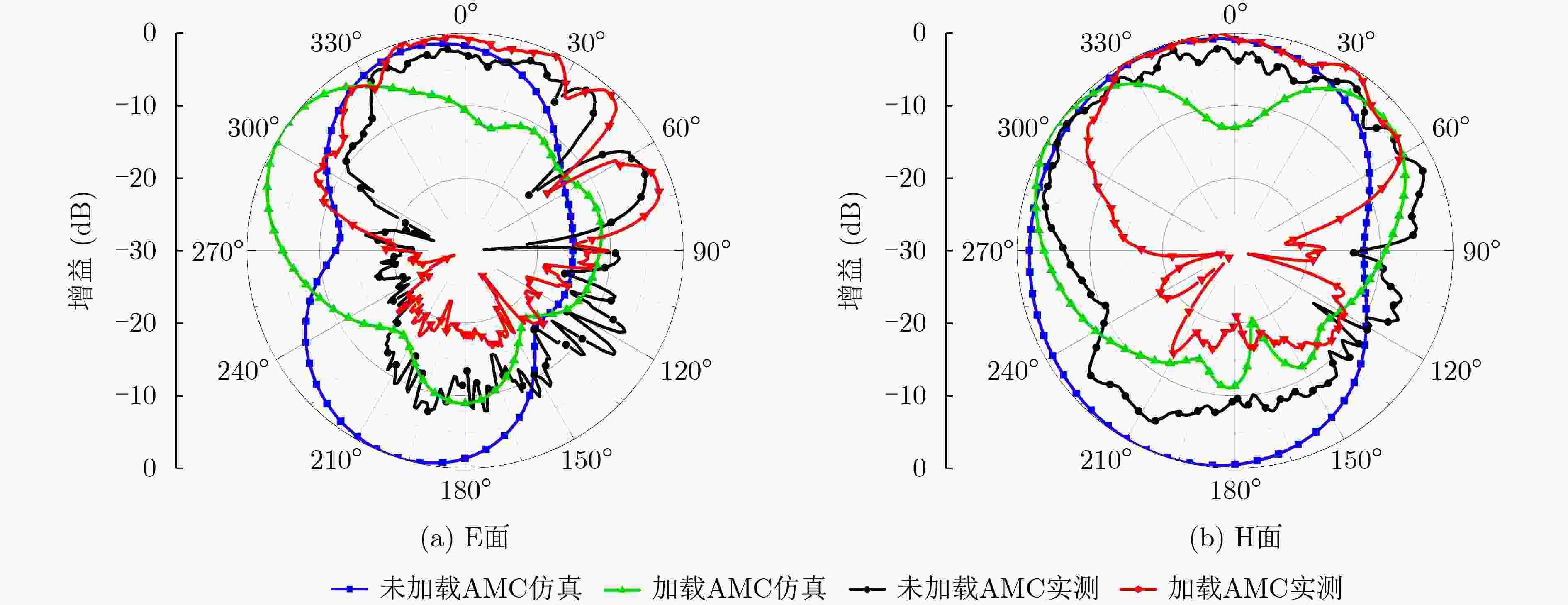

图 14 集成天线在5.8 GHz的辐射方向图

下载: 全尺寸图片幻灯片

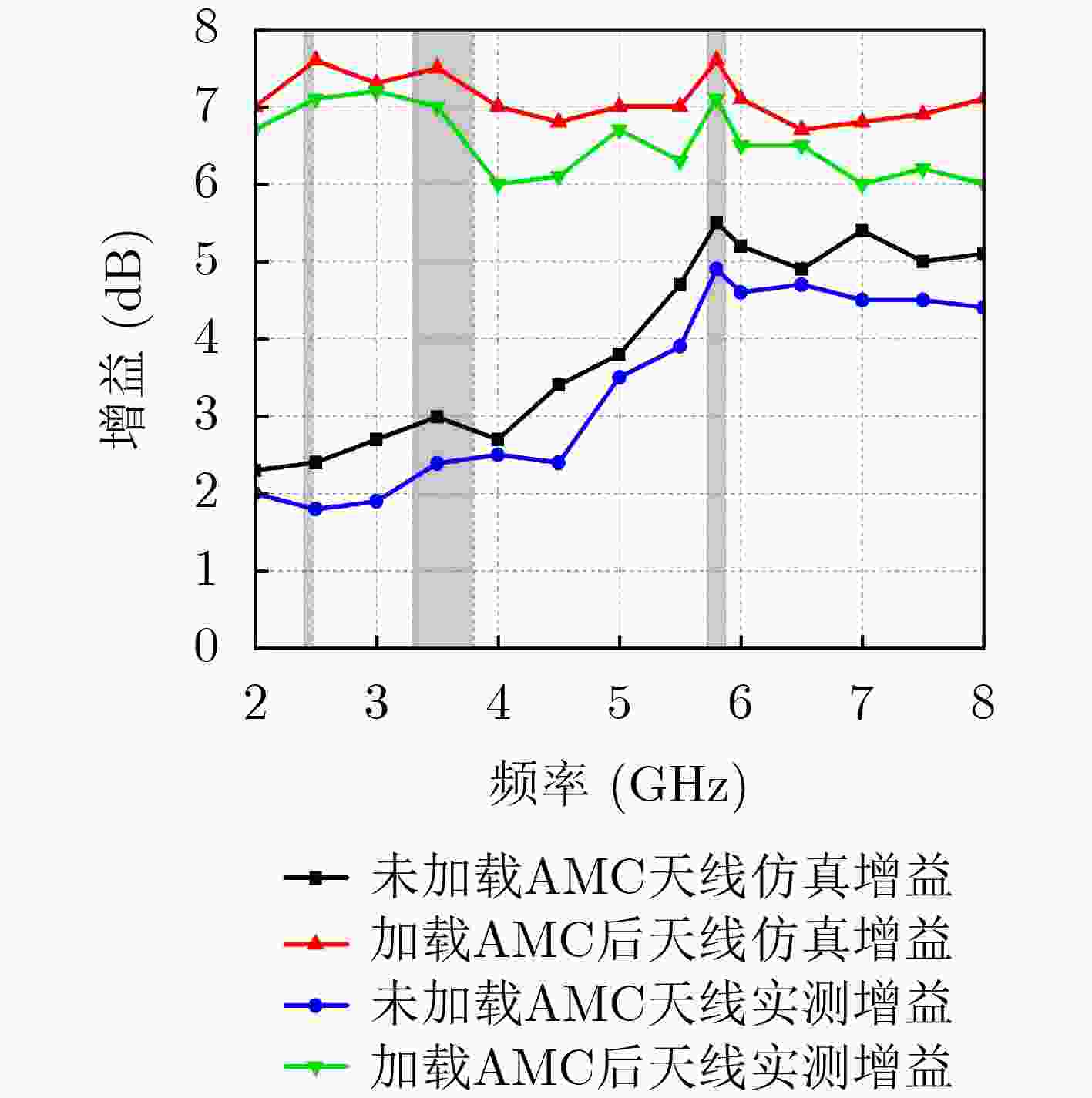

图 15 加载AMC前后的天线仿真和实测增益

下载: 全尺寸图片幻灯片

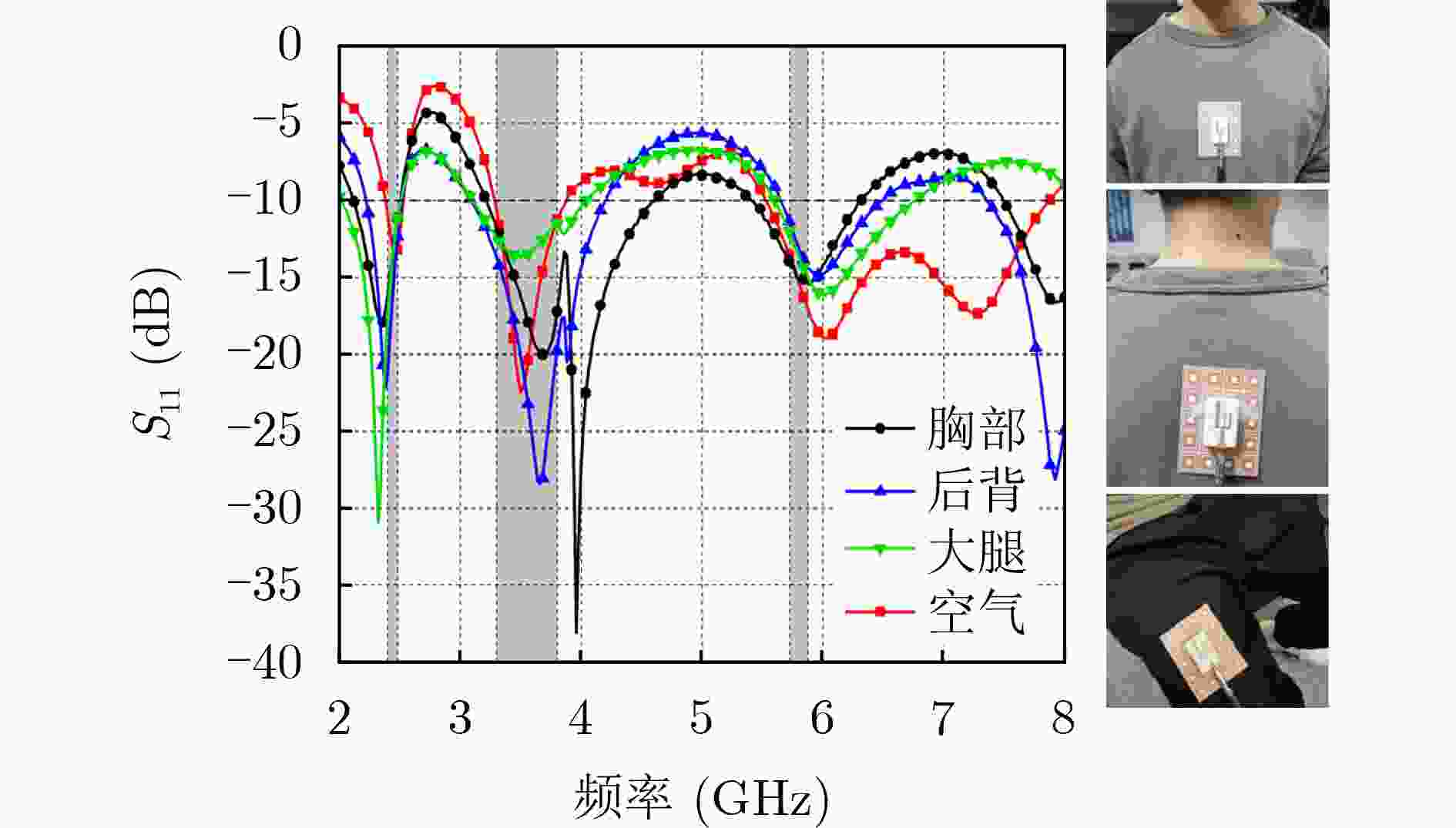

图 16 天线在人体附近的实测S₁₁

下载: 全尺寸图片幻灯片

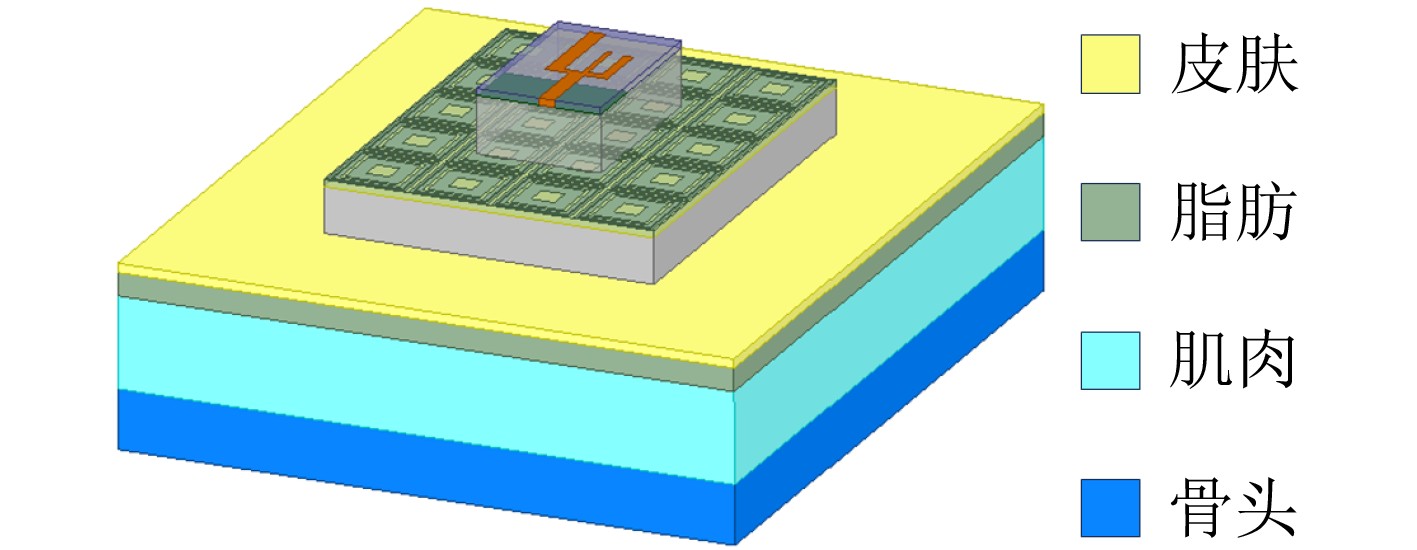

图 17 人体组织结构仿真模型

下载: 全尺寸图片幻灯片

表 1 天线参数尺寸(mm)

参数	尺寸	参数	尺寸
W	27	L3	22.4
L	40	L4	14.9
W1	1.1	x1	2
W2	3.4	y1	3
L1	13.8	y2	13
W4	13.5	-	-

下载: 导出CSV

表 2 AMC单元尺寸(mm)

参数	尺寸	参数	尺寸
p	18	b4	13.1
b1	17.1	b5	11.6
b2	15.9	b6	5.3
b3	15.2	-	-

下载: 导出CSV

表 3 AMC阵列元数对集成天线增益的影响

AMC阵列	频率(GHz)	增益(dB)
3×5	2.5	6.8
	3.5	6.6
	5.8	6.6
4×5	2.5	7.6
	3.5	7.5
	5.8	7.6
5×5	2.5	7.4
	3.5	7
	5.8	7.7

下载: 导出CSV

表 4 有无加载AMC阵列对天线前后比的影响

频率(GHz)	未加载AMC的天线前后比(dB)	加载AMC的天线前后比(dB)
2.5	1.0	20.8
3.5	1.3	18.0
5.8	6.4	18.8

下载: 导出CSV

表 5 人体模型各层的电磁特性

	骨头	肌肉	脂肪	皮肤
介电常数$ {\varepsilon }_{{\mathrm{r}}} $	18.49	52.67	5.27	37.95
电导率$ \sigma $ (S/m)	0.82	1.77	0.11	1.49
损耗正切	0.145	0.245	0.145	0.294
密度(kg/m³)	1008	1006	900	1001
厚度(mm)	13	20	5	2

下载: 导出CSV

表 6 天线与人体的间距H对SAR值的影响

中心频点 (GHz)	H(mm)	SAR (W/kg/g)
2.5	8	0.0245
2.5	10	0.0208
3.5	8	0.0190
3.5	10	0.0169
5.8	8	0.0156
5.8	10	0.0121

下载: 导出CSV

表 7 天线性能对比

文献	天线尺寸(mm³)	AMC尺寸(mm³)	介质基板	工作频段 (GHz)	增益(dB)	SAR (W/Kg/g)
[4]	14×35×2	28×28×1.52	天线: 纺织品 AMC: Rogers 3003	2.45 5.8	3.08 6.43	-
[5]	50×50×0.5	120×120×3	FR4	2.31～2.61 5.13～5.50	7.24 8.93	-
[13]	40×40×3.2	49×49×3.2	Rogers 3003	2.2～2.85 5.68～6.29	4.8 7.75	0.06 0.03
[15]	40×30×0.13	60×60×2	天线：聚酰亚胺 AMC：聚二甲基硅氧烷	2.39～2.49 5.55～5.92	1.2 6.3	0.4783 1.4022
[16]	29.8×23×0.2	60×60×2.4	聚酰亚胺	3.5 5.8	7.86 8.06	0.2 0.06
[17]	34×23×1.6	62.01×62.01×1.6	FR4	2.4 5.2 5.8	6.2 - 7.58	-
[18]	85.5×85.8×5.62	85.5×85.5×2.64	纺织品	1.575 2.45	1.98 1.94	1.111 1.111
本文	27×40×1.52	72×90×1.52	Rogers 4003	2.38～2.52 3.3～3.86 5.54～7.86	7.1 7 7.1	0.0208 0.0169 0.0121

下载: 导出CSV
