接收端随机倾斜场景下CNN-MLP多特征融合室内可见光定位方法

贾科军; 王剑; 毛俪霏; 尤威; 黄梓洋; 彭铎

doi:10.11999/JEIT251021

接收端随机倾斜场景下CNN-MLP多特征融合室内可见光定位方法

doi: 10.11999/JEIT251021 cstr: 32379.14.JEIT251021

贾科军^1, ,,
王剑¹,
毛俪霏²,
尤威¹,
黄梓洋¹,
彭铎¹

1.
兰州理工大学计算机与人工智能学院兰州 730050
2.
广东外语外贸大学南国商学院管理学院广州 510545

基金项目: 国家自然科学基金(62265010)，甘肃省自然科学基金(22JR5RA276, 23YFGA0062)、兰州理工大学博士科研启动经费项目(061903)

详细信息

作者简介:
贾科军：男，教授，研究可见光通信理论与技术

王剑：男，硕士生，研究可见光定位技术

毛俪霏：女，讲师，研究方向为通信工程项目管理

尤威：男，研究生，研究可见光定位技术

黄梓洋：男，研究生，研究可见光定位技术

彭铎：男，副教授，研究无线传感器网络技术

通讯作者:
贾科军　kjjia@lut.edu.cn

中图分类号: TN929.53
计量
- 文章访问数: 24
- HTML全文浏览量: 8
- PDF下载量: 0
- 被引次数: 0
出版历程
- 修回日期: 2026-01-22
- 录用日期: 2026-01-22
- 网络出版日期: 2026-02-11

Indoor Visible Light Positioning Based on CNN–MLP Multi-Feature Fusion under Random Receiver Tilt Conditions

1.
School of Computer and Artificial Intelligence, Lanzhou University of Technology, Lanzhou 730050, China
2.
School of Management, Guangdong University of Foreign Studies South China Business College, Guangzhou 510545, China

Funds: National Natural Science Foundation of China (62265010), Natural Science Foundation of Gansu Province (22JR5RA276, 23YFGA0062), Ph.D. Research Start-up Funding of Lanzhou University of Technology (061903)

摘要

摘要: 针对室内可见光定位(VLP)系统中接收器姿态扰动会破坏接收光功率(RSS)与空间位置的对应关系，导致定位精度下降的问题，提出一种光电传感器(PD)阵列结合机器学习(ML)的特征融合定位方法。首先利用阵列中不同PD接收光功率的差异构建约束方程，采用高斯–牛顿迭代算法估计入射角余弦值。其次设计融合卷积神经网络(CNN)与多层感知机(MLP)的优化模型，实现对RSS与入射角余弦特征的联合建模，缓解了单一RSS在接收器随机扰动条件下位置映射关系不稳定的问题，增强系统对接收器姿态扰动的鲁棒性。最后引入拉丁超立方抽样(LHS)策略构建训练数据集，提升训练样本的空间代表性。仿真结果表明，在4 m×4 m×2.5 m的室内环境，平均定位误差约4.6 cm；即使接收器倾斜至55°时，平均误差仍在11.7 cm以内。与现有方法相比，定位精度提升约2.5 cm，均方根误差(RMSE)降低31.58%，实现了接收器在姿态发生扰动时的高精度室内三维定位。
- 入射角余弦估计 /
- PD阵列接收 /
- CNN-MLP融合 /
- 拉丁超立方抽样 /
- 可见光定位
Abstract: Objective Traditional visible light positioning (VLP) methods based on received signal strength (RSS) suffer from instability when the receiver experiences orientation perturbations, which disrupt the correspondence between optical power and spatial position, making reliable three-dimensional (3D) positioning difficult to achieve. Existing approaches typically rely on inertial measurement units (IMUs) to obtain orientation information; however, sensor fusion increases system complexity and hardware cost and introduces cumulative errors. To address these issues, this paper proposes a positioning method that fuses cosine-of-incidence-angle estimation based on a photodiode (PD) array with RSS information, enabling high-accuracy 3D indoor positioning under receiver orientation perturbations. Methods In the proposed fusion-based positioning method, a multi-PD array structure is first adopted, and a local coordinate system (LCS) is established at the array center. Constraint equations are then constructed based on the differences in received optical power among PDs in the array. A Gauss–Newton iterative algorithm is employed to estimate the incident light direction vector. By exploiting the orthogonal rotation invariance between the LCS and the global coordinate system (GCS), the cosine of the incident angle is estimated without the need for orientation sensors. Subsequently, a serial CNN–MLP fusion network is constructed, in which the estimated incident-angle cosine is introduced as an additional positioning feature on top of RSS-based localization. The network jointly models the RSS and incident-angle cosine information received by the PD array and maps them to 3D spatial coordinates. Finally, training samples are generated using Latin hypercube sampling (LHS) to uniformly sample spatial positions and orientation dimensions, thereby improving the representativeness of the training dataset. Results and Discussions Simulation experiments are conducted in a 4 m × 4 m × 2.5 m indoor environment. First, the effects of different numbers of PDs and tilt angles on the accuracy of incident-angle cosine estimation and spatial coverage are evaluated (Fig. 6), and the cumulative distribution functions (CDFs) of positioning errors under different array configurations are compared (Fig. 7). The results show that a 3-PD array with a tilt angle of 40° achieves the best balance among cost, coverage, and positioning accuracy. Next, positioning performance under different receiver tilt angles is analyzed. When the tilt angle is small, more than 70% of positioning errors are below 5 cm; even when the receiver is tilted up to 55°, the average error remains within 11.7 cm (Fig. 8). Error component comparisons indicate that the error along the Z-axis is significantly smaller than those along the X and Y axes (Fig. 9). Further tests are conducted at a height of 0.0 m covered by the training data and at an unseen height of 0.6 m not included in the training set (Fig. 10). The results demonstrate that the proposed model does not exhibit strong dependence on a specific height plane and maintains stable 3D positioning performance at unseen heights. Finally, the proposed method is compared with related positioning schemes. It outperforms existing methods in terms of CDF convergence speed, RMSE, and standard deviation (Fig. 11), achieving an average error reduction of approximately 2.5 cm and an RMSE reduction of 31.58% compared with Ref. [12]. Conclusions This paper estimates the cosine of the incident angle at the receiver by exploiting differences in the optical power received by different PDs in an array and introduces this cosine value as a joint positioning feature into conventional RSS-based localization, thereby alleviating the instability of position mapping caused by relying solely on RSS under random receiver perturbations. By further combining the spatial feature extraction capability of CNNs with the nonlinear modeling strength of MLPs, the proposed method effectively maps positioning features to 3D spatial coordinates. The approach reduces reliance on orientation sensors such as IMUs while overcoming the susceptibility of traditional geometric positioning methods to noise and high-dimensional nonlinear features. Under varying heights and receiver orientations, the proposed algorithm demonstrates significant advantages in both positioning accuracy and stability.
- Incident-angle cosine estimation /
- PD array reception /
- CNN–MLP fusion /
- Latin hypercube sampling /
- Visible light positioning

HTML全文

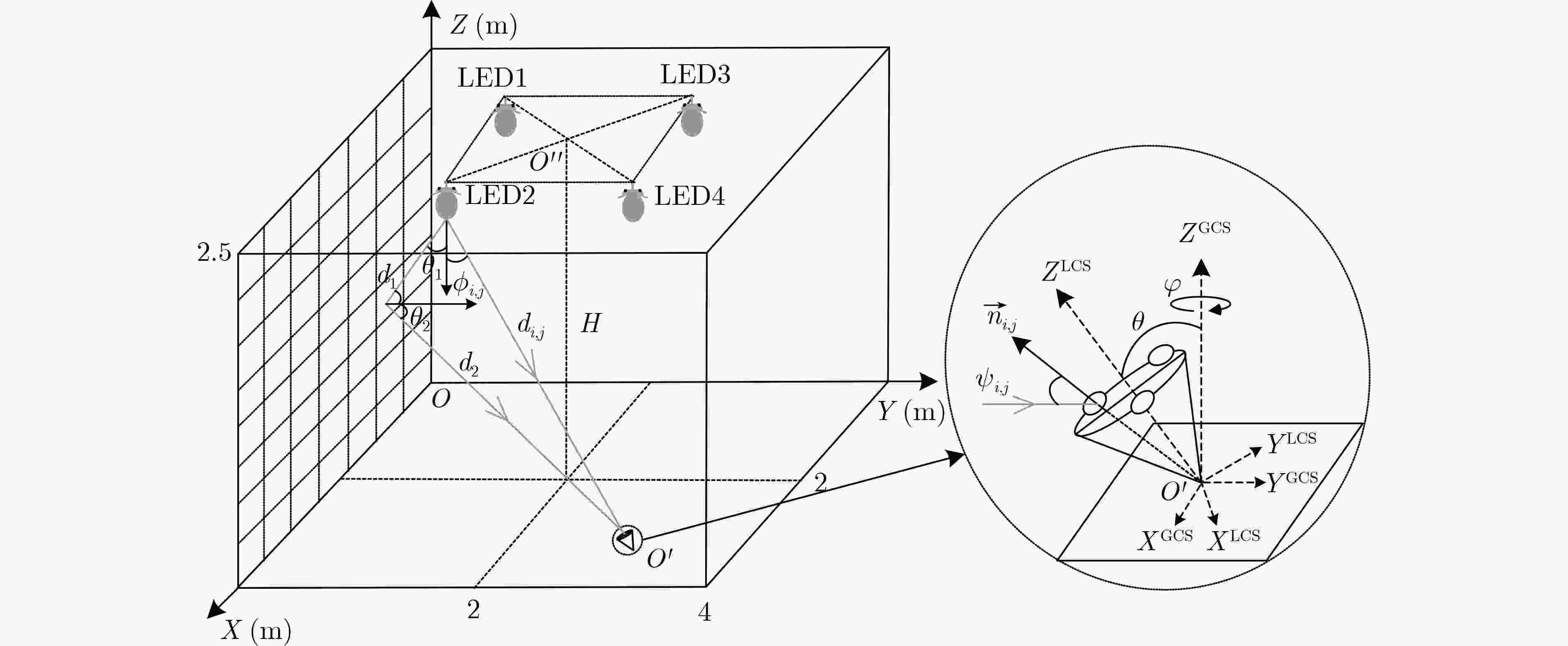

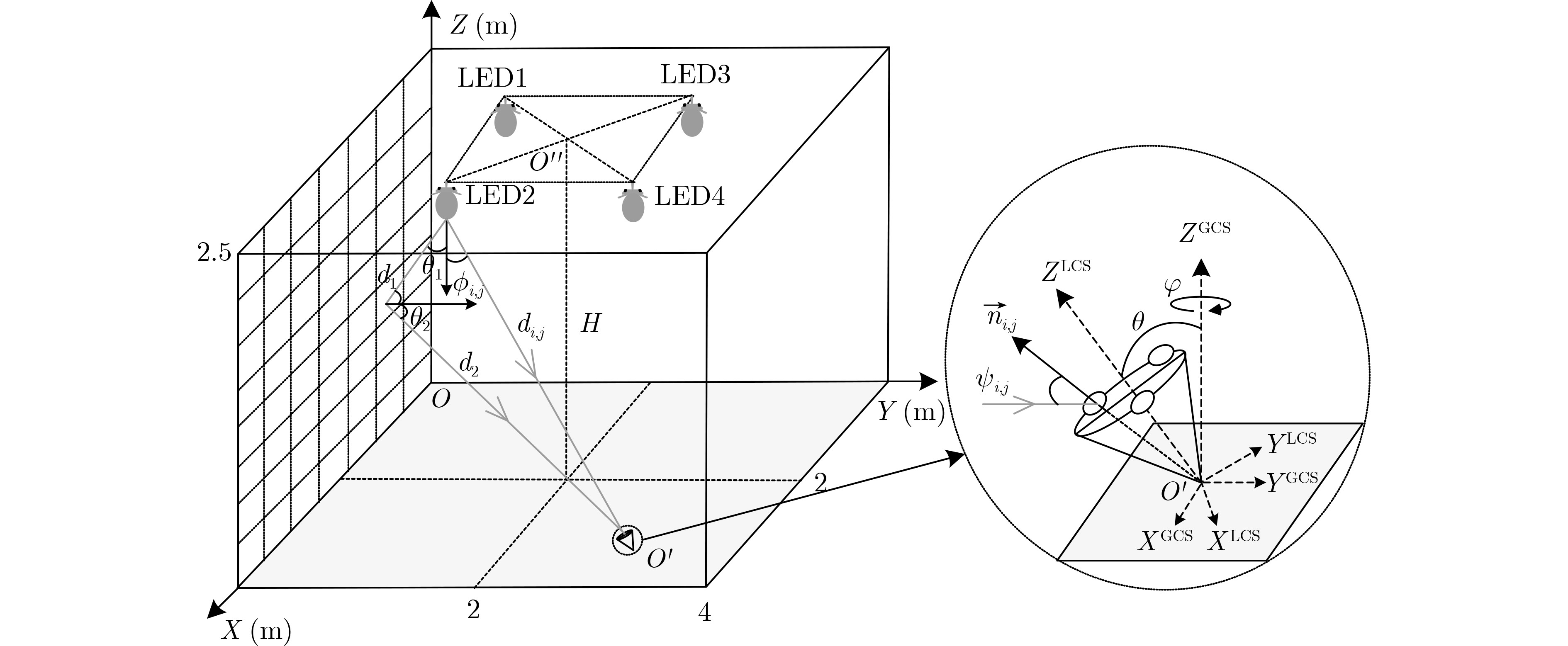

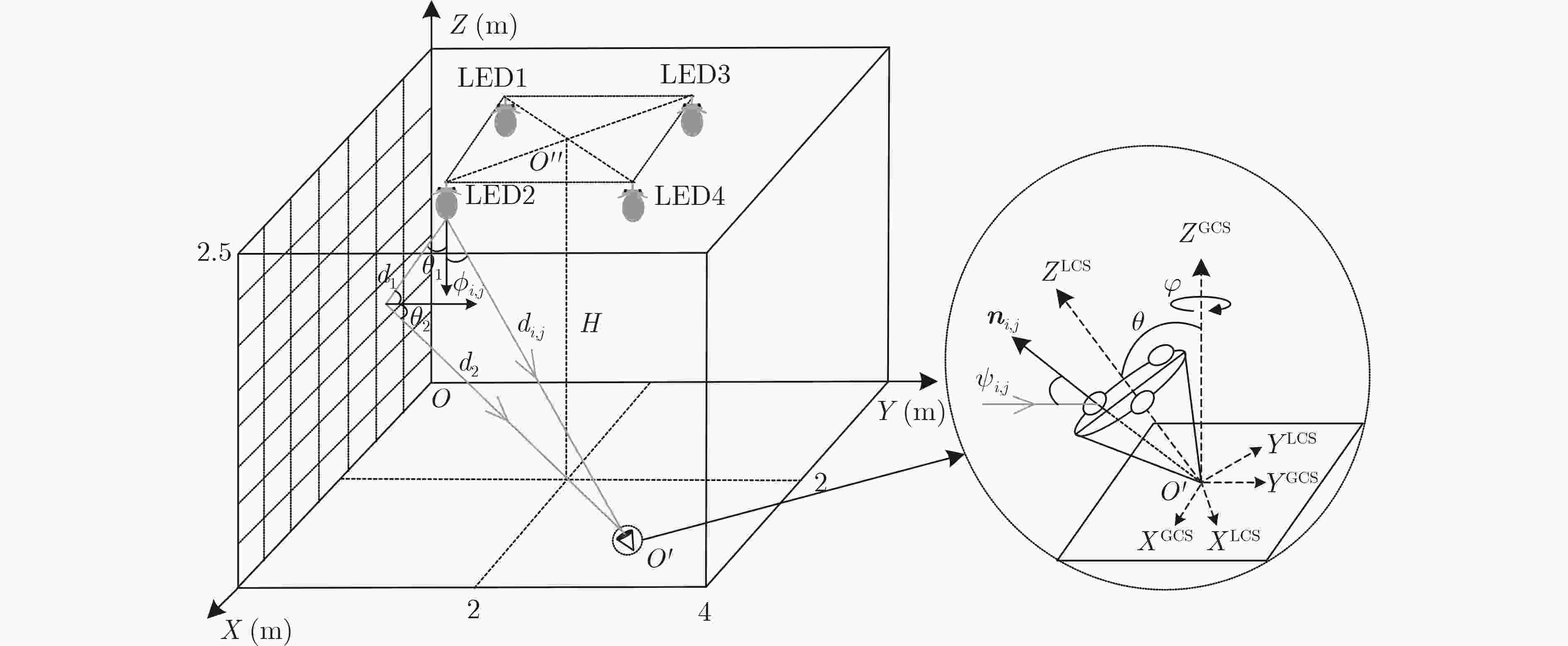

图 1 可见光室内定位系统模型

下载: 全尺寸图片幻灯片

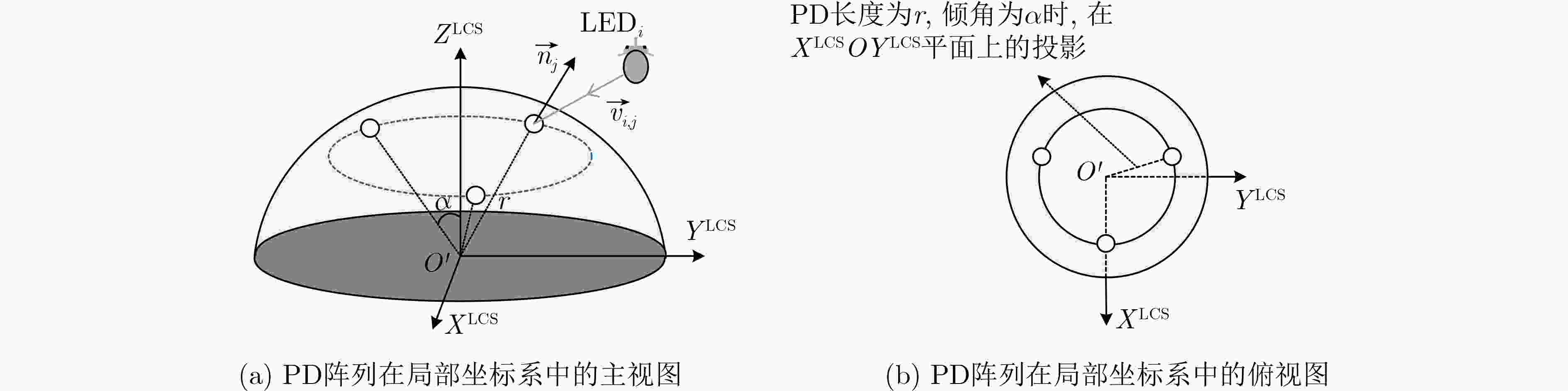

图 2 局部坐标系示意图

下载: 全尺寸图片幻灯片

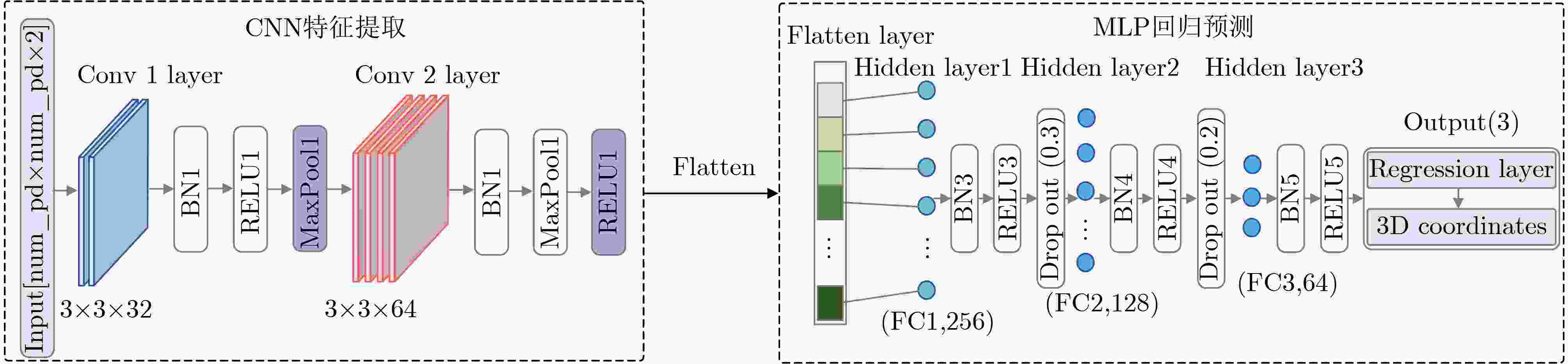

图 3 CNN-MLP串行融合网络

下载: 全尺寸图片幻灯片

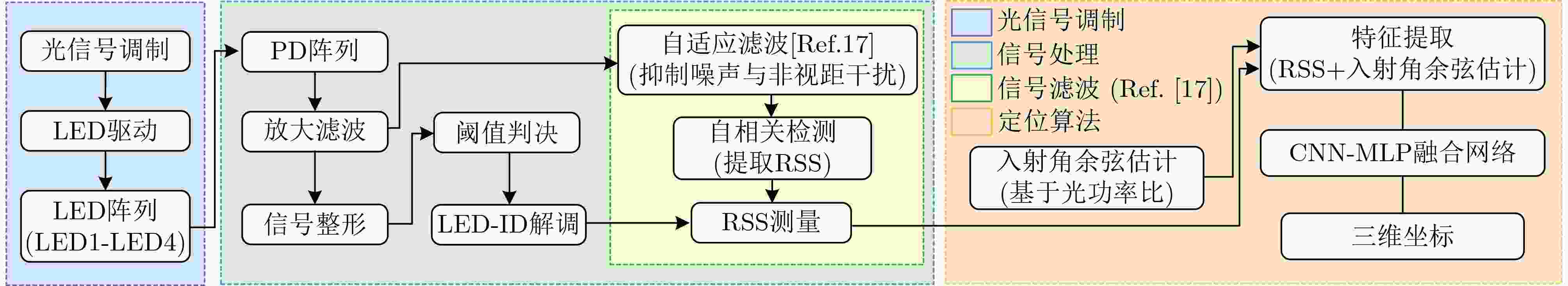

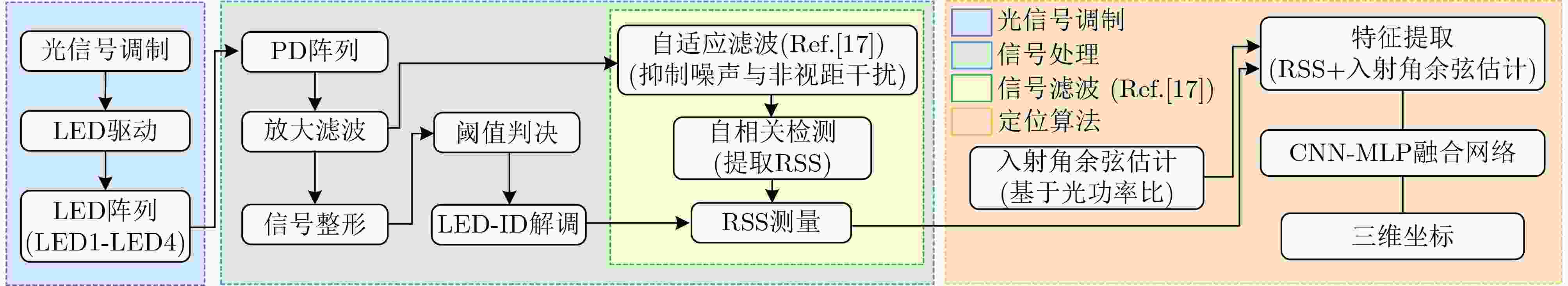

图 4 可见光定位系统方案

下载: 全尺寸图片幻灯片

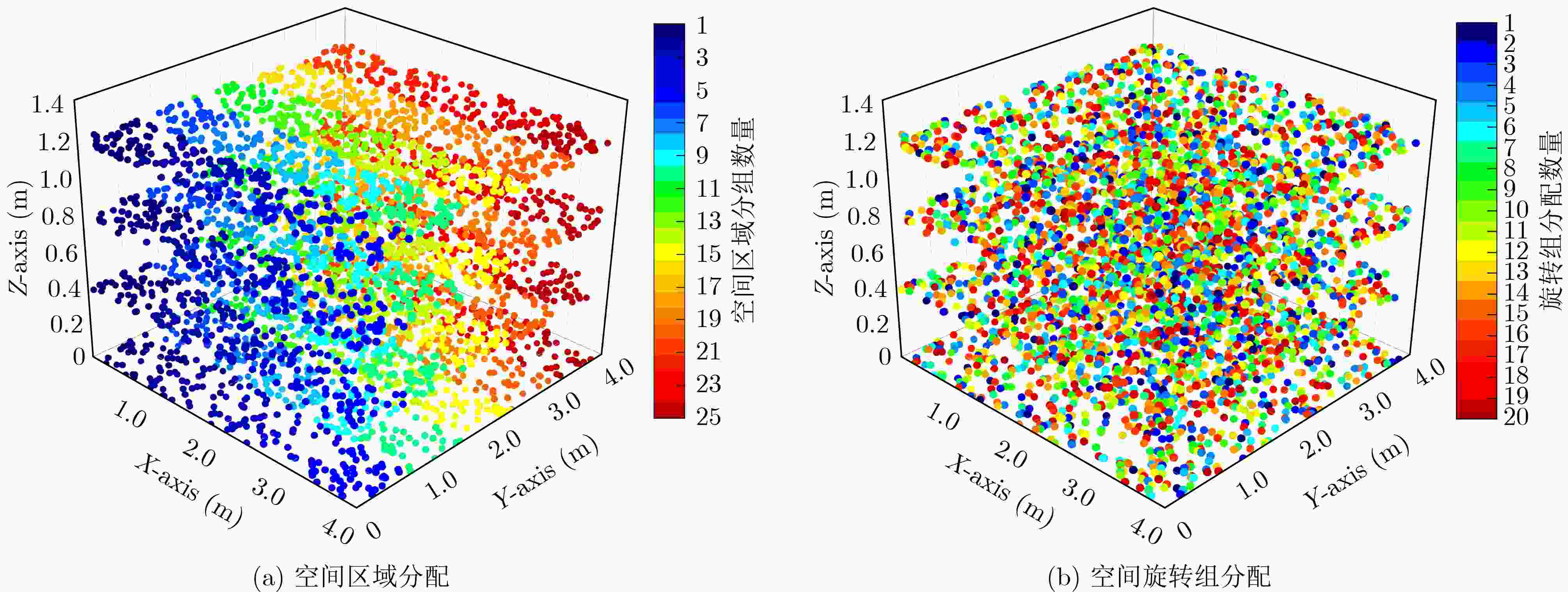

图 5 利用LHS方法进行训练数据采集示意图

下载: 全尺寸图片幻灯片

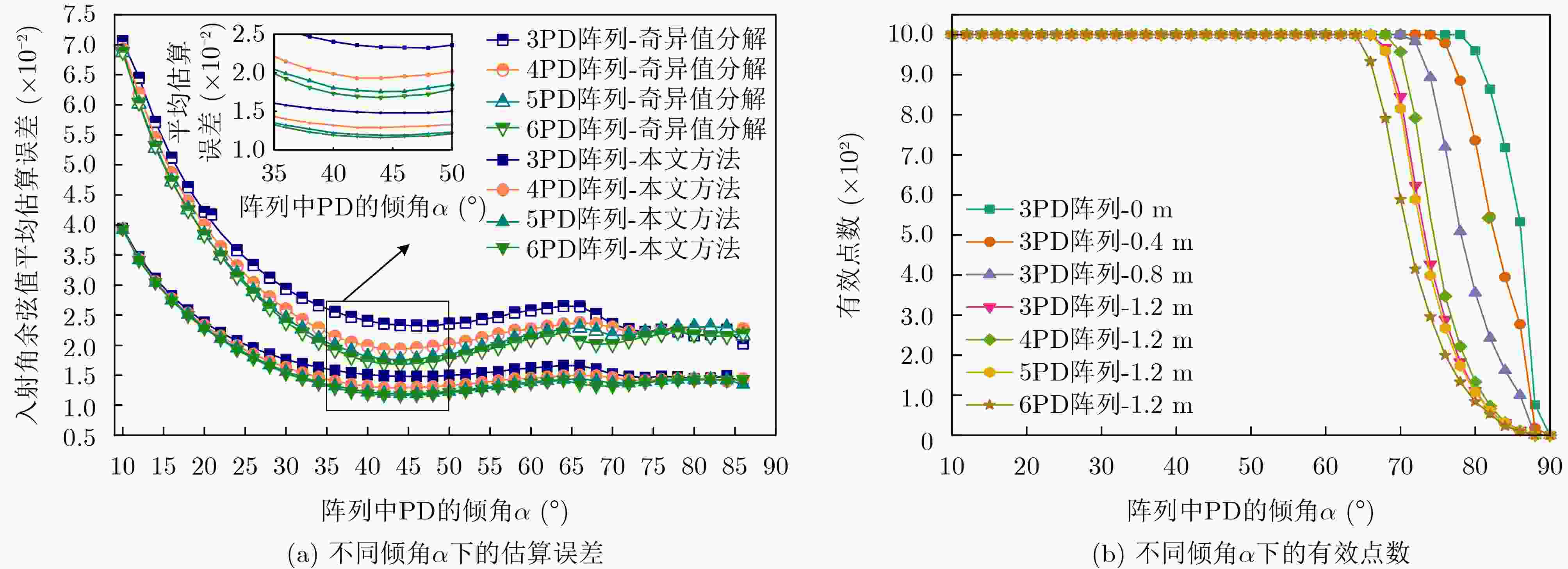

图 6 (a)不同倾角$ \alpha $下的估算误差；(b)不同倾角$ \alpha $下的有效点数

下载: 全尺寸图片幻灯片

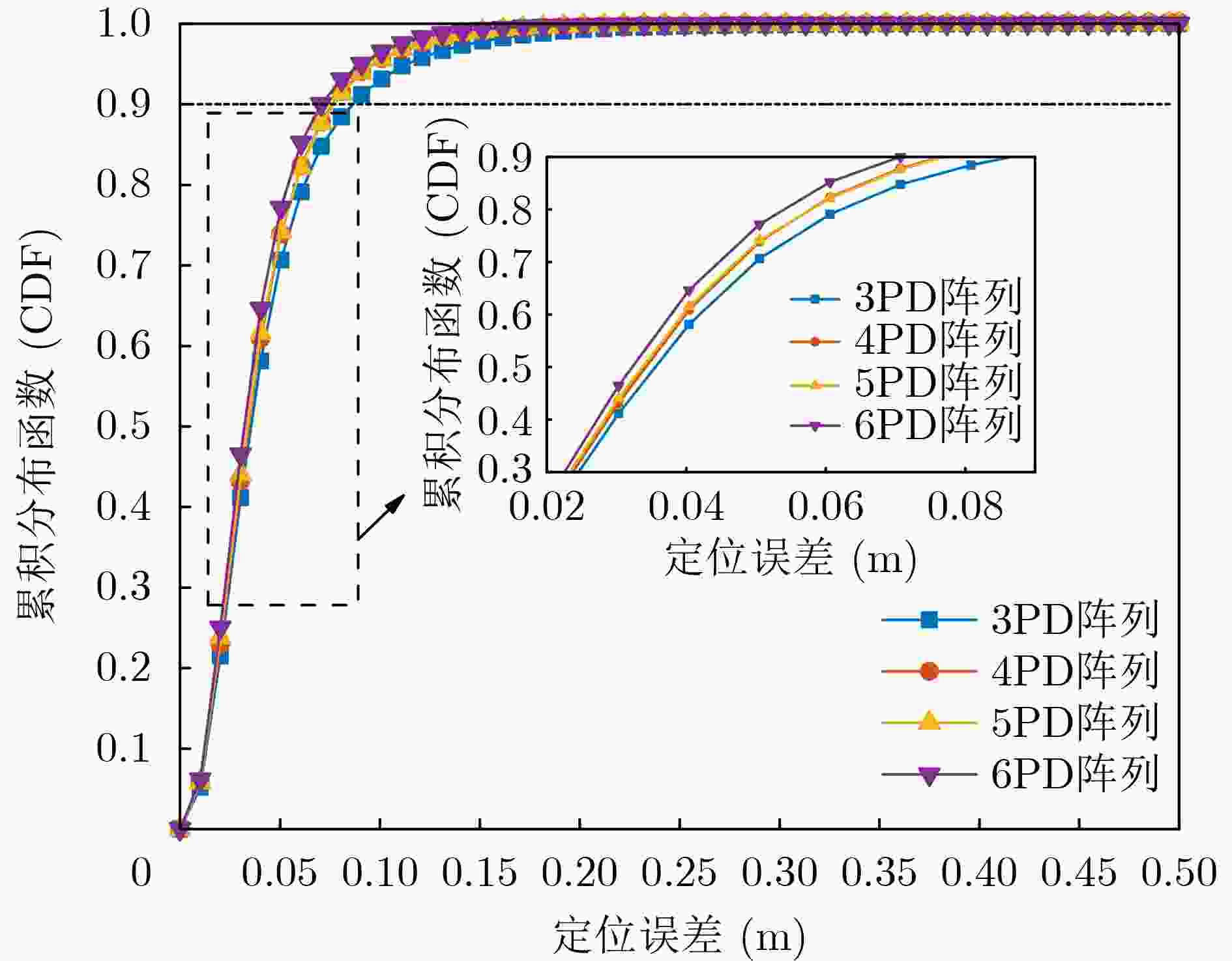

图 7 不同PD数量的阵列的累积误差

下载: 全尺寸图片幻灯片

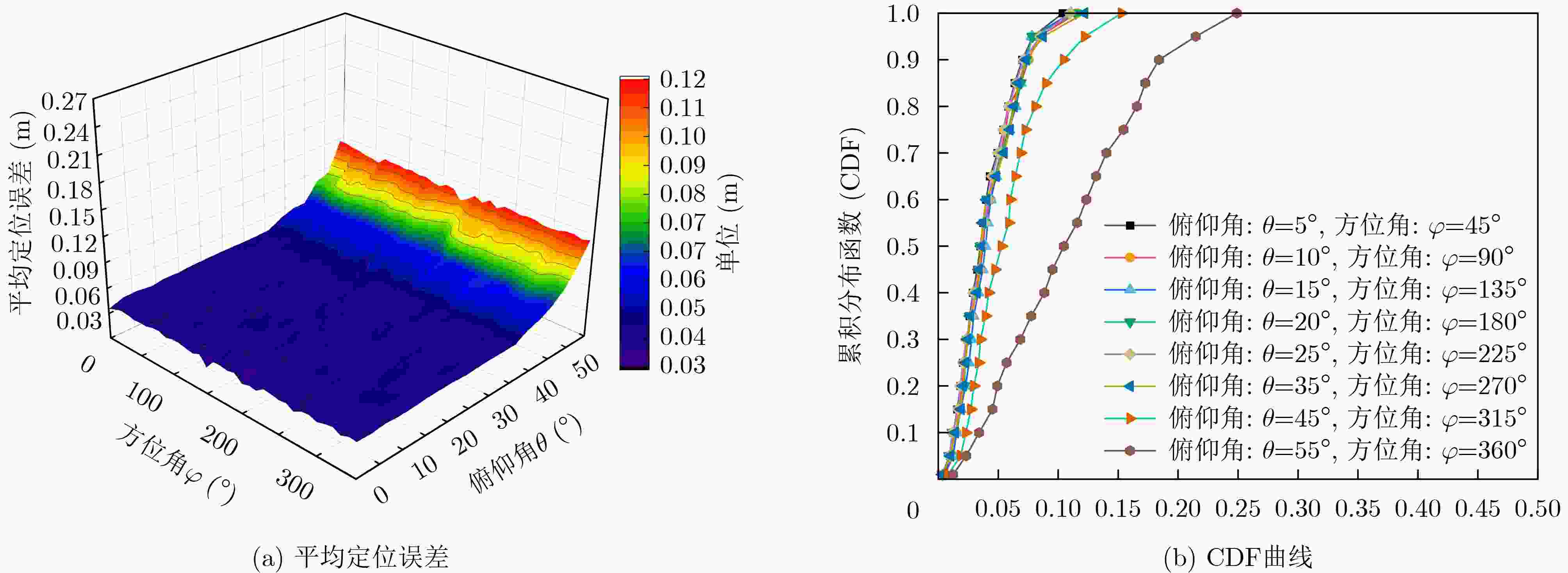

图 8 阵列不同倾斜姿态下的定位误差

下载: 全尺寸图片幻灯片

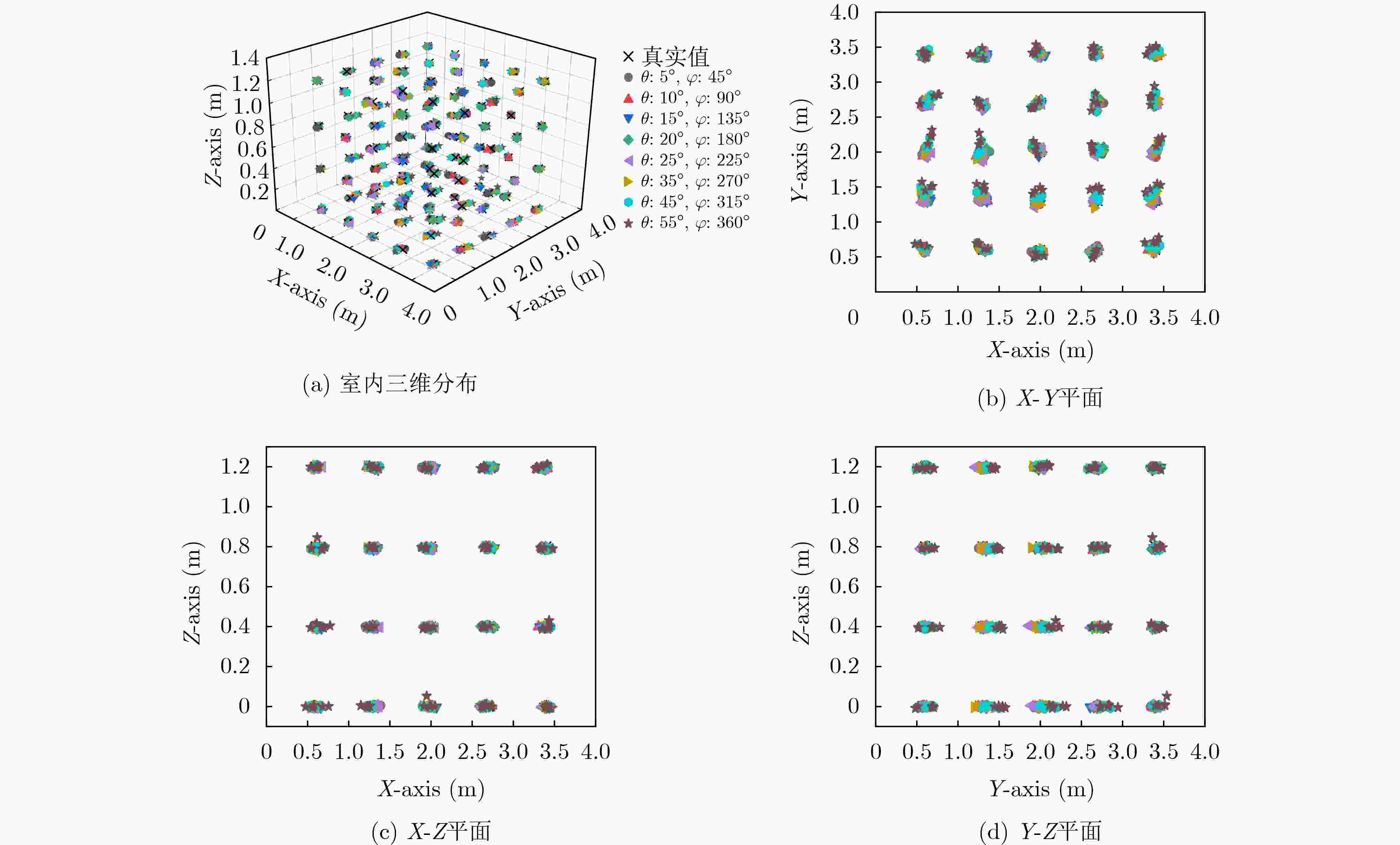

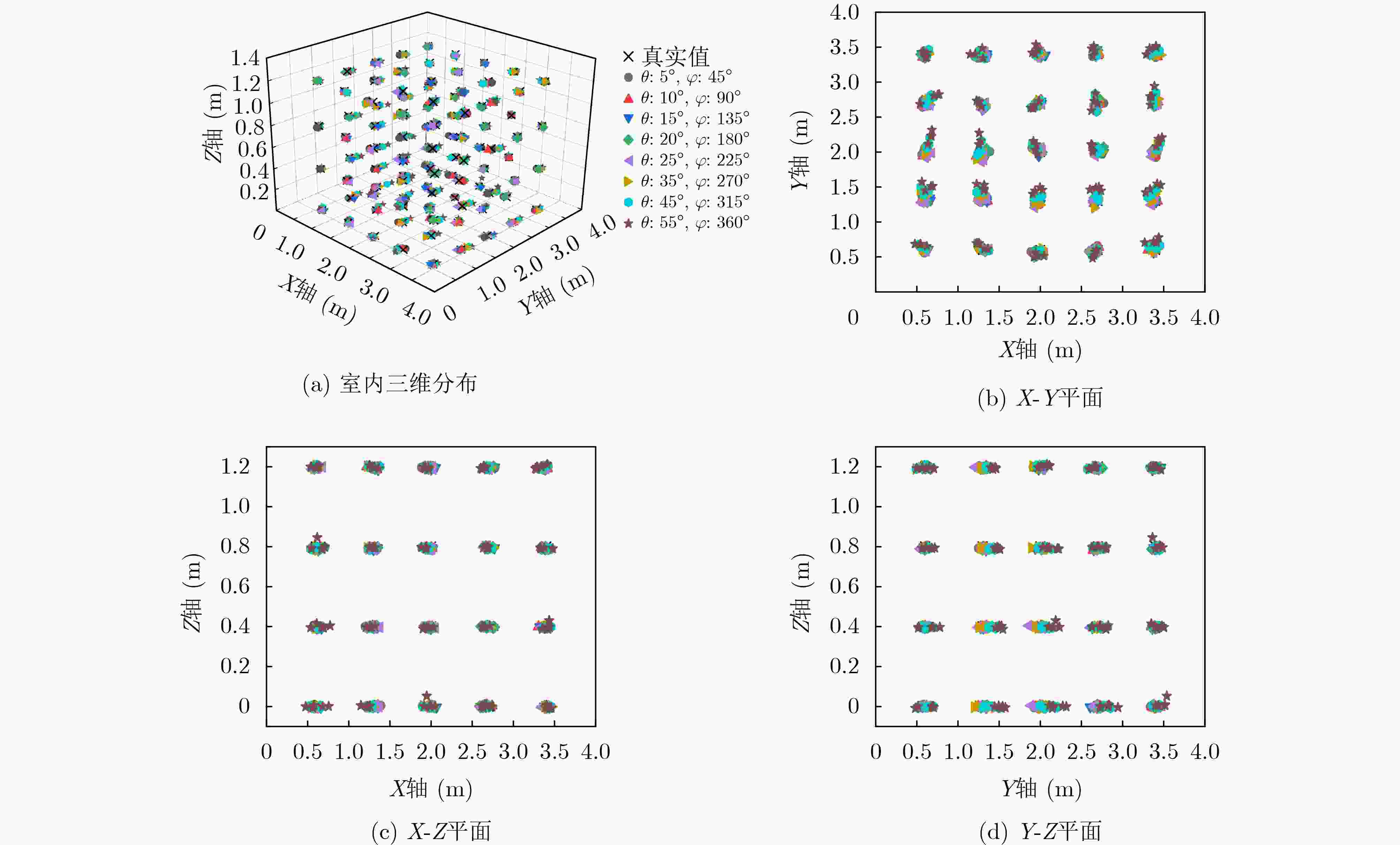

图 9 阵列在不同姿态下所提方法预测坐标与实际坐标对比

下载: 全尺寸图片幻灯片

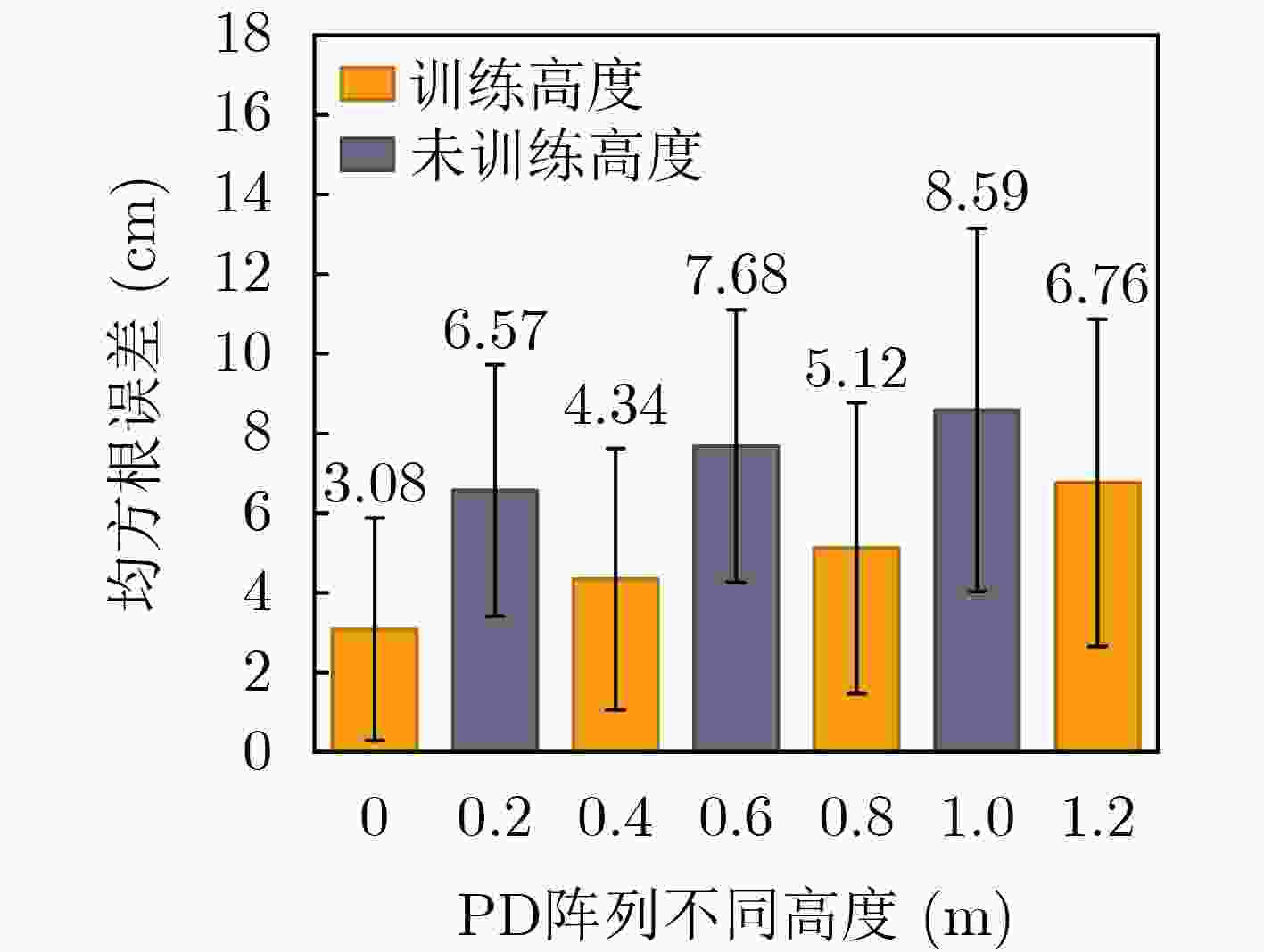

图 10 阵列在不同高度平面的均方根误差

下载: 全尺寸图片幻灯片

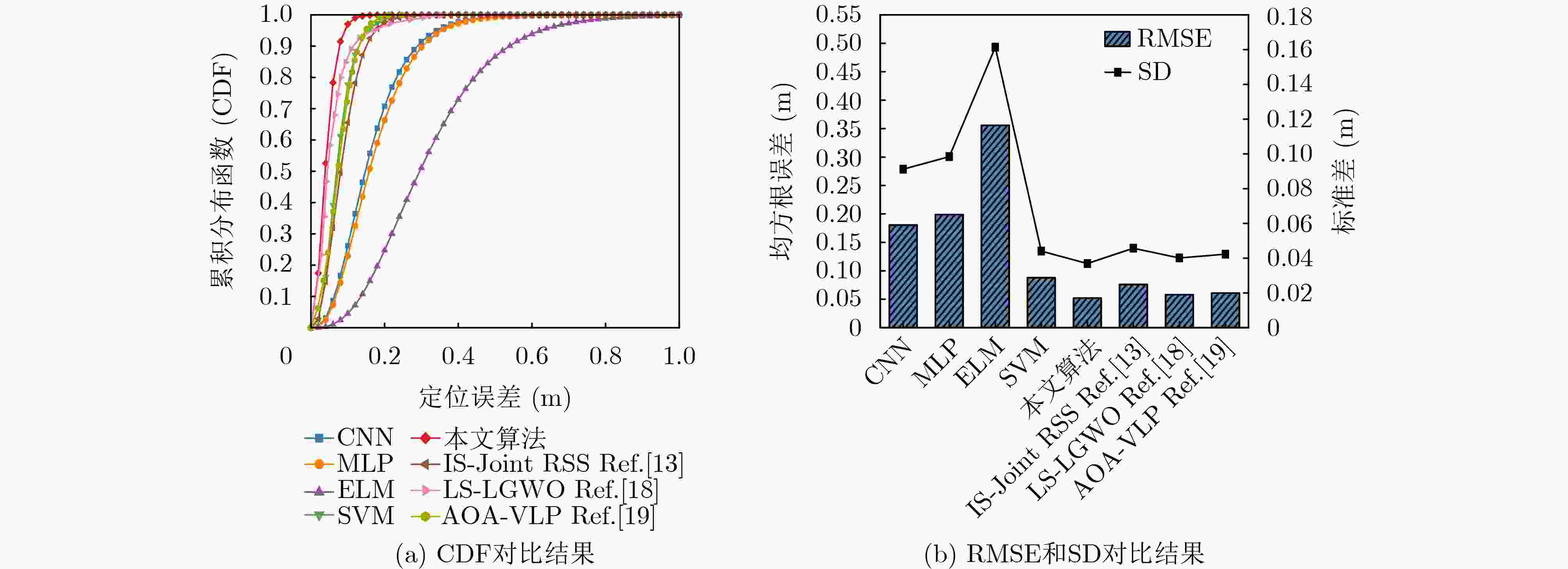

图 11 不同定位方案性能对比

下载: 全尺寸图片幻灯片

表 1 仿真参数

参数	值	参数	值	参数	值	参数	值	参数	值
$ {P}_{\text{t},i} $/W	10	$ {\Phi }_{1/2} $/(°)	60	$ dA $/m²	0.01	B/(MHz)	10	T/(k)	290
A/cm²	1	$ {g}_{s}({\psi }_{i,j}) $/$ {T}_{s}({\psi }_{i,j}) $	1	r/cm	2	$ {I}_{\text{bg}} $/μA	10	$ {R}_{f} $/$ \text{k}\Omega $	100
$ {\psi }_{c} $ /(°)	75	$ \rho $	0.6	k/(J/k)	1.38×10⁻²³	$ {G}_{t} $/(A/V)	0.01	$ {g}_{m} $/(ms)	10

下载: 导出CSV

表 2 神经网络训练参数

参数	值	参数	值	参数	值
训练样本数	4000×60	学习率调整策略	5 epoch×0.5	损失函数	MSE
数据集划分	70%/15%/15%	优化器	Adam	验证频率	0.2epoch
初始学习率	0.001	正则化系数	0.0001	-	-

下载: 导出CSV

表 3 不同PD阵列设计的可见光定位性能评估

PD阵列	向量维度	均方根误差/m	平均误差/m	轮数	训练时间/min
3	24	0.052	0.046	47	20：05
4	32	0.047	0.043	45	19：01
5	40	0.046	0.041	44	18：40
6	48	0.044	0.038	43	18：12

下载: 导出CSV
