融合预训练音频大模型与密度估计的水轮发电机组声学无监督异常检测

武亭; 闻疏琳; 阎兆立; 付高原; 李林峰; 刘绪都; 程晓斌; 杨军

doi:10.11999/JEIT250934

融合预训练音频大模型与密度估计的水轮发电机组声学无监督异常检测

doi: 10.11999/JEIT250934 cstr: 32379.14.JEIT250934

武亭^{1, 2, 4},
闻疏琳^{3, 4},
阎兆立^{5, 1},
付高原^{3, 4},
李林峰^{3, 4},
刘绪都^{3, 4},
程晓斌^{1, 2, ,},
杨军^{1, 2}

1.
中国科学院声学研究所声学与海洋信息全国重点实验室北京 100094
2.
中国科学院大学电子电气与通信工程学院北京 100049
3.
中国长江电力股份有限公司武汉 443000
4.
湖北省智慧水电技术创新中心武汉 430000
5.
北京化工大学机电工程学院北京 100029

基金项目: 中国长江电力股份有限公司——基于工业互联网平台的流域电站设备状态声学监测体系研究及示范应用(Z152302048)

详细信息

作者简介:
武亭：男，博士生，研究方向为声异常检测与无监督深度学习

闻疏琳：女，博士，研究方向为水电设备状态声学监测、故障诊断及预警、声学目标识别跟踪、主动降噪

阎兆立：男，博士，教授，博士生导师，研究方向为设备状态监测和故障诊断

付高原：男，硕士，研究方向为水电设备状态声学监测、故障诊断及预警

李林峰：男，硕士，研究方向为水电设备状态声学监测、故障诊断及预警、主动降噪

刘绪都：男，博士，研究方向为水电设备状态声学监测、故障诊断及预警、结构健康监测与安全评价

程晓斌：男，博士，教授，博士生导师，研究方向为声信号智能处理、大数据分析与声学事件监测

杨军：男，博士，教授，博士生导师，研究方向为声信号处理、阵列信号处理与声振控制

通讯作者:
程晓斌　xb_cheng@mail.ioa.ac.cn

中图分类号: TP183; TP391.41; TM315
计量
- 文章访问数: 44
- HTML全文浏览量: 18
- PDF下载量: 6
- 被引次数: 0
出版历程
- 修回日期: 2025-11-12
- 录用日期: 2025-11-12
- 网络出版日期: 2025-11-18

Unsupervised Anomaly Detection of Hydro-Turbine Generator Acoustics by Integrating Pre-Trained Audio Large Model and Density Estimation

WU Ting^{1, 2, 4},
WEN Shulin^{3, 4},
YAN Zhaoli^{5, 1},
FU Gaoyuan^{3, 4},
LI Linfeng^{3, 4},
LIU Xudu^{3, 4},
CHENG Xiaobin^{1, 2
, ,},
YANG Jun^{1, 2}

1.
State Key Laboratory of Acoustics and Marine Information, Institute of Acoustics, Chinese Academy of Sciences, Beijing 100190, China
2.
University of Chinese Academy of Sciences, School of Electronic, Electrical and Communication Engineering, Beijing 100049, China
3.
China Yangtze Power Co., Ltd, Wuhan 443000, China
4.
Hubei Technology Innovation Center for Smart Hydropower, Wuhan 430000, China
5.
College of Mechanical and Electrical Engineering, Beijing University of Chemical Technology, Beijing 100029, China

Funds: China Yangtze Power Co., Ltd. - Research and demonstration application of acoustic monitoring system for river basin power station equipment status based on industrial Internet platform (Z152302048)

摘要

摘要: 水轮发电机组作为水电站的核心动力设备，其安全稳定运行对于整个水电站具有重要意义。近年来，非接触式声学测量作为一种有效的检测手段受到广泛关注，然而水轮发电机组的实际运行的异常声信号难以采集，传统异常检测方法及基于监督学习的分类策略在该领域的应用受到限制。针对上述挑战，该文提出了一种预训练音频大模型与密度估计k近邻(k-NN)的水轮发电机声学无监督异常检测方法。首先验证了预训练音频模型提取的通用音频特征在异常检测中的有效性；随后设计了一种融合注意力统计池化与warm-up的参数微调策略，实现模型的迁移优化，在推理阶段设计了一种密度估计的k近邻实现鲁棒的距离度量。实验结果表明，该方法在风洞环境达到了98.7%的多指标调和平均数，在滑环室则高达99.9%，为水电站的声学异常检测提供了切实可行且性能优异的解决方案。项目开源地址：https://github.com/EthanWu99/Hydropower_generator_abnormality_detection
- 预训练音频大模型 /
- 水轮发电机组 /
- 异常检测 /
- 无监督深度学习
Abstract: Objective Hydro-turbine generator units (HTGUs) require reliable early-stage fault detection to ensure operational safety and reduce maintenance costs. Acoustic signals provide a non-intrusive and sensitive monitoring modality, yet their use is hindered by complex structural acoustics, strong background noise, and the scarcity of abnormal data. This work presents an unsupervised acoustic anomaly detection framework that integrates a large-scale pretrained audio model with density-based k-nearest neighbors estimation, enabling accurate anomaly detection using only normal data while maintaining robustness and strong generalization across diverse HTGU conditions. Methods The proposed framework performs unsupervised acoustic anomaly detection for HTGUs using only normal data. Time-domain signals are preprocessed with Z-score normalization and Fbank features, followed by random masking to enhance robustness and generalization. A large-scale pretrained BEATs model serves as the feature encoder, and an Attentive Statistical Pooling module is applied to aggregate frame-level representations into discriminative segment-level embeddings by emphasizing informative frames. To improve class separability, an ArcFace loss replaces the conventional classification layer during training. A warm-up learning rate strategy is adopted to ensure stable convergence. During inference, density-based k-nearest neighbors estimation is performed on the learned embeddings to detect acoustic anomalies. Results and Discussions This study verifies the effectiveness of the proposed unsupervised acoustic anomaly detection framework for HTGUs using data collected from eight real-world machines. As shown in Fig. 7 and Table 2, large-scale pretrained audio representations significantly outperform traditional features in distinguishing abnormal sounds. With the FED-KE algorithm, the method achieves high accuracy across six metrics, with Hmean reaching 98.7% in the wind tunnel and over 99.9% in the slip-ring environment, demonstrating strong robustness under complex industrial conditions. As shown in Table 4, ablation studies confirm the complementary contributions of feature enhancement, ASP-based representation refinement, and density-based k-NN inference. The framework requires only normal data for training, reducing dependence on scarce fault labels and improving practical applicability. Remaining challenges include computational cost due to the pretrained model and the lack of multimodal fusion, which will be investigated in future work. Conclusions This study proposes an unsupervised acoustic anomaly detection framework for HTGUs, addressing the scarcity of fault samples and the complexity of industrial acoustic environments. A pretrained large-scale audio foundation model is adopted and further fine-tuned with turbine-specific strategies to enhance the modeling of normal operational acoustics. During inference, a density-estimation-based k-NN mechanism is employed to detect abnormal patterns using only normal data. Experiments on real-world hydropower station recordings demonstrate high detection accuracy and strong generalization across diverse operating conditions, outperforming conventional supervised approaches. The framework introduces foundation-model-based audio representation learning into the hydro-turbine domain, establishes an efficient adaptation strategy tailored to turbine acoustics, and integrates a robust density-based anomaly scoring mechanism. These components jointly reduce reliance on labeled anomalies and enable practical deployment for intelligent condition monitoring. Future work will investigate model compression, such as knowledge distillation, to support on-device deployment, and explore semi-/self-supervised learning and multimodal fusion to further enhance robustness, scalability, and cross-station adaptability.
- Pretrained Audio Models /
- Hydropower Generating Units /
- Anomaly Detection /
- Unsupervised Deep Learning

HTML全文

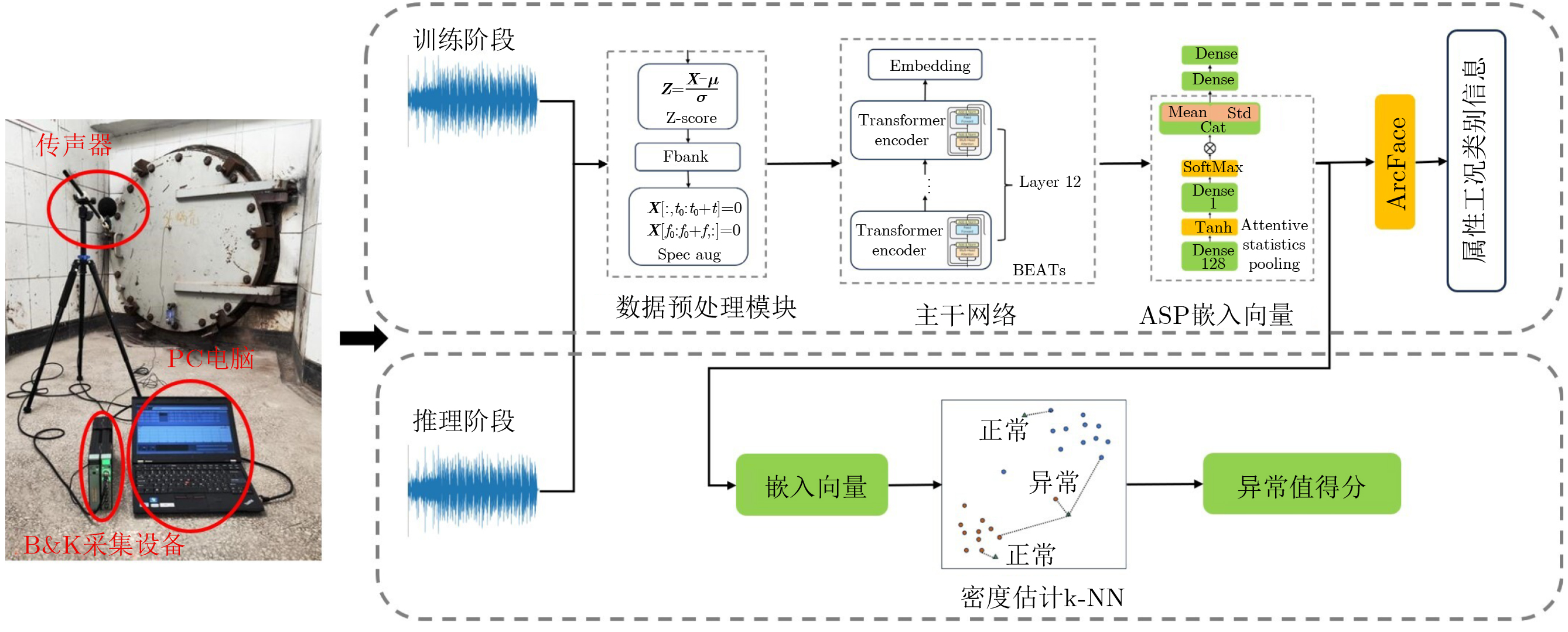

图 1 FED-KE算法训练以及推理过程整体框架

下载: 全尺寸图片幻灯片

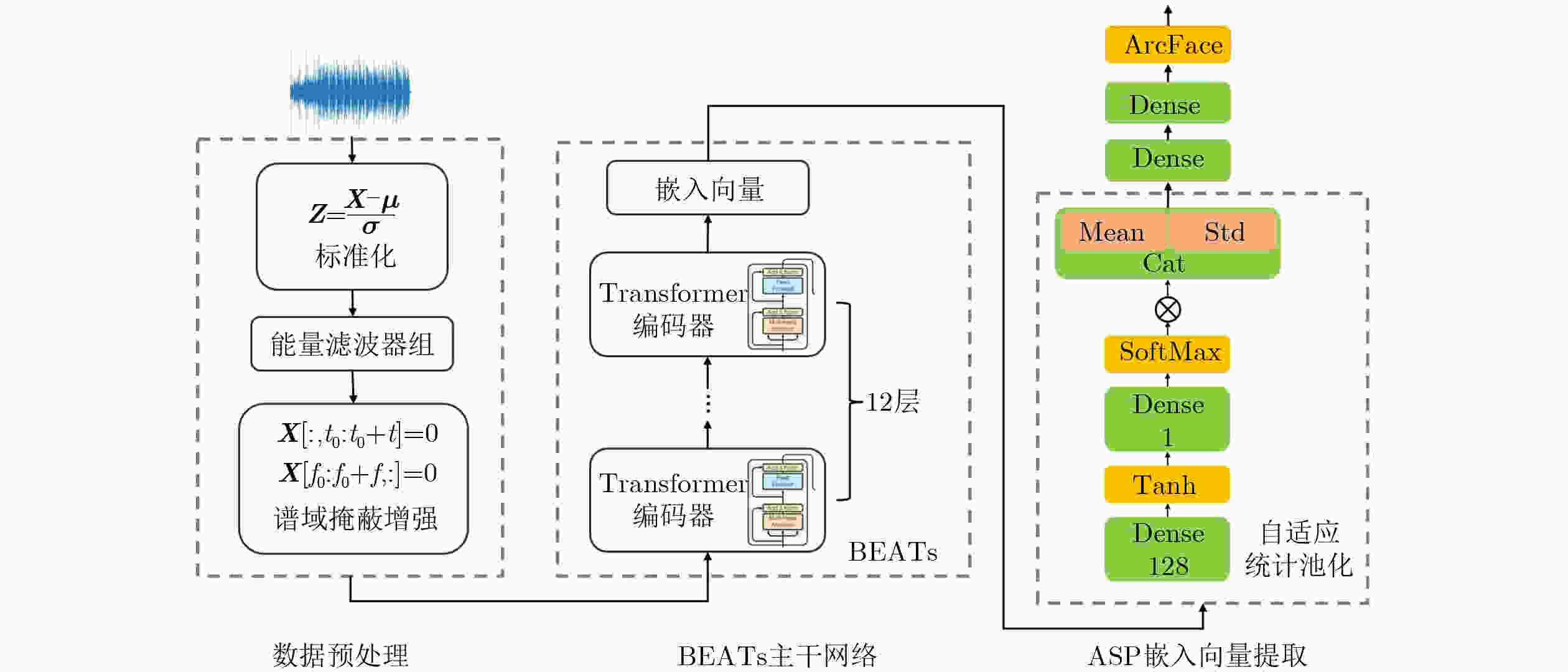

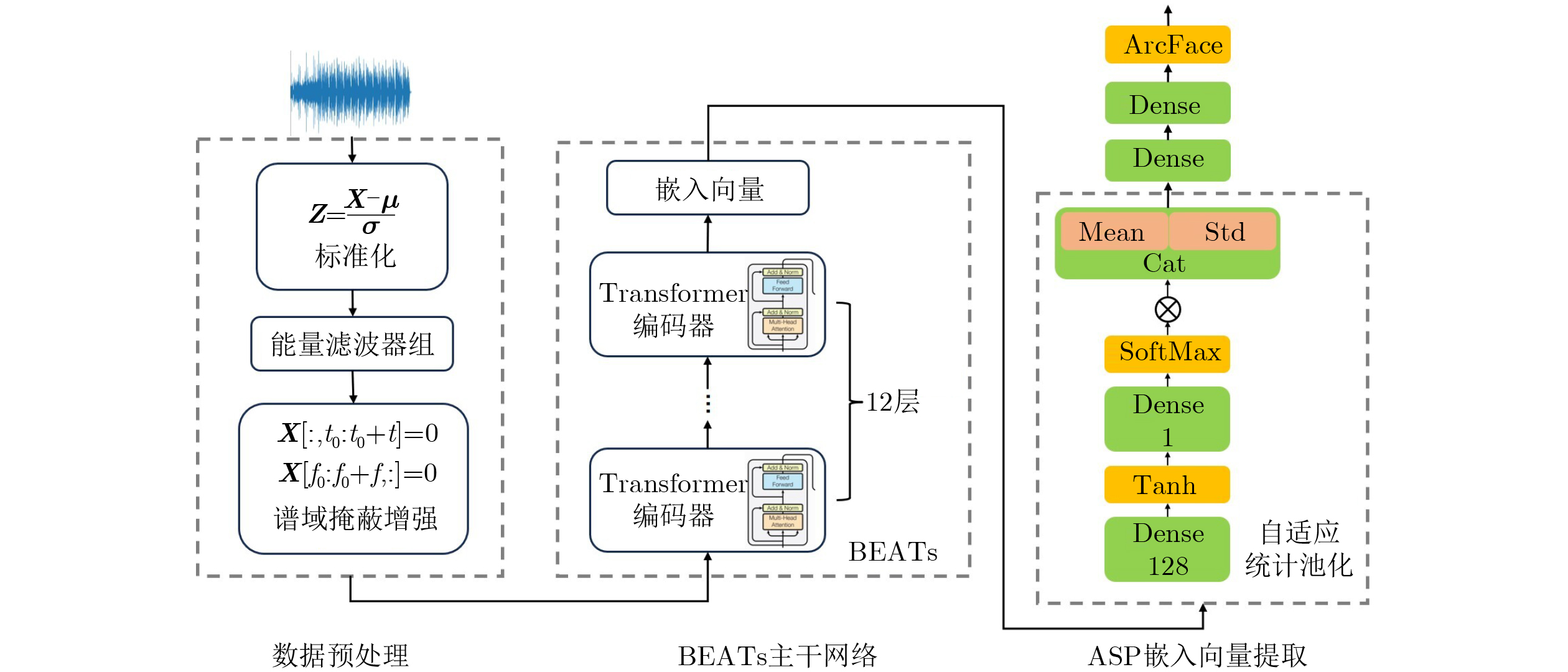

图 2 FED-KE网络结构

下载: 全尺寸图片幻灯片

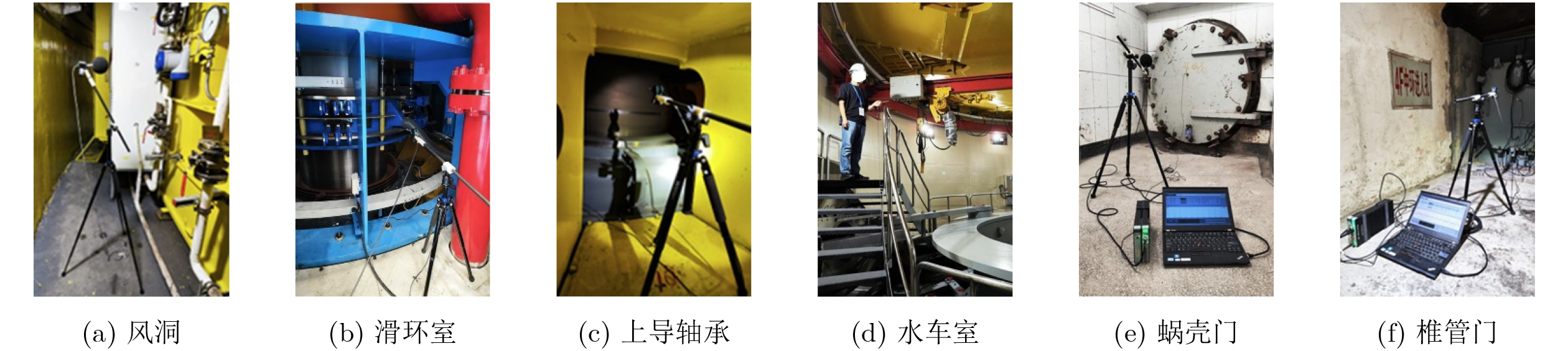

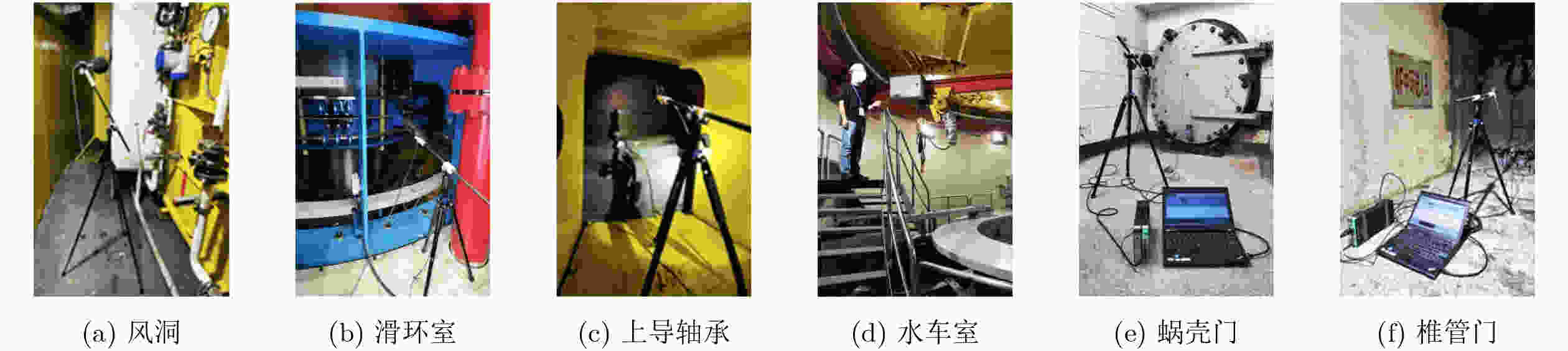

图 3 水电站实验现场

下载: 全尺寸图片幻灯片

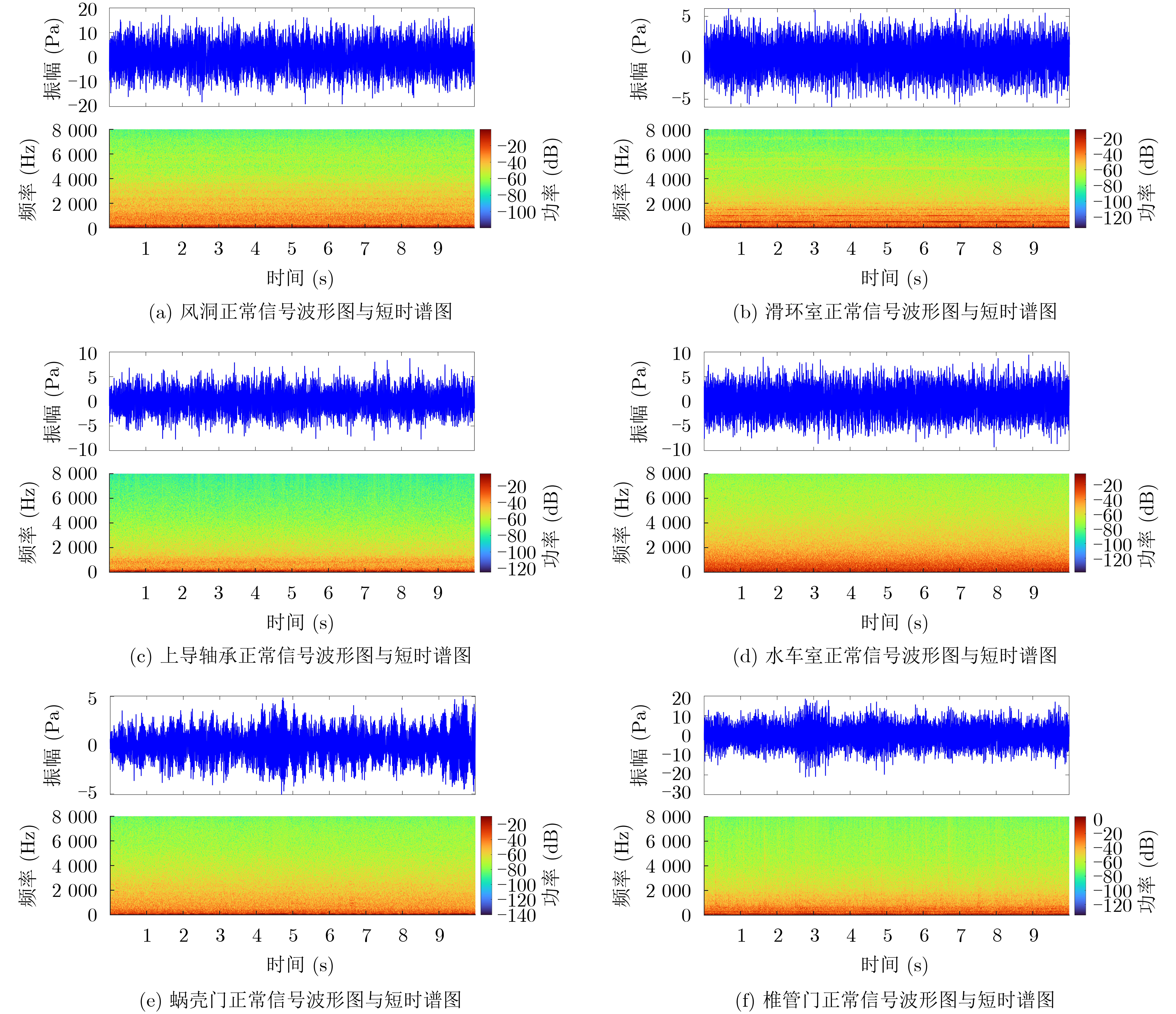

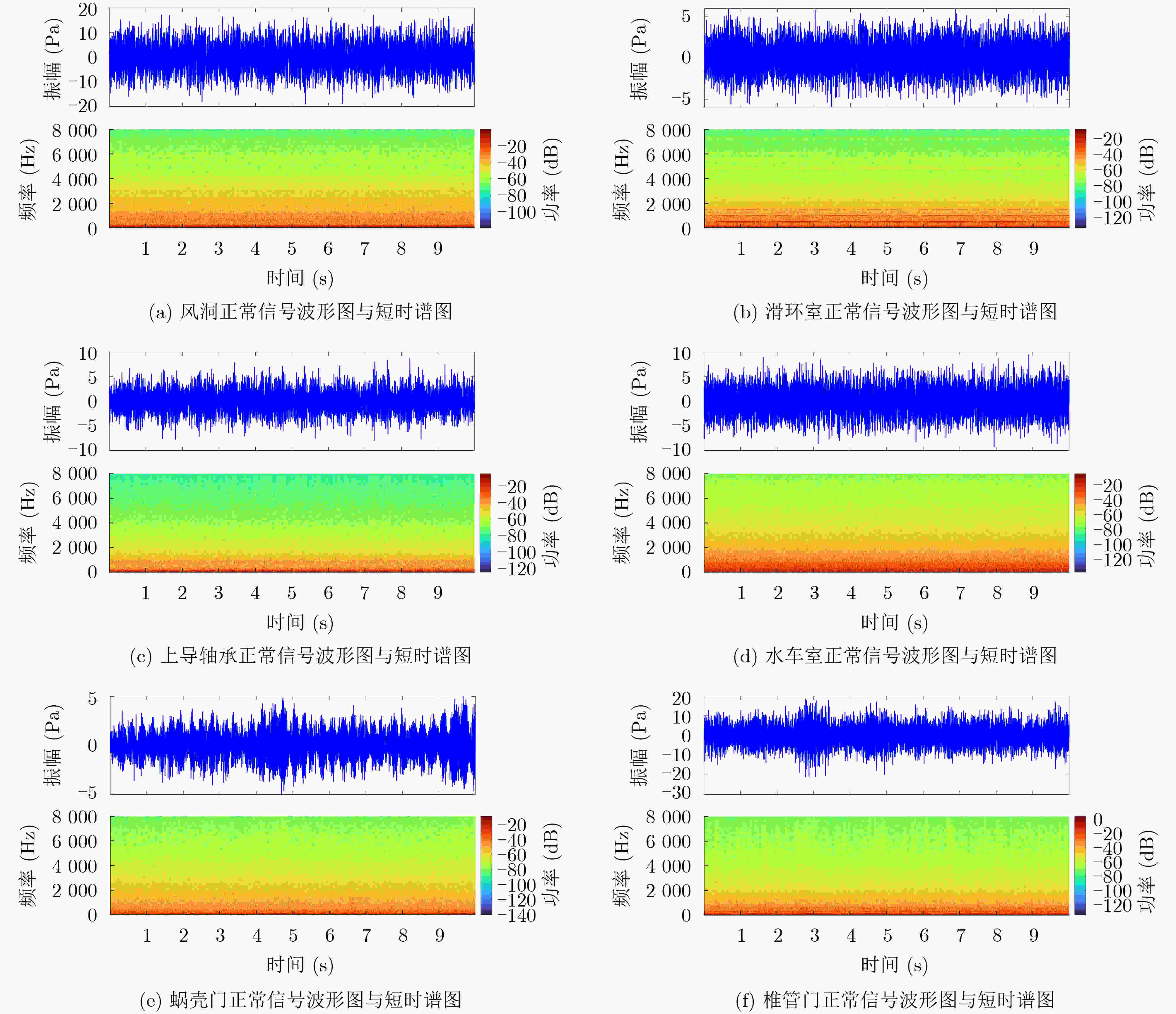

图 4 六种不同设备正常信号的时域波形图和短时谱图

下载: 全尺寸图片幻灯片

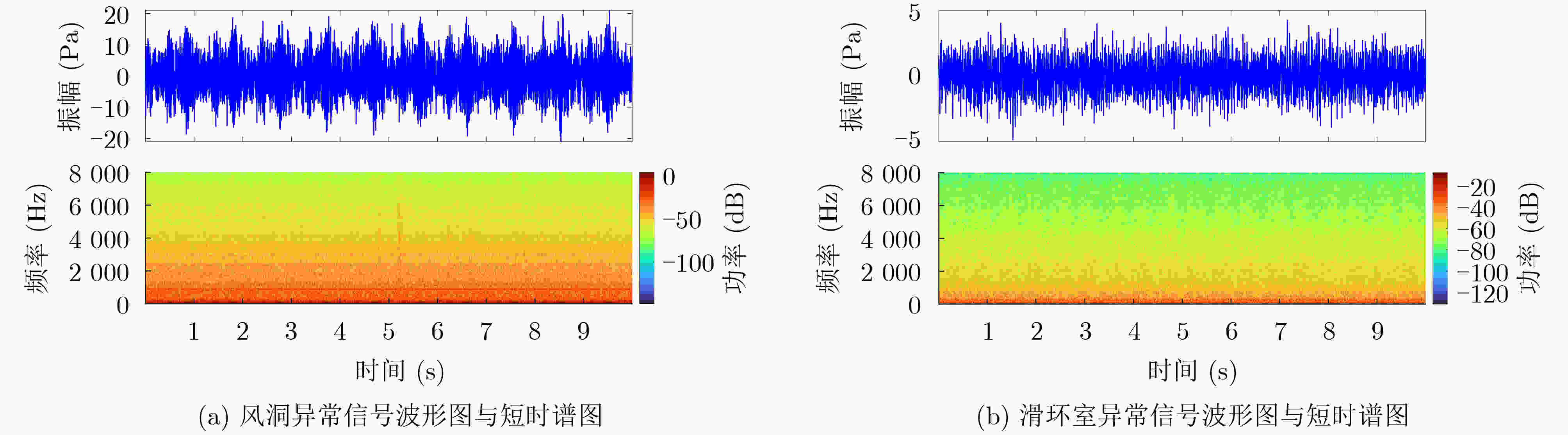

图 5 风洞以及滑环室异常信号波形图与短时谱图

下载: 全尺寸图片幻灯片

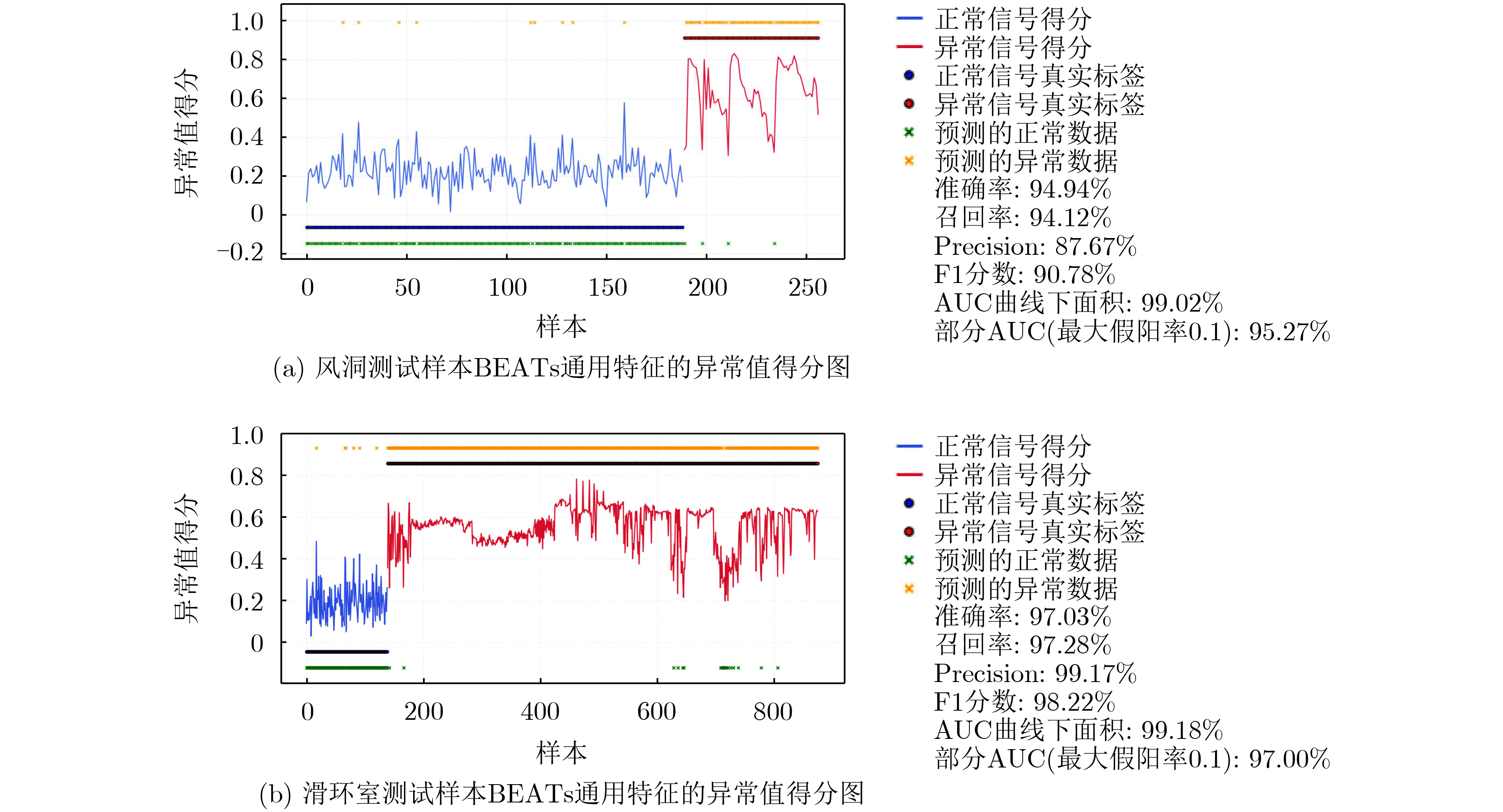

图 6 风洞以及滑环室测试样本BEATs通用特征的异常值得分图

下载: 全尺寸图片幻灯片

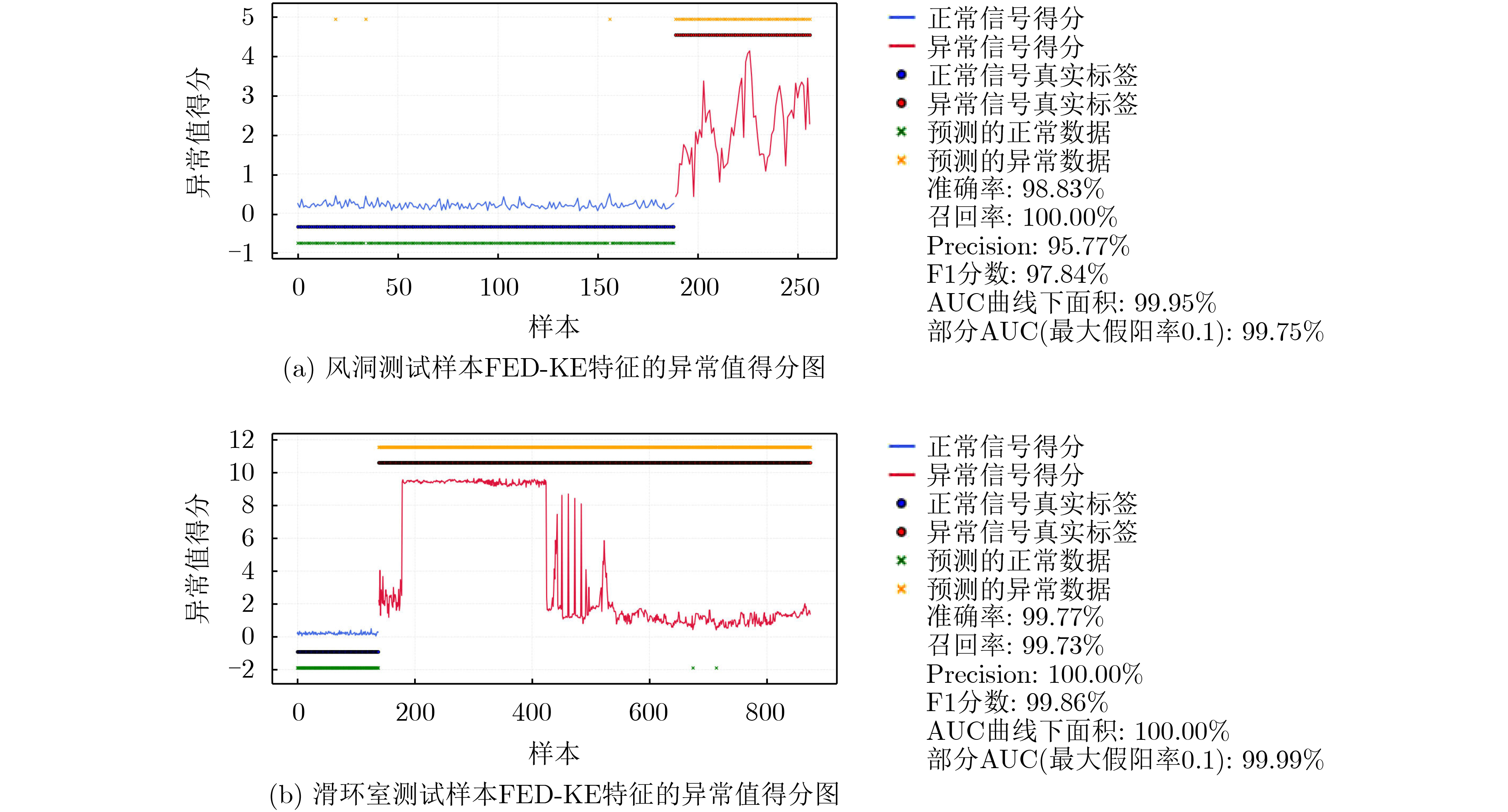

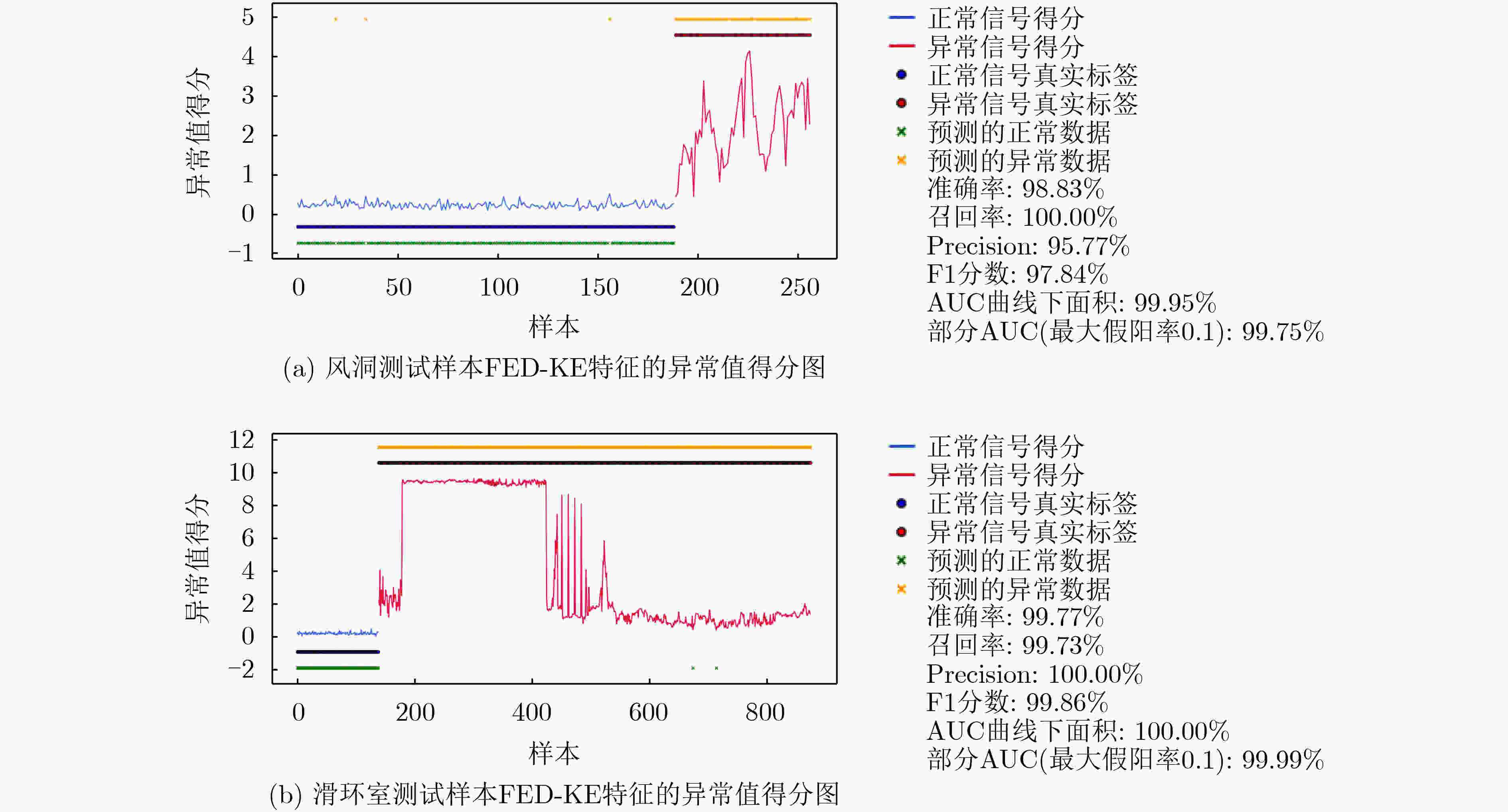

图 7 风洞以及滑环室测试样本FED-KE特征的异常值得分图

下载: 全尺寸图片幻灯片

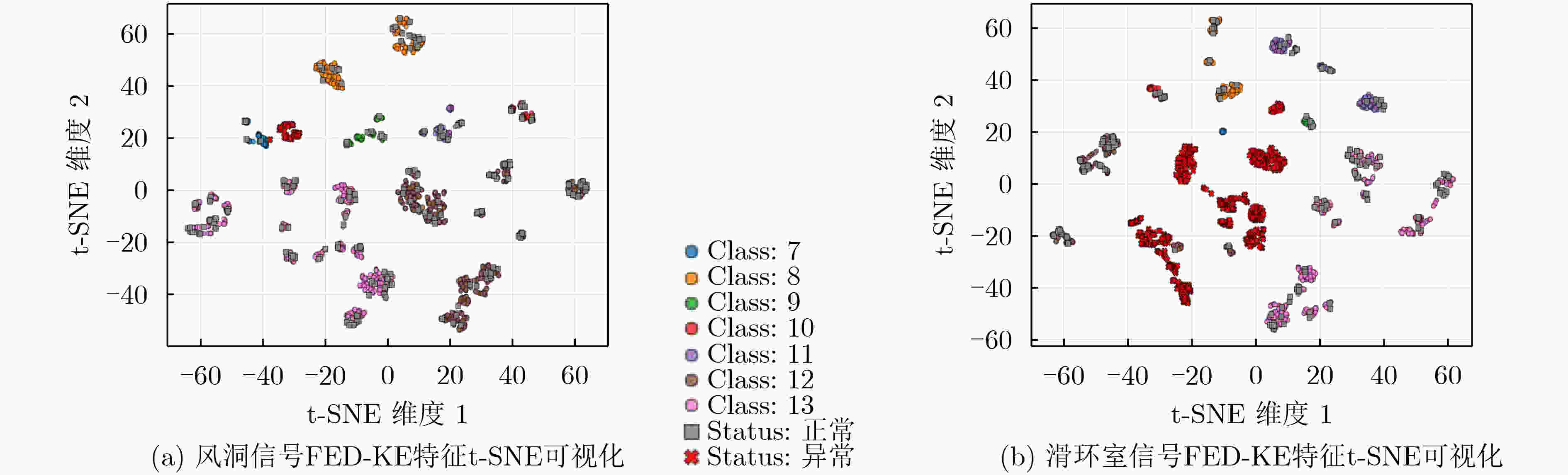

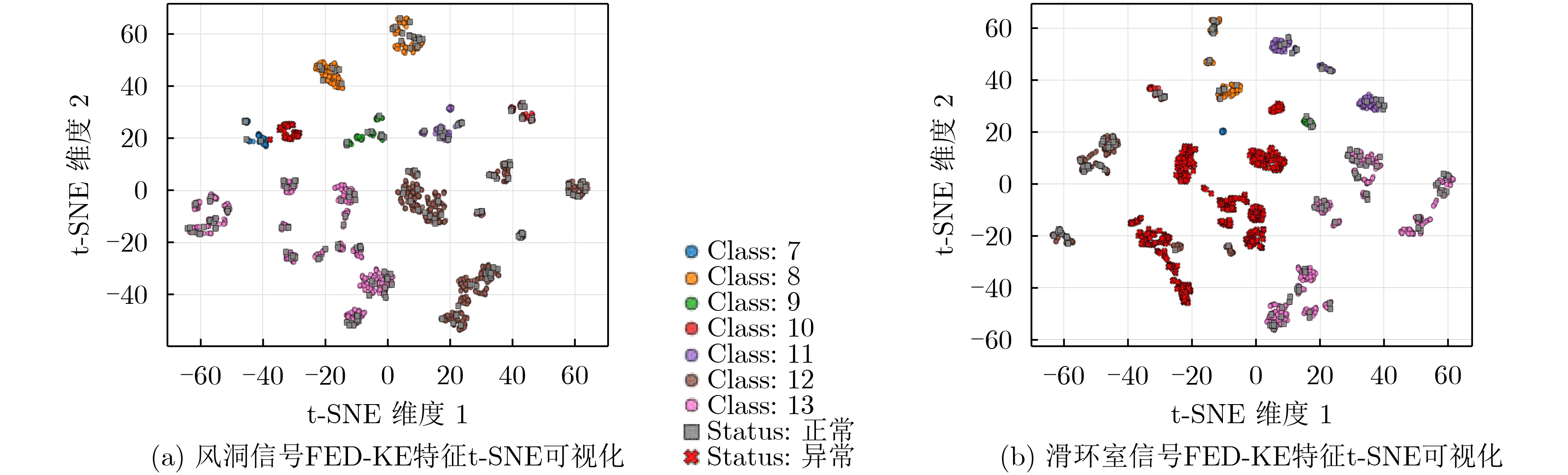

图 8 风洞以及滑环室测试样本FED-KE特征的正常信号与异常信号特征可视化图

下载: 全尺寸图片幻灯片

表 1 风洞、滑环室、上导轴承、水车室、蜗壳门以及椎管门六种设备的正常以及训练样本

部件	正常样本个数	异常样本个数
风洞	1890	68
滑环室	1386	736
上导轴承	122	-
水车室	2218	-
蜗壳门	1110	-
椎管门	2831	-

下载: 导出CSV

表 2 针对风洞信号测试结果(%) (“/”分别表示风洞 / 滑环室)

	算法	AUC	pAUC	Accuracy	Recall	F1-score	Precision	Hmean
信号处理类	MFCC	92.3 / 79.8	89.8 / 72.7	94.5 / 53.8	85.3 / 45.2	89.2 / 62.2	93.6 / 99.7	90.6 / 64.4
信号处理类	WPD	90.3 / 96.0	83.4 / 89.2	90.3 / 89.7	69.1 / 89.1	79.0 / 93.6	92.2 / 98.5	83.2 / 92.5
重构误差类	AE	72.3 / 57.0	51.3 / 48.3	77.9 / 69.6	95.6 / 99.3	81.3 / 76.6	70.7 / 62.3	72.2 / 65.4
监督学习类	IEFNet-B	99.2 / 97.4	95.6 / 86.1	98.5 / 97.2	100.0 / 98.7	82.4 / 96.1	70.0 / 93.6	89.4 / 94.7
	AlexNet	81.9 / 71.5	47.4 / 56.0	77.6 / 66.2	100.0 / 94.6	24.1 / 66.0	13.7 / 50.7	35.2 / 64.9
	ResNet34	98.6 / 97.0	92.8 / 84.3	96.9 / 97.7	100.0 / 100.0	70.0 / 96.7	53.9 / 93.7	81.0 / 94.6
	Xception	90.4 / 84.8	61.1 / 65.7	84.2 / 78.9	100.0 / 100.0	31.1 / 76.7	18.4 / 62.2	44.2 / 76.1
	1D ResNet18	94.9 / 98.4	73.4 / 91.3	93.9 / 96.7	100.0 / 98.7	53.9 / 95.4	36.8 / 92.4	66.3 / 95.4
深度特征提取	1D ResNet18	95.7 / 96.4	91.7 / 91.9	94.6 / 87.4	85.3 / 85.9	89.2 / 92.0	93.6 / 99.1	91.5 / 91.9
预训练音频大模型	BEATs	99.0 / 99.2	95.3 / 97.0	94.9 / 97.0	94.1 / 97.3	90.8 / 98.2	87.7 / 99.2	93.5 / 98.0
预训练音频大模型	FED-KE	99.9 / 100.0	99.8 / 100.0	98.8 / 99.8	100.0 / 99.7	97.8 / 99.9	95.8 / 100.0	98.7 / 99.9

下载: 导出CSV

表 3 风洞与滑环室信号在不同信噪比及混响环境下测试结果(%) (“/”分别表示风洞 / 滑环室)

RT60/s	SNR/dB	AUC	pAUC	Accuracy	Recall	F1-score	Precision	Hmean
0.2	-	99.0 / 100.0	95.9 / 100.0	96.5 / 99.4	94.1 / 99.3	93.4 / 99.7	92.8 / 100.0	95.2 / 99.7
0.5	-	96.8 / 99.7	94.2 / 98.6	94.9 / 98.9	91.2 / 99.3	90.5 / 99.3	89.9 / 99.3	92.8 / 99.2
0.8	-	99.2 / 99.6	97.8 / 97.74	98.4 / 99.0	94.1 / 99.1	97.0 / 99.4	100.0 / 99.7	97.7 / 99.1
-	0	90.7 / 93.7	80.6 / 86.5	88.3 / 77.6	77.9 / 73.6	77.9 / 84.7	77.9 / 99.6	81.9 / 85.0
-	10	96.8 / 99.0	89.9 / 96.6	92.6 / 93.8	88.2 / 93.2	86.3 / 96.2	84.5 / 99.4	89.5 / 96.3
-	20	96.6 / 98.9	94.8 / 96.6	96.5 / 94.6	91.2 / 94.4	93.2 / 96.7	95.4 / 99.1	94.6 / 96.7

下载: 导出CSV

表 4 针对风洞与滑环室信号在额外四类正常信号、ASP层以及密度k-NN消融实验的测试结果(%) (“/”分别表示风洞 / 滑环室)

四类数据	ASP	密度k-NN	AUC	pAUC	Accuracy	Recall	F1-score	Precision	Hmean
×	√	√	98.5 / 99.9	97.3 / 99.9	96.9 / 99.3	95.6 / 99.2	94.2 / 99.6	92.9 / 100.0	95.8 / 99.6
√	×	√	98.6 / 99.9	97.9 / 99.9	98.4 / 99.6	94.1 / 99.6	96.9 / 99.8	100.0 / 100.0	97.6 / 99.8
√	√	×	99.9 / 99.2	99.4 / 96.4	97.7 / 96.9	100.0 / 97.3	95.8 / 98.1	91.9 / 99.0	97.4 / 97.8
√	√	√	99.9 / 100.0	99.8 / 100.0	98.8 / 99.8	100.0 / 99.7	97.8 / 99.9	95.8 / 100.0	98.7 / 99.9

下载: 导出CSV
