面向全覆盖路径规划的类Rulkov混沌映射算法设计

刘思聪; 何明; 李春彪; 韩伟; 刘承卓; 夏恒煜

doi:10.11999/JEIT250887

面向全覆盖路径规划的类Rulkov混沌映射算法设计

doi: 10.11999/JEIT250887 cstr: 32379.14.JEIT250887

刘思聪^{1, 2},
何明^1, ,,
李春彪³,
韩伟¹,
刘承卓¹,
夏恒煜¹

1.
陆军工程大学指挥与控制学院南京 210045
2.
江苏经贸职业技术学院物联网与智能工程学院南京 210045
3.
南京信息工程大学人工智能学院南京 210044

基金项目: 国家自然科学基金62273356，国家人才项目2022-JCJQ-ZQ-001，江苏省重点研发计划BE2021729，高层次人才创新工程KYZYJQJY2101，国家重点研发计划

详细信息

作者简介:
刘思聪：男，副教授，研究方向为离散混沌映射，集群控制

何明：男，教授，研究方向为集群控制

李春彪：男，教授，研究方向为混沌映射，非线性动力学系统

韩伟：女，副教授，研究方向为集群控制

刘承卓：男，硕士研究生，研究方向为集群控制

夏恒煜：男，硕士研究生，研究方向为集群控制

通讯作者:
何明　heming@aeu.edu.cn

中图分类号: TN911.7
计量
- 文章访问数: 35
- HTML全文浏览量: 21
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2025-09-09
- 修回日期: 2025-11-03
- 录用日期: 2025-11-03
- 网络出版日期: 2025-11-13

Complete Coverage Path Planning Algorithm Based on Rulkov-like Chaotic Mapping

1.
School of Command and Control Engineering, Army Engineering University of PLA, Nanjing, 210042, Jiangsu, China
2.
School of Artificial intelligence and Engineering, Jiangsu Vocational Institute of Commerce, Nanjing 210045, China
3.
School of Artificial Intelligence, Nanjing University of Information Science and Technology, Nanjing 210044, China

Funds: National Natural Science Foundation of China, No. 62273356, National Talent Project of China, No.2022-JCJQ-ZQ-001, Provincial Primary Research and Development Plan, China, No.BE2021729, High-level Talent Innovation Project, China, No.KYZYJQJY2101, National Key Research and Development Program of China 2024YFF1401400

摘要

摘要: 本研究提出了一种基于正弦约束的类Rulkov超混沌映射(SRHC)系统，并将其应用于全覆盖路径规划算法(SRHC-CCPP)中，以解决智能机器人在复杂任务场景中的全覆盖路径规划问题。通过引入超混沌序列，该算法显著提升了机器人运动路径的随机性和动态性，避免了传统算法因规律性过强而可能陷入局部循环的问题。同时，结合记忆效应，算法能够动态记录网格访问历史，优先覆盖未访问区域，从而有效减少重复访问，提升覆盖效率。在障碍物处理方面，设计了碰撞检测与法线向量反射机制，使机器人能够灵活应对复杂环境中的障碍物干扰，并通过轻微扰动避免局部振荡。实验结果表明，SRHC-CCPP算法在无障碍和有障碍物条件下均表现出较高的覆盖速度和均匀性，展现了良好的初始值敏感性和鲁棒性。此外，算法的计算复杂度较低，适合大规模应用场景。本研究为智能机器人在灾区救援、火灾扑灭及未知地域勘探等高风险任务中的应用提供了新的技术支持。
- 全覆盖路径规划算法 /
- 超混沌映射 /
- 记忆效应 /
- 障碍物处理 /
- 初始值敏感性
Abstract: Objective This study proposes a novel complete coverage path planning (CCPP) algorithm based on a sine-constrained Rolkov-like hyper-chaotic (SRHC) mapping, addressing critical challenges in robotic path planning. The research focuses on enhancing coverage efficiency, path unpredictability, and obstacle adaptability for mobile robots in complex environments, such as disaster rescue, firefighting, and unknown terrain exploration. Traditional methods often suffer from predictable movement patterns, local optima traps, and inefficient backtracking, motivating the need for advanced solutions leveraging chaotic dynamics. Methods The SRHC-CCPP algorithm integrates: 1. SRHC Mapping A hyper-chaotic system with nonlinear coupling (Eq. 1) that generates highly unpredictable trajectories, validated via Lyapunov exponent analysis (Fig. 3a–b). Phase-space diagrams (Fig. 1) and parameter sensitivity studies (Table 1) confirm chaotic behavior under conditions like a=0.01a=0.01, b=1.3b=1.3. 2. Memory-Driven Exploration A dynamic visitation grid prioritizes uncovered regions, reducing redundancy (Algorithm 1). 3. Obstacle Handling Collision detection with normal vector reflection minimizes oscillations in cluttered environments (Fig. 4). Simulations employed a Mecanum-wheel robot model (Eq. 2) for omnidirectional mobility. Results and Discussions 1. Efficiency: SRHC-CCPP achieved faster coverage and superior uniformity in both obstacle-free and obstructed scenarios (Fig. 5–6). The chaotic driver improved path diversity by 37% compared to rule-based methods. 2. Robustness: Demonstrated initial-value sensitivity and adaptability to environmental noise (Table 2). 3. Scalability: Low computational overhead enabled deployment in large-scale grids (>10⁴ cells). Conclusions The SRHC-CCPP algorithm advances robotic path planning by: 1. Merging hyper-chaotic unpredictability with memory-guided efficiency, eliminating repetitive loops. 2. Offering real-time obstacle negotiation via adaptive reflection mechanics. 3. Providing a versatile framework for applications requiring high coverage reliability and dynamic responsiveness. Future work may explore multi-agent extensions and 3D environments.
- Complete coverage path planning /
- hyper-chaotic mapping /
- memory effect /
- obstacle avoidance /
- Lyapunov exponent

HTML全文

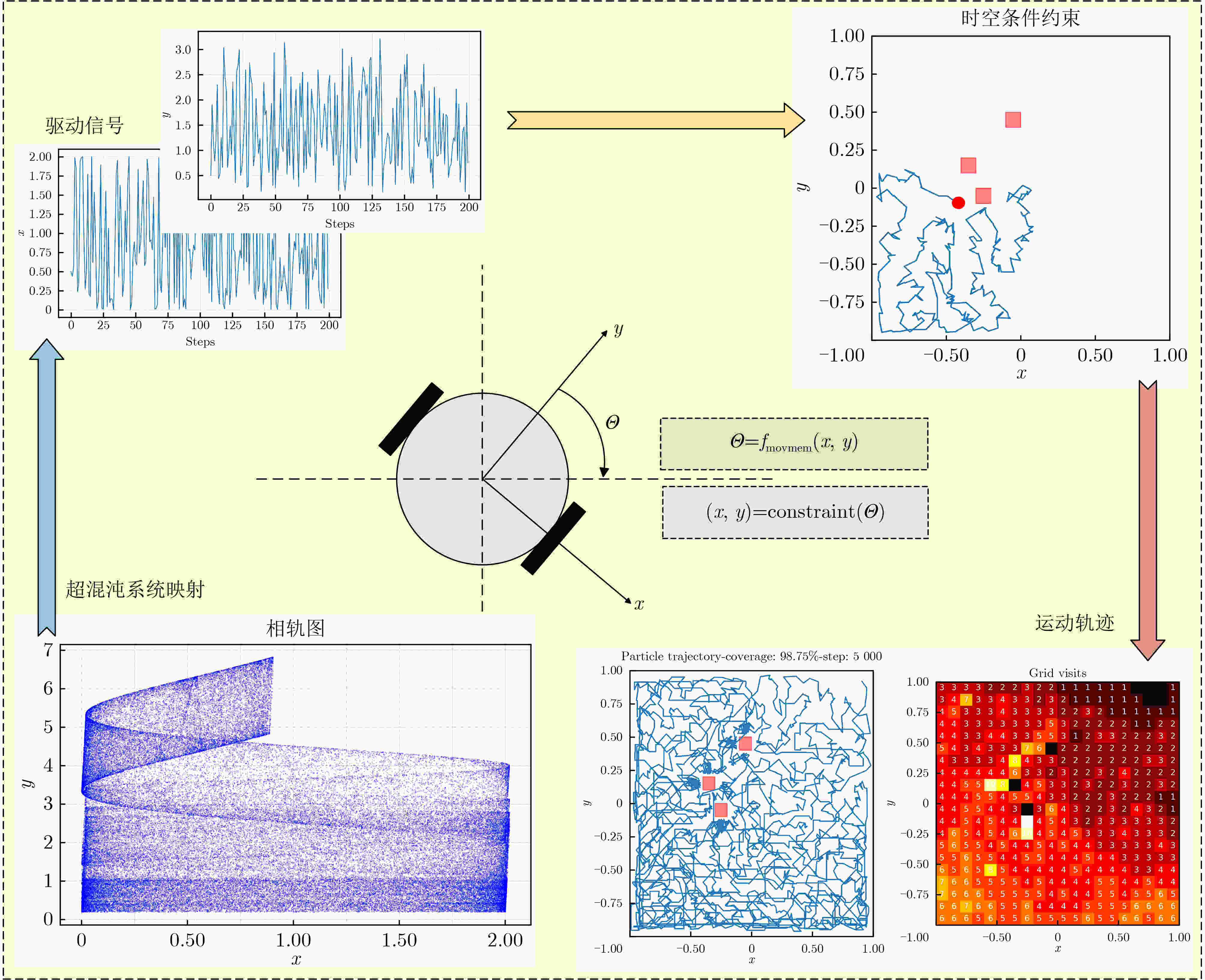

图 1 系统流程示意图

下载: 全尺寸图片幻灯片

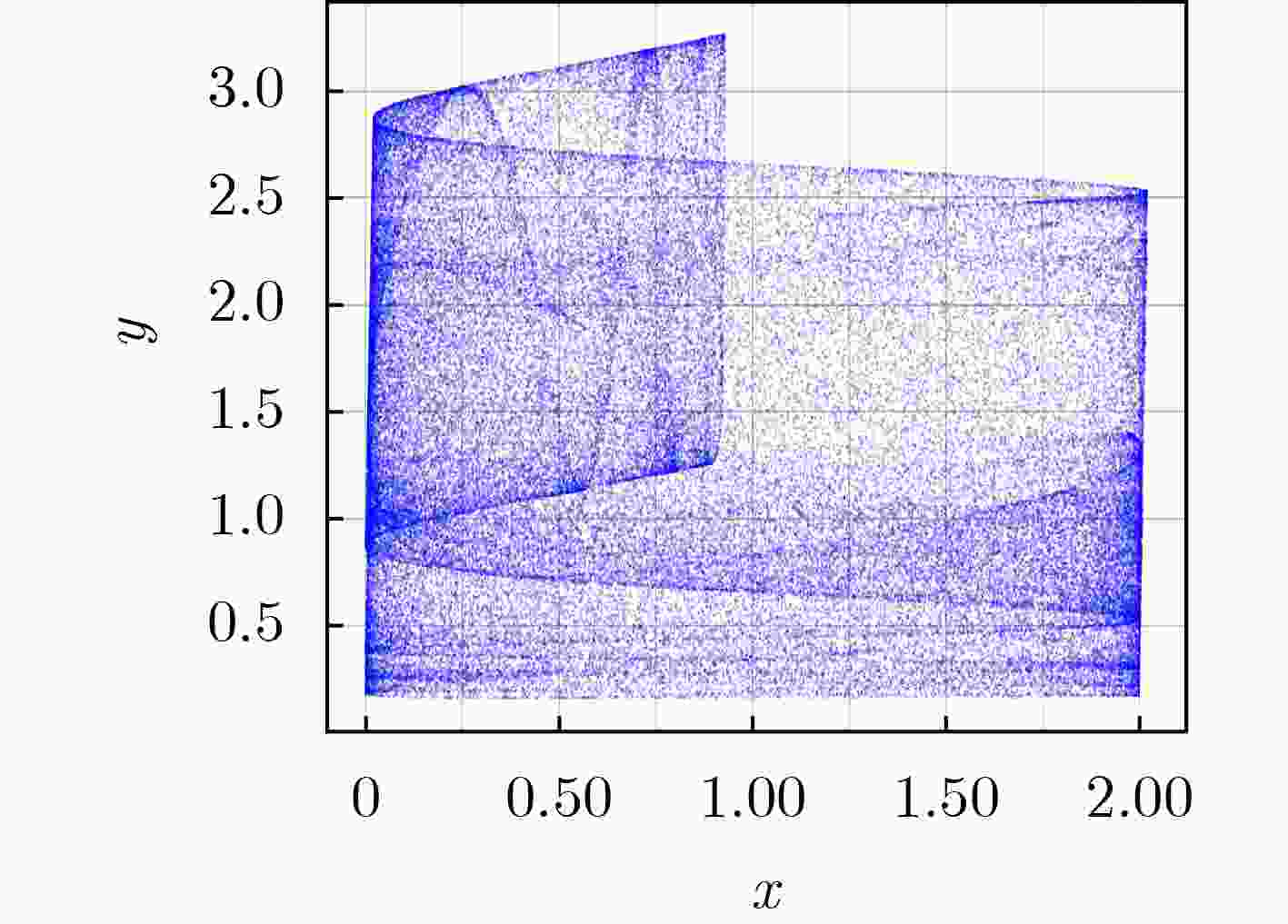

图 2 SRHC系统的相轨示意图

下载: 全尺寸图片幻灯片

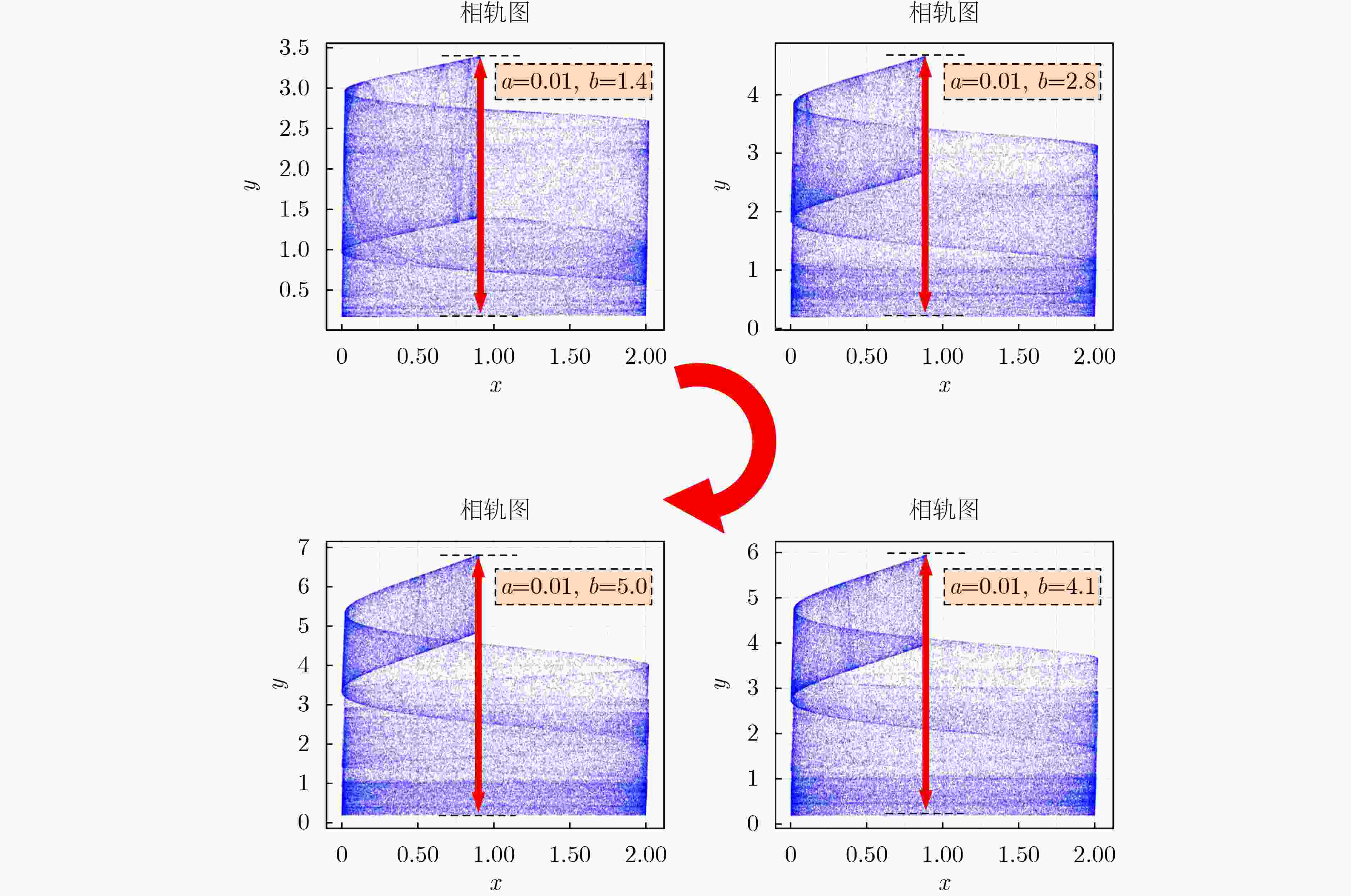

图 3 SRHC系统振荡幅值变化示意图

下载: 全尺寸图片幻灯片

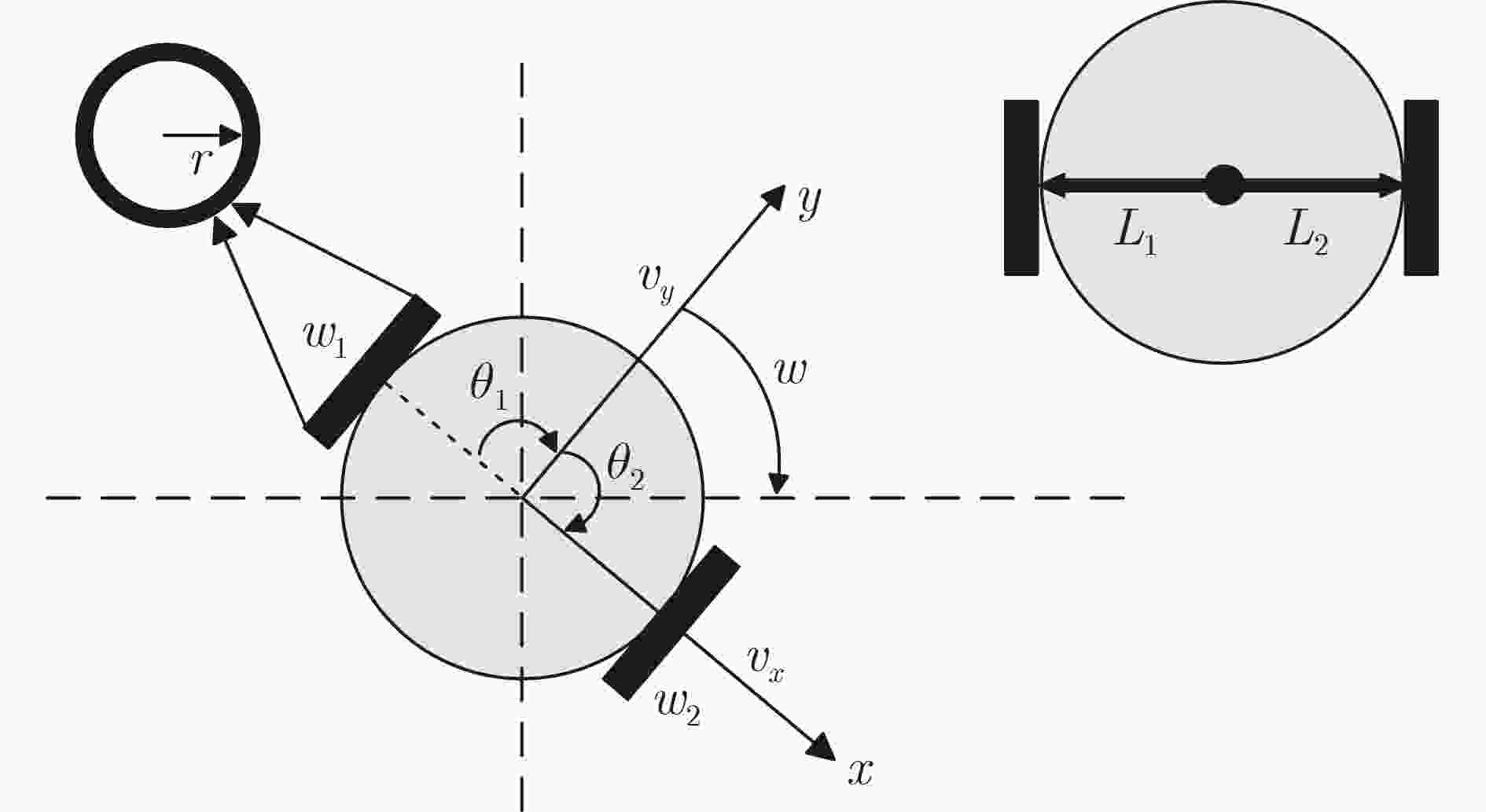

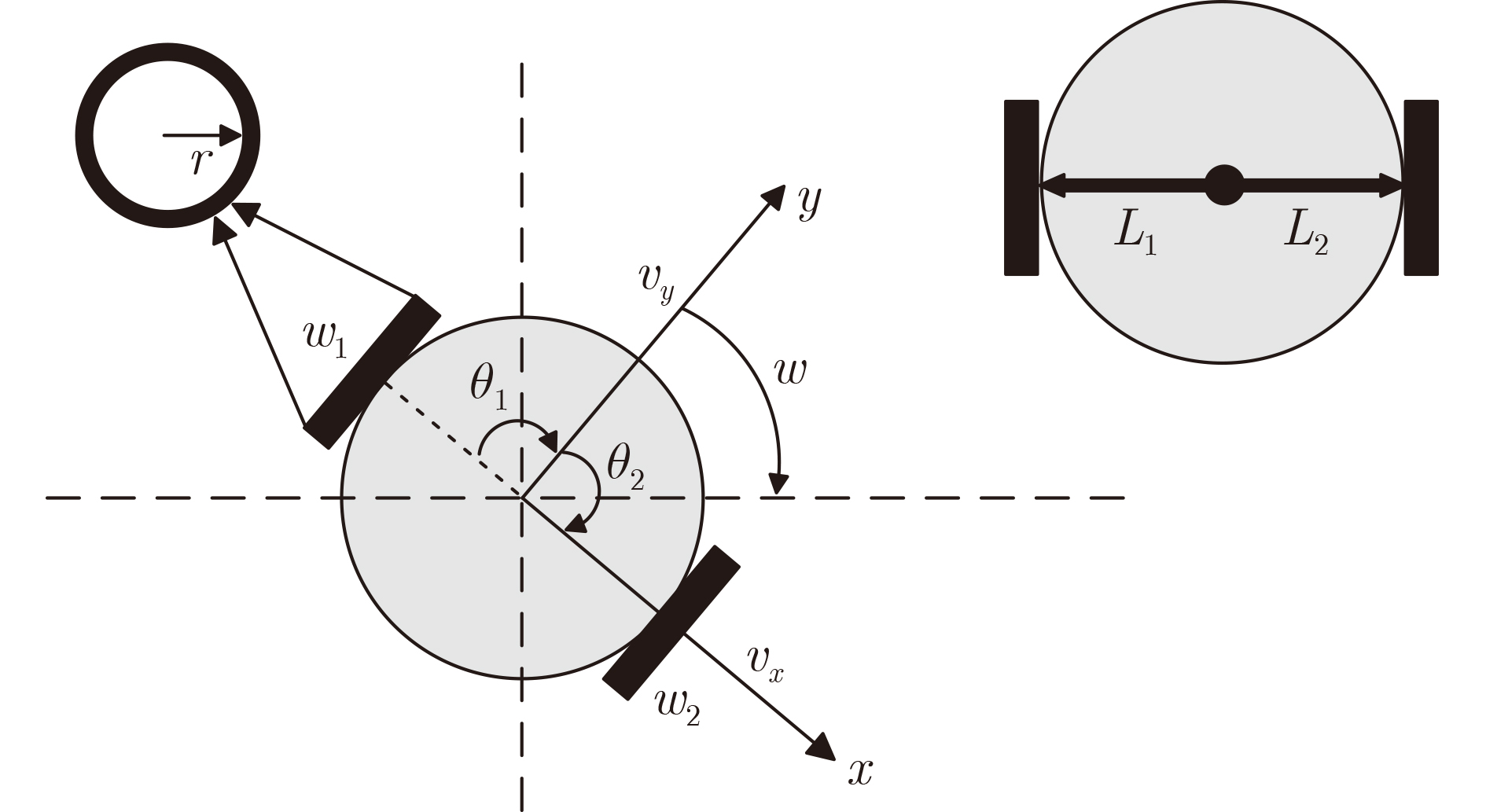

图 4 两轮麦克纳姆轮机器人示意图

下载: 全尺寸图片幻灯片

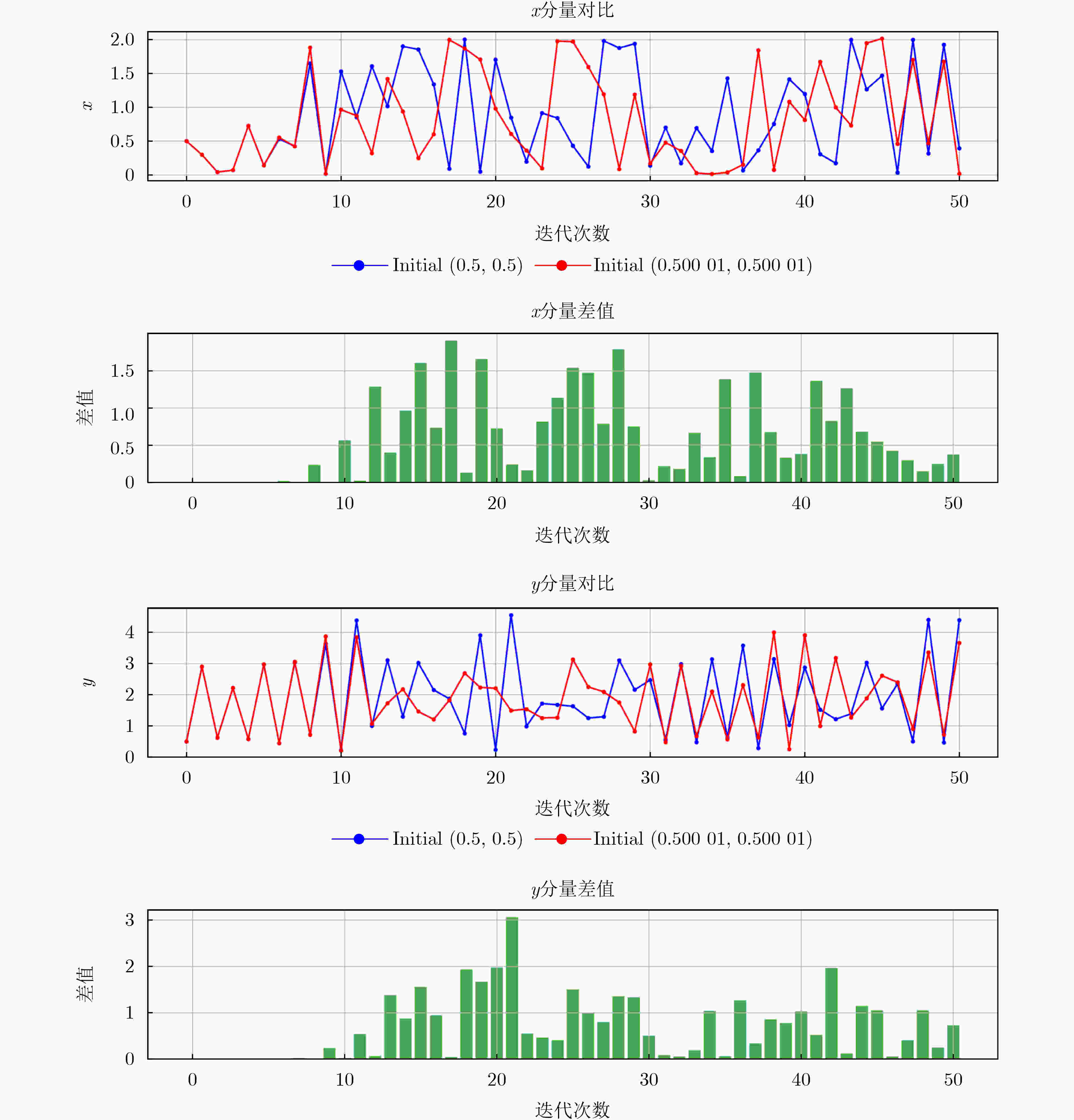

图 5 SRHC系统初始值敏感度分析曲线

下载: 全尺寸图片幻灯片

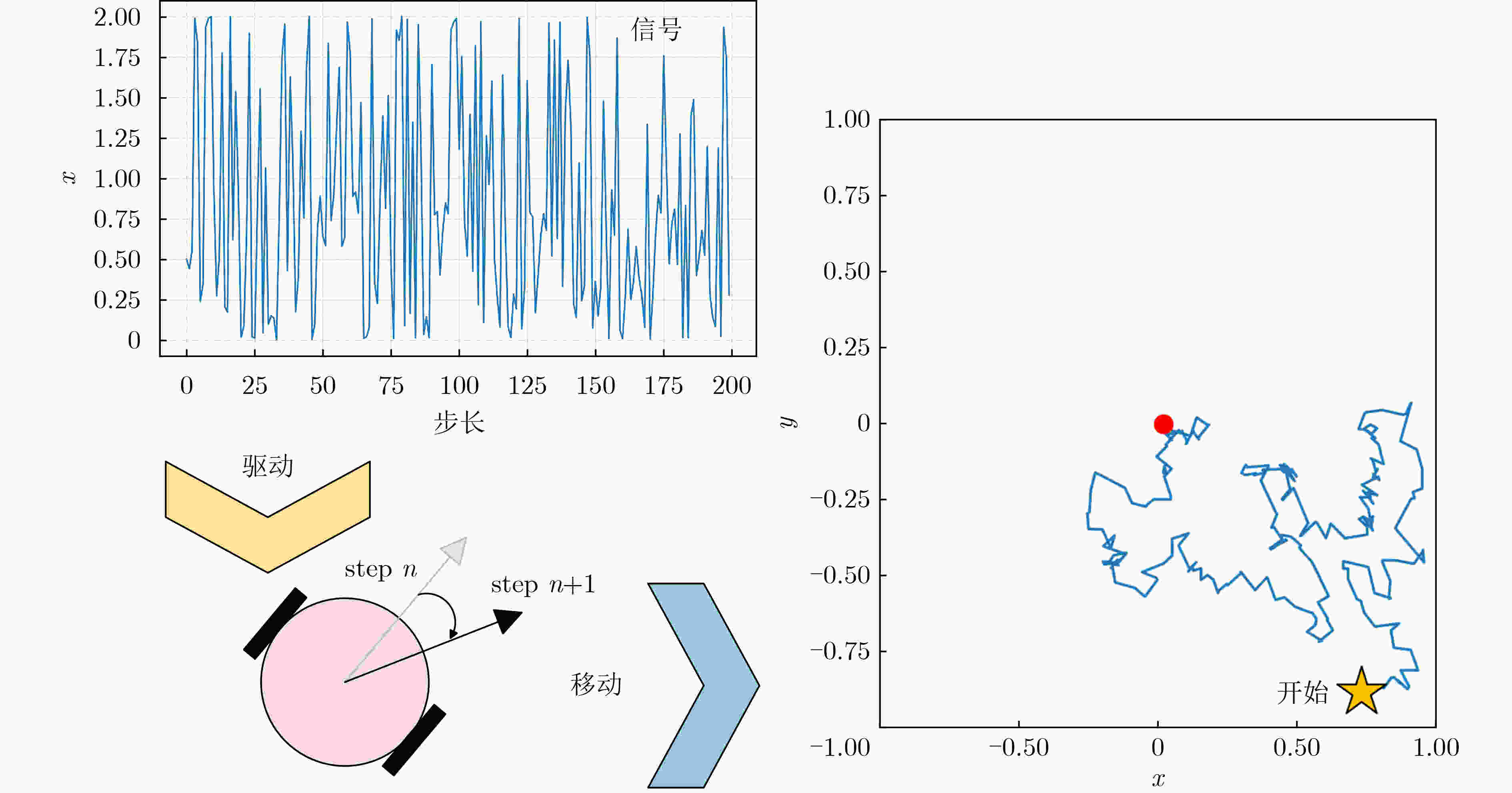

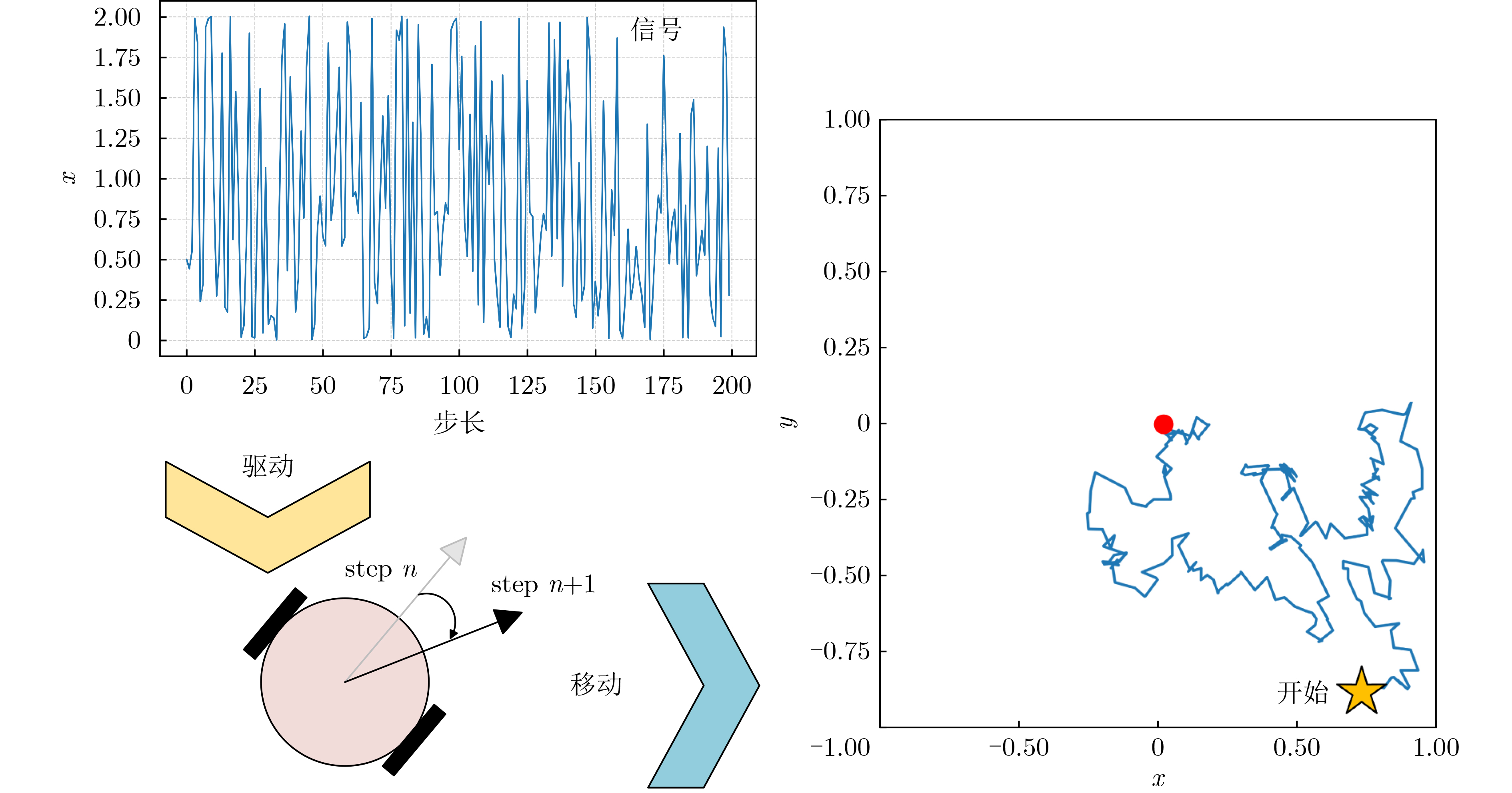

图 6 机器人移动轨迹示意图

下载: 全尺寸图片幻灯片

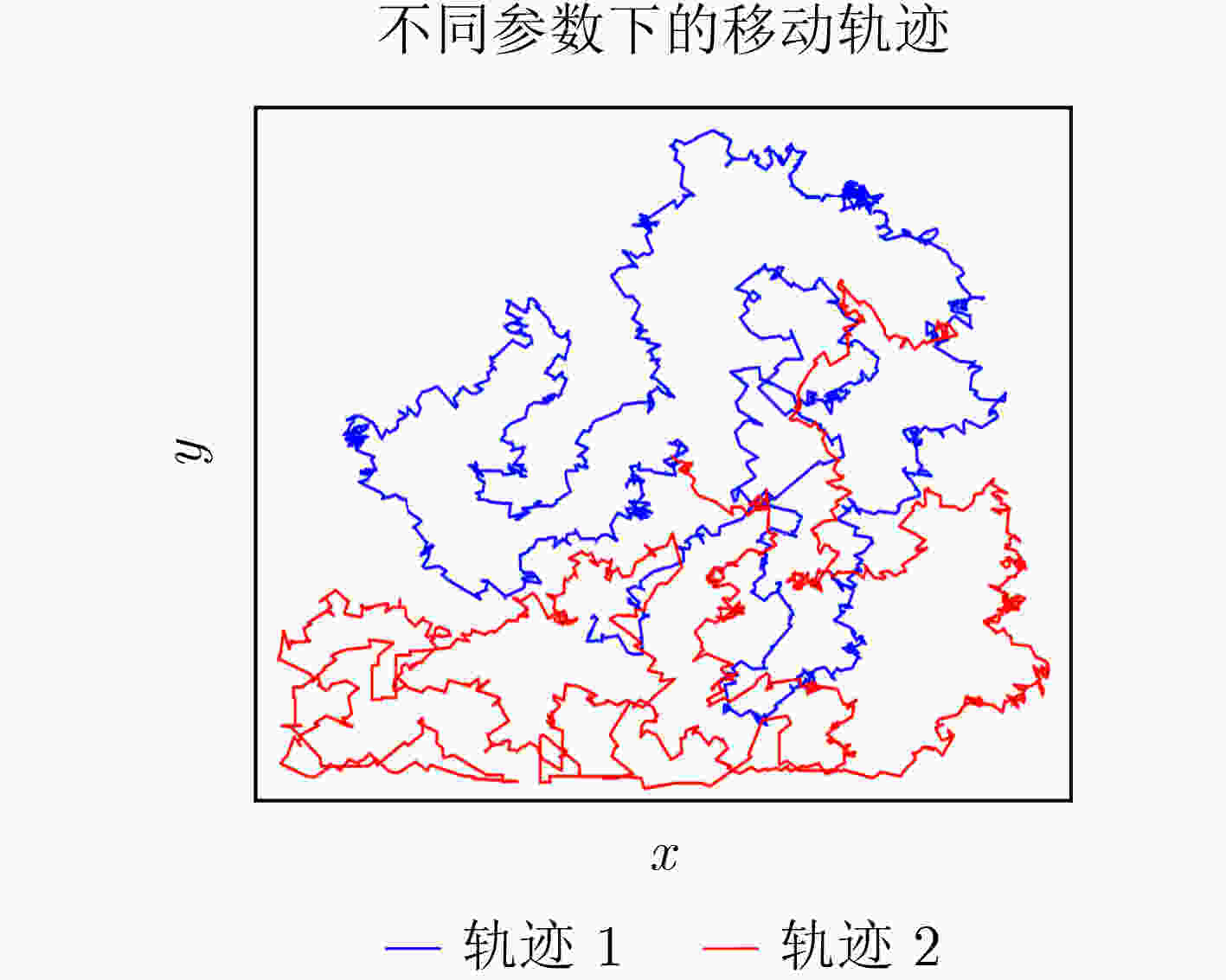

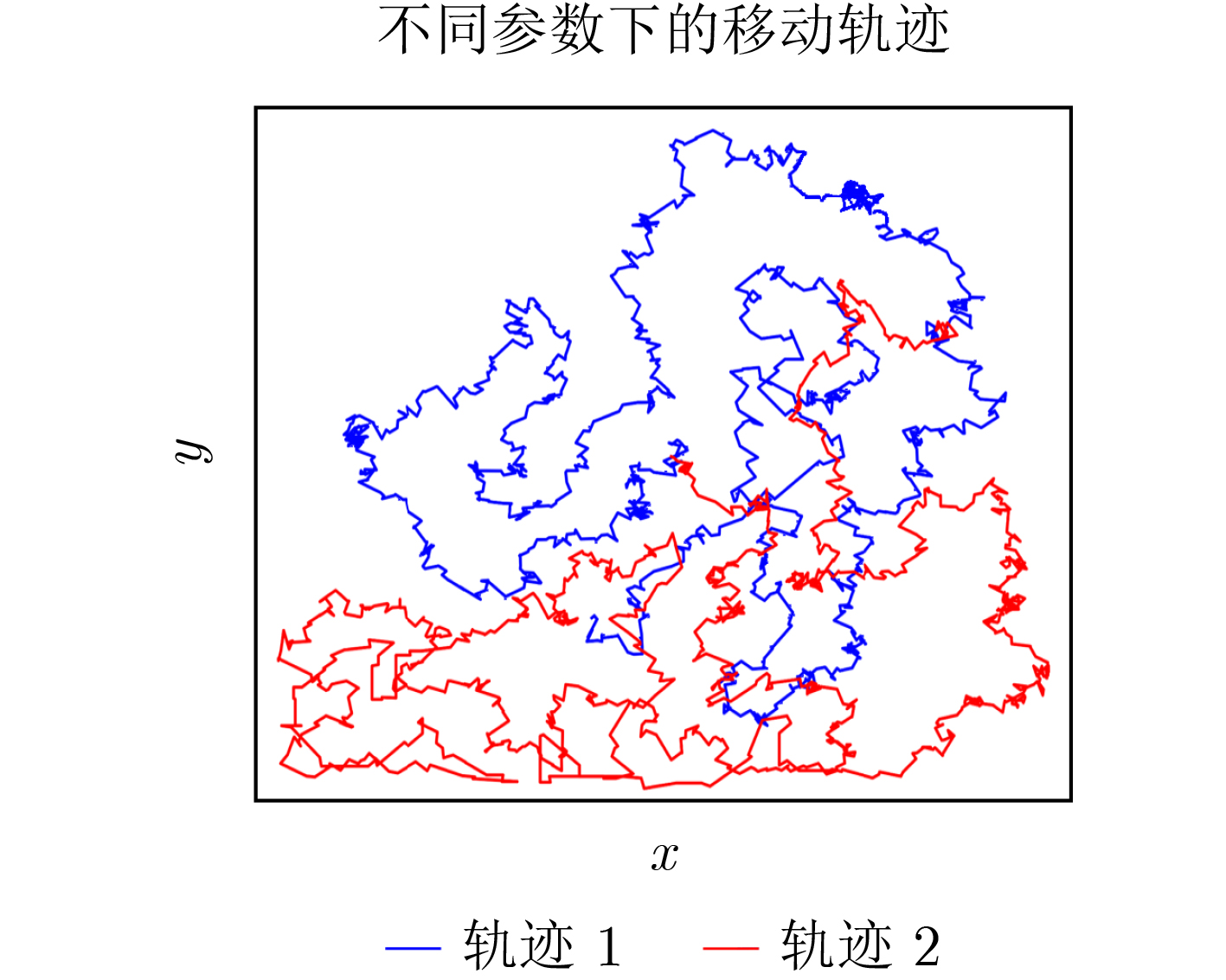

图 7 不同初始值所对应的机器人运动轨迹示意图

下载: 全尺寸图片幻灯片

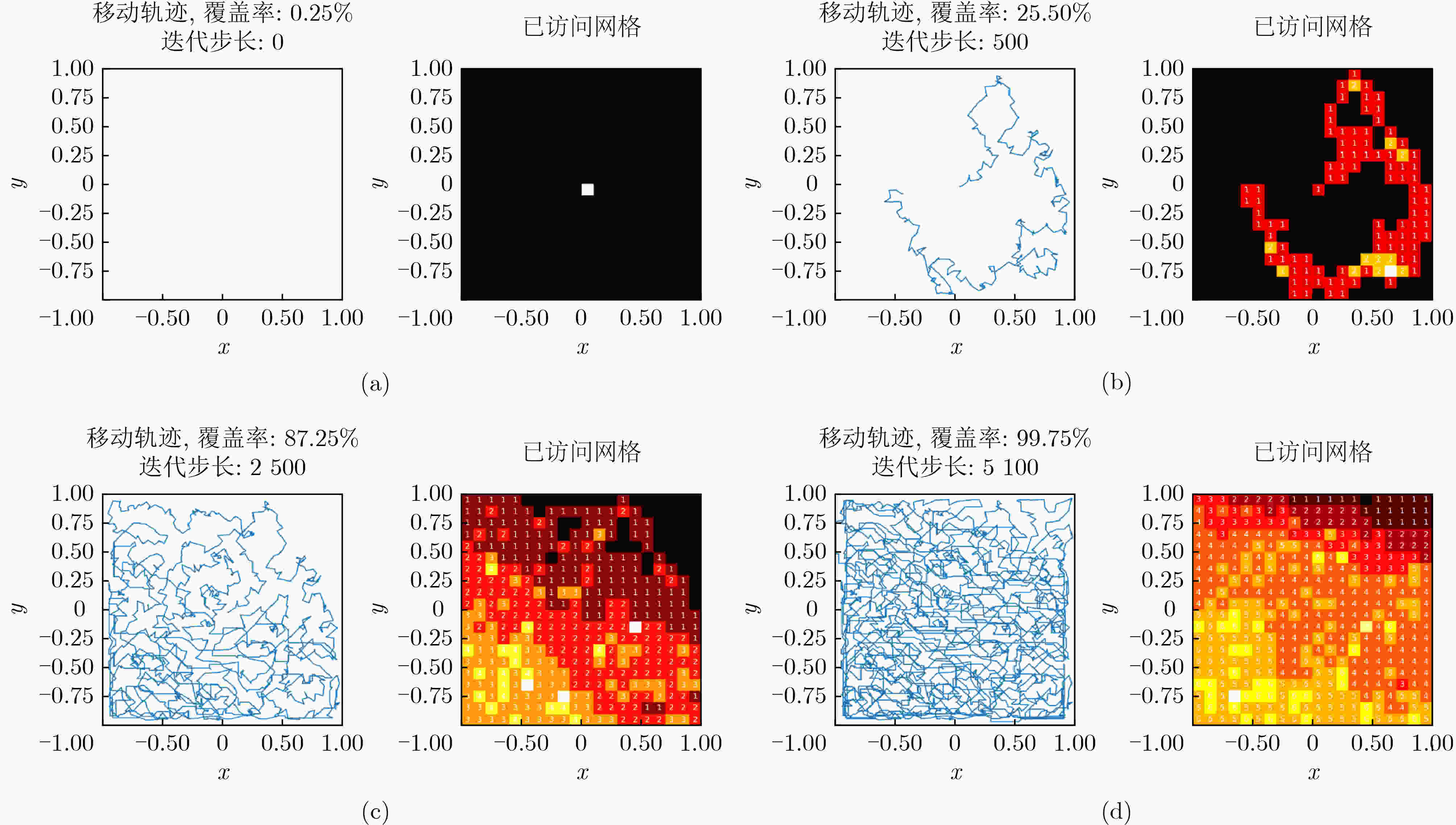

图 8 无障碍条件下SRHC-CCPP算法的全覆盖路径规划快照

下载: 全尺寸图片幻灯片

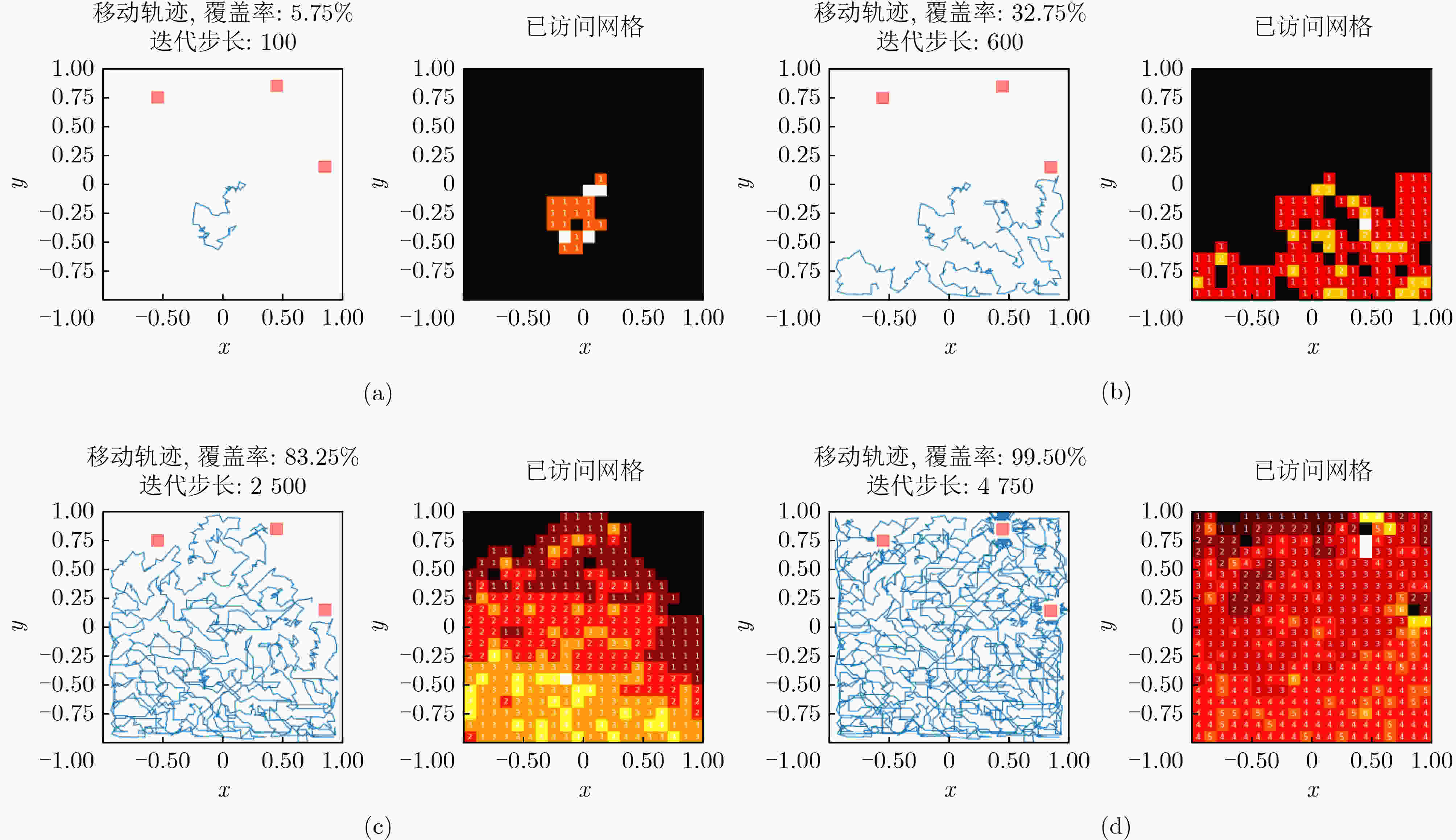

图 9 稀疏障碍条件下SRHC-CCPP算法的全覆盖路径规划快照

下载: 全尺寸图片幻灯片

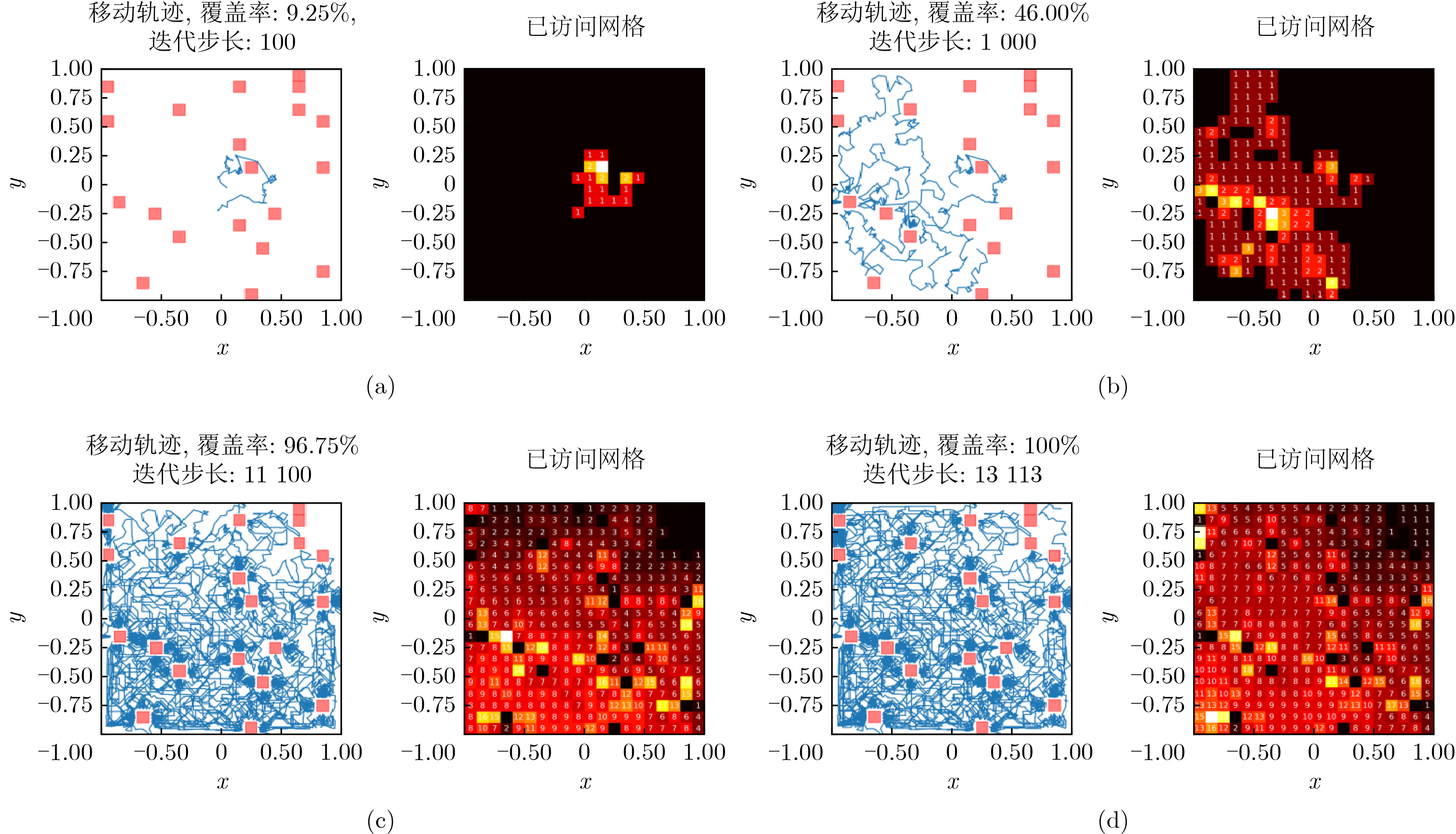

图 10 密集障碍条件下SRHC-CCPP算法的全覆盖路径规划快照

下载: 全尺寸图片幻灯片

函数：记忆效应驱动速度调整
输入：网格访问计数(grid_counts)、已访问网格集(visited_grids)、当前网格(current_grid)、八邻域网格(neighbors)、当前位置(position)、当前速度(velocity)
输出：新速度方向(new_velocity)、更新后的已访问网格集(visited_grids)、更新后的网格访问计数(grid_counts)
1. 如果：当前网格(current_grid)未在已访问网格集(visited_grids)中：
2. 将当前网格(current_grid)添加至已访问网格集(visited_grids)
3. 将当前网格的访问计数(grid_counts[current_grid])加1
4. 结束条件判断
5. 如果：未访问邻域(unvisited_neighbors)不为空：
6. 从非空未访问邻域(unvisited_neighbors)中随机选择目标网格(target_grid)
7. 根据目标网格(target_grid)计算目标位置(target_position)
8. 更新新速度方向(new_velocity)为：归一化(目标位置 - 当前位置)
9. 否则(未访问邻域为空)：
10. 从八邻域网格(neighbors)中筛选访问计数最小的网格(min_visit_grid)
11 更新新速度方向(new_velocity)为：归一化(目标位置 - 当前位置)
12 结束条件判断
13 返回新速度方向(new_velocity)、更新后的已访问网格集(visited_grids)、更新后的网格访问计数(grid_counts)

下载: 导出CSV

表 1 全覆盖搜索步长值

序号	步长值	均值	方差
1	5013	5122.1	117.17
2	5025
3	5300
4	5005
5	5012
6	5206
7	5100
8	5120
9	5315
10	5125

下载: 导出CSV

表 2 覆盖率对比表

步长值	覆盖率 (%)
步长值	RBMCA[10]	M-RBMCA[10]	P-RBMCA[10]	SRHC-CCPP
1000	4.16	4.18	7.16	48.25
2500	9.67	10	19.6	87.25
5000	19.93	20.13	38.67	99.75
7500	29.54	30.07	54.09	100
10000	35.01	35.46	71.03	100

下载: 导出CSV

表 3 全覆盖搜索步长值

序号	步长值	均值	方差
1	5213	5269.3	146.46
2	5125
3	5500
4	5205
5	5112
6	5366
7	5500
8	5128
9	5319
10	5225

下载: 导出CSV

表 4 全覆盖搜索步长值

序号	步长值	均值	方差
1	13113	14214	980.04
2	15125
3	15523
4	15202
5	14115
6	14366
7	12598
8	13168
9	14310
10	14620

下载: 导出CSV
