AutoPenGPT：空间收敛与依赖建模驱动的抗漂移渗透测试

黄炜刚; 付丽嫆; 刘沛宇; 杜林康; 叶童; 夏亦凡; 王文海

doi:10.11999/JEIT250873

AutoPenGPT：空间收敛与依赖建模驱动的抗漂移渗透测试

doi: 10.11999/JEIT250873 cstr: 32379.14.JEIT250873

1.
浙江大学杭州 310000
2.
杭州电子科技大学杭州 310000
3.
西安交通大学西安 710000

基金项目: 国家自然科学基金青年项目(62302443)，国家资助博士后研究人员计划和中国博士后科学基金(BX20230307)，中央高校基本科研业务费专项资金资助(2025ZFJH02)

详细信息

作者简介:
黄炜刚：男，硕士生，研究方向为大语言模型在Web安全领域的应用，代码生成等

付丽嫆：女，副教授，研究方向为智能化漏洞挖掘管理、系统安全、物联网安全等

刘沛宇：男，专职研究员，研究方向为软件与系统安全，大模型与人工智能，工控与物联网安全等

杜林康：男，助理教授，研究方向为数据隐私保护、数据溯源与确权(面向多模态大模型应用场景)等

叶童：男，博士生，研究方向为大语言模型、代码智能、代码生成等

夏亦凡：男，博士生，研究方向为大语言模型在安全领域的应用、软件安全、程序分析等

王文海：男，研究员，研究方向为高端控制装备、工业互联网安全、数字孪生建模平台等

通讯作者:
刘沛宇　liupeiyu@zju.edu.cn

中图分类号: TP399
计量
- 文章访问数: 27
- HTML全文浏览量: 16
- PDF下载量: 1
- 被引次数: 0
出版历程
- 修回日期: 2025-12-31
- 录用日期: 2025-12-31
- 网络出版日期: 2026-01-15

AutoPenGPT: Drift-Resistant Penetration Testing Driven by Search-Space Convergence and Dependency Modeling

1.
Zhejiang University, Hangzhou 310000, China
2.
Hangzhou Dianzi University, Hangzhou 310000, China
3.
Xi’an Jiaotong University, Xi’an 710000, China

Funds: The National Natural Science Foundation of China(62302443), The Postdoctoral Fellowship Program and China Postdoctoral Science Foundation(BX20230307), The Fundamental Research Funds for the Central Universities (2025ZFJH02)

摘要

摘要: 随着工业互联网的发展，Web管理平台与工业路由器等边界组件被广泛配置为可达生产内网，显著扩大了工业控制系统的攻击面。针对这一风险，渗透测试已成为保障工控系统安全的重要手段。近年来，部分研究尝试引入大语言模型(LLMs)以实现智能化渗透测试，进而降低人力消耗。然而，工控安全测试任务空间庞大且利用链条复杂，同时测试过程容错空间有限、语义约束严格，现有系统在此类场景下易出现“策略漂移”和“意图漂移”问题，导致无法有效完成测试任务。为此，本文提出了一种智能化 Web 漏洞测试与利用系统 AutoPenGPT。该系统通过引入与测试目标一致的上下文约束，引导LLMs收敛测试空间，以缓解复杂任务场景下的策略漂移问题；同时，AutoPenGPT 基于语义分析从反馈数据中提取并组织关键信息，对多步骤漏洞利用过程进行依赖建模，从而降低意图漂移对测试连贯性的影响。针对工控系统测试任务参数复杂且上下文动态变化的特点，系统进一步设计了高灵活性的半结构化提示词框架，以支持不同测试场景下的语义对齐与任务适配，最终实现与用户需求一致的自动化漏洞检测与利用。实验结果显示，AutoPenGPT在CTF测试集中漏洞类型探测准确率达97.62%，需求完成率为80.95%；在多个工控、通用Web平台的脆弱性测试中达到约70%的需求完成率，并成功发现7个未披露漏洞，其中已有两个漏洞获得CVE和CNVD编号，验证了其在真实场景下的实用性。
- 大语言模型 /
- 智能化渗透测试 /
- Web应用 /
- 工业控制系统安全
Abstract: Objective Industrial Control Systems (ICS) are widely deployed in critical sectors and often remain exposed to long-standing vulnerabilities due to strict availability requirements and limited patching opportunities. The increasing exposure of externally facing management and access infrastructure has significantly expanded the attack surface, enabling attackers to pivot from boundary components into fragile production networks. Continuous penetration testing of such exposed components is therefore essential but remains costly and difficult to scale when relying on manual efforts. Recent work explores Large Language Models (LLMs) for automated penetration testing; however, existing systems often suffer from strategy drift and intention drift, leading to incoherent testing behaviors and ineffective exploitation chains. Methods To address these challenges, we propose AutoPenGPT, an intelligent multi-agent framework for automated Web security testing. AutoPenGPT introduces an adaptive exploration-space convergence mechanism that predicts potential vulnerability types from target semantics and constrains LLM-driven testing via a dynamically updated payload knowledge base. To mitigate intention drift in multi-step exploitation, we further design a dependency-driven strategy generation mechanism that semantically rewrites historical feedback, models step dependencies, and produces coherent, executable testing strategies in a closed-loop manner. In addition, a semi-structured prompt embedding framework is developed to support heterogeneous penetration testing tasks while preserving semantic integrity. Results and Discussions We evaluate AutoPenGPT on both CTF benchmarks and real-world ICS and web platforms. On CTF test sets, AutoPenGPT achieves 97.62% vulnerability type detection accuracy and 80.95% requirement completion rate, outperforming state-of-the-art tools by a significant margin. In real-world environments, it reaches approximately 70% requirement completion and uncovers six previously undisclosed vulnerabilities, demonstrating practical effectiveness. Conclusions The contributions are threefold: (1) We identify and systematically address strategy drift and intention drift in LLM-driven penetration testing, and propose adaptive exploration and dependency-aware strategy mechanisms to stabilize long-horizon testing behaviors. (2) We design and implement AutoPenGPT, a multi-agent penetration testing system that integrates semantic vulnerability prediction, closed-loop strategy generation, and semi-structured prompt embedding. (3) We demonstrate the effectiveness and practicality of AutoPenGPT through extensive evaluation on CTF and real-world ICS and web platforms, including the discovery of previously unknown vulnerabilities.
- Large Language Models /
- Intelligent Penetration Testing /
- Web Applications /
- Industrial Control System Security

HTML全文

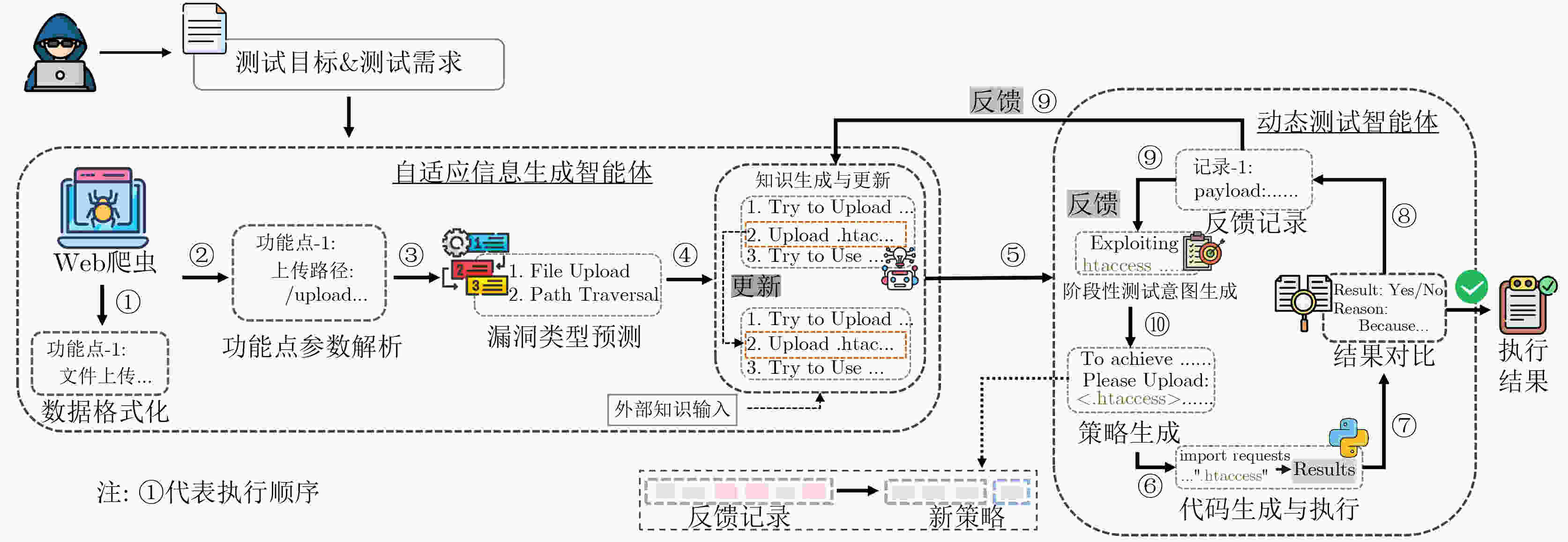

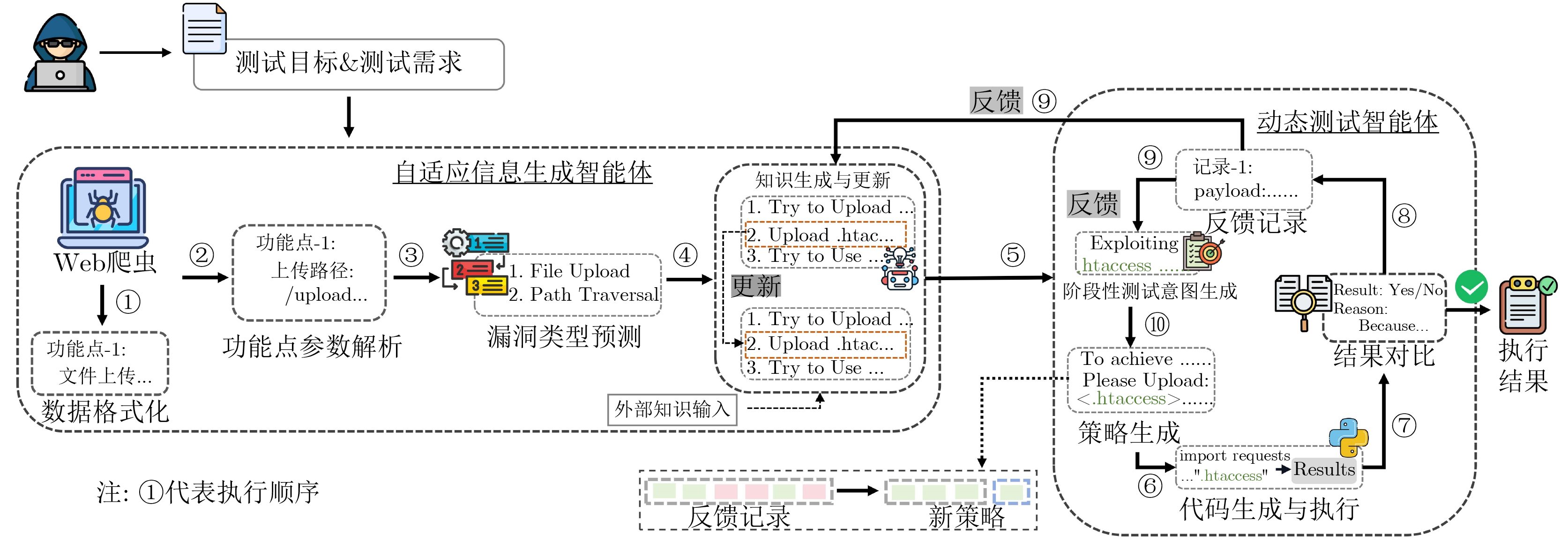

图 1 AutoPenGPT框架

下载: 全尺寸图片幻灯片

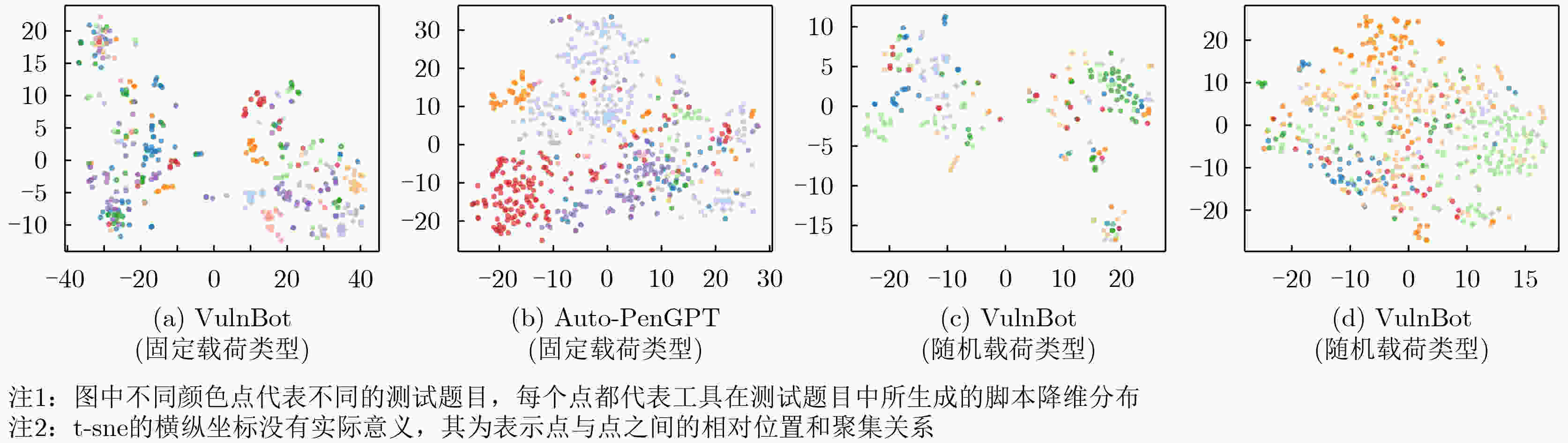

图 2 t-sne对比图

下载: 全尺寸图片幻灯片

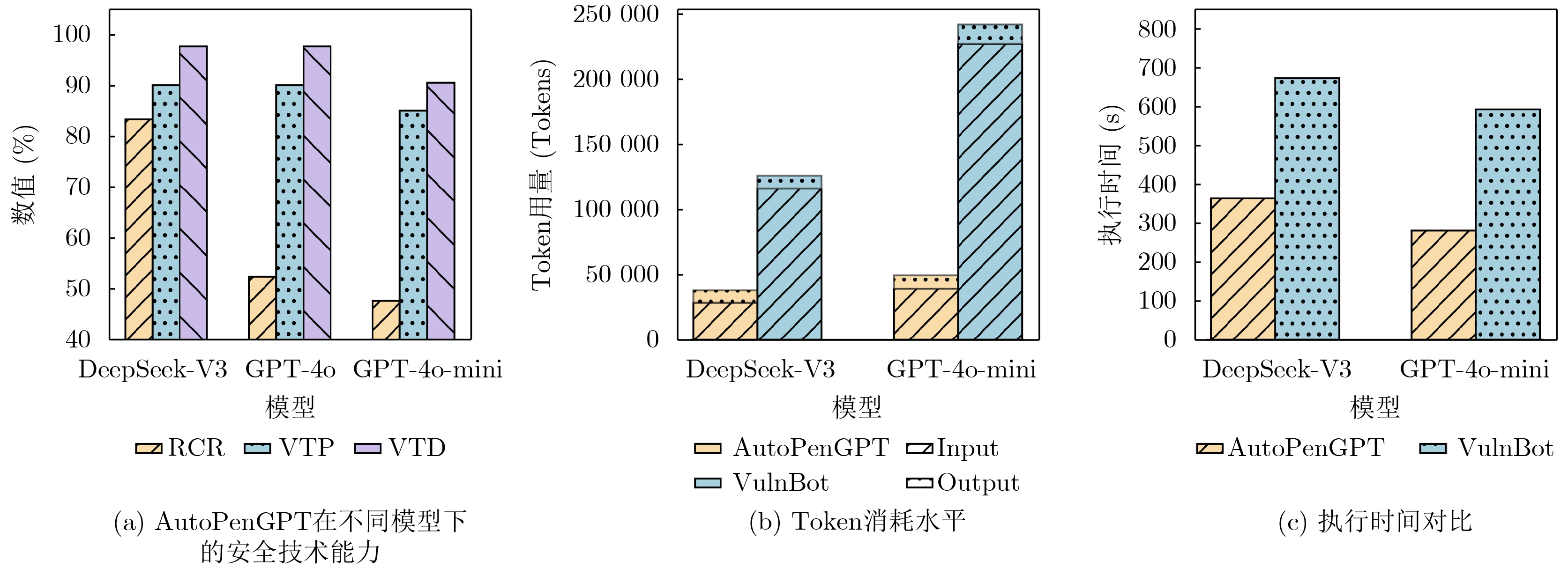

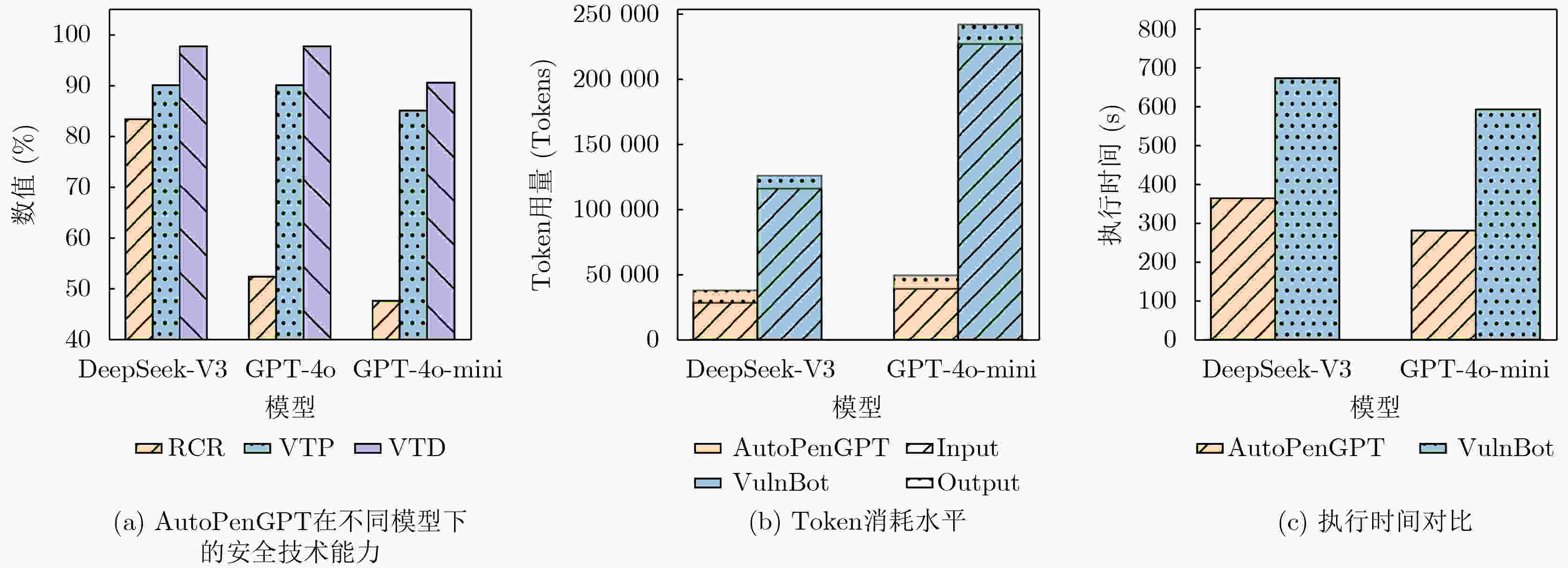

图 3 不同模型下工具性能对比图

下载: 全尺寸图片幻灯片

表 1 各方法在不同模型下的CTF测试集漏洞探测能力(%)其中①代表AutoPenGPT、②代表PentestGPT③代表VulnBot、④代表YuraScan。DV-3代表DeepSeek-V3、4o-m代表GPT-4o-mini。

模型	方法	注入			权限			文件处理			信息泄露			全部类型
模型	方法	VTP	VTD	RCR	VTP	VTD	RCR	VTP	VTD	RCR	VTP	VTD	RCR	VTP	VTD	RCR
DV-3	①	100.0	100.0	76.5	100.0	90.0	70.0	80.0	100.0	91.7	50.0	100.0	100.0	90.0	97.6	81.0
	②	100.0	94.1	23.5	60.00	40.0	20.0	80.0	100.0	33.3	50.0	100.0	0.0	80.0	83.3	23.8
	③	100.0	94.1	17.7	100.0	90.0	40.0	80.0	83.3	25.0	50.0	66.7	33.3	90.0	88.1	26.2
	④	28.6	11.8	-	-	-	-	-	-	-	-	-	-	-	-	-
4o-m	①	100.0	88.2	41.2	100.0	90.0	50.0	80.0	100.0	58.3	25.0	66.7	33.3	85.0	90.5	47.6
	②	100.0	88.2	11.8	100.0	40.0	20.0	80.0	100.0	25.0	25.0	66.7	66.7	85.0	78.6	21.4
	③	85.7	82.4	5.9	40.0	20.0	0.0	80.0	75.0	0.0	25.0	33.3	0.0	65.0	61.9	2.4
	④	28.6	11.8	-	-	-	-	-	-	-	-	-	-	-	-	-

下载: 导出CSV

表 2 消融实验结果(%)

模型	方法	整体性能
模型	方法	VTP	VTD	RCR
DeepSeek-V3	Variant-1	75.00	76.19	71.43
	Variant-2	90.00	92.86	64.29
	Variant-3	80.00	83.33	66.67
	AutoPenGPT	90.00	97.62	80.95
GPT-4o-mini	Variant-1	50.00	59.52	42.86
	Variant-2	70.00	83.33	38.10
	Variant-3	60.00	78.57	40.48
	AutoPenGPT	85.00	90.48	47.62

下载: 导出CSV

表 3 平台脆弱性探测-已知漏洞的测试与利用(%)

CVE编号	无外部知识库信息				有外部知识库信息
	AutoPenGPT		VulnBot		AutoPenGPT		VulnBot
	VTD	RCR	VTD	RCR	VTD	RCR	VTD	RCR
CVE-2021-44228	√	×	√	×	√	√	√	√
CVE-2024-36401	×	×	×	×	√	√	×	×
CVE-2025-8127	×	×	×	×	√	√	√	×
CVE-2024-39722	×	×	×	×	√	√	√	×
CVE-2021-43798	√	√	√	√	√	√	√	√
CVE-2024-23897	√	√	√	×	√	√	√	√
CVE-2017-16720	×	×	×	×	×	×	×	×
CVE-2020-10644	√	√	√	×	√	√	√	×
CVE-2022-30694	√	×	√	×	√	×	√	×
CVE-2021-42013	√	×	√	×	√	×	√	×
整体准确率	60.00	30.00	60.00	10.00	90.00	70.00	80.00	30.00

下载: 导出CSV

表 4 平台脆弱性探测-未知漏洞的挖掘

系统名称	AutoPenGPT	VulnBot	PentestGPT	YuraScanner
Moodle	文件上传	\	\	XSS
Moodle	XSS	\	\	\
Tpshop	SQL注入	SQL注入	SQL注入	\
Tpshop	SQL注入	SQL注入	SQL注入	\
EmlogCMS	XSS	\	\	XSS
SURF	CNVD-2025-28965	\	\	\
WS7204	CVE-2025-9424	\	\	\
总共挖掘数量	7	2	2	2

下载: 导出CSV

参考文献(28)

[1]	PAN Xiaojun, WANG Zhuoran, and SUN Yanbin. Review of PLC security issues in industrial control system[J]. Journal of Cyber Security, 2020, 2(2): 69–83. doi: 10.32604/jcs.2020.010045.
[2]	ASLAM M M, TUFAIL A, APONG R A A H M, et al. Scrutinizing security in industrial control systems: An architectural vulnerabilities and communication network perspective[J]. IEEE Access, 2024, 12: 67537–67573. doi: 10.1109/ACCESS.2024.3394848.
[3]	LIU Chenyang, ALROWAILI Y, SAXENA N, et al. Cyber risks to critical smart grid assets of industrial control systems[J]. Energies, 2021, 14(17): 5501. doi: 10.3390/en14175501.
[4]	KASNECI E, SESSLER K, KÜCHEMANN S, et al. ChatGPT for good? On opportunities and challenges of large language models for education[J]. Learning and Individual Differences, 2023, 103: 102274. doi: 10.1016/j.lindif.2023.102274.
[5]	GE Yingqiang, HUA Wenyue, MEI Kai, et al. OpenAGI: When LLM meets domain experts[C]. Proceedings of the 37th International Conference on Neural Information Processing Systems, New Orleans, USA, 2023: 242.
[6]	DENG Gelei, LIU Yang, MAYORAL-VILCHES V, et al. PENTESTGPT: Evaluating and harnessing large language models for automated penetration testing[C]. Proceedings of the 33rd USENIX Conference on Security Symposium, Philadelphia, USA, 2024: 48.
[7]	KONG He, HU Die, GE Jingguo, et al. VulnBot: Autonomous penetration testing for a multi-agent collaborative framework[J]. arXiv preprint arXiv: 2501.13411, 2025. doi: 10.48550/arXiv.2501.13411. (查阅网上资料,不确定本文献类型是否正确,请确认).
[8]	ZHUO Jingming, ZHANG Songyang, FANG Xinyu, et al. ProSA: Assessing and understanding the prompt sensitivity of LLMs[C]. Findings of the Association for Computational Linguistics: EMNLP 2024, Miami, USA, 2024: 1950–1976. doi: 10.18653/v1/2024.findings-emnlp.108.
[9]	CLAROTY. Getting from 5 to 0 - VPN security flaws pose cyber risk to organizations with remote OT personnel[EB/OL]. https://www.globalsecuritymag.com/Getting-from-5-to-0-VPN-Security,20200729,101254.html, 2020.
[10]	Censys Research Team. Over 145, 000 exposed ICS services worldwide[EB/OL]. https://industrialcyber.co/industrial-cyber-attacks/censys-data-reports-over-145000-exposed-ics-services-worldwide-highlights-us-vulnerabilities, 2024. (查阅网上资料,未找到本条文献信息,请确认).
[11]	CLAROTY. OT operators slow to update vulnerable Secomea remote access devices[EB/OL]. https://claroty.com/team82/research/ot-operators-slow-to-update-vulnerable-secomea-remote-access-devices, 2020.
[12]	Acunetix. Acunetix web vulnerability scanner overview[EB/OL]. https://www.acunetix.com/support/docs/wvs/overview/, 2025. (查阅网上资料,未找到本条文献出版年信息,请确认).
[13]	OWASP. Zed attack proxy (ZAP)[EB/OL]. https://www.zaproxy.org/, 2025. (查阅网上资料,未找到本条文献作者和出版年信息,请确认).
[14]	JFrog. Xray. Software composition analysis (SCA) tool[EB/OL]. https://jfrog.com/xray/, 2025. (查阅网上资料,未找到本条文献信息,请确认).
[15]	Sqlmap. Automatic SQL injection and database takeover tool[EB/OL]. https://sqlmap.org/, 2025.
[16]	HUANG Dong, DAI Jianbo, WENG Han, et al. EffiLearner: Enhancing efficiency of generated code via self-optimization[J]. arXiv preprint arXiv: 2405.15189, 2024. doi: 10.48550/arXiv.2405.15189. (查阅网上资料,不确定本文献类型是否正确,请确认).
[17]	LIU Zihan, ZENG Ruinan, WANG Dongxia, et al. Agents4PLC: Automating closed-loop PLC code generation and verification in industrial control systems using LLM-based agents[J]. arXiv preprint arXiv: 2410.14209, 2024. doi: 10.48550/arXiv.2410.14209. (查阅网上资料,不确定本文献类型是否正确,请确认).
[18]	LIU Peiyu, LIU Junming, FU Lirong, et al. Exploring ChatGPT’s capabilities on vulnerability management[C]. Proceedings of the 33rd USENIX Conference on Security Symposium, Philadelphia, USA, 2024: 46.
[19]	WANG Che, ZHANG Jiashuo, GAO Jianbo, et al. ContractTinker: LLM-empowered vulnerability repair for real-world smart contracts[C]. Proceedings of the 39th IEEE/ACM International Conference on Automated Software Engineering, Sacramento, USA, 2024: 2350–2353.
[20]	LIU Zijun, ZHANG Yanzhe, LI Peng, et al. A dynamic LLM-powered agent network for task-oriented agent collaboration[J]. arXiv preprint arXiv: 2310.02170, 2023. doi: 10.48550/arXiv.2310.02170. (查阅网上资料,不确定本文献类型是否正确,请确认).
[21]	HAPPE A, KAPLAN A, and CITO J. LLMs as hackers: Autonomous Linux privilege escalation attacks[J]. arXiv preprint arXiv: 2310.11409, 2023. doi: 10.48550/arXiv.2310.11409. (查阅网上资料,不确定本文献类型是否正确,请确认).
[22]	HUANG Junjie and ZHU Quanyan. PenHeal: A two-stage LLM framework for automated pentesting and optimal remediation[C]. Proceedings of the Workshop on Autonomous Cybersecurity, Salt Lake City, USA, 2024: 11–22. doi: 10.1145/3689933.3690831.
[23]	WEI J, WANG Xuezhi, SCHUURMANS D, et al. Chain-of-thought prompting elicits reasoning in large language models[C]. Proceedings of the 36th International Conference on Neural Information Processing Systems, New Orleans, USA, 2022: 1800.
[24]	SAHOO P, SINGH A K, SAHA S, et al. A systematic survey of prompt engineering in large language models: Techniques and applications[J]. arXiv preprint arXiv: 2402.07927, 2024. doi: 10.48550/arXiv.2402.07927. (查阅网上资料,不确定本文献类型是否正确,请确认).
[25]	GIOACCHINI L, MELLIA M, DRAGO I, et al. AutoPenBench: Benchmarking generative agents for penetration testing[J]. arXiv preprint arXiv: 2410.03225, 2024. doi: 10.48550/arXiv.2410.03225. (查阅网上资料,不确定本文献类型是否正确,请确认).
[26]	STAFEEV A, RECKTENWALD T, DE STEFANO G, et al. YuraScanner: Leveraging LLMs for task-driven web app scanning[C]. Proceedings of the Network and Distributed System Security (NDSS) Symposium 2025, San Diego, USA, 2025: 11–22.
[27]	VAN DER MAATEN L and HINTON G. Visualizing data using t-SNE[J]. Journal of Machine Learning Research, 2008, 9: 2579–2605.
[28]	DEVLIN J, CHANG Mingwei, LEE K, et al. BERT: Pre-training of deep bidirectional transformers for language understanding[J]. arXiv preprint arXiv: 1810.04805, 2018. doi: 10.48550/arXiv.1810.04805. (查阅网上资料,不确定本文献类型是否正确,请确认).
