面向车路协同的地理空间标识网络模态设计与场景应用

潘仲夏; 沈丛麒; 骆汉光; 朱俊; 邹涛; 隆克平

doi:10.11999/JEIT250807

面向车路协同的地理空间标识网络模态设计与场景应用

doi: 10.11999/JEIT250807 cstr: 32379.14.JEIT250807

之江实验室高效能计算设施研究中心杭州 311121

基金项目: 国家重点研发计划项目(2023YFB2903900)，国家自然科学基金项目(U22A2005)，浙江省重点研发计划项目(2024SSYS0001)

详细信息

作者简介:
潘仲夏：男，硕士，之江实验室高级工程专员，研究方向为多模态网络体系架构及相关网络应用

沈丛麒：女，硕士，之江实验室高级研究专员，助理研究员，研究方向为软件定义网络和多模态网络

骆汉光：男，博士，之江实验室高级研究专员，副研究员，研究方向为软件定义网络和多模态网络

朱俊：男，博士，之江实验室研究专家、高级工程师，研究方向为新型网络体系结构和软件定义网络

邹涛：男，博士，之江实验室研究专家、研究员，研究方向为多模态网络和新型网络体系架构

隆克平：男，博士，之江实验室特聘专家，教授，研究方向为新一代网络理论与技术、互联网络及交换技术、无线移动通信等

通讯作者:
朱俊　zhu_j@aliyun.com

中图分类号: TP393
计量
- 文章访问数: 29
- HTML全文浏览量: 7
- PDF下载量: 8
- 被引次数: 0
出版历程
- 收稿日期: 2025-08-27
- 修回日期: 2025-11-06
- 录用日期: 2025-11-12
- 网络出版日期: 2025-11-18

Geospatial Identifier Network Modal Design and Scenario Applications for Vehicle-Infrastructure Cooperative Networks

Research Center for High Efficiency Computing Facilities, Zhejiang Lab, Hangzhou 311121, China

Funds: National Key Research and Development Project of China (No. 2023YFB2903900), National Natural Science Foundation of China (U22A2005), Key R&D Program of Zhejiang (2024SSYS0001)

摘要

摘要: 车路协同网络的拓扑结构变化频繁、业务需求呈现多样性等特征，给数据高效可靠传输带来了挑战。基于地理位置信息的网络协议标准，结合多模态网络的柔性可扩展架构，提出并设计了一种地理空间标识网络模态，在三层网络层协议上将IP替换为地理空间标识网络协议，并在可编程多模态网元设备上实现了基于地理空间信息的寻址和路由。为了验证地理空间标识网络模态的可用性，面向智慧交通场景研制了支持地理空间标识寻址机制的车路协同智慧交通系统，有效实现车路协同系统中包括道路安全和交通信息的传播。系统实验表明该系统具备良好的稳定性和高效性，可应用于泛连接、弹性业务流量等典型车路协同交通场景。
- 多模态网络 /
- 协议报文处理 /
- 网络可编程 /
- 网络模态应用
Abstract: Objective Vehicle-infrastructure cooperative networks (V2X) are characterized by environmental openness, large node counts, high node mobility, frequent changes in network topology, unstable wireless channels, and diverse service requirements. These technical features present significant challenges to the efficient transmission of data. Thus, rapid network reconfiguration based on different service requirements becomes crucial, and constructing a flexible real-time network is essential for the application of V2X technologies in intelligent transportation systems (ITS). With the rise of programmable network technologies, programmable data plane techniques are driving a shift from “rigid architectures” to “flexible, adaptive” systems, enhancing the flexibility of intelligent transportation networks. In this context, a network protocol standard based on geospatial location information is proposed. Combining this standard with a polymorphic network architecture, a geospatial identifier network modal is designed. In this modal, the traditional three-layer protocol is replaced by packets containing geographic location identifiers, enabling packet forwarding directly based on geographic location information. Addressing and routing based on geographic location are more efficient and convenient than traditional IP-based addressing and routing. Furthermore, a geospatial identifier-based vehicle-infrastructure cooperative traffic system is designed for intelligent transportation scenarios. This system supports direct forwarding of packets based on geographic location information, offering flexibility in supporting the dissemination of road safety and traffic information within the V2X system, ensuring vehicle safety and improving route planning efficiency. Methods Based on the network protocol standard for geospatial location information and the flexible and scalable architecture of polymorphic networks, a geospatial identifier network modal is proposed. This modal replaces IP with a geospatial identifier network protocol at the three-layer network layer and implements addressing and routing based on geospatial information on programmable polymorphic network elements. To achieve end-to-end transmission, a geospatial identifier network modal protocol stack is designed, effectively supporting the unified transmission of various network modals. Additionally, considering the service demands and transmission characteristics of the GEO network modal, we develop a dynamic geographic routing mechanism. This mechanism operates within a multimodal network controller and leverages the relatively stable coverage areas of roadside base stations to establish a two-level mapping: "geographic region - base station/geographic coordinates - terminal". This enables precise end-to-end path matching for GEO network modal packets, achieving flexible and centrally controlled geographic forwarding. To validate the usability of the geospatial identifier network modal, a vehicle-infrastructure cooperative intelligent transportation system that supports the geospatial identifier addressing mechanism is developed, effectively facilitating the dissemination of road safety and traffic information. A detailed analysis of the business functional requirements of the intelligent transportation system is conducted, followed by the design of the business processing flow and the overall system. Additionally, key hardware and software modules, including geospatial representation data plane code, traffic control center services, road test base stations, and vehicle terminals, are designed and their implementation logic is provided. Results and Discussions System evaluation includes four main aspects: system evaluation environment, system operational effectiveness, theoretical analysis and performance evaluation. As shown in Figure 7 and 8, a prototype intelligent transportation system is deployed. The system is tested and validated to ensure it can transmit messages according to the geospatial identifier modal. Taking a typical V2V communication scenario as an example (e.g., onboard terminal T₃ sending a road condition alert M to T₂), we use sequence analysis to compare the forwarding efficiency of the GEO network modal against traditional IP protocols. Theoretical analysis demonstrates that the GEO network modal offers significant technical advantages in forwarding efficiency, as illustrated in Figure 9. Further tests are conducted by varying conditions such as the number of terminals (Figure 10), background traffic (Figure 11), and transmission bandwidth (Figure 12) to assess the changes in transmission performance of geospatially represented modal packets. The network modal transmission performance of the intelligent transportation system is analyzed. System performance evaluation experiments demonstrate that the system exhibits good stability and high efficiency, meeting the demands of typical V2X traffic scenarios, such as massive connectivity and elastic traffic flows. Conclusions Combining the flexible and scalable architecture of polymorphic networks with the network protocol standard for geospatial location information, the geospatial identifier network modal is proposed and successfully implemented, enabling direct packet forwarding based on geospatial location. Additionally, for intelligent transportation scenarios, a prototype vehicle-infrastructure cooperative intelligent transportation system based on geospatial identifier addressing is designed. This system supports a variety of applications within the V2X context, such as road safety alerts and traffic information broadcasting. The intelligent transportation system ensures vehicle safety and enhances route planning efficiency. Experimental results show that the system provides excellent stability and efficiency, effectively supporting typical traffic scenarios involving massive connectivity, network background traffic fluctuations, and elastic service traffic. As vehicular network technologies continue to evolve, this system is expected to play a significant role in broader intelligent transportation fields, providing strong support for the development of safer and more efficient smart transportation systems.
- Polymorphic network /
- Protocol packet processing /
- Network programmability /
- Network modal application

HTML全文

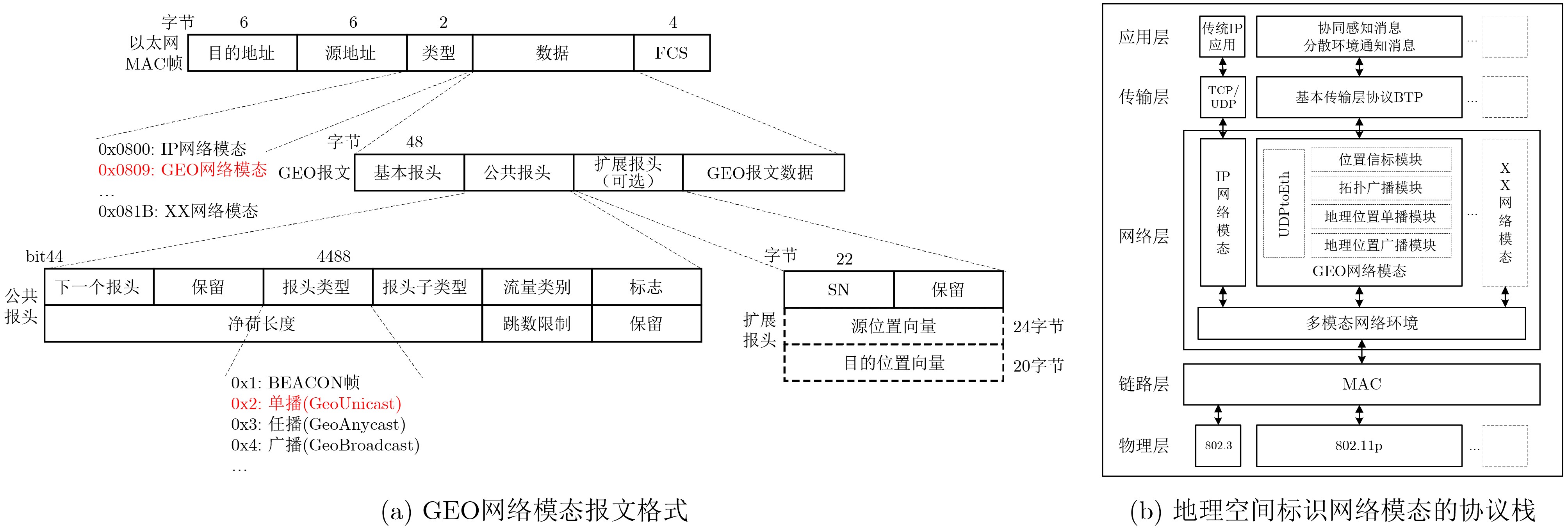

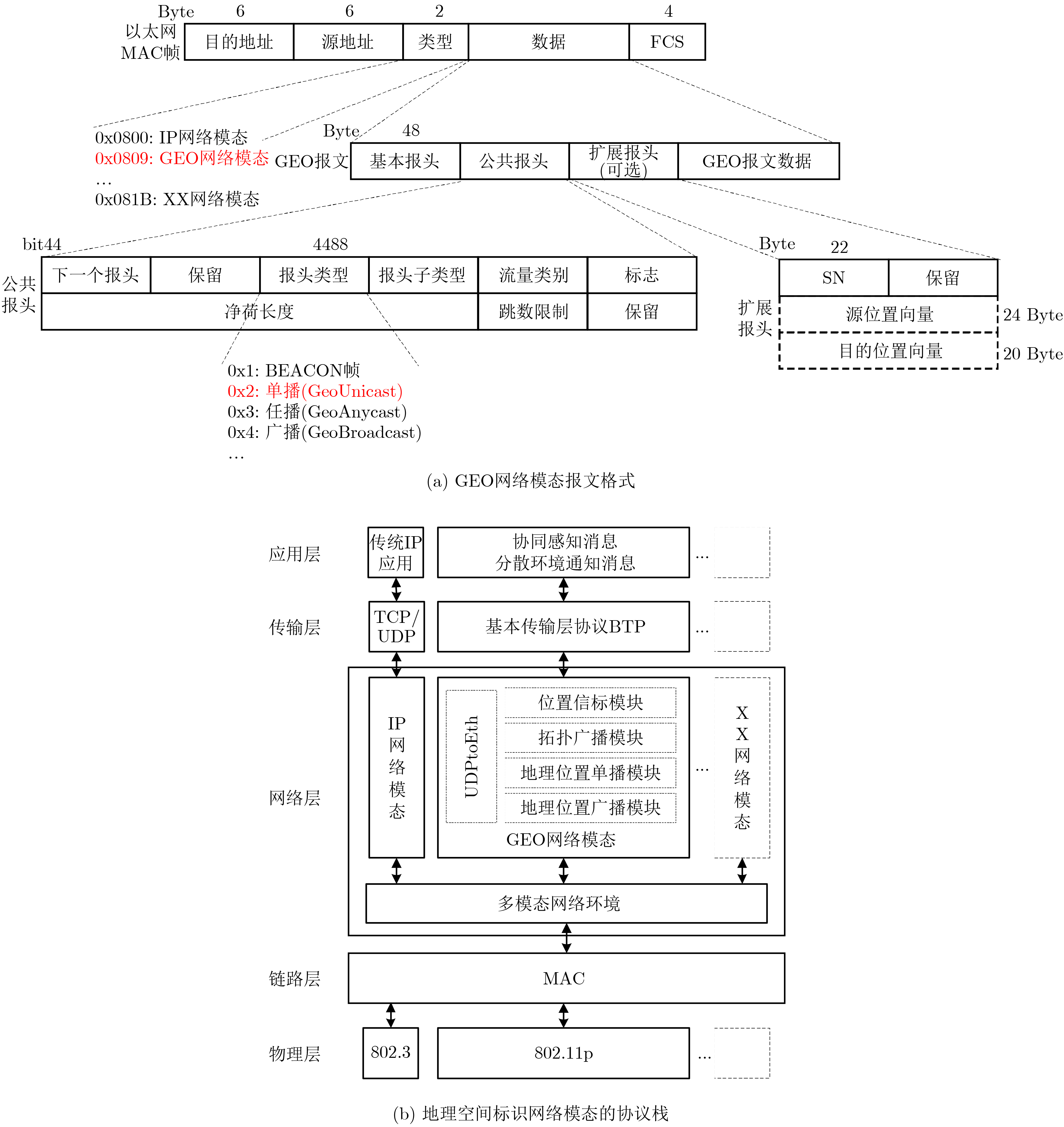

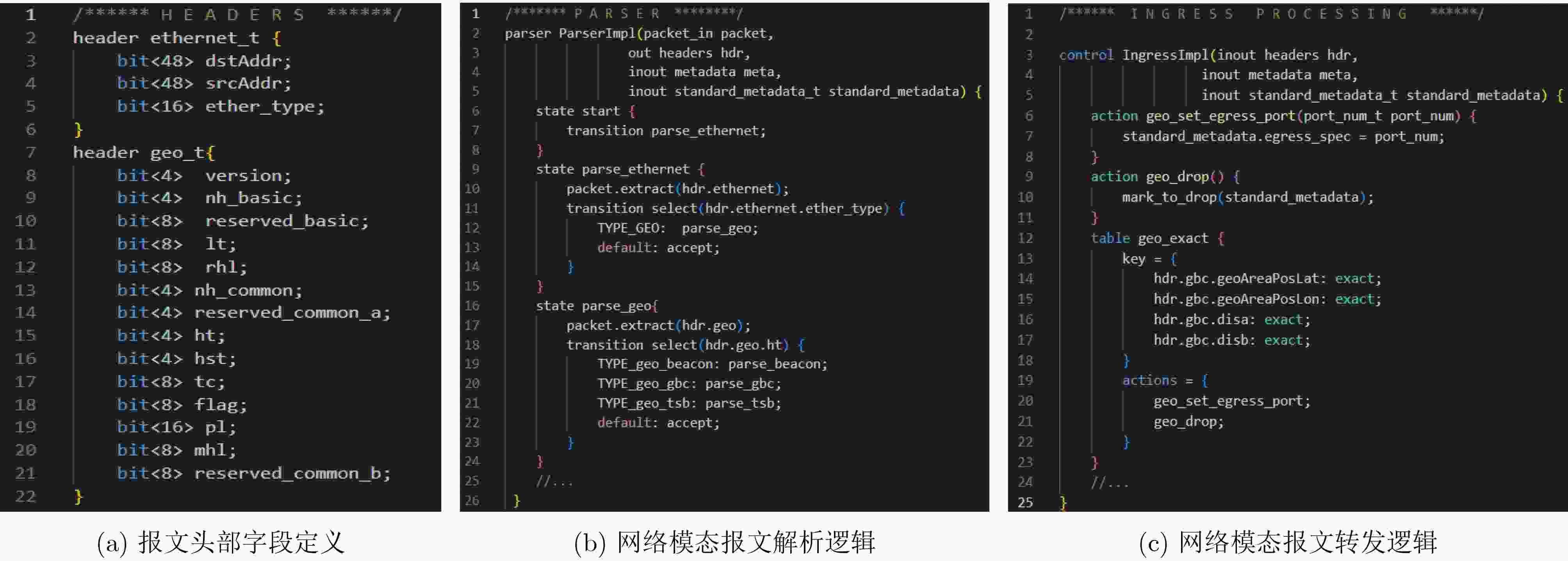

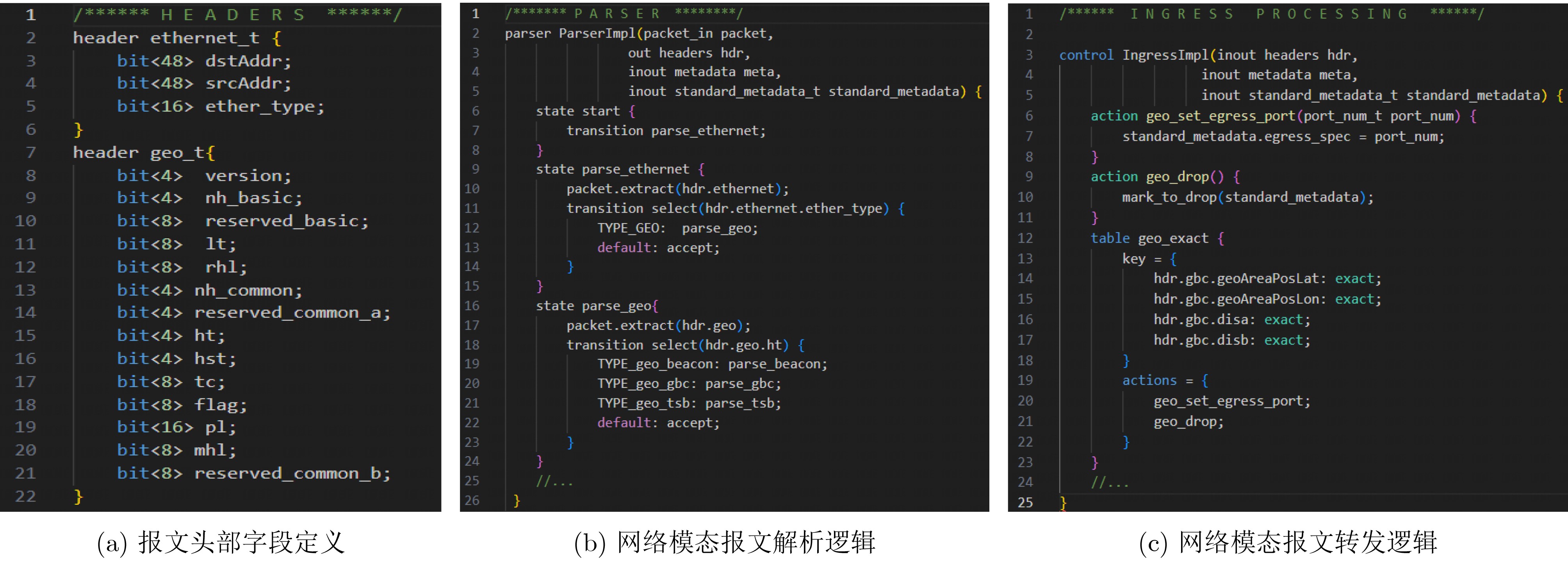

图 1 地理空间标识网络模态的报文格式和协议栈设计

下载: 全尺寸图片幻灯片

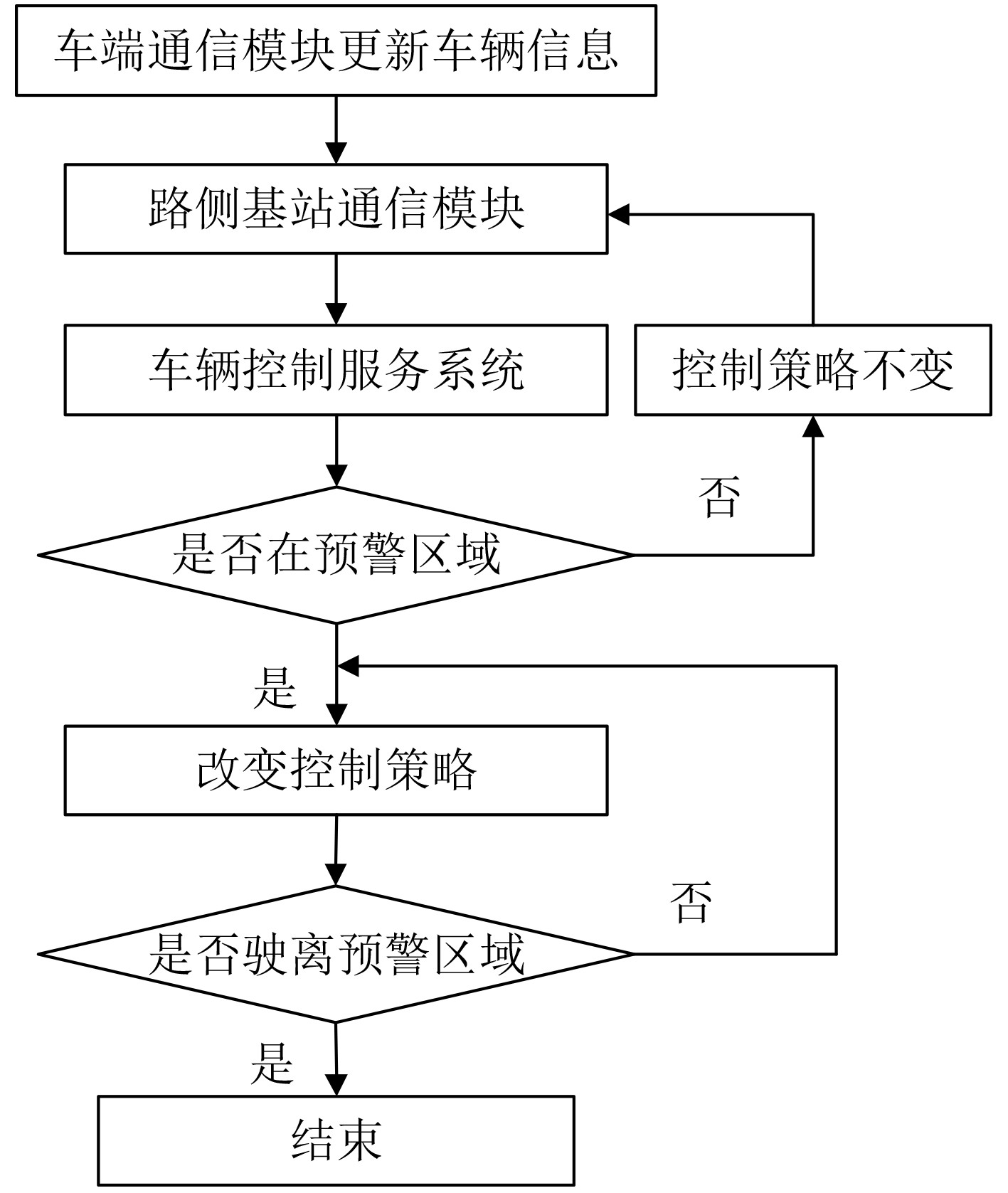

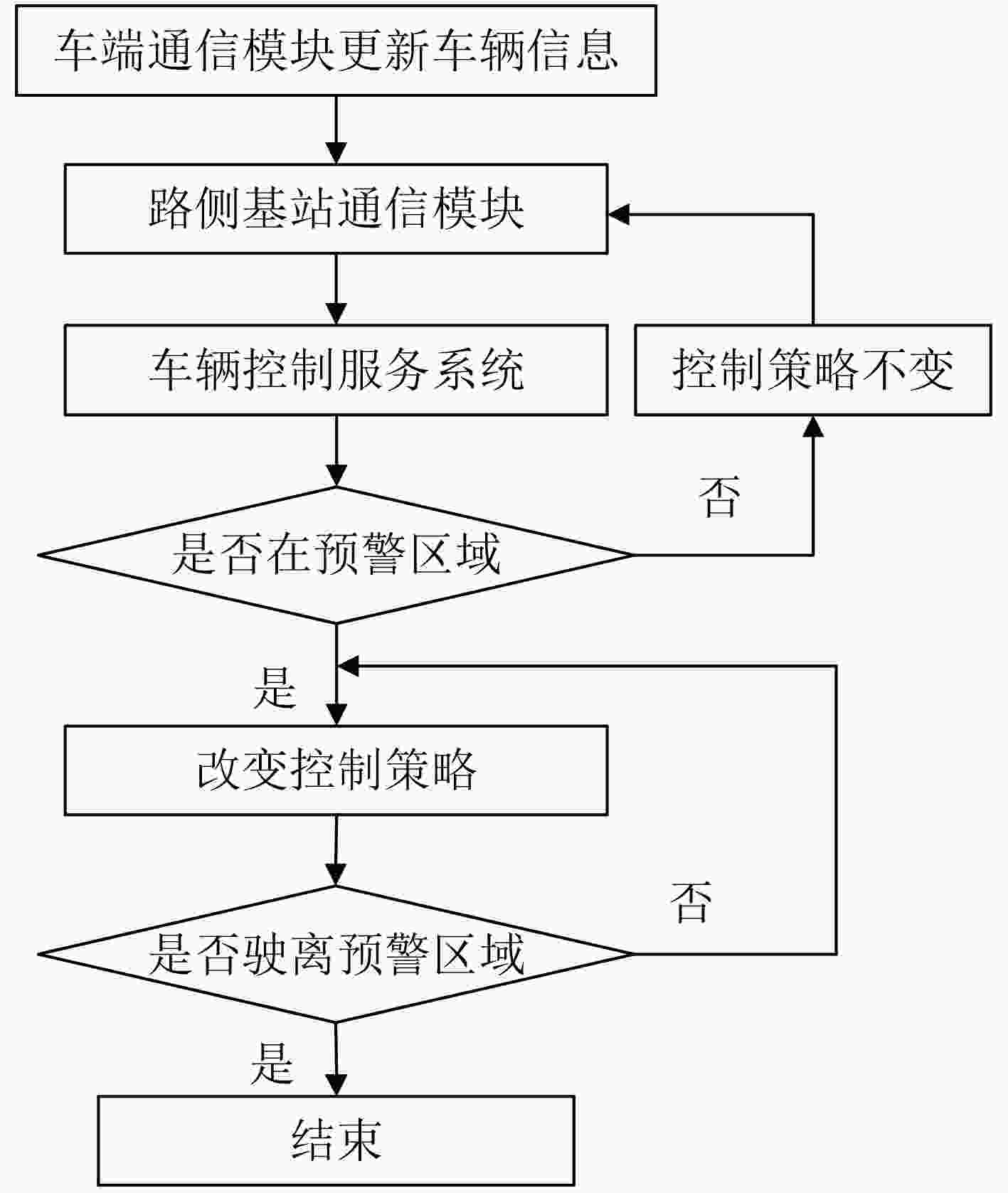

图 2 车辆告警控制流程图

下载: 全尺寸图片幻灯片

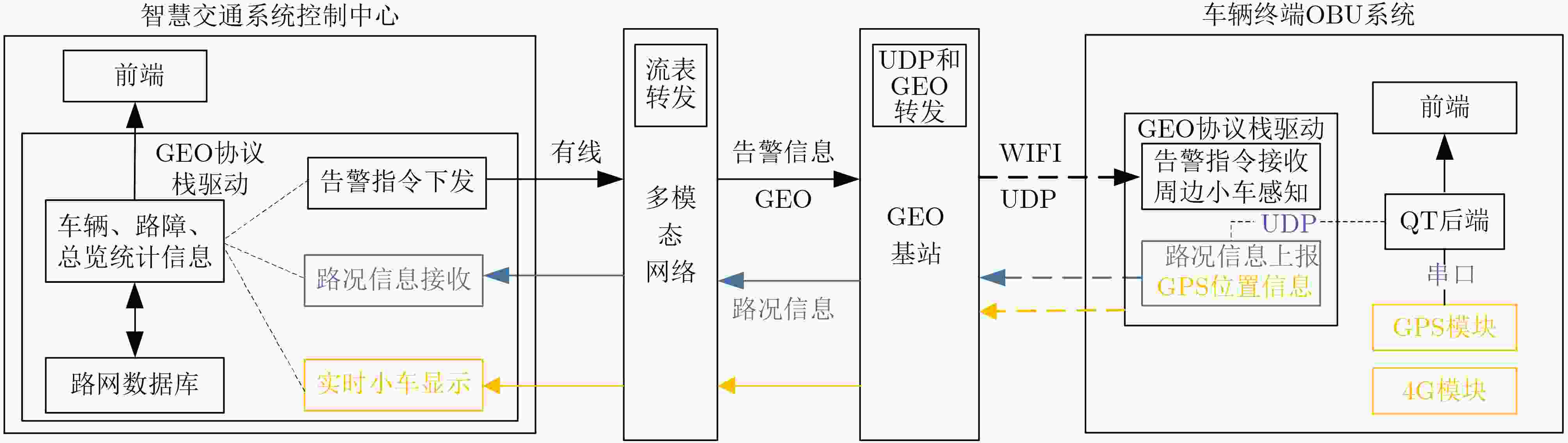

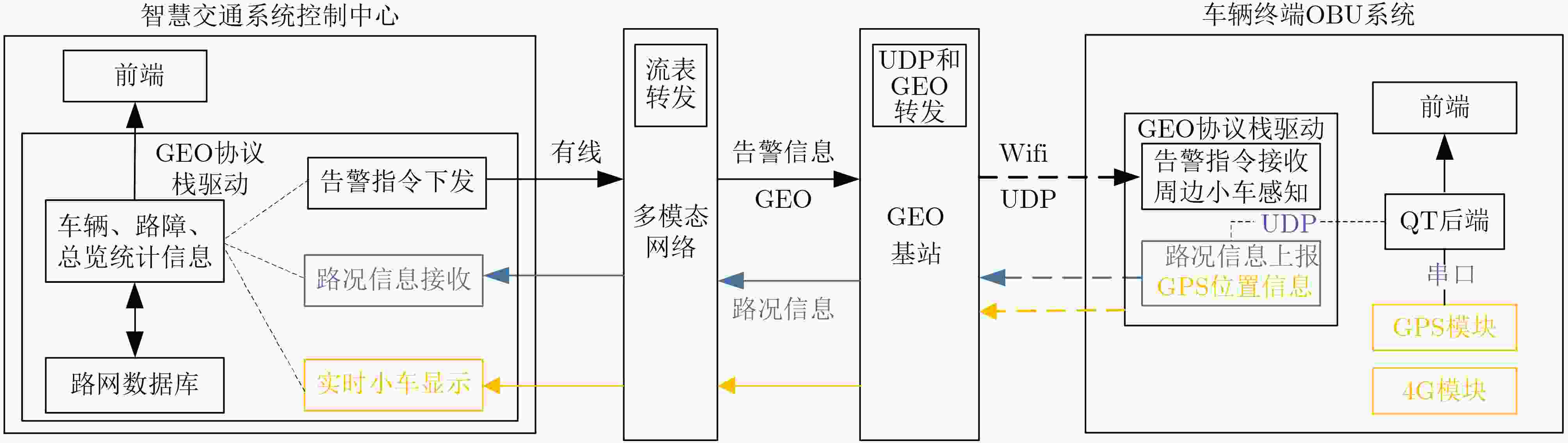

图 3 智慧交通系统组成图

下载: 全尺寸图片幻灯片

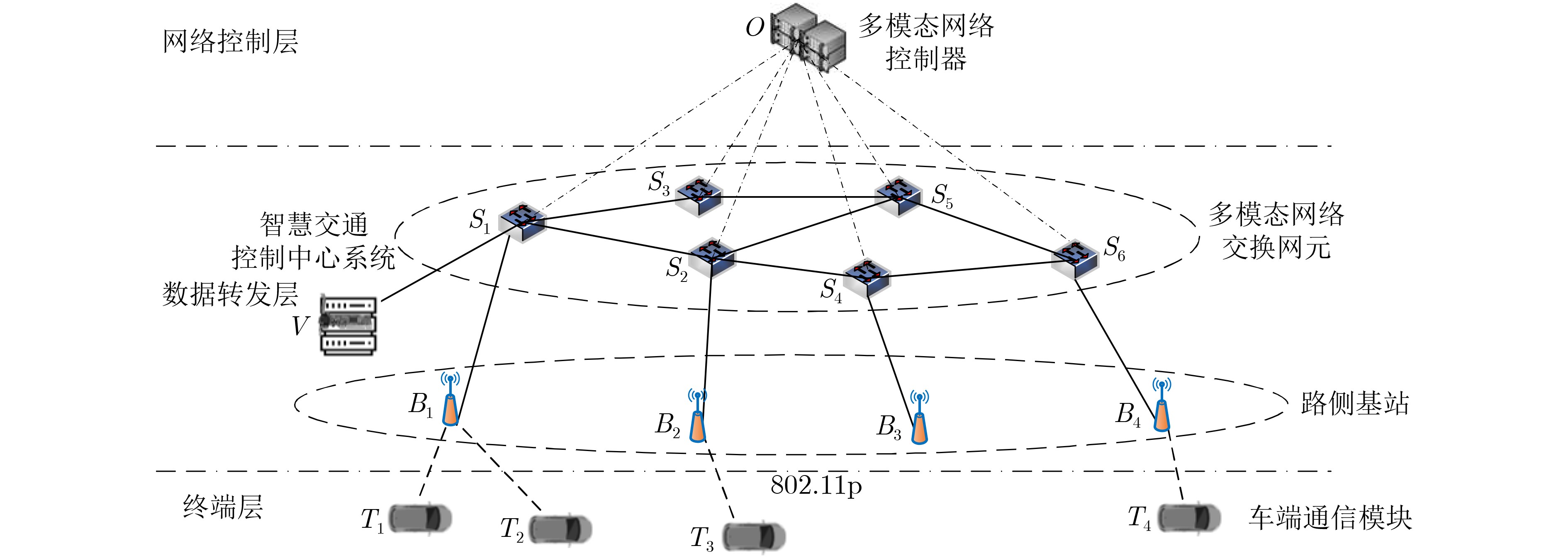

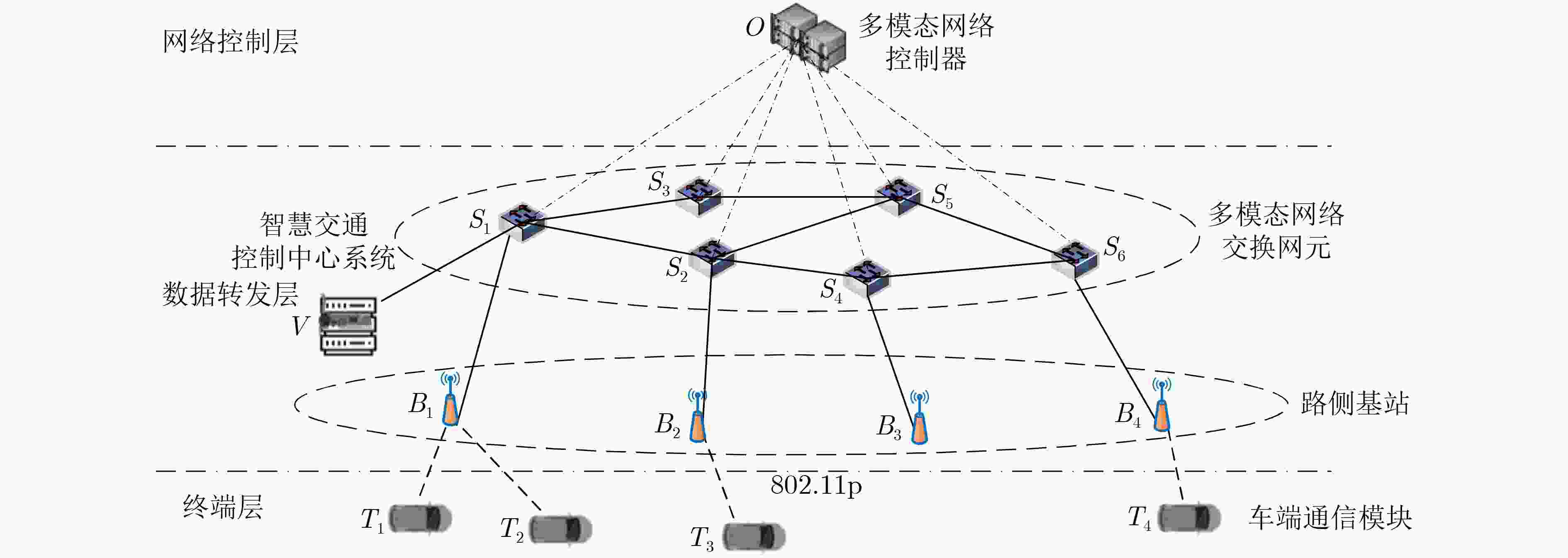

图 4 基于地理空间标识网络模态的车路协同组网方案

下载: 全尺寸图片幻灯片

图 5 GEO网络模态数据面核心逻辑实现

下载: 全尺寸图片幻灯片

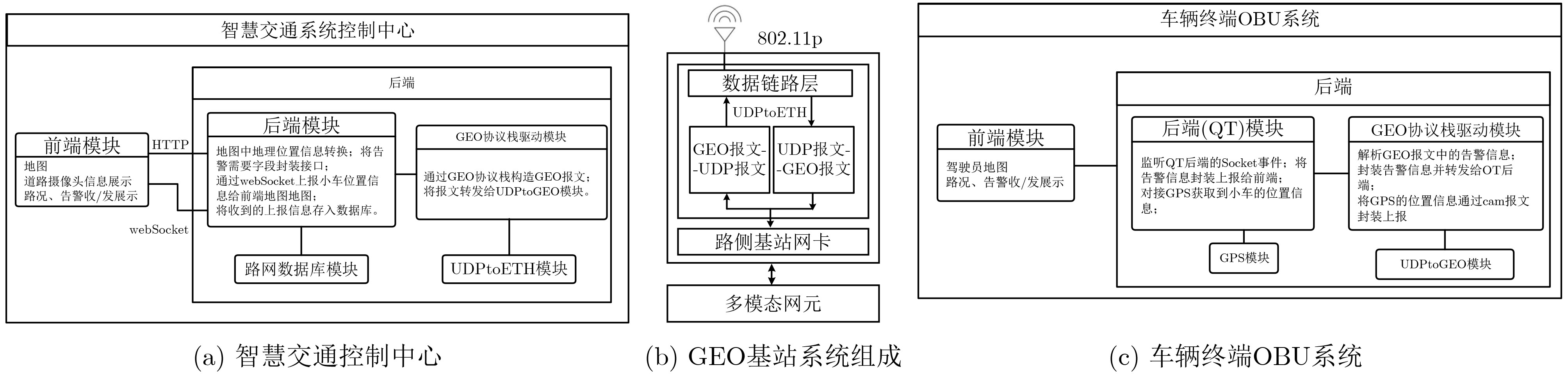

图 6 车路协同智慧交通系统模块设计

下载: 全尺寸图片幻灯片

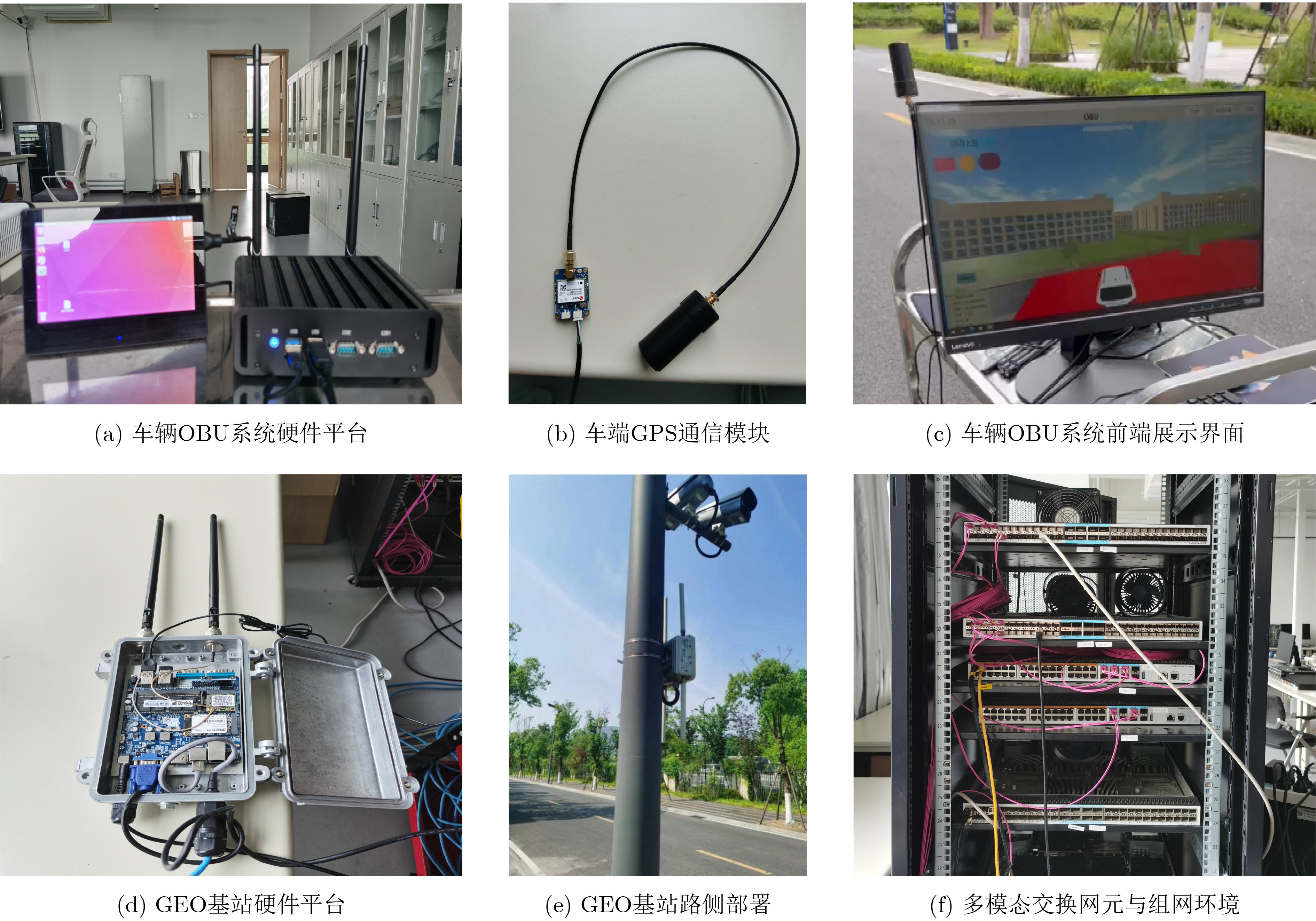

图 7 智慧交通系统软硬件与系统部署情况

下载: 全尺寸图片幻灯片

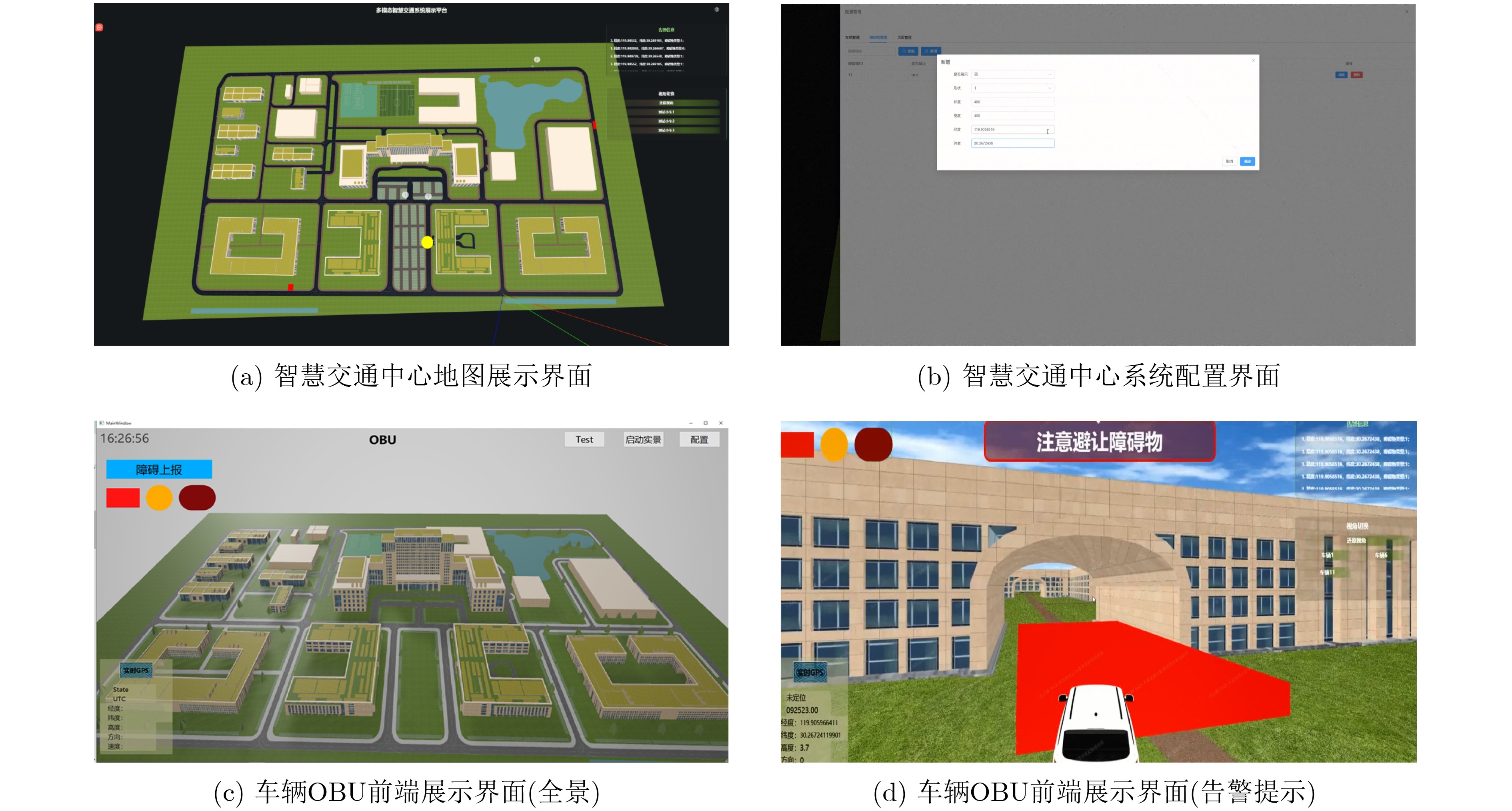

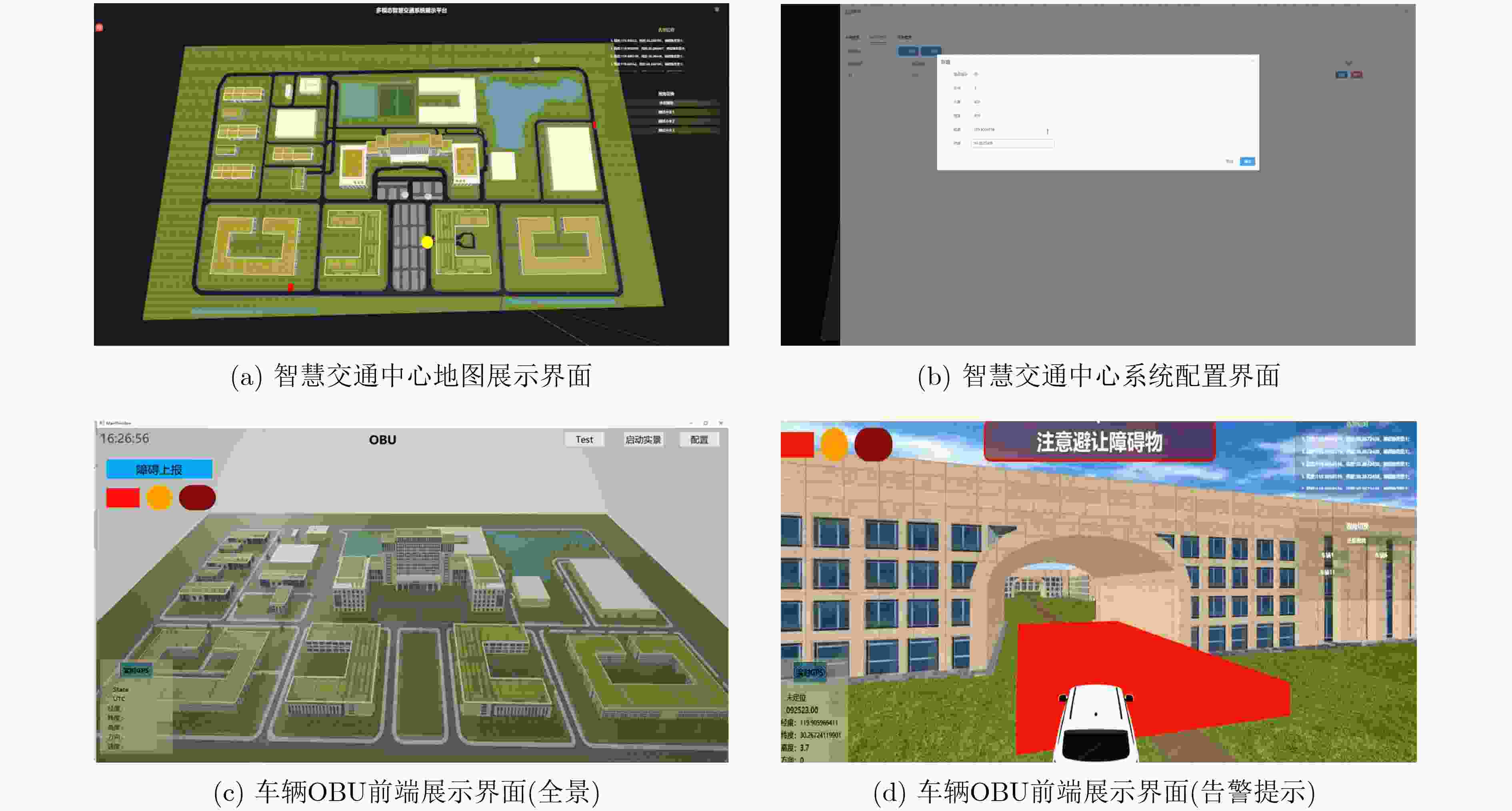

图 8 智慧交通中心与车辆OBU的前端展示界面

下载: 全尺寸图片幻灯片

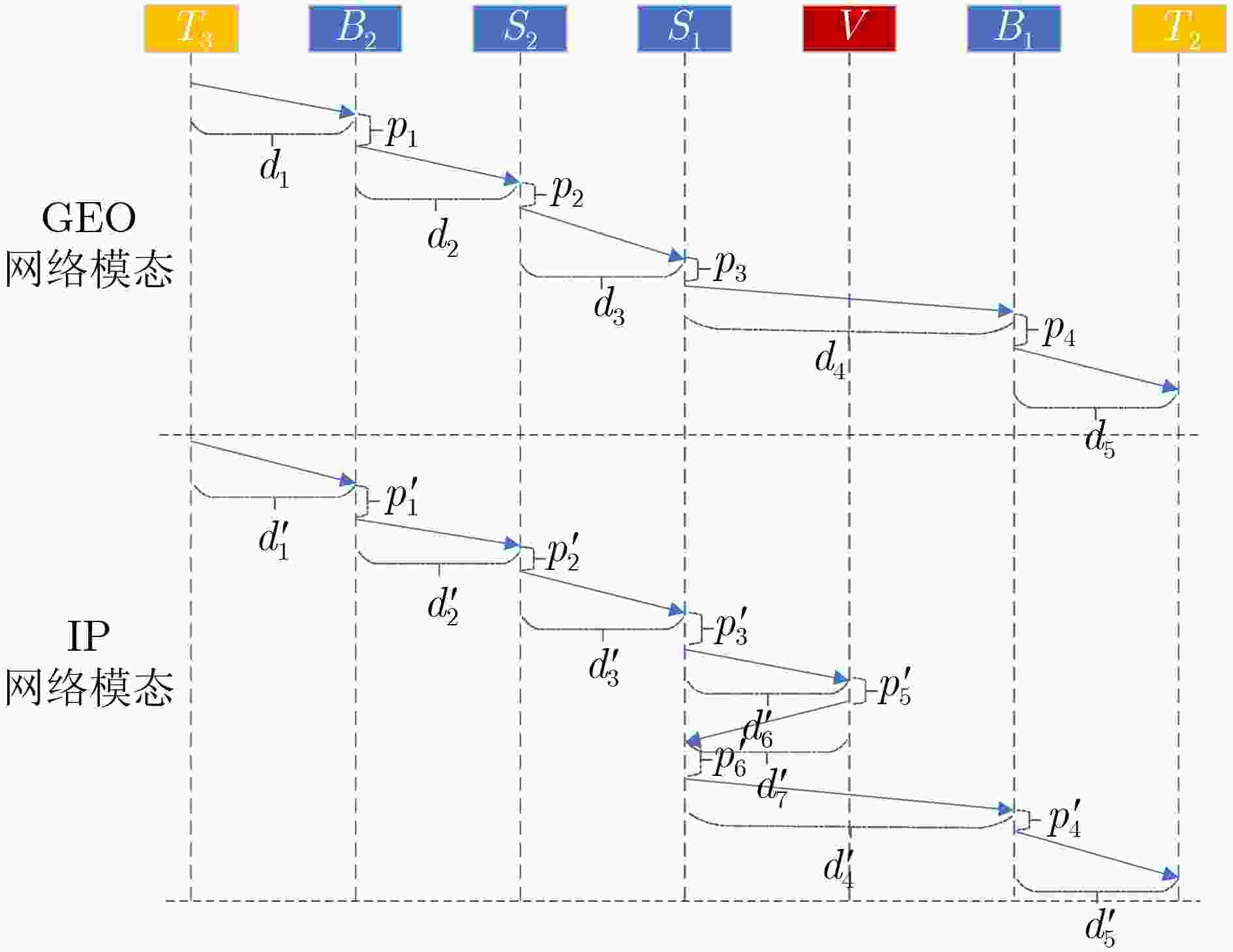

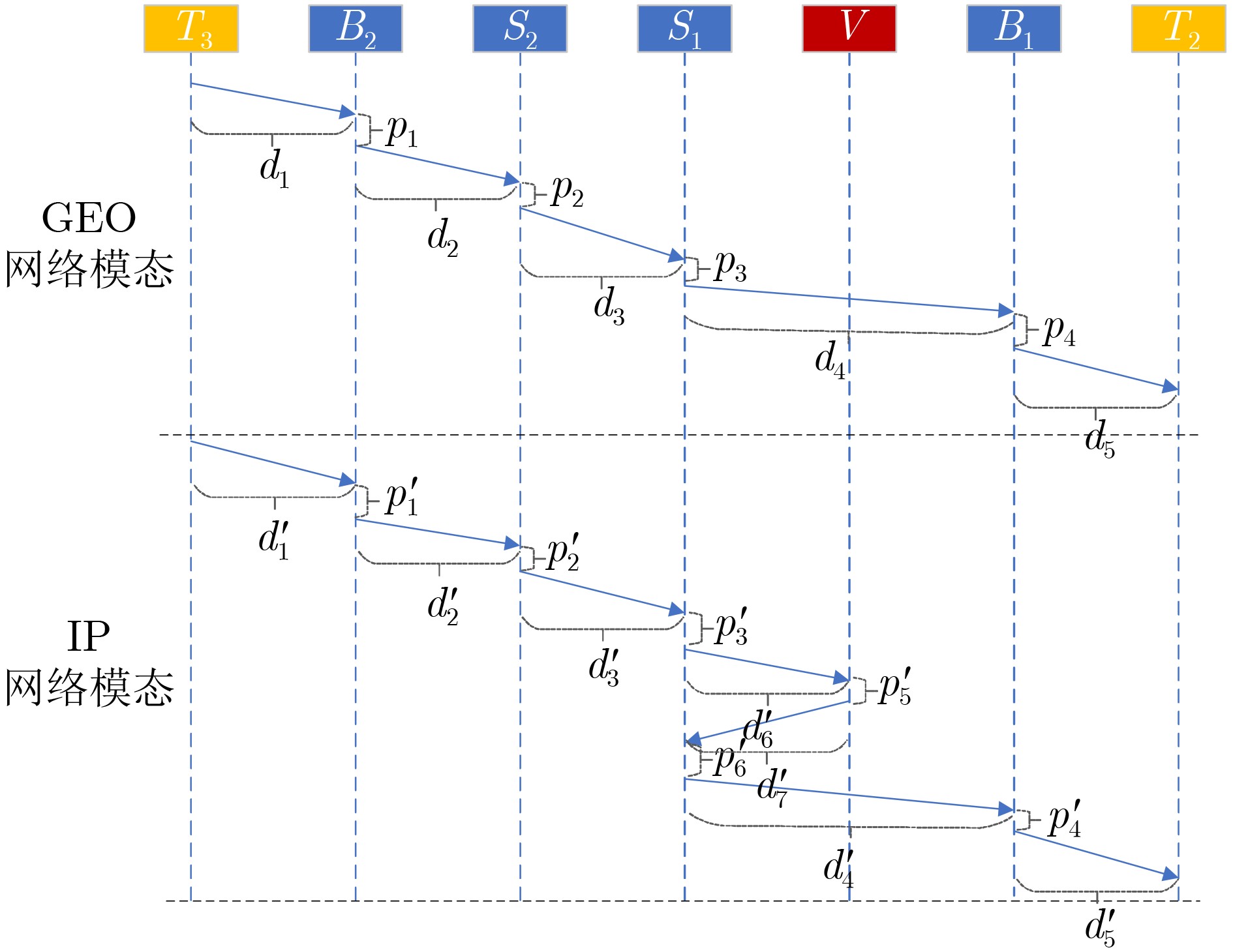

图 9 IP模态与GEO模态性能对比理论分析

下载: 全尺寸图片幻灯片

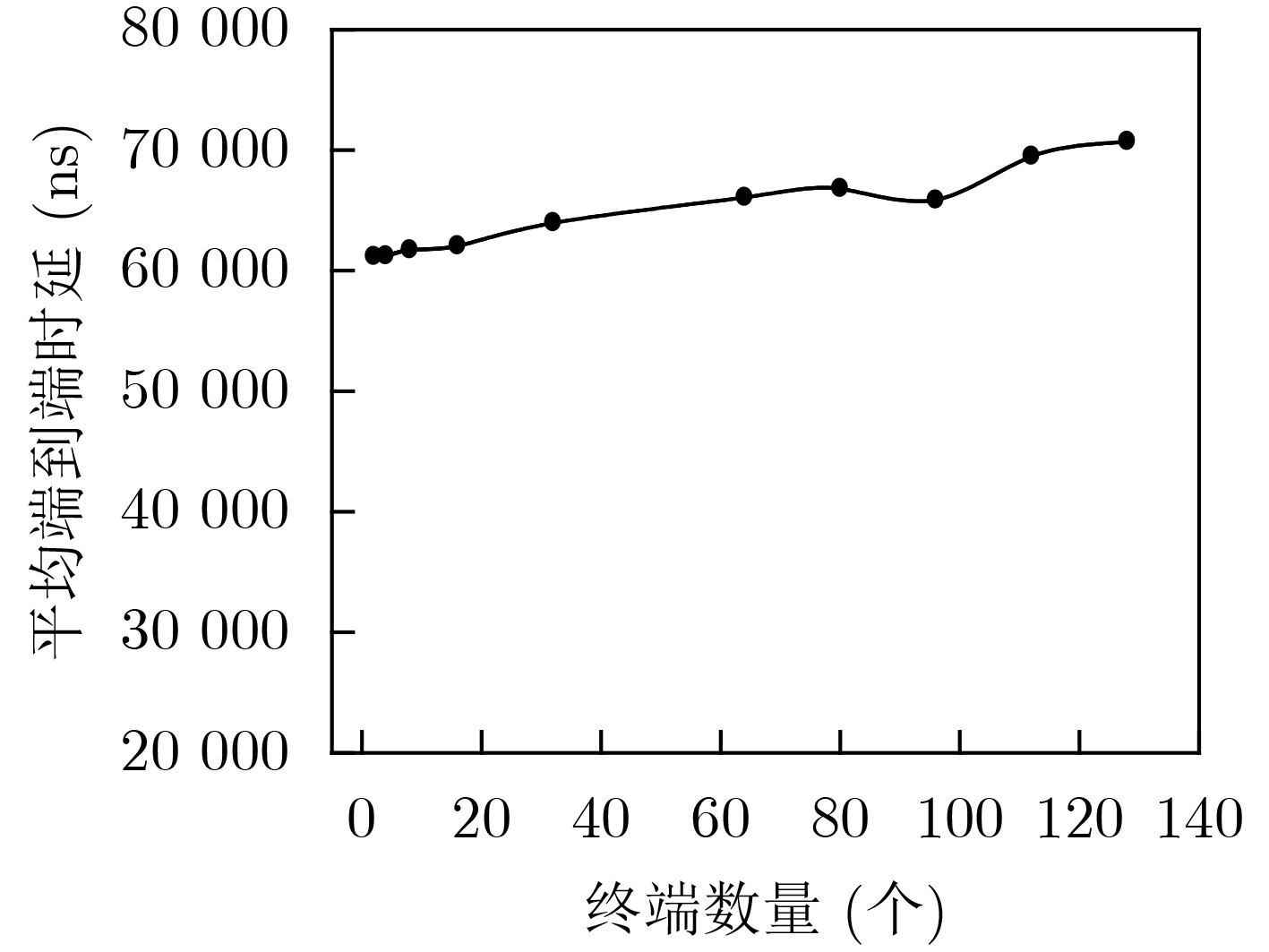

图 10 平均端到端时延随终端数量的变化情况

下载: 全尺寸图片幻灯片

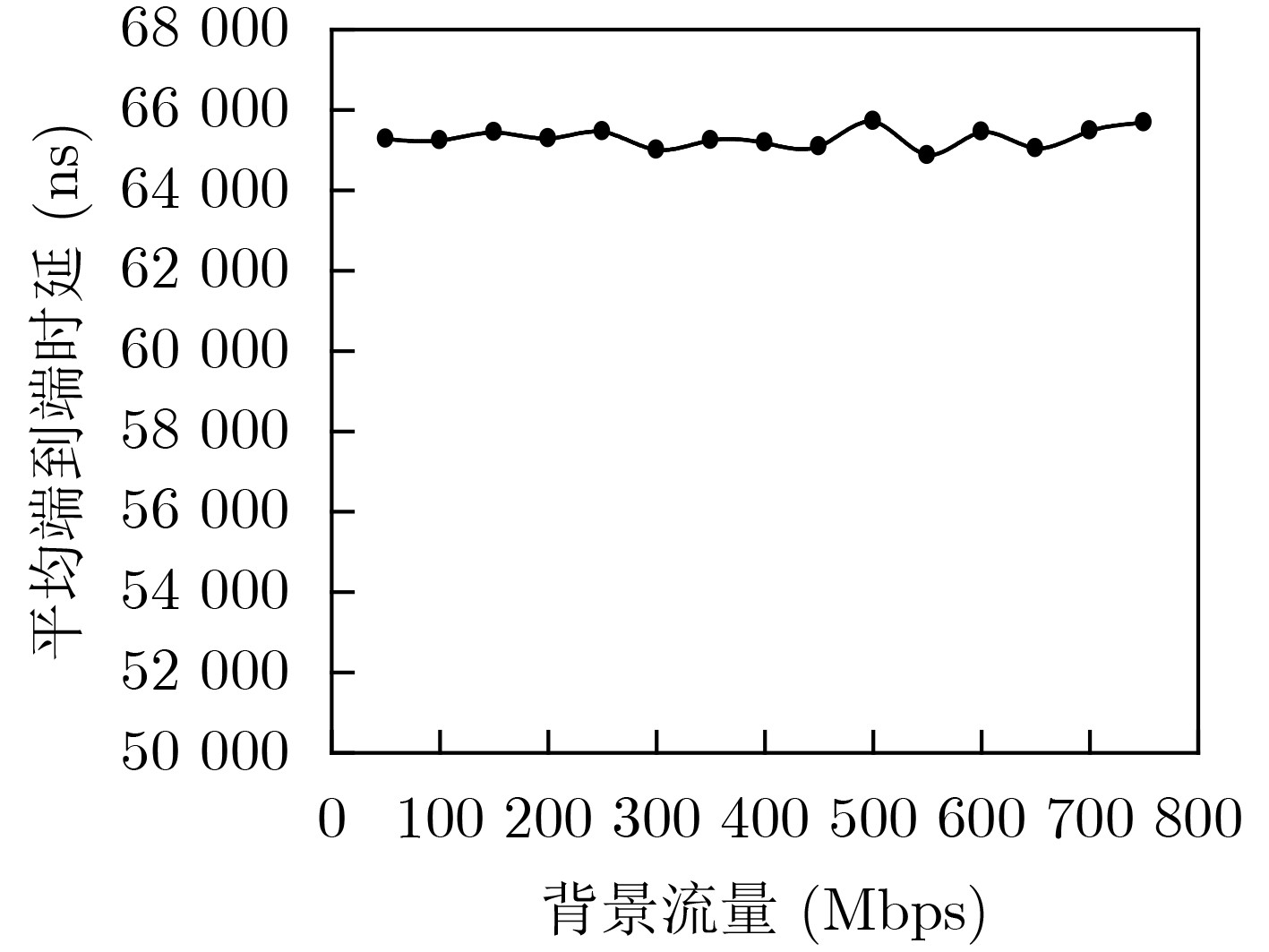

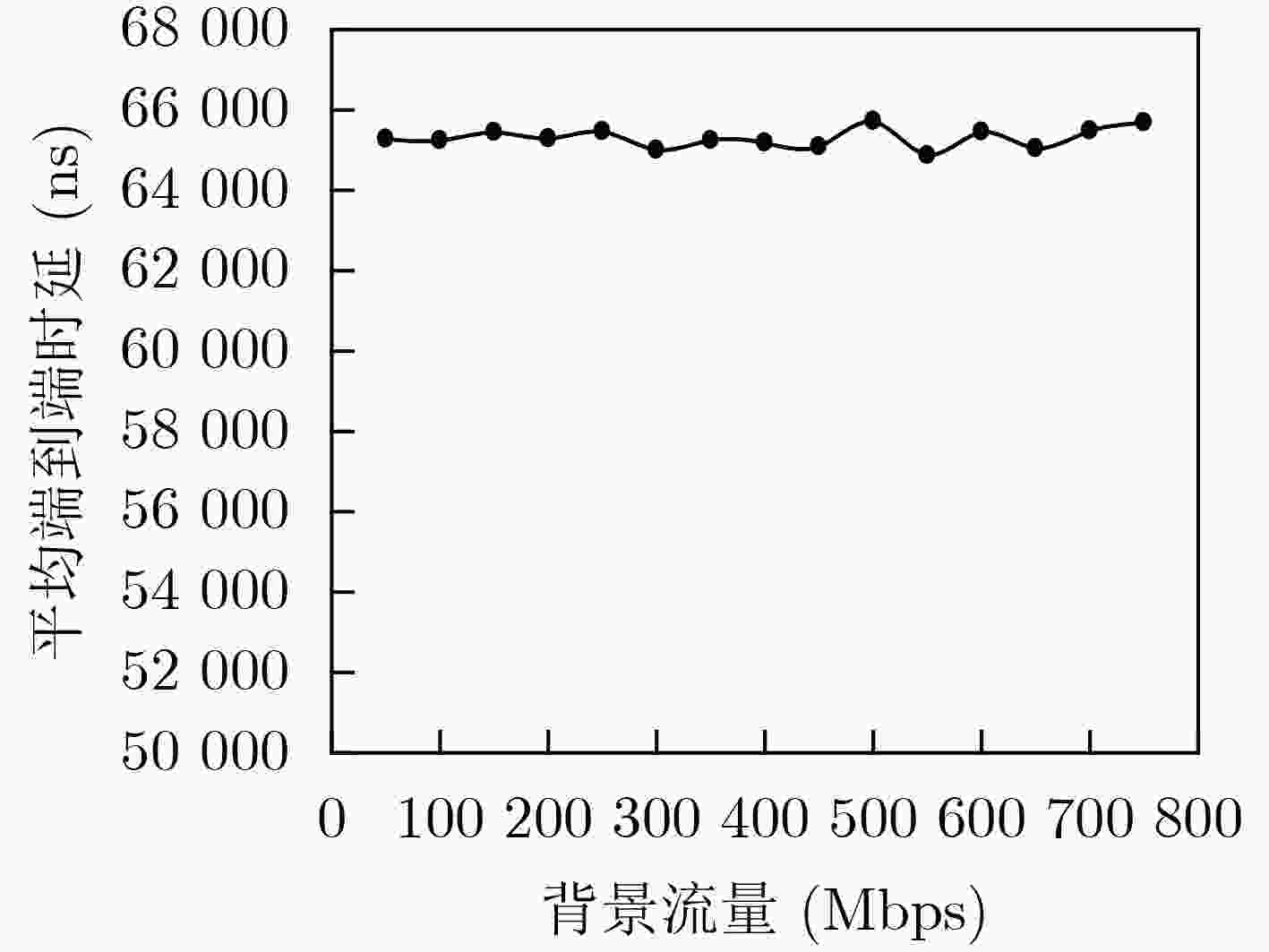

图 11 平均端到端时延随背景流量的变化情况

下载: 全尺寸图片幻灯片

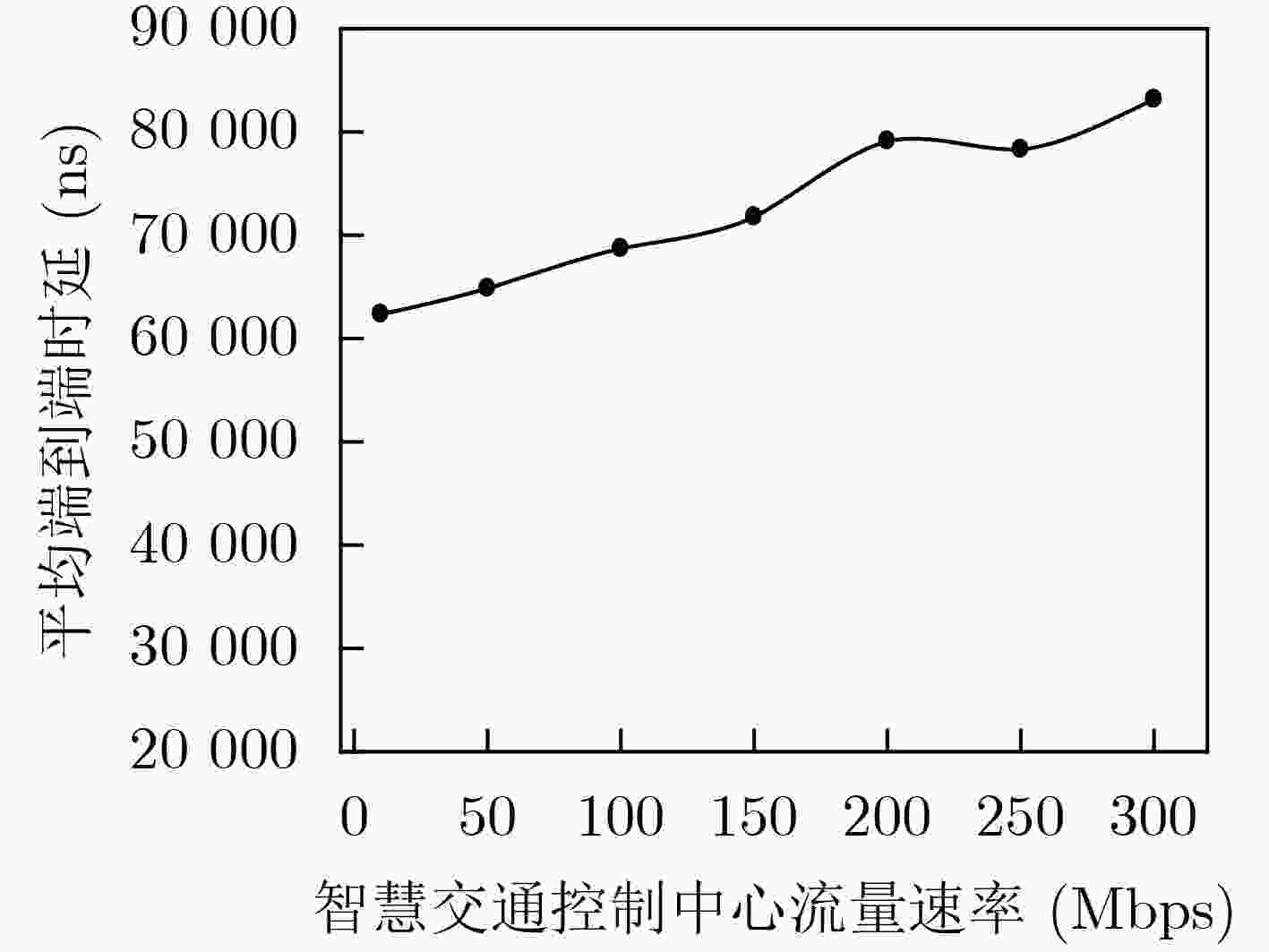

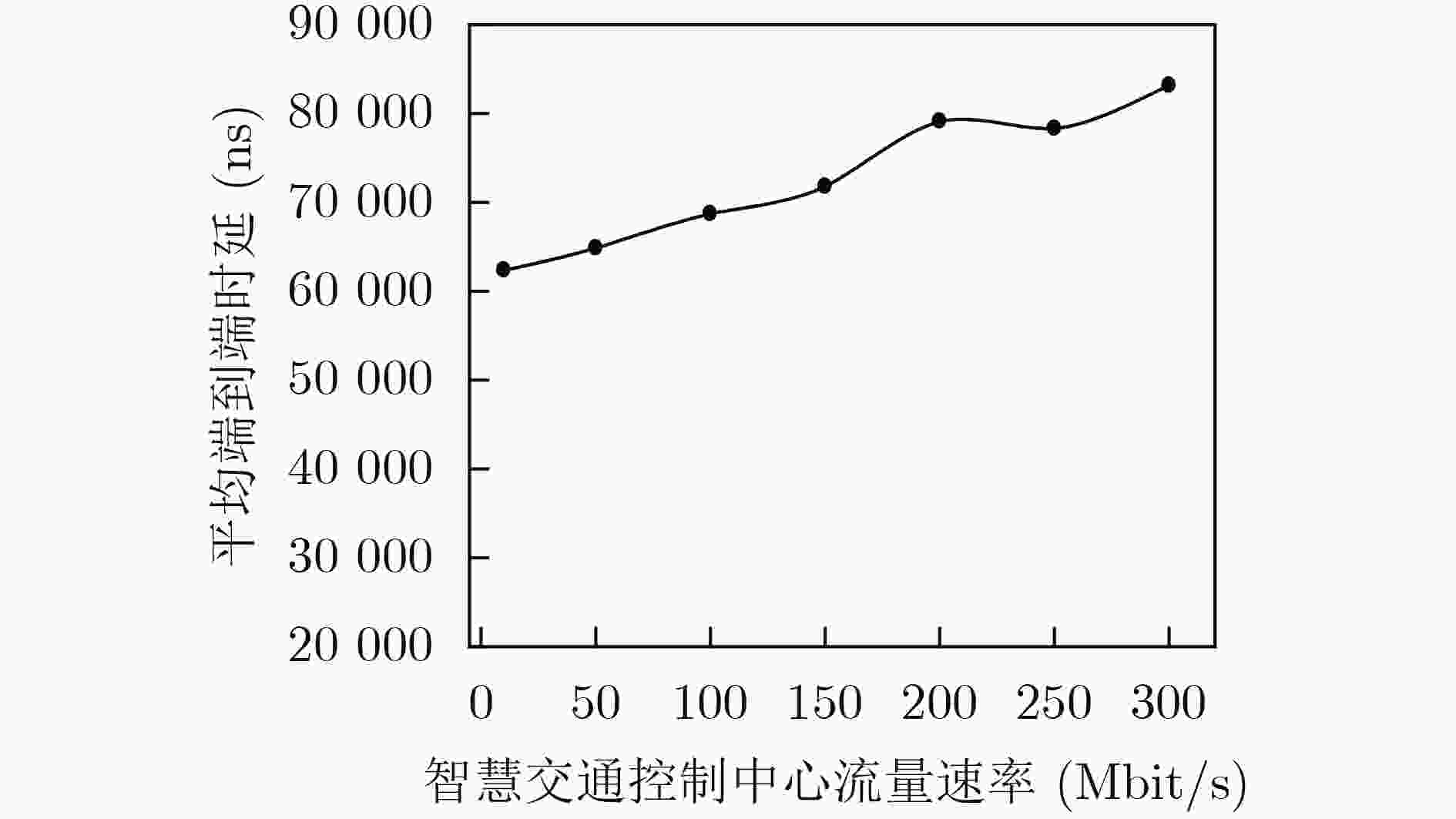

图 12 平均端到端时延随交通控制中心业务流量的变化情况

下载: 全尺寸图片幻灯片

表 1 路由表项计算过程的类Python伪代码表示

1 def compute_geo_routing_entry(self, src_switch, 　　dest_coords):
2 　# 步骤1：地理编码，将地理坐标转化为GeoHash编码
3 　target_geohash = geohash_encode(dest_coords, 　　　 precision=6)
4 　# 步骤2：查找目标区域对应的边缘交换机(网络出口)
5 　edge_switches = self.geo_area_to_switches.get(target_ 　　　 geohash[:4]) # 使用较粗前缀匹配区域
6 　# 步骤3：计算最优路径(综合网络与地理因素)
7 　初始化 best_path, min_metric
8 　for edge_sw in edge_switches:
9 　　path = self.find_shortest_path(src_switch, edge_sw) 　　　 # 基于拓扑查找最短路径
10 　 network_cost = self.calculate_path_cost(path) # 计算　　　　网络代价
11 　 geo_distance = haversine_distance(src_switch, 　　　　 target_geohash) # 计算地理距离惩罚
12 　 total_metric = network_cost + 0.1 * geo_distance # 　　　　计算综合度量
13 　 if total_metric < min_metric:
14 　　 min_metric = total_metric
15 　　 best_path = path
16 # 步骤4：生成流表项
17 next_hop = best_path[1] # 第一跳的下一跳
18 out_port = self.topology.get_port(src_switch, next_hop) 　　　 # 转发端口
19 flow_entry = { 'priority': 100, 'match': {'dest_prefix': 　　　 target_geo}, 'actions': [{'type': 'OUTPUT', 'port': 　　　 out_port}]} # 产生流表项
20 return flow_entry
