Dynamic State Estimation of Distribution Network by Integrating High-degree Cubature Kalman Filter and LSTM Under FDIA
-
摘要: 配电网动态状态估计是保障电力物理信息系统安全稳定运行的关键技术，但系统的强非线性、高维特性及虚假数据注入攻击(FDIA)严重制约了其精度与安全。针对上述问题，本文提出一种融合高阶容积卡尔曼滤波(HCKF)与长短期记忆网络(LSTM)的动态状态估计方法。首先，建立基于混合量测的配电系统状态估计模型，并利用HCKF通过高阶容积点生成策略提升对强非线性高维配电网的状态估计精度；其次，结合加权最小二乘法(WLS)与HCKF的状态估计值，基于残差分析实现FDIA的快速检测；最后，当检测到FDIA时，利用LSTM模型对受攻击节点的量测数据进行时序预测与重构，修正状态估计结果。在IEEE33节点配电系统上的实验表明，在无FDIA时基于HCKF的动态状态估计算法对电压幅值和相角的估计精度高于现有方法。在FDIA场景下，验证了基于残差分析的攻击检测方法、基于LSTM的量测数据预测，以及所提动态状态估计算法的有效性。Abstract:

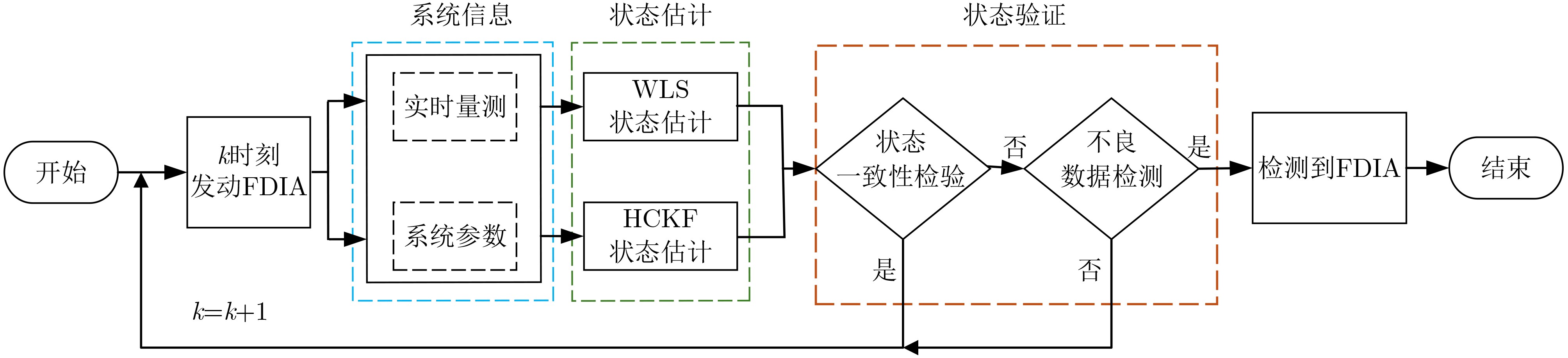

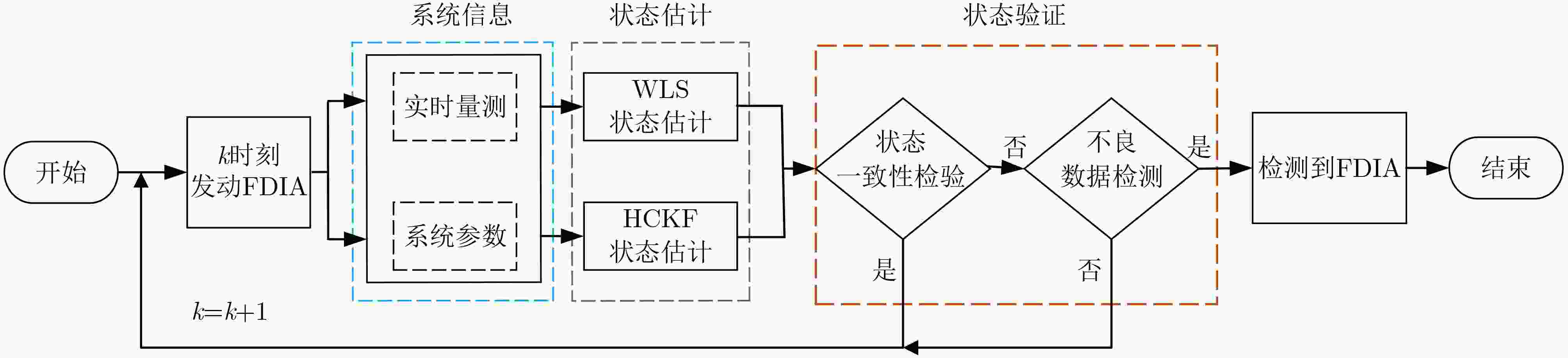

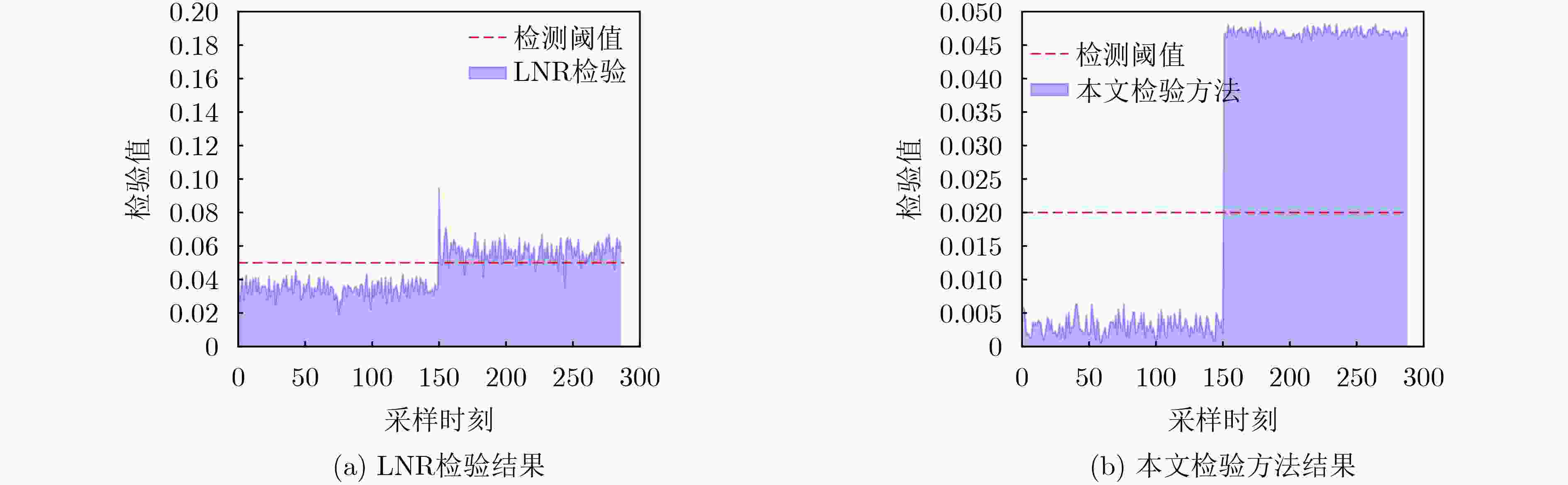

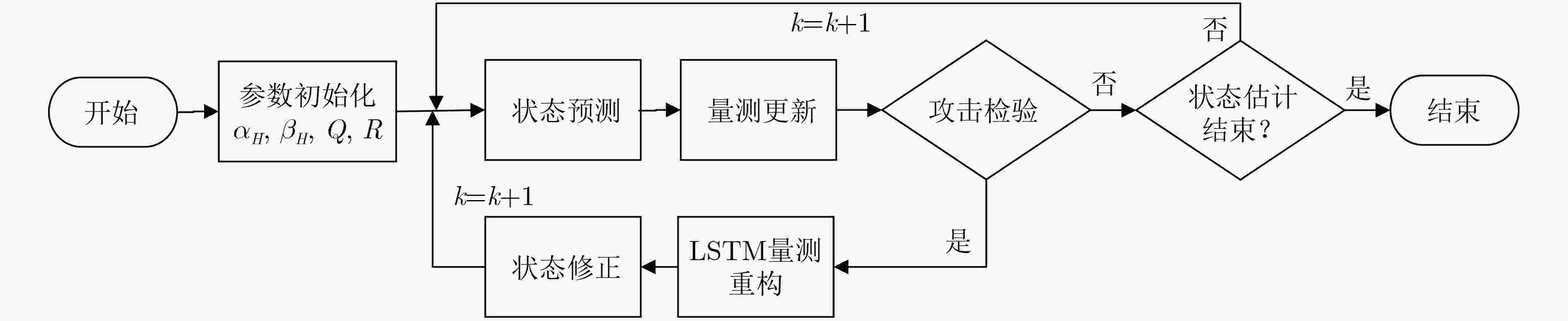

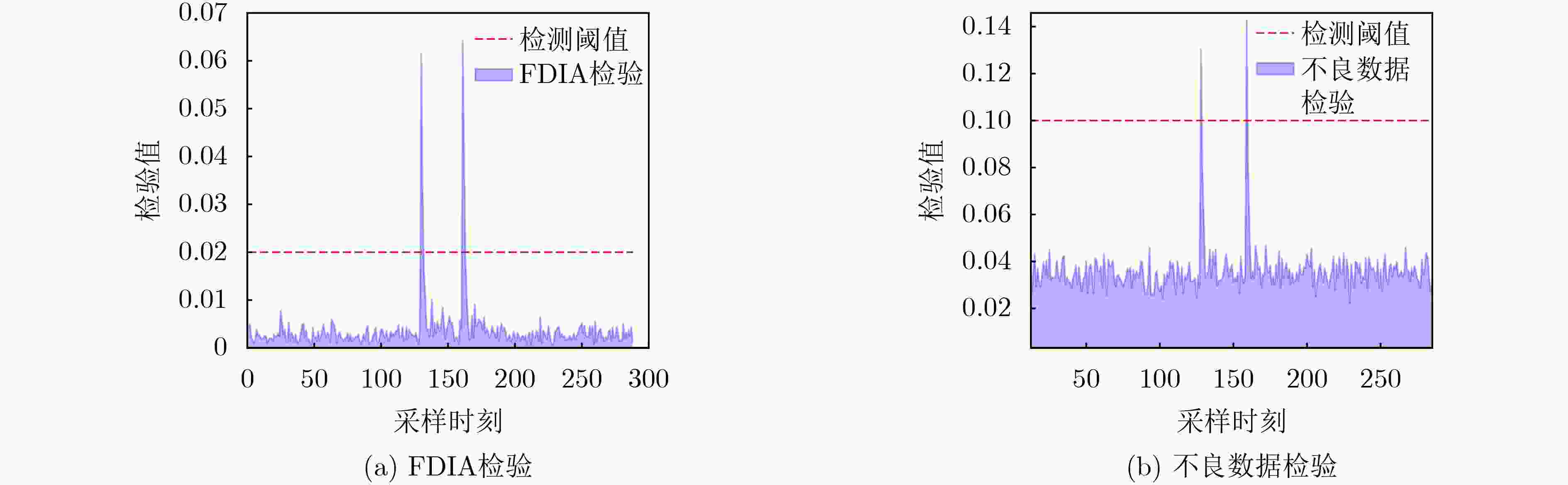

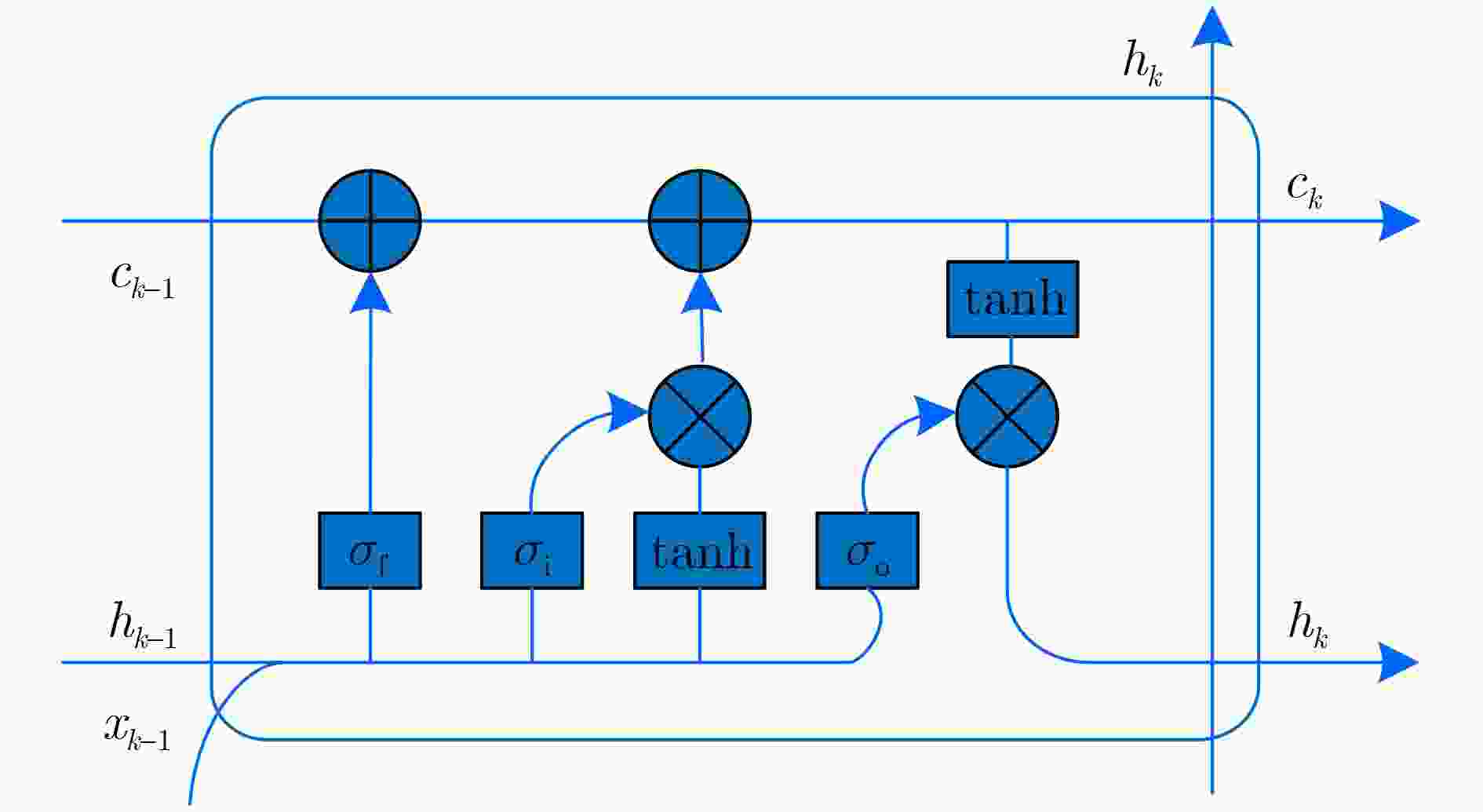

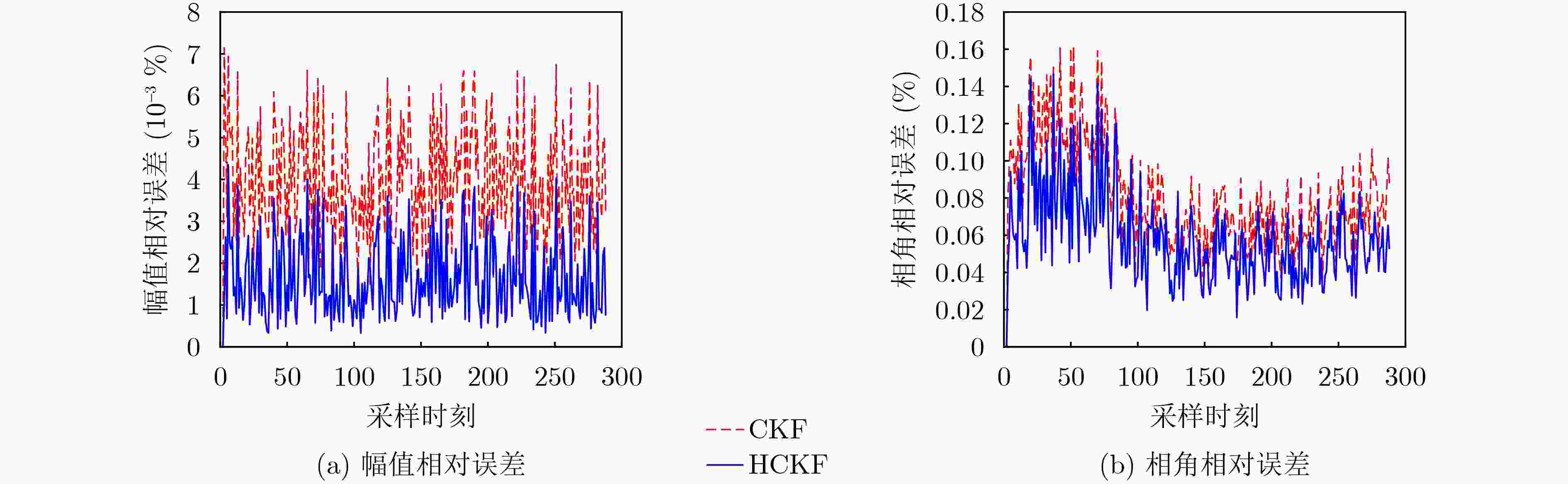

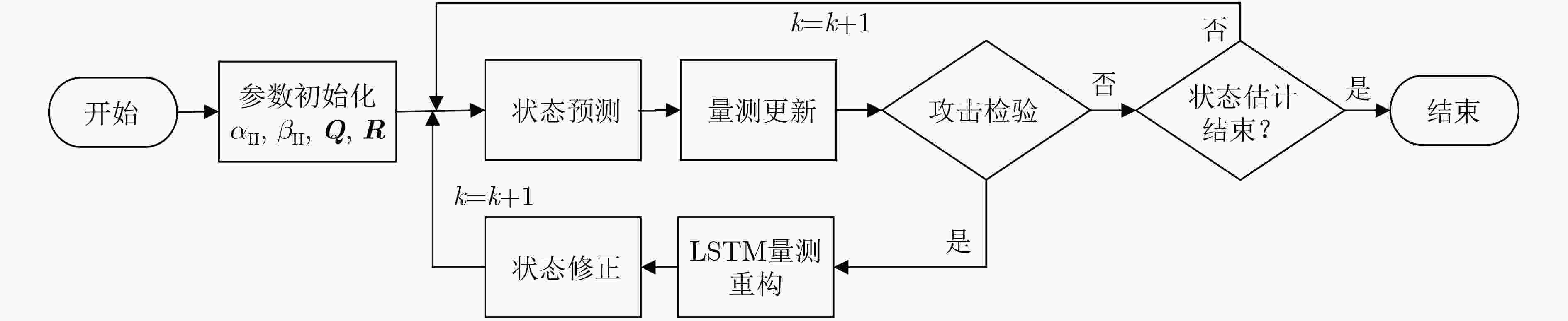

Objective Dynamic state estimation of distribution networks is a key technology for the safe and stable operation of cyber-physical power systems, but its accuracy and security are constrained by the system's strong nonlinearity, high-dimensional characteristics, and false data injection attacks (FDIA). This paper proposes a dynamic state estimation method fusing high-degree cubature Kalman filter (HCKF) and long short-term memory network (LSTM): first, HCKF is used to improve the estimation accuracy of nonlinear high-dimensional systems; second, the estimation results of HCKF and weighted least squares (WLS) are combined to achieve rapid FDIA detection based on residual analysis; finally, the LSTM model is adopted to reconstruct the measured data of attacked nodes and correct the state estimation results. The effectiveness of the proposed algorithm is verified on the IEEE 33-bus distribution system. Methods Due to the strong nonlinearity of the distribution system, the dynamic estimation method based on Cubature Kalman Filter (CKF) has limited state estimation accuracy. To this end, a hybrid measurement state estimation model based on Phasor Measurement Unit (PMU) and Supervisory Control and Data Acquisition (SCADA) is established. HCKF is used to improve the state estimation accuracy of strongly nonlinear and high-dimensional distribution networks through a high-degree cubature point generation strategy. In the face of FDIA launched by malicious attackers, the state estimation values of WLS and HCKF are combined, and rapid detection of FDIA is realized based on residual analysis and state consistency check. When FDIA is detected, the LSTM model is used for time-series prediction and reconstruction of the measurement data of the attacked nodes. Then, abnormal data is replaced and the state estimation results are corrected. Results and Discussions Experiments on the IEEE 33-bus distribution system show that in the absence of FDIA, the estimation accuracy of HCKF for voltage amplitude and phase angle is significantly better than that of CKF. The Average Voltage Relative Error (ARE) of voltage amplitude is reduced by 57.9%, and the ARE of voltage phase angle is reduced by 28.9%. These verify the advantage of the proposed algorithm in handling strongly nonlinear and high-dimensional systems. In the FDIA scenario, the detection method based on residual analysis can effectively identify cyber attacks and avoid false positives and false negatives. The prediction error of LSTM for the measurement data of attacked nodes and associated branches is on the order of 10-6, indicating that the reconstructed data is reliable. The method combining HCKF and LSTM can still stably track the real state after the attack. The performance of the proposed algorithm is better than that of WLS, adaptive Unscented Kalman Filter. Conclusions The dynamic state estimation method combining HCKF and LSTM proposed in this paper improves the adaptability to the strong nonlinearity and high-dimensional characteristics of the distribution network through HCKF. Rapid and accurate detection of FDIA is realized based on residual analysis. The measurement data of attacked nodes is effectively reconstructed by means of LSTM. The proposed method can provide high-precision estimation in the absence of attacks. In the FDIA scenario, it can resist attack interference and maintain estimation stability and accuracy. It provides key technical support for the safe and stable operation of the distribution network in the environment of cyber attacks. -

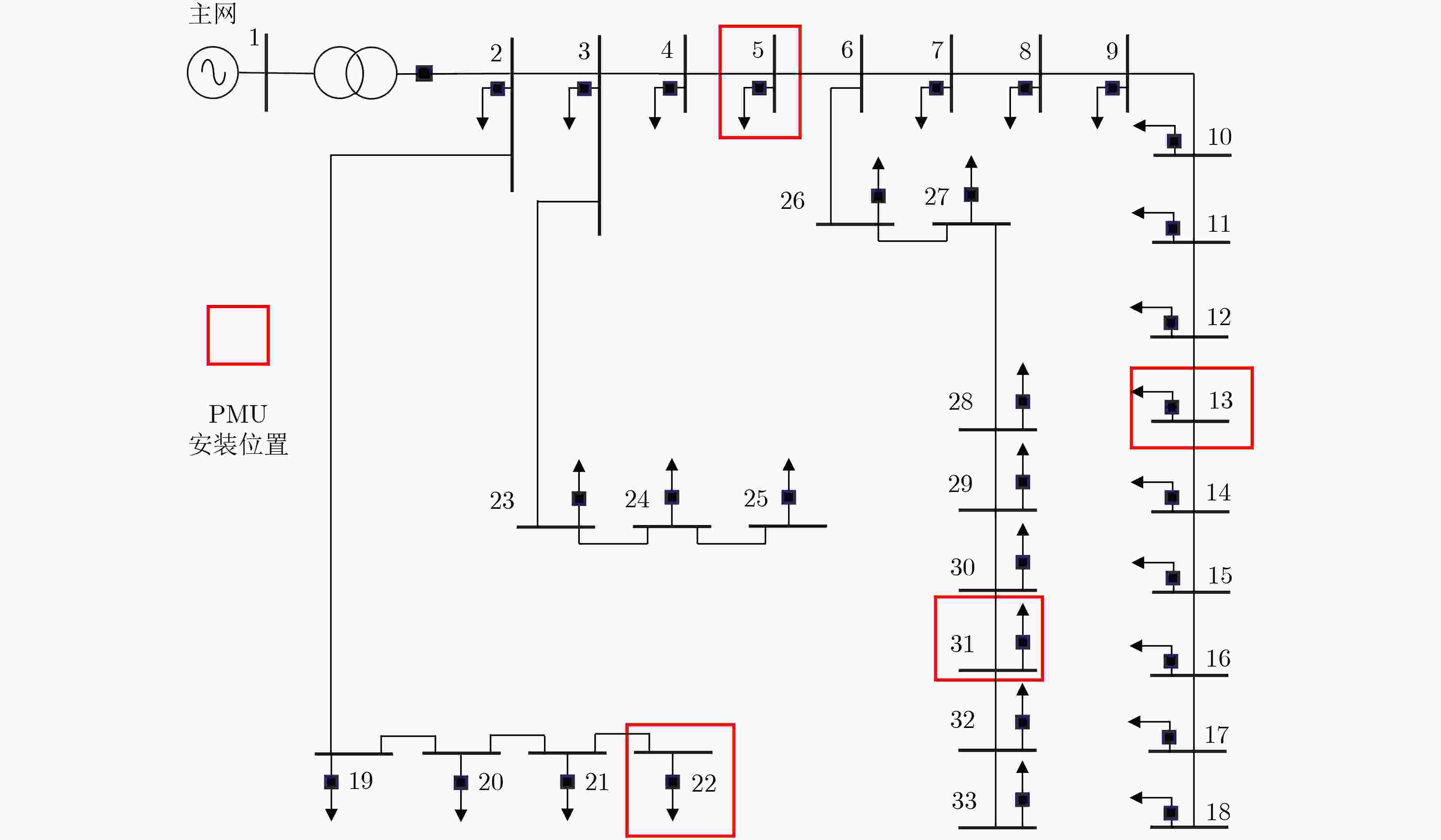

表 1 不同量测装置的测量标准差
测量方式 注入功率 支路功率 电压幅值 电压相角 PMU $ {10}^{-5} $ $ {10}^{-5} $ 0.005 0.002 SCADA $ {10}^{-4} $ $ {10}^{-4} $ 0.02 ------
下载: 导出CSV

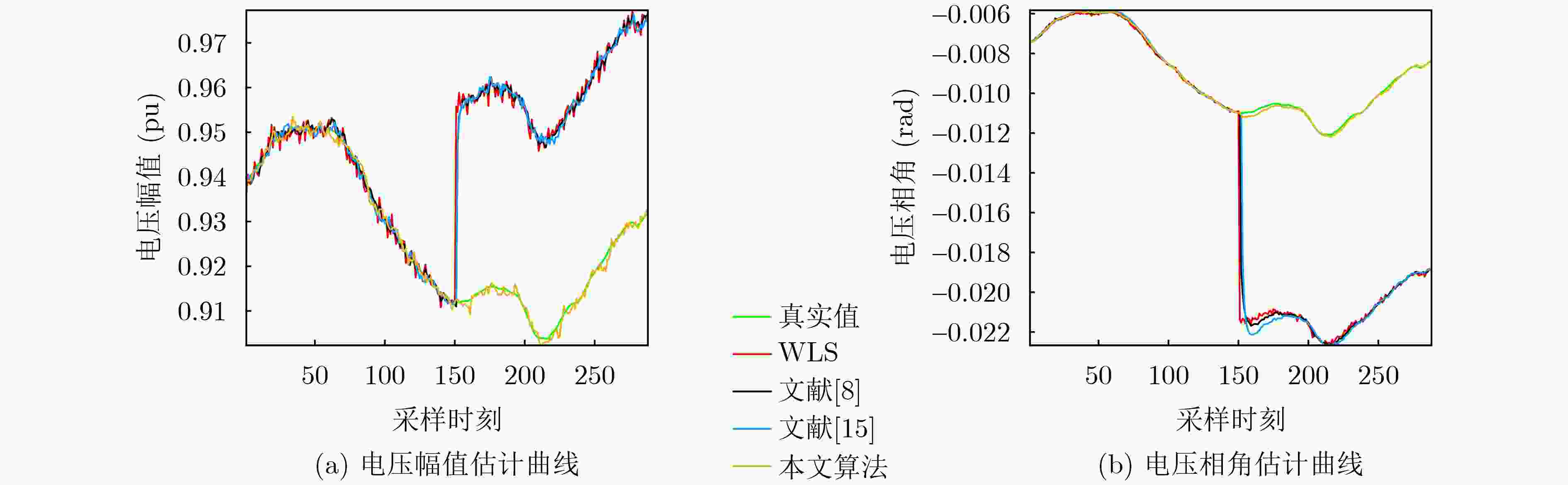

表 2 LSTM预测性能
性能指标 第18号节点 第17号支路 有功功率 无功功率 有功功率 无功功率 RMSE 4.89e-06 2.06e-06 1.17e-05 2.22e-06 MAE 3.89e-06 1.58e-06 9.25e-06 1.78e-06
下载: 导出CSV
-
