单目视角下多尺度可变形对齐感知的双向门控特征聚合立体图像生成

张春兰; 屈玉玮; 聂浪; 林春雨

doi:10.11999/JEIT250760

单目视角下多尺度可变形对齐感知的双向门控特征聚合立体图像生成

doi: 10.11999/JEIT250760 cstr: 32379.14.JEIT250760

张春兰¹,
屈玉玮^1, ,,
聂浪^{1, 2, 3},
林春雨^{1, 2, 3}

1.
衡水学院电子信息工程学院，衡水市 053010
2.
重庆邮电大学图像认知重庆市重点实验室重庆市 400065
3.
北京交通大学信息科学研究所北京市 100044

基金项目: 河北省教育厅资助科研项目(BJK2024146)，河北省自然科学基金(F2025111005)，国家自然科学基金(62502057)，衡水学院校级科研项目(2024XJPY04, 2023GC26)

详细信息

作者简介:
张春兰：女，博士，讲师，研究方向为计算机视觉、深度学习、人工智能、视角合成、畸变矫正、智能光子学

屈玉玮：男，博士，讲师，研究方向为计算机视觉、深度学习、人工智能、视角合成、智能光子学

聂浪：男，博士，讲师，研究方向为为计算机视觉、深度学习、图像视频拼接、图像矫正、深度估计、视角合成

林春雨：男，博士，教授，研究方向为计算机视觉、深度学习、图像视频处理、人工智能

通讯作者:
屈玉玮　quyuwei@hsnc.edu.cn

中图分类号: TN911.73; TP391.4
计量
- 文章访问数: 8
- HTML全文浏览量: 0
- PDF下载量: 0
- 被引次数: 0
出版历程
- 修回日期: 2026-01-26
- 录用日期: 2026-01-26
- 网络出版日期: 2026-02-12

Multi-Scale Deformable Alignment-Aware Bidirectional Gated Feature Aggregation for Stereoscopic Image Generation from a Single Image

ZHANG Chunlan¹,
QU Yuwei^{1
, ,},
NIE Lang^{1, 2, 3},
LIN Chunyu^{1, 2, 3}

1.
School of Electronic Information Engineering, Hengshui University, Hengshui, Hebei 053010, China
2.
Chongqing Key Laboratory of Image Cognition, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
3.
Institute of Information Science, Beijing Jiaotong University, Beijing 100044, China

Funds: Science Research Project of Hebei Education Department (BJK2024146), The Natural Science Foundation of Hebei Province (F2025111005), The National Natural Science Foundation of China (62502057), The Scientific Research Project of Hengshui University (2024XJPY04, 2023GC26)

摘要

摘要: 单目视角下的立体图像生成通常依赖深度真值作为先验，易存在几何错位、遮挡伪影及纹理模糊等问题。为此，本文提出一种多尺度可变形对齐感知的双向门控特征聚合立体图像生成网络，在无需深度真值监督的条件下实现端到端训练。该方法引入多尺度可变形对齐模块(MSDA)根据内容自适应调整采样位置，在不同尺度上自适应对齐源特征与目标特征，缓解固定卷积难以适应几何变形和视差变化引起的错位问题；此外，构建纹理结构双向门控特征聚合模块(Bi-GFA)，提出一种约束网络浅层学习纹理、深层建模结构的特征解耦策略，实现纹理与结构信息的动态互补与高效融合；同时，设计可学习的对齐引导损失(LAG)，进一步提升特征对齐精度与语义一致性。在KITTI、MPEG-FTV及多视点深度视频序列数据集上的实验结果表明，所提方法在结构还原性、纹理质量及视角一致性等方面优于现有先进方法。
- 立体图像 /
- 多尺度可变形对齐 /
- 双向门控 /
- 特征聚合 /
- 单目视角生成
Abstract: Objective The generation of stereo images from a single image typically relies on the depth as a prior, often leading to issues such as geometric misalignment, occlusion artifacts, and texture blurring. To address these issues, research in recent years has shifted towards end-to-end learning of alignment transformation and rendering within the image or feature domain. By adopting a content-based feature transformation and alignment mechanism, high-quality novel images can be generated without relying on explicit geometric information. However, there are still three key challenges: (1) The limited ability of fixed convolution in modeling large-scale geometry and disparity changes, which limits the effectiveness of feature alignment; (2) In network representation, texture information and structural information are coupled with each other, lacking hierarchical modeling and dynamic fusion mechanisms, making it difficult to simultaneously preserve fine details and semantic consistency; (3) The existing supervision strategies mainly focus on reconstruction errors, with insufficient constraints on the intermediate alignment process, thereby reducing the efficiency of cross-view feature consistency learning. To address these challenges, this paper proposes a multi-scale deformable alignment aware bidirectional gated feature aggregation network for generating stereoscopic images from a single image. Methods Firstly, in order to overcome the problem of image misalignment and distortion caused by the inability of fixed convolution to adapt to geometric deformation and disparity changes, a Multi-Scale Deformable Alignment module (MSDA) is introduced, which uses multi-scale deformable convolution to adaptively adjust the sampling position according to the content, and adapts to the source and target features at different scales. Secondly, in response to the problems of texture detail blur and structural distortion in synthesized images, a feature decoupling strategy is proposed to constrain the shallow learning of texture and deep modeling of structure in the network. A texture structure Bidirectional Gating Feature Aggregation module (Bi-GFA) is constructed to achieve dynamic complementarity and efficient fusion of texture and structural information. Finally, to improve the alignment accuracy of cross view features, a learnable Alignment Guided Loss (LAG) function was designed to guide the alignment network to adaptively adjust the offset field at the feature level, enhancing the fidelity and semantic consistency of the synthesized image. Results and Discussions This study focuses on scene level image synthesis from a single image. The quantitative results indicate that the proposed method significantly outperforms all compared methods in terms of PSNR, SSIM, and LPIPS, and maintains stable performance under different dataset sizes and scene complexities, demonstrating strong generalization ability and robustness (Tab. 1 and Tab. 2). Qualitative comparison shows that the generated results are closest to the real image, with excellent overall sharpness and detail fidelity. In the outdoor KITTI dataset, the pixel alignment problem of foreground objects has been effectively solved (Fig. 4). In the indoor dataset, facial and hair textures are clearly and naturally restored, and high-frequency areas (such as champagne towers and balloon edges) exhibit clear contours, accurate color reproduction, and no obvious artifacts or blurring phenomena. Both global illumination and local structural details were well preserved, resulting in the highest perceptual quality (Fig. 5). The ablation study further validated the effectiveness of the proposed MSDA, Bi-GFA, and LAG modules (Tab. 3). Conclusions This article proposes a multi-scale deformable alignment aware bidirectional gated feature aggregation stereo image generation network to address issues such as strong dependence on depth truth, significant geometric misalignment and distortion, texture blurring, and structural distortion in the process of stereo image generation from a monocular perspective. Specifically, the Multi Scale Deformable Alignment Module (MSDA) effectively enhances the flexibility and accuracy of cross view feature alignment; The texture structure bidirectional gating feature aggregation module (Bi-GFA) achieves complementary fusion of texture details and structural information; The learnable alignment guided loss further optimizes the offset field estimation, thereby improving the fidelity and semantic consistency of the synthesized image. The experimental results show that the proposed method outperforms existing advanced methods in terms of structural reconstruction, texture clarity, and viewpoint consistency, and has strong generalization ability and robustness. In future work, we will explore the impact of different depth estimation methods on overall system performance, investigate more efficient network architectures and model compression strategies to reduce computational costs and achieve real-time stereo image generation.
- Stereoscopic Images /
- Multi-scale Deformable Alignment /
- Bidirectional Gating /
- Feature Aggregation /
- Single Image Generation

HTML全文

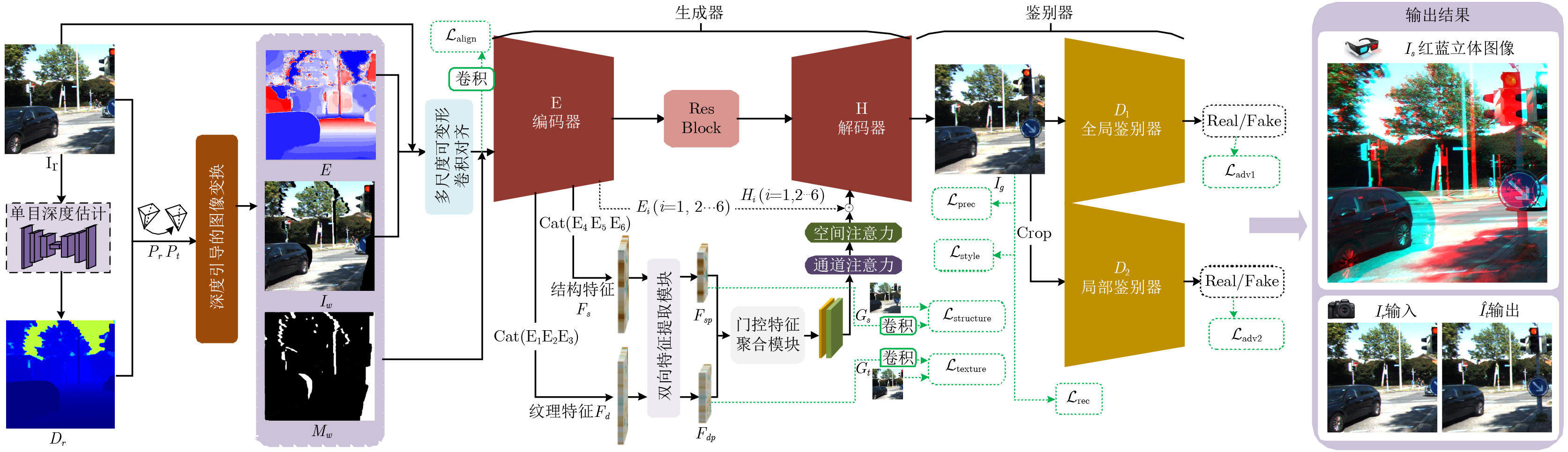

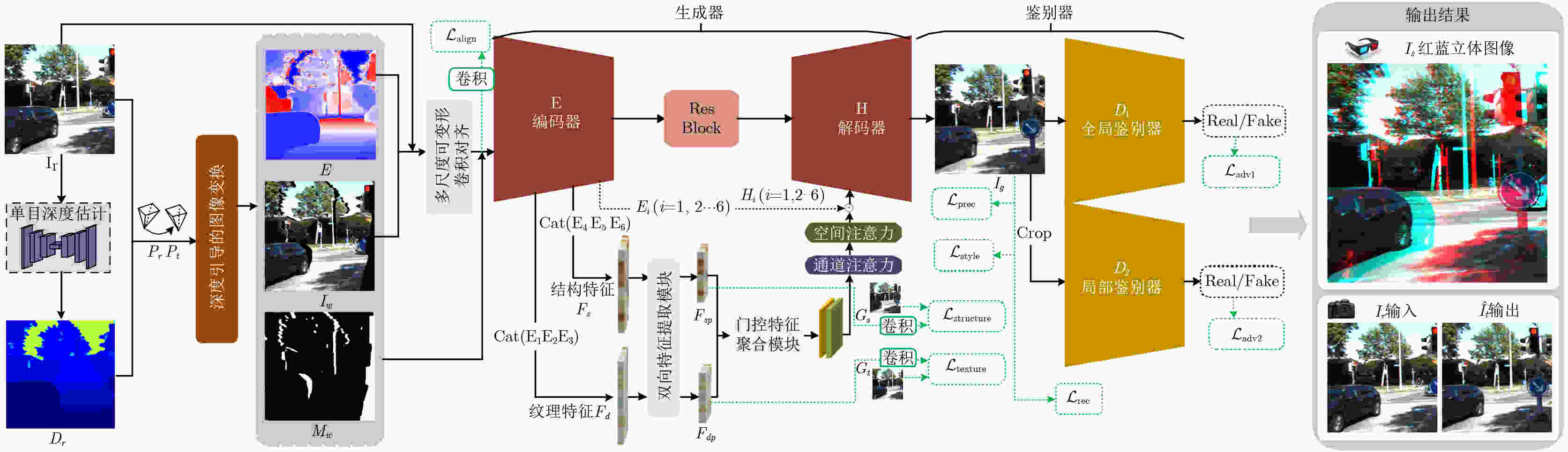

图 1 整体网络架构图

下载: 全尺寸图片幻灯片

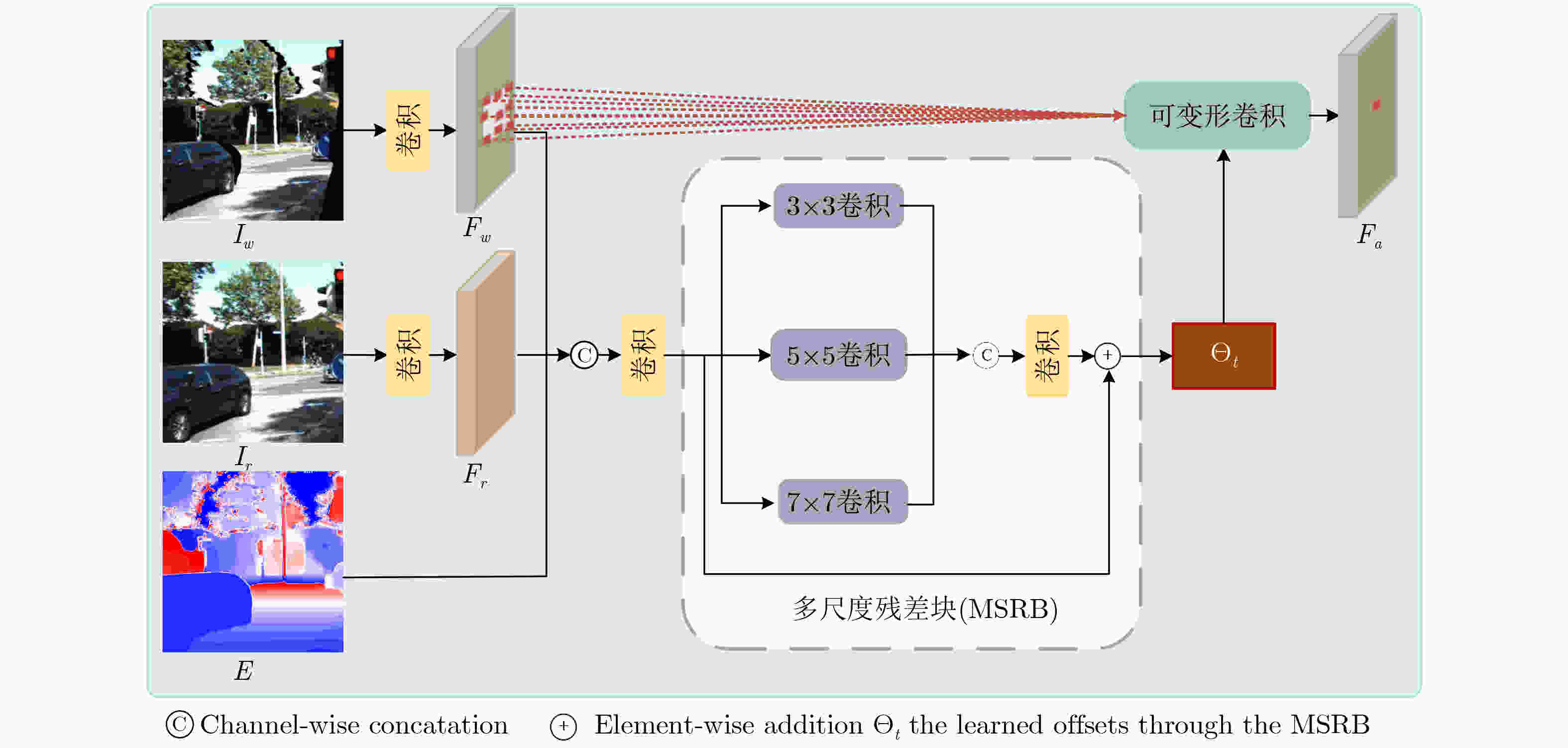

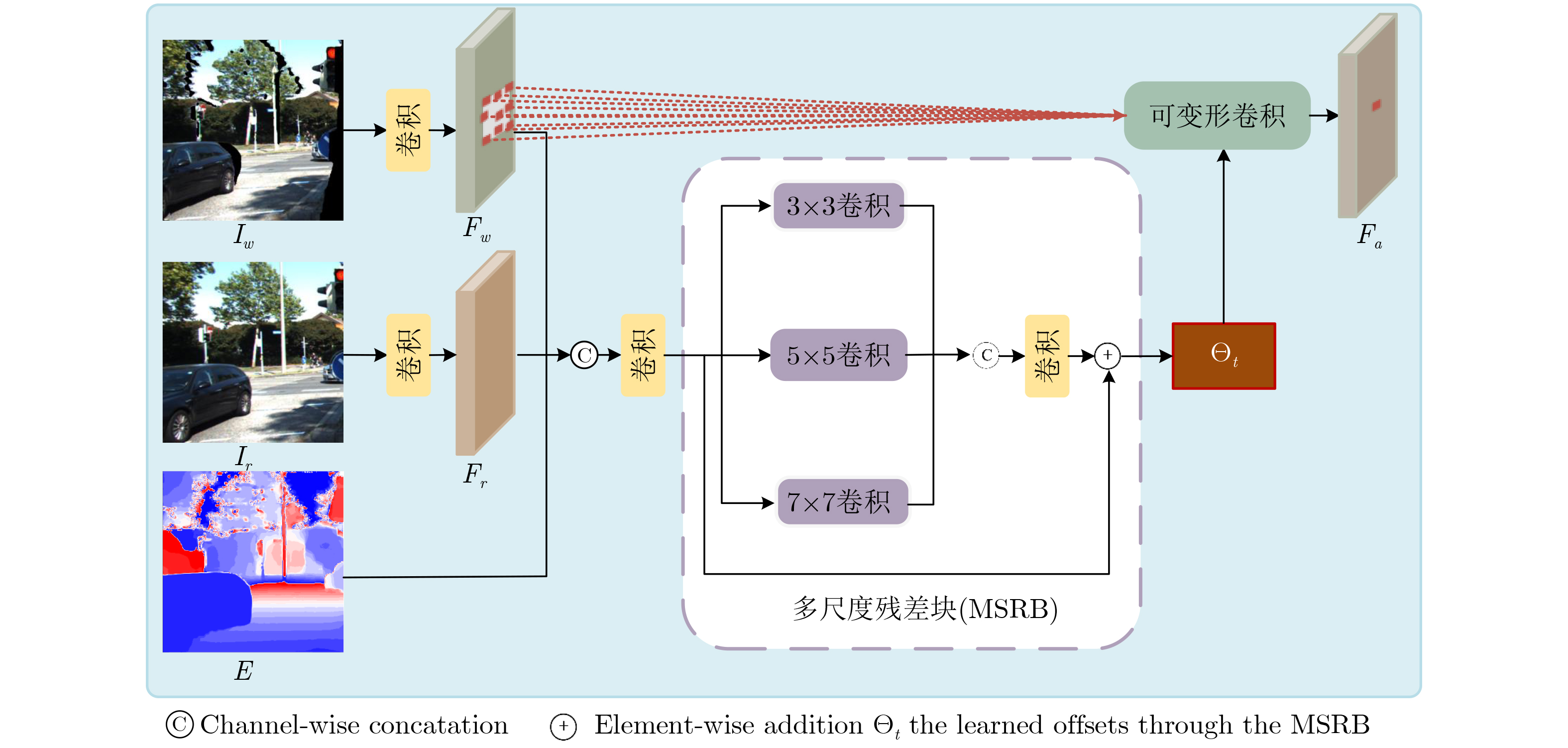

图 2 MSDA模块

下载: 全尺寸图片幻灯片

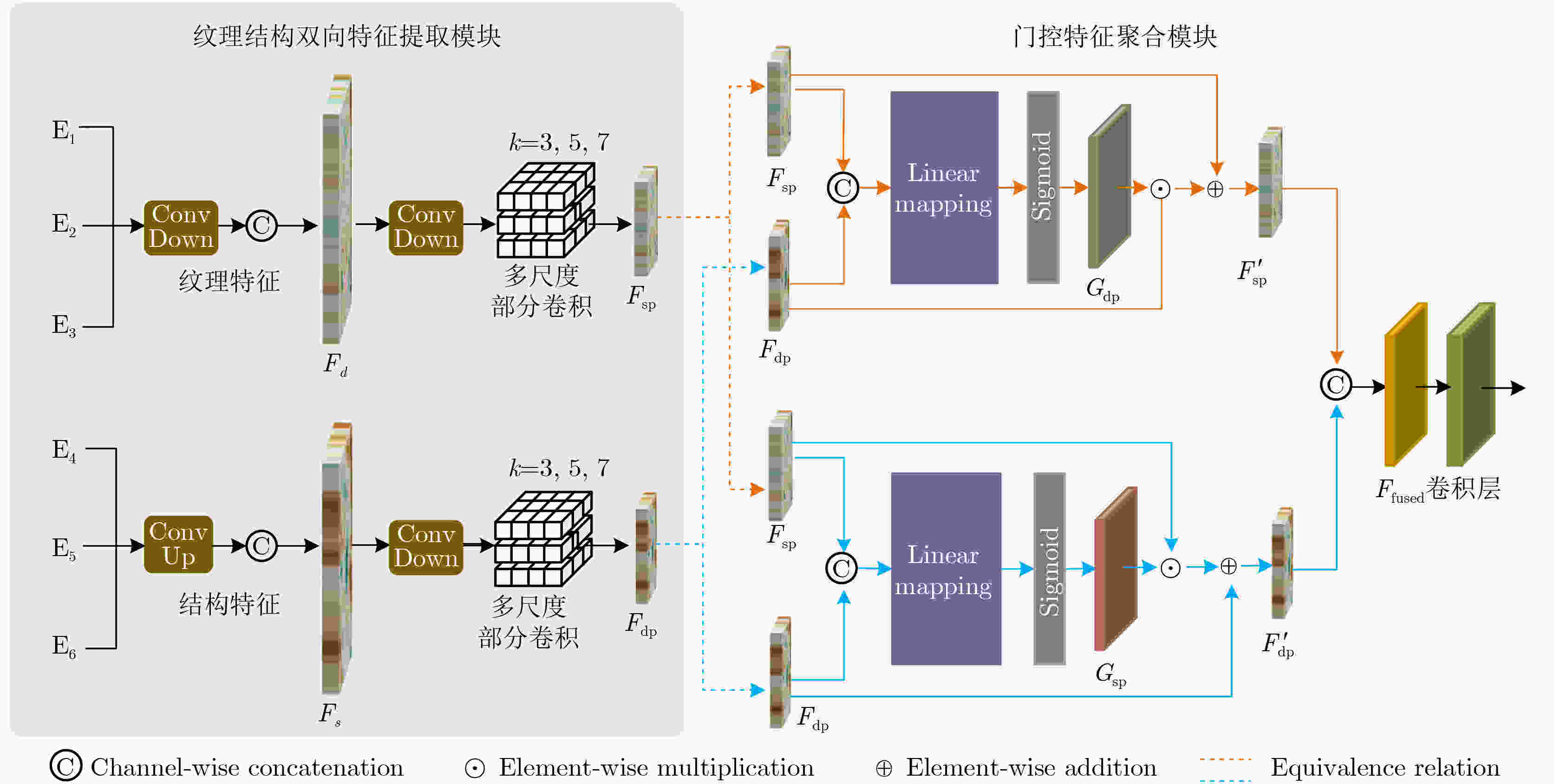

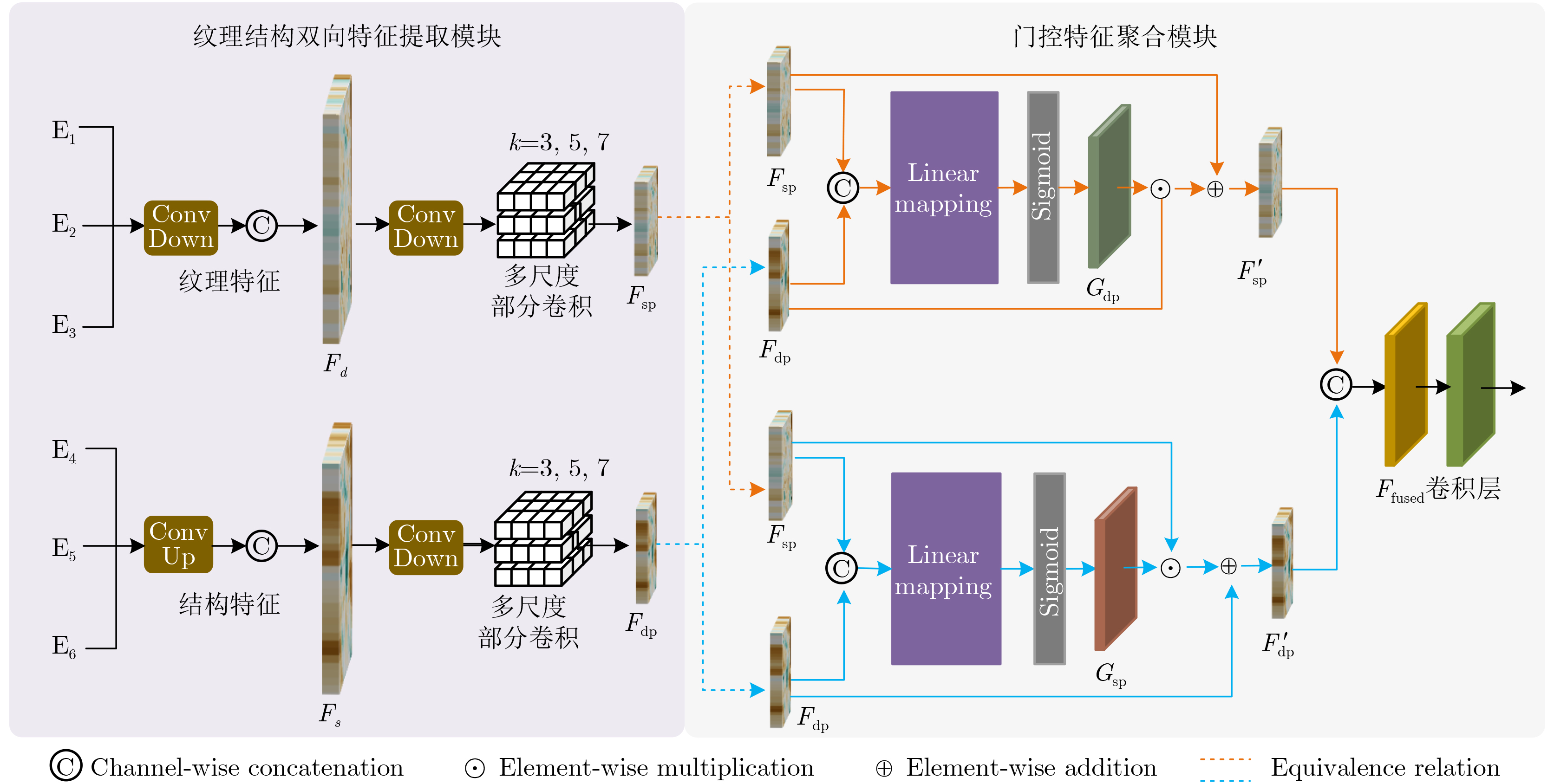

图 3 双向门控特征聚合流程图

下载: 全尺寸图片幻灯片

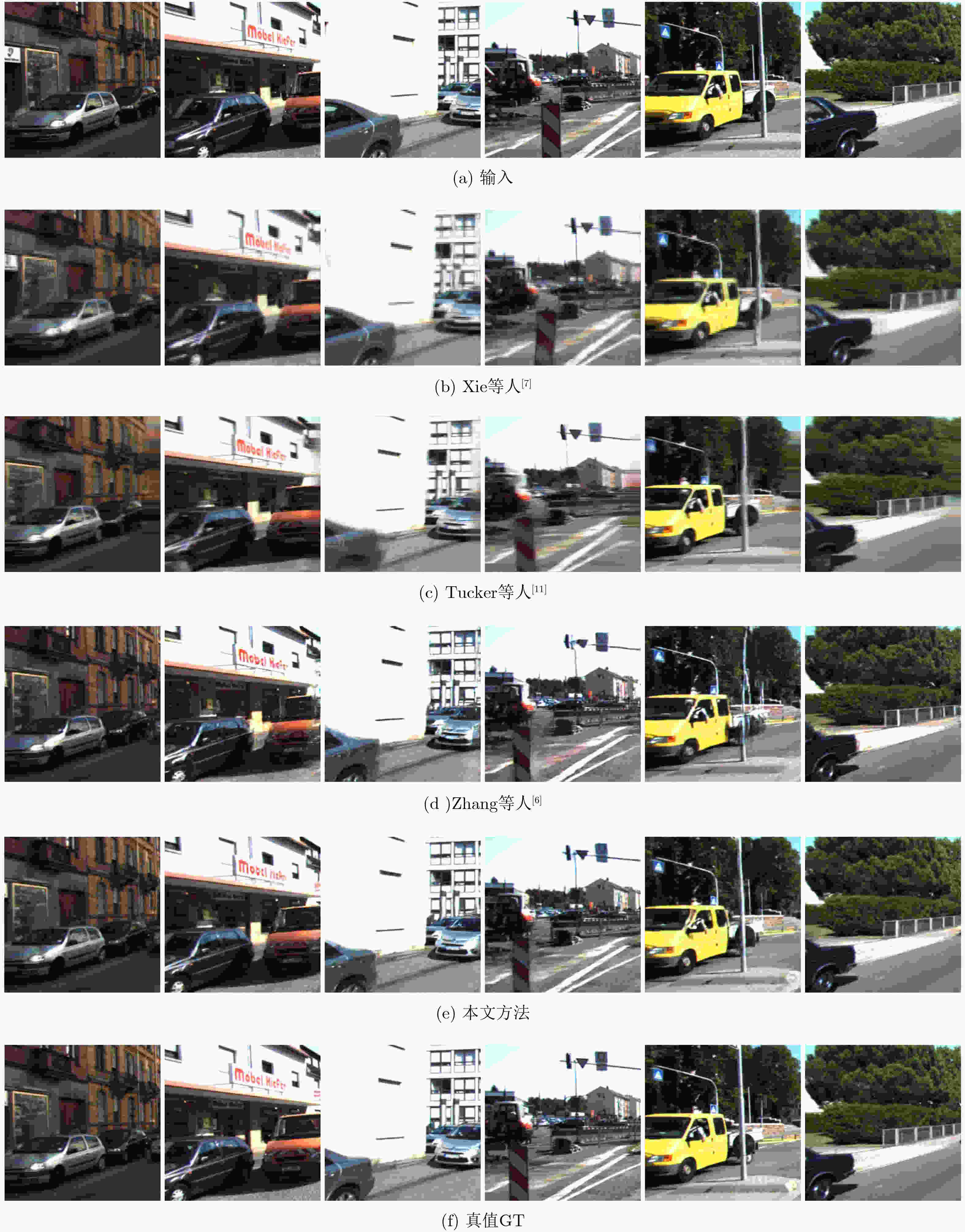

图 4 KITTI数据集下对比实验可视化结果

下载: 全尺寸图片幻灯片

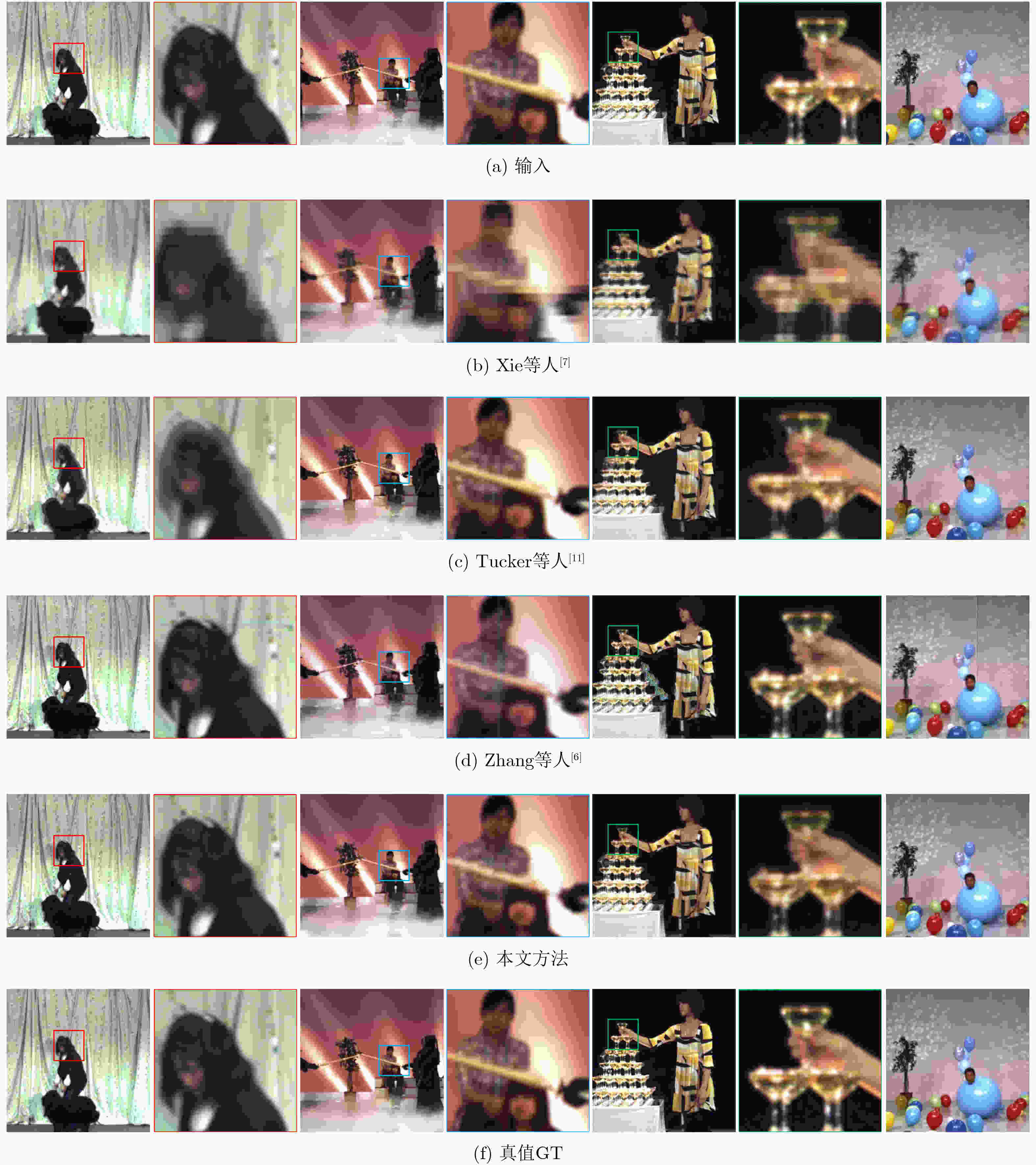

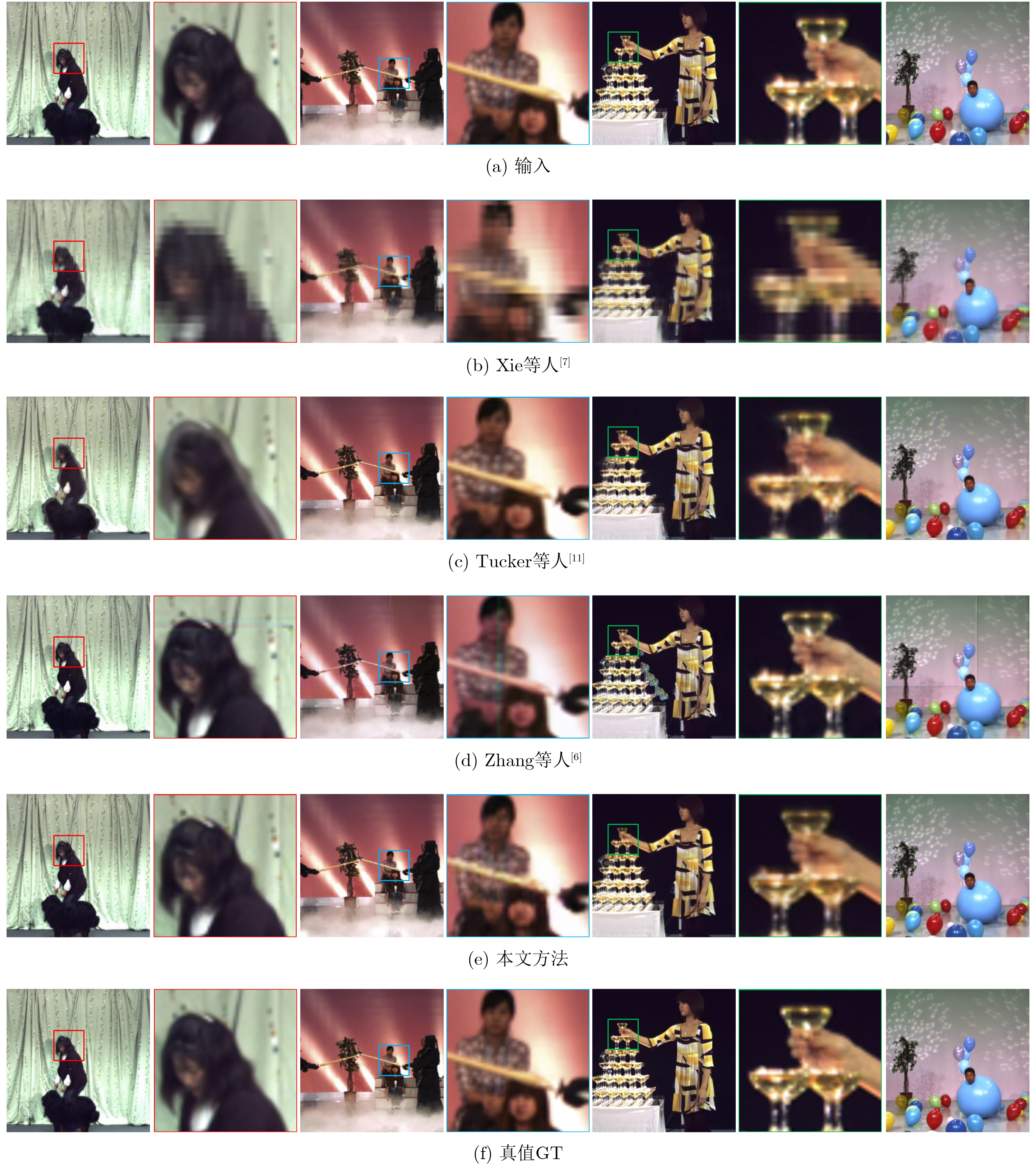

图 5 MPEG-FTV数据集对比实验可视化结果

下载: 全尺寸图片幻灯片

表 1 在KTTTI数据集下对比实验定量结果

测试分辨率	对比方法	平面数N	PSNR	SSIM	LPIPS
384×128	Tulsiani等人^[13]	NA	16.500	0.572	NA
	Xie等人^[7]	NA	17.352	0.598	0.205
	Tucker等人^[11]	32	19.500	0.733	NA
	Zhang等人^[9]	32	21.558	0.760	0.127
	Li等人^[12]	256	21.900	0.828	0.112
	Zhang等人^[6]	NA	22.040	0.749	0.105
	Szymanowicz等人^[22]	NA	21.960	0.826	0.132
	Fang等人^[23]	NA	22.262	0.837	0.116
	本文方法	NA	22.433	0.802	0.089

下载: 导出CSV

表 2 在MPEG-FTV及多视点深度视频序列户内数据集设置下对比实验结果

对比方法	N	MPEG-FTV-Dog			MPEG-FTV-Champagne			Akko & Kayo
对比方法	N	PSNR	SSIM	LPIPS	PSNR	SSIM	LPIPS	PSNR	SSIM	LPIPS
Xie等人^[7]	NA	16.581	0.223	0.318	18.678	0.712	0.277	19.852	0.662	0.119
Tucker等人^[11]	32	19.469	0.772	0.086	19.346	0.884	0.102	21.256	0.642	0.090
Zhang等人^[6]	NA	20.752	0.793	0.044	19.796	0.886	0.077	25.696	0.881	0.082
本文方法	NA	21.881	0.886	0.027	22.838	0.896	0.059	26.827	0.902	0.073
对比方法	N	Rena			MPEG-FTV-Kendo			MPEG-FTV-Balloon
对比方法	N	PSNR	SSIM	LPIPS	PSNR	SSIM	LPIPS	PSNR	SSIM	LPIPS
Xie等人^[7]	NA	27.109	0.875	0.099	22.008	0.803	0.177	21.146	0.705	0.213
Tucker等人^[11]	32	19.147	0.380	0.221	23.783	0.882	0.042	24.539	0.794	0.066
Zhang等人^[6]	NA	30.426	0.956	0.092	22.869	0.910	0.063	23.685	0.871	0.095
本文方法	NA	31.259	0.961	0.080	25.828	0.952	0.019	25.371	0.941	0.018

下载: 导出CSV

表 3 在KTTTI户外数据集以及MPEG-FTV-Dog户内数据集下的消融实验结果

组件	MSDA	Bi-GFA	$ {\mathcal{L}}_{LAG} $	KITTI			MPEG-FTV-Dog
组件	MSDA	Bi-GFA	$ {\mathcal{L}}_{LAG} $	PSNR	SSIM	LPIPS	PSNR	SSIM	LPIPS
w/o ALL				15.593	0.651	0.207	15.111	0.603	0.198
w/o MSDA		√	√	20.894	0.788	0.139	19.564	0.735	0.156
w/o Bi-GFA	√		√	21.698	0.809	0.123	20.555	0.791	0.132
w/o $ {\mathcal{L}}_{LAG} $	√	√		22.838	0.857	0.118	21.002	0.814	0.029
本文方法	√	√	√	22.968	0.863	0.101	21.881	0.886	0.027

下载: 导出CSV

参考文献(23)

[1]	SHEN Qiuhong, WU Zike, YI Xuanyu, et al. Gamba: Marry Gaussian splatting with mamba for single-view 3D reconstruction[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2025: 1–14. doi: 10.1109/TPAMI.2025.3569596. (查阅网上资料,未找到本条文献卷期号信息,请确认并补充).
[2]	JIANG Lei, SCHAEFER G, and MENG Qinggang. Multi-scale feature fusion for single image novel view synthesis[J]. Neurocomputing, 2024, 599: 128081. doi: 10.1016/j.neucom.2024.128081.
[3]	WILES O, GKIOXARI G, SZELISKI R, et al. SynSin: End-to-end view synthesis from a single image[C]. Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Seattle, USA, 2020: 7465–7475. doi: 10.1109/CVPR42600.2020.00749.
[4]	周洋, 蔡毛毛, 黄晓峰, 等. 结合上下文特征融合的虚拟视点图像空洞填充[J]. 电子与信息学报, 2024, 46(4): 1479–1487. doi: 10.11999/JEIT230181. ZHOU Yang, CAI Maomao, HUANG Xiaofeng, et al. Hole filling for virtual view synthesized image by combining with contextual feature fusion[J]. Journal of Electronics & Information Technology, 2024, 46(4): 1479–1487. doi: 10.11999/JEIT230181.
[5]	ZHENG Chuanxia, CHAM T J, and CAI Jianfei. Pluralistic image completion[C]. Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Long Beach, USA, 2019: 1438–1447. doi: 10.1109/CVPR.2019.00153.
[6]	ZHANG Chunlan, LIN Chunyu, LIAO Kang, et al. As-deformable-as-possible single-image-based view synthesis without depth prior[J]. IEEE Transactions on Circuits and Systems for Video Technology, 2023, 33(8): 3989–4001. doi: 10.1109/TCSVT.2023.3237815.
[7]	XIE Junyuan, GIRSHICK R, and FARHADI A. Deep3D: Fully automatic 2D-to-3D video conversion with deep convolutional neural networks[C]. 14th European Conference on Computer Vision, Amsterdam, The Netherlands, 2016: 842–857. doi: 10.1007/978-3-319-46493-0_51.
[8]	ZHOU Tinghui, TULSIANI S, SUN Weilun, et al. View synthesis by appearance flow[C]. 14th European Conference on Computer Vision, Amsterdam, The Netherlands, 2016: 286–301. doi: 10.1007/978-3-319-46493-0_18.
[9]	ZHANG Chunlan, LIN Chunyu, LIAO Kang, et al. SivsFormer: Parallax-aware transformers for single-image-based view synthesis[C]. 2022 IEEE Conference on Virtual Reality and 3D User Interfaces, Christchurch, New Zealand, 2022: 47–56. doi: 10.1109/VR51125.2022.00022.
[10]	FLYNN J, NEULANDER I, PHILBIN J, et al. Deep stereo: Learning to predict new views from the world's imagery[C]. Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, USA, 2016: 5515–5524. doi: 10.1109/CVPR.2016.595.
[11]	TUCKER R and SNAVELY N. Single-view view synthesis with multiplane images[C]. Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Seattle, USA, 2020: 548–557. doi: 10.1109/CVPR42600.2020.00063.
[12]	LI Jiaxin, FENG Zijian, SHE Qi, et al. MINE: Towards continuous depth MPI with NeRF for novel view synthesis[C]. Proceedings of the IEEE/CVF International Conference on Computer Vision, Montreal, Canada, 2021: 12558–12568. doi: 10.1109/ICCV48922.2021.01235.
[13]	TULSIANI S, TUCKER R, and SNAVELY N. Layer-structured 3D scene inference via view synthesis[C]. Proceedings of the 15th European Conference on Computer Vision, Munich, Germany, 2018: 311–327. doi: 10.1007/978-3-030-01234-2_19.
[14]	MILDENHALL B, SRINIVASAN P P, TANCIK M, et al. NeRF: Representing scenes as neural radiance fields for view synthesis[J]. Communications of the ACM, 2022, 65(1): 99–106. doi: 10.1145/3503250.
[15]	孙文博, 高智, 张依晨, 等. 稀疏视角下基于几何一致性的神经辐射场卫星城市场景渲染与数字表面模型生成[J]. 电子与信息学报, 2025, 47(6): 1679–1689. doi: 10.11999/JEIT240898. SUN Wenbo, GAO Zhi, ZHANG Yichen, et al. Geometrically consistent based neural radiance field for satellite city scene rendering and digital surface model generation in sparse viewpoints[J]. Journal of Electronics & Information Technology, 2025, 47(6): 1679–1689. doi: 10.11999/JEIT240898.
[16]	LUO Dengyan, XIANG Yanping, WANG Hu, et al. Deformable Feature Alignment and Refinement for moving infrared small target detection[J]. Pattern Recognition, 2026, 169: 111894. doi: 10.1016/j.patcog.2025.111894.
[17]	姚婷婷, 肇恒鑫, 冯子豪, 等. 上下文感知多感受野融合网络的定向遥感目标检测[J]. 电子与信息学报, 2025, 47(1): 233–243. doi: 10.11999/JEIT240560. YAO Tingting, ZHAO Hengxin, FENG Zihao, et al. A context-aware multiple receptive field fusion network for oriented object detection in remote sensing images[J]. Journal of Electronics & Information Technology, 2025, 47(1): 233–243. doi: 10.11999/JEIT240560.
[18]	FIAZ M, NOMAN M, CHOLAKKAL H, et al. Guided-attention and gated-aggregation network for medical image segmentation[J]. Pattern Recognition, 2024, 156: 110812. doi: 10.1016/j.patcog.2024.110812.
[19]	GUO Shuai, HU Jingchuan, ZHOU Kai, et al. Real-time free viewpoint video synthesis system based on DIBR and a depth estimation network[J]. IEEE Transactions on Multimedia, 2024, 26: 6701–6716. doi: 10.1109/TMM.2024.3355639.
[20]	NIKLAUS S, MAI Long, YANG Jimei, et al. 3D Ken Burns effect from a single image[J]. ACM Transactions on Graphics, 2019, 38(6): 184. doi: 10.1145/3355089.3356528.
[21]	YU Jiahui, LIN Zhe, YANG Jimei, et al. Generative image inpainting with contextual attention[C]. Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Salt Lake City, USA, 2018: 5505–5514. doi: 10.1109/CVPR.2018.00577.
[22]	SZYMANOWICZ S, INSAFUTDINOV E, ZHENG Chuanxia, et al. Flash3D: Feed-forward generalisable 3D scene reconstruction from a single image[C]. 2025 International Conference on 3D Vision, Singapore, Singapore, 2025: 670–681. doi: 10.1109/3DV66043.2025.00067.
[23]	FANG Kun, ZHANG Qinghui, WAN Chenxia, et al. Single view generalizable 3D reconstruction based on 3D Gaussian splatting[J]. Scientific Reports, 2025, 15(1): 18468. doi: 10.1038/s41598-025-03200-7.
