高斯混合-概率假设密度滤波器的最优联邦均值融合

薛昱; 徐磊

doi:10.11999/JEIT250759

高斯混合-概率假设密度滤波器的最优联邦均值融合

doi: 10.11999/JEIT250759 cstr: 32379.14.JEIT250759

薛昱^,,
徐磊

上海机电工程研究所上海 201109

基金项目: 国家自然科学基金面上项目(62071386)

详细信息

作者简介:
薛昱：男，博士，工程师，研究方向为目标跟踪和多传感器信息融合

徐磊：男，硕士，工程师，研究方向为雷达信号与信息处理

通讯作者:
薛昱　18829236362@163.com

中图分类号: TN911.7
计量
- 文章访问数: 11
- HTML全文浏览量: 5
- PDF下载量: 2
- 被引次数: 0
出版历程
- 收稿日期: 2025-08-19
- 修回日期: 2025-09-29
- 网络出版日期: 2025-10-22

Optimal Federated Average Fusion of Gaussian Mixture–Probability Hypothesis Density Filters

XUE Yu^,,
XU Lei

Shanghai Electro-Mechanical Engineering Institute, Shanghai 201109, China

Funds: The National Natural Science Foundation of China (62071386)

摘要

摘要: 为实现最优不确定多目标分布式融合跟踪，该文提出一种高斯混合-概率假设密度(GM-PHD)滤波器的联邦均值融合算法，该算法具有分层式结构。每个传感器节点运行1个局域GM-PHD滤波器，从传感器量测中提取多目标状态估计。融合节点负责1个仅预测上一时刻融合结果的主滤波器，对所有滤波器的GM-PHD进行关联与合并，且为各滤波器分配融合结果和若干滤波器参数。关联将多目标密度融合分解为4种单目标估计融合，该文推导了有无漏检时的单目标最优估计融合方法。信息分配利用协方差上界理论消除了滤波器间的相关性，进而使所提算法能够获得与贝叶斯融合相同的精度。仿真结果表明，所提算法能够获得最优的跟踪精度，优于现有的算术平均(AA)融合算法，且可以灵活地调节各滤波器的相对可靠性。
- 不确定多目标 /
- 分布式跟踪融合 /
- 均值融合 /
- 最优估计融合 /
- 协方差上界理论
Abstract: Objective To realize optimal decentralized fusion tracking of uncertain targets, this study proposes a federated average fusion algorithm for Gaussian Mixture–Probability Hypothesis Density (GM-PHD) filters, designed with a hierarchical structure. Each sensor node operates a local GM-PHD filter to extract multi-target state estimates from sensor measurements. The fusion node performs three key tasks: (1) maintaining a master filter that predicts the fusion result from the previous iteration; (2) associating and merging the GM-PHDs of all filters; and (3) distributing the fused result and several parameters to each filter. The association step decomposes multi-target density fusion into four categories of single-target estimate fusion. We derive the optimal single-target estimate fusion both in the absence and presence of missed detections. Information assignment applies the covariance upper-bounding theory to eliminate correlation among all filters, enabling the proposed algorithm to achieve the accuracy of Bayesian fusion. Simulation results show that the federated fusion algorithm achieves optimal tracking accuracy and consistently outperforms the conventional Arithmetic Average (AA) fusion method. Moreover, the relative reliability of each filter can be flexibly adjusted. Methods The multi-sensor multi-target density fusion is decomposed into multiple groups of single-target component merging through the association operation. Federated filtering is employed as the merging strategy, which achieves the Bayesian optimum owing to its inherent decorrelation capability. Section 3 rigorously extends this approach to scenarios with missed detections. To satisfy federated filtering’s requirement for prior estimates, a master filter is designed to compute the predicted multi-target density, thereby establishing a hierarchical architecture for the proposed algorithm. In addition, auxiliary measures are incorporated to compensate for the observed underestimation of cardinality. Results and Discussions modified Mahalanobis distance (Fig.3). The precise association and the single-target decorrelation capability together ensure the theoretical optimality of the proposed algorithm, as illustrated in Fig. 2. Compared with conventional density fusion, the Optimal Sub-Pattern Assignment (OSPA) error is reduced by 8.17% (Fig. 4). The advantage of adopting a small average factor for the master filter is demonstrated in Figs. 5 and 6. The effectiveness of the measures for achieving cardinality consensus is also validated (Fig. 7). Another competitive strength of the algorithm lies in the flexibility of adjusting the average factors (Fig. 8). Furthermore, the algorithm consistently outperforms AA fusion across all missed detection probabilities (Fig. 9). Conclusions This paper achieves theoretically optimal multi-target density fusion by employing federated filtering as the merging method for single-target components. The proposed algorithm inherits the decorrelation capability and single-target optimality of federated filtering. A hierarchical fusion architecture is designed to satisfy the requirement for prior estimates. Extensive simulations demonstrate that: (1) the algorithm can accurately associate filtered components belonging to the same target, thereby extending single-target optimality to multi-target fusion tracking; (2) the algorithm supports flexible adjustment of average factors, with smaller values for the master filter consistently preferred; and (3) the superiority of the algorithm persists even under sensor malfunctions and high missed detection rates. Nonetheless, this study is limited to GM-PHD filters with overlapping Fields Of View (FOVs). Future work will investigate its applicability to other filter types and spatially non-overlapping FOVs.
- Decentralized tracking fusion /
- Uncertain targets /
- Average fusion /
- Optimal estimate fusion /
- Covariance upper-bounding theory

HTML全文

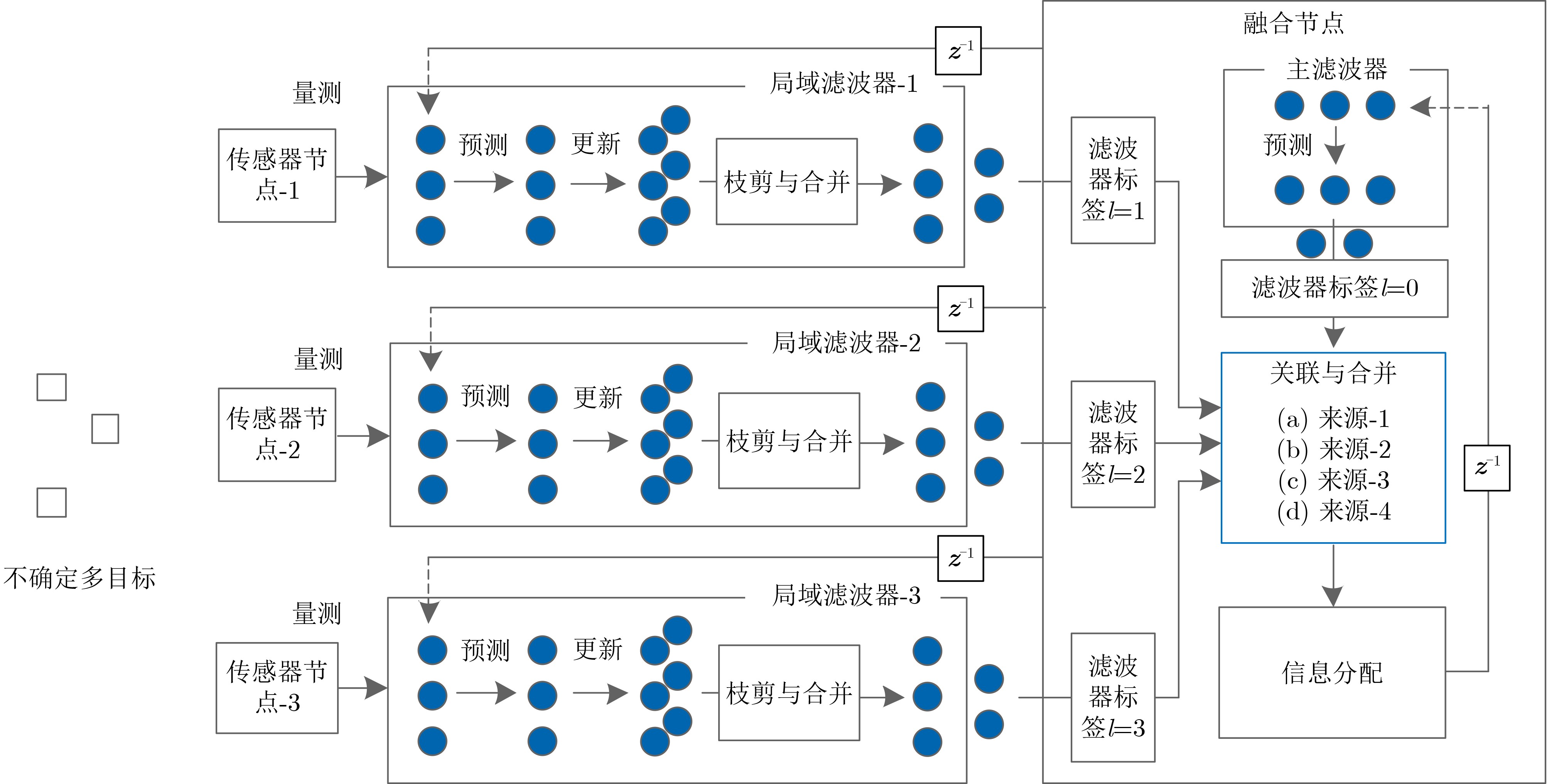

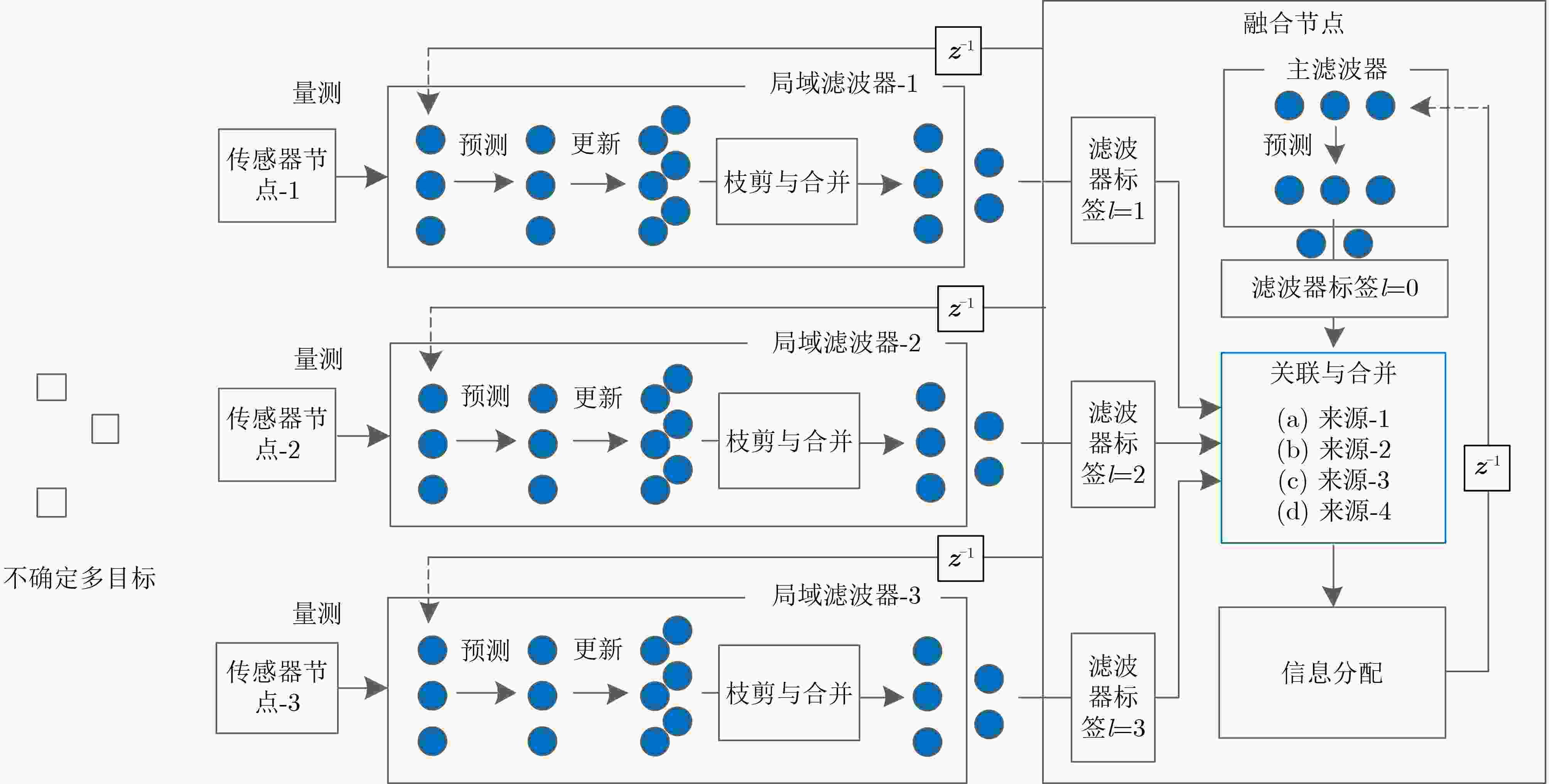

图 1 本文所提联邦均值融合算法的分层式结构图

下载: 全尺寸图片幻灯片

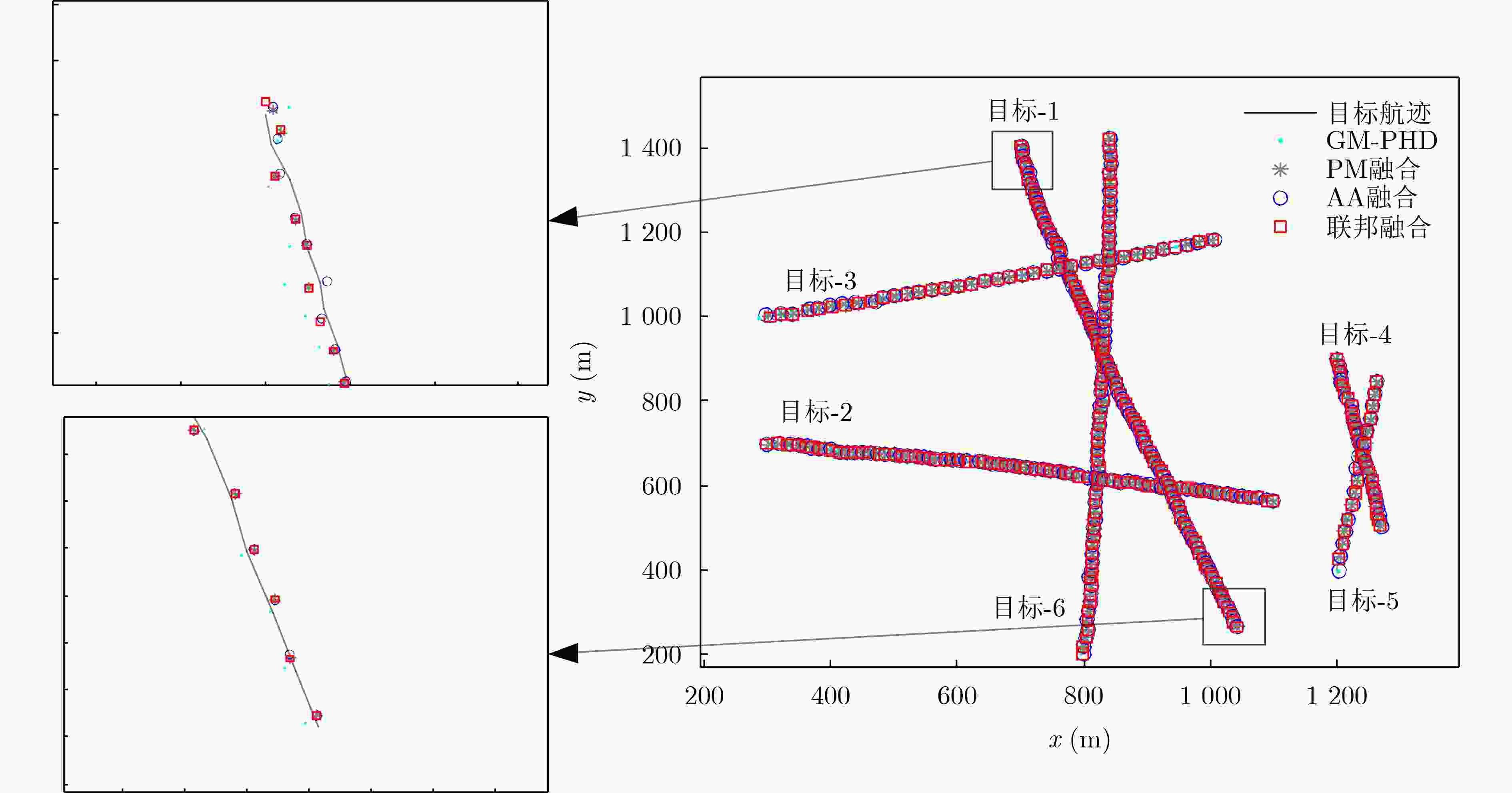

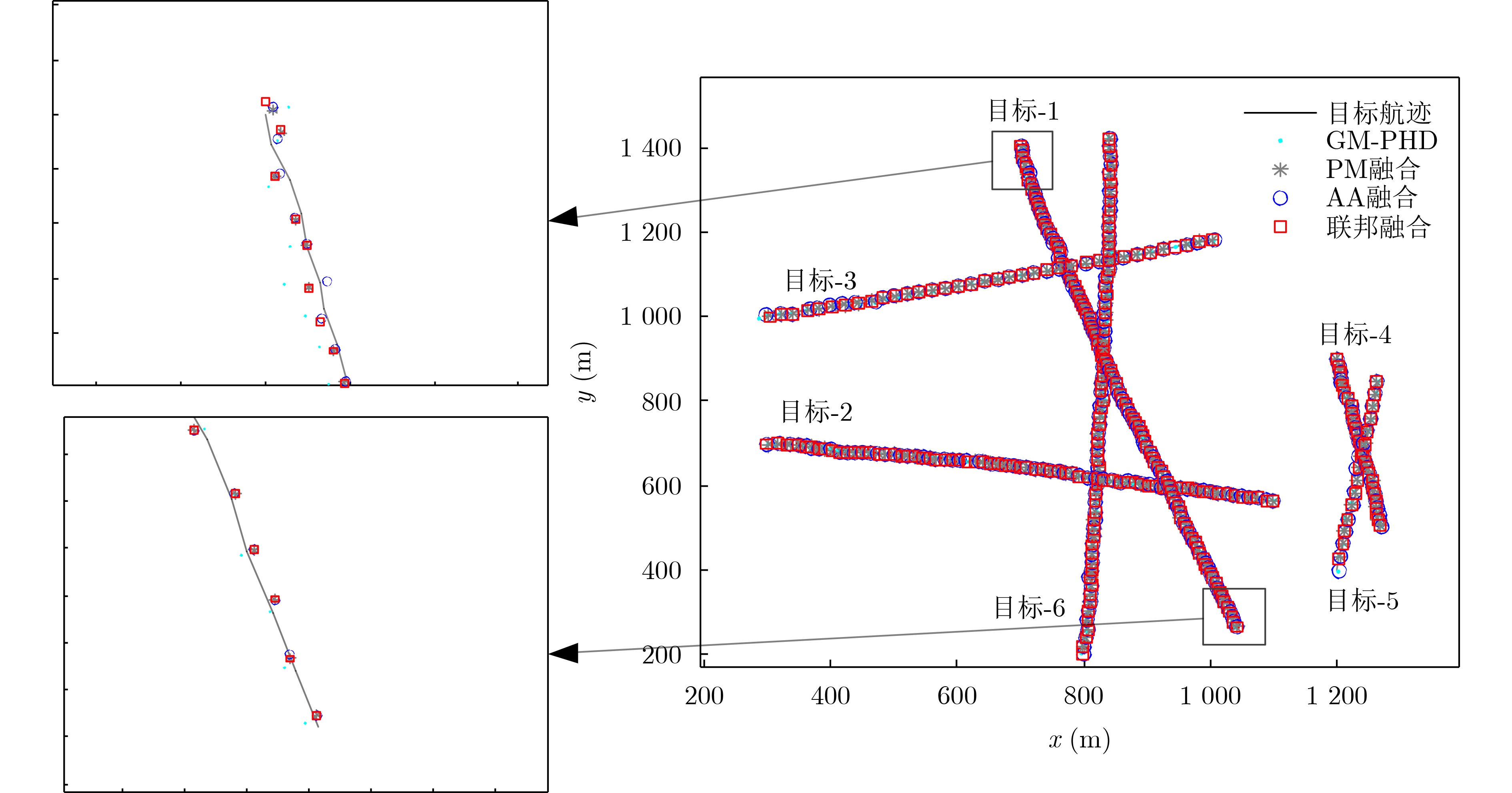

图 2 第1组平均因子的跟踪结果(主滤波器平均因子较小)

下载: 全尺寸图片幻灯片

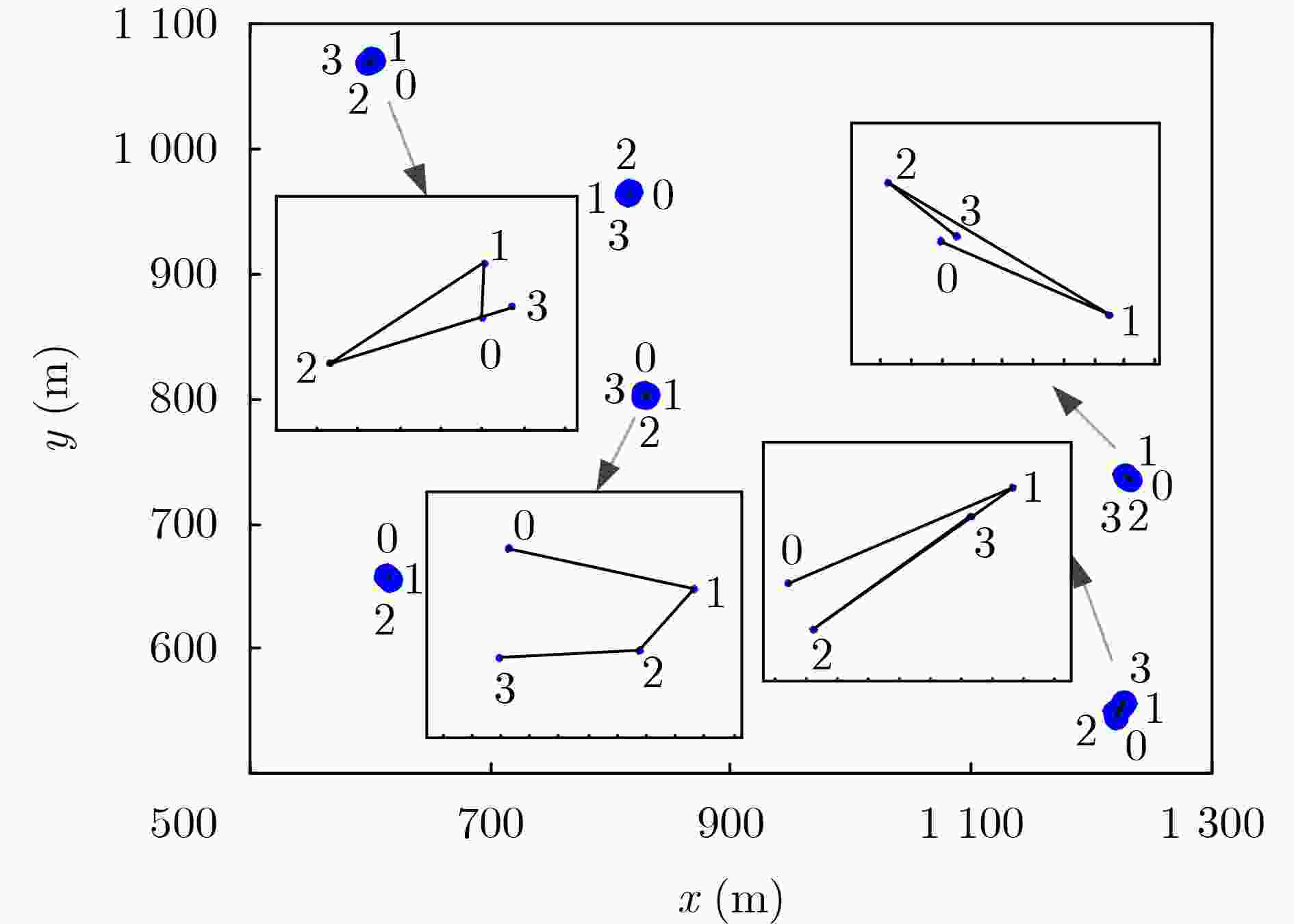

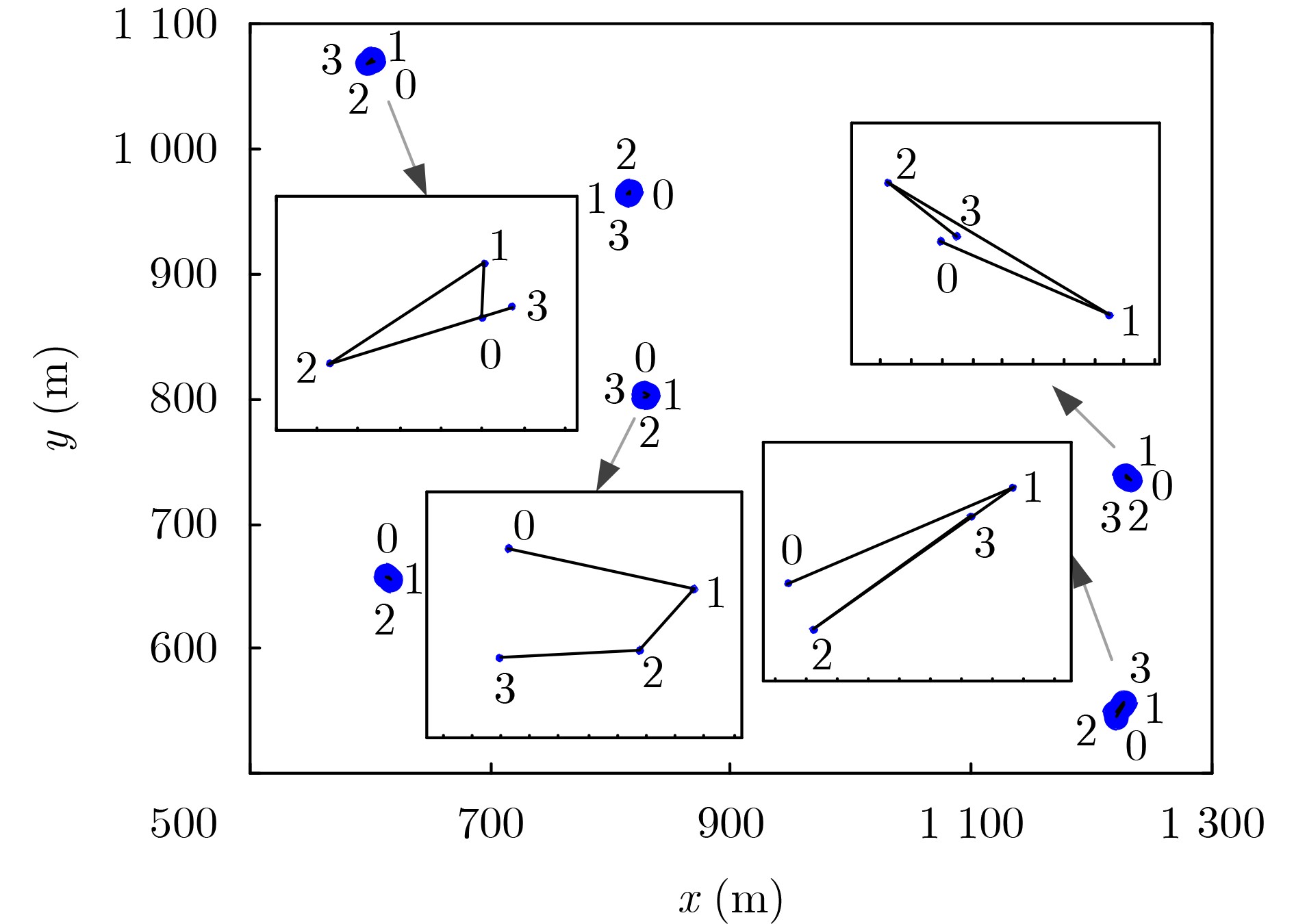

图 3 第40 sT-GC的关联结果

下载: 全尺寸图片幻灯片

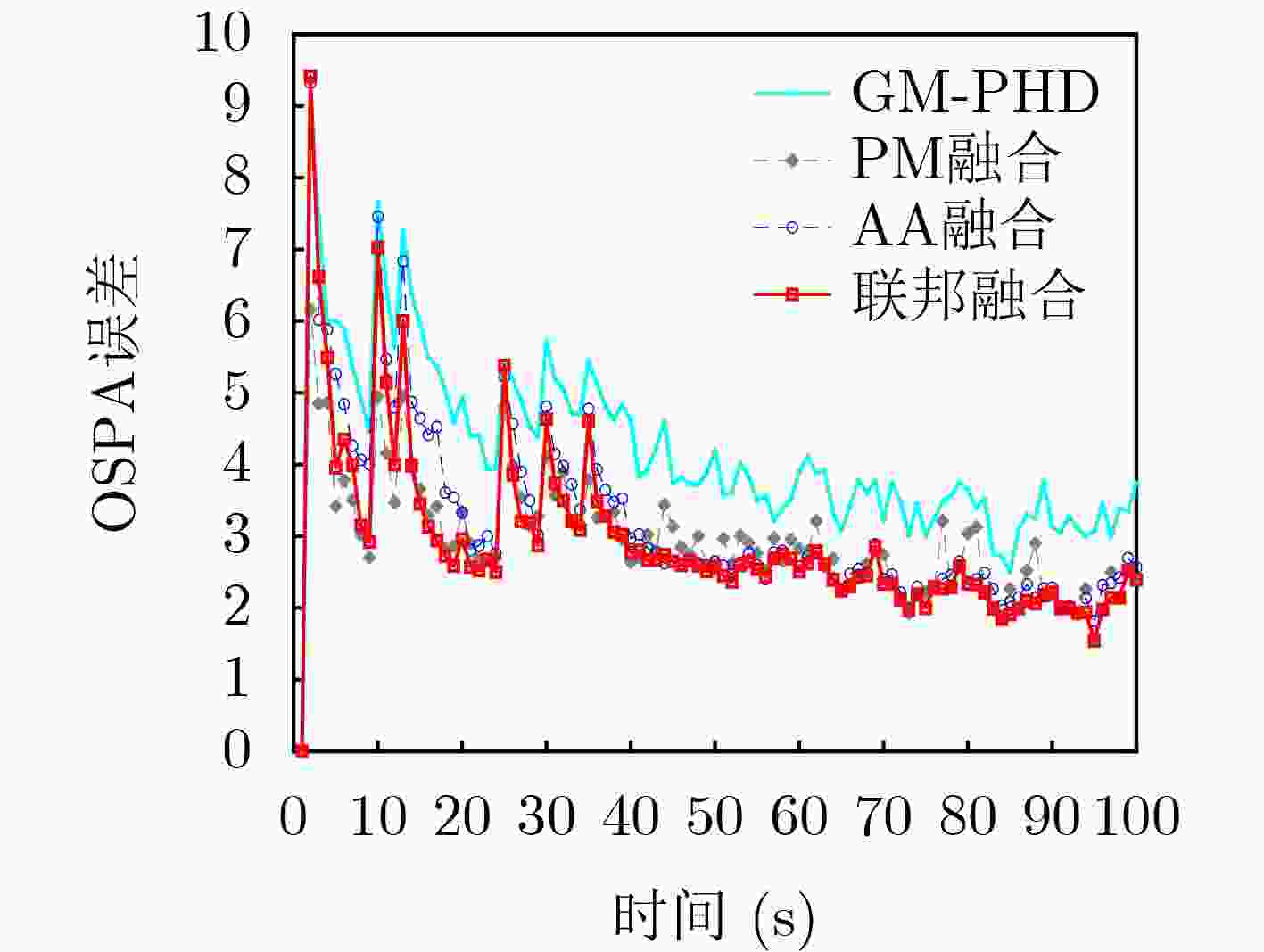

图 4 不同算法的平均OSPA误差曲线(第1组平均因子)

下载: 全尺寸图片幻灯片

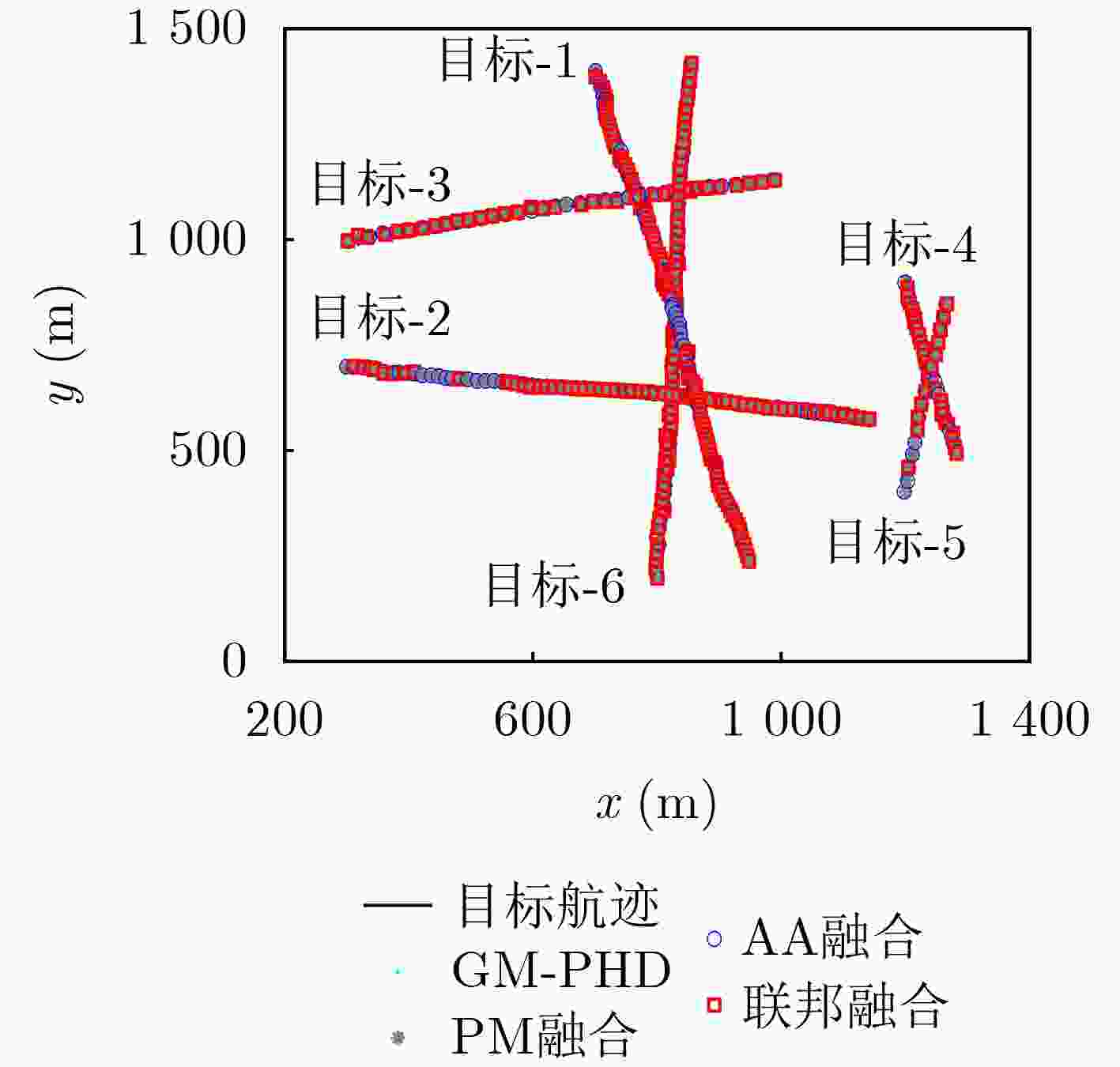

图 5 第2组平均因子的跟踪结果(主滤波器平均因子较大

下载: 全尺寸图片幻灯片

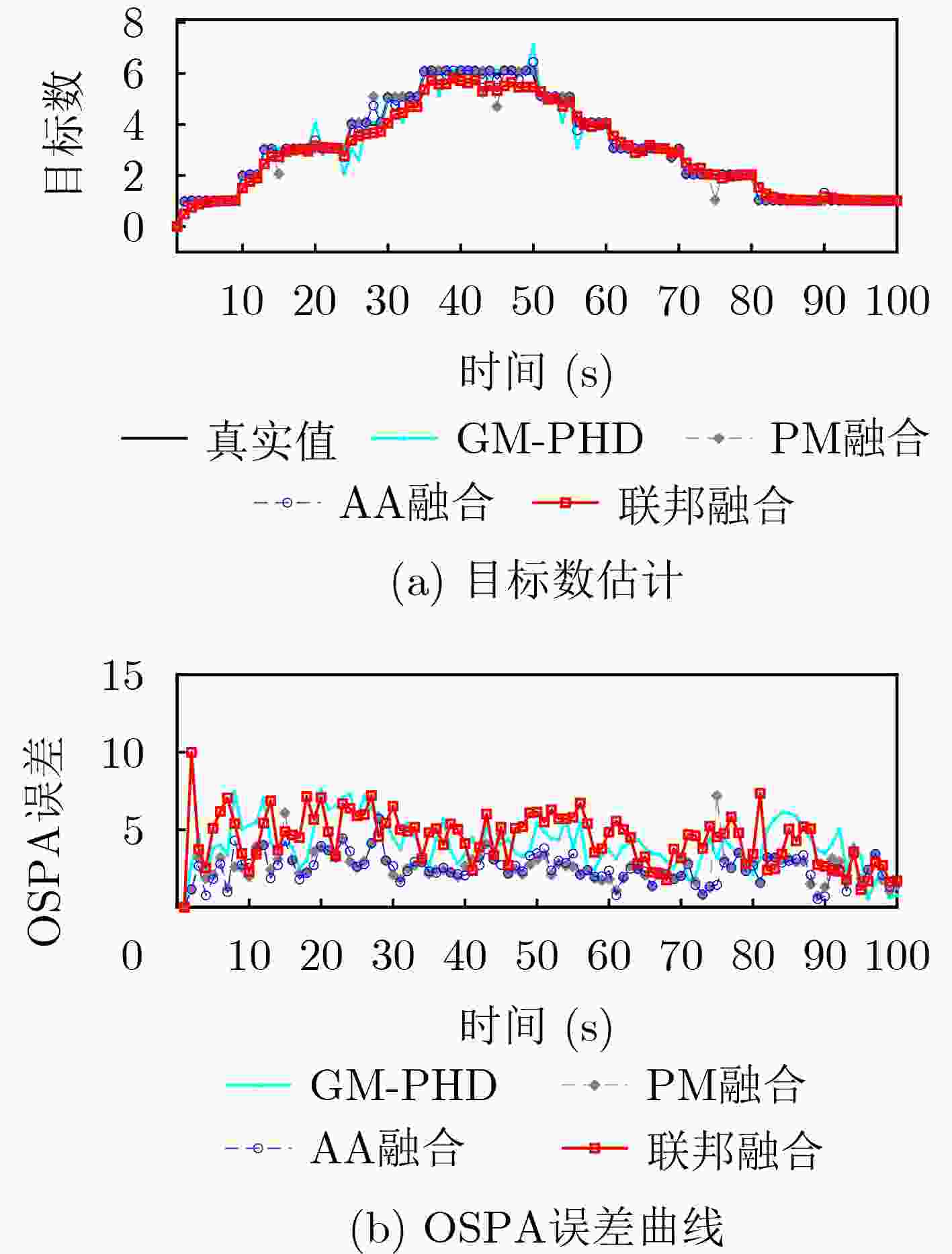

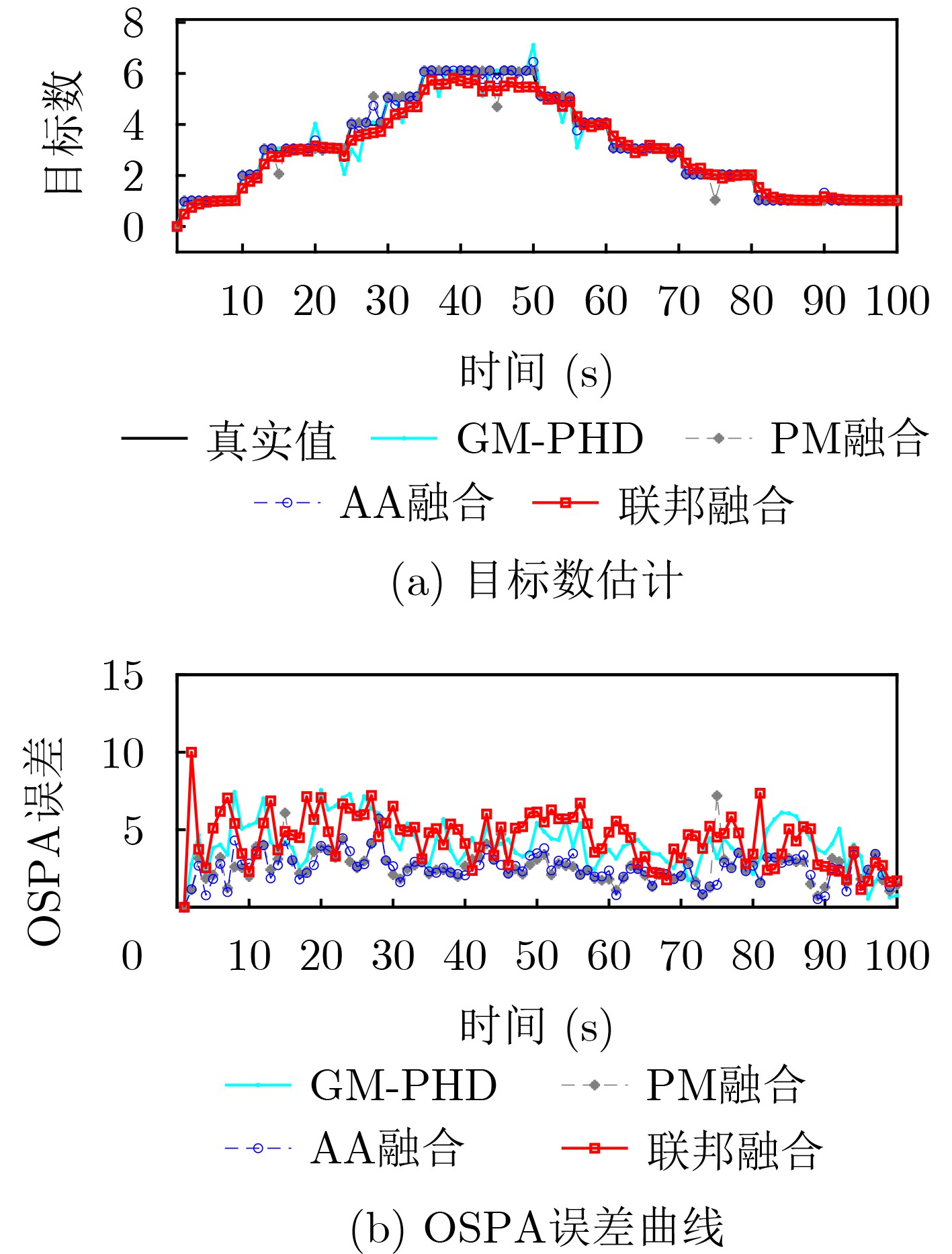

图 6 不同算法的(a)目标数估计和(b)OSPA误差曲线

下载: 全尺寸图片幻灯片

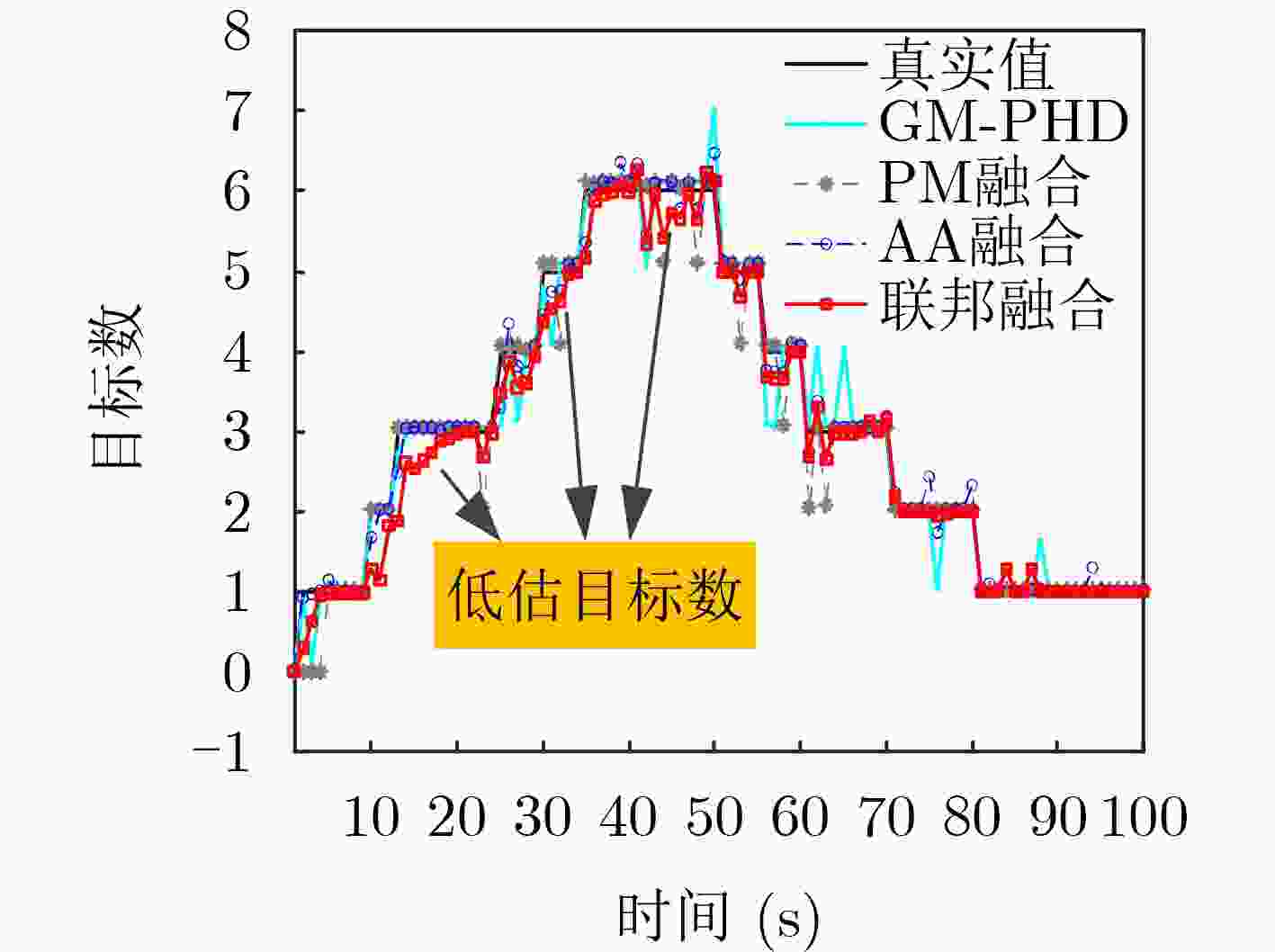

图 7 取消基数一致性措施的目标数估计

下载: 全尺寸图片幻灯片

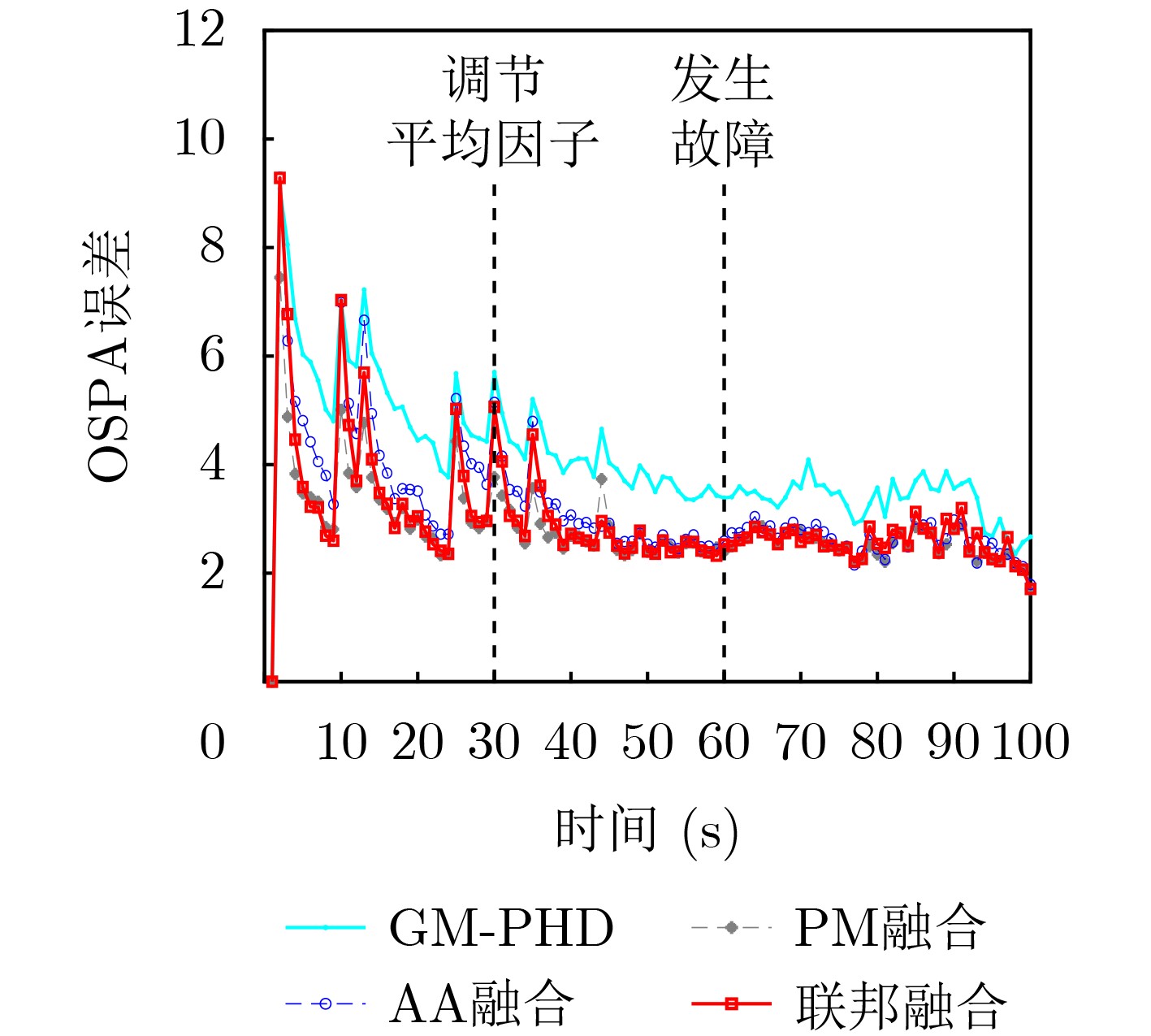

图 8 涉及时变平均因子和传感器故障的平均OSPA误差曲线

下载: 全尺寸图片幻灯片

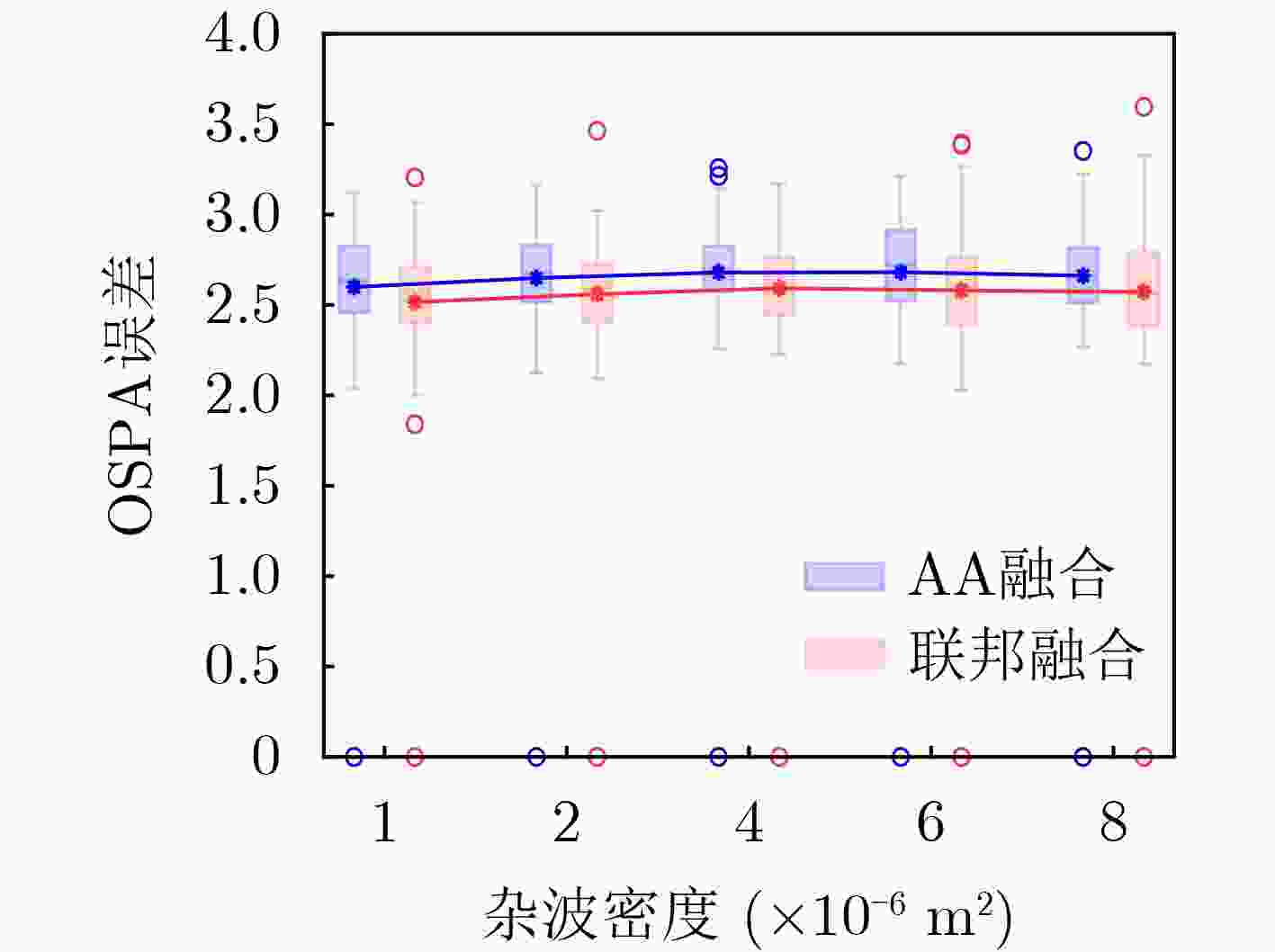

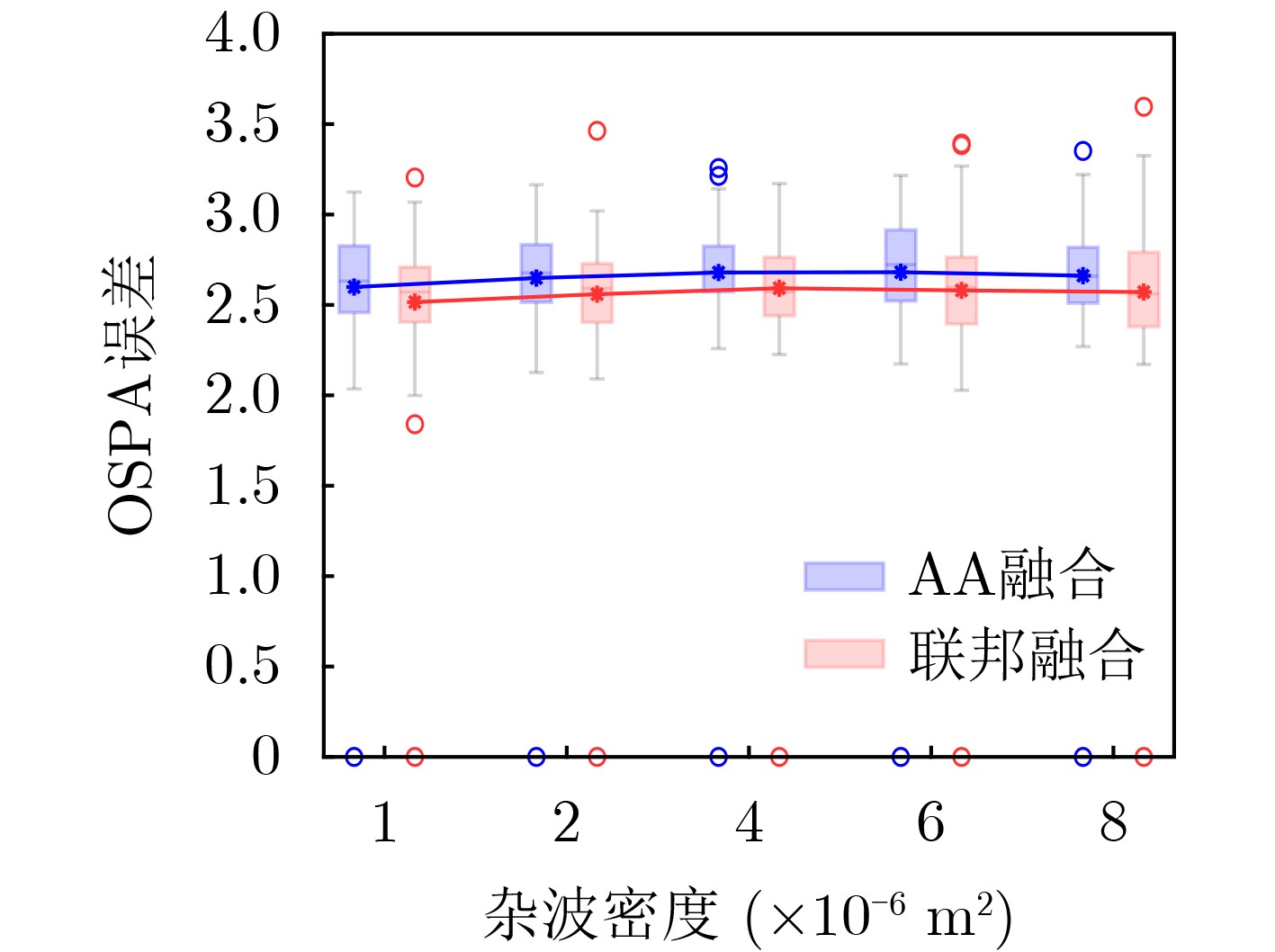

图 9 关于杂波密度的误差箱型图+误差均值折线图

下载: 全尺寸图片幻灯片

表 1 GM-PHD滤波器联邦均值融合算法的总结

步骤	操作
1	根据式(7,8)为各滤波器分配GC、过程噪声协方差和合并门限，利用式(18,19)修正各滤波器GC的权重
2	局域滤波器执行完整的GM-PHD滤波器，主滤波器仅执行预测
3	各滤波器节点估计目标数$ \hat N_k^{(s)} $，将$ \hat N_k^{(s)} $个T-GC送至融合节点，利用式(17,19)修正T-GC的权重
4	融合节点根据式(9,10)将T-GC关联为G_k组，记为式(11)
5	根据式(12)合并GC权重，根据滤波器索引标签判断GC的来源，不同来源使用不同的方法执行合并，分别为 (a)来源1 无漏检的存活目标：使用式(13) (b)来源2 有漏检的存活目标：使用式(14,15) (c)来源3 新生目标：使用式(16) (d)来源4 消亡目标：丢弃该GC
6	得到当前时刻融合GM-PHD

下载: 导出CSV
