面向车载元宇宙智能孪生体全局迁移的可靠服务链选择方案

邱显宜; 文锦柏; 康嘉文; 张焘; 蔡承均; 刘吉强; 肖明

doi:10.11999/JEIT250612

面向车载元宇宙智能孪生体全局迁移的可靠服务链选择方案

doi: 10.11999/JEIT250612 cstr: 32379.14.JEIT250612

1.
广东工业大学自动化学院，广州，510006
2.
南京航空航天大学计算机科学与技术学院，南京，210016
3.
北京交通大学网络空间安全学院，北京，100044
4.
香港城市大学(东莞)，东莞，523808

基金项目: 国家自然科学基金(62572132, U22A2054)，广东省自然科学基金面上项目(2025A1515010137)，广东省基础与应用基础研究基金项目(2023A151514 0137)

详细信息

作者简介:
邱显宜：女，硕士生，研究方向为智能数字孪生安全迁移

文锦柏：男，硕士生，研究方向为智能交通，无线通信网络

康嘉文：男，教授，研究方向为智能交通，无线通信网络

张焘：男，副教授，研究方向为物联网安全、移动目标防御

蔡承均：男，副教授，研究方向为网络空间安全、人工智能安全

刘吉强：男，教授，研究方向为可信计算、隐私保护、云计算

肖明：男，教授，研究方向为人工智能、物联网、大数据

通讯作者:
康嘉文　kavinkang@gdut.edu.cn

计量
- 文章访问数: 37
- HTML全文浏览量: 19
- PDF下载量: 2
- 被引次数: 0
出版历程
- 收稿日期: 2025-07-01
- 修回日期: 2025-11-03
- 录用日期: 2025-11-03
- 网络出版日期: 2025-11-13

A Reliable Service Chain Option for Global Migration of Intelligent Twins in Vehicular Metaverses

1.
School of Automation, Guangdong University of Technology, Guangzhou 510006, China
2.
School of Computer Science and Technology, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China
3.
School of Cyberspace Security, Beijing Jiaotong University, Beijing 100044, China
4.
City University of Hong Kong (Dongguan), Dongguan 523808, China

Funds: The National Natural Science Foundation of China (62572132, U22A2054), Guangdong Provincial Natural Science Foundation General Program(2025A1515010137), Guangdong Basic and Applied Basic Research Foundation under Grant (2023A151514 0137)

摘要

摘要: 车载元宇宙作为元宇宙与智能交通系统融合演进的新兴范式，正逐步成为汽车产业变革的重要推力。在这一背景下，智能孪生体作为覆盖车辆全生命周期并管理车载应用的数字化副本，为用户提供沉浸式车载元宇宙服务。针对车载元宇宙中孪生体迁移的服务连续性与网络安全性问题，该文提出了一种基于路侧单元(RSU)链构建的孪生体全局安全动态迁移方案，以确保在面临多种类型分布式拒绝服务(DDoS)攻击时，孪生体能够高效安全迁移。具体而言，该方案通过通信不中断机制构建可靠RSU链集合，实现孪生体在不同RSU间的无缝迁移。然后，将全局迁移过程建模为部分可观测马尔可夫决策过程，综合考虑RSU负载、计算能力及攻击类型等动态环境因素。最后，利用多智能体深度Q网络算法对安全迁移优化问题进行求解。实验结果表明，在多种DDoS攻击场景下所提方案显著提升了迁移过程的效率与安全性，使孪生体有效避免与受攻击的RSU连接，从而保障全局迁移的高效可靠性。
- 车载元宇宙 /
- 智能孪生体迁移 /
- 分布式拒绝服务攻击 /
- 多智能体深度强化学习
Abstract: Objective As an emerging paradigm for integrating and evolving metaverses and intelligent transportation systems, vehicle metaverses are gradually becoming a key driving force for transforming the automotive industry. In this context, intelligent twins serve as digital copies that cover the entire lifecycle of vehicles and manage vehicular applications, providing users with immersive vehicular services. However, due to cybersecurity threats, particularly Distributed Denial of Service (DDoS) attacks, the seamless migration of intelligent twins across different RoadSide Units (RSUs) leads to challenges such as excessive data transmission delays and data leakage. This paper proposes a globally optimized scheme for secure dynamic intelligent twin migration based on RSU chains, aimed at addressing data transmission latency and network security issues in vehicular metaverses, ensuring that intelligent twins can be reliably and securely migrated through RSU chains even under various types of DDoS attacks. Methods Firstly, a set of reliable RSU chains is constructed through an RSU communication interruption-free mechanism, enabling the rational deployment of intelligent twins for seamless RSU connectivity. This mechanism ensures continuous communication by dynamically adjusting RSU chain configurations based on real-time network conditions and vehicle movements. Then, the secure migration problem of intelligent twins along these RSU chains is modeled as a Partially Observable Markov Decision Process (POMDP). The POMDP framework captures dynamic network state variables such as RSU loads, available bandwidth, computational capacity, and attack types. These variables are continuously monitored to inform decision-making processes. The migration efficiency and security evaluation of RSU chains are based on the total migration delay and the number of DDoS attacks encountered, which are then used as reward functions to optimize decisions. Over time, the DRL agents learn from interactions with the environment, optimizing the selections of RSU chains for secure and efficient intelligent twin migration. Through this algorithm, the proposed scheme effectively addresses the issue of excessive data transmission delays in vehicular metaverses caused by network attacks, ensuring reliable and secure intelligent twin migration even under various types of DDoS attacks. Results and Discussions The proposed secure dynamic intelligent twin migration scheme is based on the MADRL framework to select efficient and secure RSU chains in the POMDP. By defining an appropriate reward function, the the efficiency and security performance of intelligent twin migration across RSU chains are evaluated by assessing the impact of varying RSU chain lengths and different attack scenarios on system performance. Simulation results demonstrate that the proposed scheme can effectively enhance the security of intelligent twin migration in vehicular metaverses. Specifically, shorter RSU chains achieve lower migration delays than longer chains due to fewer handovers and lower communication overhead (Fig. 2). Additionally, the total reward reaches its maximum value when the RSU chain length is 6 (Fig. 3). The MADQN approach demonstrates strong defense capabilities against DDoS attacks. Under direct attacks, the MADQN approach yields final rewards that are 65.3% and 51.8% higher than those achieved by the random and greedy strategies, respectively. Against indirect attacks, MADQN improves upon other approaches by 9.3%. Under hybrid attack conditions, MADQN raises the final reward by 29% and 30.9% compared with the random and greedy strategies, respectively (Fig. 4), which shows the effectiveness and advantages of the DRL-based defense strategy in dealing with complex and dynamic attacks. Additionally, as indicated by experimental results (Figs. 5-7), when compared with other DRL algorithms such as PPO, A2C, and QR-DQN, the MADQN algorithm demonstrates superior performance under direct, indirect, and hybrid DDoS attacks. In conclusion, the proposed scheme ensures reliable and efficient intelligent twin migration across RSUs, even under diverse security threats, thereby supporting high-quality interactions in vehicular metaverses. Conclusions This study addresses the challenge of ensuring secure and efficient global migration of intelligent twins in vehicular metaverses by integrating RSU chains with a POMDP-based optimization framework. By utilizing the MADQN algorithm, the proposed scheme enhances the efficiency and security of intelligent twin migration under various network conditions and attack scenarios. Simulation results show that the efficiency and security of intelligent twin migration have been significantly enhanced. On the one hand, under the same driving route, shorter RSU chains are associated with higher migration efficiency and stronger security defense capabilities. On the other hand, when facing various types of DDoS attacks, MADQN consistently outperforms other baseline algorithms. The results show that the MADQN algorithm achieves higher final rewards than random and greedy strategies in various attack scenarios. Compared with other DRL algorithms, MADQN increases the final reward by as much as 50.1%. It indicates that MADQN offers superior reward outcomes and greater adaptability in complex attack environments. For future work, we will focus on further improving the communication security of RSU chains, such as implementing authentication mechanisms to ensure that only authenticated vehicles can access RSU edge communication networks.
- Vehicular metaverses /
- Intelligent twin migration /
- Distributed Denial of Service (DDoS) attack /
- Multi-Agent Deep Reinforcement Learning (MADRL)

HTML全文

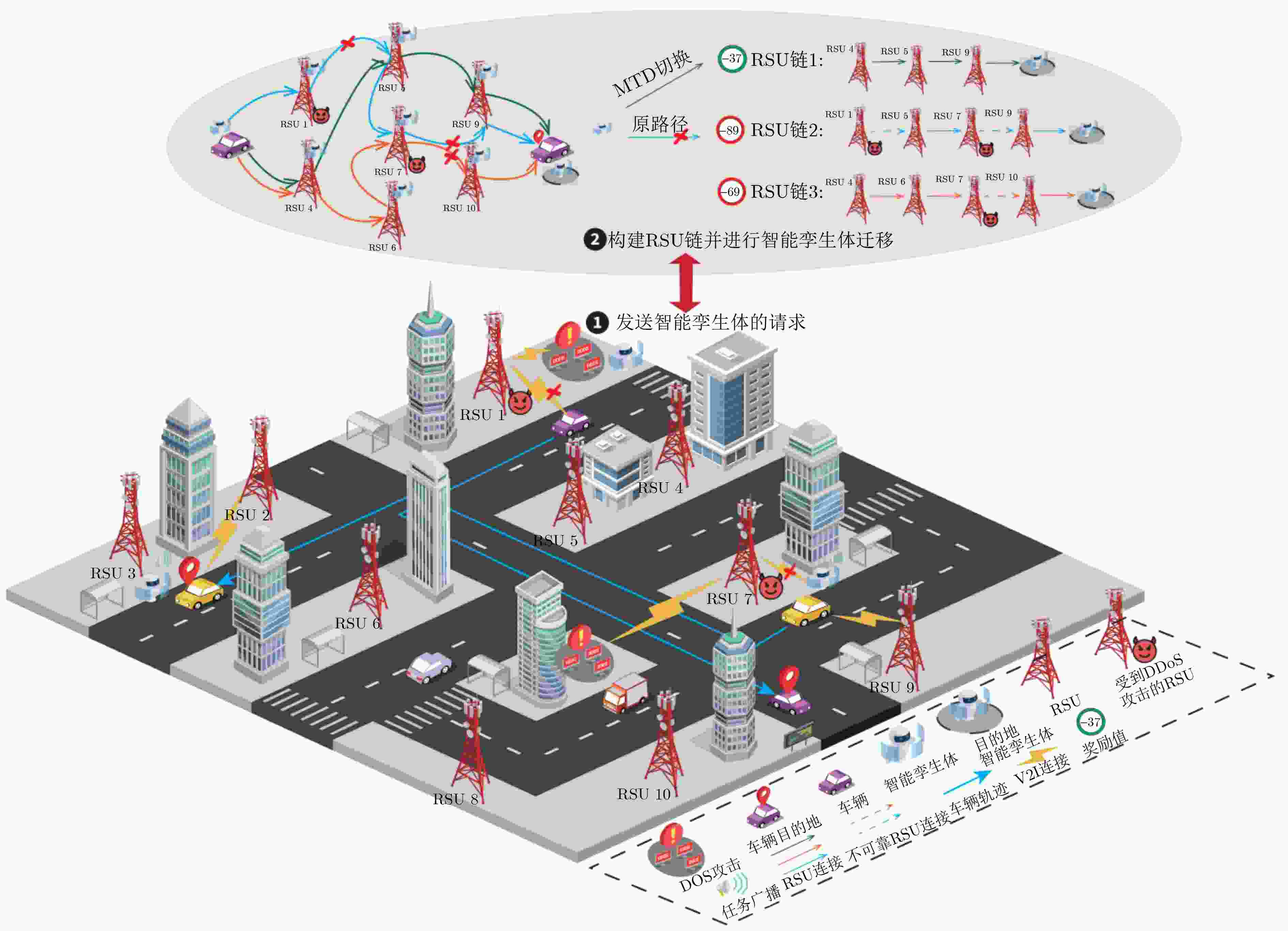

图 1 车载元宇宙中基于RSU链的智能孪生体安全全局迁移框架

下载: 全尺寸图片幻灯片

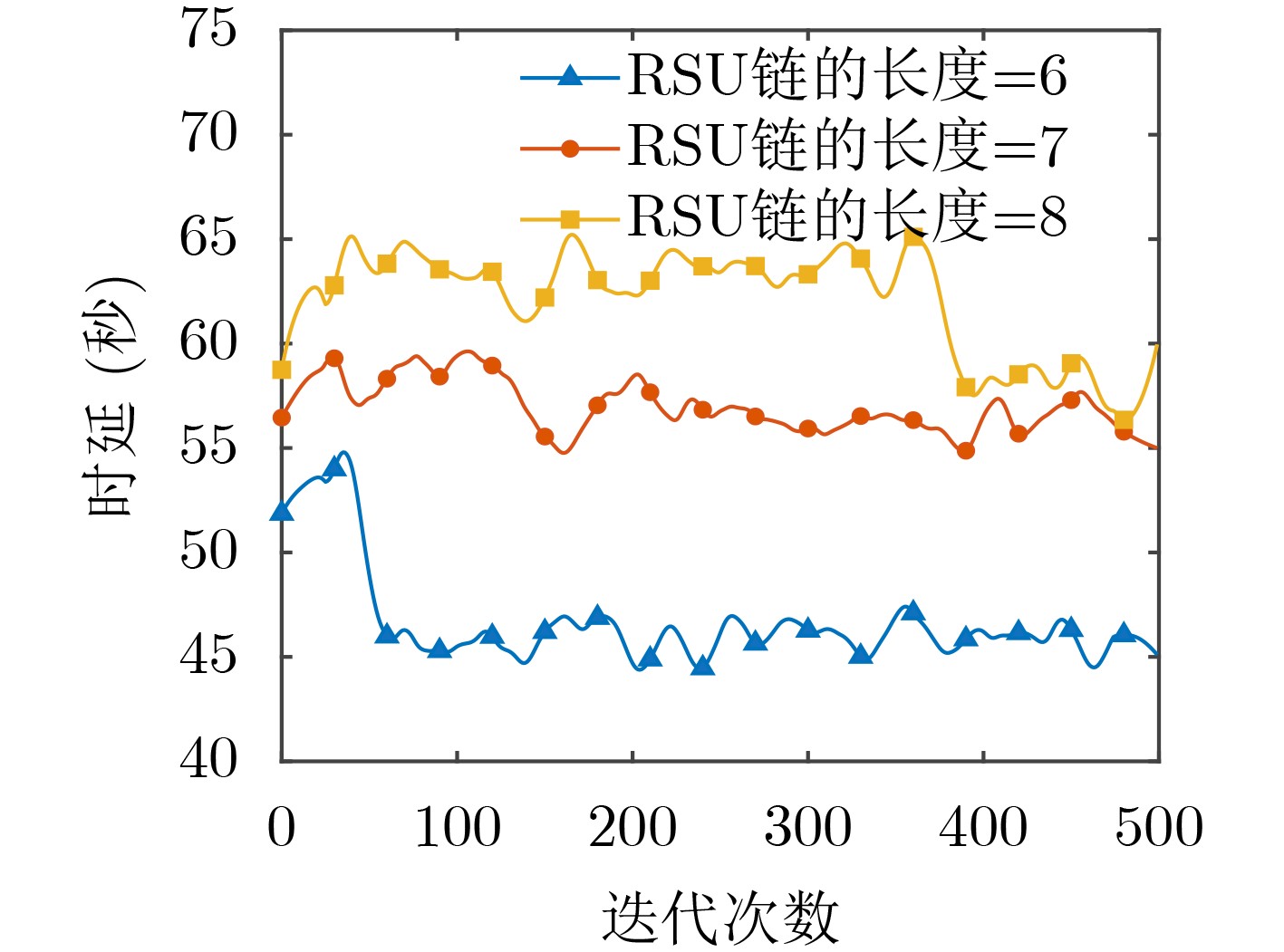

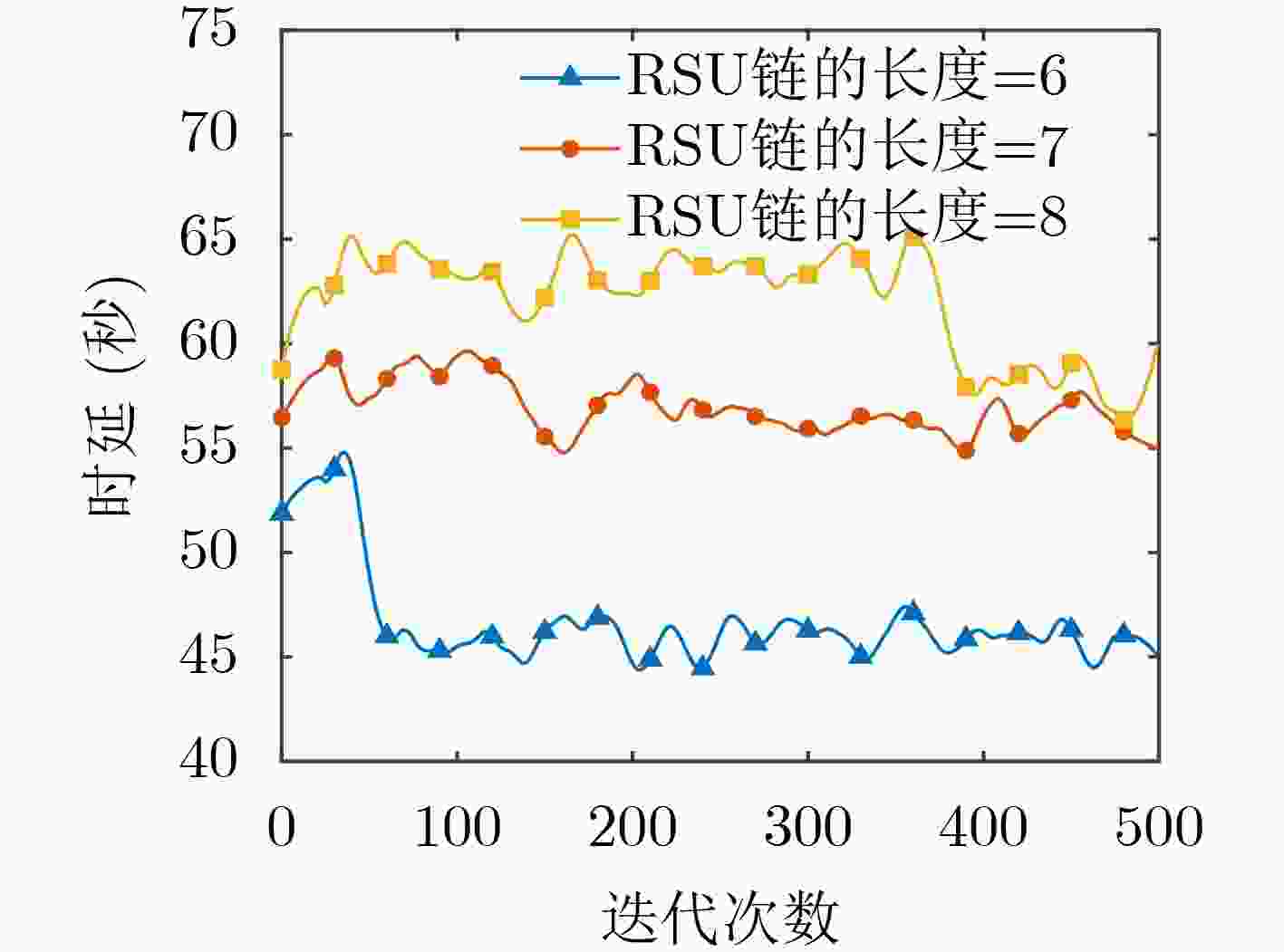

图 2 不同RSU链长的迁移时延

下载: 全尺寸图片幻灯片

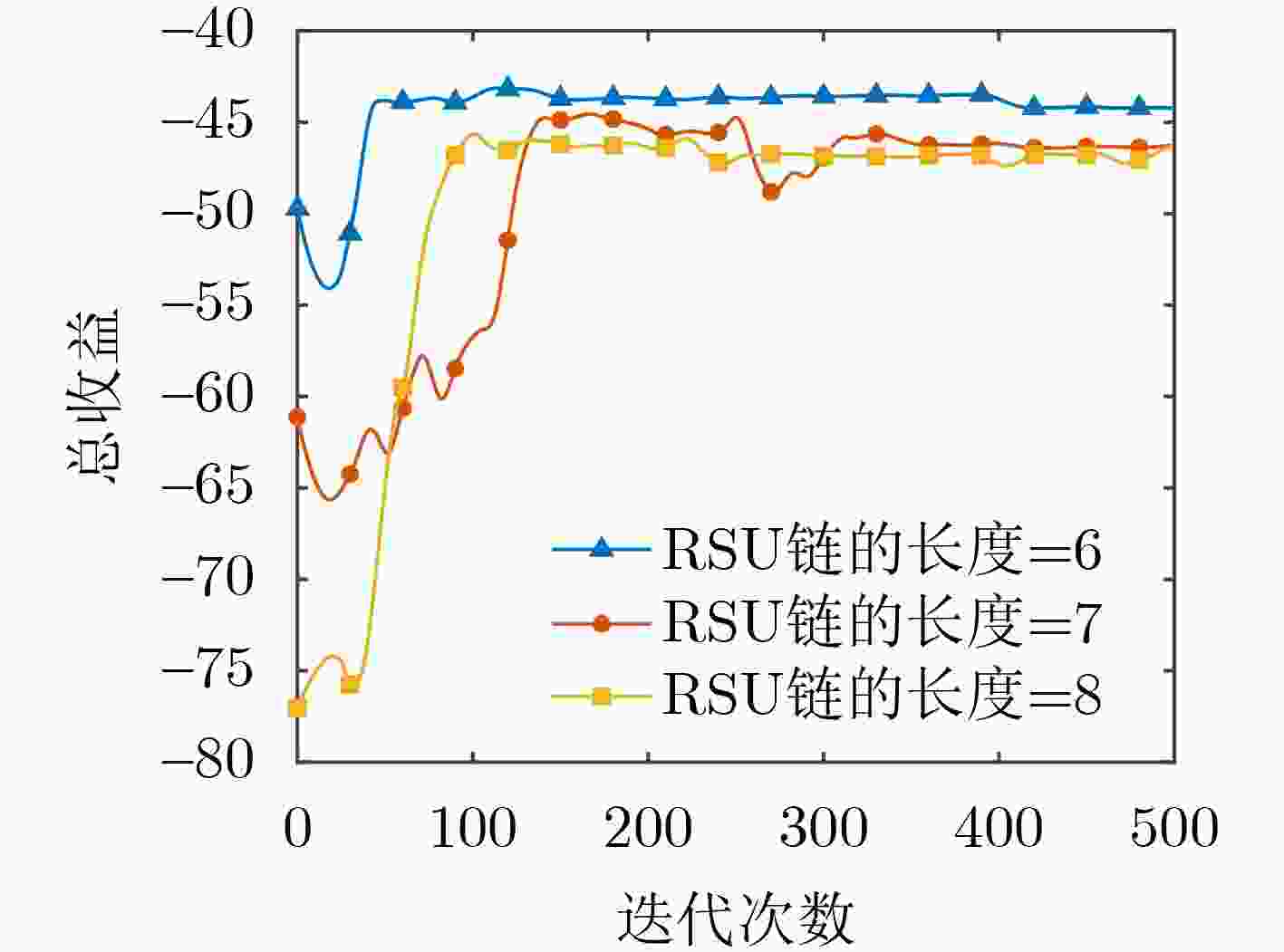

图 3 不同RSU链长的总收益

下载: 全尺寸图片幻灯片

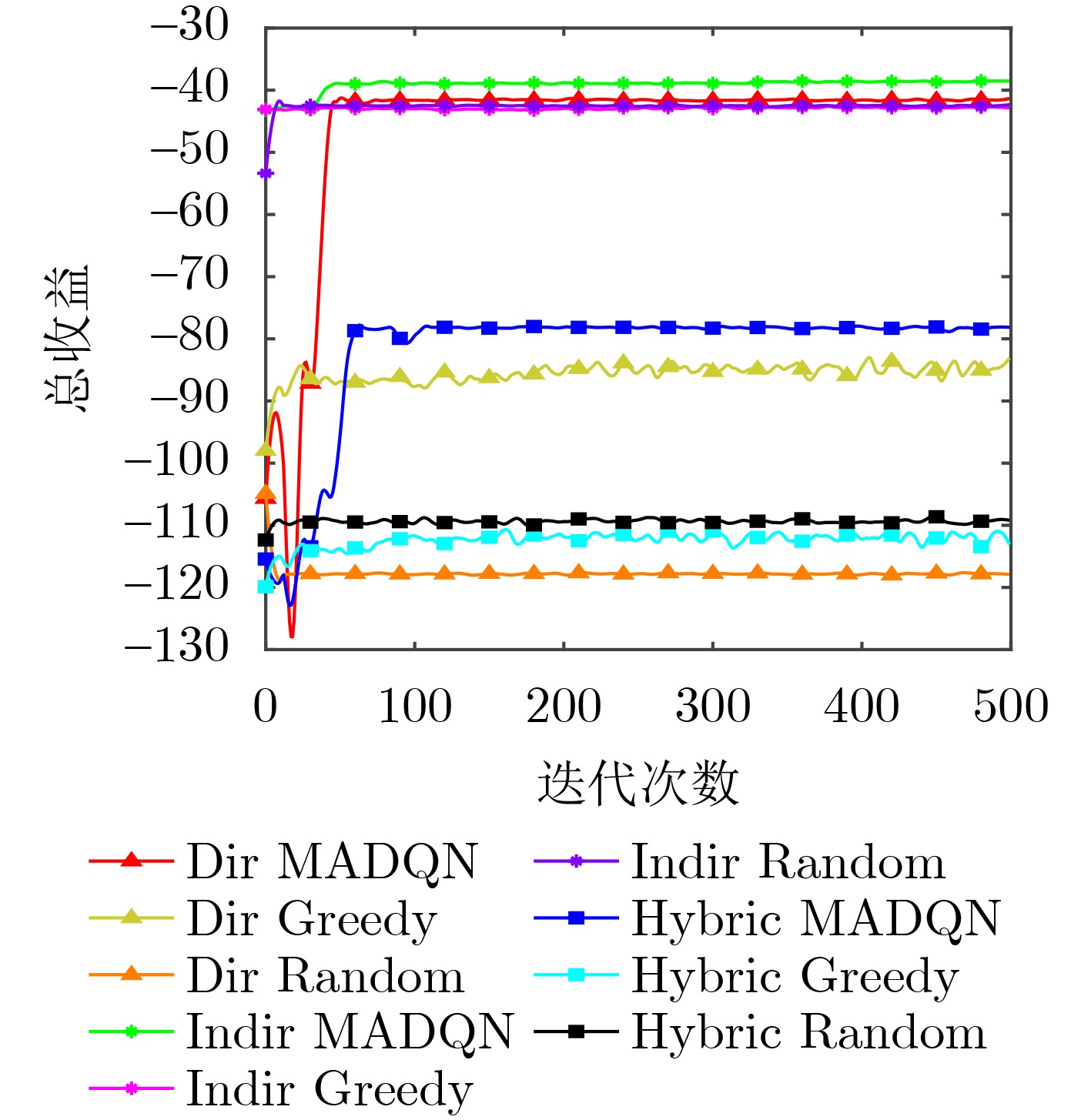

图 4 在不同DDoS攻击下不同方案的总收益

下载: 全尺寸图片幻灯片

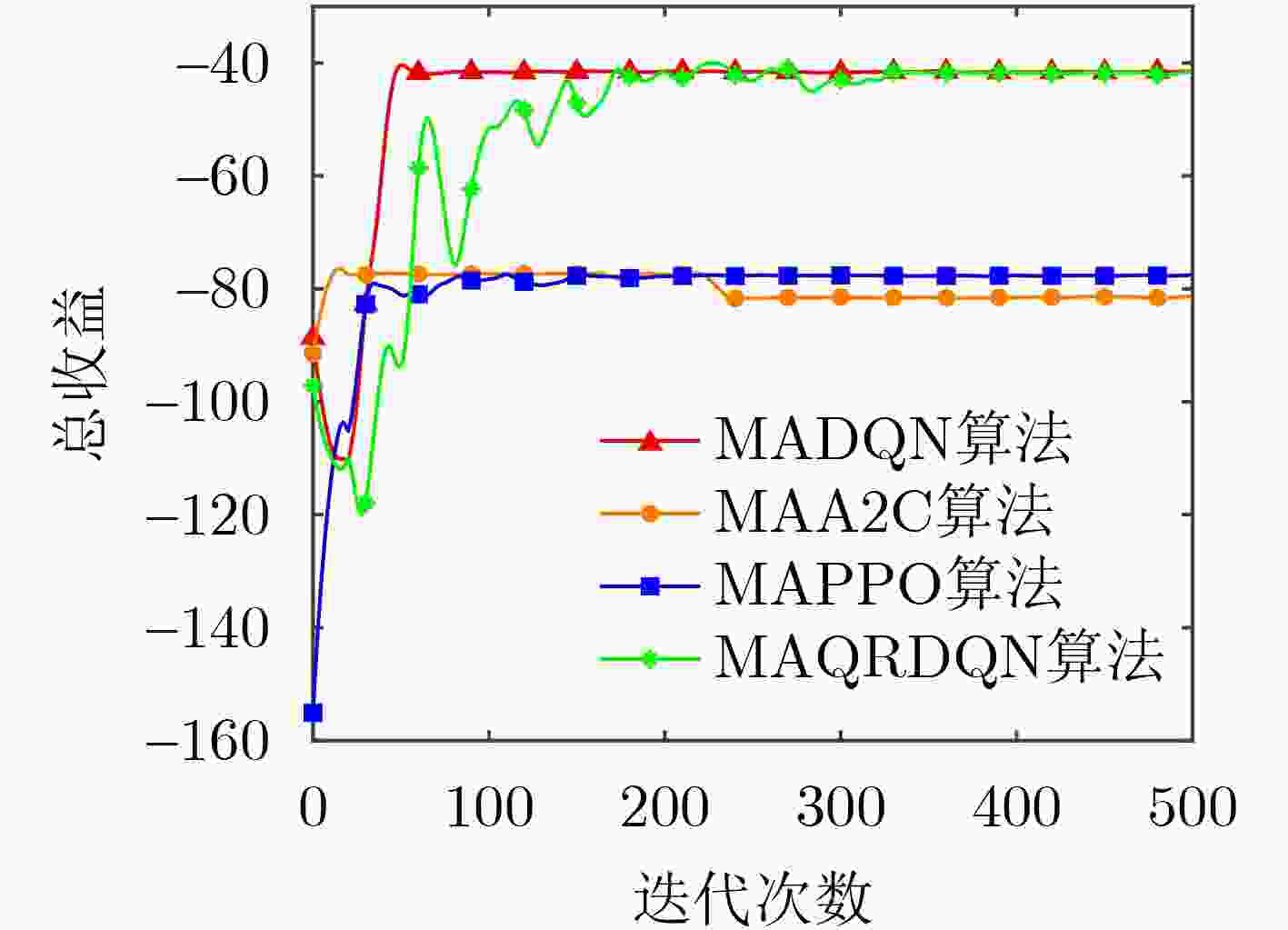

图 5 直接DDoS攻击下的总收益

下载: 全尺寸图片幻灯片

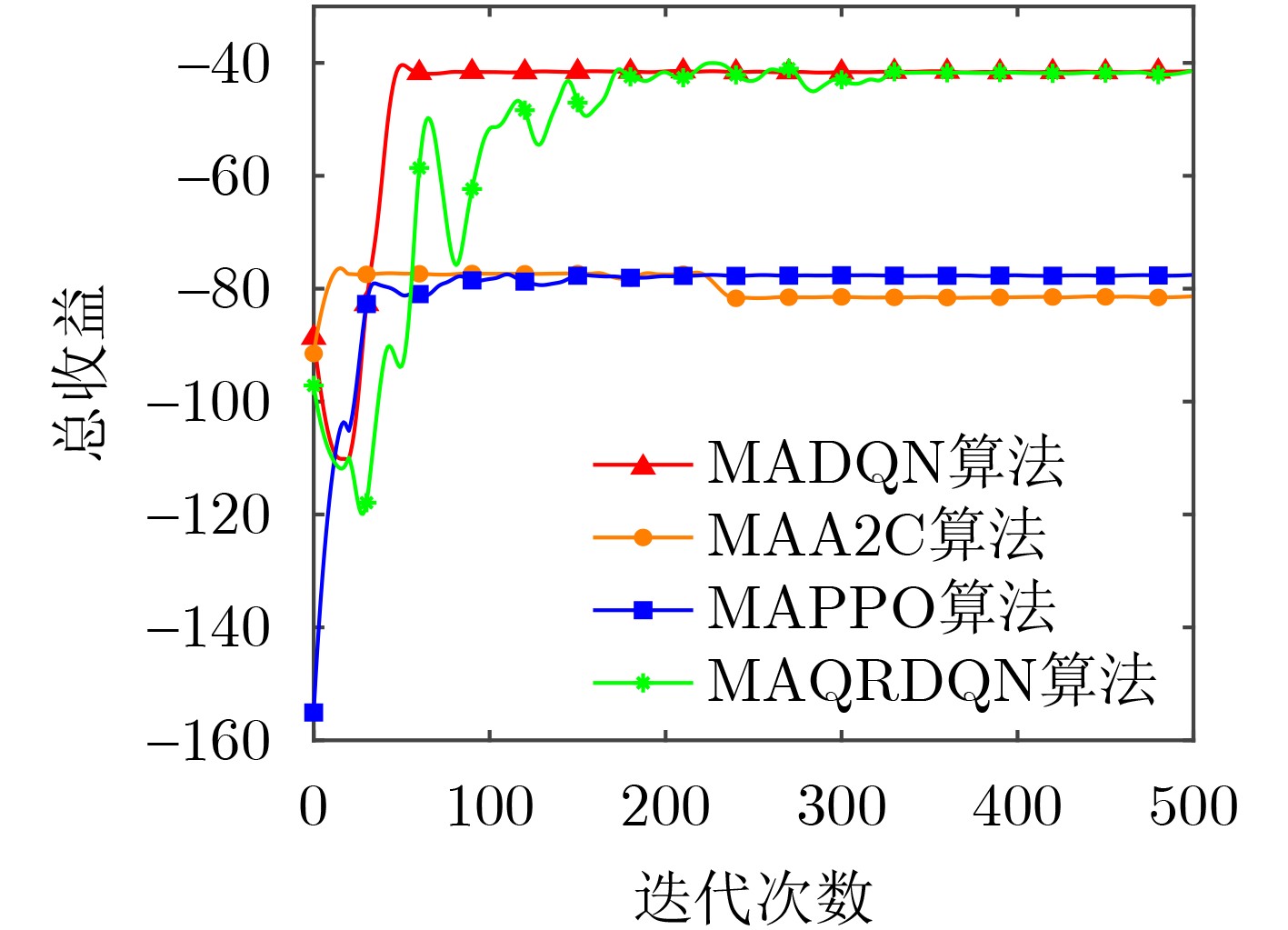

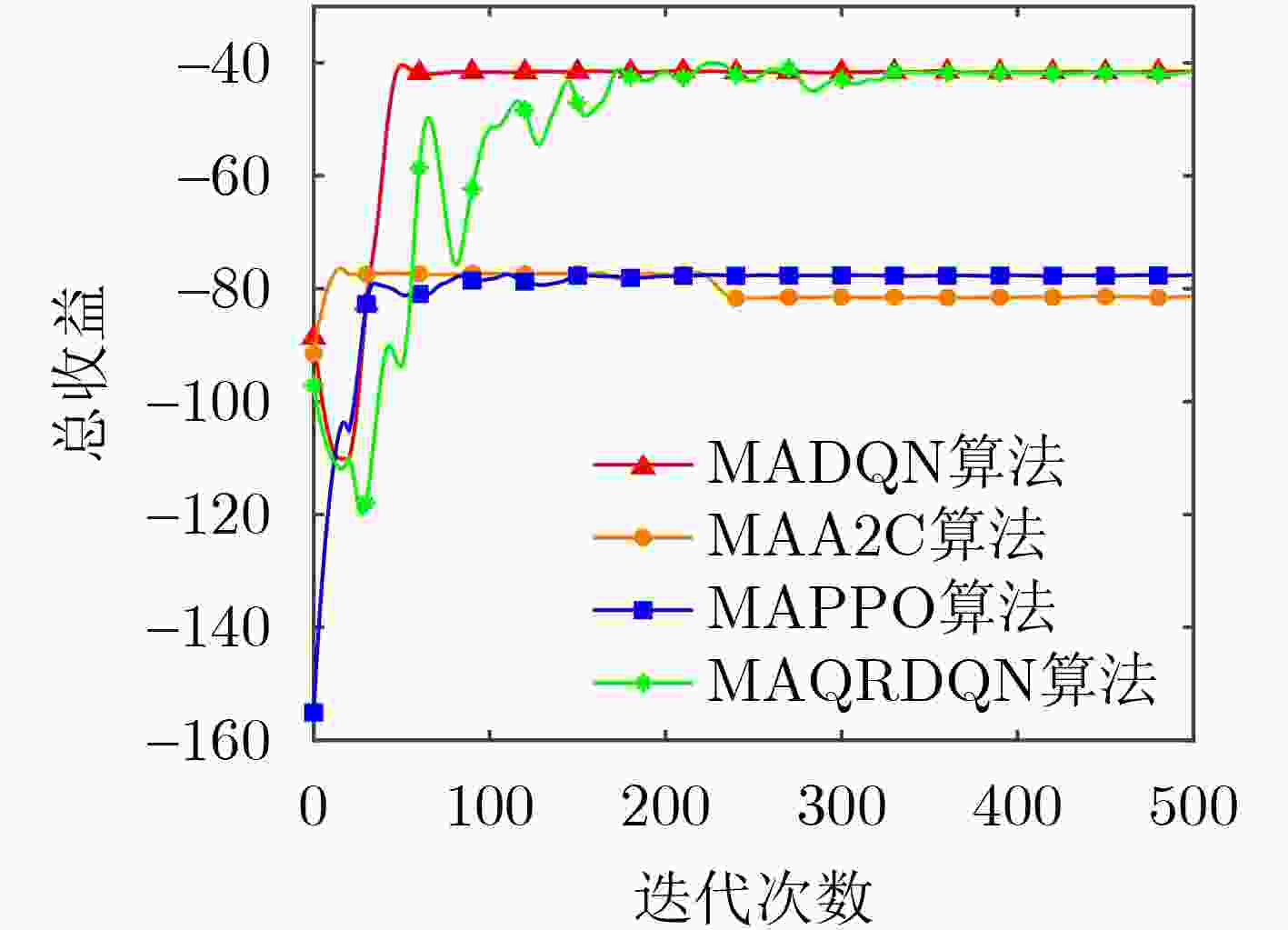

图 6 间接DDoS攻击下的总收益

下载: 全尺寸图片幻灯片

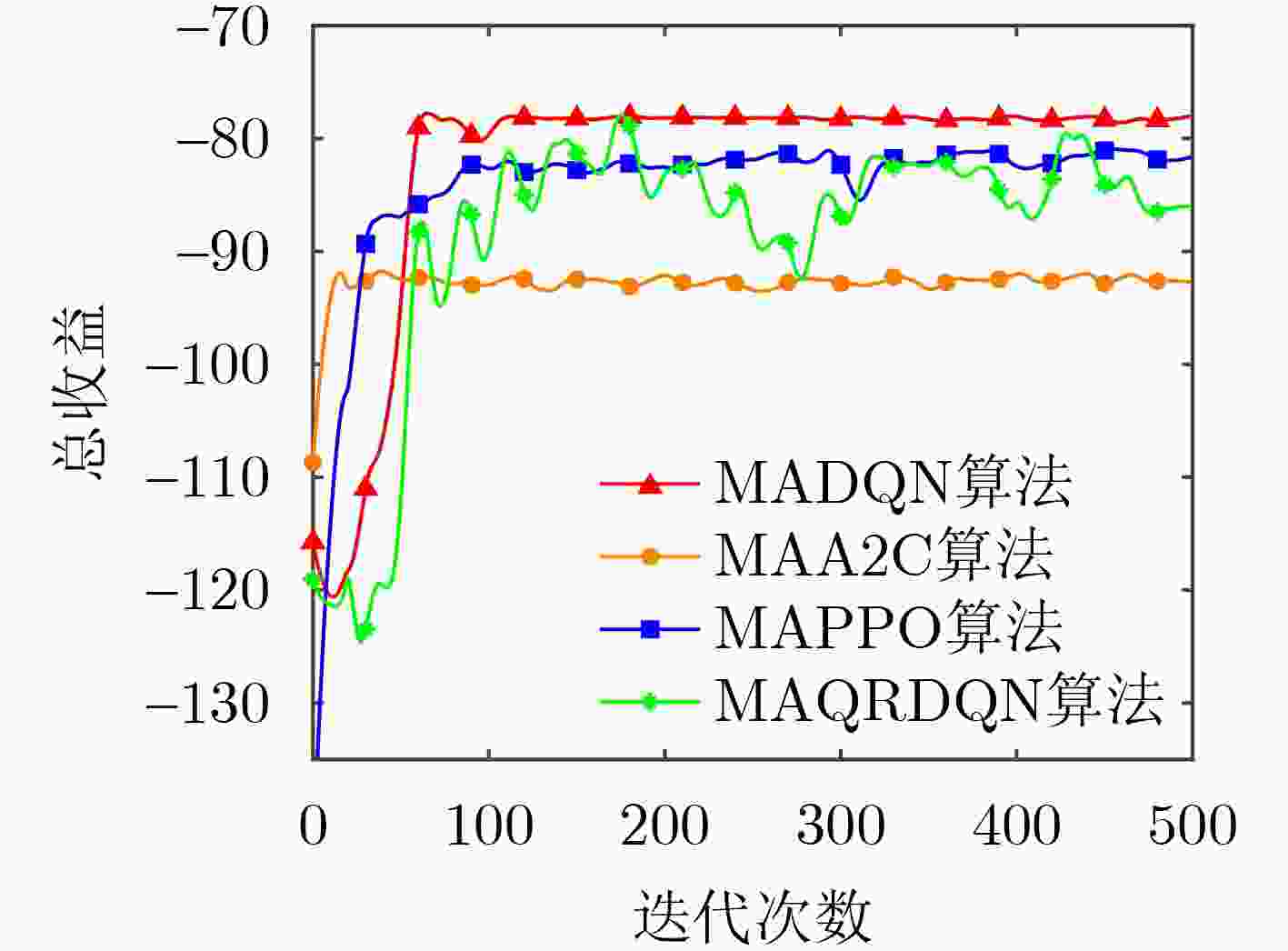

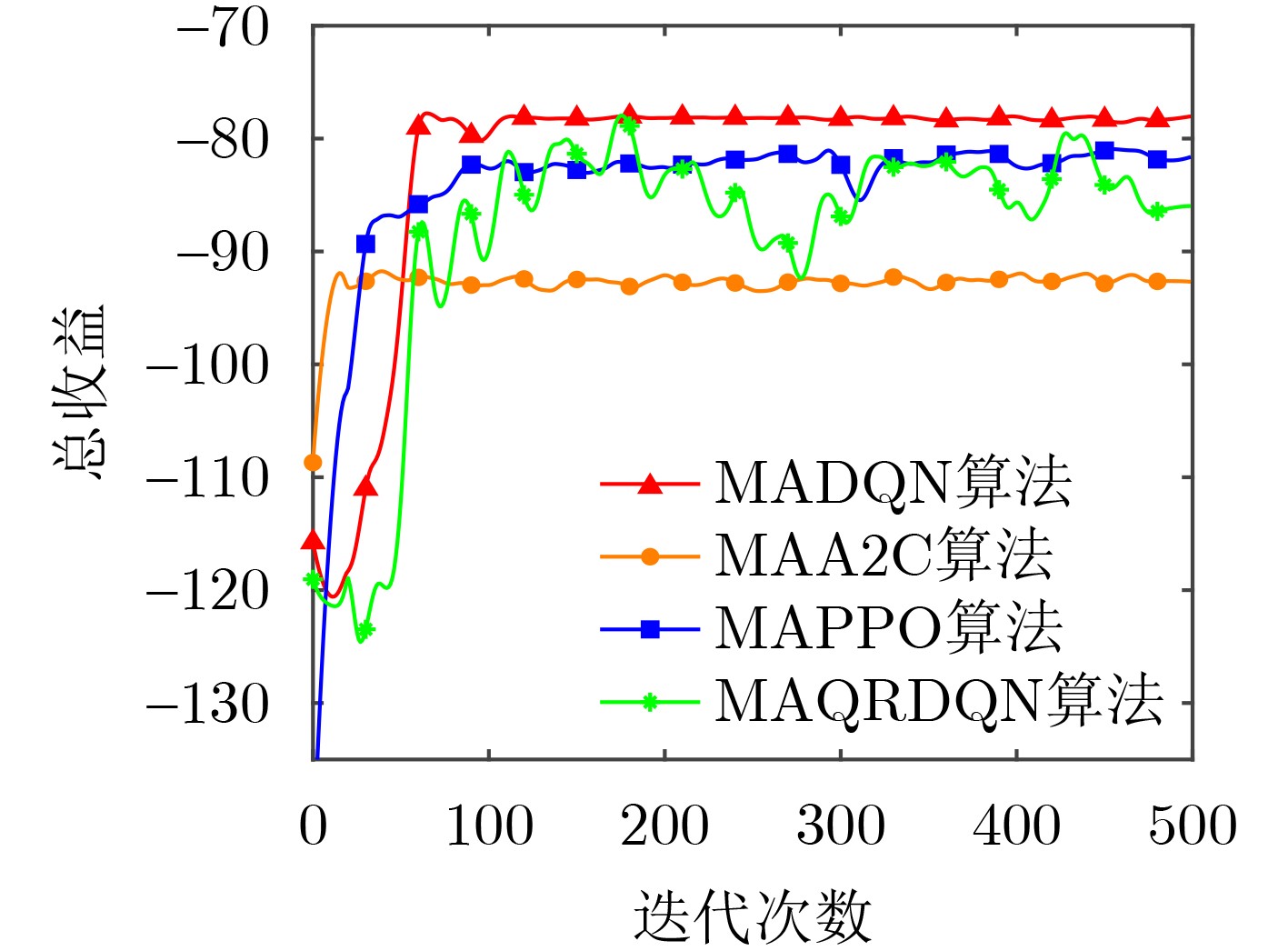

图 7 混合攻击下的总收益

下载: 全尺寸图片幻灯片

1 智能孪生体迁移RSU链的形成

输入：初始化 RSU集合$ \mathcal{E} $，时间步集合$ \mathcal{T} $，RSU个数N，车辆与RSU的通信状态L，在同一时刻可以连接到的RSU集合$ \mathcal{A} $，枚举$ \mathcal{A} $[t]各时　间点的所有部署节点的集合$ \mathcal{B} $，可行RSU链集合$ \mathcal{C} $
(1) for t = 0 to T do
(2) 　for n = 0 to N do
(3) 　如果车辆与RSU的连接状态显示可用，即$ {\mathrm{L}}_{\mathrm{n}}\left(\mathrm{t}\right)=1 $
(4) 　将对应的RSU $ {\mathcal{E}}_{\mathrm{n}} $添加到集合$ \mathcal{A} $[t]
(5) 　end for
(6) end for
(7) for t = 0 to T do
(8) 　在每个时间点上，从$ \mathcal{A} $[t]中枚举所有可能部署节点，并保存于$ \mathcal{B} $
(9) end for
(10) 利用笛卡尔积将 $ \mathcal{B} $中不同时间点组合，生成完整的 RSU 部署链集合$ \mathcal{C} $

下载: 导出CSV

表 1 基本设施参数

参数(单位)	值或者范围
车辆$ \mathcal{U} $个数	10
RSU $ \mathcal{E} $个数	8
车辆速度$ \mathrm{\nu } $(km/h)	72
任务大小D(MB)	[50,200]^[14]
带宽B(MHz)	128
用户天线发射功率P(W)	0.25
载波频率f(Hz)	1.0015×10^10[14]

下载: 导出CSV

表 2 DRL算法参数

参数	值或者范围
学习率	10^–3
训练轮数	500
训练个数	8
测试个数	2
种子	64
DQN-n_step	3
PPO-clip	10^–2
A2C-il_lr	10^–3

下载: 导出CSV
