面向低信噪比序列的多模态联合自动调制方式识别方法

王祯; 刘伟; 卢万杰; 牛朝阳; 李润生

doi:10.11999/JEIT250594

面向低信噪比序列的多模态联合自动调制方式识别方法

doi: 10.11999/JEIT250594 cstr: 32379.14.JEIT250594

信息工程大学郑州 450001

详细信息

作者简介:
王祯：男，硕士生，研究方向为无人智能和多模态数据处理

刘伟：男，副教授，研究方向为深度学习和数据智能解译

卢万杰：男，讲师，研究方向为深度学习和数据融合

牛朝阳：男，教授，研究方向为人工智能和智能协同感知

李润生：男，副教授，研究方向为深度学习和人工智能

通讯作者:
刘伟　greatliuliu@163.com

中图分类号: TN919.72
计量
- 文章访问数: 11
- HTML全文浏览量: 3
- PDF下载量: 3
- 被引次数: 0
出版历程
- 收稿日期: 2025-06-24
- 修回日期: 2025-10-14
- 网络出版日期: 2025-10-20

Multi-modal Joint Automatic Modulation Recognition Method Towards Low SNR Sequences

Institute of Data and Target Engineering, Information Engineering University, Zhengzhou 450001, China

摘要

摘要: 针对单模态自动调制方式识别方法难以在低信噪比条件下可靠识别结果的问题，该文融合对比学习和Kolmogorov-Arnold表示定理，提出一种面向低信噪比序列的多模态联合两阶段自动调制方式识别方法。第1阶段，构建对比学习模块，利用多模态数据在时间、强度等显著联系，实现时域Token和变换域Token序列的初步显式对齐；第2阶段，设计特征融合模块，利用长短时记忆网络LSTM、卷积神经网络CNN从初步对齐特征中提取时序特性，并利用表征学习增大类间距离，从多角度捕获时域和变换域2种模态特征之间的隐式对齐关系，实现多模态特征融合；最后，通过Kolmogorov-Arnold网络学习边缘权重，得到调制方式识别结果。在经典通信信号调制方式识别数据集RadioML2016.10a, RadioML2016.10b和HisarMod2019.1上的实验结果表明，在–20～0 dB信噪比条件下，该文方法的调制方式识别精度相比于经典的FEA-T, AMC-NET和MCLDNN等方法以相近的参数量提高了2.62%～11.63%。
- 自动调制方式识别 /
- 跨模态特征融合 /
- 时间序列分析 /
- 对比学习 /
- Kolmogorov-Arnold网络
Abstract: Objective The rapid evolution of data-driven intelligent algorithms and the rise of multi-modal data indicate that the future of Automatic Modulation Recognition (AMR) lies in joint approaches that integrate multiple domains, use multiple frameworks, and connect multiple scales. However, the embedding spaces of different modalities are heterogeneous, and existing models lack cross-modal adaptive representation, limiting their ability to achieve collaborative interpretation. To address this challenge, this study proposes a performance-interpretable two-stage deep learning–based AMR (DL-AMR) method that jointly models the signal in the time and transform domains. The approach explicitly and implicitly represents signals from multiple perspectives, including temporal, spatial, frequency, and intensity dimensions. This design provides theoretical support for multi-modal AMR and offers an intelligent solution for modeling low Signal-to-Noise Ratio (SNR) time sequences in open environments. Methods The proposed AMR network begins with a preprocessing stage, where the input signal is represented as an in-phase and quadrature (I–Q) sequence. After wavelet thresholding denoising, the signal is converted into a dual-channel representation, with one channel undergoing Short-Time Fourier transform (STFT). This preprocessing yields a dual-stream representation comprising both time-domain and transform-domain signals. The signal is then tokenized through time-domain and transform-domain encoders. In the first stage, explicit modal alignment is performed. The token sequences from the time and transform domains are input in parallel into a contrastive learning module, which explicitly captures and strengthens correlations between the two modalities in dimensions such as temporal structure and amplitude. The learned features are then passed into the feature fusion module. Bidirectional Long Short-Term Memory (BiLSTM) and local representation layers are employed to capture temporally sparse features, enabling subsequent feature decomposition and reconstruction. To refine feature extraction, a subspace attention mechanism is applied to the high-dimensional sparse feature space, allowing efficient capture of discriminative information contained in both high-frequency and low-frequency components. Finally, Convolutional Neural Network – Kolmogorov-Arnold Network (CNN-KAN) layers replace traditional multilayer perceptrons as classifiers, thereby enhancing classification performance under low SNR conditions. Results and Discussions The proposed method is experimentally validated on three datasets: RML2016.10a, RML2016.10b, and HisarMod2019.1. Under high SNR conditions (SNR > 0 dB), classification accuracies of 93.36%, 93.13%, and 93.37% are achieved on the three datasets, respectively. Under low SNR conditions, where signals are severely corrupted or blurred by noise, recognition performance decreases but remains robust. When the SNR ranges from –6 dB to 0 dB, overall accuracies of 78.36%, 80.72%, and 85.43% are maintained, respectively. Even at SNR levels below –6 dB, accuracies of 17.10%, 21.30%, and 29.85% are obtained. At particularly challenging low-SNR levels, the model still achieves 43.45%, 44.54%, and 60.02%. Compared with traditional approaches, and while maintaining a low parameter count (0.33–0.41 M), the proposed method improves average recognition accuracy by 2.12–7.89%, 0.45–4.64%, and 6.18–9.53% on the three datasets. The improvements under low SNR conditions are especially significant, reaching 4.89–12.70% (RML2016.10a), 2.62–8.72% (RML2016.10b), and 4.96–11.63% (HisarMod2019.1). The results indicate that explicit modeling of time–transform domain correlations through contrastive learning, combined with the hybrid architecture consisting of LSTM for temporal sequence modeling, CNN for local feature extraction, and KAN for nonlinear approximation, substantially enhances the noise robustness of the model. Conclusions This study proposes a two-stage AMR method based on time–transform domain multimodal fusion. Explicit multimodal alignment is achieved through contrastive learning, while temporal and local features are extracted using a combination of LSTM and CNN. The KAN is used to enhance nonlinear modeling, enabling implicit feature-level multimodal fusion. Experiments conducted on three benchmark datasets demonstrate that, compared with classical methods, the proposed approach improves recognition accuracy by 2.62–11.63% within the SNR range of –20 to 0 dB, while maintaining a similar number of parameters. The performance gains are particularly significant under low-SNR conditions, confirming the effectiveness of multimodal joint modeling for robust AMR.
- Automatic Modulation Recognition (AMR) /
- Cross-modal feature fusion /
- Time series analysis /
- Contrastive learning /
- Kolmogorov–Arnold Network (KAN)

HTML全文

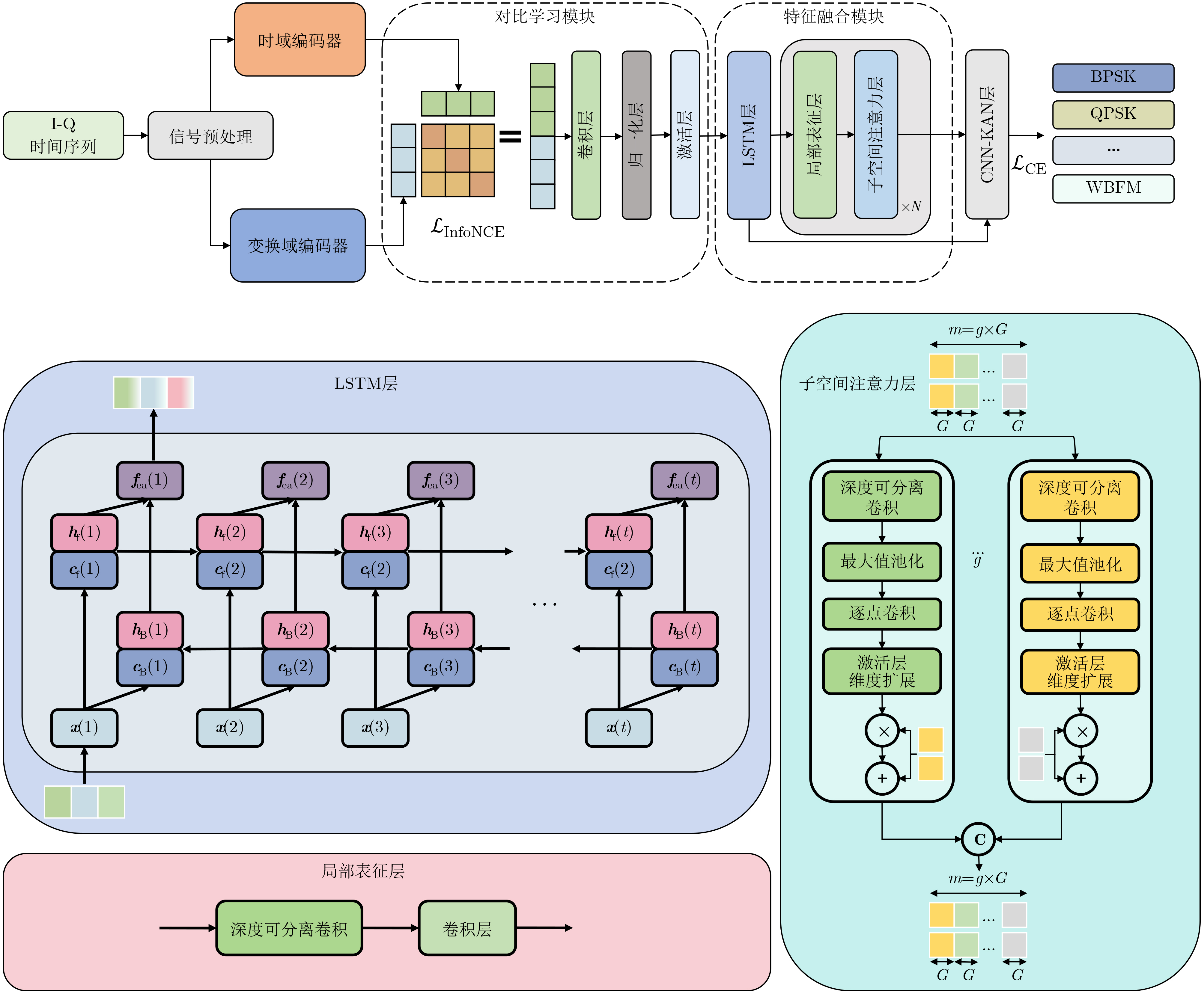

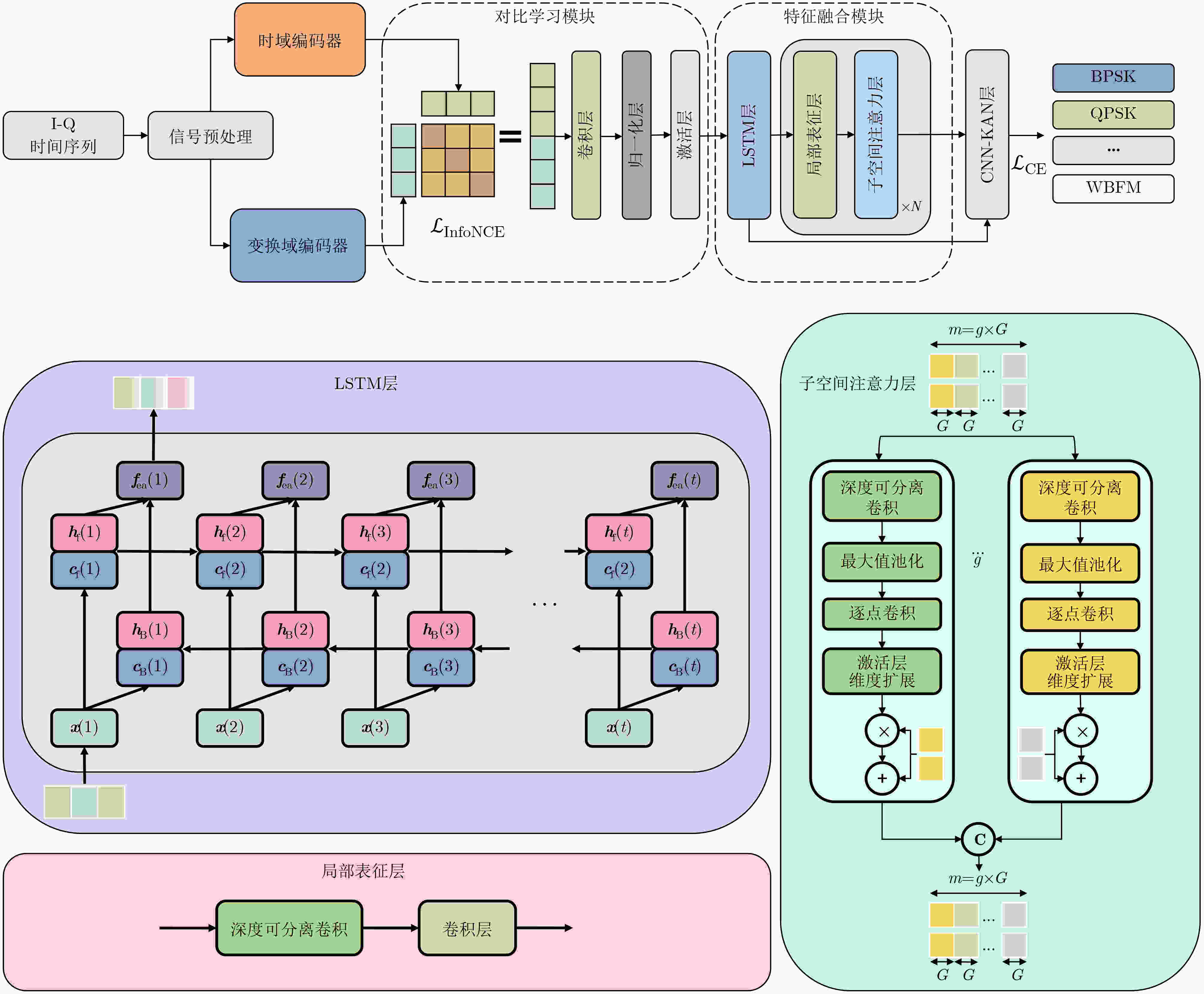

图 1 方法整体架构

下载: 全尺寸图片幻灯片

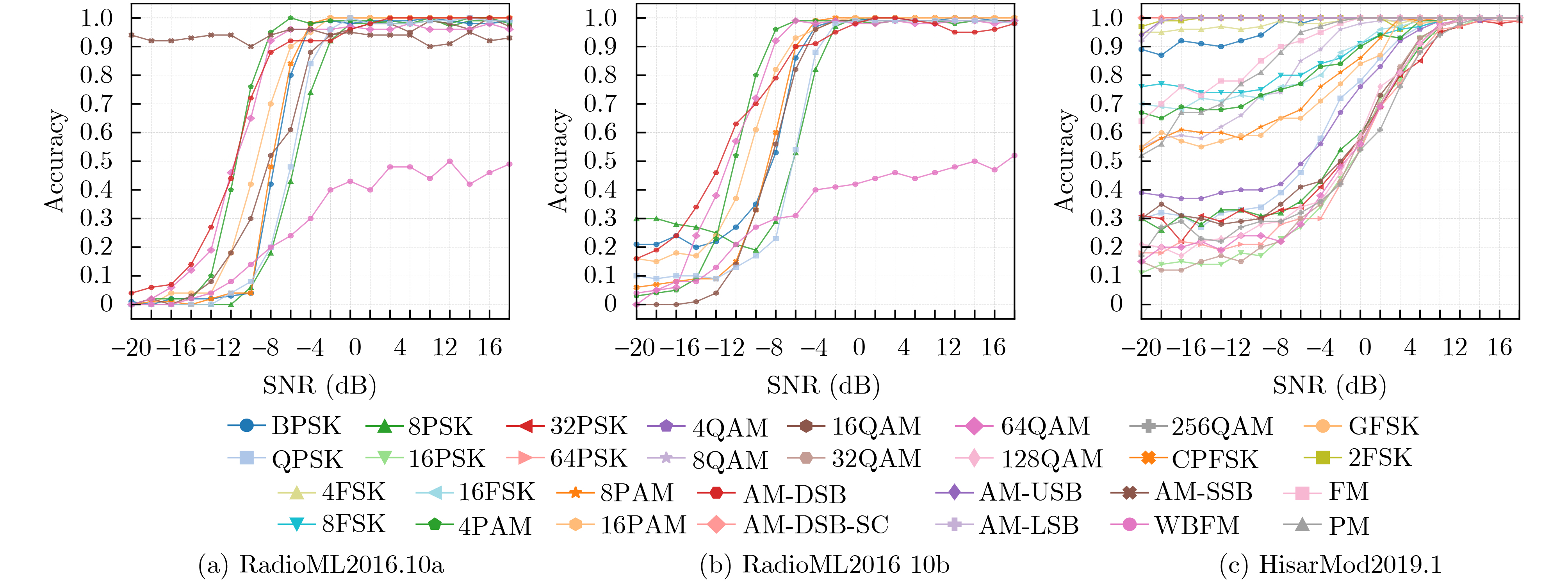

图 2 所有类别在–20～18 dB信噪比条件下的精度

下载: 全尺寸图片幻灯片

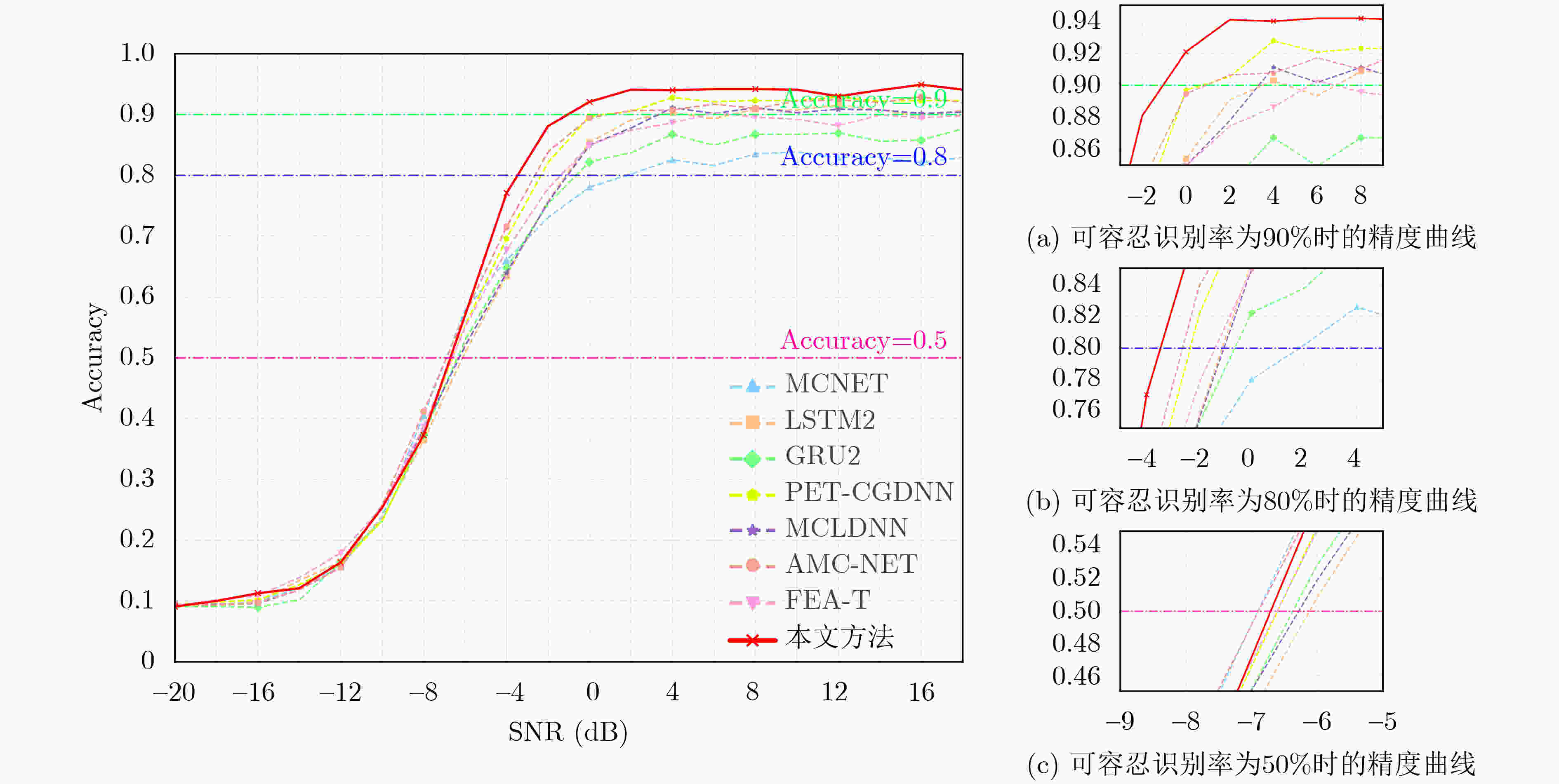

图 3 各可容忍识别率下的准确率曲线

下载: 全尺寸图片幻灯片

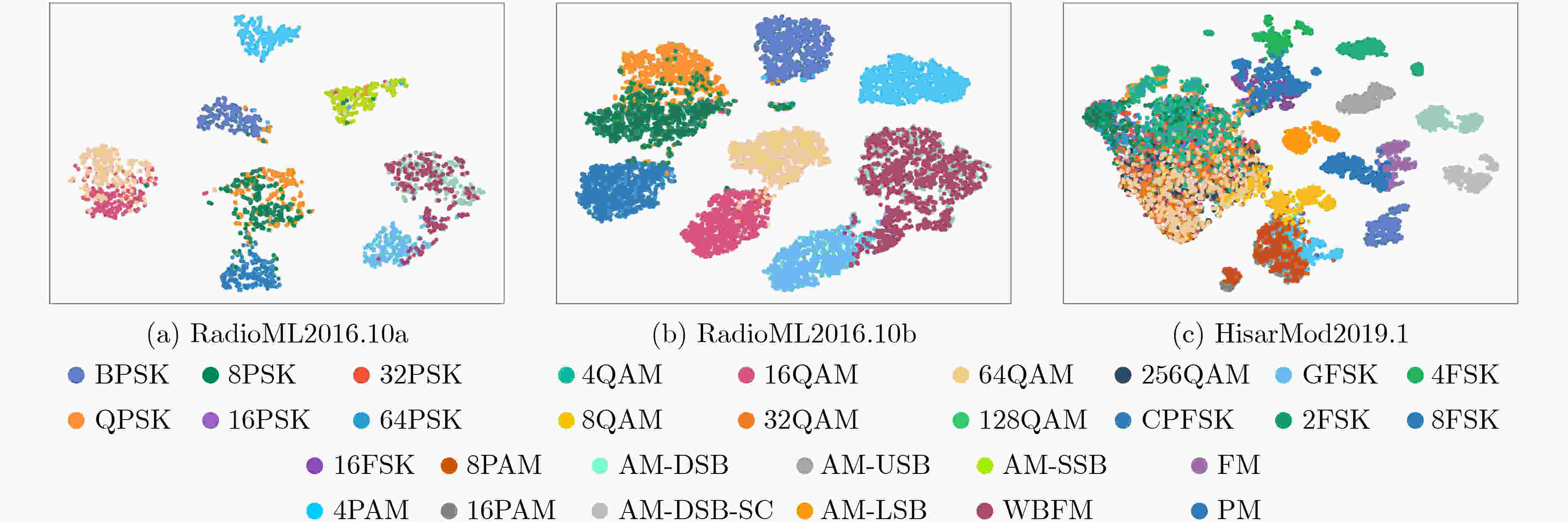

图 4 在-2dB信噪比条件下的t-SNE图

下载: 全尺寸图片幻灯片

表 1 CNN–KAN结构和MLP, KAN结构的比较

模型	多层感知机(MLP)	Kolmogorov-Arnold网络(KAN)	CNN–KAN
定理	通用逼近定理	Kolmogorov-Arnold表示定理	通用逼近定理 Kolmogorov-Arnold表示定理
思想	任意闭区间上的连续目标函数和非零误差，至少存在一个具有隐藏层的神经网络，用来逼近目标函数，其误差小于给定的非零误差	有界域上的任意多元连续函数可以写成有限个连续函数的复合单变量的二元运算	借助KAN非线性关系建模方面的优势，减少模型参数量并降低计算复杂性，补偿CNN的全局信息提取能力缺陷
公式	$ {\text{MLP}}(x) = ({{\mathbf{W}}_{\mathbf{2}}} \circ \sigma \circ {{\mathbf{W}}_{\mathbf{1}}} \circ \sigma \circ {{\mathbf{W}}_{\mathbf{0}}})(x) $	$ {\text{KAN}}(x) = ({\Phi _2} \circ {\Phi _1} \circ {\Phi _0})(x) $	$ {\text{C - K}}(x) = ({\Phi _1} \circ {\Phi _0} \circ {{\mathbf{W}}_1} \circ \sigma \circ {{\mathbf{W}}_{\mathbf{0}}})(x) $
架构

下载: 导出CSV

表 2 数据集介绍

数据集	调制类型	序列格式	数据规模	信噪比范围	解释
RadioML 2016.10a	11类 (8PSK, BPSK, CPFSK, GFSK, 4PAM, 16QAM, AM-DSB, AM-SSB, 64QAM, QPSK, WBFM)	2×128	220,000条	－20:2:18	利用GNU radio生成
RadioML 2016.10b	10类 (8PSK, BPSK, CPFSK, GFSK, 4PAM, 16QAM, AM-DSB, 64QAM, QPSK, WBFM)	2×128	1,200,000条	－20:2:18	在RML2016.10a的基础上，移除了AM-SSB信号，并将每个SNR上的样本数量由1 000条增加为6 000条。
HisarMod 2019.1	26类 (AM-DSB, AM-SC, AM-USB, AM-LSB, FM, PM, 2FSK, 4FSK, 8FSK, 16FSK, 4PAM, 8PAM, 16PAM, BPSK, QPSK, 8PSK, 16PSK, 32PSK, 64PSK, 4QAM, 8QAM, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM)	2×1024	780,000条	－20:2:18	在5个不同的通道条件下进行采集，总计包括26种调制类型，共780 000条样本。

下载: 导出CSV

表 3 3个数据集上方法评估指标对比(A: RML2016.10a, B: RML2016.10b, C:HisarMod2019.01A)

模型	数据集	参数量	SNR(dB)		最高识别精度(%)	平均识别精度(%)
模型	数据集	参数量	–20～0	0～18	最高识别精度(%)	平均识别精度(%)
MCNET^[27]	A	0.12M	33.21	82.33	83.91	56.63
	B	0.12M	35.89	85.69	87.08	60.95
	C	0.13M	48.39	89.12	89.33	69.85
LSTM2^[28]	A	0.2M	34.75	84.21	91.41	60.56
	B		36.58	88.65	94.01	63.28
	C		51.08	91.74	89.53	66.98
GRU2^[28]	A	0.15M	30.75	87.21	87.86	58.93
	B		35.82	91.98	93.63	63.72
	C		52.58	91.54	91.05	67.42
PET-CGDNN^[29]	A	0.07M	36.21	89.45	91.36	60.38
	B	0.07M	40.12	92.64	93.43	63.91
	C	0.08M	55.53	79.98	89.39	67.24
MCLDNN^[30]	A	0.41M	37.27	91.68	92.86	61.93
	B		40.91	93.02	93.86	64.46
	C		52.08	86.62	98.01	68.62
AMC-NET^[31]	A	0.47M	38.56	91.32	92.82	62.40
	B	0.47M	41.92	93.34	93.86	65.14
	C	4.61M	55.06	92.29	99.43	72.74
FEA-T^[32]	A	0.17M	37.31	88.54	90.09	60.55
	B	0.17M	40.81	93.12	93.89	64.44
	C	0.34M	50.38	92.21	99.92	70.33
Semi-AMR^[11]	A	-	-	91.28	92.96	-
AG-AMR^[10]	A	3.5M	32.10	90.50	91.50	60.16
本文模型	A	0.33M	43.45	93.36	93.36	64.52
	B	0.33M	44.54	93.13	94.30	65.59
	C	0.41M	60.02	93.37	99.92	76.51

下载: 导出CSV

表 4 在数据集A上进行的消融实验

对比学习	表征学习	子空间注意力	SNR(dB)		最高识别精度(%)	平均识别精度(%)
对比学习	表征学习	子空间注意力	–20～0	0～18	最高识别精度(%)	平均识别精度(%)
$ \times $	$ \surd $	$ \surd $	41.49	92.72	91.98	63.65
$ \surd $	$ \times $	$ \surd $	42.99	93.69	94.34	64.41
$ \surd $	$ \surd $	$ \times $	29.31	79.55	82.31	55.07
$ \surd $	$ \surd $	$ \surd $	43.45	93.36	93.36	64.52

下载: 导出CSV

表 5 不同模型的复杂度分析

模型	输入序列长度	参数量(M)	推理速度 (数据/s)
MCNET	128	0.12	1 253
MCNET	1 024	0.12	834
LSTM2	128	0.20	1 442
LSTM2	1 024	0.20	858
GRU2	128	0.15	1 357
GRU2	1 024	0.15	798
PET-CGDNN	128	0.08	2 481
PET-CGDNN	1 024	0.08	2 375
MCLDNN	128	0.41	1 286
MCLDNN	1 024	0.41	1 157
AMC-NET	128	0.47	1 458
AMC-NET	1 024	4.60	1 420
FEA-T	128	0.17	3 682
FEA-T	1 024	0.17	3 465
本文模型	128	0.33	1 728
本文模型	1 024	0.41	1 553

下载: 导出CSV
