考虑摩擦非线性和未知负载的伺服电机有限时间自适应滑模控制

张天宇; 郭琴霞; 杨挺凯; 郭祥吉; 明名

doi:10.11999/JEIT250521

考虑摩擦非线性和未知负载的伺服电机有限时间自适应滑模控制

doi: 10.11999/JEIT250521 cstr: 32379.14.JEIT250521

1.
国科大杭州高等研究院物理与光电工程学院杭州 310024
2.
中国科学院大学北京 100049

基金项目: 国科大杭州高等研究院项目 (2023HIAS-V001)

详细信息

作者简介:
张天宇：男，硕士生，研究方向为自适应控制，扰动观测器，伺服电机精密控制

郭琴霞：女，硕士生，研究方向为电机控制，迭代学习

杨挺凯：男，博士，研究方向为超快激光加工，无限视场加工

郭祥吉：男，博士，研究方向为图像检测，图像处理，深度学习

明名：男，研究员，研究方向为深紫外光学设计，光学检测，自适应光学，光电精密跟踪，精密控制

通讯作者:
明名　mingming@ucas.ac.cn

中图分类号: TN249; TP273
计量
- 文章访问数: 55
- HTML全文浏览量: 16
- PDF下载量: 7
- 被引次数: 0
出版历程
- 收稿日期: 2025-06-09
- 修回日期: 2025-10-10
- 录用日期: 2025-11-03
- 网络出版日期: 2025-11-08

Finite-time Adaptive Sliding Mode Control of Servo Motors Considering Frictional Nonlinearity and Unknown Loads

1.
Hangzhou Institute for Advanced Study, UCAS School of Physics and Optoelectronic Engineering, ZheJiang HangZhou 310024, China
2.
Chinese Academy of Sciences, Beijing 100049, China

Funds: Innovation Project of HlAS (2023HIAS-V001)

摘要

摘要: 为了解决超快激光无限视场加工中存在的高精度要求小视场与大范围加工需求之间的矛盾，该文提出一种基于自适应扰动观测器的有限时间滑模控制策略，该模型能够保证跟踪误差在有限时间内收敛到原点附近的邻域，有效补偿了未知负载扰动和输入端摩擦非线性行为。该文将被控系统中的未知负载扰动与摩擦非线性等复杂因素统一建模为集总扰动项，从而显著提升了系统动力学模型的普适性。该方法融合了径向基神经网络(RBFNN)设计有限时间自适应扰动观测器，实现对集总扰动的精确补偿。基于扰动观测构建的有限时间滑模控制方案，使得电机的输出角位置快速精确跟踪期望轨迹。最后，通过Matlab仿真分析验证了该控制方法的可行性和优越性。
- 超快激光无限视场加工 /
- 伺服电机 /
- 自适应扰动观测器 /
- 有限时间控制 /
- 滑模控制
Abstract: Objective Ultra-fast laser processing with an infinite field of view requires servo motor systems with superior tracking accuracy and robustness. However, such systems are highly nonlinear and affected by coupled unknown load disturbances and complex friction, which constrain the performance of conventional controllers. Although Sliding Mode Control (SMC) exhibits inherent robustness, traditional SMC and observer designs cannot achieve accurate finite-time disturbance compensation under strong nonlinearities, thus limiting high-speed and high-precision trajectory tracking. To address this limitation, a novel finite-time adaptive SMC approach is proposed to ensure rapid and precise angular position tracking within a finite time, satisfying the stringent synchronization requirements of advanced laser processing systems. Methods A novel control strategy is developed by integrating an adaptive disturbance observer fused with a Radial Basis Function Neural Network (RBFNN) and finite-time Sliding Mode Control (SMC). First, the unknown load disturbance and complex frictional nonlinear dynamics are combined into a unified "lumped disturbance" term, improving model generality and the ability to represent real operating conditions. Second, a finite-time adaptive disturbance observer is constructed to estimate this lumped disturbance. The observer utilizes the universal approximation capability of the RBFNN to learn and approximate the dynamic characteristics of unknown disturbances online. Simultaneously, a finite-time adaptive law based on the error norm is introduced to update the neural network weights in real time, ensuring rapid and accurate finite-time estimation of the lumped disturbance while reducing dependence on precise model parameters. Based on this design, a finite-time SMC is developed. The controller uses the observer’s disturbance estimation as a feedforward compensation term, incorporates a carefully formulated finite-time sliding surface and equivalent control law, and introduces a saturation function to suppress control input chattering. A suitable Lyapunov function is then constructed, and the finite-time stability theory is rigorously applied to prove the practical finite-time convergence of both the adaptive observer and the closed-loop control system, guaranteeing that the system tracking error converges to a bounded neighborhood near the origin within finite time. Results and Discussions To verify the effectiveness and superiority of the proposed control strategy, a typical Permanent Magnet Synchronous Motor (PMSM) servo system model is constructed in the MATLAB environment, and a simulation scenario with desired trajectories of varying frequencies is established. The proposed method is comprehensively compared with the widely used Proportional–Integral (PI) control and the advanced method reported in reference [7]. Simulation results demonstrate the following: 1. Tracking performance: Under various reference trajectories, the proposed controller enables the system to accurately follow the target trajectory with a tracking error substantially smaller than that of the PI controller. Compared with the method in reference [7], it achieves smoother responses and smaller residual errors, effectively eliminating the chattering observed in some operating conditions of the latter. 2 Disturbance rejection and robustness: The adaptive disturbance observer based on the RBFNN rapidly and effectively learns and compensates for the lumped disturbance composed of unknown load variations and frictional nonlinearities. Even in the presence of these disturbances, the proposed controller maintains high-precision trajectory tracking, demonstrating strong disturbance rejection and robustness to system parameter variations. 3. Control input characteristics: Compared with the reference methods, the control signal of the proposed approach quickly stabilizes after the initial transient phase, effectively suppressing chattering caused by high-frequency switching. The amplitude range of the control input remains reasonable, facilitating practical actuator implementation. 4. Comprehensive evaluation: Based on multiple error performance indices, including Integral Squared Error (ISE), Integral Absolute Error (IAE), Time-weighted Integral Absolute Error (ITAE), and Time-weighted Integral Squared Error (ITSE), the proposed controller consistently outperforms both PI control and the method in reference [7]. It demonstrates comprehensive advantages in suppressing transient errors rapidly and reducing overall error accumulation. The method also improves steady-state accuracy and achieves a balanced response speed with effective noise attenuation. 5. Observer performance: The RBFNN weight norm estimation converges rapidly and stabilizes at a low level after initial adaptation, confirming the effectiveness of the proposed adaptive law and the learning efficiency of the observer. Conclusions A finite-time sliding mode control strategy with an adaptive disturbance observer is proposed for servo systems used in ultra-fast laser processing. The method models unknown load disturbances and frictional nonlinearities as a lumped disturbance term. An adaptive observer, integrating an RBF neural network with a finite-time mechanism, accurately estimates this disturbance for real-time compensation. Based on the observer, a finite-time SMC law is formulated, and the practical finite-time stability of the closed-loop system is theoretically proven. Simulations conducted on a permanent magnet synchronous motor platform confirm that the proposed approach achieves superior tracking accuracy, robustness, and control smoothness compared with conventional PI and existing advanced methods. This work offers an effective solution for achieving high-precision control in nonlinear systems subject to strong disturbances.
- Ultra-fast laser infinite field of view processing /
- Servo motor /
- Adaptive disturbance observer /
- Finite-time control /
- Sliding mode control

HTML全文

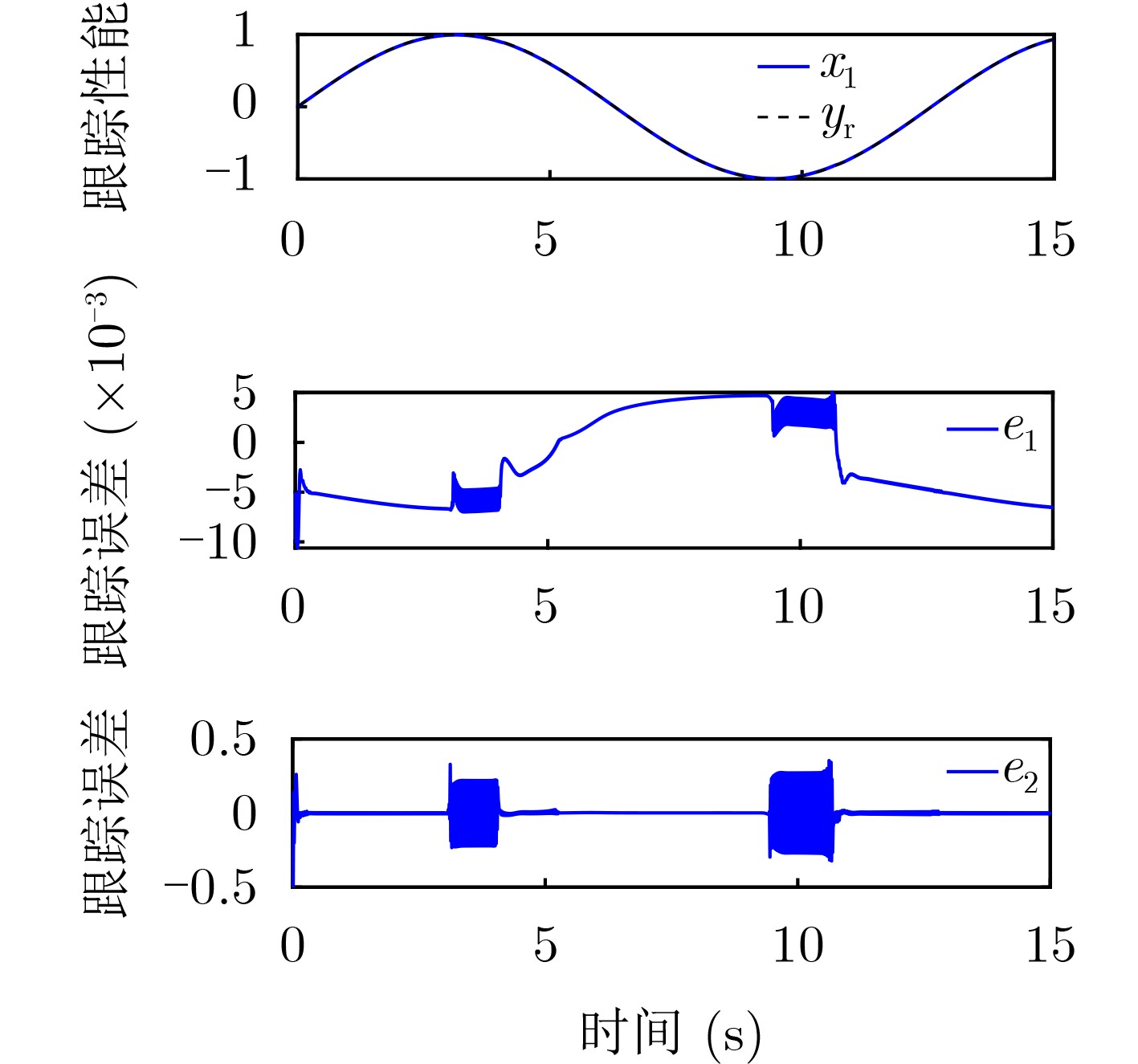

图 1 跟踪性能误差分析

下载: 全尺寸图片幻灯片

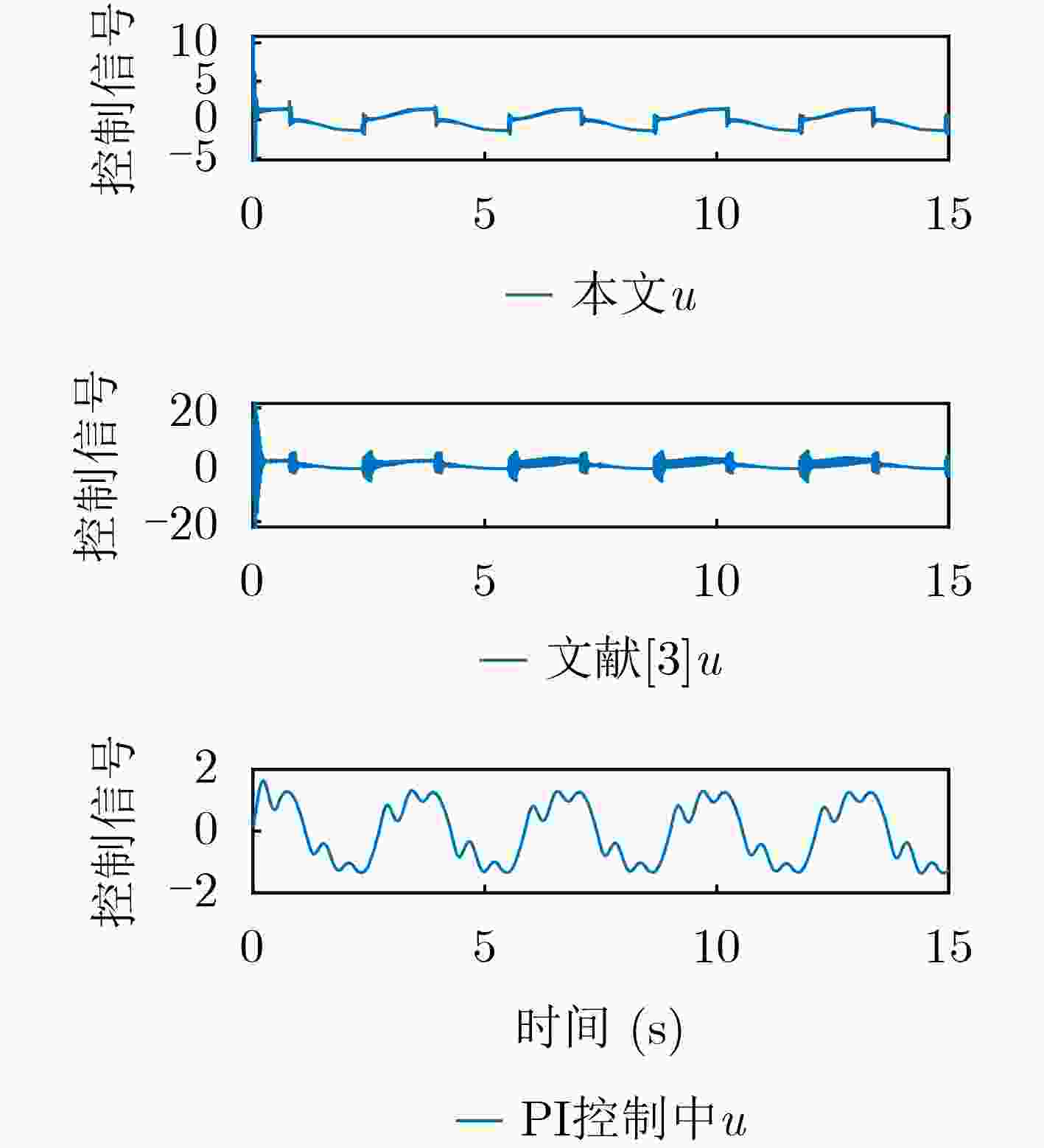

图 6 3组控制信号对比分析

下载: 全尺寸图片幻灯片

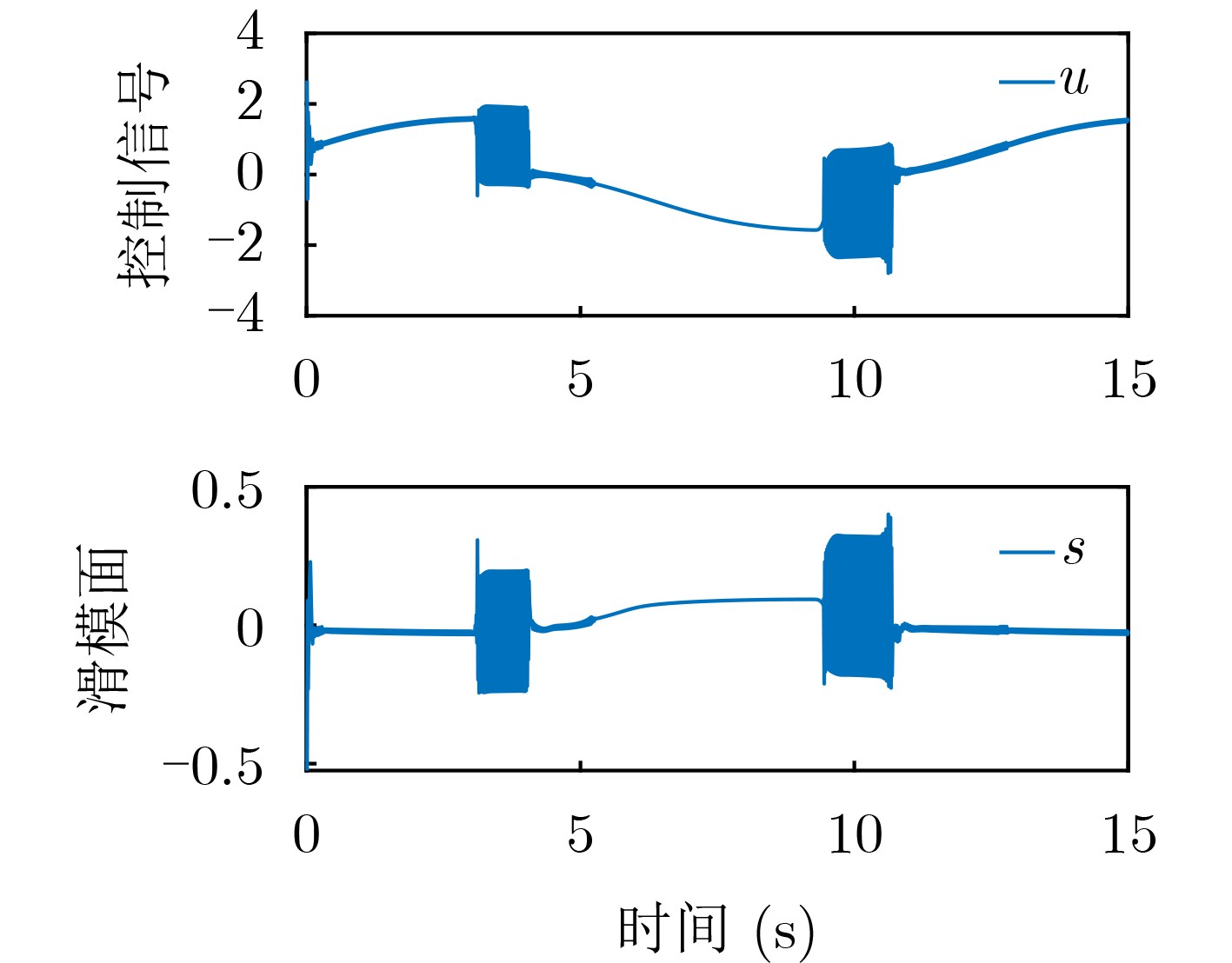

图 2 控制信号与滑模面分析

下载: 全尺寸图片幻灯片

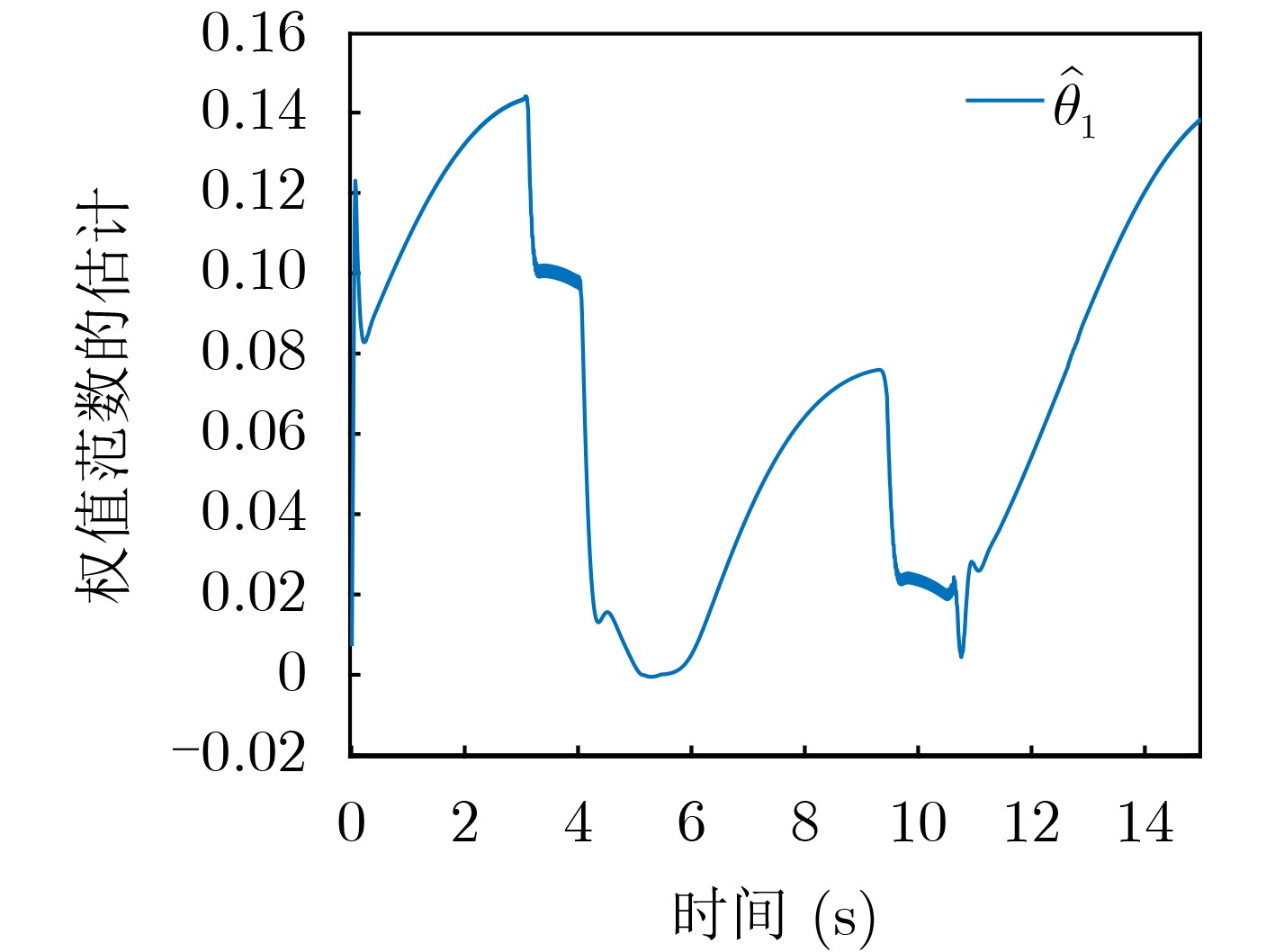

图 3 权值范数估计

下载: 全尺寸图片幻灯片

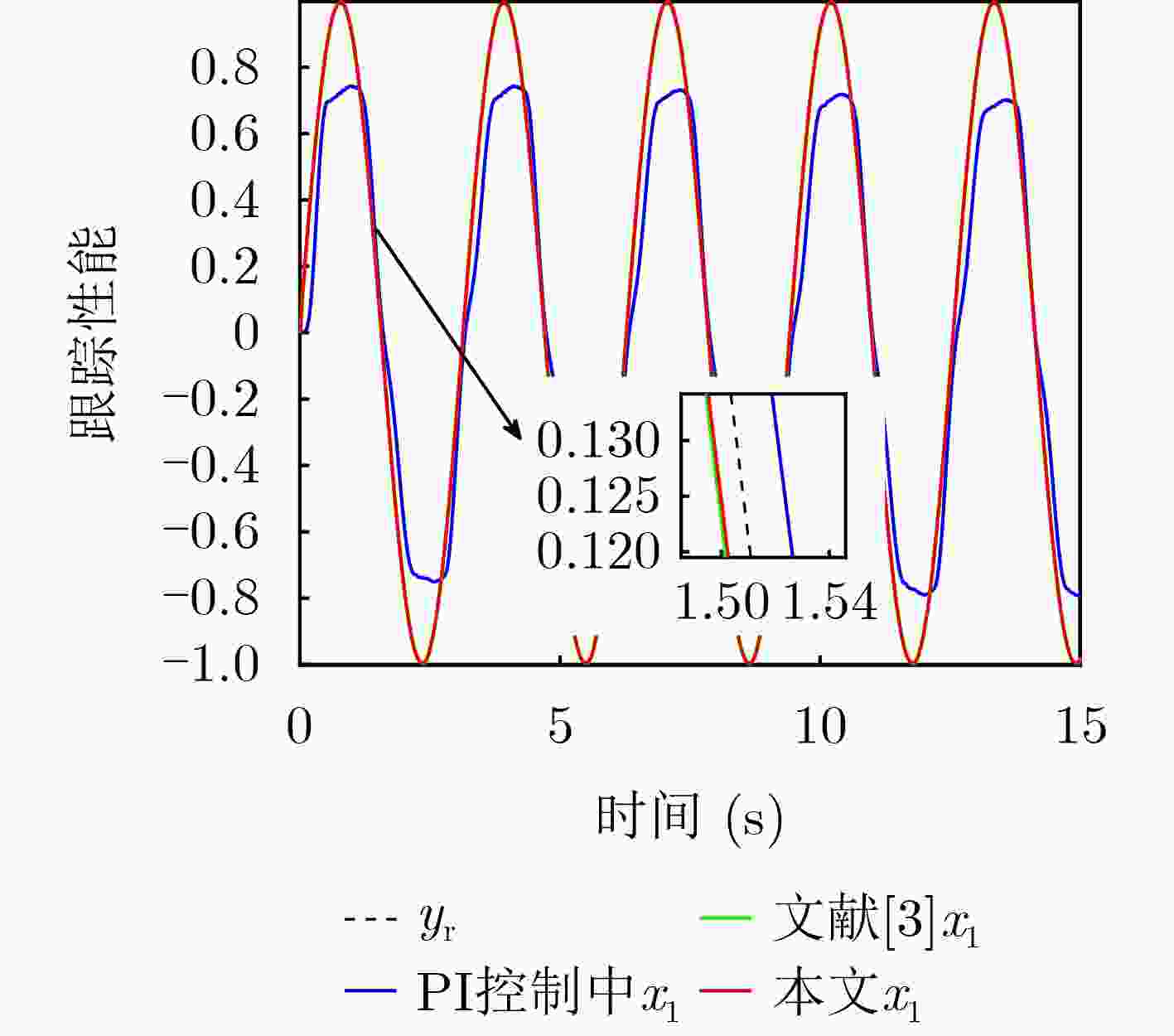

图 4 3组信号跟踪性能对比分析

下载: 全尺寸图片幻灯片

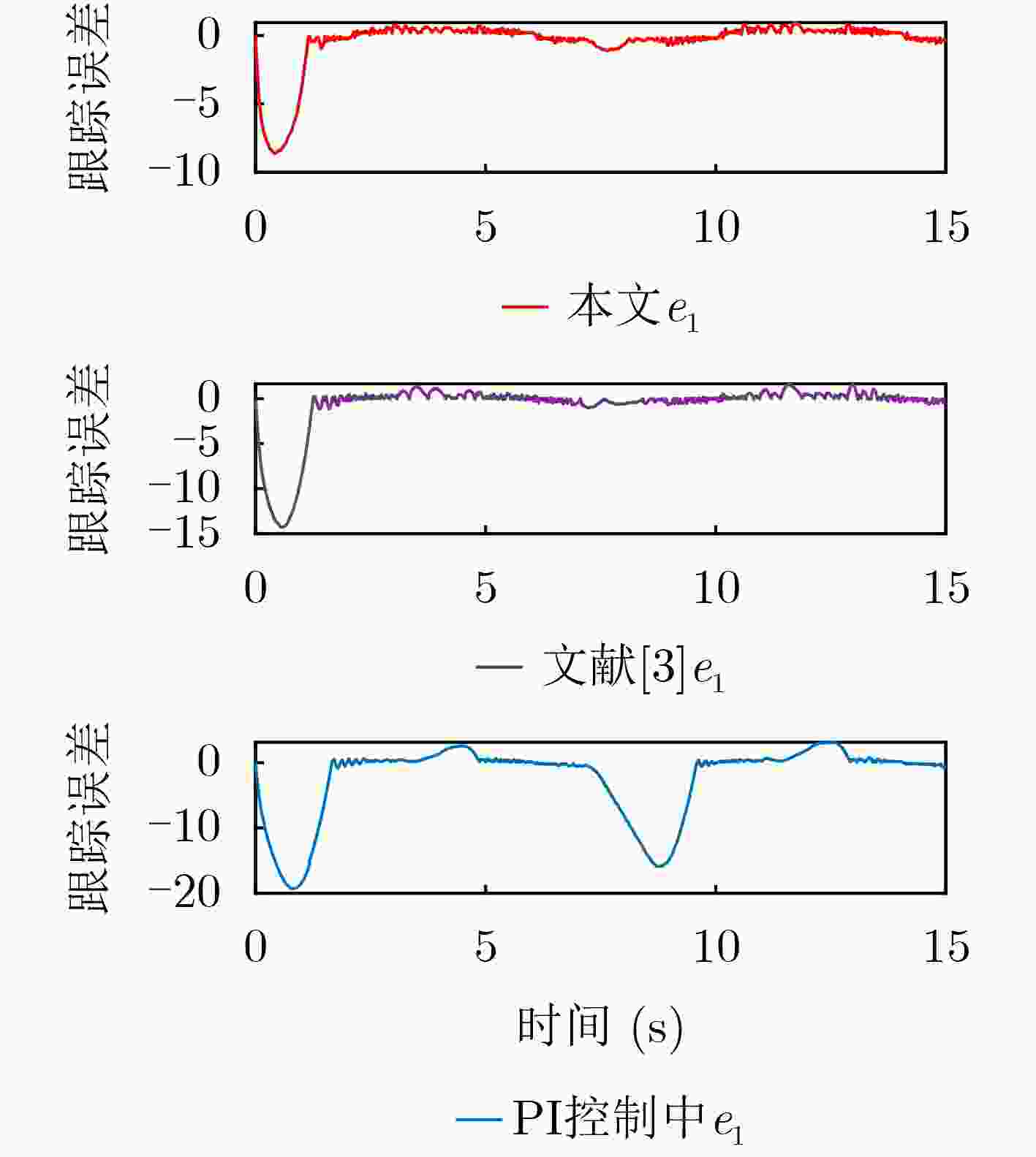

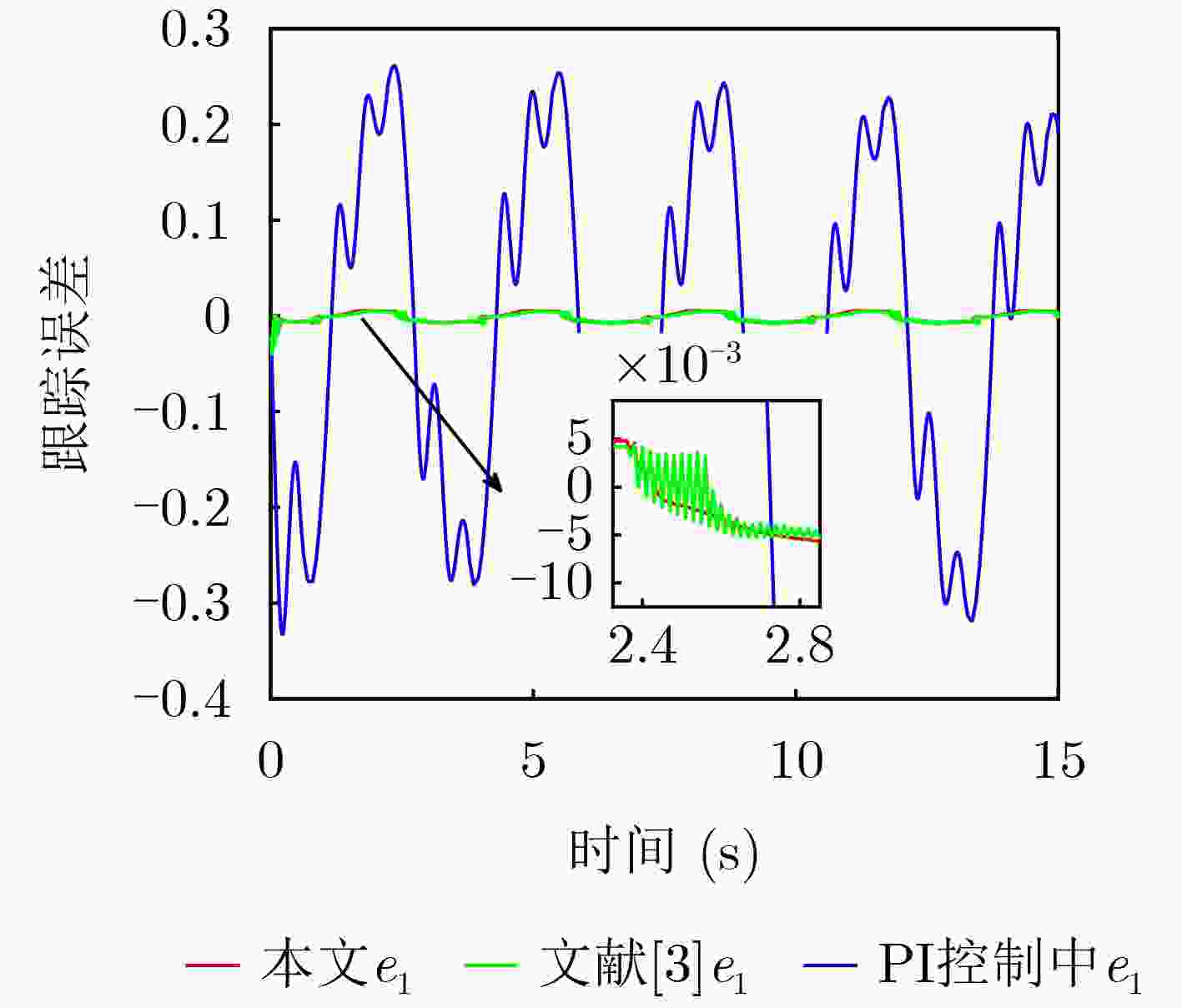

图 5 3组信号误差分析对比

下载: 全尺寸图片幻灯片

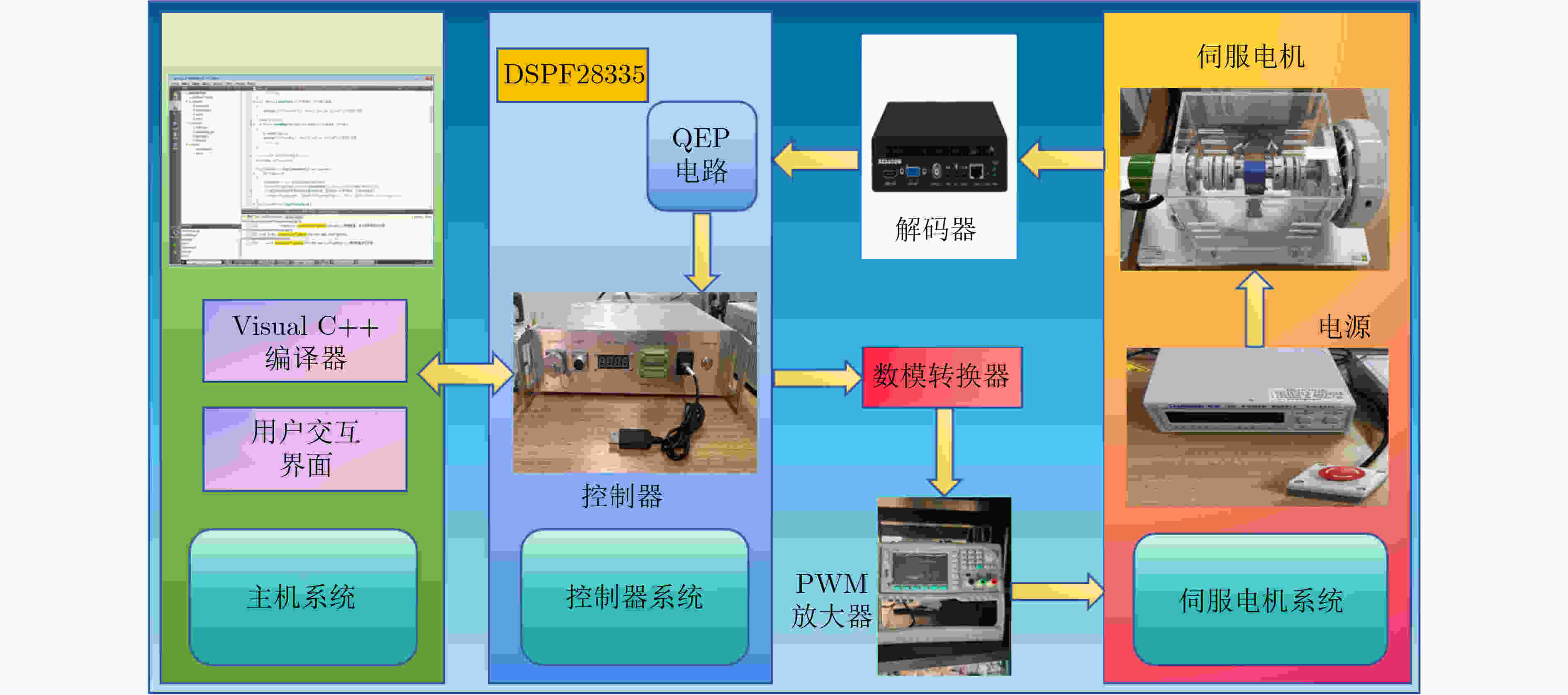

图 7 伺服电机控制系统结构图

下载: 全尺寸图片幻灯片

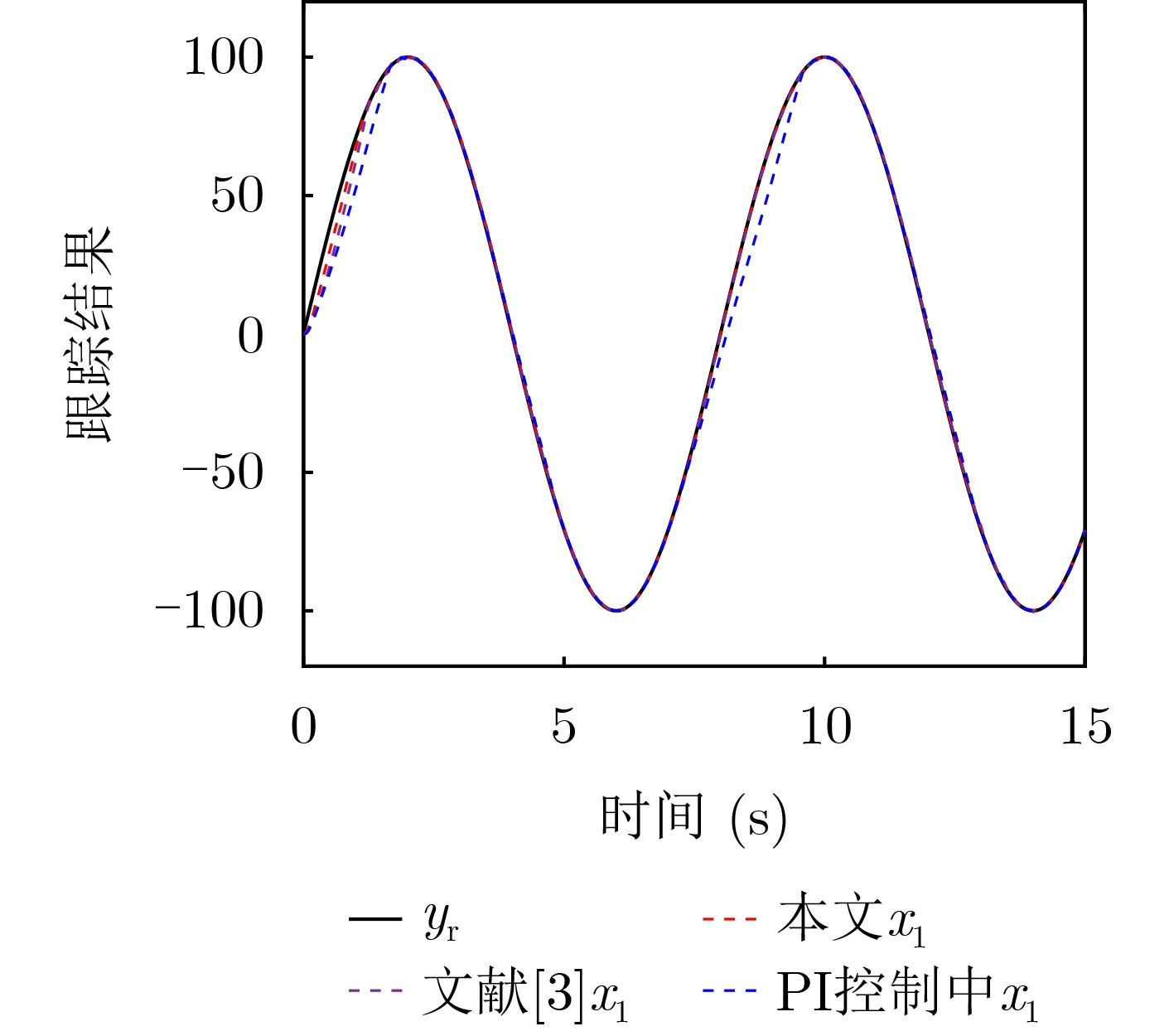

图 8 实验跟踪结果对比图

下载: 全尺寸图片幻灯片

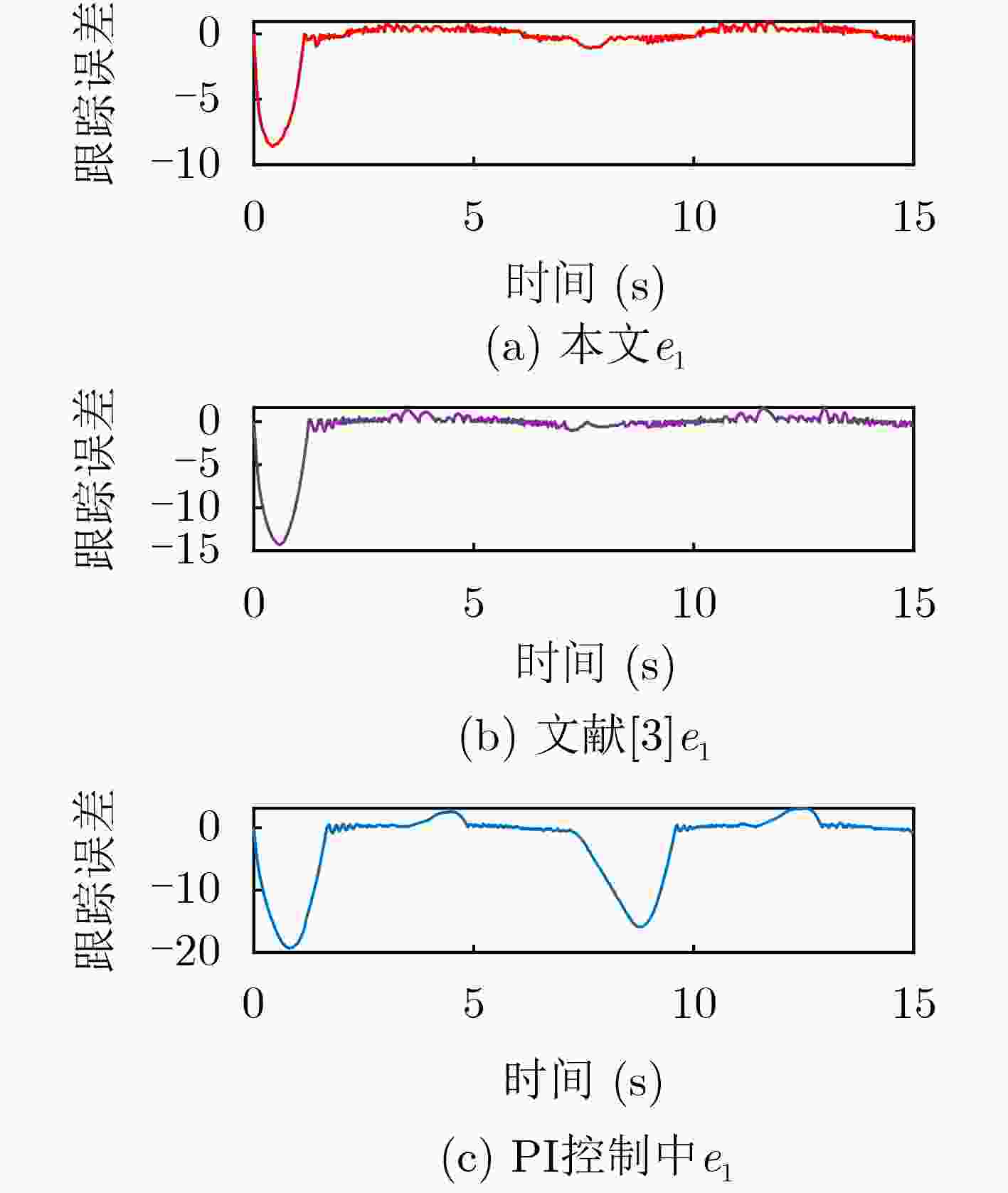

图 9 实验跟踪误差对比图

下载: 全尺寸图片幻灯片

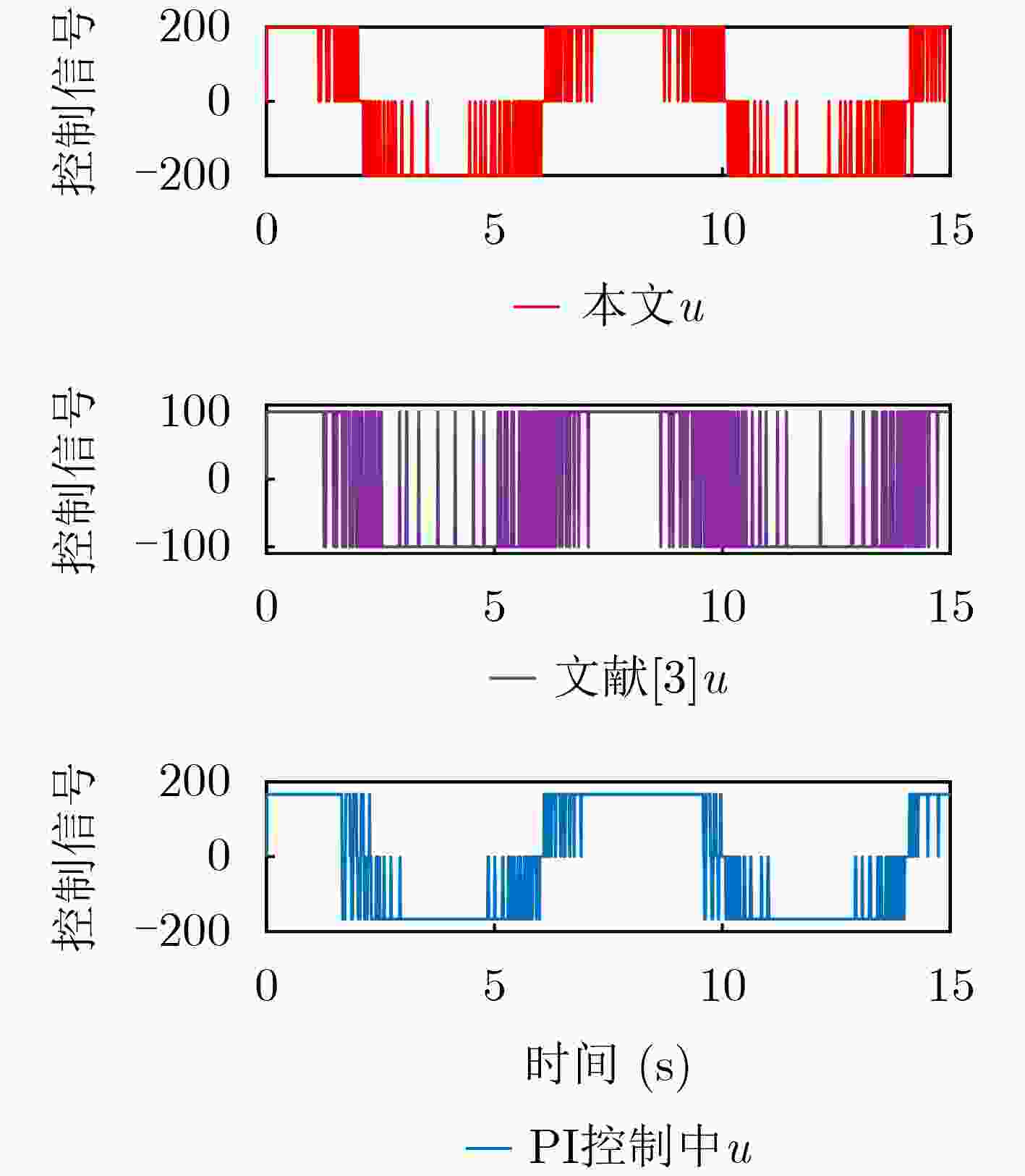

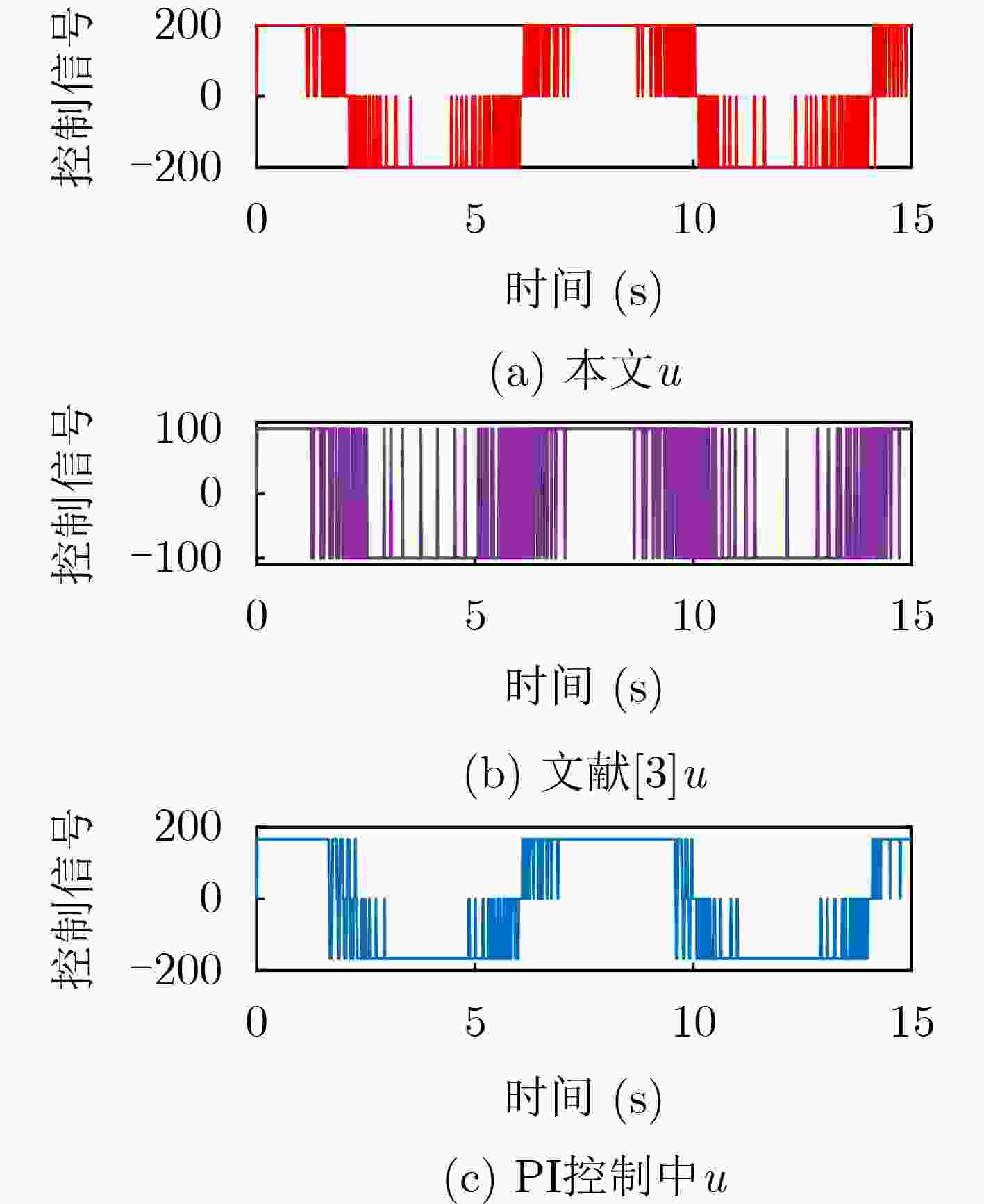

图 10 实验控制信号对比图

下载: 全尺寸图片幻灯片

表 1 伺服电机的模型参数

参数	数值	说明	参数	数值	说明
$ {A_1} $	0.25	摩擦系数	$ {A_2} $	0.5	摩擦系数
$ {A_3} $	0.01	摩擦系数	$ {P_1} $	100	摩擦系数
$ {P_2} $	1	摩擦系数	$ {P_3} $	100	摩擦系数
$ {J_L} $	0.0113	负载转动惯量	$ {b_m} $	0.015	电机粘性摩擦系数
$ n $	11.67	齿轮传动比	$ {J_m} $	0.0026	电机转动惯量

下载: 导出CSV

表 2 位置跟踪性能指标比较

指标	PI控制中$ {e_1} $	文献[3]$ {e_1} $	本文$ {e_1} $
ISE	–41.28	3.65e–8	7.62e–11
IAE	1.9e–3	1.94e–5	7.33e–6
ITAE	2.9e–2	2.92e–4	1.1e–4
ITSE	5.5e–3	5.67e–7	8.06e–8

下载: 导出CSV
