复数子空间神经网络驱动的均匀圆阵三维定位方法

蒋伟; 支博昕; 杨俊杰; 王惠; 丁鹏飞; 张政

doi:10.11999/JEIT250395

复数子空间神经网络驱动的均匀圆阵三维定位方法

doi: 10.11999/JEIT250395 cstr: 32379.14.JEIT250395

蒋伟¹,
支博昕¹,
杨俊杰^2, ,,
王惠¹,
丁鹏飞¹,
张政¹

1.
上海电力大学电子与信息工程学院上海 201306
2.
上海电机学院电子与信息工程学院上海 201306

基金项目: 国家自然科学基金(61202369, 61401269)

详细信息

作者简介:
蒋伟：女，教授，研究方向为信号处理与深度学习

支博昕：男，硕士生，研究方向为阵列信号处理与室内定位

杨俊杰：男，教授，研究方向为无线传感器网络与电力通信技术

王惠：女，硕士生，研究方向为蓝牙Mesh组网数据传输

丁鹏飞：男，硕士生，研究方向为嵌入式开发与短距离定位

张政：男，硕士生，研究方向为短距离通信技术

通讯作者:
杨俊杰　yangjj@sdju.edu.cn

中图分类号: TN820; TP183
计量
- 文章访问数: 58
- HTML全文浏览量: 25
- PDF下载量: 7
- 被引次数: 0
出版历程
- 收稿日期: 2025-05-09
- 修回日期: 2025-10-11
- 录用日期: 2025-11-03
- 网络出版日期: 2025-11-14

3D Localization Method with Uniform Circular Array Driven by Complex Subspace Neural Network

1.
College of Electronics and Information Engineering, Shanghai University of Electric Power, Shanghai 201306, China
2.
School of Electronic and Information Engineering, Shanghai Dianji University, Shanghai 201306, China

Funds: The National Natural Science Foundation of China (61202369, 61401269)

摘要

摘要: 针对复杂室内环境中由频率偏移、多径传播以及噪声干扰等因素导致定位精度不足的问题，该文提出一种复数子空间神经网络(CSNN)驱动的均匀圆阵三维定位方法。首先，构建基于信号参考周期与采样周期的双估计频率补偿算法。通过预估计对精估计的频率模糊进行修正，以获得精确的频偏值实现频率补偿。其次，提出基于复数子空间神经网络的二维角度估计算法。利用复数卷积神经网络(CVCNN)重构信号协方差矩阵，抑制非主径分量与噪声的影响，恢复信号与噪声子空间的正交性，并利用模式空间转换与子空间算法实现高精度二维角度估计。在此基础上，设计了基于均匀圆阵的原型系统进行实验。结果表明，该方法在跨场景迁移后二维与三维定位的平均误差分别为28.9 cm和36.5 cm，验证了所提方法的定位精度与泛化能力。
- 室内定位 /
- 均匀圆阵 /
- 频率补偿 /
- 复数子空间网络
Abstract: Objective High-precision indoor localization is increasingly required in intelligent service scenarios, yet existing techniques continue to face difficulties in complex environments where signal frequency offset, multipath propagation, and noise interfere with accuracy. To address these limitations, a 3D localization method using a Uniform Circular Array (UCA) driven by a Complex Subspace Neural Network (CSNN) is proposed to improve accuracy and robustness under challenging conditions. Methods The proposed method establishes a complete localization pipeline based on a hierarchical signal processing framework that includes frequency offset compensation, two-dimensional angle estimation, and spatial mapping (Fig. 2). A dual-estimation frequency compensation algorithm is first designed. The frequency offsets during the Channel Time Extension (CTE) reference period and sample period are estimated separately, and the estimate obtained from the reference period is used to resolve ambiguity in the antenna sample period, which enables high-precision frequency compensation. The CSNN is then constructed to estimate the two-dimensional angle (Fig. 3). Within this framework, a Complex-Valued Convolutional Neural Network (CVCNN) (Fig. 4) is introduced to calibrate the covariance matrix of the received signals, which suppresses correlated noise and multipath interference. Based on the theory of mode-space transformation, the calibrated covariance matrix is projected onto a virtual Uniform Linear Array (ULA). The azimuth and elevation angles are jointly estimated by the ESPRIT algorithm. The estimated angles from three Access Points (APs) are subsequently fused to obtain the final position estimate. Results and Discussions Experiments are conducted to evaluate the performance of the proposed method. For frequency offset suppression, the dual-estimation frequency compensation algorithm markedly reduces the effect on angle estimation, improving estimation accuracy by 91.7% compared with uncorrected data and showing clear improvement over commonly used approaches (Fig. 6). For angle estimation, the CSNN achieves reductions of more than 40% in azimuth error and 25% in elevation error compared with the MUSIC algorithm under simulation conditions (Fig. 7), and verifies the capability of the CVCNN module to suppress various interferences. In practical experiments, the CSNN achieves an average azimuth error of 1.07° and an average elevation error of 1.28° in the training scenario (Table 1, Fig. 10). Generalization experiments conducted in three indoor environments (warehouse, corridor, and office) show that the average angular errors remain low at 2.78° for azimuth and 3.39° for elevation (Table 2, Fig. 11). The proposed method further maintains average positioning accuracies of 28.9 cm in 2D and 36.5 cm in 3D after cross-scene migration (Table 4, Fig. 13). Conclusions The proposed high-precision indoor localization method integrates dual-estimation frequency compensation, the CSNN angle estimation algorithm, and three-AP cooperative localization. It demonstrates strong performance in both simulation and real-environment experiments. The method also maintains stable cross-scene adaptability and accuracy that meet the requirements of high-precision indoor localization.
- Indoor localization /
- Uniform Circular Array (UCA) /
- Frequency compensation /
- Complex Subspace Neural Network(CSNN)

HTML全文

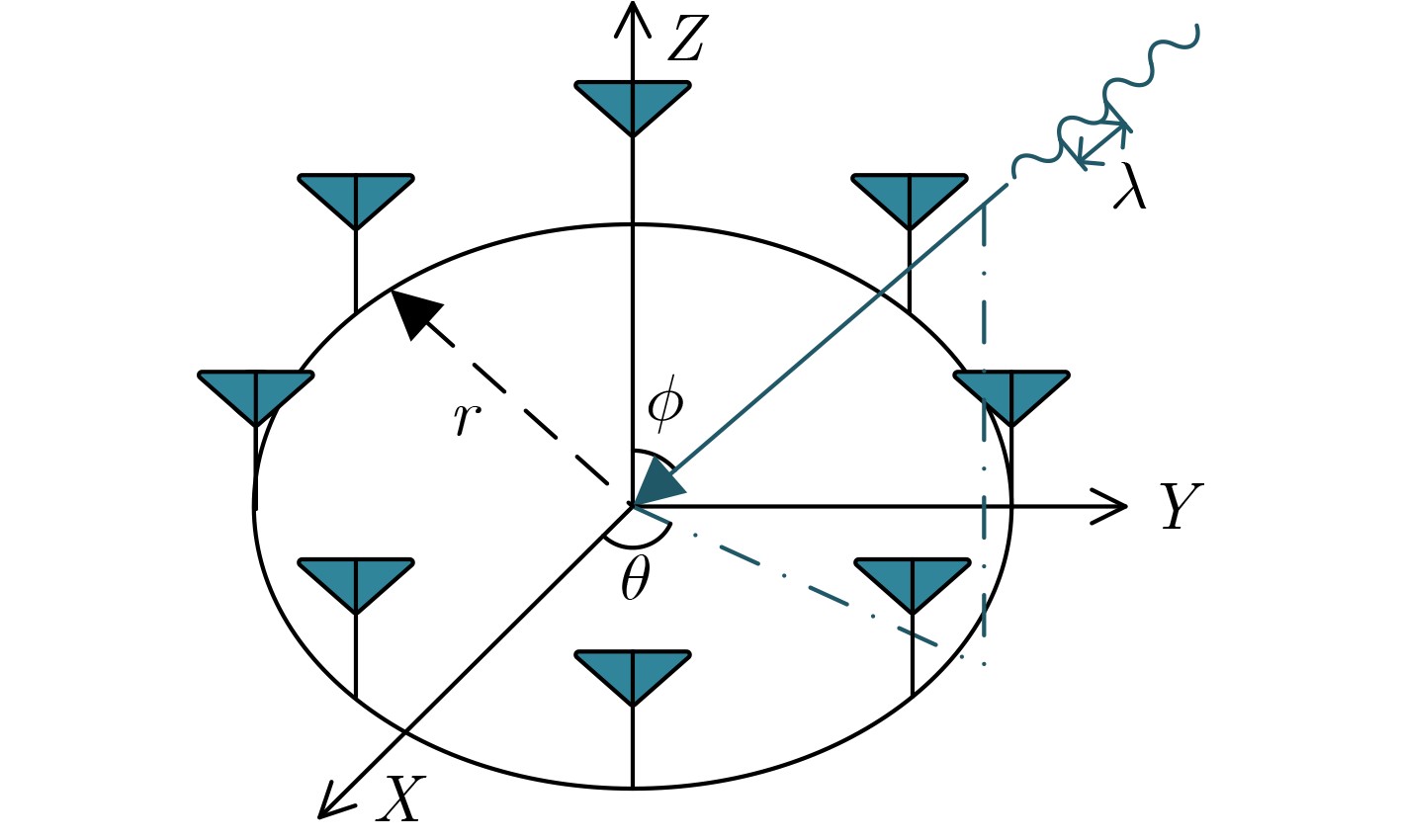

图 1 均匀圆阵信号接收模型

下载: 全尺寸图片幻灯片

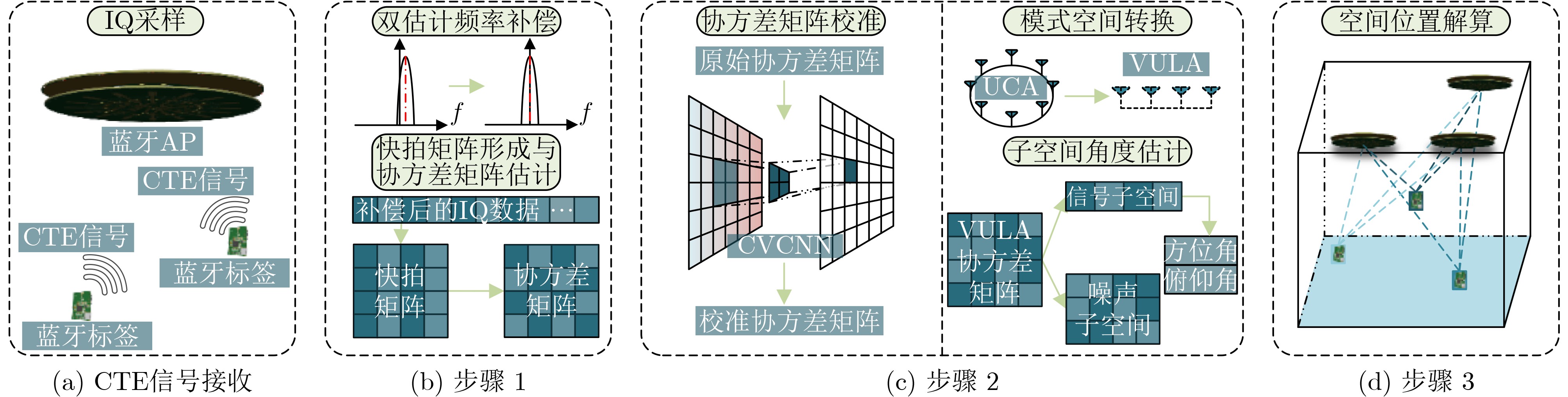

图 2 复数子空间神经网络驱动的均匀圆阵三维定位流程

下载: 全尺寸图片幻灯片

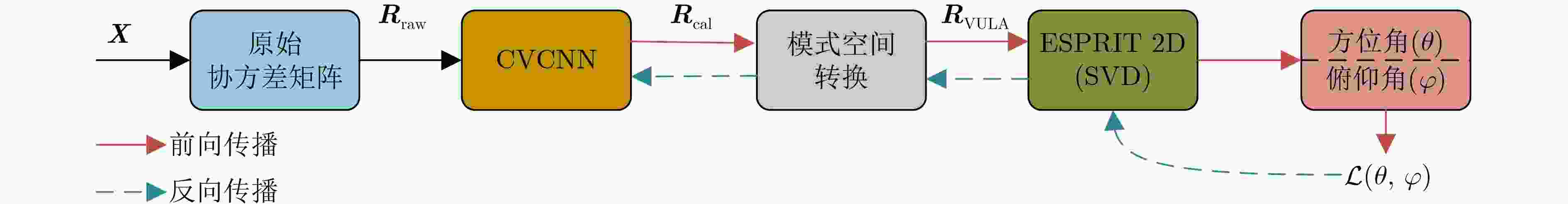

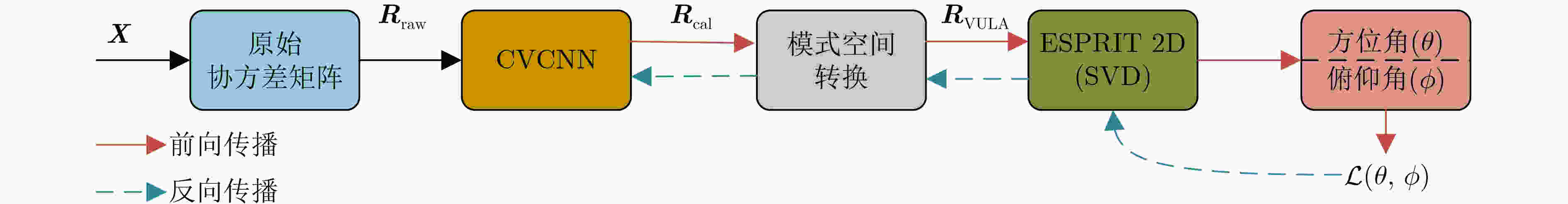

图 3 CSNN算法结构

下载: 全尺寸图片幻灯片

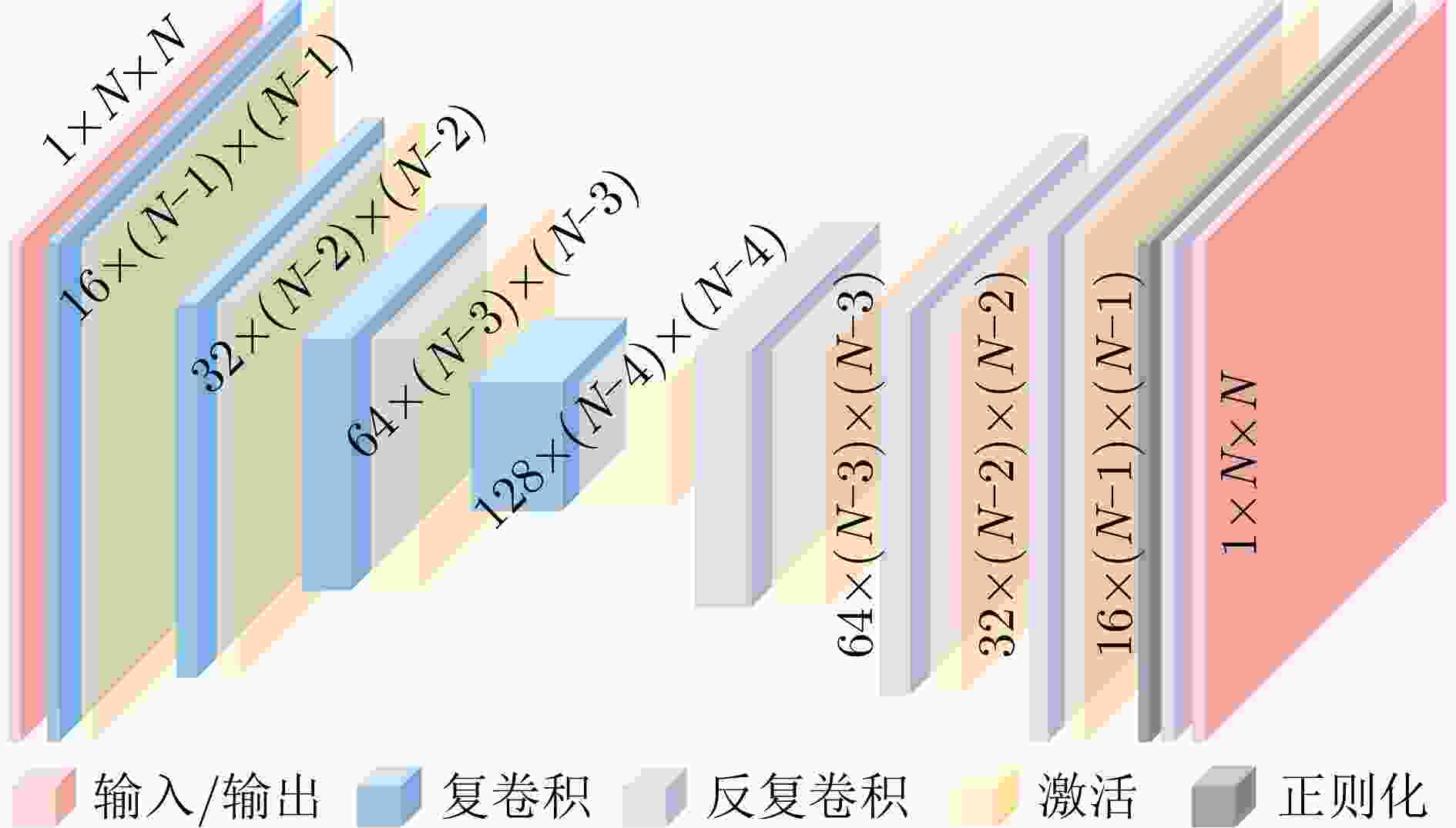

图 4 CVCNN网络模型

下载: 全尺寸图片幻灯片

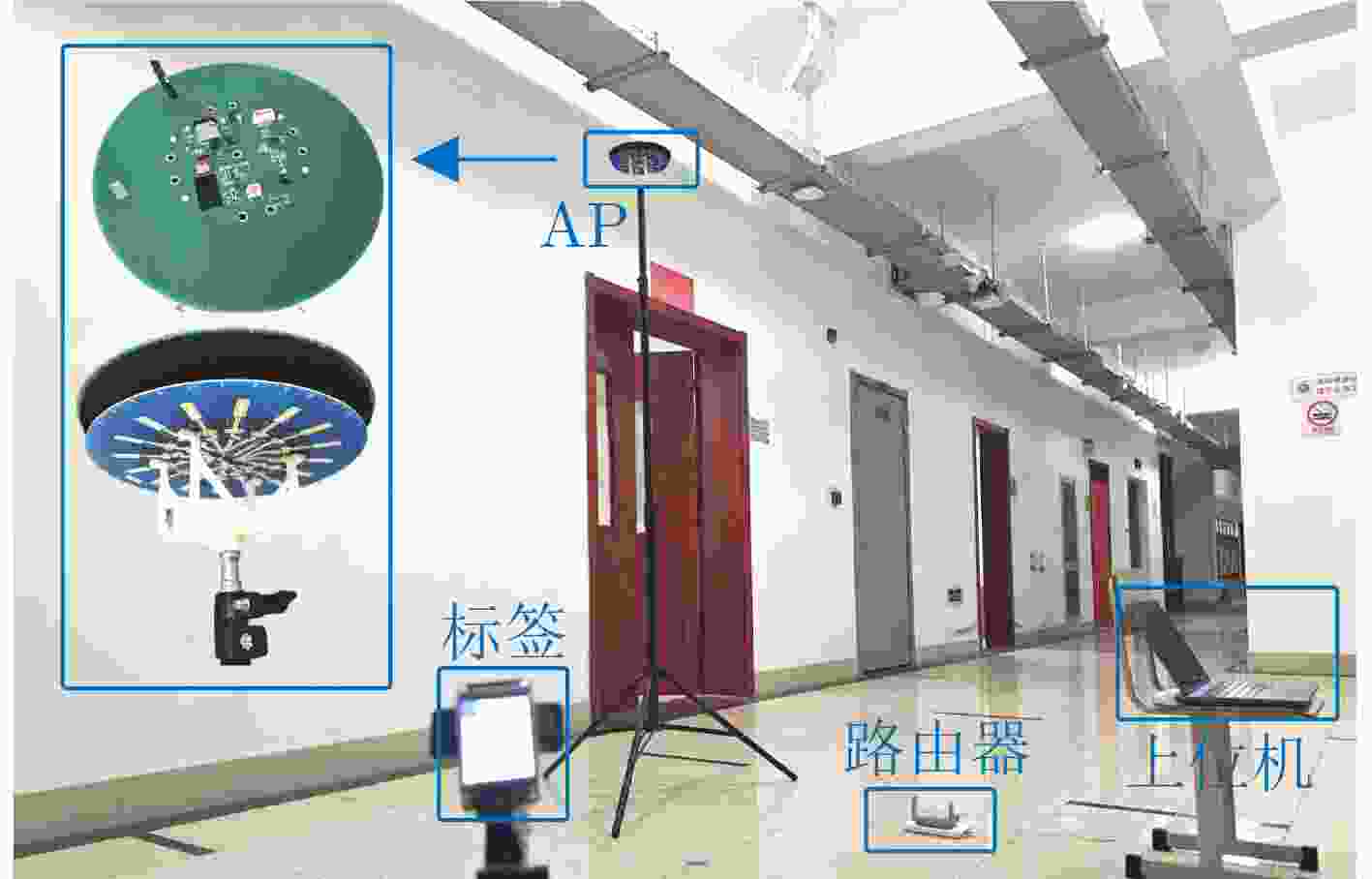

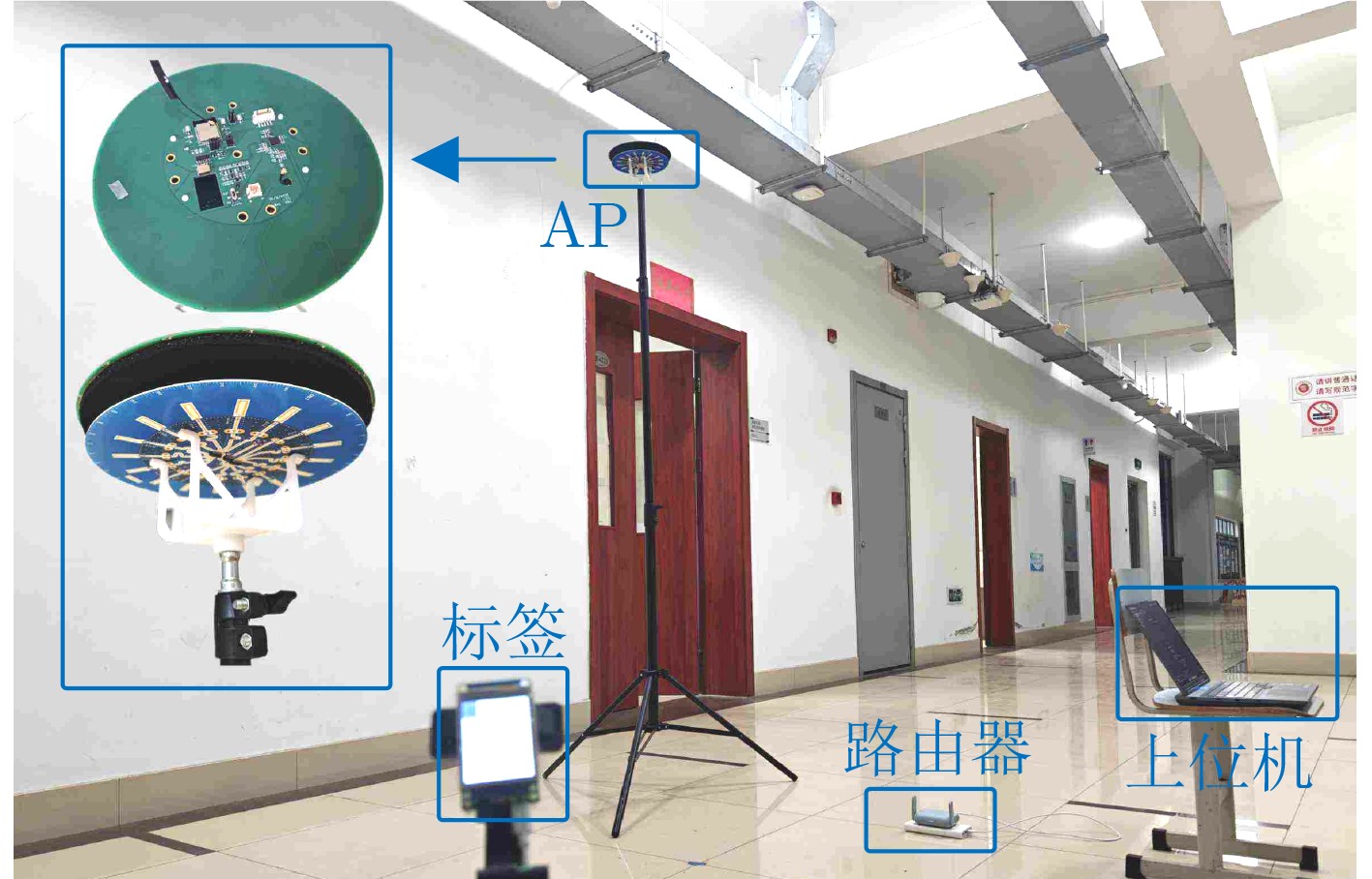

图 5 蓝牙AoA原型系统

下载: 全尺寸图片幻灯片

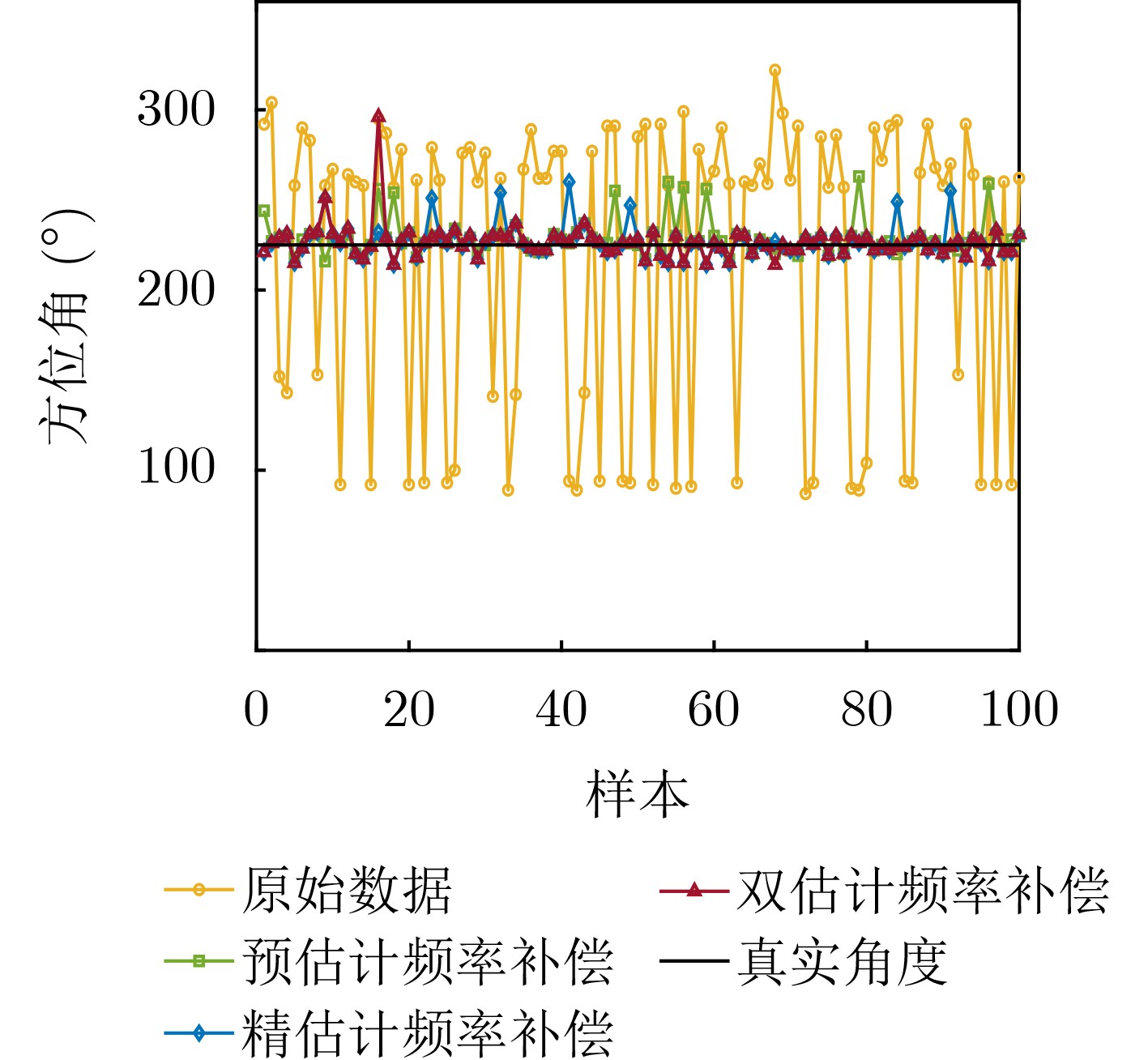

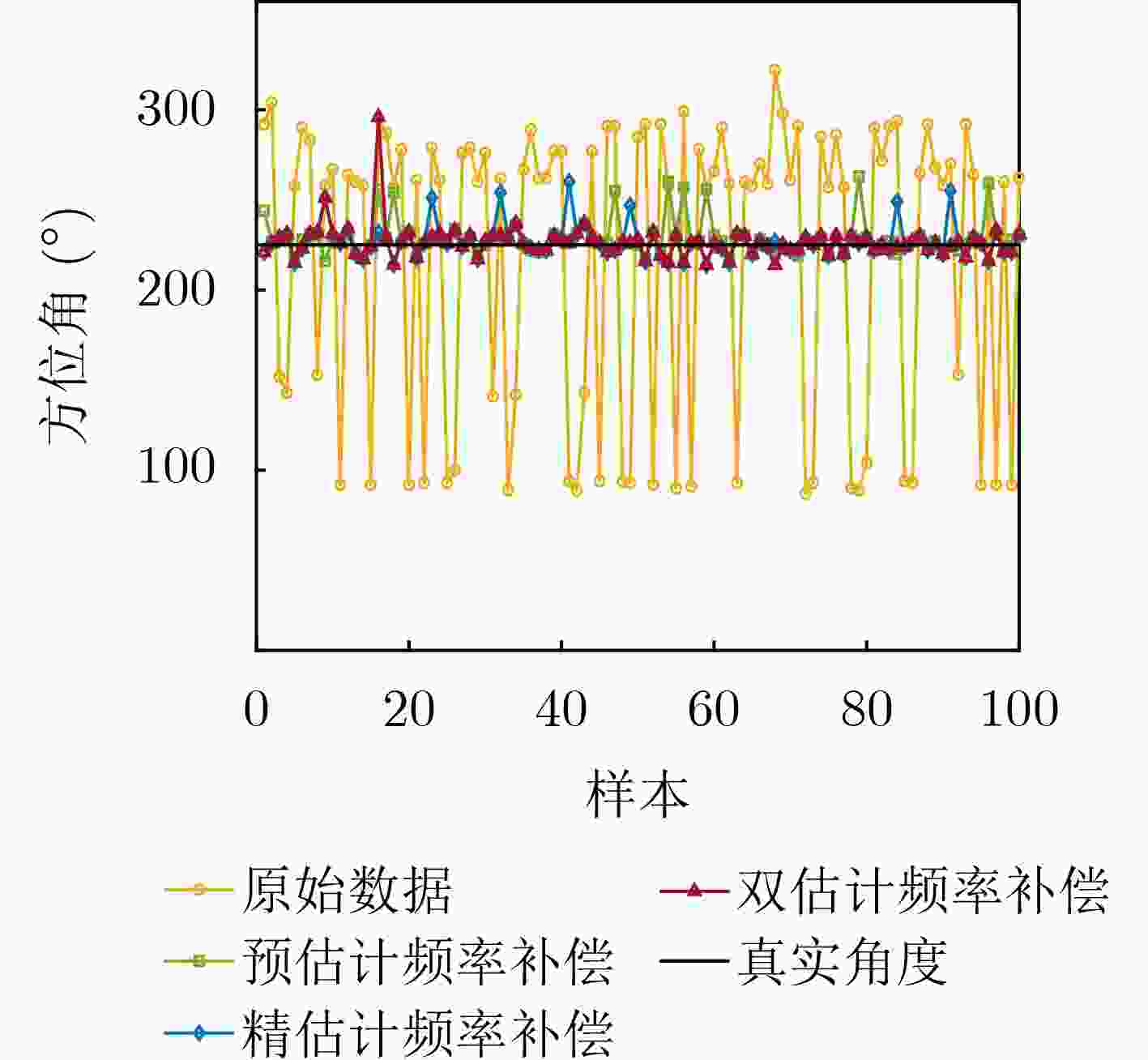

图 6 不同频率补偿方法的性能比较

下载: 全尺寸图片幻灯片

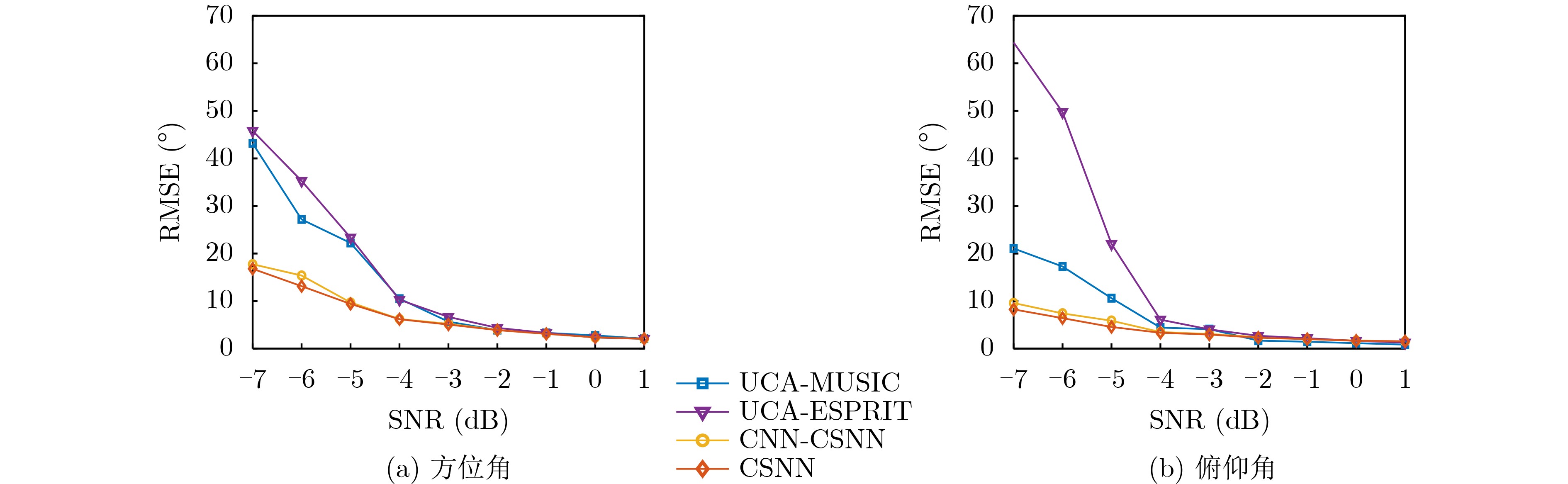

图 7 角度估计性能比较

下载: 全尺寸图片幻灯片

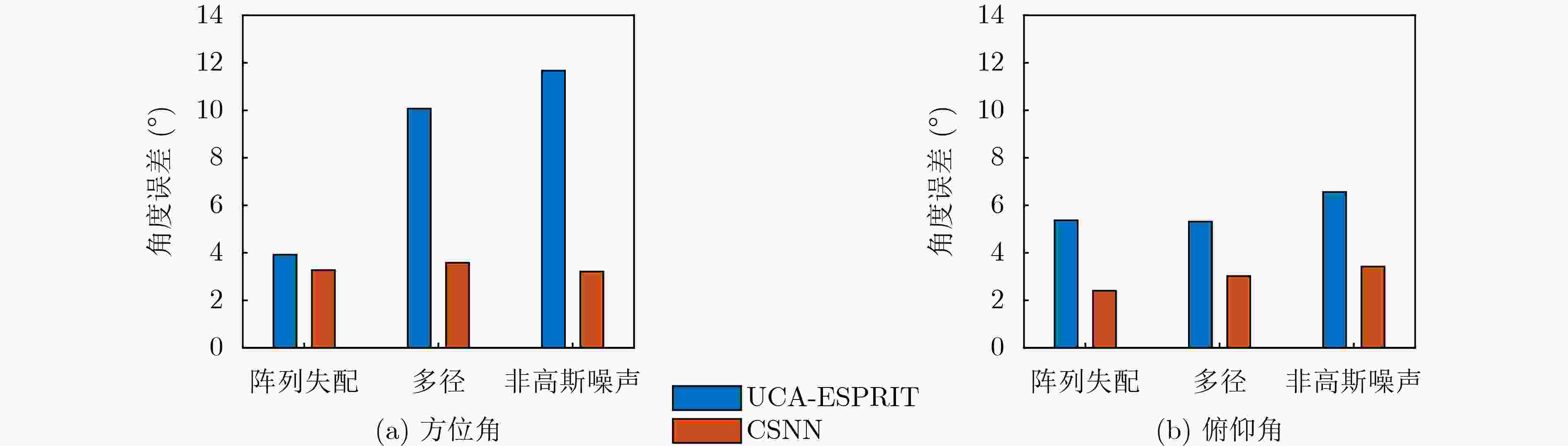

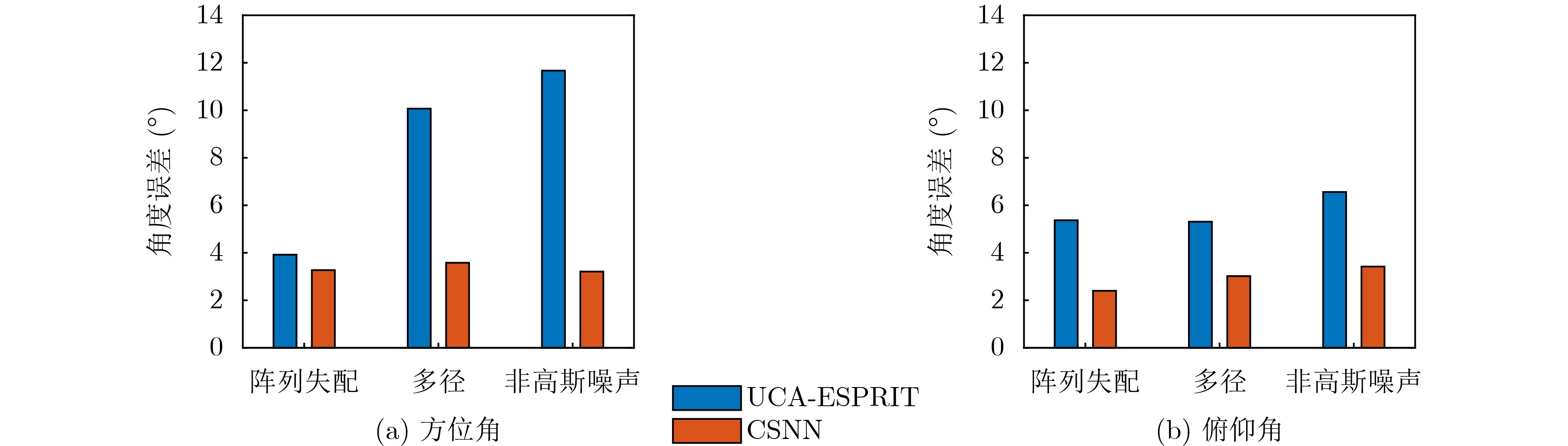

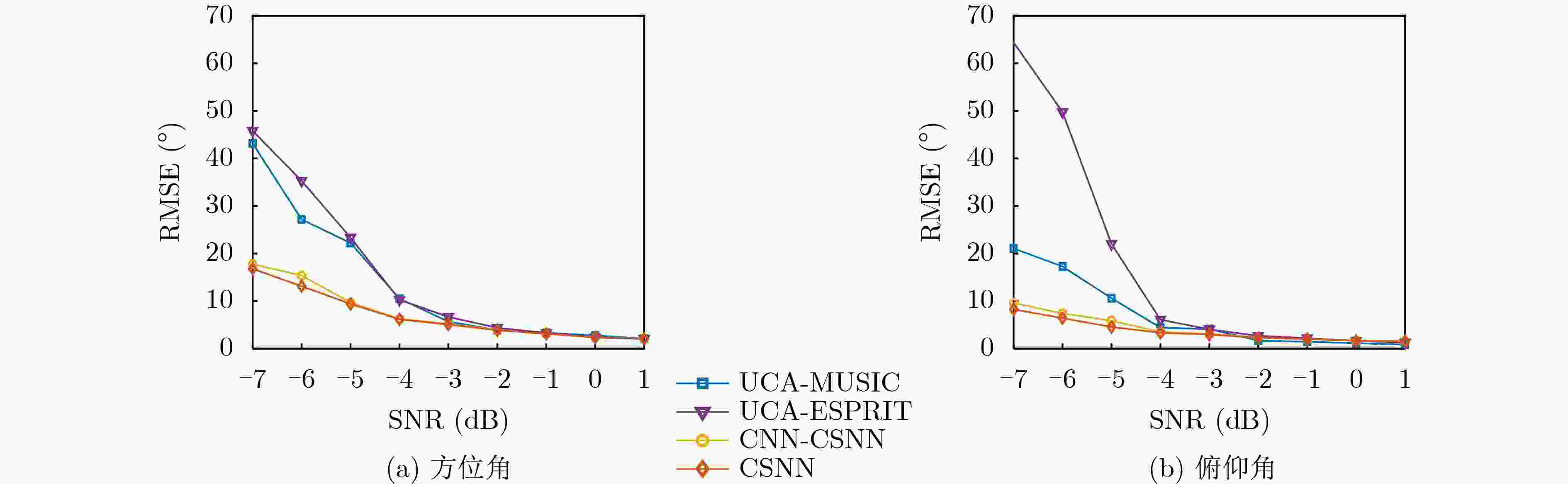

图 8 CSNN与UCA-ESPRIT在不同干扰下的角度估计误差

下载: 全尺寸图片幻灯片

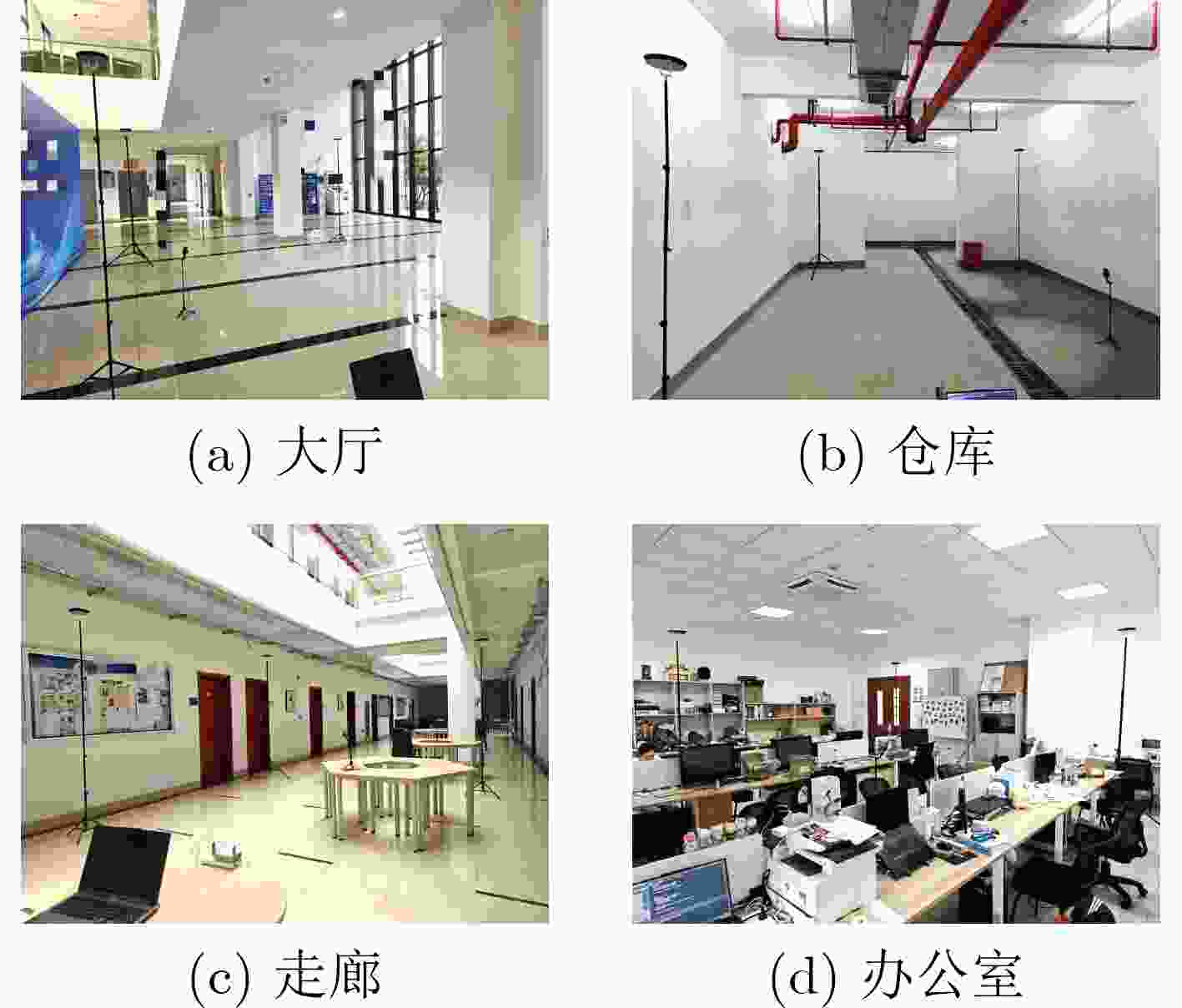

图 9 真实场景

下载: 全尺寸图片幻灯片

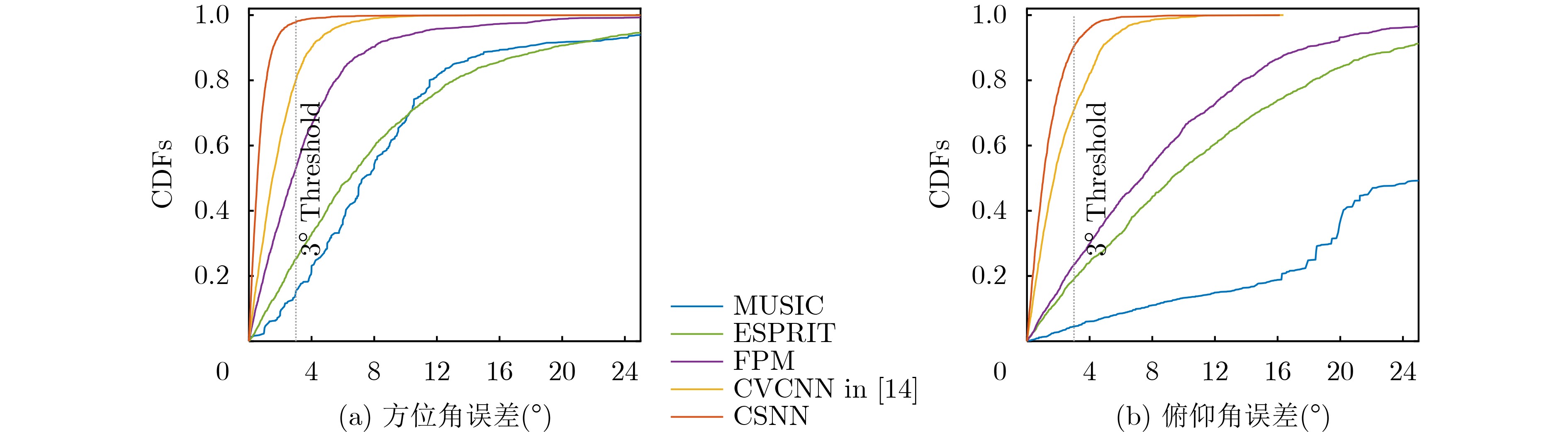

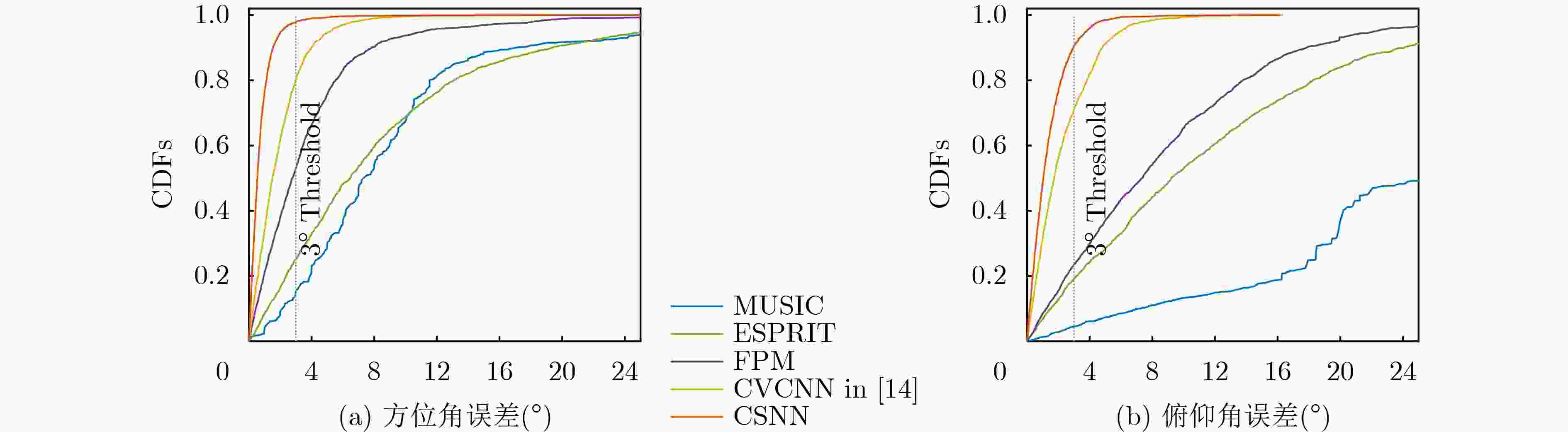

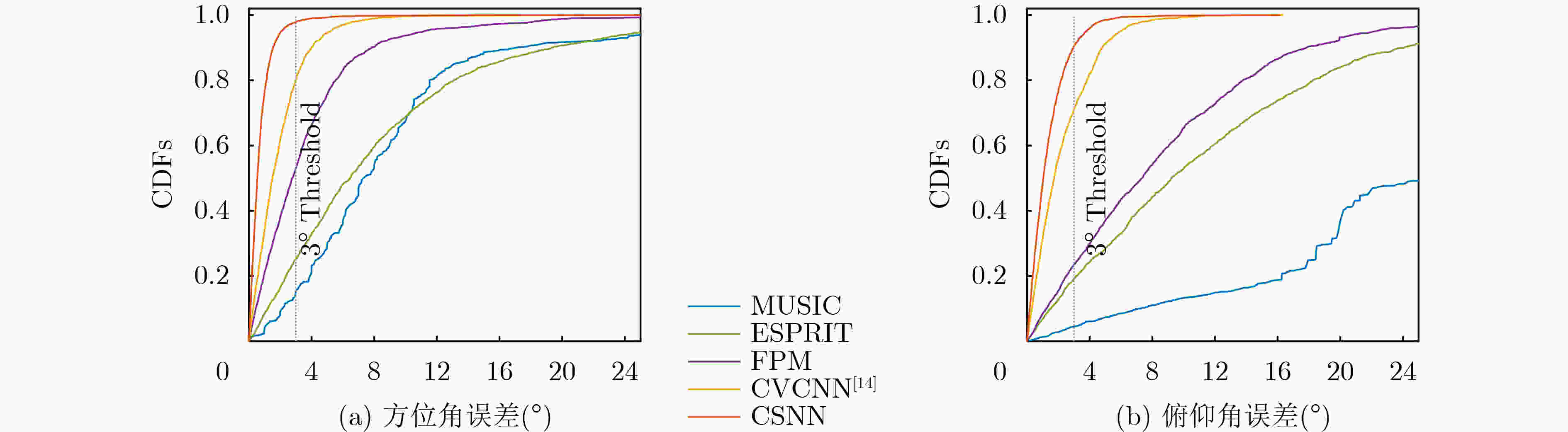

图 10 大厅场景角度估计误差CDF曲线

下载: 全尺寸图片幻灯片

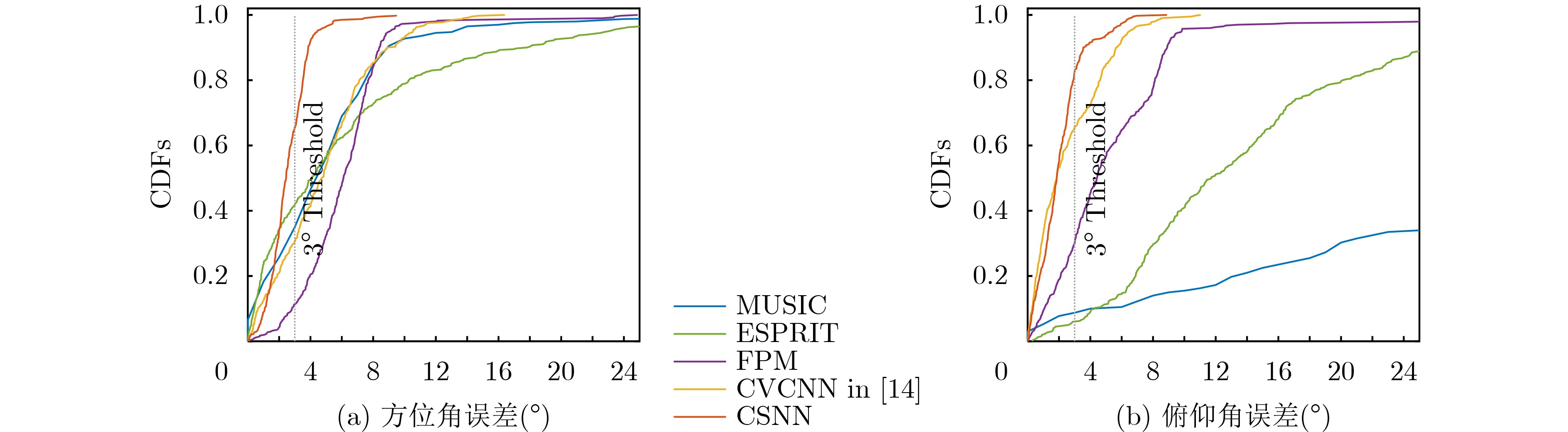

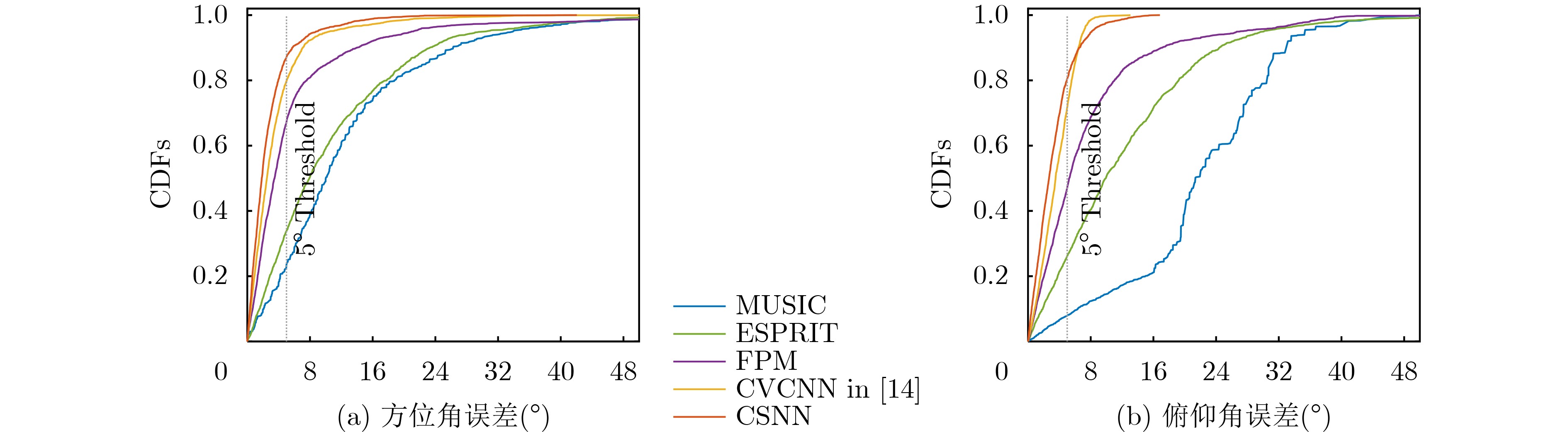

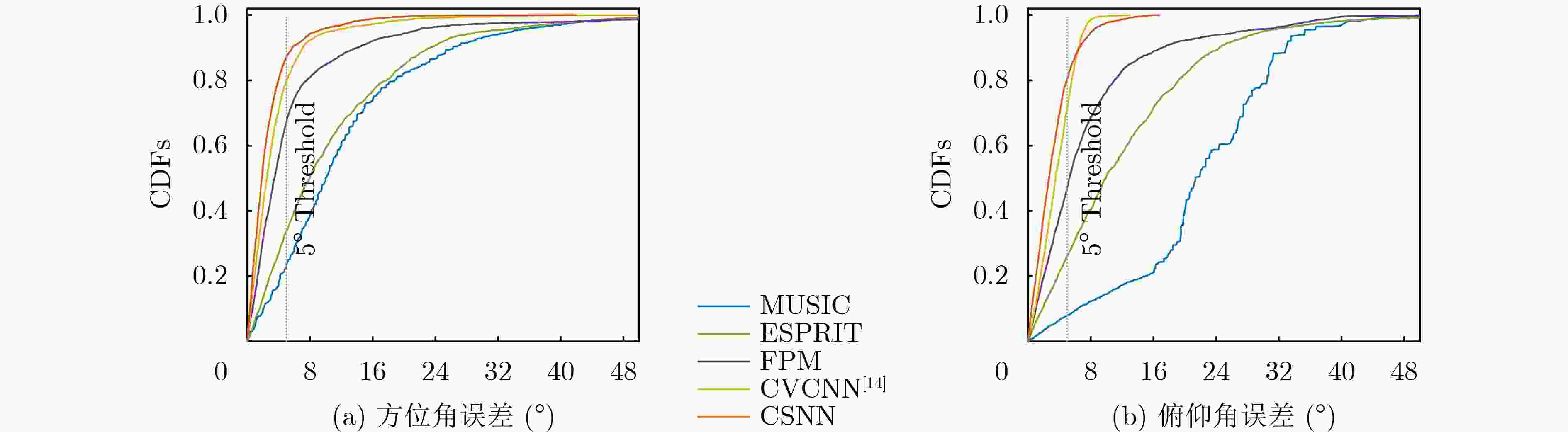

图 11 跨场景角度估计误差CDF曲线

下载: 全尺寸图片幻灯片

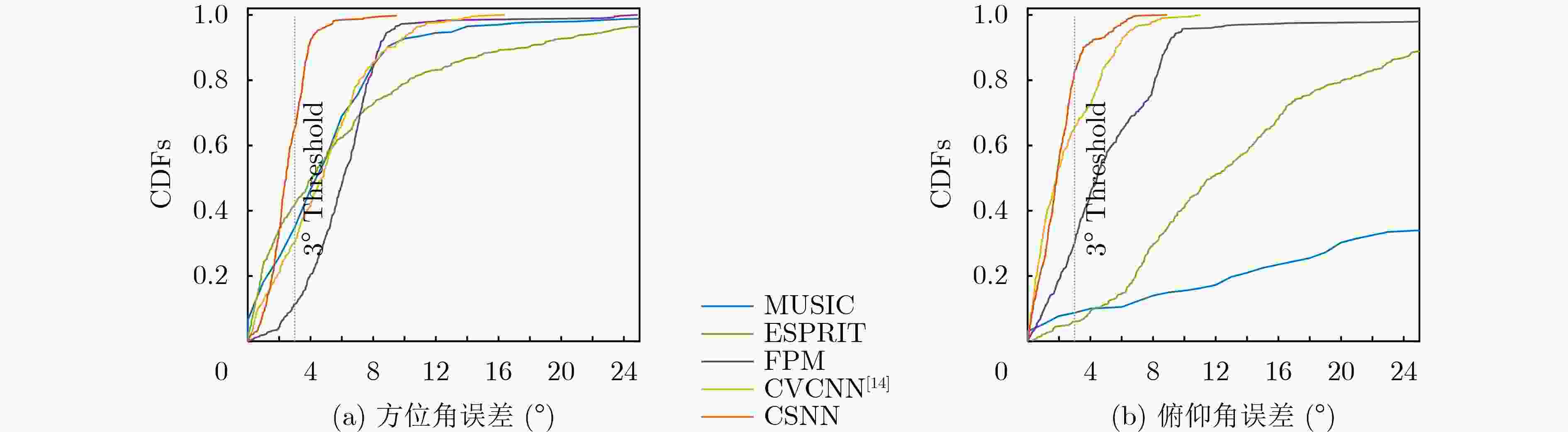

图 12 多信源角度估计误差CDF曲线

下载: 全尺寸图片幻灯片

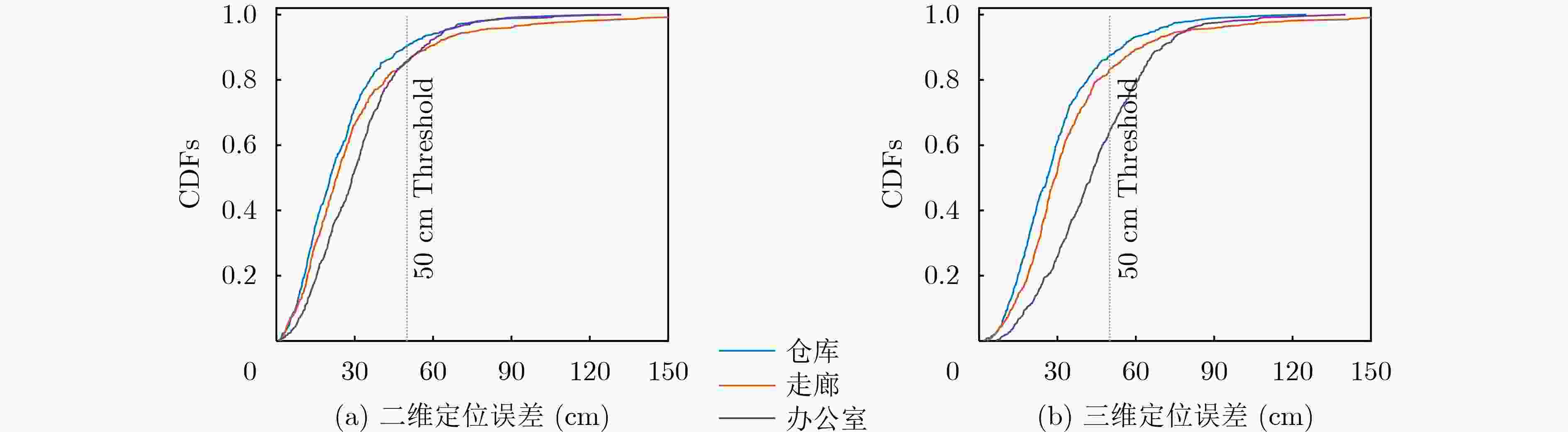

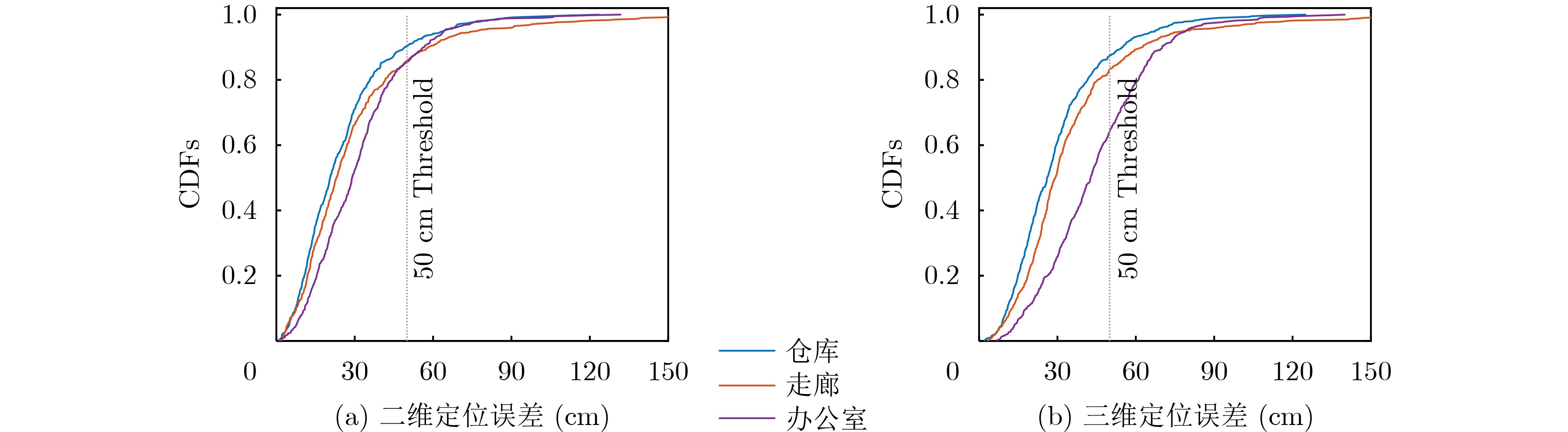

图 13 3类迁移场景定位误差CDF曲线

下载: 全尺寸图片幻灯片

表 1 大厅场景角度估计误差(°)

方法	方位角	俯仰角
UCA-ESPRIT	9.23	11.48
UCA-MUSIC	10.48	22.84
FPM	5.94	9.85
CVCNN^[14]	1.97	2.21
CSNN	1.07	1.28

下载: 导出CSV

表 2 跨场景角度估计误差(°)

方法	仓库	走廊	办公室	平均
UCA-ESPRIT	[8.01, 10.15]	[9.91, 12.03]	[11.37, 14.28]	[9.76, 12.15]
UCA-MUSIC	[8.78, 22.46]	[10.49, 20.90]	[13.59, 23.28]	[10.90, 22.21]
FPM	[3.75, 9.70]	[3.89, 7.81]	[8.09, 10.39]	[5.24, 9.30]
CVCNN^[14]	[3.46, 3.27]	[3.49, 3.31]	[3.75, 4.21]	[3.57, 3.60]
CSNN	[2.23, 2.73]	[2.78, 3.11]	[3.33, 4.32]	[2.78, 3.39]
注：[a, b]表示a为方位角误差，b为俯仰角误差。

下载: 导出CSV

表 3 单信源与多信源角度估计误差(°)

方法	单信源	多信源
UCA-ESPRIT	[7.29, 10.06]	[6.45, 13.97]
UCA-MUSIC	[4.81, 25.59]	[5.21, 26.84]
FPM	[5.39, 4.83]	[6.12, 5.58]
CVCNN^[14]	[3,53, 2.80]	[4.94, 2.54]
CSNN	[2.95, 1.61]	[2.81, 2.15]
注：[a, b]表示a为方位角误差，b为俯仰角误差。

下载: 导出CSV

表 4 4类场景下二维和三维定位平均误差(cm)

方法	仓库	走廊	办公室	大厅
UCA-ESPRIT	[89.7, 128.5]	[118.1, 144.6]	[122.2, 174.2]	[109.4, 138.2]
UCA-MUSIC	[102.9, 167.0]	[114.6, 171.7]	[147.5, 196.9]	[111.2, 166.1]
FPM	[39.6, 72.4]	[36.8, 64.5]	[79.2, 118.1]	[58.5, 79.2]
CVCNN^[14]	[33.2, 36.2]	[30.7, 38.5]	[38.8, 46.0]	[21.8, 27.7]
CSNN	[25.1, 29.7]	[30.1, 35.5]	[31.5, 44.3]	[18.1, 24.6]
注：[a, b]表示a为二维定位误差，b为三维定位误差。

下载: 导出CSV
