基于图和代码切片的可解释性漏洞检测方法

高文超; 索建华; 张傲

doi:10.11999/JEIT250363

基于图和代码切片的可解释性漏洞检测方法

doi: 10.11999/JEIT250363 cstr: 32379.14.JEIT250363

中国矿业大学(北京)人工智能学院北京 100083

详细信息

作者简介:
高文超：女，副教授，研究方向为自然语言处理、计算机视觉、大数据

索建华：男，硕士生，研究方向为大模型、自然语言处理

张傲：男，硕士，研究方向为大数据、人工智能和软件安全

通讯作者:
高文超　gaowc@cumtb.edu.cn

1¹⁾本文所有表格中，若存在黑体与下划线，则将各项评价指标中排名第一的数据用加粗字体表明，排名第二的数据用下划线表明。
计量
- 文章访问数: 40
- HTML全文浏览量: 9
- PDF下载量: 12
- 被引次数: 0
出版历程
- 修回日期: 2025-11-13
- 录用日期: 2025-11-13
- 网络出版日期: 2025-11-18

An Interpretable Vulnerability Detection Method Based on Graph and Code Slicing

School of Artificial Intelligence, China University of Mining And Technology-Beijing, Beijing 100083, China

摘要

摘要: 深度学习已被广泛应用于漏洞检测，其主流方法可分为基于代码序列和基于代码图两类：前者易因忽视结构而误报，后者则难以捕获执行顺序。此外，两者普遍缺乏可解释性，难以定位漏洞根源。为此，该文提出一个基于图和代码切片的可解释性漏洞检测方法GSVD。该模型通过门控图卷积网络提取代码多维度图(AST, DDG, CDG)的结构语义，并结合“污点”分析驱动的代码切片与双向长短时记忆网络精准捕获代码序列特征，实现二者优势互补。同时，引入HITS算法思想，设计VDExplainer解释器，直观揭示了模型的决策过程。实验表明，GSVD在Devign数据集上准确率达64.57%，优于多种基线模型，证明了其在有效检测漏洞的同时，能实现代码行级的可解释定位。
- 漏洞检测 /
- 深度学习 /
- 图神经网络 /
- 代码切片 /
- 可解释性
Abstract: Objective Deep learning technology has been widely applied to source code vulnerability detection. The mainstream methods can be categorized into sequence-based and graph-based approaches. Sequence-based models usually convert structured code into a linear sequence, which ignores the syntactic and structural information of the program and often leads to a high false-positive rate. Graph-based models can effectively capture structural features, but they fail to model the execution order of the program. In addition, their prediction granularity is usually coarse and limited to the function level. Both types of methods lack interpretability, which makes it difficult for developers to locate the root causes of vulnerabilities. Although large language models (LLM) have made progress in code understanding, they still suffer from high computational overhead, hallucination problems in the security domain, and insufficient understanding of complex program logic. To address these issues, this paper proposes an interpretable vulnerability detection method based on graphs and code slicing (GSVD). The proposed method integrates structural semantics and sequential features, and provides fine-grained, line-level explanations for model decisions. Methods The proposed method consists of four main components: code graph feature extraction, code sequence feature extraction, feature fusion, and an interpreter module (Fig. 1). First, the source code is normalized, and the Joern static analysis tool is used to convert it into multiple code graphs, including the Abstract Syntax Tree (AST), Data Dependency Graph (DDG), and Control Dependency Graph (CDG). These graphs comprehensively represent the syntactic structure, data flow, and control flow of the program. Then, node features are initialized by combining CodeBERT embeddings with one-hot encodings of node types. With the adjacency matrix of each graph, a Gated Graph Convolutional Network (GGCN) equipped with a self-attention pooling layer is applied to extract deep structural semantic features. At the same time, a code slicing algorithm based on taint analysis (Algorithm 1) is designed. In this algorithm, taint sources are identified, and taints are propagated according to data and control dependencies, thereby generating concise code slices that are highly related to potential vulnerabilities. These slices remove irrelevant code noise and are processed by a Bidirectional Long Short-Term Memory (BiLSTM) network to capture long-range sequential dependencies. After obtaining both graph and sequence features, a gating mechanism is introduced for feature fusion. The two feature vectors are fed into a Gated Recurrent Unit (GRU), which automatically learns the dependency relationships between structural and sequential information through its dynamic state updates. Finally, to address vulnerability detection and localization, a VDExplainer is designed, considering the characteristics of the vulnerability detection task. Inspired by the HITS algorithm, it iteratively computes the “authority” and “hub” values of nodes to evaluate their importance under the constraint of an edge mask, thus achieving node-level interpretability for vulnerability explanation. Results and Discussions To evaluate the effectiveness of GSVD, a series of comparative experiments(Table 2) are conducted on the Devign (FFmpeg + Qemu) dataset. GSVD is compared with several baseline models. The experimental results show that GSVD achieves the highest accuracy and F1-score of 64.57% and 61.89%, respectively. The recall rate also increases to 62.63%, indicating that the proposed method effectively performs the vulnerability detection task and reduces the number of missed vulnerability reports. To verify the effectiveness of the GRU-based fusion mechanism, three feature fusion strategies—feature concatenation, weighted sum, and attention mechanism—are compared (Table 3). GSVD achieves the best overall performance, with accuracy, recall, and F1-score reaching 64.57%, 62.63%, and 61.89%, respectively. Its precision reaches 61.17%, which is slightly lower than the 63.33% obtained by the weighted sum method. Ablation experiments (Tables 4-5) further confirm the importance of the proposed slicing algorithm. The taint propagation-based slicing method reduces the average number of code lines from 51.98 to 17.30 (a 66.72% reduction) and lowers the data redundancy rate to 6.42%, compared with 19.58% for VulDeePecker and 22.10% for SySeVR. This noise suppression effect leads to a 1.53% improvement in the F1-score, demonstrating its ability to focus on key code segments. Finally, interpretability experiments (Table 6) on the Big-Vul dataset further validate the effectiveness of the VDExplainer. The proposed method outperforms the standard GNNExplainer at all evaluation thresholds. When 50% of the nodes are selected, the localization accuracy improves by 7.65%, showing its advantage in node-level vulnerability localization. In summary, GSVD not only achieves superior detection performance but also significantly improves the interpretability of model decisions, providing practical support for vulnerability localization and remediation. Conclusions The GSVD model effectively addresses the limitations of single-modal approaches by deeply integrating graph structures with taint analysis-based code slices. It achieves notable improvements in vulnerability detection accuracy and interpretability. In addition, the VDExplainer provides node-level and line-level vulnerability localization, enhancing the practical value of the model. Experimental results confirm the superiority of the proposed method in both detection performance and interpretability.
- Vulnerability detection /
- Deep learning /
- Graph neural network /
- Code slicing /
- Interpretability

HTML全文

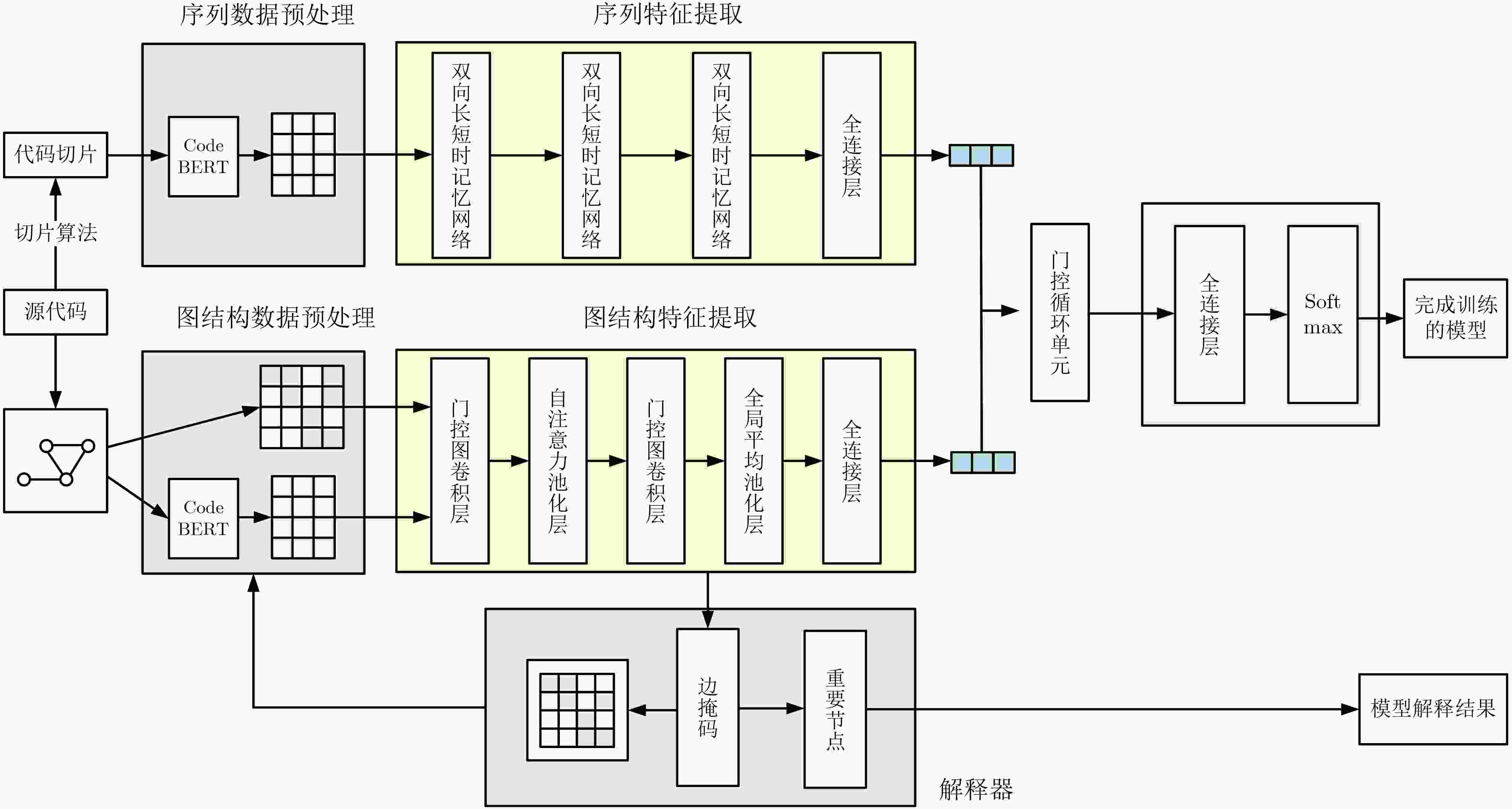

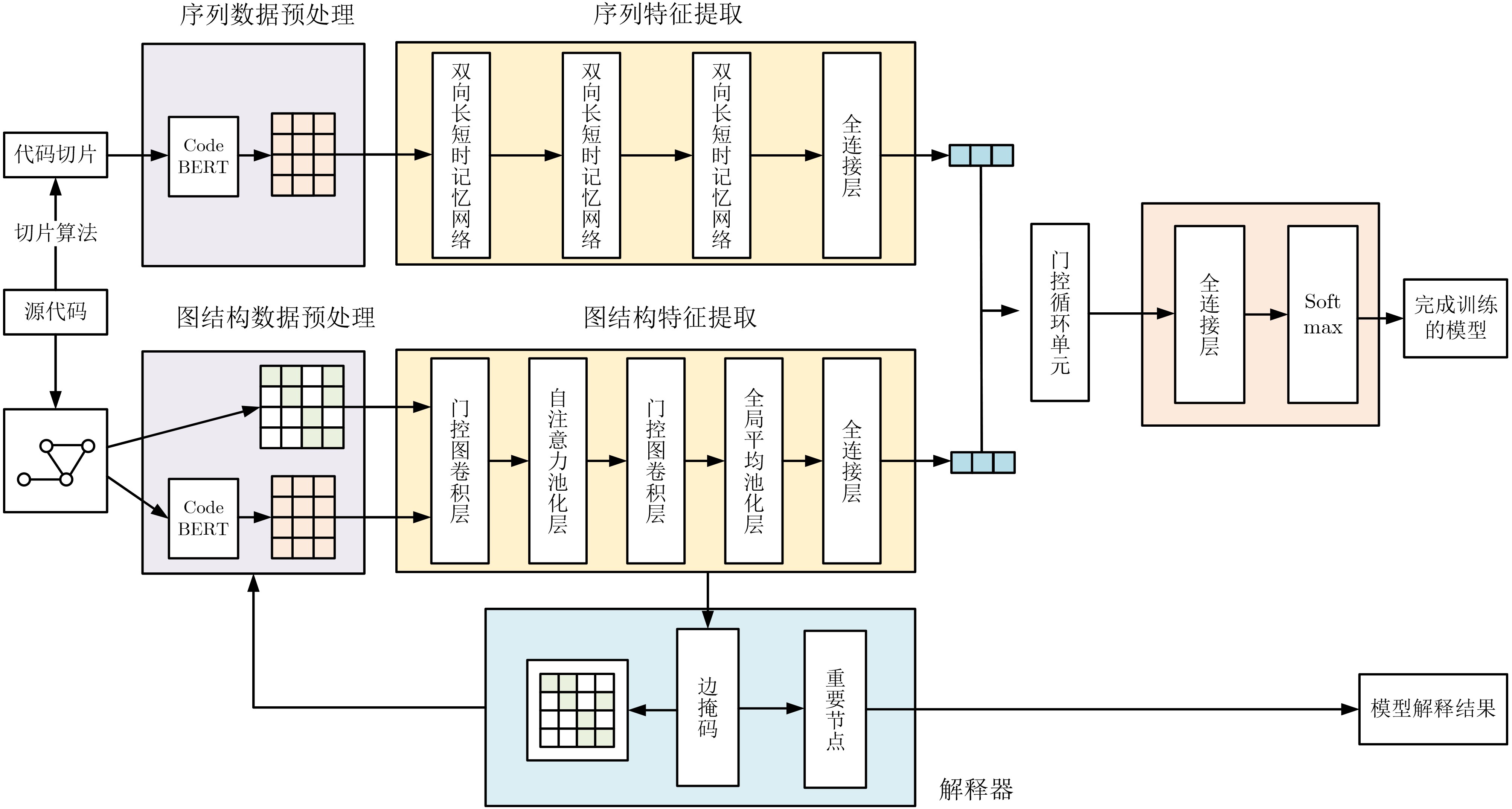

图 1 GSVD模型整体架构

下载: 全尺寸图片幻灯片

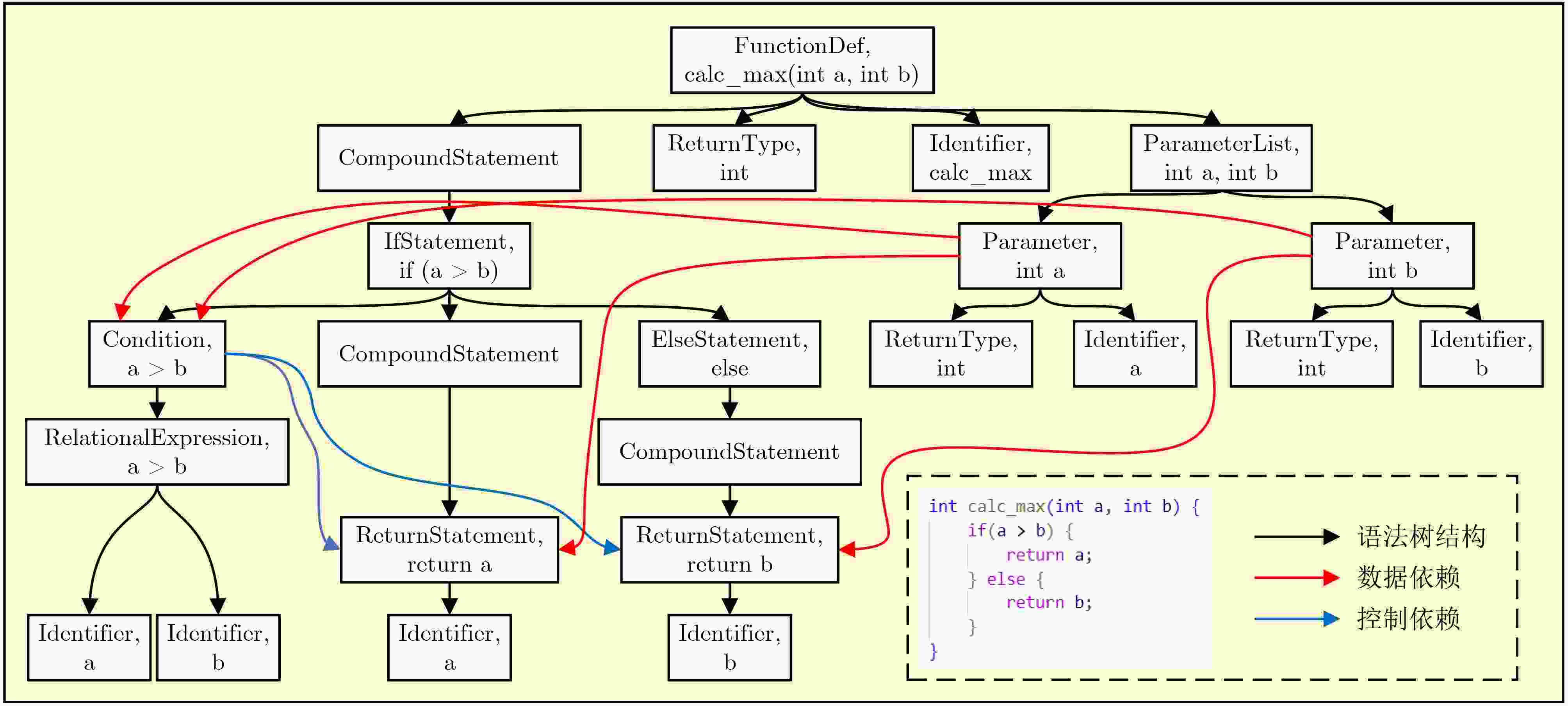

图 2 代码图表征

下载: 全尺寸图片幻灯片

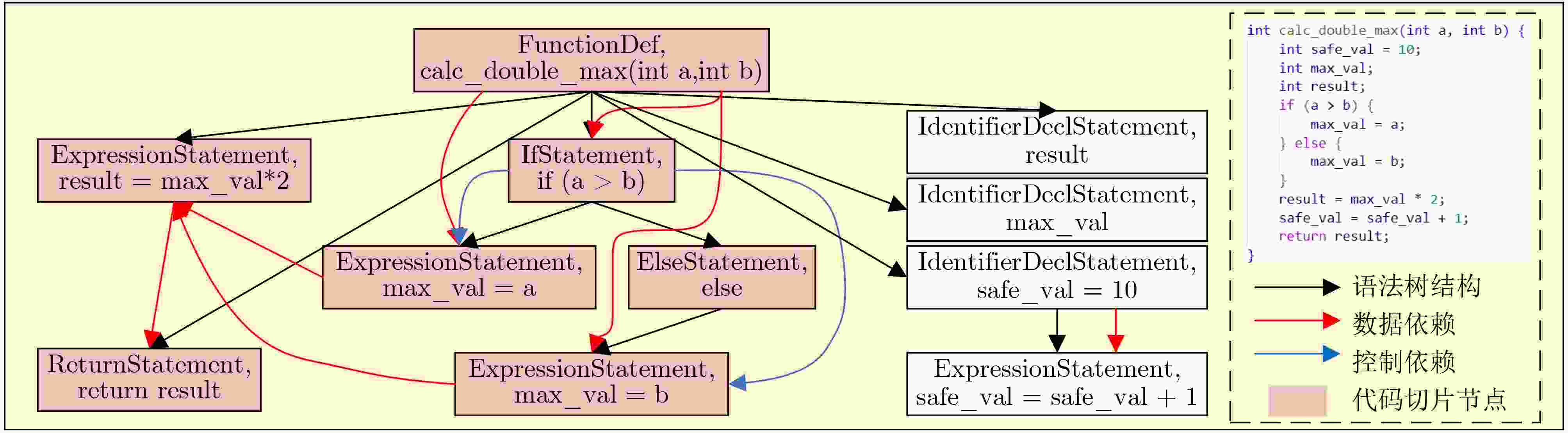

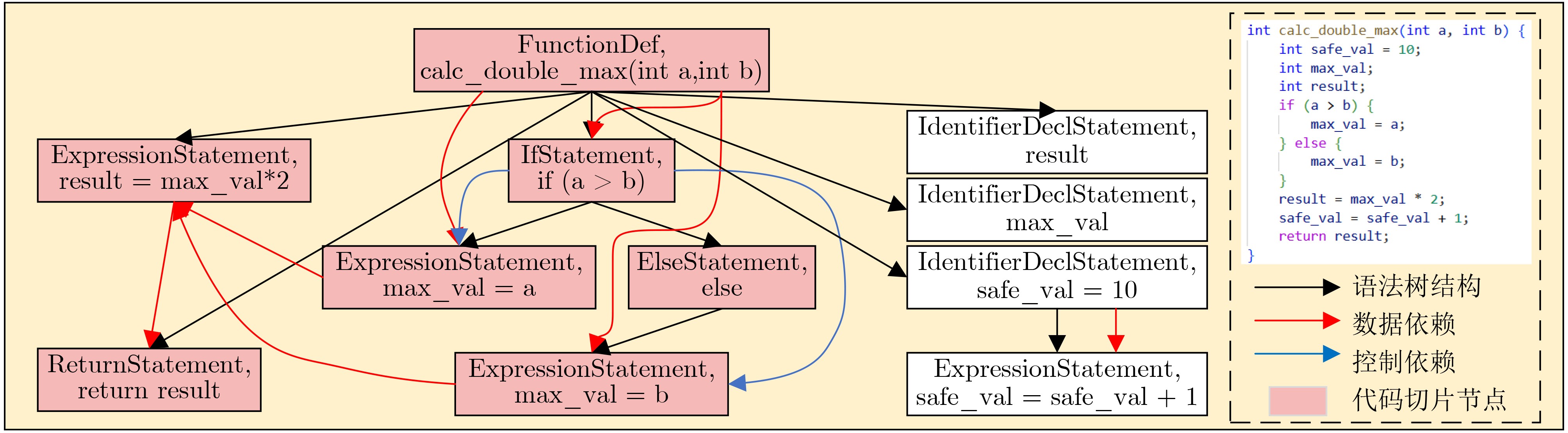

图 3 代码切片算法示例

下载: 全尺寸图片幻灯片

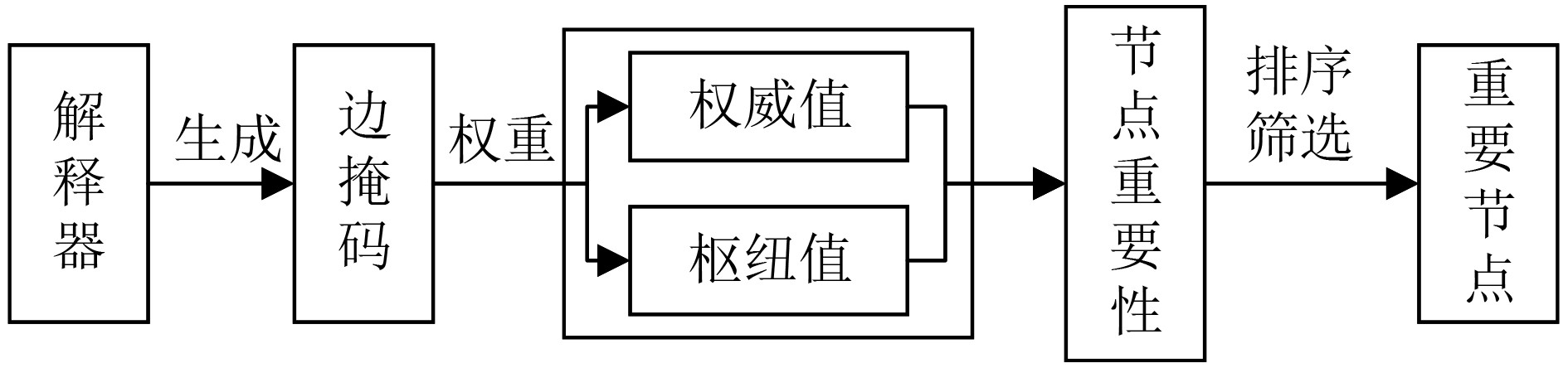

图 4 重要节点选择过程

下载: 全尺寸图片幻灯片

1 代码切片算法

输入：抽象语法树AST，数据依赖图DDG，控制依赖图CDG，初始污点变量集合${T_0}$
输出：污染语句集合S
1：T← ${T_0}$ // 初始化污点序列
2：S← $\varnothing $ // 初始化污染语句集合
3：for each 语句 s ∈ AST (深度优先遍历) do
4：　if s 含外部输入 then
5：　　将输入变量加入 T，并令 S ← S ∪ {s}
6：　else if s 依赖于 T 中变量 then // 数据依赖传播
7：　　if s 为赋值语句 x = f(y) then
8：　　　if y ∈ T, x $\notin $ T then T ← T ∪ {x}, S ← S ∪ {s}
9：　　　else if x ∈ T, y $notin $T then T ← T − {x} // 消毒
10：　 else if s 为函数调用 z = f(x₁, ···, x_n) then
11：　　 if $\exists $x_i∈T then T ← T∪{z的输出变量}, S ← S∪{s}
12：　　 else T ← T − {z的输出变量} // 消毒
13：　 else S ← S ∪ {s}
14： end if
15： if s ∈ S then // 控制依赖传播
16：　 for each c ∈ CDG.control_dependents(s) do
17：　　将 c 中变量加入 T，并令 S ← S ∪ {c}
18：　 end for
19： end if
20：end for
21：return S ≠ $\varnothing $ ? S : AST

下载: 导出CSV

表 1 数据集统计特征分布

特征指标	训练集	验证集	测试集
样本总数	21854	2732	2732
平均函数长度	51.71	49.84	51.98
平均语句数	41.84	40.80	41.81
平均AST深度	13.26	13.27	13.23

下载: 导出CSV

表 2 GSVD实验结果(%)

	Accuracy	Precision	Recall	F1-Score
Cppcheck	57.96	79.55	11.34	19.85
FlawFinder	52.04	46.69	34.41	39.62
BiLSTM	59.37	/	/	/
TextCNN	60.69	/	/	/
RoBERTa	61.05	/	/	/
CodeBERT	62.08	/	/	/
Devign	59.22	57.23	44.46	50.04
ReGVD_GCN	61.90	62.62	42.31	50.50
ReGVD_GGCN	62.12	61.58	46.61	53.06
Zeng’s	64.49	64.29	51.08	56.93
GSVD	64.57	61.17	62.63	61.89¹

下载: 导出CSV

表 3 特征融合方法对比(%)

	Accuracy	Precision	Recall	F1-Score
特征拼接	63.36	59.75	61.99	60.85
加权求和	63.14	63.33	46.93	53.91
注意力机制	62.55	59.54	57.68	58.60
GSVD	64.57	61.17	62.63	61.89

下载: 导出CSV

表 4 数据重复度对比(%)

方法	数据重复率
未切片	0.2
Vuldeepecker	19.58
SySeVR	22.10
Ours	6.42

下载: 导出CSV

表 5 代码切片影响

	准确率	精确率	召回率	F1得分	源代码平均行数
未切片	64.13%	61.30%	59.44%	60.36%	51.98
切片	64.57%	61.17%	62.63%	61.89%	17.30

下载: 导出CSV

表 6 解释器解释定位实验(%)

解释器	重要节点筛选比例	漏洞定位准确率
GNNExplainer	30	18.37
	40	28.94
	50	41.12
VDExplainer	30	24.30
	40	35.68
	50	48.77

下载: 导出CSV
