面向实时电力系统仿真的可扩展中央处理器-现场可编程门阵列异构集群

杨航宇; 汤勇明; 刘济源; 曹阳; 邹德虎; 许明旺; 袁晓冬; 韩华春; 顾伟; 李鹤

doi:10.11999/JEIT250355

面向实时电力系统仿真的可扩展中央处理器-现场可编程门阵列异构集群

doi: 10.11999/JEIT250355 cstr: 32379.14.JEIT250355

1.
东南大学电子科学与工程学院南京 210096
2.
东南大学电气工程学院南京 210096
3.
国网江苏省电力有限公司电力科学研究院南京 211003

基金项目: 国家电网有限公司总部科技项目(5400-202318547A-3-2-ZN)

详细信息

作者简介:
杨航宇：男，硕士生，研究方向为FPGA加速器、高性能计算

汤勇明：男，教授，研究方向为FPGA加速器、视频图像处理

刘济源：男，博士生，研究方向为FPGA加速器、高性能计算

曹阳：男，博士生，研究方向为电力系统建模、控制与实时仿真

邹德虎：男，博士生，研究方向为电力系统建模、控制与实时仿真

许明旺：男，博士生，研究方向为电力系统建模、控制与实时仿真

袁晓冬：男，研究员级高级工程师，研究方向为电力系统建模、控制与仿真

韩华春：女，正高级工程师，研究方向为电力系统建模、控制与仿真

顾伟：男，教授，研究方向为微电网与分布式能源系统，电力系统建模、控制与实时仿真

李鹤：男，教授，研究方向为FPGA开发和系统优化、量子计算电路与系统、量子通信系统

通讯作者:
李鹤　helix@seu.edu.cn

中图分类号: TN409; TN911.7
计量
- 文章访问数: 215
- HTML全文浏览量: 124
- PDF下载量: 24
- 被引次数: 0
出版历程
- 收稿日期: 2025-05-06
- 修回日期: 2025-07-30
- 网络出版日期: 2025-08-05

A Scalable CPU–FPGA Heterogeneous Cluster for Real-time Power System Simulation

1.
School of Electronic Science and Engineering, Southeast University, Nanjing 210096, China
2.
School of Electrical Engineering, Southeast University, Nanjing 210096, China
3.
State Grid Jiangsu Electric Power Co., LTD. Research Institute, Nanjing 211003, China

Funds: The State Grid Corporation of China Headquarters Science and Technology Project (5400-202318547A-3-2-ZN)

摘要

摘要: 高频开关器件的大量接入，以及可再生能源与电压源型变流器(VSCs)的深度融合，使电力系统仿真面临微秒级暂态分析和亚微秒步长仿真的挑战。现有仿真器在应对包含数百个电力电子开关的系统时，普遍存在计算扩展性不足、通信延迟偏高的问题。为此，该文提出一种面向实时电力系统仿真的中央处理器-现场可编程门阵列(CPU-FPGA)异构集群架构，能够在1 μs步长下完成对480个开关器件构成的新能源系统的实时仿真。该系统主要包含3项核心创新：(1)提出基于时间步长解耦的计算负载感知调度策略，实现4片FPGA的并行计算调度；(2)结合混合精度量化与矩阵-向量重组技术，相较传统定点方法，在400 ns计算窗口内实现资源占用大幅下降，查找表(LUT)、触发器(F)与数字信号处理单元(DSP)分别降低32.0%, 24.2%与43.8%；(3)基于数据平面开发工具包(DPDK)设计零拷贝通信机制，实现29 μs的端到端通信延迟。实验验证表明，该系统验证了异构集群架构在大规模高频电力系统仿真中的有效性，并具备良好的扩展性与工程应用潜力。
- 实时仿真 /
- FPGA集群 /
- 量化方法 /
- 电力系统
Abstract: Objective This study aims to design and implement a scalable CPU–FPGA heterogeneous cluster for real-time simulation of high-frequency power electronic systems. With the increasing adoption of wide-bandgap semiconductor devices such as SiC and GaN, modern power systems exhibit complex switching dynamics that require sub-microsecond timestep resolution. This work focuses on the real-time modeling and simulation of 80 Voltage Source Converters (VSCs), equivalent to 480 switches, representing a typical scenario in renewable-integrated power grids with high switching frequency. Three major technical challenges are addressed: (1) enabling efficient task scheduling across multiple FPGAs to support large-scale parallel computation while maintaining load balance; (2) reducing hardware resource usage through precision-aware hybrid quantization that preserves accuracy with reduced bitwidth; and (3) minimizing CPU–FPGA communication latency via a high-throughput, low-latency data exchange framework to ensure stable synchronization between slow and fast subsystems. This work contributes to the development of a practical and extensible platform for simulating future power systems with complex electronic components. Methods To enable real-time simulation with sub-microsecond resolution, the system partitions the power system model into a slow subsystem (AC/DC network) and a fast subsystem (multiple VSCs), following a decoupled computation strategy. A Computation Load-Aware Scheduling (CLAS) strategy is employed to allocate tasks across four Xilinx XCKU060 FPGAs (Fig. 1 and Fig. 2), supporting parallel simulation of up to 80 VSCs. The slow subsystem is executed on the CPU using high-precision floating-point arithmetic with a 50 μs timestep. The fast subsystem is implemented on the FPGAs using fixed-point arithmetic at a 1 μs timestep (Fig. 3 and Fig. 4). A hybrid-precision quantization scheme is adopted: voltage-processing modules use Q(48,30) format to retain numerical precision, whereas current-dominant modules use Q(48,20) to avoid overflow. The FPGA-based Matrix–Vector Multiplication (MVM) is partitioned into two sub-modules (Sub MVM1 and Sub MVM2), leveraging row-level parallelism and pipelined streaming to achieve 400 ns latency per cycle. For communication, a Data Plane Development Kit (DPDK)-based zero-copy framework with lock-free queues is implemented between the CPU and FPGA, reducing latency to 29 μs and enabling reliable synchronization between fast and slow subsystems. Results and Discussions The proposed system successfully achieves real-time simulation of a wind farm model comprising 80 VSCs using four Xilinx XCKU060 FPGA boards. Each FPGA supports 20 VSCs operating at a 1 μs timestep, with a computation latency of 400 ns, demonstrating the system’s ability to satisfy stringent real-time constraints. The hybrid-precision quantization strategy yields substantial resource savings relative to a 64-bit fixed-point baseline: LookUp Table (LUT) usage is reduced by 32.0%, Flip-Flops (FFs) by 24.2%, and Digital Signal Processors (DSPs) by 43.8%, while preserving simulation accuracy (Table 1). These optimizations support scalable deployment without loss of fidelity. Communication between the CPU and FPGA is handled by a DPDK-based zero-copy framework with lock-free queues, achieving an end-to-end latency of 29 μs. This ensures robust synchronization between the slow and fast subsystems. Compared with existing FPGA-based designs, the proposed architecture provides a more resource-efficient solution (Table 1), delivering sub-microsecond simulation performance with reduced hardware cost and enabling multi-VSC deployment per FPGA. These findings highlight the platform’s applicability for large-scale industrial power system simulation (Fig. 6). Conclusions This study presents a CPU–FPGA heterogeneous cluster designed for real-time simulation of large-scale power systems. The system employs a decoupled, CLAS strategy that enables efficient resource distribution across multiple FPGAs. Real-time requirements are fully met, and the use of hybrid-precision quantization substantially reduces FPGA resource consumption without sacrificing accuracy. The system demonstrates scalability and efficiency by supporting up to 80 VSCs across four FPGA boards. Compared with existing solutions, the proposed architecture achieves the lowest resource utilization while maintaining sub-microsecond resolution, making it a practical platform for industrial-grade power system simulation.
- Real-time simulation /
- FPGA cluster /
- Quantization method /
- Power system

HTML全文

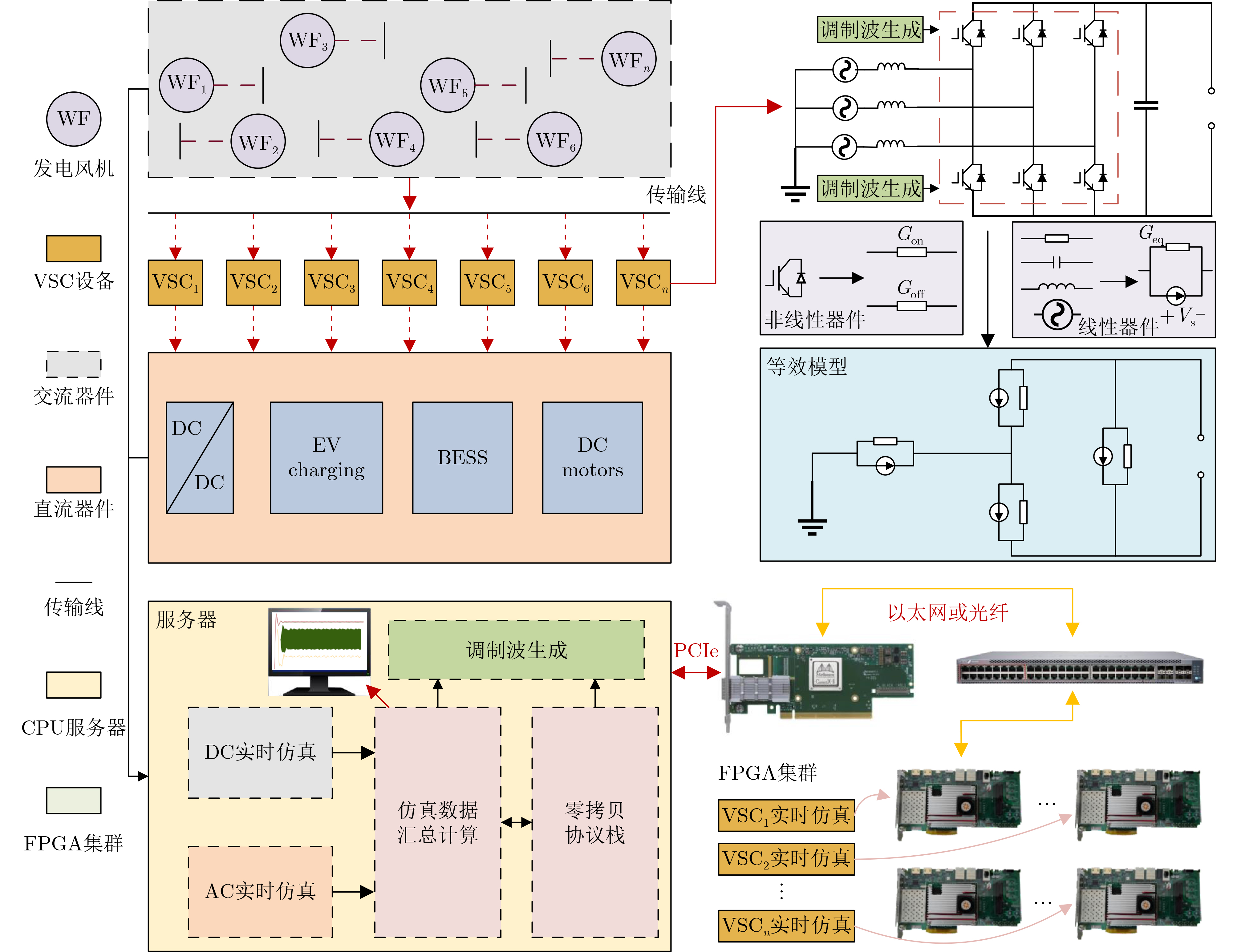

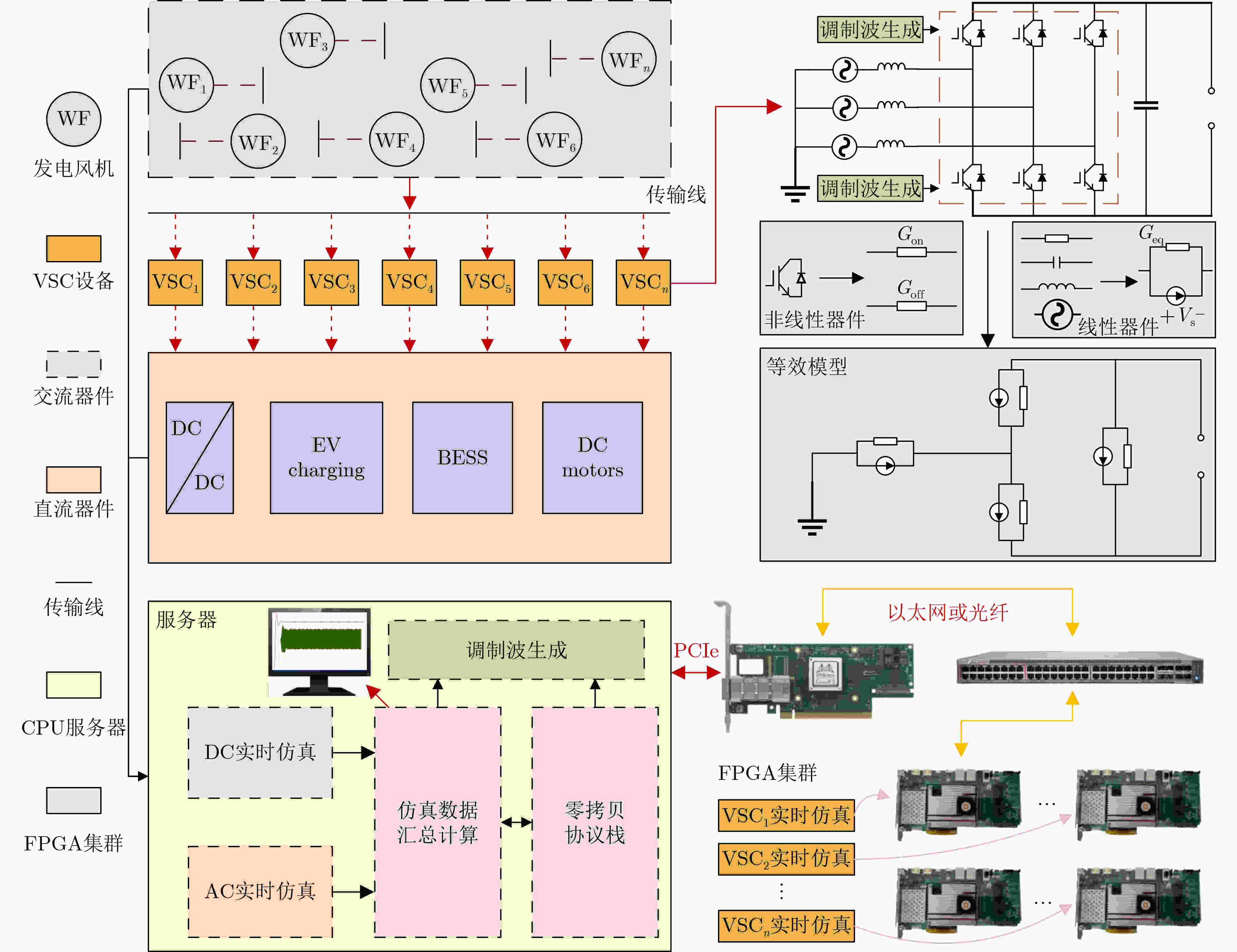

图 1 带高频VSC的风电交流-直流系统

下载: 全尺寸图片幻灯片

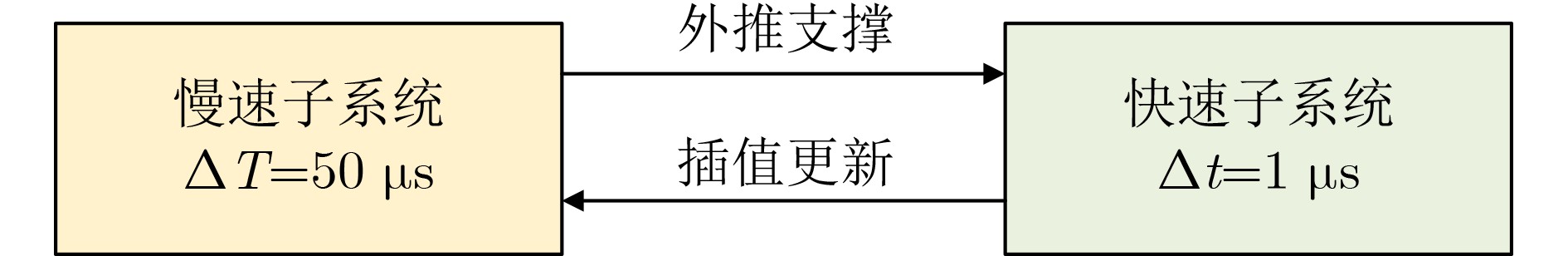

图 2 子系统间交互关系

下载: 全尺寸图片幻灯片

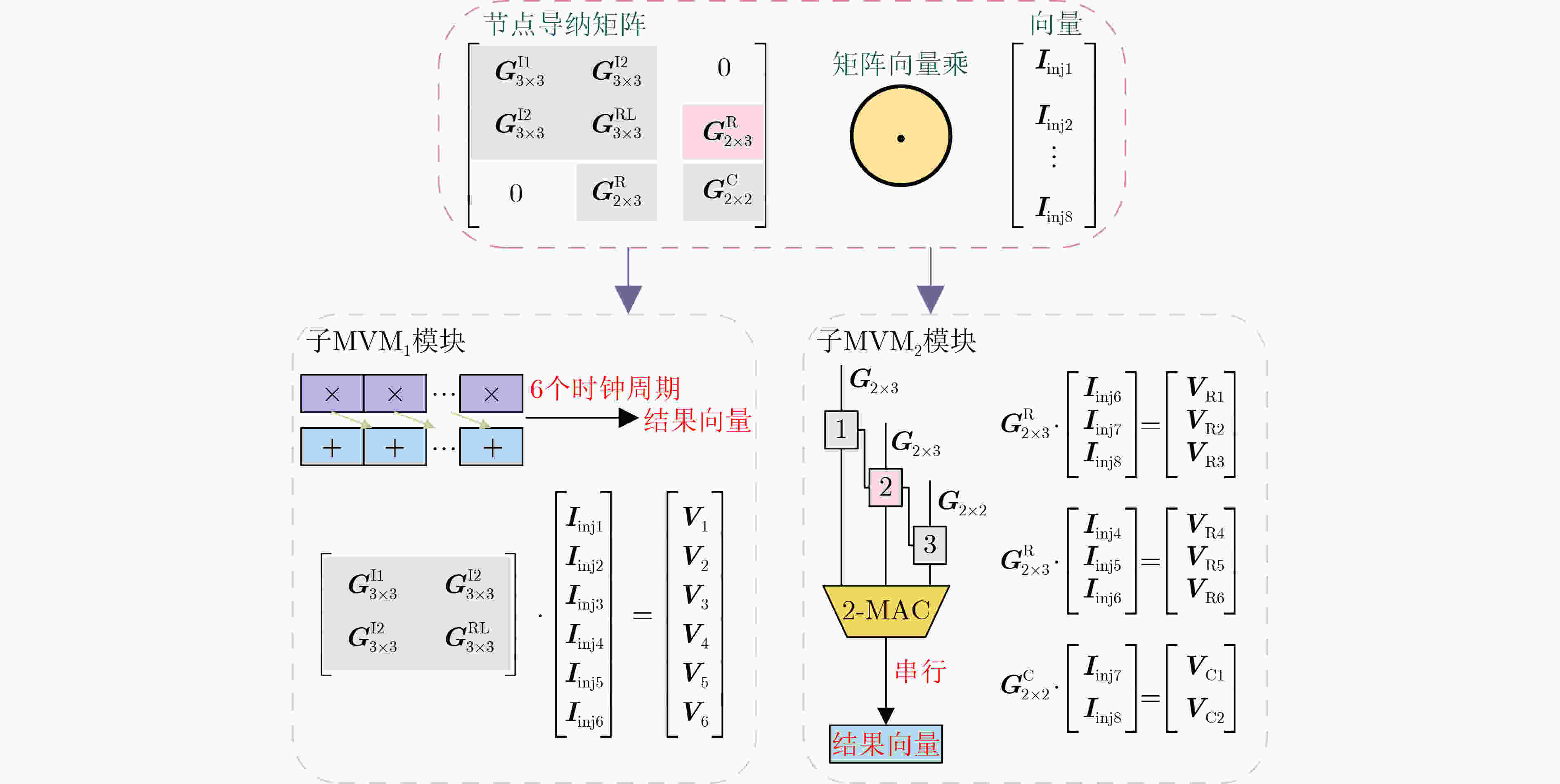

图 3 面向计算资源和延迟优化的MVM重组方法

下载: 全尺寸图片幻灯片

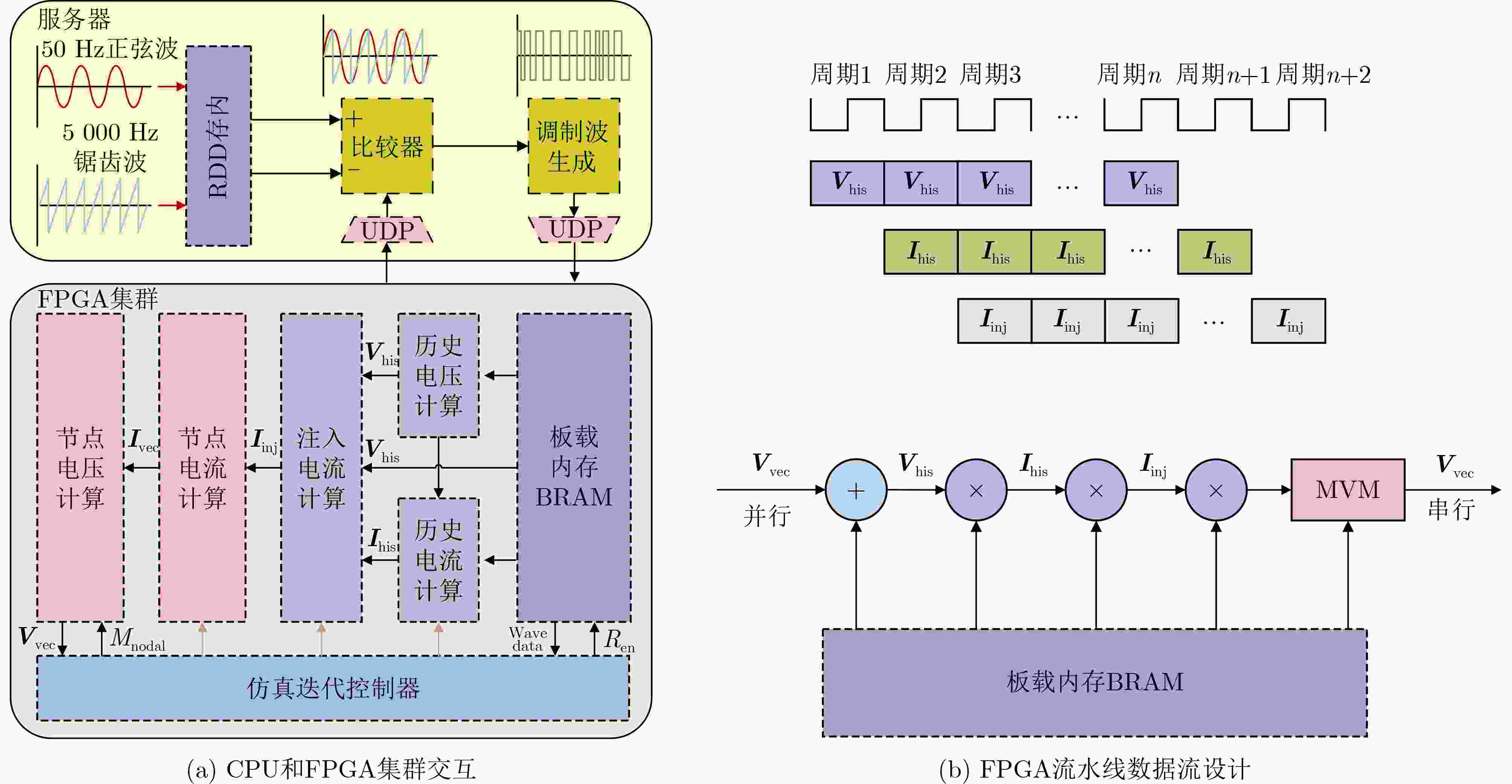

图 4 CPU-FPGA数据交互及流水线优化设计

下载: 全尺寸图片幻灯片

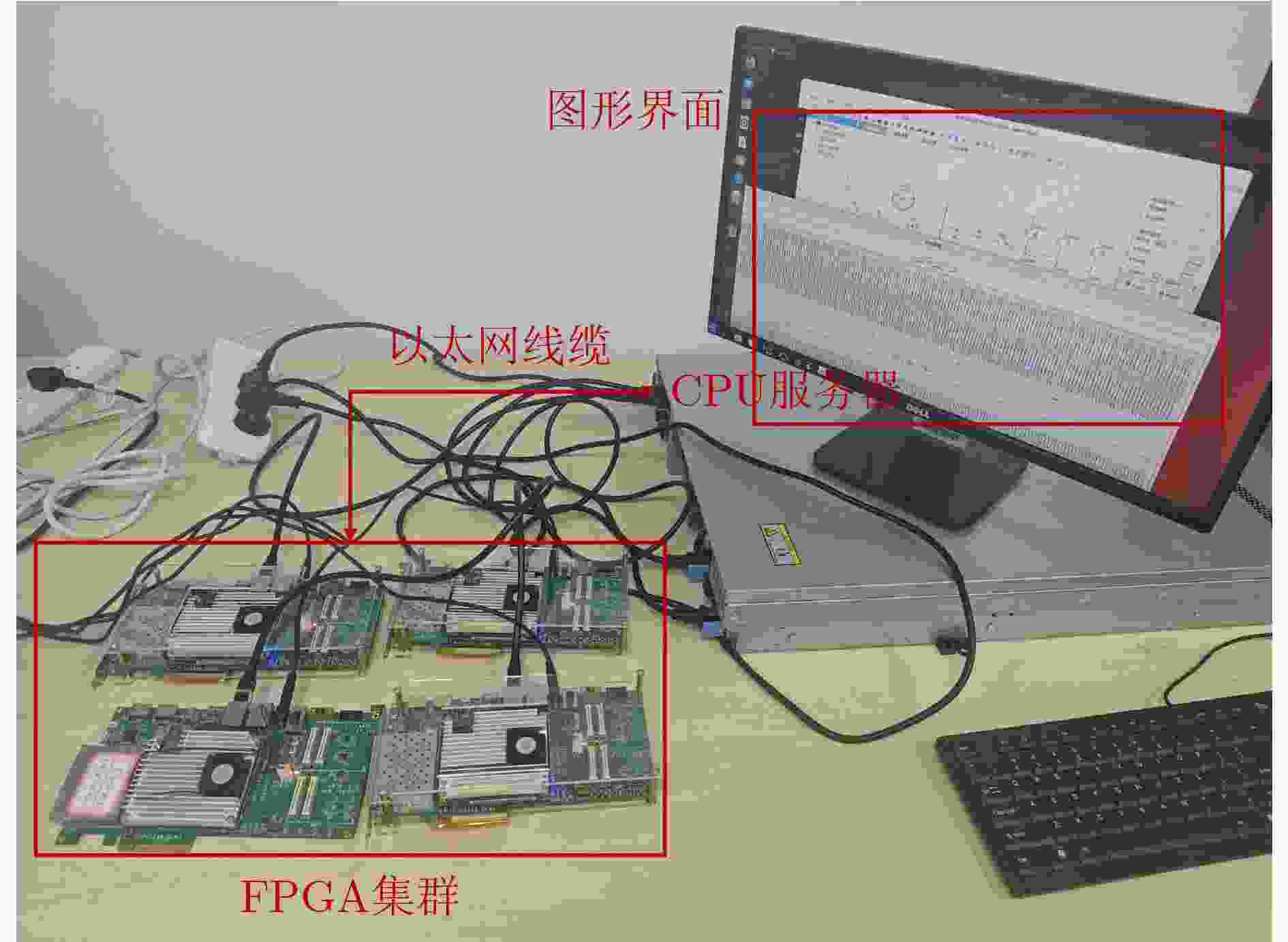

图 5 CPU-FPGA集群仿真系统实物连接及运行界面

下载: 全尺寸图片幻灯片

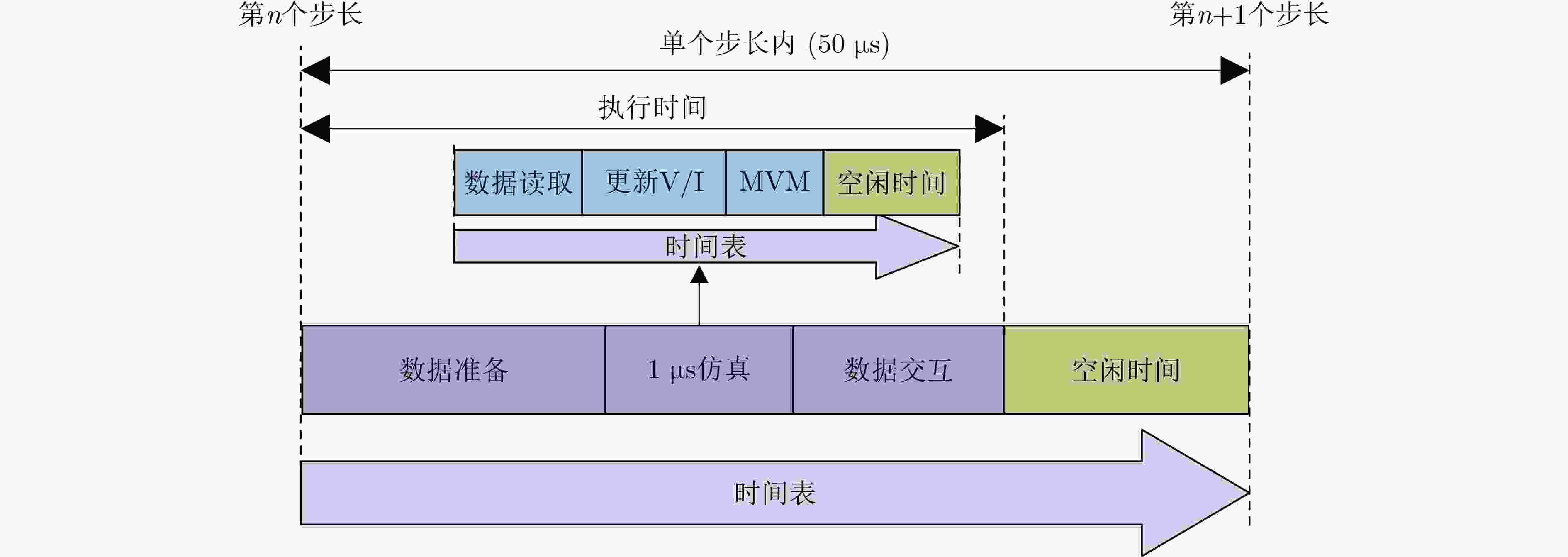

图 6 仿真运行时序图

下载: 全尺寸图片幻灯片

表 1 不同FPGA电网实时仿真加速器的性能对比

	L/C^[25]	G-ADC^[26]	SNP^[10]	On-off^[26]	MNA^[27]	IEM^[16]	本文	本文	本文	本文
年份	2019	2023	2019	2023	2023	2024	2025	2025	2025	2025
VSC规模	1	1	1	1	1	1	1	1	20	14
开关数量	6	6	6	6	6	6	6	6	120	84
芯片型号	7K325T	7K325T	7V485T	KU060	7V485T	7K325T	KU060	KU060	KU060	PG3T1300
仿真架构	FPGA	FPGA	FPGA	FPGA	FPGA	FPGA	CPU-FPGA	CPU-FPGA	CPU-FPGA	CPU-FPGA
运行频率(MHz)	-	-	175	-	-	100	100	100	100	100
查找表	48 374	50 734	142 296	16 773	16 988	23 731	11 891	8 086	196 701	173 623
触发器	51 874	53 350	147 317	NA	16 024	15 753	21 237	16 084	325 505	326 389
块内存	91	91	258	60	NA	31	3	3	60	24
DSP/APM	157	211	361	33	468	128	256	144	2 760	3 124
延迟(ns)	463	475	800	1000	100	500	400	400	400	400
误差(%)	>10	>5	5	1	NA	NA	0.7	0.9	0.9	0.9
量化方法	定点	定点	定点	定点	定点	定点	定点	混合量化	混合量化	混合量化

下载: 导出CSV
