DTDS：用于侧信道能量分析的Dilithium数据集

袁庆军; 张浩金; 樊昊鹏; 高杨; 王永娟

doi:10.11999/JEIT250048

DTDS：用于侧信道能量分析的Dilithium数据集

doi: 10.11999/JEIT250048 cstr: 32379.14.JEIT250048

袁庆军^{1, 2},
张浩金¹,
樊昊鹏¹,
高杨¹,
王永娟^1, ,

1.
信息工程大学河南省网络密码技术重点实验室郑州 450001
2.
西安交通大学智能网络与网络安全教育部重点实验室西安 710049

详细信息

作者简介:
袁庆军：男，博士，讲师，研究方向为侧信道分析与网络入侵检测

张浩金：男，硕士生，研究方向为侧信道分析

樊昊鹏：男，博士生，研究方向为侧信道分析

高杨：男，博士生，研究方向为侧信道分析

王永娟：女，博士，研究员，研究方向为密码学

通讯作者:
王永娟　pinkywyj@163.com

2¹⁾ https://pq-crystals.org/dilithium/data/dilithium-submission-nist-round3.zip
1数据集下载：https://doi.org/10.57760/sciencedb.j00173.00001
中图分类号: TN918.2
计量
- 文章访问数: 372
- HTML全文浏览量: 213
- PDF下载量: 76
- 被引次数: 0
出版历程
- 收稿日期: 2025-01-20
- 修回日期: 2025-03-31
- 网络出版日期: 2025-04-23
- 刊出日期: 2025-08-27

DTDS: Dilithium Dataset for Power Analysis

1.
Key Laboratory of Network Cryptography, Henan Province, Information Engineering University, Zhengzhou 450001, China
2.
Key Laboratory for Intelligent Network and Network Security, Xi’an Jiaotong University, Xi’an 710049, China

摘要

摘要: 量子计算的飞速发展威胁了传统密码系统的安全性，进而推动了后量子密码算法的研究与标准化。Dilithium数字签名算法基于格理论设计，于2024年被美国国家标准与技术研究院(NIST)选定为后量子密码算法标准。同时，对Dilithium的侧信道分析，特别是能量分析，也成为当前的研究热点。然而，现有的能量分析数据集主要针对经典分组密码算法，如AES等，缺乏Dilithium等新型算法的数据集，限制了相关侧信道分析方法的研究。为此，该文采集并公开首个针对Dilithium算法的能量分析数据集，旨在促进后量子密码算法的能量分析研究。该数据集基于Dilithium的开源参考实现，在Cortex M4处理器上运行，并通过专用设备采集，包含60000条Dilithium签名过程中采集的能量迹，以及与每条能量迹对应的签名源数据和敏感中间值。进一步对构造的数据集进行可视化分析，详细研究了随机多项式生成函数polyz_unpack的执行过程及其对能量迹的影响。最后，使用模板分析和深度学习分析方法对数据集进行建模和测试，验证了该数据集的有效性和实用性。数据集和相关代码见https://doi.org/10.57760/sciencedb.j00173.00001。
- 后量子算法 /
- Dilithium算法 /
- 侧信道分析 /
- 能量分析 /
- 数据集
Abstract: Objective The development of quantum computing threatens the security of traditional cryptosystems and advances the research and standardisation of post-quantum cryptographic algorithms. The Dilithium digital signature algorithm is designed based on the lattice theory and was selected by USA National Institute of Standards and Technology (NIST) as the standard for post-quantum cryptographic algorithms in 2024. Meanwhile, the side channel analysis of Dilithium, especially the power analysis, has become a current research hotspot. However, the existing power analysis datasets are mainly for classical packet cryptography algorithms, such as AES, etc., and the lack of datasets for novel algorithms, such as Dilithium, restricts the research of side-channel security analysis methods. Results and Discussions For this reason, this paper collects and discloses the first power analysis dataset for the Dilithium algorithm, aiming to facilitate the research on power analysis of post-quantum cryptographic algorithms. The dataset is based on the open-source reference implementation of Dilithium, running on a Cortex M4 processor and captured by a dedicated device, and contains 60,000 traces captured during the Dilithium signature process, as well as the signature source data and sensitive intermediate values corresponding to each trace. Conclusions The constructed DTDS dataset is further visualised and analysed, and the execution process of the random polynomial generation function polyz_unpack and its effect on the traces are investigated in detail. Finally, the dataset is modelled and tested using template analysis and deep learning analytics to verify the validity and usefulness of the dataset. The dataset and code could be found at https://doi.org/10.57760/sciencedb.j00173.00001.
- Post-quantum algorithm /
- Dilithium /
- Side channel analysis /
- Power analysis /
- Dataset

HTML全文

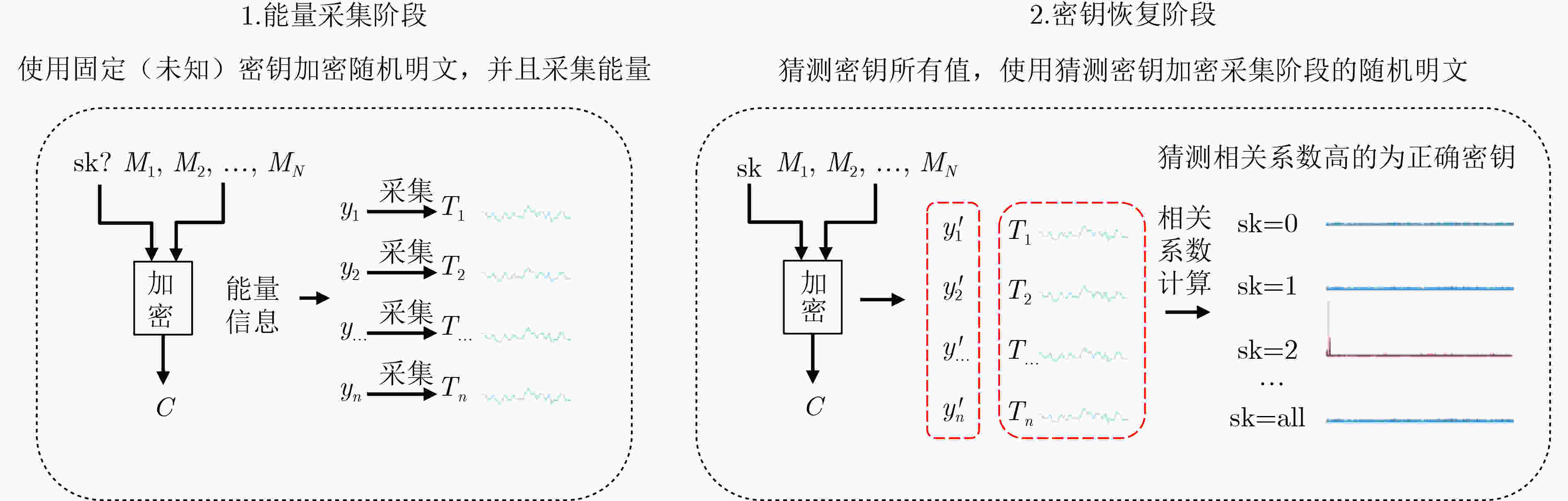

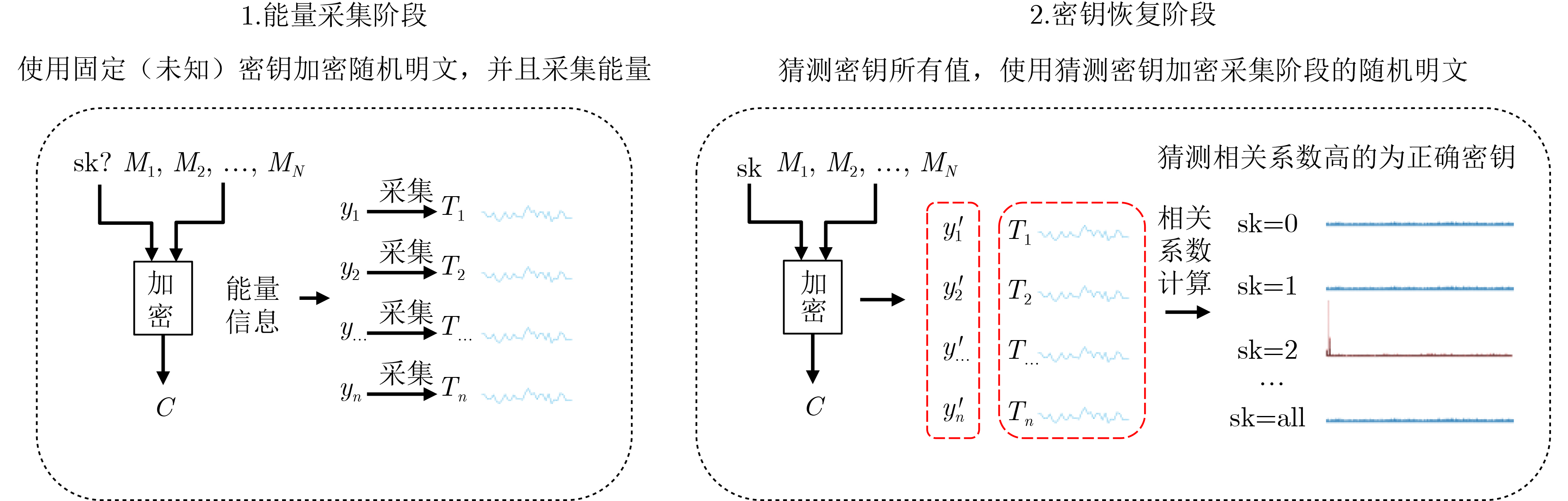

图 1 非建模类侧信道分析方法

下载: 全尺寸图片幻灯片

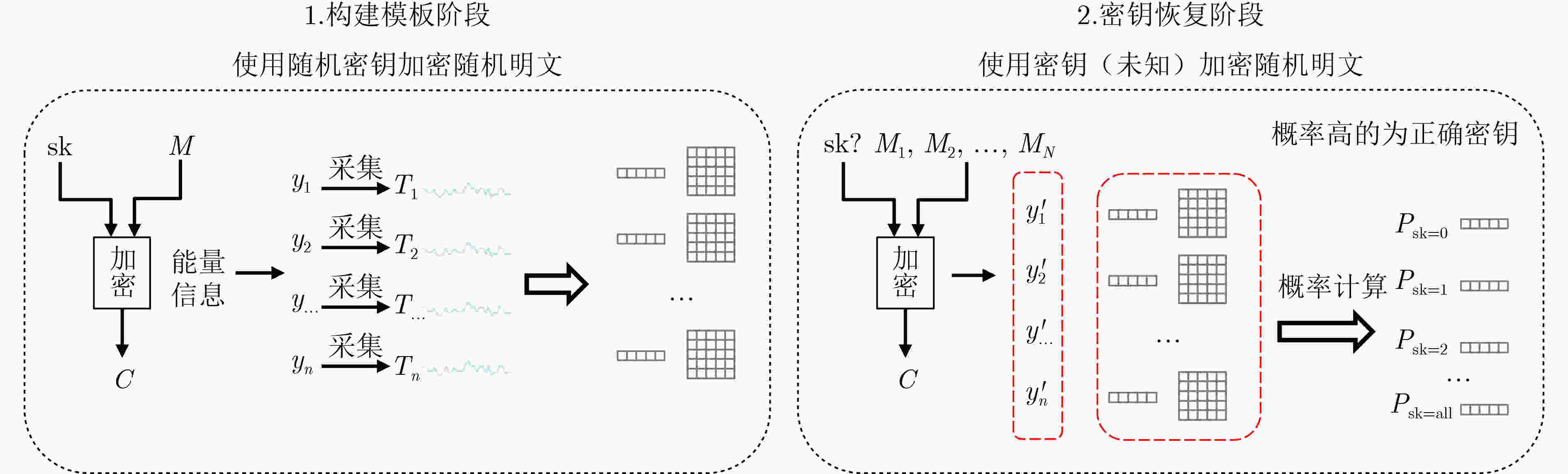

图 2 建模类侧信道分析方法

下载: 全尺寸图片幻灯片

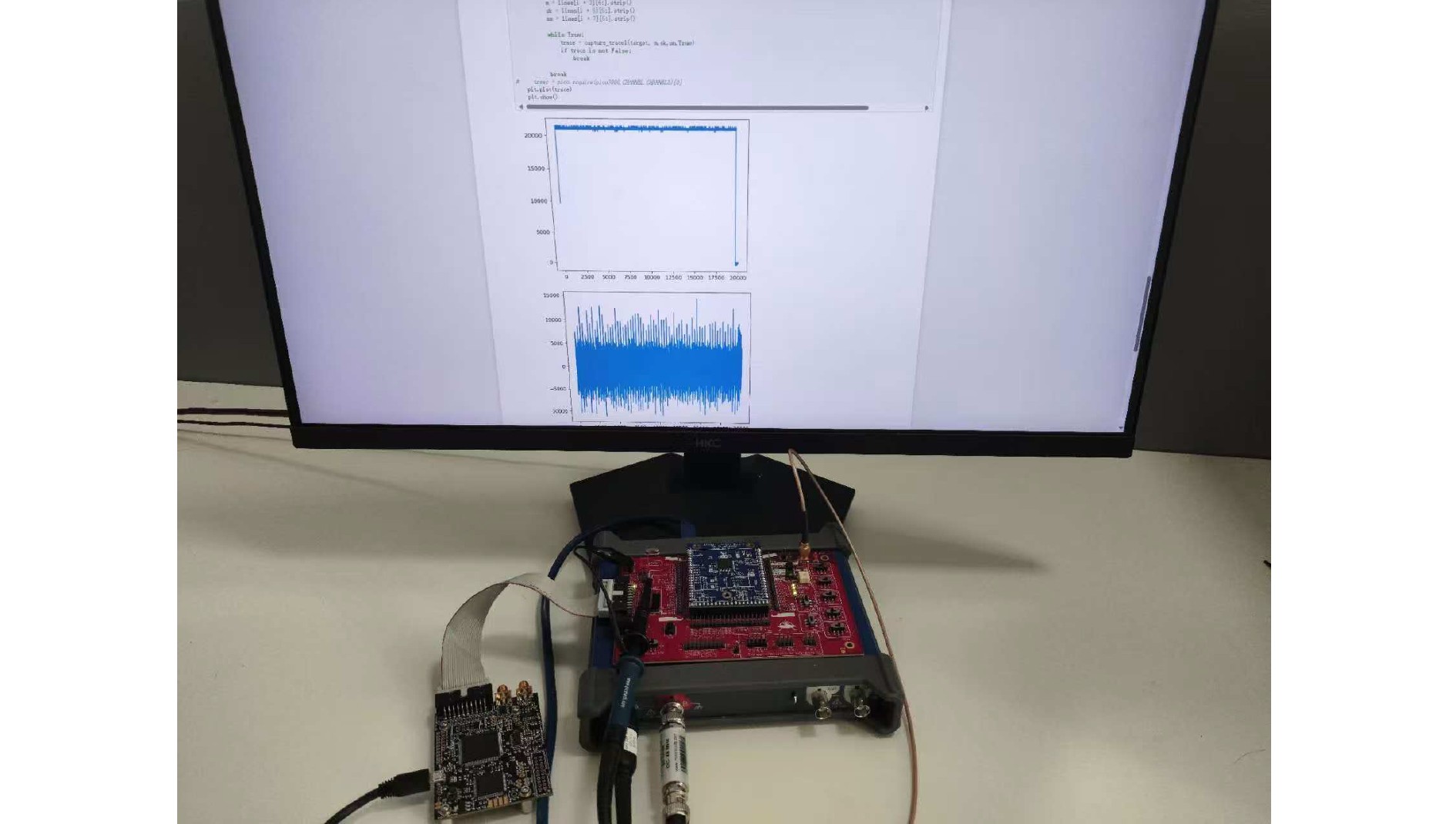

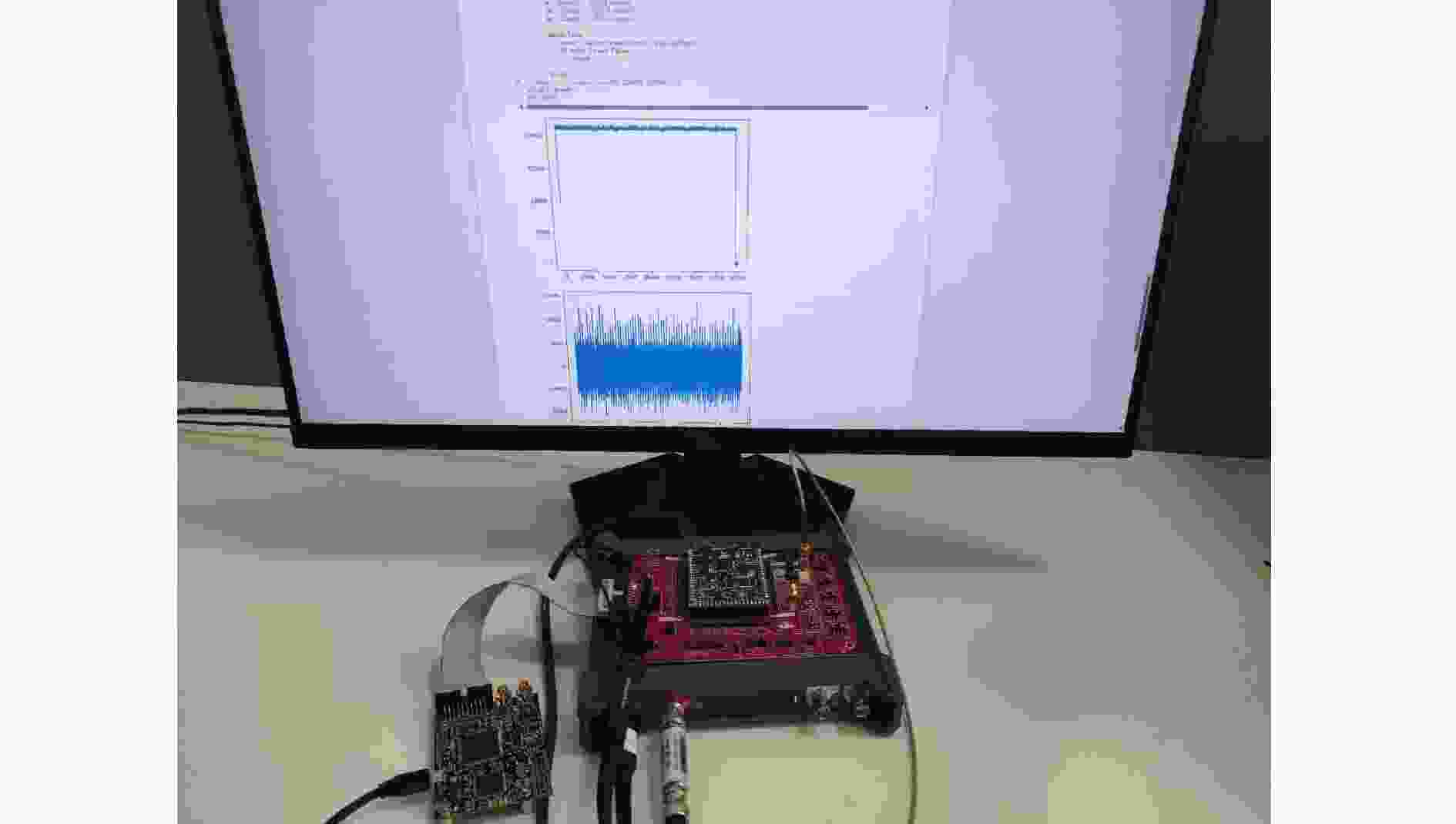

图 3 采集环境

下载: 全尺寸图片幻灯片

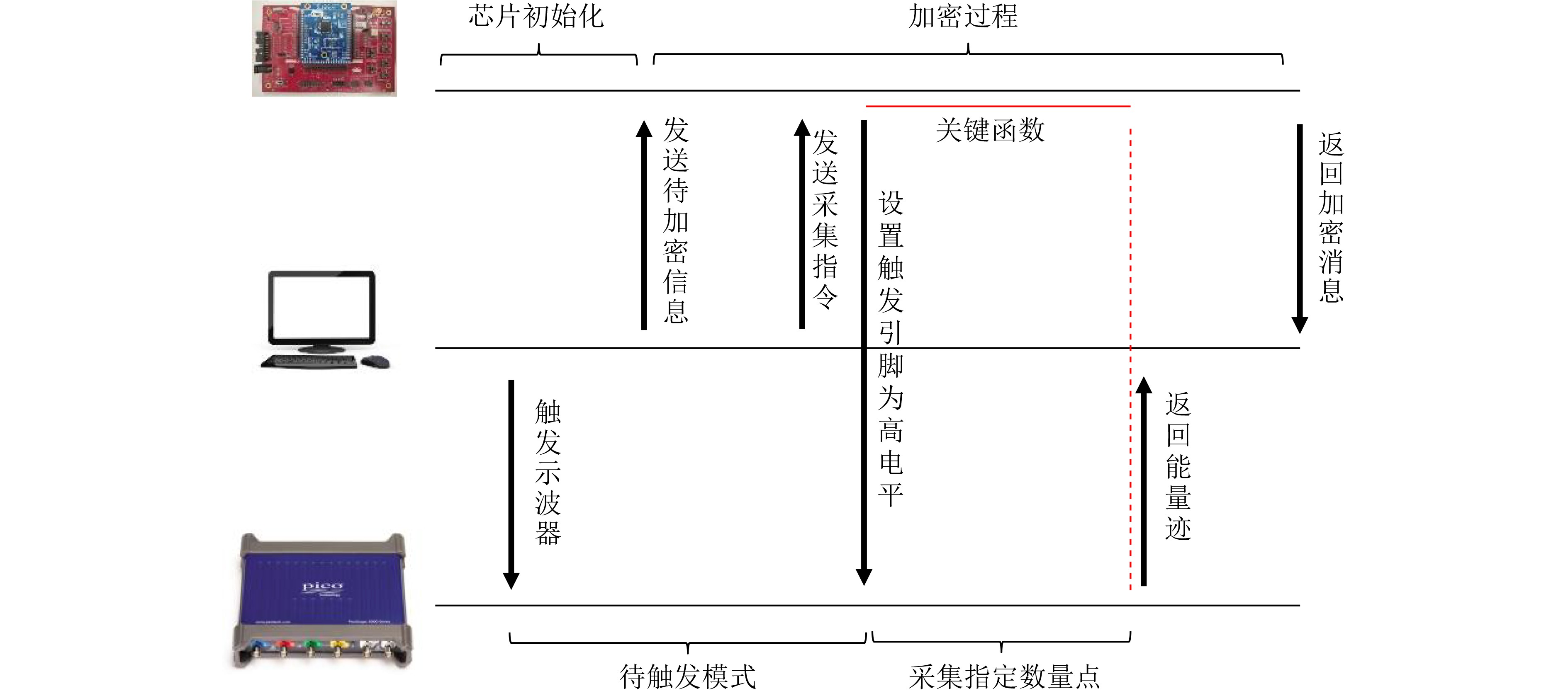

图 4 采集流程图

下载: 全尺寸图片幻灯片

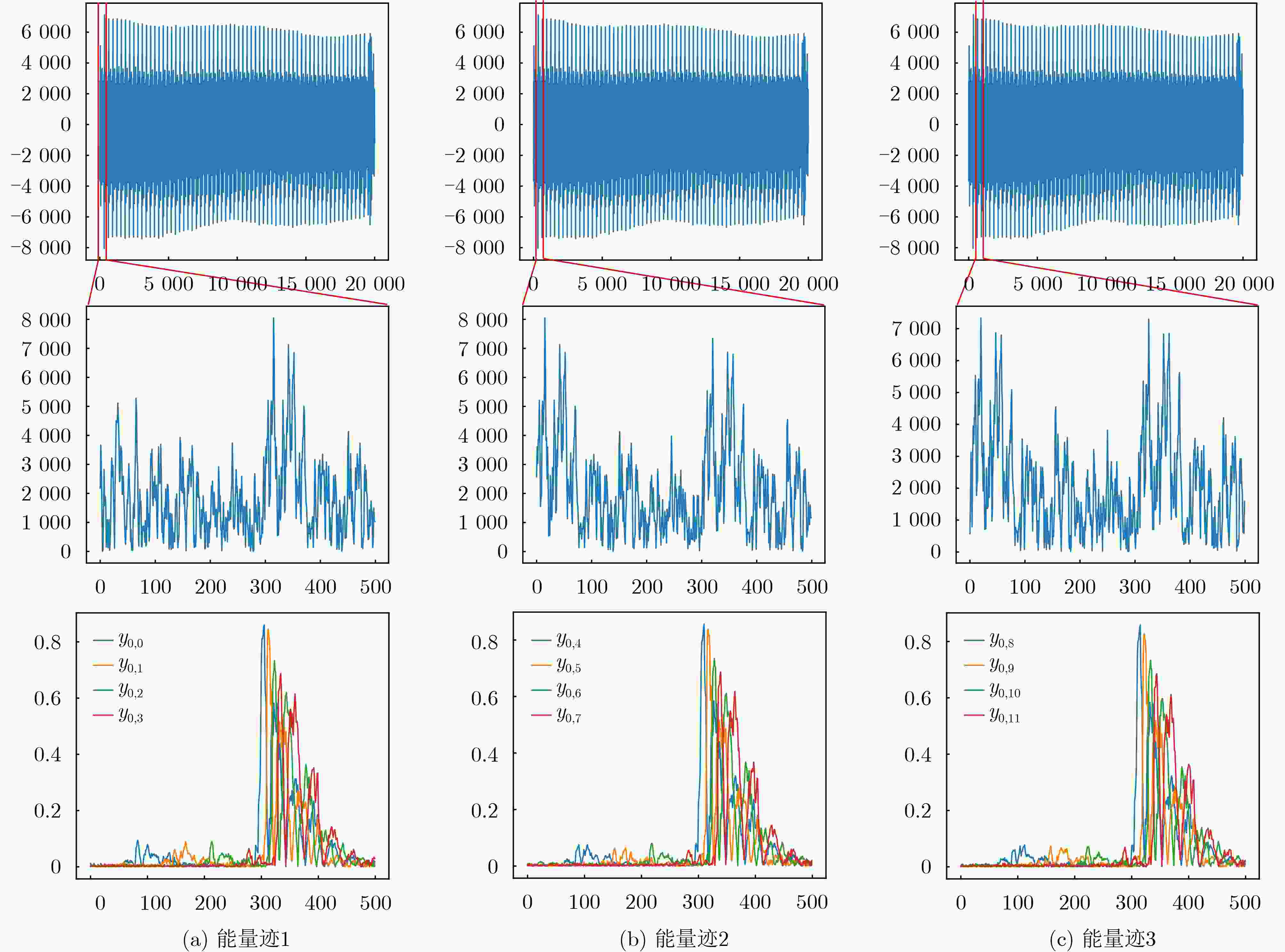

图 5 能量迹时域图与相关系数图

下载: 全尺寸图片幻灯片

表 1 Dilithium安全级别参数

NIST 安全级别	2	3	5
$ q $[模数]	8380417
$ n $[$ {R_q} $的维度]	256
$ (k,l) $[$ {\boldsymbol{A}} $的维度]	(4,4)	(6,5)	(8,7)
${\gamma _1}$[${\boldsymbol{y}}$的范围]	${2^{17}}$	${2^{19}}$	${2^{19}}$

下载: 导出CSV

1 密钥生成

$\zeta \leftarrow {\{ 0,1\} ^{256}}$
$\left( {\rho ,{\rho ^\prime },K} \right) \in {\{ 0,1\} ^{256}} \times {\{ 0,1\} ^{512}} \times {\{ 0,1\} ^{256}}: = {{H}}(\zeta )$
${\boldsymbol{A}} \in R_q^{k \times \ell }: = {\text{Expand}}{\boldsymbol{A}}(\rho )$
$\left( {{{\boldsymbol{s}}_1},{{\boldsymbol{s}}_2}} \right) \in S_\eta ^\ell \times S_\eta ^k: = {\text{ExpandS}}\left( {{\rho ^\prime }} \right)$
${\boldsymbol{t}}: = {\boldsymbol{A}}{{\boldsymbol{s}}_1} + {{\boldsymbol{s}}_2}$
$\left( {{{\boldsymbol{t}}_1},{{\boldsymbol{t}}_0}} \right): = {\text{Power2Roun}}{{\text{d}}_q}({\boldsymbol{t}},d)$
$ \text{tr}\in {\{0,1\}}^{256}:={H}\left(\rho \Vert {{\boldsymbol{t}}}_{1}\right) $
${\text{return }}\left( {{\text{pk}} = \left( {\rho ,{{\boldsymbol{t}}_1}} \right),{\text{sk}} = \left( {\rho ,K,{\text{tr}},{{\boldsymbol{s}}_1},{{\boldsymbol{s}}_2},{{\boldsymbol{t}}_0}} \right)} \right)$

下载: 导出CSV

2 Sign($ {\text{sk}} $，$ M $)

$ {\boldsymbol{A}} \in R_q^{k \times l}: = {\text{Expand}}A(\rho ) $
$\mu \in {\{ 0,1\} ^{512}}: = {{H}}\left( {{\bf{tr}}\parallel M} \right)$
$ \kappa : = 0,\left( {{\boldsymbol{z}},{\boldsymbol{h}}} \right): = \bot $
$\rho {{'}} \in {\{ 0,1\} ^{512}}: = {{H}}\left( {K\parallel \mu } \right)$
$ {\text{while}}({\boldsymbol{z}},{\boldsymbol{h}}){\text{ = }} \bot {\text{do}} $
$ {\text{ }}{\boldsymbol{y}}\in {\tilde{S}}_{{\gamma }_{1}}^{\ell }:=\text{ExpandMask}\left({\rho }^{\prime },\kappa \right)\text{ }本行调用\text{ }{\mathrm{polyz}}\_{\mathrm{unpack}}函数 $
$ \text{ }\text{ }{\boldsymbol{w}}:={\boldsymbol{Ay}} $
$ \text{ }{{\boldsymbol{w}}}_{1}:={\text{HighBits}}_{q}\left({\boldsymbol{w}},2{\gamma }_{2}\right) $
$ \text{ }\tilde{\boldsymbol{{c}}}\in {\{0,1\}}^{256}:={H}\left(\mu \parallel {{\boldsymbol{w}}}_{1}\right) $
$ \begin{array}{c}\text{ }c\in {B}_{\tau }:=\text{SamplelnBall}\left(\tilde{{\boldsymbol{c}}}\right)\end{array} $
$ \text{ }{\boldsymbol{z}}:={\boldsymbol{y}}+c{s}_{1} $
$ \text{ }{r}_{0}:={\text{LowBits}}_{\text{q}}\left({\boldsymbol{w}}-c{{\boldsymbol{s}}}_{2},2{\gamma }_{2}\right) $
$ \text{ }\text{if}\Vert {\boldsymbol{z}}{\Vert }_{\infty }\ge {\gamma }_{1}-\beta \text{or}\Vert {r}_{0}{\Vert }_{\infty }\ge {\gamma }_{2}-\beta ,\text{then}({\boldsymbol{z}},{\boldsymbol{h}}):=\perp $
$ \text{else} $
$ \text{ }{\boldsymbol{h}}:={\text{MakeHint}}_{q}\left(-c{{\boldsymbol{t}}}_{0},{\boldsymbol{w}}-c{{\boldsymbol{s}}}_{2}+c{{\boldsymbol{t}}}_{0},2{\gamma }_{2}\right) $
$ \text{ }\text{if}\Vert c{{\boldsymbol{t}}}_{0}{\Vert }_{\infty }\ge {\gamma }_{2}\text{or}\;\text{the}\#\text{of }{1}^{\prime }\text{s}\text{in }\;{\boldsymbol{h}}\;\text{is}\;\text{greater}\;\text{than}\;{\boldsymbol{\omega}}$, 　　　$\text{then}({\boldsymbol{z}},{\boldsymbol{h}}):=\perp $
$ \text{ }\kappa :=\kappa +\ell $
${\text{return}}\;\sigma = \left( {\tilde {\boldsymbol{c}},{\boldsymbol{z}},{\boldsymbol{h}}} \right)$

下载: 导出CSV

表 2 采集参数表

品类	参数名称	参数信息
目标芯片	型号	STM32 F405 RGTx
	平台	ChipWhisperer UFO
	运行频率	25 MHz
	外部高速时钟源	10 MHz
示波器	型号	Pico 3206D
	模式	8 bit
	timebase	3
	采样频率	125 MHz
其他	滤波器	BLP-48+ 50 M
其他	放大器	无
算法	算法参数	Dilithium 2
	编译器	arm-none-eabi-gcc 10.2.1
	编译参数	− O 1
上位机	处理器	i7-12500
上位机	内存	64 GB DDR4

下载: 导出CSV

表 3 数据集文件描述

文件名	描述
polyz_unpack_traces.npy	能量迹文件，该文件为元数据加密过程中，polyz_unpack函数泄露能量数据，每个文件存储5000条能量迹，每条能量迹包含20000采样值。
polyz_unpack_y.npy	敏感中间值文件，该文件为元数据加密过程，polyvecl_uniform_gamma1加密后的$ {\boldsymbol{y}} $值，包含5000个随机系数$ {\boldsymbol{y}} $，每个$ {\boldsymbol{y}} $为4×256个值。
mate.req	元数据文件，该文件与训练集曲线文件一一对应，包含5000个签名数据，每个签名包含序号(counter)、种子(seed)、公钥(pk)、私钥(sk)、消息(msg)、消息长度(mlen)、签名后消息(sm)和签名后消息长度(smlen)。

下载: 导出CSV

3 polyz_unpack(poly *r, const uint8_t *a)

　void polyz_unpack(poly *r, const uint8_t *a) {

　　unsigned int i;

　　for(i = 0; i < NN / 4; ++i) {

　　　r->coeffs[4*i+0] = a[9*i+0];

　　　r->coeffs[4*i+0] |= (uint32_t)a[9*i+1] << 8;

　　　r->coeffs[4*i+0] |= (uint32_t)a[9*i+2] << 16;

　　　r->coeffs[4*i+0] &= 0x3FFFF;

　　　r->coeffs[4*i+1] = a[9*i+2] >> 2;

　　　r->coeffs[4*i+1] |= (uint32_t)a[9*i+3] << 6;

　　　r->coeffs[4*i+1] |= (uint32_t)a[9*i+4] << 14;

　　　r->coeffs[4*i+1] &= 0x3FFFF;

　　　r->coeffs[4*i+2] = a[9*i+4] >> 4;

　　　r->coeffs[4*i+2] |= (uint32_t)a[9*i+5] << 4;

　　　r->coeffs[4*i+2] |= (uint32_t)a[9*i+6] << 12;

　　　r->coeffs[4*i+2] &= 0x3FFFF;

　　　r->coeffs[4*i+3] = a[9*i+6] >> 6;

　　　r->coeffs[4*i+3] |= (uint32_t)a[9*i+7] << 2;

　　　r->coeffs[4*i+3] |= (uint32_t)a[9*i+8] << 10;

　　　r->coeffs[4*i+3] &= 0x3FFFF;

　　　r->coeffs[4*i+0] = GAMMA1 - r->coeffs[4*i+0];

　　　r->coeffs[4*i+1] = GAMMA1 - r->coeffs[4*i+1];

　　　r->coeffs[4*i+2] = GAMMA1 - r->coeffs[4*i+2];

　　　r->coeffs[4*i+3] = GAMMA1 - r->coeffs[4*i+3];

　　}

下载: 导出CSV

表 4 模板攻击不同兴趣点的准确率比较

兴趣点数量	建模数量	时间(s)	准确率(%)
8	30000	383.10	6.83
16		383.70	7.80
32		386.92	8.36
64		397.89	9.34
128		456.29	3.11

下载: 导出CSV

表 5 模板攻击不同建模数量的准确率比较

建模数量	兴趣点数量	时间(s)	准确率(%)
5000	32	312.09	6.79
10000		326.64	7.73
15000		341.61	7.90
20000		357.98	8.20
25000		371.08	8.25
30000		387.01	8.36

下载: 导出CSV

表 6 深度模型参数表

层类型	卷积核大小	卷积核数量	步长	填充	激活函数	输出形状
InputLayer	-	-	-	-	-	(None, input_shape)
Conv1D	11	64	1	same	relu	(None, *, 64)
AveragePool1D	2	-	2	-	-	(None, *, 32)
Conv1D	11	128	1	same	relu	(None, *, 128)
AveragePool1D	2	-	2	-	-	(None, *, 64)
Flatten	-	-	-	-	-	(None, flattened_size)
Dense	-	256	-	-	relu	(None, 256)
Dense	-	256	-	-	relu	(None, 256)
Dense	-	32	-	-		(None, 32)

下载: 导出CSV

表 7 深度学习不同建模数量的准确率比较

建模数量	兴趣点数量	时间(s)	准确率(%)
5000	500	247.57	9.98
10000		540.30	18.12
15000		689.55	23.87
20000		850.91	26.72
25000		1101.74	27.28
30000		1569.06	28.88
40000		1867.35	30.29

下载: 导出CSV
