基于空间栅格梯度的到达时差快速迭代定位方法研究

王杰; 吴凌昊; 卜祥玺; 李航; 梁兴东

doi:10.11999/JEIT241105

基于空间栅格梯度的到达时差快速迭代定位方法研究

doi: 10.11999/JEIT241105 cstr: 32379.14.JEIT241105

王杰¹,
吴凌昊¹,
卜祥玺^2, ,,
李航^{2, 3},
梁兴东²

1.
南京信息工程大学电子与信息工程学院南京 210044
2.
中国科学院空天信息创新研究院北京 100190
3.
中国科学院大学北京 100049

基金项目: 国家自然科学基金(62171229)

详细信息

作者简介:
王杰：男，副研究员，研究方向为MIMO雷达信号设计、合成孔径雷达处理、雷达通信一体化

吴凌昊：男，硕士生，研究方向为分布式无源定位

卜祥玺：男，副研究员，研究方向为合成孔径雷达成像处理

李航：男，博士生，研究方向为合成孔径雷达成像处理

梁兴东：男，研究员，研究方向为高分辨率合成孔径雷达系统、干涉合成孔径雷达系统、成像处理及应用、雷达通信一体化

通讯作者:
卜祥玺　buxx@aircas.ac.cn

中图分类号: TN958.97
计量
- 文章访问数: 243
- HTML全文浏览量: 111
- PDF下载量: 58
- 被引次数: 0
出版历程
- 收稿日期: 2024-12-16
- 修回日期: 2025-03-27
- 网络出版日期: 2025-04-07
- 刊出日期: 2025-07-22

Research on Fast Iterative TDOA Localization Method Based on Spatial Grid Gradients

WANG Jie¹,
WU Linghao¹,
BU Xiangxi^{2
, ,},
LI Hang^{2, 3},
LIANG Xingdong²

1.
School of Electronic and Information Engineering, Nanjing University of Information Science and Technology, Nanjing 210044, China
2.
Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100190, China
3.
University of Chinese Academy of Sciences, Beijing 100049, China

Funds: The National Natural Science Foundation of China (62171229)

摘要

摘要: 在无人机应用、空中旅游、应急救援等新兴业务驱动下，到达时差(TDOA)定位技术不断发展，逐渐成为低空智能网联的关键技术之一。但现有解析类迭代定位算法计算量过高，难以满足低延迟实时定位需求。因此，该文提出基于空间栅格梯度的TDOA快速迭代定位方法。在定位前，首先进行预处理，包括构建空间栅格、根据已建立的空间栅格计算栅格间的TDOA梯度，并基于这些梯度构建栅格迭代矩阵。在定位过程中，根据定位初值调用迭代矩阵，计算并补偿定位初值相对于目标位置的偏差，从而避免传统迭代定位的大量计算，显著降低计算时间。该文借鉴空间栅格化思路，进一步挖掘利用了栅格间的内在梯度关系，从而将栅格化框架融入到迭代补偿模型，克服了栅格宽度对经典栅格化算法的性能制约，提升了迭代定位时效性。依据仿真和实测数据可知，所提算法在保证定位精度的同时，相比传统迭代定位算法节省了76%以上的计算时间，满足低空智能网络的实时定位需求。
- 无源定位 /
- 到达时差 /
- 空间栅格化 /
- 梯度 /
- 低空智能网联
Abstract: Objective In various application scenarios such as Unmanned Aerial Vehicle (UAV) formation, emergency rescue, and low-altitude intelligent networks, passive localization technologies that offer low latency and high precision are of significant practical value. The Time Difference of Arrival (TDOA) localization method is widely adopted for wireless signal source localization due to its ability to operate without requiring the target to actively transmit a signal and its strong adaptability to different environments. Among the various methods used to enhance the accuracy of TDOA localization, the Taylor Iterative Method has gained significant popularity. However, this method requires the calculation of a Taylor expansion for each iteration, resulting in a high computational load. This computational burden often leads to issues such as poor real-time performance and degraded accuracy, which hinder the application of TDOA localization technology in low-latency engineering contexts. To overcome these challenges, this paper proposes a novel TDOA rapid iterative localization method based on spatial grid gradients. The proposed method can significantly reduce computational time while maintaining high levels of localization accuracy. Methods The proposed approach is based on the concept of spatial gridization, incorporating insights derived from the inherent gradient relationships between neighboring grids. These relationships are leveraged to integrate the grid framework into an iterative compensation model. This integration addresses the performance limitations associated with grid width in traditional gridization algorithms, thereby enhancing the efficiency of the iterative localization process. The overall computational process is divided into two distinct stages: preprocessing and iterative localization. The preprocessing stage occurs during the system’s initialization phase and includes constructing the spatial grid, calculating the TDOA gradients between grid points, and establishing the grid-based iterative matrix. Once this preprocessing is complete, the results are stored and readily accessible for future localization processes. During the localization stage, the precomputed iteration matrix is directly invoked and the initial value for the target’s position. The method then calculates and compensates for the deviation between the initial value and the actual target position. By employing a grid-based approach, the significant computational workload typically encountered during iterative localization is shifted to the preprocessing phase. This leads to a marked reduction in localization time, significantly improving computational efficiency. Results and Discussions To validate the effectiveness and performance of the proposed algorithm, simulations and field experiments are conducted. The results are compared with those of the classic spatial gridization algorithm and the Taylor Iterative Method. It is observed that the classic spatial gridization algorithm experiences a significant loss in localization accuracy as the grid width increases, accompanied by a dramatic increase in computation time. In contrast, the proposed algorithm remains unaffected by grid width and outperforms the traditional spatial gridization method in both localization accuracy and computation time (Fig. 3). A deeper comparison of the proposed algorithm with the Taylor Iterative Method is made by analyzing the effects of TDOA estimation errors, initial value errors, and iteration thresholds on the performance of both algorithms. Specifically, under varying TDOA estimation errors, the proposed algorithm reduces the average computation time by 76% compared to the Taylor Iterative Method, while maintaining similar localization accuracy (Fig. 4). Under varying initial value errors, the proposed algorithm reduces average computation time by 78%, with comparable localization accuracy (Fig. 5). As the iteration threshold increases, both algorithms experience a slight reduction in localization accuracy; however, their overall performance remains similar. In this scenario, the proposed algorithm still reduces computation time by approximately 76% when compared to the Taylor Iterative Method (Fig. 6). To further verify the applicability of the proposed algorithm in real-world scenarios, field experiments are also conducted. The field test results confirm the validity of the proposed method, demonstrating a 78% reduction in computation time compared to the Taylor Iterative Method, while maintaining comparable localization accuracy (Table 2). Conclusions The proposed TDOA fast iterative localization method, based on spatial grid gradients, effectively reduces computational complexity while maintaining localization accuracy. This method is well-suited for high real-time passive localization applications. It significantly enhances both the efficiency and practicality of TDOA localization systems. Future work will focus on expanding the applicability of this algorithm by integrating it with other localization techniques, such as Time of Arrival (TOA), Angle of Arrival (AOA), and Frequency Difference of Arrival (FDOA). This integration is expected to facilitate the development of low-altitude economic activities and contribute to advancing the capabilities of localization technologies.
- Passive localization /
- Time Difference of Arrival (TDOA) /
- Spatial gridization /
- Gradient /
- Low-altitude intelligent networking

HTML全文

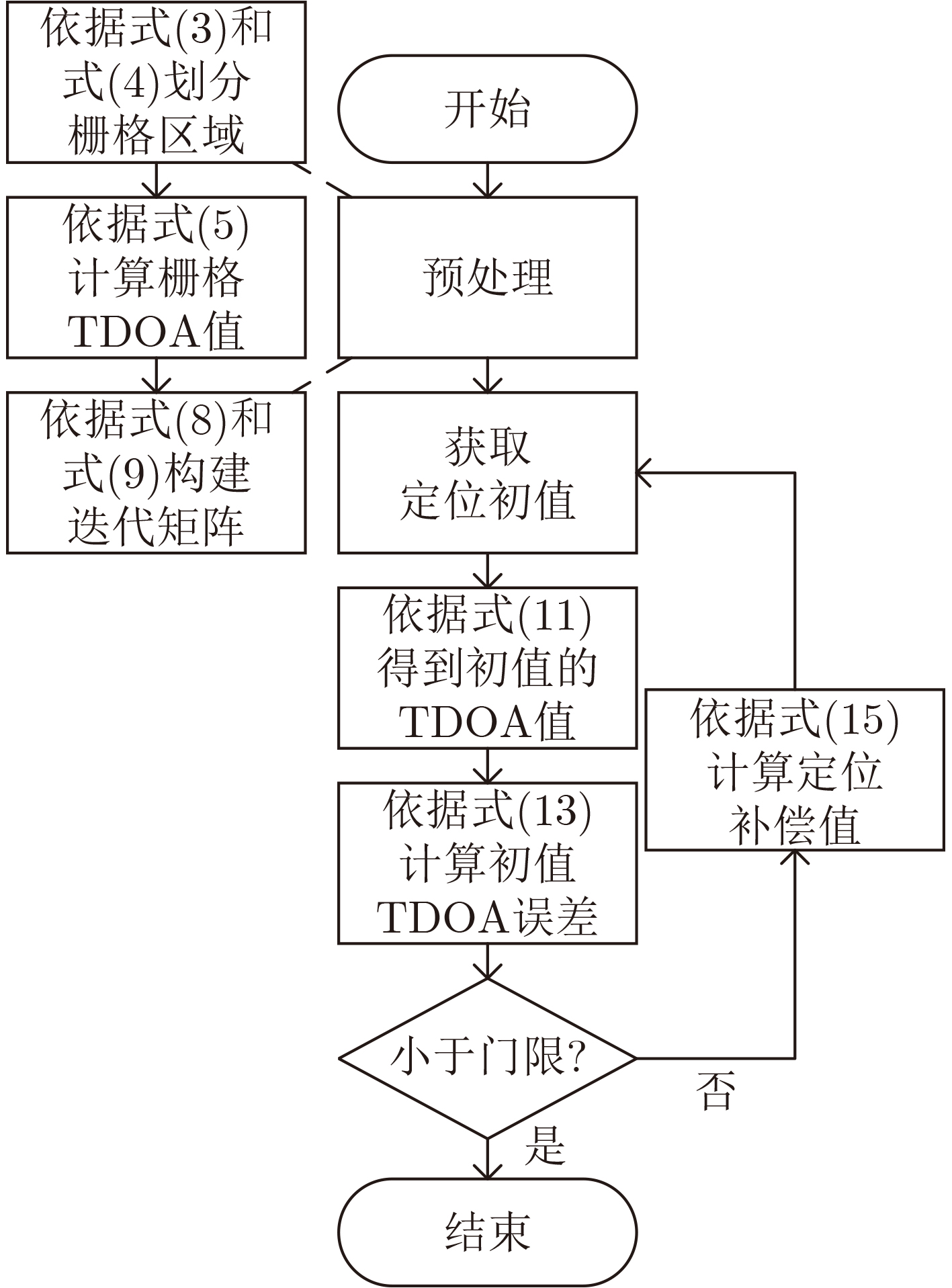

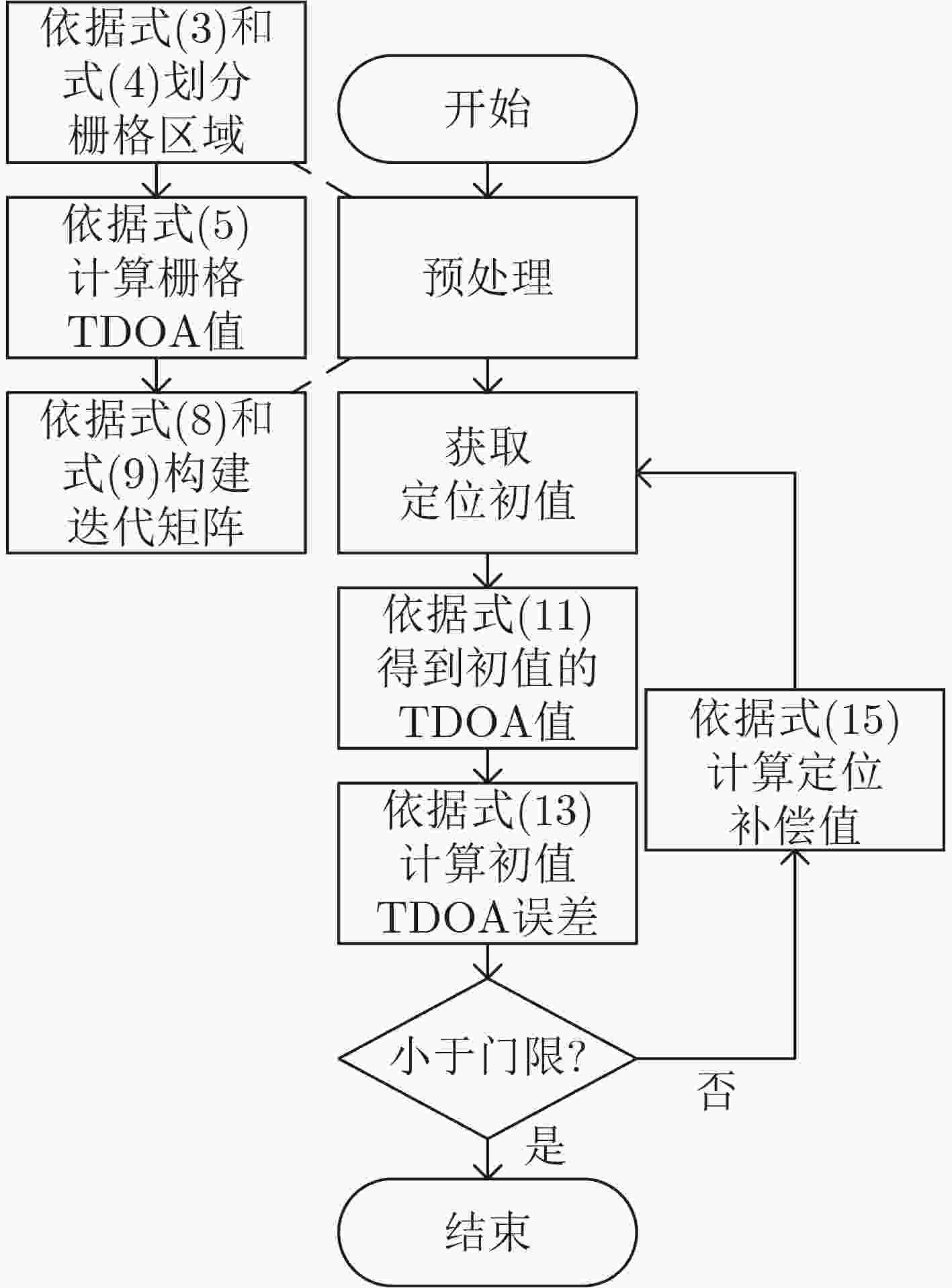

图 1 算法流程图

下载: 全尺寸图片幻灯片

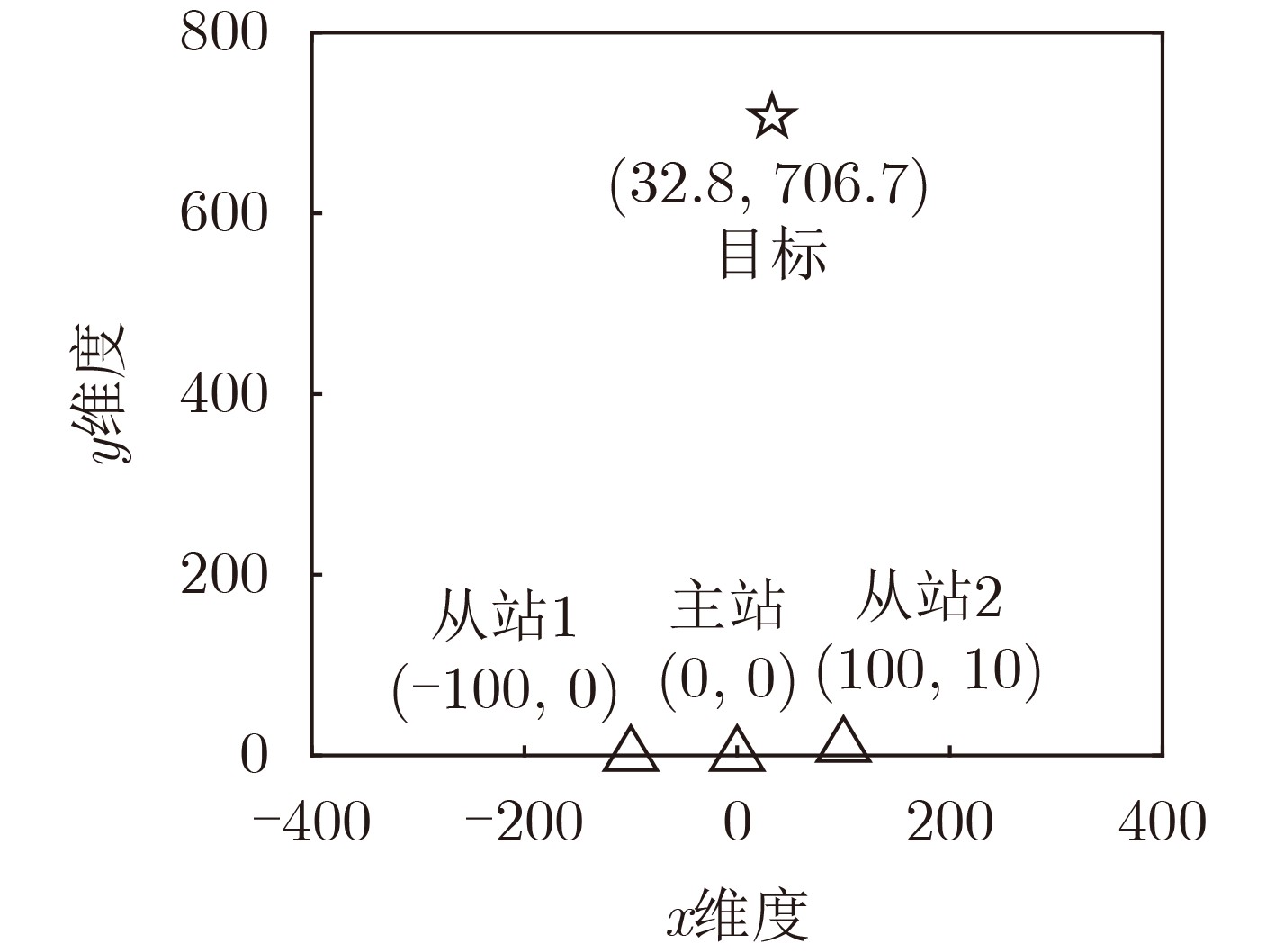

图 2 仿真场景示意图

下载: 全尺寸图片幻灯片

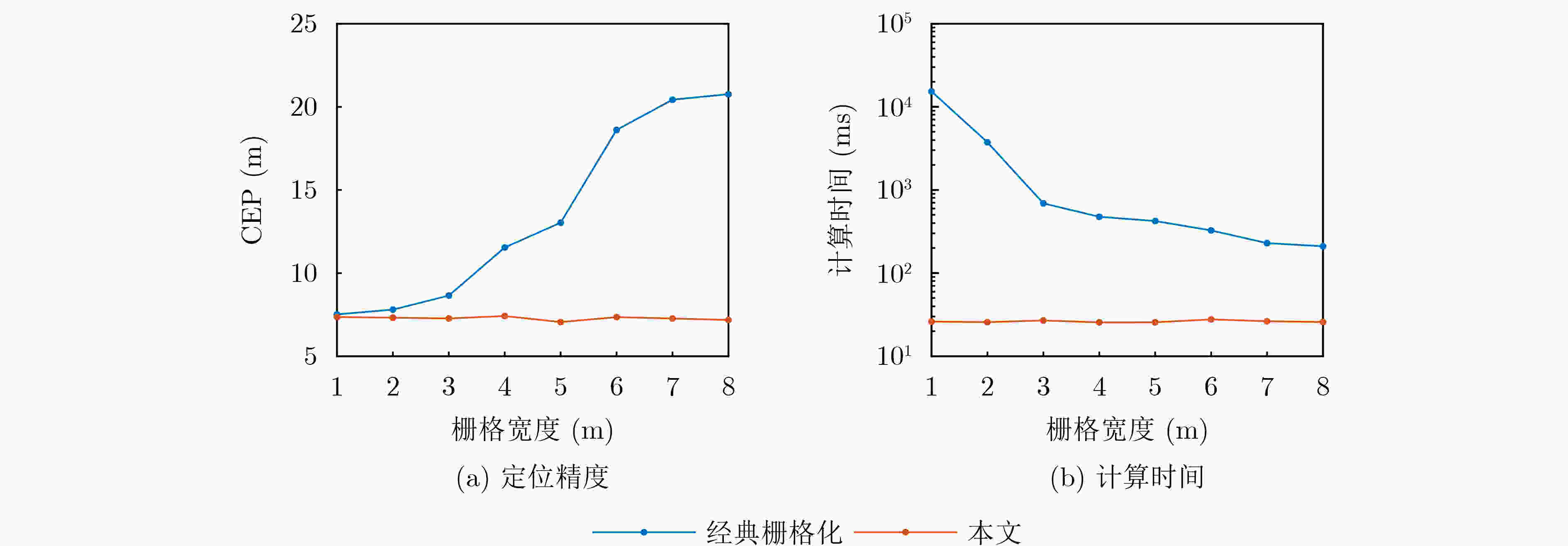

图 3 本文算法与经典栅格算法对比

下载: 全尺寸图片幻灯片

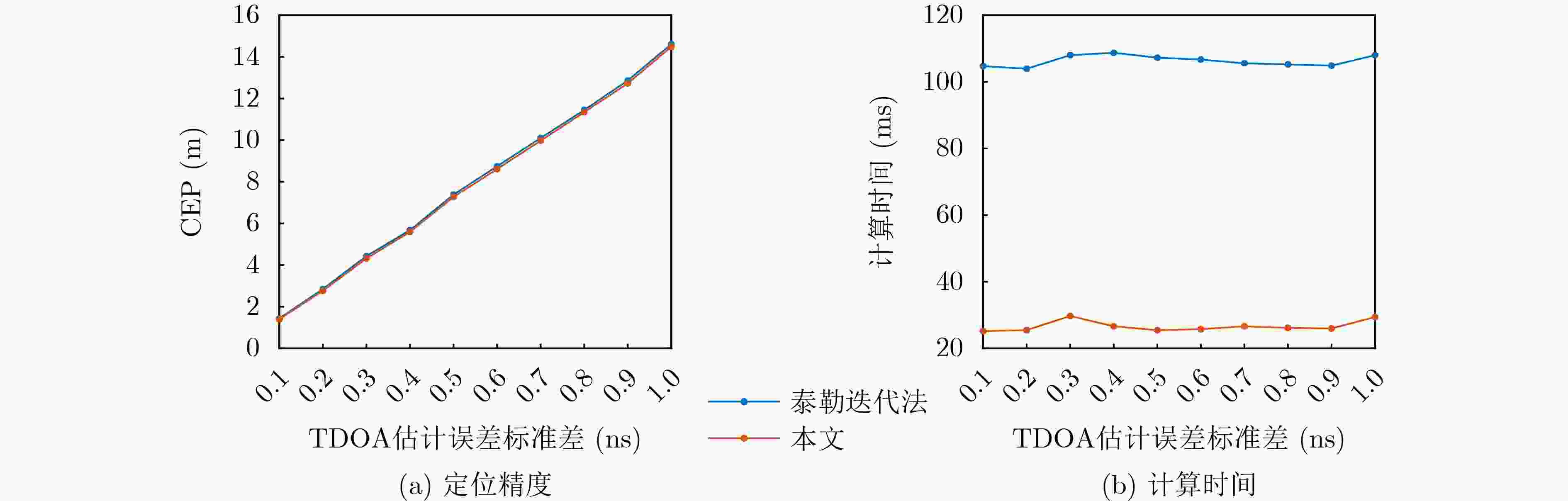

图 4 本文算法与泰勒迭代法对比

下载: 全尺寸图片幻灯片

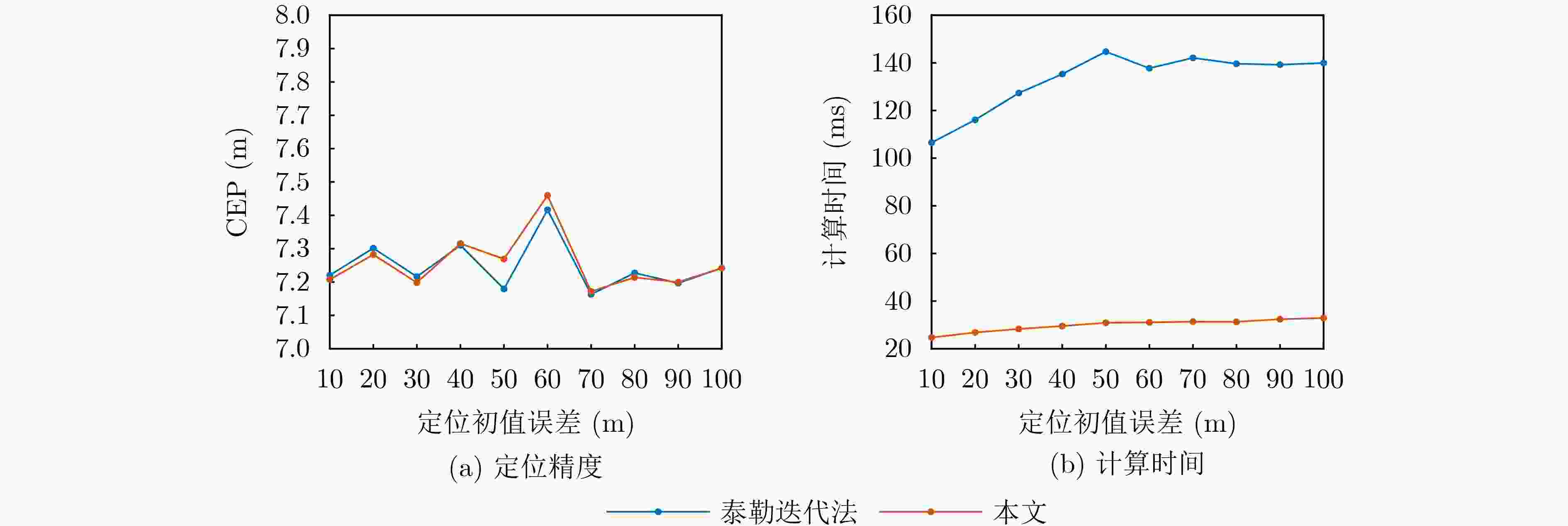

图 5 定位初值误差对两种迭代算法的影响

下载: 全尺寸图片幻灯片

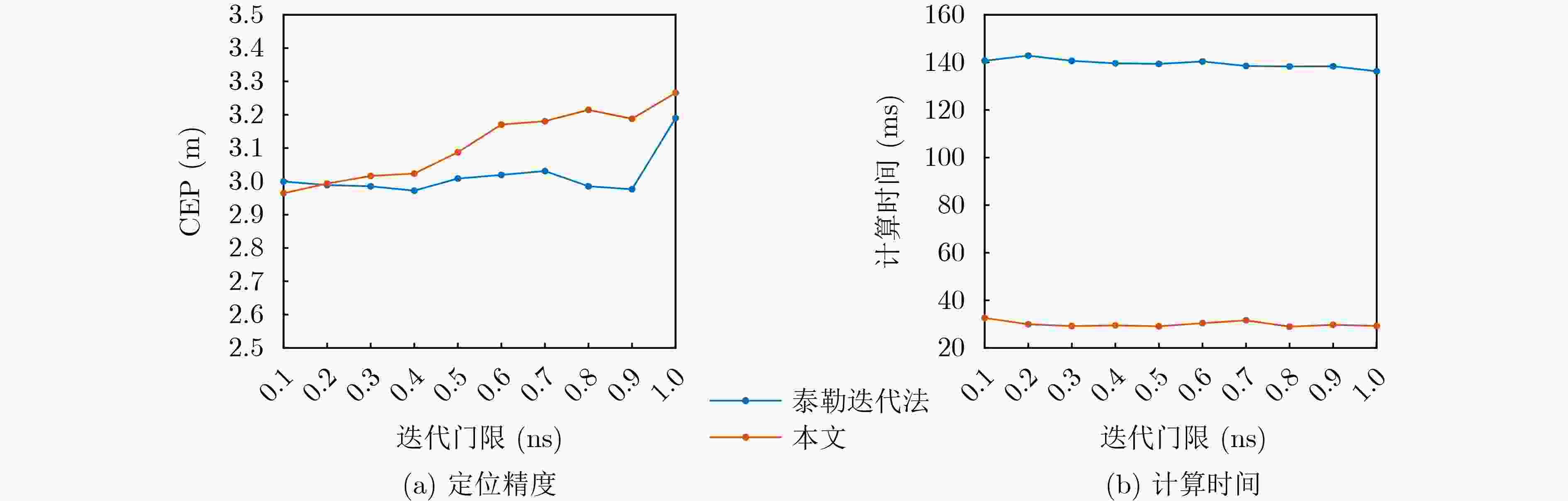

图 6 迭代门限对两种迭代算法的影响

下载: 全尺寸图片幻灯片

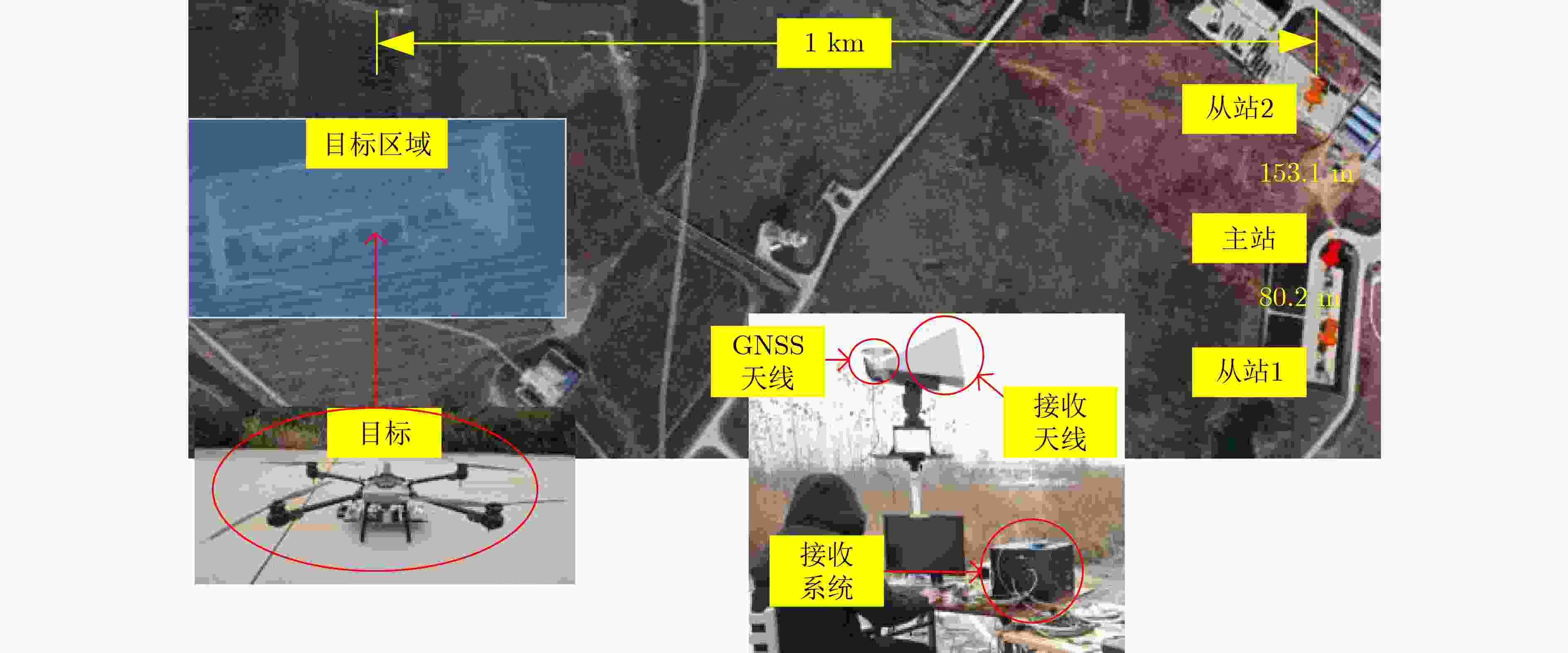

图 7 试验场景图

下载: 全尺寸图片幻灯片

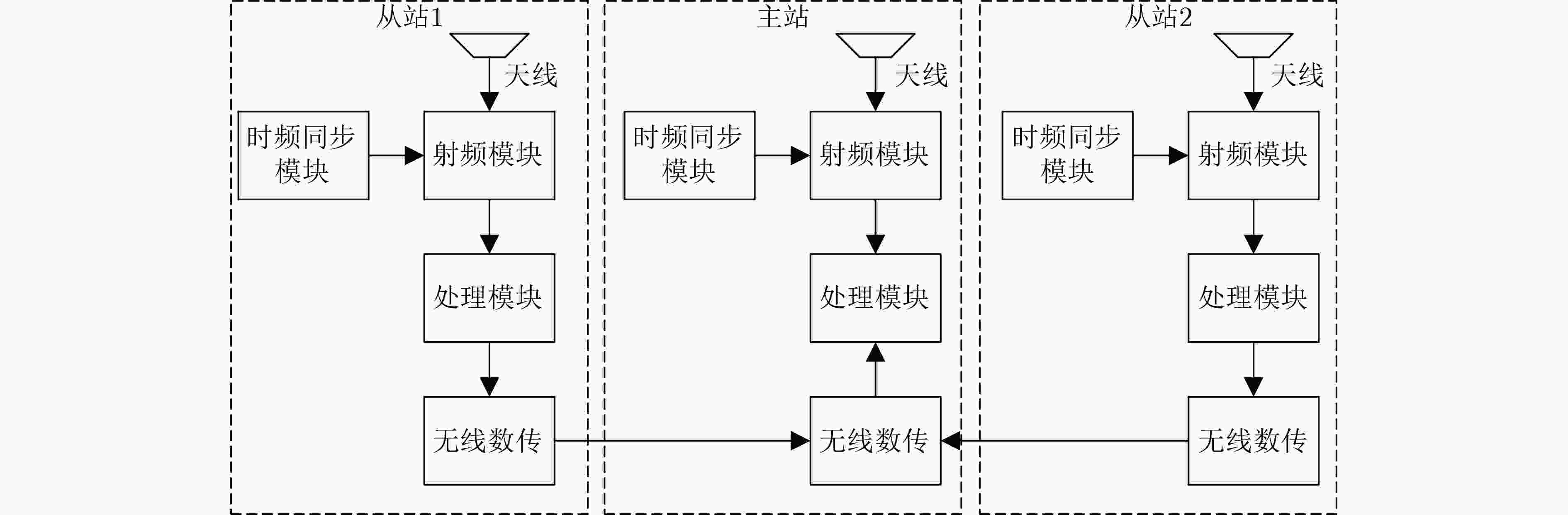

图 8 接收站系统组成

下载: 全尺寸图片幻灯片

表 1 无人机辐射源信号参数

参数	数值
功率	30 dBm
载波频率	3.4 GHz
带宽	80 MHz

下载: 导出CSV

表 2 两种算法实测性能对比表

指标	方法	第1组	第2组	第3组	第4组	第5组
CEP(m)	泰勒迭代法	4.4	1.0	2.4	2.3	8.4
CEP(m)	本文算法	3.4	1.4	2.5	2.4	7.1
计算时间(ms)	泰勒迭代法	11.8	12.4	12.0	11.8	12.1
计算时间(ms)	本文算法	2.6	2.7	2.6	2.7	2.7

下载: 导出CSV
