近场效应残差分离的高精度暗室大孔径阵列校正方法

徐利兵; 刘恺忻

doi:10.11999/JEIT241084

近场效应残差分离的高精度暗室大孔径阵列校正方法

doi: 10.11999/JEIT241084 cstr: 32379.14.JEIT241084

徐利兵,
刘恺忻^,

中国电子科技集团公司第二十九研究所成都 610036

详细信息

作者简介:
徐利兵：男，硕士，高级工程师，研究方向为电子对抗侦察信号处理

刘恺忻：女，博士，工程师，研究方向为阵列信号处理、目标测向定位技术

通讯作者:
刘恺忻　liukaixin2013101112@hrbeu.edu.cn

中图分类号: TN957.2
计量
- 文章访问数: 160
- HTML全文浏览量: 91
- PDF下载量: 29
- 被引次数: 0
出版历程
- 收稿日期: 2024-12-09
- 修回日期: 2025-03-30
- 网络出版日期: 2025-04-19
- 刊出日期: 2025-07-22

High Precision Large Aperture Array Calibration Method for Residual Separation of Near-field Effects in Darkroom

XU Libing,
LIU Kaixin^,

Southwest China Research Institute of Electronic Equipment, Chengdu 610036, China

摘要

摘要: 针对暗室近场信号模型且校正源位置存在误差情况下，校正精度低的问题，该文提出一种近场效应残差分离的高精度暗室大孔径阵列校正方法。该方法先后利用近场相位反补偿技术、标称坐标位置下的阵列幅相误差估计技术，估计受校正源位置误差影响的低精度阵列误差估计结果。然后利用近场相位残差分离技术，去除由校正源位置误差引起的近场效应相位残差，获得高精度阵列误差估计结果。仿真结果表明，该方法有效提升阵列校正性能，提升目标测向精度，并且对校正源位置坐标误差和大阵列孔径有较高的容忍度。相比于现有有源阵列校正算法，当信号频率高，阵列孔径较大时，该方法在空间有限的暗室中能够获得更良好的校正性能。
- 近场阵列校正 /
- 幅度相位误差 /
- 校正源位置误差 /
- 目标测向
Abstract: Objective Direction estimation is a critical aspect of array signal processing technology. Array errors are inevitably introduced during the manufacturing and installation processes. To mitigate the negative effects of these errors on the accuracy and resolution of direction estimation, arrays must be calibrated before deployment. In practical engineering applications, active array calibration is the primary method, and performing calibration in a darkroom, which shields against electromagnetic wave interference, enhances calibration performance. However, the size of the darkroom is limited. As the array aperture increases, the distance between the calibration source and the array may fail to meet the far-field condition, leading to the introduction of nonlinear near-field phase components in the received signal. Moreover, the absence of a precise positioning system in the darkroom may result in the actual installation position of the calibration source differing from its nominal position, further compromising calibration performance. To address these issues, this paper proposes a high-precision large aperture array calibration method that separates residual near-field effects in the darkroom. This method eliminates the phase residuals caused by deviations in the calibration source position and the near-field distance of the source, effectively calibrates the amplitude and phase errors of large aperture arrays in the darkroom, and thereby improves the accuracy of direction estimation. Methods The proposed method utilizes the nominal coordinates of the calibration source to compensate for the phase difference caused by the near-field distance and derives the formula for the near-field effect residual resulting from source position deviations. Next, an array amplitude and phase error estimation technique at nominal coordinates is proposed to solve for the array amplitude and phase error matrix containing the phase residual. This technique constructs a cost function based on the orthogonality between the subspace spanned by the array manifold vector with amplitude-phase errors and the noise subspace of the array’s received signals. The least squares method is then applied to solve for the low-precision array error estimation results. To enhance precision, this method employs a near-field effect residual separation technique to separate the phase residuals from the solved array error matrix, thereby achieving high-precision array error estimation results. Through differential operations, the technique verifies that the near-field effect residual of each element in a uniform linear array is approximately proportional to the element’s serial number. High-precision array calibration improves the accuracy of direction estimation. Results and Discussions This paper proposes a high-precision near-field calibration method for large-aperture uniform linear arrays. The method addresses the calibration problem under near-field conditions and mitigates the negative effects of calibration source position deviation on the active calibration algorithm. It requires only a single calibration source, demonstrating both innovation and practicality.In Section 5, the performance of the proposed method is analyzed in detail through simulation. First, Fig. 2 verifies an important conclusion of this algorithm: the near-field effect residual of each element in a uniform linear array is approximately proportional to the element’s serial number. Figs. 4 to 7 examine the influences of various factors on array calibration performance, including calibration source position deviation, array aperture, distance between the calibration source and the array, and signal frequency. All four factors significantly impact the magnitude of the near-field residual. Specifically, increasing source position deviation, array aperture, and signal frequency, as well as decreasing the distance of the calibration source, will all increase the phase residual, which negatively affects array calibration. In Fig. 4, the proposed method demonstrates greater tolerance to severe source position deviations, maintaining high accuracy in array error estimation even under such conditions. Fig. 5 shows that increasing the number of array elements, which is equivalent to enlarging the array aperture, increases the near-field effect residual. However, this method effectively removes the residual, aiding in achieving high-precision array error estimation and restoring high-precision direction estimation for the large-aperture array. Fig. 6 investigates the influence of the distance between the calibration source and the array. Without removal of the near-field effect residual, the array error estimation accuracy rapidly decreases as the distance decreases. However, the proposed method ensures that the accuracy decreases only slowly. When the near-field distance ranges from 20m to 50m, the accuracy remains nearly unchanged. This simulation clearly demonstrates the effectiveness of the method in removing near-field effect residuals. High-frequency signals theoretically provide excellent direction estimation accuracy. However, higher signal frequencies lead to more severe near-field phase residuals, and inefficient array calibration can further degrade direction estimation accuracy. In Fig. 7, without removing the near-field phase residual, the direction estimation accuracy does not improve even with an increase in signal frequency. Fortunately, after removing the near-field effect residual with the proposed method, high-precision direction estimation performance is restored for high-frequency signals. Conclusions This paper addresses the challenge that large-aperture arrays often fail to satisfy the far-field distance condition in a darkroom. Additionally, due to instrument measurement errors, obtaining precise calibration source position coordinates in the darkroom is difficult, which complicates array calibration. To address these issues, a high-precision large-aperture array calibration method for residual separation of near-field effects in a darkroom is proposed. This method not only achieves near-field array calibration but also mitigates the phase errors caused by source position deviation, resulting in high-precision estimation of array amplitude and phase errors.The method compensates for the phase difference of the near-field path and constructs a cost function to estimate array amplitude and phase errors using the orthogonality of the signal subspace. The calibration source position deviation introduces near-field effect phase residuals. This paper analyzes the relationship between the phase residual and the array element serial number, solves for and removes the phase residual, thus obtaining high-precision array error estimation results.Simulation results demonstrate that the proposed method has a high tolerance for source position deviation. Even under conditions of large array aperture, high signal frequency, and close proximity between the calibration source and the array, the method remains effective in calibrating the array and significantly improves the accuracy of direction estimation.
- Near-field array calibration /
- Amplitude and phase errors /
- Calibration source position deviation /
- Target azimuth estimation

HTML全文

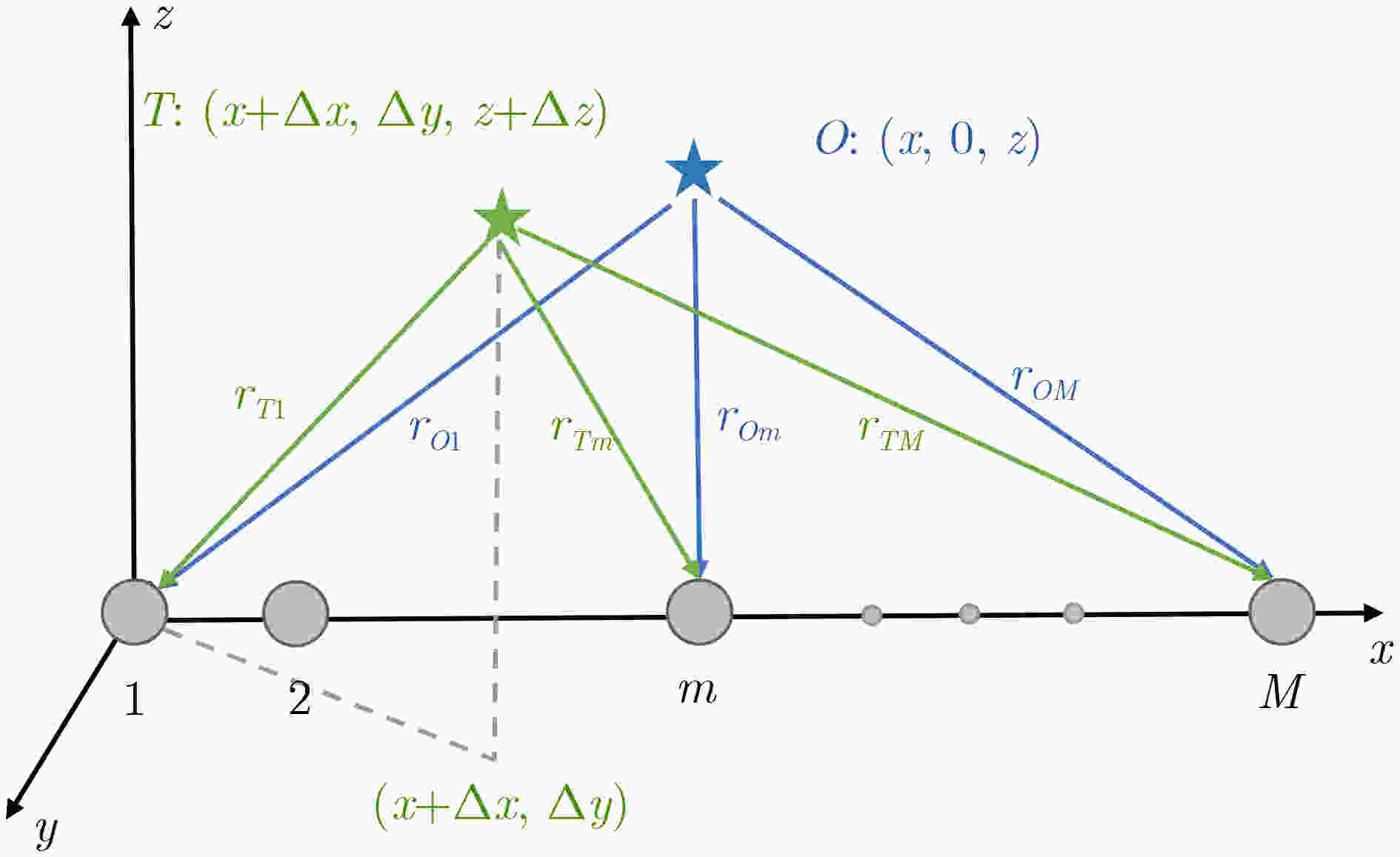

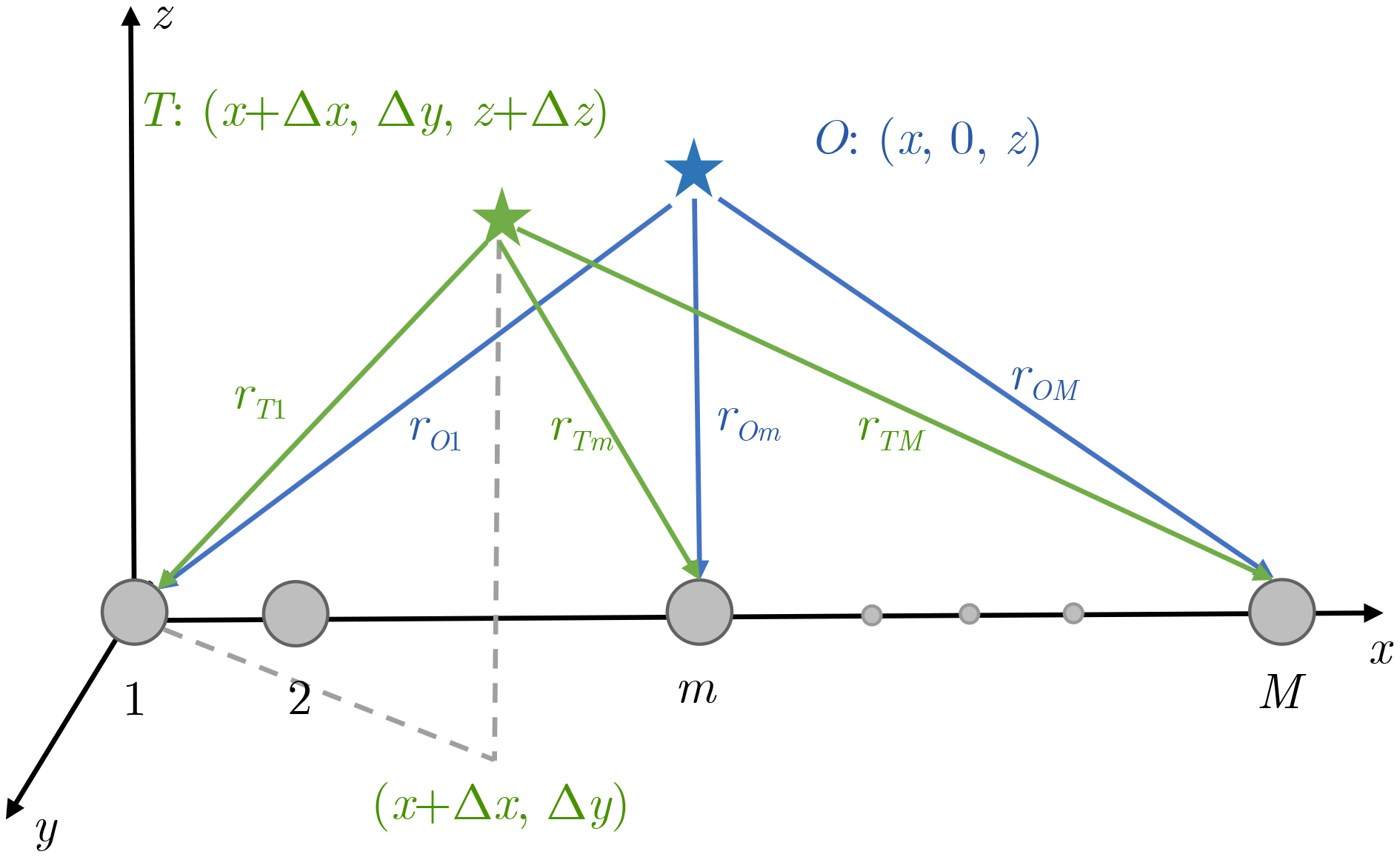

图 1 暗室近场阵列校正模型图

下载: 全尺寸图片幻灯片

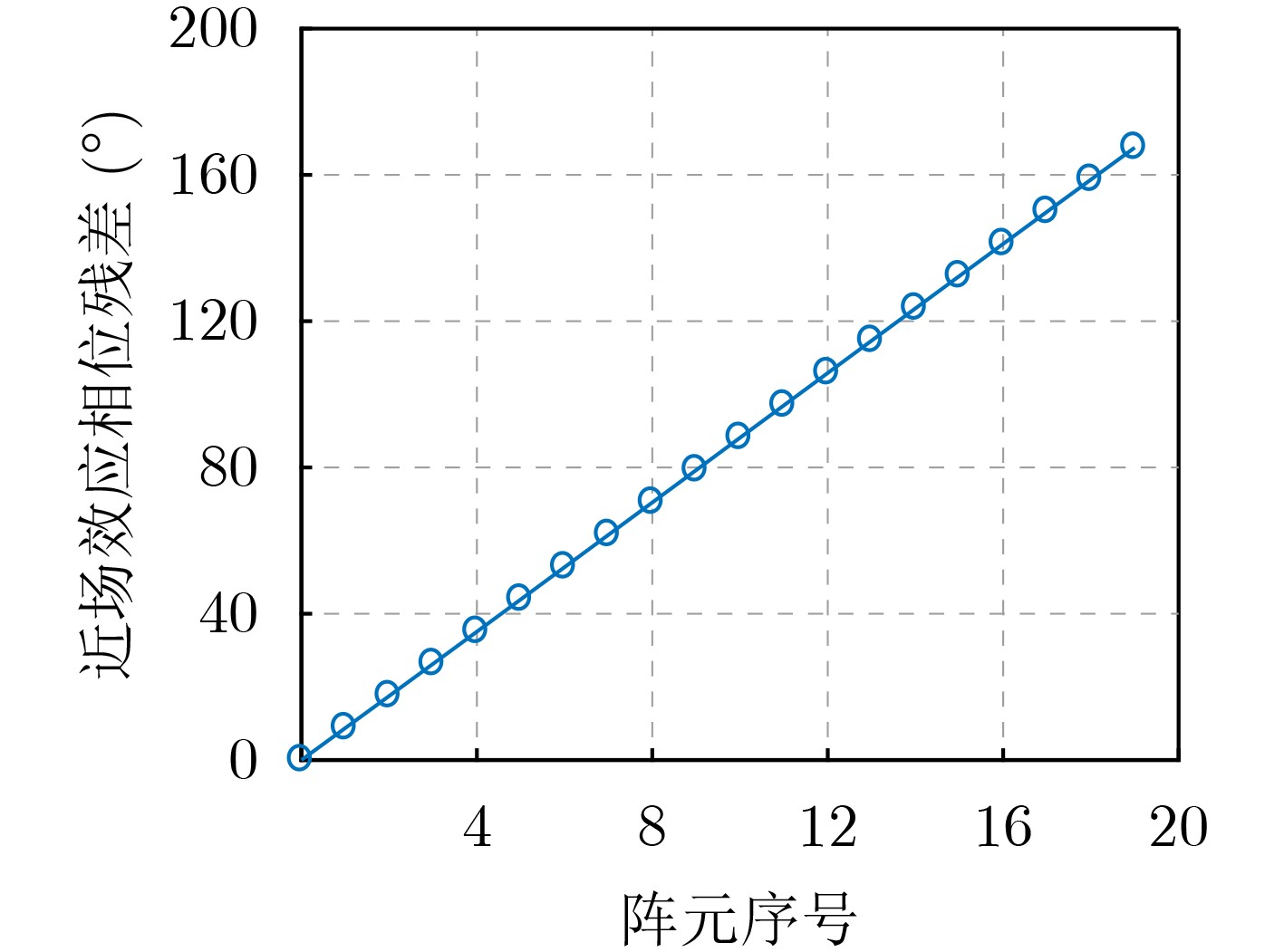

图 2 均匀直线阵近场效应相位残差与阵元序号的关系

下载: 全尺寸图片幻灯片

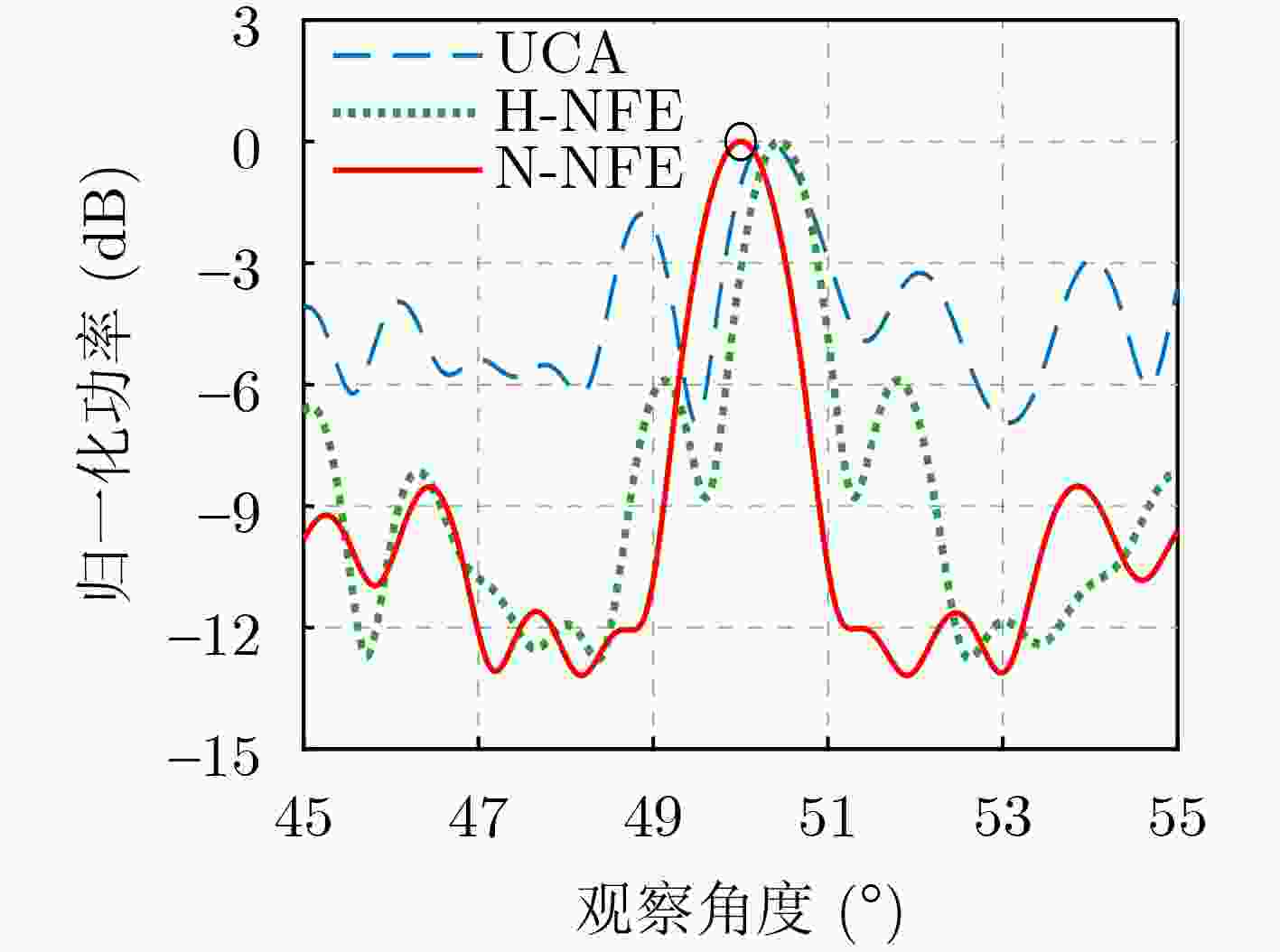

图 3 未校正阵列、去除近场效应残差前后的方位谱图

下载: 全尺寸图片幻灯片

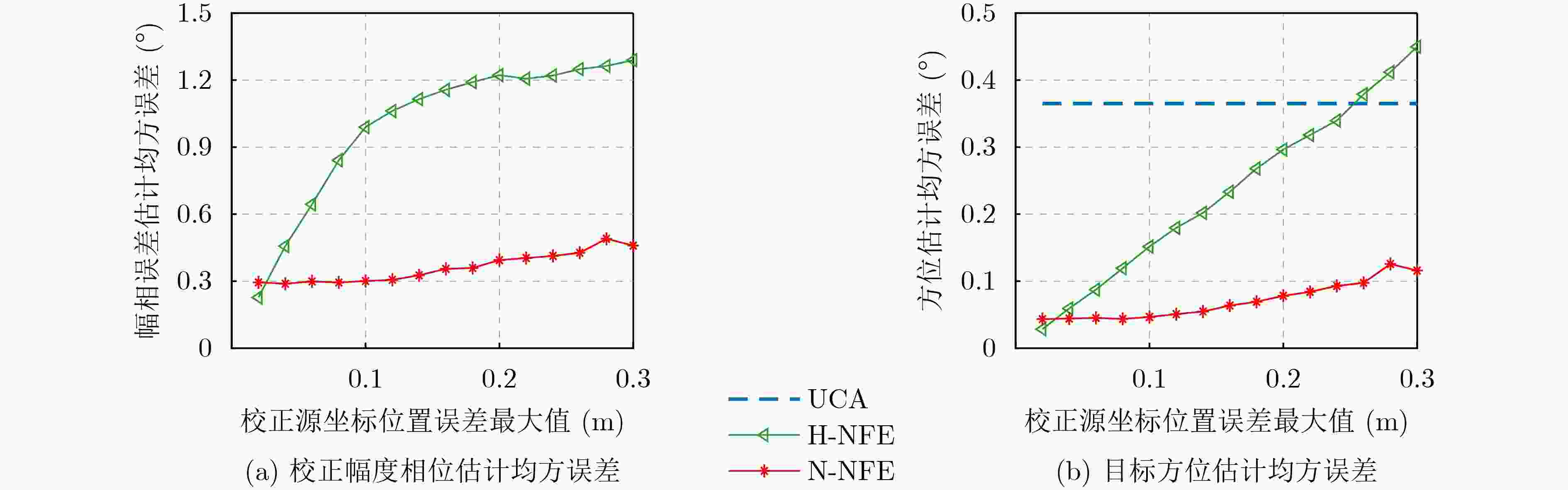

图 4 阵列校正幅度相位误差、测向估计结果的均方误差随x, y和z轴校正源坐标误差的最大值的变化情况

下载: 全尺寸图片幻灯片

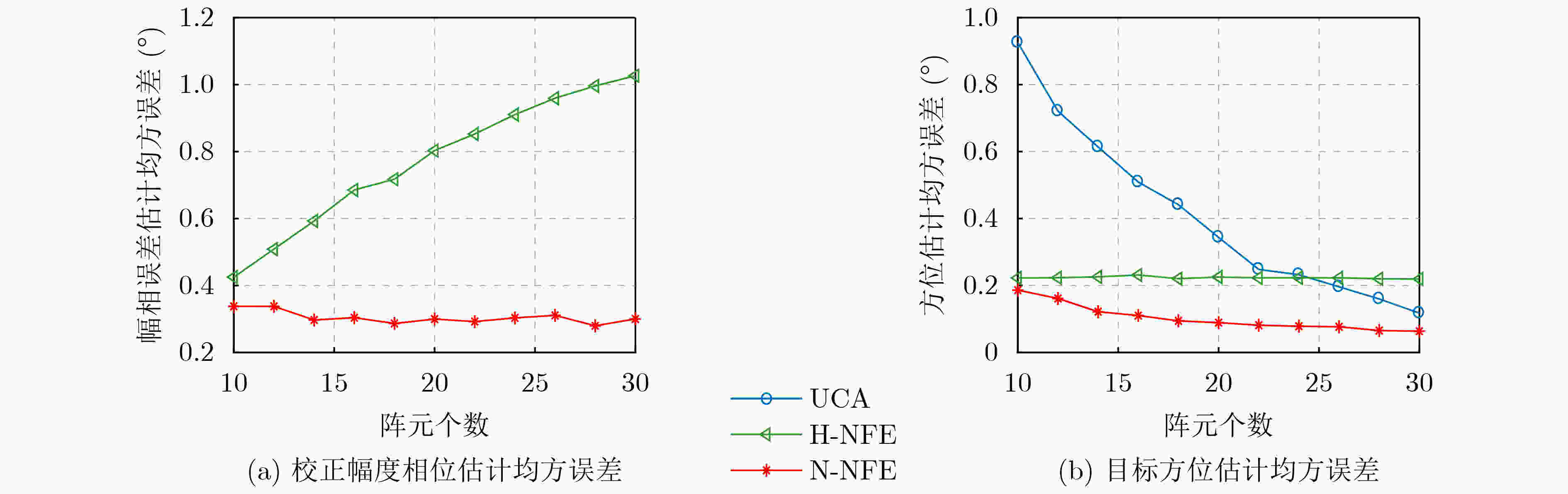

图 5 阵列校正幅度相位误差、测向估计结果的均方误差随阵元个数的变化情况

下载: 全尺寸图片幻灯片

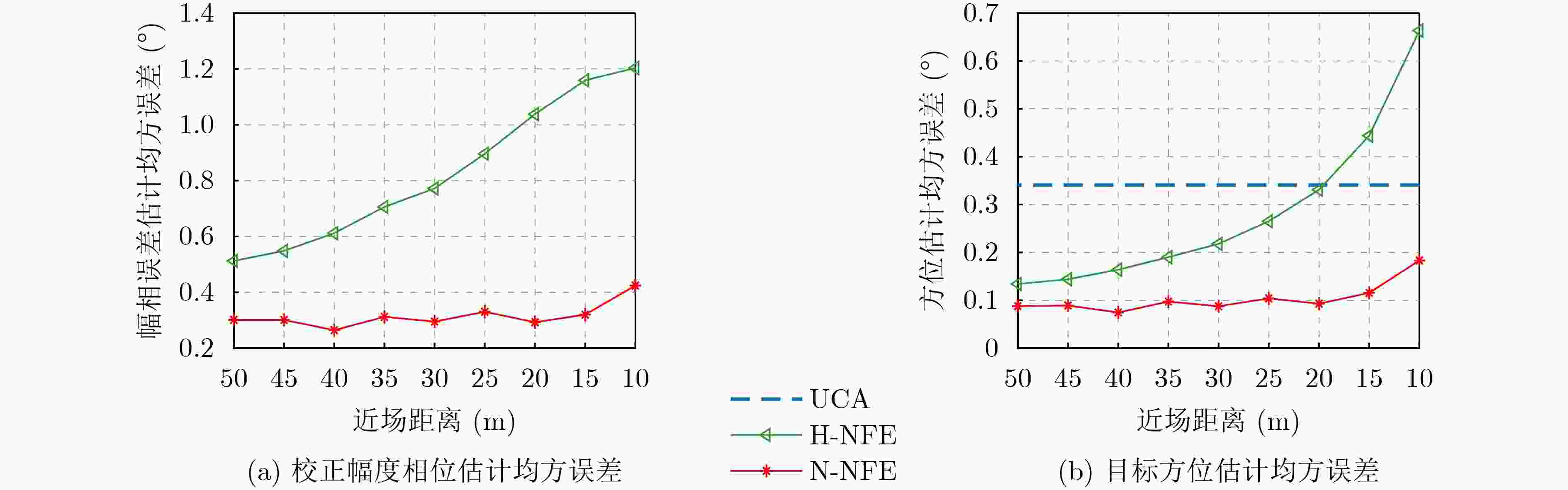

图 6 阵列校正幅度相位误差、测向估计结果的均方误差随近场距离的变化情况

下载: 全尺寸图片幻灯片

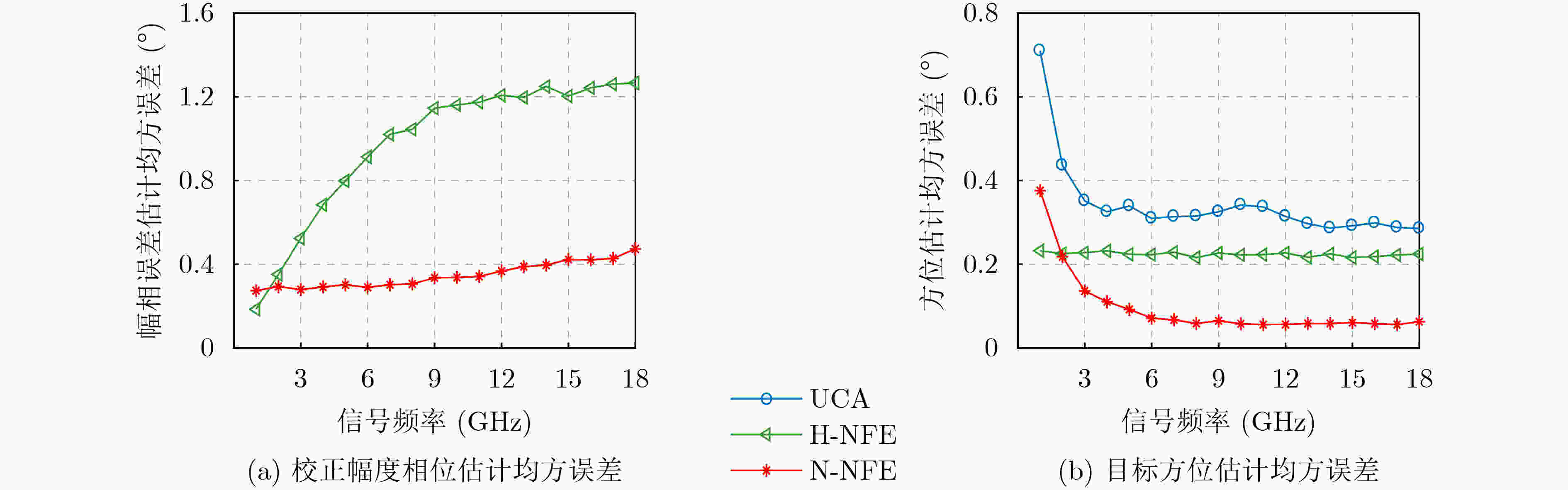

图 7 阵列校正幅度相位误差、测向估计结果的均方误差随信号频率的变化情况

下载: 全尺寸图片幻灯片

参考文献(17)

[1]	刘恺忻, 付进, 邹男, 等. 利用协方差矩阵拟合的阵列孔径扩展方法[J]. 声学学报, 2023, 48(5): 911–919. doi: 10.12395/0371-0025.2022074. LIU Kaixin, FU Jin, ZOU Nan, et al. Array aperture extension method using covariance matrix fitting[J]. Acta Acustica, 2023, 48(5): 911–919. doi: 10.12395/0371-0025.2022074.
[2]	CASSPI S G, TABRIKIAN J, and MESSER H. Blind array calibration of mutual coupling, phase, and gain for automotive radar[J]. IEEE Transactions on Aerospace and Electronic Systems, 2024, 60(1): 1060–1073. doi: 10.1109/TAES.2023.3336298.
[3]	张光普, 刘恺忻, 付进, 等. 无误差阵列协方差矩阵分离的阵列自校正方法[J]. 声学学报, 2024, 49(2): 298–307. doi: 10.12395/0371-0025.2022166. ZHANG Guangpu, LIU Kaixin, FU Jin, et al. Array self-calibration method based on covariance matrix separation of error-free array[J]. Acta Acustica, 2024, 49(2): 298–307. doi: 10.12395/0371-0025.2022166.
[4]	王鼎, 吴瑛. 阵元位置误差自校正的累量域辅助阵元法[J]. 系统工程与电子技术, 2010, 32(7): 1357–1364. doi: 10.3969/j.issn.1001-506X.2010.07.002. WANG Ding and WU Ying. Cumulants-based instrumental sensors method for self-calibration of sensor position errors[J]. Systems Engineering and Electronics, 2010, 32(7): 1357–1364. doi: 10.3969/j.issn.1001-506X.2010.07.002.
[5]	DING Guangda, ANSELMI N, XU Wanye, et al. Interval-bounded optimal power pattern synthesis of array antenna excitations robust to mutual coupling[J]. IEEE Antennas and Wireless Propagation Letters, 2023, 22(11): 2725–2729. doi: 10.1109/LAWP.2023.3291428.
[6]	WEISS A J and FRIEDLANDER B. Eigenstructure methods for direction finding with sensor gain and phase uncertainties[J]. Circuits, Systems and Signal Processing, 1990, 9(3): 271–300. doi: 10.1007/BF01201215.
[7]	LIU Aifei, LIAO Guisheng, ZENG Cao, et al. An Eigenstructure method for estimating DOA and sensor gain-phase errors[J]. IEEE Transactions on Signal Processing, 2011, 59(12): 5944–5956. doi: 10.1109/TSP.2011.2165064.
[8]	程丰, 龚子平, 张驰, 等. 一种基于旋转测量的阵列幅相误差校正新方法[J]. 电子与信息学报, 2017, 39(8): 1899–1905. doi: 10.11999/JEIT161058. CHENG Feng, GONG Ziping, ZHANG Chi, et al. A new rotation measurement-based method for array gain-phase errors calibration[J]. Journal of Electronics & Information Technology, 2017, 39(8): 1899–1905. doi: 10.11999/JEIT161058.
[9]	何朝鑫, 张敏, 郭福成. 基于多标校站的干涉仪系统误差校正方法[J]. 航天电子对抗, 2015, 31(3): 1–5,64. doi: 10.16328/j.htdz8511.2015.03.015. HE Chaoxin, ZHANG Min, and GUO Fucheng. Calibration method of interferometer based on multiple known emitters[J]. Aerospace Electronic Warfare, 2015, 31(3): 1–5,64. doi: 10.16328/j.htdz8511.2015.03.015.
[10]	SALAS-NATERA M A, RODRÍGUEZ-OSORIO R M, DE HARO ARIET L, et al. Novel reception and transmission calibration technique for active antenna array based on phase center estimation[J]. IEEE Transactions on Antennas and Propagation, 2017, 65(10): 5511–5522. doi: 10.1109/TAP.2017.2738067.
[11]	JIROUSEK M, DÖRING B J, LOOSER P, et al. First measurement results of a new highly-accurate active SAR calibration target[C]. 2012 IEEE International Geoscience and Remote Sensing Symposium, Munich, Germany, 2012: 1618–1620. doi: 10.1109/IGARSS.2012.6351219.
[12]	王敏, 马晓川, 鄢社锋, 等. 阵列幅度/相位误差的有源校正新方法[J]. 信号处理, 2015, 31(11): 1389–1395. doi: 10.3969/j.issn.1003-0530.2015.11.001. WANG Min, MA Xiaochuan, YAN Shefeng, et al. New calibration method for array gain and phase errors with signal sources[J]. Journal of Signal Processing, 2015, 31(11): 1389–1395. doi: 10.3969/j.issn.1003-0530.2015.11.001.
[13]	姜祖青, 杨宾. 一种新的多径场景下乘性阵列误差有源校正算法[J]. 信息工程大学学报, 2022, 23(2): 129–134,140. doi: 10.3969/j.issn.1671-0673.2022.02.001. JIANG Zuqing and YANG Bin. Novel multiplicative array errors active calibration algorithm in presence of multipath[J]. Journal of Information Engineering University, 2022, 23(2): 129–134,140. doi: 10.3969/j.issn.1671-0673.2022.02.001.
[14]	房晓丽, 吴礼杰, 张金菊. 有限测试距离对GNSS抗干扰天线阵远场测试的影响[J]. 电子学报, 2020, 48(5): 1030–1035. doi: 10.3969/j.issn.0372-2112.2020.05.025. FANG Xiaoli, WU Lijie, and ZHANG Jinju. Influence of limited test distance on far-field measurement for GNSS anti-jamming array[J]. Acta Electronica Sinica, 2020, 48(5): 1030–1035. doi: 10.3969/j.issn.0372-2112.2020.05.025.
[15]	王燕, 邹男, 梁国龙. 强多途环境下水听器阵列位置近场有源校正方法[J]. 物理学报, 2015, 64(2): 024304. doi: 10.7498/aps.64.024304. WANG Yan, ZOU Nan, and LIANG Guolong. A geometric calibration mehtod of hydrophone array with known sources in near field under strong multipath[J]. Acta Physica Sinica, 2015, 64(2): 024304. doi: 10.7498/aps.64.024304.
[16]	TANG Yuanhua, WANG Zhengpeng, CHEN Xiaoming, et al. Near-field uniform linear array calibration based on the extrapolation of measured complex signals[J]. IEEE Transactions on Antennas and Propagation, 2023, 71(10): 8407–8412. doi: 10.1109/TAP.2023.3307474.
[17]	倪萌钰, 陈辉, 倪柳柳, 等. 近场源幅相及阵元位置误差的校正算法[J]. 空军预警学院学报, 2019, 33(3): 169–174. doi: 10.3969/j.issn.2095-5839.2019.03.003. NI Mengyu, CHEN Hui, NI Liuliu, et al. Calibration algorithm for gain-phase and sensors positioning errors of near-field source[J]. Journal of Air & Space Early Warning Research, 2019, 33(3): 169–174. doi: 10.3969/j.issn.2095-5839.2019.03.003.
