面向GEO SAR图像的海上区域运动目标检测方法

吴一凡; 黄丽佳; 严朝保; 张冰尘

doi:10.11999/JEIT240906

面向GEO SAR图像的海上区域运动目标检测方法

doi: 10.11999/JEIT240906

吴一凡^{1, 2, 3, 4},
黄丽佳^{1, 2, 3, ,},
严朝保^{1, 2, 3, 4},
张冰尘^{1, 2, 3}

1.
中国科学院空天信息创新研究院北京 100094
2.
中国科学院空间信息处理与应用系统技术重点实验室北京 100190
3.
中国科学院大学电子电气与通信工程学院北京 101408
4.
目标认知与应用技术重点实验室北京 100190

基金项目: 中国科学院青年创新促进会(Y2023036)

详细信息

作者简介:
吴一凡：女，博士生，研究方向为合成孔径雷达信号处理

黄丽佳：女，研究员，研究方向为新体制合成孔径雷达信号处理与信息处理

严朝保：男，博士生，研究方向为合成孔径雷达成像算法

张冰尘：男，研究员，研究方向为微波遥感与雷达技术

通讯作者:
黄丽佳　iecas8huanglijia@163.com

中图分类号: TN957.52
计量
- 文章访问数: 101
- HTML全文浏览量: 38
- PDF下载量: 26
- 被引次数: 0
出版历程
- 收稿日期: 2024-10-22
- 修回日期: 2025-05-14
- 网络出版日期: 2025-05-24

A Moving Target Detection Method for GEO SAR Image in Maritime Areas

WU Yifan^{1, 2, 3, 4},
HUANG Lijia^{1, 2, 3
, ,},
YAN Chaobao^{1, 2, 3, 4},
ZHANG Bingchen^{1, 2, 3}

1.
Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100094, China
2.
Key Laboratory of Technology in Geo-Spatial Information Processing and Application System, Chinese Academy of Sciences, Beijing 100190, China
3.
School of Electronic, Electrical and Communication Engineering, University of Chinese Academy of Sciences, Beijing 101408, China
4.
Key Laboratory of Target Cognition and Application Technology (TCAT), Chinese Academy of Sciences, Beijing 100190, China

Funds: The Youth Innovation Promotion Association, Chinese Academy of Sciences (Y2023036)

摘要

摘要: 地球同步轨道合成孔径雷达(GEO SAR)具有宽覆盖、高重访、近凝视等成像优势，具备对广域海场景运动目标的长时间监测能力。然而，运动目标在图像中严重偏移且剧烈散焦，对GEO SAR海上区域运动目标检测造成困难，主要包括2个关键问题：(1) 超长的合成孔径时间、超慢的星地相对速度会导致运动目标严重散焦；(2) 超大幅宽图像、陆海目标混淆增加了运动目标检测难度。为了解决这些问题，该文分析了GEO SAR动目标的位置偏移以及相位误差等影响，根据影响特点提出一种面向GEO SAR图像的海面运动目标检测方法。该检测方法通过图像预处理步骤对整幅图像进行分块处理和降采样滤波，以提高了计算效率、增强信杂比，使运动目标的特征更加突出、在复杂背景中更加显著。该检测方法通过条件扩散检测网络，将预处理后的GEO SAR图像作为条件编码输入，约束检测结果的生成，得到运动目标分割掩码；通过设计密集交互模块，实现分割图与原始数据在潜在空间中的多尺度特征耦合。实验结果表明，所提出的预处理能够有效减少数据处理的计算复杂度，同时提高图像的信杂比。基于仿真数据，在广域海场景中，所提的动目标检测方法能够准确检测出GEO SAR图像中海面区域的动目标。
- 地球同步轨道合成孔径雷达 /
- 运动目标检测 /
- 深度学习 /
- 扩散模型
Abstract: Objective Geosynchronous Synthetic Aperture Radar (GEO SAR) provides wide-area coverage and rapid revisit, supporting near real-time observation of large maritime regions. However, detecting moving targets in GEO SAR images remains challenging due to severe geometric shifts and defocusing effects induced by target motion. These issues are further compounded when deep learning-based detection algorithms are applied. Specifically, the extended synthetic aperture time of GEO SAR leads to significant motion-induced defocusing, degrading the structural clarity of moving targets. Moreover, the wide swath of GEO SAR results in sparsely distributed moving targets, substantially increasing computational demands. The long integration time also renders GEO SAR imagery more sensitive to sea clutter, which elevates false alarm rates and obscures target backscattering signatures, thereby compromising target contour visibility. To address these challenges, this study analyzes the displacement and phase errors introduced by moving targets under the non-linear squint-angle imaging geometry of GEO SAR. Based on this analysis, a diffusion model-based method is proposed to detect maritime moving targets in GEO SAR imagery. Methods To address the aforementioned challenges, this study analyzes azimuth displacement and phase errors induced by target motion under the non-planar squint-angle imaging geometry of GEO SAR. Based on this analysis, a diffusion-based approach is proposed for detecting maritime moving targets in GEO SAR imagery. The method comprises two primary components: a preprocessing stage and a conditional diffusion detection network. In the preprocessing stage, the full-scene image is divided into smaller sub-scenes to mitigate the difficulty of directly processing ultra-wide-swath GEO SAR data. These sub-scenes are subsequently downsampled to dimensions compatible with network input, which enhances the signal-to-noise ratio and strengthens the representation of motion-related features. In the detection stage, a conditional diffusion detection network tailored for GEO SAR is developed. This network accepts the preprocessed image as conditional input to guide the generation of detection results, thereby improving accuracy. To further refine performance, a dense interaction module is introduced to facilitate multi-scale feature fusion between the segmentation mask and original data in the latent space, enabling precise segmentation of moving targets. Results and Discussions To evaluate the effectiveness of the proposed detection method, the imaging characteristics of sea clutter and moving targets under long synthetic aperture time are simulated. The sea surface is modeled using the JONSWAP spectrum (Fig. 6), and clutter is generated via a backscattering coefficient model, resulting in simulated imagery of sea clutter and moving targets under extended integration time (Fig. 7). A quantitative analysis is performed to examine the effect of downsampling on detection performance by calculating the Signal-to-Clutter Ratio (SCR), as summarized in Table 4. The results show that 8× downsampling improves the SCR by 11.3 dB. After preprocessing, the downsampled sub-scenes are fed into the detection network to produce moving target detection results (Fig. 8). Compared to other methods, the proposed approach yields improvements of 1.1%, 2.2%, and 0.9% in Intersection over Union (IoU), Accuracy, and F1-score, respectively. Conclusions To address the challenges of detecting moving maritime targets in GEO SAR images—such as ultra-long synthetic aperture duration, extremely wide swath, and interference from sea clutter—this study first analyzes azimuth displacement and phase errors introduced by target motion under the non-linear squint-angle imaging geometry of GEO SAR. A detection method is then proposed, comprising two key components: preprocessing and a conditional diffusion detection network. During preprocessing, the full-scene image is divided into multiple sub-scenes to facilitate processing of ultra-wide-swath GEO SAR data. These sub-scenes are downsampled to dimensions compatible with the detection network, improving the SCR, enhancing motion features, and suppressing clutter. In the detection stage, a conditional diffusion detection network customized for GEO SAR imagery is employed. This network uses the preprocessed sub-scenes as conditional input to guide the generation of detection results, enhancing accuracy. A dense interaction module is further incorporated to enable multi-scale feature coupling between the segmentation mask and the original data in the latent space, achieving pixel-level segmentation of moving targets. Simulation experiments confirm the method’s effectiveness in detecting moving maritime targets under complex oceanic conditions. Although initial progress has been achieved, further work is required to improve parameter extraction and optimize network performance. Future efforts will focus on refining detection models for more comprehensive analysis of moving targets in GEO SAR imagery.
- Geosynchronous Synthetic Aperture Radar (GEO SAR) /
- Moving Target Detection (MTD) /
- Deep learning /
- Diffusion model

HTML全文

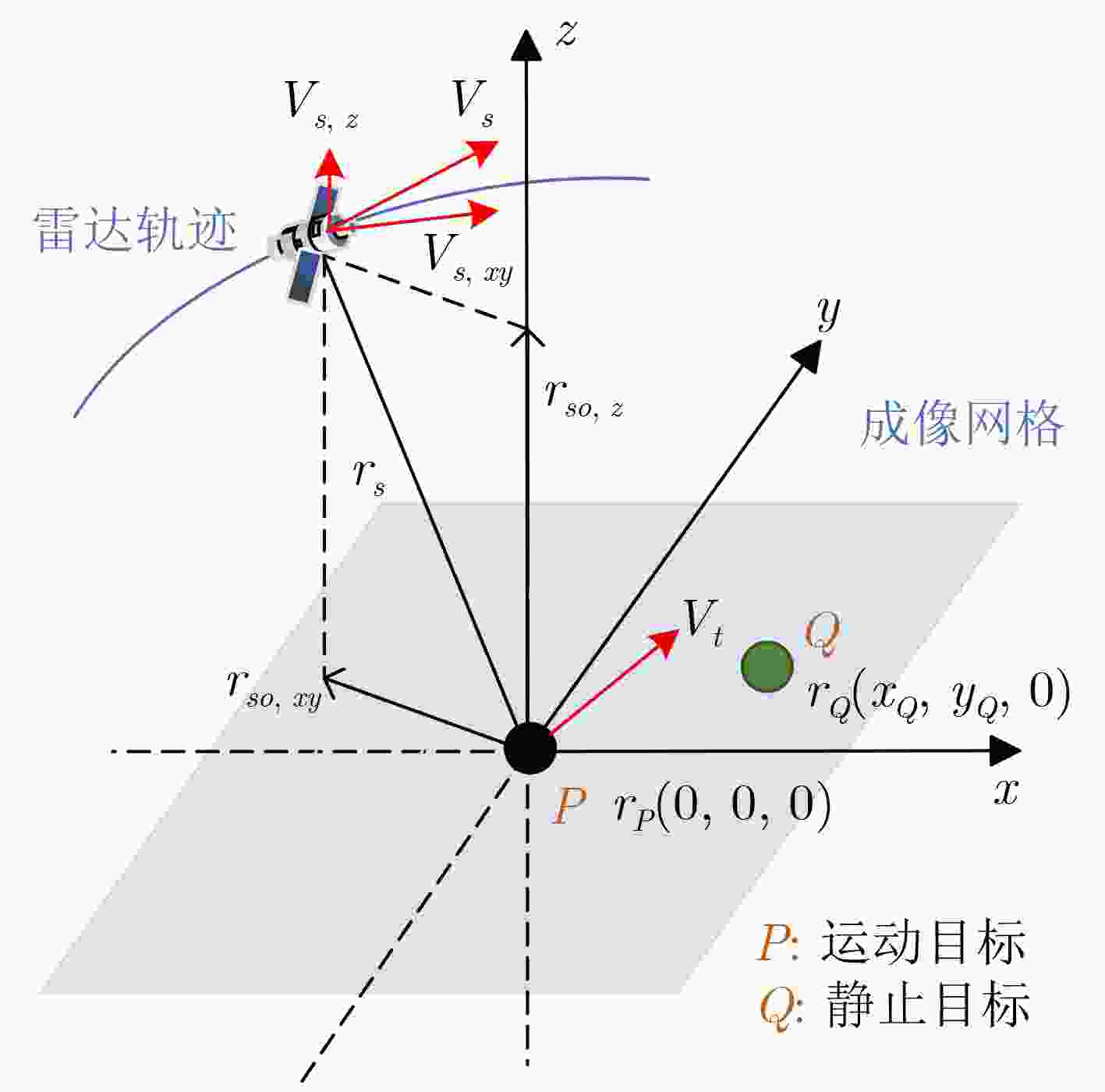

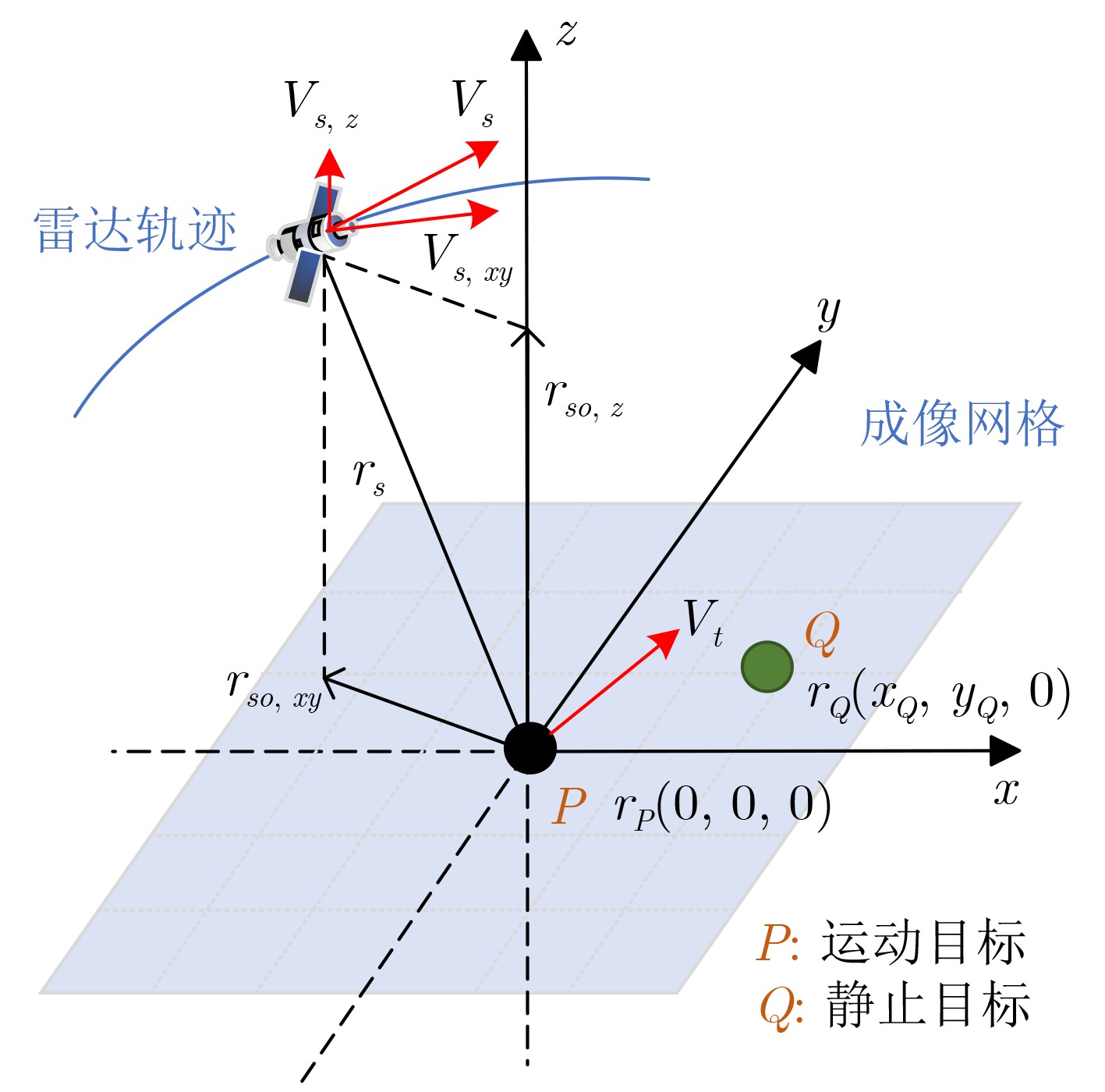

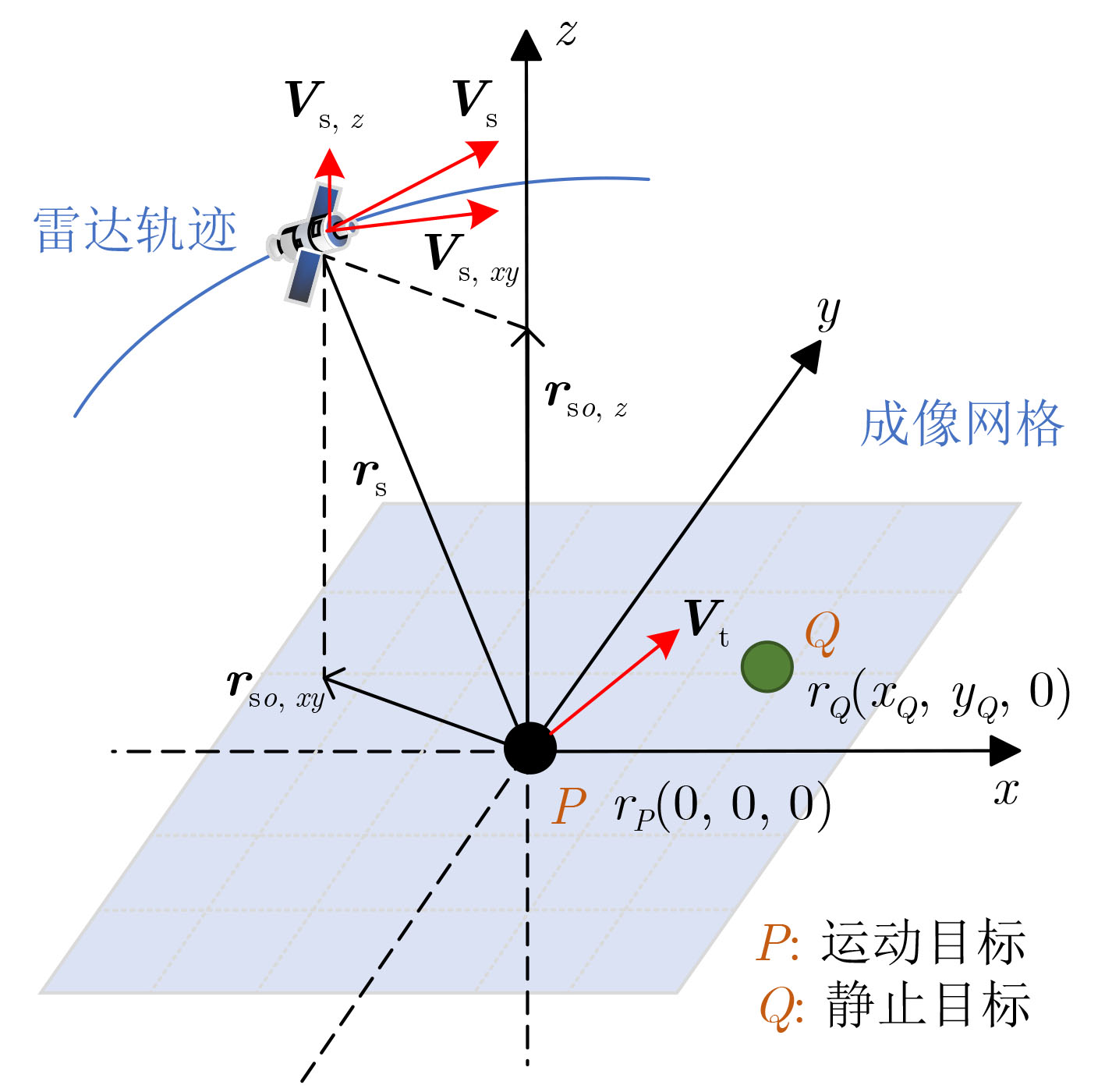

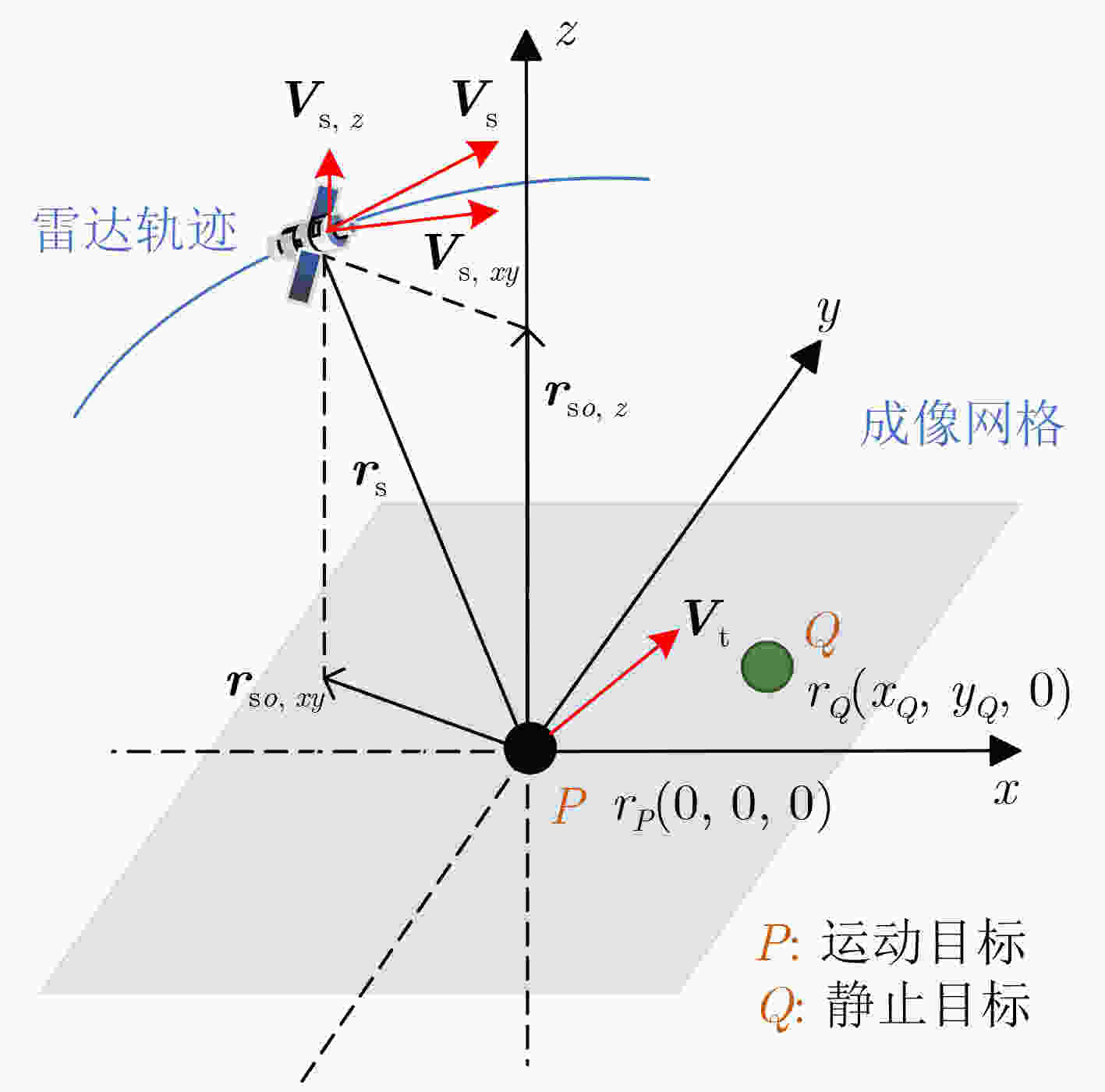

图 1 GEO SAR非平直斜视成像几何示意图

下载: 全尺寸图片幻灯片

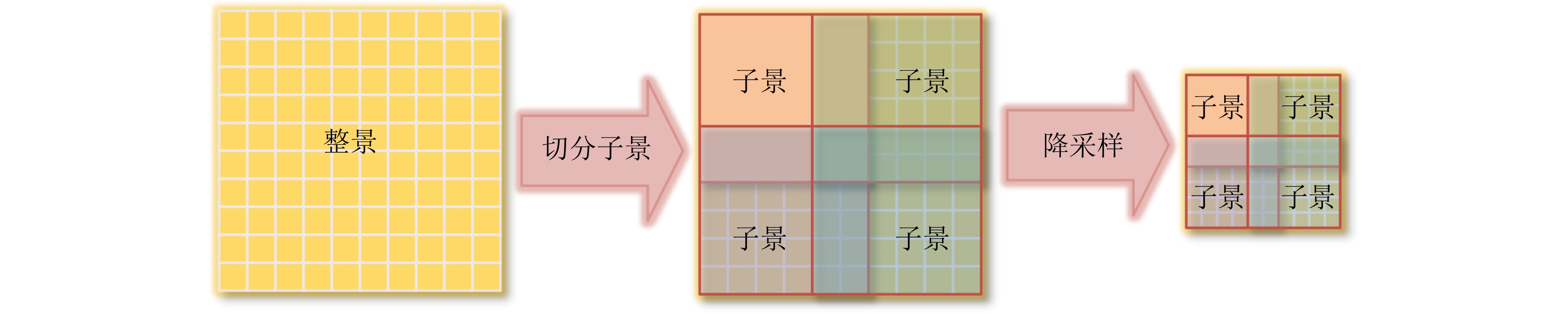

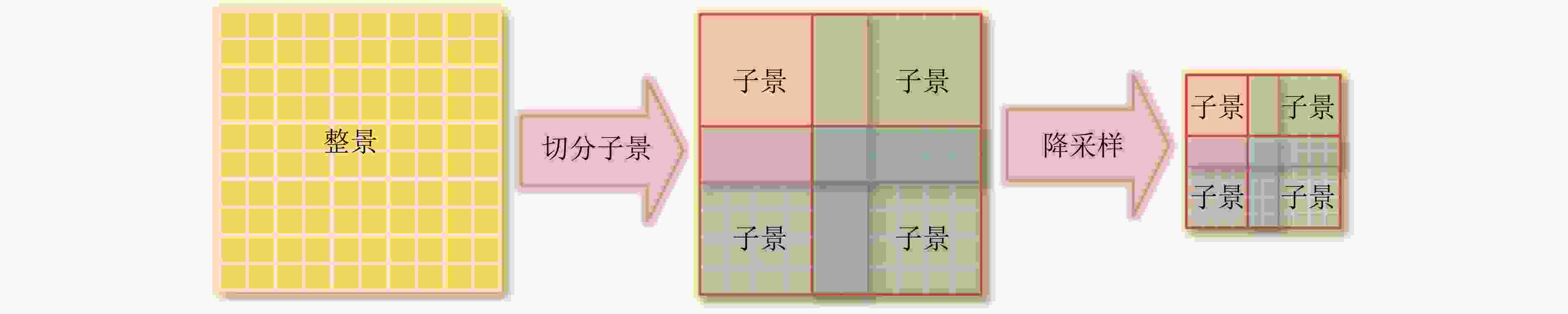

图 2 预处理流程图

下载: 全尺寸图片幻灯片

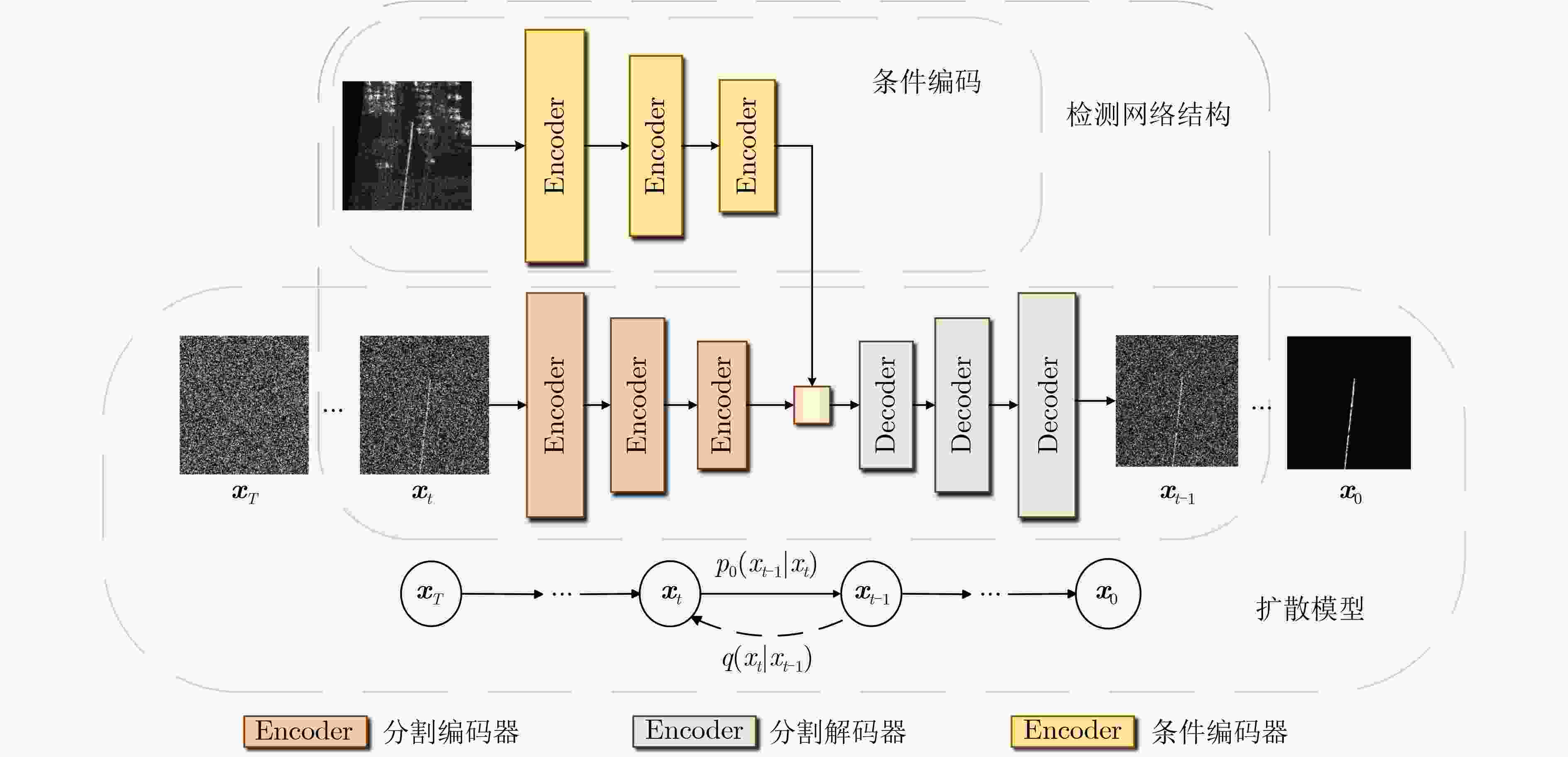

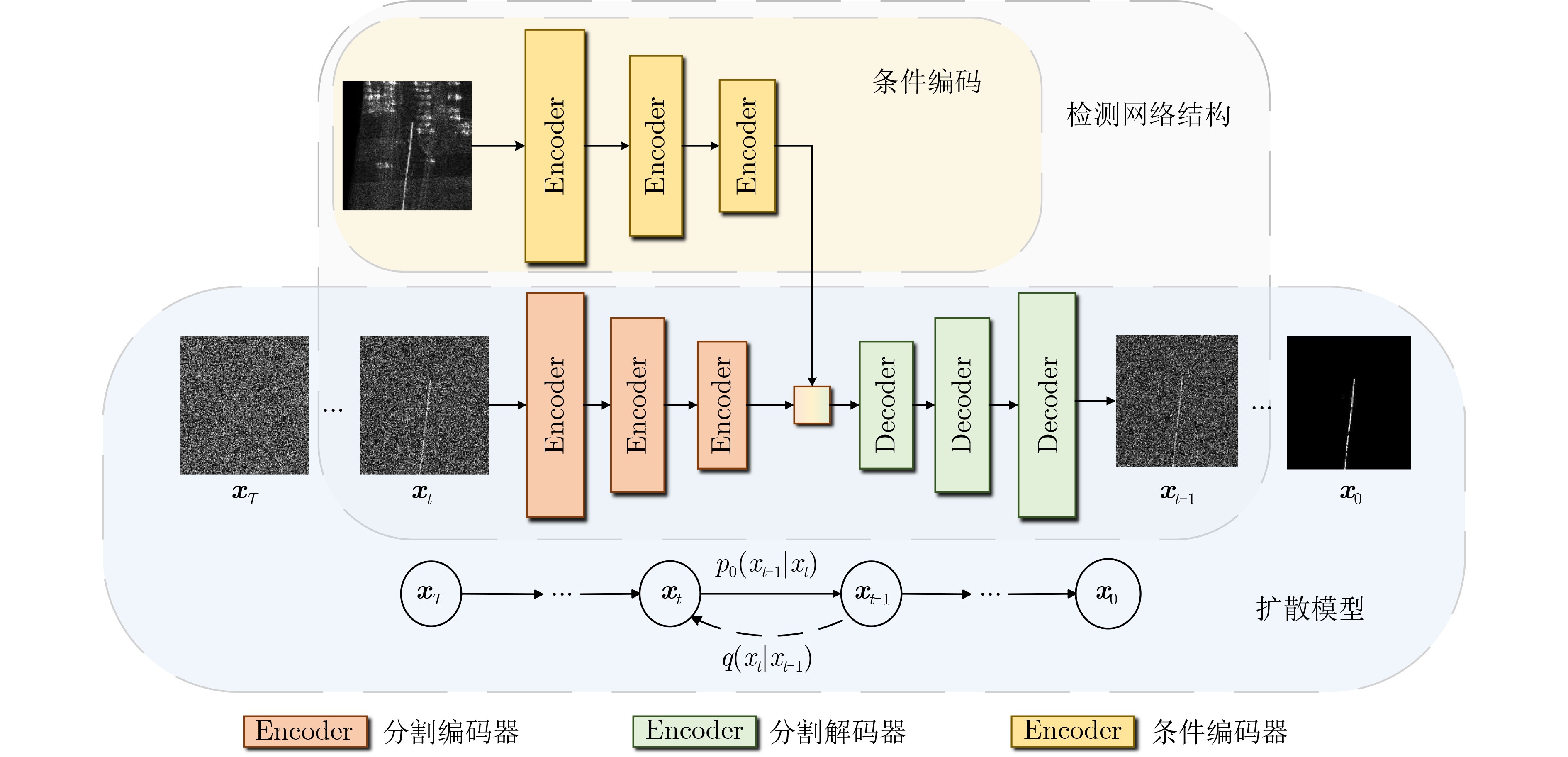

图 3 条件扩散检测网络框架示意图

下载: 全尺寸图片幻灯片

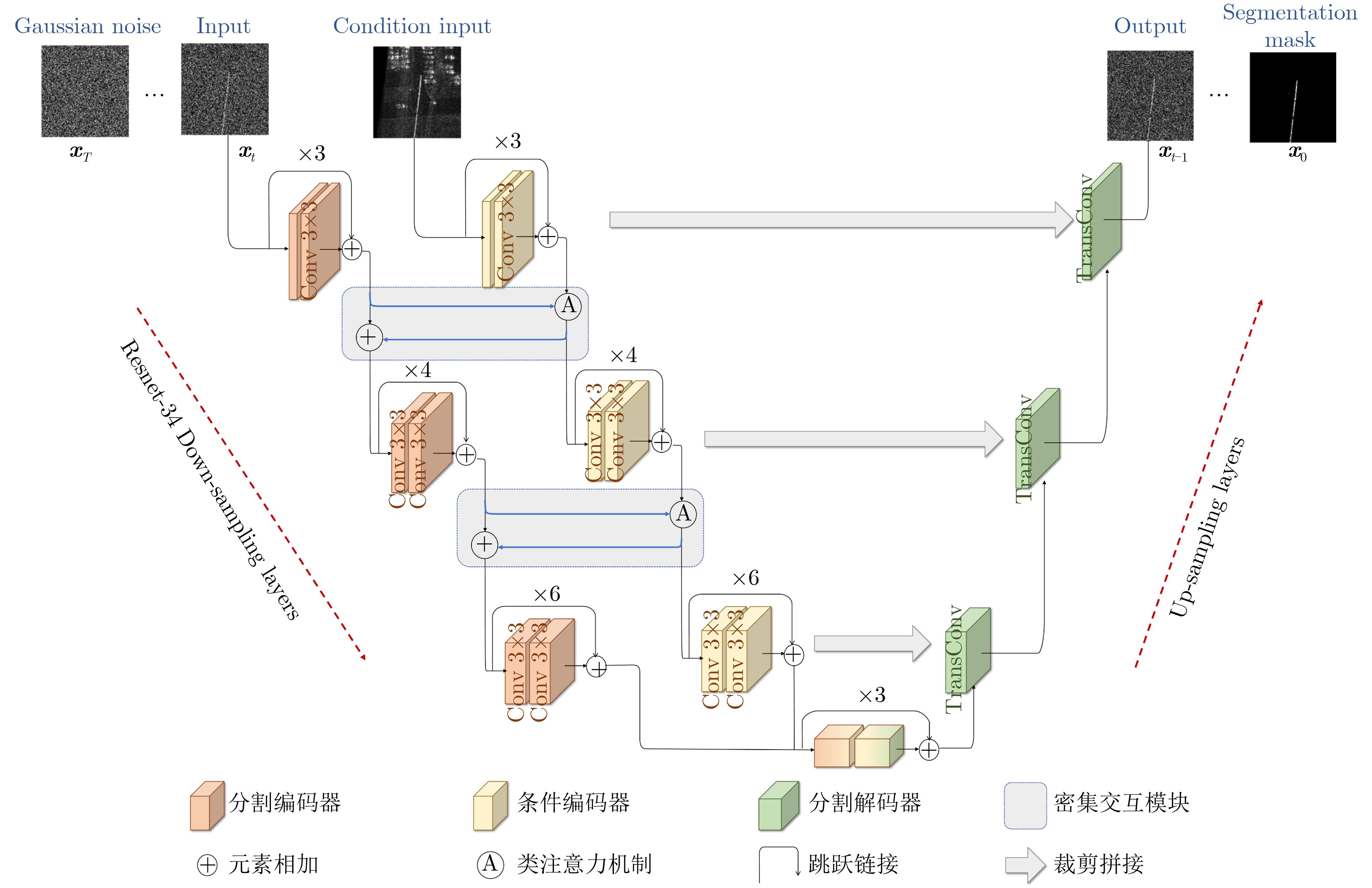

图 4 条件扩散检测网络结构示意图

下载: 全尺寸图片幻灯片

图 5 GEO SAR运动轨迹

下载: 全尺寸图片幻灯片

图 6 海面建模仿真结果

下载: 全尺寸图片幻灯片

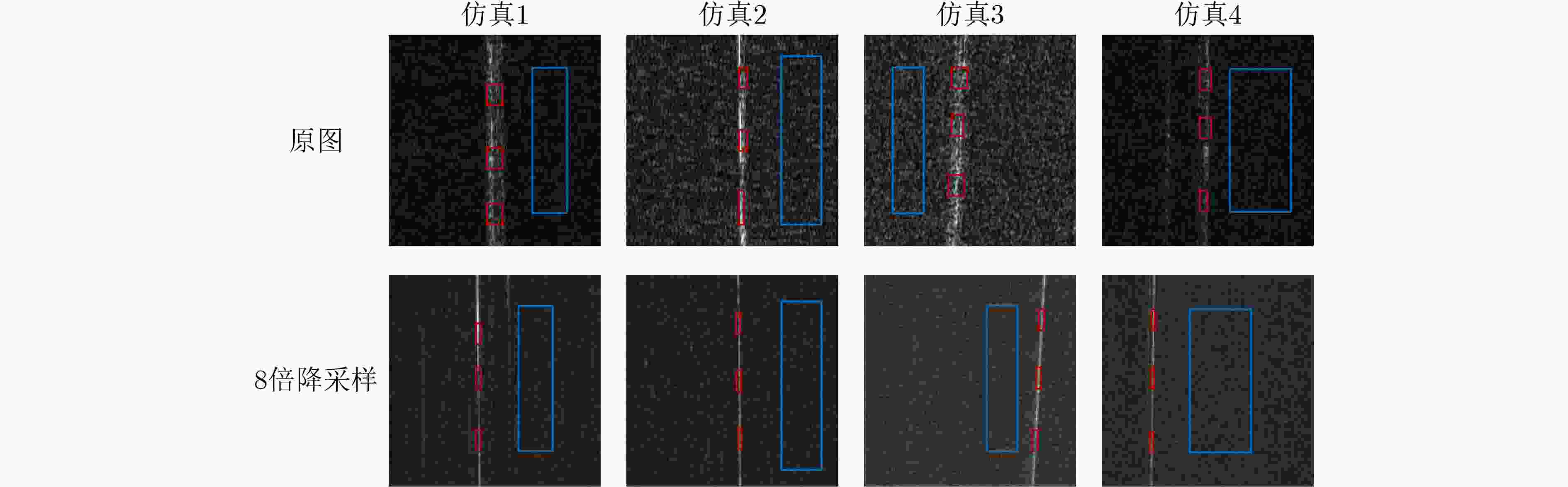

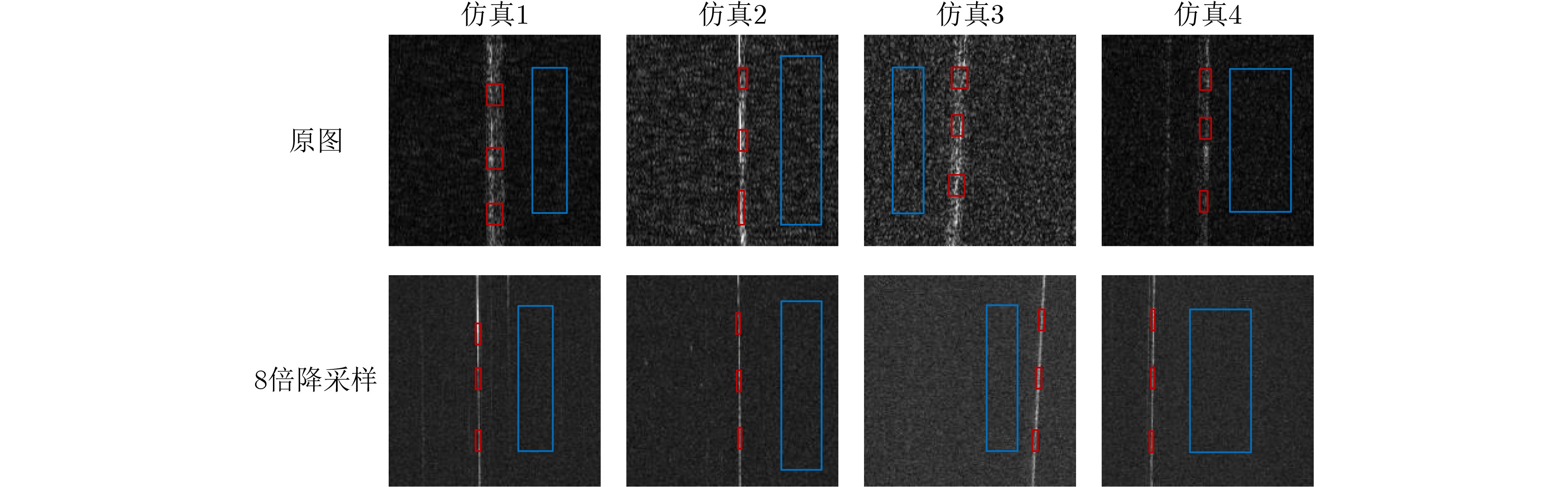

图 7 动目标及海杂波仿真

下载: 全尺寸图片幻灯片

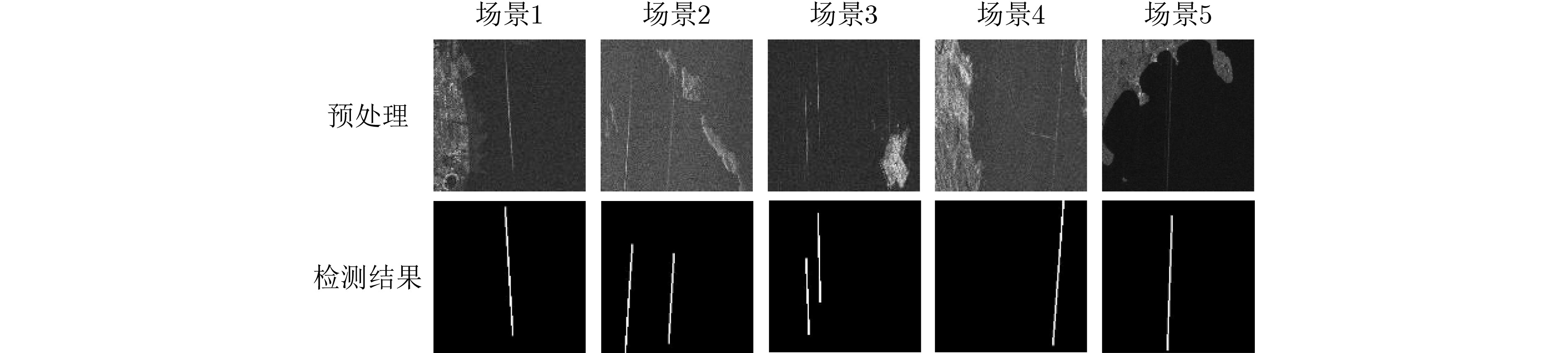

图 8 不同子景下的快速运动目标检测结果

下载: 全尺寸图片幻灯片

表 1 GEO SAR仿真参数

参数		值
轨道参数	轨道半长轴(km)	42164
	轨道偏心率(°)	0
	轨道倾角(–)	16
场景参数	目标经度(°E)	122.2
场景参数	目标纬度(°N)	28.0

下载: 导出CSV

表 2 动目标位置偏移仿真结果

速度(km/h)		位置偏移(km)
速度(km/h)		正东	正北	正西	正南	东北	西北	东南	西南
15	$ {r_{Q1}} $	–168.6	–118.8	168.6	118.8	–203.2	35.1	–35.1	203.2
15	$ {r_{Q2}} $	113.2	79.6	–111.4	–78.7	136.7	–23.3	23.4	–134.2
30	$ {r_{Q1}} $	–337.2	–237.7	337.2	237.7	–406.5	70.3	–70.3	406.5
30	$ {r_{Q2}} $	228.18	160.1	–221.2	–156.7	276.0	–46.6	47.0	–265.9
45	$ {r_{Q1}} $	–505.7	–356.6	505.7	356.6	–609.8	105.4	–105.4	609.8
45	$ {r_{Q2}} $	344.9	241.5	–329.3	–233.8	417.8	–69.9	70.6	–395.1
60	$ {r_{Q1}} $	–674.3	–475.5	674.3	475.5	–813.1	140.6	–140.6	813.1
60	$ {r_{Q2}} $	463.5	328.8	–435.7	–310.0	562.4	–93.0	94.3	–522.0

下载: 导出CSV

表 3 动目标二次相位误差仿真结果

目标运动速度 (km/h)	合成孔径时间 (min)	二次相位误差(°)
目标运动速度 (km/h)	合成孔径时间 (min)	东	北	西	南	东北	西北	东南	西南
15	10	6.8	－303.6	－9.1	301.4	－209.3	－220.6	218.4	207.1
	20	27.5	－1214.5	－36.3	1205.7	－837.4	－882.6	873.8	828.6
	30	61.9	－2732.5	－81.7	2712.8	－1884.3	－1985.9	1966.1	1864.5
30	10	11.5	－609.4	－20.3	600.6	－420.9	－443.5	434.7	412.1
	20	46.3	－2437.7	－81.4	2402.6	－1683.7	－1774.0	1738.9	1648.6
	30	104.2	－5484.8	－183.2	5405.8	－3788.3	－3991.5	3912.5	3709.3
45	10	14.1	－917.4	－33.8	897.6	－634.6	－668.5	648.7	614.9
	20	56.3	－3669.7	－135.3	3590.7	－2538.7	－2674.2	2595.2	2459.7
	30	126.7	－8256.8	－304.4	8079.0	－5712.0	－6016.9	5839.2	5534.3
60	10	14.3	－1227.6	－49.4	1192.5	－850.6	－895.7	860.6	815.4
	20	57.5	－4910.5	－197.9	4770.0	－3402.5	－3583.2	3442.7	3262.0
	30	129.4	－1104.9	－445.4	1073.3	－7655.5	－8062.1	7746.0	7339.5

下载: 导出CSV

表 4 信杂比计算结果

SCN(dB)	仿真1	仿真2	仿真3	仿真4	平均
原图	20.9378	18.9518	13.8055	8.9381	15.6583
8倍降采样	31.6631	34.5891	22.2958	19.2201	26.9420

下载: 导出CSV

表 5 所提检测方法与其他方法对比结果(%)

方法	IoU	Acc	F₁
FCN	53.7	85.8	69.9
Deeplab	58.4	88.4	73.7
PSPNet	61.6	88.6	76.2
本文	62.7	90.8	77.1

下载: 导出CSV
