一种面向AV1粗模式决策的高吞吐量硬件设计方法

盛庆华; 陶泽浩; 黄小芳; 赖昌材; 黄晓峰; 殷海兵; 董哲康

doi:10.11999/JEIT240823

一种面向AV1粗模式决策的高吞吐量硬件设计方法

doi: 10.11999/JEIT240823

1.
杭州电子科技大学电子信息学院杭州 310018
2.
杭州电子科技大学信息工程学院杭州 311305
3.
杭州电子科技大学通信工程学院杭州 310018

基金项目: 国家重点研发计划(2023YFB4502804)

详细信息

作者简介:
盛庆华：男，副教授，研究方向为视频编码、FPGA硬件加速、电子系统集成等

陶泽浩：男，硕士生，研究方向为视频编解码、FPGA硬件加速等

黄小芳：女，讲师，研究方向为视频编码、嵌入式应用等

赖昌材：男，高级工程师，研究方向为图像视频压缩、智能处理及其软硬件加速实现等

黄晓峰：男，副教授，研究方向为视频编解码与芯片架构设计等

殷海兵：男，教授，研究方向为数字视频编解码、多媒体信号处理、芯片结构设计验证等

董哲康：男，副教授，研究方向为忆阻器及忆阻系统、人工神经网络等

通讯作者:
黄小芳　20221016@hdu.edu.cn

中图分类号: TN919.8
计量
- 文章访问数: 37
- HTML全文浏览量: 10
- PDF下载量: 1
- 被引次数: 0
出版历程
- 收稿日期: 2024-09-27
- 修回日期: 2025-01-02
- 网络出版日期: 2025-01-09

A High-Throughput Hardware Design for AV1 Rough Mode Decision

1.
School of Electronic Information, Hangzhou Dianzi University, Hangzhou 310018, China
2.
School of Information Engineering, Hangzhou Dianzi University, Hangzhou 311305, China
3.
School of Communication Engineering, Hangzhou Dianzi University, Hangzhou 310018, China

Funds: The National Key R&D Program of China (2023YFB4502804)

摘要

摘要: 随着视频编码标准的不断更新迭代，开放媒体联盟(AOM)发布最新视频编码标准开放媒体视频编码标准(AV1)。其中，帧内编码技术采用更加丰富的预测模式来提高预测效率，预测种类从VP9中的10种扩展至61种。为了应对预测种类增加的变化并提高硬件的处理吞吐能力，该文提出基于全流水线结构的AV1粗模式决策硬件架构设计。在算法层面，以4×4块为最小处理单元，按照Z顺序对64×64编码树单元(CTU)中不同尺寸的预测单元(PUs)进行粗模式决策，同时采用基于1:1 PU的代价累加近似方法来完成1:2, 1:4, 2:1和4:1 PU的代价计算，以减少计算复杂度；在硬件层面，设计兼容4×4至32×32等多尺寸PU的粗模式决策电路，取代为不同尺寸PU单独设计电路的方法，有效减少逻辑资源的闲置。实验结果表明，在全帧内(AI)配置下，提出的改进算法相较于AV1标准算法平均节省了45.78%的时间，提高了1.94% BD-Rate。同时，提出的硬件架构设计能够在1057个时钟周期内完成64×64 CTU的粗模式决策，使用Synopsys公司的Design Compiler 2016工具及UMC 28 nm工艺库对硬件设计综合得到，该设计能够在432.7 MHz工作频率下实时处理8k@50.6fps的视频。
- 开放媒体视频编码标准 /
- 帧内预测 /
- 粗模式决策 /
- 视频编码 /
- 流水线
Abstract: Objective As demand for 4K and 8K Ultra High Definition (UHD) videos increases, the latest generation of video coding standards has been developed to meet the growing need for UHD video transmission. UHD video coding requires processing more pixels and details, resulting in significant increases in computational complexity and resource consumption. Optimizing algorithms and implementing hardware acceleration are essential for achieving real-time encoding and decoding of UHD videos. In Alliance for Open Media Video 1 (AV1), richer intra-prediction modes have been introduced, expanding the number of modes from 10 in VP9 to 61, thereby increasing computational complexity. To address the added complexity of these modes and enhance hardware processing throughput, a hardware design for AV1 Rough Mode Decision (RMD) based on a fully pipelined architecture is proposed. Methods At the algorithm level, a 4×4 block is used as the minimum processing unit. RMD is applied to various sizes of Prediction Units (PUs) within a 64×64 Coding Tree Unit (CTU) following Z-order scanning. This approach allows for efficient processing of large blocks by dividing them into smaller, manageable units. To reduce computational complexity, the SATD cost calculations for different PU sizes (e.g., 1:2, 1:4, 2:1, and 4:1) are performed using a cost accumulation approximation method based on the 1:1 PU. This method minimizes the need to recalculate costs for every possible configuration, thus improving efficiency and reducing computational load. At the hardware level, the architecture supports RMD for PUs of various sizes (4×4 to 32×32) within a 64×64 CTU. This architecture differs from traditional designs, which use separate circuits for each PU size. It optimizes logical resource use and minimizes downtime. The design incorporates a 28-stage pipeline that enables parallel processing of intra-prediction modes, ensuring RMD for at least 16 pixels per clock cycle and significantly enhancing throughput and encoding efficiency. Additionally, the design emphasizes circuit compatibility and reusability across various PU sizes, reducing redundancy and maximizing hardware resource utilization. Results and Discussions Software analysis shows that the proposed AV1 coarse mode decision algorithm reduces processing time by an average of 45.78% compared to the standard AV1 algorithm under the All-Intra (AI) configuration, while achieving a 1.94% improvement in BD-Rate. The testing platform is an Intel(R) Core(TM) i9-9900K CPU @ 3.60 GHz with 16.0 GB of DRAM. Compared to existing methods, the algorithm significantly reduces processing time while maintaining encoding efficiency. It offers an optimized trade-off, with a slight BD-Rate loss in exchange for substantial reductions in encoding time. Hardware analysis reveals that the proposed hardware architecture has a total circuit area of 0.556 mm² after synthesis, with a maximum operating frequency of 432.7 MHz, enabling real-time encoding of 8k@50.6fps video. Although the circuit area is slightly larger than in existing designs, the architecture demonstrates significant improvements in processing speed and video resolution capability, providing a balanced trade-off between hardware resource usage and throughput/area efficiency. These results further confirm the design's superiority in terms of hardware resource efficiency and processing performance. Conclusions This paper presents a high-throughput hardware design for AV1 RMD, capable of processing all PU sizes with 56 directional and 5 non-directional prediction modes. The design employs a 28-stage pipeline for parallel intra-frame prediction mode processing, enabling RMD for at least 16 pixels per clock cycle and significantly improving encoding efficiency. Techniques such as false-reconstructed reference pixels, Z-order scanning, PMCM circuit structures, and circuit reuse address the increased hardware resource demands of parallel processing. Experimental results show that the proposed algorithm reduces processing time by an average of 45.78% and improves BD-Rate by 1.94% compared to the AV1 standard, ensuring high speed and encoding quality. Circuit synthesis confirms the architecture's capability for real-time 8k@50.6fps video processing, meeting the demands of future UHD video encoding with exceptional performance and efficiency.
- Alliance for Open Media Video 1 (AV1) /
- Intra prediction /
- Rough Mode Decision (RMD) /
- Video coding /
- Pipeline

HTML全文

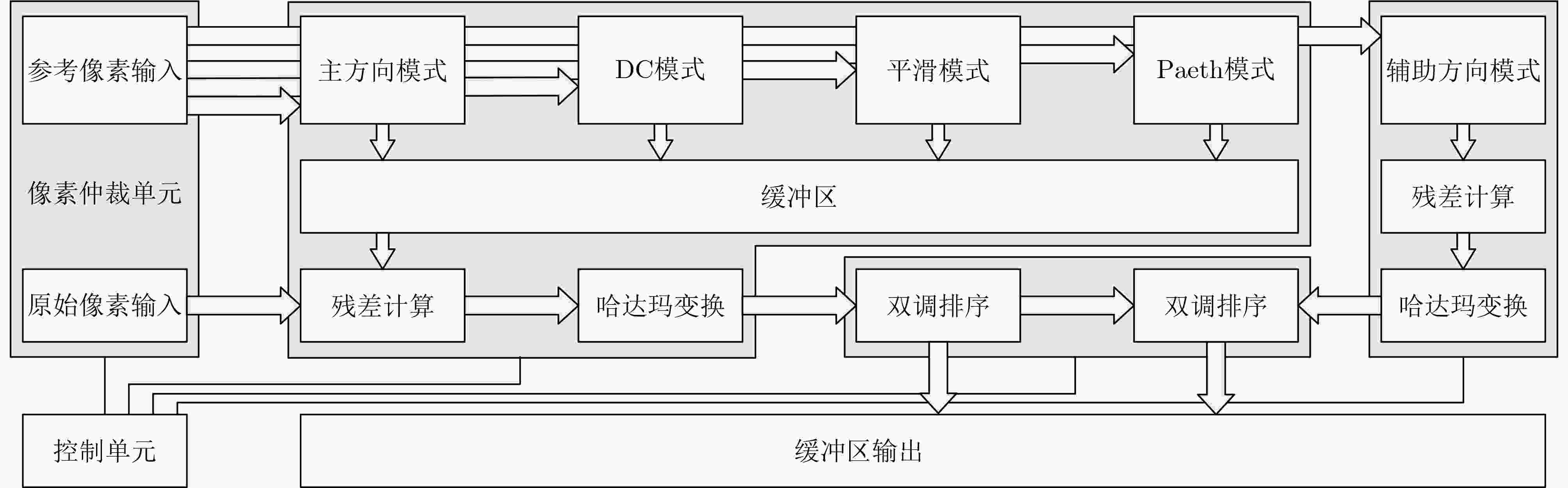

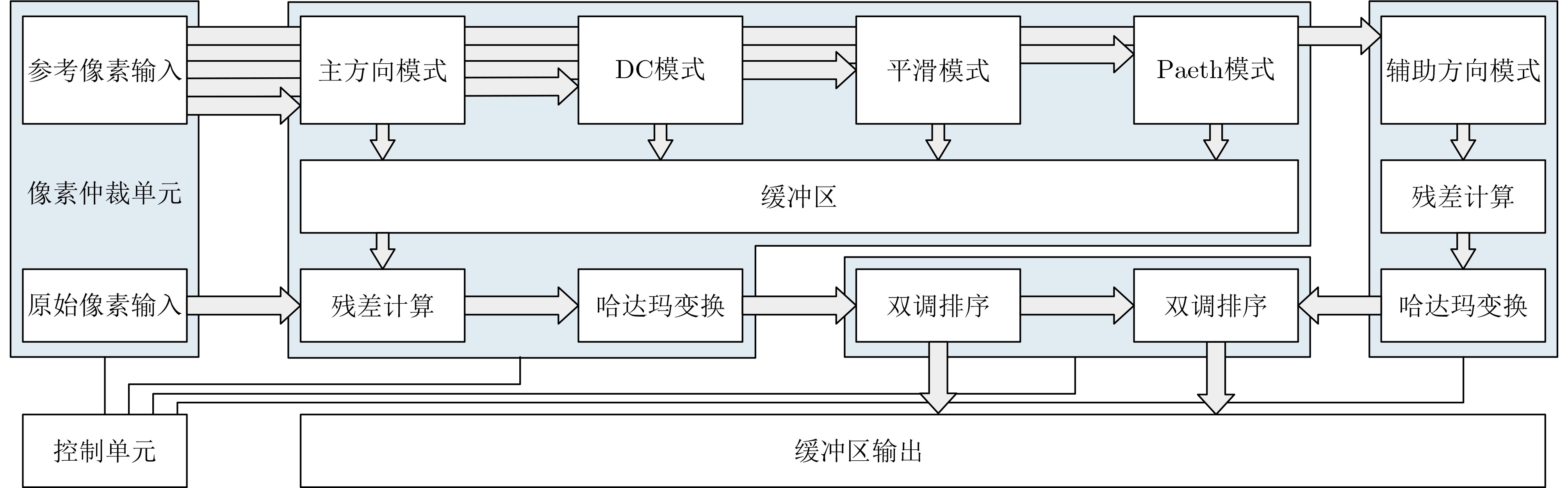

图 1 RMD硬件总体架构设计

下载: 全尺寸图片幻灯片

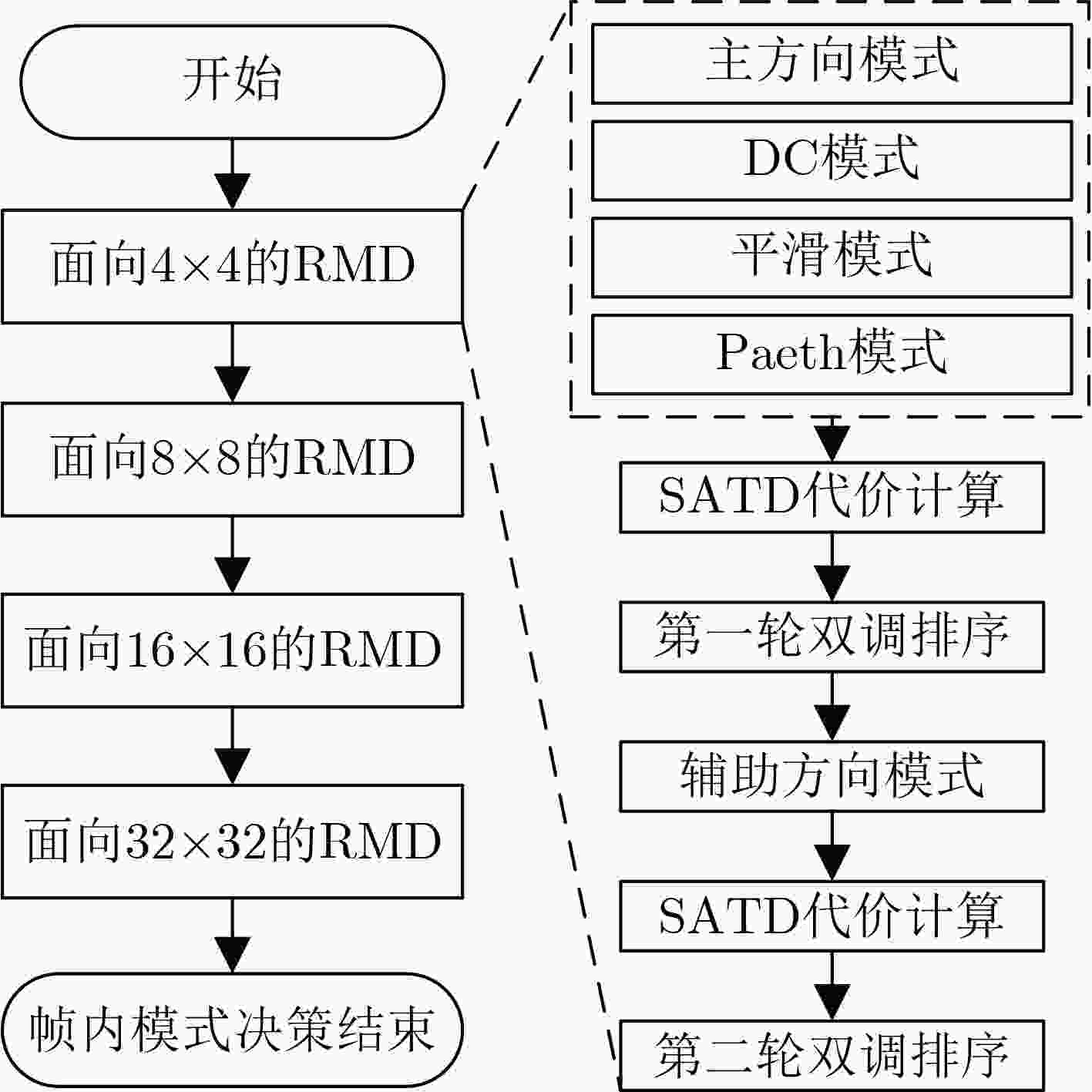

图 2 硬件实现RMD流程图

下载: 全尺寸图片幻灯片

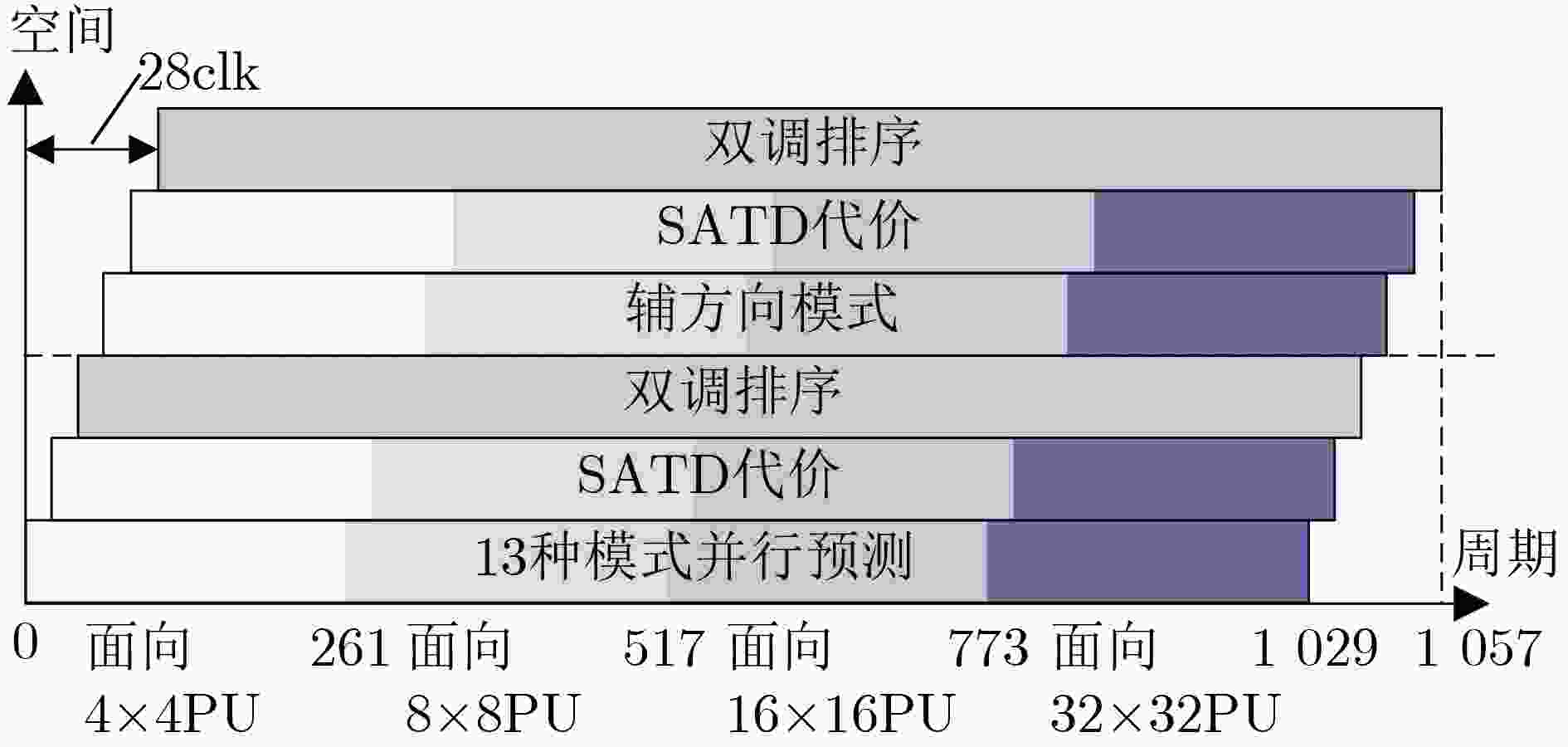

图 3 整体架构时空图

下载: 全尺寸图片幻灯片

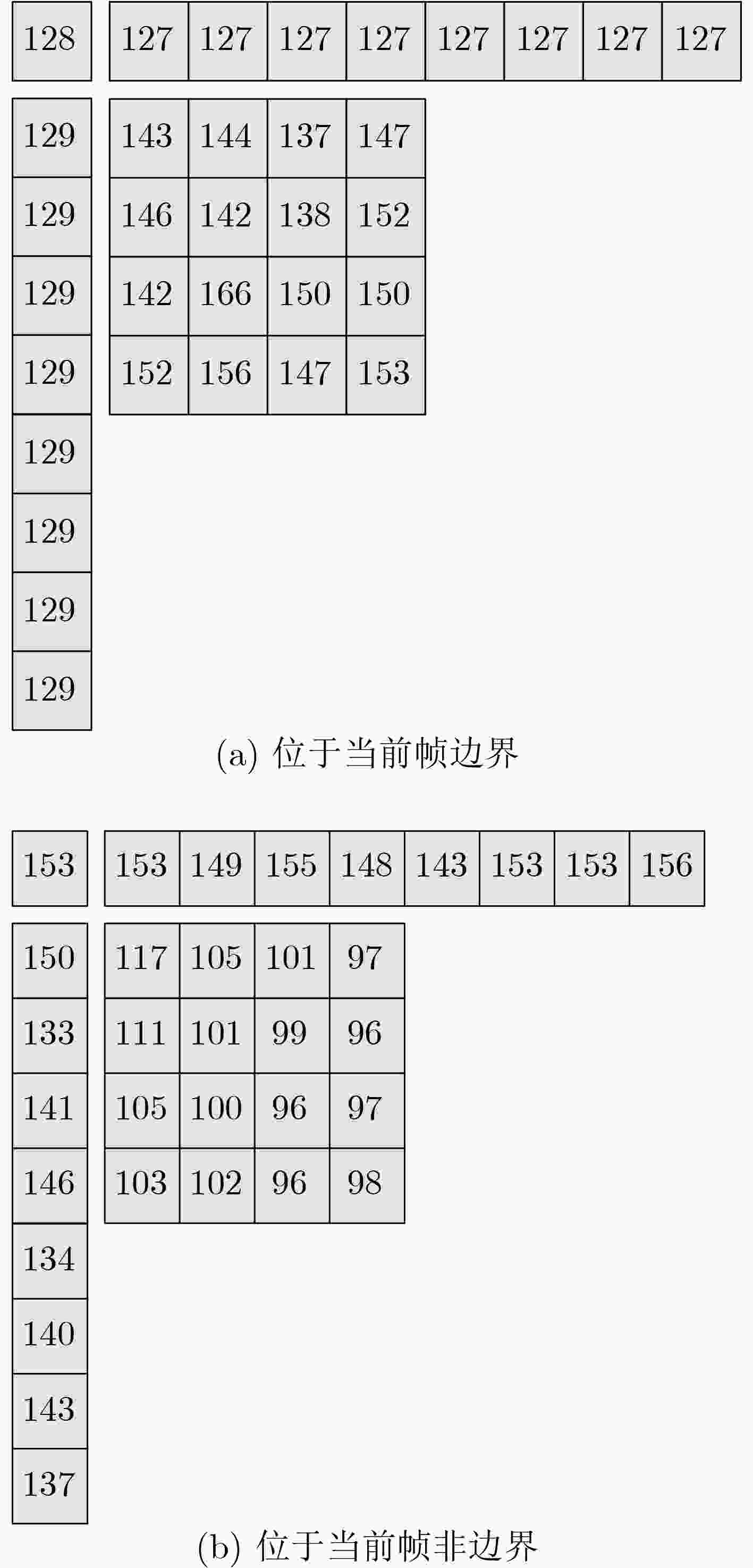

图 4 4×4 PU参考像素填充情况

下载: 全尺寸图片幻灯片

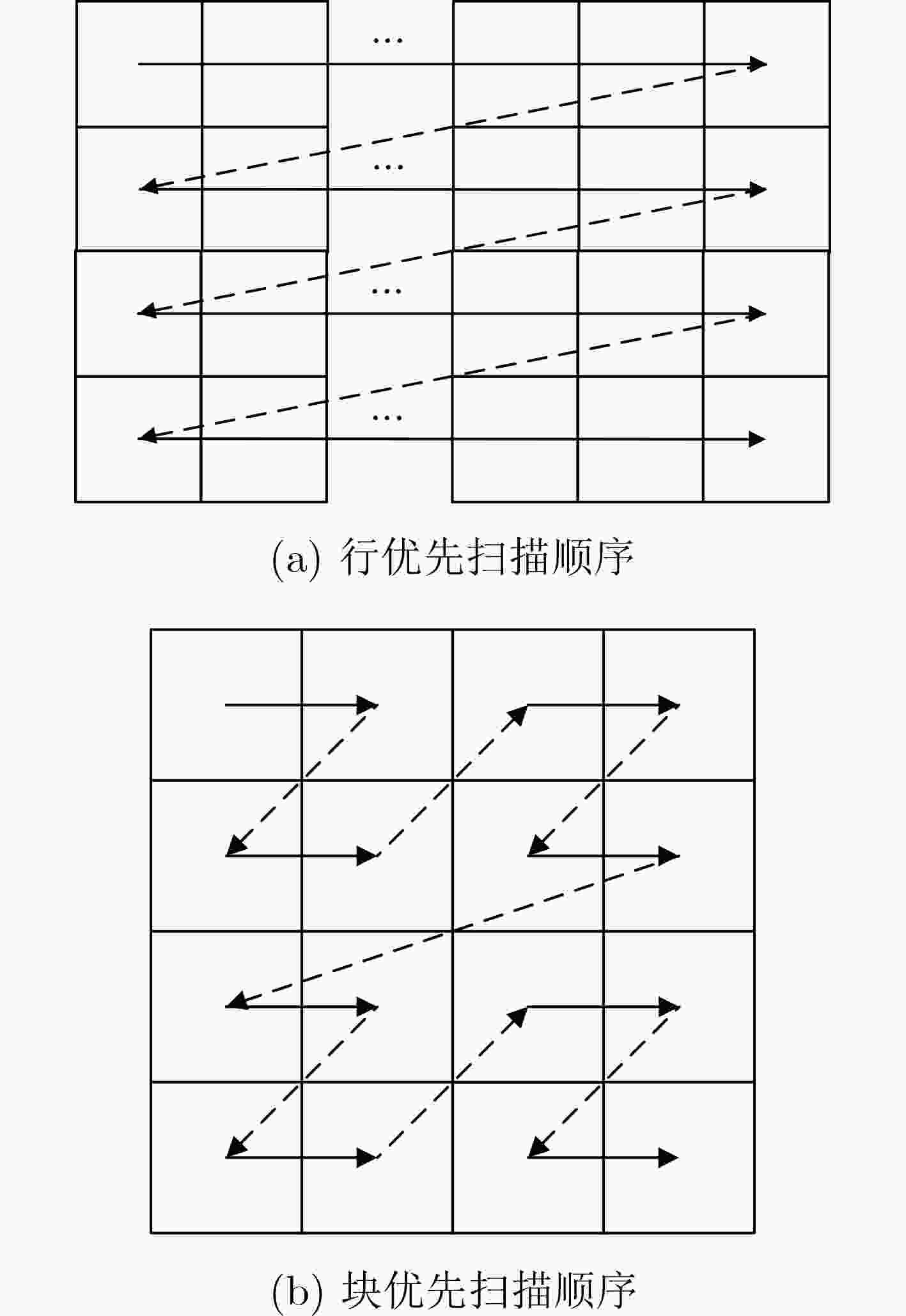

图 5 输入顺序示意图

下载: 全尺寸图片幻灯片

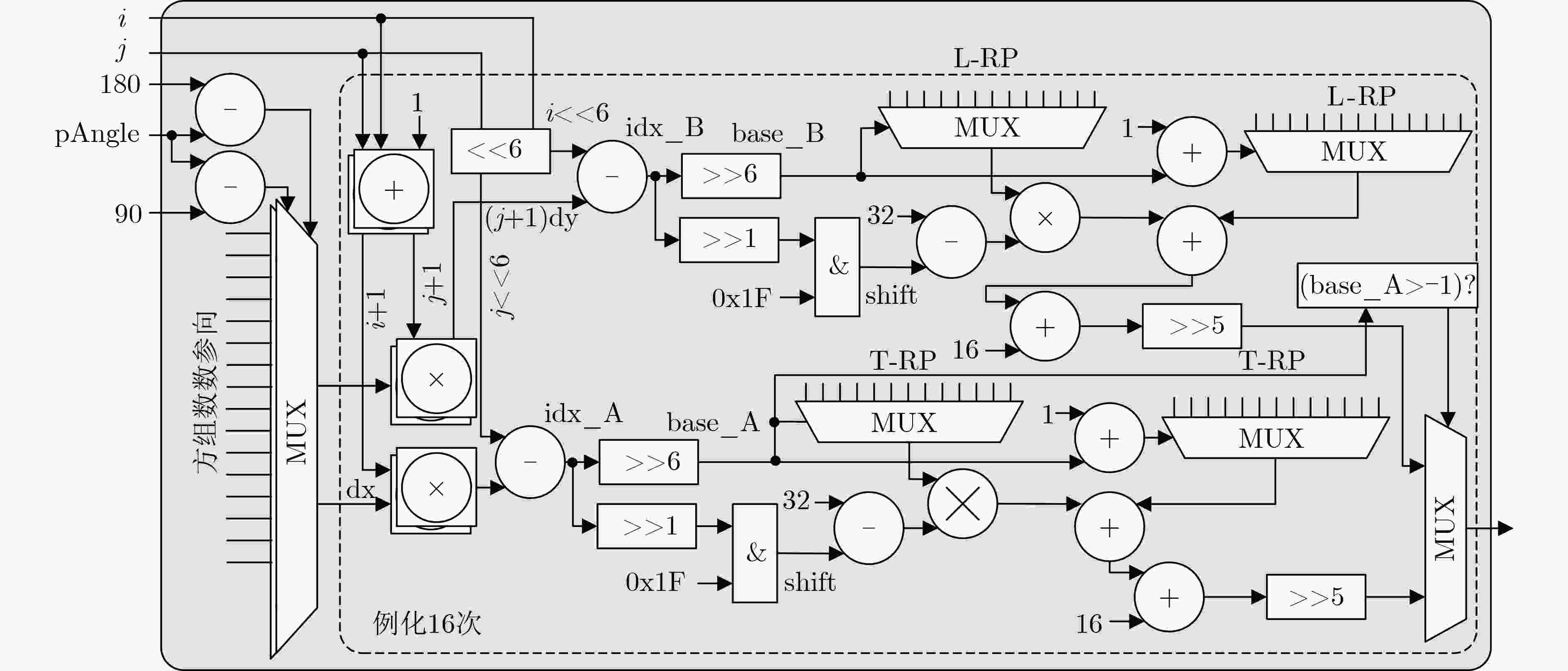

图 6 方向性模式硬件设计

下载: 全尺寸图片幻灯片

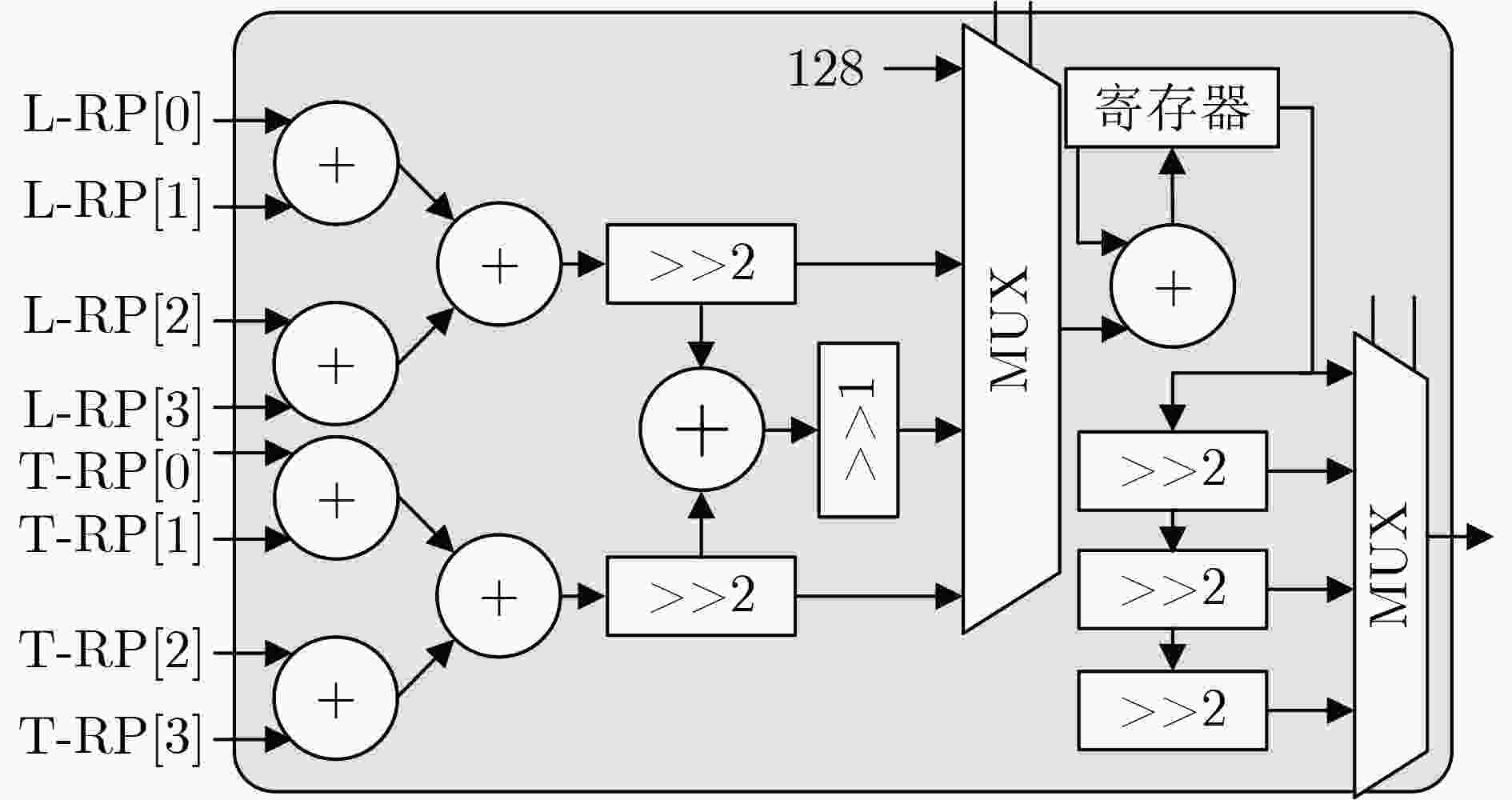

图 7 DC模式硬件设计

下载: 全尺寸图片幻灯片

图 8 平滑模式硬件设计

下载: 全尺寸图片幻灯片

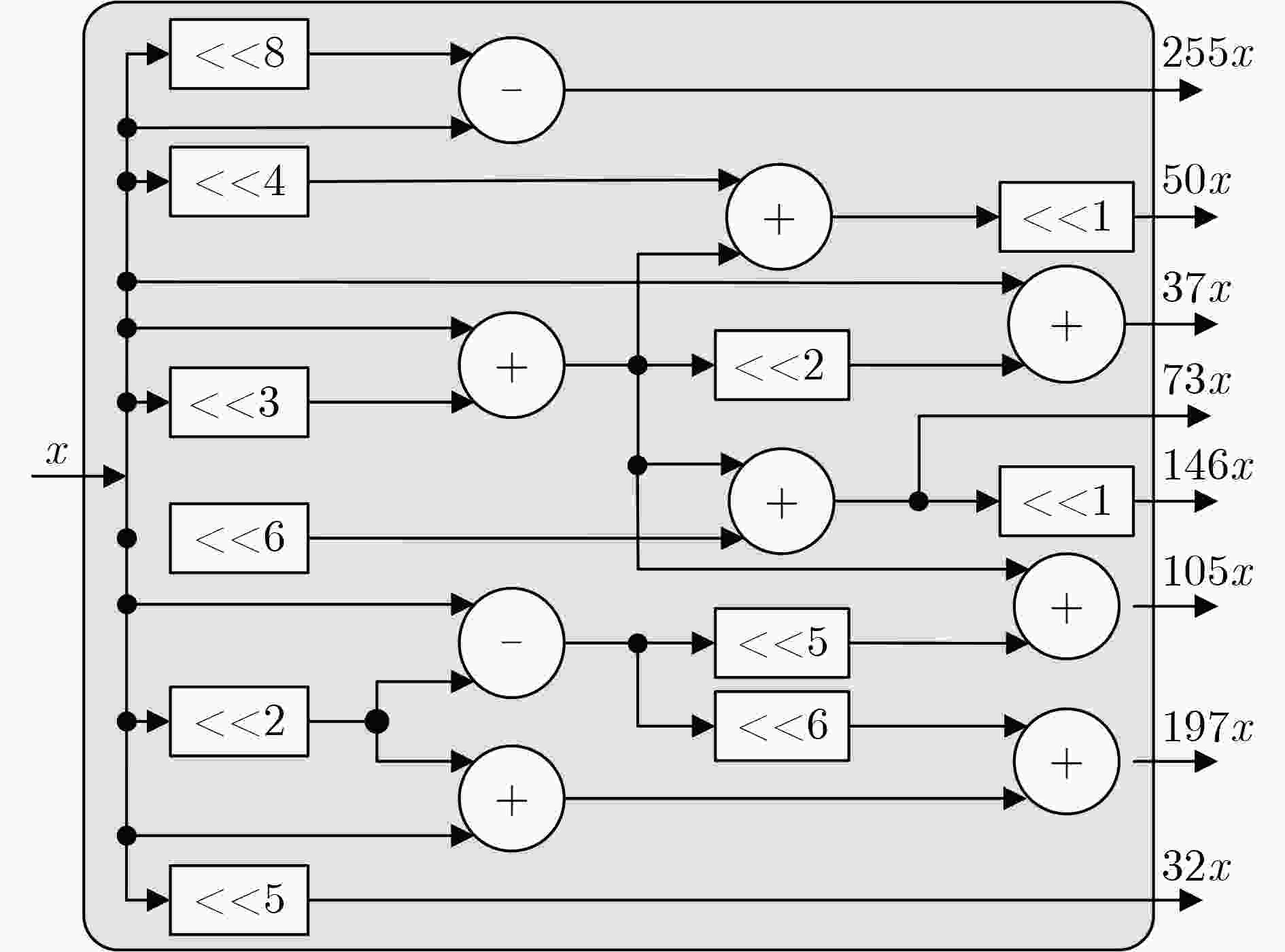

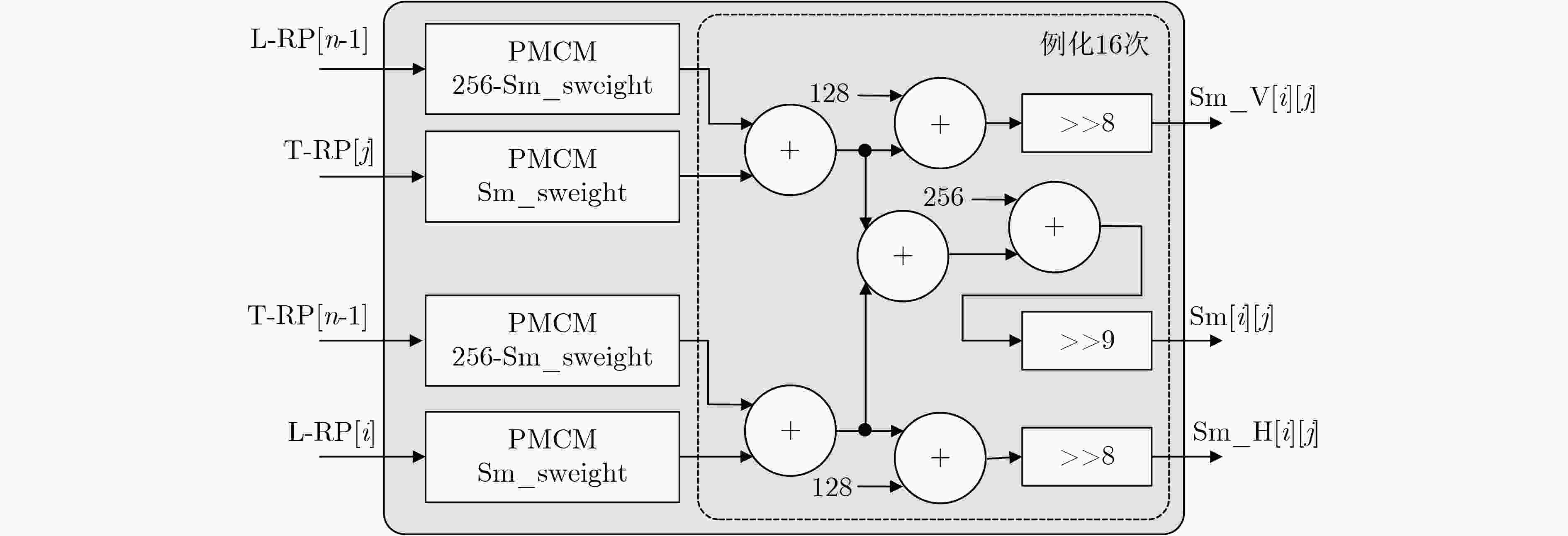

图 9 平滑模式权重PMCM硬件设计

下载: 全尺寸图片幻灯片

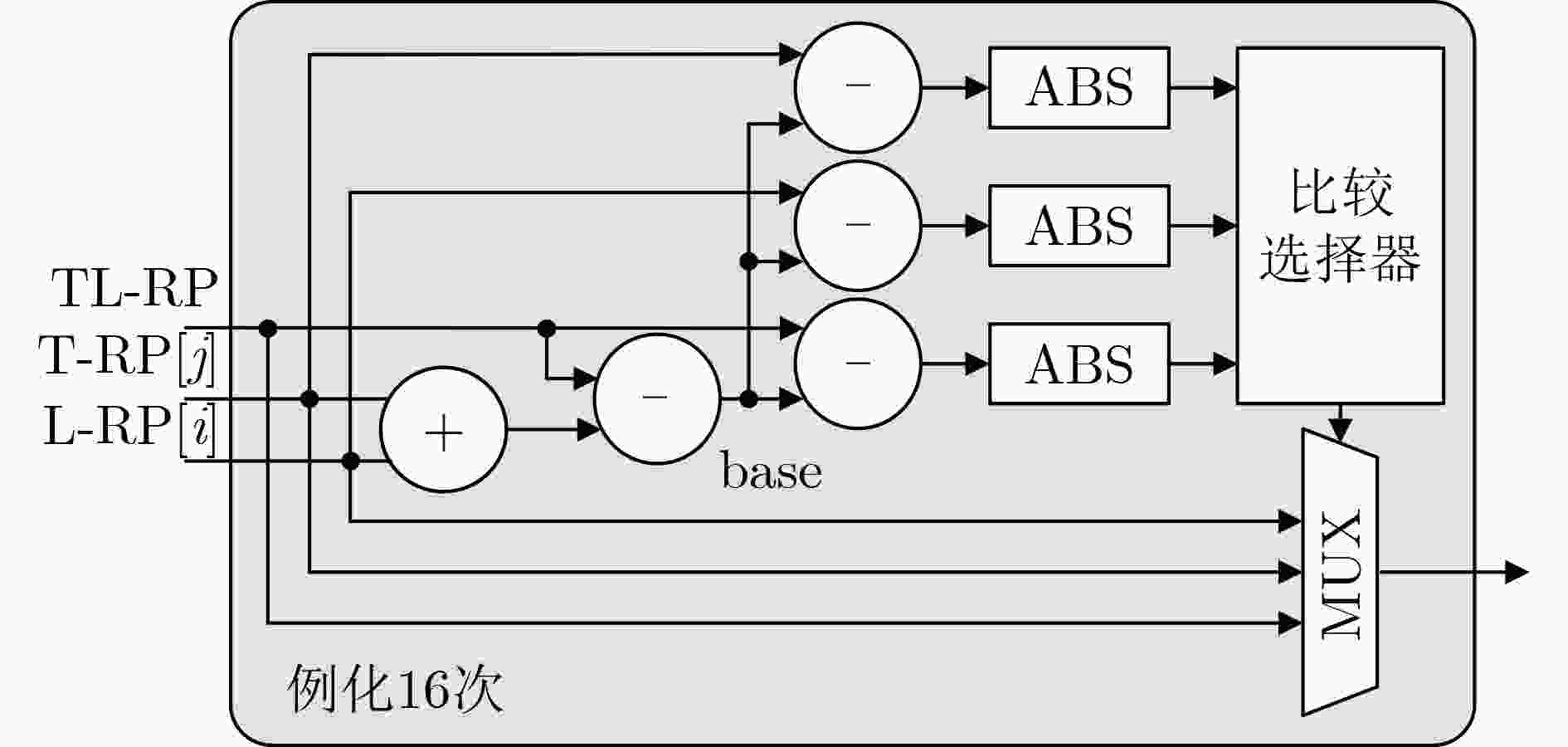

图 10 paeth模式硬件设计

下载: 全尺寸图片幻灯片

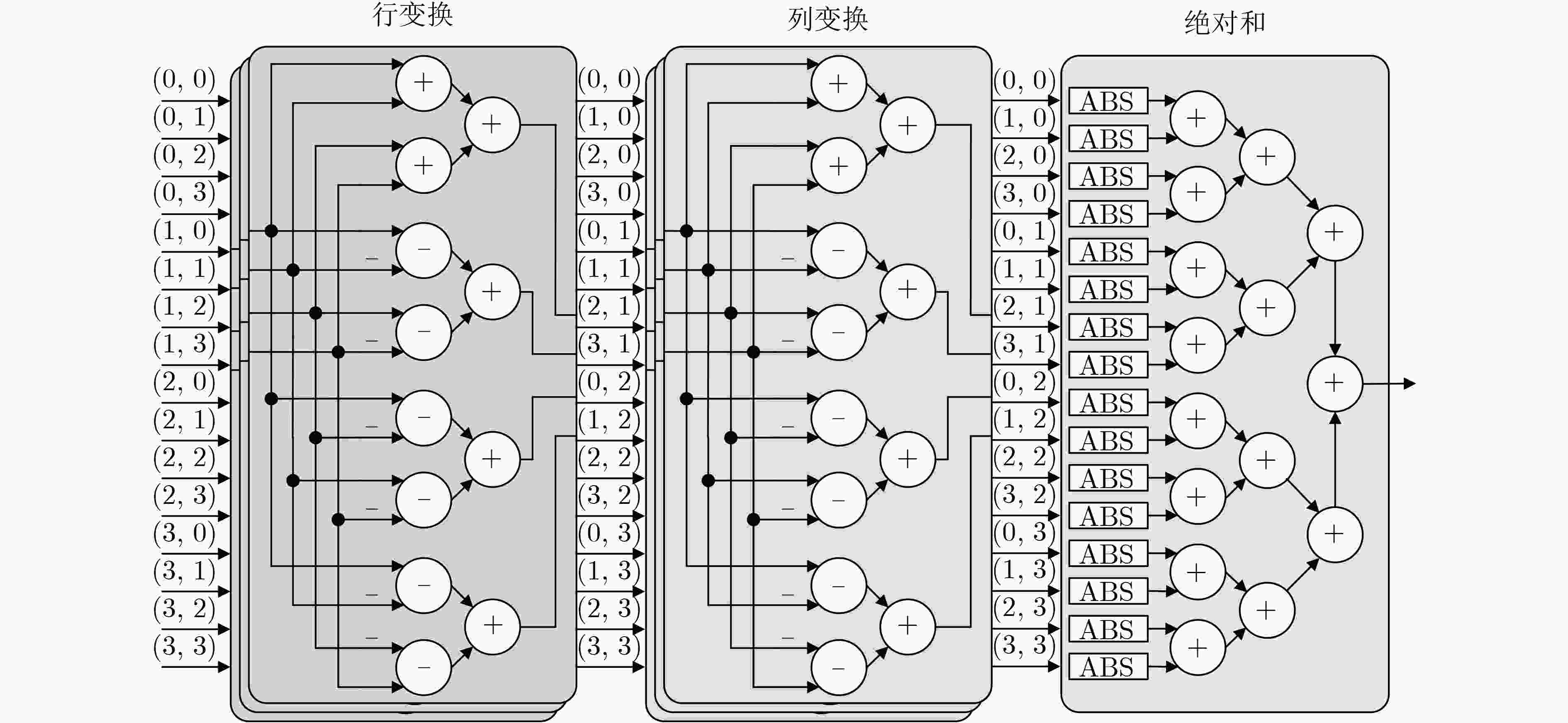

图 11 4×4 PU的SATD代价计算硬件设计

下载: 全尺寸图片幻灯片

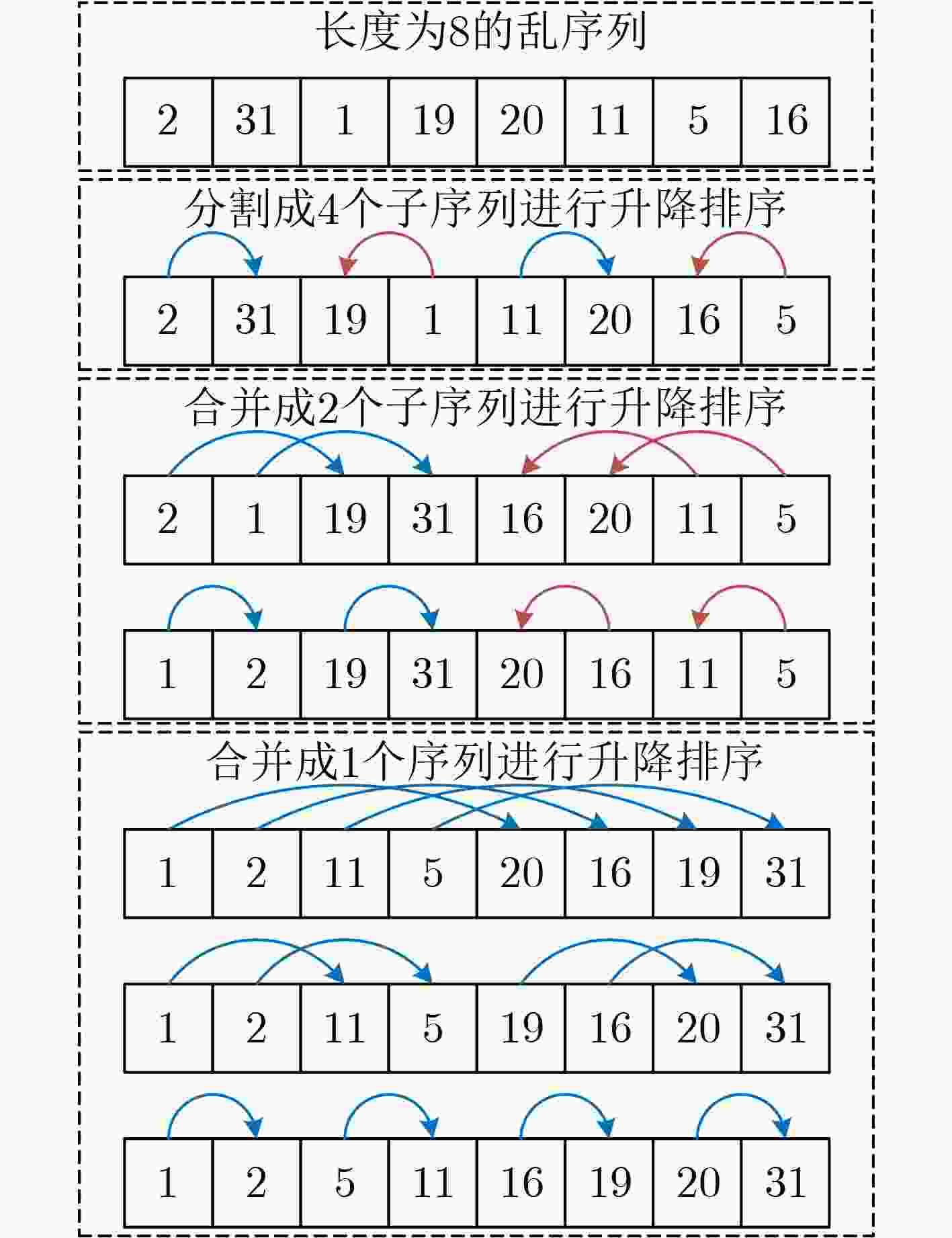

图 12 长度为8的乱序列双调排序示例

下载: 全尺寸图片幻灯片

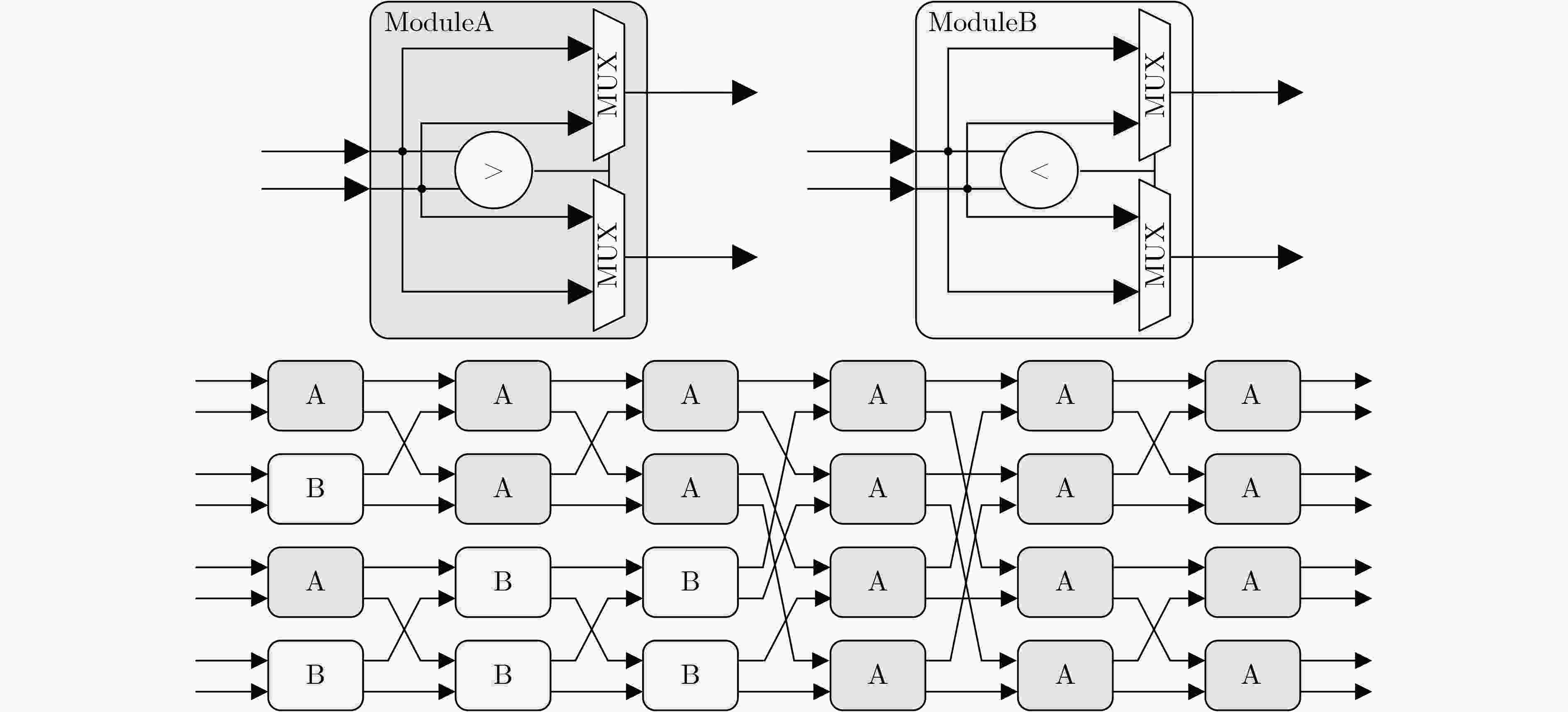

图 13 输入序列长度为8的双调排序硬件设计

下载: 全尺寸图片幻灯片

表 1 改进算法与AV1标准算法的性能比较(%)

测试序列	BD-Rate	TS
A1(UHD 4K)	2.21	49.2
A2(UHD 4K)	1.77	46.4
B(1080P)	1.93	48.1
C(480P)	2.23	38.4
E(720P)	1.56	46.8
平均结果	1.94	45.78

下载: 导出CSV

表 2 改进算法与现有工作比较(%)

现有工作	BD-Rate	TS
现有工作^[33]	1.28	29.80
现有工作^[34]	7.41	50.19
现有工作^[35]	0.60	15.36
本文研究	1.94	45.78

下载: 导出CSV

表 3 基于ASIC实现的RMD相关硬件设计工作对比

对比指标	现有工作^[36]	现有工作^[37]	现有工作^[38]	现有工作^[39]	本文研究
工艺	TSMC 40 nm	TSMC 40 nm	TSMC 40 nm	TSMC 40 nm	UMC 28 nm
门电路(Kgates)	455.8	821.8	584.8	128.5	1011.3
工作频率(MHz)	1,296	1,902	1,296	648	432.7
时钟周期(Cycle)	7104	7104	7104	7104	1057
功耗(mW)	40.9	1613.3	4110.0	65.5	1891.6
吞吐量	4k@60fps	4k@60fps	4k@60fps	4k@30fps	8k@50.6fps
吞吐量/面积(px/gate)	1091.85	605.55	850.93	1936.44	1660.03
非方向性预测	×	×	×	√	√
方向性预测	√	√	√	×	√
模式决策	×	×	×	×	√

下载: 导出CSV
