Image Enhancement under Transformer Oil Based on Multi-Scale Weighted Retinex
-

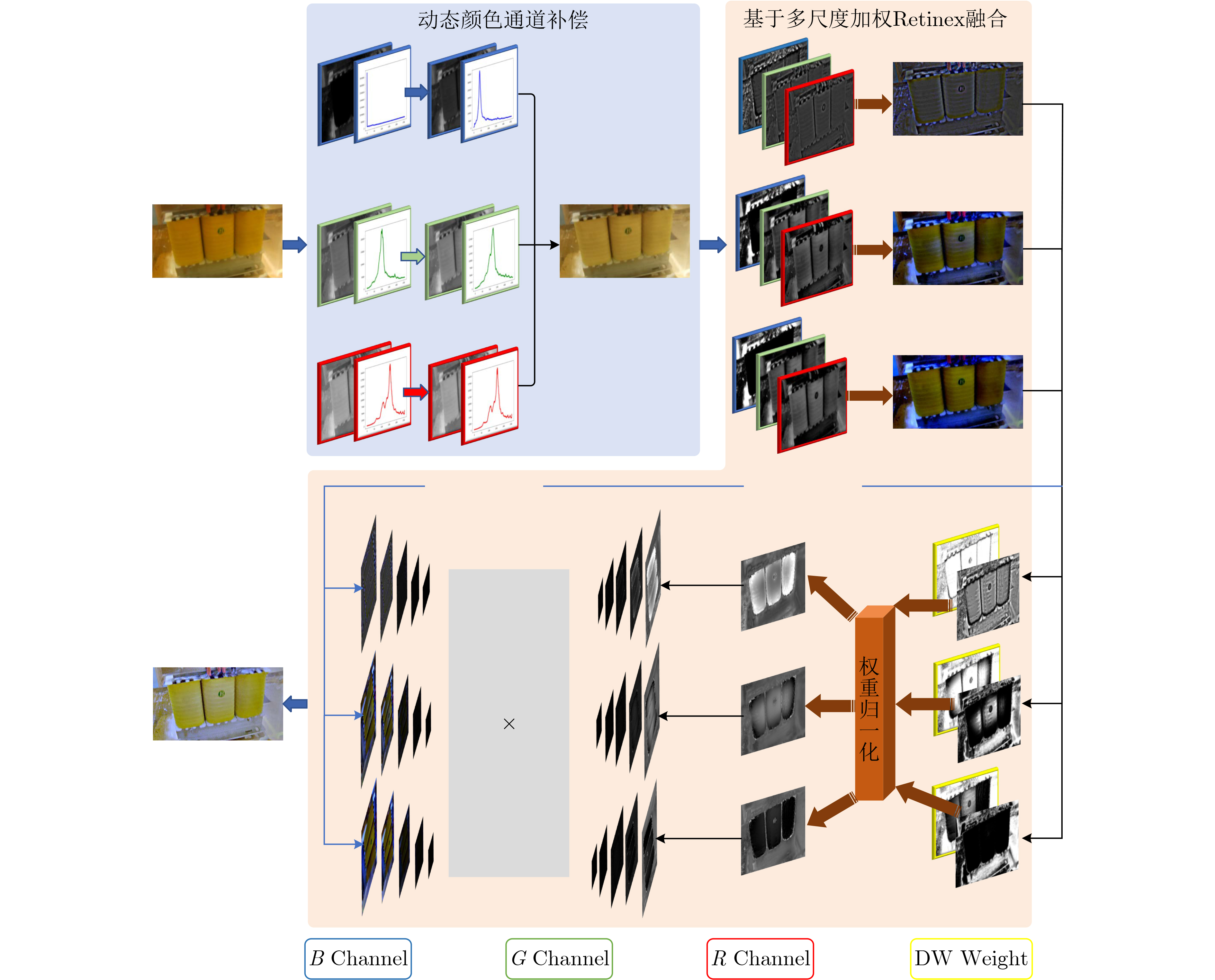

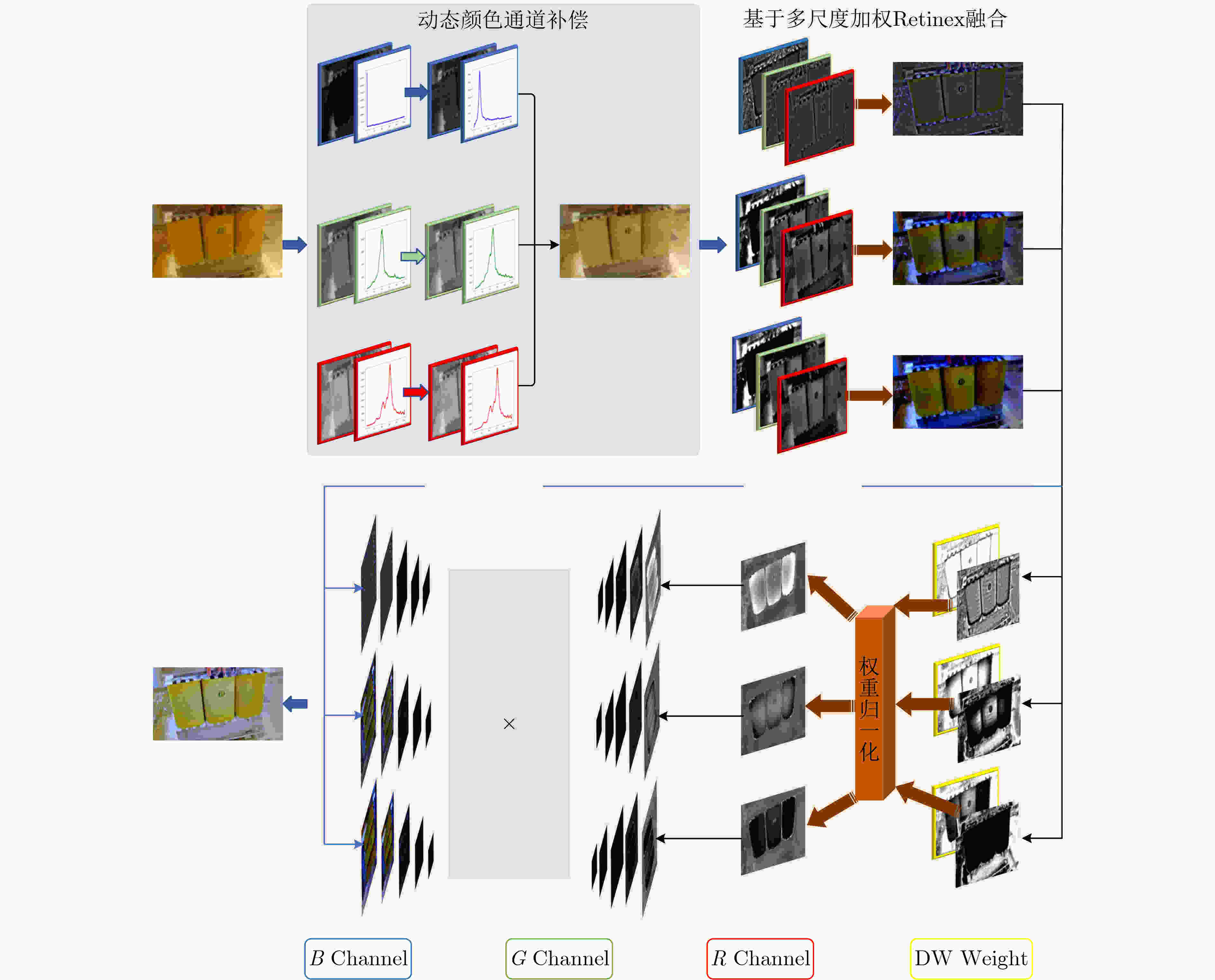

摘要: 针对变压器油下图像存在颜色失真、亮度低和细节失真问题，该文提出一种多尺度加权Retinex变压器油下图像增强算法。首先，为了缓解变压器油下图像颜色失真问题，提出一种混合动态颜色通道补偿算法，根据拍摄图像各通道的衰减状态对衰减通道进行动态补偿。然后，为了解决细节失真问题，提出一种锐化权重加权策略。最后，该文创新性采用金字塔多尺度融合策略对不同尺度Retinex反射分量和相应权重图进行加权融合得到变压器油下清晰图像。实验结果表明所提算法可以有效解决变压器油下图像复杂退化问题。Abstract:
Objective: Large oil-immersed transformers are critical in power systems, with their operational status essential for maintaining grid stability and reliability. Periodic inspections are necessary to identify and resolve transformer faults and ensure normal operation. However, manual inspections require significant human and material resources. Moreover, conventional inspection methods often fail to promptly detect or accurately locate internal faults, which may ultimately affect transformer lifespan. Robots equipped with visual systems can replace manual inspections for fault identification inside oil-immersed transformers, enabling timely fault detection and expanding the inspection range compared to manual methods. However, high-definition visual imaging is crucial for effective fault detection using robots. Transformer oil degrades and discolors under high-temperature, high-pressure conditions, with these effects varying over time. The oil color typically shifts from pale yellow to reddish-brown, and the types and forms of suspended particles evolve dynamically. These factors cause complex light attenuation and scattering, leading to color distortion and detail loss in captured images. Additionally, the sealed metallic structure of oil-immersed transformers requires robots to rely on onboard artificial light sources during inspections. The limited illumination from these sources further reduces image brightness, hindering clarity and impacting fault detection accuracy. To address issues such as color distortion, low brightness, and detail loss in images captured under transformer oil, this paper proposes a multi-scale weighted Retinex algorithm for image enhancement. Methods: This paper proposes a multi-scale weighted Retinex algorithm for image enhancement under transformer oil. To mitigate color distortion, a hybrid dynamic color channel compensation algorithm is proposed, which dynamically adjusts compensation based on the attenuation of each channel in the captured image. To address detail loss, a sharpening weight strategy is applied. Finally, a pyramid multi-scale fusion strategy integrates Retinex reflection components from multiple scales with their corresponding weight maps, producing clearer images under transformer oil. Results and Discussions: Qualitative experimental results ( Fig. 5 ,Fig. 6 ,Fig. 7 ) indicate that the UCM algorithm, based on non-physical models, achieves color correction by assuming minimal attenuation in the blue channel. However, the dynamic changes in transformer oil result in varying channels with the least attenuation, reducing the algorithm’s generalization capability. Enhancement results from physical-model algorithms, including UDCP, IBLA, and ULAP, exhibited low brightness, often leading to the loss of critical image details. Furthermore, these physical-model methods not only fail to resolve color distortion but frequently intensify it. Deep learning-based algorithms, such as Water-Net, Shallow-uwnet, and UDnet, demonstrated effectiveness in mitigating mild color distortion. However, their enhancement results still suffer from low brightness and blurred details. In contrast, the algorithm proposed in this paper fully accounts for the dynamic characteristics of transformer oil, effectively addressing color distortion, blurring, and detail loss in images captured under transformer oil. Quantitative experiments (Table 1 ) show that the UIQM value of images enhanced by the proposed algorithm increased by an average of 121.206% compared with the original images, the FDUM value increased by an average of 105.978%, and the NIQE value decreased by an average of 6.772%. Both qualitative and quantitative results demonstrate that the proposed algorithm effectively resolves image degradation issues under transformer oil and outperforms the comparison methods. Additionally, applicability tests reveal that the algorithm not only performs well for transformer oil images but also demonstrates strong enhancement capabilities in underwater imaging.Conclusions: Experimental results demonstrate that the algorithm proposed in this paper effectively addresses the complex degradation issues in images captured under transformer oil. Although the proposed algorithm achieves superior enhancement performance, processing a 1 280×720 resolution image requires an average of 2.16 s, which does not meet the demands for embedded real-time applications, such as robotic inspections. Future research will focus on optimizing the algorithm to improve its real-time performance. -
1 混合动态颜色通道补偿
输入：相机拍摄图像${I_{{\text{in}}}}$，增益系数$\omega $ 输出：补偿后的图像${I_{{\text{out}}}}$ (1) $B,G,R \leftarrow {\text{split}}({I_{{\text{in}}}})$ (2) ${I_{{\text{Max}}}} \leftarrow \max (R,G,B)$ (3) ${I_{{\text{Min}}}} \leftarrow \min (R,G,B)$ (4) if ${I_{{\text{Max}}}} = \bar R$ (5) if ${I_{{\text{Min}}}} = \bar G$ then (6) 计算${V_{{\text{com\_min}}}},{V_{{\text{com\_med}}}}$根据$ {V}_{\mathrm{min}}=G $,
${V_{{\text{med}}}} = B,{V_{\max }} = R$(7) end if (8) if ${I_{{\text{Min}}}} = \bar B$ then (9) 计算${V_{{\text{com\_min}}}},{V_{{\text{com\_med}}}}$根据${V_{\min }} = B$, ${V_{{\text{med}}}} = G $,
${V_{\max }} = R$(10) end if (11) end if (12) if ${I_{{\text{Max}}}} = \bar B$ (13) if ${I_{{\text{Min}}}} = \bar R$ then (14) 计算${V_{{\text{com\_min}}}},{V_{{\text{com\_med}}}}$根据${V_{\min }} = R$, ${V_{{\text{med}}}} = G $,
${V_{\max }} = B$(15) end if (16) if ${I_{{\text{Min}}}} = \bar G$ then (17) 计算${V_{{\text{com\_min}}}},{V_{{\text{com\_med}}}}$根据${V_{\min }} = G$, ${V_{{\text{med}}}} = R $,
${V_{\max }} = B$(18) end if (19) end if (20) if ${I_{{\text{Max}}}} = \bar G$ (21) if ${I_{{\text{Min}}}} = \bar R$ then (22) 计算${V_{{\text{com\_min}}}},{V_{{\text{com\_med}}}}$根据${V_{\min }} = R$, ${V_{{\text{med}}}} = B $,
${V_{\max }} = G$(23) end if (24) if ${I_{{\text{Min}}}} = \bar B$ then (25) 计算${V_{{\text{com\_min}}}},{V_{{\text{com\_med}}}}$根据${V_{\min }} = B$, ${V_{{\text{med}}}} = R $,
${V_{\max }} = G$(26) end if (27) end if (28) ${I_{{\text{out}}}} \leftarrow {\text{merge}}(\bar B,\bar G,\bar R)$ (29) return ${I_{{\text{out}}}}$
下载: 导出CSV

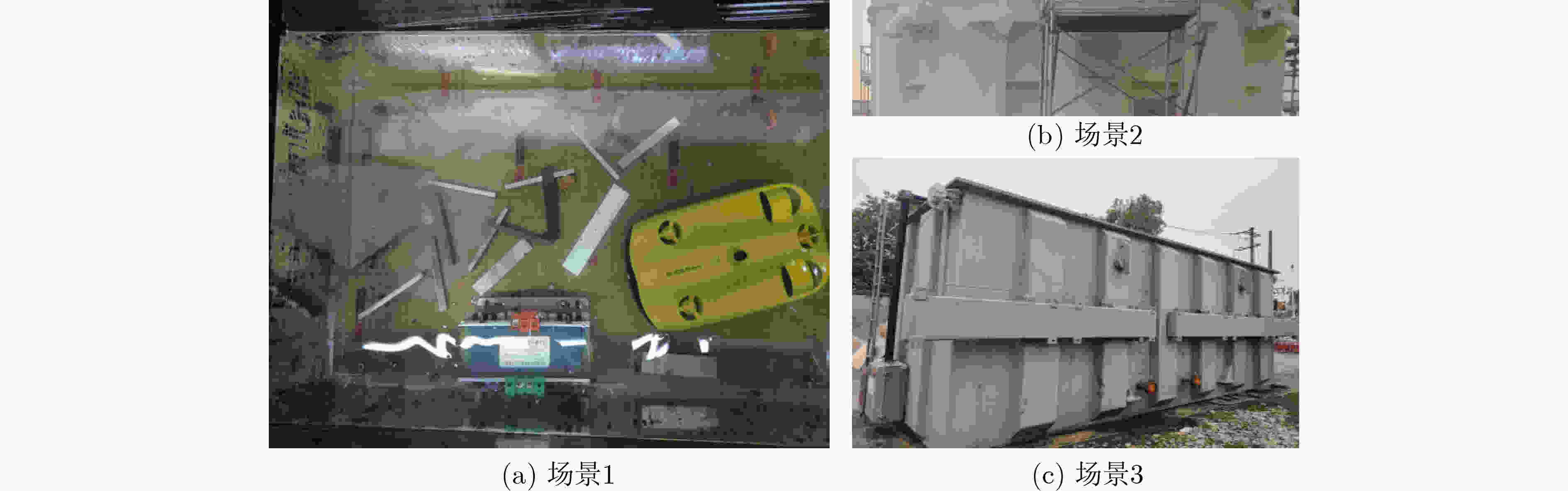

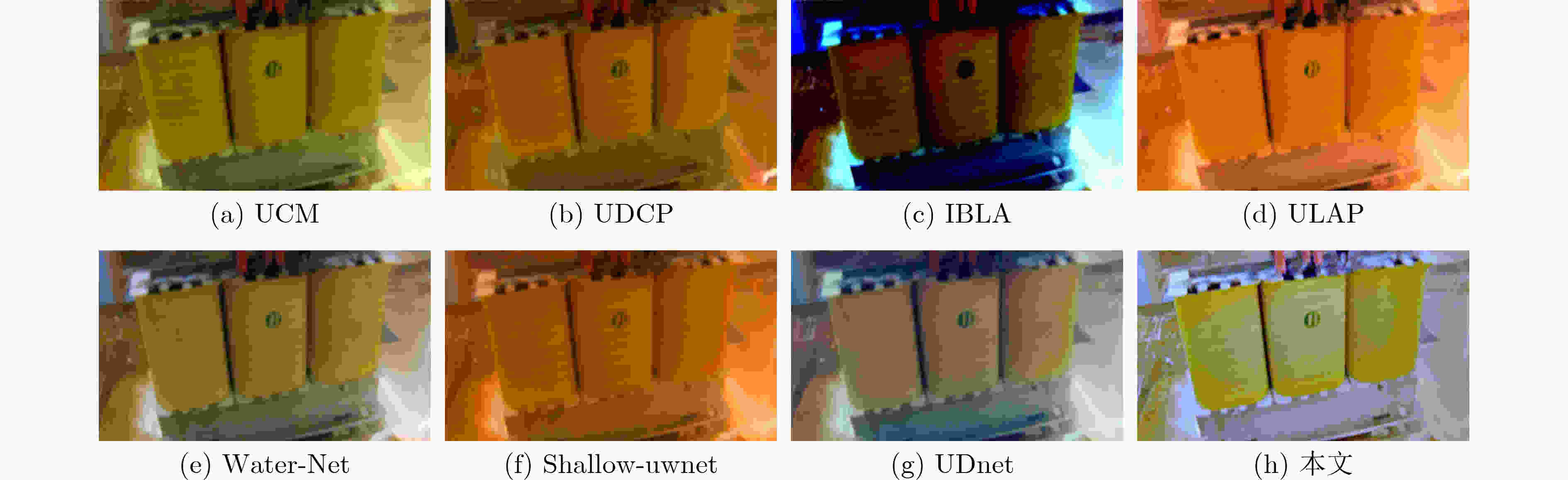

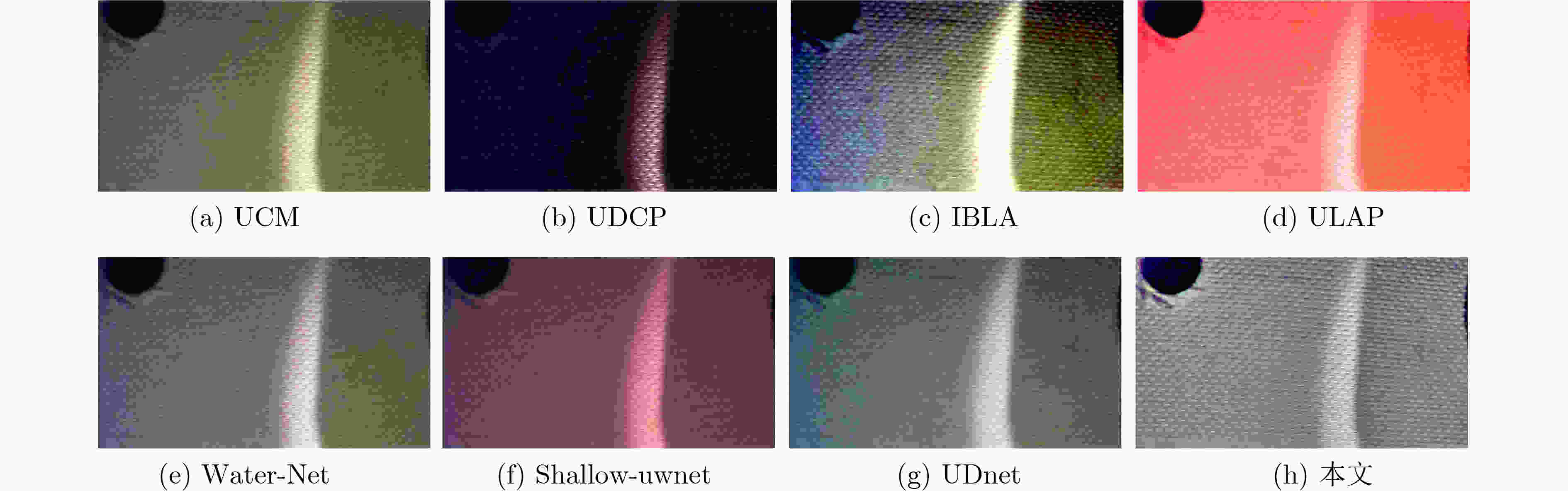

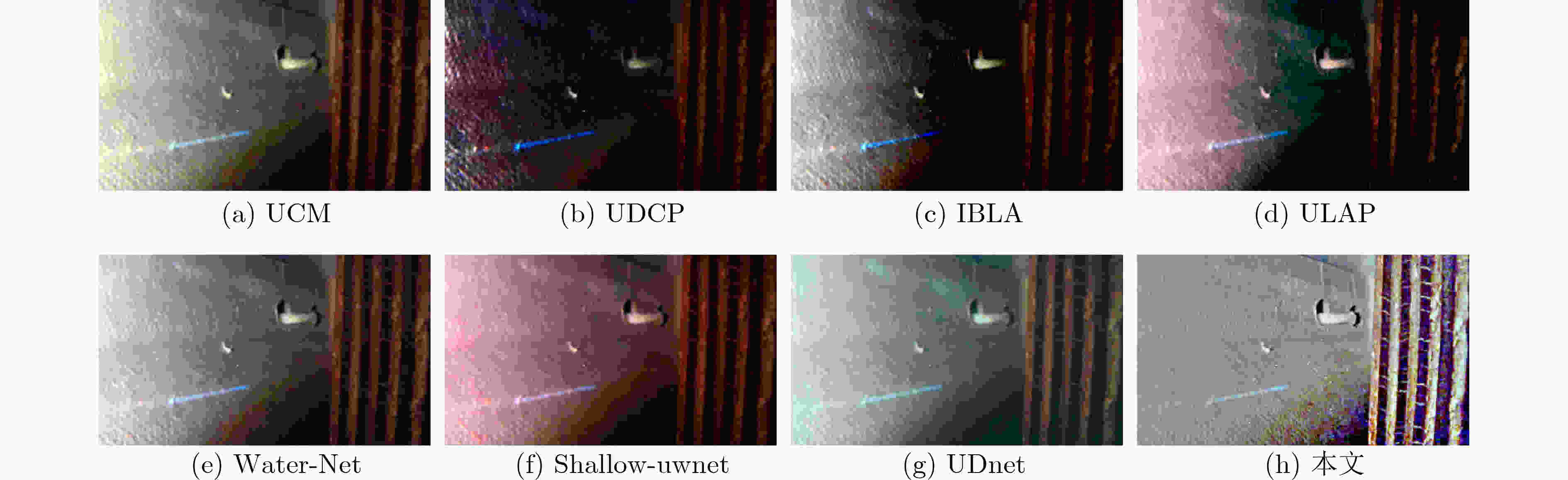

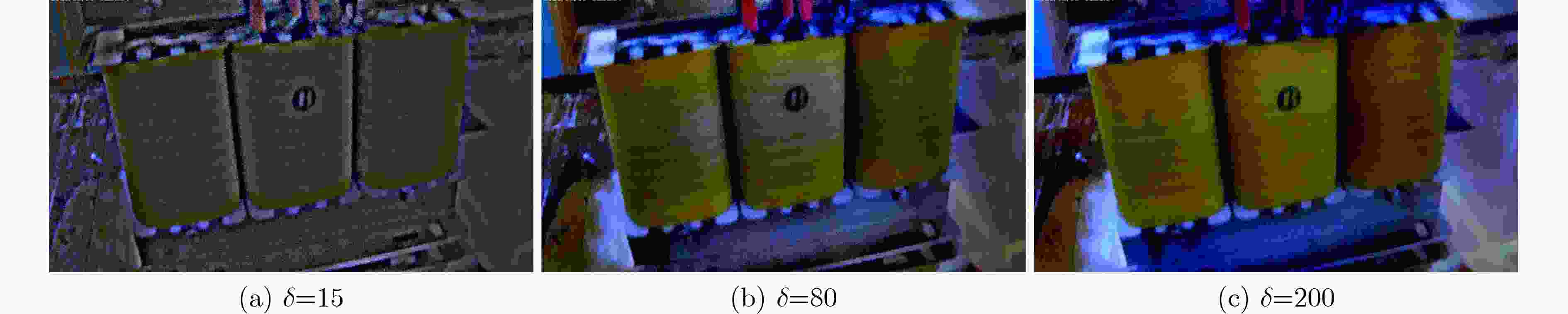

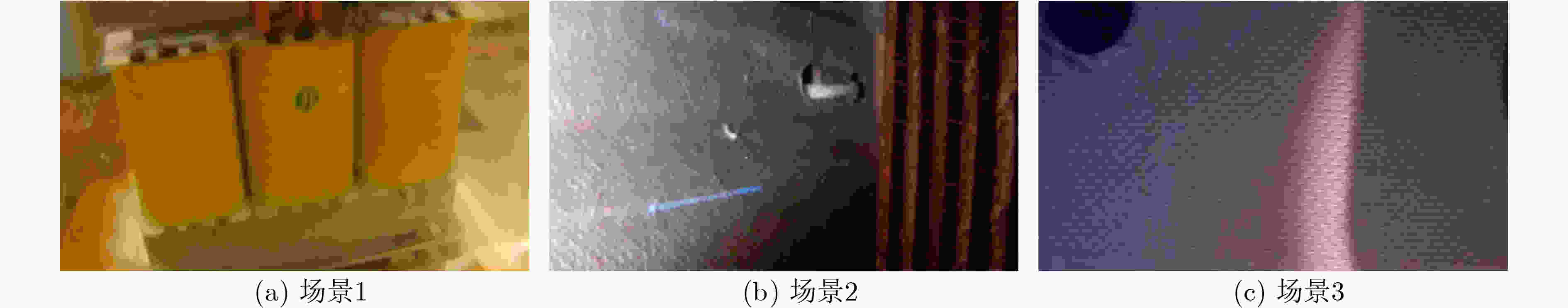

表 1 UIQM, FUDM和NIQE无参考图像质量评估结果
指标 方法 原图 UCM UDCP IBLA ULAP Water-Net Shallow-UWnet UDnet 本文 UIQM 1.476 1.943 1.417 2.144 1.379 2.272 1.273 1.880 3.265 FDUM 0.184 0.224 0.229 0.298 0.294 0.249 0.187 0.183 0.379 NIQE 5.021 4.864 5.315 5.714 4.815 4.859 5.240 4.754 4.681
下载: 导出CSV

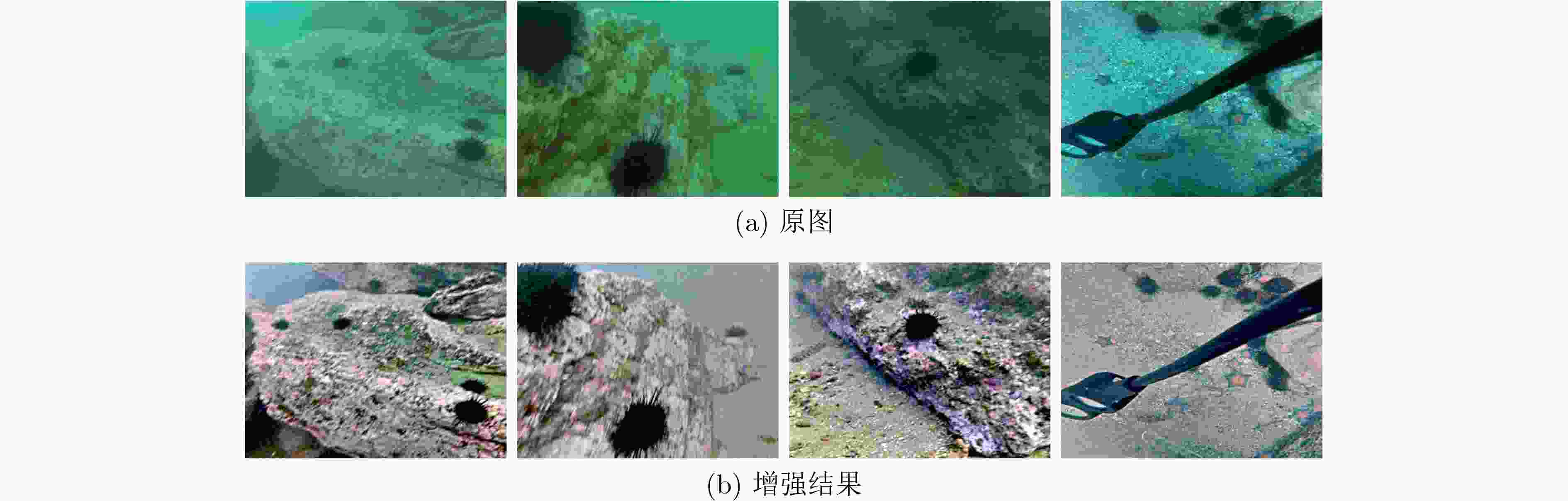

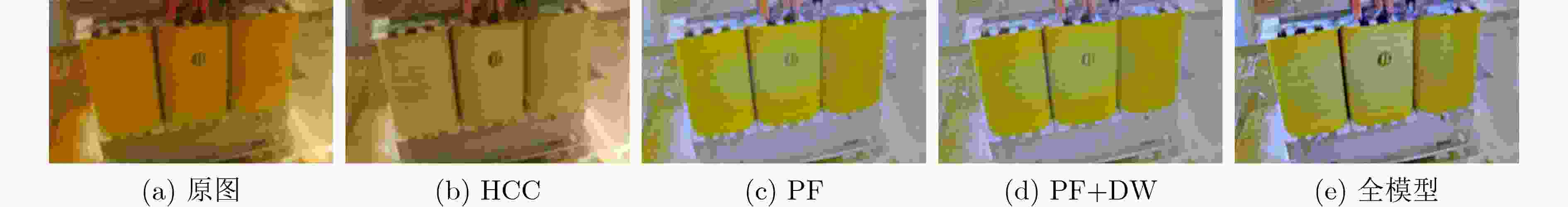

表 2 不同模块消融实验
HCC DW PF UIQM FDUM NIQE 1.476 0.184 5.021 √ 1.508 0.206 4.982 √ 2.965 0.283 4.630 √ √ 3.112 0.343 4.501 √ √ √ 3.265 0.379 4.681
下载: 导出CSV
-
