低轨卫星通信系统跳波束图案设计算法

石会鹏; 郭丁; 牟瑞硕; 钟奇; 李方圆

doi:10.11999/JEIT240596

低轨卫星通信系统跳波束图案设计算法

doi: 10.11999/JEIT240596

石会鹏^{1, 2},
郭丁³,
牟瑞硕⁴,
钟奇²,
李方圆^2, ,

1.
北京科技大学北京 100083
2.
国家无线电监测中心检测中心北京 100041
3.
钱学森空间技术实验室北京 100029
4.
北京邮电大学北京 100876

基金项目: 国家重点研发计划(2020YFB1807900)

详细信息

作者简介:
石会鹏：男，高级工程师，研究方向为卫星无线电频率资源技术管理

郭丁：男，高级工程师，研究方向为卫星工程星地一体化攻关

牟瑞硕：男，硕士生，研究方向为低轨卫星通信

钟奇：男，高级工程师，研究方向为无线电监测技术

李方圆：女，高级工程师，研究方向为无线电技术管理与无线电设备检测技术

通讯作者:
李方圆　lifangyuan@srtc.org.cn

中图分类号: TN927.2
计量
- 文章访问数: 196
- HTML全文浏览量: 65
- PDF下载量: 39
- 被引次数: 0
出版历程
- 收稿日期: 2024-07-15
- 修回日期: 2025-02-24
- 网络出版日期: 2025-03-04
- 刊出日期: 2025-03-01

The Beam Hopping Pattern Design Algorithm of Low Earth Orbit Satellite Communication System

SHI Huipeng^{1, 2},
GUO Ding³,
MU Ruishuo⁴,
ZHONG Qi²,
LI Fangyuan^{2
, ,}

1.
University of Science and Technology Beijing, Beijing 100083, China
2.
The State Radio_monitoring_center Testing Center, Beijing 100041, China
3.
Qian Xuesen Space Technology Laboratory, Beijing 100029, China
4.
Beijing University of Posts and Telecommunications, Beijing 100876, China

Funds: The National Key Research and Development Program of China (2020YFB1807900)

摘要

摘要: 低轨卫星资源调度是长时间的连续资源分配过程，这一过程中低轨卫星保持高速移动，跳波束图案的设计需要考虑星地链路的切换。针对这种切换，即卫星覆盖区域间的服务目标迁移，所导致的多星资源联合调度需求，该文提出一种资源自适应权衡分配的多星联合跳波束图案设计算法。该算法通过设计星间联合调度框架和多星联合调度权重，将多星资源联合分配问题转化为星座内单星资源调度问题，轻量化设计跳波束图案。经过与多种权重设计方法的对比验证，仿真结果表明，所提算法的轻量化设计思路合理，并且可以有效地保障受迁移影响区域内小区的服务质量，可为低轨卫星系统长时资源调度设计提供参考。
- 低轨卫星通信系统 /
- 跳波束 /
- 资源分配策略
Abstract: Objective The resource scheduling in Low Earth Orbit (LEO) satellite communication systems using Beam Hopping (BH) technology is a continuous, long-term allocation process. Unlike geostationary earth orbit (GEO) satellites, LEO satellites exhibit high-speed mobility relative to the ground during communication. The design of BH patterns typically occurs within regular time windows, ranging from tens to hundreds of milliseconds, leading to the switching of satellite-to-cell interaction links during certain BH periods. This switching implies that cells migrate between satellite coverage areas, each with varying capacity and delay requirements, which inevitably affects the performance of the receiving satellite. Additionally, the requirements of migrating cells during the switching time slot are directly related to the resource tilt provided by the source satellite before the switch. Therefore, there is a strong correlation between the BH pattern design strategies for different satellites, requiring multi-satellite joint resource scheduling to maintain service quality of cells in regions affected by migration. Methods In order to characterize the demands of joint scheduling for multiple satellites and maximize the minimum traffic satisfaction rate, an optimization problem is proposed for dynamic scenarios involving satellite-to-cell interaction link switching. This optimization problem simultaneously considers co-channel interference, traffic demands with differentiated temporal and spatial distributions, and traffic delay—all factors that affect the service quality of BH systems. To solve this NP-hard problem, a design algorithm of Multi-Satellite Joint BH Pattern based on Resource Adaptive Tradeoff Allocation (RATMJ-BHP) is proposed. First, an inter-satellite joint scheduling framework is proposed to model the complex impact of cell migration on satellite resource scheduling, transforming the multi-satellite scheduling problem into a single-satellite BH pattern design problem. Then, within this framework, a weight design method for multi-satellite joint scheduling is proposed, which quantifies the intensity of service urgency based on the capacity and delay requirements of cells. Finally, this joint scheduling weight is used to design the BH pattern. Results and Discussions Based on the optimization problem modeled in this paper, the satellite optimization region is divided into two areas: the stable region and the immigration region. A comprehensive evaluation, considering both regions within individual satellites and across adjacent satellites, is essential for analyzing the performance of the proposed algorithm. Thus, this paper examines the simulation results from two perspectives: the minimum traffic satisfaction rate and the variation in the minimum traffic satisfaction rate across different regions. Additionally, convergence speed is a key indicator of the algorithm’s performance; therefore, the number of iterations required to produce results for each time slot is counted. The key contributions of this research are as follows: Firstly, the average and maximum convergence times of the proposed algorithm are significantly lower than those of the enumeration method, demonstrating its efficiency in terms of time complexity (Table 3). Specifically, with three satellites, the maximum complexity value of the proposed algorithm is 39.05, compared to that for the enumeration method. Secondly, the proposed algorithm outperforms the comparison algorithms in terms of minimum traffic satisfaction rates under different load rates, with a minimum value above 69.34% across various satellites (Fig. 3a) (Fig. 4a) (Fig. 5a). These results show that the RATMJ-BHP algorithm effectively ensures high traffic satisfaction rates for cells in affected regions, demonstrating robustness across different traffic demand rates. Thirdly, the proposed algorithm exhibits a smaller disparity in minimum traffic satisfaction rates across regions, with values remaining close to zero, unlike other algorithms. This indicates its ability to maintain high traffic satisfaction rates for most cells in service areas (Fig. 3b) (Fig. 4b) (Fig. 5b). Finally, simulation results from both perspectives demonstrate consistent performance across different satellites and varying traffic demand rates, highlighting the general applicability of the proposed algorithm in LEO satellite BH systems. Conclusions This paper addresses the design of BH patterns for dynamic scenarios involving satellite-to-cell interaction link switching. To meet the demands of multi-satellite joint resource scheduling in such scenarios, while considering performance factors such as co-channel interference, traffic demands, and traffic delay, the RATMJ-BHP algorithm is proposed. Simulation results show that the proposed algorithm effectively ensures the service quality of cells in migration-affected areas, and its lightweight design demonstrates broad applicability within LEO constellations. This paper contributes to the design strategy of BH patterns in dynamic scenarios during long-term resource scheduling processes, offering a solution to maintain continuous high-quality service to cells throughout prolonged satellite motion. It provides a reference for the design of long-term beam scheduling strategies in LEO satellite BH systems. However, several challenges remain in resource scheduling strategies for LEO satellite BH systems. For instance, the relationship between resource scheduling across BH periods and its impact on long-term system performance has yet to be fully explored. Additionally, while the proposed algorithm focuses on resource scheduling for the forward link of LEO satellite systems, further research is needed for uplink scenarios.
- Low Earth Orbit (LEO) satellite communication system /
- Beam hopping /
- Resource scheduling strategy

HTML全文

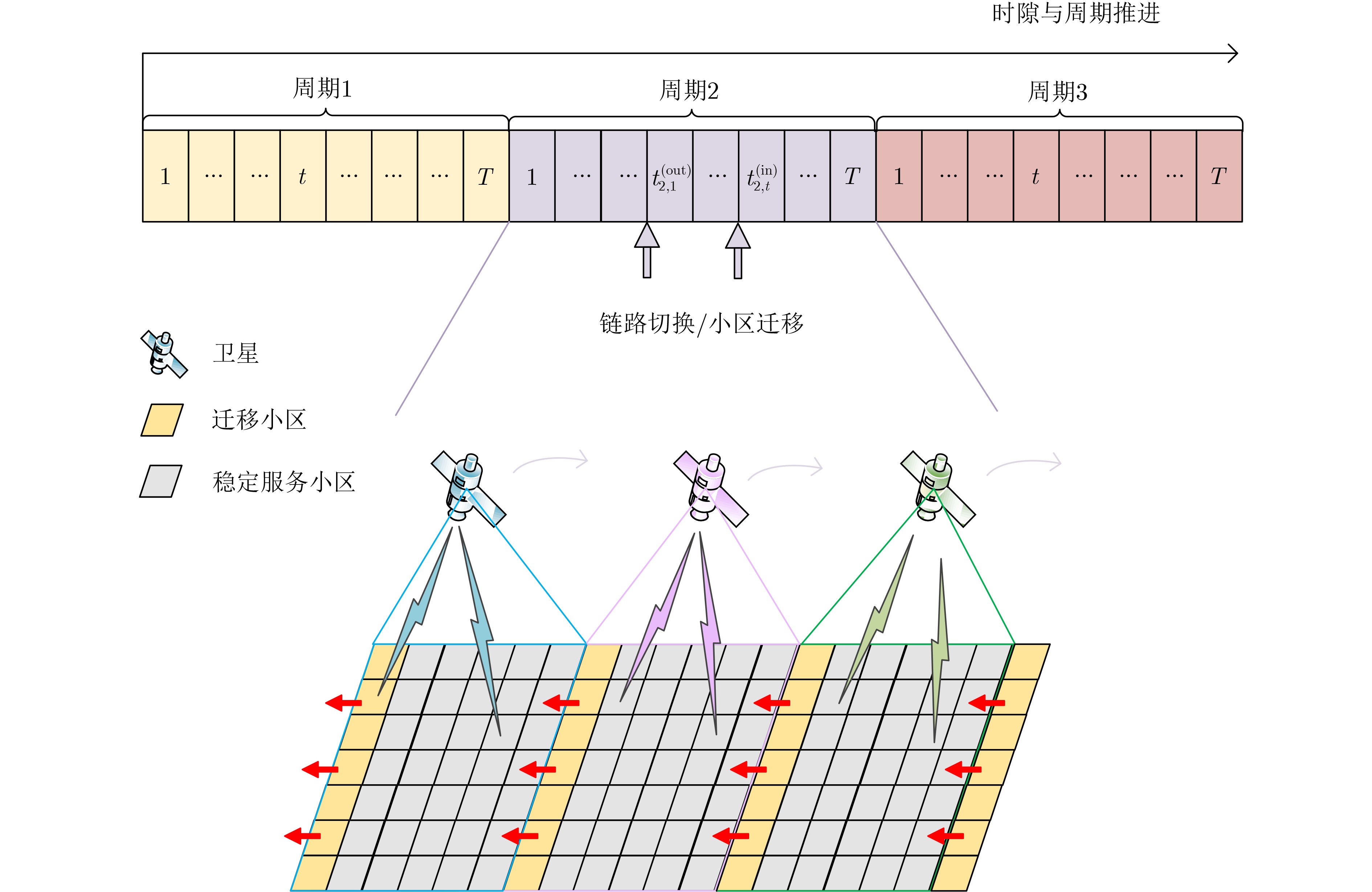

图 1 低轨卫星跳波束系统模型

下载: 全尺寸图片幻灯片

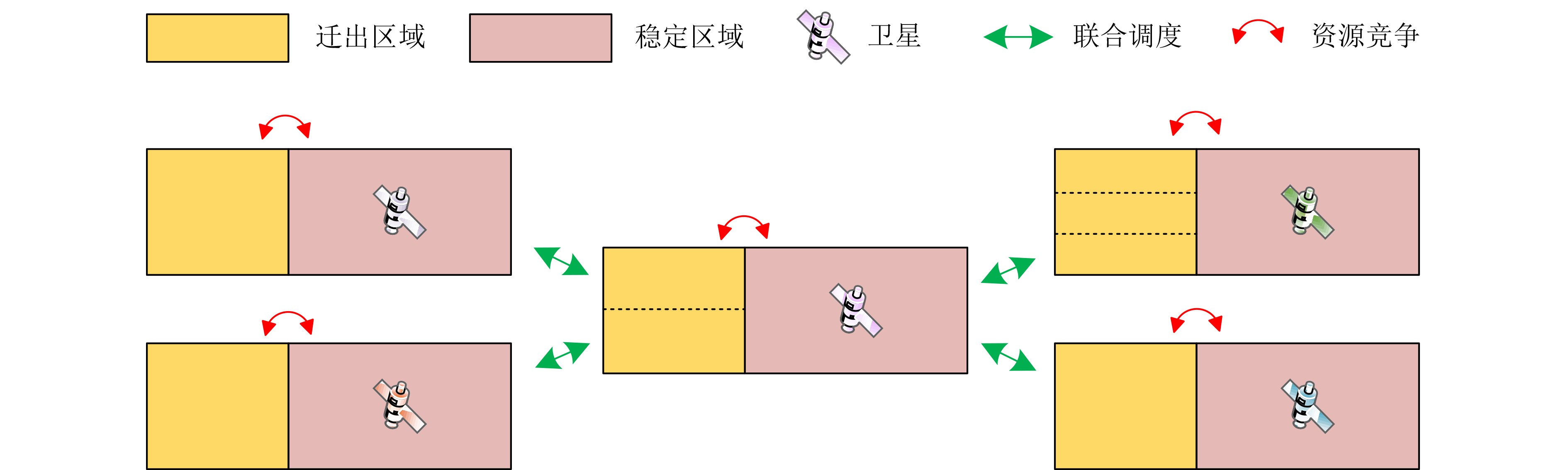

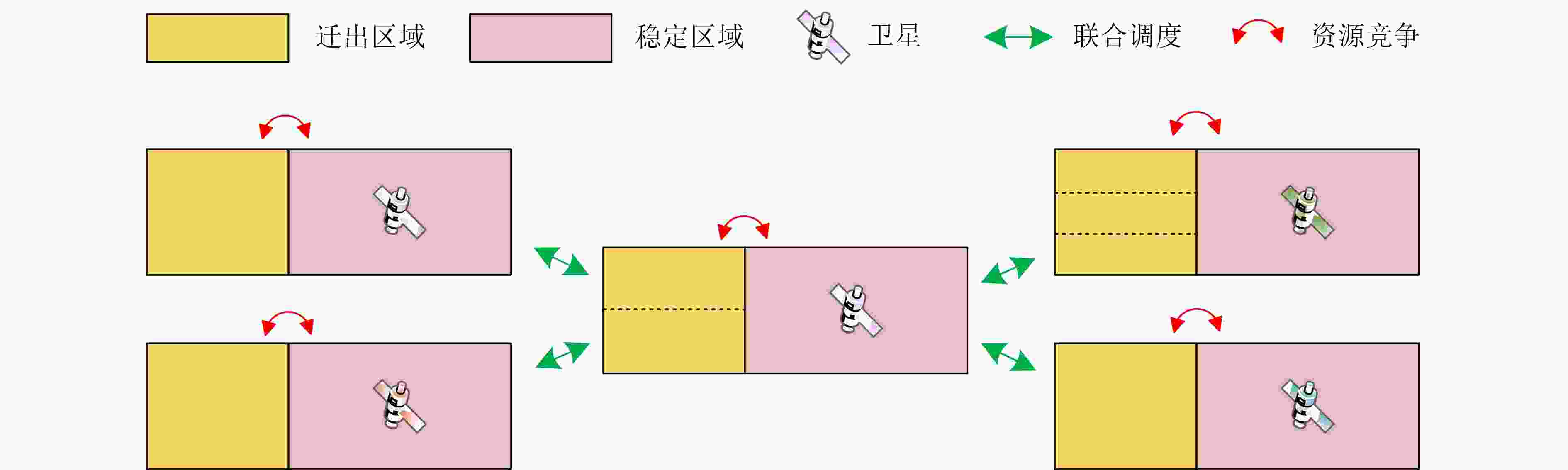

图 2 星间联合调度区

下载: 全尺寸图片幻灯片

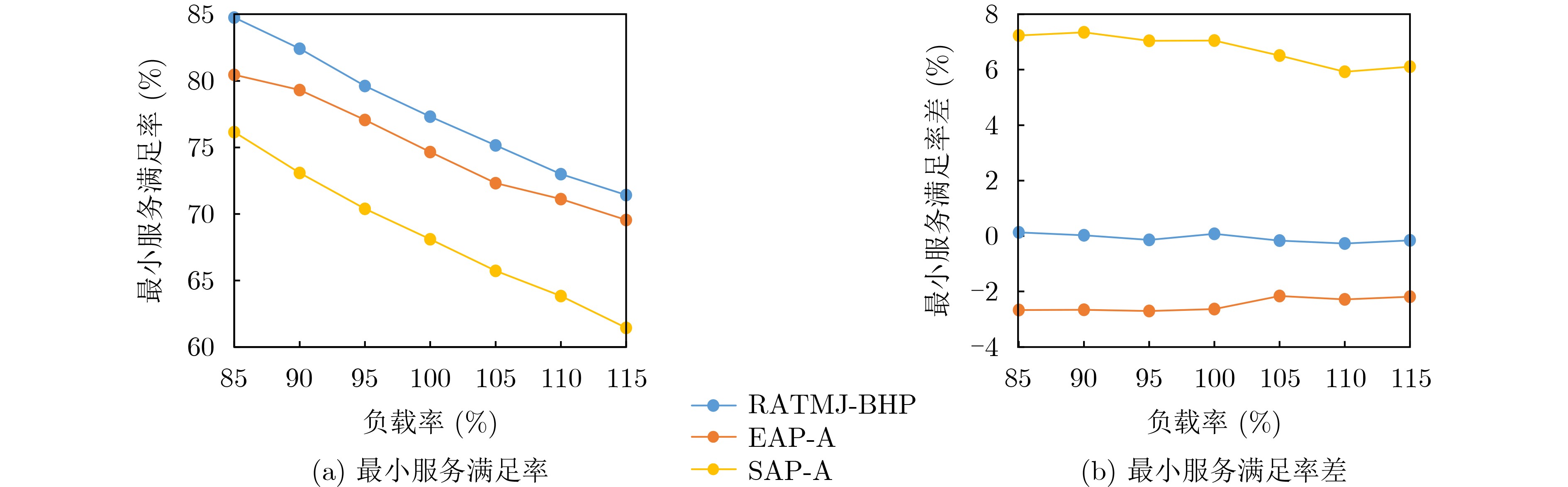

图 3 中心卫星不同负载率下的仿真结果

下载: 全尺寸图片幻灯片

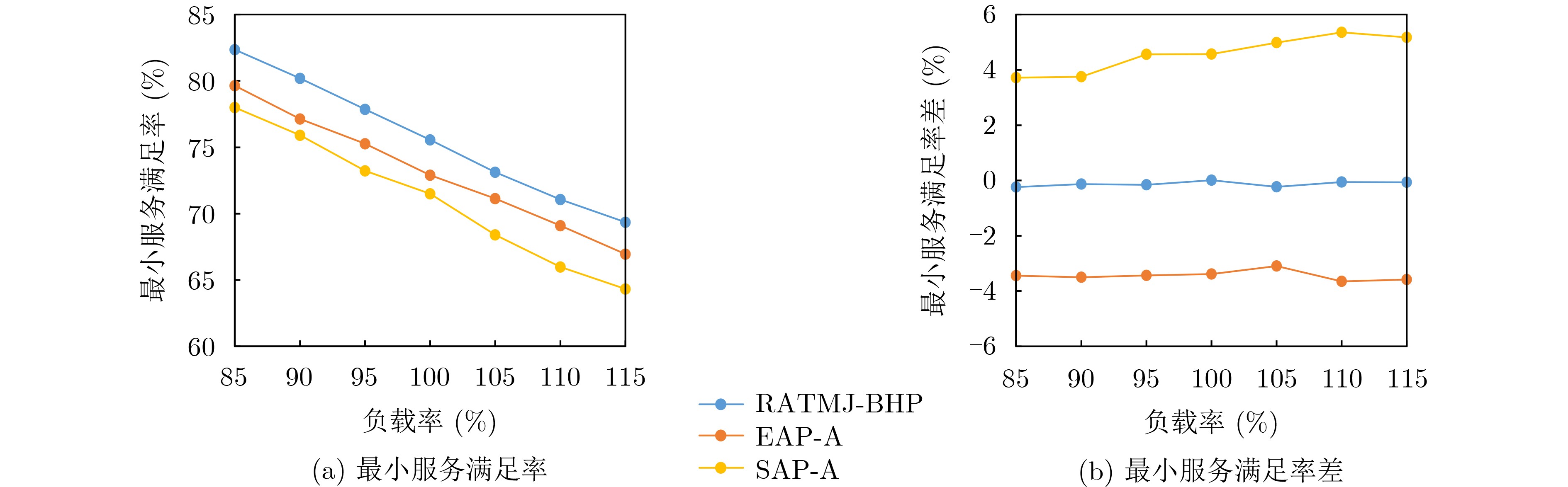

图 4 迁入卫星不同负载率下的仿真结果

下载: 全尺寸图片幻灯片

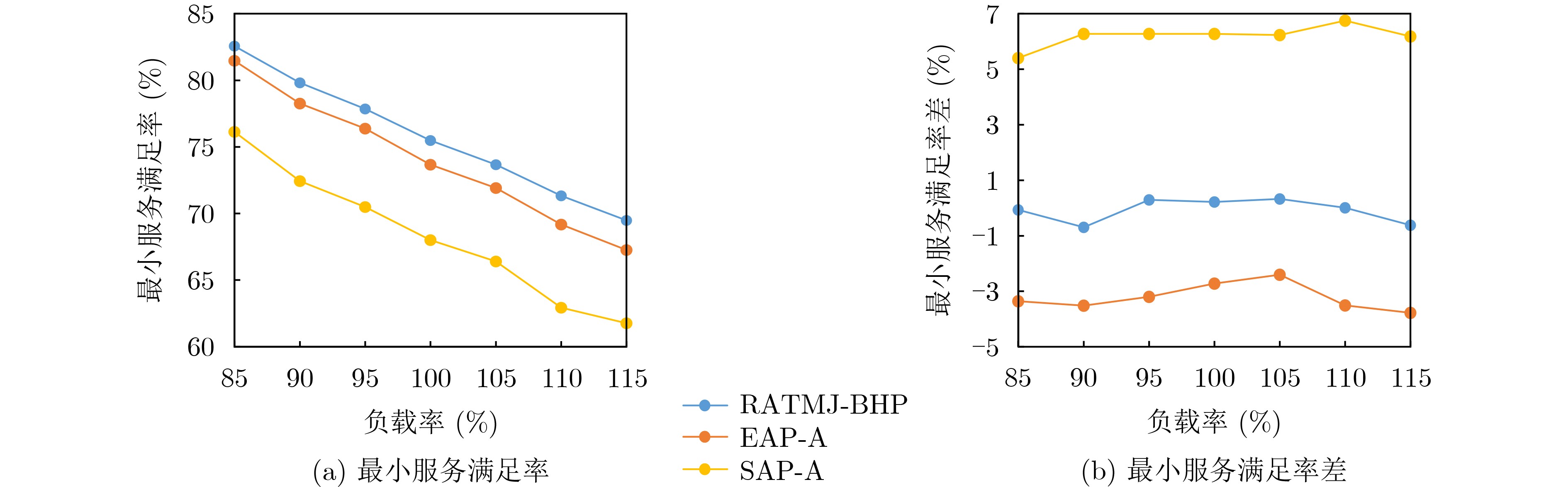

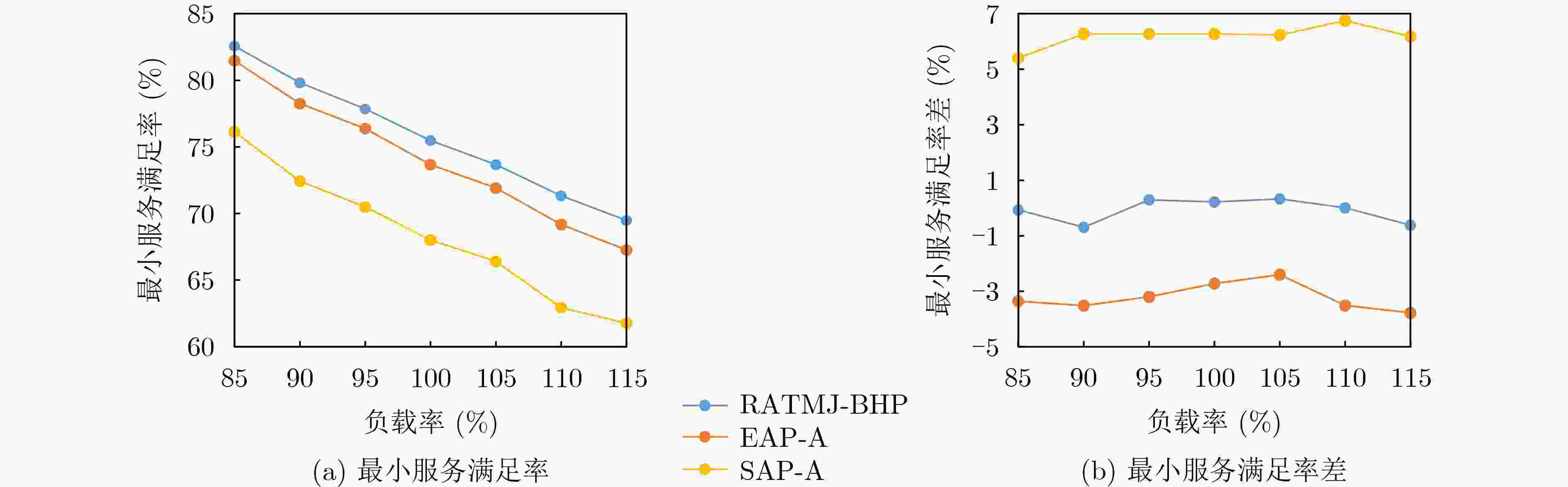

图 5 迁出卫星不同负载率下的仿真结果

下载: 全尺寸图片幻灯片

1 RATMJ-BHP算法

1 输入： ${G_{\rm{th}}}$
2 初始化： $\forall s \in \mathcal{S},{{\boldsymbol{X}}_s} = \varnothing$ , $\forall k \in (1,K),{{\mathcal{N}}}_{{\mathrm{sort}}}^{(k)} = \varnothing$
3 For $t = 1,2, \cdots ,T$
4 　If $\forall s \in \mathcal{S},{\text{ }}\exists {t^{'}} \in \iota _s^{({\mathrm{in}})},{\text{ }}{\mathrm{s.t}}.{\text{ }}{t^{'}} = = t{\text{ or }}\exists {t^{''}} \in \iota _s^{({\mathrm{out}})}$ , 　　　 ${\mathrm{s.t.}}{\text{ }}{t^{''}} = = t{\text{ }}$
5 　　 ${{\mathcal{N}}}_s^{(t)} = {{\mathcal{N}}}_s^{(t)} + {{\mathcal{N}}}_s^{({t^{'}})} - {{\mathcal{N}}}_s^{({t^{''}})}$ , ${{\mathcal{N}}}_{{\mathrm{set}}}^{(s)} = {{\mathcal{N}}}_s^{(t)}$
6 　　根据式(11)和式(12)更新 $\sigma _{s,t}^{({\mathrm{out}})}$ , $\sigma _{s,t}^{({\mathrm{in}})}$
7 　End If
8 　 $\forall {n_s} \in {{\mathcal{N}}}_s^{(t)}$ ，根据式(20)和式(21)计算 $\overline \beta _{{n_s}}^{(t)}$ ，式(23)和　　式(24)计算 $\overline D _{{n_s}}^{(t)}$
9 　For $k = 1,2, \cdots ,K$
10 　 For $s = 1,2, \cdots ,S$
11 　　 If $D_{{\mathrm{now}},{n_s}}^{(t)} > R_{{\mathrm{unit}}}^{({n_s})}$
12 　　　依据策略(3)和(4)计算 $\varpi _{{n_s}}^{(t)}$ ，选择候选服务小区 $n_s^{'}$
13 　　　 $n_s^{'} \leftarrow {{\mathcal{N}}}_{{\mathrm{set}}}^{(s)}$ ； ${{\mathcal{N}}}_{{\mathrm{sort}}}^{(k)} \leftarrow n_s^{'}$
14 　　 Else
15 　　　依据策略(1)和(2)计算 $\varpi _{{n_s}}^{(t)}$ ，并选择候选服务小区 $n_s^{'}$
16 　　　 $n_s^{'} \leftarrow {{\mathcal{N}}}_{{\mathrm{set}}}^{(s)}$ ； ${{\mathcal{N}}}_{{\mathrm{sort}}}^{(k)} \leftarrow n_s^{'}$
17 　　 End If
18 　 End For
19 　依据4种策略对 ${{\mathcal{N}}}_{{\mathrm{sort}}}^{(k)}$ 中的小区排序
20 　 While ${{\mathcal{N}}}_{{\mathrm{sort}}}^{(k)} \ne \varnothing$
21 　　选择 ${{\mathcal{N}}}_{{\mathrm{sort}}}^{(k)}$ 中的第一个小区 $n_s^{'}$ 。
22 　　 If $\exists {n_{{s_1}}},\max \left\{ {G_{k_s^{'},{k_{{s_1}}}}^{({\rm{tx}})},G_{{k_{{s_1}}},k_s^{'}}^{({\rm{tx}})}} \right\} \ge {G_{\rm{th}}}$ , 　　　　　 ${s_1} \in \mathcal{S},{n_{{s_1}}} \in {{\boldsymbol{X}}_{{s_1}}},{k_s} \ne {k_{{s_1}}}$
23 　　　 $n_s^{'} \leftarrow {{\mathcal{N}}}_{{\mathrm{sort}}}^{(k)}$
24 　　　对于卫星 $s$ ，转至步骤11，
25 　　 Else
26 　　　 $x_{k_s^{'}}^{(t)} = n_s^{'}$
27 　　　 $n_s^{'} \leftarrow {{\mathcal{N}}}_{{\mathrm{sort}}}^{(k)}$
28 　　 End If
29 　 End While
30 End For
31 End For
32 输出跳波束图案 ${{\boldsymbol{X}}_1},{{\boldsymbol{X}}_2}, \cdots ,{{\boldsymbol{X}}_s},s \in \mathcal{S}$

下载: 导出CSV

表 1 仿真参数

参数	值
卫星数目	3
高度(km)	508
卫星初始经度(°)	[–3.81, 0.65, 5.55]
卫星初始纬度(°)	[26.45, 31.01, 35.39]
初始小区数目	[38, 37, 40]
卫星迁出、迁入小区数目	[3, 4, 4, 4, 4, 3]
载波频率(MHz)	1 990
带宽(MHz)	40
星上总功率(dBW)	14
接收机天线模型	全向天线
极化方式	圆极化
业务包大小(MHz)	2
波束数目	8
跳波束时隙长度(ms)	30
跳波束周期长度(时隙)	35
时延门限(时隙)	5
干扰增益门限(dBi)	10

下载: 导出CSV

表 2 相控阵天线参数

参数	参数值
最大阵元增益(dBi)	5
阵元水平方向3 dB波束宽度(°)	65
阵元垂直方向3 dB波束宽度(°)	65
前后比(dB)	30
阵元水平方向间隔	0.5
阵元垂直方向间隔	0.5
水平方向阵元数目	32
垂直方向阵元数目	32

下载: 导出CSV

表 3 迭代次数

卫星数目	1	2	3
平均迭代次数	28.1	32.29	36.95
最大迭代次数	31.58	35.71	39.05
枚举法	${\mathrm{C}}_{{\text{38}}}^{\text{8}}$	${\mathrm{C}}_{{\text{38}}}^{\text{8}} \cdot {\mathrm{C}}_{{\text{37}}}^{\text{8}}$	${\mathrm{C}}_{{\text{38}}}^{\text{8}} \cdot {\mathrm{C}}_{{\text{37}}}^{\text{8}} \cdot {\mathrm{C}}_{{\text{40}}}^{\text{8}}$

下载: 导出CSV

参考文献(19)

[1]	FARREA K A, BAIG Z, DOSS R, et al. Low earth orbit (LEO) satellites role in shaping 6G networks amidst emerging threats[C]. 2023 IEEE Future Networks World Forum, Baltimore, USA, 2023: 1–8. doi: 10.1109/FNWF58287.2023.10520636.
[2]	MENG Entong, YU Jihong, JIN Song, et al. Resource allocation for MC-DS-CDMA in beam-hopping LEO satellite networks[J]. IEEE Transactions on Aerospace and Electronic Systems, 2024, 60(3): 3611–3624. doi: 10.1109/TAES.2024.3367796.
[3]	YANG Haowen, YANG Dewei, LI Yuanjun, et al. Cluster-Based beam hopping for energy efficiency maximization in flexible multibeam satellite systems[J]. IEEE Communications Letters, 2023, 27(12): 3300–3304. doi: 10.1109/LCOMM.2023.3314671.
[4]	NADERI F and CAMPANELLA S. NASA’s Advanced Communications Technology Satellite (ACTS)-An overview of the satellite, the network, and the underlying technologies[C]. The 12th International Communication Satellite Systems Conference, Arlington, USA, 1988: 797. doi: 10.2514/6.1988-797.
[5]	ANGELETTI P, FERNANDEZ PRIM D, and RINALDO R. Beam hopping in multi-beam broadband satellite systems: System performance and payload architecture analysis[C]. The 24th AIAA International Communications Satellite Systems Conference, San Diego, USA, 2006: 5376. doi: 10.2514/6.2006-5376.
[6]	唐璟宇, 李广侠, 边东明, 等. 卫星跳波束资源分配综述[J]. 移动通信, 2019, 43(5): 21–26. doi: 10.3969/j.issn.1006-1010.2019.05.004. TANG Jingyu, LI Guangxia, BIAN Dongming, et al. Review on resource allocation for beam-hopping satellite[J]. Mobile Communications, 2019, 43(5): 21–26. doi: 10.3969/j.issn.1006-1010.2019.05.004.
[7]	WANG Yaxin, BIAN Dongming, HU Jing, et al. A flexible resource allocation algorithm in full bandwidth beam hopping satellite systems[C]. 2019 IEEE 3rd Advanced Information Management, Communicates, Electronic and Automation Control Conference, Chongqing, China, 2019: 920–927. doi: 10.1109/IMCEC46724.2019.8984132.
[8]	LIN Zhiyuan, NI Zuyao, KUANG Linling, et al. NGSO satellites beam hopping strategy based on load balancing and interference avoidance for coexistence with GSO systems[J]. IEEE Communications Letters, 2023, 27(1): 278–282. doi: 10.1109/LCOMM.2022.3213912.
[9]	LI Weibiao, ZENG Ming, WANG Xinyao, et al. Dynamic beam hopping of double LEO multi-beam satellite based on determinant point process[C]. 2022 14th International Conference on Wireless Communications and Signal Processing, Nanjing, China, 2022: 713–718. doi: 10.1109/WCSP55476.2022.10039244.
[10]	刘子祎, 张校宁, 费泽松. 面向低轨卫星的长时多星跳波束功率分配技术[J]. 天地一体化信息网络, 2023, 4(4): 38–48. doi: 10.11959/j.issn.2096-8930.2023041. LIU Ziyi, ZHANG Xiaoning, and FEI Zesong. Power allocation technology of long time multi-star hopping beam for LEO satellite[J]. Space-Integrated-Ground Information Networks, 2023, 4(4): 38–48. doi: 10.11959/j.issn.2096-8930.2023041.
[11]	GINESI A, RE E, and ARAPOGLOU P D. Joint beam hopping and precoding in HTS systems[C]. The 9th International Conference on Wireless and Satellite Systems, Oxford, UK, 2018: 43–51. doi: 10.1007/978-3-319-76571-6_5.
[12]	TANG Jingyu, BIAN Dongming, LI Guangxia, et al. Optimization method of dynamic beam position for LEO beam-hopping satellite communication systems[J]. IEEE Access, 2021, 9: 57578–57588. doi: 10.1109/ACCESS.2021.3072104.
[13]	ITU. ITU-R M. 618-14 Propagation data and prediction methods required for the design of Earth-space telecommunication systems[S]. Geneva: ITU, 2023.
[14]	卢月. 基于跳波束干扰规避的LEO卫星多域资源联合优化[D]. [硕士论文], 哈尔滨工业大学, 2023. LU Yue. Joint optimization of LEO satellites multi-domain resources based on beam hopping interference avoidance[D]. [Master dissertation], Harbin Institute of Technology, 2023.
[15]	ITU. ITU-R M. 2101-0 Modelling and simulation of IMT networks and systems for use in sharing and compatibility studies: Recommendation[S]. Geneva: ITU, 2017.
[16]	PANDA S K and JANA P K. Efficient task scheduling algorithms for heterogeneous multi-cloud environment[J]. The Journal of Supercomputing, 2015, 71(4): 1505–1533. doi: 10.1007/s11227-014-1376-6.
[17]	Space radiocommunications stations database (the 3001st edition)[DB/CD]. Geneva: ITU, 2024.
[18]	蔡辉. 基于卫星跳波束技术的资源分配方法研究[D]. [硕士论文], 中国航天科技集团公司第五研究院西安分院, 2023. CAI Hui. Research on resource allocation method based on satellite beam hopping technology[D]. [Master dissertation], China Academy of Space Technology, 2023.
[19]	丁祥, 续欣, 张森柏, 等. 业务自适应的卫星跳波束系统资源分配方法[J]. 陆军工程大学学报, 2022, 1(3): 29–35. doi: 10.12018/j.issn.2097-0730.20210121001. DING Xiang, XU Xin, ZHANG Senbai, et al. Service-adaptive resource allocation method for satellite beam-hopping systems[J]. Journal of Army Engineering University of PLA, 2022, 1(3): 29–35. doi: 10.12018/j.issn.2097-0730.20210121001.
