静态与动态域先验增强的两阶段视频压缩感知重构网络

杨春玲; 梁梓文

doi:10.11999/JEIT240295

静态与动态域先验增强的两阶段视频压缩感知重构网络

doi: 10.11999/JEIT240295

杨春玲^,,
梁梓文

华南理工大学电子与信息学院广州 510000

基金项目: 广东省自然科学基金(2019A1515011949)

详细信息

作者简介:
杨春玲：女，教授，研究方向为图像/视频压缩编码、图像质量评价

梁梓文：男，硕士生，研究方向为图像/视频压缩感知

通讯作者:
杨春玲　eeclyang@scut.edu.cn

中图分类号: TN919.8; TN911.7
计量
- 文章访问数: 64
- HTML全文浏览量: 34
- PDF下载量: 4
- 被引次数: 0
出版历程
- 收稿日期: 2024-04-19
- 修回日期: 2024-09-19
- 网络出版日期: 2024-10-08
- 刊出日期: 2024-11-10

Static and Dynamic-domain Prior Enhancement Two-stage Video Compressed Sensing Reconstruction Network

YANG Chunling^,,
LIANG Ziwen

School of Electronic and Information, South China University of Technology, Guangzhou 510000, China

Funds: The Natural Science Foundation of Guangdong Province (2019A1515011949)

摘要

摘要: 视频压缩感知重构属于高度欠定问题，初始重构质量低与运动估计方式单一限制了帧间相关性的有效建模。为改善视频重构性能，该文提出静态与动态域先验增强两阶段重构网络(SDPETs-Net)。首先，提出利用参考帧测量值重构2阶静态域残差的策略，并设计相应的静态域先验增强网络(SPE-Net)，为动态域先验建模提供可靠基础。其次，设计塔式可变形卷积联合注意力搜索网络(PDCA-Net)，通过结合可变形卷积与注意力机制的优势，并构建塔式级联结构，有效地建模并利用动态域先验知识。最后，多特征融合残差重构网络(MFRR-Net)从多尺度提取并融合各特征的关键信息以重构残差，缓解两阶段耦合导致不稳定的模型训练，并抑制特征的退化。实验结果表明，在UCF101测试集下，与具有代表性的两阶段网络JDR-TAFA-Net相比，峰值信噪比(PSNR)平均提升3.34 dB，与近期的多阶段网络DMIGAN相比，平均提升0.79 dB。
- 视频压缩感知 /
- 帧间相关性建模 /
- 两阶段重构 /
- 特征对齐
Abstract: Video compressed sensing reconstruction is a highly underdetermined problem, where the low-quality of initial reconstructed and the single-motion estimation approach limit the effective modeling of inter-frames correlations. To improve video reconstruction performance, the Static and Dynamic-domain Prior Enhancement Two-stage reconstruction Network (SDPETs-Net) is proposed. Firstly, a strategy of reconstructing second-order static-domain residuals using reference frame measurements is proposed, and a corresponding Static-domain Prior Enhancement Network (SPE-Net) is designed to provide a reliable basis for dynamic-domain prior modeling. Secondly, the Pyramid Deformable-convolution Combined with Attention-search Network (PDCA-Net) is designed, which combines the advantages of deformable-convolution and attention mechanisms, and a pyramid cascade structure is constructed to effectively model and utilize dynamic-domain prior knowledge. Lastly, the Multi-Feature Fusion Residual Reconstruction Network (MFRR-Net) extracts and fuses key information of each feature from multiple scales to reconstruct residues, alleviating the instability of model training caused by the coupling of the two stages and suppressing feature degradation. Simulation results show that the Peak Signal-to-Noise Ratio (PSNR) is improved by an average of 3.34 dB compared to the representative two-stage network JDR-TAFA-Net under the UCF101 test set, and by an average of 0.79 dB compared to the recent multi-stage network DMIGAN.
- Video Compressed Sensing (VCS) /
- Inter-frame correlation modeling /
- Two-stage reconstruction /
- Feature alignment

HTML全文

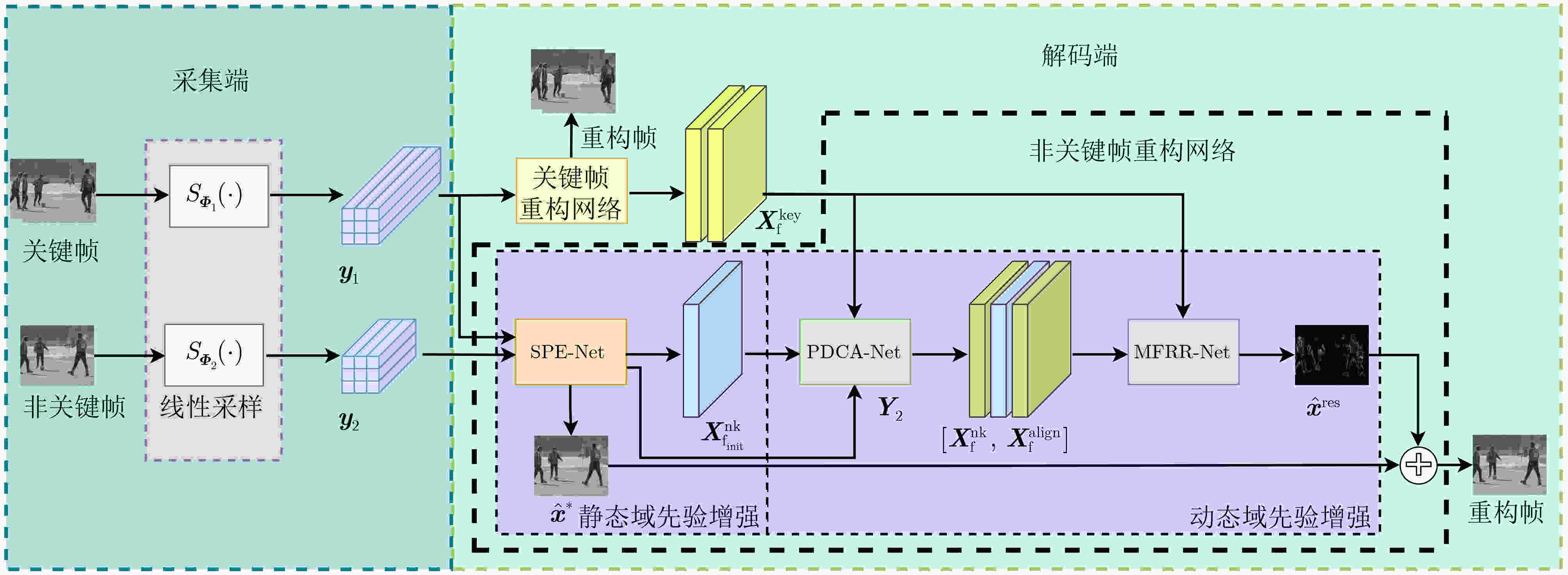

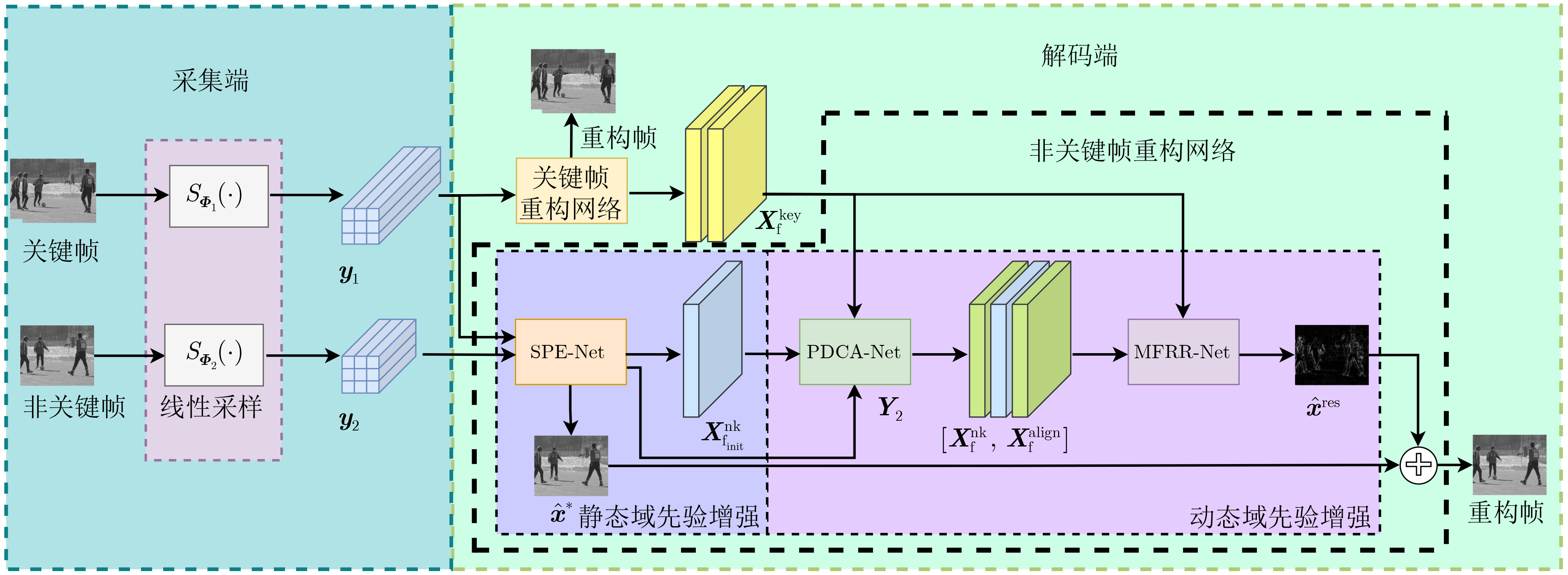

图 1 SDPETs-Net整体架构

下载: 全尺寸图片幻灯片

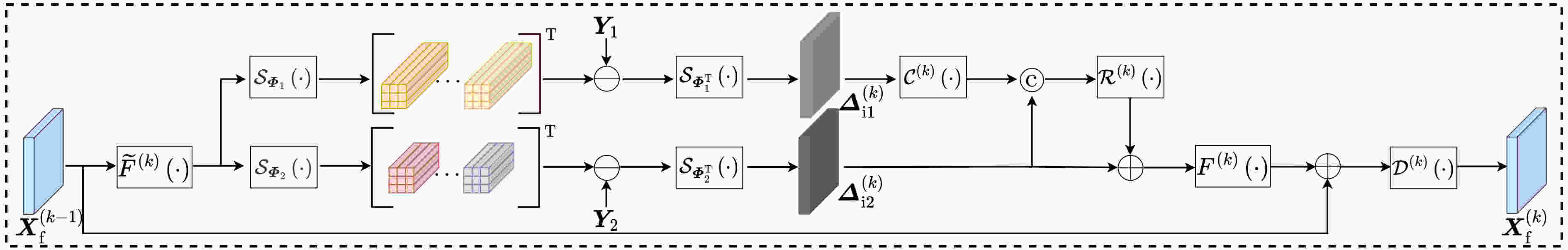

图 2 两级多维残差补充阶段实现细节

下载: 全尺寸图片幻灯片

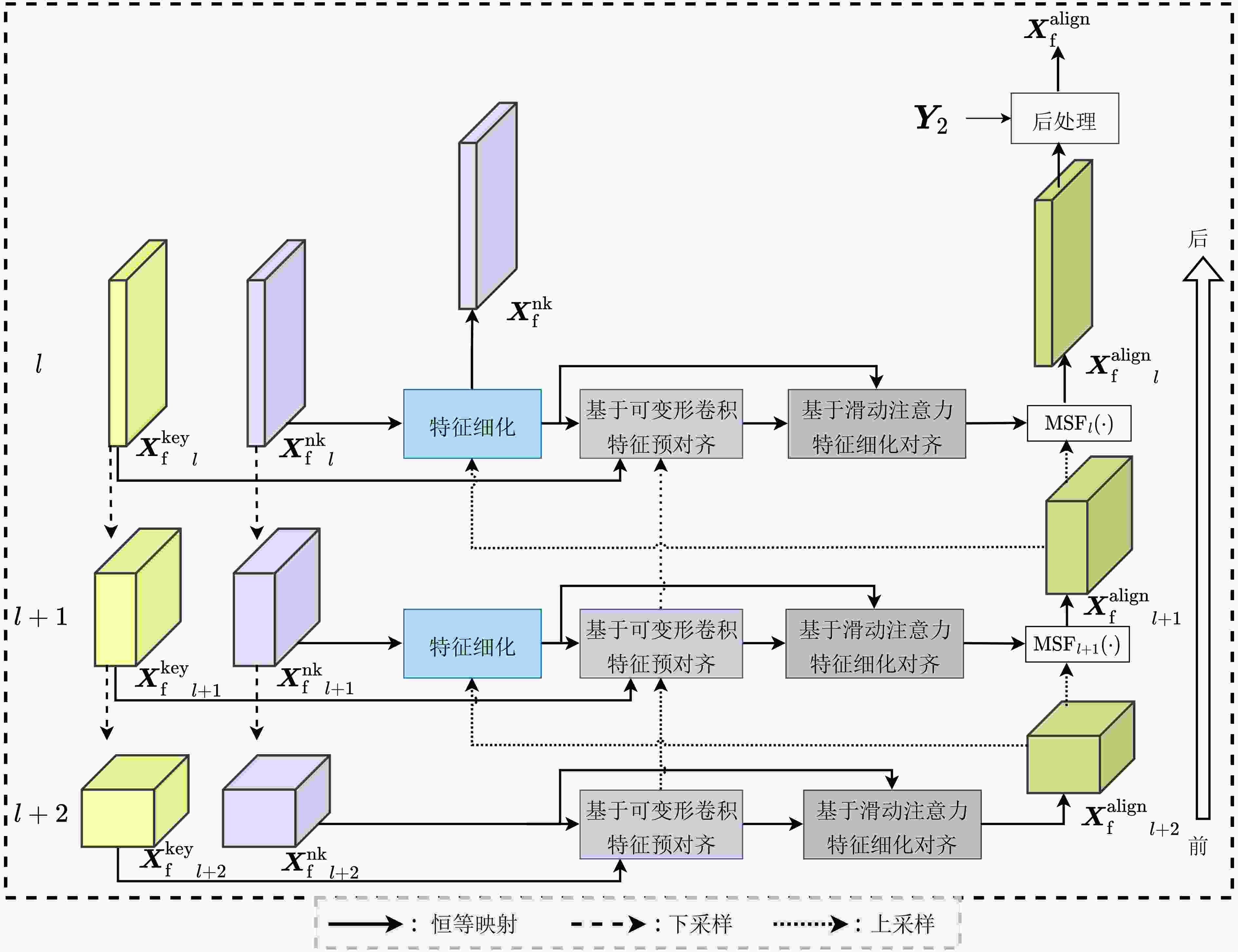

图 3 PDCA-Net网络结构

下载: 全尺寸图片幻灯片

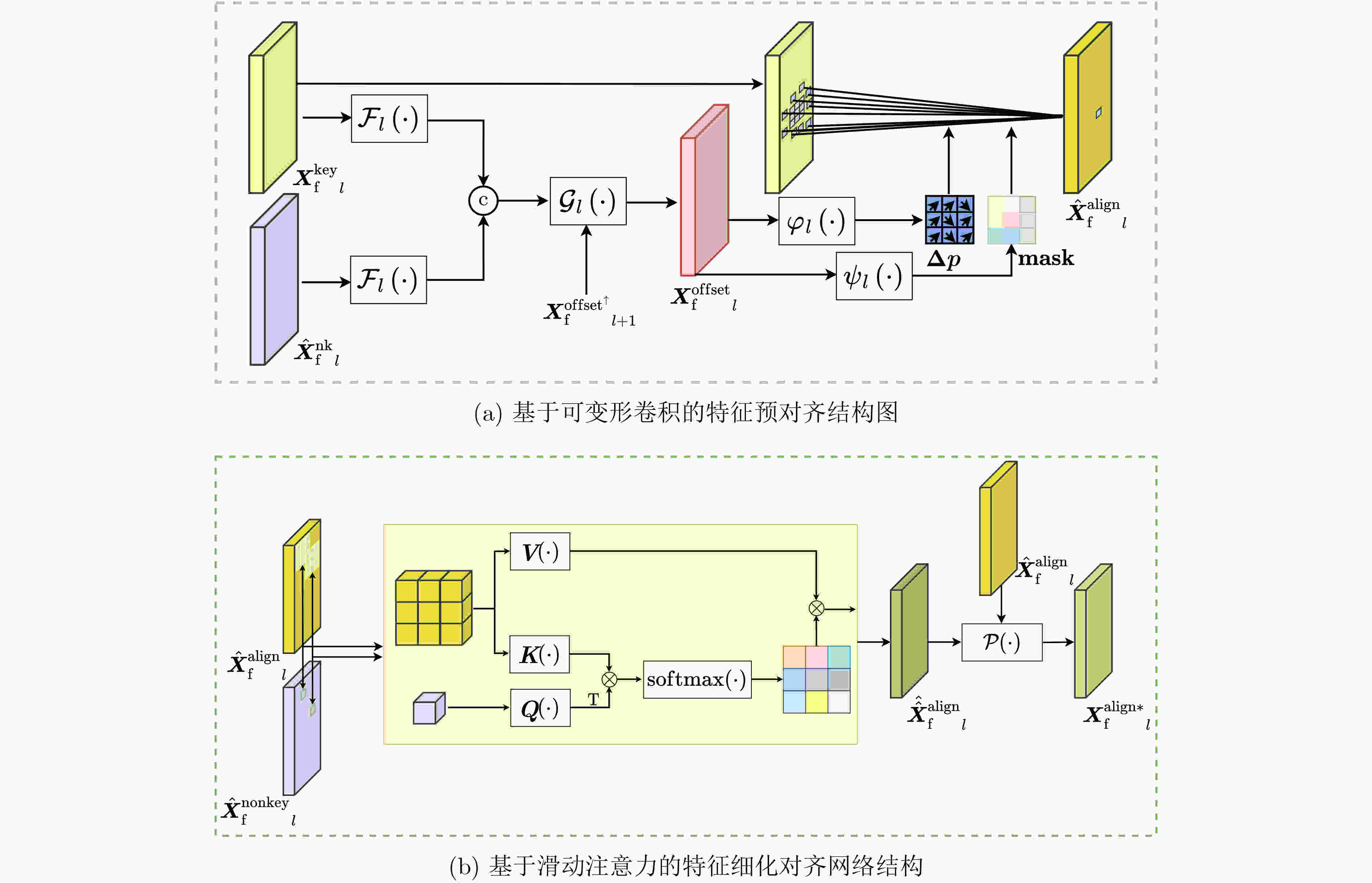

图 4 预对齐与细化对齐

下载: 全尺寸图片幻灯片

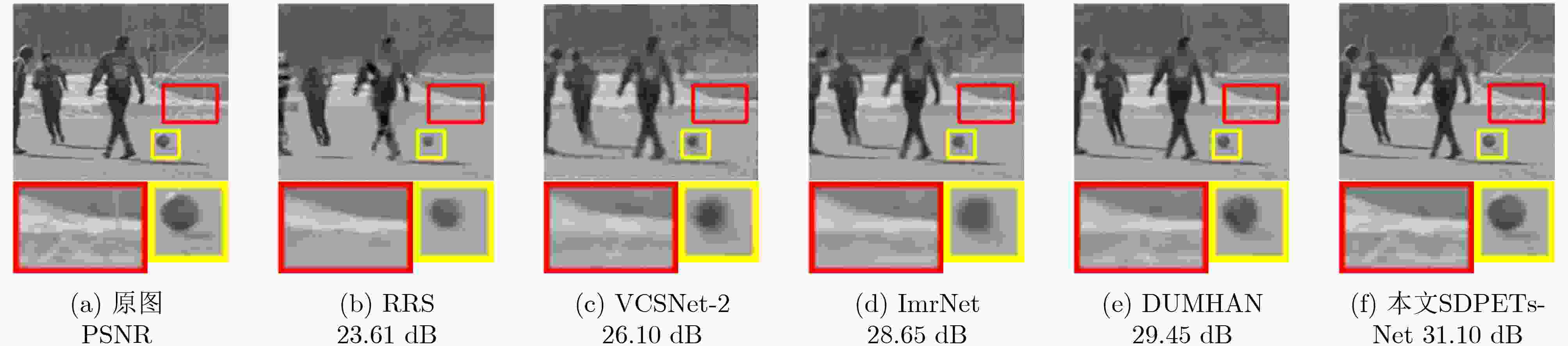

图 5 不同算法及模型重构视觉效果对比(Soccer序列第12帧)

下载: 全尺寸图片幻灯片

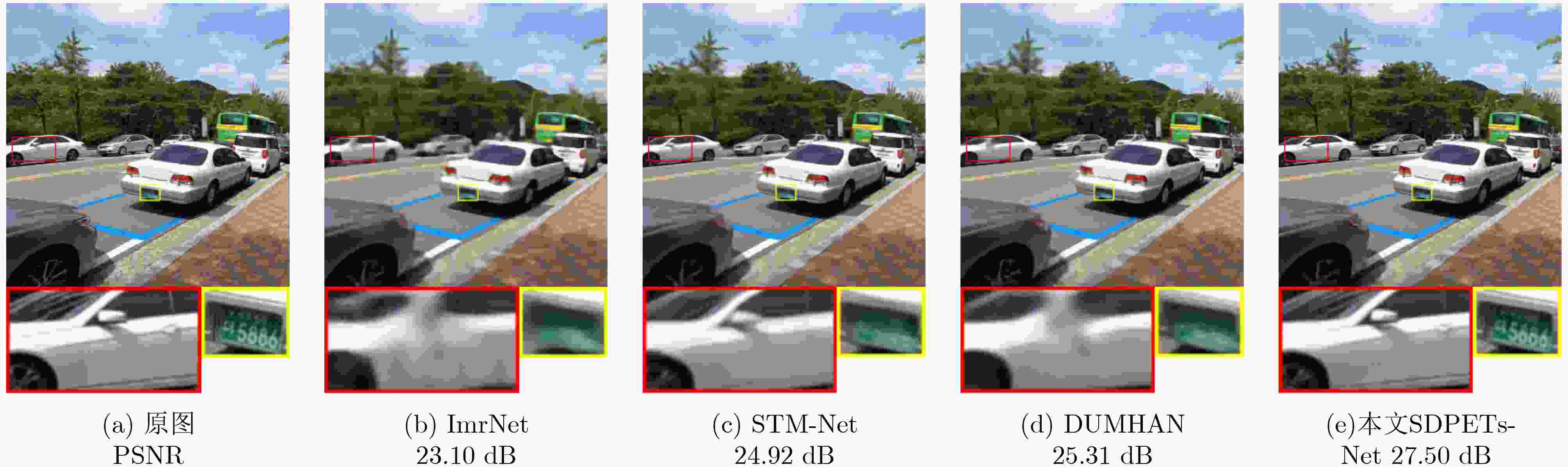

图 6 不同模型重构视觉效果对比(REDS4-000序列第36帧)

下载: 全尺寸图片幻灯片

表 1 UCF101测试集重构性能对比PSNR(dB)/SSIM

$ {r}_{\mathrm{n}\mathrm{k}} $	CSVideoNet	STM-Net	Imr-Net	JDRTAFA-Net	DUMHAN	DMIGAN	本文 SDPETs-Net
$ 0.037 $	26.87/0.81	32.50/0.93	33.40/—	33.14/0.94	35.37/—	35.86/—	36.36/0.96
$ 0.018 $	25.09/0.77	31.14/0.91	31.90/—	31.63/0.91	33.70/—	34.23/—	35.01/0.95
$ 0.009 $	24.23/0.74	29.98/0.89	30.51/—	30.33/0.89	32.11/—	32.65/—	33.75/0.94
平均值	25.40/0.77	31.21/0.91	31.94/—	31.70/0.91	33.73/—	34.25/—	35.04/0.95

下载: 导出CSV

表 2 QCIF序列重构性能对比PSNR(dB)($ {r}_{\mathrm{k}}=0.5 $，$ \mathrm{G}\mathrm{O}\mathrm{P}=8 $)

$ {r}_{\mathrm{n}\mathrm{k}} $	算法 (网络)	视频序列						平均值
$ {r}_{\mathrm{n}\mathrm{k}} $	算法 (网络)	Silent	Ice	Foreman	Coastguard	Soccer	Mobile	平均值
0.01	RRS	21.25	20.72	18.51	21.16	21.42	15.24	19.72
	SSIM-InterF-GSR	24.77	24.65	26.86	25.08	23.39	21.92	24.45
	VCSNet-2	31.94	25.77	26.07	25.66	24.62	21.42	25.91
	ImrNet	35.30	29.25	31.58	28.94	27.10	25.02	29.53
	DUMHAN	37.25	31.69	34.46	31.63	28.37	29.28	32.11
	本文SDPETs-Net	38.05	32.92	36.05	32.76	29.50	30.35	33.27
0.05	RRS	25.76	26.15	26.84	22.66	26.80	16.68	24.15
	SSIM-InterF-GSR	33.68	28.81	33.18	28.09	27.65	22.99	29.07
	VCSNet-2	34.52	29.51	29.75	27.01	28.62	22.79	28.70
	ImrNet	38.07	33.76	36.03	30.80	31.81	27.55	33.00
	DUMHAN	40.42	36.58	39.44	33.63	33.74	31.61	35.90
	本文SDPETs-Net	41.09	37.98	40.82	34.31	34.85	32.36	36.90
0.1	RRS	33.95	31.09	35.17	27.34	29.74	20.00	29.55
	SSIM-InterF-GSR	35.09	31.73	35.75	30.24	30.31	24.35	31.25
	VCSNet-2	34.92	30.95	31.14	28.01	30.51	23.62	29.86
	ImrNet	39.17	35.90	37.37	31.44	34.24	28.19	34.39
	DUMHAN	41.73	38.66	41.68	34.73	36.40	32.48	37.61
	本文SDPETs-Net	42.71	40.10	42.97	35.22	37.52	33.07	38.60

下载: 导出CSV

表 3 REDS4序列重构性能对比PSNR(dB)/SSIM

$ {r}_{\mathrm{n}\mathrm{k}} $	序列	VCSNet-2	ImrNet	STM-Net	DUMHAN	本文SDPETs-Net
0.01	000	23.24/—	25.71/0.67	26.45/0.73	27.74/0.77	29.44/0.85
	011	24.19/—	25.93/0.66	26.89/0.71	26.72/0.70	27.77/0.74
	015	26.85/—	30.01/0.81	30.67/0.84	31.02/0.85	32.66/0.89
	020	23.34/—	25.15/0.66	25.98/0.71	25.97/0.70	26.99/0.75
0.1	000	27.55/—	29.09/0.85	30.69/0.90	31.80/0.91	32.82/0.94
	011	29.65/—	32.29/0.89	32.82/0.90	33.52/0.90	34.36/0.92
	015	32.34/—	36.33/0.94	37.06/0.95	38.00/0.95	39.07/0.96
	020	28.88/—	31.23/0.90	31.65/0.91	32.17/0.91	33.16/0.93

下载: 导出CSV

表 4 不同模型的空间与重构时间(GPU)与重构精度(PSNR(dB)/SSIM)对比

模型	参数量(M)	平均单帧重构时间(GPU)(s)	平均重构精度(PSNR(dB)/SSIM)
ImrNet	8.69	0.03	31.94/—
STM-Net	9.20	0.03	31.21/0.91
JDR-TAFA-Net	12.41	0.04	31.70/0.91
本文SDPETs-Net	7.44	0.04	35.04/0.95
本文SDPETs-Net	7.44	0.02(GOP并行)	35.04/0.95

下载: 导出CSV

表 5 静态域先验增强阶段的消融研究(PSNR(dB)/SSIM)

模型	设置		QCIF序列						平均值
模型	SR	MG	Silent	Ice	Foreman	Coastguard	Soccer	Mobile	平均值
基础	√	√	36.71/0.97	31.42/0.94	34.04/0.94	31.19/0.88	28.20/0.76	27.82/0.92	31.56/0.90
1	√	×	36.32/0.96	31.09/0.94	33.14/0.92	30.14/0.85	27.99/0.74	26.78/0.90	30.91/0.89
2	×	×	26.65/0.61	26.21/0.80	24.90/0.63	24.06/0.51	26.77/0.67	19.42/0.35	24.67/0.60

下载: 导出CSV

表 6 PDCA-Net消融实验对比(PSNR(dB)/SSIM)

模型	设置					REDS4序列				平均值
模型	PA	PP	RA	PC	RF	000	011	015	020	平均值
基础	√	√	√	√	√	31.74/0.91	32.17/0.87	36.99/0.95	31.00/0.89	32.98/0.90
1	√	√	√	√	×	31.56/0.91	31.92/0.87	36.78/0.94	30.81/0.88	32.77/0.90
2	√	√	√	×	×	30.38/0.88	31.04/0.85	35.94/0.93	29.82/0.86	31.80/0.88
3	√	√	×	×	×	30.32/0.87	30.96/0.85	35.87/0.93	29.79/0.86	31.73/0.88
4	√	×	×	×	×	30.08/0.87	30.80/0.84	35.65/0.93	29.67/0.86	31.55/0.87
5	×	×	×	×	×	29.38/0.84	30.55/0.84	35.19/0.92	29.40/0.85	31.13/0.86

下载: 导出CSV
