IP软核硬件木马图谱特征分析检测方法

倪林; 李霖; 张帅; 童思程; 钱杨

doi:10.11999/JEIT240219

IP软核硬件木马图谱特征分析检测方法

doi: 10.11999/JEIT240219

倪林^{1, 3},
李霖³,
张帅^{2, 3, ,},
童思程³,
钱杨³

1.
国防科技大学电子科学学院长沙 410073
2.
国防科技大学计算机学院长沙 410073
3.
国防科技大学信息通信学院武汉 430035

详细信息

作者简介:
倪林：男，博士生，讲师，研究方向为硬件安全、网络安全等

李霖：男，研究方向为硬件安全等

张帅：男，博士生，讲师，研究方向为硬件安全、网络安全等

童思程：男，研究方向为硬件安全等

钱杨：男，研究方向为硬件安全等

通讯作者:
张帅　zhangshuai16a@nudt.edu.cn

中图分类号: TN915.08; TP309.1
计量
- 文章访问数: 83
- HTML全文浏览量: 25
- PDF下载量: 10
- 被引次数: 0
出版历程
- 收稿日期: 2024-03-29
- 修回日期: 2024-09-05
- 网络出版日期: 2024-09-28
- 刊出日期: 2024-11-01

Graph Features Analysis and Detection Method of IP Soft Core Hardware Trojan

NI Lin^{1, 3},
LI Lin³,
ZHANG Shuai^{2, 3
, ,},
TONG Sicheng³,
QIAN Yang³

1.
College of Electronic Science and Technology, National University of Defense Technology, Changsha 410073, China
2.
College of Computer Science and Technology, National University of Defense Technology, Changsha 410073, China
3.
College of Information and Communication, National University of Defense Technology, Wuhan 430035, China

摘要

摘要: 随着集成电路技术的飞速发展，芯片在设计、生产和封装过程中，很容易被恶意植入硬件木马逻辑，当前IP软核的安全检测方法逻辑复杂、容易错漏且无法对加密IP软核进行检测。该文利用非可控IP软核与硬件木马寄存器传输级(RTL)代码灰度图谱的特征差异，提出一种基于图谱特征分析的IP软核硬件木马检测方法，通过图谱转换和图谱增强得到标准图谱，利用纹理特征提取匹配算法实现硬件木马检测。实验使用设计阶段被植入7类典型木马的功能逻辑单元为实验对象，检测结果显示7类典型硬件木马的检测正确率均达到了90%以上，图像增强后特征点匹配成功数量的平均增长率达到了13.24%，有效提高了硬件木马检测的效率。
- IP软核 /
- 硬件木马 /
- 灰度图谱 /
- 纹理特征 /
- 检测算法
Abstract: With the rapid development of integrated circuit technology, chips are easily implanted with malicious hardware Trojan logic in the process of design, production and packaging. Current security detection methods for IP soft core are logically complex, prone to errors and omissions, and unable to detect encrypted IP soft core. The paper uses the feature differences of non-controllable IP soft core and hardware Trojan Register Transfer Level (RTL) code grayscale map, proposing a hardware Trojan detection method for IP soft cores based on graph feature analysis, through the map conversion and map enhancement to get the standard map, using the texture feature extraction matching algorithm to achieve hardware Trojan detection. The experimental subjects are functional logic units with seven types of typical Trojans implanted during the design phase, and the detection results show that the detection correct rate of seven types of typical hardware Trojans has reached more than 90%, and the average growth rate of the number of successful feature point matches after the image enhancement has reached 13.24%, effectively improving the effectiveness of hardware Trojan detection.
- IP soft core /
- Hardware Trojan /
- Grayscale map /
- Texture feature /
- Detection algorithm

HTML全文

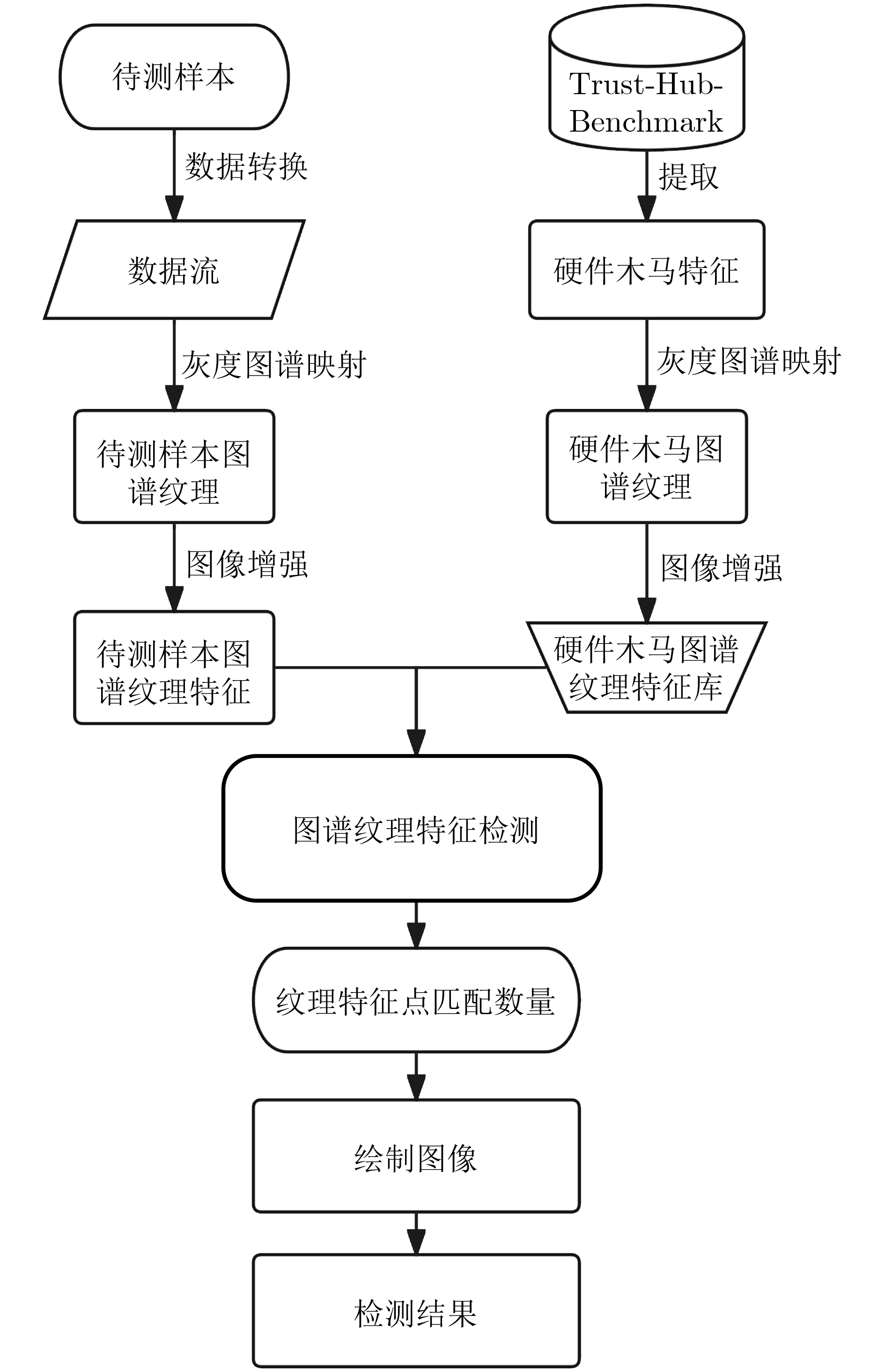

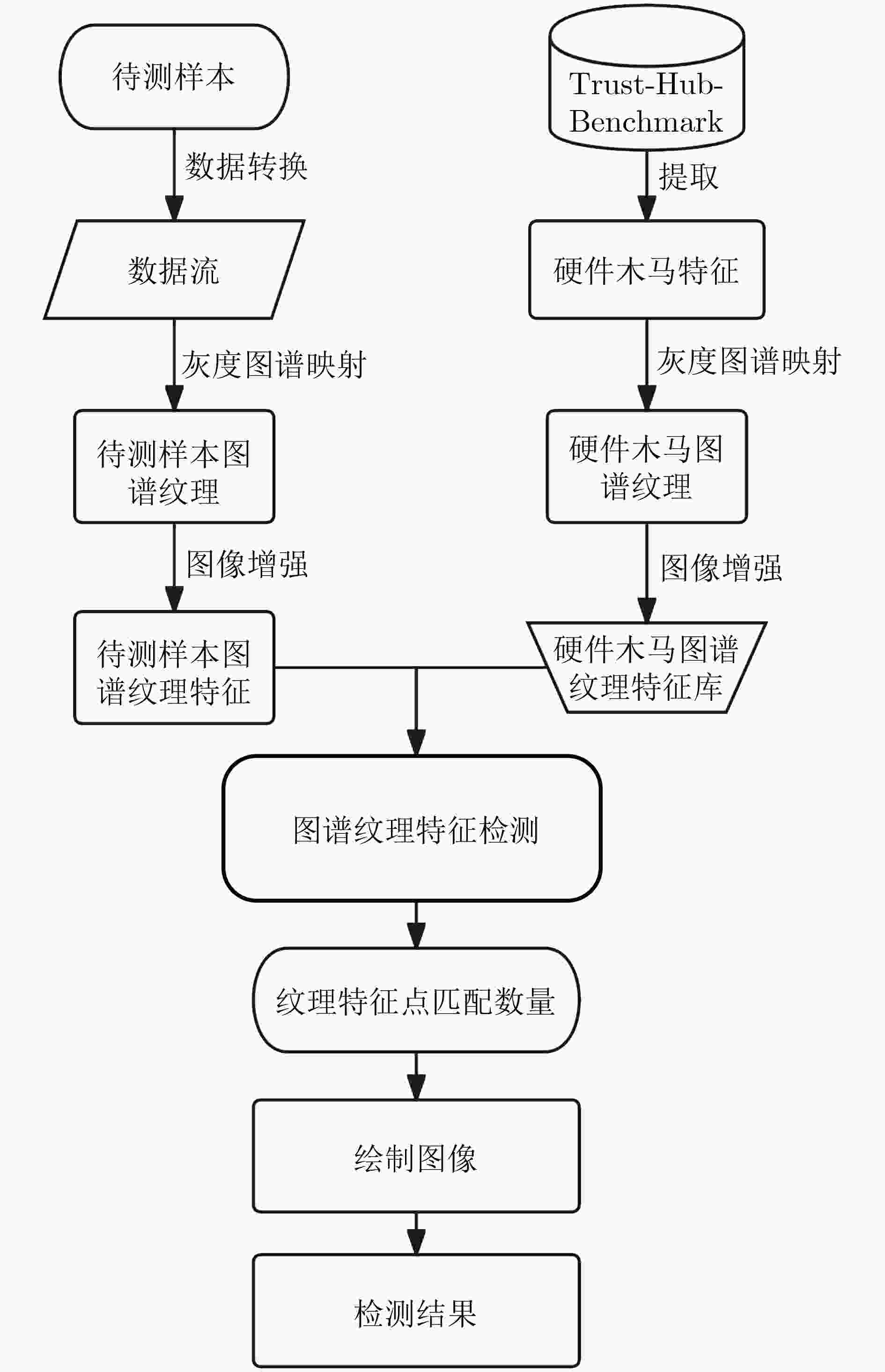

图 1 IP软核硬件木马检测流程

下载: 全尺寸图片幻灯片

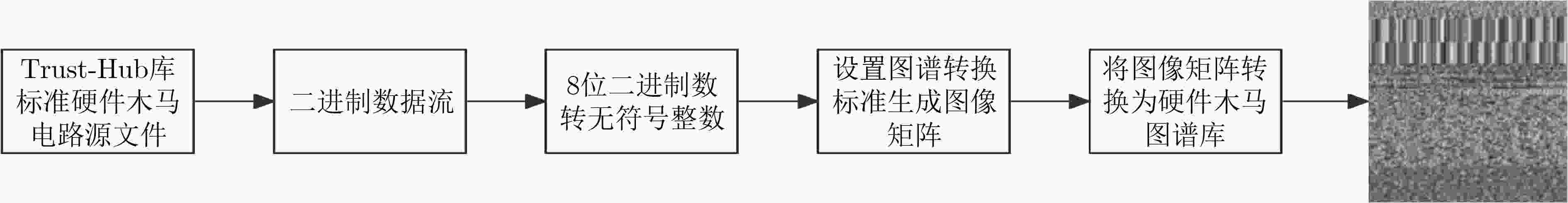

图 2 硬件木马图谱库生成流程

下载: 全尺寸图片幻灯片

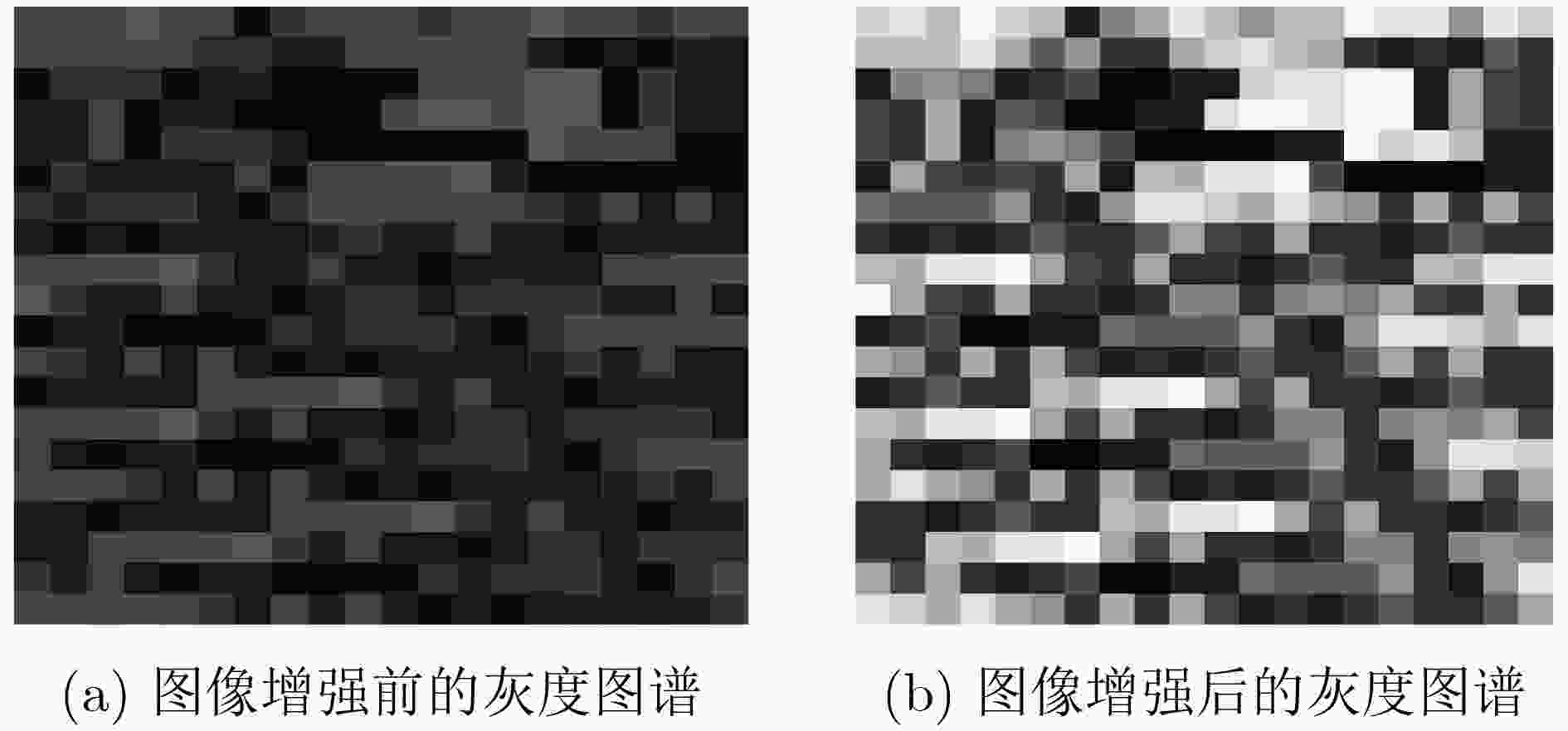

图 3 同一图像进行图像增强前后对比

下载: 全尺寸图片幻灯片

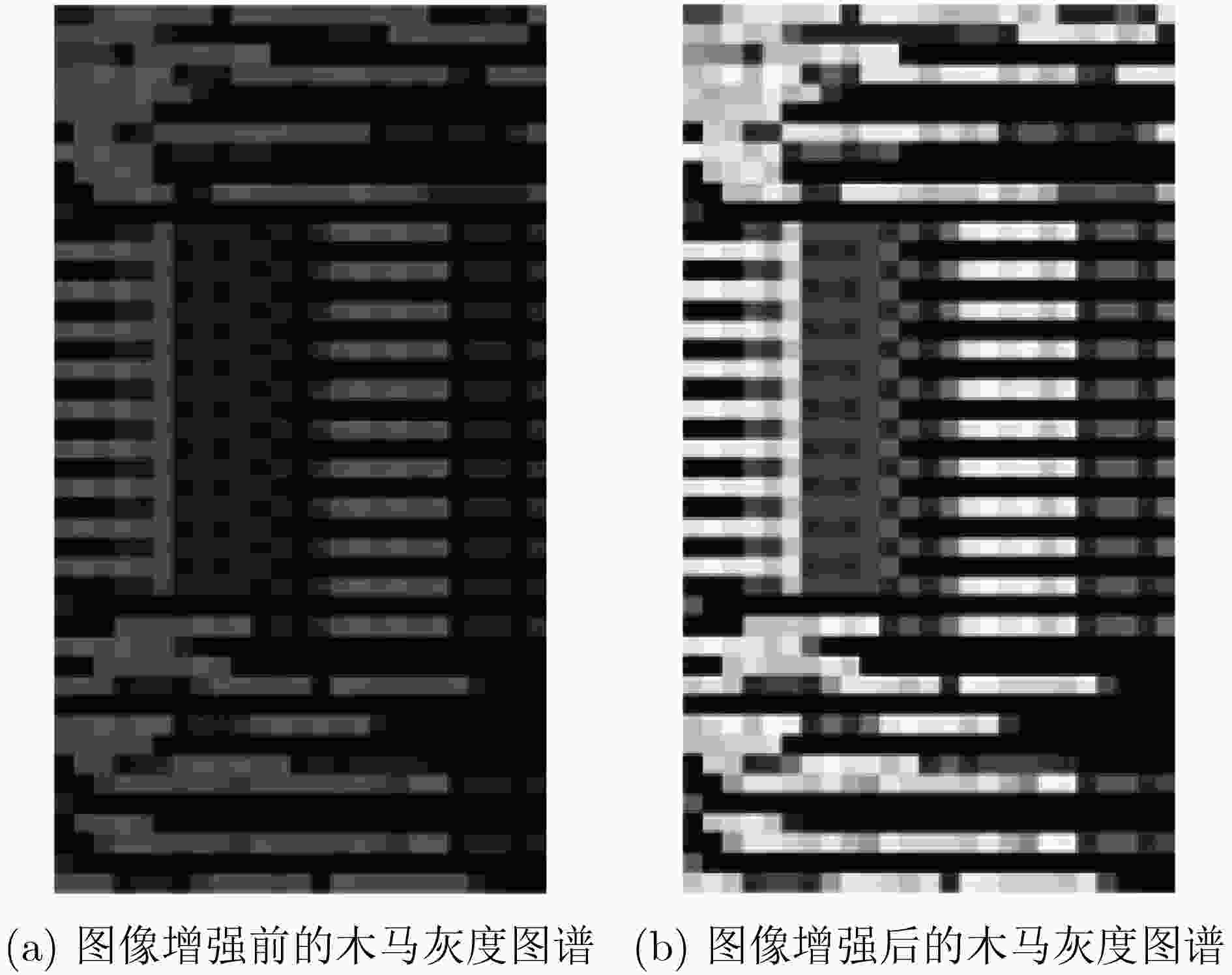

图 4 硬件木马图谱图像增强前后对比图

下载: 全尺寸图片幻灯片

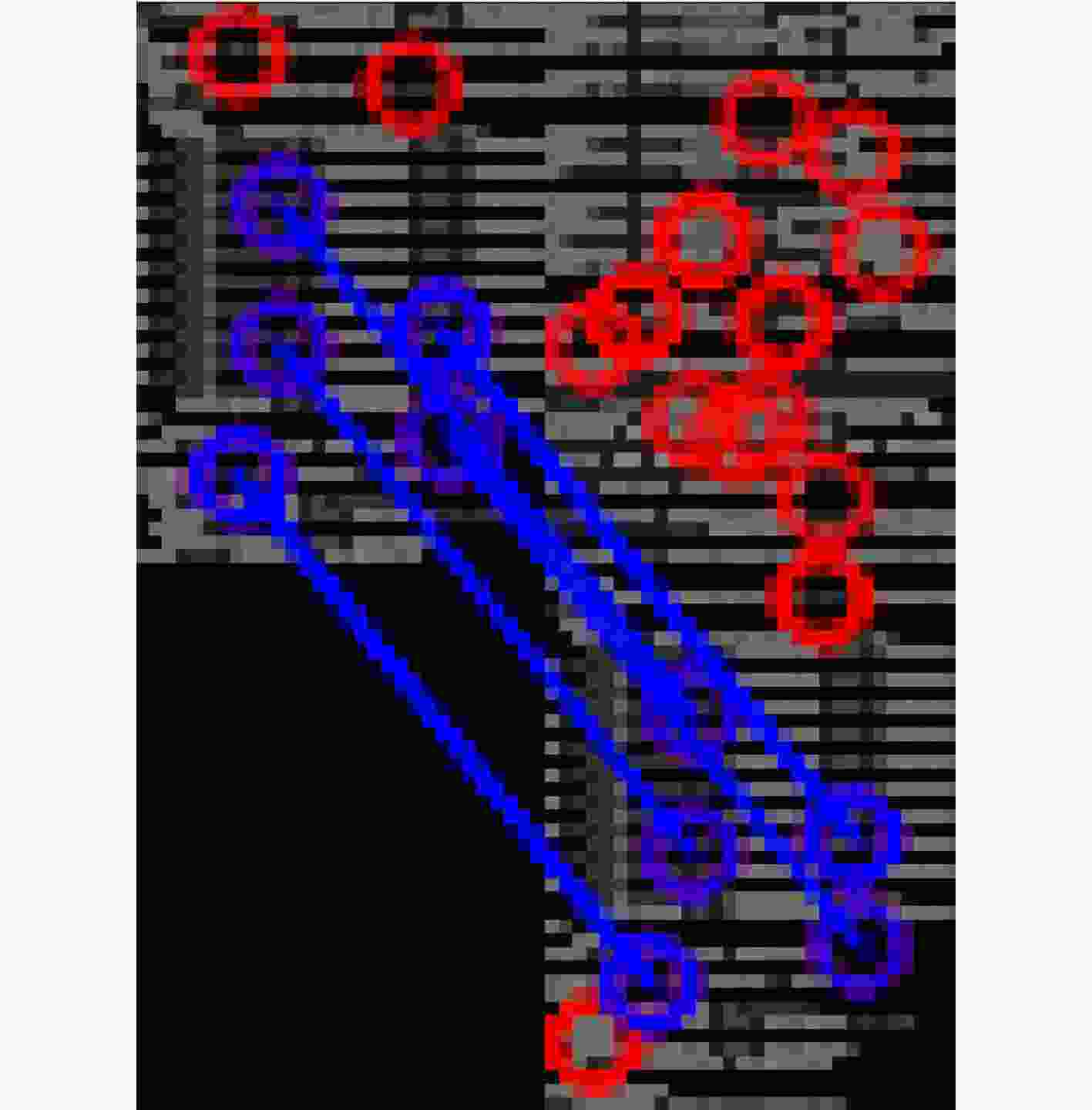

图 5 成功匹配特征点的图谱纹理特征检测

下载: 全尺寸图片幻灯片

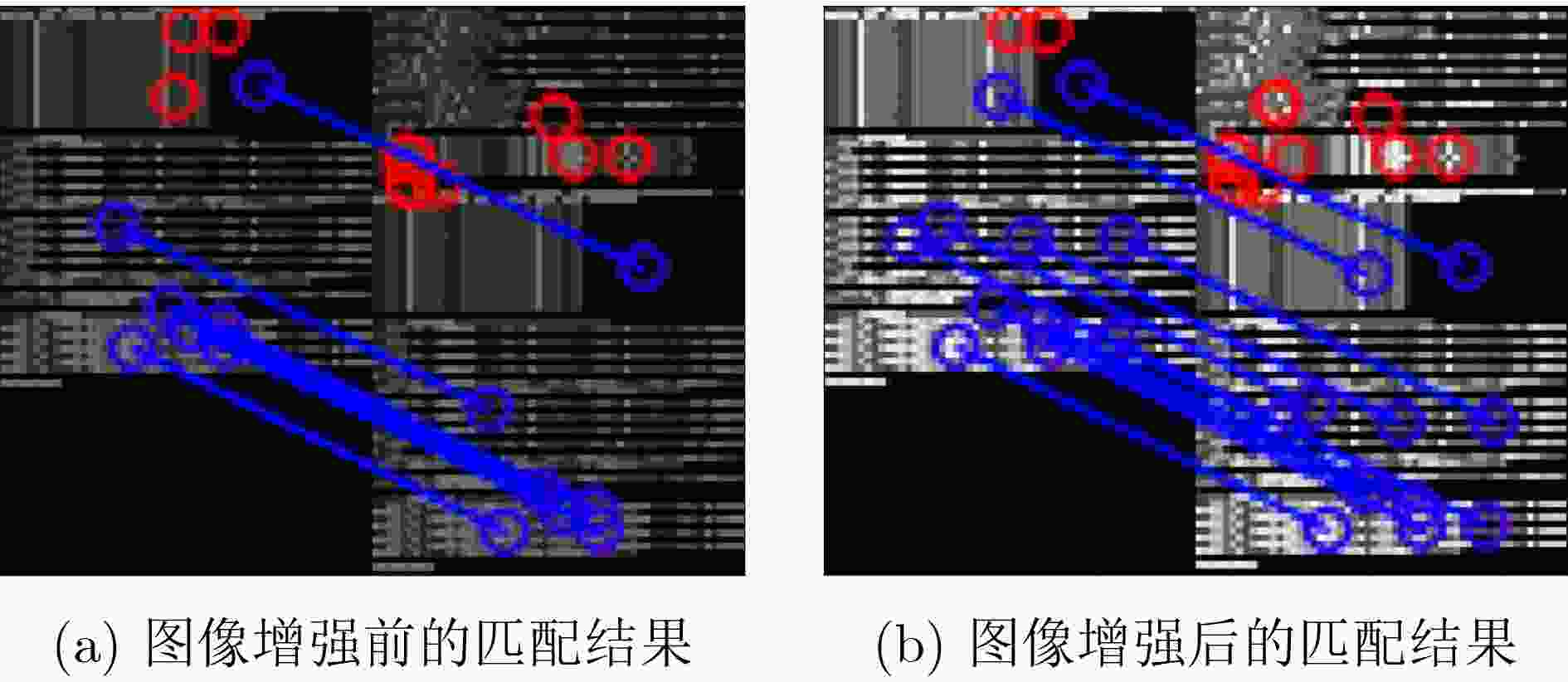

图 6 图像增强前后的图谱特征匹配结果

下载: 全尺寸图片幻灯片

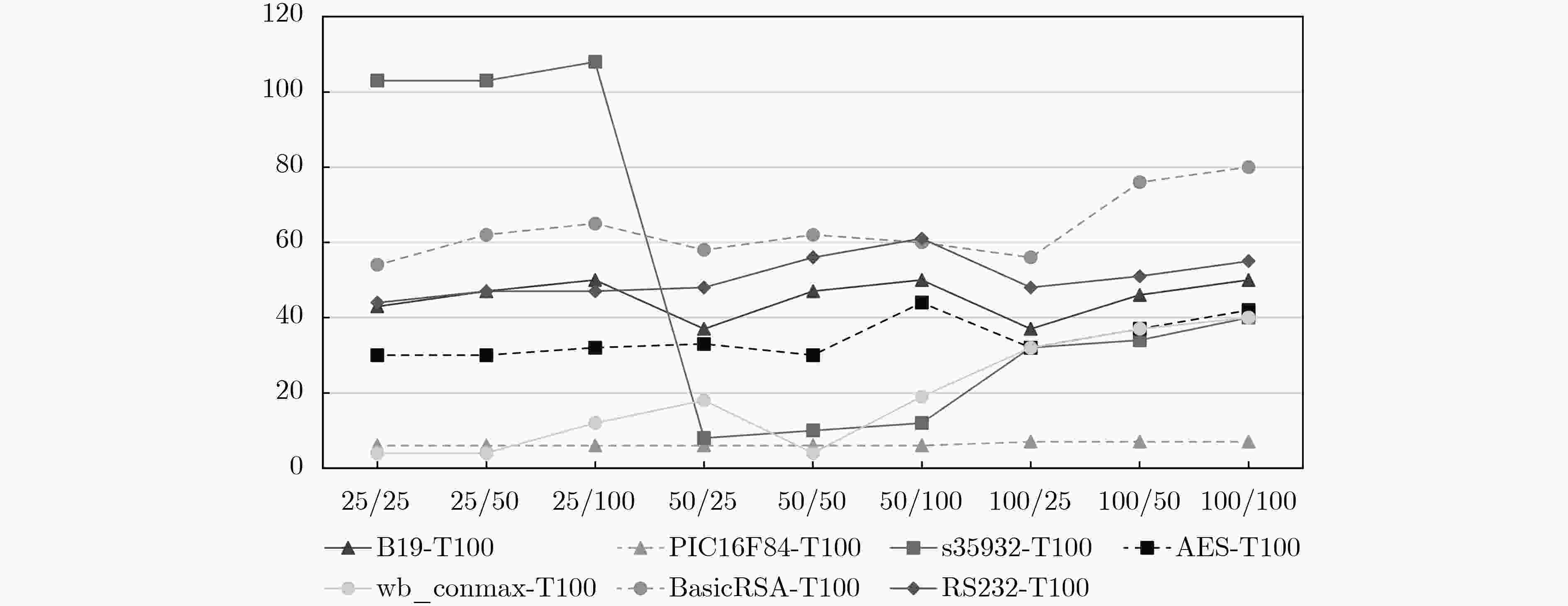

图 7 不同分辨率下木马图谱特征点总数

下载: 全尺寸图片幻灯片

图 8 硬件木马图谱纹理特征匹配检测结果

下载: 全尺寸图片幻灯片

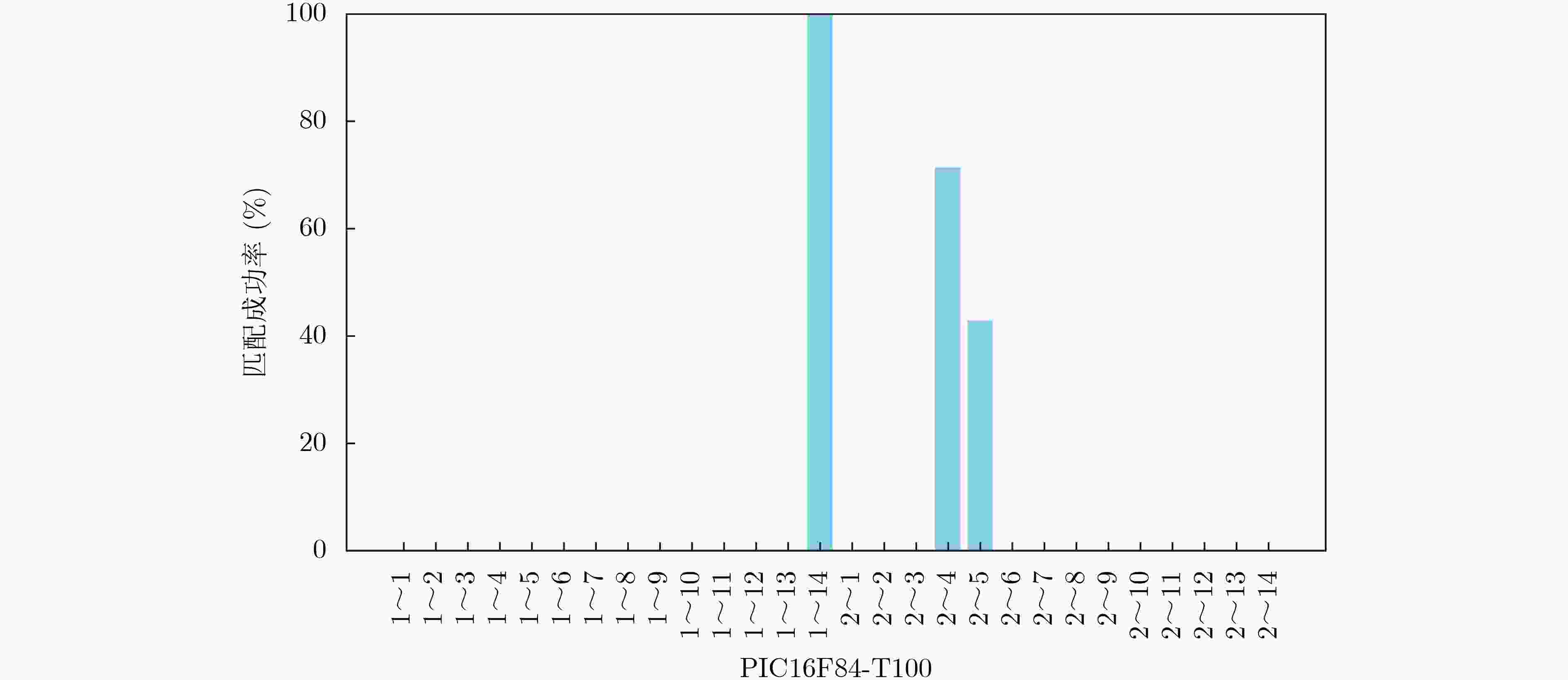

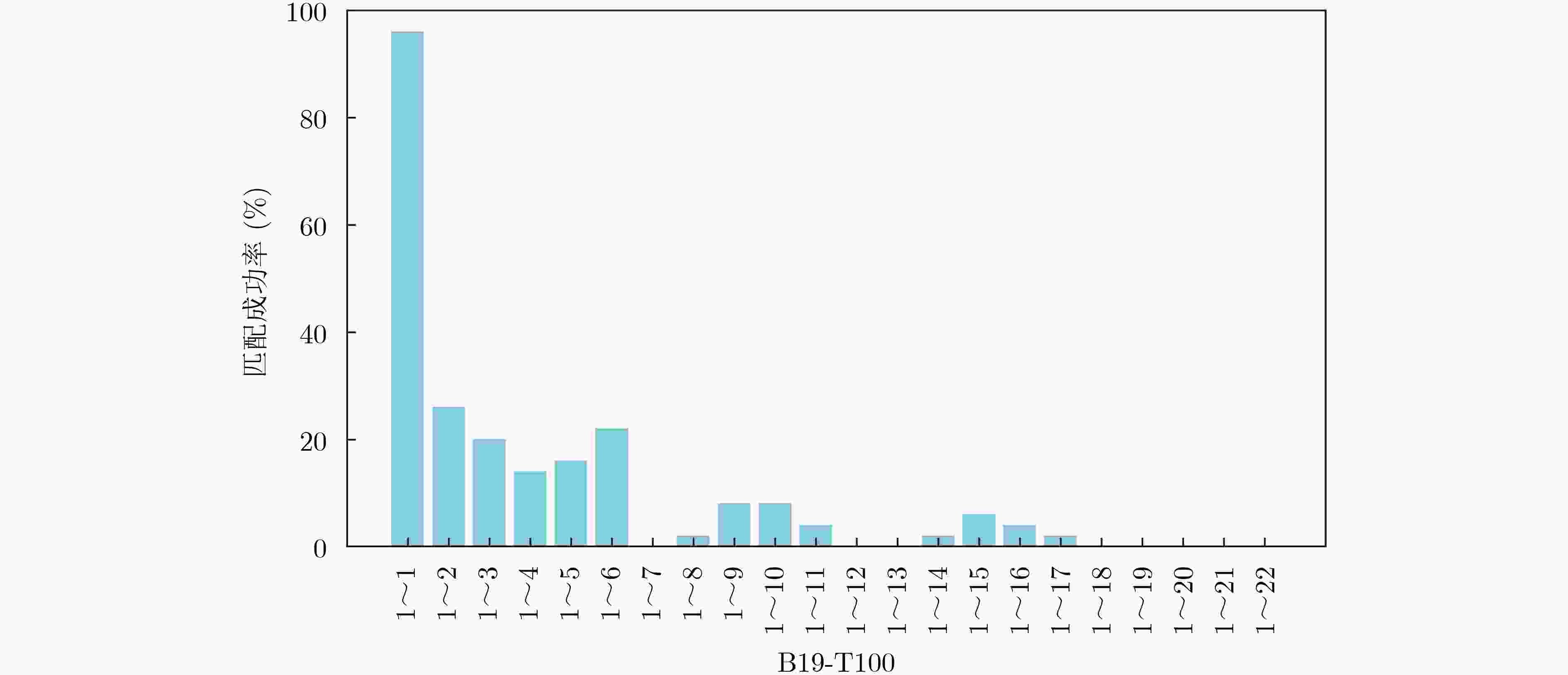

图 9 B19-T100硬件木马与含PIC16F84-T100样本的匹配检测结果

下载: 全尺寸图片幻灯片

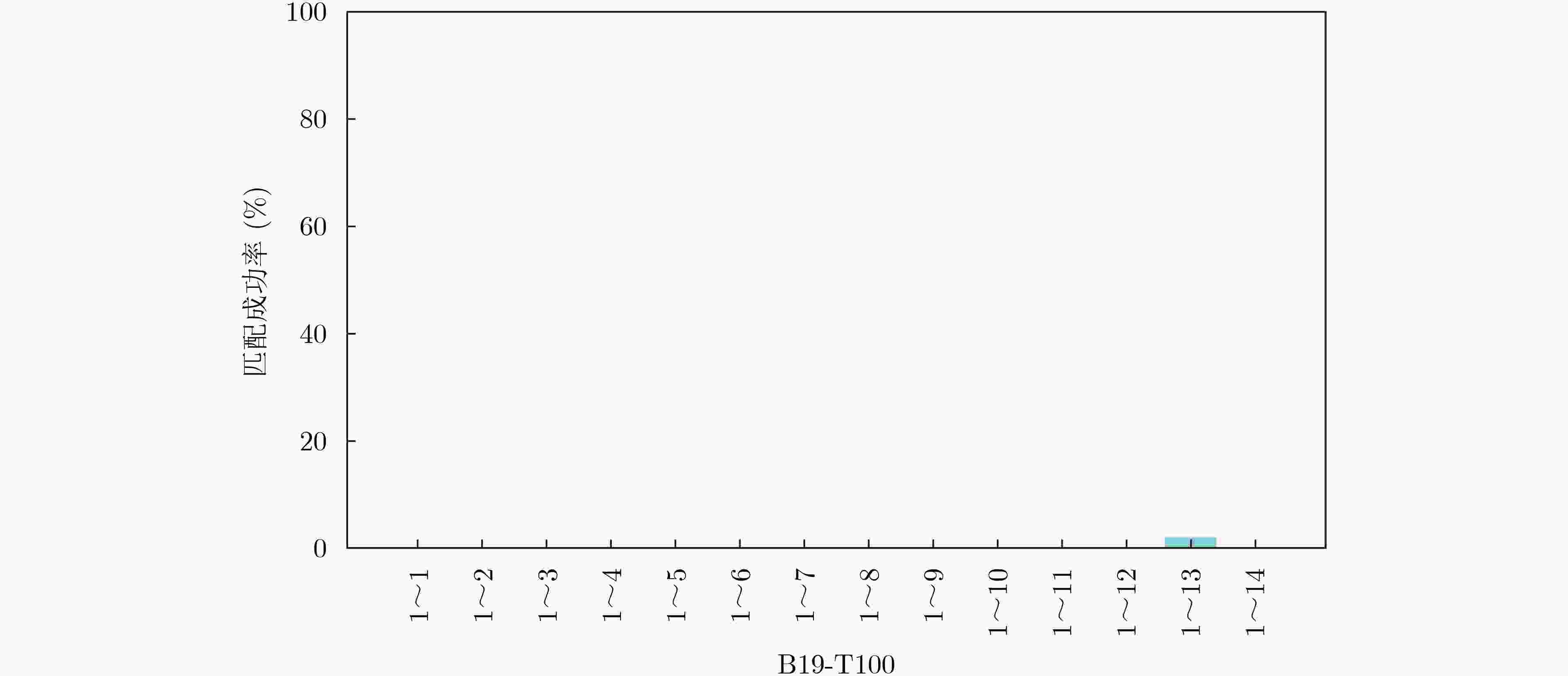

图 10 B19-T100硬件木马与含B19-T100样本的匹配检测结果

下载: 全尺寸图片幻灯片

表 1 7种硬件木马分类原理特点对照表

	插入阶段	抽象层次	激活机制	效果	物理特性
B19-T100	设计阶段	门级	基于内部时间的触发	改变功能	紧密、功能性、布局相同
PIC16F84-T100	设计阶段	寄存器传输级别	内部条件触发	服务拒绝	功能性
s35932-T100	设计阶段	门级	内部条件触发	改变功能，泄露信息	功能性
AES-T100	设计阶段	寄存器传输级别	始终激活	泄露信息	功能性
wb_conmax-T100	设计阶段	门级	内部条件触发	改变功能，拒绝服务	功能性
BasicRSA-T100	设计阶段	寄存器传输级别	外部用户输入触发	泄露信息	功能性
RS232-T100	设计阶段	寄存器传输级别	内部条件触发	拒绝服务	功能性

下载: 导出CSV

表 2 7种木马图谱图像增强前后的图谱特征提取匹配结果

木马类型	图像增强前		图像增强后
木马类型	特征点总数	匹配成功的数量	特征点总数	匹配成功的数量
B19-T100	46	44	50	48
PIC16F84-T100	6	6	6	6
s35932-T100	40	37	41	39
AES-T100	22	22	25	25
wb_conmax-T100	10	7	13	11
BasicRSA-T100	63	49	65	51
RS232-T100	51	30	52	31

下载: 导出CSV

表 3 BasicRSA-T100在宽度为25不同高度下的匹配结果

	25	50	75	100	125	150	175	200
特征点总数	54	62	62	65	68	68	68	68
匹配成功的数量	27	37	47	51	61	52	52	52
匹配成功率(%)	50.00	59.68	75.81	78.46	89.71	76.47	76.47	76.47

下载: 导出CSV

表 4 BasicRSA-T100在高度为100不同宽度下的匹配结果

	25	50	75	100	125	150	175	200
特征点总数	65	60	81	80	80	80	80	80
匹配成功的数量	51	44	65	67	67	67	67	67
匹配成功率(%)	78.46	73.33	80.25	83.75	83.75	83.75	83.75	83.75

下载: 导出CSV
