遥感场景理解中视觉Transformer的参数高效微调

尹文昕; 于海琛; 刁文辉; 孙显; 付琨

doi:10.11999/JEIT240218

遥感场景理解中视觉Transformer的参数高效微调

doi: 10.11999/JEIT240218

尹文昕^{1, 3},
于海琛^{1, 2, 3, ,},
刁文辉^{1, 3},
孙显^{1, 2, 3},
付琨^{1, 3}

1.
中国科学院空天信息创新研究院北京 100190
2.
中国科学院大学电子电气与通信工程学院北京 100049
3.
中国科学院空天信息创新研究院网络信息体系技术科技创新重点实验室北京 100190

基金项目: 国家重点研发计划(2022ZD0118401)

详细信息

作者简介:
尹文昕：女，助理研究员，研究方向为遥感图像智能解译

于海琛：男，硕士生，研究方向为遥感智能模型轻量化

刁文辉：男，副研究员，研究方向为遥感图像智能解译

孙显：男，研究员，研究方向为计算机视觉与遥感图像理解

付琨：男，研究员，研究方向为遥感大数据智能解译

通讯作者:
于海琛　yuhaichen18@mails.ucas.ac.cn

中图分类号: TN919.81
计量
- 文章访问数: 107
- HTML全文浏览量: 45
- PDF下载量: 17
- 被引次数: 0
出版历程
- 收稿日期: 2024-03-29
- 修回日期: 2024-07-17
- 网络出版日期: 2024-08-02
- 刊出日期: 2024-09-26

Parameter Efficient Fine-tuning of Vision Transformers for Remote Sensing Scene Understanding

YIN Wenxin^{1, 3},
YU Haichen^{1, 2, 3
, ,},
DIAO Wenhui^{1, 3},
SUN Xian^{1, 2, 3},
FU Kun^{1, 3}

1.
Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100190, China
2.
School of Electronic, Electrical and Communication Engineering, University of Chinese Academy of Sciences, Beijing 100049, China
3.
Key Laboratory of Network Information System Technology (NIST), Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100190, China

Funds: The National Key R&D Program of China (2022ZD0118401)

摘要

摘要: 随着深度学习和计算机视觉技术的飞速发展，遥感场景分类任务对预训练模型的微调通常需要大量的计算资源。为了减少内存需求和训练成本，该文提出一种名为“多尺度融合适配器微调(MuFA)”的方法，用于遥感模型的微调。MuFA引入了一个多尺度融合模块，将不同下采样倍率的瓶颈模块相融合，并与原始视觉Transformer模型并联。在训练过程中，原始视觉Transformer模型的参数被冻结，只有MuFA模块和分类头会进行微调。实验结果表明，MuFA在UCM和NWPU-RESISC45两个遥感场景分类数据集上取得了优异的性能，超越了其他参数高效微调方法。因此，MuFA不仅保持了模型性能，还降低了资源开销，具有广泛的遥感应用前景。
- 遥感图像 /
- 场景分类 /
- 参数高效 /
- 深度学习
Abstract: With the rapid development of deep learning and computer vision technologies, fine-tuning pre-trained models for remote sensing tasks often requires substantial computational resources. To reduce memory requirements and training costs, a method called “Multi-Fusion Adapter (MuFA)” for fine-tuning remote sensing models is proposed in this paper. MuFA introduces a fusion module that combines bottleneck modules with different down sample rates and connects them in parallel with the original vision Transformer model. During training, the parameters of the original vision Transformer model are frozen, and only the MuFA module and classification head are fine-tuned. Experimental results demonstrate that MuFA achieves superior performance on the UCM and NWPU-RESISC45 remote sensing scene classification datasets, surpassing other parameter efficient fine-tuning methods. Therefore, MuFA not only maintains model performance but also reduces resource overhead, making it highly promising for various remote sensing applications.
- Remote sensing /
- Scene classification /
- Parameter efficient /
- Deep learning

HTML全文

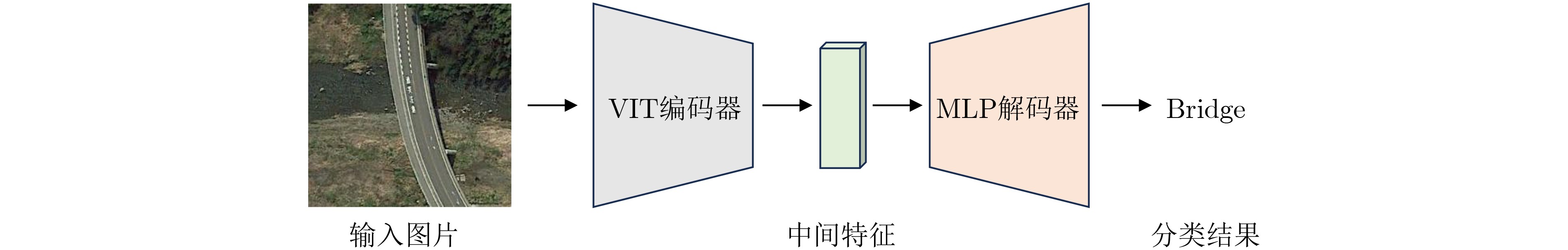

图 1 基于视觉Transformer进行图片分类

下载: 全尺寸图片幻灯片

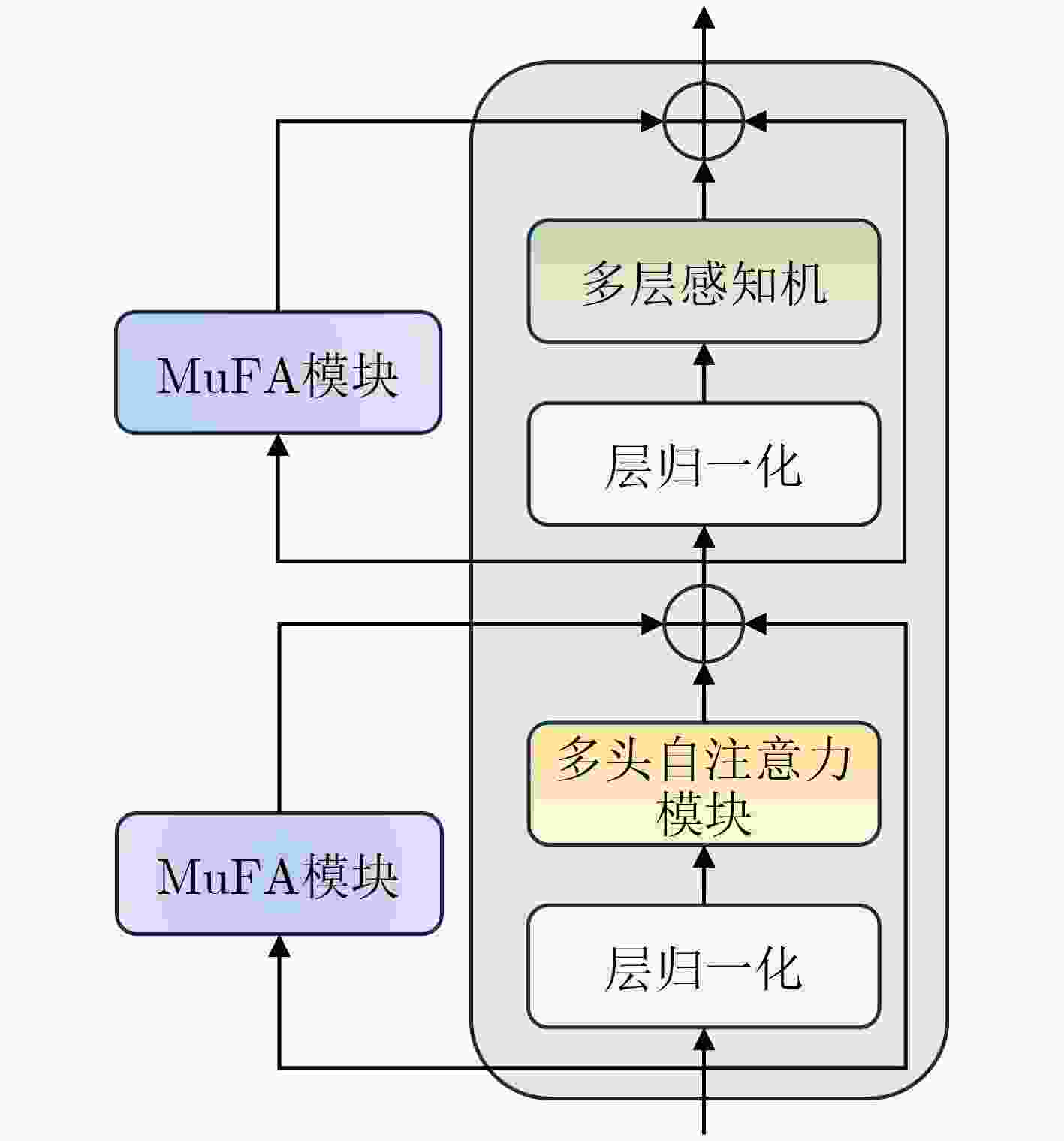

图 2 多尺度融合适配器微调的并联连接

下载: 全尺寸图片幻灯片

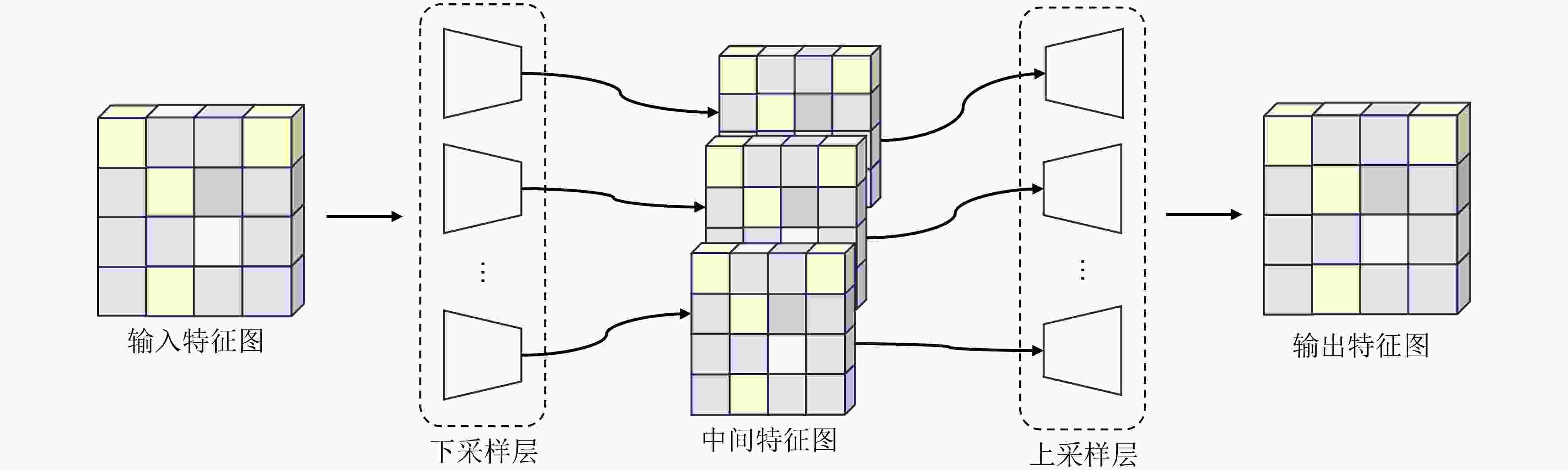

图 3 多尺度融合适配器模块

下载: 全尺寸图片幻灯片

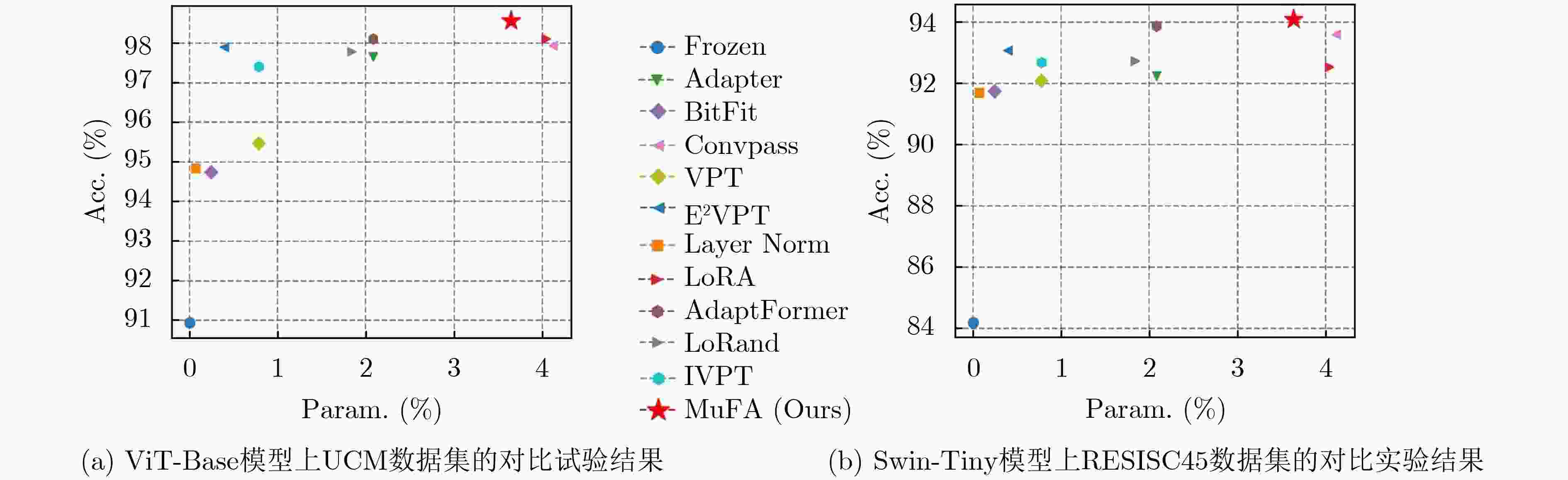

图 4 Vit-Base模型和Swin-Tiny模型上的对比试验

下载: 全尺寸图片幻灯片

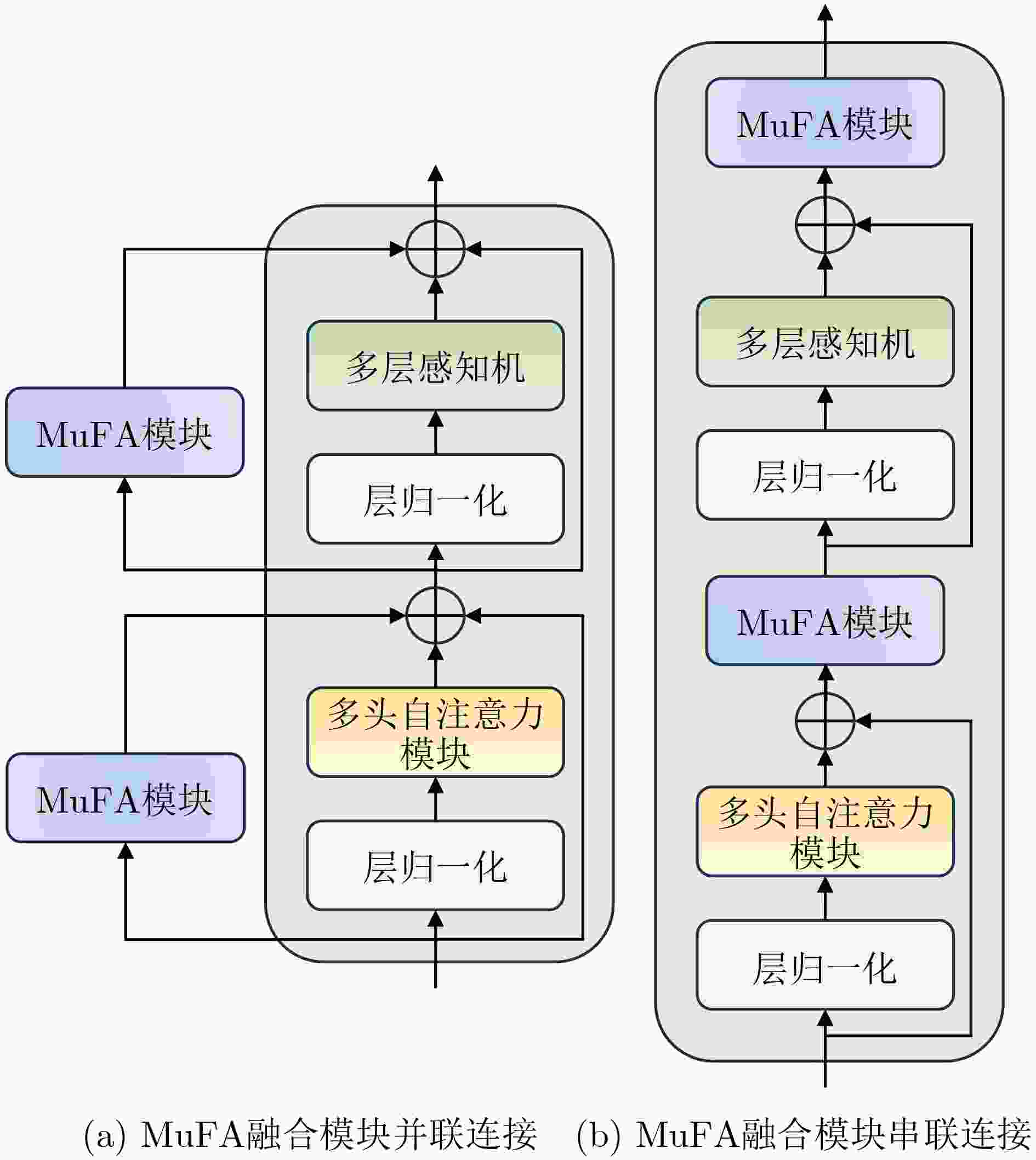

图 5 MuFA模块连接方式

下载: 全尺寸图片幻灯片

表 1 以Vit-Base为基准模型的对比试验(%)

方法	微调参数	数据集
		UCM	RESISC45
		Acc.
完全微调	100.00	99.05	91.66
完全冻结	0	90.95	76.55
微调Layer Norm	0.07	94.58	86.40
Adapter	2.08	97.66	89.12
LoRA	4.04	98.12	89.44
BitFit	0.24	94.76	87.22
AdaptFormer	2.08	98.12	90.98
Convpass	4.12	97.94	90.42
LoRand	1.84	97.80	90.17
VPT	0.78	95.47	88.15
IVPT	0.78	97.41	90.55
E²VPT	0.39	97.90	90.24
MuFA(本文方法)	3.64	98.57	91.29

下载: 导出CSV

表 2 以Swin-Tiny为基准模型的对比试验(%)

方法	微调参数	数据集
		UCM	RESISC45
		Acc.
完全微调	100.00	99.76	94.70
完全冻结	0	96.67	84.21
微调Layer Norm	0.07	97.66	91.70
Adapter	2.08	98.80	92.26
LoRA	4.04	98.58	92.55
BitFit	0.24	98.12	91.76
AdaptFormer	2.08	99.05	93.88
Convpass	4.12	99.05	93.61
LoRand	1.84	98.53	92.75
VPT	0.78	98.17	92.10
IVPT	0.78	98.73	92.69
E²VPT	0.39	99.32	93.10
MuFA(本文方法)	3.64	99.52	94.10

下载: 导出CSV

表 3 以Swin-Tiny为基准模型的消融研究(%)

序号	消融研究					数据集
	连接方式		融合结构			UCM	RESISC45
	串联	并联	单尺度	双尺度	多尺度	Acc.
(1)	√		√			98.80	92.26
(2)	√			√		98.80	92.76
(3)	√				√	99.12	93.44
(4)		√	√			99.05	93.88
(5)		√		√		99.30	93.96
(6)		√			√	99.52	94.10

下载: 导出CSV
