基于实值子空间线性变换的非均匀圆形阵列高效二维测向方法

孟祥天 经哲涵 曹丙霞 沙明辉 朱应申 闫锋刚

孟祥天, 经哲涵, 曹丙霞, 沙明辉, 朱应申, 闫锋刚. 基于实值子空间线性变换的非均匀圆形阵列高效二维测向方法[J]. 电子与信息学报. doi: 10.11999/JEIT240188
引用本文: 孟祥天, 经哲涵, 曹丙霞, 沙明辉, 朱应申, 闫锋刚. 基于实值子空间线性变换的非均匀圆形阵列高效二维测向方法[J]. 电子与信息学报. doi: 10.11999/JEIT240188
MENG Xiangtian, JING Zhehan, CAO Bingxia, SHA Minghui, ZHU Yingshen, YAN Fenggang. Efficient 2-D Direction Finding Based on the Real-valued Subspace Linear Transformation with Nonuniform Circular Array[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT240188
Citation: MENG Xiangtian, JING Zhehan, CAO Bingxia, SHA Minghui, ZHU Yingshen, YAN Fenggang. Efficient 2-D Direction Finding Based on the Real-valued Subspace Linear Transformation with Nonuniform Circular Array[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT240188

基于实值子空间线性变换的非均匀圆形阵列高效二维测向方法

doi: 10.11999/JEIT240188
基金项目: 国家自然科学基金(62171150),泰山学者工程专项经费(tsqn202211087),山东省自然科学基金(ZR2023MF091),航空科学基金(2023Z037077002).
详细信息
    作者简介:

    孟祥天:男,讲师,研究方向为阵列信号处理、反辐射制导

    经哲涵:男,博士生,研究方向为阵列信号处理

    曹丙霞:女,副教授,研究方向为阵列信号处理、极化雷达技术

    沙明辉:男,研究员,研究方向为雷达系统设计、雷达抗干扰技术

    朱应申:男,高级工程师,研究方向为电子对抗、技术侦察

    闫锋刚:男,教授,研究方向为雷达信号处理,反辐射制导

    通讯作者:

    曹丙霞 cbxhit@163.com

  • 中图分类号: TN958

Efficient 2-D Direction Finding Based on the Real-valued Subspace Linear Transformation with Nonuniform Circular Array

Funds: The National Natural Science Foundation of China (62171150), Taishan Scholar Special Funding Project of Shandong Province (tsqn202211087), Shandong Provincial Natural Science Foundation (ZR2023MR091), The Aeronautical Science Foundation of China (2023Z037077002)
  • 摘要: 由于均匀圆阵(UCA)的阵列流型不具有范德蒙结构,通常采用模式空间方法构造虚拟线性阵列,因此,UCA阵列下使用结构变换已经是2维测向的必要基本假设。该文通过对虚拟信号模型进行特征分析,避免了线性阵列的结构变换,提出一种适用于UCA和非均匀圆阵(NUCA)的实值高效2维测向方法。因此,新方法利用经前/后向平滑的阵列协方差矩阵(FBACM)以及分离实虚部后的和差变换,获得了维度相互适配的阵列流型和实值子空间,理论揭示了所获实值子空间与原始复值子空间的线性张成关系,构建了无虚假目标的空间谱,且可以推广至NUCA,增强了实值算法对于圆形阵列结构的适应性。同时,理论揭示了上述方法具有秩增强优势。数值仿真实验表明,与传统UCA阵列下的模式空间方法相比,该文所提出方法能够在显着降低复杂性的情况下,提供相似的估计性能和更好的角度分辨率。同时,在考虑幅度和相位误差等情况时,所提方法具有较强的鲁棒性。

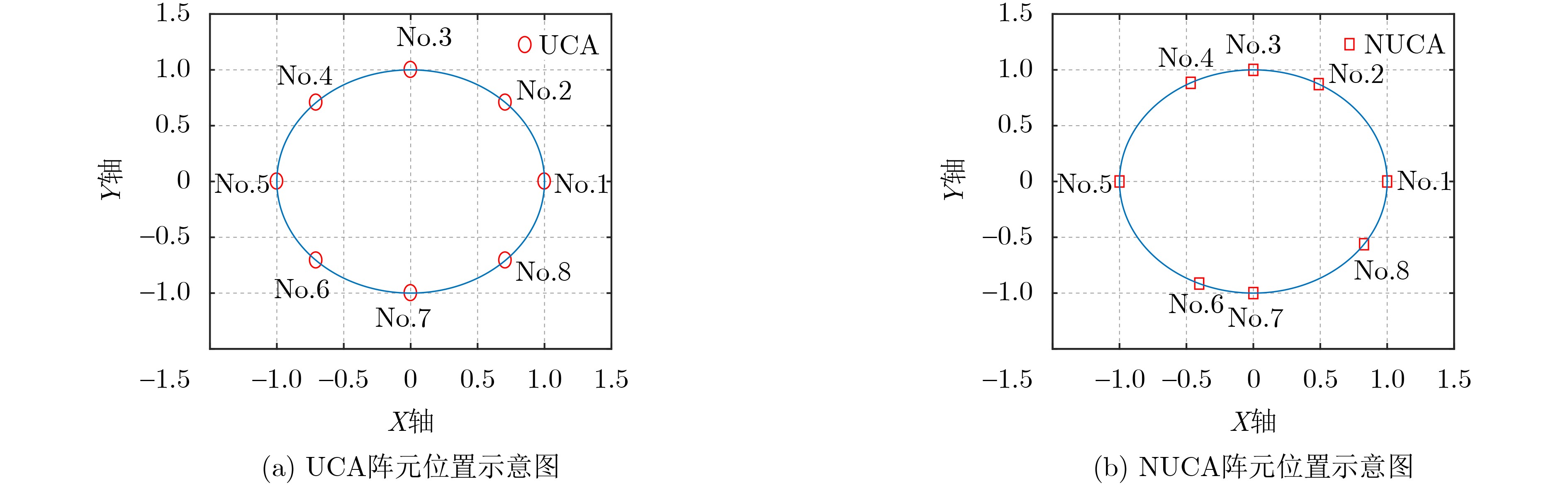

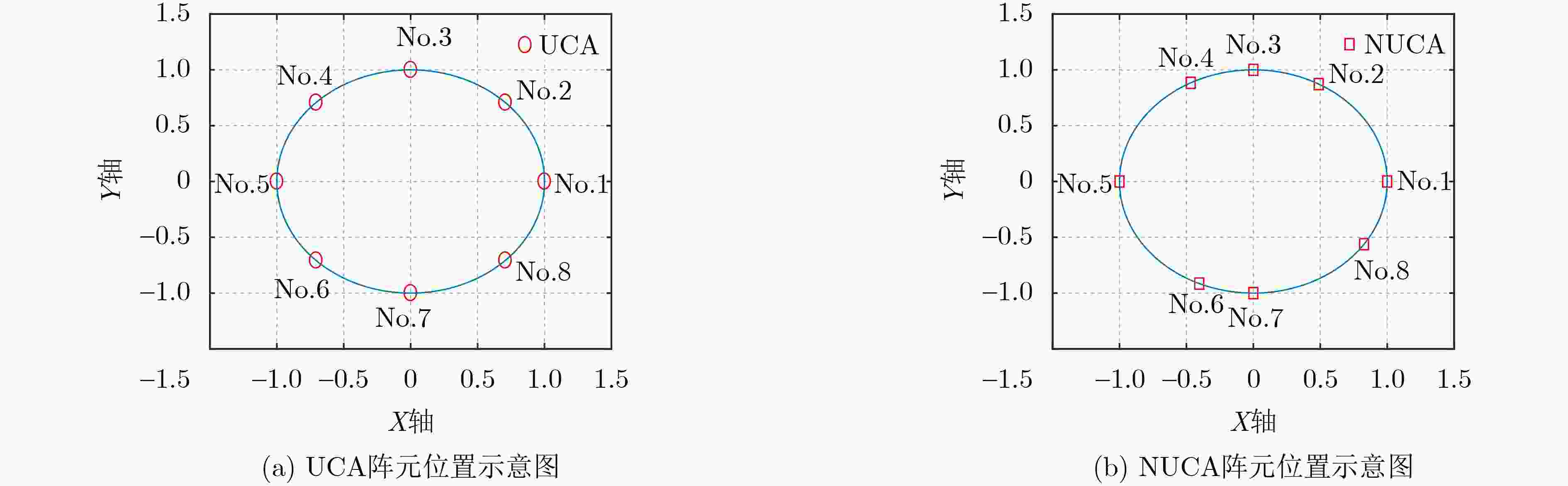

  • 图  1  两种圆阵的阵元位置示意图

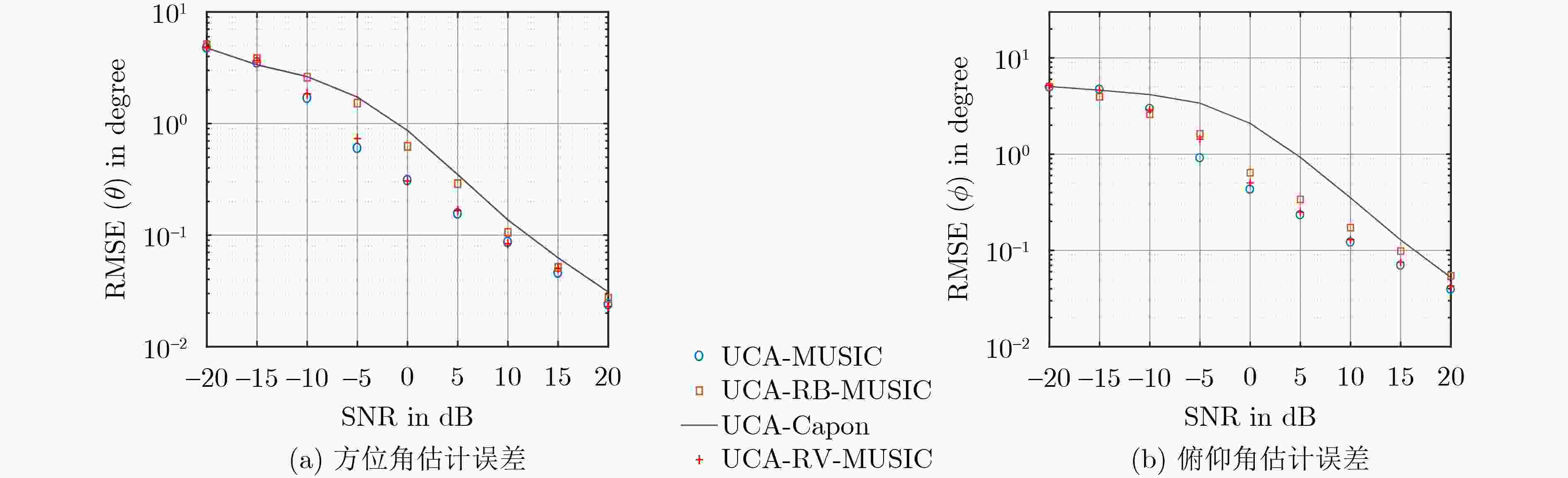

    图  2  UCA阵列不同SNR下角度估计的均方根误差

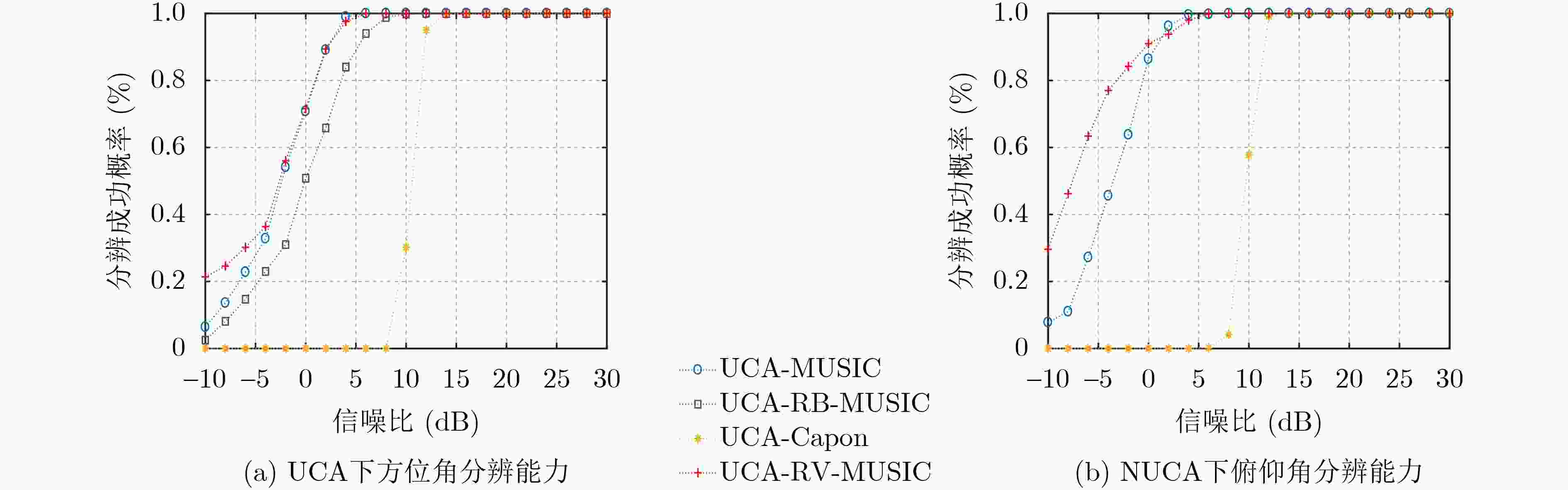

    图  3  不同圆形阵列下方位角的分辨能力

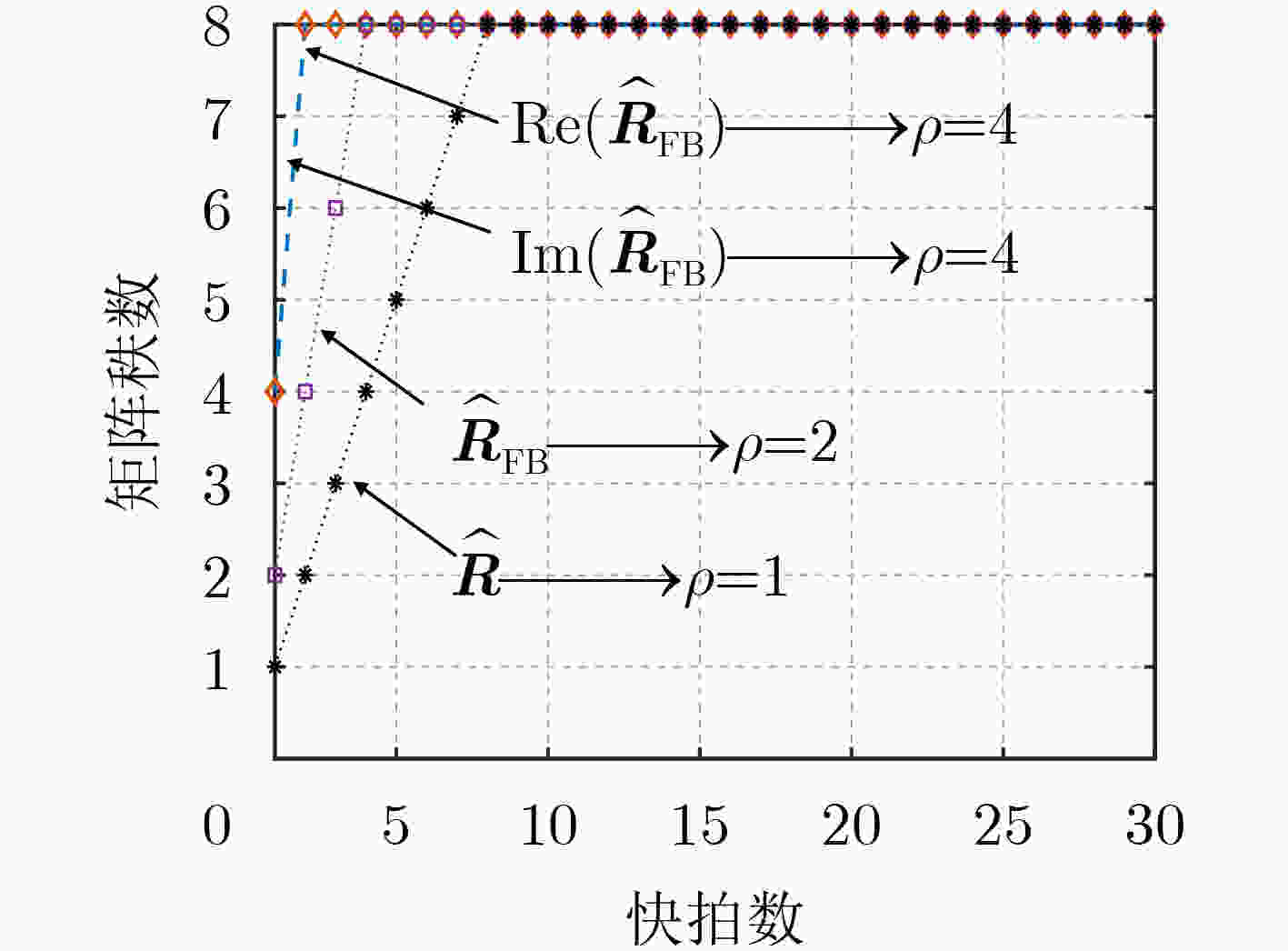

    图  4  UCA阵列不同快拍数下矩阵的秩

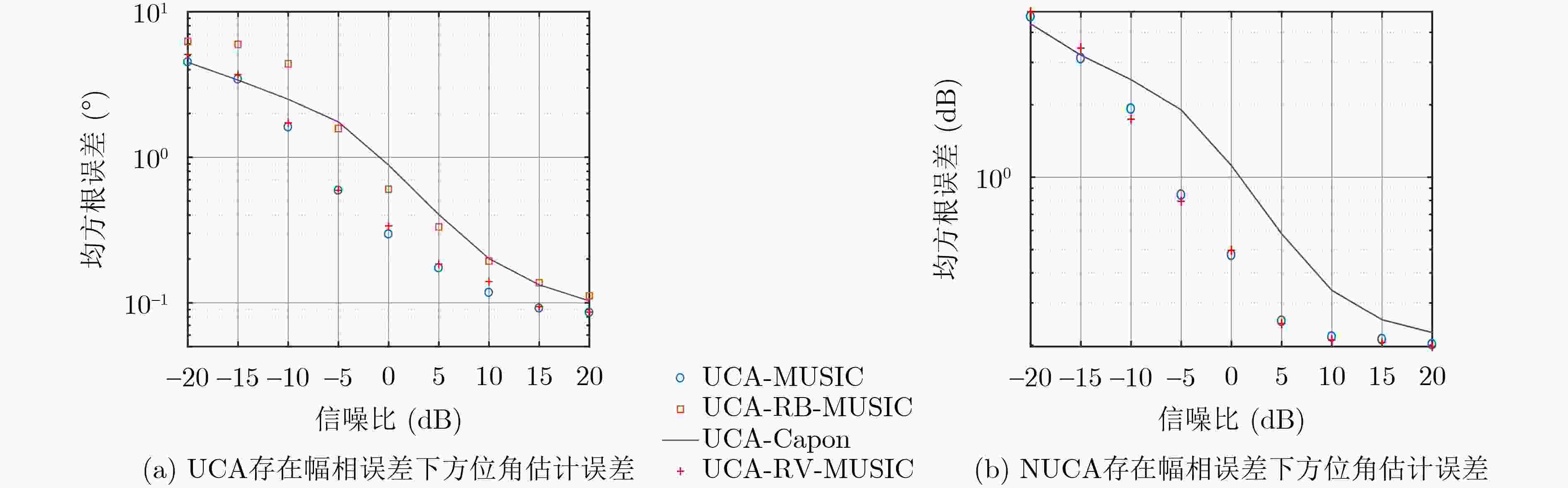

    图  5  存在幅相误差下圆形阵列方位角估计误差

    表  1  不同搜索类算法下CPU运行时间(s)

    UCA-MUSICUCA-CaponUCA-RB-MUSICUCA-RV-MUSIC
    M=80.45280.46140.22700.2342
    M=160.74010.74770.35930.3621
    M=241.06921.08020.52080.5217
    M=321.37051.38440.64910.6496
    下载: 导出CSV
