不同解码方案下的星地融合网络混合多址接入性能分析

戴叶玲 郭焱 朱丽文 刘笑宇 丁昌峰 林敏

戴叶玲, 郭焱, 朱丽文, 刘笑宇, 丁昌峰, 林敏. 不同解码方案下的星地融合网络混合多址接入性能分析[J]. 电子与信息学报, 2024, 46(9): 3528-3536. doi: 10.11999/JEIT240176
引用本文: 戴叶玲, 郭焱, 朱丽文, 刘笑宇, 丁昌峰, 林敏. 不同解码方案下的星地融合网络混合多址接入性能分析[J]. 电子与信息学报, 2024, 46(9): 3528-3536. doi: 10.11999/JEIT240176
DAI Yeling, GUO Yan, ZHU Liwen, LIU Xiaoyu, DING Changfeng, LIN Min. Performance Analysis of Hybrid Multiple Access in Integrated Satellite-Terrestrial Networks with Different Decoding Schemes[J]. Journal of Electronics & Information Technology, 2024, 46(9): 3528-3536. doi: 10.11999/JEIT240176
Citation: DAI Yeling, GUO Yan, ZHU Liwen, LIU Xiaoyu, DING Changfeng, LIN Min. Performance Analysis of Hybrid Multiple Access in Integrated Satellite-Terrestrial Networks with Different Decoding Schemes[J]. Journal of Electronics & Information Technology, 2024, 46(9): 3528-3536. doi: 10.11999/JEIT240176

不同解码方案下的星地融合网络混合多址接入性能分析

doi: 10.11999/JEIT240176
基金项目: 国家自然科学基金(62471255),东南大学移动通信全国重点实验室开放研究基金(2024D11),江苏省研究生科研与实践创新计划(KYCX24_1178),南京邮电大学引进人才科研启动基金(NY223024)
详细信息
    作者简介:

    戴叶玲:女,博士生,研究方向为无线通信中的信号处理和性能分析等

    郭焱:女,博士生,研究方向为无线通信系统的优化设计与性能分析等

    朱丽文:女,硕士,研究方向为无线通信中的物理层安全技术等

    刘笑宇:男,讲师,研究方向为新一代宽带无线通信系统物理层传输、组网中涉及的理论与方法等

    丁昌峰:男,讲师,研究方向为边缘计算和通感一体化融合技术等

    林敏:男,教授,研究方向为无线通信系统、通信信号处理等

    通讯作者:

    林敏 linmin@njupt.edu.cn

  • 中图分类号: TN925

Performance Analysis of Hybrid Multiple Access in Integrated Satellite-Terrestrial Networks with Different Decoding Schemes

Funds: The National Natural Science Foundation of China (62471255), The Open Research Fund of National Mobile Communications Research Laboratory, Southeast University (2024D11), The Postgraduate Research and Practice Innovation Program of Jiangsu Province (KYCX24_1178),The Talent Research Start-up Foundation of Nanjing University of Posts and Telecommunications (NY223024)
  • 摘要: 该文针对地面中继辅助的星地融合网络(ISTNs),分析了卫星采用不同解码方案时系统性能的差异。首先,提出一种新颖的用户配对方案,通过位置信息将卫星波束覆盖范围内的多个用户分为若干个组。接着,为了提高传输可靠性以及频谱利用率,用户采用混合多址接入技术与卫星进行通信。进一步,在考虑用户-地面中继链路服从Nakagami-m分布,地面中继-卫星链路服从相关阴影莱斯分布的情况下,分别推导出基于连续干扰消除(SIC)和联合解码(JD)两种解码方案的系统中断概率和吞吐量的闭合表达式。最后,计算机仿真验证了理论分析的正确性和所提方案相比正交多址(OMA)方案的优越性,并揭示了JD解码技术在ISTNs中的可行性。

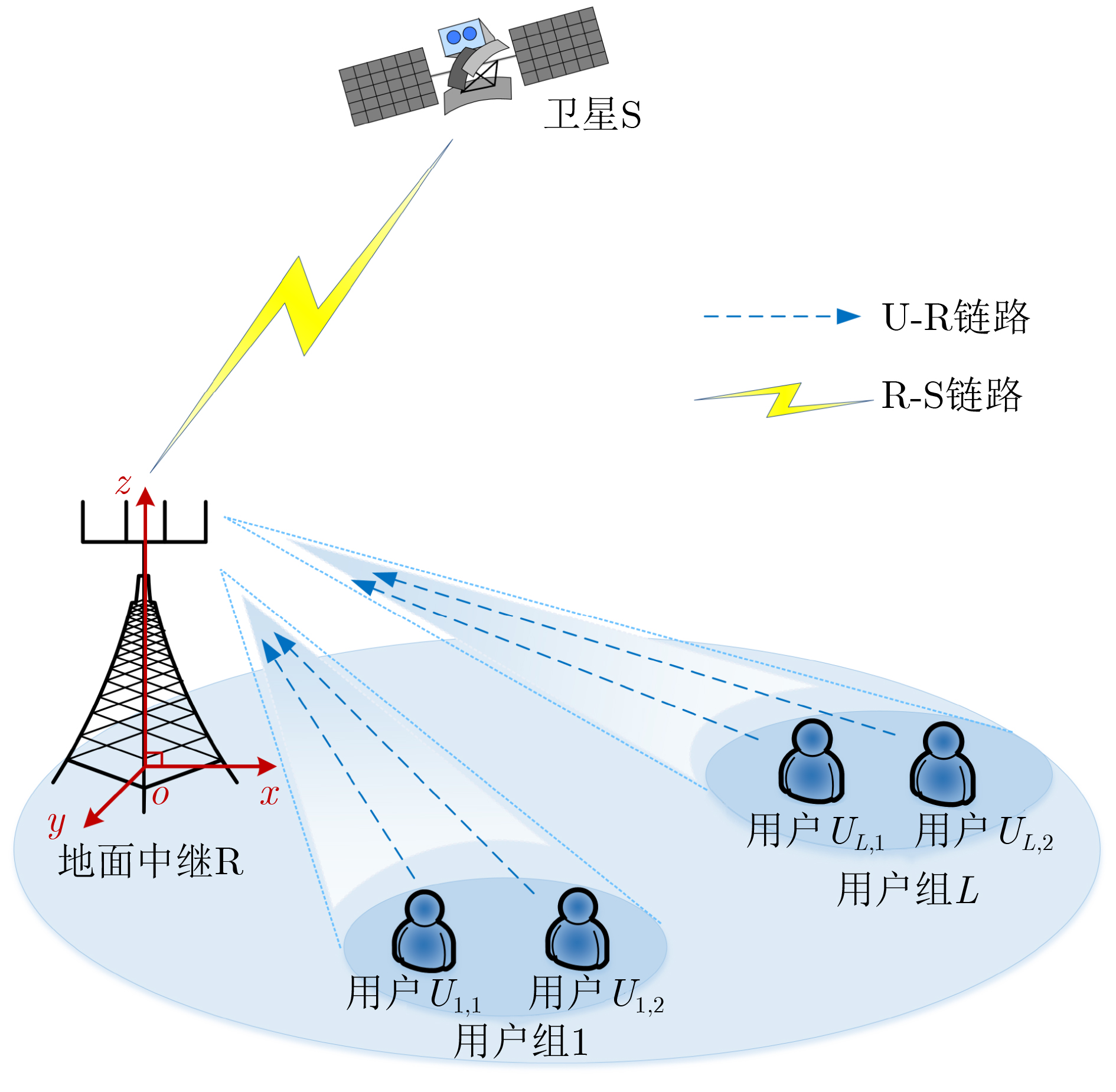

  • 图  1  系统模型图

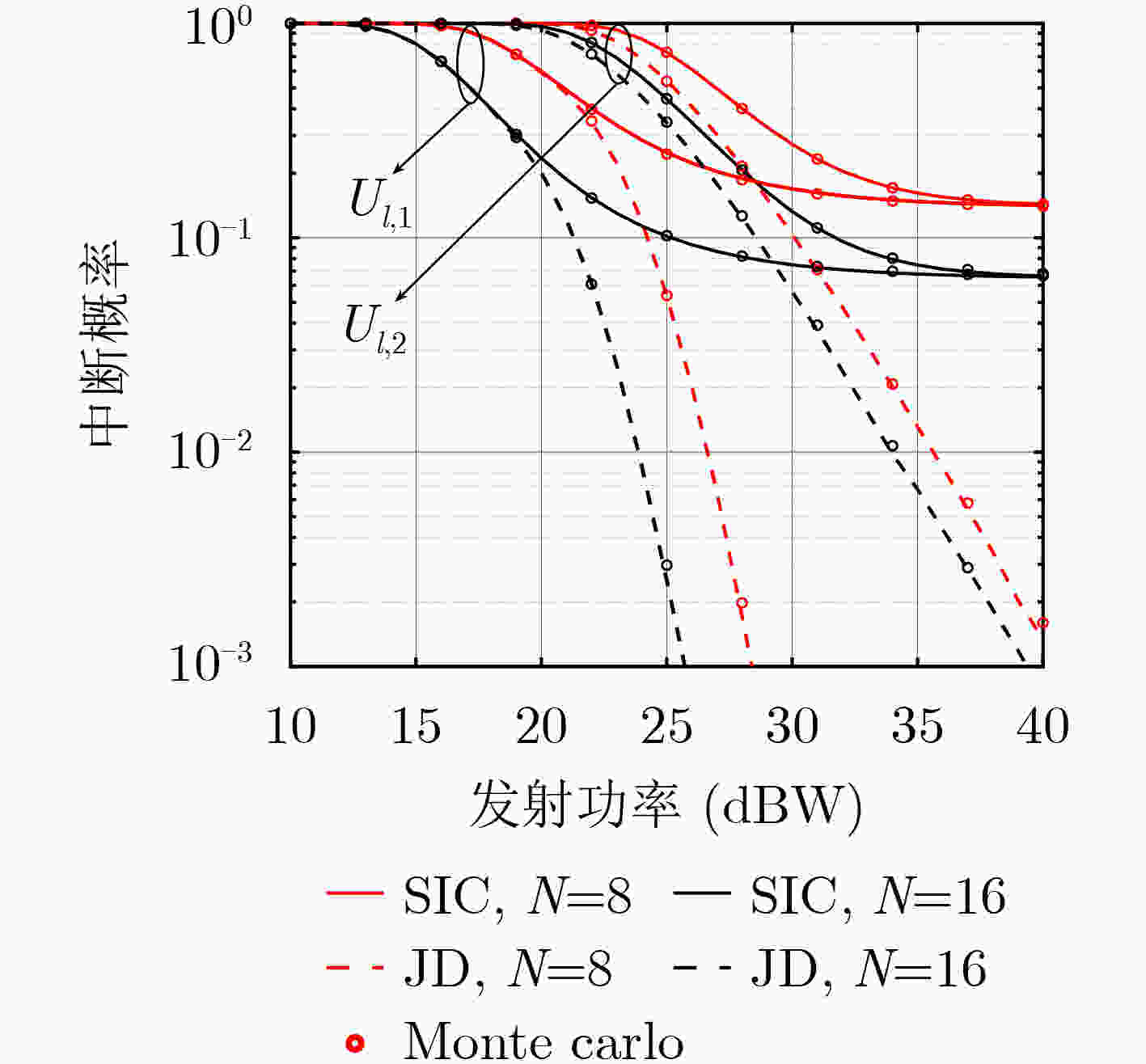

    图  2  不同天线数时中断概率随发射功率变化的曲线

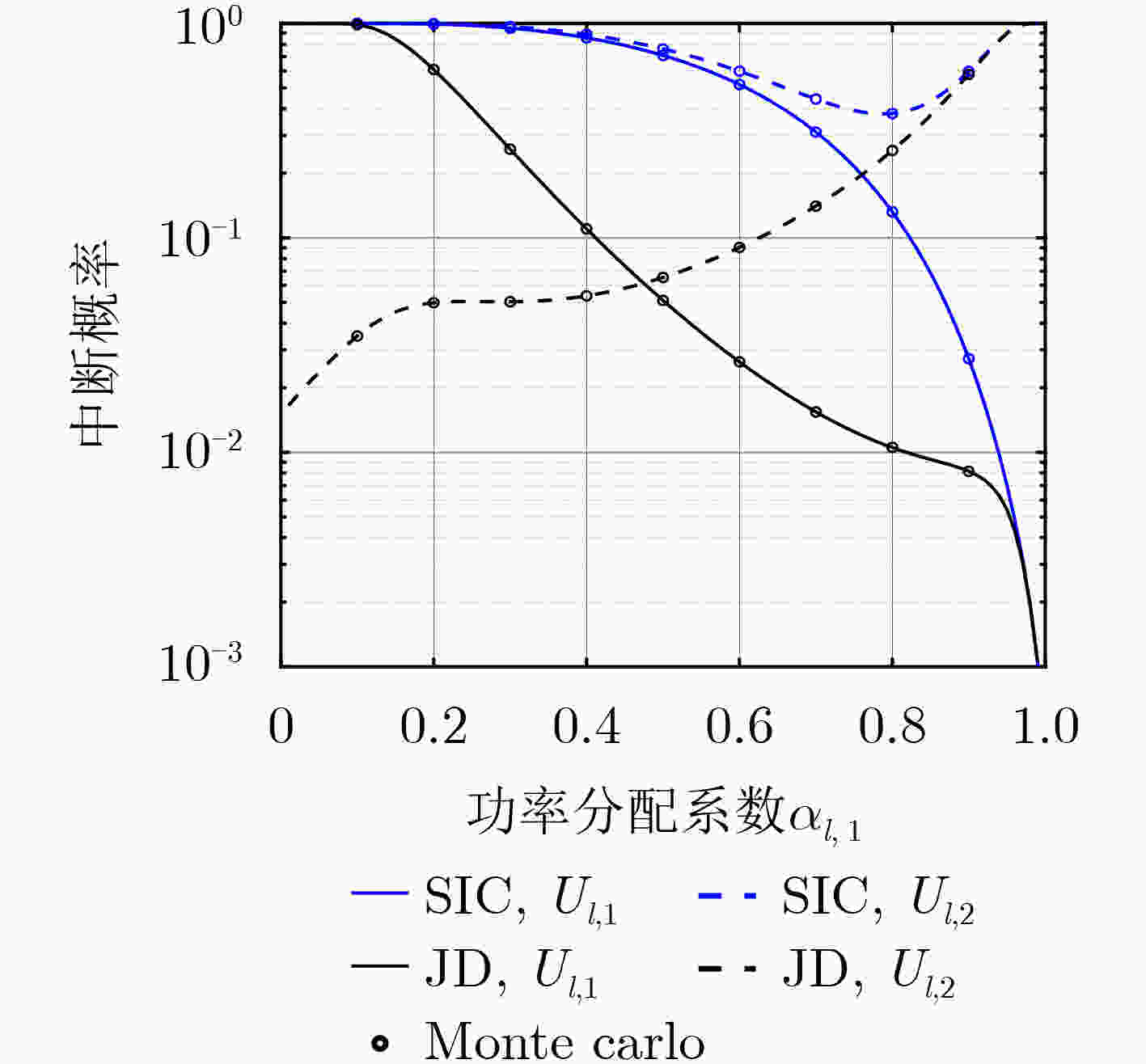

    图  3  不同方案下中断概率随功率分配系数变化的曲线

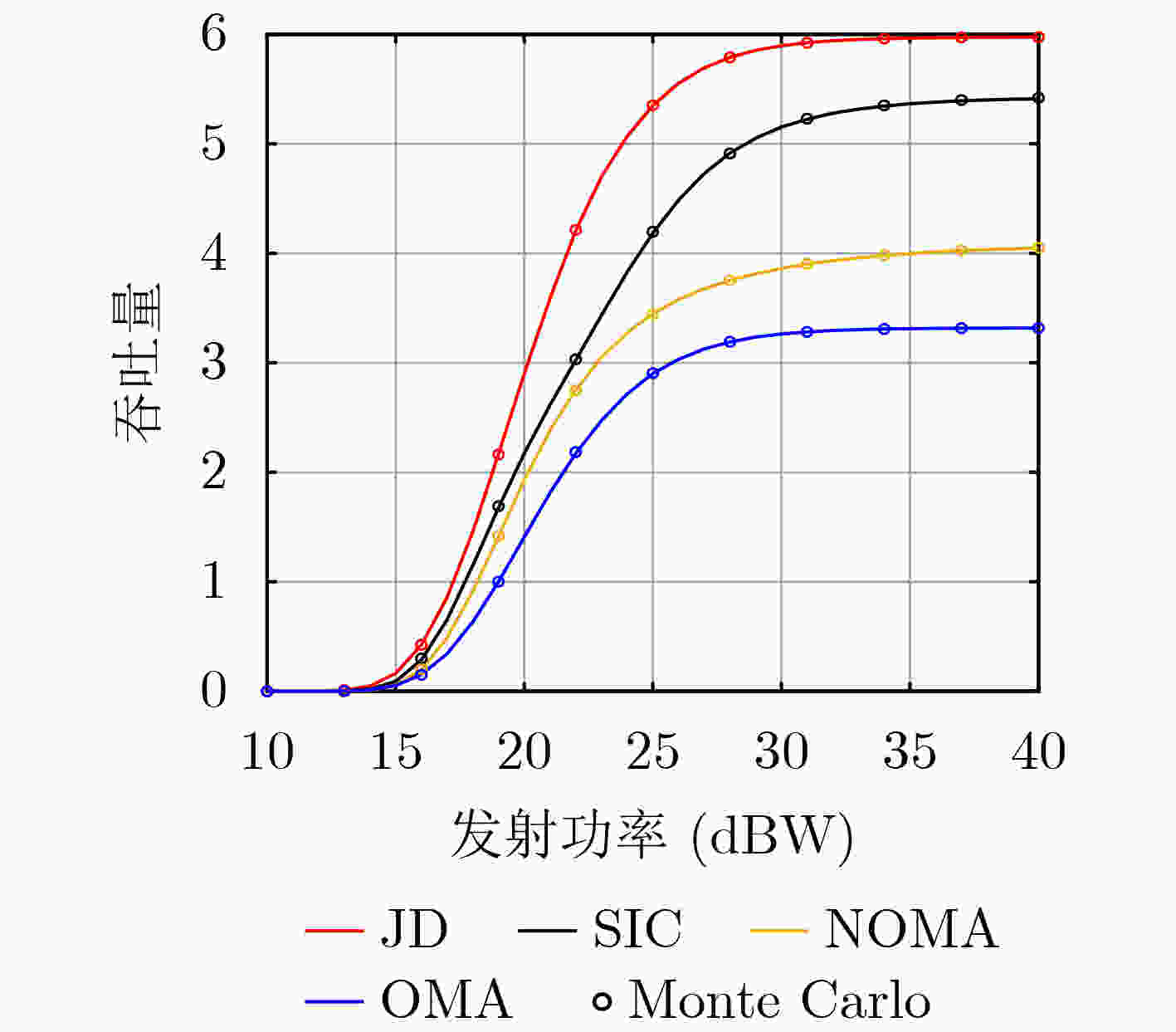

    图  4  不同方案下吞吐量随发射功率变化的曲线

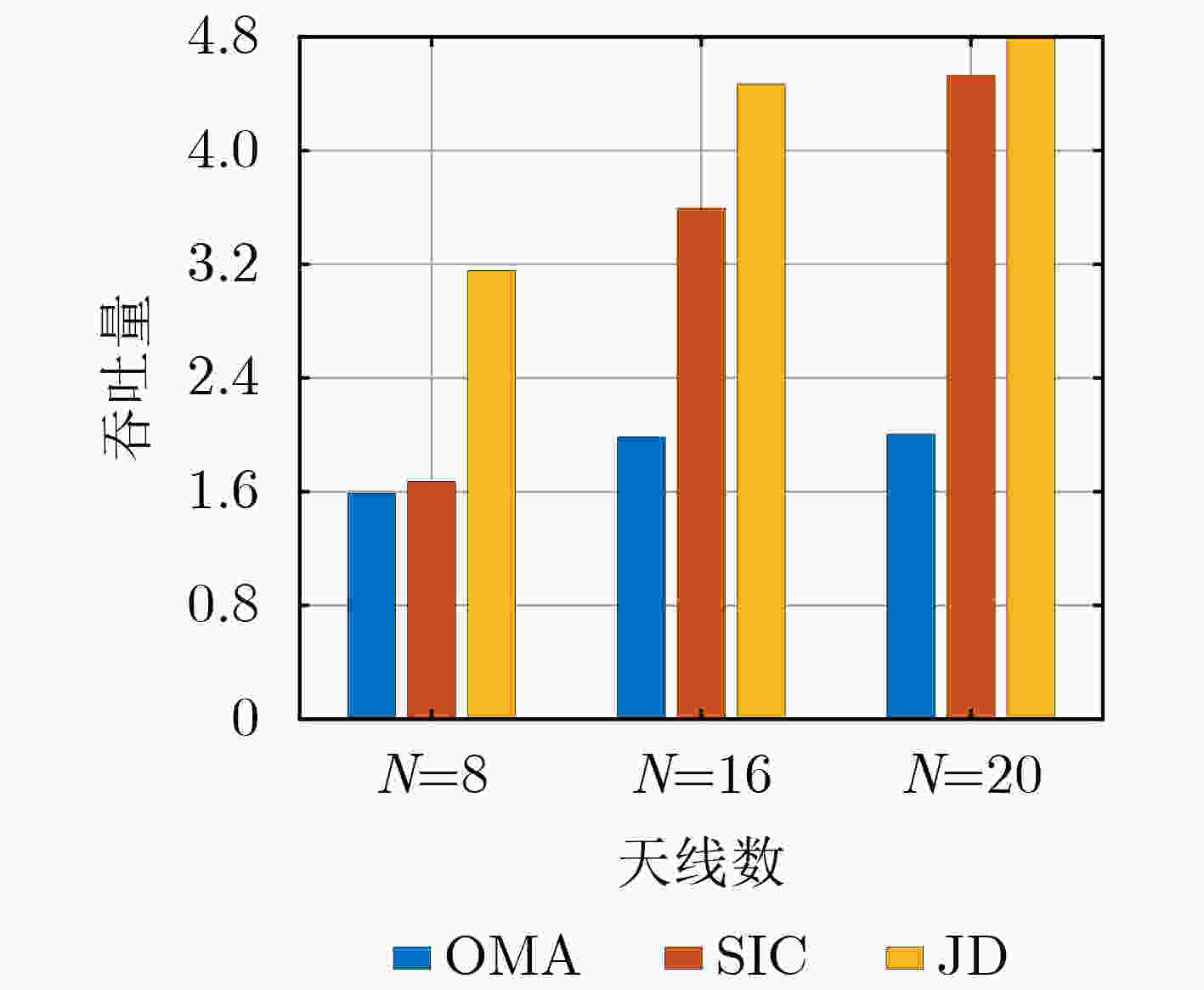

    图  5  不同方案下吞吐量与天线数的关系图

    表  1  常用变量含义表

    符号 含义 符号 含义
    ${P_l}$ NOMA组内两用户的发射总功率 $ {P_{\mathrm{R}}} $ 地面中继的发射功率
    ${d_i}$ 用户到地面中继接收端的距离 ${d_{{\mathrm{RS}}}}$ 地面中继到卫星的距离
    ${d_{\mathrm{e}}}$ ULA阵元间隔 ${R_{l,i}}$ 用户的可达速率门限值
    ${\theta _i}$ 用户到地面中继的到达角 $ {\theta _{{\text{RS}}}} $ 地面中继到卫星的到达角
    ${{\boldsymbol{h}}_i}$ 用户到地面中继之间的信道 ${{\boldsymbol{h}}_{{\mathrm{RS}}}}$ 地面中继到卫星之间的信道
    ${{\boldsymbol{w}}_l}$ 归一化接收波束成形权矢量 ${{\boldsymbol{w}}_{{\mathrm{RS}}}}$ 归一化发射波束成形权矢量
    下载: 导出CSV

    表  2  系统参数设置

    参数 数值 参数 数值
    卫星运行轨道 GEO 3 dB波束角度${\theta _{3\;{\mathrm{dB}}}}\left( ^\circ \right)$ 0.4
    载波频率$ f\left( {{\mathrm{GHz}}} \right) $ 2 带宽$ B\left( {{\mathrm{MHz}}} \right) $ 5
    卫星波束最大增益$ {G^{\max }}\left( {{\mathrm{dB}}} \right) $ 53 噪声温度$ T\left( {\mathrm{K}} \right) $ 300
    下载: 导出CSV
  • [1] HEO J, SUNG S, LEE H, et al. MIMO satellite communication systems: A survey from the PHY layer perspective[J]. IEEE Communications Surveys & Tutorials, 2023, 25(3): 1543–1570. doi: 10.1109/COMST.2023.3294873.
    [2] KONG Huaicong, LIN Min, HAN Lv’e, et al. Uplink multiple access with semi-grant-free transmission in integrated satellite-aerial-terrestrial networks[J]. IEEE Journal on Selected Areas in Communications, 2023, 41(6): 1723–1736. doi: 10.1109/JSAC.2023.3273707.
    [3] 逄小玮, 蒋旭, 卢华兵, 等. 面向6G多维扩展的新型多址接入技术综述[J]. 电子与信息学报, 2024, 46(6): 2323–2334. doi: 10.11999/JEIT231265.

    PANG Xiaowei, JIANG Xu, LU Huabing, et al. An overview of novel multi-access techniques for multi-dimensional expanded 6G[J]. Journal of Electronics & Information Technology, 2024, 46(6): 2323–2334. doi: 10.11999/JEIT231265.
    [4] JEE A, AGRAWAL K, and PRAKRIYA S. A coordinated direct AF/DF relay-aided NOMA framework for low outage[J]. IEEE Transactions on Communications, 2022, 70(3): 1559–1579. doi: 10.1109/TCOMM.2021.3126632.
    [5] LAN Luo, XIE Lei, and CHEN Huifang. On outage probability analysis of uplink in land mobile satellite cooperative system[C]. 2014 Sixth International Conference on Wireless Communications and Signal Processing, Hefei, China, 2014: 1–6. doi: 10.1109/WCSP.2014.6992095.
    [6] SWALEM A H, HALIM J V M, and EL HENNAWY H. Uplink performance analysis of multiple relays hybrid satellite-terrestrial cooperative networks employing amplify-and-forward DS-CDMA technique[C]. 2023 International Microwave and Antenna Symposium, Cairo, Egypt, 2023: 219–225. doi: 10.1109/IMAS55807.2023.10066939.
    [7] 范平志, 李里, 陈欢, 等. 面向大规模物联网的随机接入: 现状、挑战与机遇[J]. 通信学报, 2021, 42(4): 1–21. doi: 10.11959/j.issn.1000-436x.2021098.

    FAN Pingzhi, LI Li, CHEN Huan, et al. Random access for massive Internet of things: Current status, challenges and opportunities[J]. Journal on Communications, 2021, 42(4): 1–21. doi: 10.11959/j.issn.1000-436x.2021098.
    [8] SINGH V, UPADHYAY P K, and LIN Min. On the performance of NOMA-assisted overlay multiuser cognitive satellite-terrestrial networks[J]. IEEE Wireless Communications Letters, 2020, 9(5): 638–642. doi: 10.1109/LWC.2020.2963981.
    [9] LIN Zhi, LIN Min, WANG Junbo, et al. Joint beamforming and power allocation for satellite-terrestrial integrated networks with non-orthogonal multiple access[J]. IEEE Journal of Selected Topics in Signal Processing, 2019, 13(3): 657–670. doi: 10.1109/JSTSP.2019.2899731.
    [10] DING Zhiguo, SCHOBER R, and POOR H V. Unveiling the importance of SIC in NOMA systems—Part 1: State of the art and recent findings[J]. IEEE Communications Letters, 2020, 24(11): 2373–2377. doi: 10.1109/LCOMM.2020.3012604.
    [11] TEGOS S A, DIAMANTOULAKIS P D, XIA Junjuan, et al. Outage performance of uplink NOMA in land mobile satellite communications[J]. IEEE Wireless Communications Letters, 2020, 9(10): 1710–1714. doi: 10.1109/LWC.2020.3001916.
    [12] TEGOS S A, DIAMANTOULAKIS P D, LIOUMPAS A S, et al. Slotted ALOHA with NOMA for the next generation IoT[J]. IEEE Transactions on Communications, 2020, 68(10): 6289–6301. doi: 10.1109/TCOMM.2020.3007744.
    [13] LI Xingwang, ZHENG Yike, ZENG Ming, et al. Enhancing secrecy performance for STAR-RIS NOMA networks[J]. IEEE Transactions on Vehicular Technology, 2023, 72(2): 2684–2688. doi: 10.1109/TVT.2022.3213334.
    [14] 林敏, 朱丽文, 孔槐聪, 等. 基于协作非正交多址的无人机辅助卫星通信系统中断性能分析[J]. 电子与信息学报, 2022, 44(9): 3033–3042. doi: 10.11999/JEIT211289.

    LIN Min, ZHU Liwen, KONG Huaicong, et al. Outage performance analysis of unmanned aerial vehicle assisted satellite communication system with cooperative non-orthogonal multiple access[J]. Journal of Electronics & Information Technology, 2022, 44(9): 3033–3042. doi: 10.11999/JEIT211289.
    [15] KONG Huaicong, LIN Min, HE Shiwen, et al. Forward link outage performance of aeronautical broadband satellite communications[J]. Frontiers of Information Technology & Electronic Engineering, 2021, 22(6): 790–801. doi: 10.1631/FITEE.2000445.
    [16] GUI Ronghua, BALASUBRAMANYA N M, and LAMPE L. Outage performance analysis of widely linear receivers in uplink multi-user MIMO systems[J]. IEEE Transactions on Communications, 2021, 69(10): 6500–6515. doi: 10.1109/TCOMM.2021.3096959.
    [17] GRADSHTEYN I S and RYZHIK I M. Table of Integrals, Series, and Products[M]. 7th ed. Burlington: Academic Press, 2007.
    [18] YEOM J S, KIM Y B, and JUNG B C. Spectrally efficient uplink cooperative NOMA with joint decoding for relay-assisted IoT networks[J]. IEEE Internet of Things Journal, 2023, 10(1): 210–223. doi: 10.1109/JIOT.2022.3202006.
    [19] AN Kang, LIN Min, GUYANG Jian, et al. Outage performance for the cognitive broadband satellite system and terrestrial cellular network in millimeter wave scenario[C]. 2017 IEEE International Conference on Communications, Paris, France, 2017: 1–6. doi: 10.1109/ICC.2017.7996553.
