两种面向宇航应用的高可靠性抗辐射加固技术静态随机存储器单元

闫爱斌 李坤 黄正峰 倪天明 徐辉

闫爱斌, 李坤, 黄正峰, 倪天明, 徐辉. 两种面向宇航应用的高可靠性抗辐射加固技术静态随机存储器单元[J]. 电子与信息学报. doi: 10.11999/JEIT240082
引用本文: 闫爱斌, 李坤, 黄正峰, 倪天明, 徐辉. 两种面向宇航应用的高可靠性抗辐射加固技术静态随机存储器单元[J]. 电子与信息学报. doi: 10.11999/JEIT240082
YAN Aibin, LI Kun, HUANG Zhengfeng, NI Tianming, XU Hui. Two Highly Reliable Radiation Hardened By Design Static Random Access Memory Cells for Aerospace Applications[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT240082
Citation: YAN Aibin, LI Kun, HUANG Zhengfeng, NI Tianming, XU Hui. Two Highly Reliable Radiation Hardened By Design Static Random Access Memory Cells for Aerospace Applications[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT240082

两种面向宇航应用的高可靠性抗辐射加固技术静态随机存储器单元

doi: 10.11999/JEIT240082
基金项目: 国家自然科学基金(61974001)
详细信息
    作者简介:

    闫爱斌:男,博士,教授,研究方向为数字电路可靠性技术等

    李坤:男,硕士生,研究方向为SRAM单元容错技术

    黄正峰:男,博士,教授,研究方向为数字集成电路容错设计等

    倪天明:男,博士,教授,研究方向为数字集成电路可测性设计等

    徐辉:男,博士,教授,研究方向为可信计算与人工智能等

    通讯作者:

    徐辉 austxuhui@163.com

  • 中图分类号: TN43

Two Highly Reliable Radiation Hardened By Design Static Random Access Memory Cells for Aerospace Applications

Funds: The National Natural Science Foundation of China (61974001)
  • 摘要: CMOS尺寸的大幅缩小引发电路可靠性问题。该文介绍了两种高可靠的基于设计的抗辐射加固(RHBD)10T和12T抗辐射加固技术(SRAM)单元,它们可以防护单节点翻转(SNU)和双节点翻转(DNU)。10T单元主要由两个交叉耦合的输入分离反相器组成,该单元可以通过其内部节点之间的反馈机制稳定地保持存储的值。由于仅使用少量晶体管,因此其在面积和功耗方面开销也较低。基于10T单元,提出了使用4个并行存取访问管的12T单元。与10T单元相比,12T单元的读/写访问时间更短,且具有相同的容错能力。仿真结果表明,所提单元可以从任意SNU和部分DNU中恢复。此外,与先进的加固SRAM单元相比,所提10T单元平均可以节省28.59%的写访问时间、55.83%的读访问时间和4.46%的功耗,而平均牺牲了4.04%的硅面积。

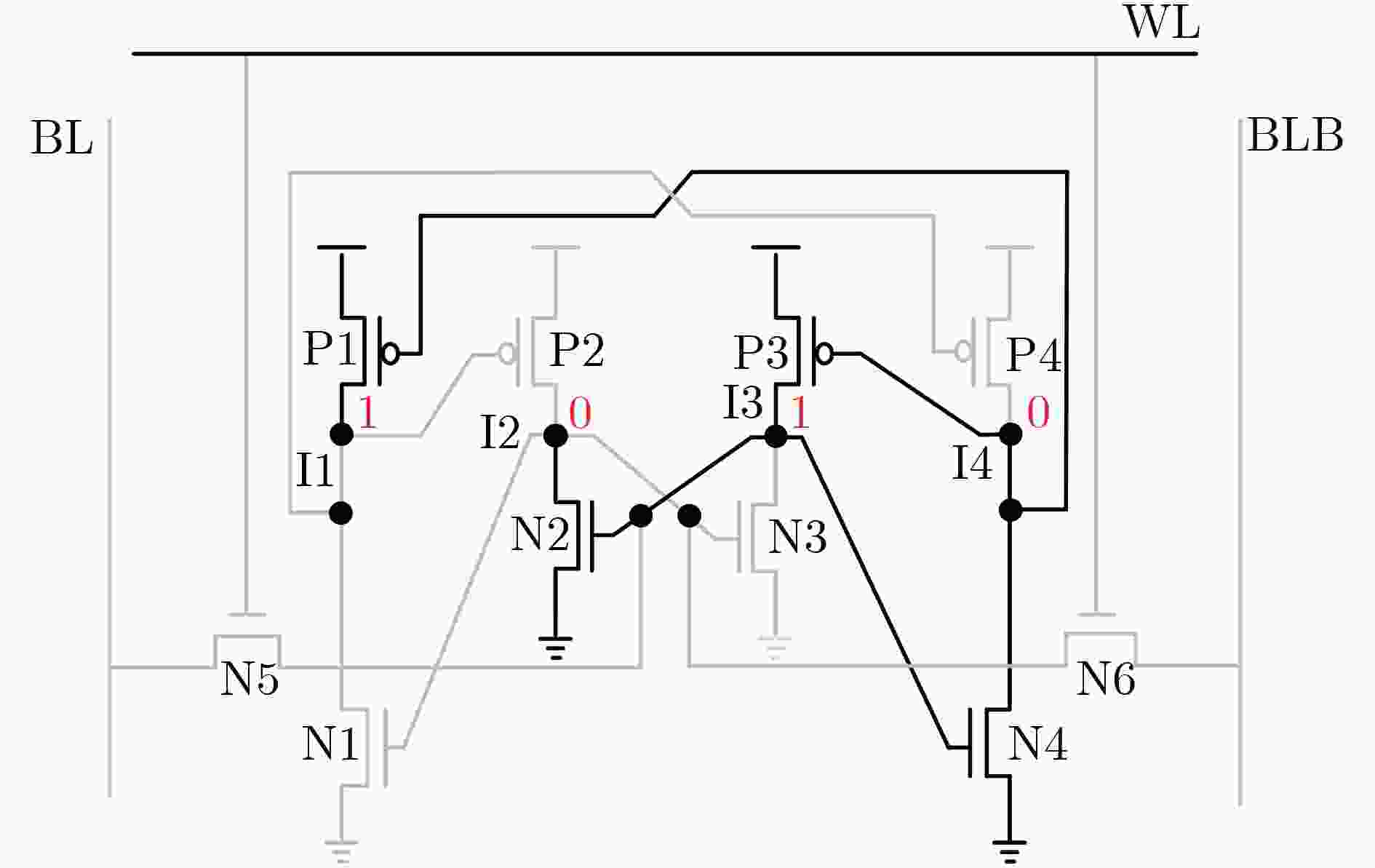

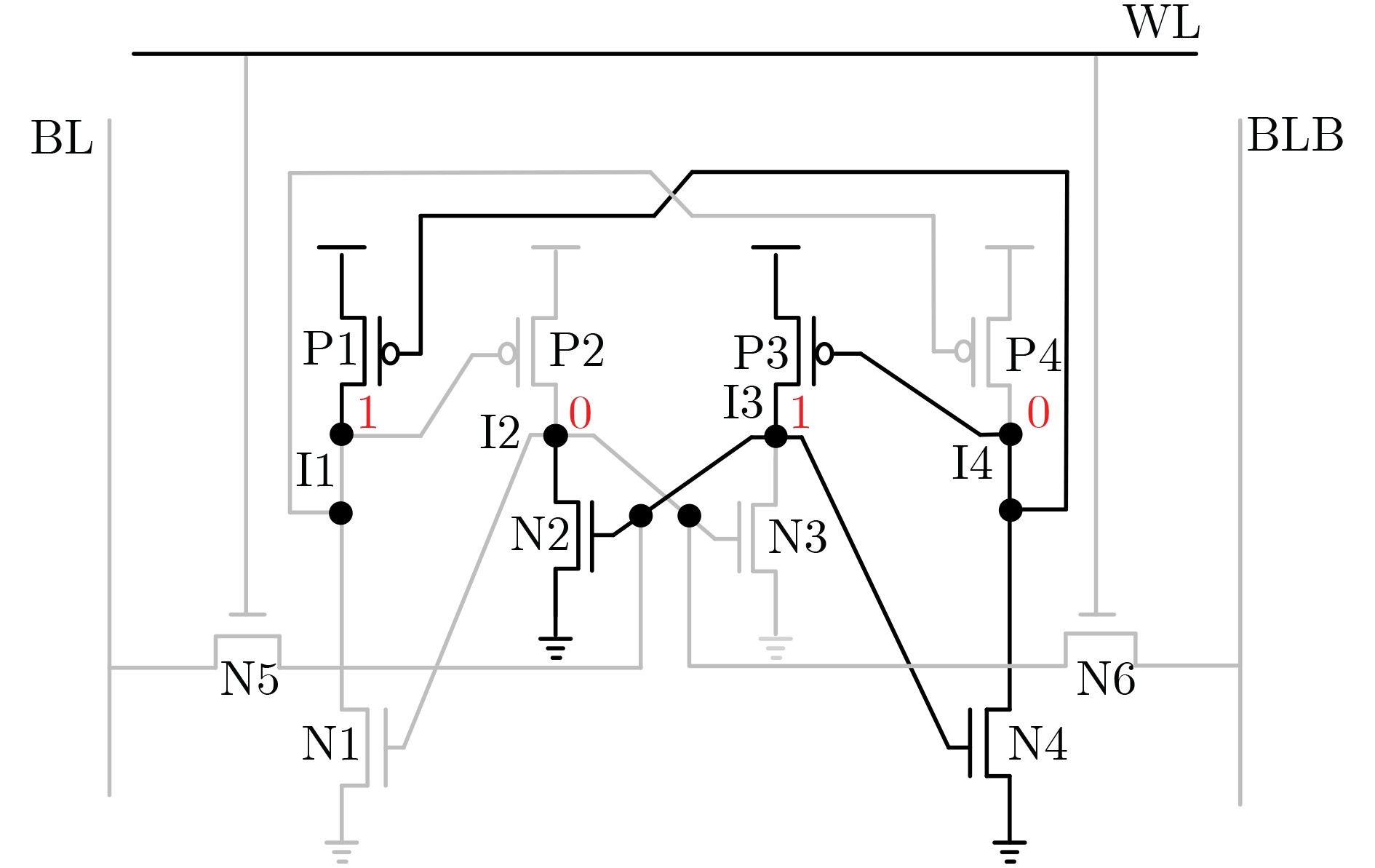

  • 图  1  所提RHBD10T单元电路图

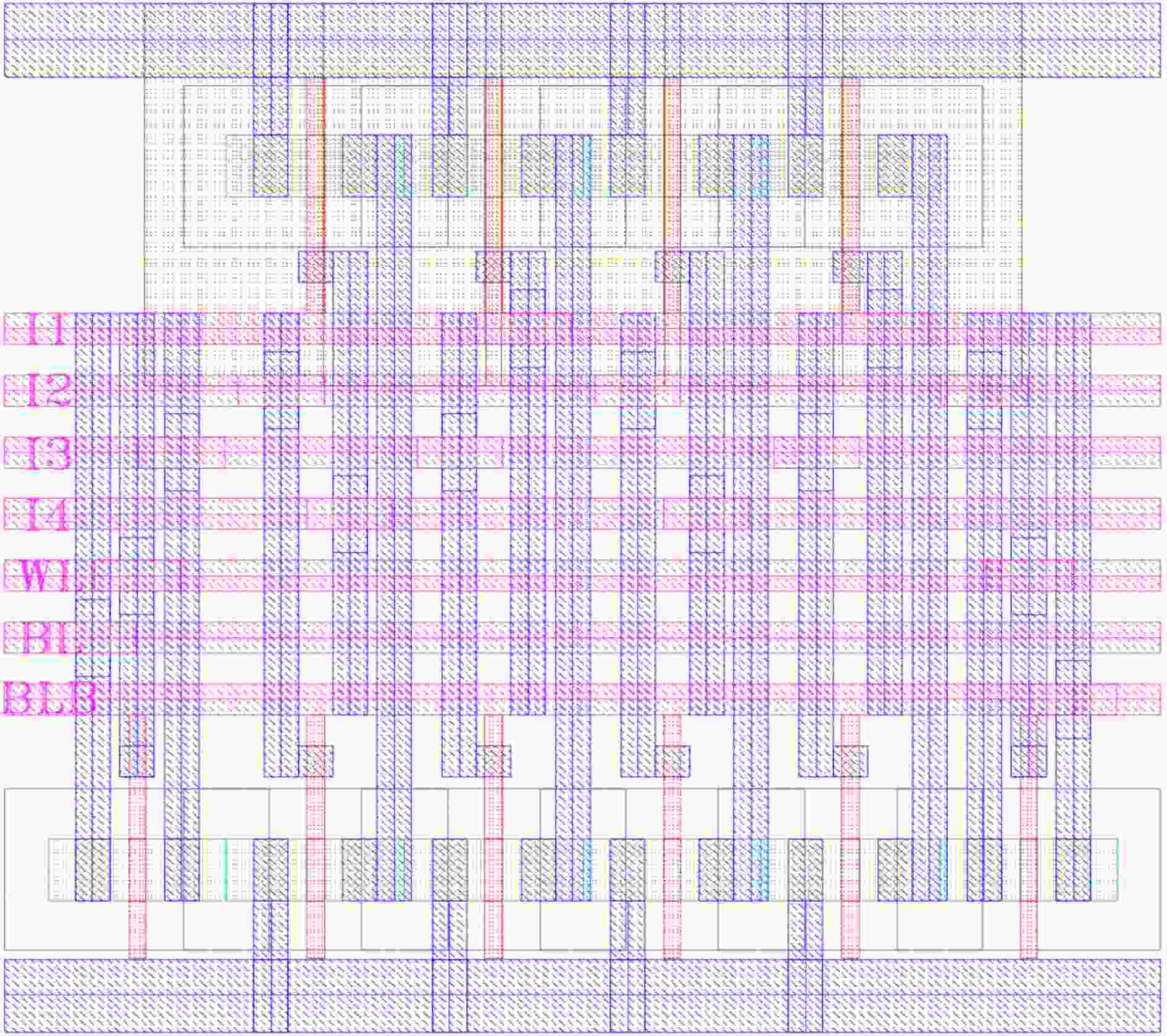

    图  2  所提RHBD10T单元版图

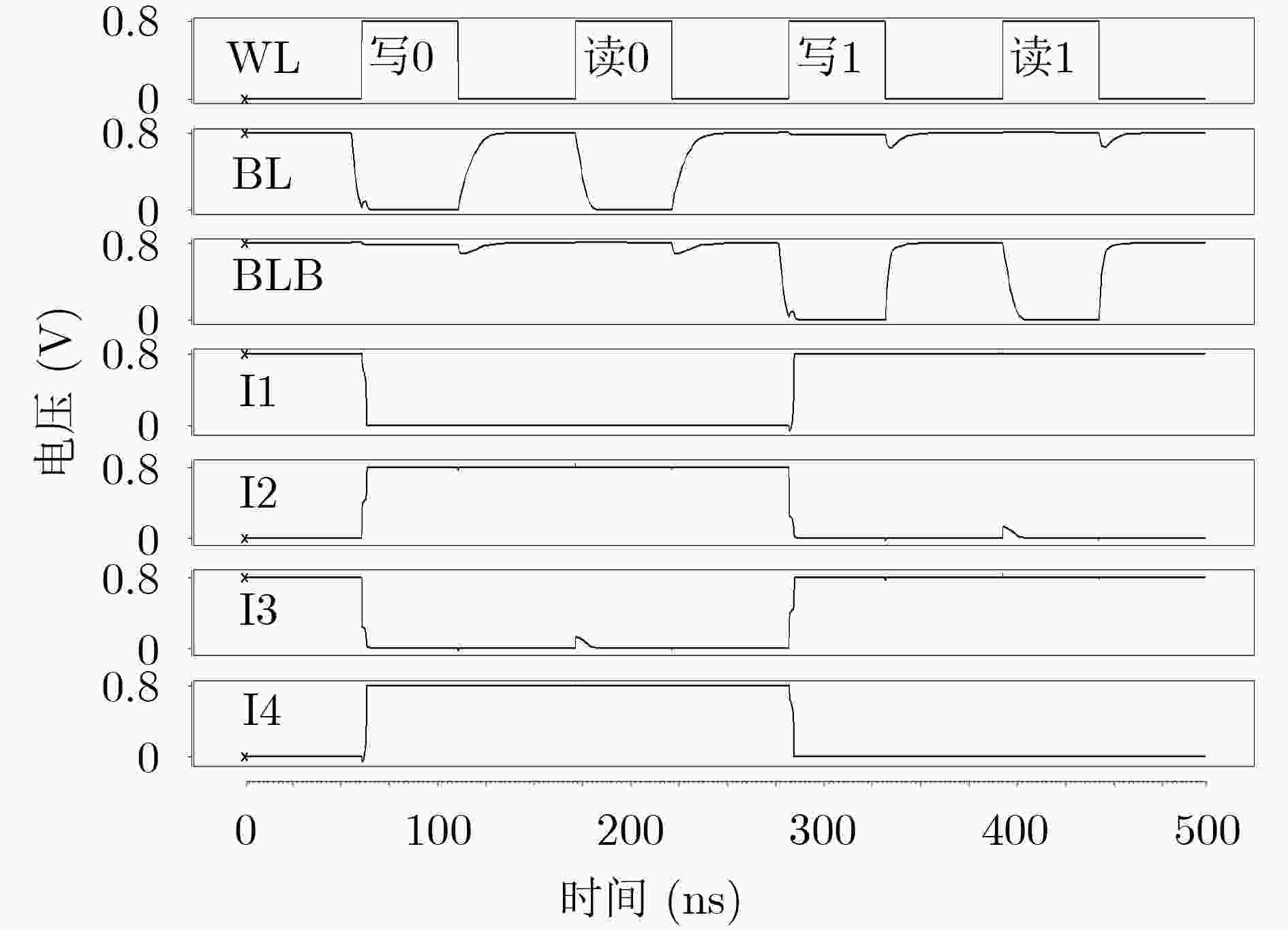

    图  3  所提RHBD10T单元正常操作的仿真结果

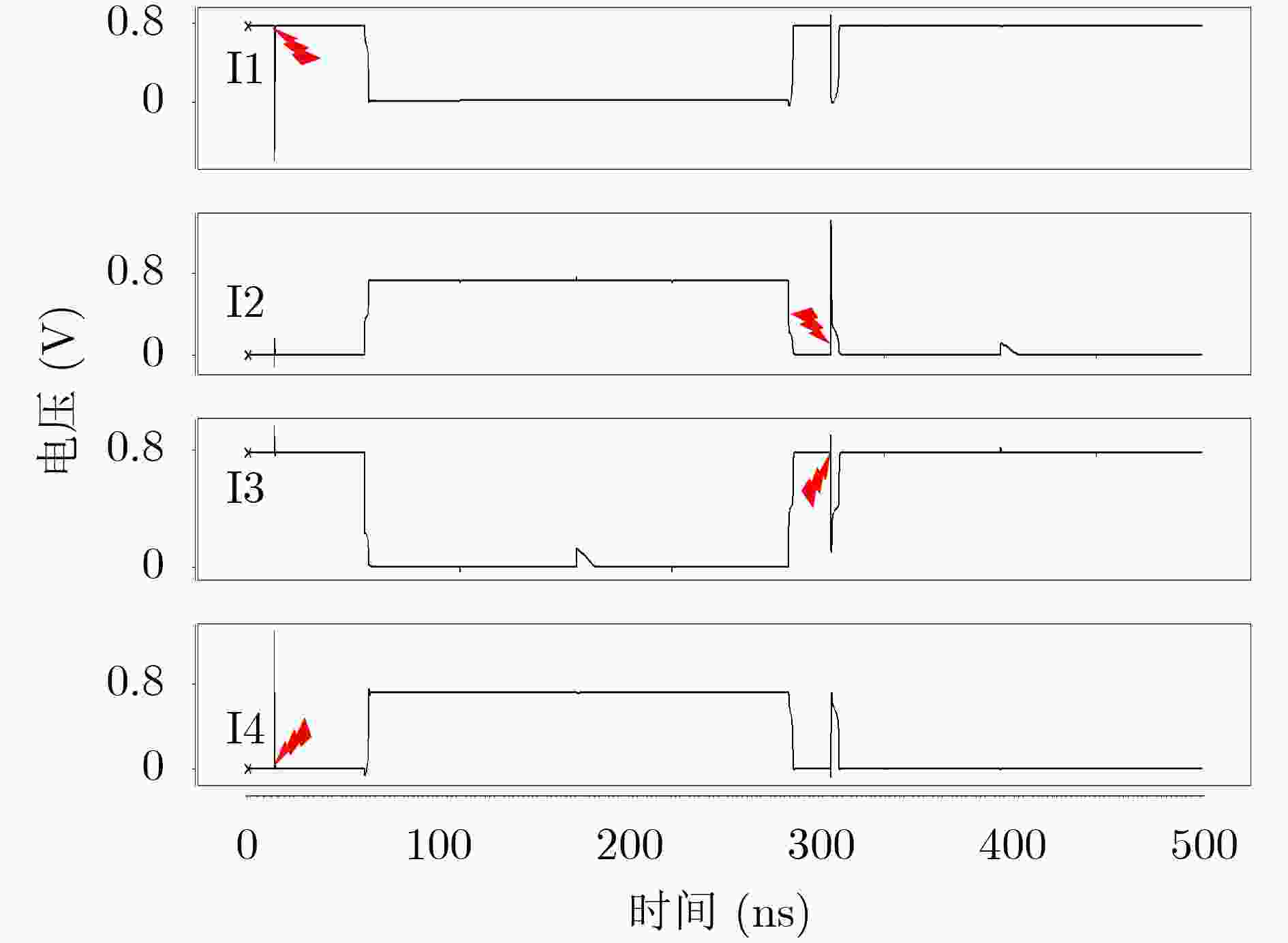

    图  4  所提 RHBD10T单元的SNU自恢复仿真结果

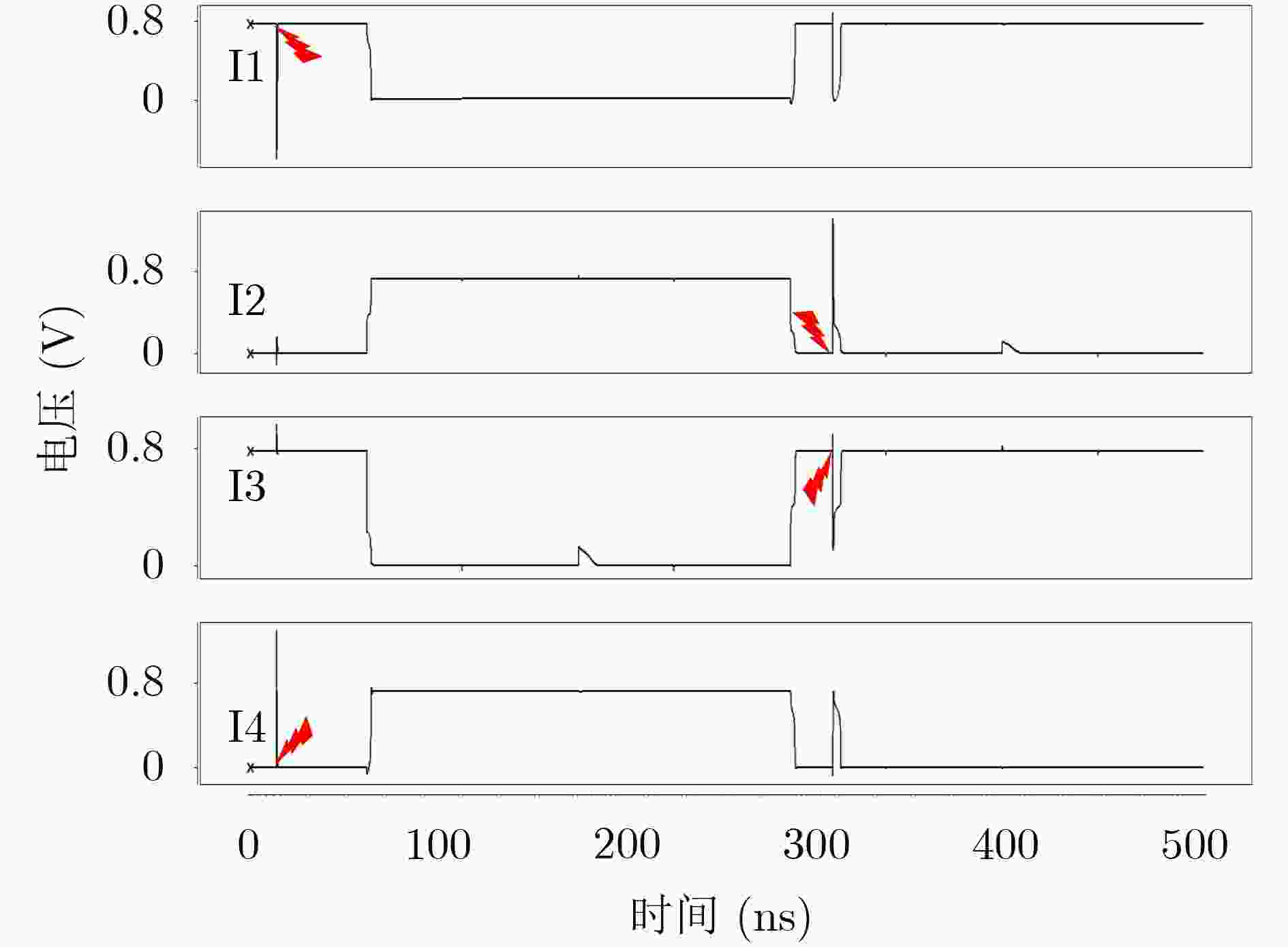

    图  5  所提 RHBD10T 单元的 DNU 的仿真结果

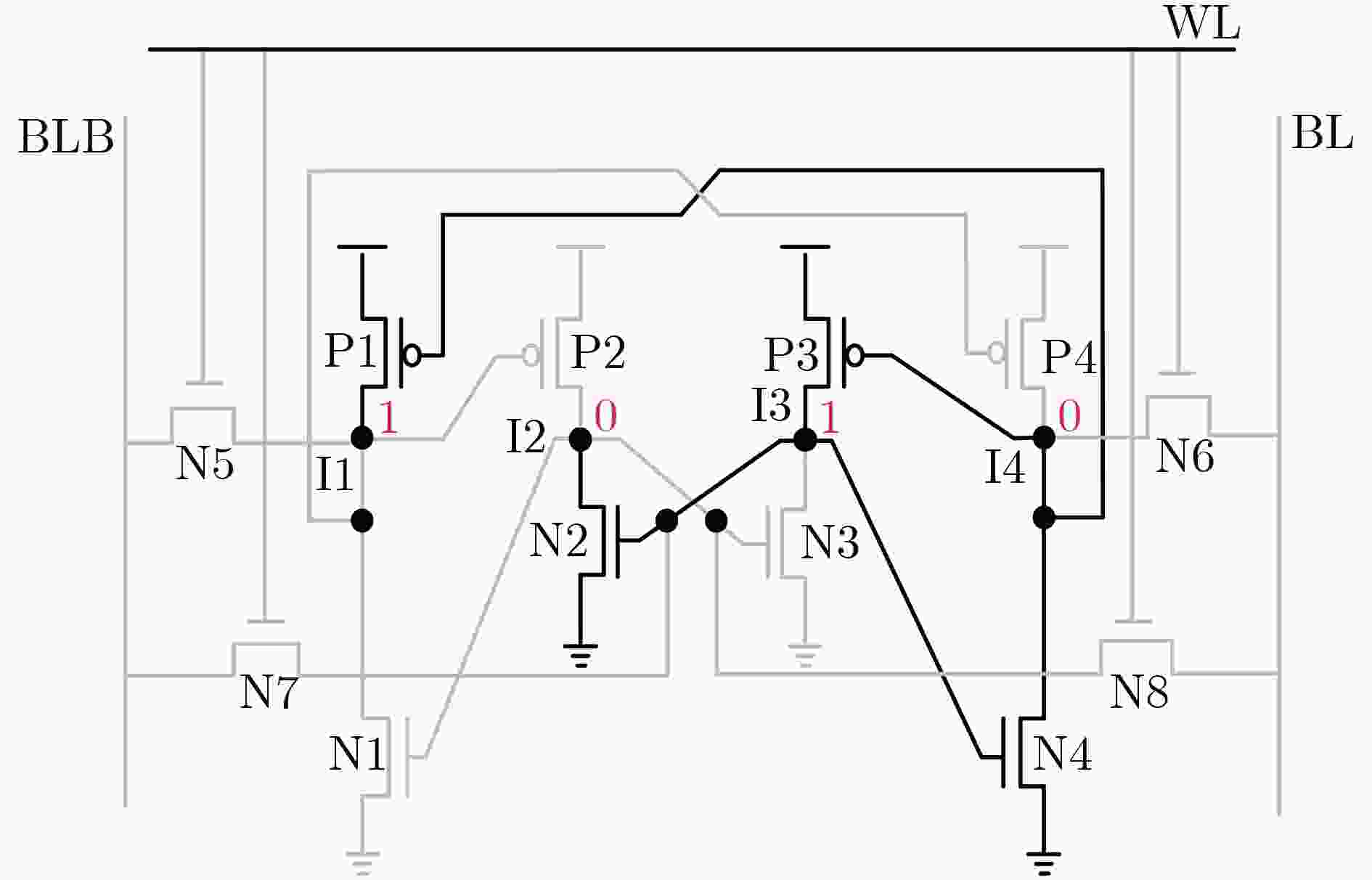

    图  6  所提RHBD12T单元电路图

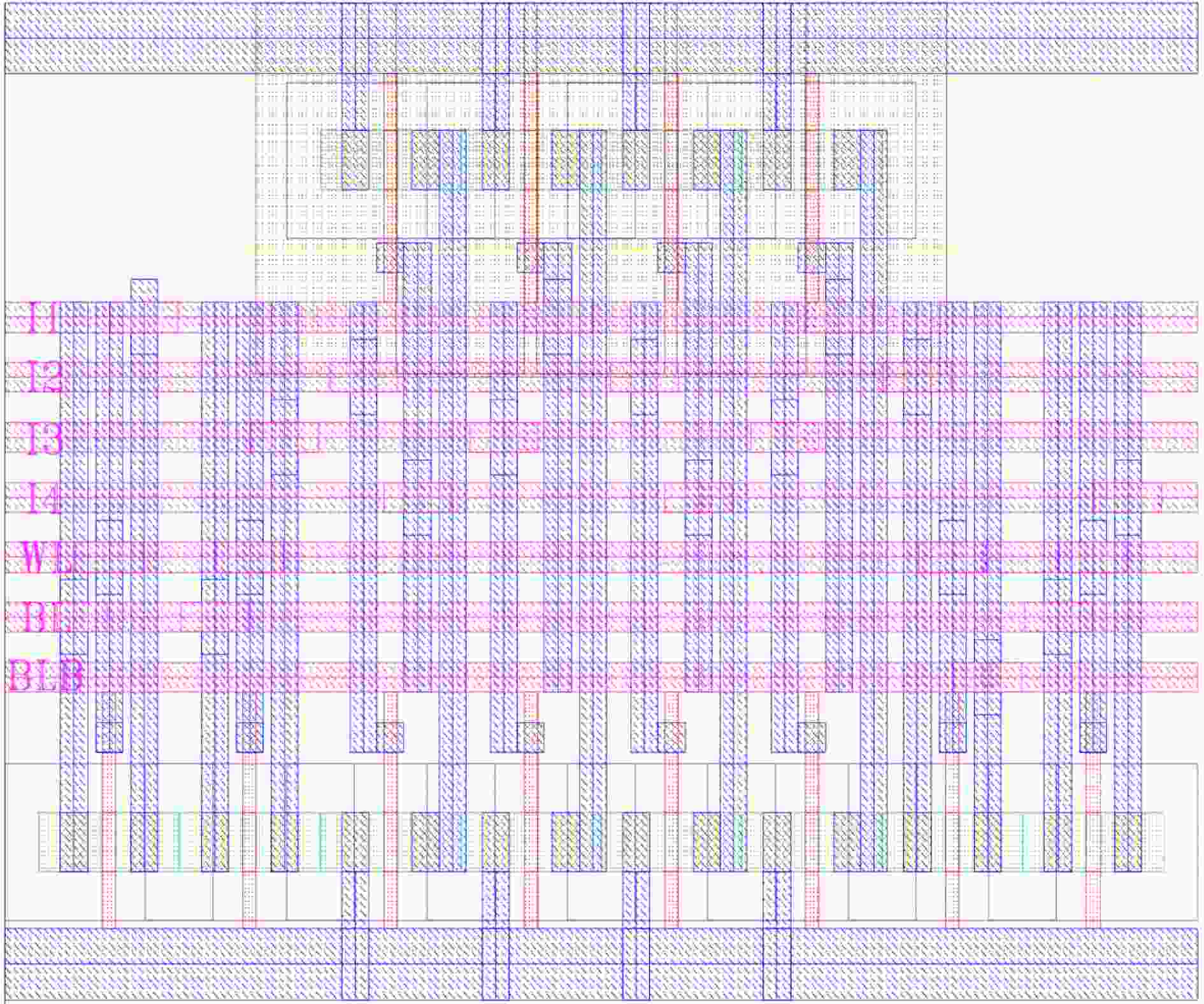

    图  7  所提 RHBD12T单元的版图

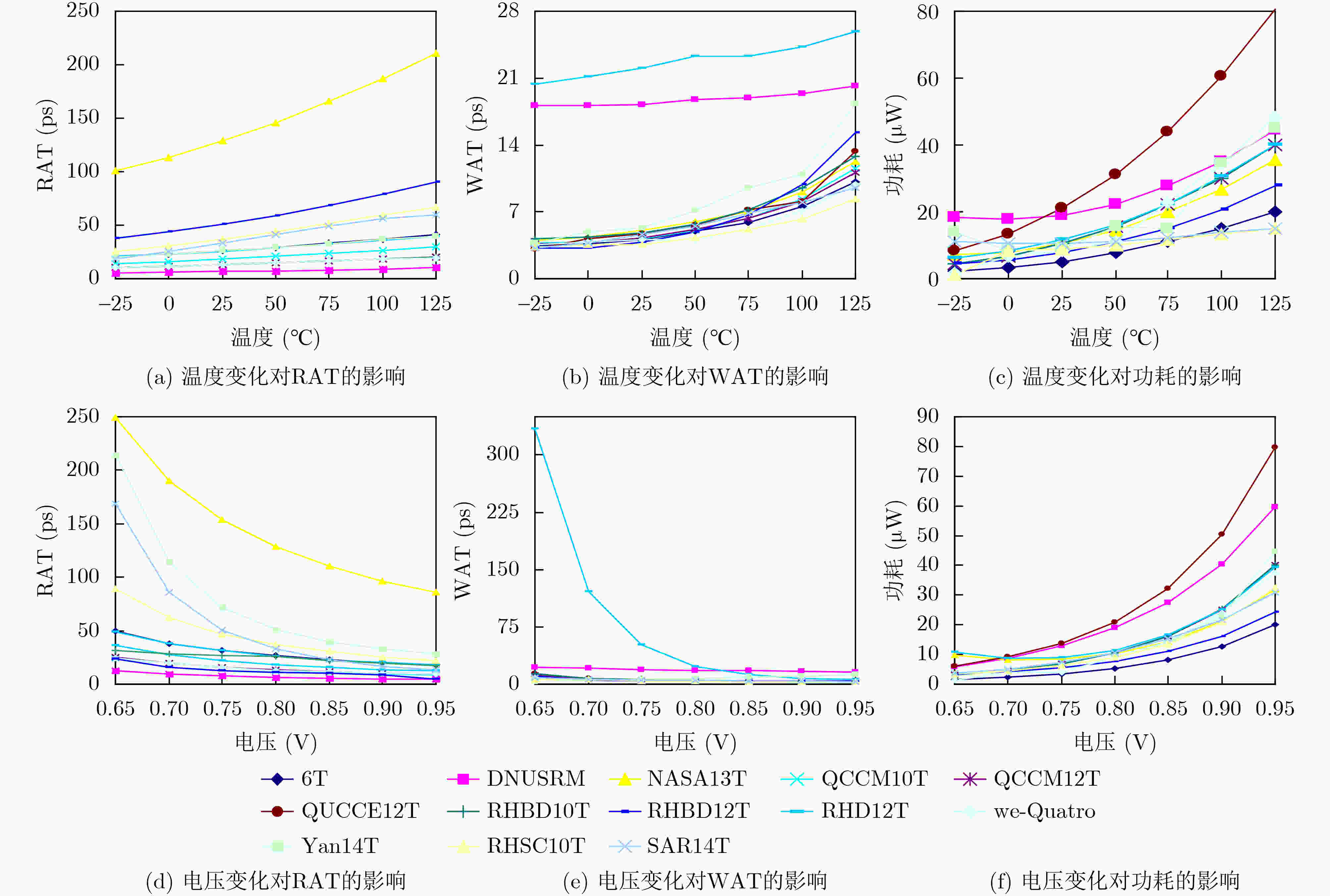

    图  8  温度与电压变化对 SRAM 设计的 RAT,WAT 和功耗影响的仿真结果

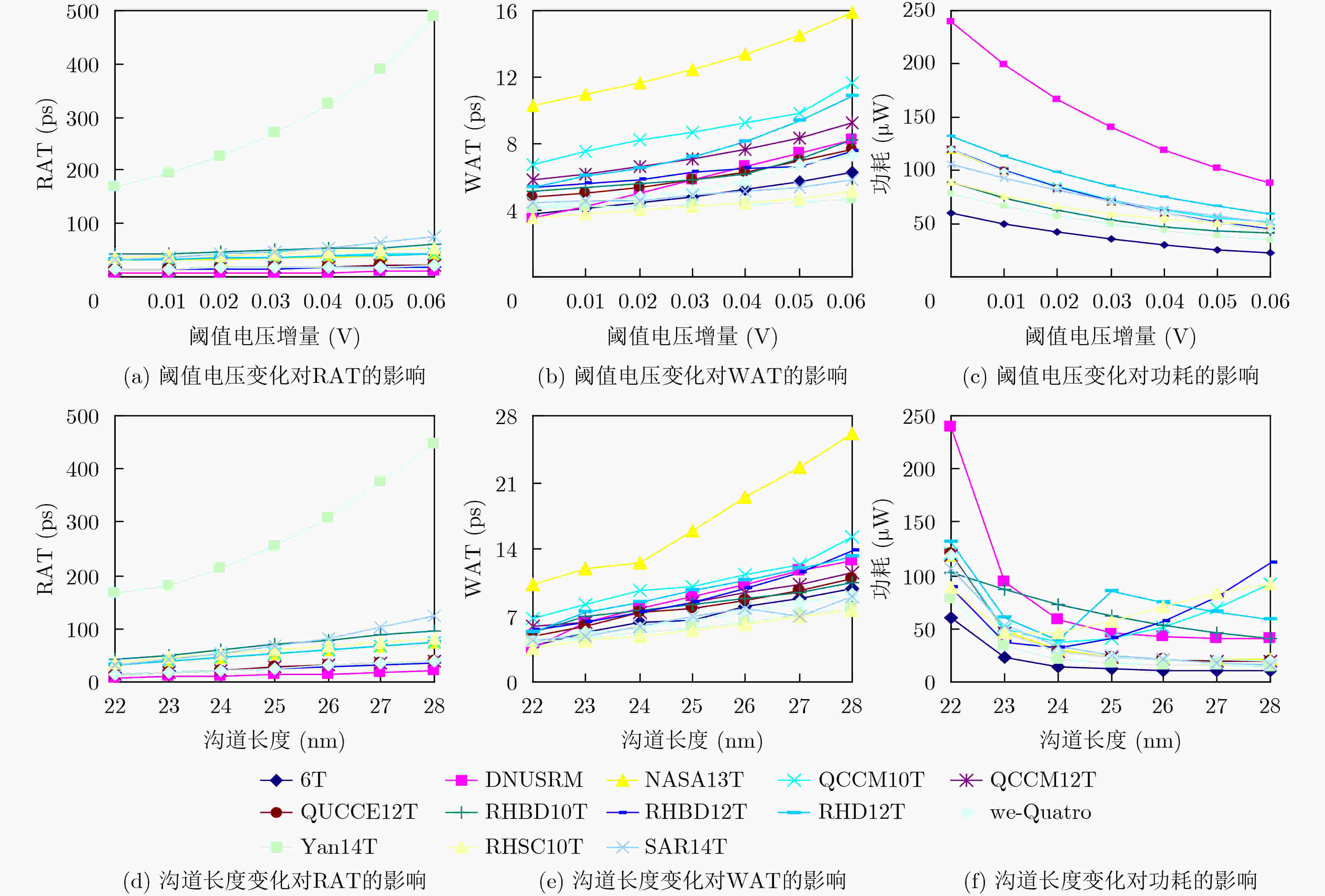

    图  9  阙值电压和沟道长度变化对SCRM的RAT, WAT和功耗的影响的仿真结果

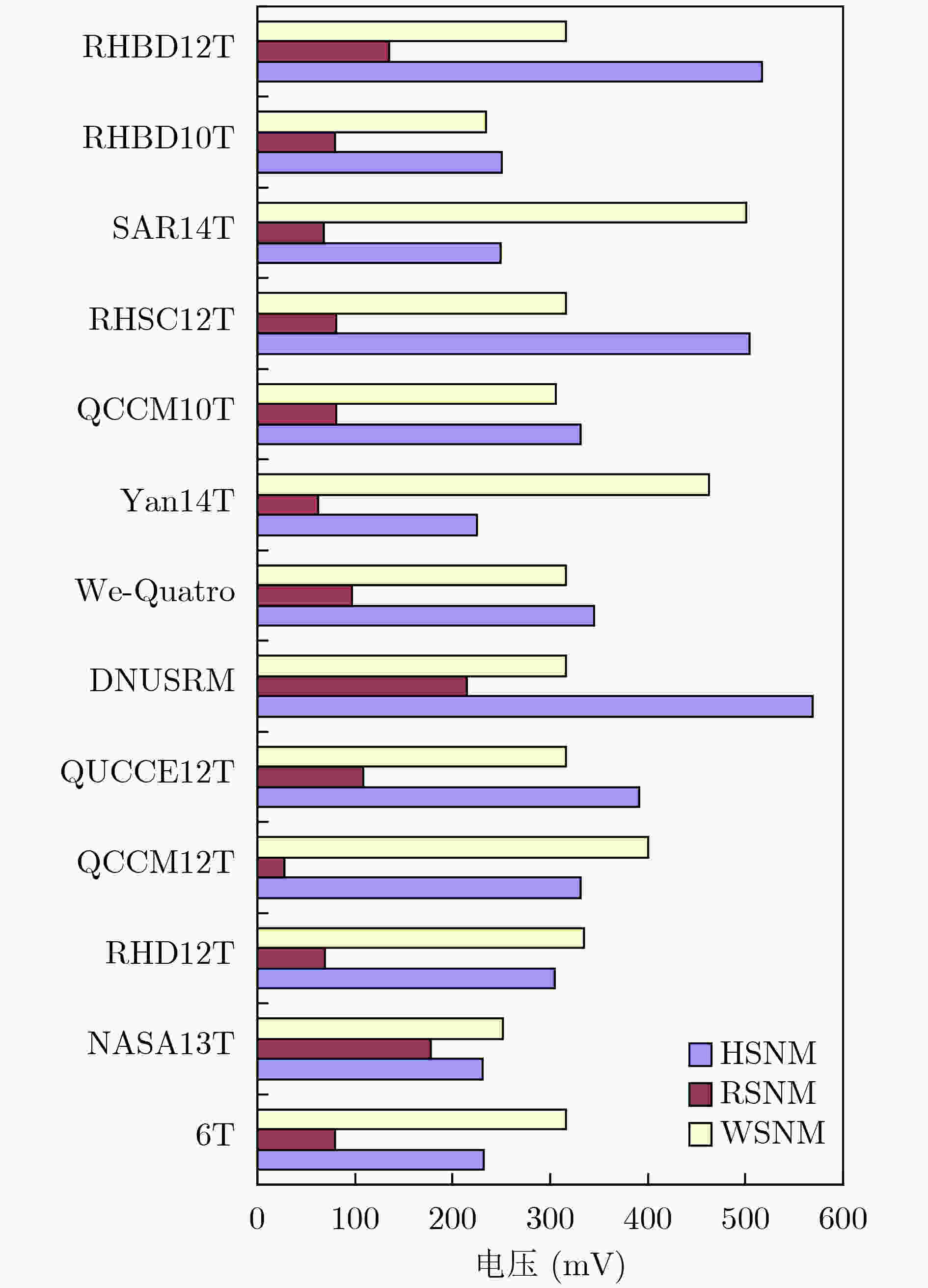

    图  10  电压0.8 V下的SNM比较
