信息年龄约束下的无人机数据采集能耗优化路径规划算法

高思华; 刘宝煜; 惠康华; 徐伟峰; 李军辉; 赵炳阳

doi:10.11999/JEIT240075

信息年龄约束下的无人机数据采集能耗优化路径规划算法

doi: 10.11999/JEIT240075

1.
中国民航大学计算机科学与技术学院天津 300300
2.
华北电力大学(保定)计算机系保定 071066
3.
河北省能源电力知识计算重点实验室保定 071066

基金项目: 国家自然科学基金(62173332)，中央高校基本科研业务费专项资金(3122019118)，河北省能源电力知识计算重点实验室开发基金(HBKCEP202202)

详细信息

作者简介:
高思华：男，讲师，研究方向为强化学习理论、最优化理论、无线传感器网络和无人机系统

刘宝煜：男，硕士生，研究方向为强化学习理论、无人机路径规划

惠康华：男，副教授，研究方向为计算机视觉

徐伟峰：男，讲师，研究方向为计算机视觉和空管系统

李军辉：男，硕士生，研究方向为强化学习理论、无人机路径规划

赵炳阳：男，硕士生，研究方向为强化学习理论、无人机路径规划

通讯作者:
惠康华　khhui@cauc.edu.cn

中图分类号: TN926.2; V279
计量
- 文章访问数: 185
- HTML全文浏览量: 30
- PDF下载量: 23
- 被引次数: 0
出版历程
- 收稿日期: 2024-01-30
- 修回日期: 2024-09-05
- 网络出版日期: 2024-09-10
- 刊出日期: 2024-10-30

Energy-Efficient UAV Trajectory Planning Algorithm for AoI-Constrained Data Collection

1.
Institute of Computer Science and Technology, Civil Aviation University of China, Tianjin 300300, China
2.
Department of Computer, North China Electric Power University (Baoding), Baoding 071066, China
3.
Hebei Key Laboratory of Knowledge Computing for Energy & Power, Baoding 071066, China

Funds: The National Natural Science Foundation of China (62173332), The Fundamental Research Fundation for the Central Universities (3122019118), The Open Fundation of Hebei Key Laboratory of Knowledge Computing for Energy & Power (HBKCEP202202)

摘要

摘要: 信息年龄(AoI)是评价无线传感器网络(WSN)数据时效性的重要指标，无人机辅助WSN数据采集过程中采用优化飞行轨迹、提升速度等运动策略保障卸载至基站的数据满足各节点AoI限制。然而，不合理的运动策略易导致无人机因飞行距离过长、速度过快产生非必要能耗，造成数据采集任务失败。针对该问题，该文首先提出信息年龄约束的无人机数据采集能耗优化路径规划问题并进行数学建模；其次，设计一种协同混合近端策略优化(CH-PPO)强化学习算法，同时规划无人机对传感器节点或基站的访问次序、悬停位置和飞行速度，在满足各传感器节点信息年龄约束的同时，最大限度地减少无人机能量消耗。再次，设计一种融合离散和连续策略的损失函数，增强CH-PPO算法动作的合理性，提升其训练效果。仿真实验结果显示，CH-PPO算法在无人机能量消耗以及影响该指标因素的比较中均优于对比的3种强化学习算法，并具有良好的收敛性、稳定性和鲁棒性。
- 无线传感器网络 /
- 信息年龄约束 /
- 协同混合近端策略优化算法 /
- 无人机路径规划 /
- 深度强化学习
Abstract: The information freshness is measured by Age of Information (AoI) of each sensor in Wireless Sensor Networks (WSN). The UAV optimizes flight trajectories and accelerates speed to assist WSN data collection, which guarantees that the data offloaded to the base station meets the AoI limitation of each sensor. However, the UAV’s inappropriate flight strategies cause non-essential energy consumption due to excessive flight distance and speed, which may result in the failure of data collection mission. In this paper, firstly a mathematical model is investigated and developed for the UAV energy consumption optimization trajectory planning problem on the basis of AoI-constrained data collection. Then, a novel deep reinforcement learning algorithm, named Cooperation Hybrid Proximal Policy Optimization (CH-PPO) algorithm, is proposed to simultaneously schedule the UAV’s access sequence, hovering position, the flight speed to the sensor nodes or the base station, to minimize the UAV's energy consumption under the constraint of data timeliness for each sensor node. Meanwhile, a loss function that integrates the discrete policy and continuous policy is designed to increase the rationality of hybrid actions and improve the training effectiveness of the proposed algorithm. Numerical results demonstrate that the CH-PPO algorithm outperforms the other three reinforcement learning algorithms in the comparison group in energy consumption of UAV and its influencing factors. Furthermore, the convergence, stability, and robustness of the proposed algorithm is well verified.
- Wireless Sensor Networks (WSN) /
- AoI limitation /
- Cooperation hybrid proximal policy optimization algorithm /
- Unmanned aerial vehicle trajectory planning /
- Deep reinforcement learning

HTML全文

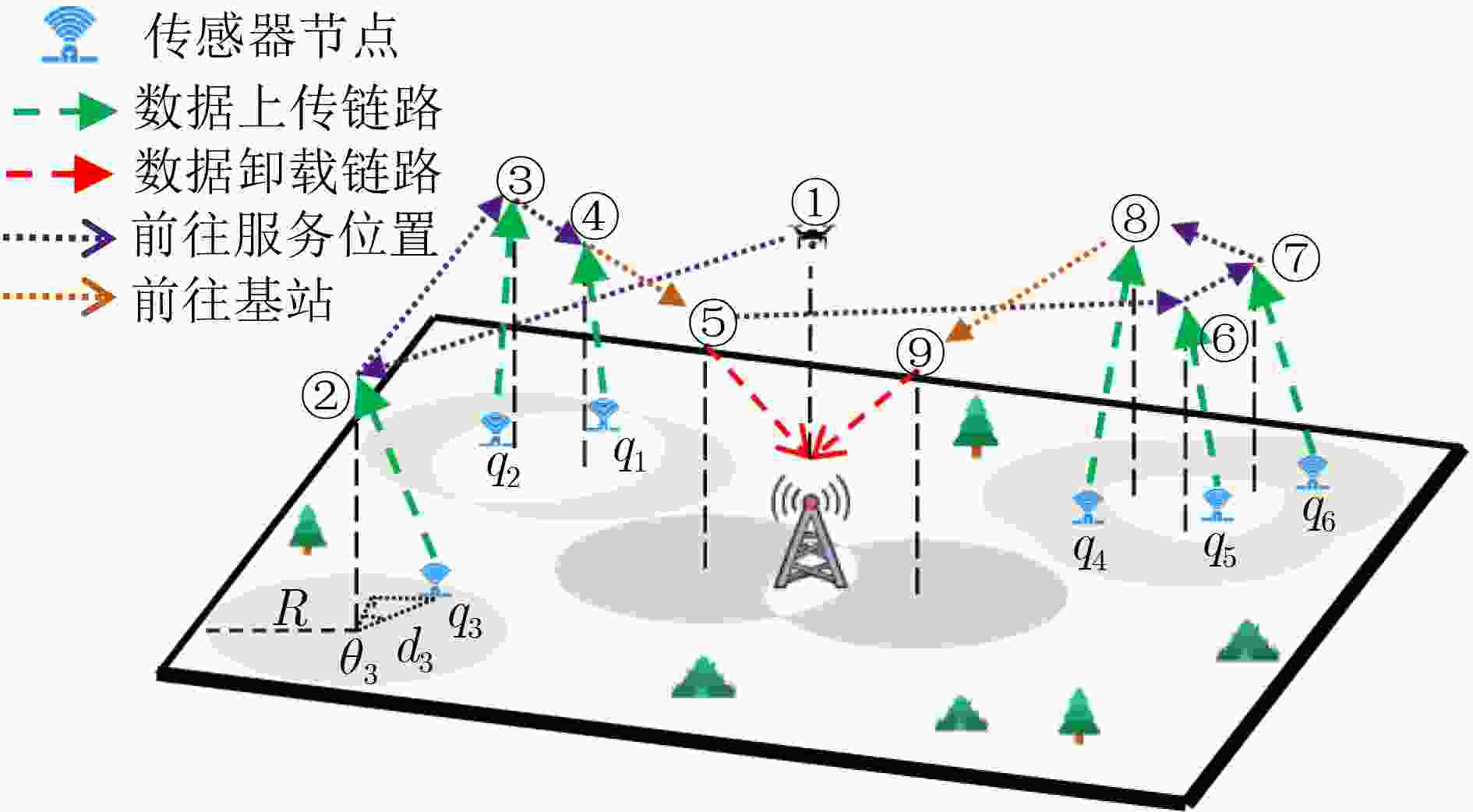

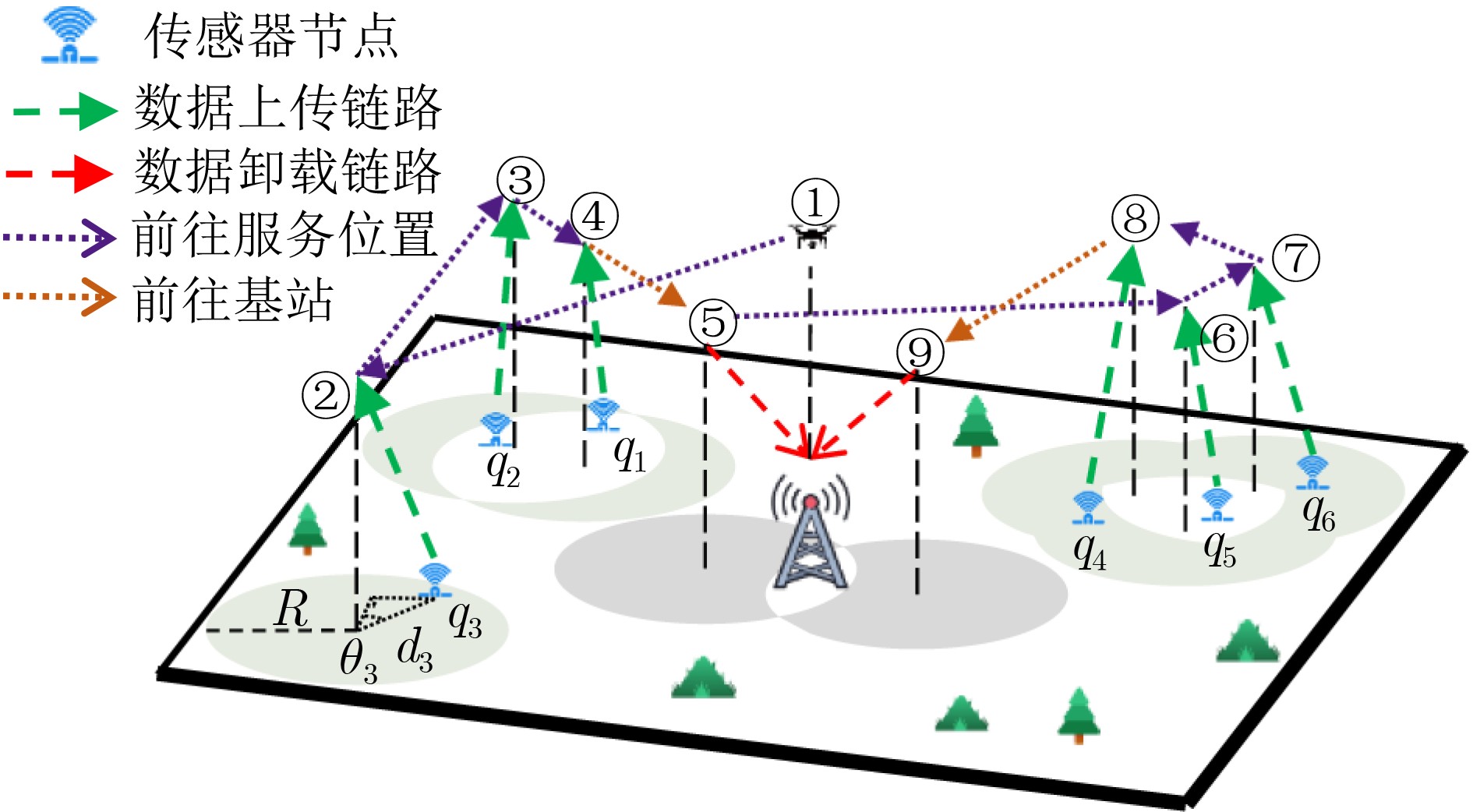

图 1 任务示意图

下载: 全尺寸图片幻灯片

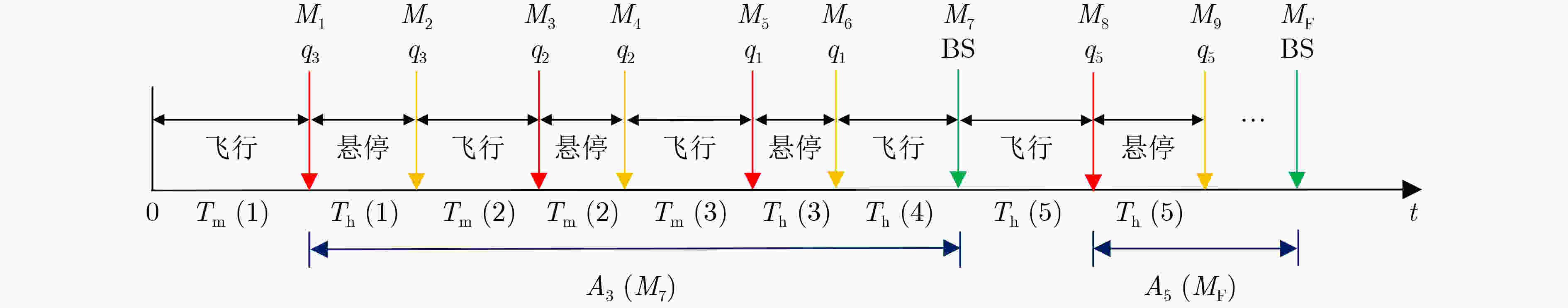

图 2 AoI示意图

下载: 全尺寸图片幻灯片

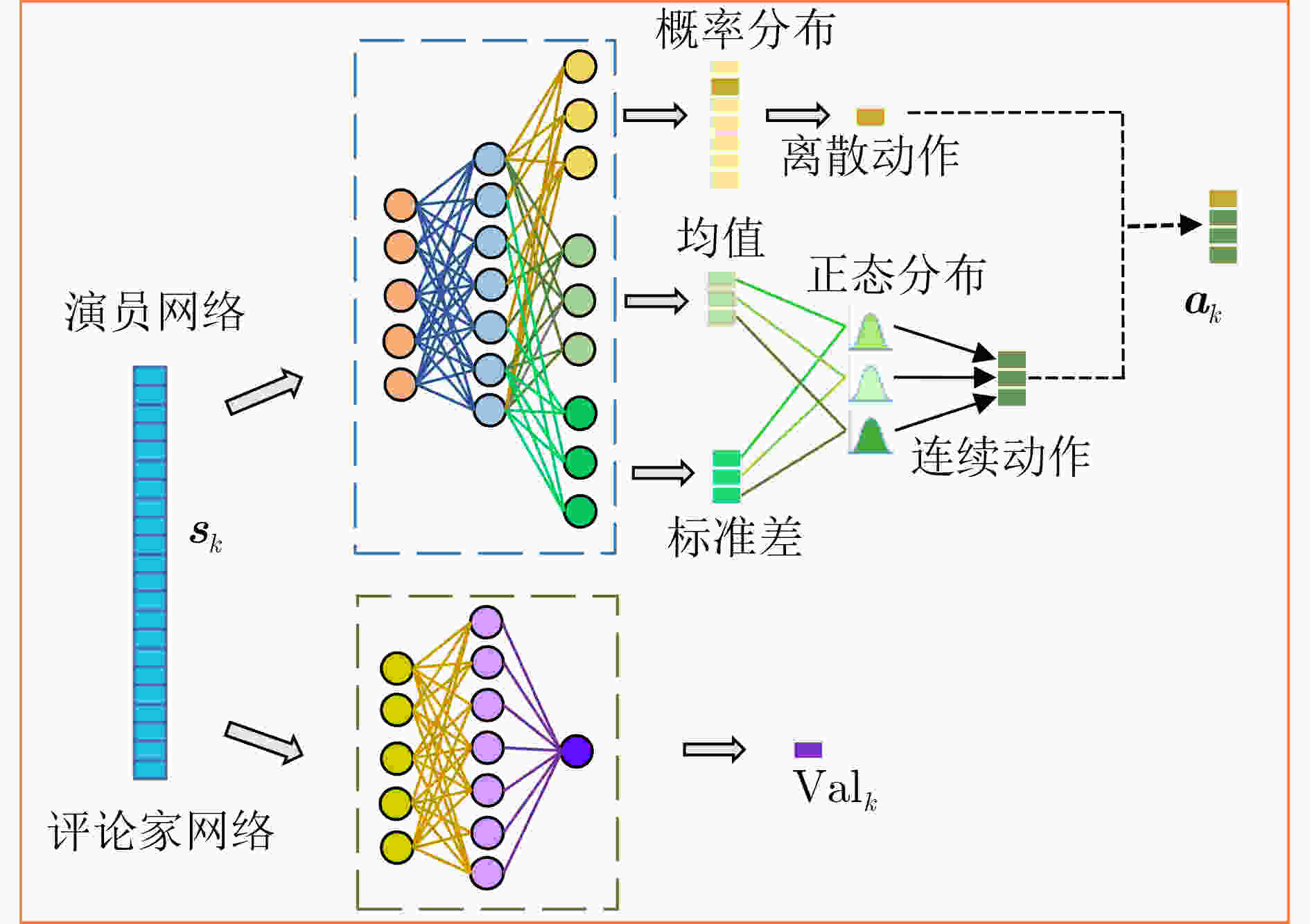

图 3 网络结构图

下载: 全尺寸图片幻灯片

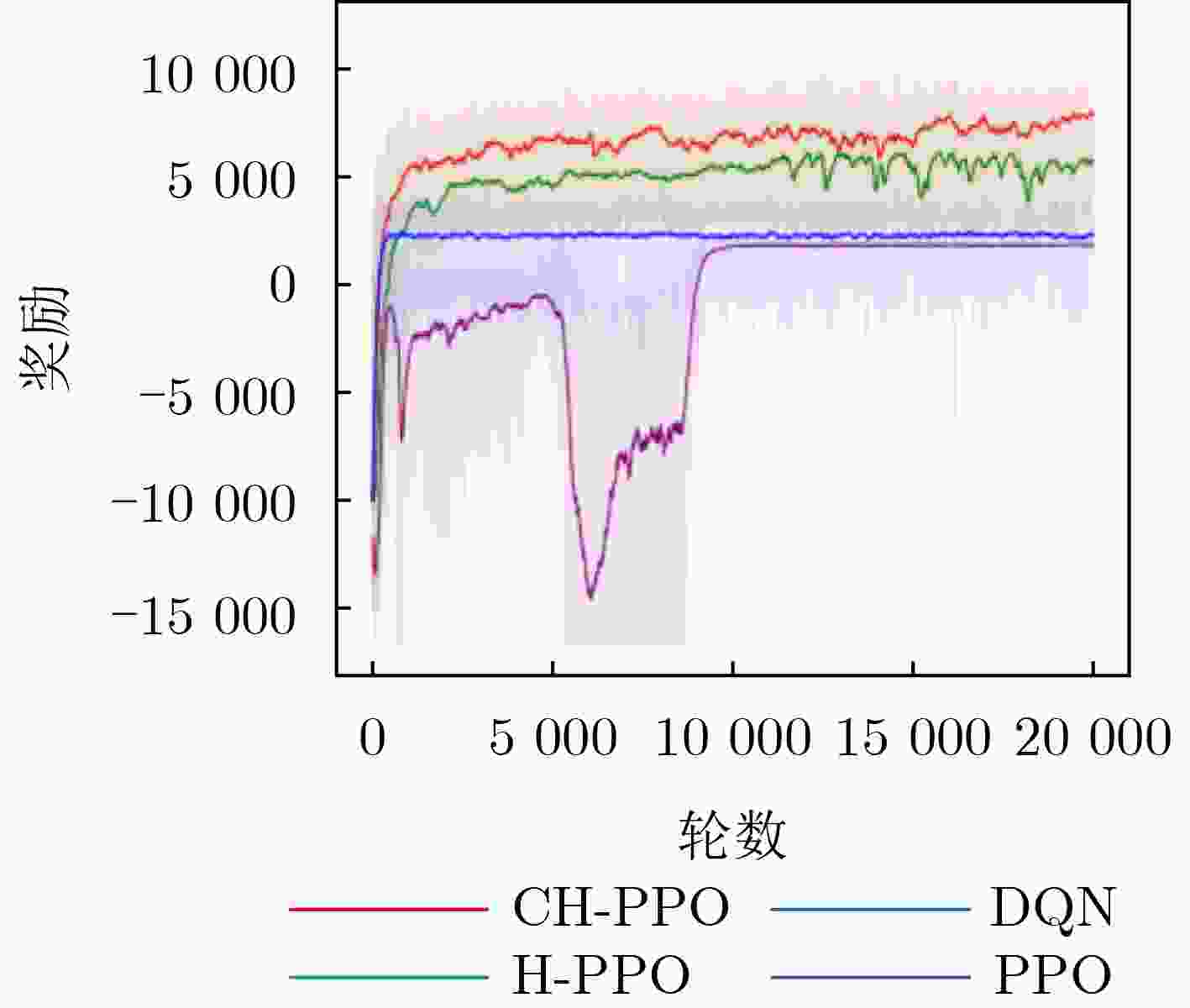

图 4 奖励收敛效果图

下载: 全尺寸图片幻灯片

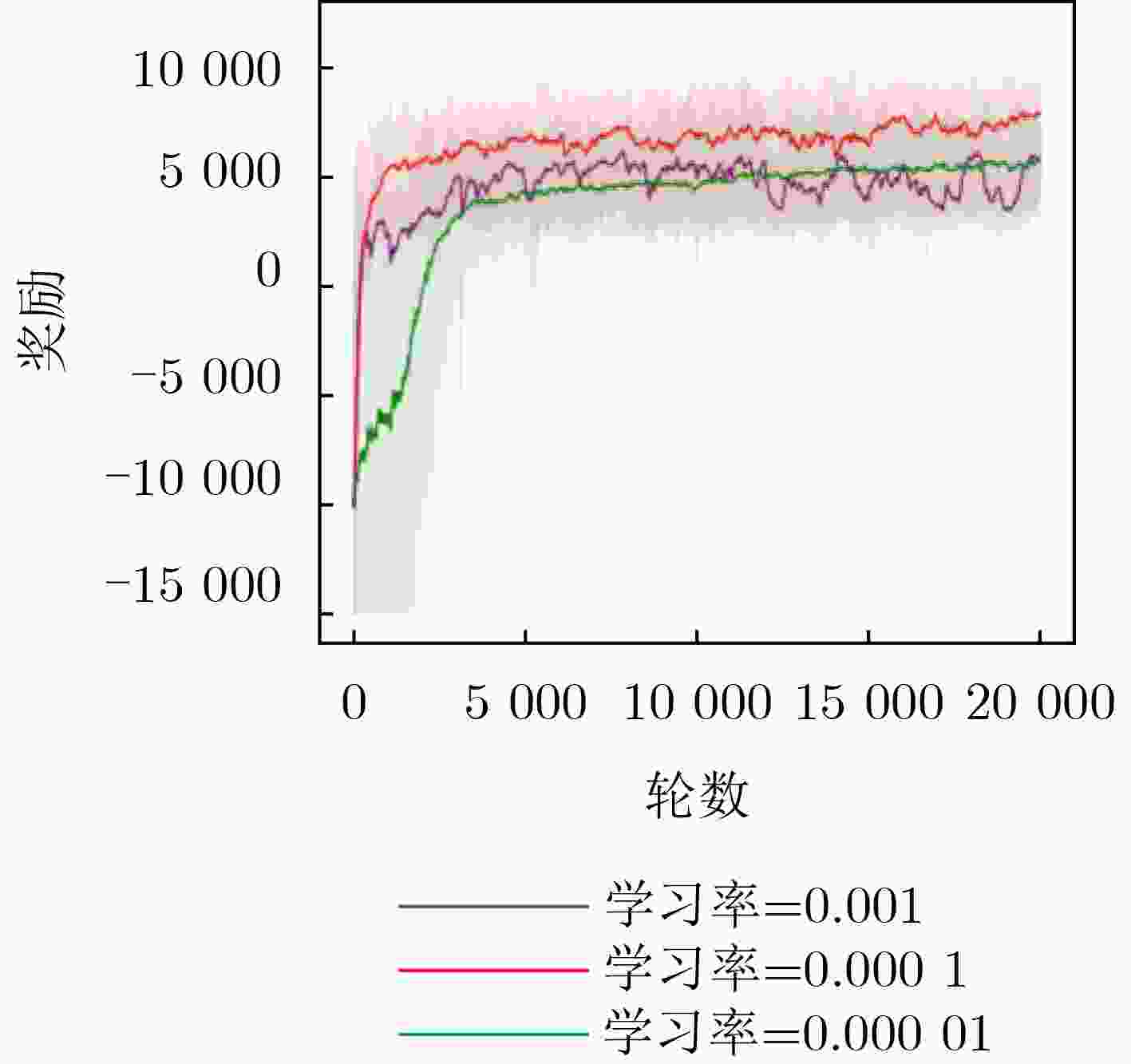

图 5 不同学习率下的奖励收敛图

下载: 全尺寸图片幻灯片

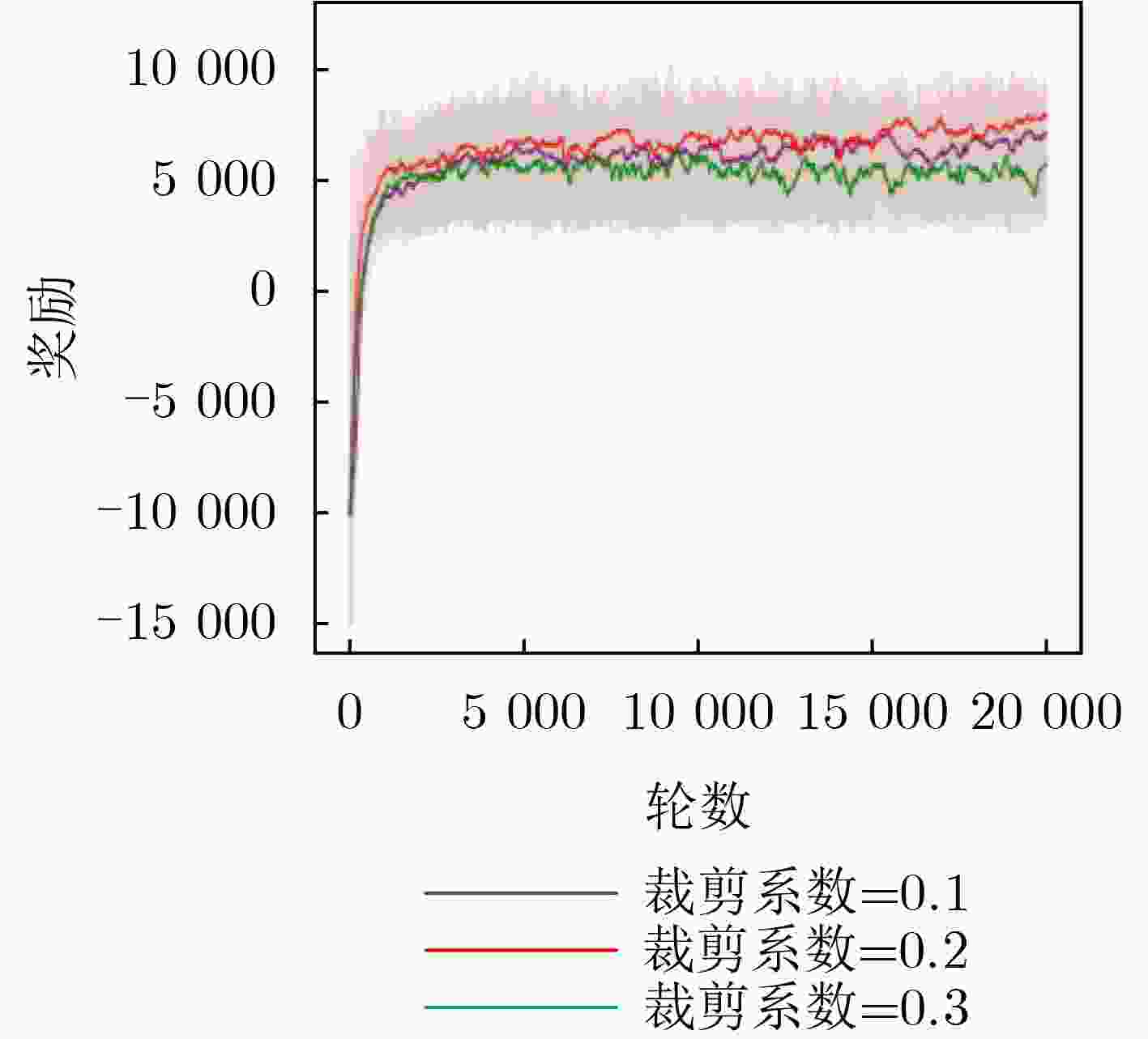

图 6 不同裁剪系数下的奖励收敛图

下载: 全尺寸图片幻灯片

1 CH-PPO算法

(1)输入：训练轮数${\text{EP}}$，参数更新次数$M$，学习率$\eta $，裁剪系数$ \varepsilon $；
(2)初始化网络参数：$\theta $，$ {\theta _{{\text{old}}}} $和$\omega $；
(3)循环训练：$i = 1,2, \cdots ,{\text{EP}}$：
(4) ${\text{done}} \ne 0$时：
(5) 　计算离散动作${\chi _{\mathrm{d}}}\left( {{{\boldsymbol{s}}_k};{\theta _{{\mathrm{d}},{\mathrm{old}}}}} \right)$；
(6) 　计算连续动作${\chi _{\mathrm{c}}}\left( {{{\boldsymbol{s}}_k};{\theta _{{\mathrm{c}},{\mathrm{old}}}}} \right)$；
(7) 　得到混合动作${{\boldsymbol{a}}_k} = \left\{ {i,\left( {l\left( k \right),\theta \left( k \right),{\boldsymbol{v}}\left( k \right)} \right)} \right\}$；
(8) 　智能体在状态${{\boldsymbol{s}}_k}$下执行动作${{\boldsymbol{a}}_k}$，获得奖励${r_k}$，并进入下　　　一状态${{\boldsymbol{s}}_{k + 1}}$；
(9) 　将$\left( {{{\boldsymbol{s}}_k},{{\boldsymbol{a}}_k},{r_k},{{\boldsymbol{s}}_{k + 1}}} \right)$存储在经验池；
(10) 直到${\text{done}} = 0$；
(11) 循环参数更新：$j = 1,2, \cdots ,M$：
(12) 从经验池中获得所有经验$ {\left( {{{\boldsymbol{s}}_k},{{\boldsymbol{a}}_k},{r_k},{{\boldsymbol{s}}_{k + 1}}} \right)_{k \in \{ 1,2, \cdots ,K\} }} $；
(13) 计算经验池中所有状态的状态价值${\text{va}}{{\text{l}}_1}, \cdots ,{\text{va}}{{\text{l}}_K}$；
(14) 计算优势函数的估计值$ {\hat A_1}, \cdots ,{\hat A_K} $；
(15) 分别计算离散策略和连续策略的新旧策略比值：　　　 $ r_k^{\mathrm{d}}\left( {{\theta _{\mathrm{d}}}} \right) = \dfrac{{{\pi _{{\theta _{\mathrm{d}}}}}({\boldsymbol{a}}_k^d\|{{\boldsymbol{s}}_k})}}{{{\pi _{{\theta _{{\mathrm{d}},{\text{old}}}}}}({\boldsymbol{a}}_k^{\mathrm{d}}\|{{\boldsymbol{s}}_k})}} $，$r_k^c\left( {{\theta _{\mathrm{c}}}} \right) = \dfrac{{{\pi _{{\theta _{\mathrm{c}}}}}({\boldsymbol{a}}_k^{\mathrm{c}}\|{{\boldsymbol{s}}_k})}}{{{\pi _{{\theta _{{\mathrm{c}},{\text{old}}}}}}({\boldsymbol{a}}_k^{\mathrm{c}}\|{{\boldsymbol{s}}_k})}}$；
(16) 分别计算Actor网络和Critic网络的损失：$ {\text{L}}{{\text{A}}_k}\left( \theta \right) $，　　　 ${\text{L}}{{\text{C}}_k}{{(\omega )}}$；
(17) 分别计算Actor网络和Critic网络的梯度：${\nabla _\theta }l_k^\chi \left( \theta \right)$，　　　 ${\nabla _\omega }l_k^V\left( \omega \right)$；
(18) 更新参数$ \theta =\theta -\eta \text{ }{\nabla }_{\theta }{l}_{k}^{\chi }\left(\theta \right) $，$\omega = \omega - \eta {\nabla _\omega }l_k^V\left( \omega \right)$；
(19) 直到$j = M$；
(20) 更新旧Actor网络的参数：$ {\theta }_{\text{old}}=\theta $；
(21) 清空经验池；
(22)直到$i = {\text{EP}}$，训练结束。

下载: 导出CSV

表 1 仿真参数

参数	取值	参数	取值
无人机初始能量$ {E_{{\text{init}}}} $	$1 \times {10^5}{\text{ J}}$	无人机最大飞行速度${v_{\max}}$	$30{\text{ m/s}}$
无人机飞行高度$H$	$10{\text{ m}}$	传感器节点的数据量$D$	$5 \times {10^4}{\text{ Byte}}$
无人机最大连通半径$R$	$30{\text{ m}}$	LoS和NLoS依赖常数$a,b$	$ 10,0.6 $
带宽$W$	$ 1{\text{ MHz}} $	信道功率${P_{\mathrm{d}}}$	$ - 20{\text{ dBm}} $
非视距信道额外衰减系数$\mu $	$ 0.2 $	单位信道功率增益$\zeta $	$ - 30{\text{ dB}} $
噪声功率${\sigma ^2}$	$ - 90{\text{ dBm}} $	通径损失指数$\alpha $	$ 2.3 $

下载: 导出CSV

表 2 网络参数

参数	取值
训练轮数${\text{EP}}$	20000
学习率$\eta $	$1 \times {10^{ - 4}}$
奖励折扣率$\gamma $	0.99
裁剪系数$ \varepsilon $	0.2

下载: 导出CSV

表 3 不同任务规模下的无人机能量消耗($1 \times {10^4}\;{\text{J}}$)

区域边长	网络规模	CH-PPO	H-PPO	DQN	PPO	VLC-GA
200	20	1.71	1.75	2.32	2.82	2.18
	40	4.01	4.55	4.91	4.73	4.95
	60	6.10	6.72	6.82	7.08	6.93
300	20	1.96	2.07	2.61	4.02	2.54
	40	4.89	5.21	6.84	9.28	6.91
	60	9.18	9.45	11.43	12.59	11.51
400	20	2.02	2.11	2.92	4.46	2.84
	40	6.37	7.60	7.62	12.76	7.64
	60	10.03	10.70	12.04	14.78	12.13

下载: 导出CSV

表 4 不同任务规模下的无人机飞行距离(m)

区域边长	网络规模	CH-PPO	H-PPO	DQN	PPO	VLC-GA
200	20	1488	1560	2398	2805	2249
	40	3600	4308	5102	4596	5155
	60	5922	6566	7025	6818	7175
300	20	1785	1837	2734	4115	2654
	40	4471	4802	7270	9641	7356
	60	8483	8785	12173	12526	12322
400	20	1898	1921	3066	4623	2991
	40	6001	7242	8121	10767	8177
	60	9367	9964	12880	13135	13019

下载: 导出CSV

表 5 不同任务规模下的任务时间(s)

区域边长	网络规模	CH-PPO	H-PPO	DQN	PPO	VLC-GA
200	20	100	105	138	172	130
	40	241	259	291	293	293
	60	323	345	406	440	412
300	20	121	125	154	241	150
	40	297	290	399	550	403
	60	550	489	669	684	673
400	20	126	131	171	264	167
	40	355	424	443	583	445
	60	584	549	699	762	704

下载: 导出CSV

表 6 不同任务规模和AoI阈值下的无人机能量消耗($1 \times {10^4}\;{\text{J}}$)

AoI阈值		[60,80]	[90,110]	[120,140]
区域边长	网络规模	[60,80]	[90,110]	[120,140]
200	20	1.90	1.71	1.45
	40	5.77	4.01	3.83
	60	8.24	6.10	5.89
300	20	2.19	1.96	1.55
	40	7.79	4.89	4.29
	60	10.47	9.18	7.96
400	20	2.29	2.02	1.95
	40	8.36	6.37	5.80
	60	11.34	10.03	9.57

下载: 导出CSV
