面向阵列级同时同频收发的宽带自干扰空域抑制

林朗; 赵宏志; 邵士海; 唐友喜

doi:10.11999/JEIT231036

面向阵列级同时同频收发的宽带自干扰空域抑制

doi: 10.11999/JEIT231036

1.
电子科技大学通信抗干扰全国重点实验室成都 611731
2.
电磁空间认知与智能控制技术实验室北京 100089

基金项目: 国家自然科学基金(U19B2014, 62071094, 61901396)

详细信息

作者简介:
林朗：女，博士生，研究方向为无线通信信号处理、通信抗干扰技术等

赵宏志：男，教授，博士生导师，研究方向为无线通信信号处理、通信抗干扰技术等

邵士海：男，教授，博士生导师，研究方向为无线通信信号处理、抗干扰与安全通信等

唐友喜：男，教授，博士生导师，研究方向为无线通信中的数字信号处理

通讯作者:
赵宏志　lyn@uestc.edu.cn

中图分类号: TN911.7
计量
- 文章访问数: 208
- HTML全文浏览量: 67
- PDF下载量: 47
- 被引次数: 0
出版历程
- 收稿日期: 2023-09-21
- 修回日期: 2024-04-08
- 网络出版日期: 2024-04-26
- 刊出日期: 2024-05-30

Broadband Spatial Self-Interference Cancellation for Full Duplexing Array

1.
National Key Laboratory of Wireless Communications, University of Electronic Science and Technology of China, Chengdu 611731, China
2.
Laboratory of Electromagnetic Space Cognition and Intelligent Control, Beijing 100089, China

Funds: The National Natural Science Foundation of China (U19B2014, 62071094, 61901396)

摘要

摘要: 具备阵列级同时同频收发能力的多功能一体化平台，面临发射阵列对接收阵列的强自干扰问题。针对这一问题，该文设计了一种宽带自干扰空域抑制方法，构造了限制主波束增益损失条件下，最小化残余自干扰和噪声功率的非凸优化问题，提出了交替迭代的优化算法联合求解发射和接收数字波束成形系数，从理论上分析了所提算法的自干扰抑制极限性能，并给出了所提算法的计算复杂度。分析和仿真结果表明，给定2.4 GHz工作频率，100 MHz带宽，主波束增益损失限制在3 dB时，收发各30阵元的相控阵列宽带自干扰空域抑制能力，即有效各向同性隔离度达到168 dB，距离自干扰抑制性能极限差距7 dB。
- 同时同频收发 /
- 数字波束成形 /
- 空域自干扰抑制
Abstract: The multi-functional integrated platform with simultaneous transmit and receive capability faces the strong Self-Interference (SI) coupled between the adjacent transmit and receive arrays. In this paper, a wideband SI cancellation method in the space domain for fully digital phased array systems is designed. A non-convex optimization problem is formulated to minimize the residual SI and noise power while constraining the loss of beamforming gain in the desired direction, and an alternate optimization method is proposed to jointly determine the transmit and receive beamforming weights, and the SI cancellation performance of the proposed algorithm is analyzed. Theoretical analysis and simulation results show that a 60-element array can achieve an Effective Isotropic Isolation (EII) of 168 dB when the central frequency is 2.4 GHz, the bandwidth is 100 MHz, and the beamforming gain loss is limited to 3 dB, which is 7 dB below the EII upper bound.
- Co-frequency co-time transmit and receive /
- Digital beamforming /
- Spatial self-interference cancellation

HTML全文

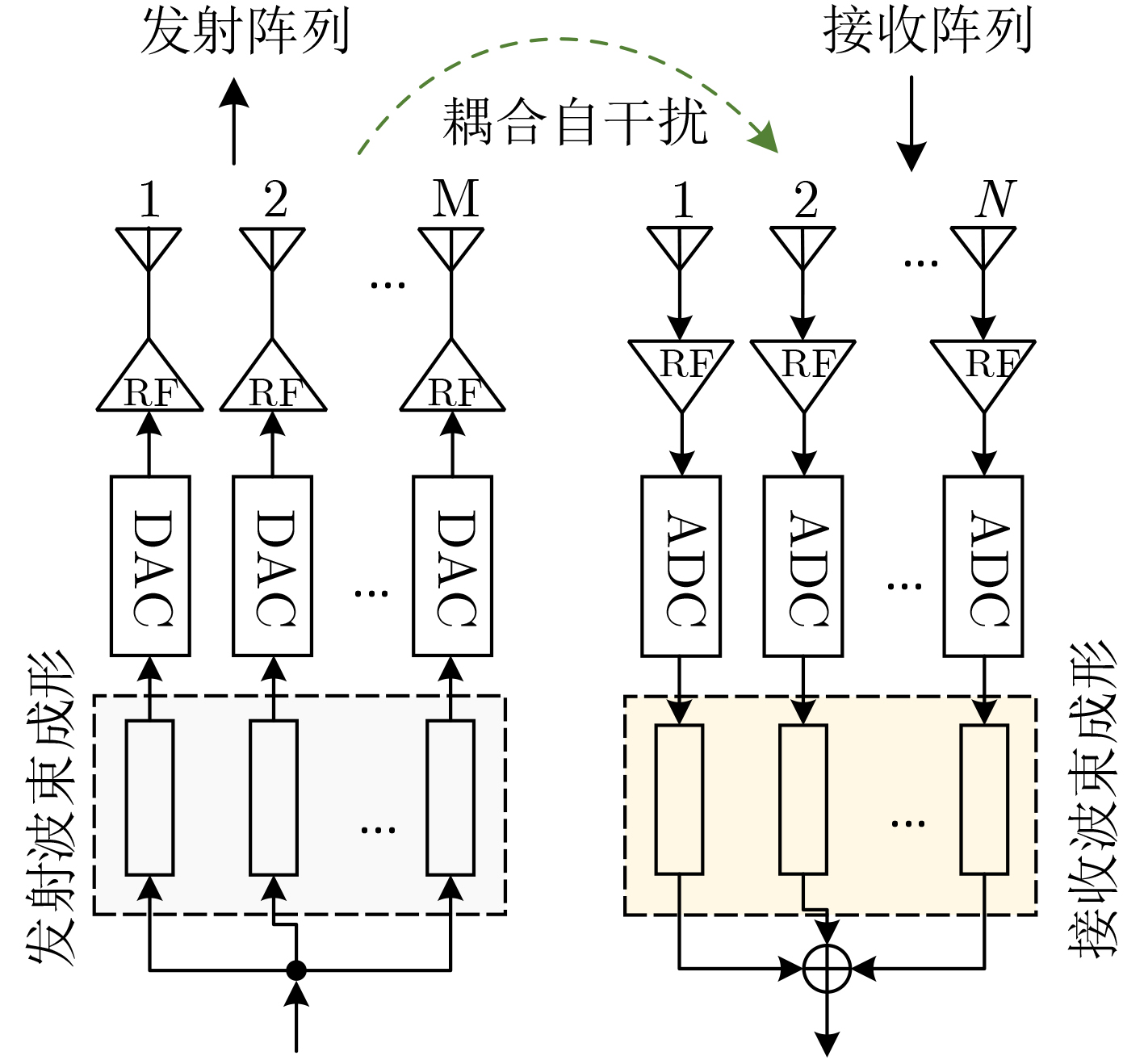

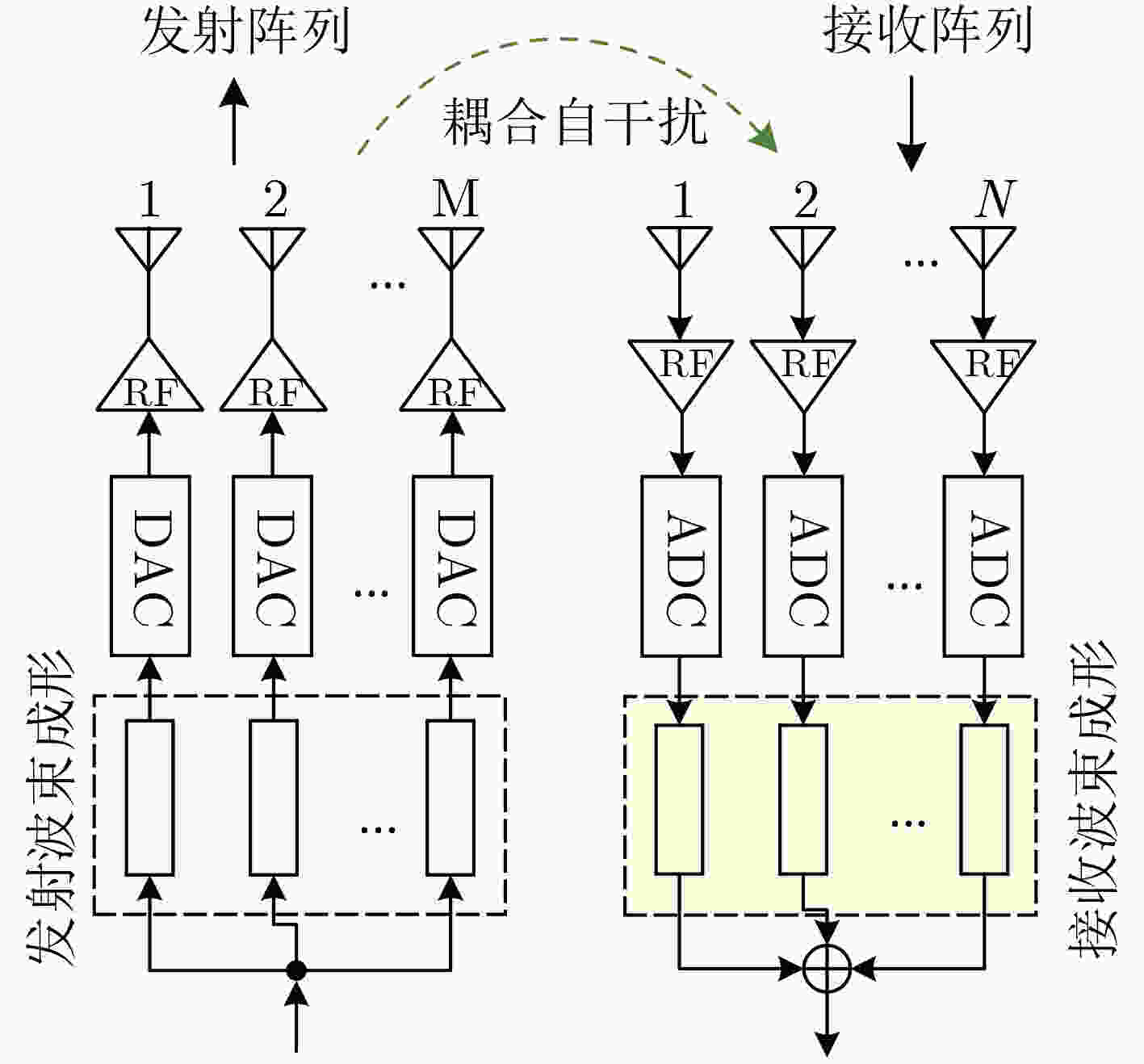

图 1 阵列级同时同频收发数字相控阵系统

下载: 全尺寸图片幻灯片

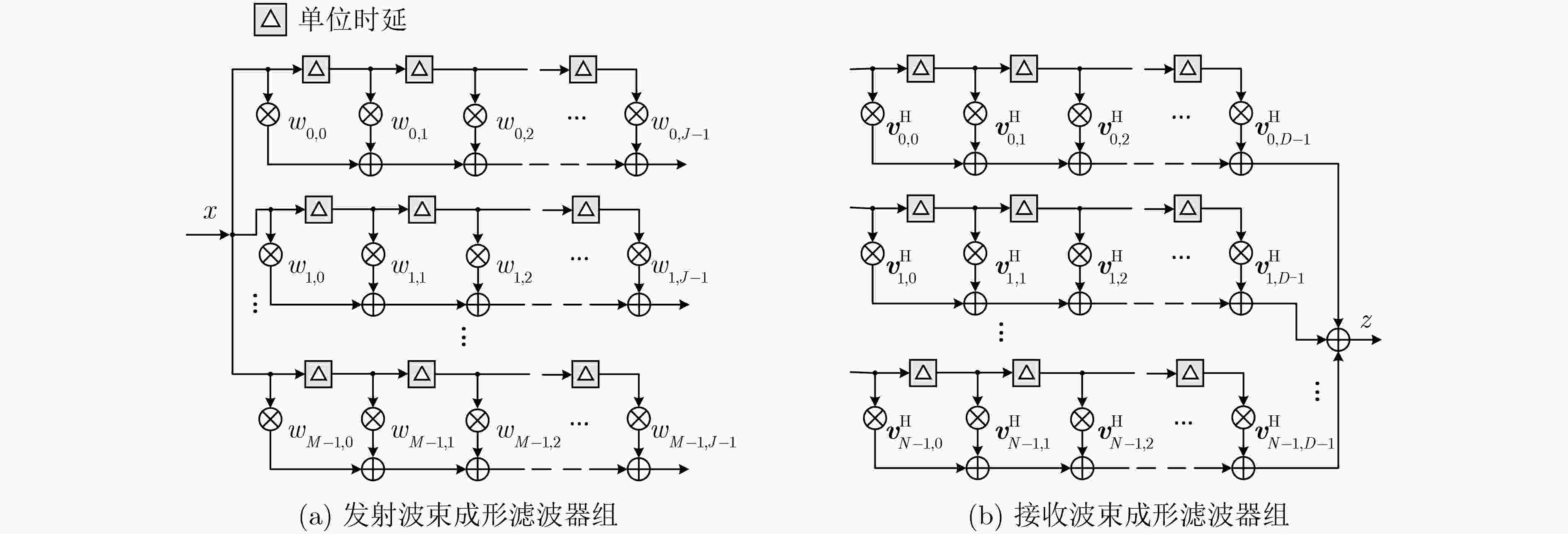

图 2 收发波束成形滤波器组

下载: 全尺寸图片幻灯片

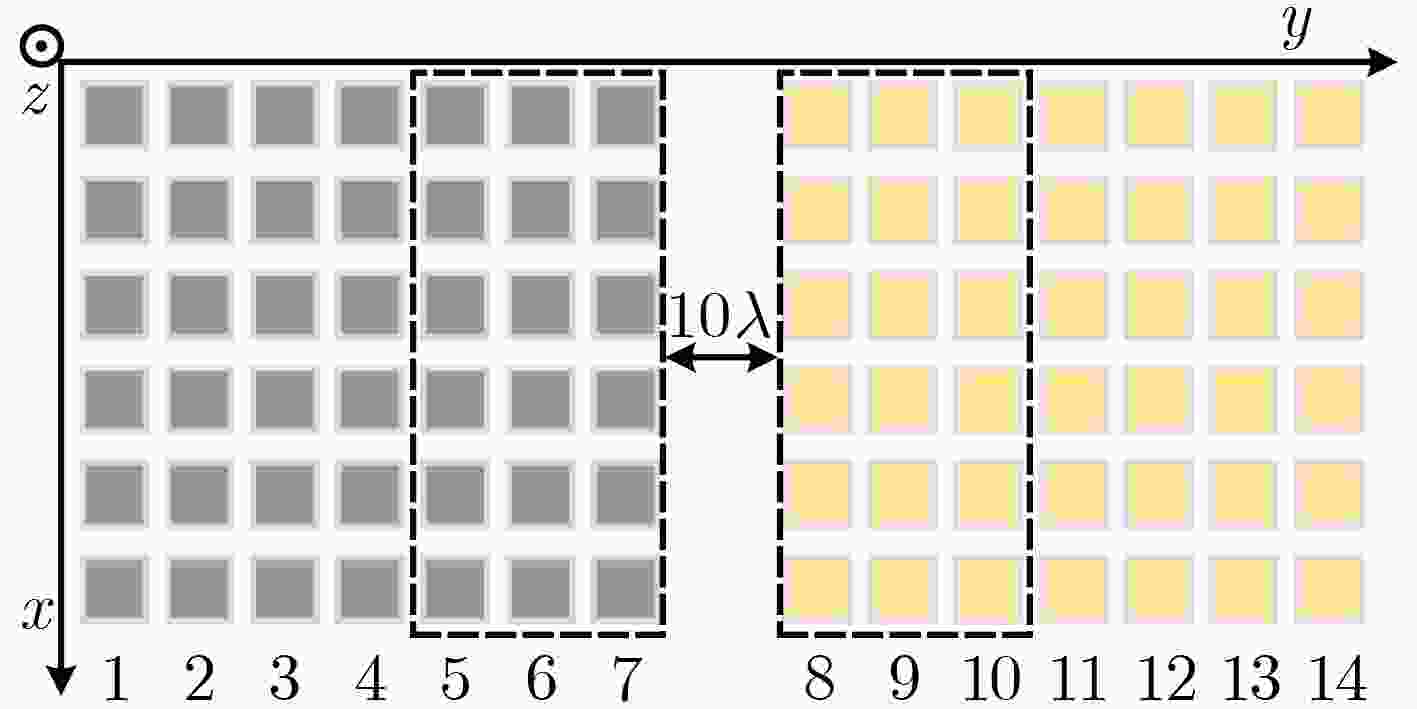

图 3 收发数字相控阵列，位于xoy平面，z轴方向垂直指向纸外

下载: 全尺寸图片幻灯片

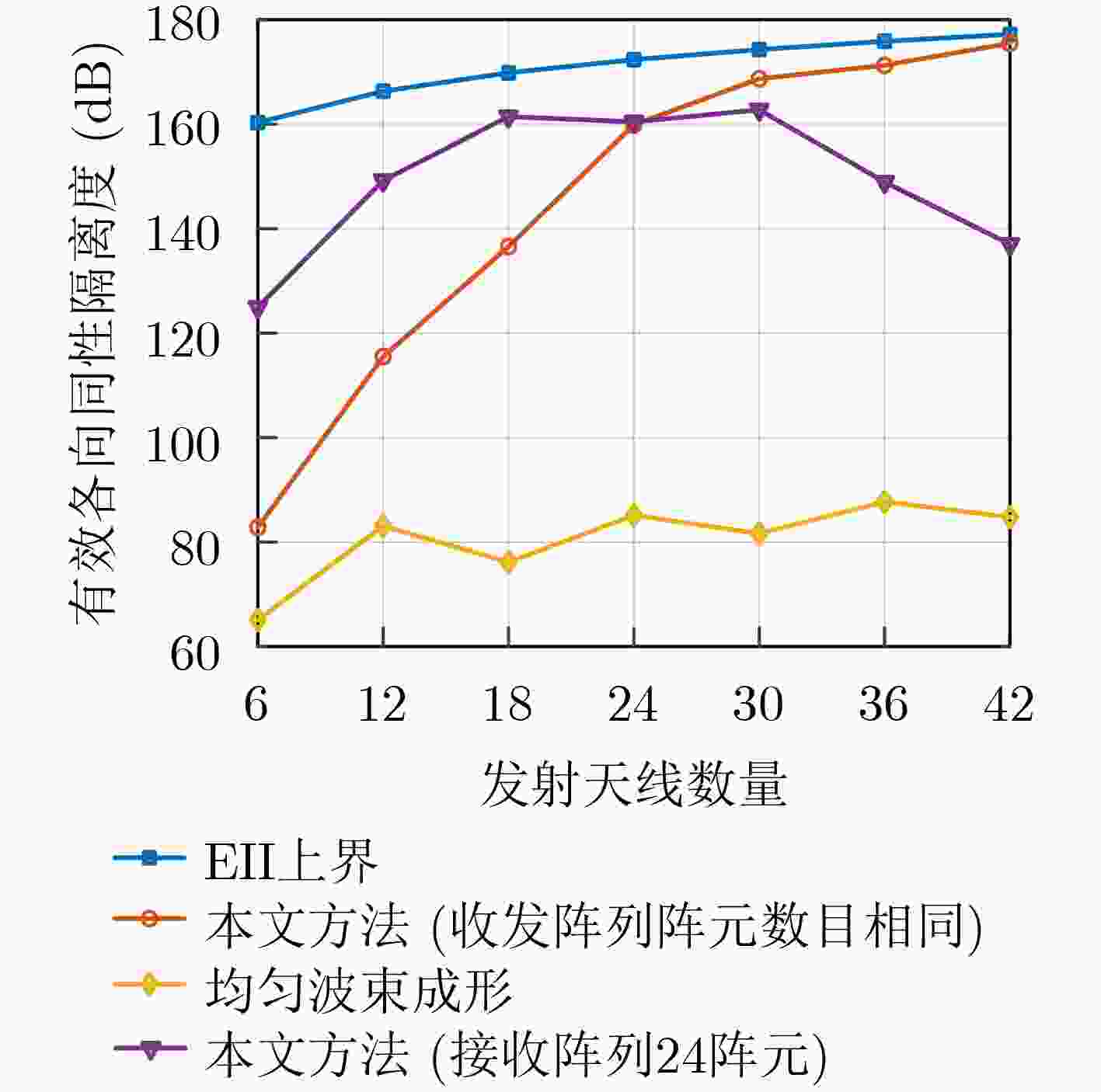

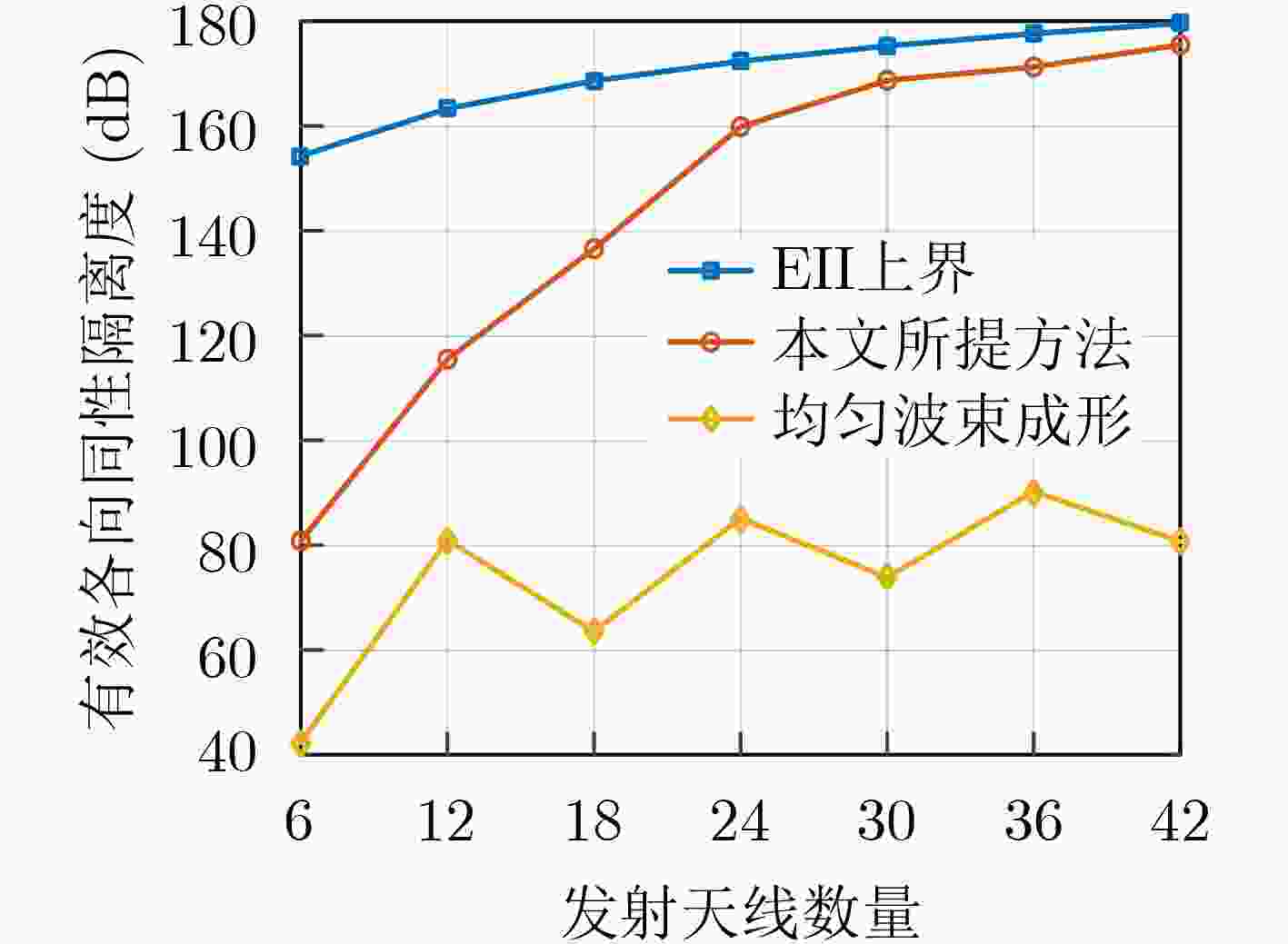

图 4 EII随天线单元数目变化图示(收发阵元数目相等)

下载: 全尺寸图片幻灯片

图 5 EII随天线单元数目变化图示(收发阵元数目不等)

下载: 全尺寸图片幻灯片

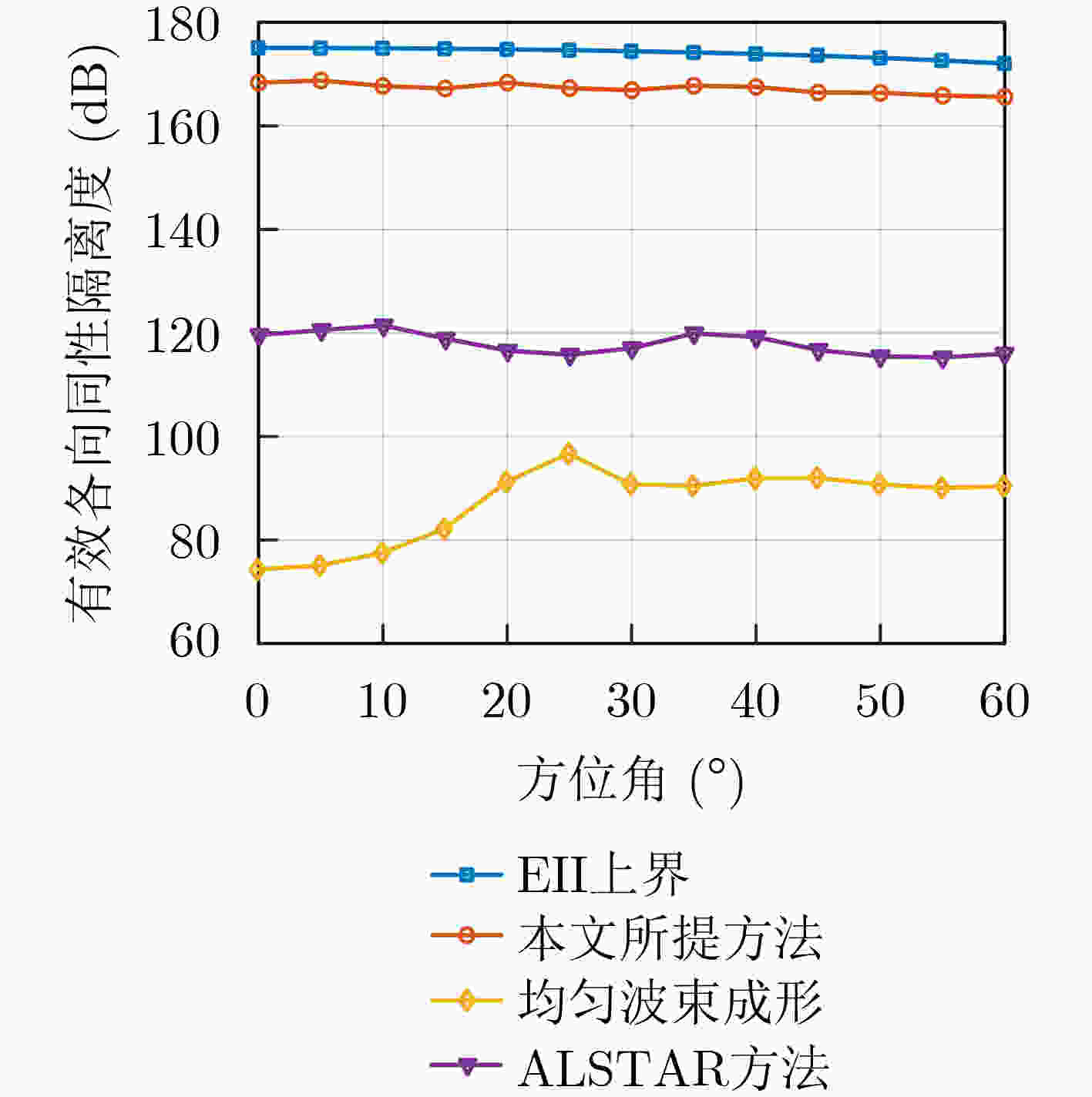

图 6 EII上界、本方法EII、均匀波束成形EII和ALSTAR方法EII随方位角变化图示

下载: 全尺寸图片幻灯片

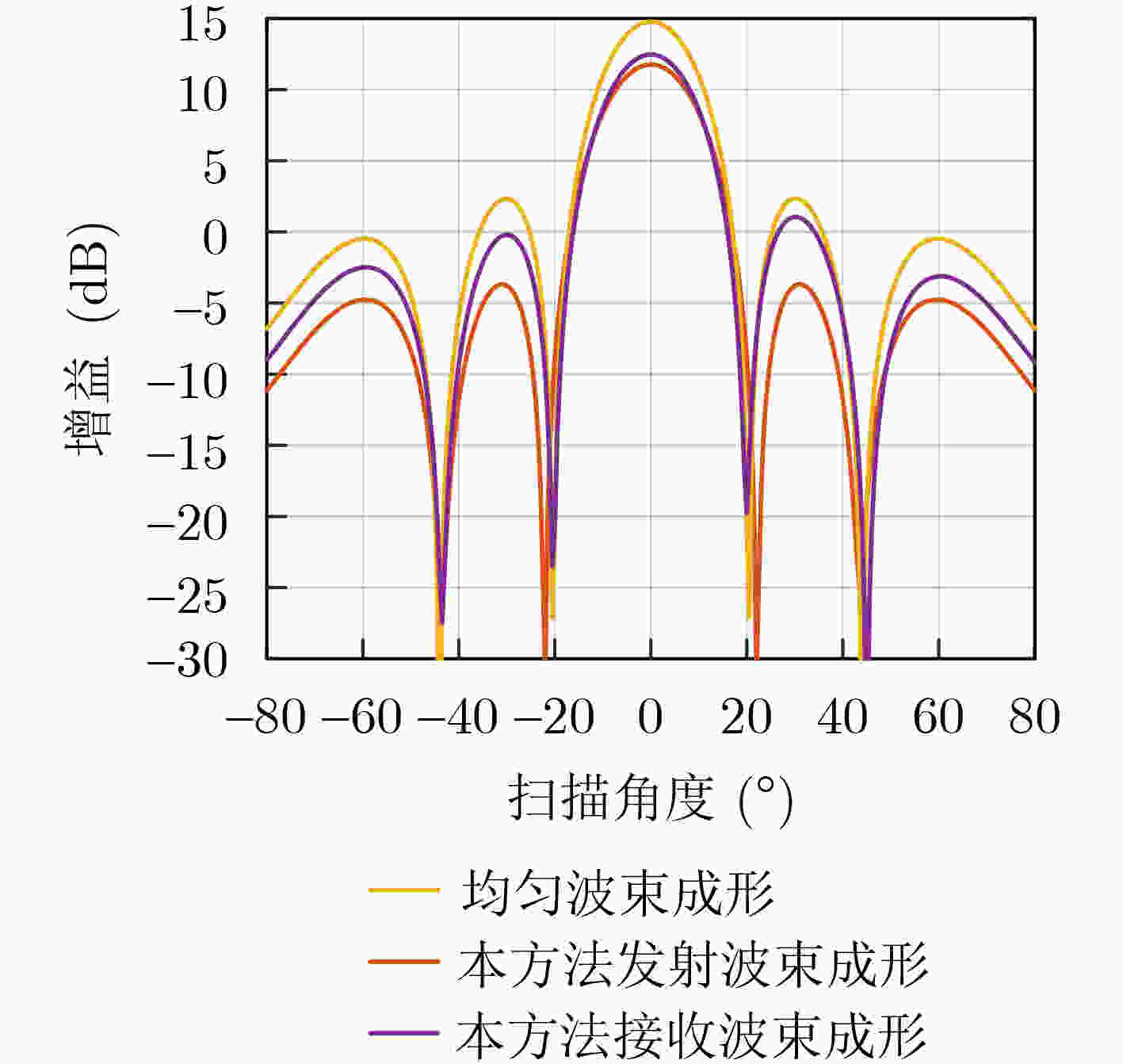

图 7 波束远场方向图

下载: 全尺寸图片幻灯片

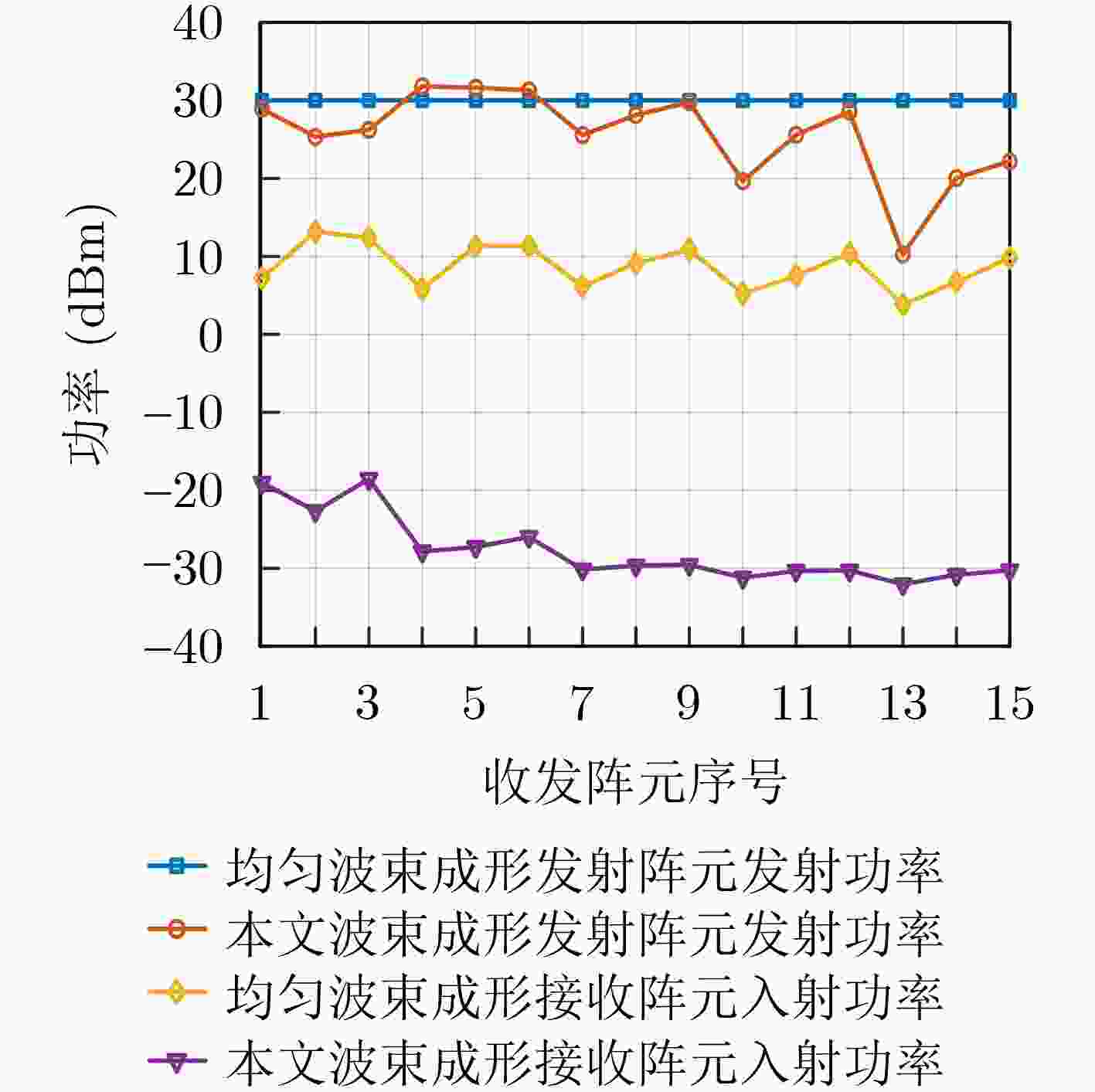

图 8 发射各阵元的发射功率与接收各阵元的入射功率

下载: 全尺寸图片幻灯片

参考文献(15)

[1]	肖博, 霍凯, 刘永祥. 雷达通信一体化研究现状与发展趋势[J]. 电子与信息学报, 2019, 41(3): 739–750. doi: 10.11999/JEIT180515. XIAO Bo, HUO Kai, and LIU Yongxiang. Development and prospect of radar and communication integration[J]. Journal of Electronics & Information Technology, 2019, 41(3): 739–750. doi: 10.11999/JEIT180515.
[2]	KOLODZIEJ K E, DOANE J P, PERRY B T, et al. Adaptive beamforming for multi-function in-band full-duplex applications[J]. IEEE Wireless Communications, 2021, 28(1): 28–35. doi: 10.1109/MWC.001.2000203.
[3]	BARNETO C B, RIIHONEN T, LIYANAARACHCHI S D, et al. Beamformer design and optimization for joint communication and full-duplex sensing at mm-waves[J]. IEEE Transactions on Communications, 2022, 70(12): 8298–8312. doi: 10.1109/TCOMM.2022.3218623.
[4]	YU Bin, QIAN Chen, LEE J, et al. Realizing high power full duplex in millimeter wave system: Design, prototype and results[J]. IEEE Journal on Selected Areas in Communications, 2023, 41(9): 2893–2906. doi: 10.1109/JSAC.2023.3287609.
[5]	王俊, 赵宏志, 卿朝进, 等. 同时同频全双工场景中的射频域自适应干扰抵消[J]. 电子与信息学报, 2014, 36(6): 1435–1440. doi: 10.3724/SP.J.1146.2013.01187. WANG Jun, ZHAO Hongzhi, QING Chaojin, et al. Adaptive self-interference cancellation at RF domain in co-frequency co-time full duplex systems[J]. Journal of Electronics & Information Technology, 2014, 36(6): 1435–1440. doi: 10.3724/SP.J.1146.2013.01187.
[6]	ROBERTS I P, ANDREWS J G, JAIN H B, et al. Millimeter-wave full duplex radios: New challenges and techniques[J]. IEEE Wireless Communications, 2021, 28(1): 36–43. doi: 10.1109/MWC.001.2000221.
[7]	ROBERTS I P and VISHWANATH S. Beamforming cancellation design for millimeter-wave full-duplex[C]. Proceedings of 2019 IEEE Global Communications Conference, Waikoloa, USA, 2019: 1–6. doi: 10.1109/GLOBECOM38437.2019.9013116.
[8]	ROBERTS I P, ANDREWS J G, and VISHWANATH S. Hybrid beamforming for millimeter wave full-duplex under limited receive dynamic range[J]. IEEE Transactions on Wireless Communications, 2021, 20(12): 7758–7772. doi: 10.1109/TWC.2021.3087417.
[9]	FULTON C, YEARY M, THOMPSON D, et al. Digital phased arrays: Challenges and opportunities[J]. Proceedings of the IEEE, 2016, 104(3): 487–503. doi: 10.1109/JPROC.2015.2501804.
[10]	EVERETT E, SHEPARD C, ZHONG Lin, et al. SoftNull: Many-antenna full-duplex wireless via digital beamforming[J]. IEEE Transactions on Wireless Communications, 2016, 15(12): 8077–8092. doi: 10.1109/TWC.2016.2612625.
[11]	DOANE J P, KOLODZIEJ K E, and PERRY B T. Simultaneous transmit and receive with digital phased arrays[C]. Proceedings of 2016 IEEE International Symposium on Phased Array Systems and Technology, Waltham, USA, 2016: 1–6. doi: 10.1109/ARRAY.2016.7832606.
[12]	CUMMINGS I T, DOANE J P, SCHULZ T J, et al. Aperture-level simultaneous transmit and receive with digital phased arrays[J]. IEEE Transactions on Signal Processing, 2020, 68: 1243–1258. doi: 10.1109/TSP.2020.2968262.
[13]	LIU Ao, SHENG Weixing, and RIIHONEN T. Per-antenna self-interference cancellation beamforming design for digital phased array[J]. IEEE Signal Processing Letters, 2022, 29: 2442–2446. doi: 10.1109/LSP.2022.3224829.
[14]	CHEN Tingjun, DASTJERDI M B, KRISHNASWAMY H, et al. Wideband full-duplex phased array with joint transmit and receive beamforming: Optimization and rate gains[J]. IEEE/ACM Transactions on Networking, 2021, 29(4): 1591–1604. doi: 10.1109/TNET.2021.3069125.
[15]	SHI Chengzhe, PAN Wensheng, SHEN Ying, et al. Robust transmit beamforming for self-interference cancellation in STAR phased array systems[J]. IEEE Signal Processing Letters, 2022, 29: 2622–2626. doi: 10.1109/LSP.2022.3229641.
