基于改进PSO算法的磁介质带状线小室设计

陈乐东; 吴建飞; 王雪松; 郑亦菲; 韩昌霖

doi:10.11999/JEIT230787

基于改进PSO算法的磁介质带状线小室设计

doi: 10.11999/JEIT230787

陈乐东¹,
吴建飞^{1, 2, ,},
王雪松¹,
郑亦菲¹,
韩昌霖¹

1.
国防科技大学电子科学学院长沙 410000
2.
天津先进技术研究院天津 300000

基金项目: 中国航天科技集团有限公司第八研究院产学研合作基金项目(SAST2021-069)，湖南省研究生科研创新项目(CX20230041)

详细信息

作者简介:
陈乐东：男，博士生，研究方向为集成电路电磁兼容

吴建飞：男，博士，副研究员，研究方向为物联网、传感器、电磁兼容等

王雪松：男，博士，教授，研究方向为雷达信息处理和目标识别等

郑亦菲：女，博士生，研究方向为集成电路电磁兼容

韩昌霖：男，硕士生，研究方向为电磁防护与兼容

通讯作者:
吴建飞　wujianfei990243@126.com

中图分类号: TN405
计量
- 文章访问数: 363
- HTML全文浏览量: 142
- PDF下载量: 82
- 被引次数: 0
出版历程
- 收稿日期: 2023-07-28
- 修回日期: 2023-09-05
- 网络出版日期: 2023-09-08
- 刊出日期: 2023-11-28

Design of a Magnetic IC-stripline Cell Based on an Improved PSO Algorithm

1.
College of Electronic Science and Technology, National University of Defense Technology, Changsha 410000, China
2.
Tianjin Institute of Advanced Technology, Tianjin 300000, China

Funds: China Aerospace Science and Technology Group Co., Ltd. Eighth Research Institute Industry University Research Cooperation Fund Project (SAST2021-069), Hunan Province Graduate Research Innovation Project (CX20230041)

摘要

摘要: 随着越来越多的高频电路被集成到芯片中，高频芯片电磁兼容(IC-EMC)问题越来越突出。带状线小室是测量芯片辐射发射和抗扰度的重要设备，然而带宽是限制其应用的主要因素。该文依据IEC标准，将磁介质吸波材料应用于带状线小室以扩展小室的工作带宽，并提出将粒子群算法(PSO)和二分法相结合的方法，计算磁介质材料的可用电磁参数范围。计算结果表明，磁介质吸波材料可以将带状线小室的工作带宽由0～6 GHz最大扩展到0～10 GHz。测试选用的磁介质吸波材料的电磁参数在0～9 GHz频段内符合计算结果，9 GHz以上频段的参数超出了计算结果范围。应用该材料的带状线小室S参数测试结果表明，该材料将带状线小室的工作带宽由0～6 GHz扩展到了0～9 GHz，与计算结果一致，证明了该方法的有效性。与传统方法相比，所提方法的效率提高了73.3%。此外，所提出的方法亦适用于类似目标约束下的参数范围计算问题。
- 芯片电磁兼容 /
- 带状线小室 /
- 吸波材料 /
- 粒子群算法
Abstract: As an increasing number of high-frequency circuits are integrated into chips, high-frequency Integrated Circuit ElectroMagnetic Compatibility (IC-EMC) problem of chips is becoming increasingly prominent. The IC-Stripline cell is an important device for measuring radiated emission and immunity of integrated chips. However, bandwidth is the major factor limiting its application. According to IEC standard, the paper applies magnetic absorbing materials to the IC-Stripline cell to expand the working bandwidth of the cell, and proposes a method combining Particle Swarm Optimization (PSO) and Dichotomy to calculate the available electromagnetic parameter range of the magnetic absorbing material. Experimental results indicate that the material can improve the operational bandwidth of the IC-Stripline cell from 0～6 GHz to a maximum of 0～10 GHz. The electromagnetic parameters of the selected magnetic absorbing material are consistent with the calculations over the range of 0～9 GHz, while the parameters exceed the calculation results for frequencies >9 GHz. The S parameter measurements of the IC-Stripline cell using this material reveal that the material indeed improves the operational bandwidth from 0～6 GHz to 0～9 GHz, which is consistent with the calculations results and validates the effectiveness of the electromagnetic parameter range determination method. Compared to traditional methods, the efficiency of this method is increased by 73.3%. Furthermore, the proposed method is applicable to parameter range calculation problems under similar objective constraints.
- Integrated Circuit ElectroMagnetic Compatibility (IC-EMC) /
- IC-Stripline cell /
- Absorbing materials /
- PSO algorithm

HTML全文

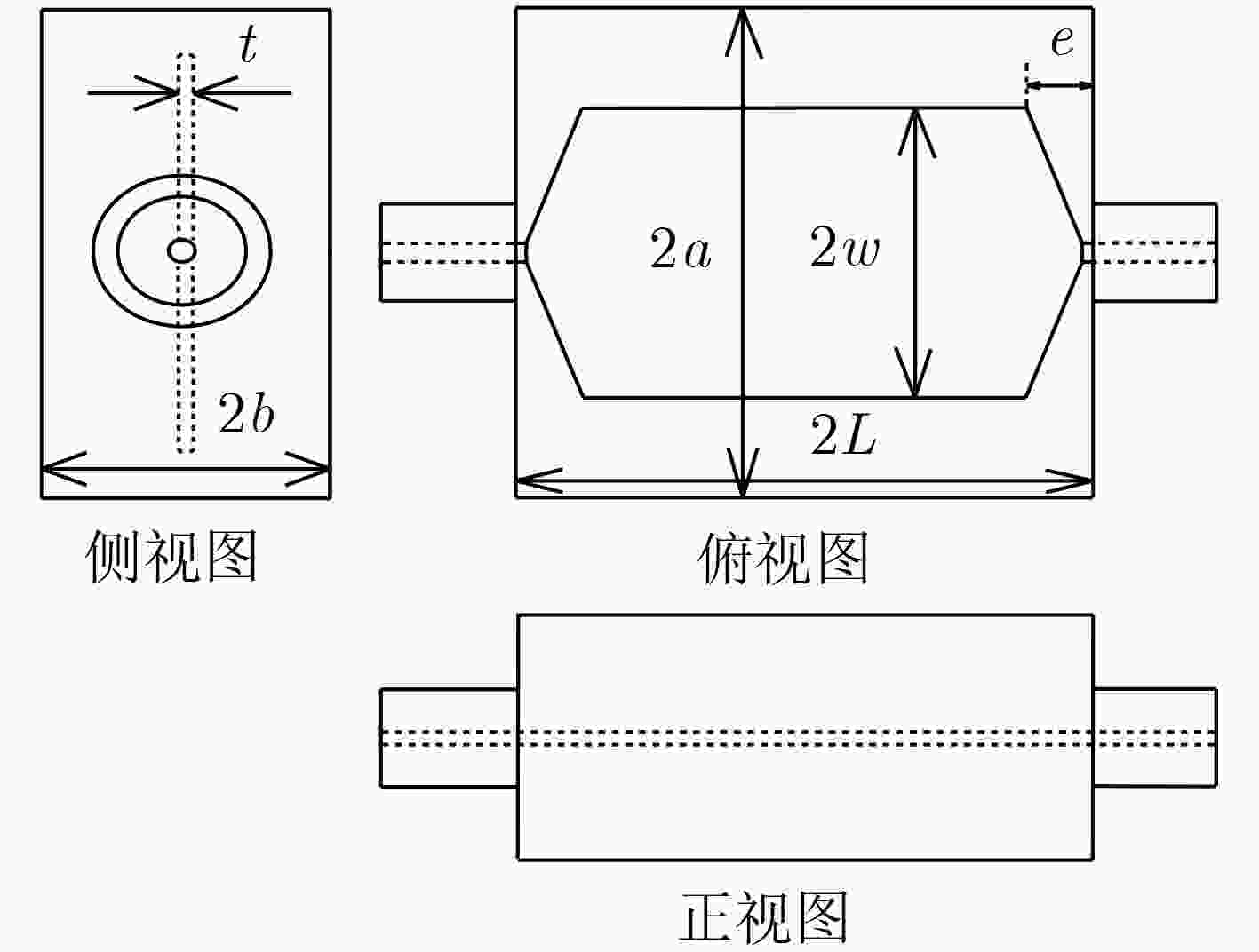

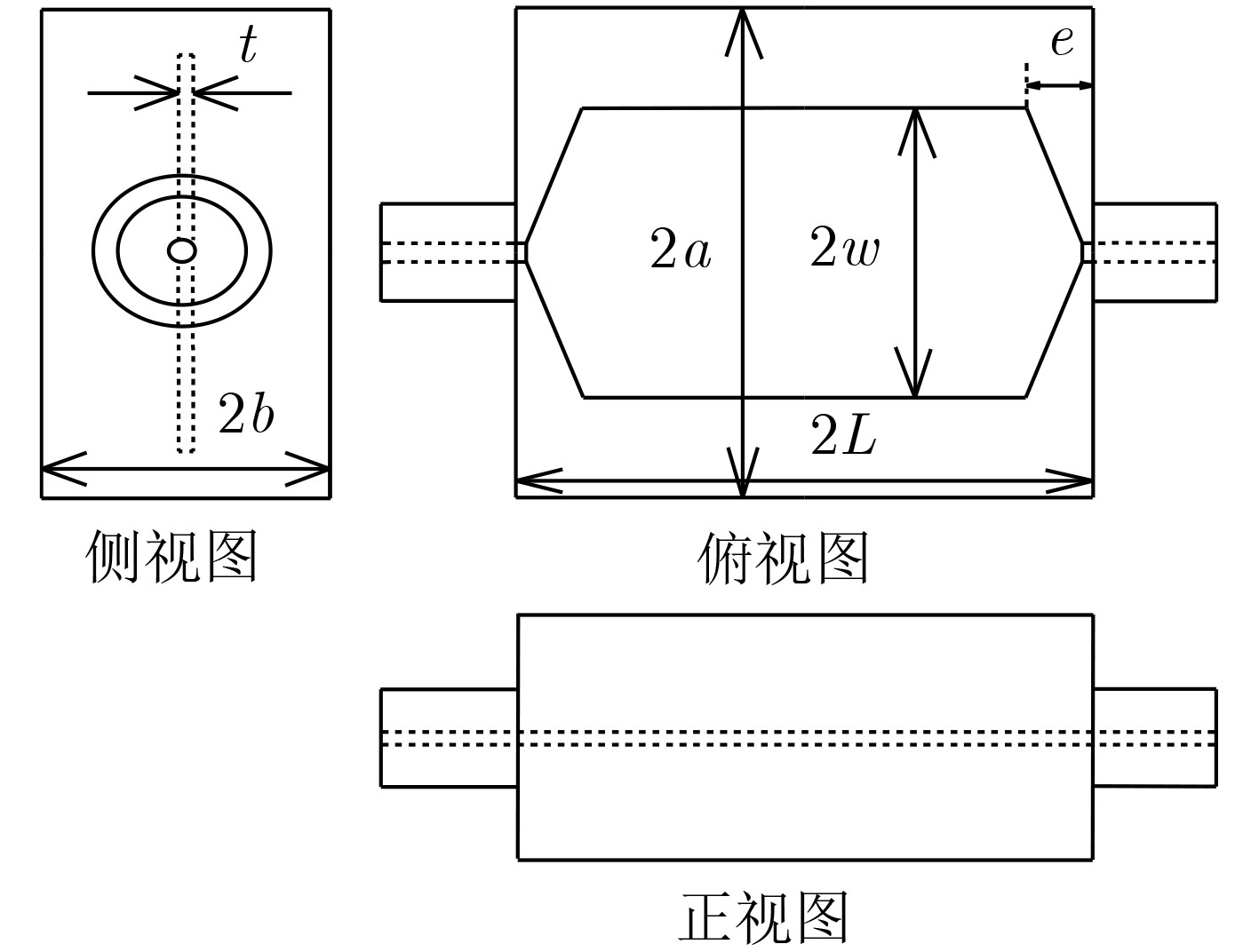

图 1 带状线小室三视图

下载: 全尺寸图片幻灯片

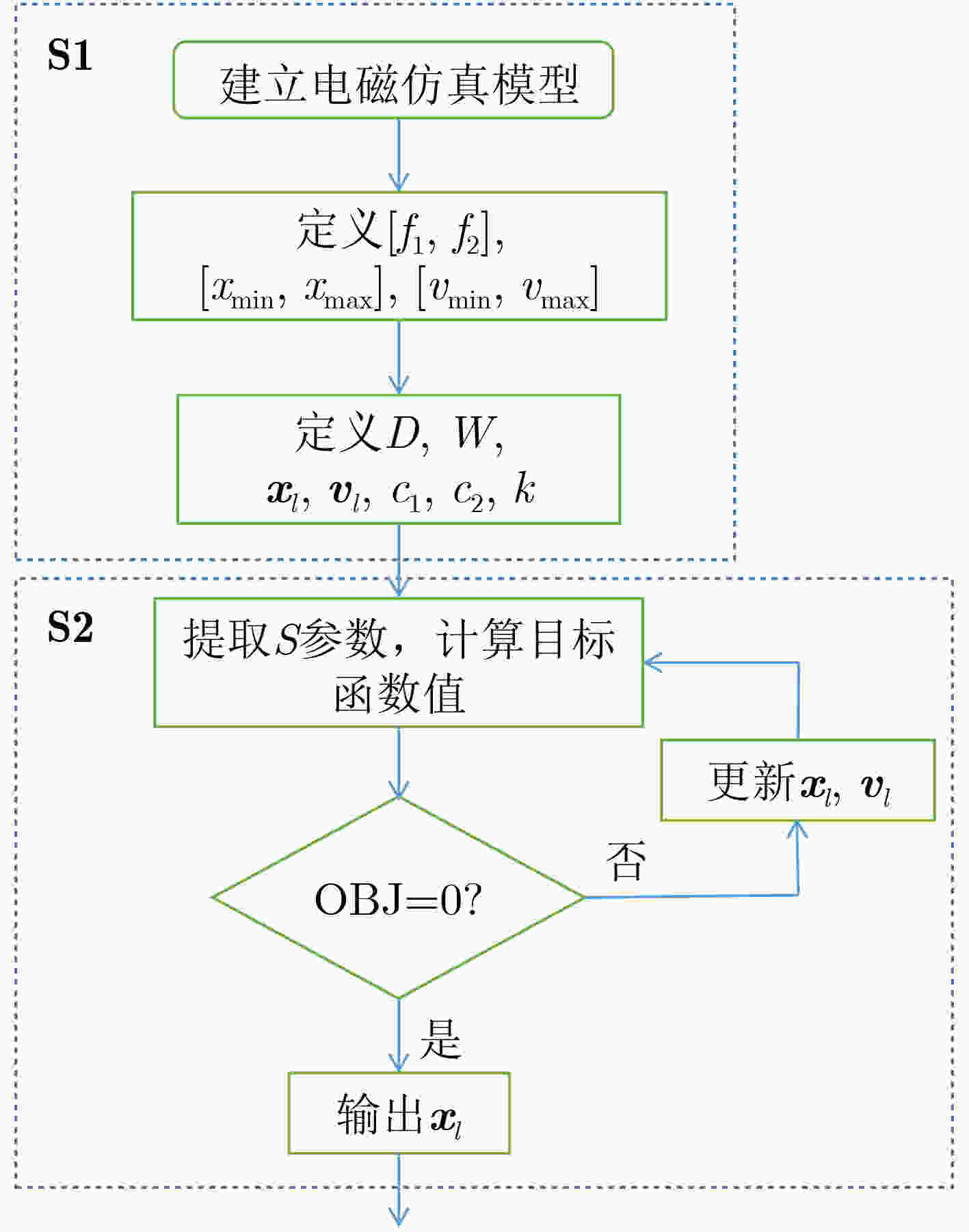

图 2 步骤1、步骤2流程图

下载: 全尺寸图片幻灯片

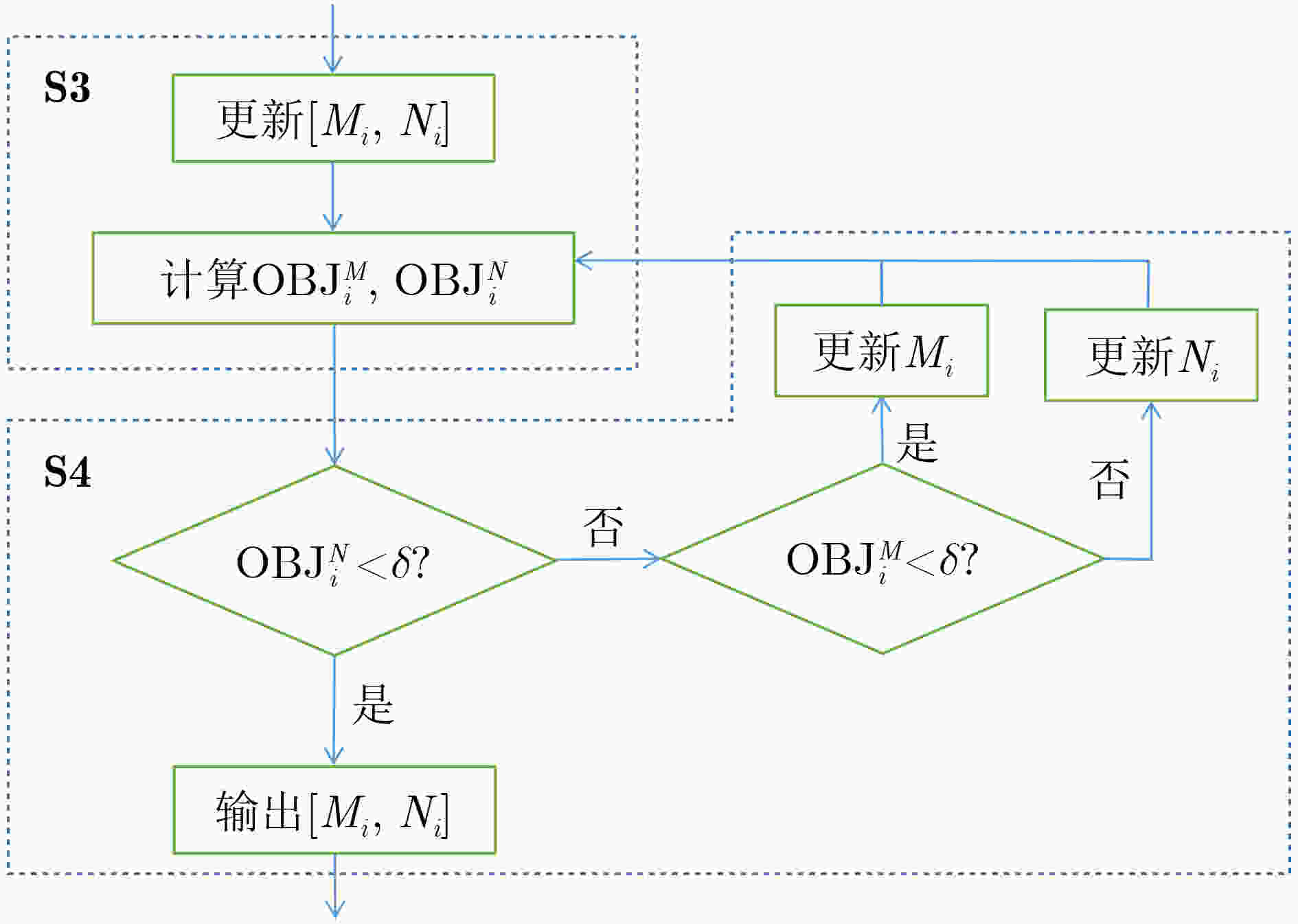

图 3 步骤3、步骤4流程图

下载: 全尺寸图片幻灯片

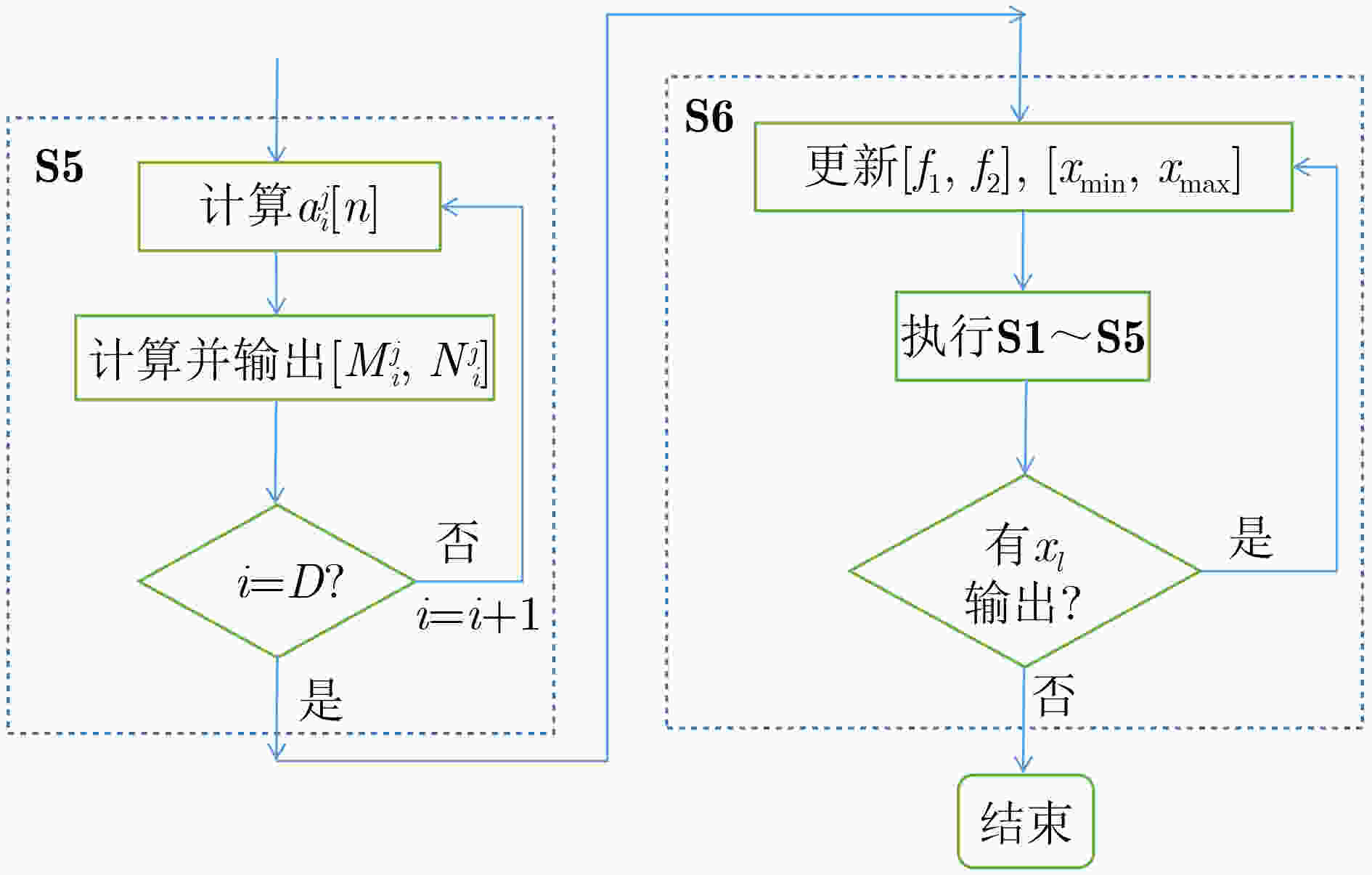

图 4 步骤5、步骤6流程图

下载: 全尺寸图片幻灯片

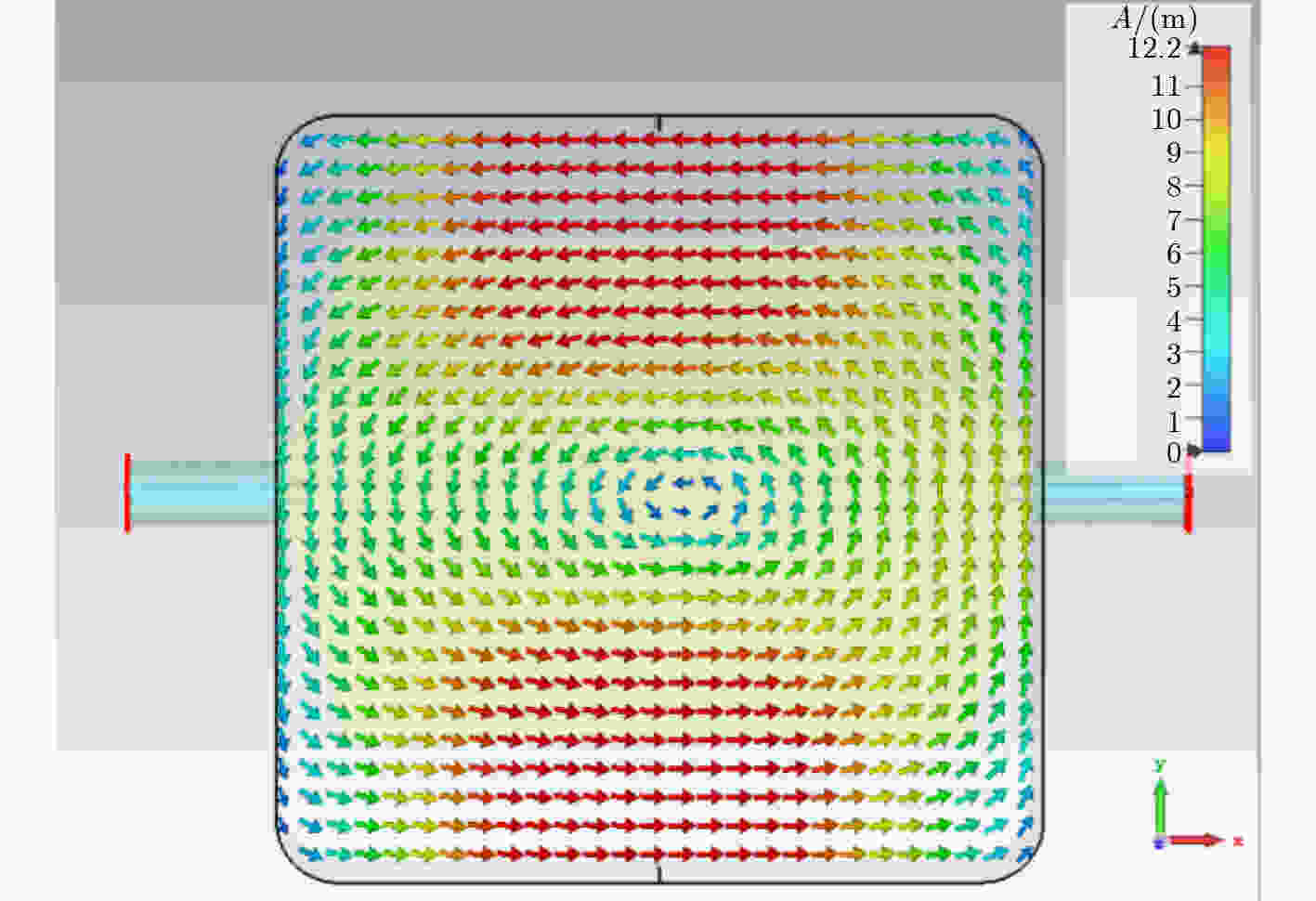

图 5 谐振磁场分布

下载: 全尺寸图片幻灯片

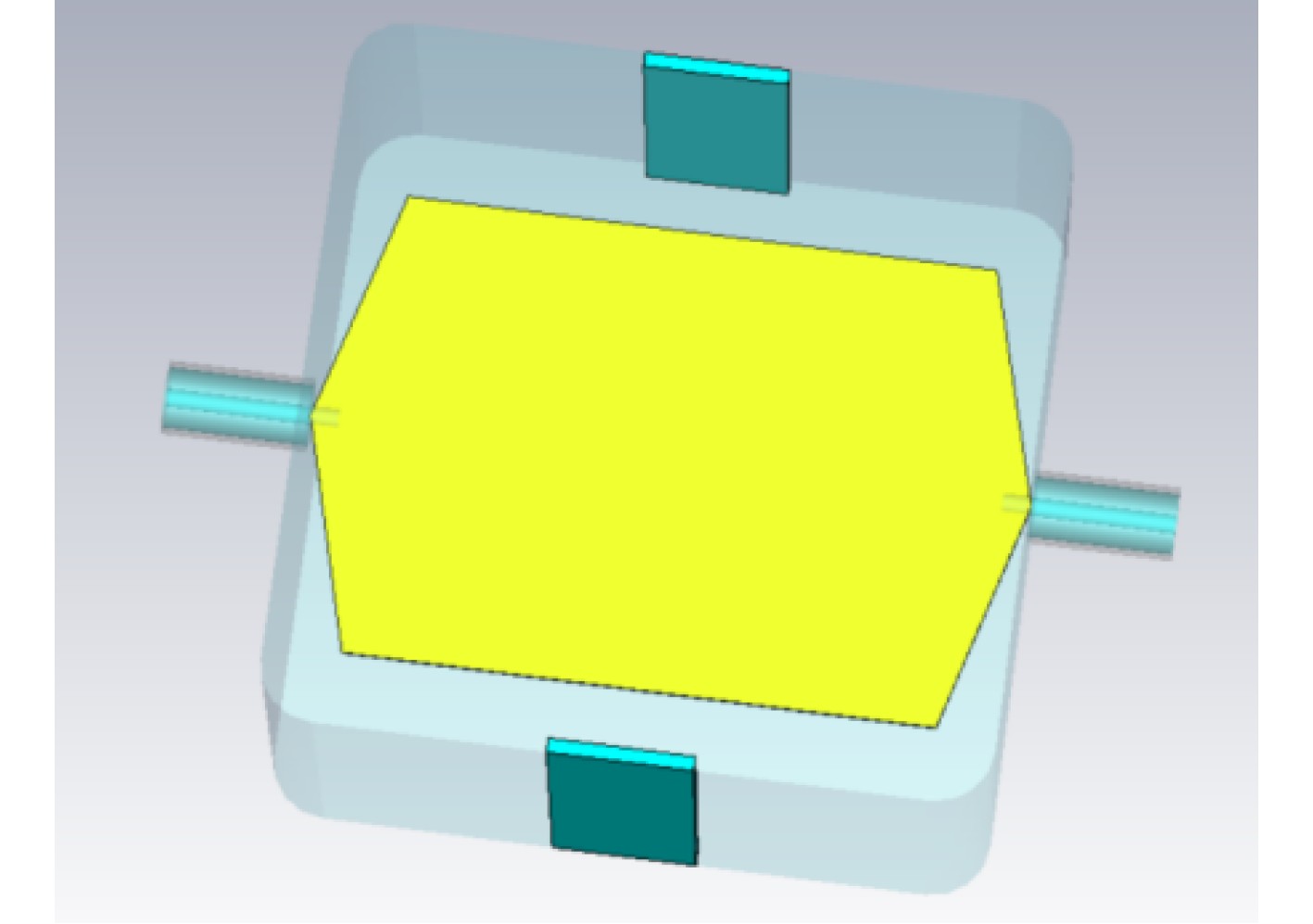

图 6 带状线小室3D电磁仿真模型

下载: 全尺寸图片幻灯片

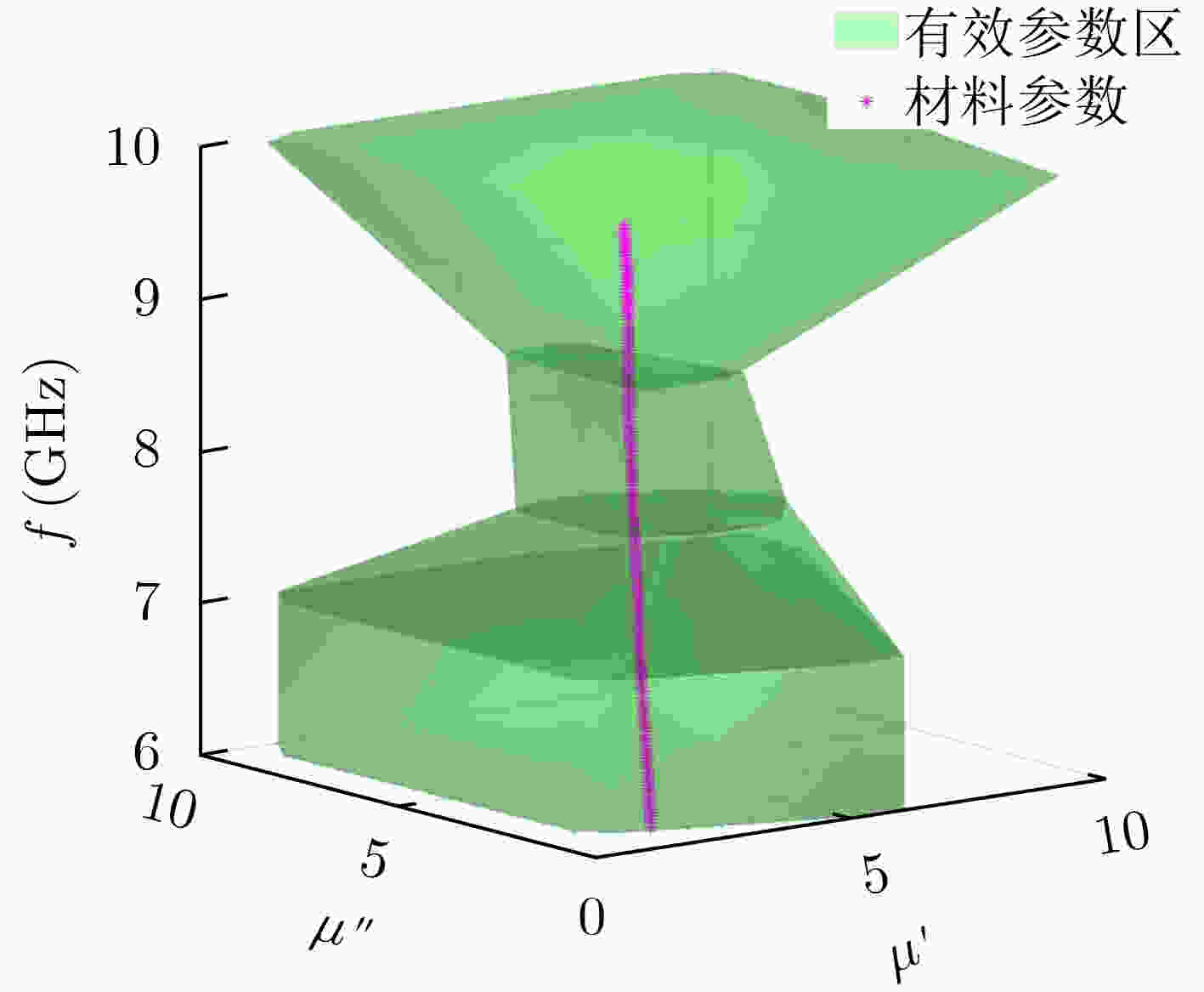

图 7 磁介质材料的磁导率取值范围与频率的关系

下载: 全尺寸图片幻灯片

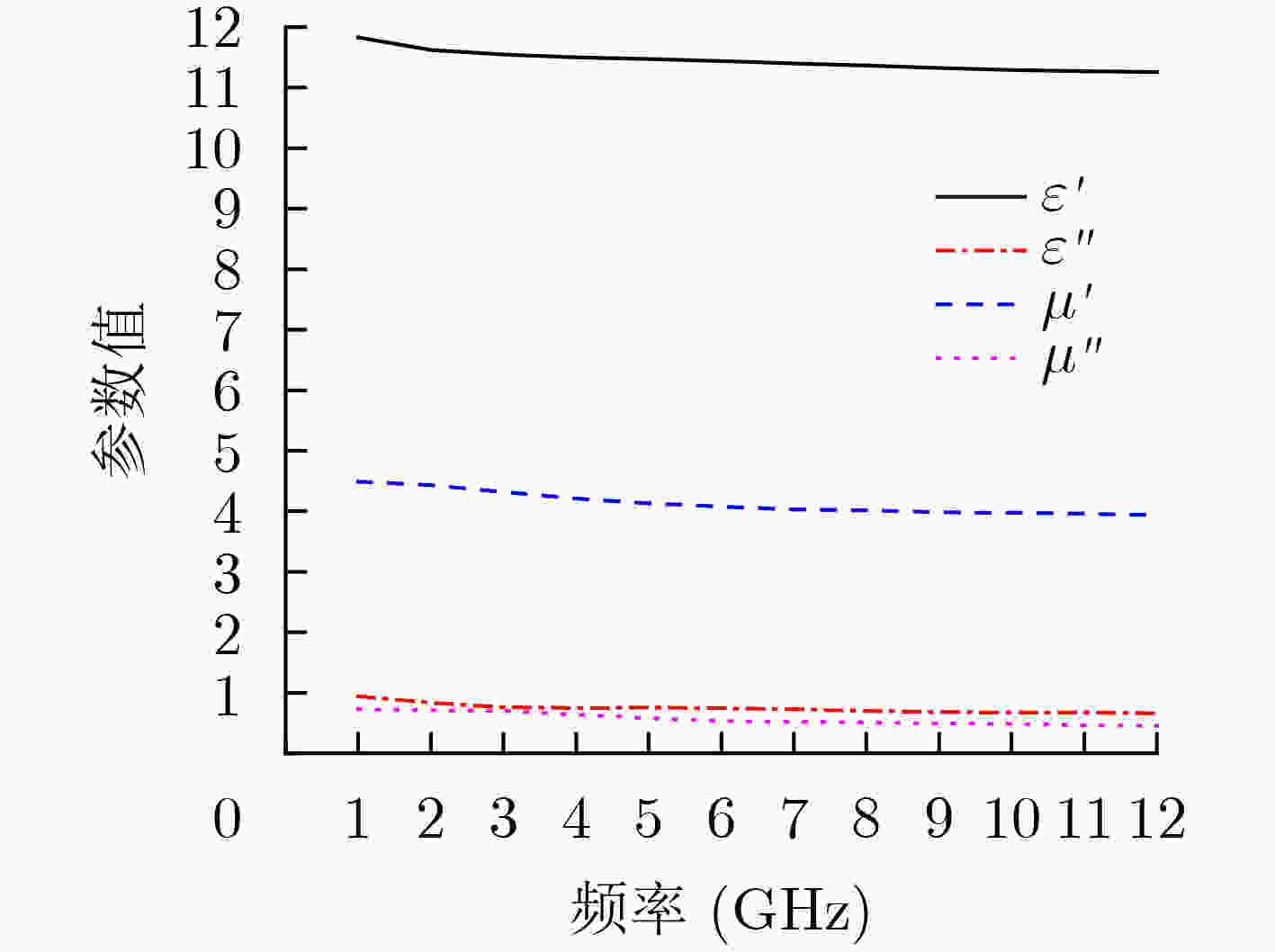

图 8 磁介质吸波贴片电磁参数

下载: 全尺寸图片幻灯片

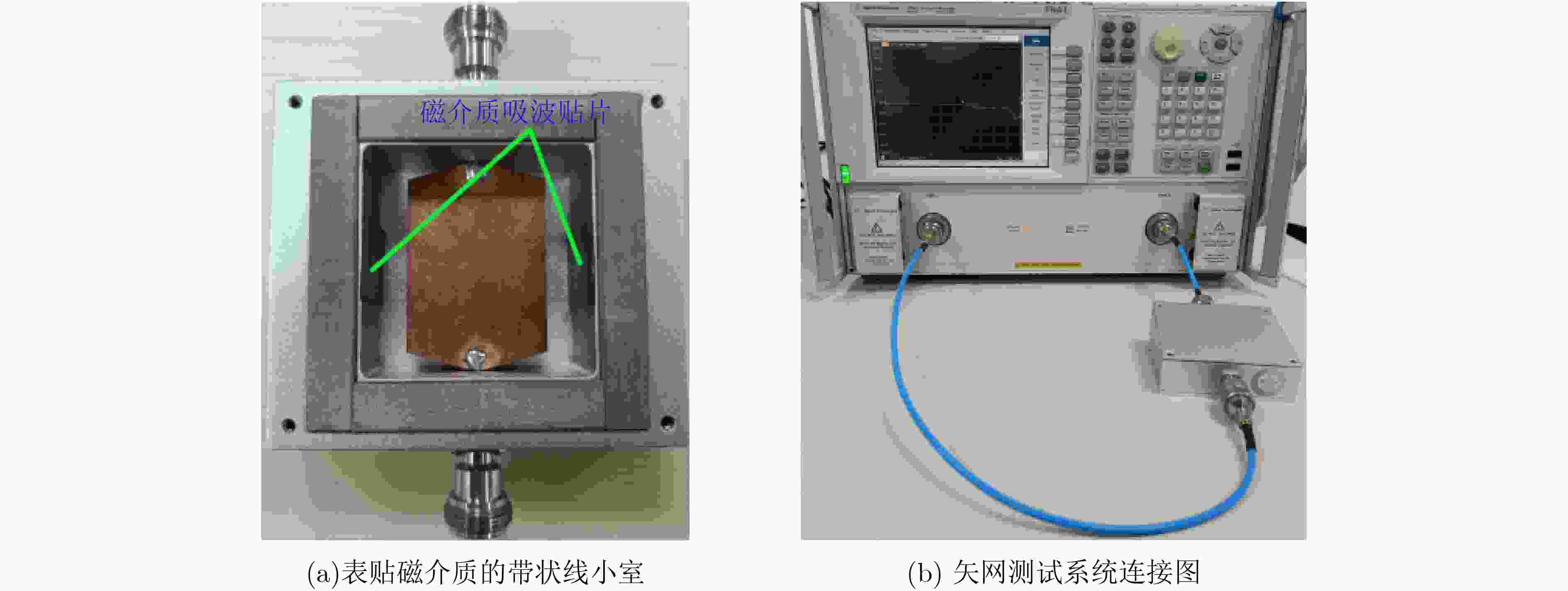

图 9 带状线小室及测量系统连接图

下载: 全尺寸图片幻灯片

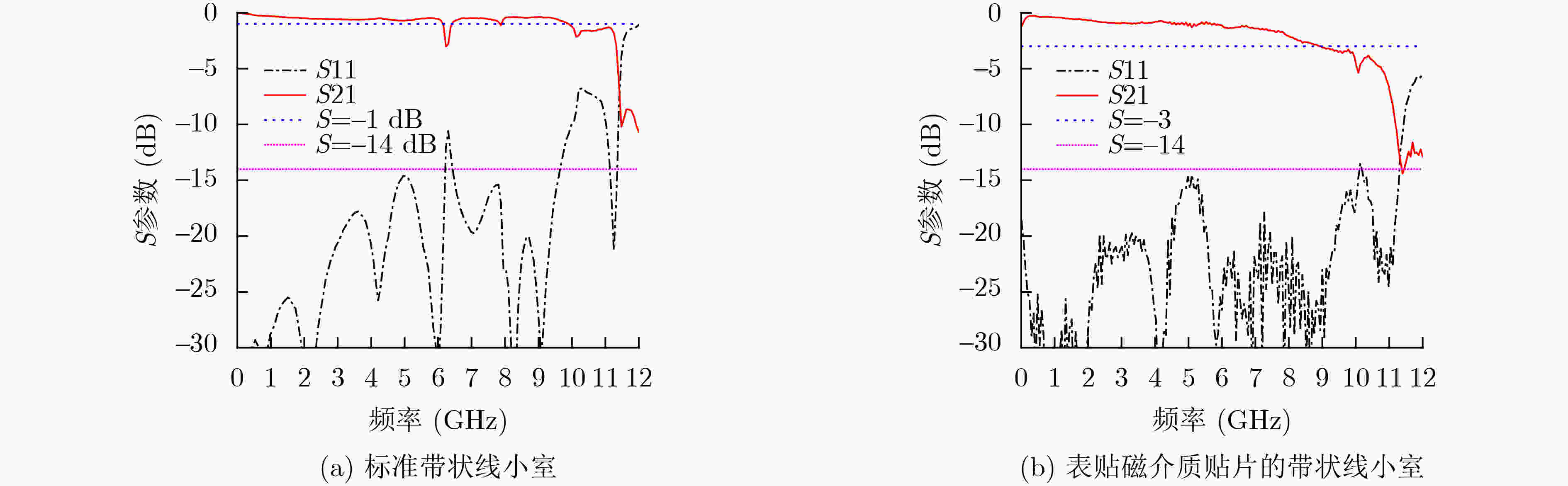

图 10 S参数测试结果

下载: 全尺寸图片幻灯片

表 1 带状线小室尺寸(mm)

参数	数值
a	25
b	12.5
e	4.5
t	0.4
w	16
L	25
h	25
d	[0.5,4]
ww	[5,40]

下载: 导出CSV

表 2 磁介质材料参数

参数	数值
${d}$	1 mm
$ \varepsilon' $	11
$ \varepsilon'' $	0.5
$ \mathrm{\mu }' $	$ \left[\mathrm{1,10}\right] $
$ \mathrm{\mu }'' $	$ \left[\mathrm{0,1}\right] $

下载: 导出CSV

表 3 粒子群算法各参数值

参数	数值
$ D $	2
$ N $	5
$ {k}_{\mathrm{m}\mathrm{a}\mathrm{x}} $	200
$ {c}_{1} $	1.5
$ {c}_{2} $	1.5
$ {x}_{\mathrm{m}\mathrm{a}\mathrm{x}} $	[10 10]
$ {x}_{\mathrm{m}\mathrm{i}\mathrm{n}} $	[1 0]
$ \mathrm{\delta } $	0.1
$ {W}_{\mathrm{m}\mathrm{a}\mathrm{x}} $	0.8
$ {W}_{\mathrm{m}\mathrm{i}\mathrm{n}} $	0.4
$ {v}_{\mathrm{m}\mathrm{a}\mathrm{x}} $	[1 1]
$ {v}_{\mathrm{m}\mathrm{i}\mathrm{n}} $	[–1 –1]
$ m $	10
$ {f}_{1}\left(\mathrm{G}\mathrm{H}\mathrm{z}\right) $	6
$ {f}_{2}\left(\mathrm{G}\mathrm{H}\mathrm{z}\right) $	$ {f}_{1} $+1

下载: 导出CSV
