沉浸式视频编码技术综述

曾焕强; 孔庆玮; 陈婧; 朱建清; 施一帆; 侯军辉

doi:10.11999/JEIT230097

沉浸式视频编码技术综述

doi: 10.11999/JEIT230097

曾焕强^{1, 2, ,},
孔庆玮¹,
陈婧¹,
朱建清²,
施一帆²,
侯军辉³

1.
华侨大学信息科学与工程学院厦门 361021
2.
华侨大学工学院泉州 362021
3.
香港城市大学计算机科学系香港 999077

基金项目: 国家重点研发计划(2021YFE0205400)，福建省自然科学基金(2023J02022, 2022J06023, 2022J01294)，福厦泉国家自主创新示范区协同创新平台项目(2021FX03)，福建省教改项目(FBJY20230328)

详细信息

作者简介:
曾焕强：男，教授、博士生导师，研究方向为多媒体信号处理

孔庆玮：男，硕士生，研究方向为多媒体信号处理

陈婧：女，副教授，研究方向为多媒体信号处理

朱建清：男，教授、博士生导师，研究方向为多媒体信号处理

施一帆：男，讲师，研究方向为多媒体信号处理

侯军辉：男，副教授、博士生导师，研究方向为多媒体信号处理

通讯作者:
曾焕强　zeng0043@hqu.edu.cn

中图分类号: TN911.73
计量
- 文章访问数: 355
- HTML全文浏览量: 194
- PDF下载量: 112
- 被引次数: 0
出版历程
- 收稿日期: 2023-02-23
- 修回日期: 2023-12-03
- 网络出版日期: 2023-12-12
- 刊出日期: 2024-02-10

Overview of Immersive Video Coding

1.
School of Information Science and Engineering, Huaqiao University, Xiamen 361021, China
2.
School of Engineering, Huaqiao University, Quanzhou 362021, China
3.
Department of Computer Science, City University of Hong Kong, Hong Kong 999077, China

Funds: National Key Research and Development Program of China (2021YFE0205400), Natural Science Foundation of Fujian Province of China (2023J02022, 2022J06023, 2022J01294), Collaborative Innovation Platform Project of Fujian-Xiamen-Quanzhou National Independent Innovation Demonstration Zone (2021FX03), Educational Reform Project (FBJY20230328) of Fujian Province

摘要

摘要: 随着虚拟现实、增强现实等沉浸式媒体技术的发展，沉浸式视频的表示、存储、传输和显示等各个环节都受到了科研及产业界的广泛关注。沉浸式视频更复杂的视频特性和庞大的数据量，对传统视频编码技术提出了挑战，新的编码技术应运而生。该文从视频自由度(DoF)出发，分别从3DoF和6DoF两个方面介绍沉浸式视频编码技术的最新成果。3DoF视频相关编码技术包括投影模型、运动估计模型和3DoF视频编码标准。6DoF视频相关编码技术包括视频表示形式、虚拟视点合成技术、6DoF视频编码技术及运动图像专家组沉浸式视频(MPEG, MIV)编码标准。最后，对沉浸式视频及其编码技术的发展进行总结和展望。
- 视频编码 /
- 沉浸式视频 /
- 全景视频 /
- 自由视点视频
Abstract: With the development of immersive media technologies such as virtual reality and augmented reality, the presentationm, storage and transmission of immersive video has received a lot of attention in both research and industry field. Due to the more complex video characteristics and huge data volume, the traditional coding techniques are not efficient for immersive video coding. How to present and encode the immersive video more efficiently is a challenge. Based on the Degree of Freedom (DoF), 3DoF and 6DoF formats of immersive video are introduced respectively in this paper. Firstly, 3DoF video related coding techniques including projection model, motion estimation are introduced, and then, 3DoF video coding standard is discussed. In 6DoF format video coding, the video representation, virtual viewpoint synthesis techniques, 6DoF video coding techniques and Moving Picture Experts Group Immersive Video (MPEG, MIV) video coding standard are illustrated. Finally, the development of immersive video and its coding technology is summarized and prospected.
- Video coding /
- Immersive video /
- Panoramic video /
- Free-view video

HTML全文

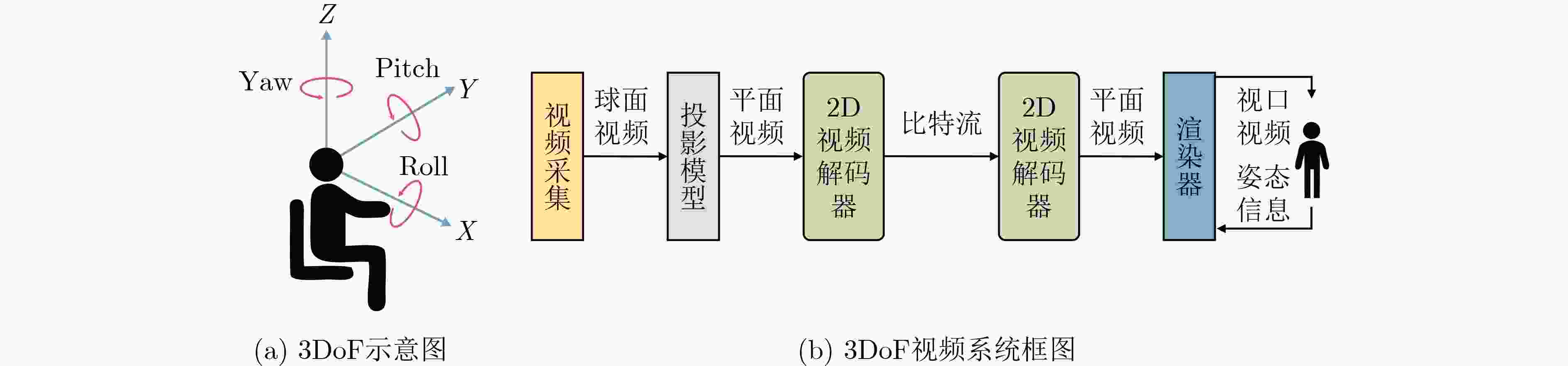

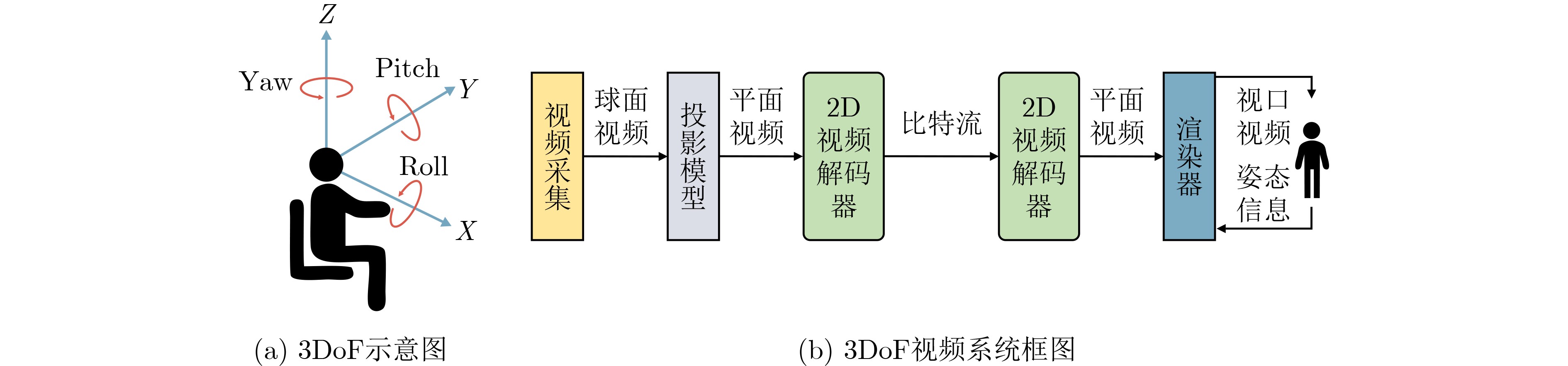

图 1 3DoF及视频系统

下载: 全尺寸图片幻灯片

图 2 ERP格式投影示意图

下载: 全尺寸图片幻灯片

图 3 分段球体投影模型^[7]

下载: 全尺寸图片幻灯片

图 4 CMP模型^[9]

下载: 全尺寸图片幻灯片

图 5 6DoF及视频系统

下载: 全尺寸图片幻灯片

图 6 6DoF视频表示形式

下载: 全尺寸图片幻灯片

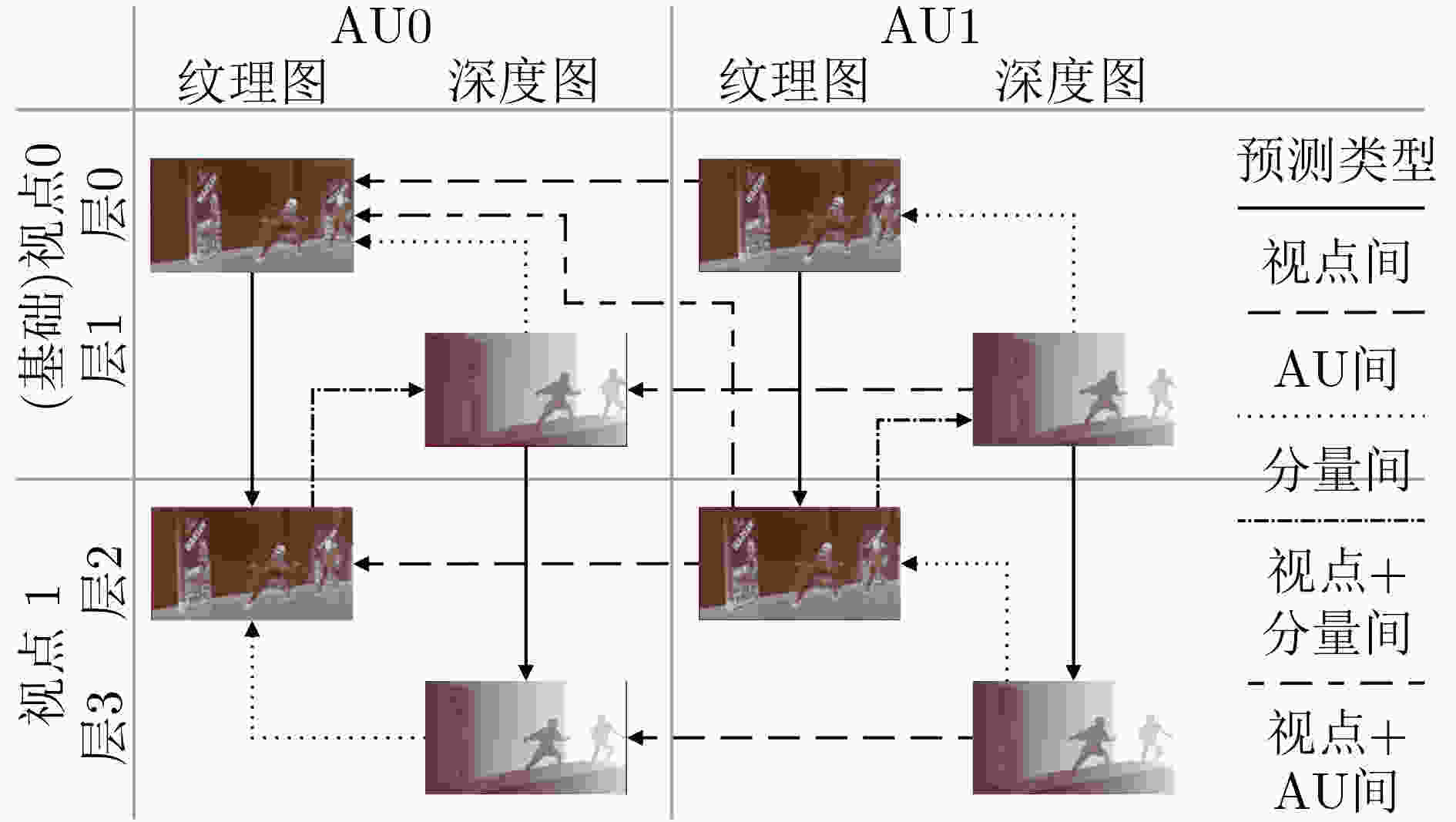

图 7 3D-HEVC编码结构

下载: 全尺寸图片幻灯片

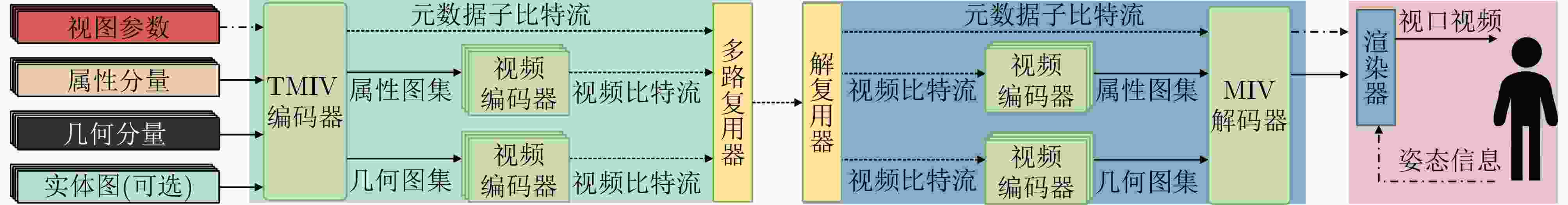

图 8 MIV编解码框图

下载: 全尺寸图片幻灯片

图 9 图集创建流程

下载: 全尺寸图片幻灯片
