生物视觉启发的低照度视频自适应增强设计与FPGA加速实现

张显石; 宋健; 宋泗锦; 李永杰

doi:10.11999/JEIT221346

生物视觉启发的低照度视频自适应增强设计与FPGA加速实现

doi: 10.11999/JEIT221346

电子科技大学生命科学与技术学院成都 610054

基金项目: 四川省中央引导地方科技发展专项(#2022ZYD0112)，四川省自然科学基金(2022NSFSC0527)

详细信息

作者简介:
张显石：男，博士，助理研究员，研究方向为视觉认知计算、计算机视觉与类脑智能

宋健：男，硕士，研究方向为大脑视觉系统的信息处理机制、计算机建模及其在计算机视觉(图像/视频处理)中的应用

宋泗锦：男，硕士生，研究方向为基于FPGA的实时图像处理

李永杰：男，博士，教授，研究方向为大脑视觉系统的信息处理机制、计算机建模及其在计算机视觉(图像/视频处理)中的应用、智能医学图像处理

通讯作者:
李永杰　liyj@uestc.edu.cn

中图分类号: TN911.73
计量
- 文章访问数: 555
- HTML全文浏览量: 246
- PDF下载量: 129
- 被引次数: 0
出版历程
- 收稿日期: 2022-10-27
- 修回日期: 2023-07-13
- 网络出版日期: 2023-07-19
- 刊出日期: 2023-08-21

Design of Biological-inspired Low-light Video Adaptive Enhancement and FPGA Accelerated Implementation

School of Life Sciences and Technology, University of Electronic Science and Technology of China, Chengdu 610054, China

Funds: Sichuan Science and Technology Program (#2022ZYD0112), The Natural Science Foundation of Sichuan Province (2022NSFSC0527)

摘要

摘要: 该文基于现场可编程门阵列实现了受生物视觉机制启发的夜间图像增强模型，实时高效地对夜间低照度视频图像进行自适应增强。受初级视觉系统中大小细胞通路启发，该文采取独立的两条通路分别处理结构与细节信息，获得了较好的处理效果与处理效率。为了实现对高清视频的实时增强，基于现场可编程门阵列对该文算法进行了加速实现。通过滑动数据窗并行处理、相邻帧信息共享、多通道并行化等硬件设计保证高数据吞吐量。该设计在 XC7Z100现场可编程门阵列上达到对1080P@60 Hz彩色视频增强的实时性要求。与本领域已有设计相比，该文设计具有更高的数据吞吐量，适用于高分辨率实时图像增强应用。
- 生物视觉计算模型 /
- 图像增强 /
- 现场可编程门阵列
Abstract: A nighttime image enhancement model is proposed in this paper, which is inspired by biological vision mechanism and implemented on Field Programmable Gate Arrays (FPGA) for real-time enhancement of low-light videos and images. Inspired by the Midget cells and the Parasol cells in the early visual system, the proposed method processes the structure and detail information through two independent pathways respectively, and obtains a nice effect and efficiency. To achieve real-time enhancement of high-resolution videos, this paper implements the proposed method on Field Programmable Gate Arrays. High data throughput is ensured through hardware design such as sliding data window parallel processing, adjacent frame information sharing, and multi-channel parallelization. Implemented on Field Programmable Gate Arrays XC7Z100, the proposed design achieves processing 60 frames per second for 1024 × 768 RGB images. Compared with existing designs in this field, the proposed design has higher data throughput and is suitable for high-resolution real-time image enhancement applications.
- Biological vision computation model /
- Image enhancement /
- Field Programmable Gate Arrays (FPGA)

HTML全文

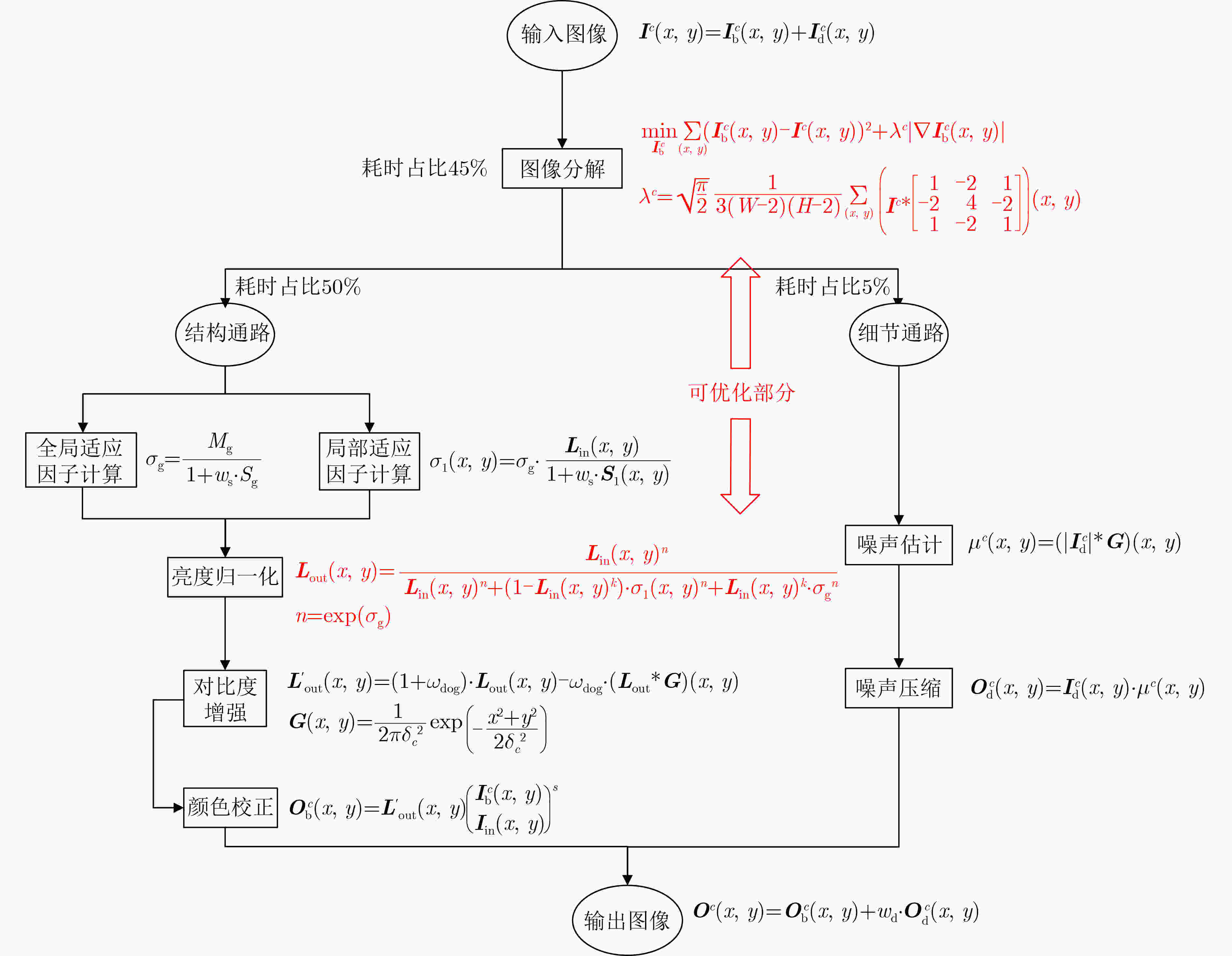

图 1 Yang等人^[4]夜间图像增强模型的算法原理框架

下载: 全尺寸图片幻灯片

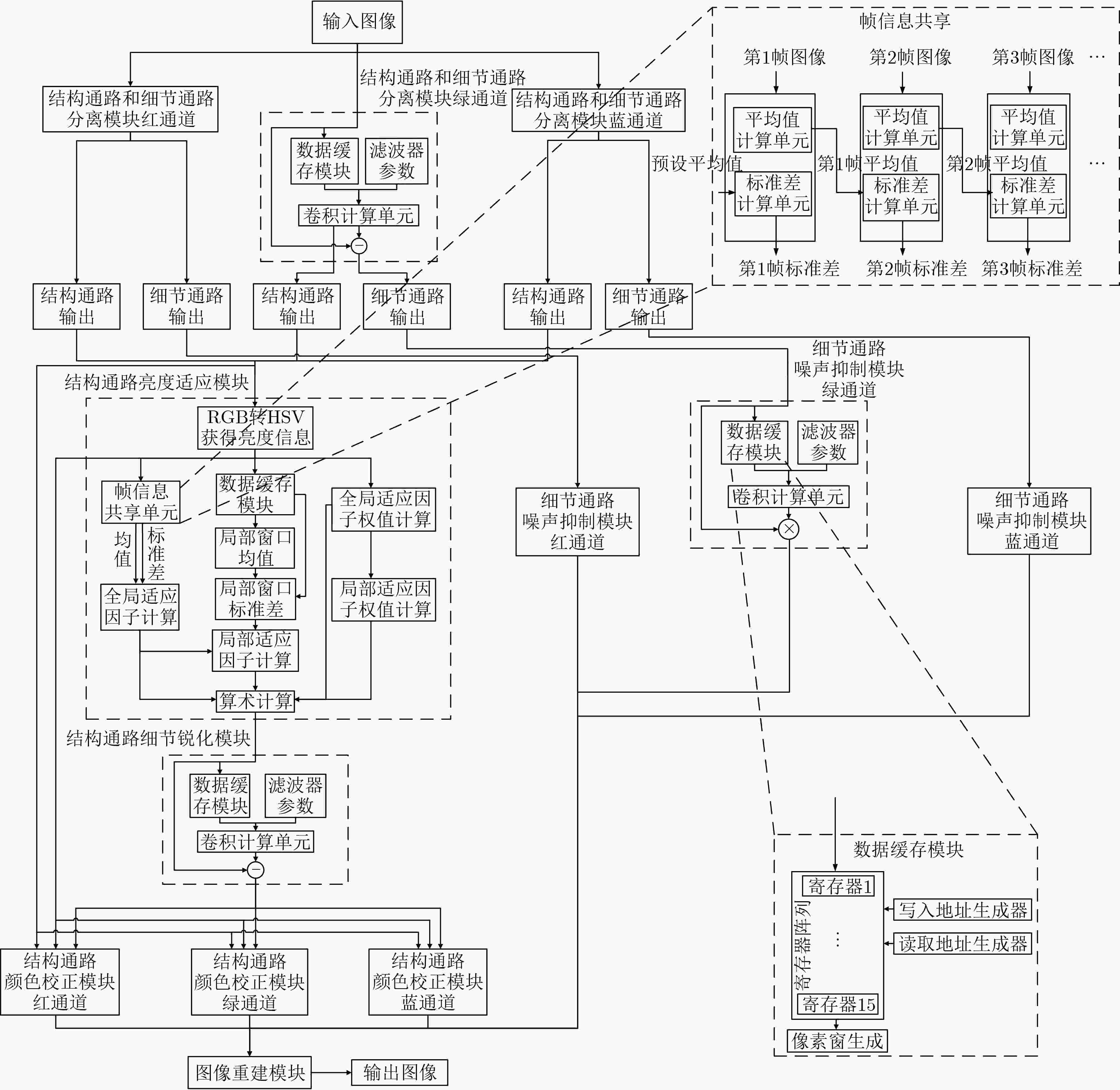

图 2 夜间图像增强算法的FPGA实现

下载: 全尺寸图片幻灯片

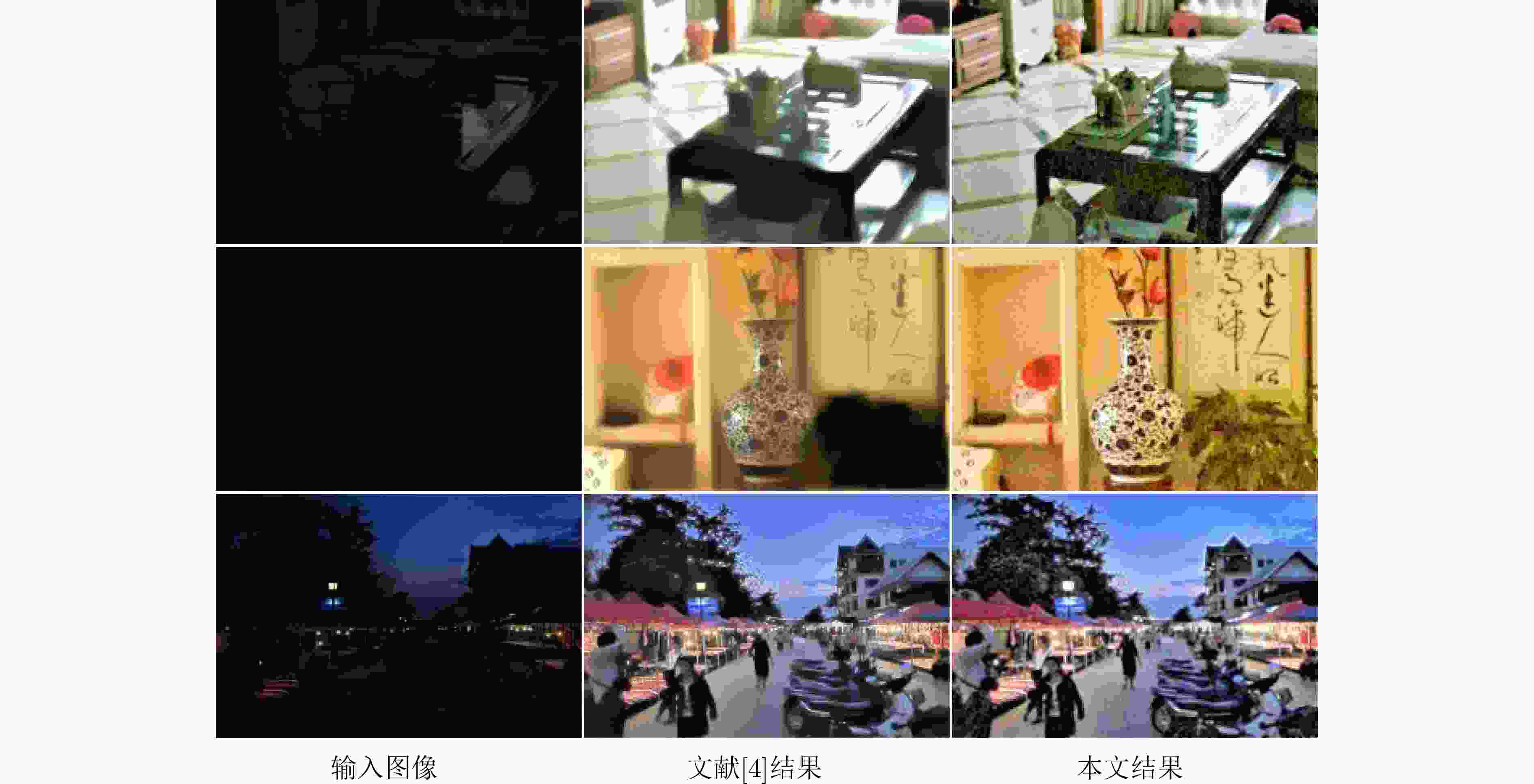

图 3 本文结果与文献[4]结果的比较

下载: 全尺寸图片幻灯片

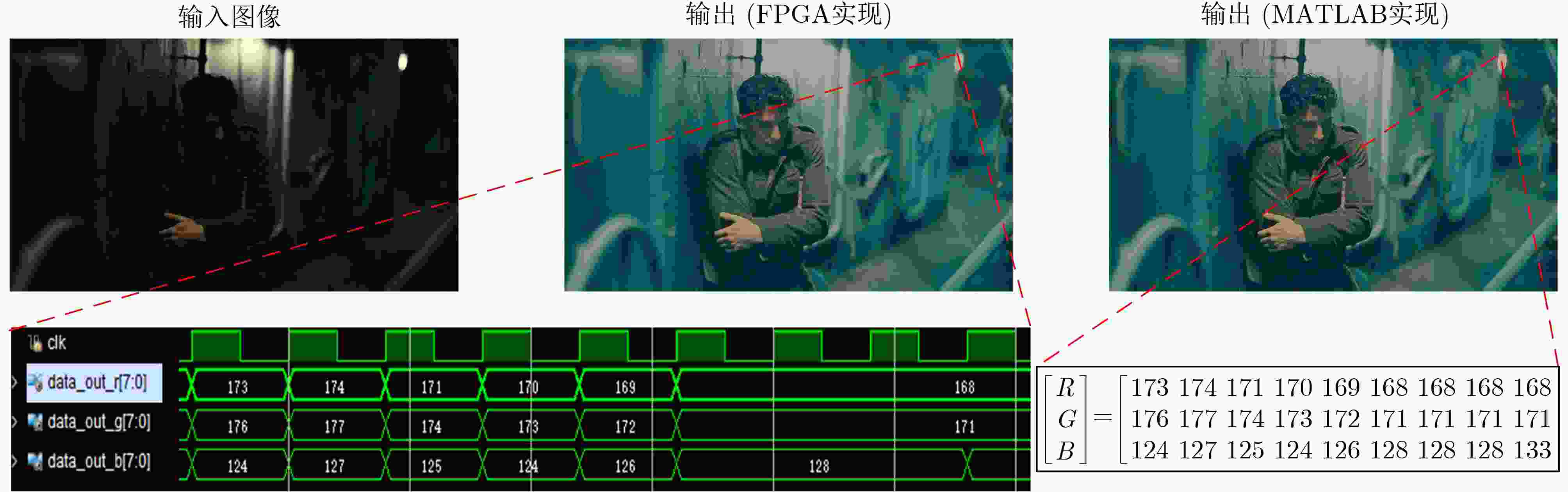

图 4 软硬件实现对比

下载: 全尺寸图片幻灯片

表 1 本文方法在LOL^[10]图像库真实图像集上的测试结果

	输入图像	LIME^[9]	RobustRetinex^[7]	文献[4]	本文
结构相似性	0.1816	0.4547	0.6557	0.7306	0.7287
峰值信噪比(dB)	7.7671	16.1868	16.9543	18.2746	17.9666
平均处理时间(s)	-	0.0448	27.4727	1.4967	0.8858

下载: 导出CSV

表 2 本文方法在SCIE^[30]图像库真实图像集上的测试结果

	输入图像	LIME^[9]	RobustRetinex^[7]	文献[4]	本文
结构相似性	0.2548	0.5443	0.5252	0.6155	0.6048
峰值信噪比(dB)	8.6564	15.4653	14.5801	17.2723	16.9305
平均处理时间(s)	–	4.6	7835.5	89.5	41.1

下载: 导出CSV

表 3 夜间图像增强模型的FPGA实现的资源使用情况

资源	使用情况	使用率(%)
查找表	56673	20
查找表随机存取存储器	40604	38
块随机存取存储器	38	5
数字信号处理单元	7	1
输入和输出单元	108	30
区域时钟缓冲器	10	31
混合模式时钟管理器	4	50
锁相环	1	13

下载: 导出CSV

表 4 性能综合对比

	FPGA平台	生物启发	时钟频率(MHz)	输入图像分辨率(像素)	处理速度(帧/s)	能效(像素/(mW·s))
文献[23]	Virtex6	否	69	640×480	60	61645
文献[21]	Spartan3	是	40.25	640×480	60	20480
文献[24]	Virtex6	是	84.5	1024×768	30	66459
文献[26]	CycloneⅢ	否	100	1024×768	126	–
文献[28]	CycloneⅢ	否	100	1024×768	126	440891
本文	Zynq7	是	148.5	1920×1080	60	88552

下载: 导出CSV
