Impossible Differential Cryptanalysis of Eight-Sided Fortress Based on Mixed Integer Linear Programming
-
摘要: 八阵图(ESF)是基于LBlock改进的轻量级分组密码，具有优良的软硬件实现效率。针对ESF算法的安全性，该文借助自动化搜索工具，利用不可能差分分析方法，对算法进行安全性评估。首先结合ESF的结构特性和$ S $盒的差分传播特性，建立了基于混合整数线性规划(MILP)的不可能差分搜索模型；其次利用算法 $ S $盒的差分传播特性和密钥扩展算法中轮子密钥间的相互关系，基于一条9轮不可能差分区分器，通过向前扩展2轮向后扩展4轮，实现了对ESF算法的15轮密钥恢复攻击。分析结果表明，该攻击的数据复杂度和时间复杂度分别为$ {2^{60.16}} $和 $ {2^{67.44}} $，均得到有效降低，且足够抵抗不可能差分分析。
-
关键词:
- 八阵图(ESF) /
- 不可能差分分析 /
- 混合整数线性规划(MILP)

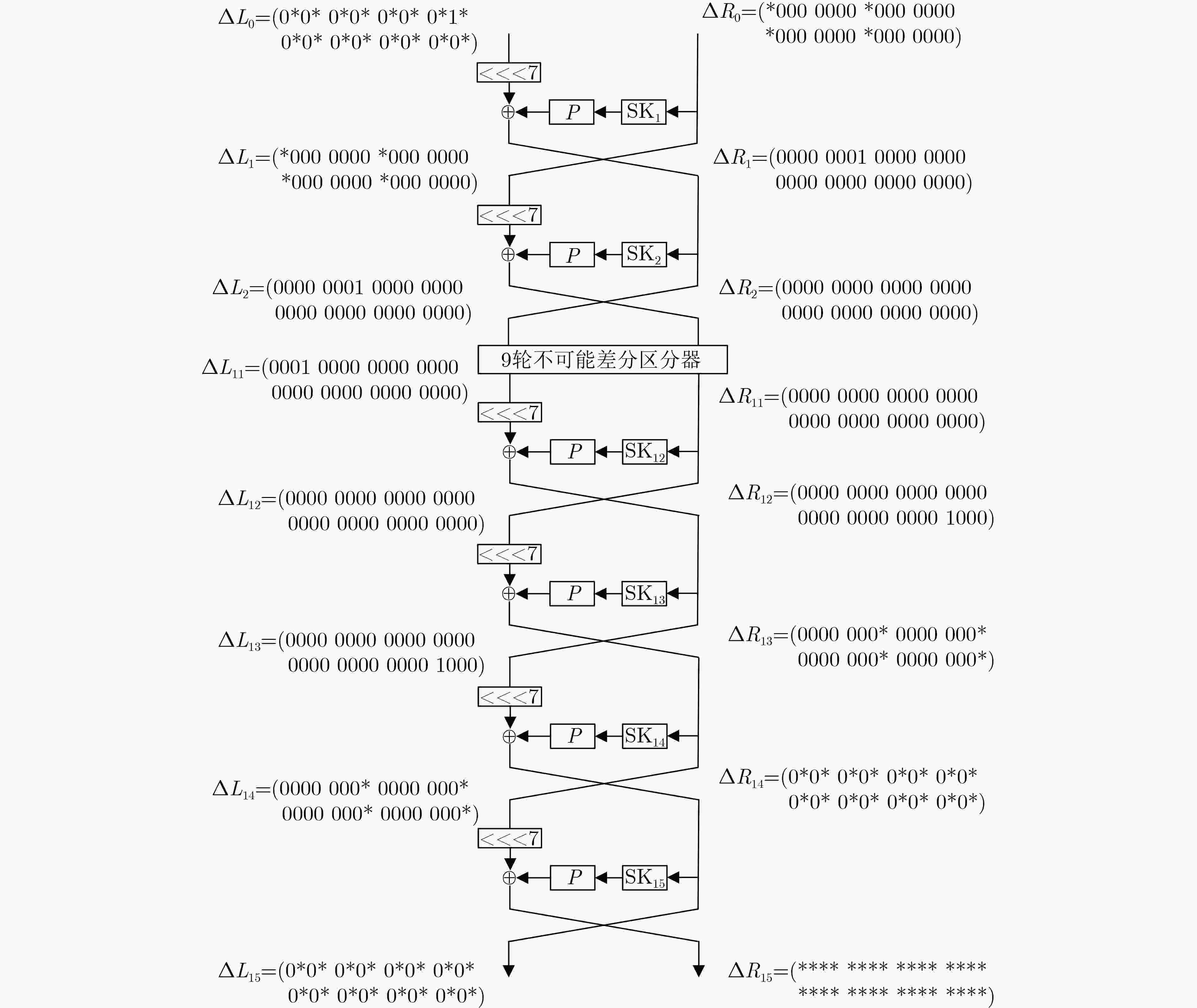

Abstract: Eight-Sided Fortress(ESF), an improved lightweight block cipher based on LBlock, has excellent software and hardware implementation efficiency. For the security of ESF, with the help of automated search tools, the algorithm is evaluated for security using the impossible differential cryptanalysis. Firstly, an impossible differential search model based on Mixed Integer Linear Programming (MILP) is built by combining the structure of ESF algorithm and the differential propagation of $ S $-box. Secondly, based on a 9-round impossible differential distinguisher of ESF, using the differential propagation characteristics of the $ S $-box and the relationship of the round subkeys in the key schedule, a 15-round-attack is presented to ESF by adding two rounds in the front and adding four rounds in the end. It is found that the data complexity of plaintexts and time complexity of encryptions of the attack need are $ {2^{60.16}} $ and $ {2^{67.44}} $, respectively. The results show that the data complexity and time complexity have been effectively reduced, and the proposed method is able to resist impossible differential cryptanalysis. -
表 1 ESF的S盒
$ \boldsymbol{x} $ 0 1 2 3 4 5 6 7 8 9 a b c d e f $ {S_0} $ 3 8 f 1 a 6 5 b e d 4 2 7 0 9 c $ {S_1} $ f c 2 7 9 0 5 a 1 b e 8 6 d 3 4 $ {S_2} $ 8 6 7 9 3 c a f d 1 e 4 0 b 5 2 $ {S_3} $ 0 f b 8 c 9 6 3 d 1 2 4 a 7 5 e $ {S_4} $ 1 f 8 3 c 0 b 6 2 5 4 a 9 e 7 d $ {S_5} $ f 5 2 b 4 a 9 c 0 3 e 8 d 6 7 1 $ {S_6} $ 7 2 c 5 8 4 6 b e 9 1 f d 3 a 0 $ {S_7} $ 1 d f 0 e 8 2 b 7 4 c a 9 3 5 6
下载: 导出CSV
表 2 ESF 的S0盒差分分布表
0 1 2 3 4 5 6 7 8 9 a b c d e f 0 16 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 2 0 2 2 2 0 0 0 2 2 0 4 0 2 0 0 0 0 0 0 0 0 0 2 2 0 4 2 2 4 3 0 2 2 2 0 0 0 2 0 4 0 2 2 0 0 0 4 0 0 0 0 0 0 0 0 0 4 4 0 0 4 4 0 5 0 0 2 0 4 2 0 0 2 0 2 2 0 0 2 0 6 0 2 2 4 0 2 2 4 0 0 0 0 0 0 0 0 7 0 0 2 0 4 2 0 0 2 2 0 2 0 2 0 0 8 0 0 0 2 0 2 2 2 0 0 0 2 2 4 0 0 9 0 2 2 0 0 2 2 0 0 2 2 0 0 2 2 0 a 0 2 2 2 0 0 0 2 0 0 4 2 2 0 0 0 b 0 2 2 0 0 2 2 0 0 0 0 0 4 0 0 4 c 0 2 0 0 4 0 2 0 2 2 0 2 0 2 0 0 d 0 0 0 4 0 0 0 4 4 0 0 0 0 0 0 4 e 0 2 0 0 4 0 2 0 2 0 2 2 0 0 2 0 f 0 2 2 0 0 2 2 0 4 0 0 0 0 0 0 4
下载: 导出CSV
表 3 ESF的S盒差分传播特性
$ {S_0} $ $ {S_1} $ $ {S_2} $ $ {S_4} $ $ {S_5} $ $ {S_6} $ $ \alpha $ $ \beta $ $ \alpha $ $ \beta $ $ \alpha $ $ \beta $ $ \alpha $ $ \beta $ $ \alpha $ $ \beta $ $ \alpha $ $ \beta $ 0010 $ 1 * * * $ 0100 $ * 1 * * $ 0010 $ * * * 1 $ 0100 $ * * * 1 $ 0100 $ * * * 1 $ 0010 $ * * 1 * $ 0100 $ 1 * * * $ 1000 $ * 1 * * $ 1000 $ * * * 1 $ 1011 $ * * * 1 $ 1011 $ * * * 1 $ 0100 $ * * 1 * $ 0110 $ 0 * * * $ 1100 $ * 0 * * $ 1010 $ * * * 0 $ 1111 $ * * * 0 $ 1111 $ * * * 0 $ 0110 $ * * 0 * $
下载: 导出CSV
表 4 ESF的S盒差分概率传播特性
$ S $ $ {S_0} $ $ {S_6} $ $ \alpha $ $ 1000 $ $ 0001 $ $ \beta $ $ * * * * $ $ * * * * $ $ P $ $\dfrac{1}{8}$ $\dfrac{1}{8}$
下载: 导出CSV
算法1 搜索 ESF 算法加密方向的有效差分路径 输入： 64 bit的明文输入差分$ \Delta X $, 输出：加密后的输出差分集合$ {\text{List}}{\text{.}} $ 1. $ {\text{set}} = \{ \Delta X\} $； 2. 如果$ {\text{set}} $中包含部分比特已知的差分； 3. for $ \Delta X $ in $ {\text{set}} $ 2. $ {\text{List}}{\text{.append(}}\Delta X{\text{)}} $； 4. $ \Delta {x_0} - \Delta {x_1} - \Delta {x_2} + \Delta {x_3} - \Delta {y_0} + 2 \ge 0 $； #当$ {\alpha _0} = 0110, $ $ {\beta _0} = 0 * * * * $时的不等式约束，对于其他$ S $盒有类似性质 5. $\Delta {r_1}{\text{ + } }\Delta { {\text{k} }_1} + \Delta {m_1} - 2d \ge 0,{{ d} } \ge \varDelta {r_1},{{ d} } \ge \varDelta { {\text{k} }_1},{{ d} } \ge \varDelta {m_1},{\text{ } }\varDelta {r_1}{\text{ + } }\varDelta { {\text{k} }_1} + \varDelta {m_1} \le 2$； #异或的约束条件
6. $\displaystyle\sum\limits_{i = 0}^3 {\Delta {x_i} - 4A \le 0,} {\text{ } }\displaystyle\sum\limits_{i = 0}^3 {\Delta {x_i} - A \ge 0,} {\text{ 4} }\displaystyle\sum\limits_{i = 0}^3 {\Delta {y_i} - \displaystyle\sum\limits_{i = 0}^3 {\Delta {x_i} \ge 0,} {\text{ } } } {\text{ 4} }\displaystyle\sum\limits_{i = 0}^3 {\Delta {x_i} - \displaystyle\sum\limits_{i = 0}^3 {\Delta {y_i} \ge 0} {\text{ } } }$； #$ S $盒约束条件7. $ S $盒差分传播特性得到的213个不等式约束条件； 8. 利用GUROBI求解MILP模型，判断是否存在可行解； 9. 若存在可行解，则输出$ {\text{set}}{\text{.append}} $(满足上述条件的输出差分$ \Delta Y $)； 10. ${\text{set = set } }-\left( {\Delta X} \right)$，重复执行上述步骤1-步骤9，直到$ {\text{set}} $全为未知的比特； 11. return List.
下载: 导出CSV
算法2 寻找最长不可能差分区分器轮数 输入： 加密后的差分路径集合$ {\text{E}}{\text{.List}} $, 解密后的差分路径集合
$ {\text{D}}{\text{.List}} $输出：输出最长不可能差分区分器轮数 1. $ r = 0 $； 2. for $ i $ in range len($ {\text{E}}{\text{.List}} $) 3. for $ j $ in range len($ {\text{D}}{\text{.List}} $) 4. if ${\text{E} }{{.{\rm{List}}[i]} } \ne {\text{D} }{{.{\rm{List}}[j]} }$； 5. if $ r > i + j $ 6. $ r = r $； 7. else 8. $ r = i + j $； 9. return $ r. $
下载: 导出CSV
表 5 ESF 分析方法结果对比
攻击轮数 分析方法 时间复杂度 数据复杂度 文献 11 不可能差分分析 $ {2^{75.5}} $ $ {2^{59}} $ 文献[10] 11 不可能差分分析 $ {2^{32}} $ $ {2^{53}} $ 文献[11] 12 不可能差分分析 $ {2^{60.45}} $ $ {2^{53}} $ 文献[12] 13 截断不可能差分分析 $ {2^{61.99}} $ $ {2^{77.39}} $ 文献[14] 14 相关密钥不可能差分分析 $ {2^{43.95}} $ $ {2^{62}} $ 文献[13] 15 不可能差分分析 $ {2^{70.02}} $ $ {2^{64.3}} $ 文献[16] 15 不可能差分分析 $ {2^{67.44}} $ $ {2^{60.16}} $ 本文
下载: 导出CSV
-
