Invertible Color Image Decolorization Based on Variable Augmented Network

1.
School of Information Engineering, Nanchang University, Nanchang 330031, China
2.
School of Artificial Intelligence and Automation, Huazhong University of Science and Technology, Wuhan 430000, China

Funds: The National Science Fund for Outstanding Young Scholars (62122033), The Key Research and Development Program of Jiangxi Province (20212BBE53001)

摘要

摘要: 彩色图像灰度化是一种被广泛应用于各个领域的图像压缩方式，但很少有研究关注彩色图像与灰度图像之间的相互转换技术。该文运用深度学习，创新性地提出了一种基于辅助变量增强的可逆彩色图像灰度化方法。该方法使用变量增强技术来保证输出与输入变量通道数相同以满足网络的可逆特性。具体来说，该方法通过可逆神经网络的正向过程实现彩色图像灰度化，逆向过程实现灰度图像的色彩复原。将所提方法在VOC2012, NCD和Wallpaper数据集上进行定性和定量比较。实验结果表明，所提方法在评价指标上均获得了更好的结果。无论是在全局还是局部，生成图像都可以最大程度地保留亮度、颜色对比度和结构相关性等特征。
- 彩色图像灰度化 /
- 可逆神经网络 /
- 变量增强 /
- 色彩复原
Abstract: Decolorization is an image compression method widely used in various fields, but few researches focus on the mutual conversion technology of color image and grayscale image. In this paper, a deep learning method is used to propose innovatively an invertible decolorization method based on variable augmentation. This method uses variable augmentation technology to ensure that the output has the same number of channels as the input variable, which satisfies the reversible characteristics of the network. Specifically, the proposed method realizes the decolorization through the forward process of the invertible neural network, and realizes the color restoration of grayscale images through the reverse process. The proposed method performs qualitative and quantitative comparisons on VOC2012, NCD, Wallpaper datasets. The experimental results show that the proposed method achieves better results in the evaluation indicators. The quality of the generated images can preserve the characteristics of brightness, color contrast and structural correlation to the greatest extent, both globally and locally.
- Color-to-gray conversion /
- Invertible neural network /
- Variable augmentation /
- Color restoration

HTML全文

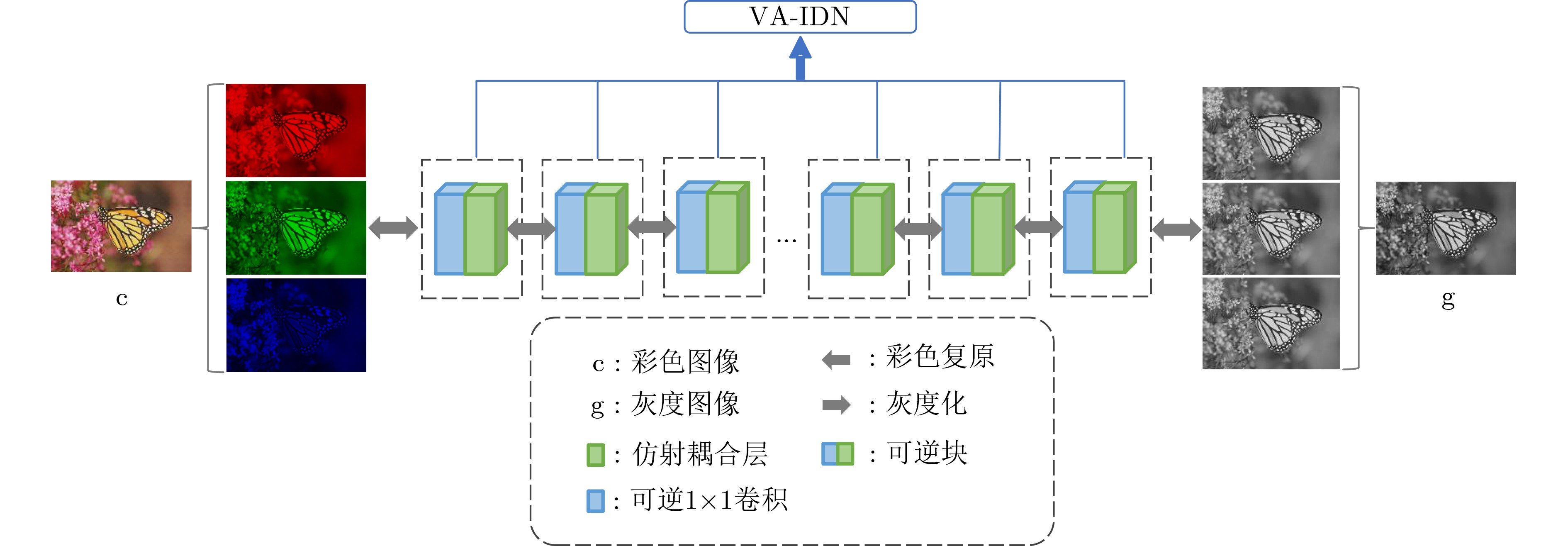

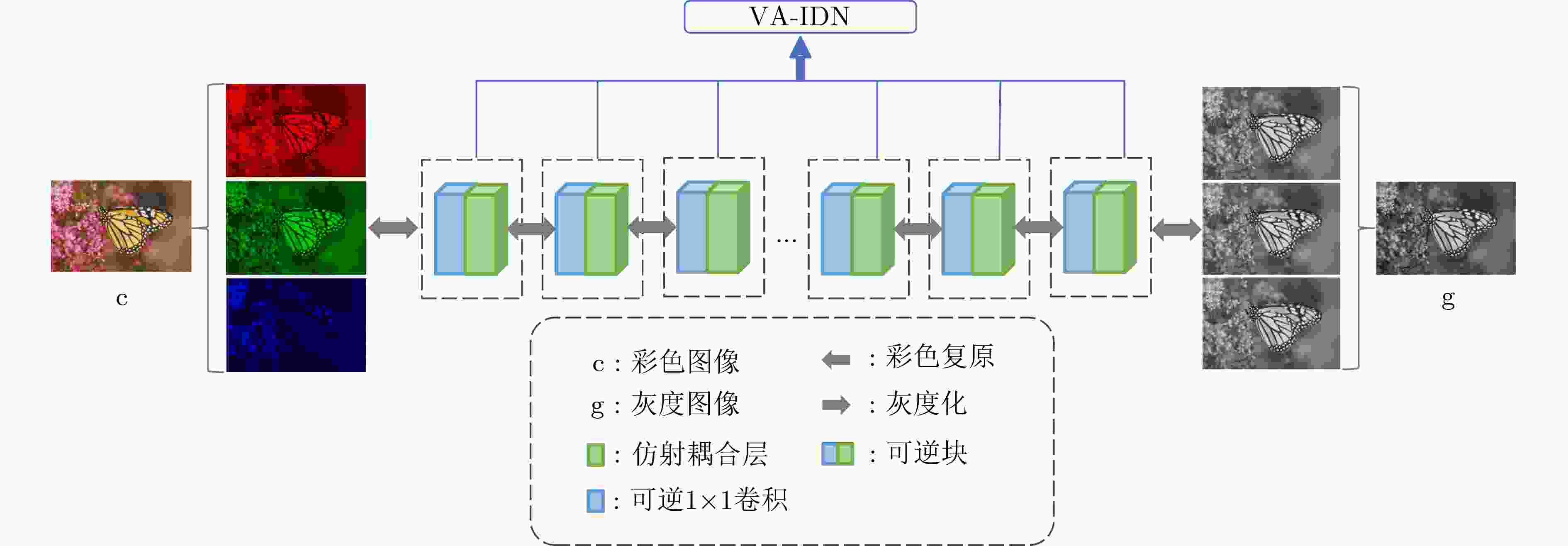

图 1 基于辅助变量增强的可逆彩色图像灰度化模型的可视化结构图

下载: 全尺寸图片幻灯片

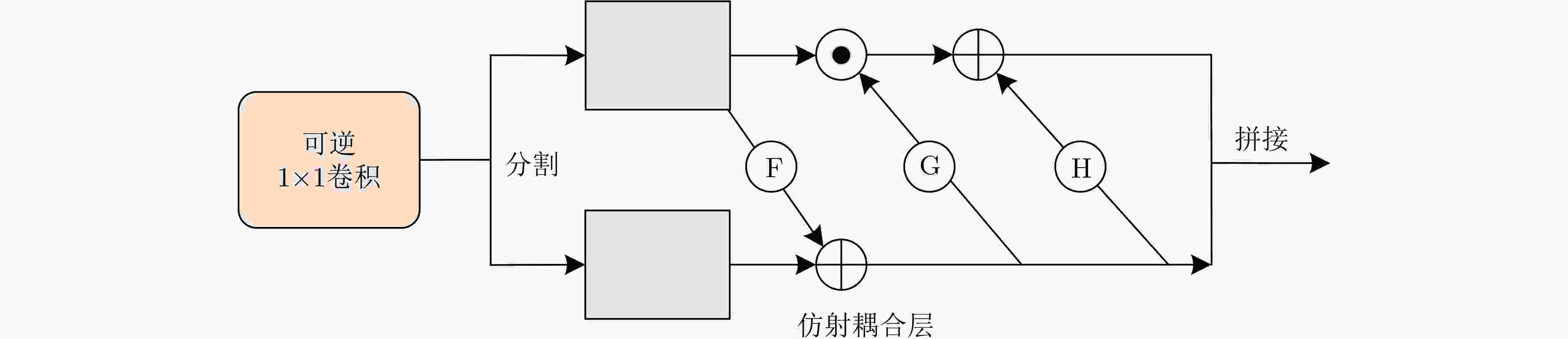

图 2 可逆块的详细结构图

下载: 全尺寸图片幻灯片

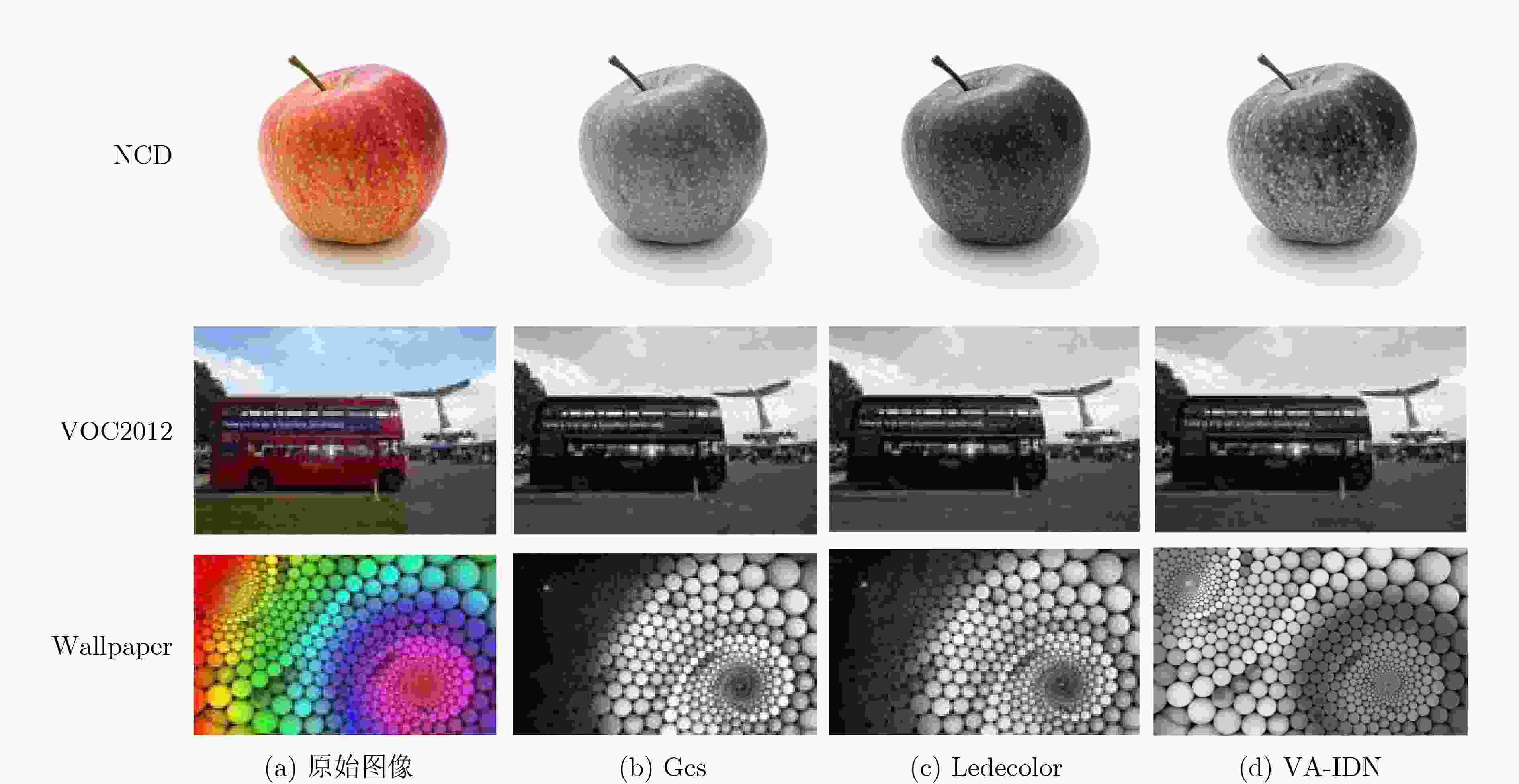

图 3 不同算法在不同数据集上图像灰度化效果

下载: 全尺寸图片幻灯片

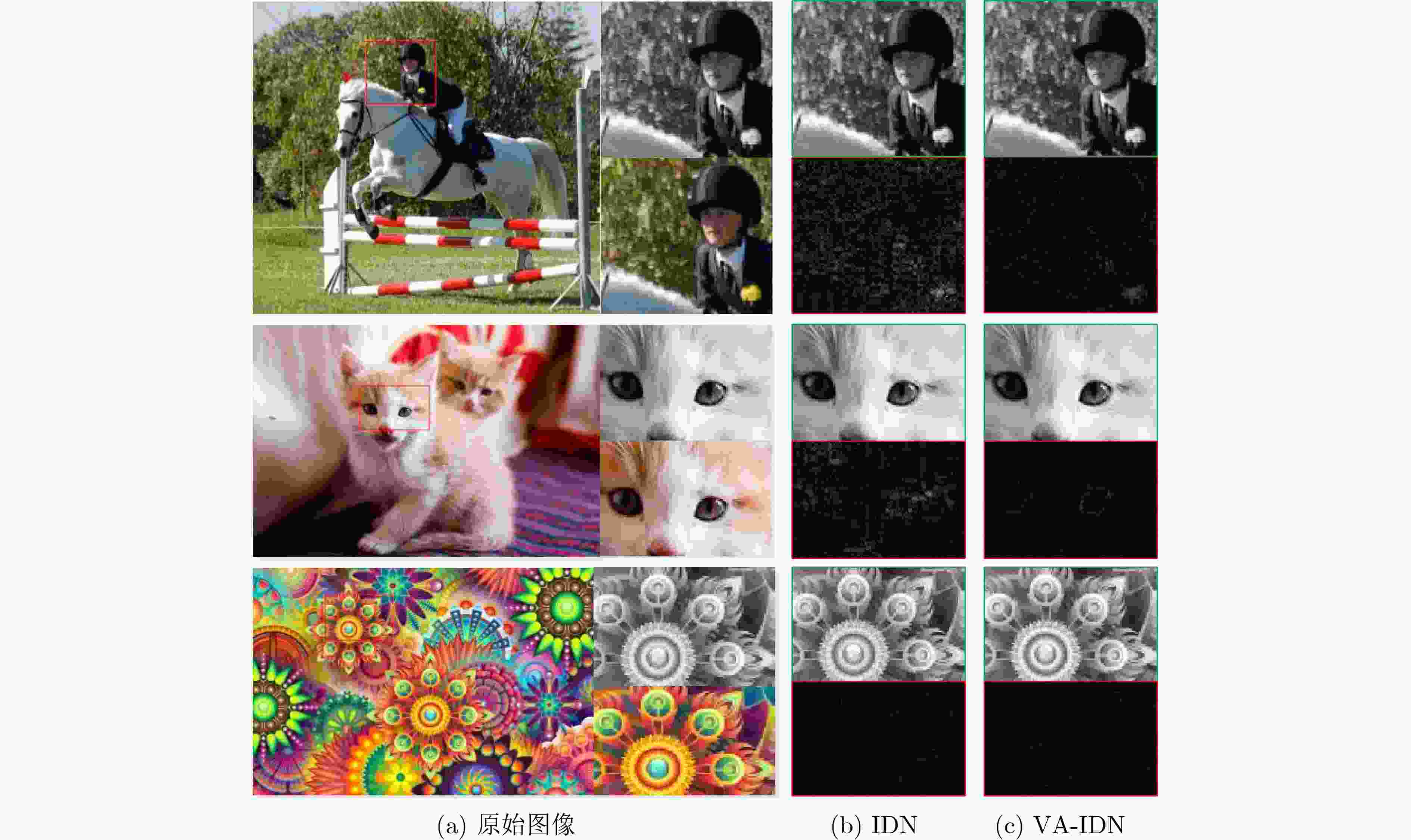

图 4 原始彩色图像中细节放大图的灰度化结果

下载: 全尺寸图片幻灯片

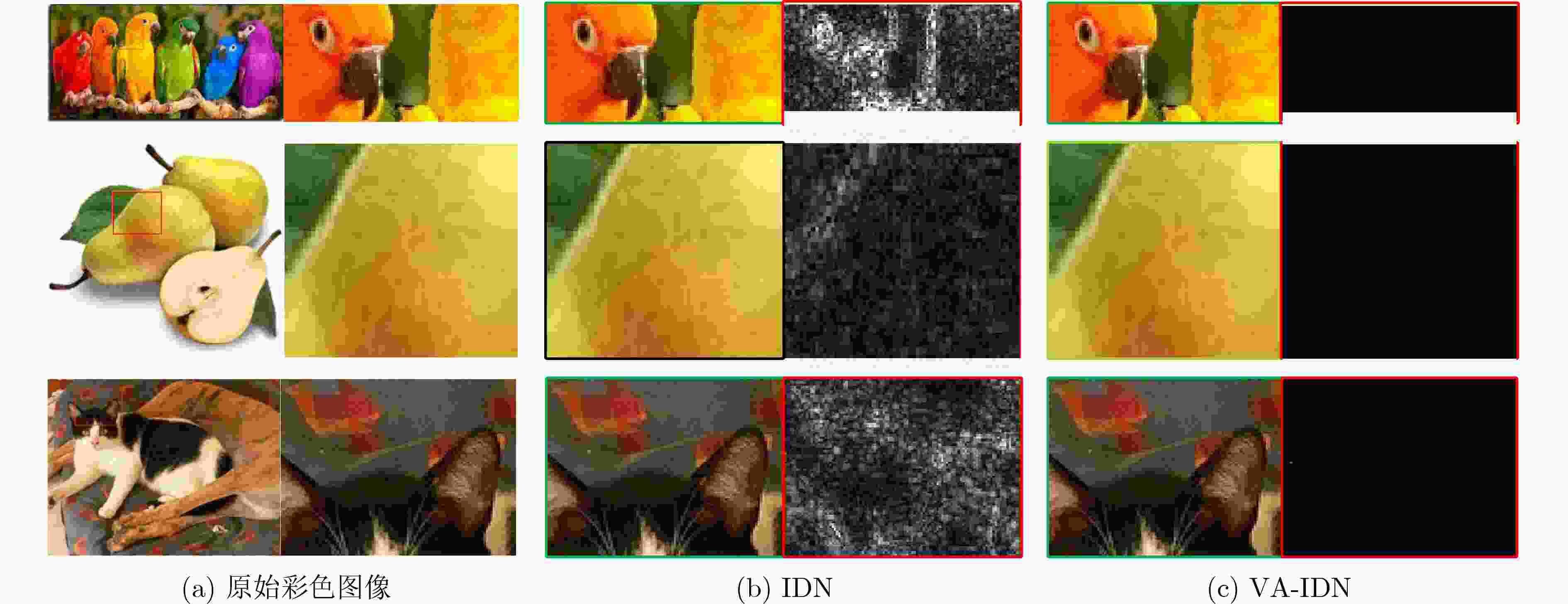

图 5 原始彩色图像中细节放大图的色彩复原结果

下载: 全尺寸图片幻灯片

表 1 Wallpaper数据集的CCPR, CCFR和E-score结果

τ	CCPR			CCFR			E-score
τ	Gcs	Ledecolor	VA-IDN	Gcs	Ledecolor	VA-IDN	Gcs	Ledecolor	VA-IDN
1	0.9578	0.9638	0.9555	0.9275	0.9294	0.9729	0.9418	0.9456	0.9637
2	0.9281	0.9361	0.9218	0.8850	0.8885	0.9634	0.9048	0.9105	0.9414
3	0.9065	0.9151	0.8973	0.8648	0.8687	0.9586	0.8840	0.8902	0.9261
4	0.8863	0.8951	0.8743	0.8556	0.8595	0.9555	0.8694	0.8759	0.9122
5	0.8685	0.8773	0.8538	0.8503	0.8547	0.9536	0.8581	0.8649	0.9000
6	0.8515	0.8601	0.8346	0.8480	0.8517	0.9518	0.8484	0.8550	0.8884
7	0.8352	0.8437	0.8160	0.8462	0.8495	0.9499	0.8393	0.8457	0.8768
8	0.8197	0.8279	0.7979	0.8455	0.8490	0.9479	0.8310	0.8375	0.8654
9	0.8044	0.8124	0.7805	0.8458	0.8489	0.9456	0.8232	0.8294	0.8539
10	0.7894	0.7971	0.7633	0.8461	0.8485	0.9440	0.8154	0.8212	0.8428

下载: 导出CSV

表 2 VOC2012数据集的CCPR, CCFR和E-score结果

τ	CCPR			CCFR			E-score
τ	Gcs	Ledecolor	VA-IDN	Gcs	Ledecolor	VA-IDN	Gcs	Ledecolor	VA-IDN
1	0.9687	0.9710	0.9683	0.9382	0.9378	0.9708	0.9531	0.9539	0.9695
2	0.9404	0.9446	0.9404	0.8640	0.8630	0.9557	0.9002	0.9016	0.9479
3	0.9185	0.9244	0.9195	0.8130	0.8113	0.9518	0.8621	0.8637	0.9352
4	0.8972	0.9052	0.8989	0.7835	0.7812	0.9530	0.8360	0.8381	0.9249
5	0.8788	0.8887	0.8810	0.7667	0.7639	0.9546	0.8183	0.8209	0.9159
6	0.8617	0.8736	0.8642	0.7589	0.7551	0.9558	0.8062	0.8092	0.9072
7	0.8458	0.8595	0.8483	0.7560	0.7516	0.9580	0.7973	0.8009	0.8992
8	0.8308	0.8461	0.8334	0.7563	0.7512	0.9597	0.7906	0.7947	0.8913
9	0.8166	0.8333	0.8191	0.7589	0.7529	0.9609	0.7853	0.7898	0.8833
10	0.8031	0.8211	0.8055	0.7628	0.7568	0.9620	0.7809	0.7863	0.8755

下载: 导出CSV

表 3 NCD数据集的CCPR, CCFR和E-score结果

τ	CCPR			CCFR			E-score
τ	Gcs	Ledecolor	VA-IDN	Gcs	Ledecolor	VA-IDN	Gcs	Ledecolor	VA-IDN
1	0.9503	0.9587	0.9451	0.9466	0.9389	0.9716	0.9480	0.9483	0.9579
2	0.9493	0.9581	0.9431	0.9184	0.8976	0.9644	0.9327	0.9261	0.9533
3	0.9471	0.9568	0.9431	0.9010	0.8729	0.9611	0.9223	0.9119	0.9516
4	0.9424	0.9535	0.9399	0.8925	0.8572	0.9604	0.9153	0.9015	0.9496
5	0.9376	0.9507	0.9362	0.8883	0.8481	0.9612	0.9104	0.8948	0.9480
6	0.9317	0.9477	0.9311	0.8867	0.8429	0.9619	0.9064	0.8903	0.9456
7	0.9252	0.9450	0.9251	0.8887	0.8405	0.9625	0.9040	0.8876	0.9427
8	0.9203	0.9432	0.9205	0.8900	0.8398	0.9630	0.9020	0.8862	0.9403
9	0.9131	0.9410	0.9127	0.8936	0.8407	0.9637	0.8999	0.8856	0.9362
10	0.9058	0.9390	0.9039	0.8971	0.8426	0.9645	0.8977	0.8856	0.9315

下载: 导出CSV

表 4 彩色图像灰度化的PSNR和SSIM值

数据指标	VOC2012		Wallpaper		NCD
数据指标	IDN	VA-IDN	IDN	VA-IDN	IDN	VA-IDN
PSNR (dB)	40.660	45.648	34.969	37.781	43.611	45.639
SSIM	0.9790	0.9982	0.9092	0.9913	0.9791	0.9988

下载: 导出CSV

表 5 灰度图像色彩复原的PSNR和SSIM值

数据指标	VOC2012		Wallpaper		NCD
数据指标	IDN	VA-IDN	IDN	VA-IDN	IDN	VA-IDN
PSNR (dB)	39.505	64.759	35.068	64.696	42.245	45.777
SSIM	0.9868	0.9998	0.9553	0.9998	0.9884	0.9969

下载: 导出CSV
