Distributed Batch Reconstruction of Time-varying Graph Signals via Sobolev Smoothness on Cartesian Product Graph

Funds: The National Natural Science Foundation of China (62171146, 62261014), Guangxi Special Fund Project for Innovation-driven Development(GuikeAA21077008), Guangxi Natural Science Foundation for Distinguished Young Scholar (2021GXNSFFA220004), Guangxi Science and Technology Base and Talent Special Project(Guike AD21220112), Opening Fund of Key Laboratory of Cognitive Radio and Information Processing, Ministry of Education (CRKL210206)
  • 摘要: 针对大规模网络数据的重构问题,该文以图信号处理(GSP)理论为基础,提出一种基于笛卡尔乘积图上Sobolev平滑的分布式批量重构算法(DBR-SSC)。该算法首先按时间顺序将时变图信号划分为多个信号段,并利用笛卡尔积将每一段内各时刻的图建模为乘积图;然后利用笛卡尔乘积图上的Sobolev差分平滑,将每一段的信号重构问题归结为优化问题;最后设计具有高收敛速度的分布式算法求解该优化问题。采用两种现实世界的数据集进行仿真实验,实验结果表明所提算法重构误差低并具有高收敛速度。

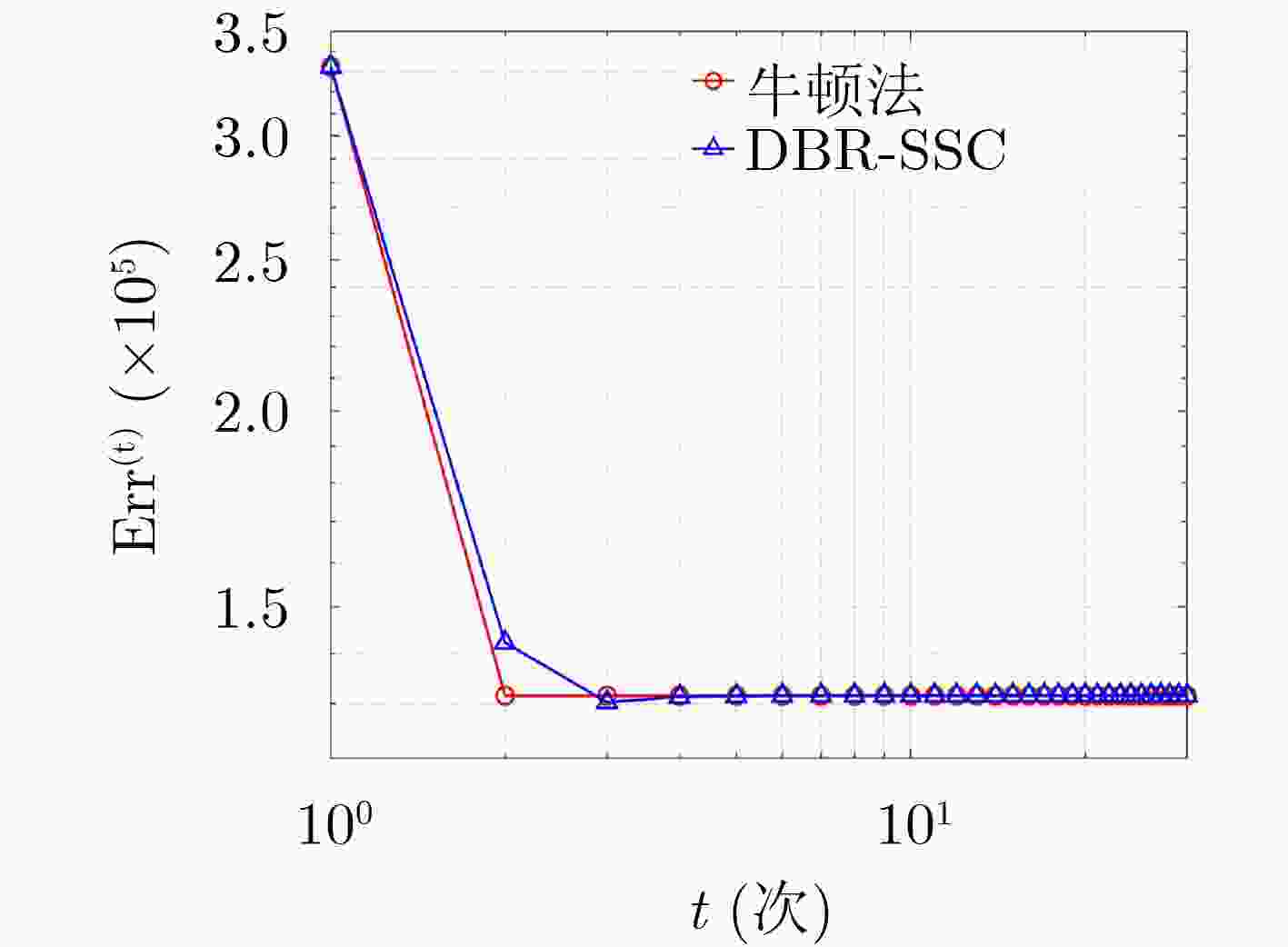

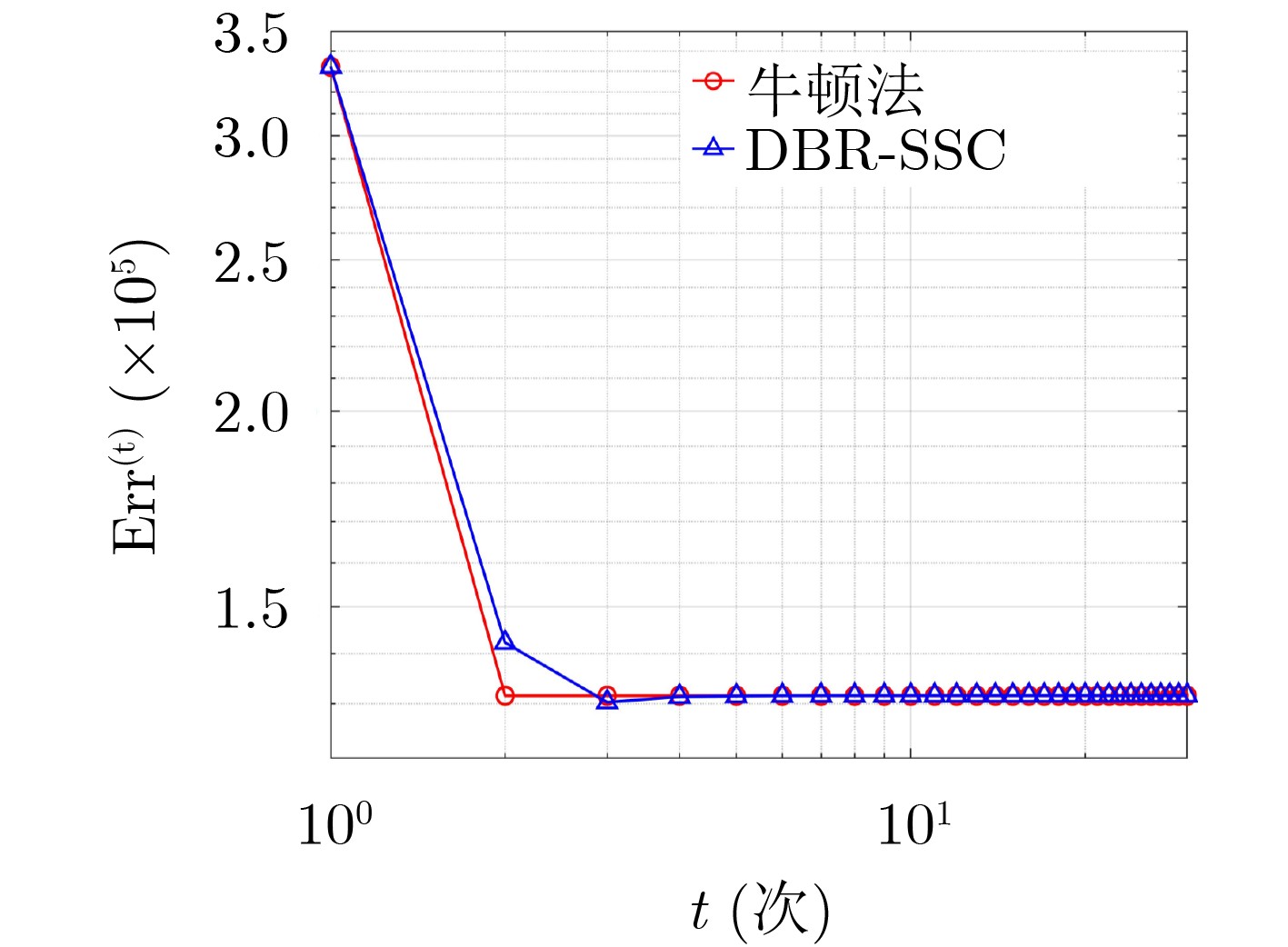

  • 图  1  PM2.5数据集上本文算法与牛顿法的收敛速度对比

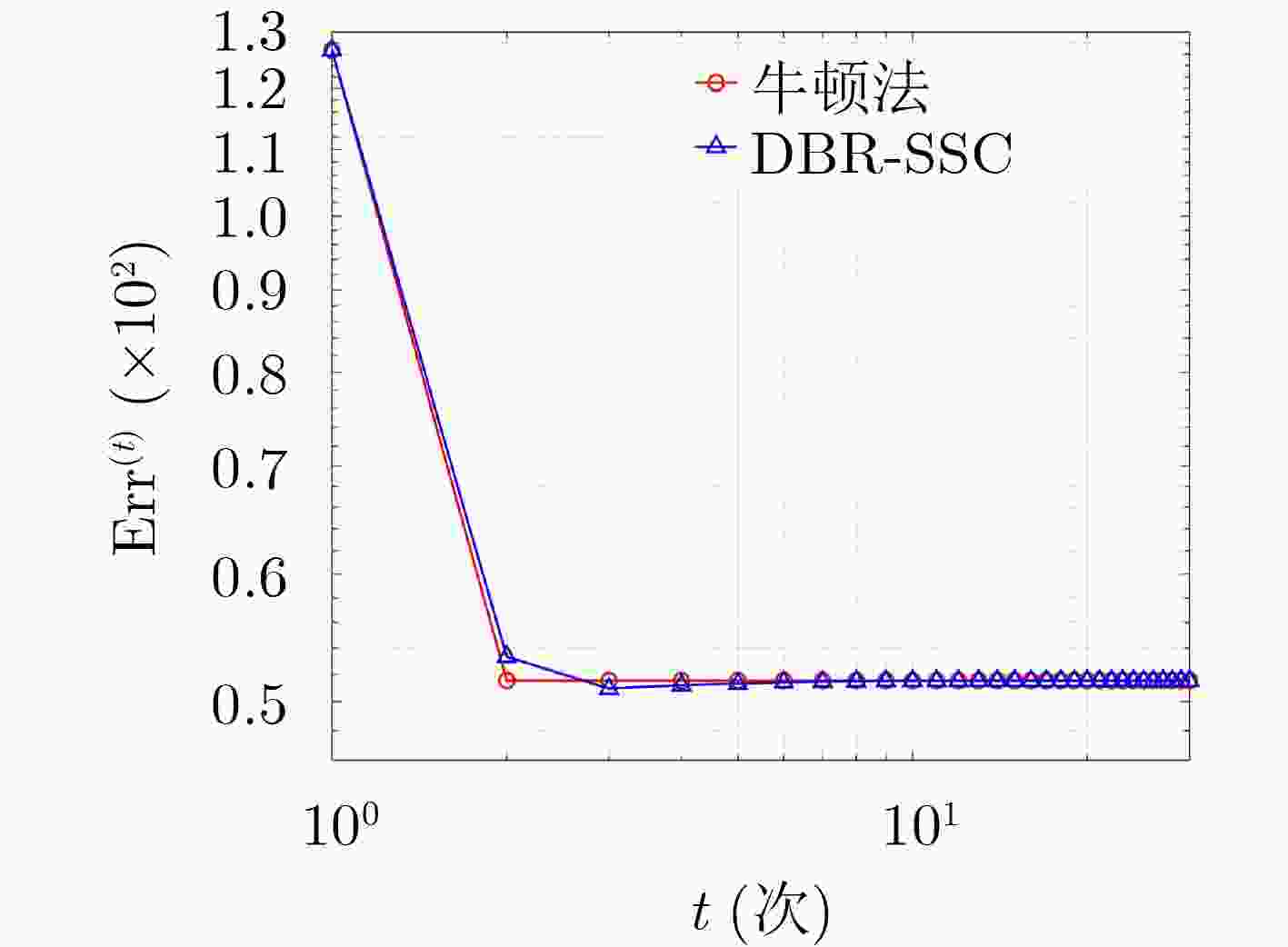

    图  2  COVID-19数据集上本文算法与牛顿法的收敛速度对比

    算法1 段内时变图信号$ \bar {\boldsymbol{x}} $的分布式批量重构算法
     输入:矩阵$\bar {\boldsymbol{H}}$,观测信号$\bar {\boldsymbol{y}}$,迭代停止标准$ \varepsilon $,最大迭代次数$ K $, ${\bar {\boldsymbol{x}}^{(0)} }{\text{ = } }{{ {\textit{0}}}}$, $ t = 0 $。
     步骤:
       步骤1 根据式(12)计算$\bar {\boldsymbol{P}}$。
       步骤2 每一个子图中心节点(m,i)计算
                 ${{\boldsymbol{\chi}} _{(m,i)} }{\bar {\boldsymbol{x} }^{(t + 1)} } = {{\boldsymbol{\chi}} _{(m,i)} }{\bar {\boldsymbol{x} }^{(t)} } - {{\boldsymbol{\chi}} _{(m,i)} }\bar {\boldsymbol{P} }{{\boldsymbol{\chi}} _{(m,i)} }({{\boldsymbol{\chi}} _{(m,i)} }\bar {\boldsymbol{H} }{{\boldsymbol{\chi}} _{(m,i)} }{\bar {\boldsymbol{x} }^{(t)} } - {{\boldsymbol{\chi}} _{(m,i)} }\bar {\boldsymbol{y} })$           (14)
     并向${\bar {\boldsymbol{v}}_{(m,i)} }$中的所有节点$ (k,l) $发送相应的信号值${{\boldsymbol{\chi}} _{(m,i)} }{\bar {\boldsymbol{x} }^{(t{\text{ + } }1)} }{(h)_{h = N \times (k - 1) + l} }$。
       步骤3 $ \bar V $中的各节点对接收到的信号值进行平均,然后将平均值分别发送给所在子图的中心节点。
       步骤4 各子图中心节点(m,i)将收到的信号值以及自身的信号值组成新的子图信号${{\boldsymbol{\chi}} _{(m,i)} }{\bar {\boldsymbol{x} }^{(t{\text{ + } }1)} }$,如果
           $\left\| { {{\boldsymbol{\chi}} _{(m,i)} }{ {\bar {\boldsymbol{x} } }^{(t + 1)} } - {{\boldsymbol{\chi}} _{(m,i)} }{ {\bar {\boldsymbol{x} } }^{(t)} } } \right\|_2^2 < \varepsilon$成立或$ t > K $,则结束程序。否则,令$ t = t + 1 $,并返回步骤2。
     输出:${\bar {\boldsymbol{x}}^{(t + 1)} }$作为本段的重构信号。
    下载: 导出CSV

    表  1  PM2.5数据集上各种算法的平均重构误差(RMSE)对比

    算法受损节点数量占比(%)
    10 20 30
    BR-DS1.291.942.43
    BR-SS1.291.942.43
    BR-TR1.602.372.91
    DBR-SSC1.291.912.41
    下载: 导出CSV

    表  2  PM2.5数据集上各种算法的平均迭代次数对比

    算法受损节点数量占比(%)
    102030
    BR-DS1.562.723.52
    BR-SS1.532.543.28
    BR-TR0.430.600.66
    DBR-SSC0.150.160.20
    下载: 导出CSV

    表  3  PM2.5数据集上各种算法所用平均CPU时间对比 (10–3 s)

    算法受损节点数量占比(%)
    102030
    BR-DS1.181.952.45
    BR-SS1.171.892.32
    BR-TR0.390.450.49
    DBR-SSC2.012.012.03
    下载: 导出CSV

    表  4  COVID-19数据集上各种算法的平均重构误差(RMSE)对比

    算法受损节点数量占比(%)
    102030
    BR-DS204341463
    BR-SS204341462
    BR-TR5819961254
    DBR-SSC196332447
    下载: 导出CSV

    表  5  COVID-19数据集上各种算法的平均迭代次数对比

    算法受损节点数量占比(%)
    102030
    BR-DS6.646.676.67
    BR-SS4.276.646.67
    BR-TR0.560.700.85
    DBR-SSC0.330.540.75
    下载: 导出CSV

    表  6  COVID-19数据集上各种算法所用平均CPU时间对比 (10–3 s)

    算法受损节点数量占比(%)
    102030
    BR-DS12.5612.5612.67
    BR-SS8.4412.6312.59
    BR-TR1.201.411.73
    DBR-SSC7.978.128.19
    下载: 导出CSV
