基于图信号处理的频控阵雷达目标定位方法

谢宁波 欧阳缮 廖可非 王海涛 蒋俊正

谢宁波, 欧阳缮, 廖可非, 王海涛, 蒋俊正. 基于图信号处理的频控阵雷达目标定位方法[J]. 电子与信息学报, 2023, 45(5): 1559-1566. doi: 10.11999/JEIT220970
引用本文: 谢宁波, 欧阳缮, 廖可非, 王海涛, 蒋俊正. 基于图信号处理的频控阵雷达目标定位方法[J]. 电子与信息学报, 2023, 45(5): 1559-1566. doi: 10.11999/JEIT220970
XIE Ningbo, OUYANG Shan, LIAO Kefei, WANG Haitao, JIANG Junzheng. A Novel Target Localization Method for Frequency Diverse Array Based on Graph Signal Processing[J]. Journal of Electronics & Information Technology, 2023, 45(5): 1559-1566. doi: 10.11999/JEIT220970
Citation: XIE Ningbo, OUYANG Shan, LIAO Kefei, WANG Haitao, JIANG Junzheng. A Novel Target Localization Method for Frequency Diverse Array Based on Graph Signal Processing[J]. Journal of Electronics & Information Technology, 2023, 45(5): 1559-1566. doi: 10.11999/JEIT220970

基于图信号处理的频控阵雷达目标定位方法

doi: 10.11999/JEIT220970
基金项目: 国家自然科学基金(61871425),广西创新驱动发展专项(桂科AA21077008),广西无线宽带通信与信息处理重点实验室主任基金(GXKL06170110),广西八桂学者专项(2019A51)
详细信息
    作者简介:

    谢宁波:男,博士生,研究方向为阵列信号处理、雷达信号处理

    欧阳缮:男,教授,研究方向为雷达信号处理、通信信号处理

    廖可非:男,副教授,研究方向为雷达成像、RCS测量、认知雷达

    王海涛:男,高级工程师,研究方向为雷达信号处理

    蒋俊正:男,教授,研究方向为图信号处理理论与算法、分布式信号处理理论与算法、大规模传感器网络数据处理

    通讯作者:

    欧阳缮 hmoysh@guet.edu.cn

  • 中图分类号: TN958

A Novel Target Localization Method for Frequency Diverse Array Based on Graph Signal Processing

Funds: The National Natural Science Foundation of China (61871425), Guangxi Special Fund Project for Innovation-driven Development (GuikeAA21077008), The Fund of Guangxi Key Laboratory of Wireless Wideband Communication and Signal Processing (GXKL06170110), The Guangxi Bagui Scholar Foundation (2019A51)
  • 摘要: 针对现代雷达应用对目标高精度测角和测距的需求,该文将图信号处理(GSP)应用于频控阵(FDA)雷达目标定位中,提出一种基于图信号处理的频控阵雷达目标定位新方法。首先,基于频控阵雷达几何模型及回波数据间的信号关联性构建回波数据的图信号模型,进而利用图傅里叶变换对上述图信号作图谱分解,构建2维谱峰搜索优化函数,最终有效获得目标的方位角-距离联合估计。仿真实验结果表明,该算法能够正确估计出目标的方位角和距离信息;在相同仿真条件下,算法的估计精度优于同类算法且提升了对弱目标的定位性能。

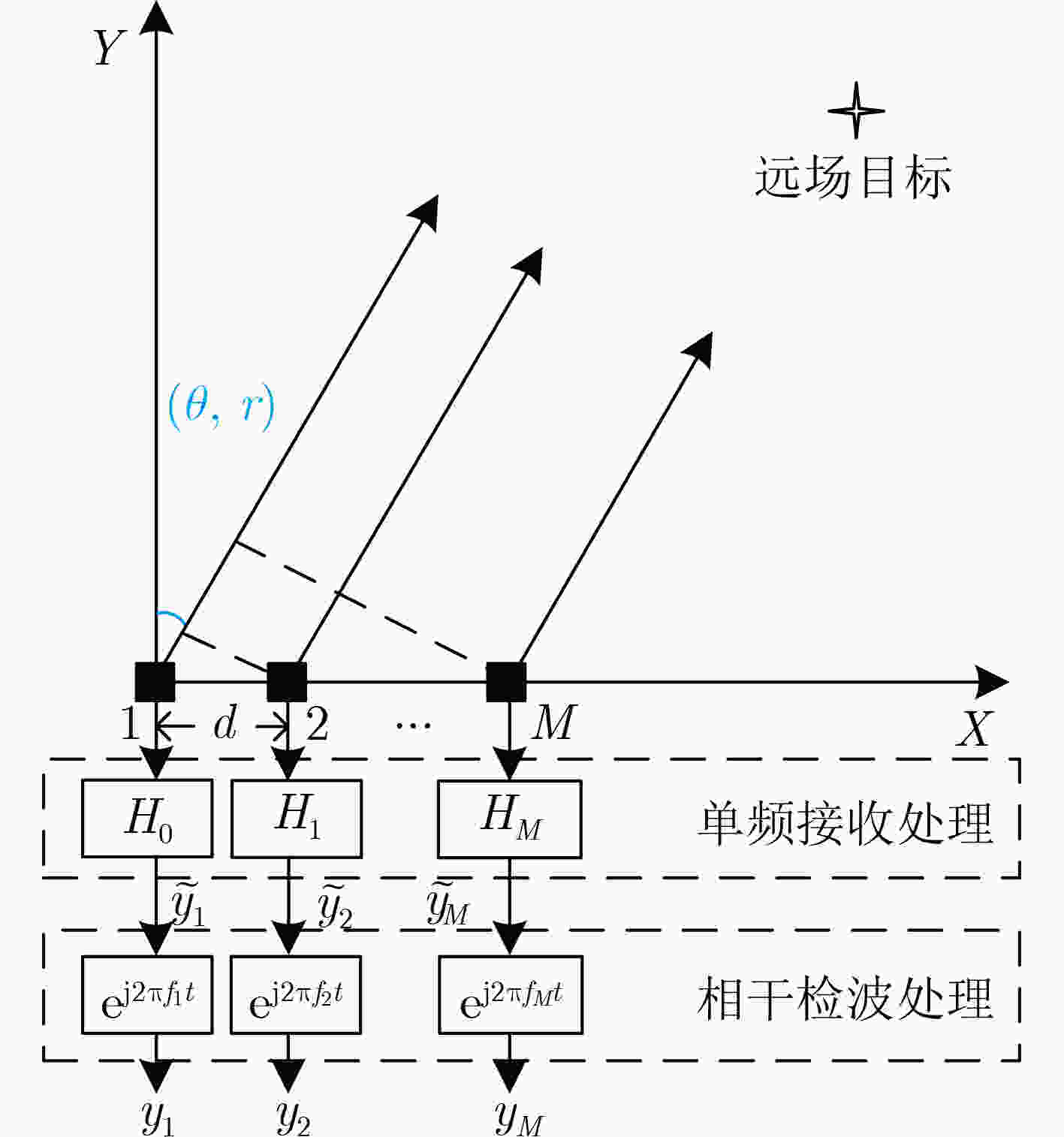

  • 图  1  单基地频控阵雷达阵列结构示意图及信号处理流图

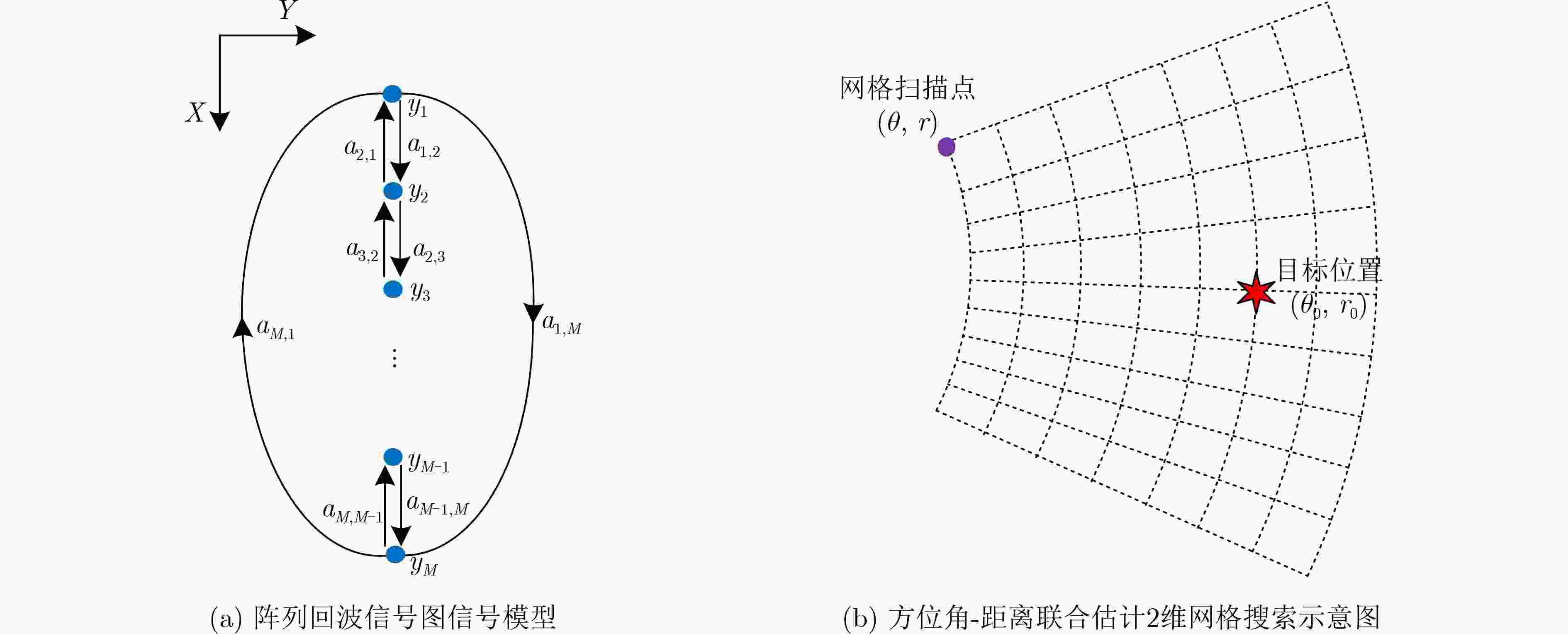

    图  2  算法图信号模型及方位角-距离联合估计2维网格搜索示意图

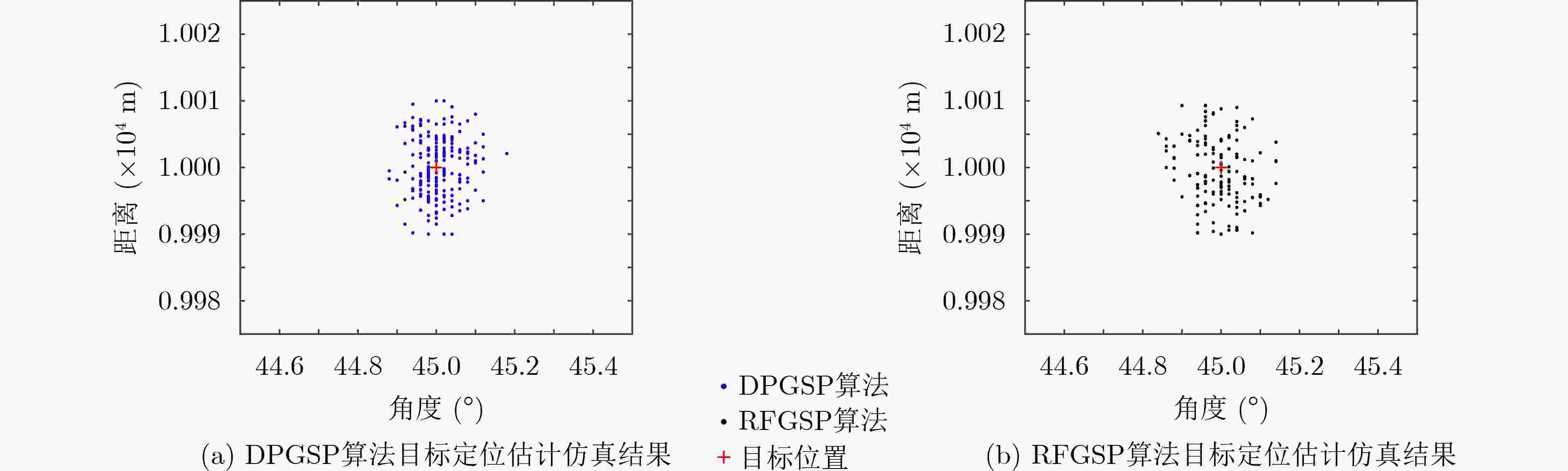

    图  3  本文算法下的定位估计仿真结果

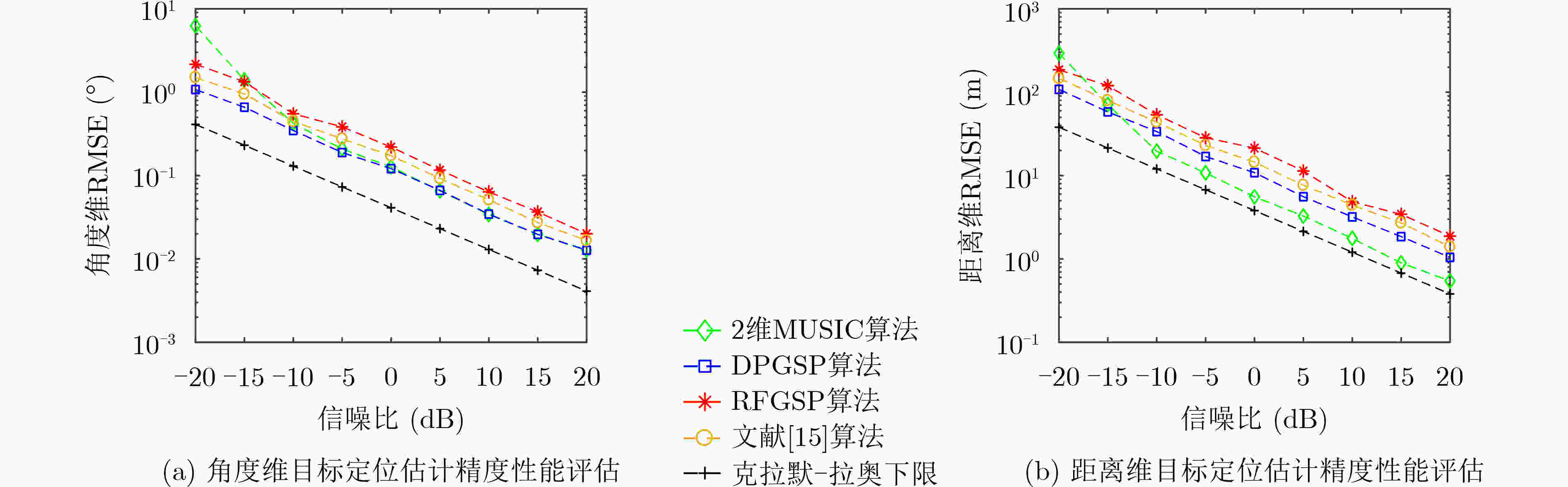

    图  4  不同算法下定位精度性能比较

    表  1  实验仿真参数列表

    载频频率增量最大无模糊探测距离阵元数阵元间距快拍数目标位置扫描精度信噪比
    参数值5 GHz10 kHz15 km110.015 m128(45°, 10 km)角度维0.1°距离维0.5 m10 dB
    下载: 导出CSV

    表  2  各算法仿真平均耗时比较(s)

    2维MUSICDPGSPRFGSP
    仿真平均耗时2.19028.19863.6768
    下载: 导出CSV
