Secure and Robust Beamforming Algorithm for RIS Assisted MISO Systems
-

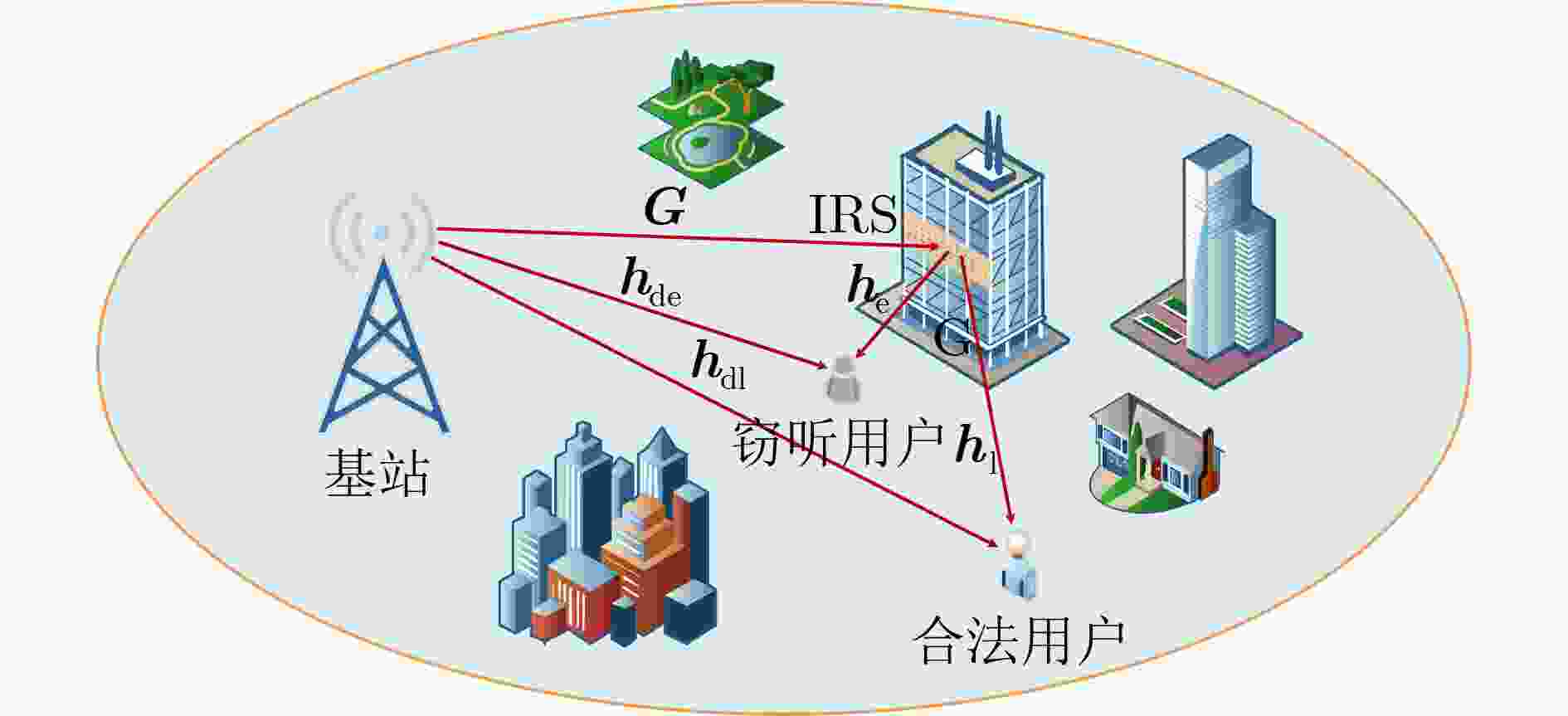

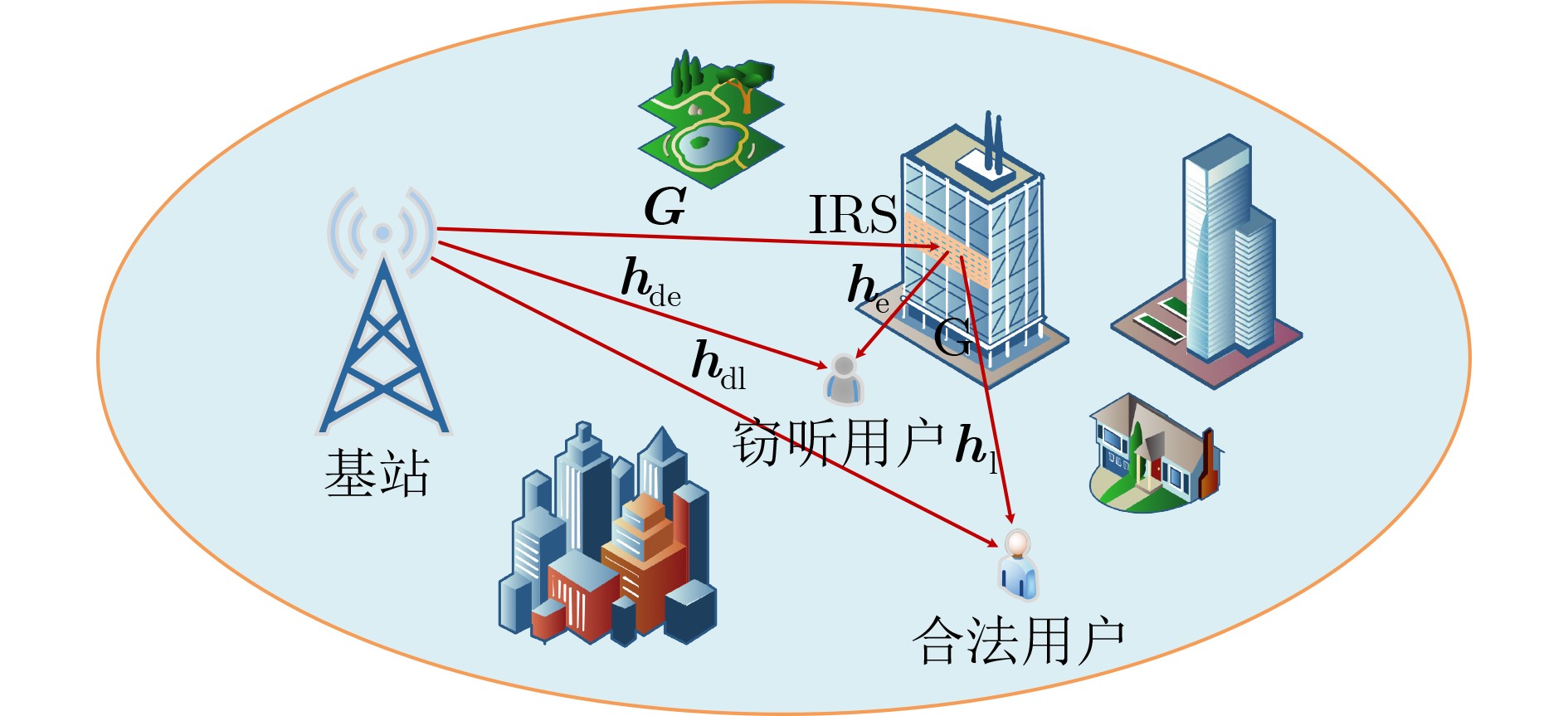

摘要: 为解决无线信道开放性导致的信息传输安全及信道估计误差等不确定性带来的系统传输性能恶化问题，该文提出一种存在用户窃听的可重构智能超表面(RIS)辅助多输入单输出(MISO)系统的Charnes-Cooper鲁棒波束赋形算法。针对窃听用户建立有界信道不确定性模型，并通过约束最大发射功率以及RIS相移，联合优化基站波束和RIS相移来最大化用户保密率。为求解该非凸问题，首先通过变量替换、Charnes-Cooper方法和S-procedure方法将其转换为凸优化问题，进而采用间接交替优化耦合变量来获得鲁棒波束赋形矩阵和RIS相移。仿真结果表明，该文提出的基于RIS的联合优化算法具有更好的用户保密率和鲁棒性。Abstract: To solve the problem of information transmission security caused by wireless channel openness and system transmission performance deterioration caused by channel estimation error, a Charnes-Cooper robust beamforming algorithm is proposed for Reconfigurable Intelligent Surface (RIS) assisted Multiple-Input Single-Output (MISO) systems with eavesdroppers. A bounded channel uncertainty model is established for the eavesdropper, and the base station beamforming and RIS phase shift are jointly optimized to maximize user secrecy rate based on the constraints of maximum transmit power and RIS phase shifts. To solve the non-convex problem, it is first converted to a convex optimization problem by variable substitution, Charnes-Cooper method and S-procedure method, and then the coupling variables are indirectly and alternately optimized to obtain robust beamforming matrix and RIS phase shifts. Simulation results show that the proposed RIS-based joint optimization algorithm has better user confidentiality and robustness.
-

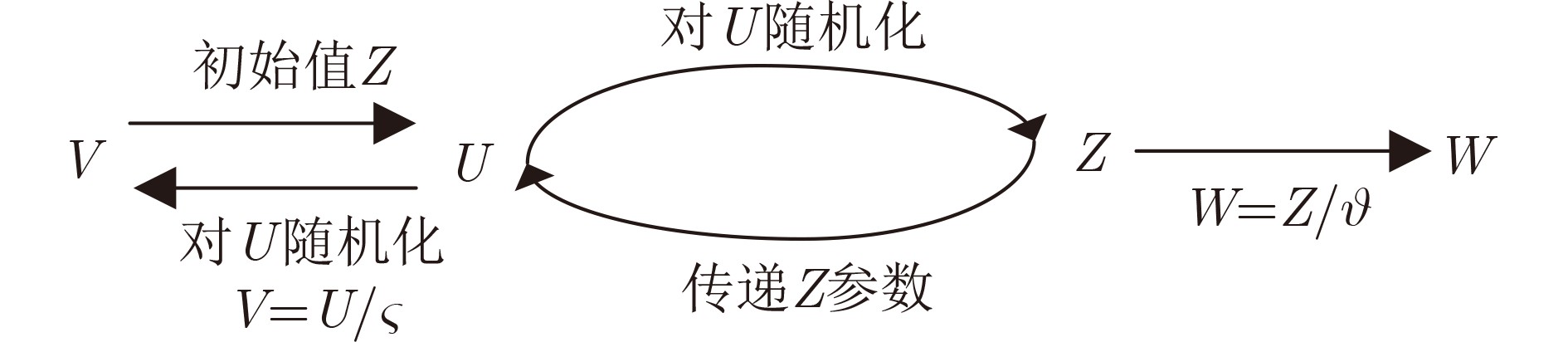

算法1 具体步骤 初始化$N$, $M$, $ {P^{\max }} $, ${\boldsymbol{Z}}$、信道参数、信道不确定度和位置，设
置最大迭代次数和收敛精度；1: for iter=1, 2,···, iter(max)： 2: 求解问题式(18)得到Charnes-Cooper转化后的半正定矩阵${\boldsymbol{U}}$和
辅助变量$ \eta $；3: 根据特征值分解以及高斯随机化得到${\boldsymbol{\varphi }}$和$\overline {\boldsymbol{U}} $； 4: 根据公式$ \overline {\boldsymbol{V}} = \overline {\boldsymbol{U}} /\varsigma $得到RIS的相移矩阵${\boldsymbol{\psi }}$； 5: 求解问题式(26)得到Charnes-Cooper转化后的半正定矩阵${\boldsymbol{Z}}$和
辅助变量$ \varepsilon $；6: 依据公式${\boldsymbol{W}} = {\boldsymbol{Z}}/\vartheta $得到基站的波束矩阵${\boldsymbol{W}}$; 7: 根据式(28)计算用户保密率； 8: if $\left| { {R^{({\rm{iter}} + 1)} } - {R^{({\rm{iter}})} } } \right| \le { { {\varepsilon } }_{\text{p} } }$ break else iter=iter+1； end 9: end
下载: 导出CSV
-
[1] 胡莹, 黄永明, 俞菲, 等. 多用户大规模MIMO系统能效资源分配算法[J]. 电子与信息学报, 2015, 37(9): 2198–2203. doi: 10.11999/JEIT150088HU Ying, HUANG Yongming, YU Fei, et al. Energy-efficient resource allocation based on multi-user massive MIMO system[J]. Journal of Electronics &Information Technology, 2015, 37(9): 2198–2203. doi: 10.11999/JEIT150088 [2] 金梁, 宋昊天, 钟州, 等. 多用户大规模MIMO自适应安全传输策略[J]. 电子与信息学报, 2018, 40(6): 1468–1475. doi: 10.11999/JEIT170974JIN Liang, SONG Haotian, ZHONG Zhou, et al. Adaptive secure transmission strategy for multiuser massive MIMO[J]. Journal of Electronics &Information Technology, 2018, 40(6): 1468–1475. doi: 10.11999/JEIT170974 [3] LI Guoquan, HONG Zijie, PANG Yu, et al. Resource allocation for sum-rate maximization in NOMA-based generalized spatial modulation[J]. Digital Communications and Networks, 2022, 8(6): 1077–1084. doi: 10.1016/j.dcan.2022.02.005 [4] LI Guoquan, ZHANG Hui, WANG Yuhui, et al. QoS guaranteed power minimization and beamforming for IRS-assisted NOMA systems[J]. IEEE Wireless Communications Letters, 2023, 12(3): 391–395. doi: 10.1109/LWC.2022.3189272 [5] HUANG Chongwen, HU Sha, ALEXANDROPOULOS G C, et al. Holographic MIMO surfaces for 6G wireless networks: Opportunities, challenges, and trends[J]. IEEE Wireless Communications, 2020, 27(5): 118–125. doi: 10.1109/MWC.001.1900534 [6] ZHOU Gui, PAN Cunhua, REN Hong, et al. Robust beamforming design for intelligent reflecting surface aided MISO communication systems[J]. IEEE Wireless Communications Letters, 2020, 9(10): 1658–1662. doi: 10.1109/LWC.2020.3000490 [7] ALMOHAMAD A, TAHIR A M, AL-KABABJI A, et al. Smart and secure wireless communications via reflecting intelligent surfaces: A short survey[J]. IEEE Open Journal of the Communications Society, 2020, 1: 1442–1456. doi: 10.1109/OJCOMS.2020.3023731 [8] CHEN Jie, LIANG Yingchang, PEI Yiyang, et al. Intelligent reflecting surface: A programmable wireless environment for physical layer security[J]. IEEE Access, 2019, 7: 82599–82612. doi: 10.1109/ACCESS.2019.2924034 [9] WU Qingqing and ZHANG Rui. Intelligent reflecting surface enhanced wireless network: Joint active and passive beamforming design[C]. 2018 IEEE Global Communications Conference, Abu Dhabi, United Arab Emirates, 2018: 1–6. doi: 10.1109/GLOCOM.2018.8647620. [10] FU Min, ZHOU Yong, and SHI Yuanming. Intelligent reflecting surface for downlink non-orthogonal multiple access networks[C]. 2019 IEEE Globecom Workshops, Waikoloa, USA, 2019: 1–6. doi: 10.1109/GCWkshps45667.2019.9024675. [11] HUANG Chongwen, ZAPPONE A, ALEXANDROPOULOS G C, et al. Reconfigurable intelligent surfaces for energy efficiency in wireless communication[J]. IEEE Transactions on Wireless Communications, 2019, 18(8): 4157–4170. doi: 10.1109/TWC.2019.2922609 [12] YU Xianghao, XU Dongfang, and SCHOBER R. Enabling secure wireless communications via intelligent reflecting surfaces[C]. 2019 IEEE Global Communications Conference, Waikoloa, USA, 2019: 1–6. doi: 10.1109/GLOBECOM38437.2019.9014322. [13] XU Dongfang, YU Xianghao, SUN Yan, et al. Resource allocation for secure IRS-assisted multiuser MISO systems[C]. 2019 IEEE Globecom Workshops, Waikoloa, USA, 2019: 1–6. doi: 10.1109/GCWkshps45667.2019.9024490. [14] WANG Qun, ZHOU Fuhui, HU R Q, et al. Energy efficient robust beamforming and cooperative jamming design for IRS-assisted MISO networks[J]. IEEE Transactions on Wireless Communications, 2021, 20(4): 2592–2607. doi: 10.1109/TWC.2020.3043325 [15] 景小荣, 宋振远, 高维, 等. 智能反射表面辅助的MISO通信系统的物理层安全设计方案[J]. 通信学报, 2022, 43(1): 117–126. doi: 10.11959/j.issn.1000-436x.2022018JING Xiaorong, SONG Zhenyuan, GAO Wei, et al. Design scheme of physical layer security for intelligent reflecting surface-assisted MISO communication system[J]. Journal on Communications, 2022, 43(1): 117–126. doi: 10.11959/j.issn.1000-436x.2022018 [16] YU Xianghao, XU Dongfang, SUN Ying, et al. Robust and secure wireless communications via intelligent reflecting surfaces[J]. IEEE Journal on Selected Areas in Communications, 2020, 38(11): 2637–2652. doi: 10.1109/JSAC.2020.3007043 [17] GUAN Xinrong, WU Qingqing, and ZHANG Rui. Intelligent reflecting surface assisted secrecy communication: Is artificial noise helpful or not?[J]. IEEE Wireless Communications Letters, 2020, 9(6): 778–782. doi: 10.1109/LWC.2020.2969629 [18] ZHANG Zheng, LV Lu, WU Qingqing, et al. Robust and secure communications in intelligent reflecting surface assisted NOMA networks[J]. IEEE Communications Letters, 2021, 25(3): 739–743. doi: 10.1109/LCOMM.2020.3039811 [19] LI Qiang and MA W K. Optimal and robust transmit designs for MISO channel secrecy by semidefinite programming[J]. IEEE Transactions on Signal Processing, 2011, 59(8): 3799–3812. doi: 10.1109/TSP.2011.2146775 [20] LUO Zhiquan, MA W K, SO A M C, et al. Semidefinite relaxation of quadratic optimization problems[J]. IEEE Signal Processing Magazine, 2010, 27(3): 20–34. doi: 10.1109/MSP.2010.936019 [21] ZHOU Gui, PAN Cunhua, REN Hong, et al. Secure wireless communication in RIS-aided MISO system with hardware impairments[J]. IEEE Wireless Communications Letters, 2021, 10(6): 1309–1313. doi: 10.1109/LWC.2021.3064992 [22] HAN Yu, TANG Wankai, JIN Shi, et al. Large intelligent surface-assisted wireless communication exploiting statistical CSI[J]. IEEE Transactions on Vehicular Technology, 2019, 68(8): 8238–8242. doi: 10.1109/TVT.2019.2923997 [23] WEI Li, HUANG Chongwen, ALEXANDROPOULOS G C, et al. Channel estimation for RIS-empowered multi-user MISO wireless communications[J]. IEEE Transactions on Communications, 2021, 69(6): 4144–4157. doi: 10.1109/TCOMM.2021.3063236 [24] ABEYWICKRAMA S, ZHANG Rui, WU Qingqing, et al. Intelligent reflecting surface: Practical phase shift model and beamforming optimization[J]. IEEE Transactions on Communications, 2020, 68(9): 5849–5863. doi: 10.1109/TCOMM.2020.3001125 [25] WU Qingqing and ZHANG Rui. Towards smart and reconfigurable environment: Intelligent reflecting surface aided wireless network[J]. IEEE Communications Magazine, 2020, 58(1): 106–112. doi: 10.1109/MCOM.001.1900107 -
图(9) / 表(2)
