基于时空特征增强图卷积网络的骨架行为识别

曹毅; 吴伟官; 李平; 夏宇; 高清源

doi:10.11999/JEIT220749

基于时空特征增强图卷积网络的骨架行为识别

doi: 10.11999/JEIT220749

1.
江南大学机械工程学院无锡 214122
2.
江南大学江苏省食品制造装备重点实验室无锡 214122

基金项目: 国家自然科学基金(51375209)，江苏省“六大人才高峰”计划 (ZBZZ-012)，江苏省优秀科技创新团队基金(2019SK07)，高等学校学科创新引智计划(B18027)

详细信息

作者简介:
曹毅：男，教授，博士，研究方向为机器人机构学、机器人控制系统、深度学习

吴伟官：男，硕士生，研究方向为深度学习、行为识别、图像处理

李平：男，硕士生，研究方向为深度学习、声纹识别

夏宇：男，硕士生，研究方向为深度学习、行为识别

高清源：女，硕士生，研究方向为深度学习、行为识别

通讯作者:
曹毅　caoyi@jiangnan.edu.cn

中图分类号: TN911.73; TP391.41
计量
- 文章访问数: 1167
- HTML全文浏览量: 772
- PDF下载量: 205
- 被引次数: 0
出版历程
- 收稿日期: 2022-06-13
- 修回日期: 2022-10-31
- 网络出版日期: 2022-11-07
- 刊出日期: 2023-08-21

Skeleton Action Recognition Based on Spatio-temporal Feature Enhanced Graph Convolutional Network

1.
School of Mechanical Engineering, Jiangnan University, Wuxi 214122, China
2.
Jiangsu Key Laboratory of Advanced Food Manufacturing Equipment and Technology, Jiangnan University, Wuxi 214122, China

Funds: The National Natural Science Foundation of China (51375209), The Six Talent Peaks Project in Jiangsu Province (ZBZZ-012), The Excellent Technology Innovation Team Fundation of Jiangsu Province (2019SK07), The Programme of Introducing Talents of Discipline to Universities (B18027)

摘要

摘要: 针对骨架行为识别不能充分挖掘时空特征的问题，该文提出一种基于时空特征增强的图卷积行为识别模型(STFE-GCN)。首先，介绍表征人体拓扑结构邻接矩阵的定义及双流自适应图卷积网络模型的结构，其次，采用空域上的图注意力机制，根据邻居节点的重要性程度分配不同的权重系数，生成可充分挖掘空域结构特征的注意力系数矩阵，并结合非局部网络生成的全局邻接矩阵，提出一种新的空域自适应邻接矩阵，以期增强对人体空域结构特征的提取；然后，时域上采用混合池化模型以提取时域关键动作特征和全局上下文特征，并结合时域卷积提取的特征，以期增强对行为信息中时域特征的提取。再者，在模型中引入改进通道注意力网络(ECA-Net)进行通道注意力增强，更有利于模型提取样本的时空特征，同时结合空域特征增强、时域特征增强和通道注意力，构建时空特征增强图卷积网络模型在多流网络下实现端到端的训练，以期实现时空特征的充分挖掘。最后，在NTU-RGB+D和NTU-RGB+D120两个大型数据集上开展骨架行为识别研究，实验结果表明该模型具有优秀的识别准确率和泛化能力，也进一步验证了该模型充分挖掘时空特征的有效性。
- 行为识别 /
- 图注意力机制 /
- 混合池化 /
- 通道注意力 /
- 时空特征增强
Abstract: Considering the problem that skeleton action recognition can not fully exploit spatio-temporal features, a skeleton action recognition model based on Spatio-Temporal Feature Enhanced Graph Convolutional Network (STFE-GCN) is proposed in this paper. Firstly, the definition of adjacency matrix representing the topological structure of human body and the structure of one two-stream self-adaptive graph convolutional network model are introduced. Secondly, the graph attention network in spatial domain is used to assign different weight coefficients according to the importance of the neighbor nodes to generate an attention coefficient matrix, which can fully extract the spatial structure features of human body. Furthermore, a new spatial self-adaptive adjacency matrix is proposed to enhance furtherly the extraction of spatial structure features of human body combined with the global adjacency matrix generated by the non-local network; Then, a mixed pooling model is utilized in temporal domain to extract key action features and global contextual features, these two-above features can be furtherly combined with the features generated by the temporal convolution to enhance the extraction of temporal features from behavioral informations. Furthermore, an Efficient Channel Attention Network (ECA-Net)is introduced for channel attention to better extract the spatio-temporal features of the samples. Meanwhile, combining the spatial feature enhanced, the temporal feature enhanced with the channel attention, an novel model referred to as STFE-GCN is constructed and one end-to-end training can be realized based on mutil-stream network to achieve the full mining of spatio-temporal features. Finally, the researches on skeleton action recognition are carried on NTU-RGB+D and NTU-RGB+D120 datasets. The results show that this model has superior classification accuracy and generalization ability, which also further verifies the effectiveness of the model to fully mine spatio-temporal features.
- Action recognition /
- Graph attention network /
- Mixed pooling /
- Channel attention /
- Spatio-temporal feature enhanced

HTML全文

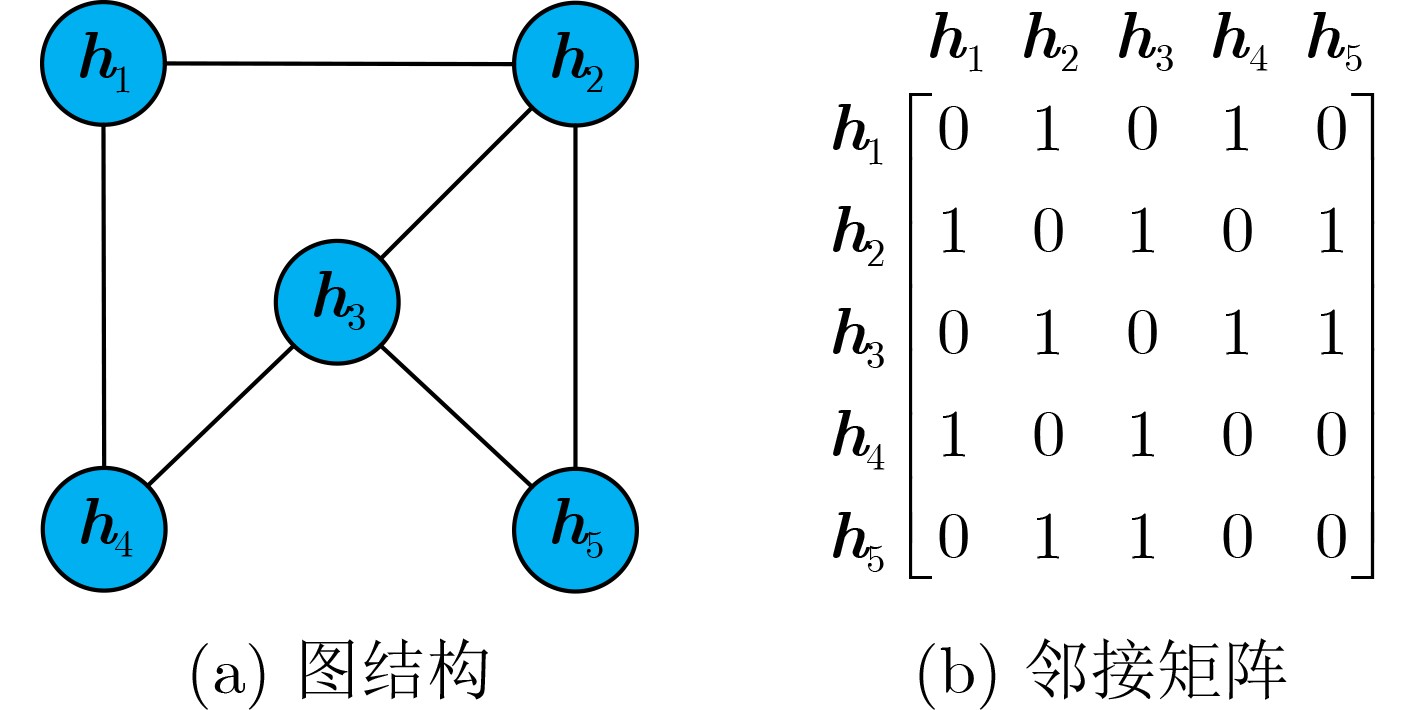

图 1 图结构及邻接矩阵

下载: 全尺寸图片幻灯片

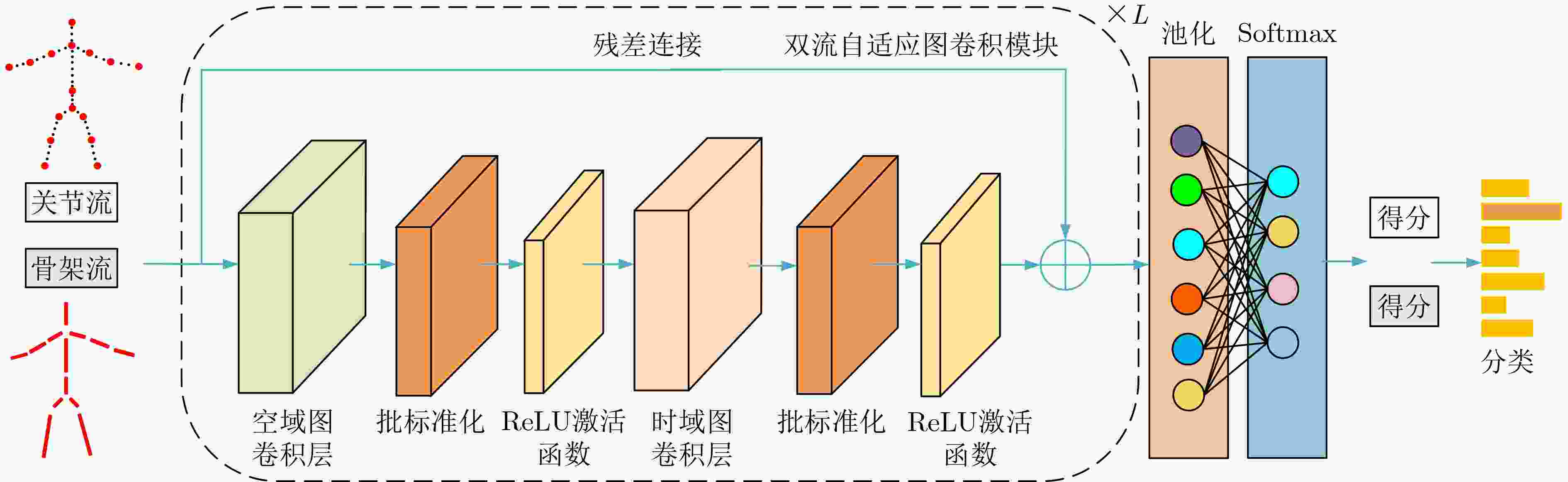

图 2 双流自适应图卷积网络结构

下载: 全尺寸图片幻灯片

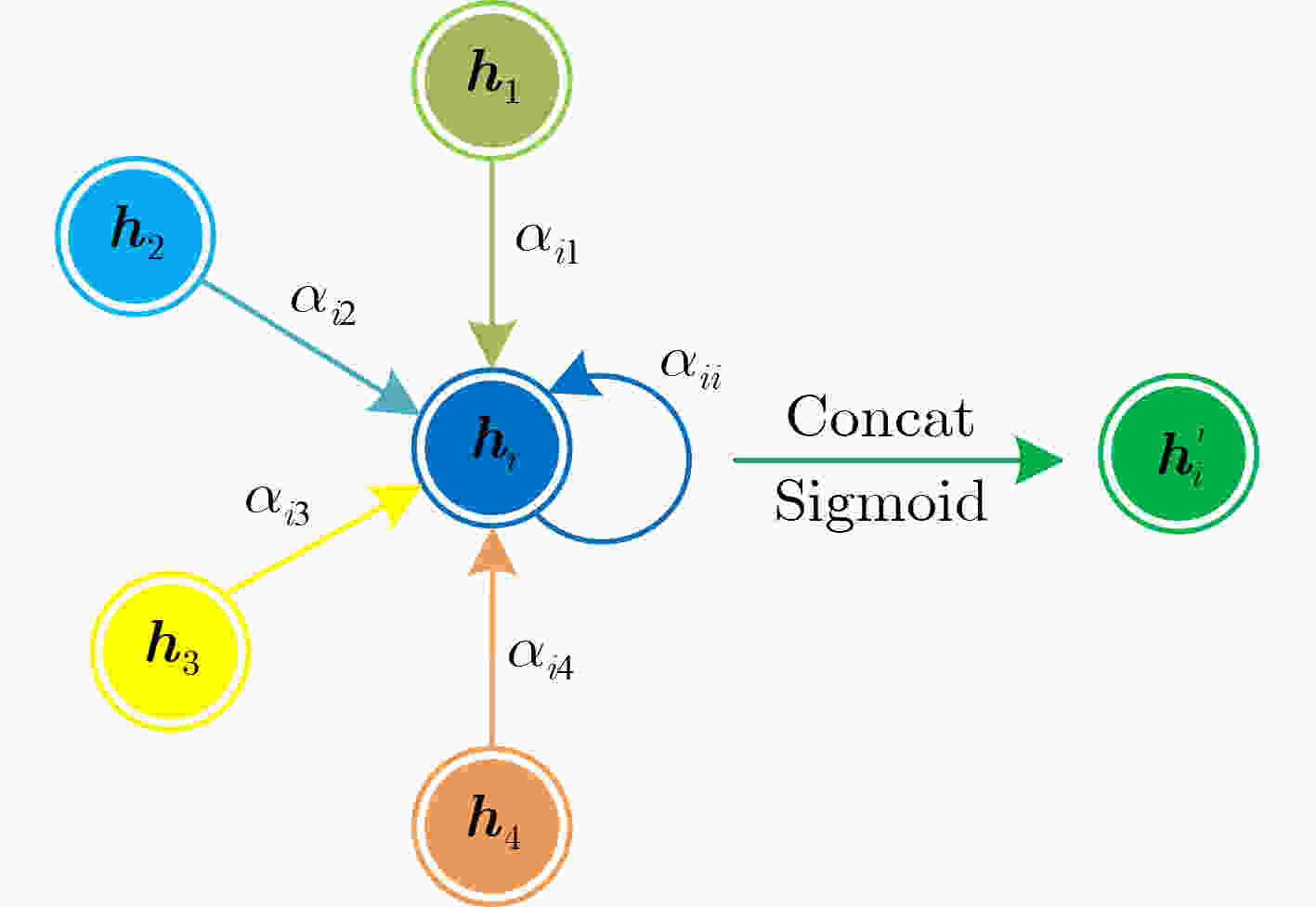

图 3 图注意力机制

下载: 全尺寸图片幻灯片

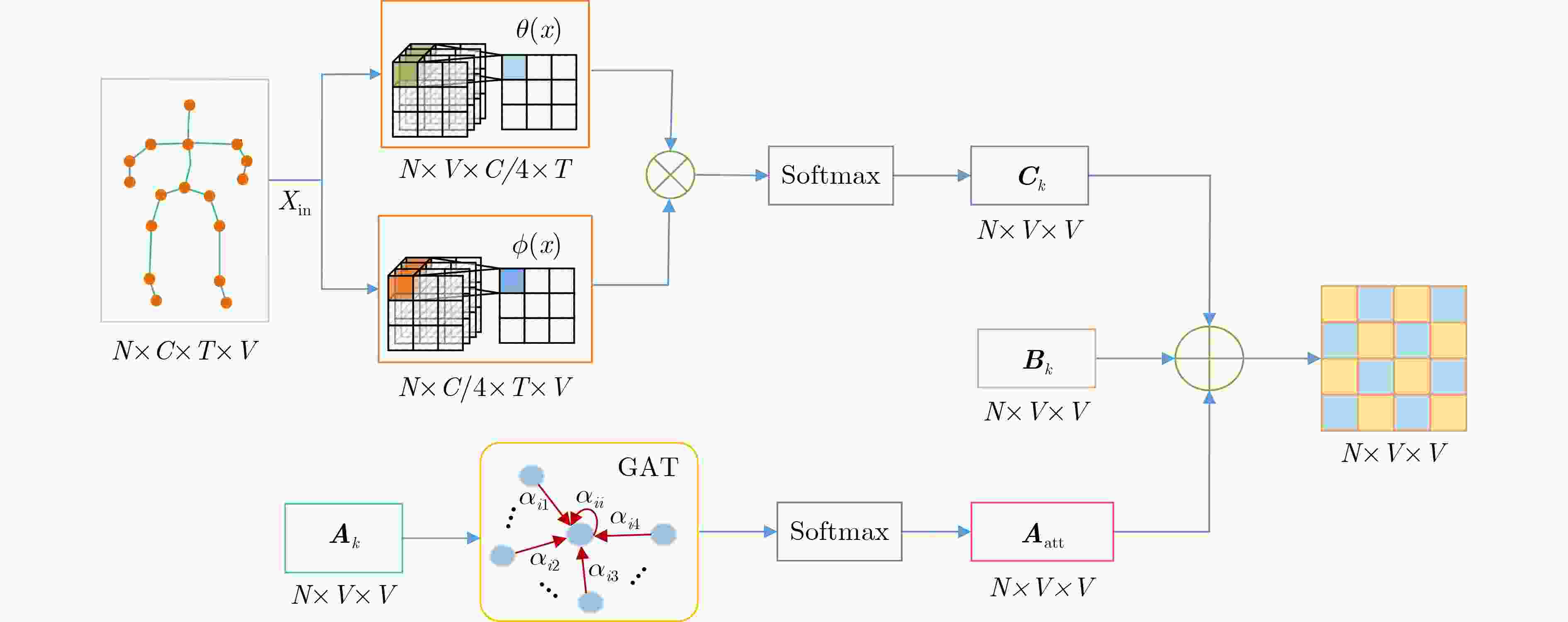

图 4 空域自适应邻接矩阵

下载: 全尺寸图片幻灯片

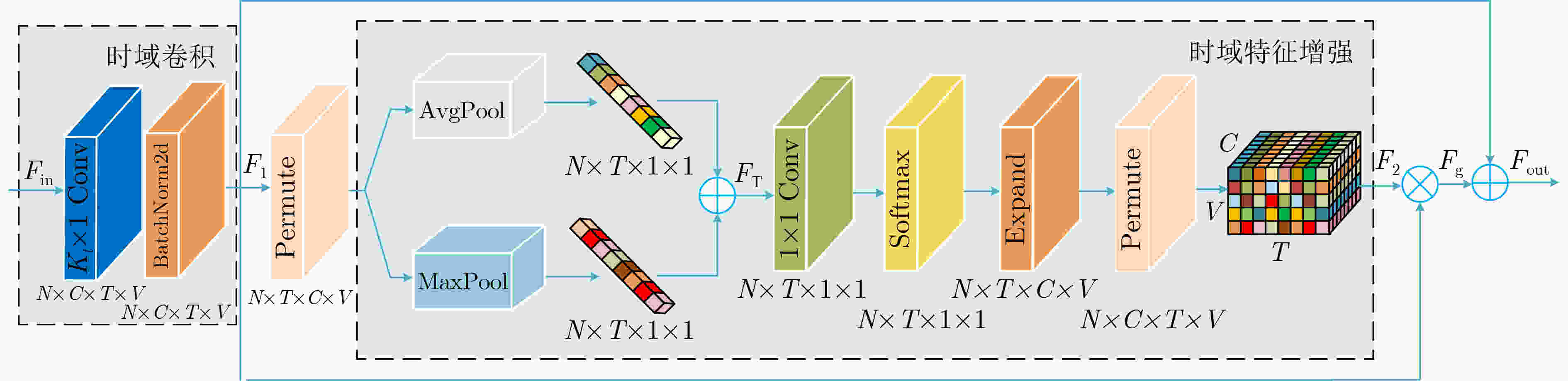

图 5 时域特征增强结构

下载: 全尺寸图片幻灯片

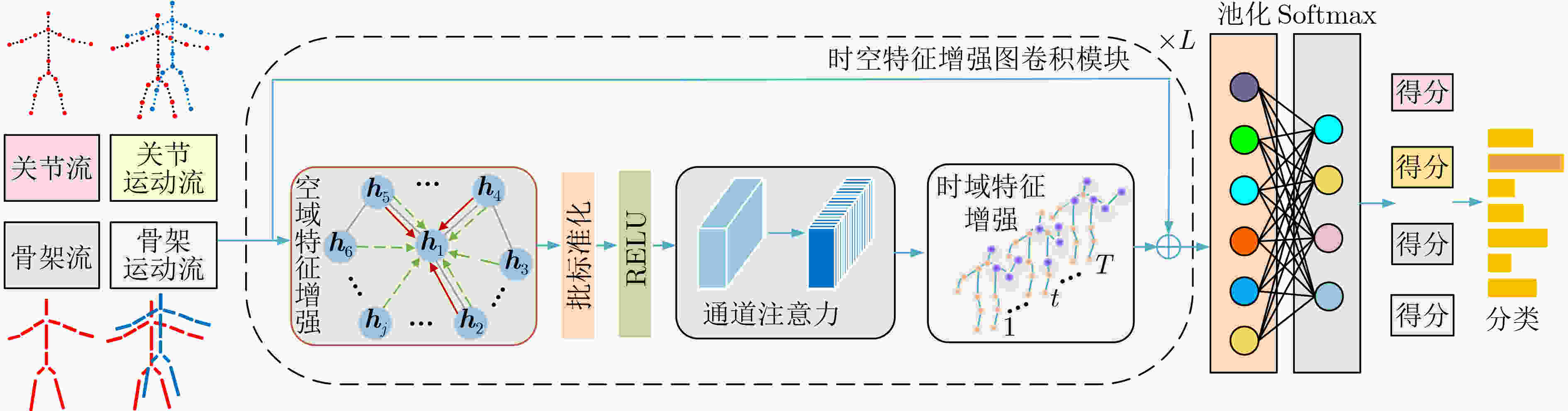

图 6 基于多流网络的时空特征增强图卷积网络模型

下载: 全尺寸图片幻灯片

表 1 STFE-GCN模型不同层数识别准确率对比(%)

	7层STFE-GCN	8层STFE-GCN	9层STFE-GCN	10层STFE-GCN	11层STFE-GCN
关节流	93.6	93.9	94.0	94.4	94.1
骨架流双流	93.2 95.1	93.6 95.3	93.9 95.4	94.3 95.6	93.9 95.4

下载: 导出CSV

表 2 时域不同卷积核大小的识别准确率对比(%)

	5×1	7×1	9×1	11×1	13×1
关节流	94.5	94.3	94.4	94.0	93.8
骨架流双流	93.4 95.4	93.9 95.4	94.3 95.6	94.1 95.4	93.7 95.3

下载: 导出CSV

表 3 NTU-RGB+D数据集X-View下消融实验的识别准确率(%)

模型	关节流	骨架流	双流
2s-AGCN	93.7	93.2	95.1
2s-AGCN+图注意力机制	94.1	93.4	95.3
2s-AGCN+混合池化	94.0	93.6	95.3
2s-AGCN+ECA-Net	94.0	94.1	95.4
STFE-GCN	94.4	94.3	95.6

下载: 导出CSV

表 4 NTU-RGB+D数据集上STFE-GCN模型各支流的识别准确率(%)

情景	关节流	骨架流	关节运动流	骨架运动流	双流	多流
X-View	94.4	94.3	92.8	93.0	95.6	96.0
X-Sub	87.7	87.4	85.7	85.6	89.3	89.8

下载: 导出CSV

表 5 NTU-RGB+D数据集上不同模型的识别准确率对比(%)

模型	X-View	X-Sub	模型	X-View	X-Sub
LAGA-Net^[4]	93.2	87.1	PGCN-TCA^[13]	93.6	88.0
DS-LSTM^[6] GAT^[8]	87.3 95.2	77.8 89.0	SS-GCN^[14] Co-ConvT^[15]	90.3 94.3	83.6 88.1
ST-GCN^[9]	88.3	81.5	SGN^[21]	94.5	89.0
2s-AGCN^[10]	95.1	88.5	ST-GDNs^[12]	95.9	89.7
ST-AGCN^[11]	94.3	88.2	STFE-GCN(多流)	96.0	89.8

下载: 导出CSV

表 6 NTU-RGB+D120数据集上不同模型的识别准确率对比(%)

模型	X-Sub	X-Setup	模型	X-Sub	X-Setup
FSNet^[22]	59.9	62.4	ST-GCN^[9]	72.4	71.3
AS-GCN^[23]	77.7	78.9	2s-AGCN^[10]	82.9	84.9
ST-TR^[7]	81.9	84.1	SGN^[21]	79.2	81.5
GAT^[8]	84.0	86.1	STFE-GCN(骨架流)	81.2	83.7
LAGA-Net^[4]	81.0	82.2	STFE-GCN(双流)	83.1	85.5
ST-GDNs^[12]	80.8	82.3	STFE-GCN(多流)	84.1	86.3

下载: 导出CSV
