Development and Analysis of a half-space Scanning Beam for Planar Arrays Based on tri-polarized Elements
-

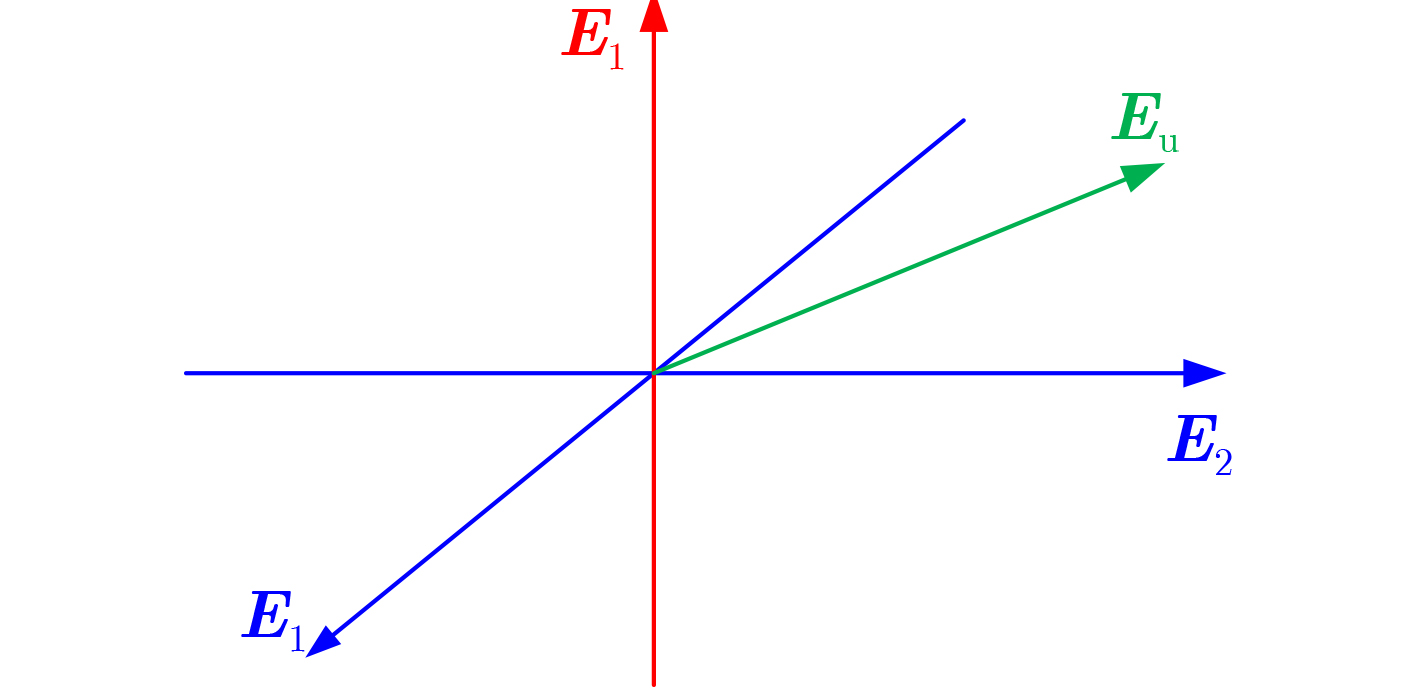

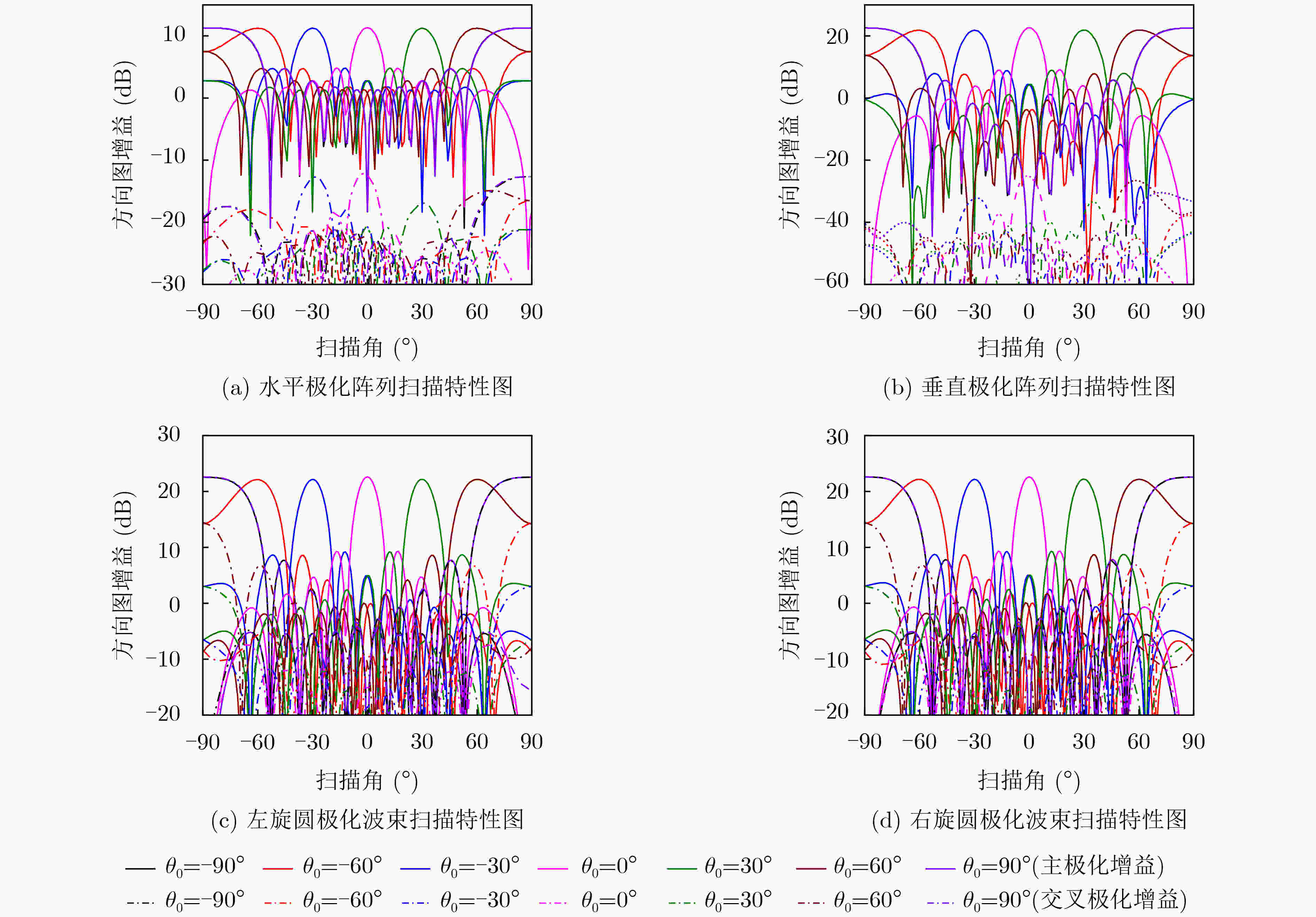

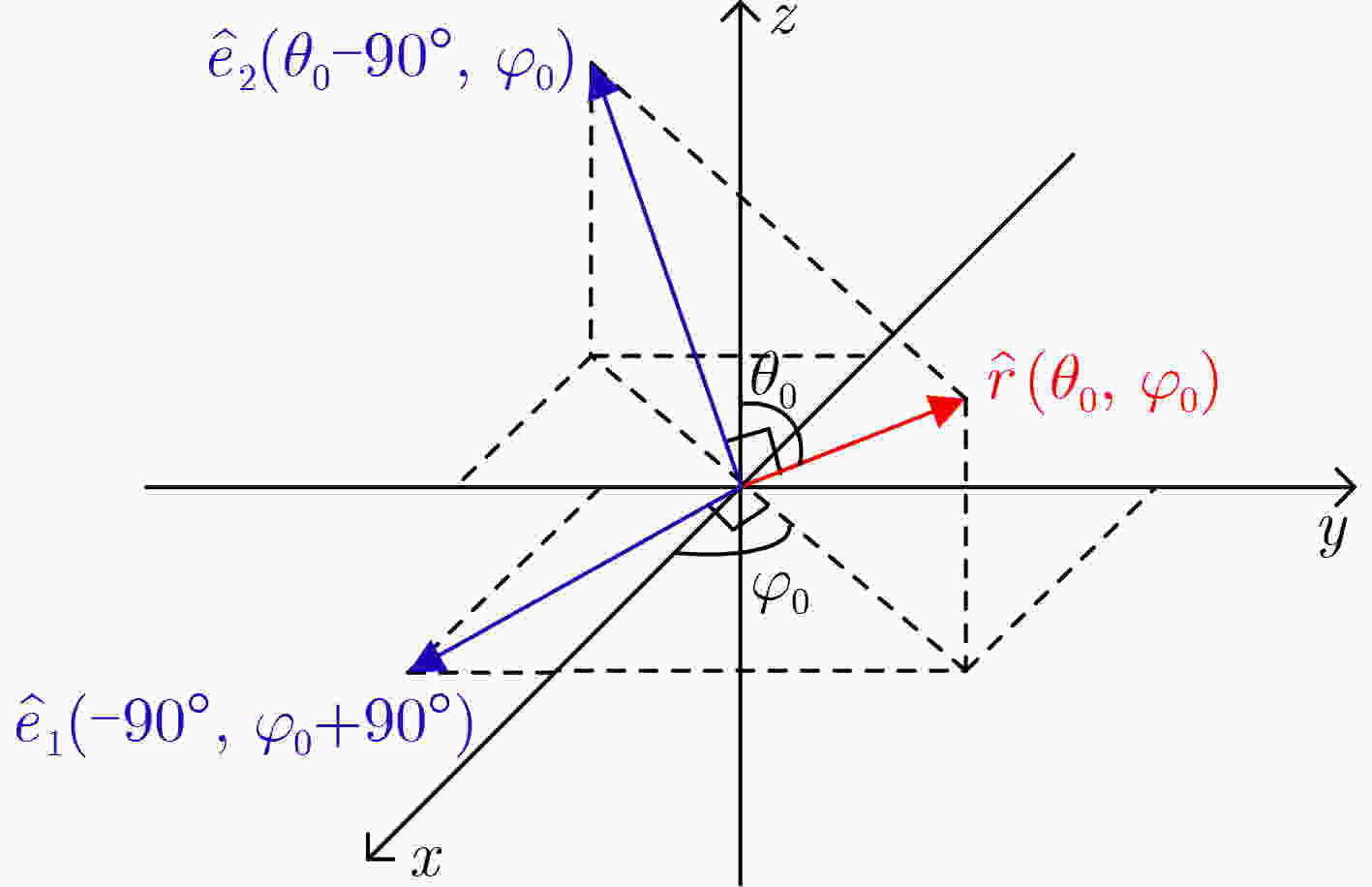

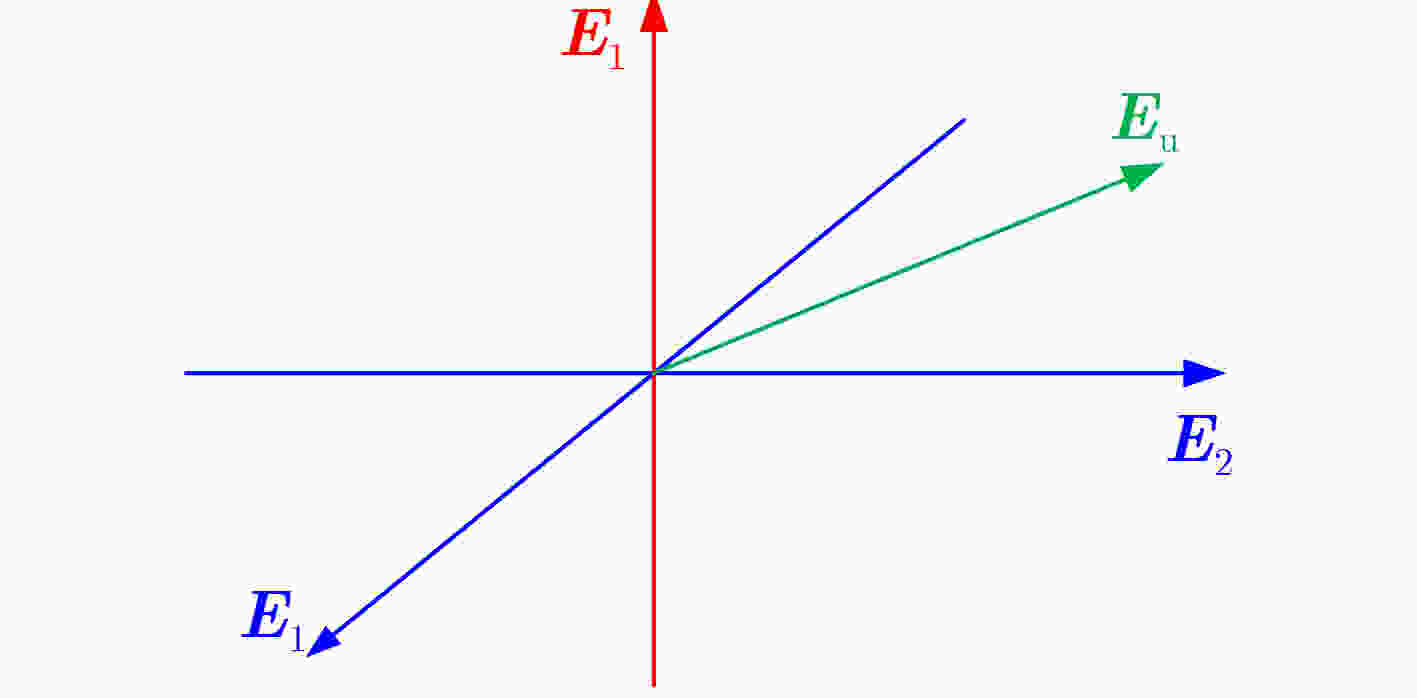

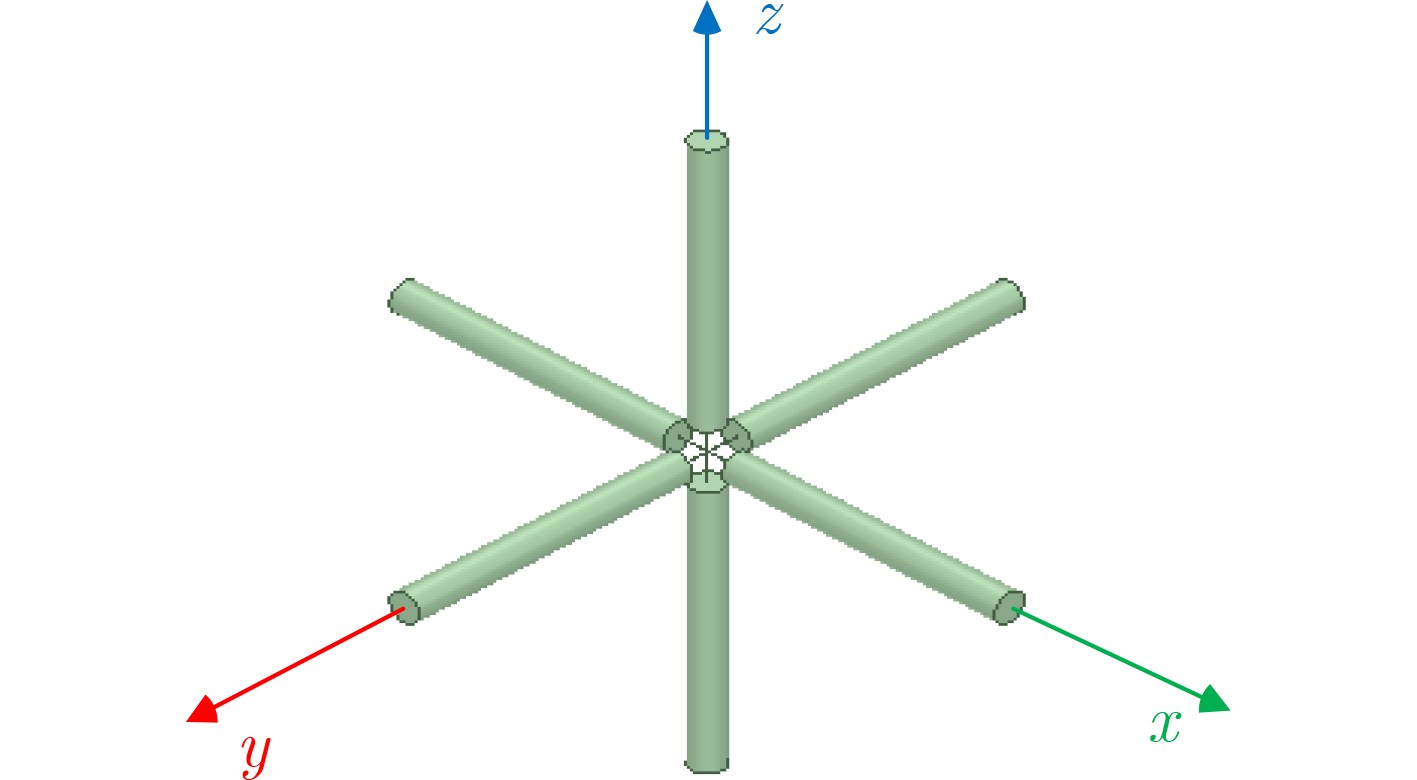

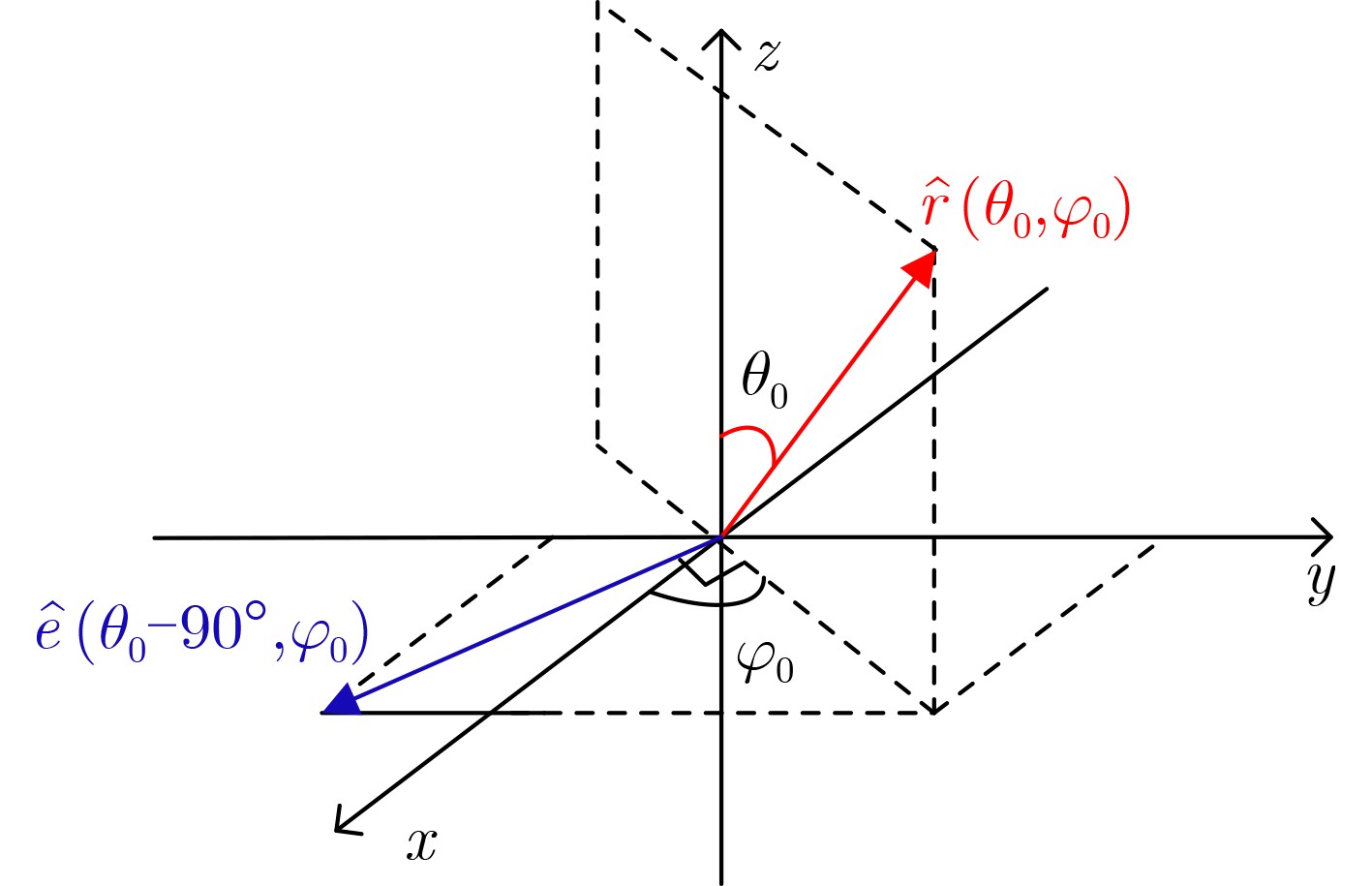

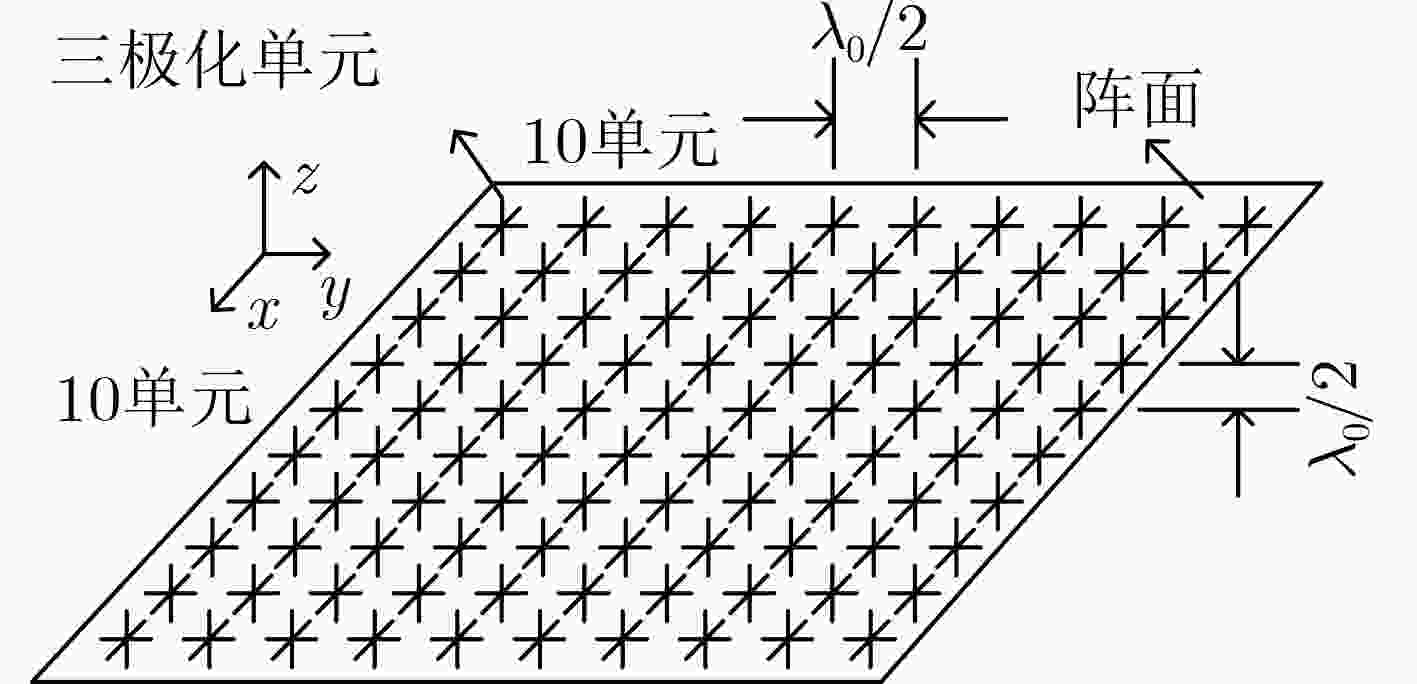

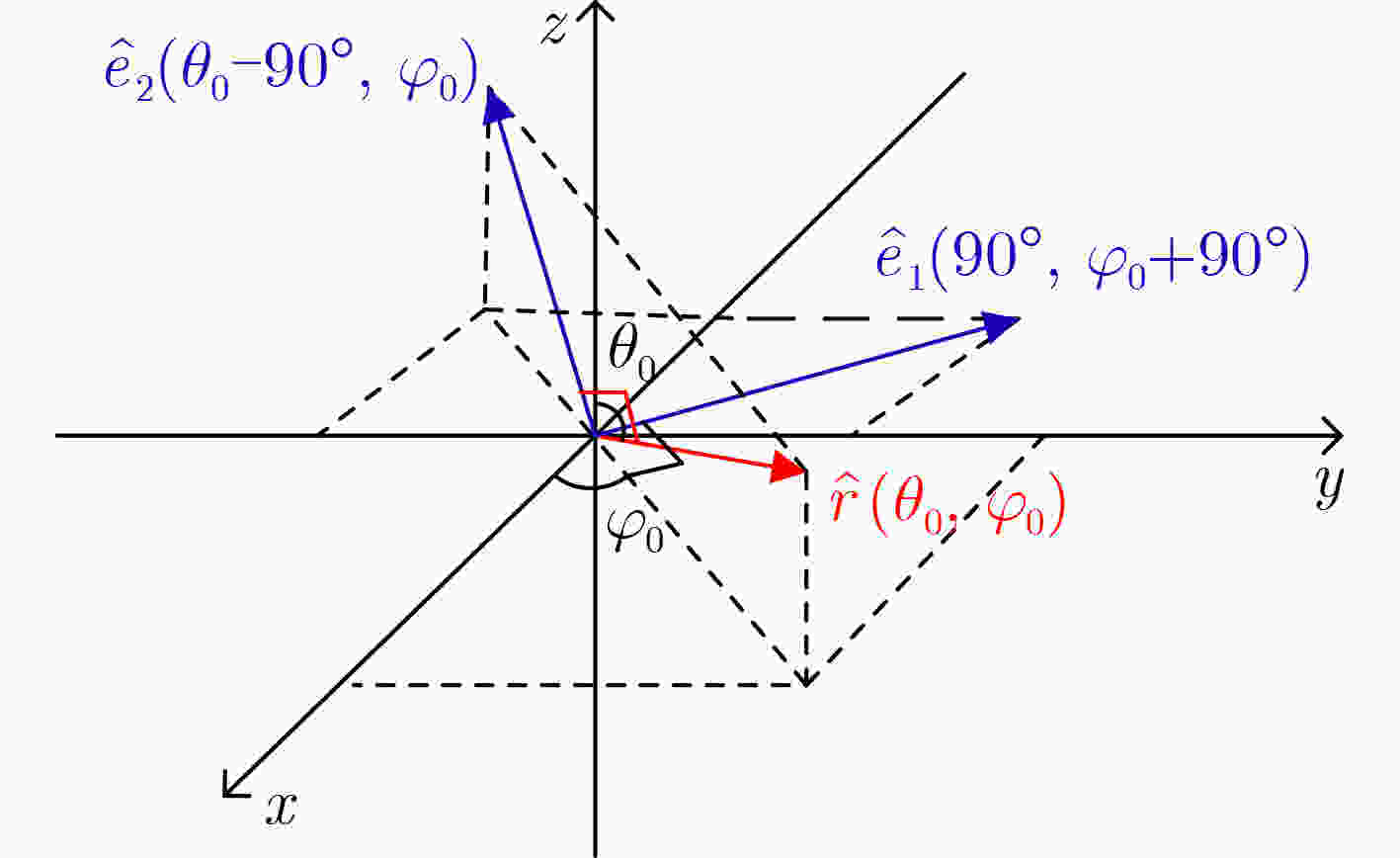

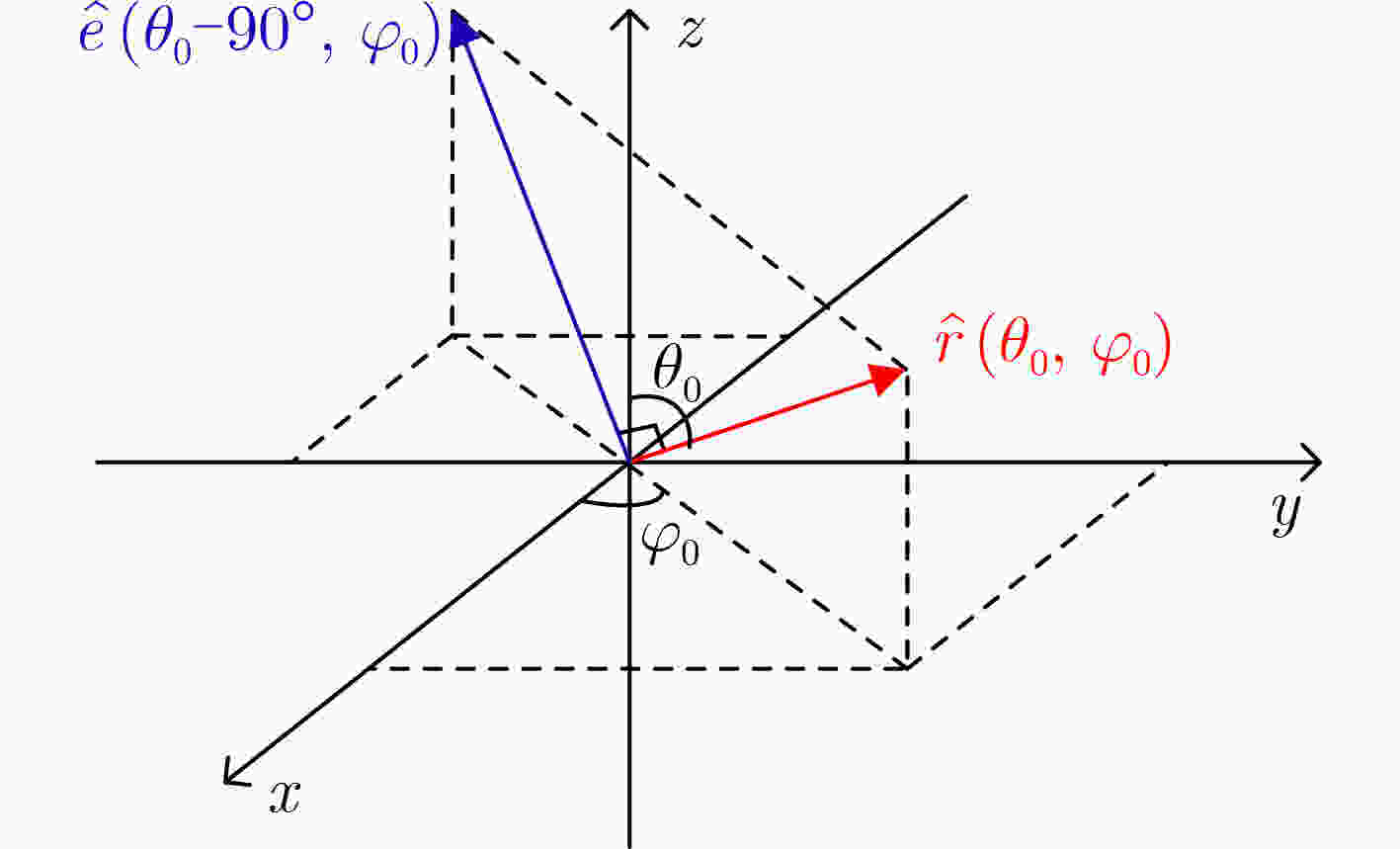

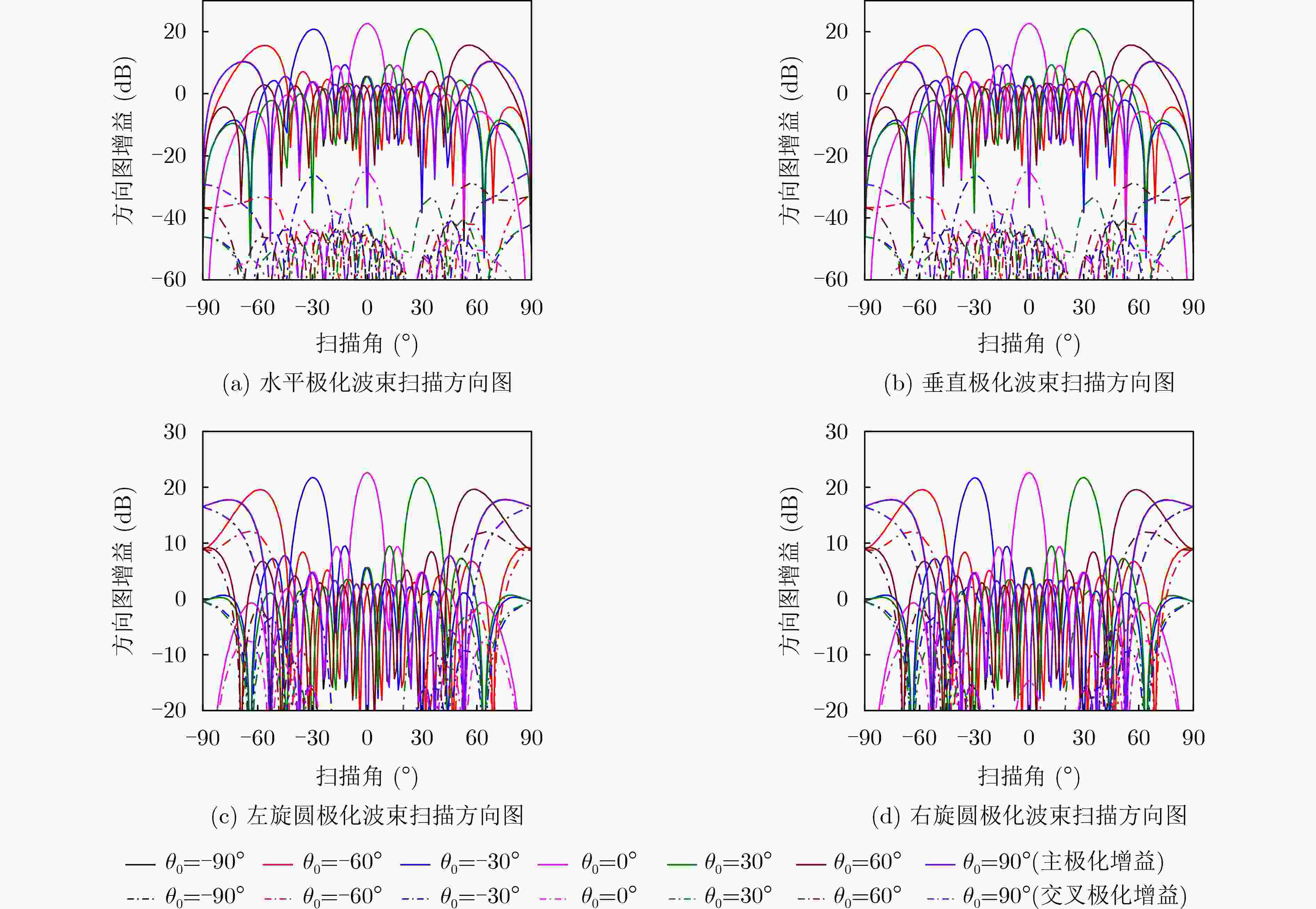

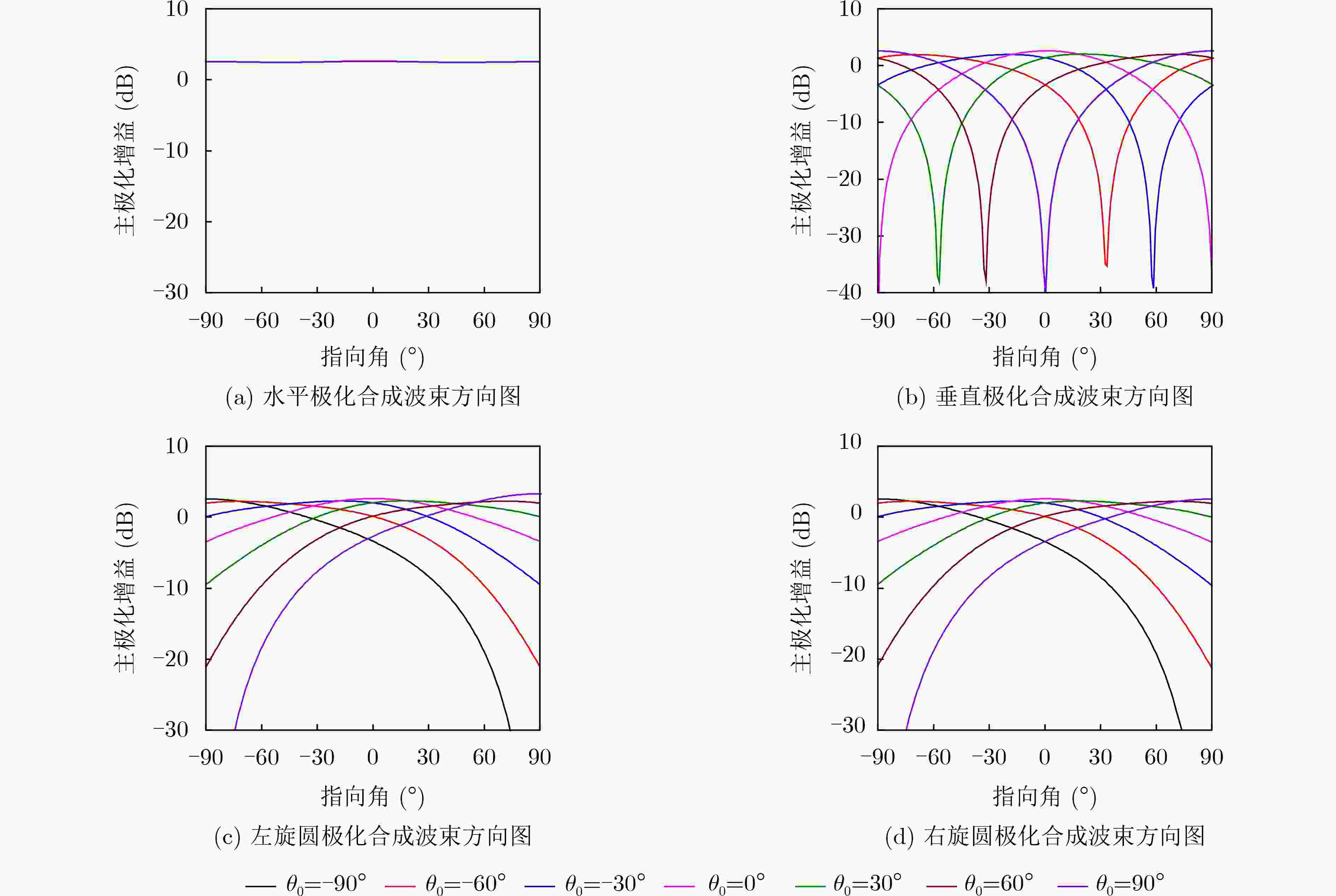

摘要: 为了实现三极化平面阵列的高性能宽角扫描，提出一种基于三极化单元的平面阵列半空间扫描波束形成方法，并对相控阵扫描特性进行了分析。首先，在假设单元3个极化特性一致的前提下，从期望的合成波束指向出发，将与之正交的极化电场单位矢量沿3个极化方向分解，从而获得3个极化电场分量的相位和幅度，再依据功率与极化电场幅度平方成正比的关系，推导获得4种极化形式下极化合成所需的激励表达式，并通过仿真验证了该激励表达式的正确性。接着采用经典的阵因子控制方法，改变阵元相位差，使阵因子扫描角与单元波束指向一致，从而形成半空间任意方向扫描的阵列波束。最后，在不考虑阵元间互耦的情况下，对4种极化形式下的阵列扫描特性进行仿真分析与对比，结果表明，该阵列具有优越的半空间扫描特性，验证了该波束形成方法的有效性。Abstract: To achieve high performance beam scanning of tri-polarized planar arrays over a wide angle range, this study presents a tri-polarized element-based method that forms a half-space scanning beam of planar arrays . Moreover, the beam scanning characteristics of the phased array are also analyzed and presented. Considering that the characteristics of the three polarizations of the element are consistent, starting from the required direction of the synthetic beam of the element, the unit vector of the synthesis electric field orthogonal to the beam direction is decomposed along the three orthogonal polarization directions to obtain the phase and amplitude of the three polarization electric field components. Subsequently, according to the proportional relationship between the power and square of the polarization electric field amplitude, the excitation expressions required for polarization synthesis in four polarization forms are derived, and their accuracies are verified through simulation. The classical method that controls the array factor is used. Furthermore, by changing the phase difference between the array elements, the scanning angle of the array factor is adjusted to be consistent with the beam direction of the antenna element, forming the half-space array scanning beams in any direction. Finally, the scanning characteristics of the array under four polarization forms are simulated and without considering the mutual coupling between the array elements. The results reveal that the array has excellent half-space scanning characteristics, verifying the effectiveness of the beamforming method.
-
Key words:
- Tri-polarization /
- Phased array /
- Polarization synthesis /
- Half-space beam scanning /
- Beam synthesis
-
表 1 线极化下阵列扫描特性对比
面阵扫描
特性扫描
范围(°)增益波动
(dB)副瓣电平
(dB)交叉极化隔
离度(dB)双极化 –40～40 <3 <–4.9 >5.64 三极化 –90～90 <0.8 <–12.9 >47.7
下载: 导出CSV
表 2 圆极化下阵列扫描特性对比
面阵扫描
特性扫描范围
(°)增益波动
(dB)副瓣电平
(dB)交叉极化隔离度
(dB)双极化 –60～60 <3 <–8.8 >0 三极化 –90～90 <0.5 <–12.9 >28.5
下载: 导出CSV
-
[1] WEN Yaqing, WANG Bingzhong, and DING Xiao. A wide-angle scanning and low sidelobe level microstrip phased array based on genetic algorithm optimization[J]. IEEE Transactions on Antennas and Propagation, 2016, 64(2): 805–810. doi: 10.1109/TAP.2015.2507173 [2] LI Mei, XIAO Shaoqiu, and WANG Bingzhong. Investigation of using high impedance surfaces for wide-angle scanning arrays[J]. IEEE Transactions on Antennas and Propagation, 2015, 63(7): 2895–2901. doi: 10.1109/TAP.2015.2421936 [3] WANG Ren, WANG Bingzhong, DING Xiao, et al. Planar phased array with wide-angle scanning performance based on image theory[J]. IEEE Transactions on Antennas and Propagation, 2015, 63(9): 3908–3917. doi: 10.1109/TAP.2015.2446999 [4] YANG Guangwei, LI Jianying, WEI Dujuan, et al. Study on wide-angle scanning linear phased array antenna[J]. IEEE Transactions on Antennas and Propagation, 2018, 66(1): 450–455. doi: 10.1109/TAP.2017.2761999 [5] BAI Yanying, XIAO Shaoqiu, LIU Changrong, et al. Design of pattern reconfigurable antennas based on a two—element dipole array model[J]. IEEE Transactions on Antennas and Propagation, 2013, 61(9): 4867–4871. doi: 10.1109/TAP.2013.2270175 [6] ROW J S and KUO Likai. Pattern-reconfigurable array based on a circularly polarized antenna with broadband operation and high front-to-back ratio[J]. IEEE Transactions on Antennas and Propagation, 2020, 68(5): 4109–4113. doi: 10.1109/TAP.2019.2948679 [7] CHEN Zhijiao, SONG Zeyu, LIU Haiwen, et al. A compact phase-controlled pattern-reconfigurable dielectric resonator antenna for passive wide-angle beam scanning[J]. IEEE Transactions on Antennas and Propagation, 2021, 69(5): 2981–2986. doi: 10.1109/TAP.2020.3030549 [8] 张凡. 锥台共形阵天线与特定用途天线研究[D]. [博士论文], 西安电子科技大学, 2011.ZHANG Fan. On the conical conformal arrays and antennas used in special fields[D]. [Ph. D. dissertation], Xidian University, 2011. [9] 夏雨龙. 弹载共形可全空域扫描无源相控阵研究[D]. [博士论文], 中国科学技术大学, 2017.XIA Yulong. Research on missile-borne full solid angle scanning cylindrical-and-conical passive phased array antenna[D]. [Ph. D. dissertation], University of Science and Technology of China, 2017. [10] 张宙, 韩国栋. 基于自适应极化合成的球面共形相控阵波束合成算法[J]. 现代雷达, 2020, 42(8): 50–55. doi: 10.16592/j.cnki.1004-7859.2020.08.010ZHANG Zhou and HAN Guodong. Beam forming algorithm of spherical conformal phased array based on self-adaptive polarization synthesis[J]. Modern Radar, 2020, 42(8): 50–55. doi: 10.16592/j.cnki.1004-7859.2020.08.010 [11] OGURTSOV S and KOZIEL S. A conformal circularly polarized series-fed microstrip antenna array design[J]. IEEE Transactions on Antennas and Propagation, 2020, 68(2): 873–881. doi: 10.1109/TAP.2019.2943326 [12] PENG Junjie, QU Shiwei, XIA Mingyao, et al. Conformal phased array antenna for unmanned aerial vehicle with ±70° scanning range[J]. IEEE Transactions on Antennas and Propagation, 2021, 69(8): 4580–4587. doi: 10.1109/TAP.2021.3060125 [13] TONG K, TANG Hongjun, AL-ARMAGHANY A, et al. Low-profile orthogonally tripolarized antennas[J]. IEEE Antennas and Wireless Propagation Letters, 2013, 12: 876–879. doi: 10.1109/LAWP.2013.2271971 [14] TA S X, NGUYEN D M, NGUYEN K K, et al. A tripolarized antenna with ultrawide operational bandwidth[J]. IEEE Transactions on Antennas and Propagation, 2020, 68(6): 4386–4396. doi: 10.1109/TAP.2020.2972626 [15] PIAO Dazhi, WANG Meng, ZUO Jie, et al. Compact and low-coupled tripolarized microstrip MIMO antenna based on parasitic patch loading[J]. IEEE Transactions on Antennas and Propagation, 2021, 69(9): 5992–5997. doi: 10.1109/TAP.2021.3070008 [16] WANG Zhan, LIU Shuxuan, and DONG Yuandan. Low-profile metasurface-based antenna with tripolarization for 5G applications[J]. IEEE Transactions on Antennas and Propagation, 2021, 69(9): 5437–5445. doi: 10.1109/TAP.2021.3061013 [17] MAILLOUX R J. Phased Array Antenna Handbook[M]. 2nd ed. Boston: Artech House, 2005. -
图(10) / 表(2)
